SC-8108 Network Cable Tester, Multifunctional Tester of 5E 6E Cat5 Rj45 Ethernet LAN Phone Cable STP/ UTP Twin Twisted Cable/ Coaxial Wire , for Checking Error/ Length/ Distance of Open & Close Circuit/ Far-end Recognizer


Quantity
  OR


Model: SC-8108

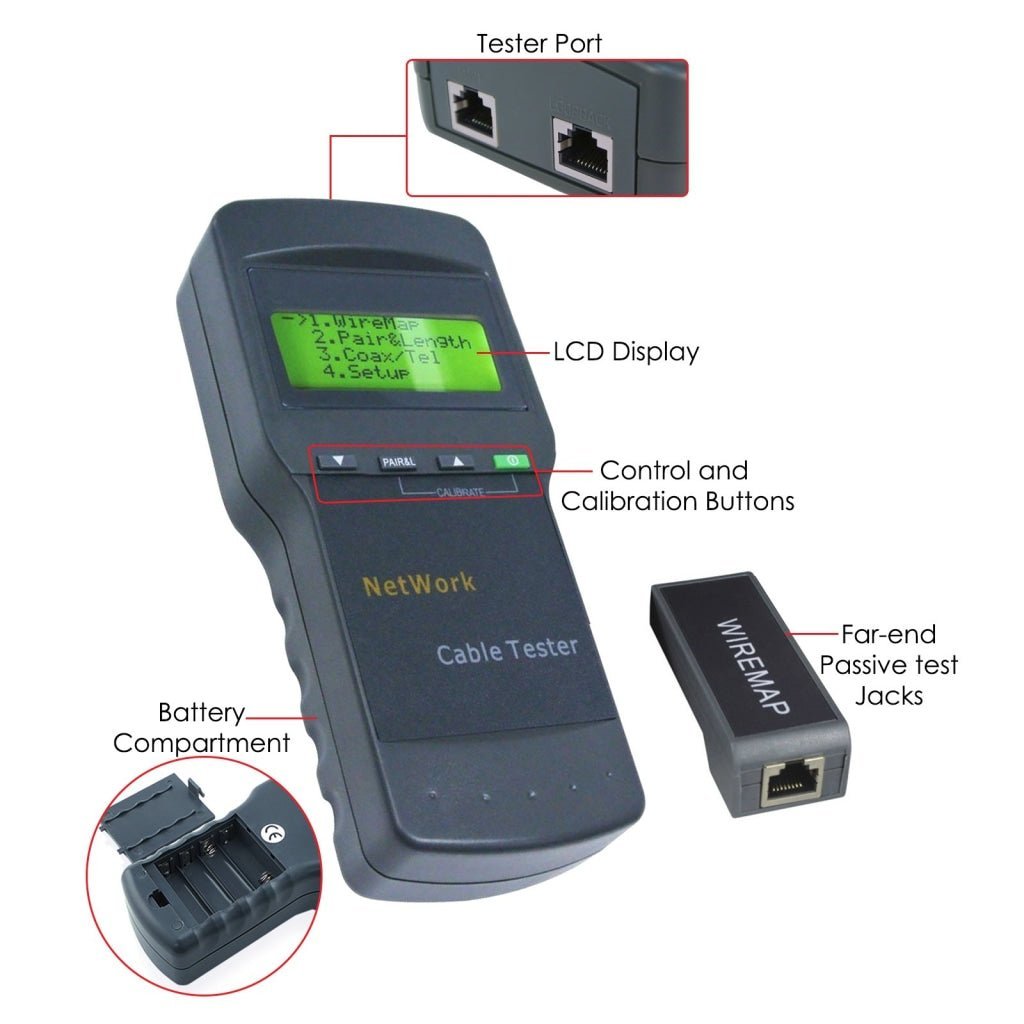

This network cable tester comes with the new functions. It is composed of a tester and remote identifiers.


Features

  • One person is enough to complete cable continuity check.
  • Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, and reverse connection.
  • Measure cable length and determine the distance short circuit for LAN cable
  • Simple and easy operation with big screen to display result.

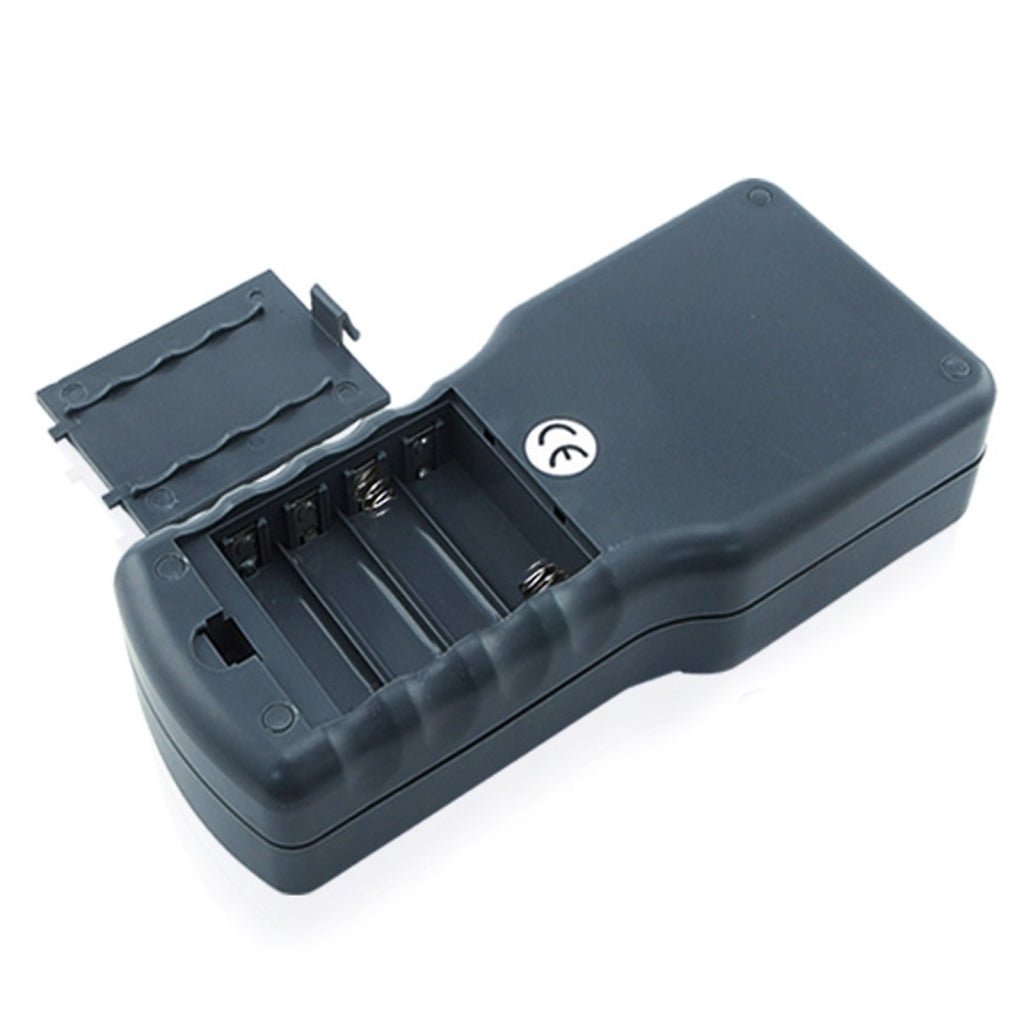

  • Portable unit with long battery life (wait-case 50 hours)
  • Automatically time-delay shut off
  • With far-end passive test jacks included in the set
  • Self-checking and automatically compensate any change in battery capacity or ambient temperature
  • Single board computer software watchdog design and reliable operation


Specifications

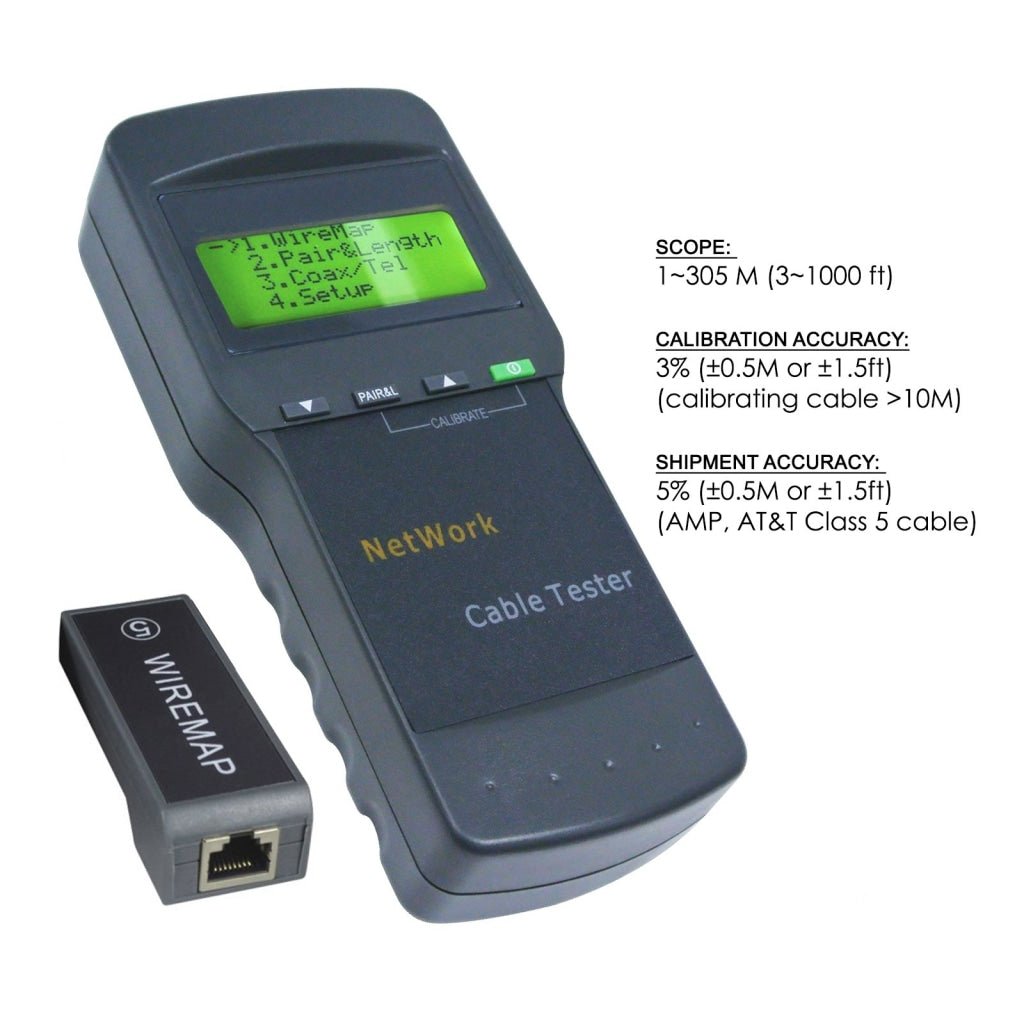

  • Scope : 1~305 M ( 3-100 ft)
  • Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable >10M)
  • Shipment Accuracy: 5% (±0.5M or ±1.5ft) (AMP, AT&T Class 5 cable)

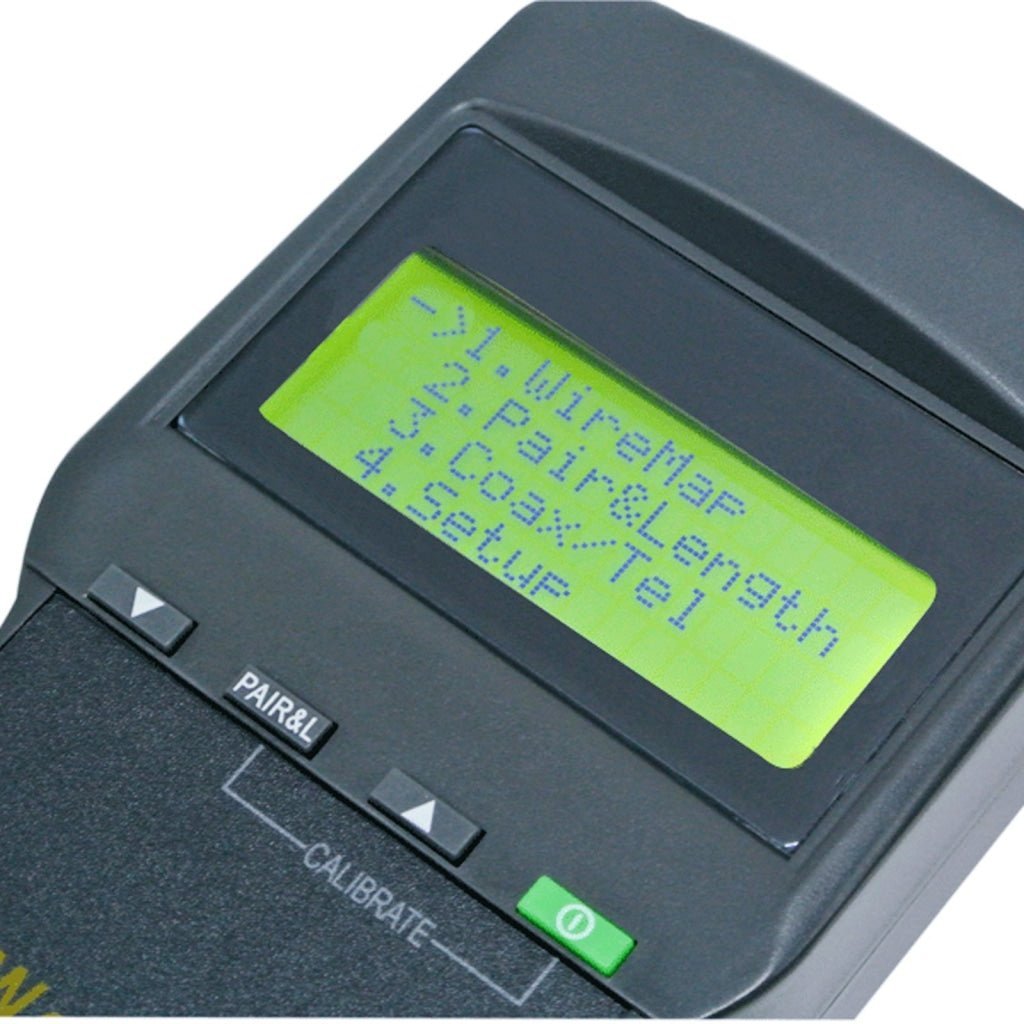

  • LCD : 4 x 16 characters big LCD screen
  • Unit of Measurement : Display in meter (M) or feet (FT)
  • Locating Cable: Included 1 far-end passive test jack
  • Type of cable tested: STP / UTP twin twisted cable, coaxial cable
  • Working Ambient Temperature : -10°C to 60°C
  • Automatic Time-delay Shut Off Time : The tester is idle for 30 minutes

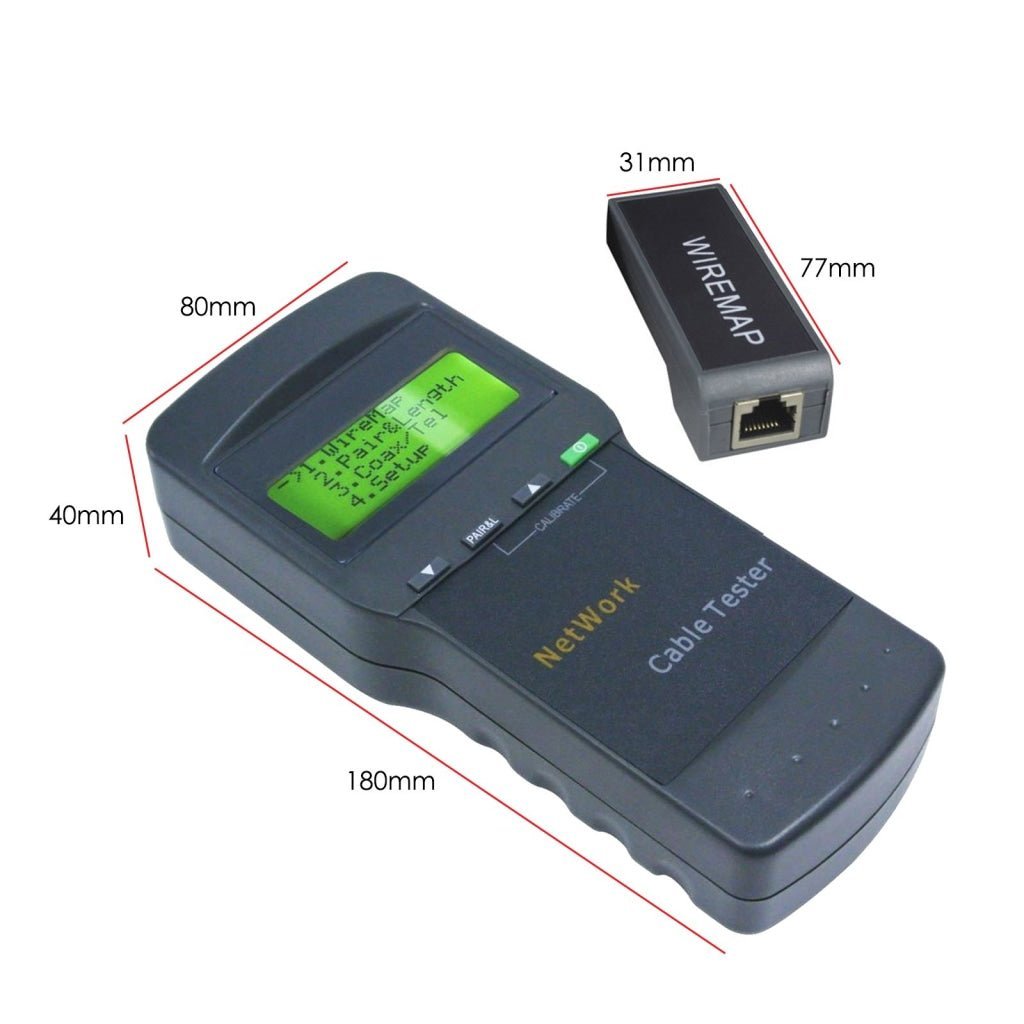

  • Overall Dimension
    • Main Tester: 180 x 80 x 40mm
    • Remoter identifier: 77 x 31 x 21mm

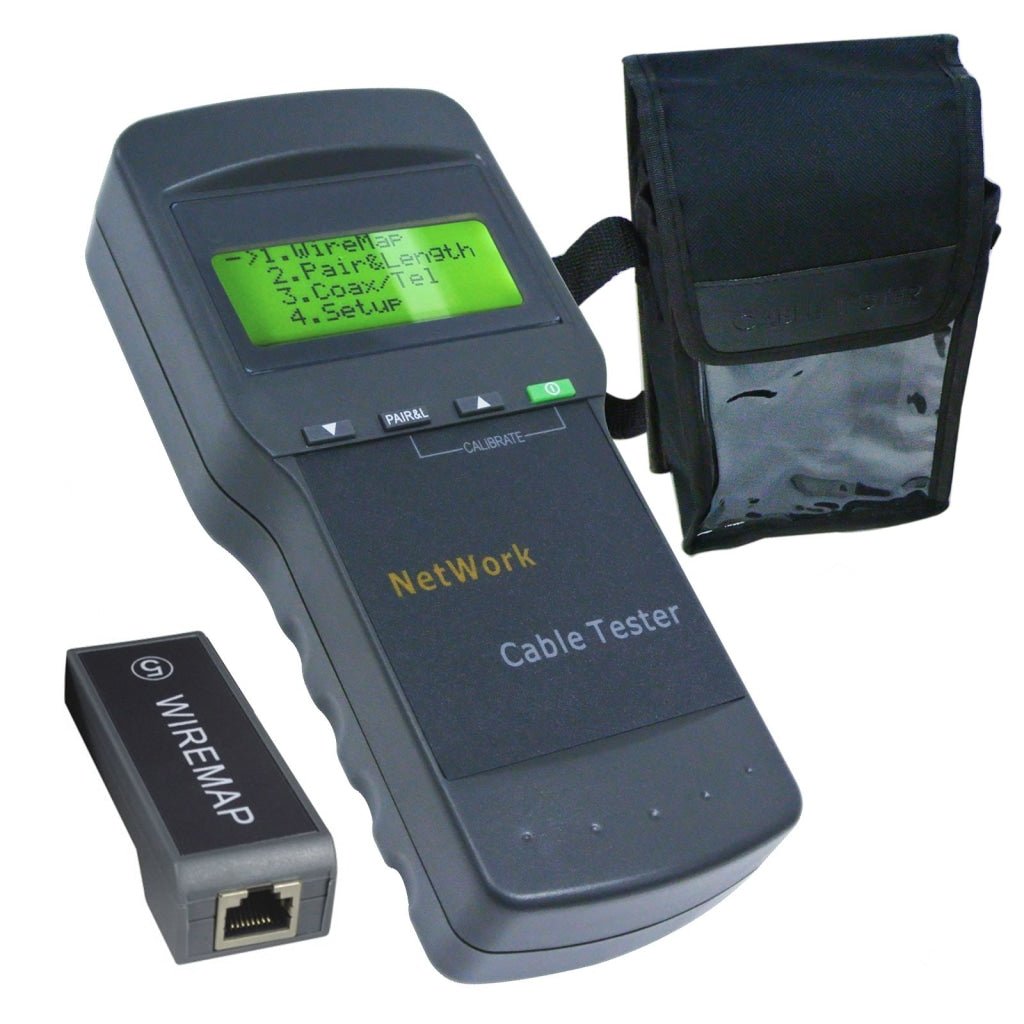

Set Includes
  • 1 x Network Cable Tester

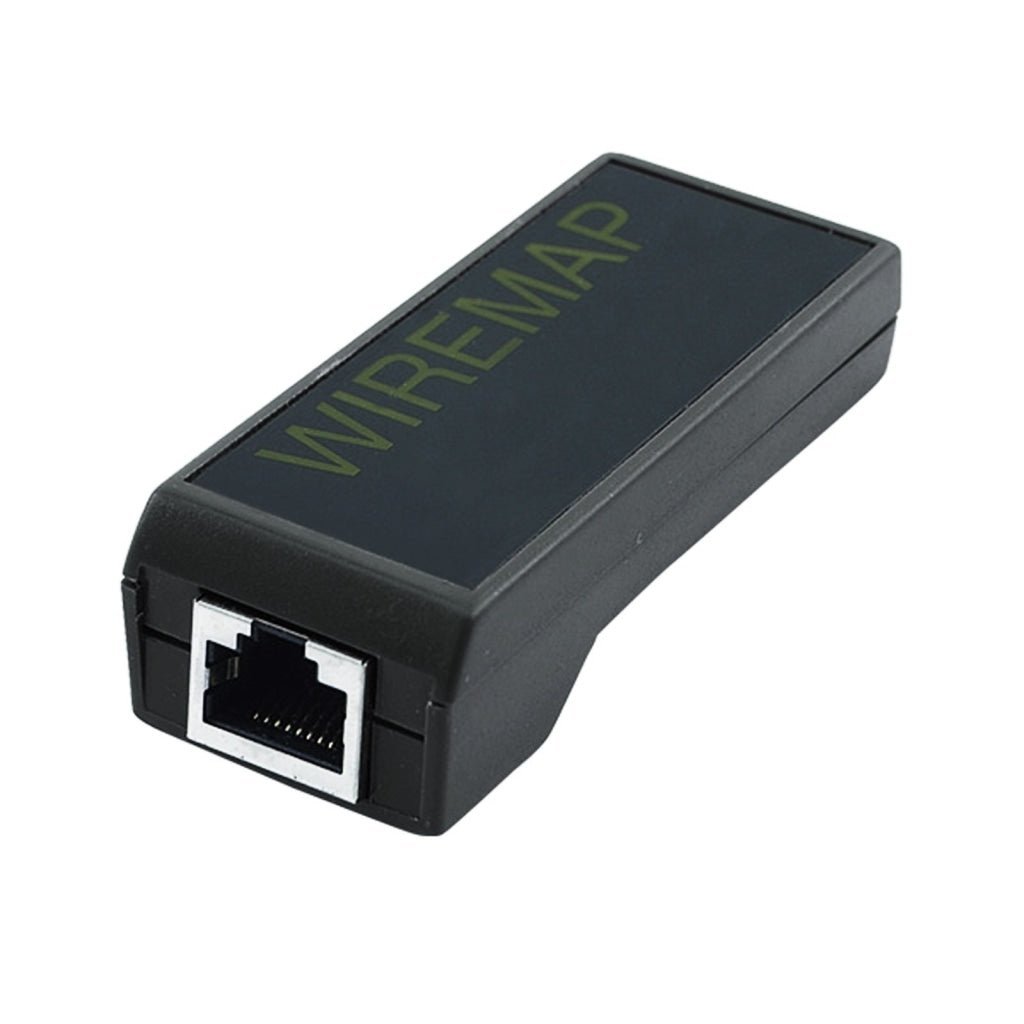

  • 1 x Far-End Test Jack (ID1)

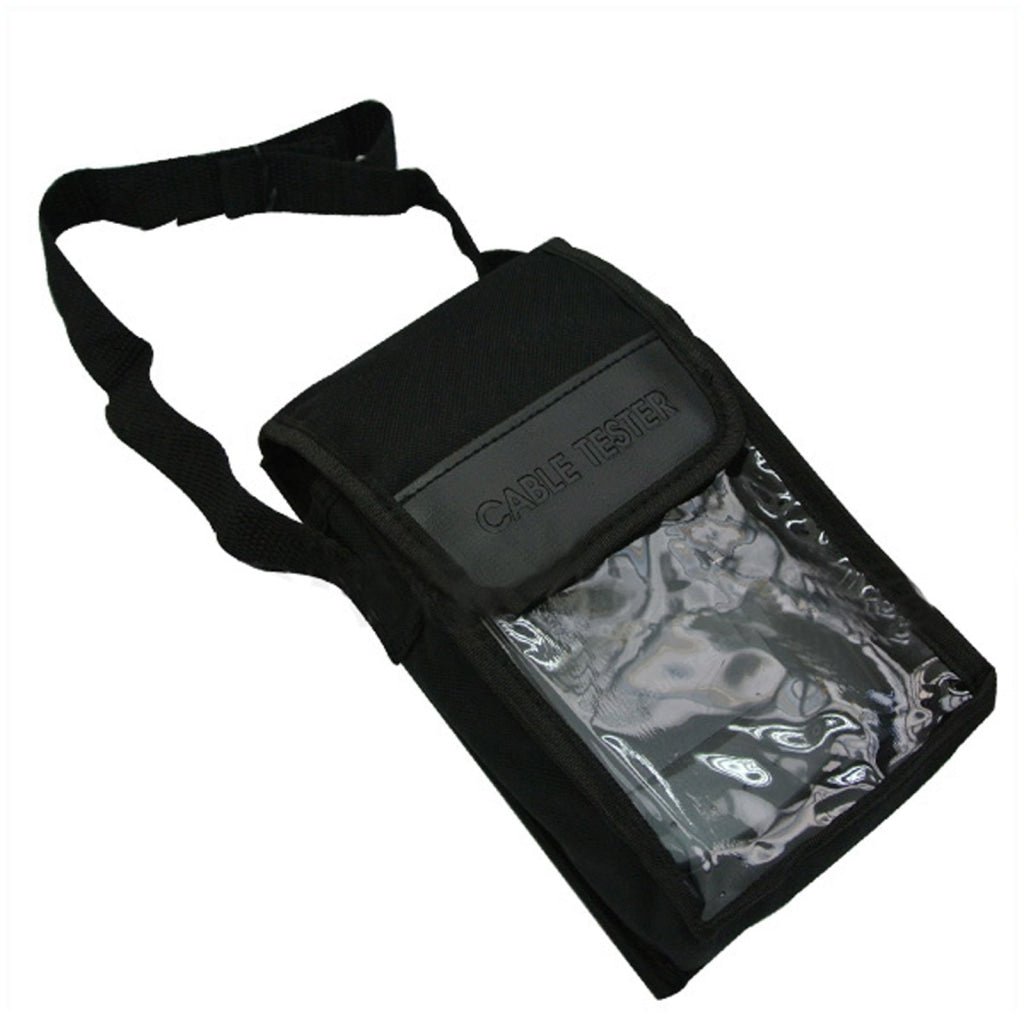

  • 1 x Soft Carrying Bag
  • English Instruction Manual
  • Standard Factory Package
