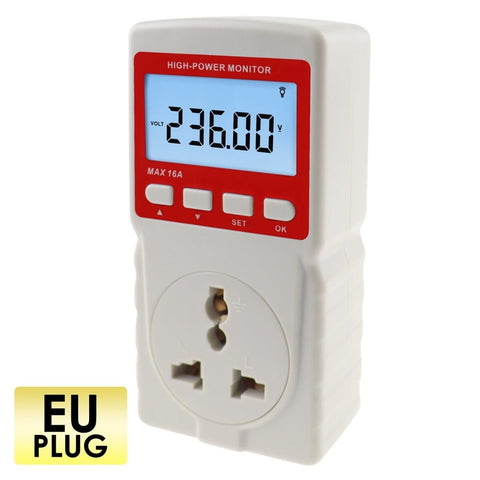

PCM-283 Digital Power Meter Electricity Usage Monitor Watt Voltage Tester Electrical High Power Consumption Monitoring Measuring Analyzer Socket Outlet

  • UP TO 0% OFF
  • Regular price

    $21.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation


This product adopts the microcomputer chip with high integration and specialized chip for energy metering, along with current sensor. It has large LCD display with backlight and high precision to achieve a comprehensive monitoring of electrical equipment.

Applications:

  • Used in monitoring air conditioners, refrigerators, microwave ovens and other appliance.
  • Can be used in schools, offices, laboratories, factories and even in the home.



Features:

  • BC17215-2003 Standard approval
  • Monitor the present active power
  • Monitor the present voltage, current and frequency
  • Record powering time
  • Record consumed power
  • Calculate the CO2 emission volume
  • Power factor pick-up
  • Overload alarm and threshold setting
  • Backlight function
  • Large LCD display


Specifications:

  • Power applied: 220V 50Hz Max 16A (Less than 3520W)
  • Precision: 1.0
  • Constant: 6400imp/kWh
  • Working voltage range: 50~260V
  • Maximum rated current: 16A
  • Maximum power: 3520W
  • Measurable range: 0.1~3520W
  • Power factor: 0.001~1.000
  • Power dissipation: <1W
  • Operating Temperature: 0~45°C
  • Storage Temperature: -20~60°C
  • Size: approx. 119.5 x 60 x 55.7mm
  • Weight: approx. 121.3gmx


Set Includes:

  • 1 x High Power Monitor
  • Standard Factory Packaging
