NF-1107 Network Cable Testing Diagnostic Tool Kit Set- Ethernet LAN Cable Tester Wire Tracker Voltage Detector Punch Tool RJ45 RJ11

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

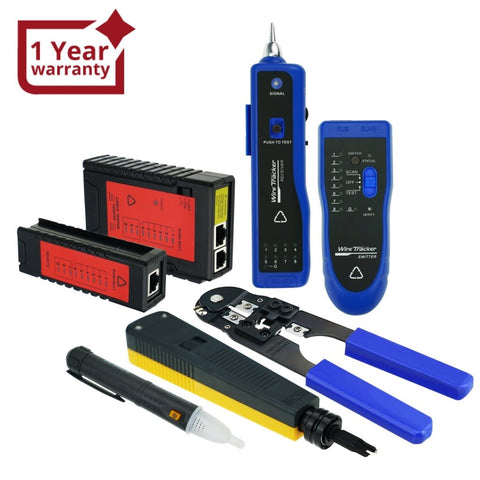

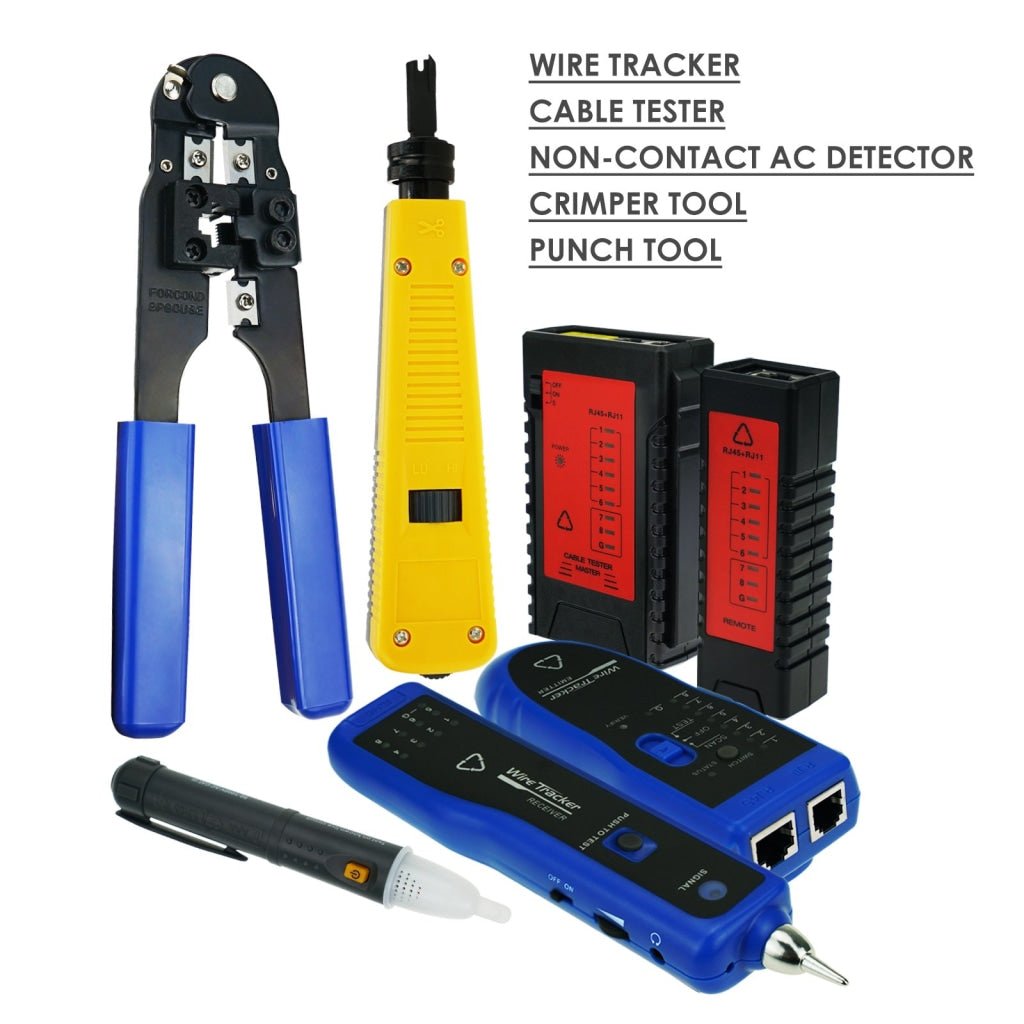

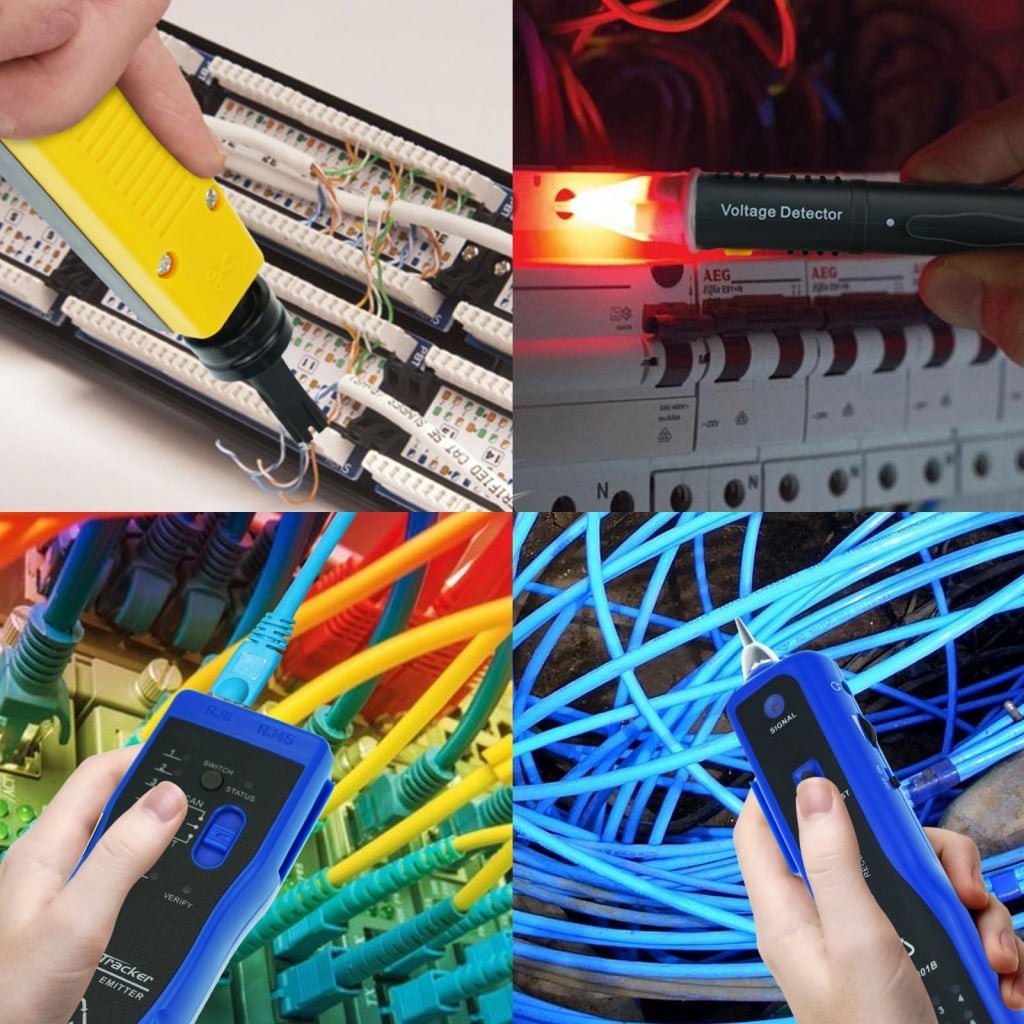

This Network toolkit can be widely used in the different situations, engineering, cable construction and etc. This kit set consists of wire tracker, network cable tester, non-contact AC voltage detector, punch tool and a crimping tool. With this toolkit in hand, your work will get much easier efficiently.


Specifications & Features:

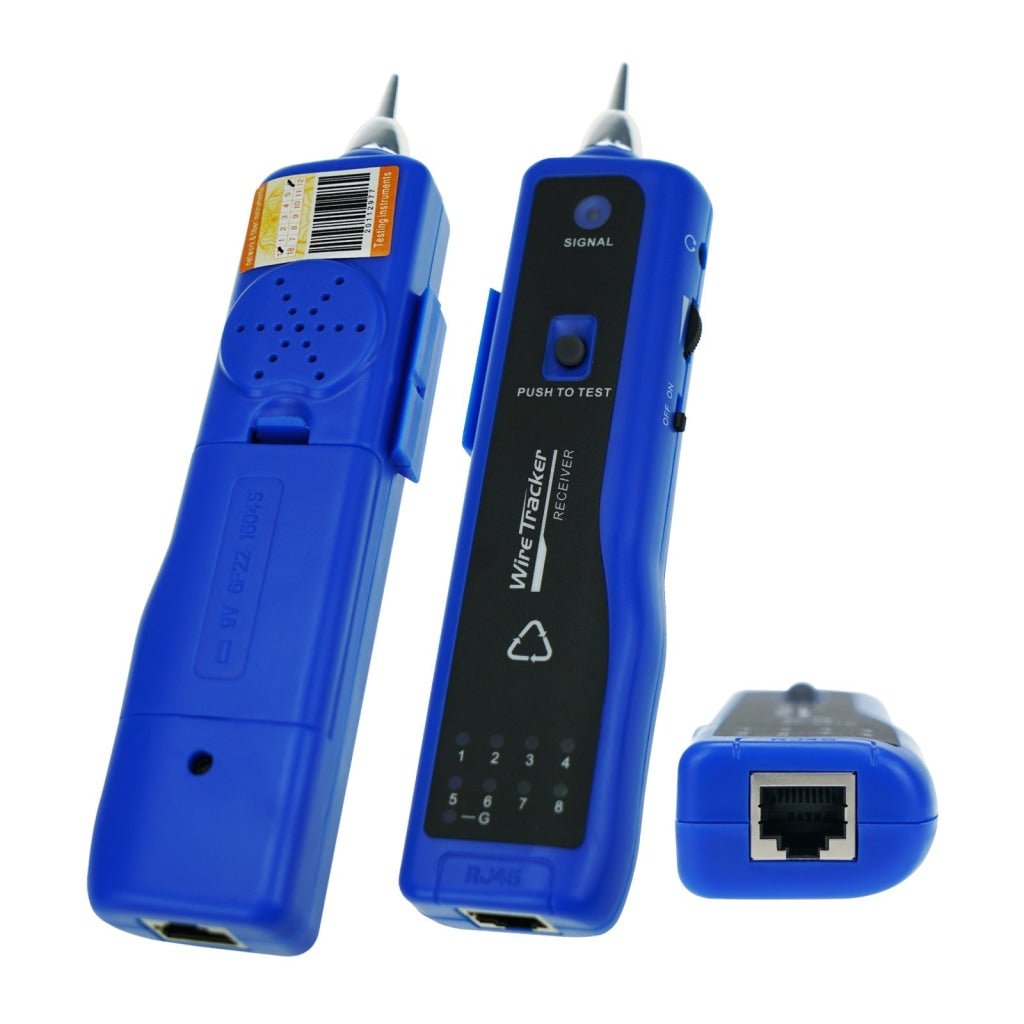

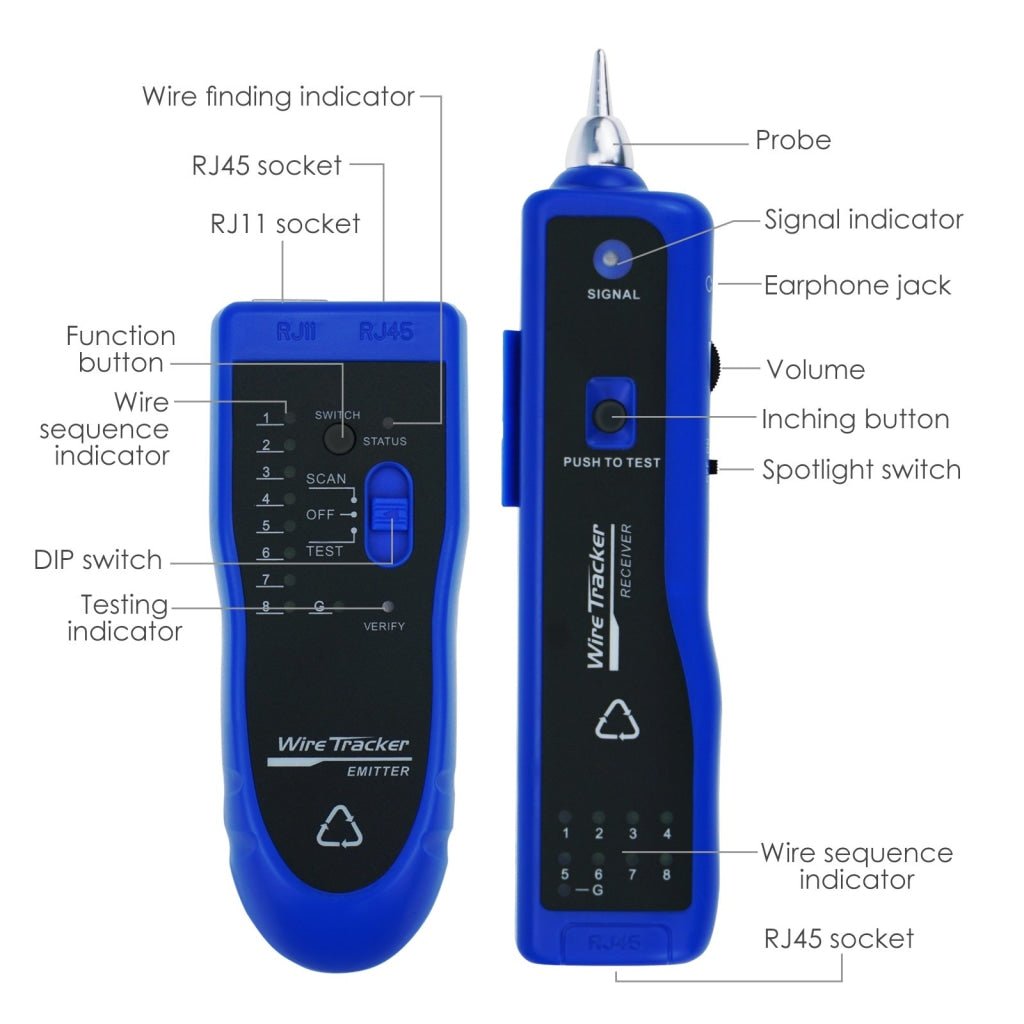

  • Wire Tracker function trace, locate and verify RJ11 and RJ45 cables & electric wire; judge short circuit, open circuit, breaking circuit and crossing; test DC level
  • Low voltage alarm indication
  • Power Supply: 9V battery
  • Max working current: 10mA(Emitter); 30mA(Receiver)
  • Distance of signal transmission: 2000m
  • Signal output electric status: 8Vp-p
  • Signal transmission format: Multi-frequency impulse
  • Frequency: 900-1000Hz

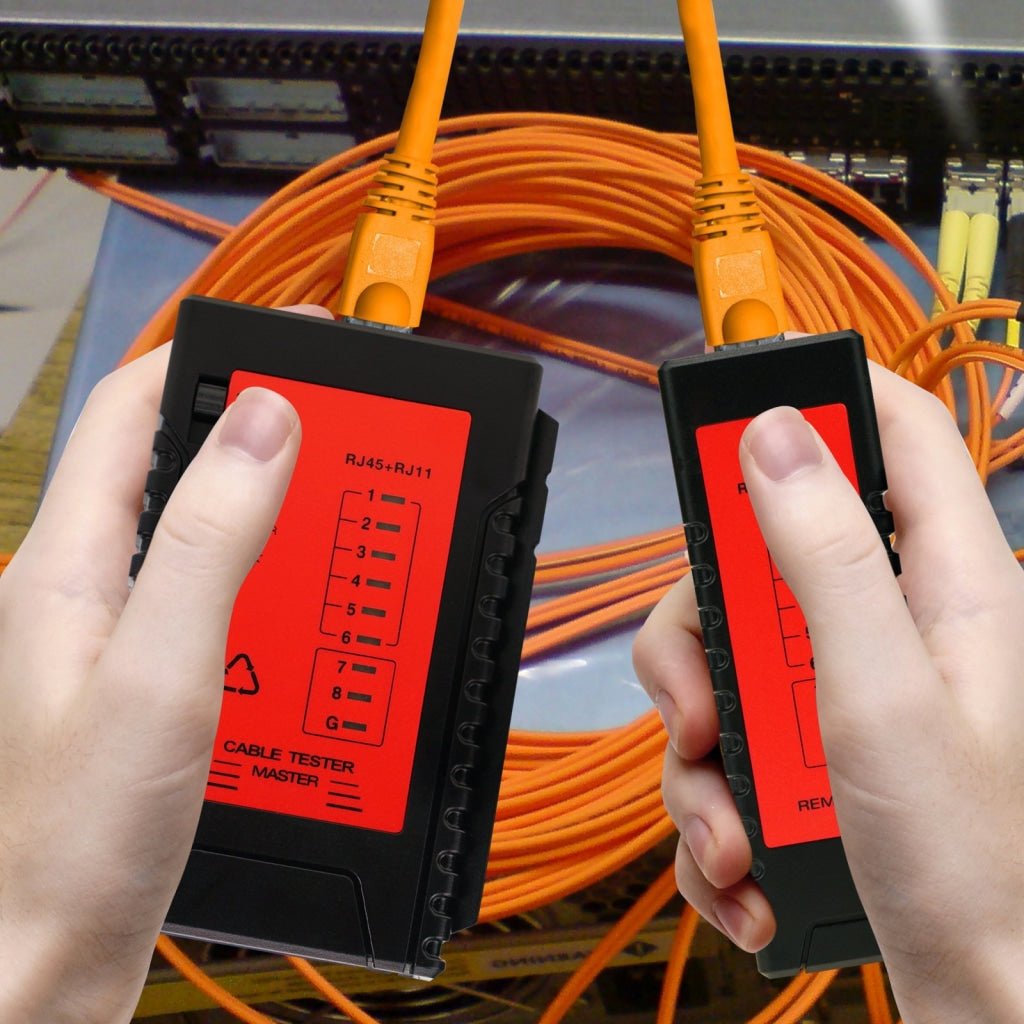

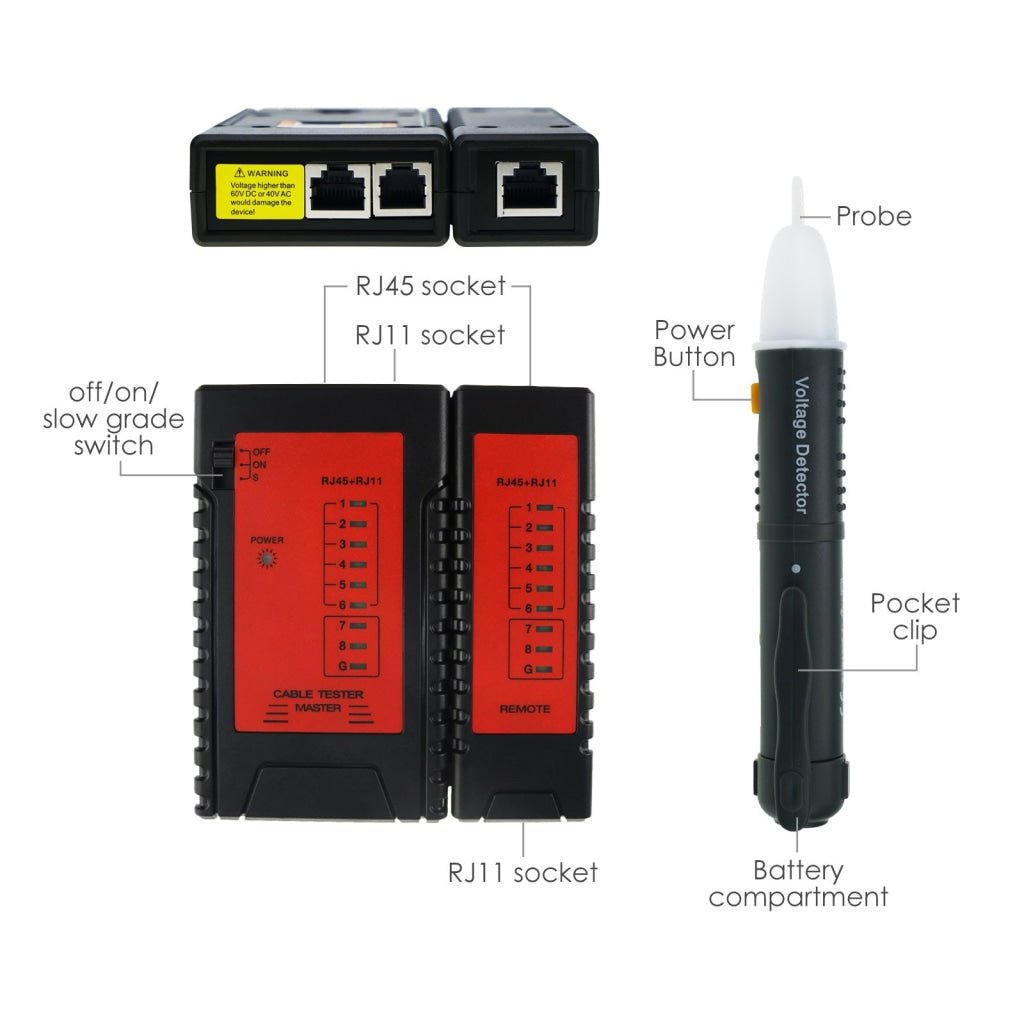

  • Network Cable Tester used for verifying RJ11/RJ45 cables status and test corresponding double-twisted cable 1,2,3,4,5,6,7,8 and G; judge wrong connection, short circuit and open circuit. Displays visible LED status and 9V battery power supply.
  • Non-contact Voltage Detector used to identify hot and neutral conductors, find a break in a wire and detect the AC voltage, test live wire and with a flash indication. It has LED and Tone. indicator and voltage range of 50-1000V AC. Its frequency range is 50-500Hz with measurement category of 1v, 1000v per ul 61010 and 2 pieces AAA batteries power supply

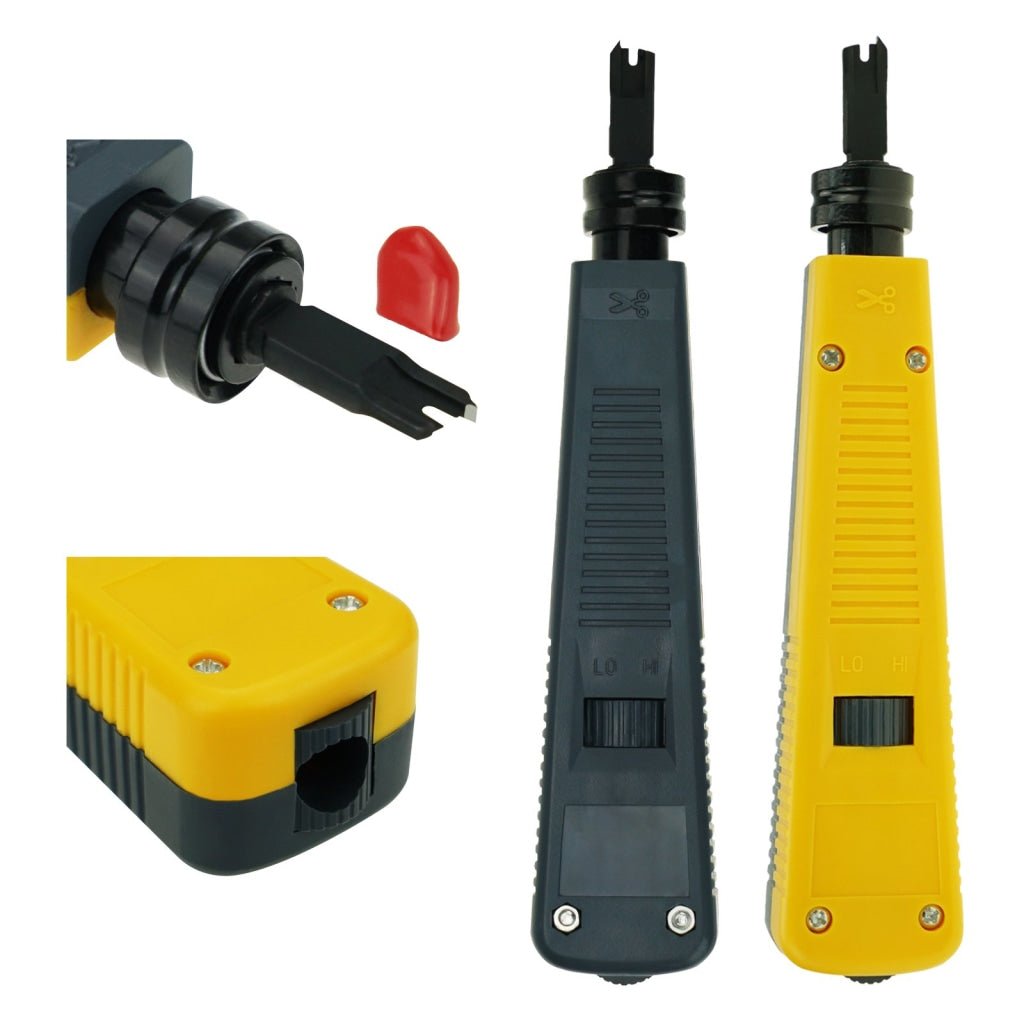

  • Punch Tool cuts the not needed cable with the blade and steady function

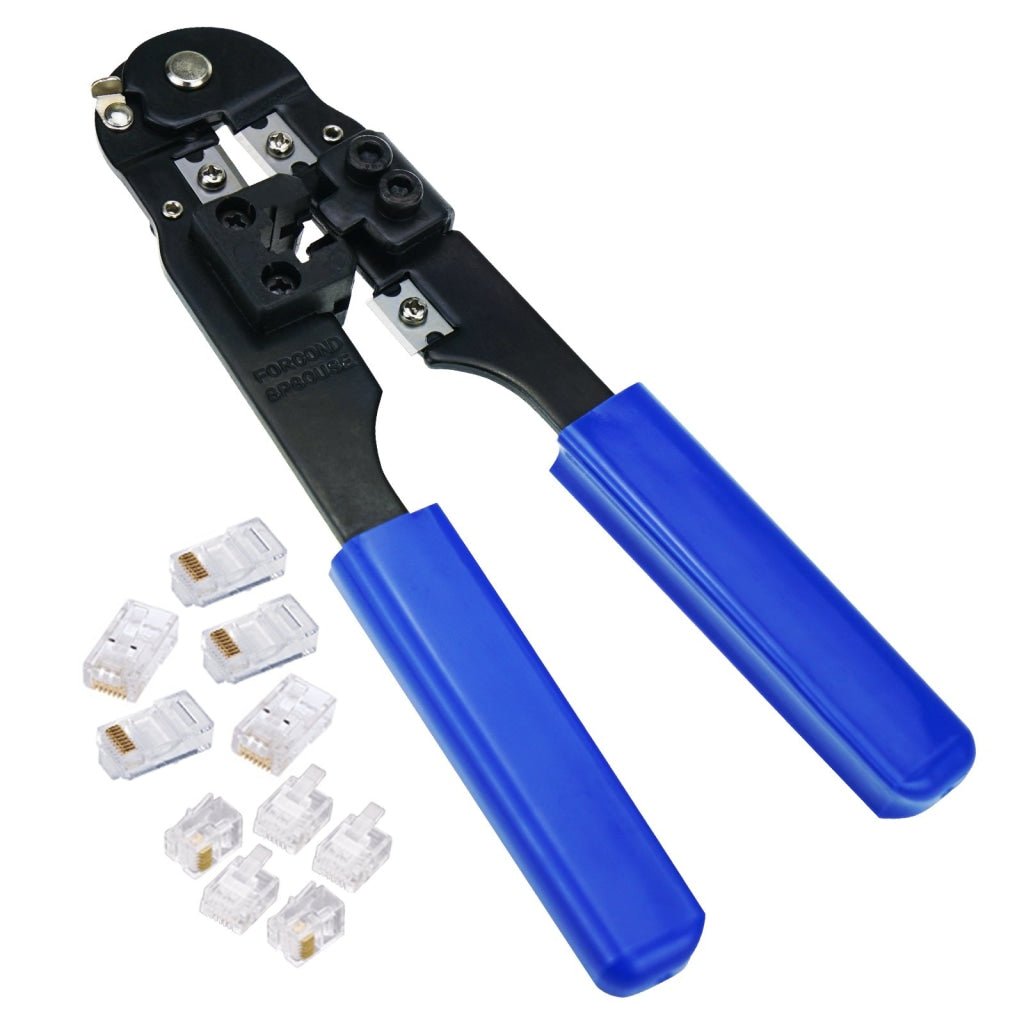

  • Crimping Tool Combo: 8P8c and 6P6C cable crimper. won't damage the shelled-wire. crimper mouth is hard and durable. just insert the crystal top into its position and press it.

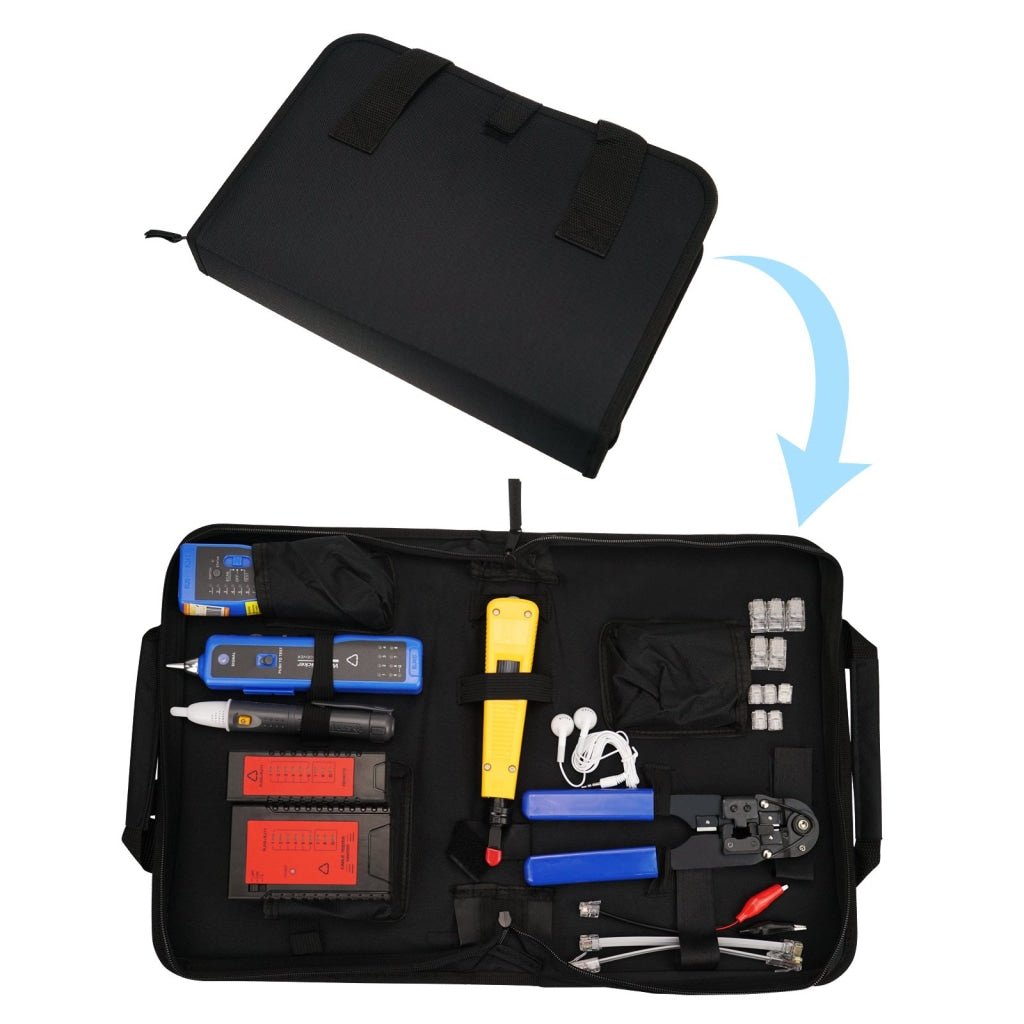

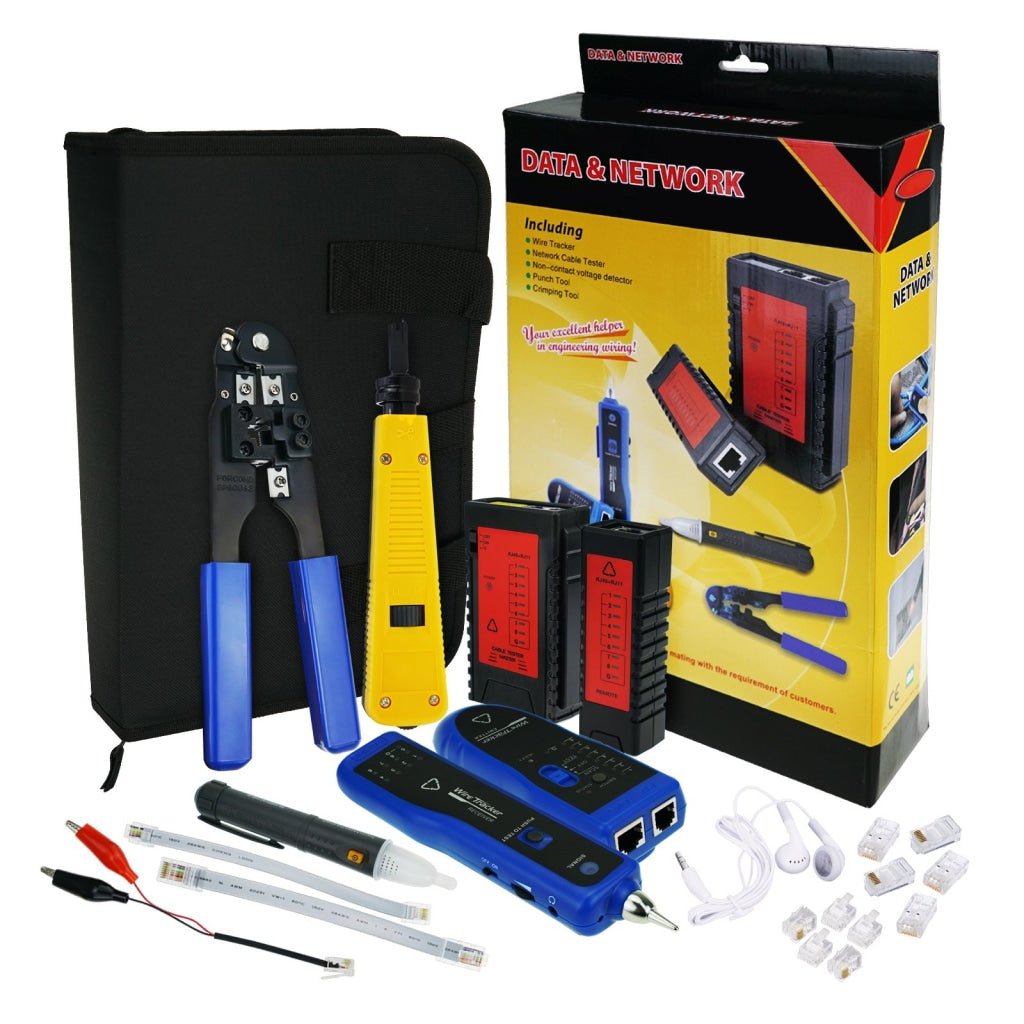

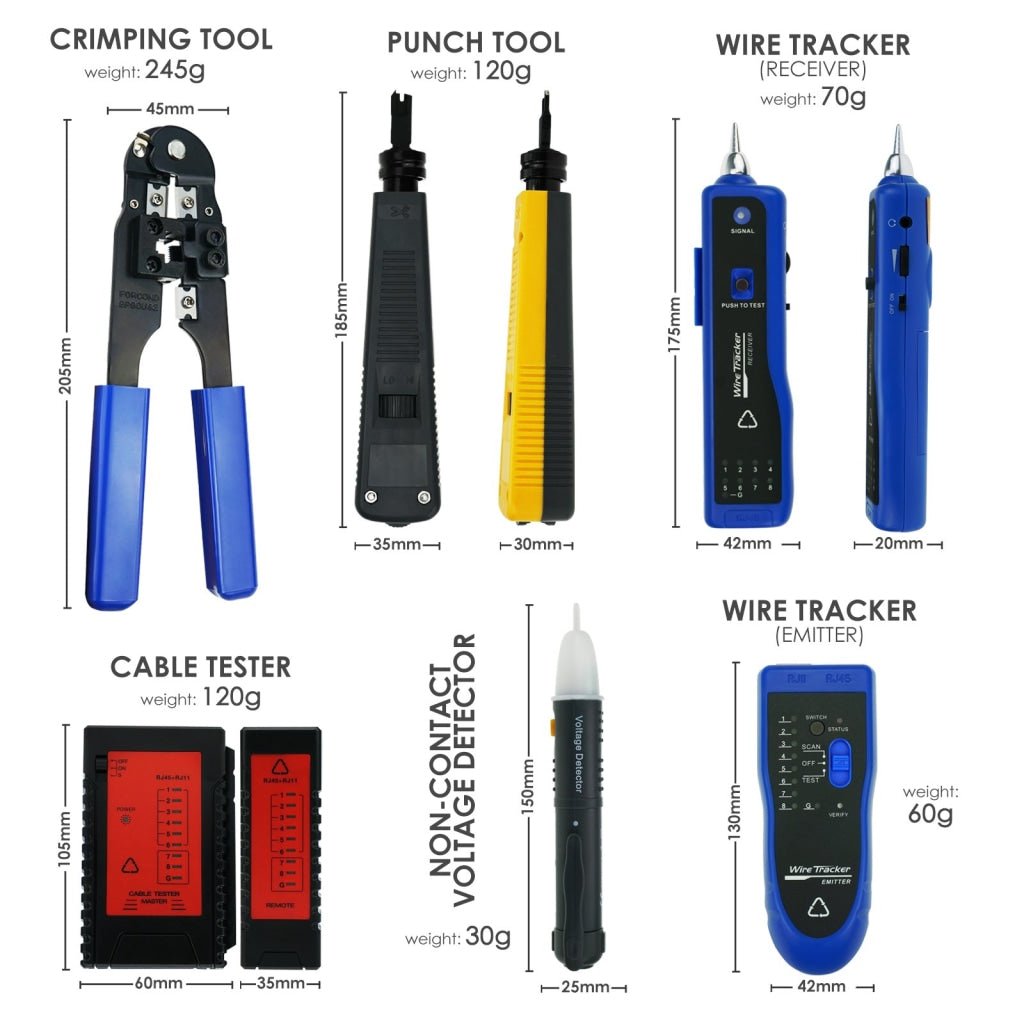

Set Includes:

  • 1 x Network cable tester set (Master, Remote)
  • 1 x Wire tracker set (Emitter, Receiver, Earphone, RJ45 adaptor cable, RJ11 adaptor cable, RJ11-to-Alligator clip adaptor cable)
  • 1 x Non-contact voltage detector
  • 1 x Punch tool
  • 1 x Crimping Tool
  • 2 x 9V battery
  • 5 x RJ45 connector (8P crystal plug)
  • 5 x RJ11 connector (6P crystal plug
