NF-268 RJ45 RJ11 BNC Wire Tracker Locator - Wire Sorting Hunting Circuit Status Checking Tracing STP UTP Network Telephone Coax Cable Tester Finder with Complete AC interference Rejection Error Locator Cable Mapping

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

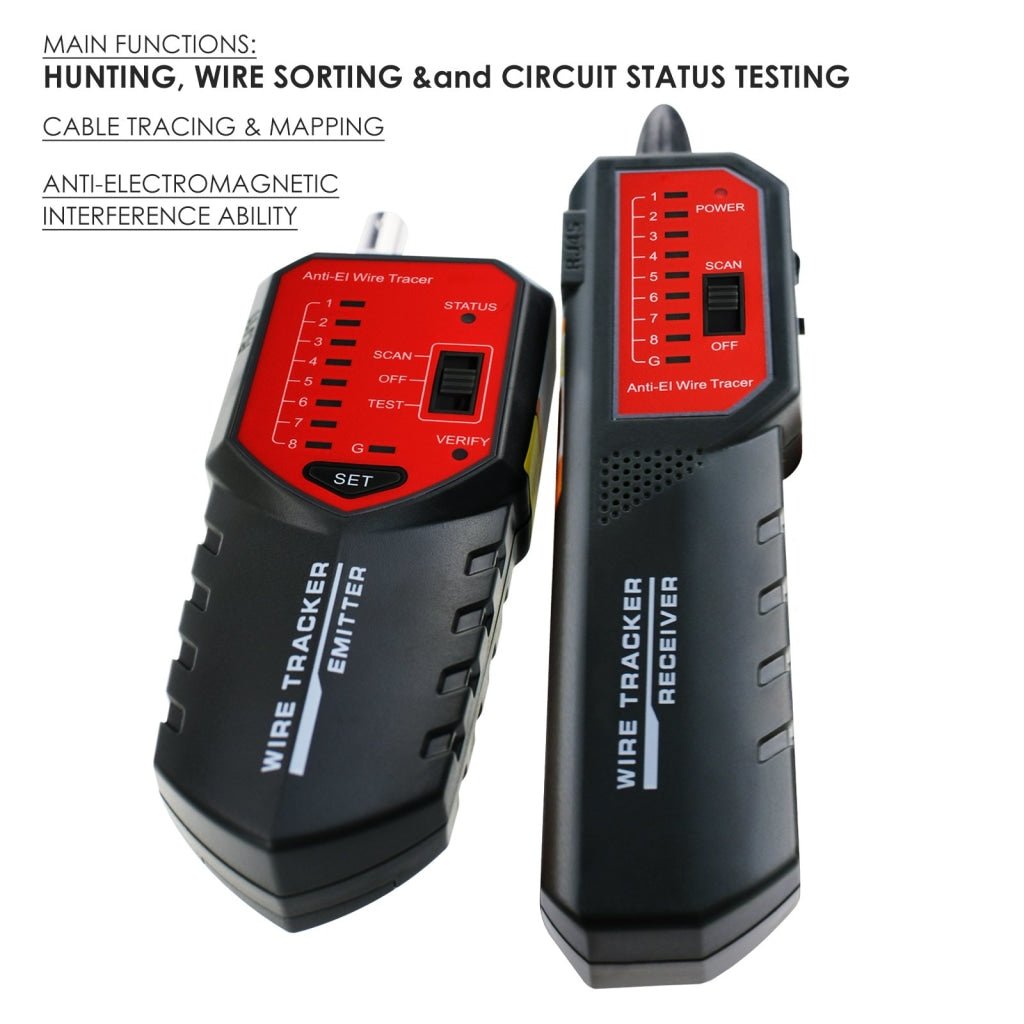

The wire tracker has three main functions of hunting, wire sorting and circuit status testing. The tracker highlights its strong anti-electromagnetic interference ability, and locating the short point accurately, which allows the user to find and verify cable more smoothly. It comes with earphone for users to wear in a noisy environment. The product is also CE approved

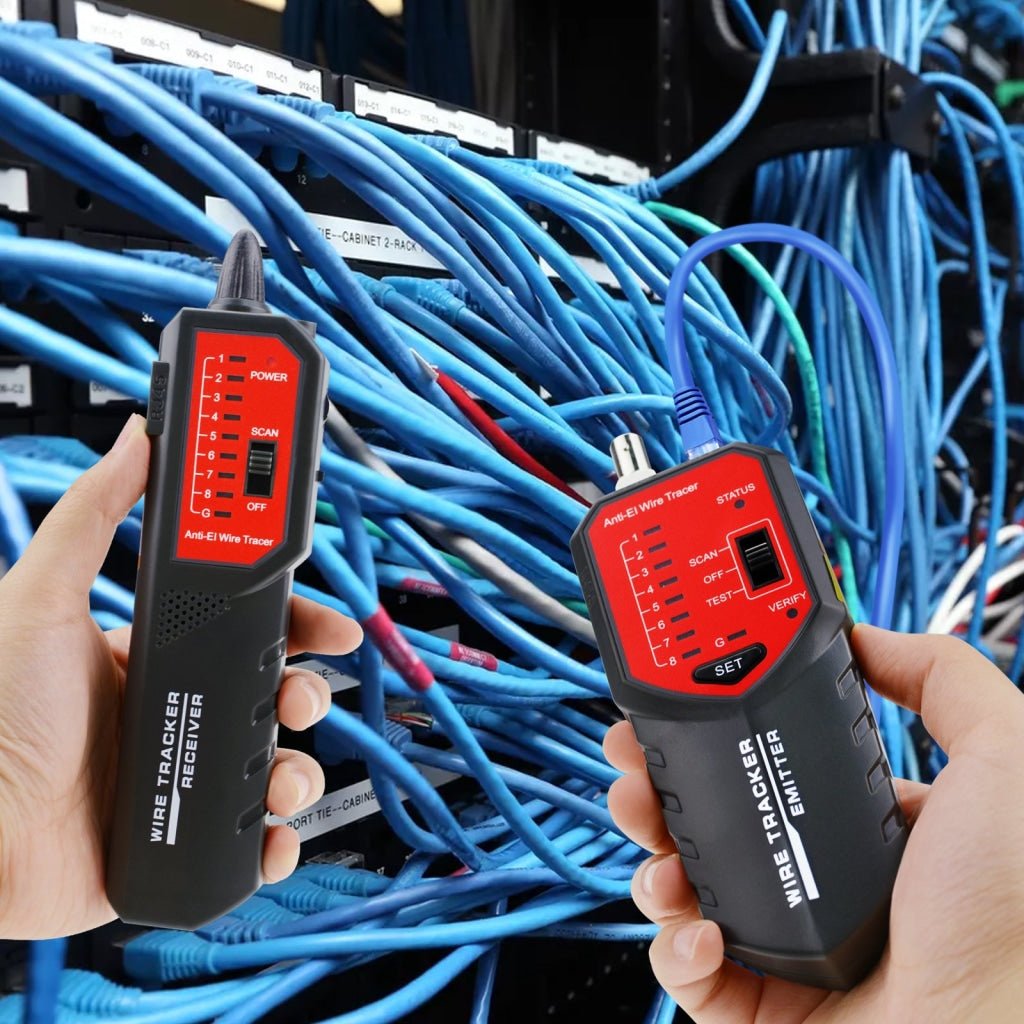

  • Trace and find STP/UTP network cable, telephone/coax cable that connects to switch or router
  • Complete with AC interference rejection for easy tracking
  • Able to inspect wiremap of network cable directly after it is targeted
  • Can check the breakage/short point of non energized wires
  • Has two scan modes: ordinary switch / PoE switch

  • Main Functions:
    • Trace STP/UTP network cable
    • Trace energized telephone cable
    • Trace monitoring cable connected to monitor
    • Check short location of wires
    • Check breakage location of wires
    • Network cable mapping

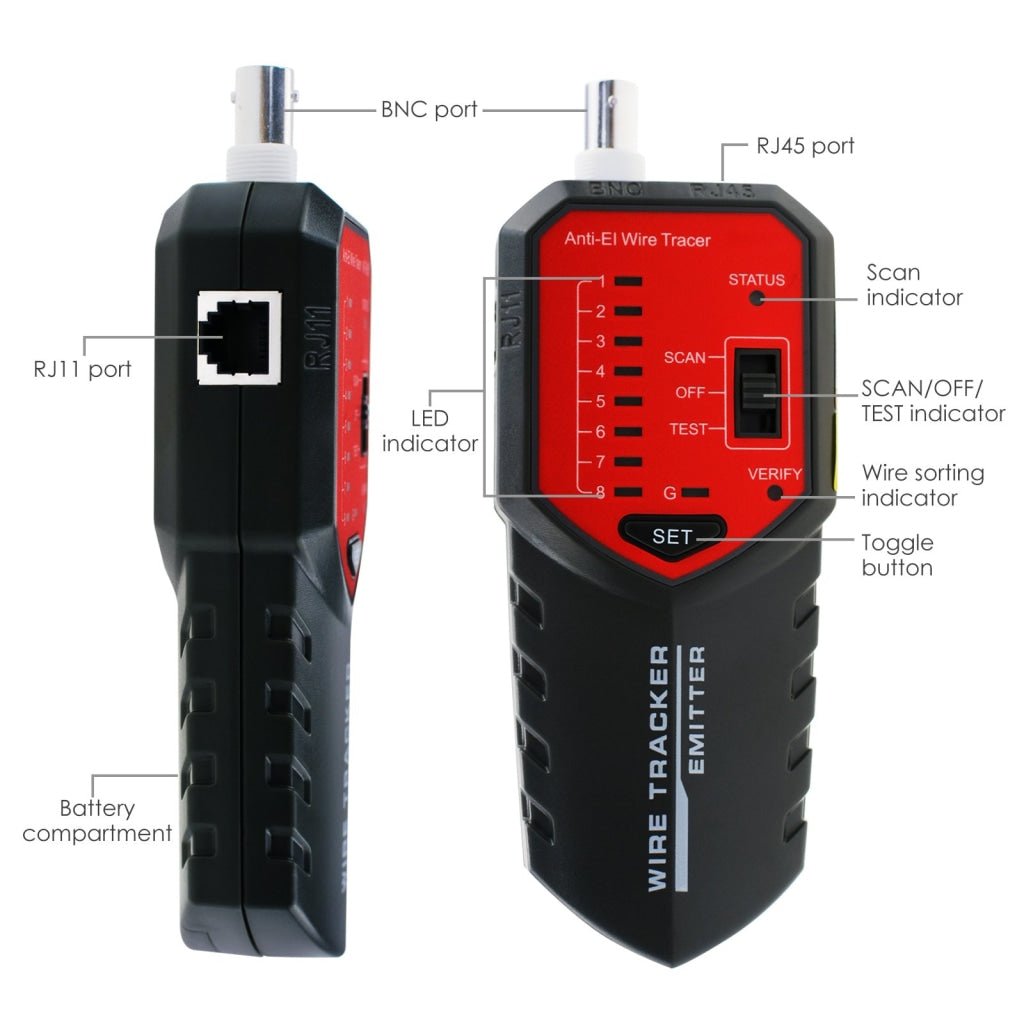

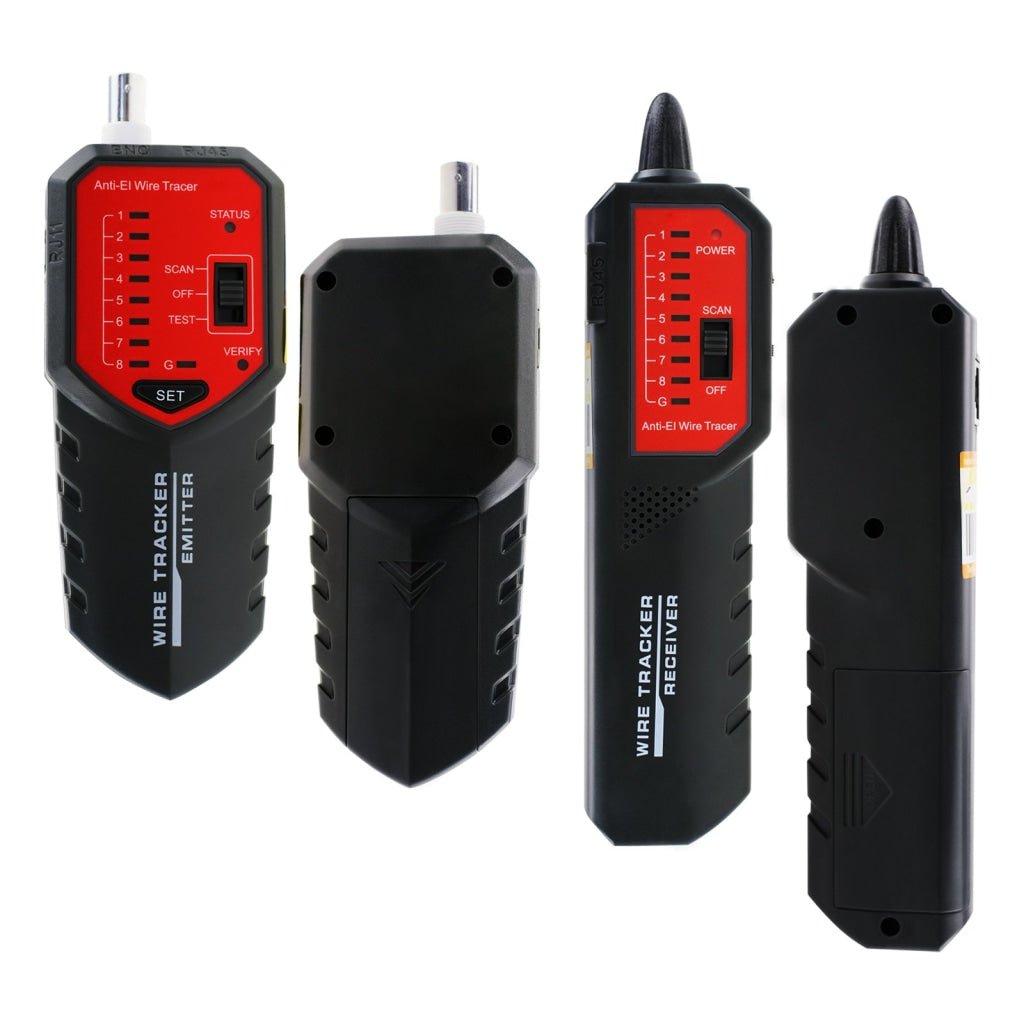

  • Emitter:
    • Tone frequency: 130KHz
    • Max. Distance of transmission: 3000m
    • Max working current: 20mA
    • Tone mode: 2 tones adjustable
    • Compatible connectors: RJ45, RJ11, BNC
    • Max. Signal voltage: 8Vp-p
    • Function and faults light display: light display (wiremap, tone, tracing)
    • Signal transmission format: Multi-frequency impulse
    • Power supply: 9V battery

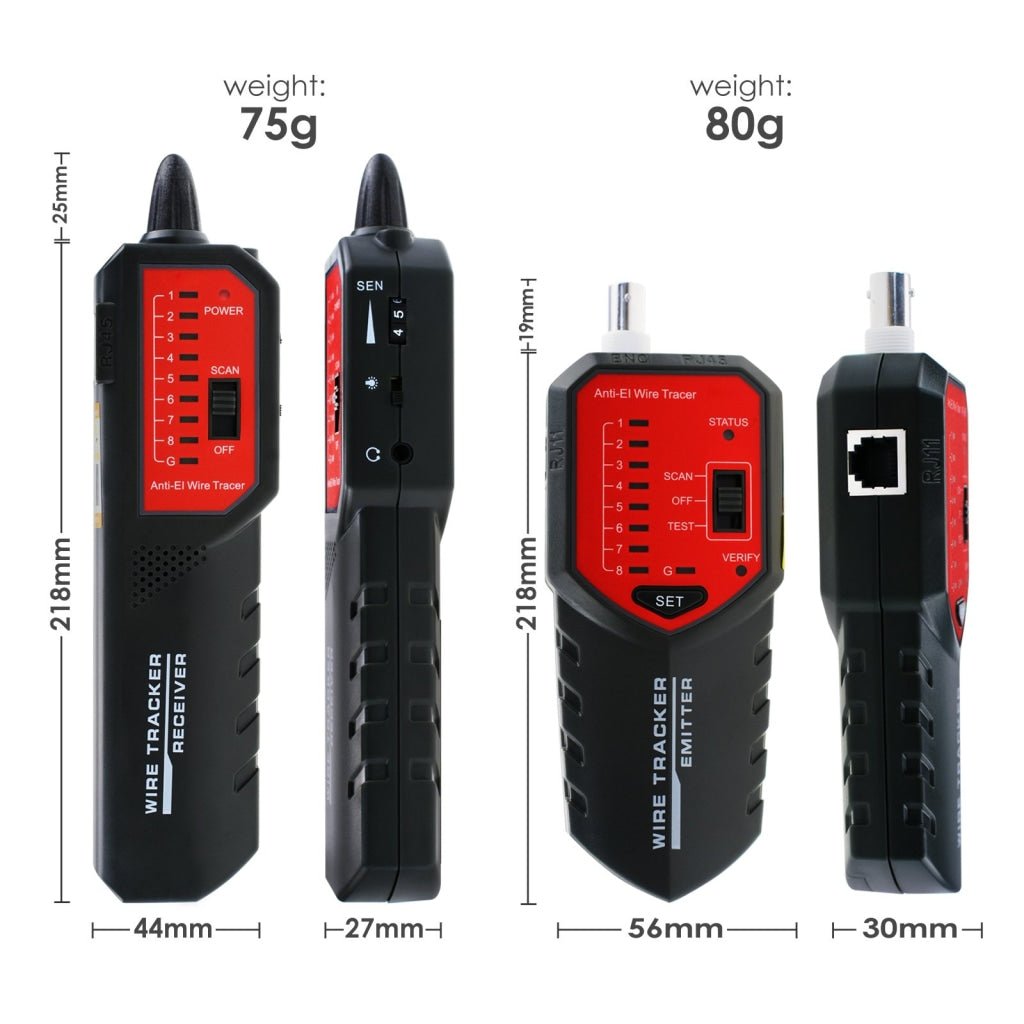

    • Weight: 80g
    • Size: 145(L) x 56(W) x 30(H) mm

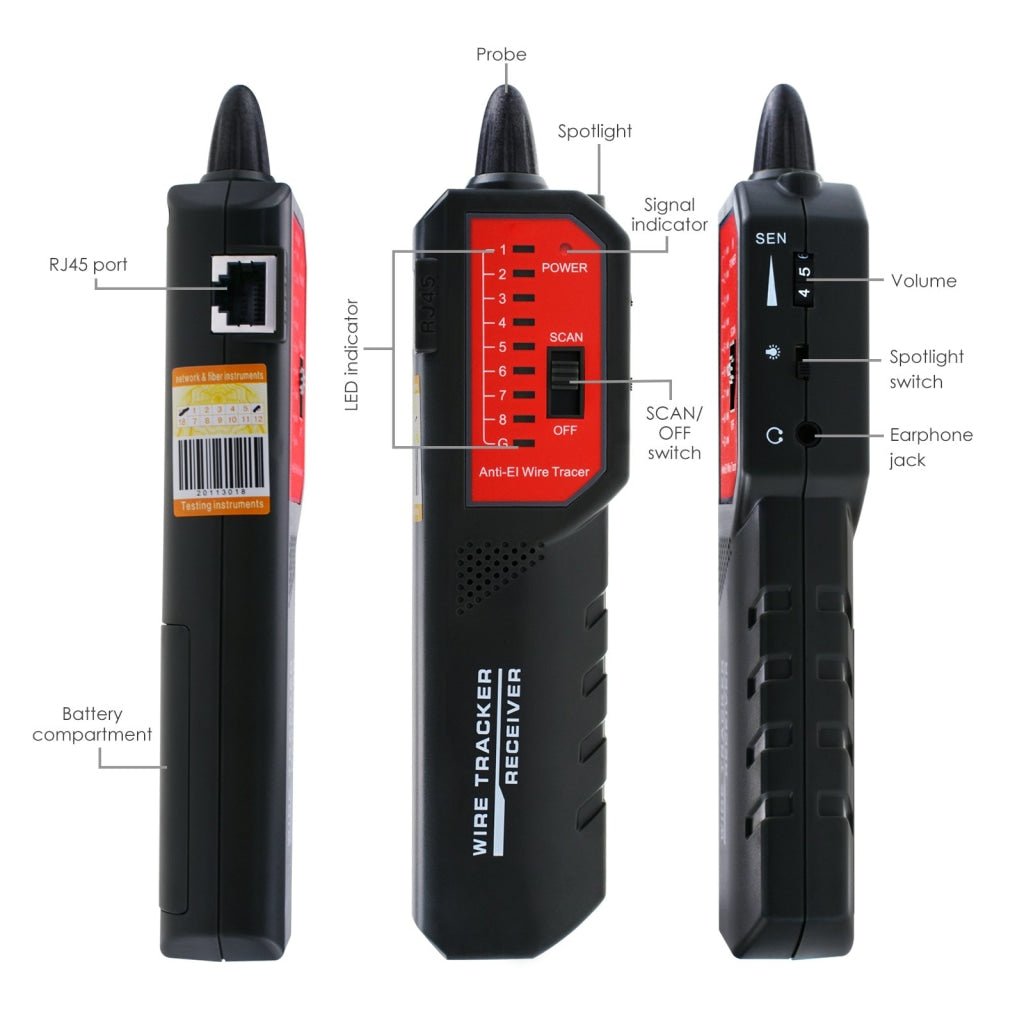

  • Receiver:
    • Frequency: 130KHz
    • Max working current: 30mA
    • Ear jack: 1
    • Power supply: 9V battery
    • Weight: 75g
    • Size: 183(L) x 44(W) x27(H) mm

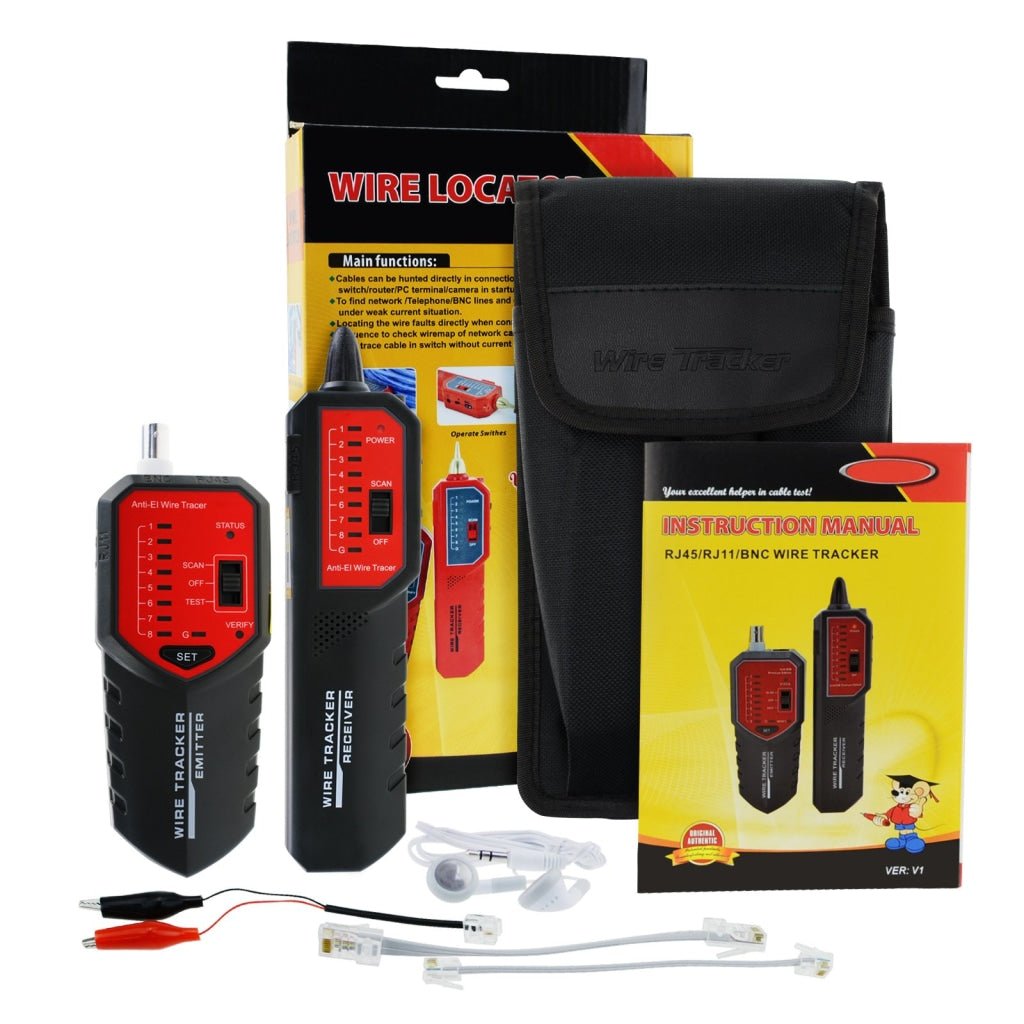

  • 1 x Emitter
  • 1 x Receiver
  • 1 x English Manual
  • 2 x 9V battery
  • 1 x Earphone
  • 1 x RJ11 adaptor cable
  • 1 x RJ45 adaptor cable
  • 1 x Alligator clip

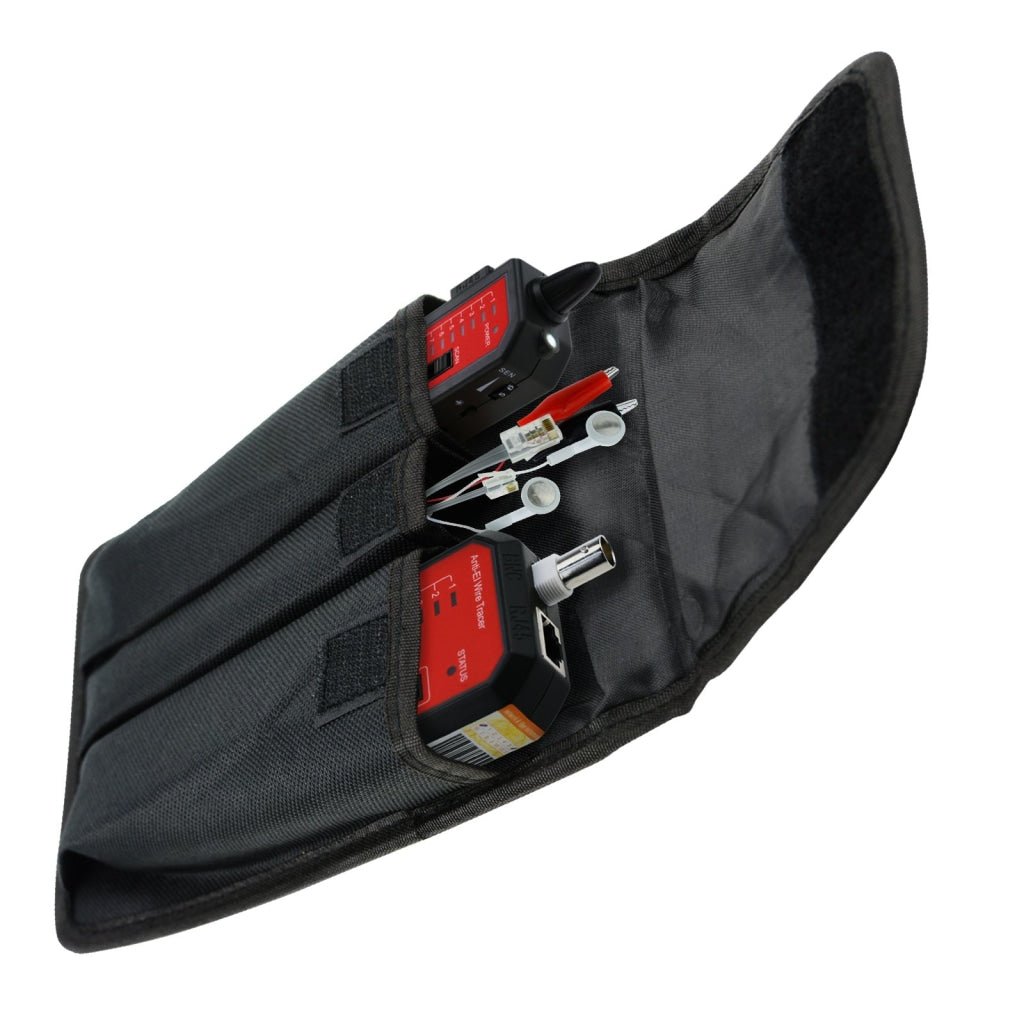

  • 1 x Carry pouch
