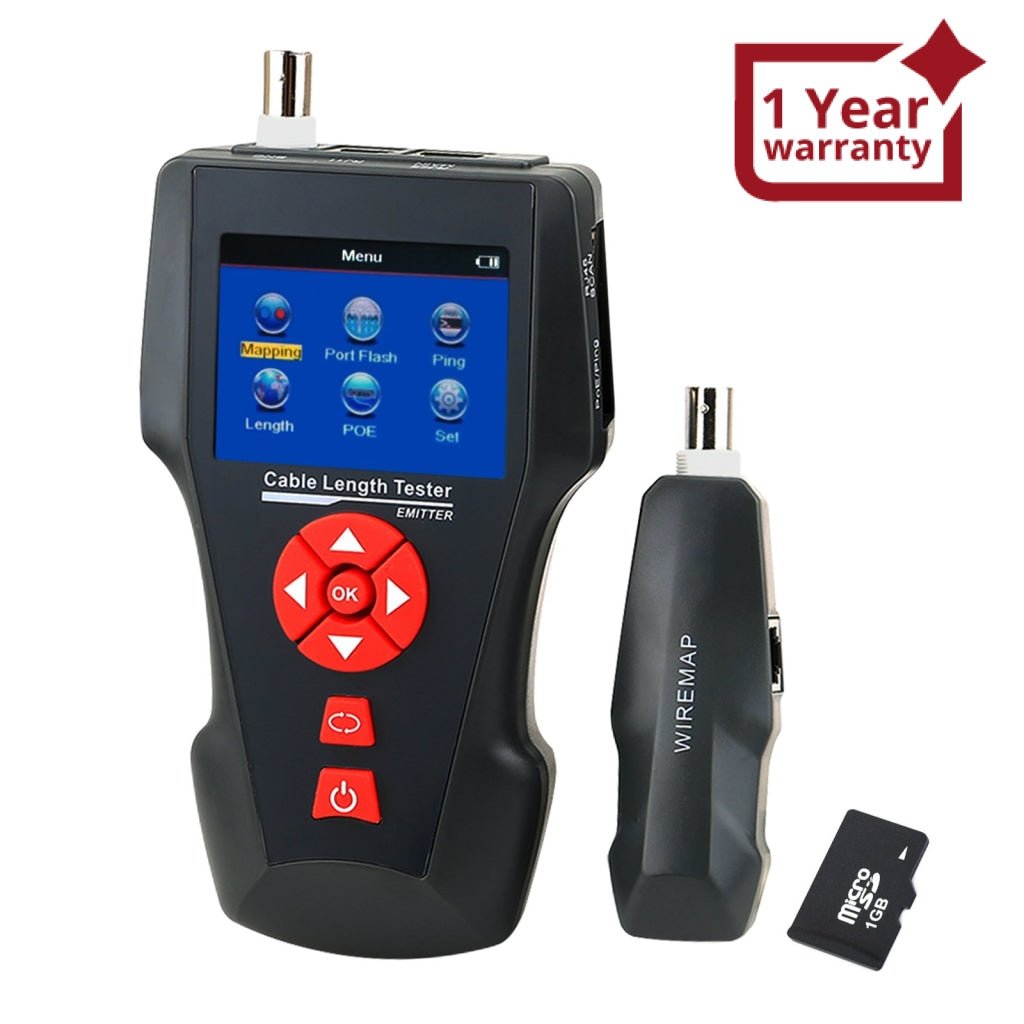

NF-8601A Digital Cable Tester Wire Tracker RJ45 RJ11 BNC Cable Length, with FREE TF Card, Handheld Tester with 8 Remote Identifier PoE PING Data Storage Function and Port Flash


Quantity
  OR


Model: NF-8601A

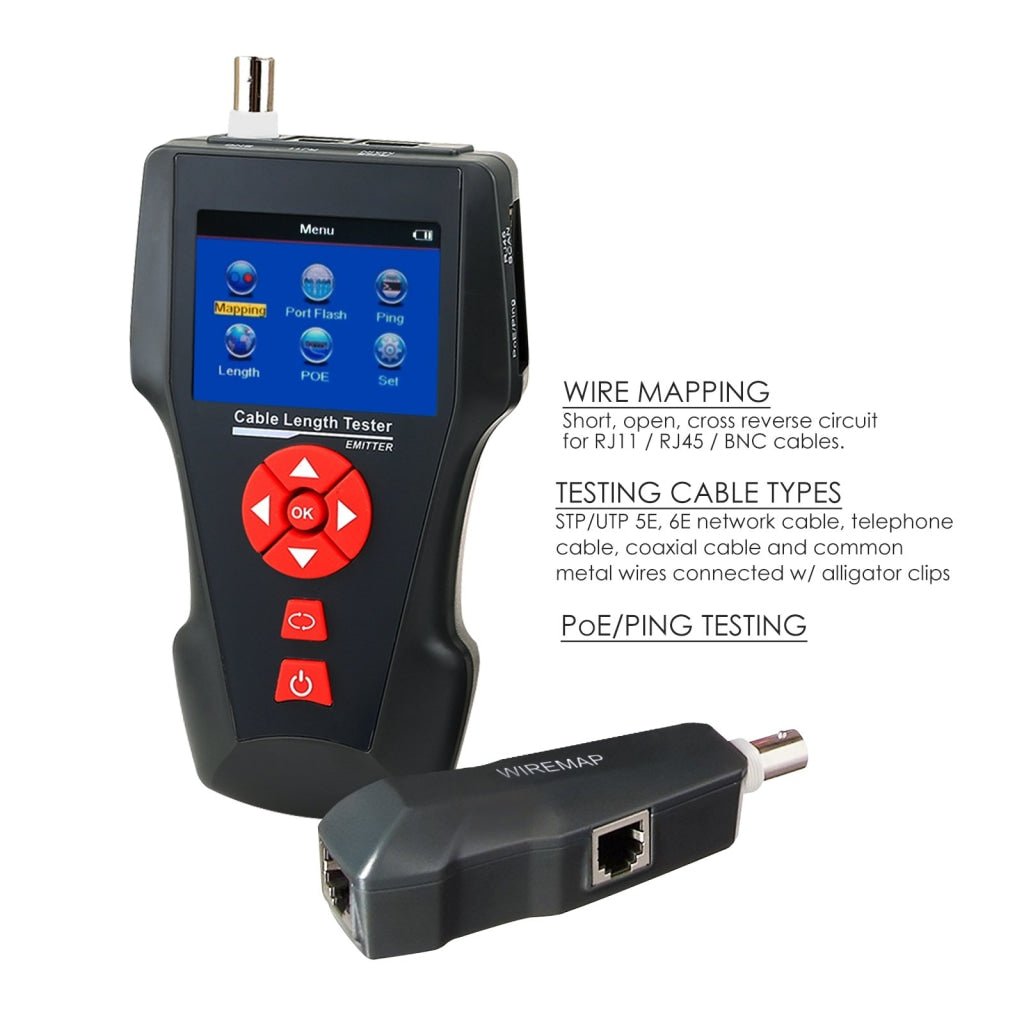

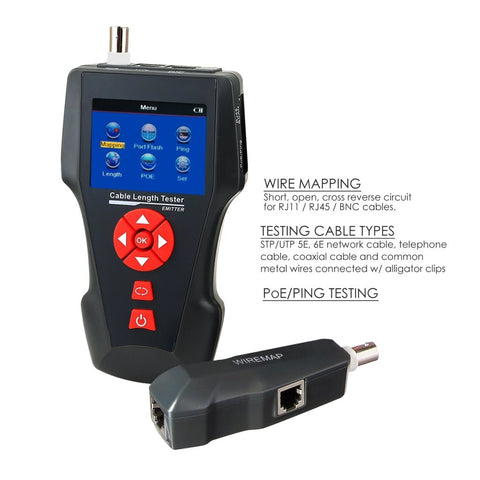

This cable length tester has CE approval and do mapping, a test cable continuity, such as if the cable is good, open, short, cross, reverse connection, etc.



Features:

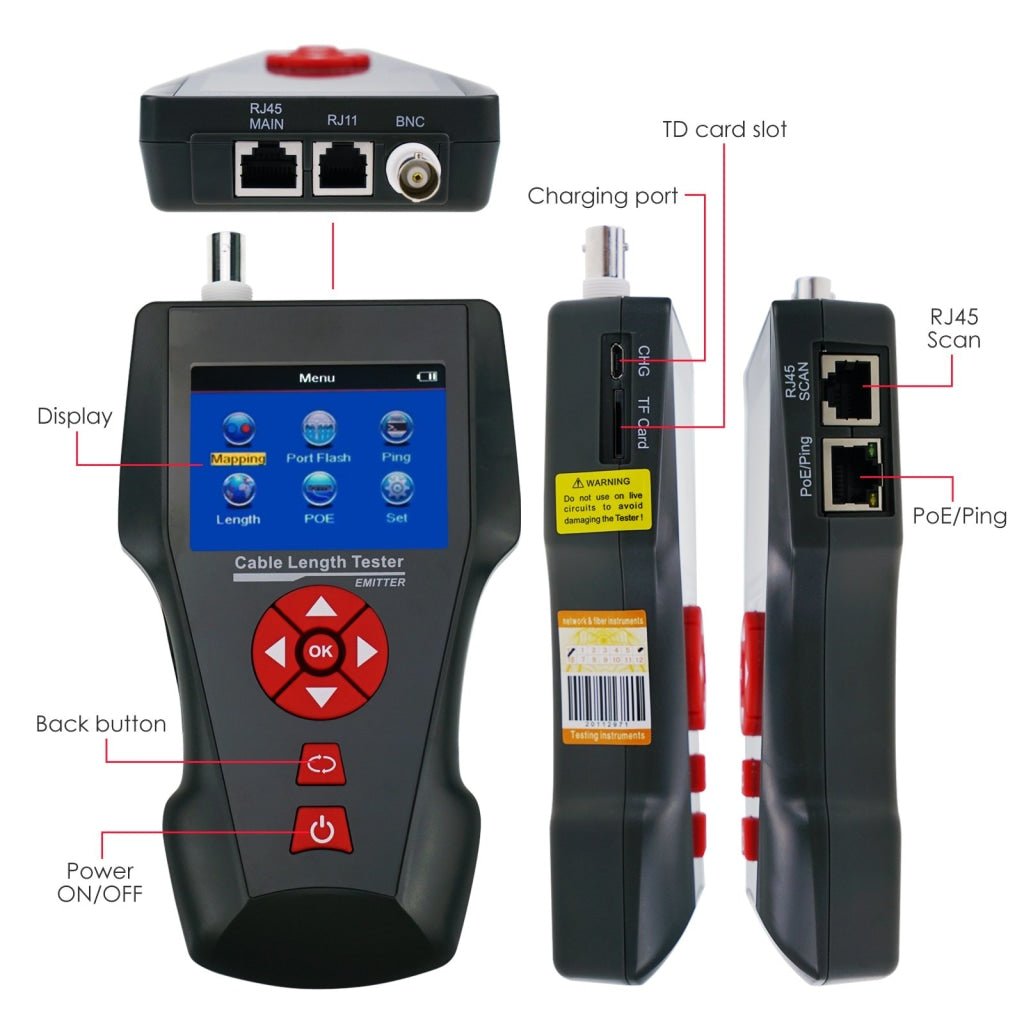

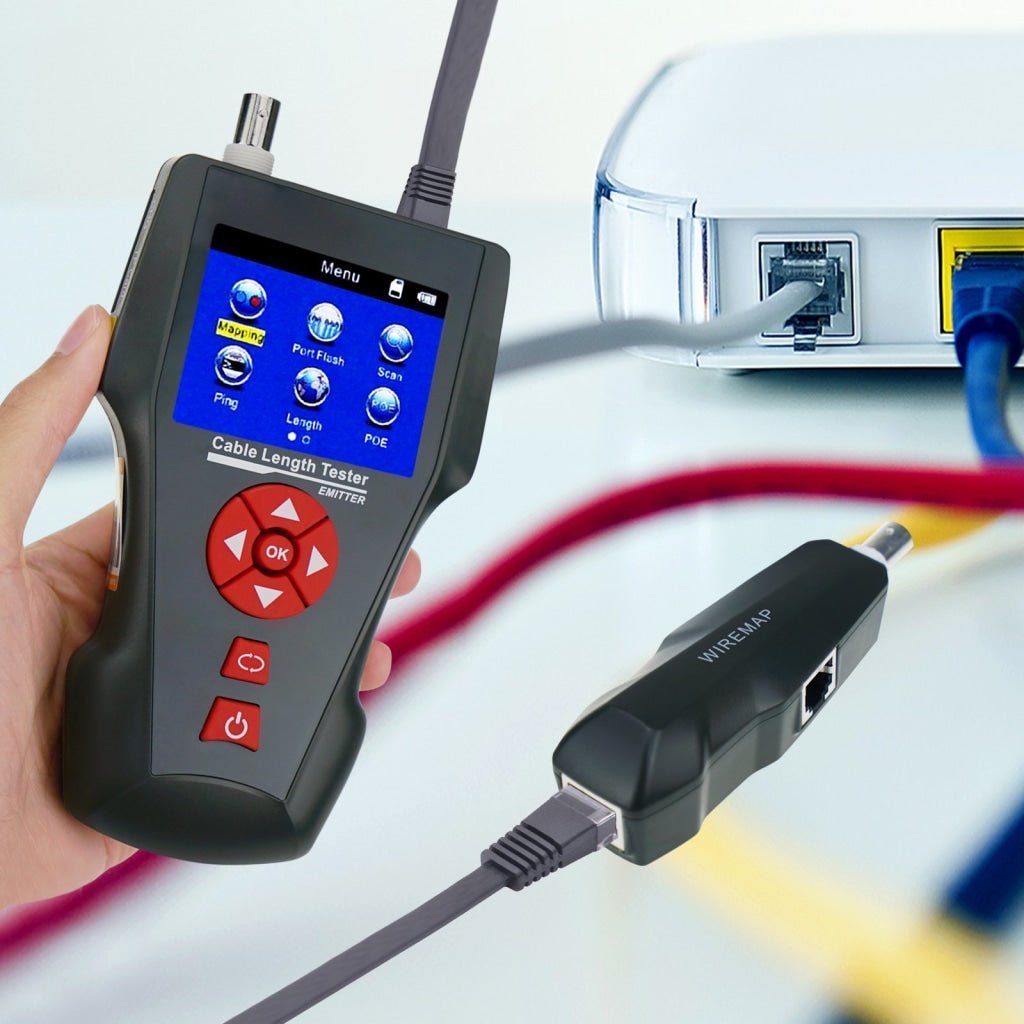

  • Do Port flash which helps to locate the target network cable more easily while connected with the router/switch
  • PING function that test network signals and if the network cable is connected or not
  • Can verify cable length, open circuit distance and pairing, crosstalk
  • Has PoE function that test if the network cable is connected with PoE switcher or router
  • Detect the power of every cable and a set up backlight/backlight time/auto-power-off time/theme color/data export/system information(version NO.), etc.
  • Comes with 3.7V lithium battery power supply, convenient and durable, 2.8 inches LCD Color screen, clear, intuitive and personalization, and can save and export 160 groups of data to computer (txt format)

Applications:

Widely used in fields like telephone system, computer networks and other metal lead circuits.


Specifications:

  • Emitter/Transmitter:
    • Display: 2.8 inch LCD color screen with 320x240 resolution (Effective visible area 60x45mm)
    • Cable testing types: STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, and common metal wires connected with alligator clip
    • Max. distance of wiremap: 2000m
    • Max. distance of tracing cable: 1000m
    • Max distance of cable length measurement: 2000m
    • Min. distance of calibration: 10m
    • Accuracy: 98% (after calibration)

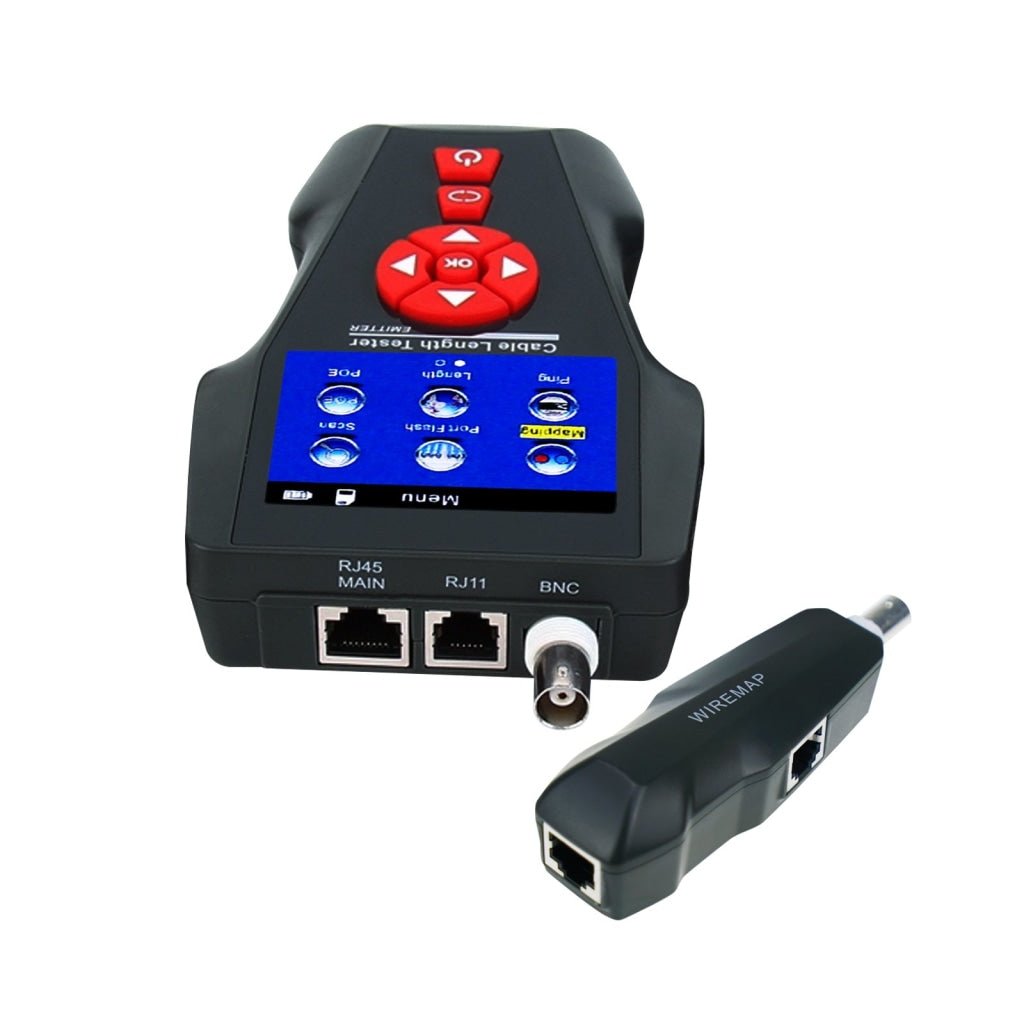

    • Compatible connectors: RJ11, RJ45, BNC, PING/PoE
    • Cable map indication: LCD (Pin#1 – Pin#8 & G)
    • Power Supply: 3.7V rechargeable lithium battery 1800mAh (installed)
    • Work temperature/ humidity: 10°C-60°C/ 0%RH-70%RH

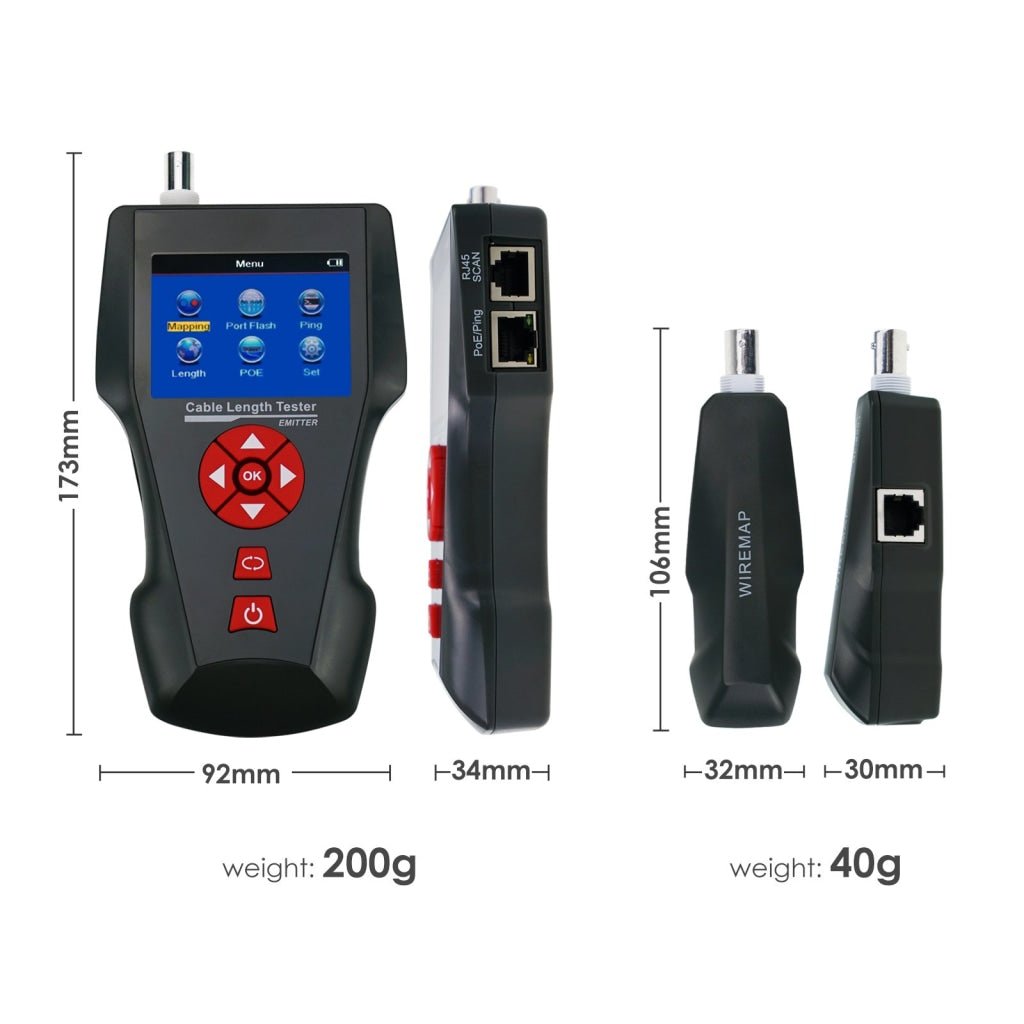

    • Dimension: 173 x 92 x 34mm

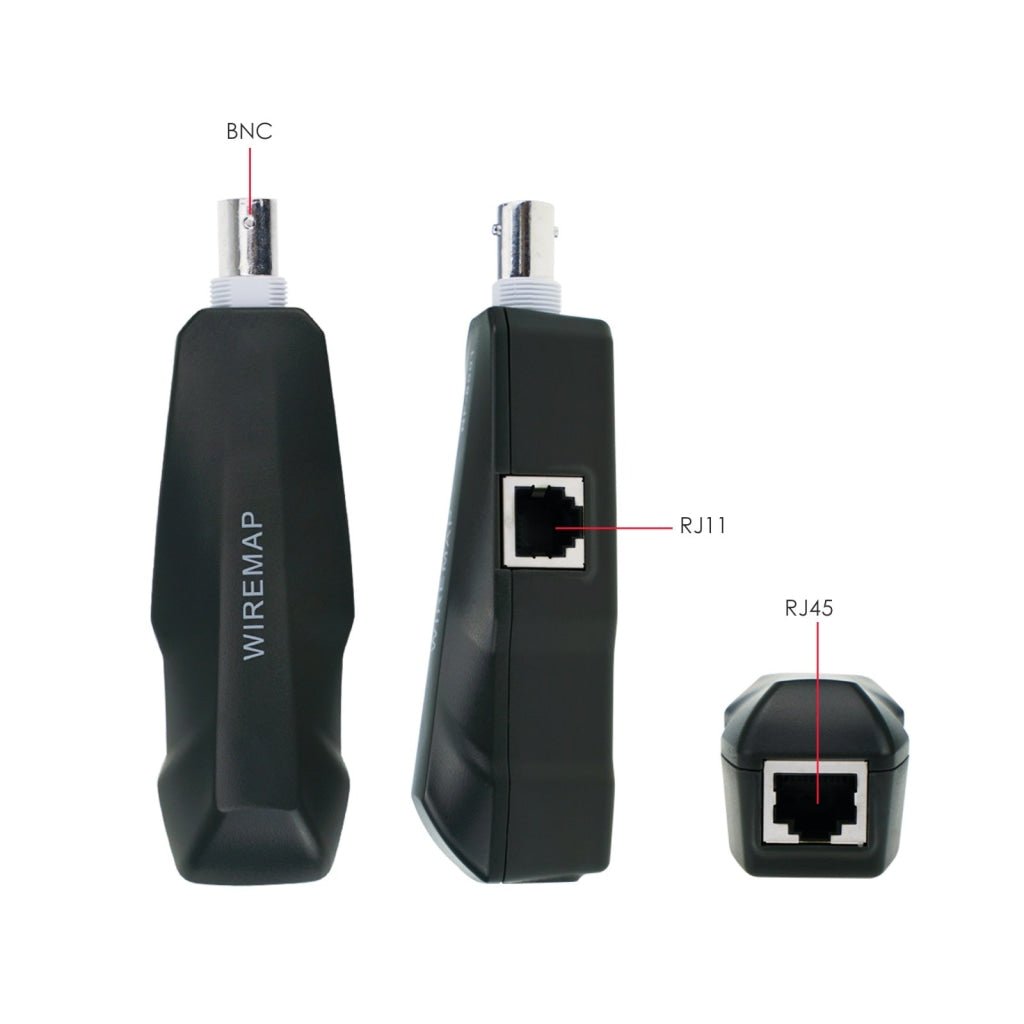

  • Remote identifier:
    • Compatible connectors: RJ11, RJ45, BNC
    • Dimension: 106(L) x 32(W) x 30(H)
    • Working temperature: -10~+60°C
    • Working humidity: 20%~70%
    • Dimension: 106 x 32 x 30mm

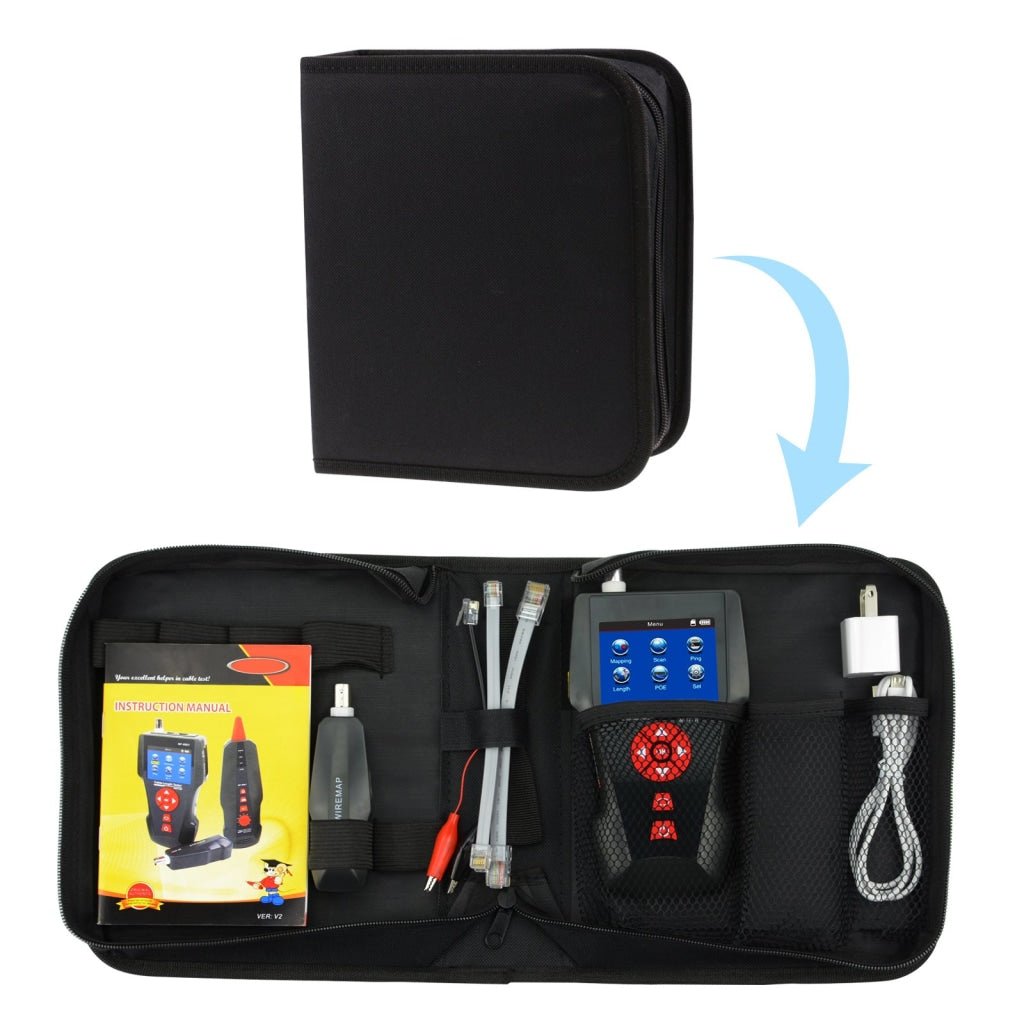

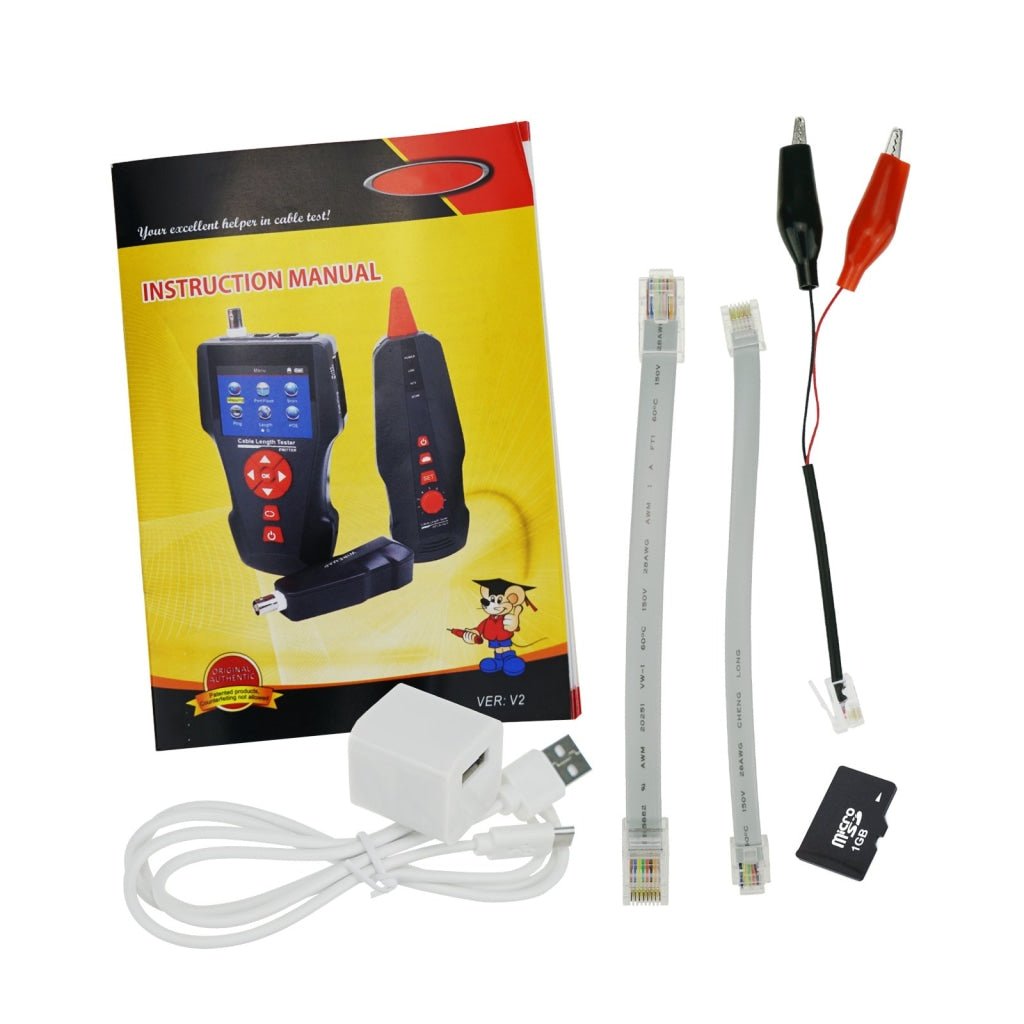

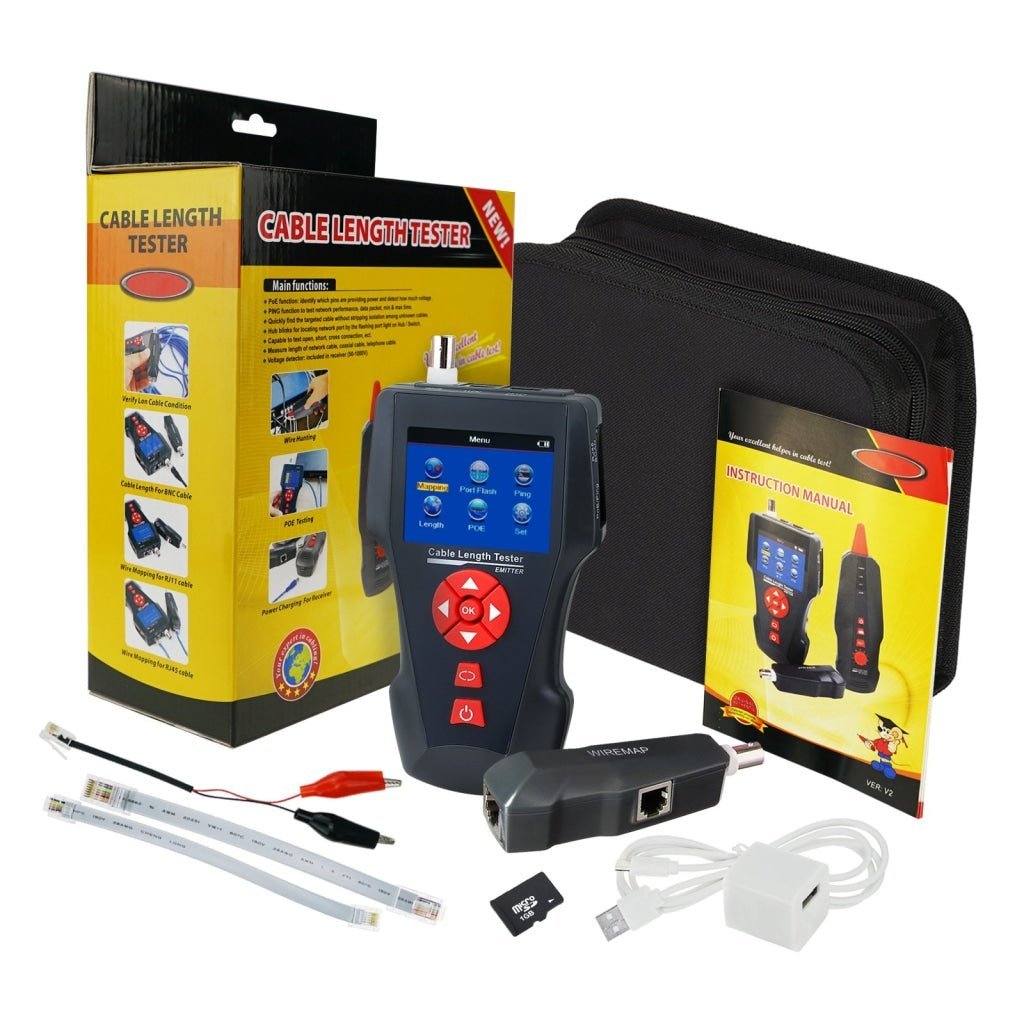

Set Includes:

  • 1 x Emitter
  • 1 x Remote identifier
  • 1 x RJ11 cable adaptor
  • 1 x RJ45 cable adaptor
  • 1 x Alligator clip
  • 1 x 1GB TF Card
  • 1 x English Manual
  • 1 x USB Cable
  • 1 x Power adaptor
  • 1 x Carry pouch
