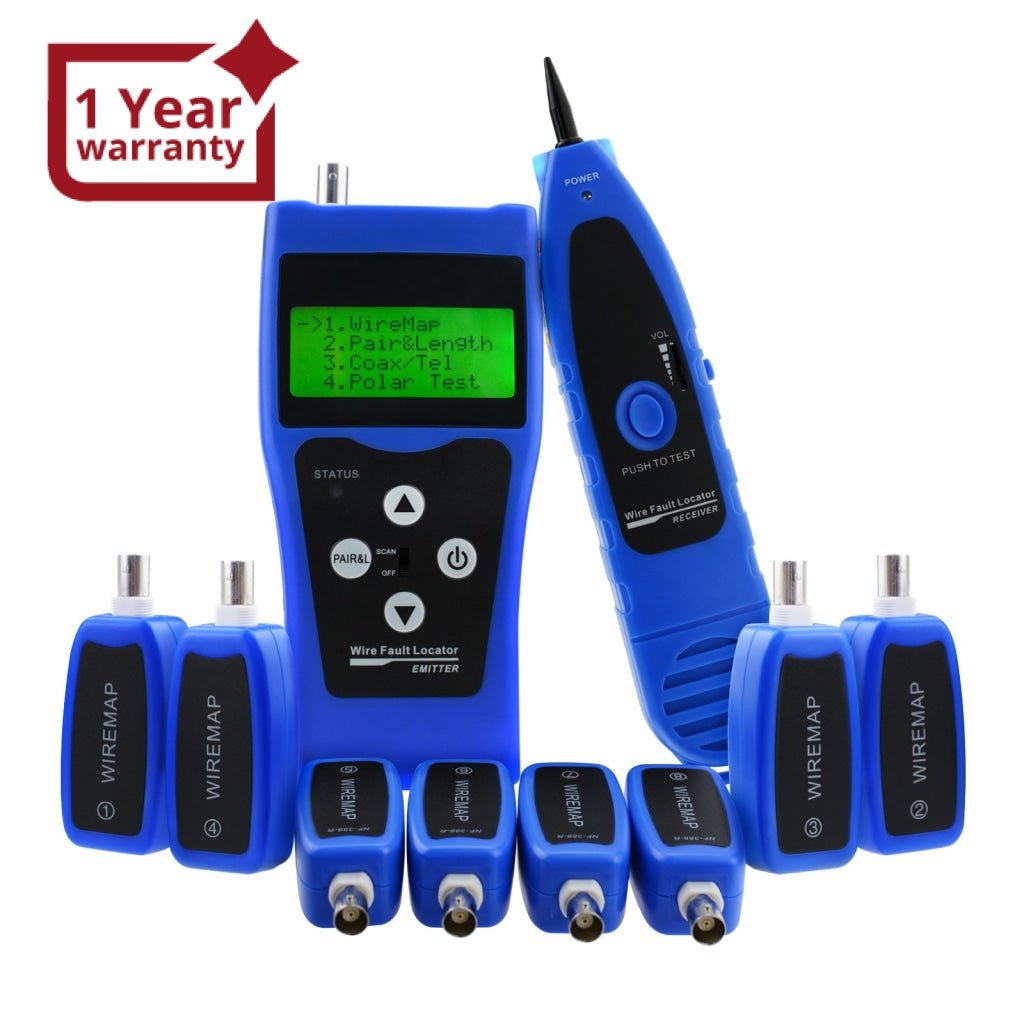

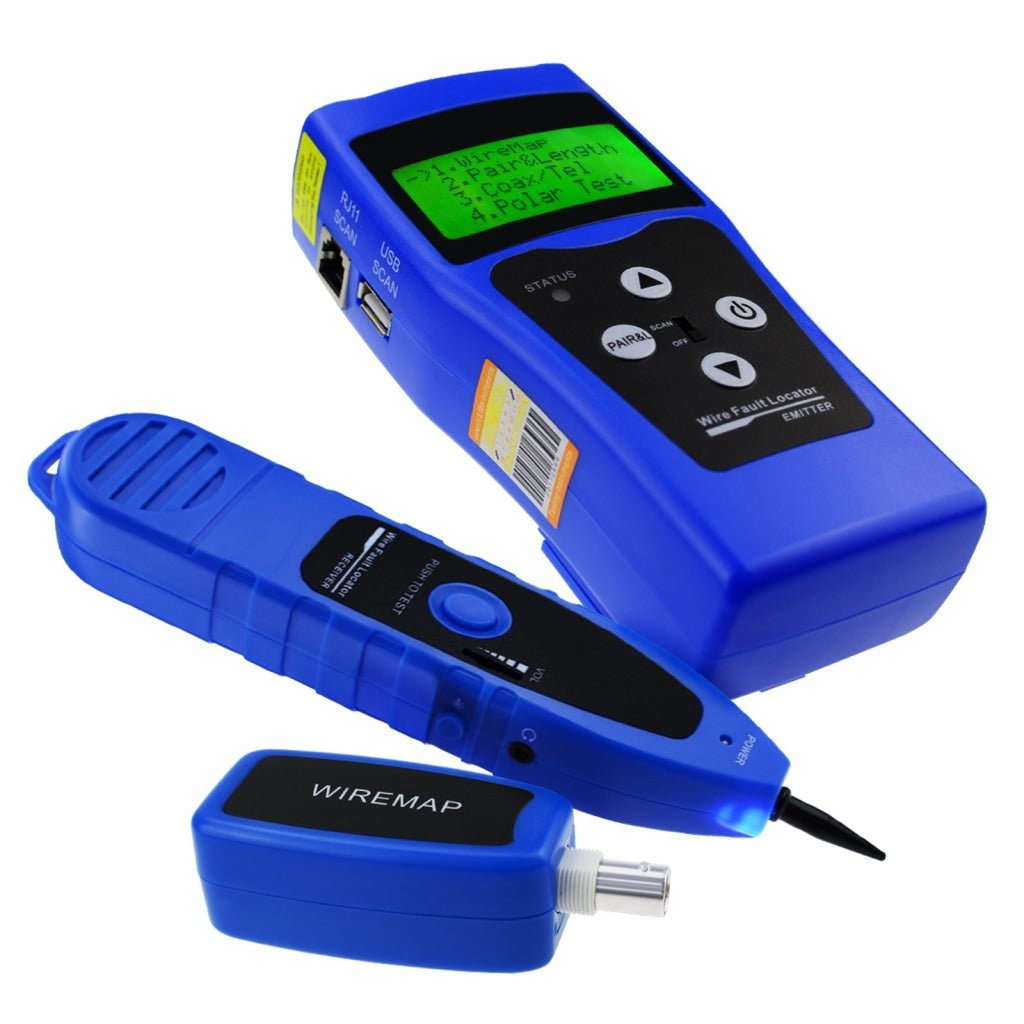

N03NF-388B Multipurpose Network LAN Cable Tester w/ 8 far-end test jacks
- Description
- Return, Refund, & Warranty Policy
- Reviews
This multipurpose network cable test & inspection instrument owns three great functions of hunting, wire sorting and circuit status testing.
It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
Features:
- One person enough to complete cable continuity check
- With 8 Remote identifier
- Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables
- Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
- Locate the wiring or connection error
- Measure cable length and determine the distance of open circuit and short circuit
- Dynamically calibrate cable length and make length measurement as accurate as 97%
- Automatically time-delay shut off and backlight display function
- Measure length and pair with or without far-end recognizer

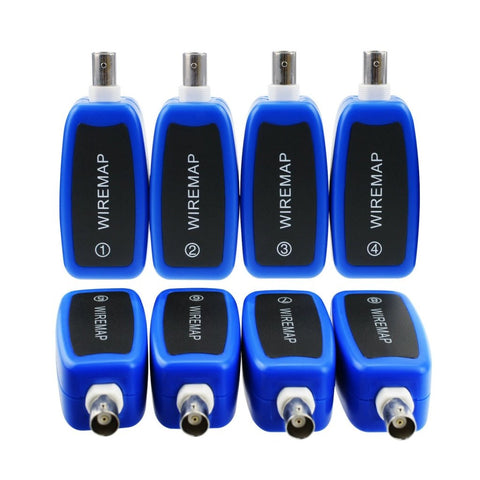

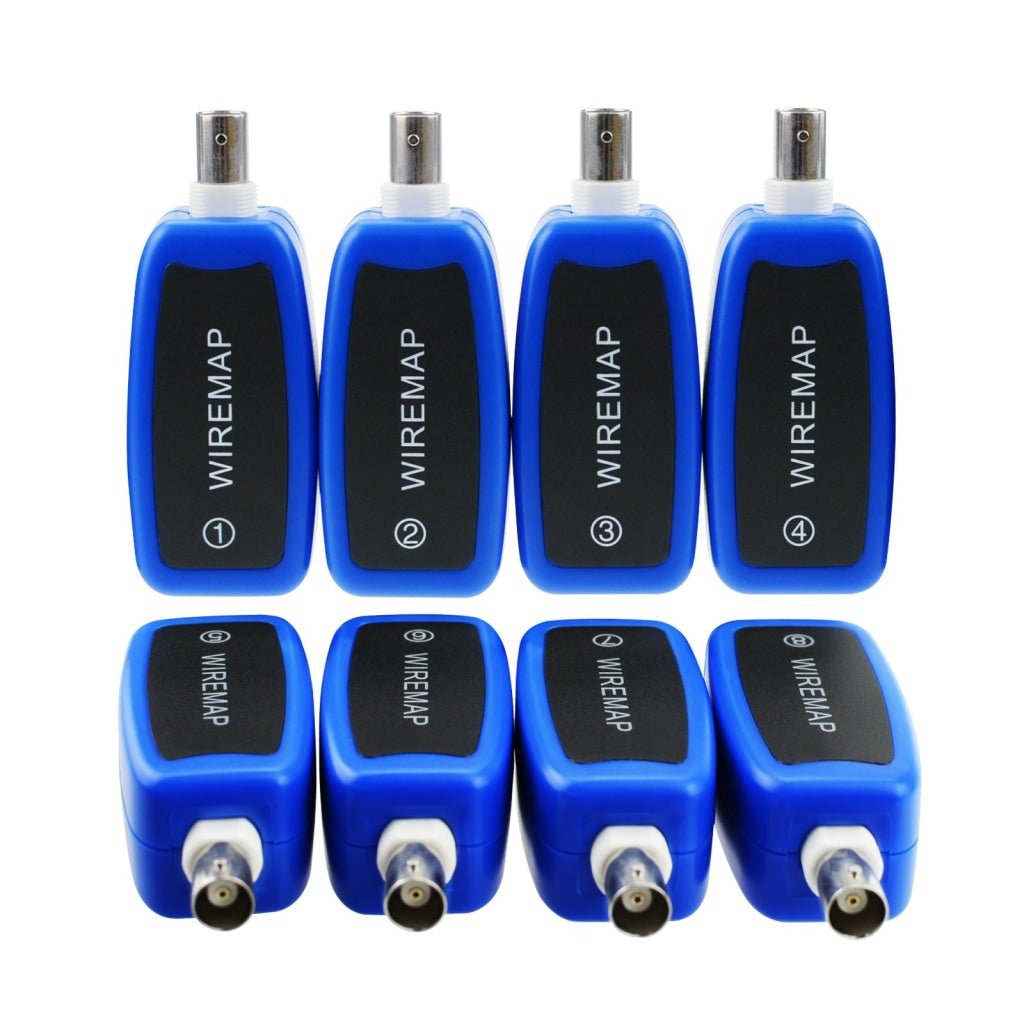

- Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8)
- Far-end recognizer with prompting voice
- Self-checking function and automatically compensate any change in battery capacity or ambient temperature
- Single board computer software watchdog design and reliable operation
Specifications:
- Display : 4 x 16 character big screen LCD
- Type of cable tested:
- STP/UTP twin twisted cable
- Coaxial cable
- telephone line
- Type of cable detected
- 5E
- 6E
- telephone wire
- coaxial cable
- USB cable and other metal wires
- Ambient temperature : -10°C ~ +60°C

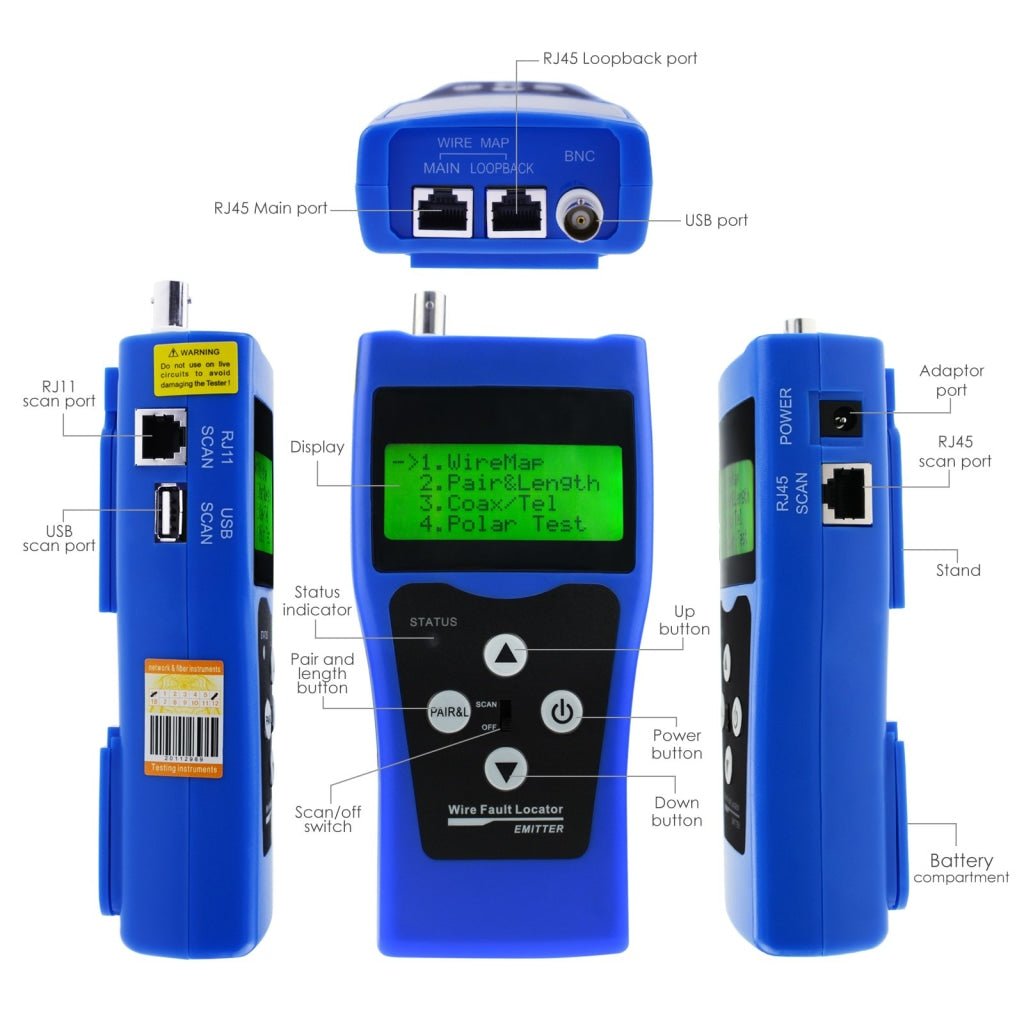

- Tester Port
- Tester RJ45 mater port (M), tester LOOPBACK RJ45 port (L),hunting RJ45 port (with RJ45);
- The RJ11-to-alligator converters are used to measure and check the continuity of coaxial cable and telephone line.
- Length measurement of Twin Twisted Cable:
- Scope : 1~350M (3~200ft)
- Calibration accuracy : 3% (+/-0.5M or +/-1.5ft)(calibrating cable >5M)
- Shipment accuracy : 5% (+/-0.5M or +/-1.5ft).(AMP, AT&T Class 5 cable)
- Display : M or ft
- Length Calibration : user can set calibration factor by himself with a given length cable. The length of calibrating cable more than 5M
- Wire Sequence and Locating Cable Error:
- Checks errors such as open circuit, short circuit, reverse connection, croos-over or croos-talk interference.

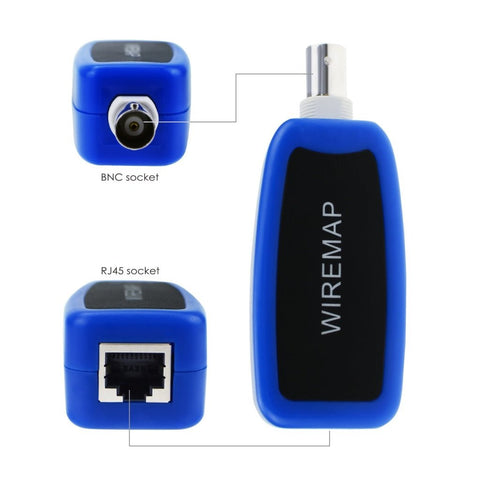

- Locating Cable : 8 remote identifier test jacks (ID1 > ID8) (8 far-end test jacks are included on set)
- Automatic time-delay shut Off time : the tester does not operate for 30 minutes.

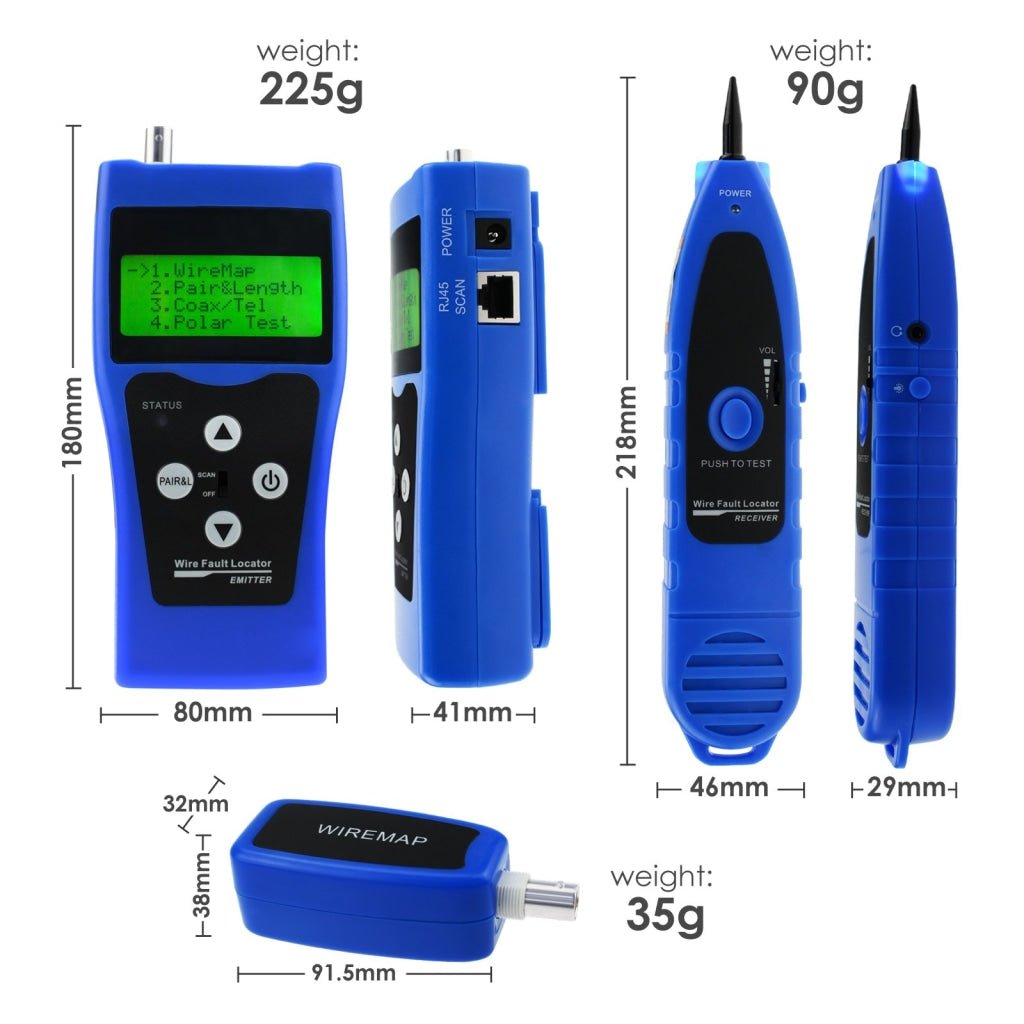

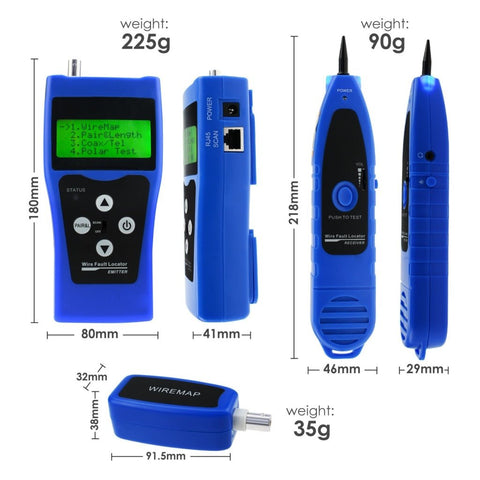

- Overall Dimension
- Main tester : 185 x 105 x 50mm
- Receiver : 218 x 46 x 29mm
- Remote identifier : 84 x 34 x 27mm
- Power : Two (2) 9V batteries (included)

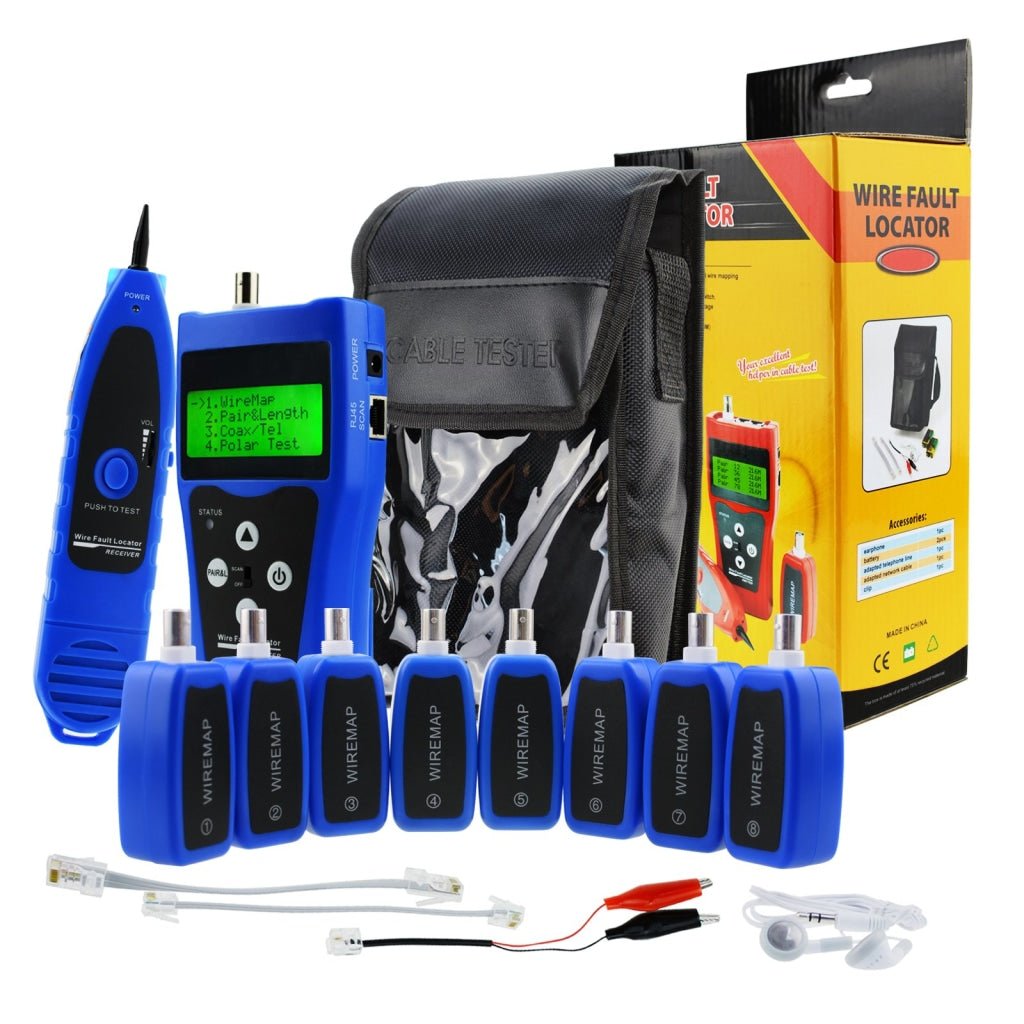

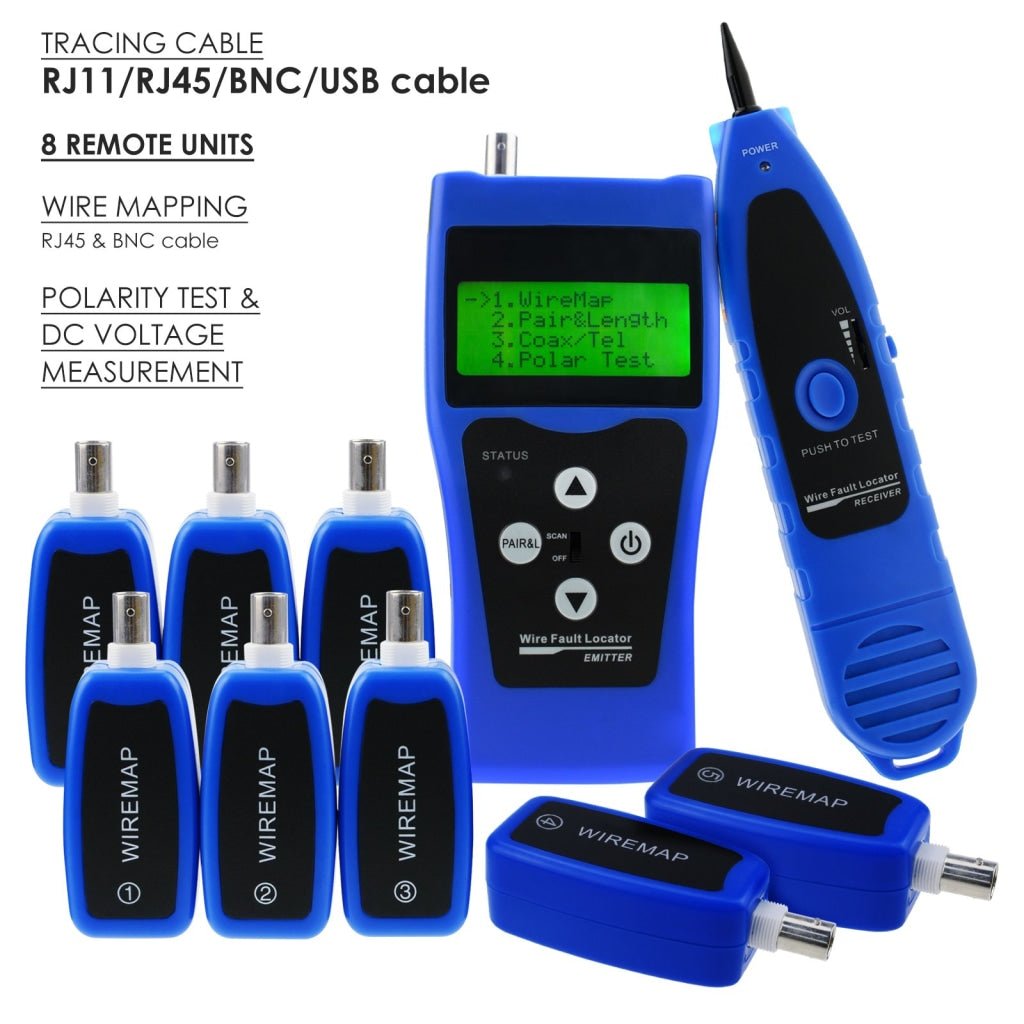

Set includes:
- 1 x Main unit tester
- 1 x Receiver
- 8 x far-end passive test jacks (ID no.ID1-ID8)
- 1 x Earphone
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 2 x 9V Batteries (FREE)
- 1 x RJ11-to-Alligator converter
- 1 x English Instruction manual
