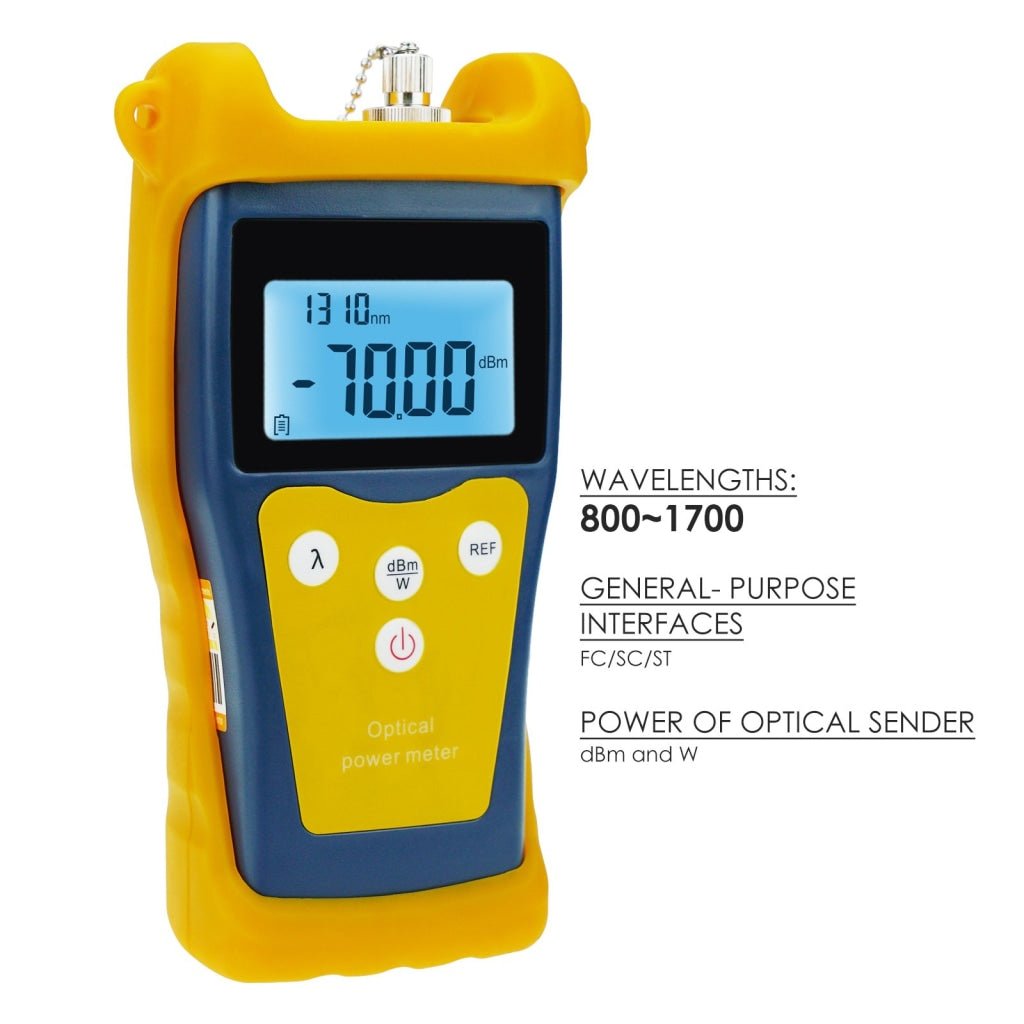

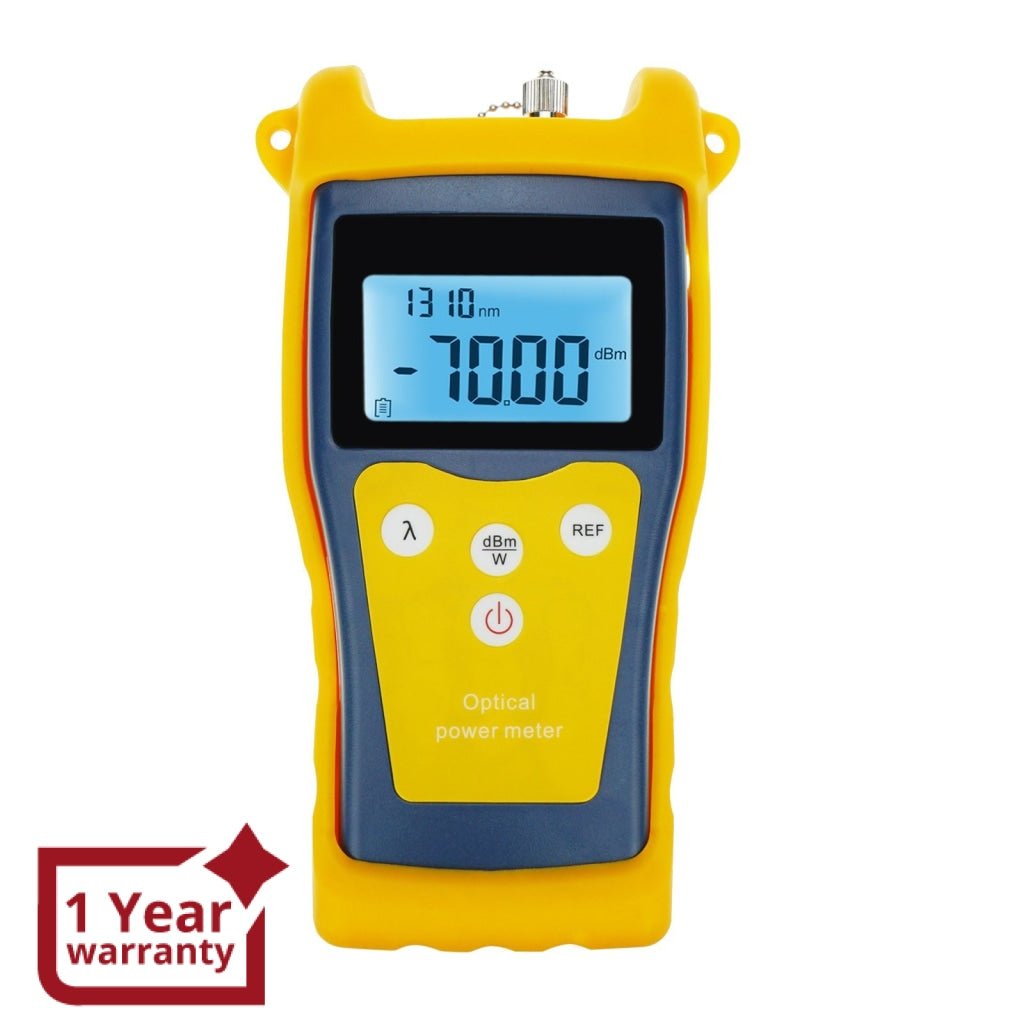

NF-906C New Fiber Optical Optic -50 ~ +26 dBm Power Meter Tester Fault locator FC SC ST LC for CATV CCTV Telecommunications Cabling System

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

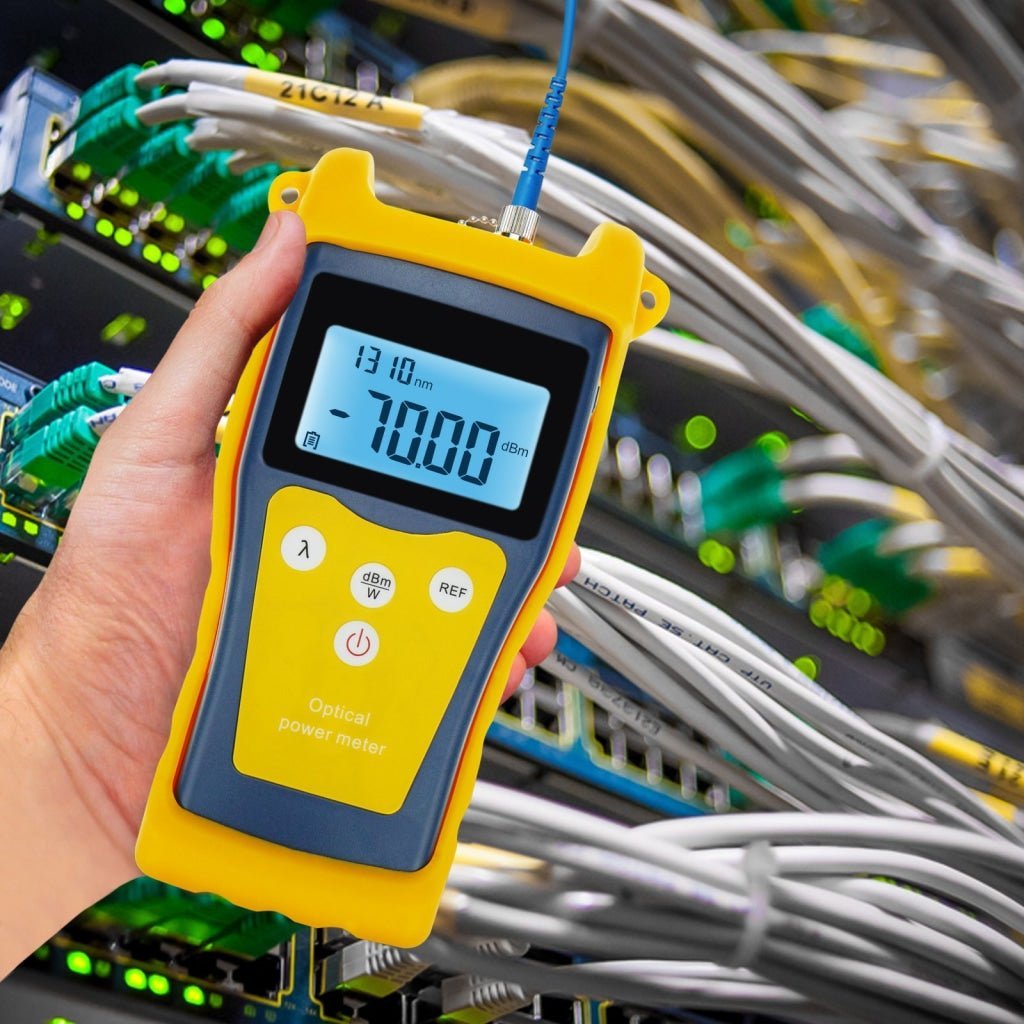

This optical power meter is for verifying fiver condition and for fiber damage test and equipped with 1.0mm large-area detector. Measures power output, loss in fiber cable or device, loss in a fiber device and identify system problems. With Absolute Power Measurement and Relative Power (loss) Measurement (when working with light source). Used for the installation, debugging and maintenance of fiber network. Used in cable construction and maintenance, optical fiber transmission, optical fiber communication, fiber optical sensor, CATV, etc.


  • Measuring power output (dBm and W) with Wavelength selection: 850, 1300, 1310, 1490, 1550, 1625nm
  • Test loss in fiber (insertion lost test in optical devices). Supports 2.5mm universal connectors.

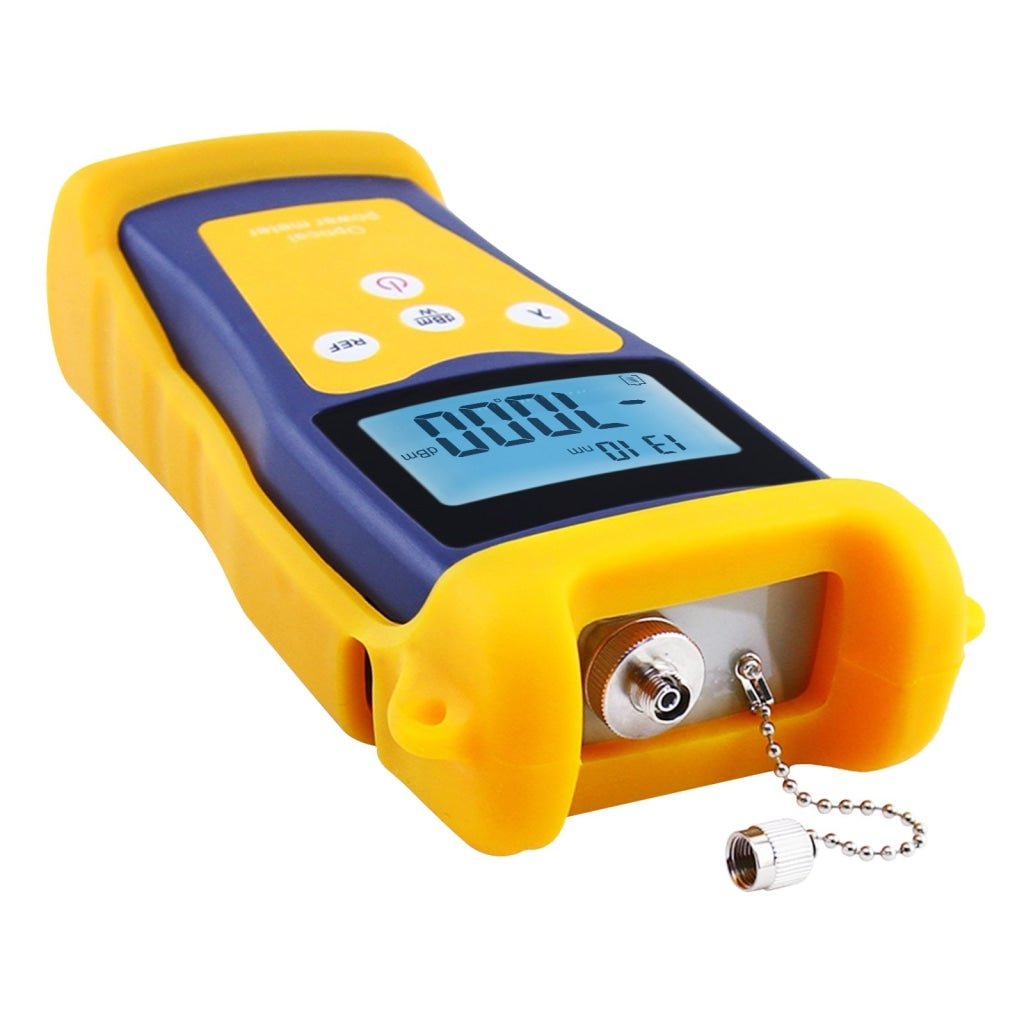

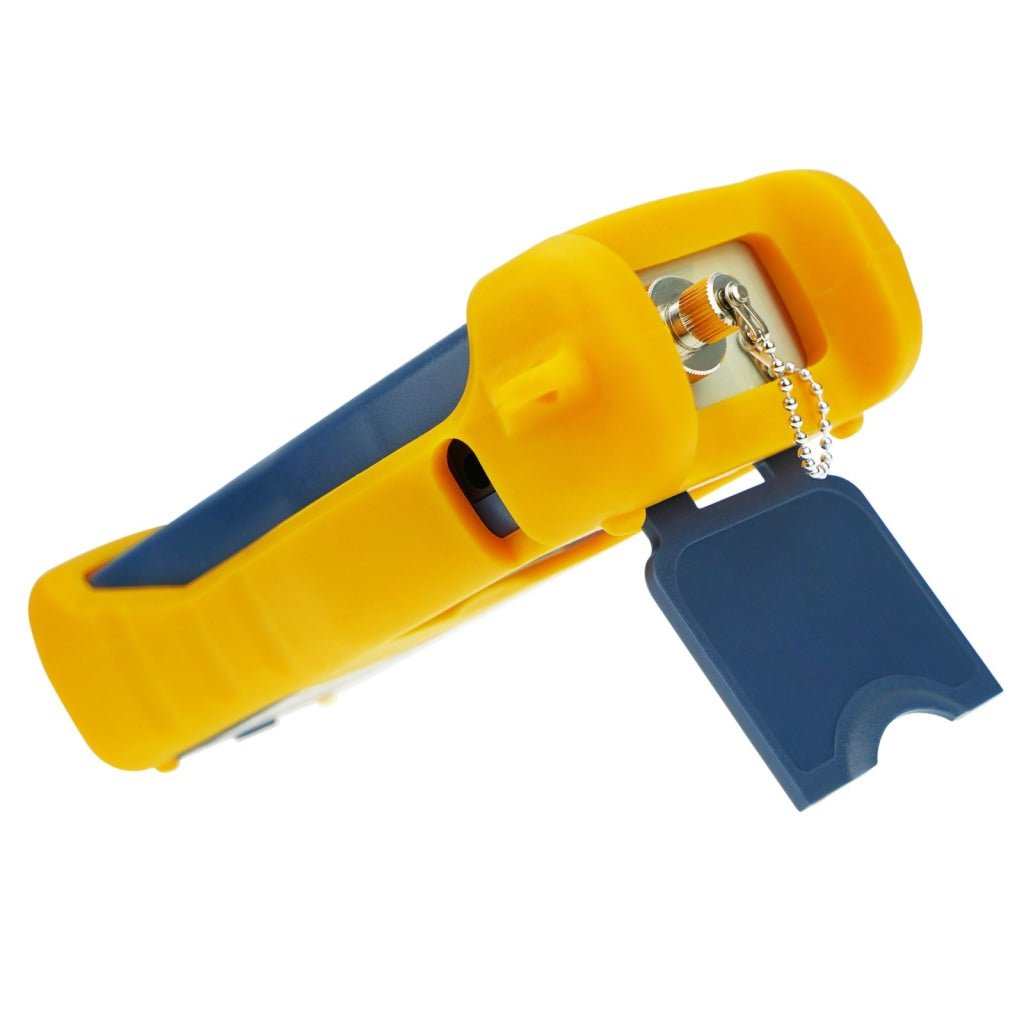

  • FC is included, (SC/ST/LC connector for option). New REF user-defined
  • Absolute power measurement and relative power(loss) measurement(when working with light source)

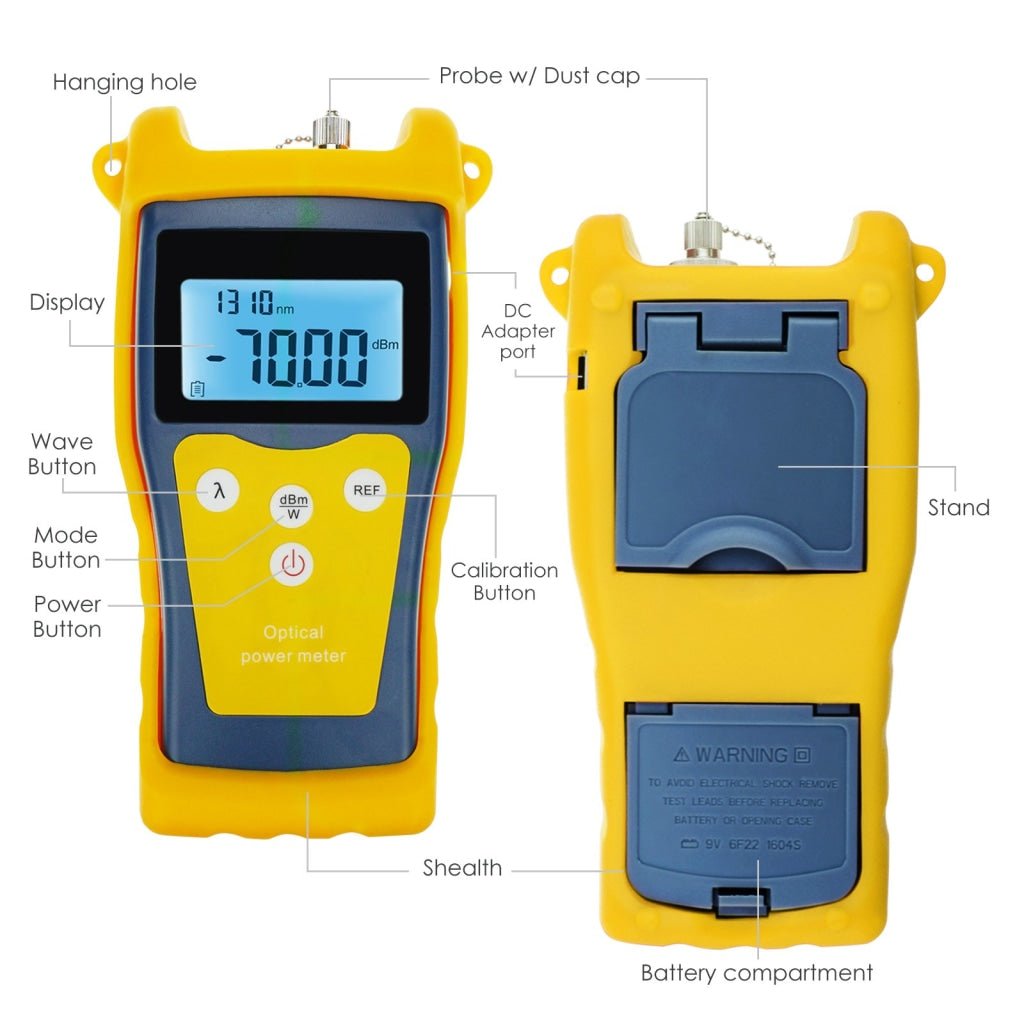

  • Optional auto power off function, auto power off indication, auto backlight off function, power status indication, user self-calibration function; can be used in portable type or desktop type


  • Power detecting range: -50 to +26dBm
  • Unit selection: dBm, W, dB
  • Standard wavelength (nm): 850, 1300, 1310, 1490, 1550, 1625
  • New REF user-defined
  • Self-calibration
  • Display resolution: 0.01dBm
  • Wave-length: 800-1700nm
  • Probe: InGaAs
  • Detection limit: 1.0mm
  • Uncertainty degree: ±5%
  • Supports 2.5mm universal connectors.
  • Optional auto power off function
  • Auto power off indication
  • Auto backlight off function
  • Power status indication
  • Working temperature: -20 ~ +70°C
  • Storage temperature: -30 ~ +80°C
  • Automatic shutdown time: 15min

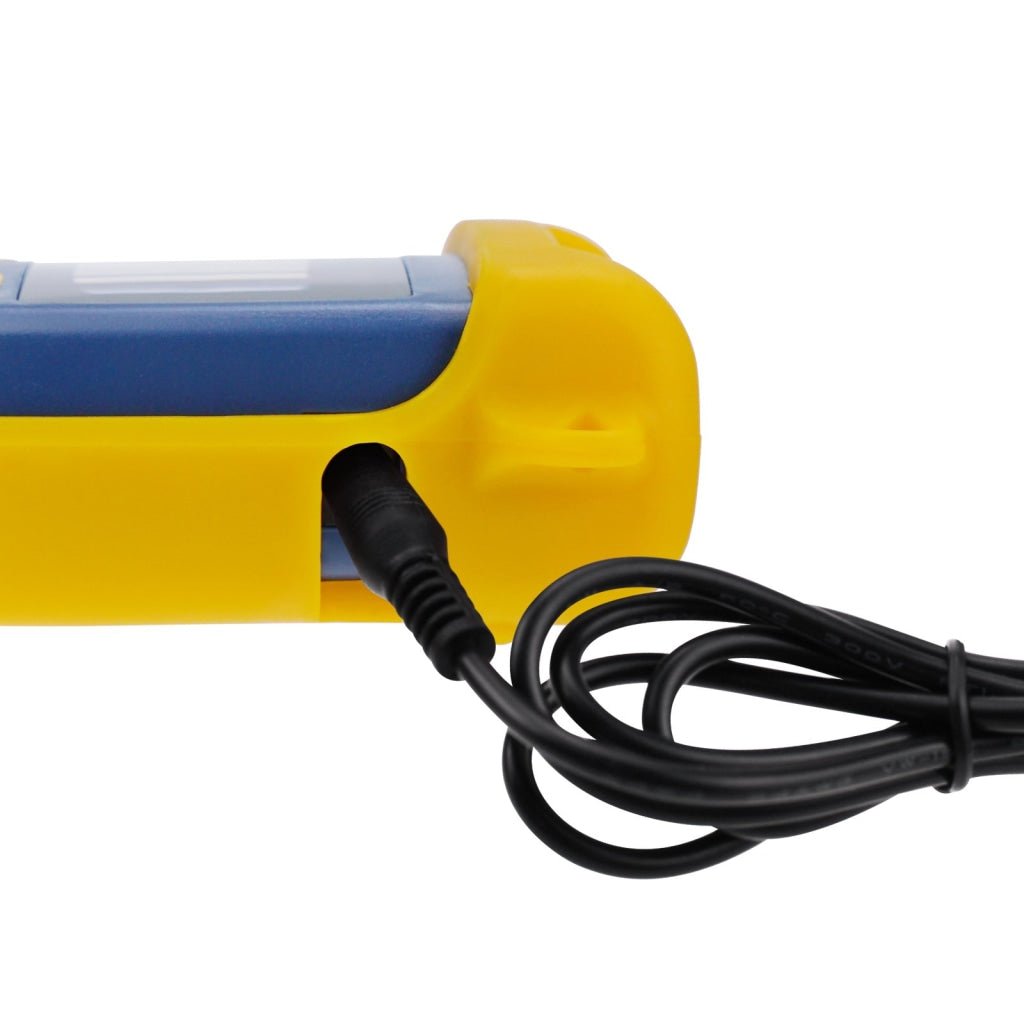

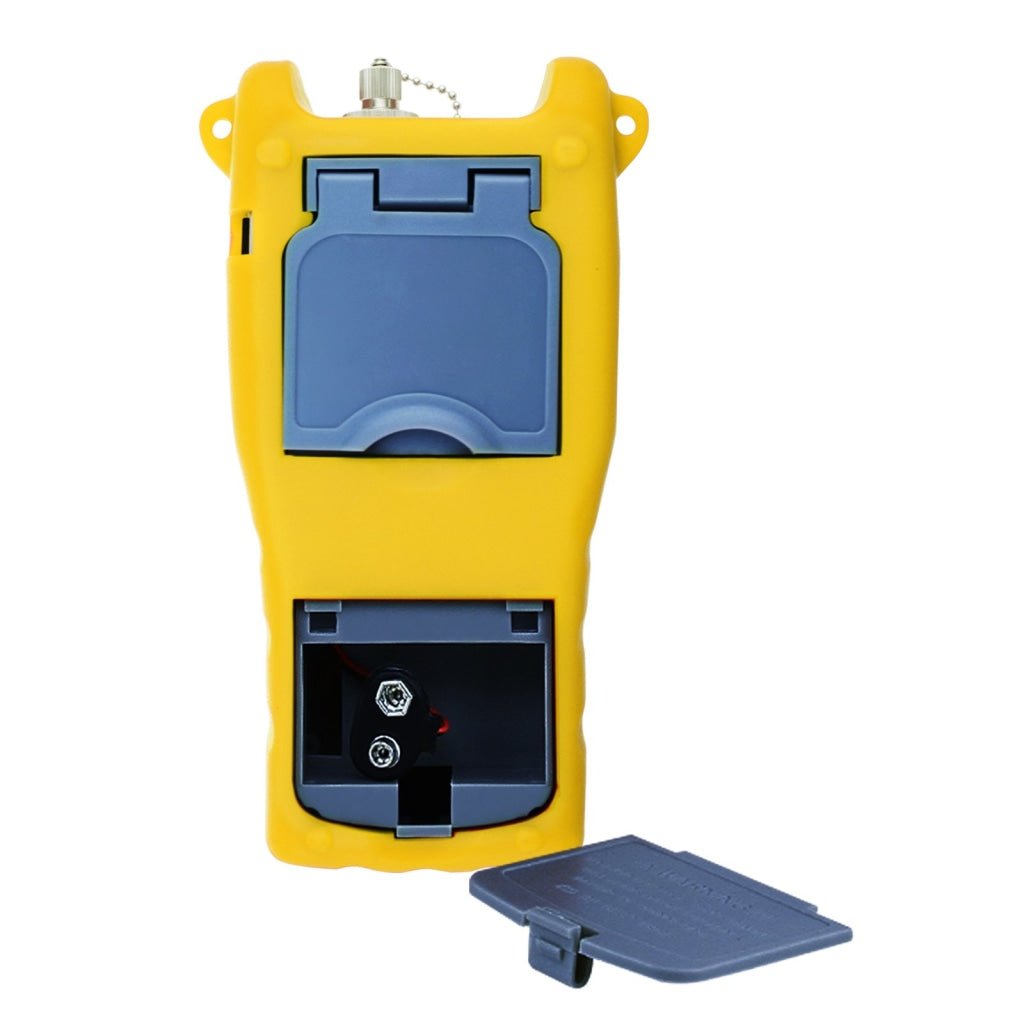

  • Power supply: 9V battery or AC adaptor
  • Battery Life: 200hrs for 9V battery

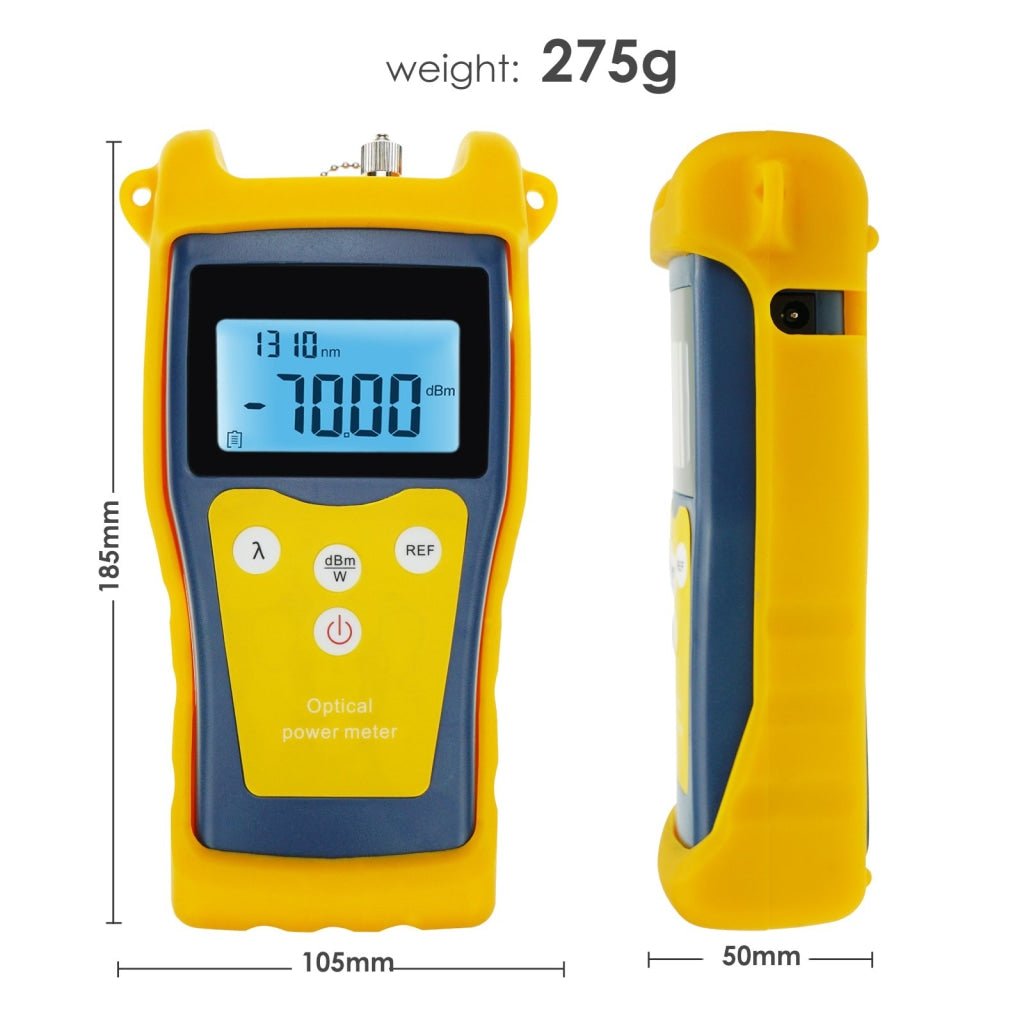

  • Meter weight: 275g
  • Meter size: 185 x105 x50mm

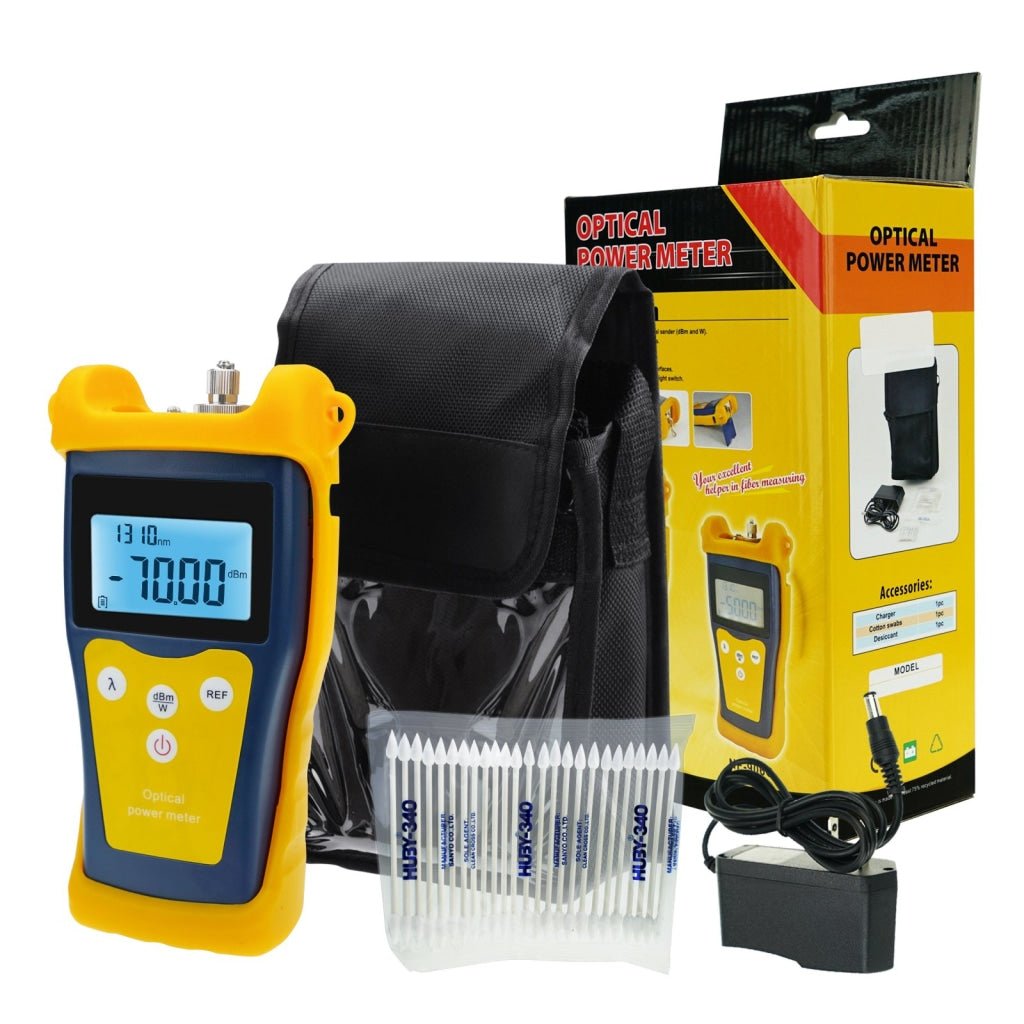

Set Includes:

  • 1 x Optical Power Meter
  • 1 x English Manual

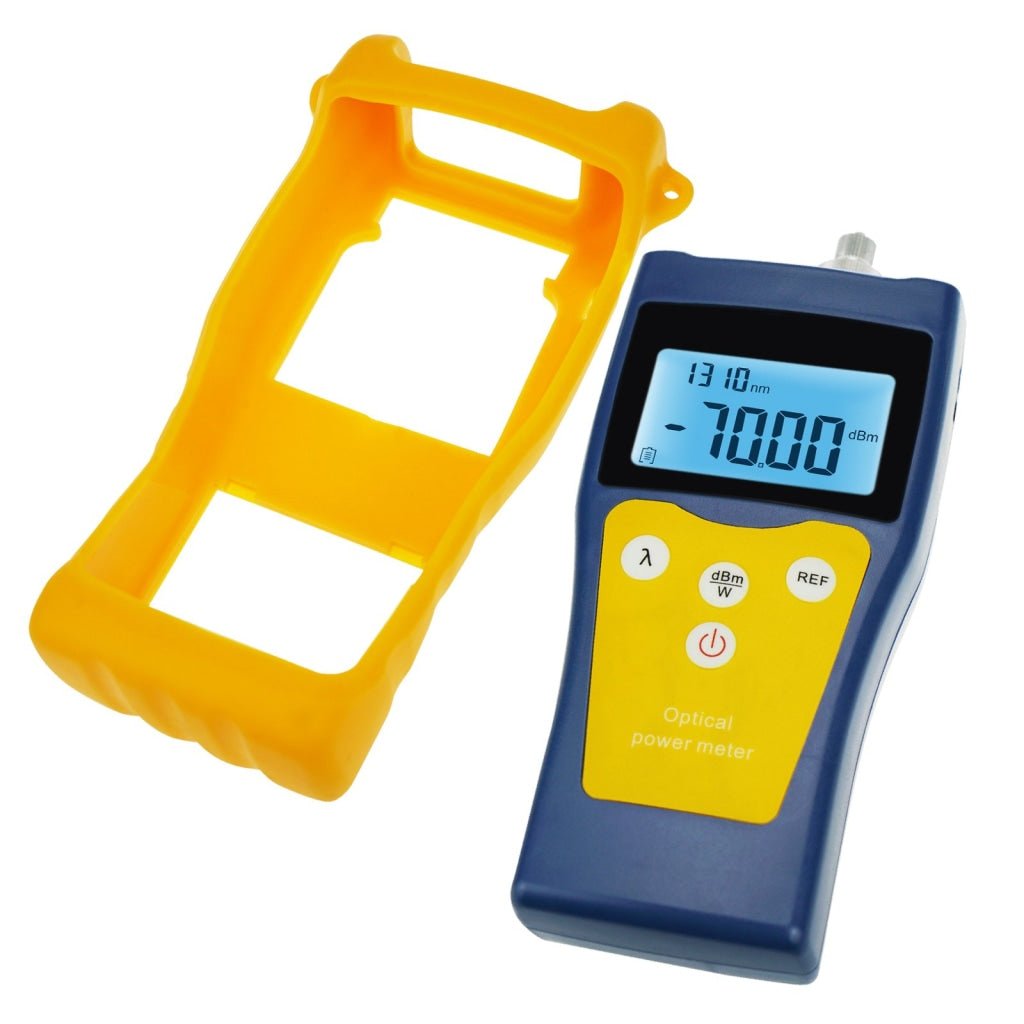

  • 1 x Protective rubber case
  • 1 x AC adaptor
  • 1 x 9V battery
  • 1 x pack Cotton swab

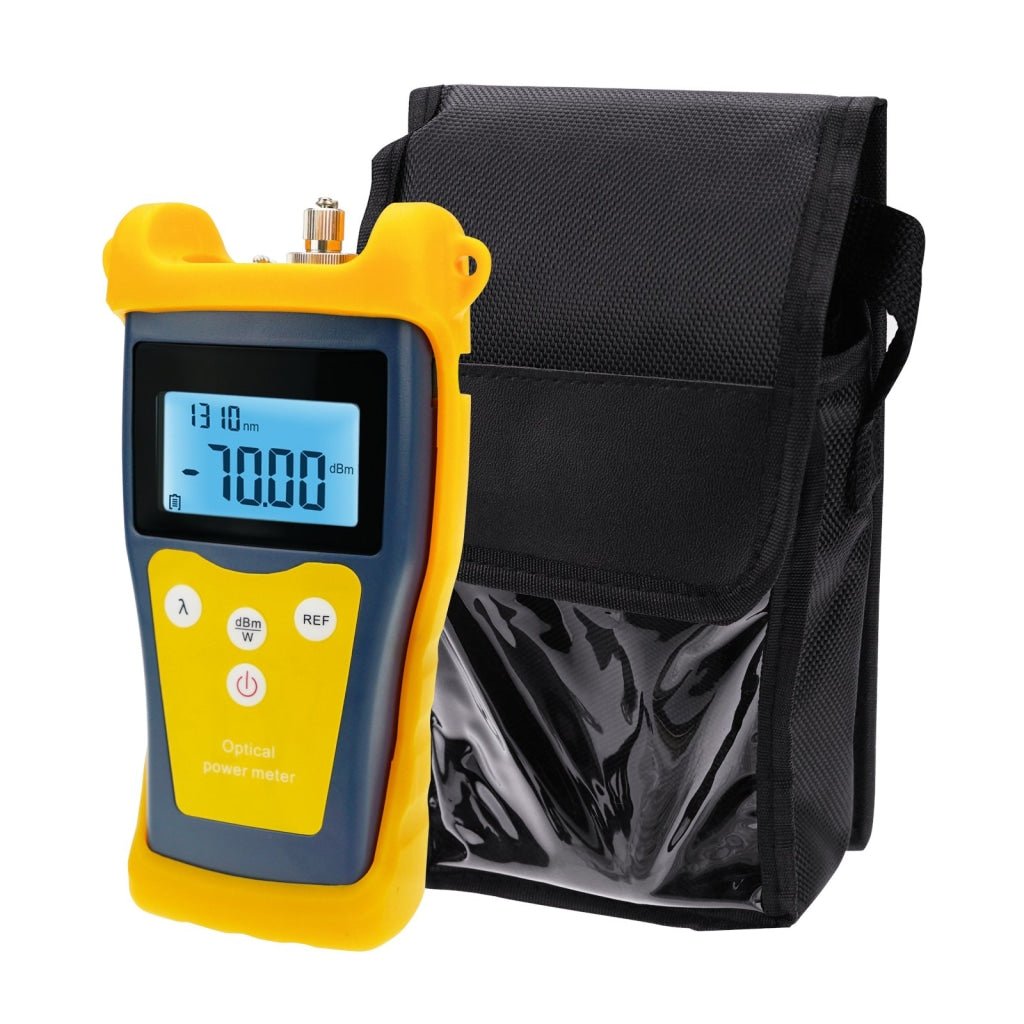

  • 1 x Carry pouch
  • 1 x Color package box
