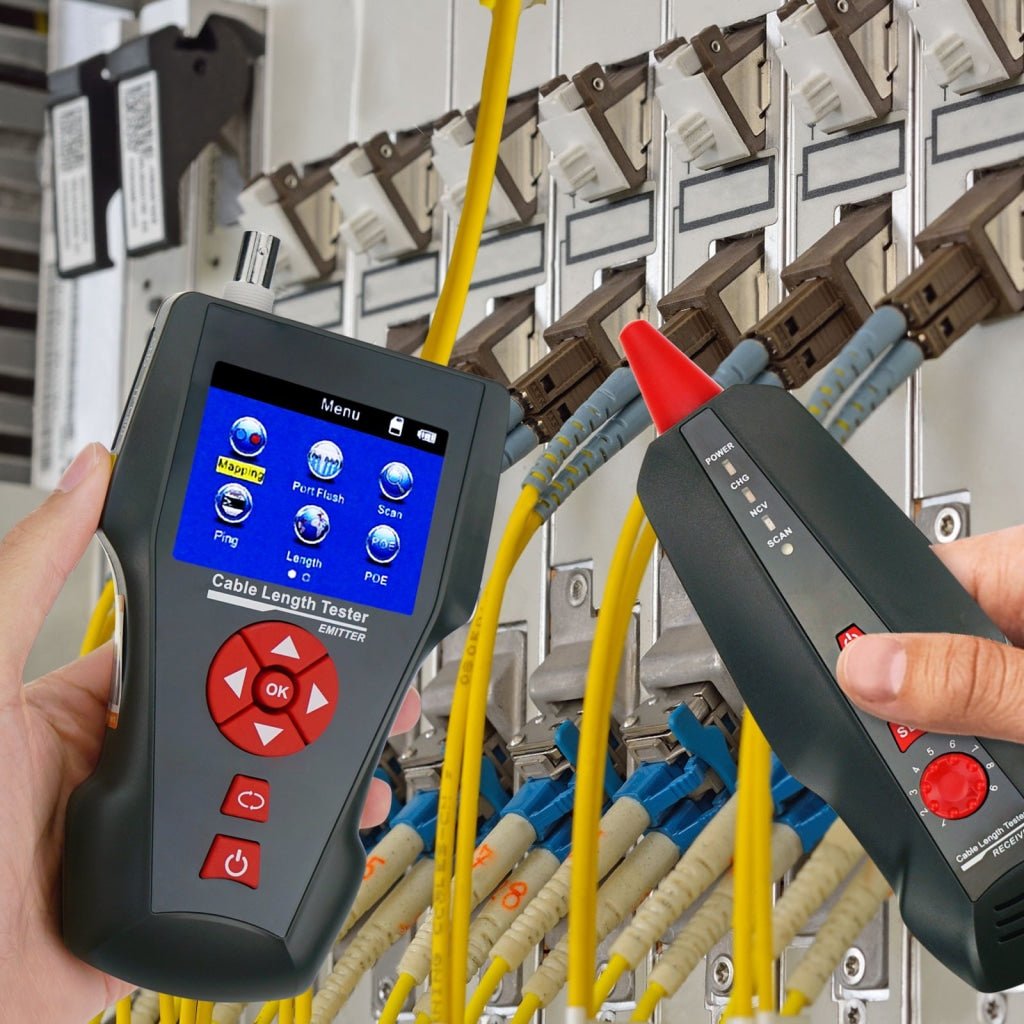

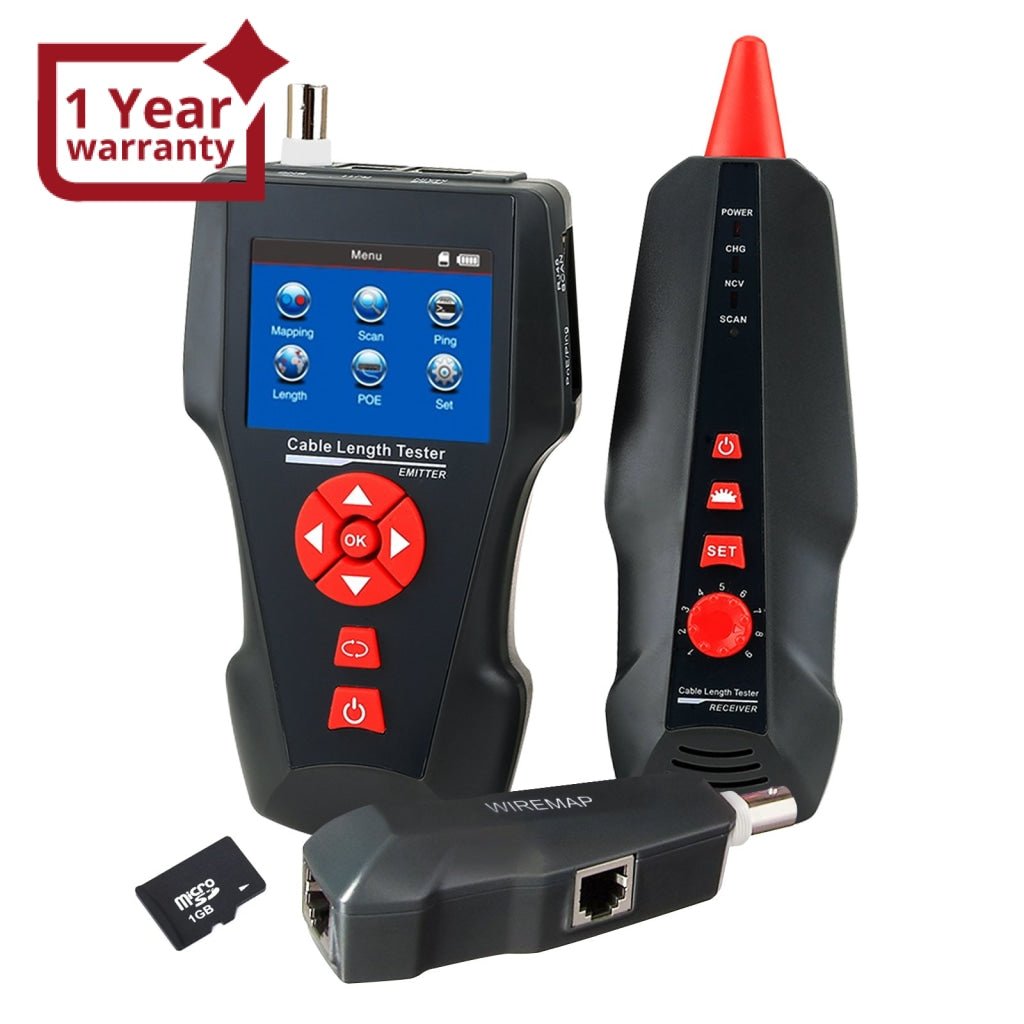

NF-8601 Digital Cable Length Tester RJ45 RJ11 BNC Coax Network, with Free TF Card, handheld Cable Tester Wire Tracker POE PING Ethernet Tester, STP/UTP 5E, 6E
This cable length tester is CE approval and comes with mapping function that test cable continuity, such as if the cable is good, open, short, cross, reverse connection, etc.
Its port flash helps locate the target network cable more easily while connecting to the router/switch. The cable scanning trace RJ45/RJ11 cable and coax cable and PING test network signals and if the network cable is connected or not. Another function of this tester is to verify cable length, open circuit distance and pairing, crosstalk while PoE test if the network cable is connected with PoE switcher or router, and then detect the power of every cable. Setting: set up backlight/backlight time/auto-power-off time/theme color/data export/system information, e
Ideal for low voltage system installation and communication circuits and comprehensive wiring circuits maintenance technicians.
Features:
- PoE / PING testing to identify which pins are providing power and detect how much voltage and PING function test data packet and its loss and voltage detection (90-1000V, included in receiver).
- Trace targeted cable among lots of unknown cables. Port flash function help trace LAN cable connected to switcher or router visually, no need of receiver
- Capable of scanning cable on PoE switch or test open, short, cross connection, reverse, and broken wire positioning with M-S and M-R method without damaging the device
- Locate faults for RJ11/RJ45/BNC Cable. Measure cable length accurately. Voltage detecting function
- Memory and storage function: export or upload the data from PC (160 sets, txt format)
Specifications:

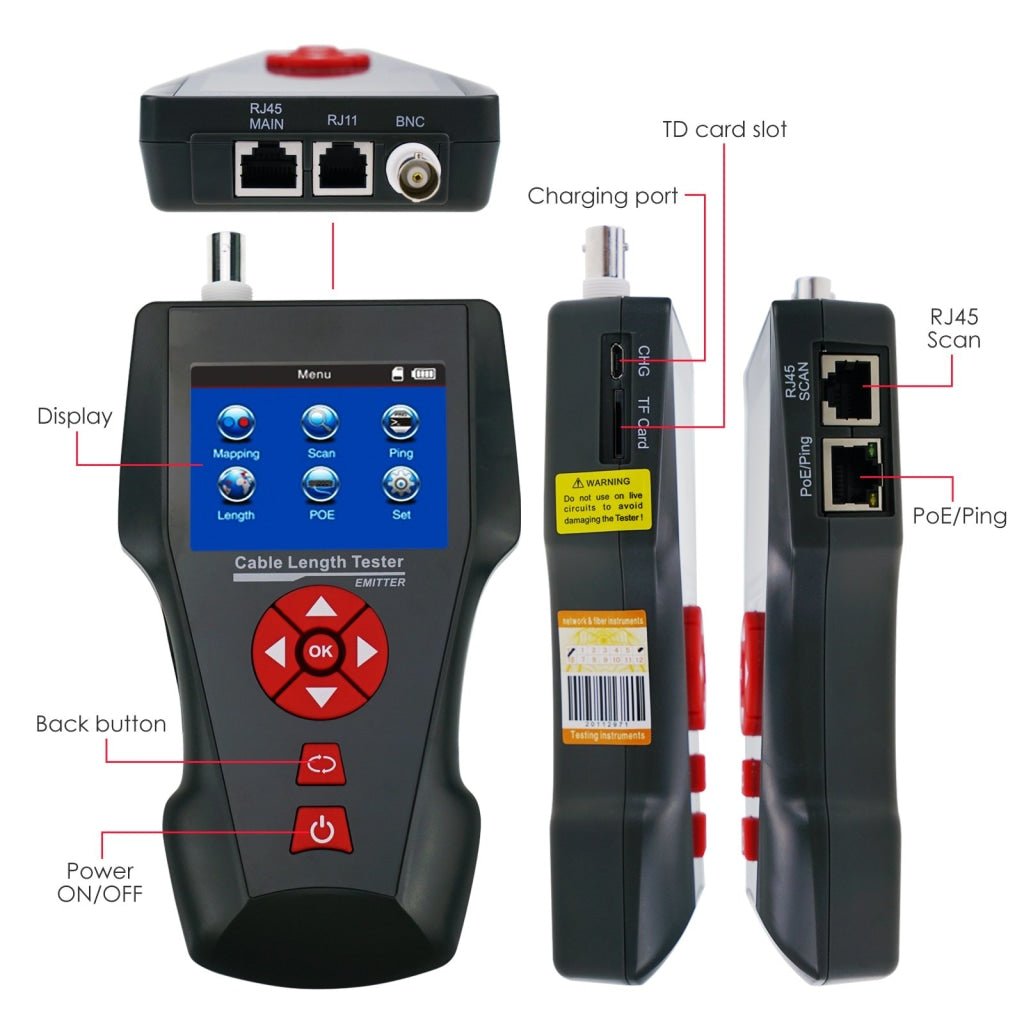

- Emitter:
- Display: 2.8 inch LCD color screen

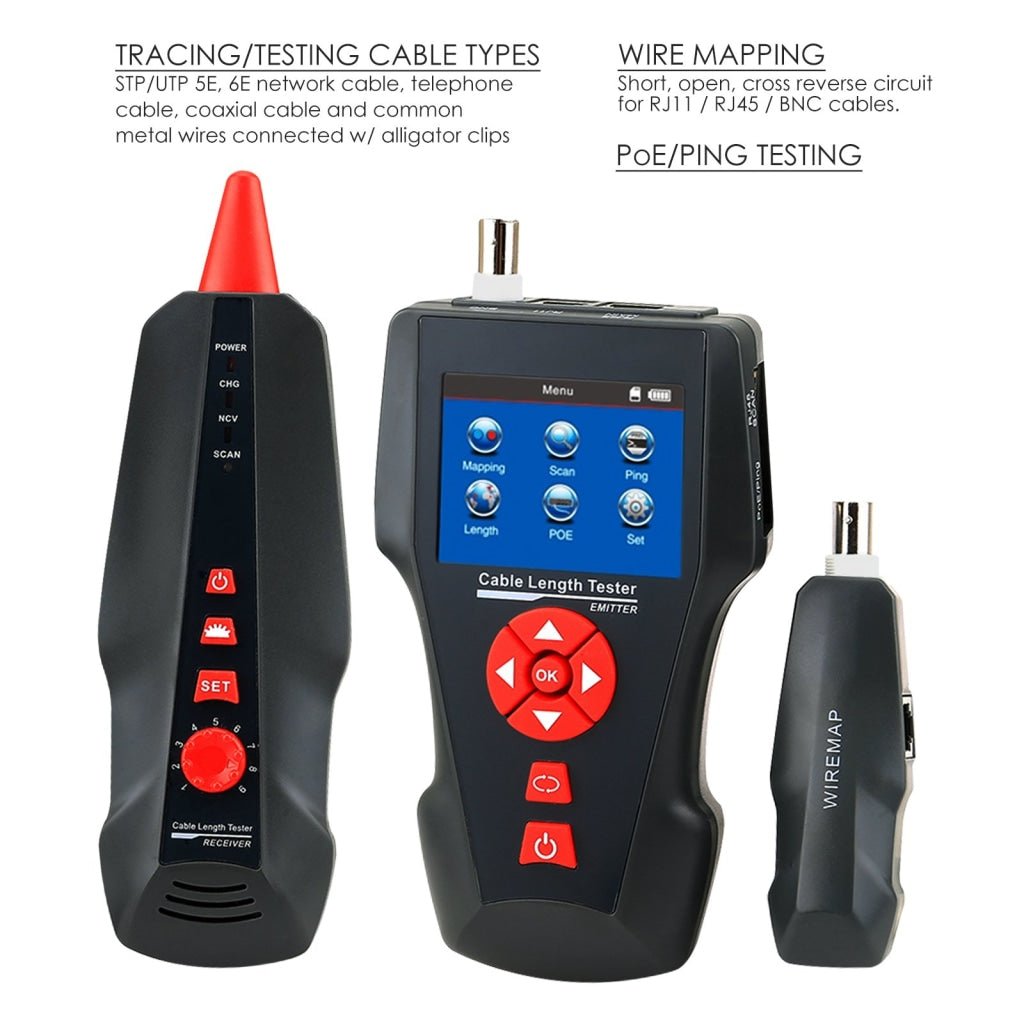

- Cable testing types: STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, and common metal wires connected with alligator clip
- Max. distance of wiremap: 2000m
- Max. distance of tracing cable: 1000m
- Max distance of cable length measurement: 2000m
- Min. distance of calibration: 10m
- Accuracy: 98% (after calibration)

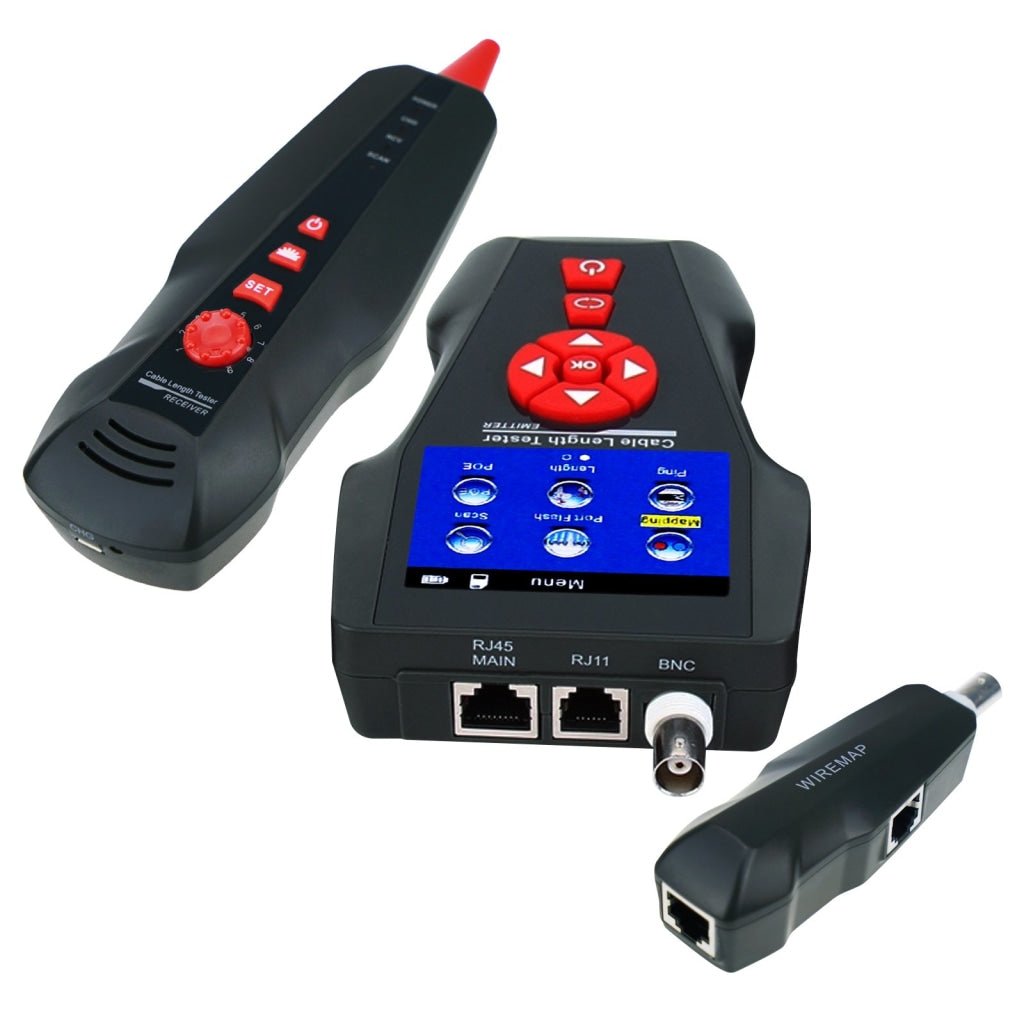

- Compatible connectors: RJ11, RJ45, BNC, PING/PoE
- Cable map indication: LCD (Pin#1 – Pin#8 & G)
- Power Supply: 3.7V rechargeable lithium battery 1800mAh (installed)
- Work temperature/ humidity: 10°C-60°C/ 0%RH-70%RH

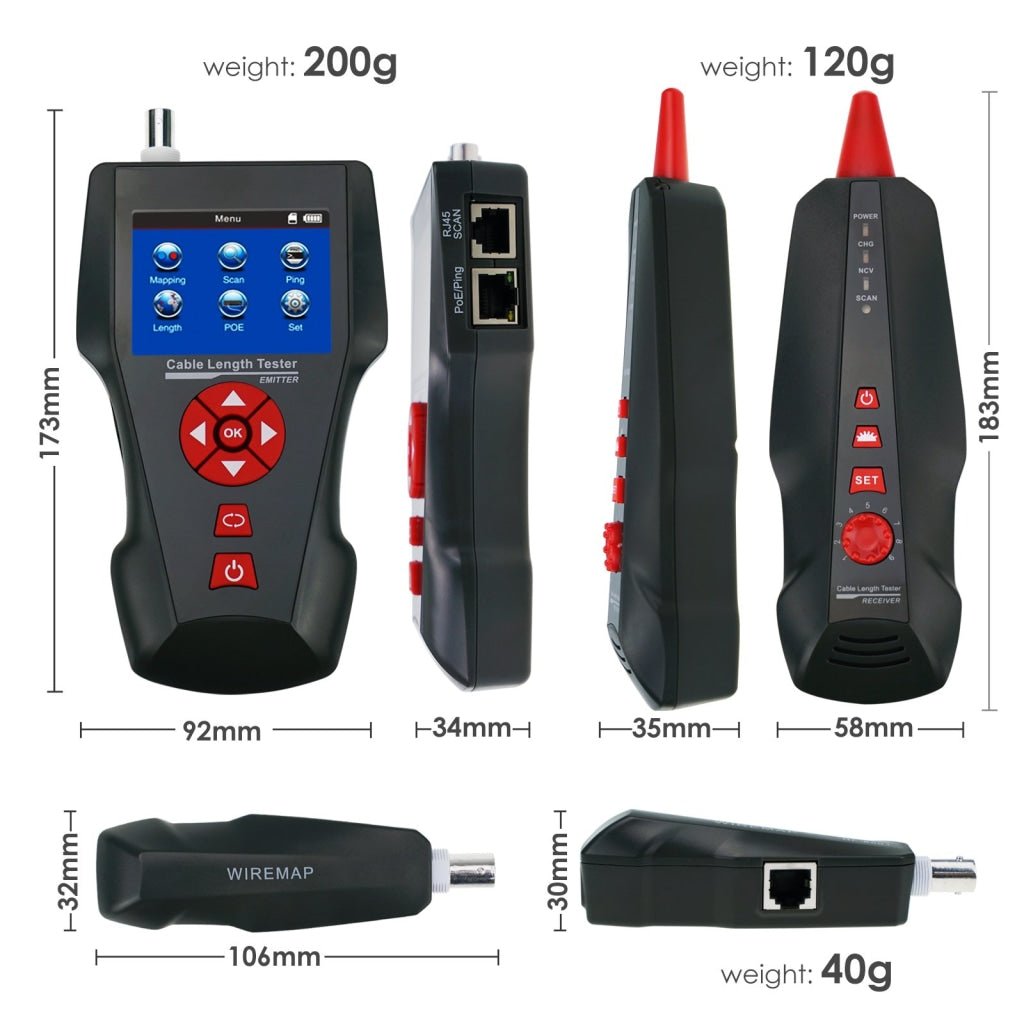

- Dimension: 173 x 92 x 34mm

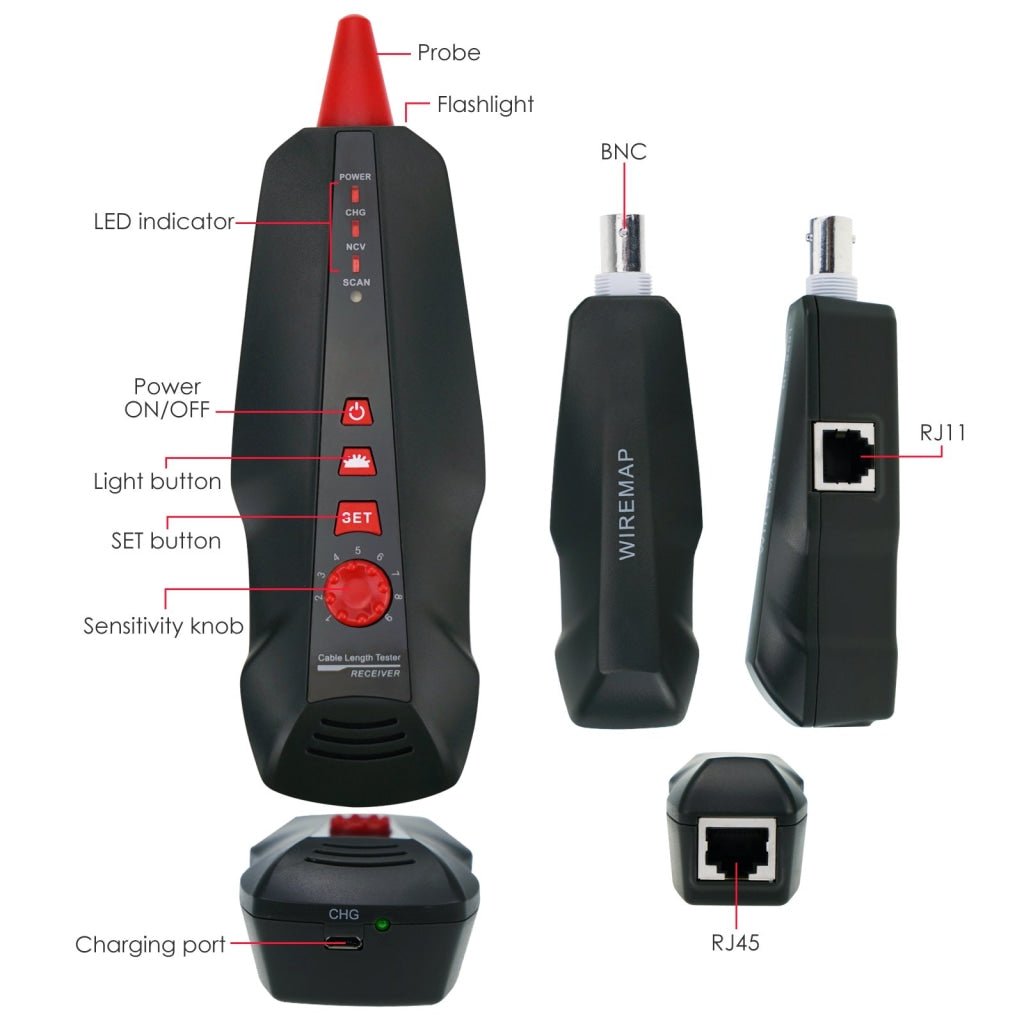

- Receiver
- Cable hunting: RJ45, RJ11, BNC cable
- Types of cable: ≥2 cores
- Power supply: 3.7V rechargeable Li-battery 1800mAh
- Remote Identifier
- Compatible connectors: RJ11, RJ45, BNC

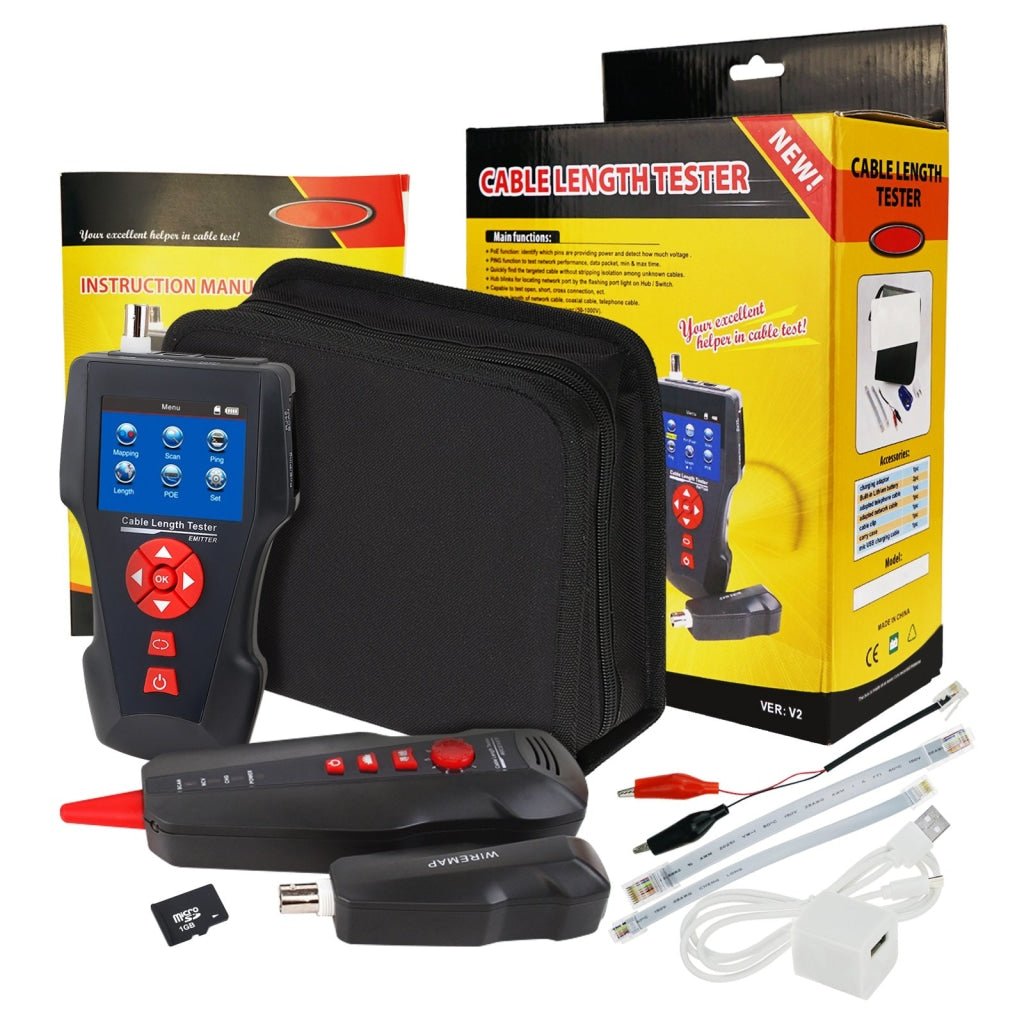

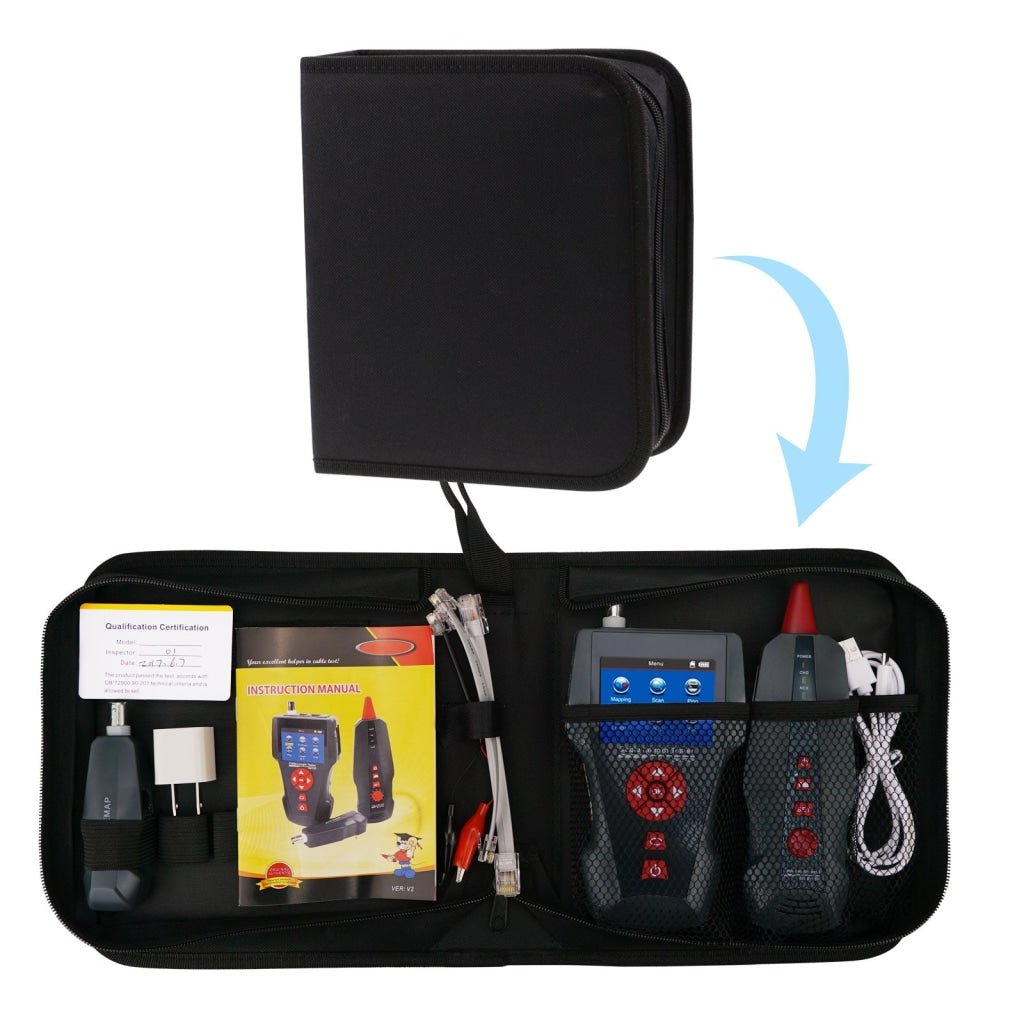

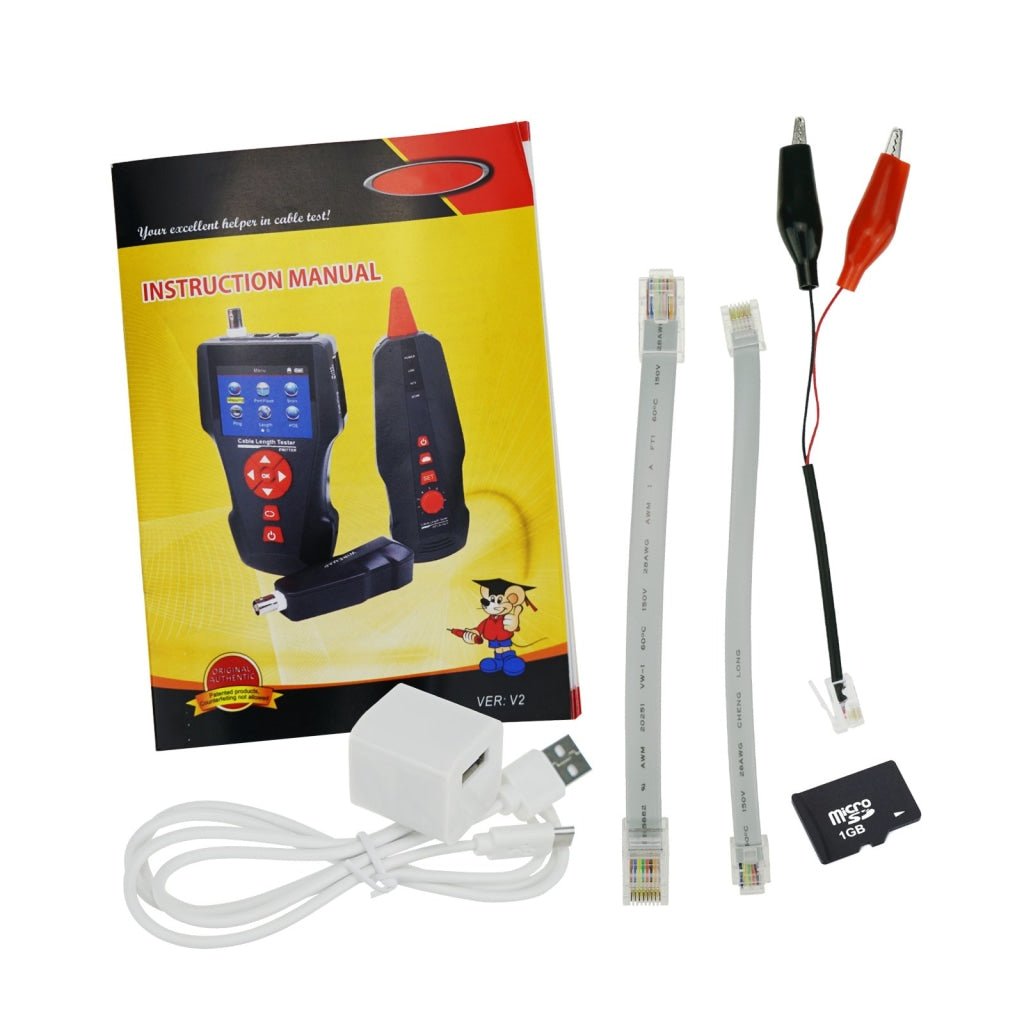

Set Includes:
- 1 x Emitter
- 1 x Receiver
- 1 x Remote identifier
- 1 x RJ11 cable adaptor
- 1 x RJ45 cable adaptor
- 1 x Alligator clip
- 1 x 1GB TF Card
- 1 x English Manual
- 1 x USB Cable
- 1 x Power adaptor
- 1 x Carry pouch
- 1 x Color box
