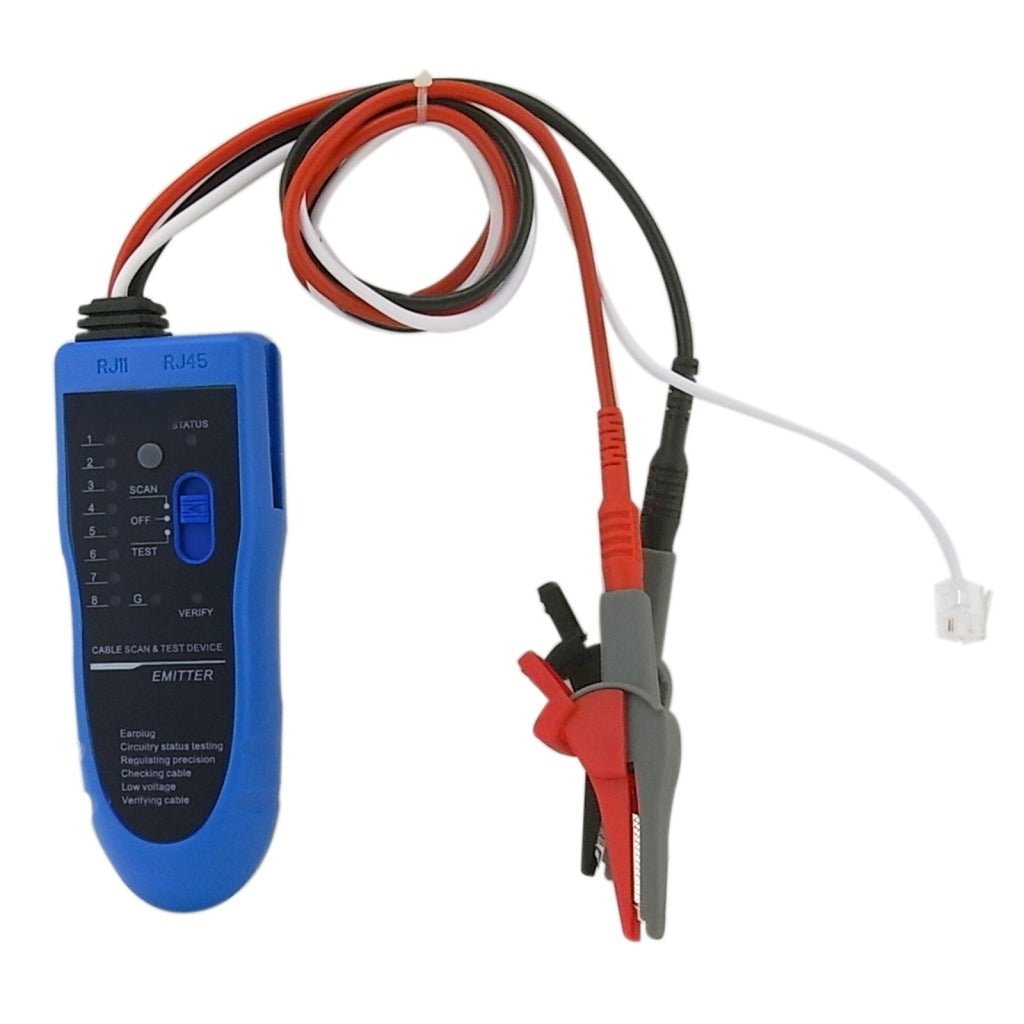

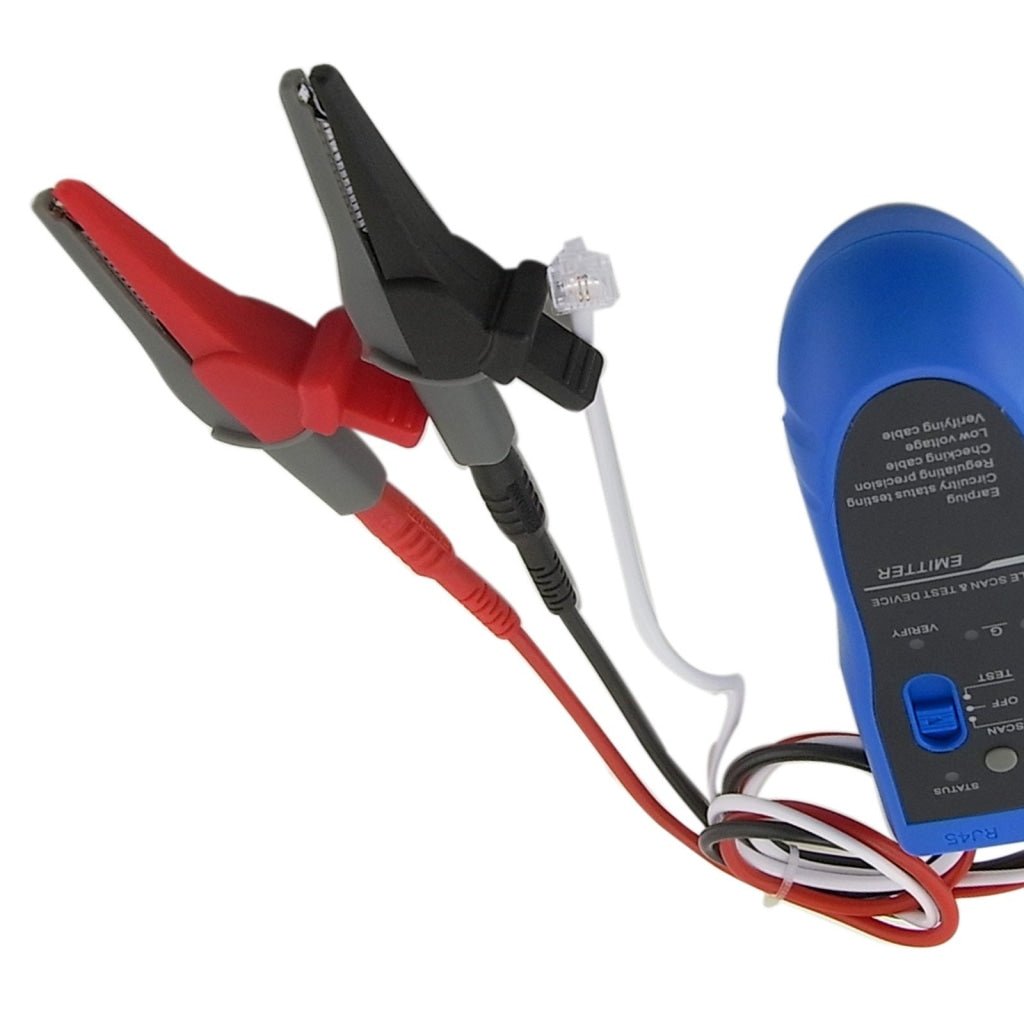

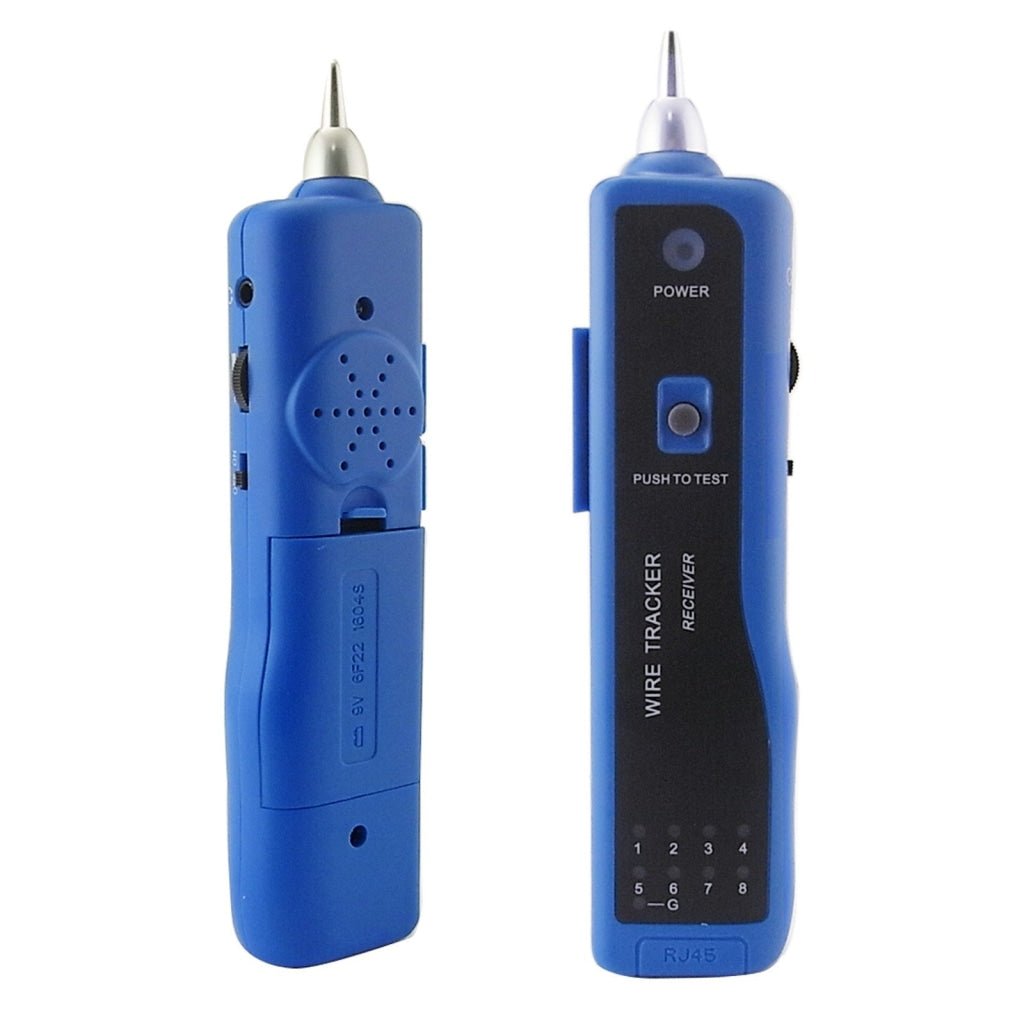

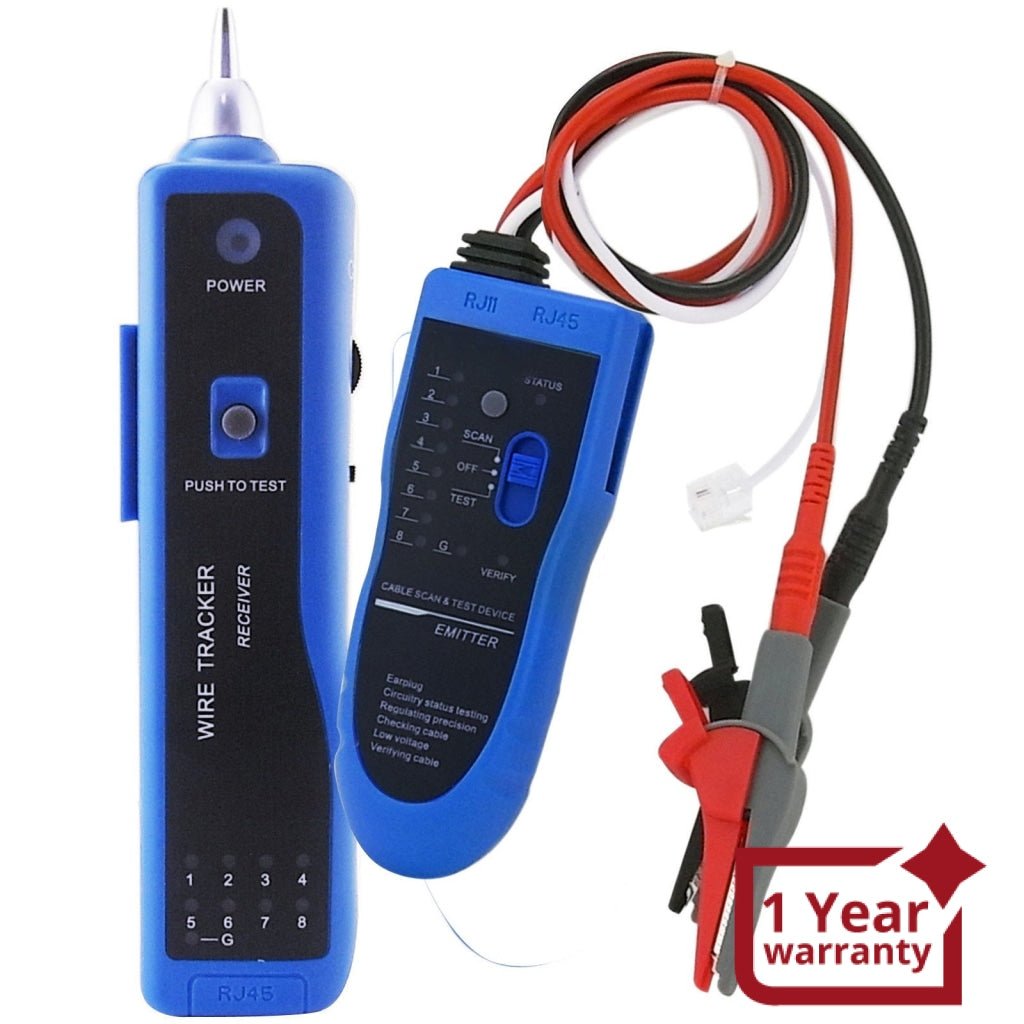

N03NF-889T Wire Tone Tracker RJ45 RJ11 Cable Coaxial Emitter with Alligator

  • 0% OFF
  • Regular Price

    $60.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

This Wire Tracker is a reliable and economical tool with great ergonomic design and special alligator clip, more durable. Intuitive operation, no expensive training required. Quickly find the pair cables among so many cables. The function of speed regulating: choice speed on testing. The function of speed and frequency changing: choice speed on testing; choice frequency on looking.

It comes with Earphone  for use in very noisy environment. Security: safety using (the probe can directly contact bare gold line). The emitter will power off automatically when contact high pressure which can protect the product.


Features

  • Trace wire in electrical system
  • Trace telephone wire/LAN cable
  • Verify LAN cable condition
  • Continuity test
  • DC level testing function
  • Bright white LED flash light
  • Find wire on all types of connected operating Ethernet switch/Router/PC terminal

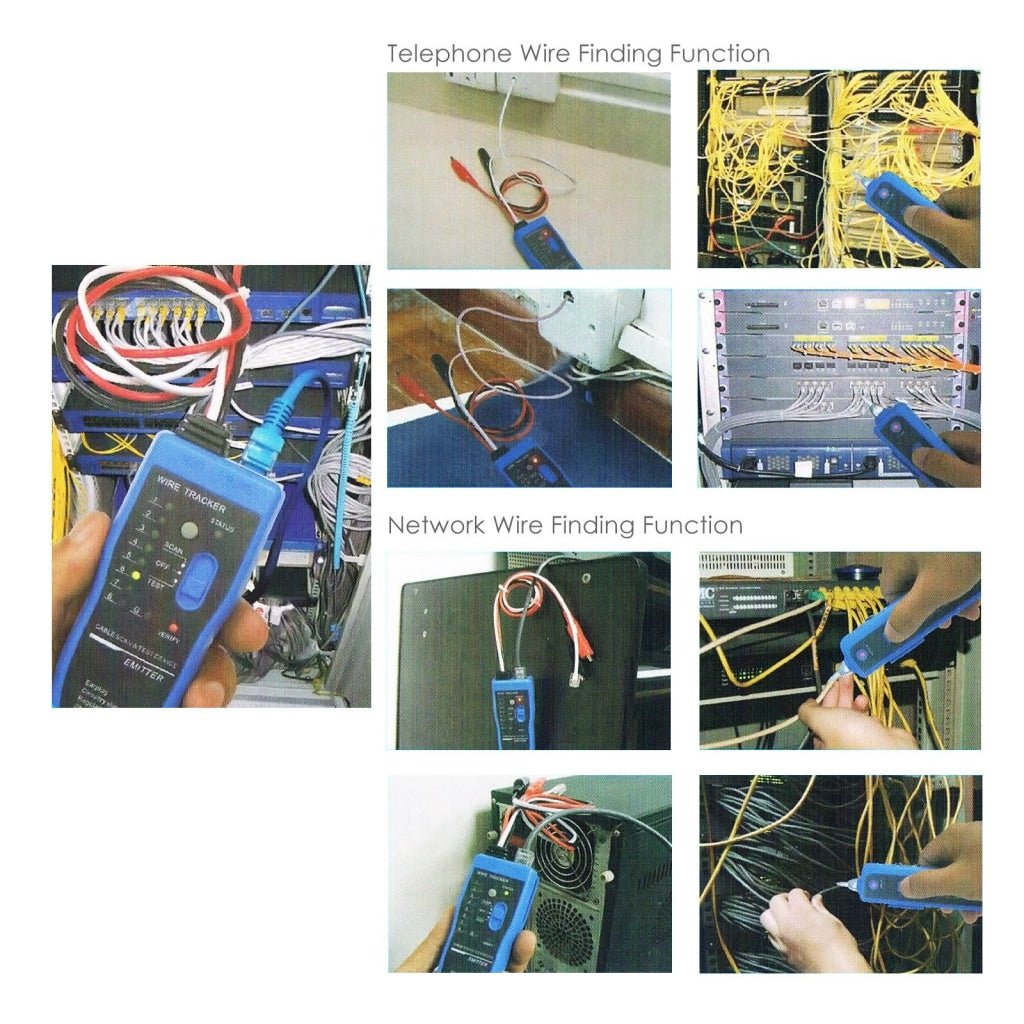

  • Rapidly find the target wire from among plenty of telephone wires
  • Rapidly find the target wire from among plenty of network wires
  • It can take place of cable tester
  • Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator.

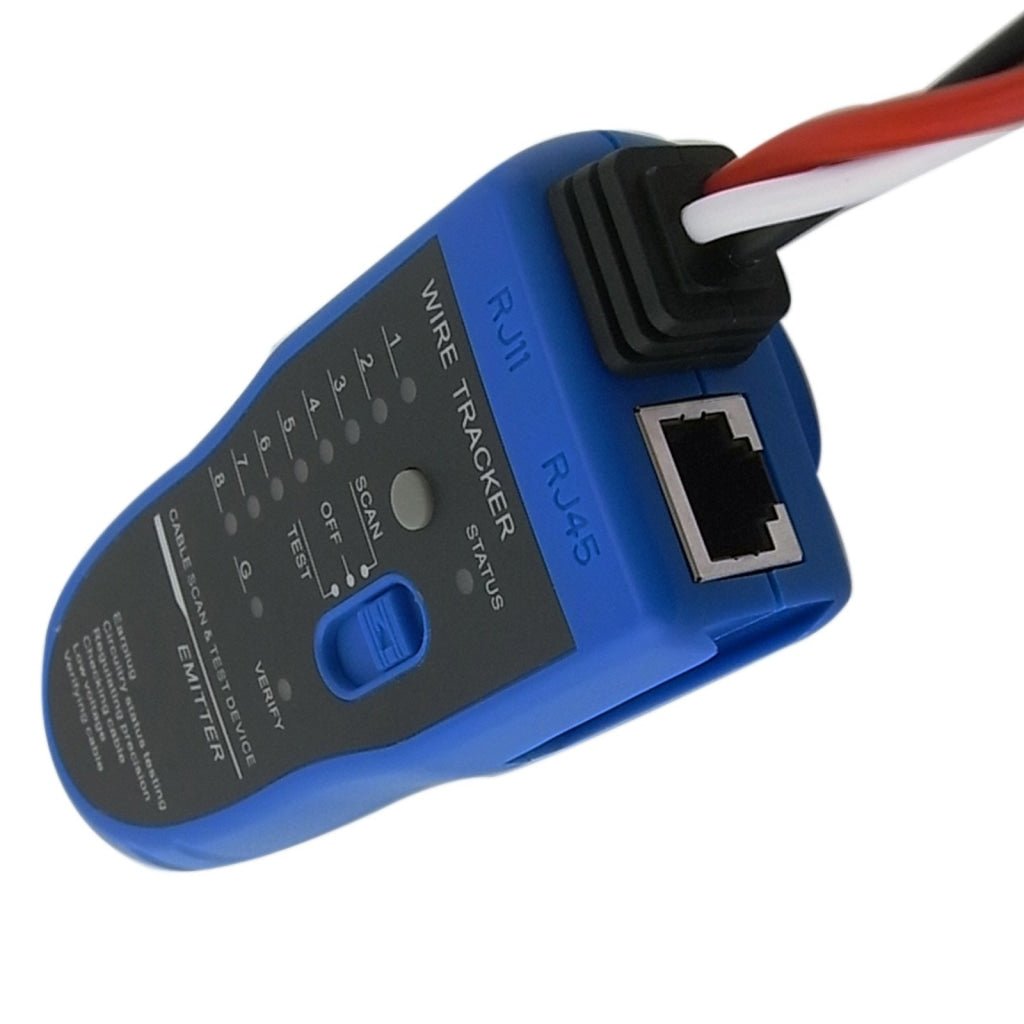

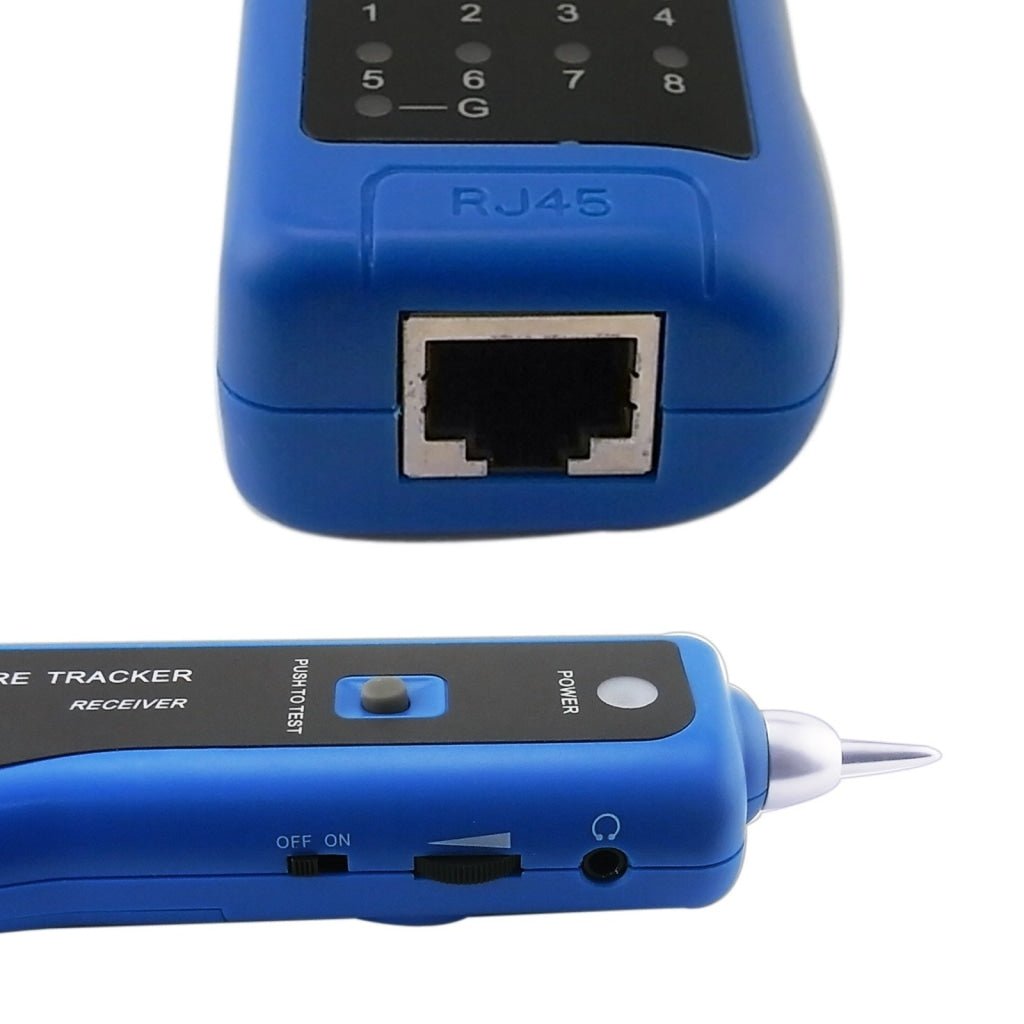

  • Can test RJ-45/RJ-11
  • Low battery indication
  • Bright white LED flash light
  • Cable assignment test: Open,short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) telephone cable
  • Cable state testing (2-wire):
    • Line DC detecting, anode and cathode determination
    • Ringing signal detecting
    • Open, short, and cross test



Specifications

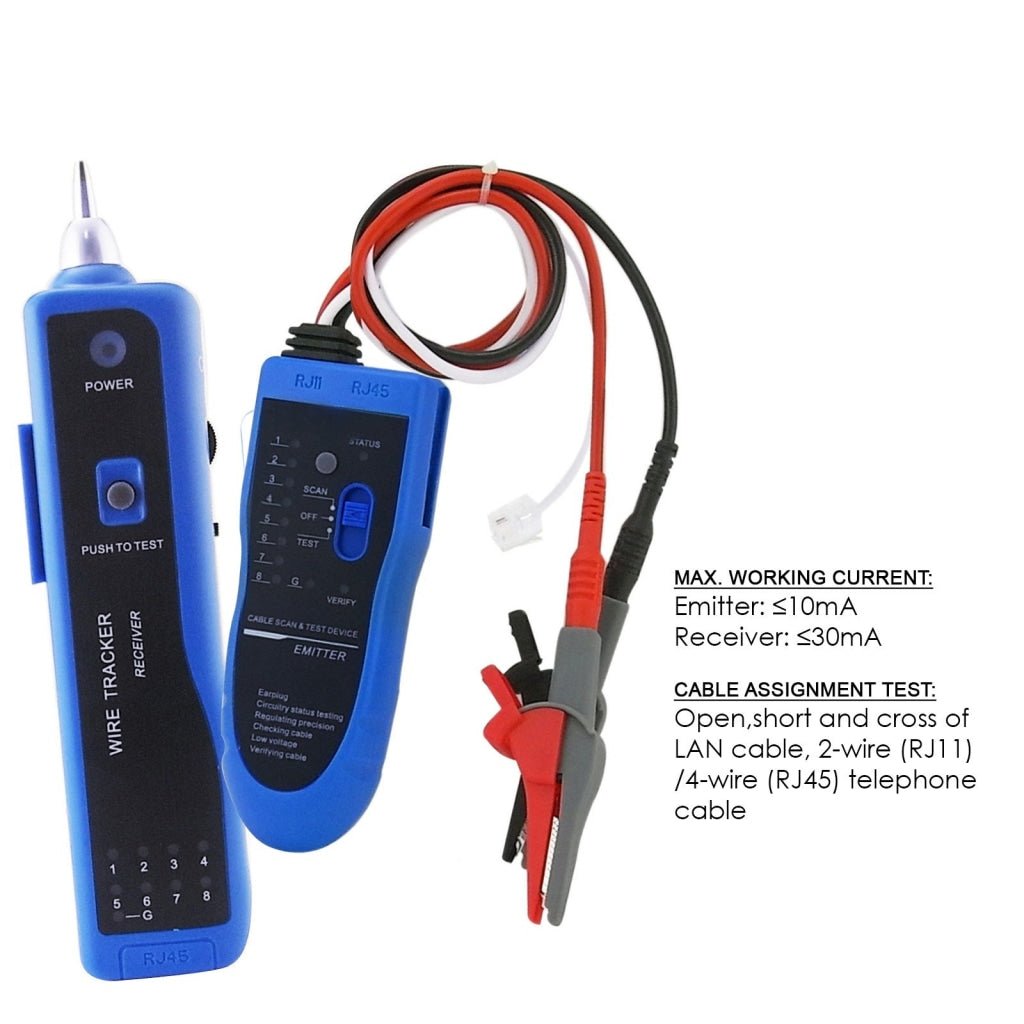

  • Max. Working Current
    • Emitter: ≤10mA
    • Receiver: ≤30mA
  • Signal transmission format: Multi-frequency impulse
  • Signal output electric status: 8Vp-p
  • Distance of signal transmission: ≤3k
  • Volume Regulate Function: Yes
  • Earphone for noise environment: Yes
  • Sensitive; induction distance less than 20mm. strong anti-jamming ability
  • Storage Temperature: -20 ~ 50°C
  • Operating Temperature: -10 ~ 40°C

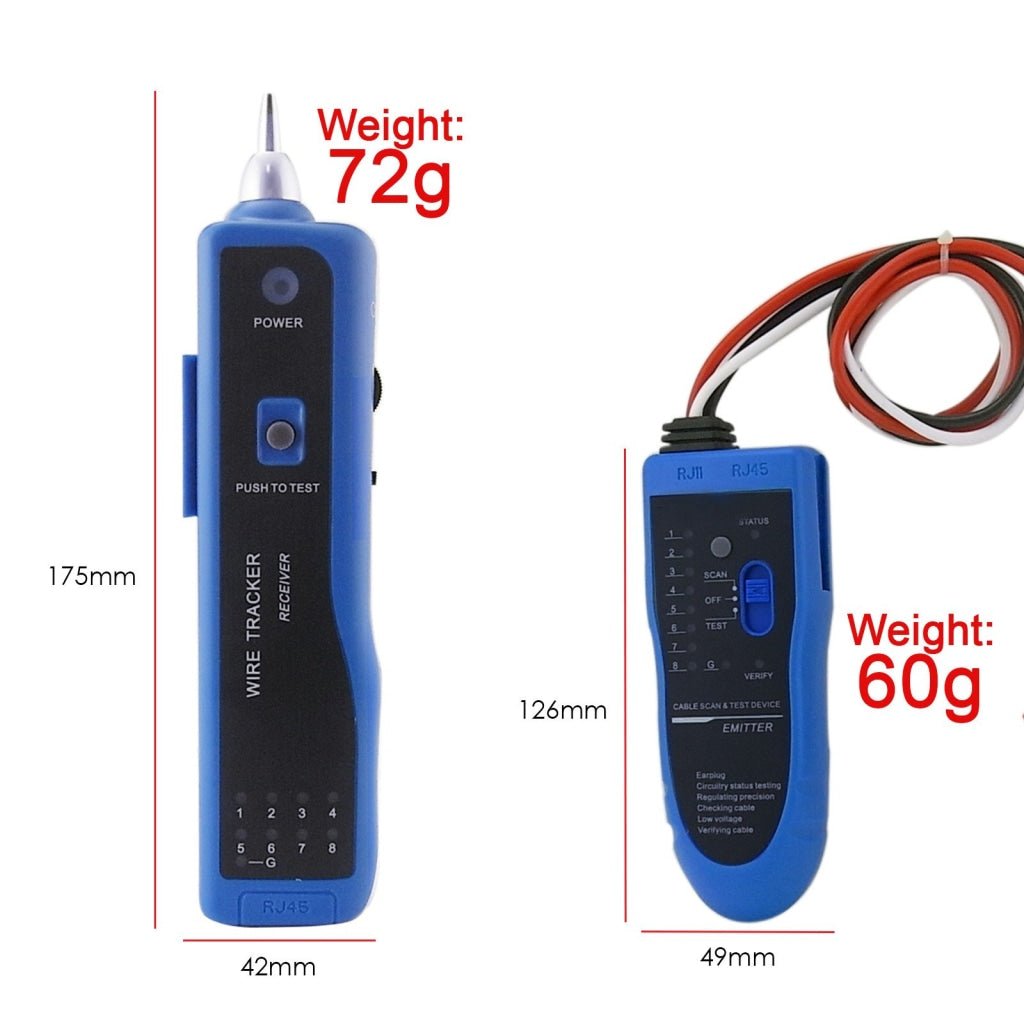

  • Appearance dimension
    • Emitter: 126 x 49 x 34mm
    • Receiver: 175 x 42 x 27mm
    • Whole set: 270 x 165 x 45mm
  • Weight
    • Emitter: 0.060kg
    • Receiver: 0.072kg
    • Whole set: 0.420kg
  • Power Supply: DC, 9V battery
  • Battery life: 50hrs continuous use

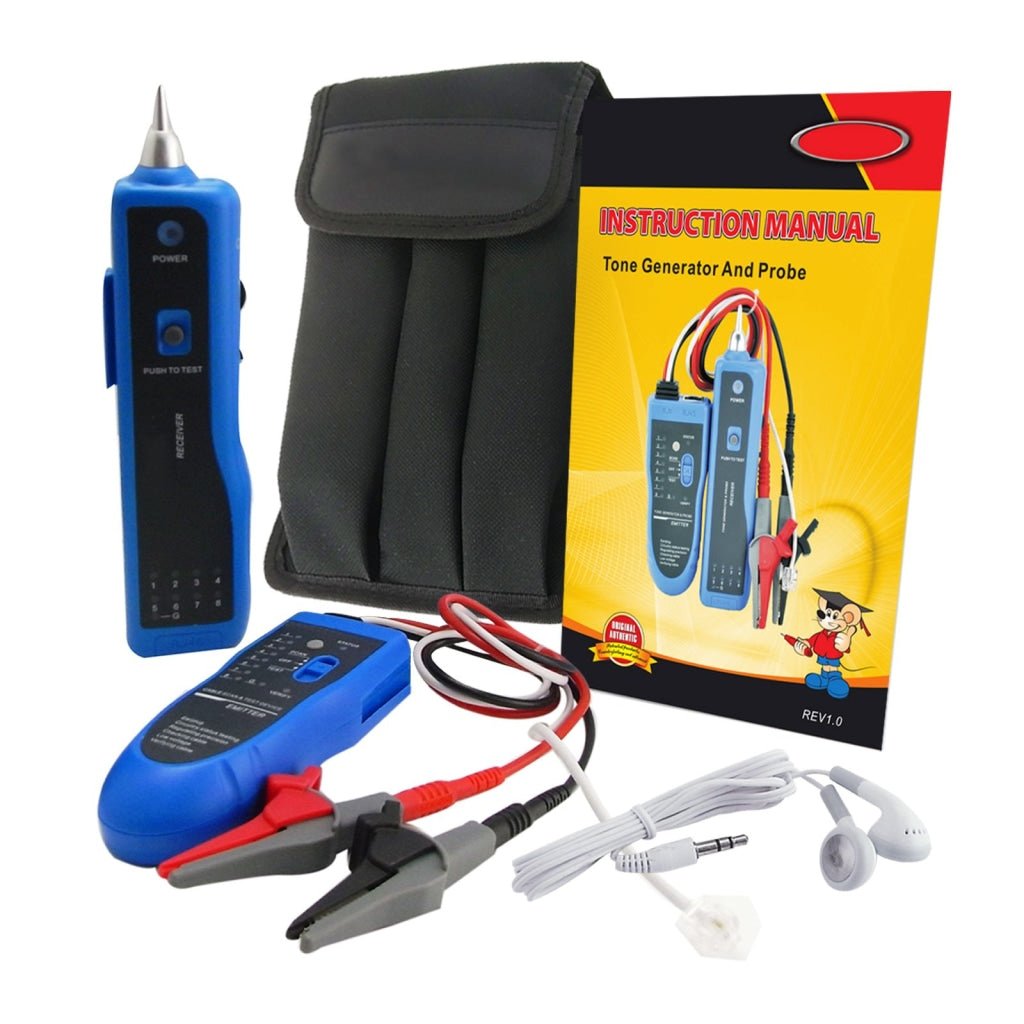

Set includes

  • 1 x Wire Tracker
  • 1 x Emitter
  • 1 x Receiver
  • 2 x 9V battery
  • 1 x earphone

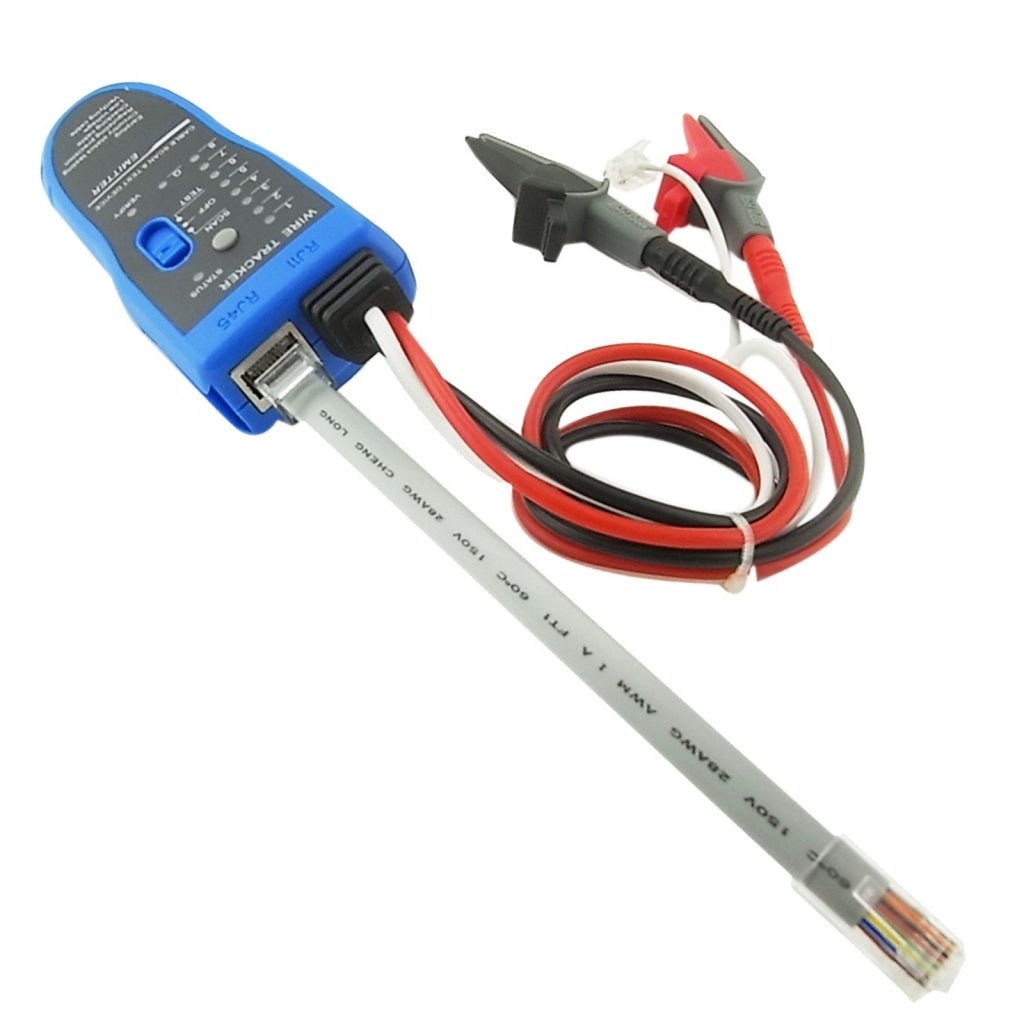

  • 1 x RJ45 network cable
  • 1 x Instruction Manual
  • 1 x Toolkit
  • 1 x Color box
