AGF-320 Digital Angle Gauge Electronic Protractor with Magnetic Base V-Groove Highly Precise Level Box LED Technology Bright Display Sets Angle Measurement for Table Saw Carpentry etc

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

High-precision digital level box LED technology with a bright display. It has a strong magnetic base with v-groove on all sides for easy and aligned measurement and shows levelling icons indicating how to adjust the surface to horizontal or vertical.

Wide range of applications including but not limited to the following: setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors.

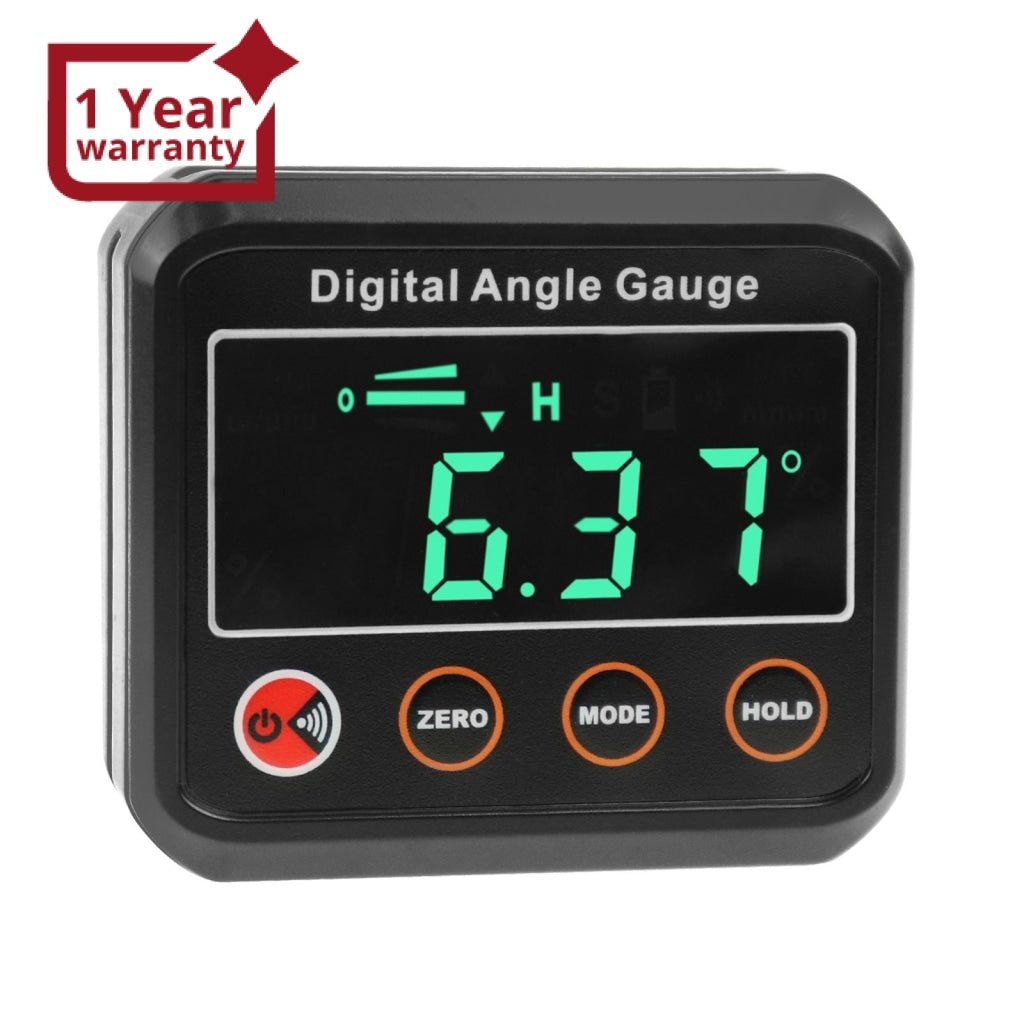

  • LED technology with a bright display
  • Hold Function
  • Calibration function
  • V-groove on the measurement base (can easily be attached to round pipes)
  • Groove on all sides housing (can easily do the mark down)

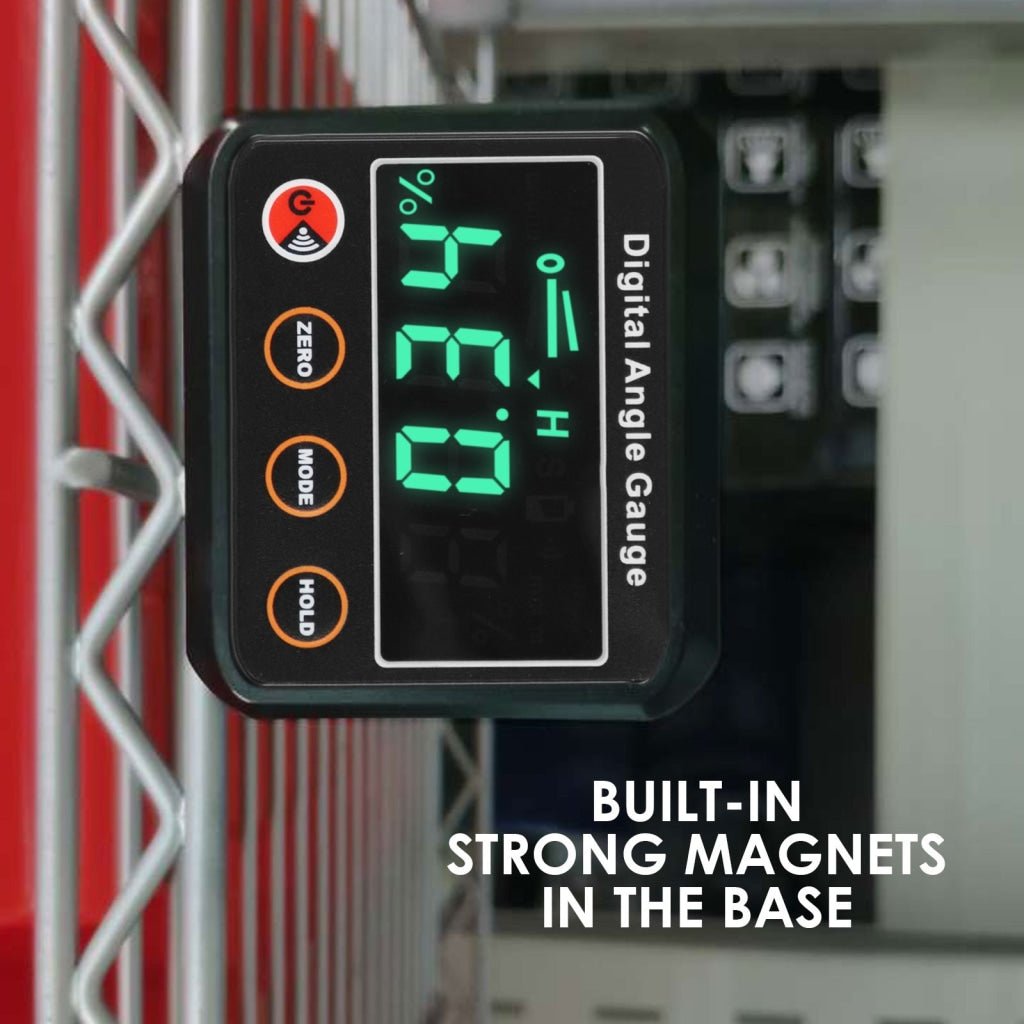

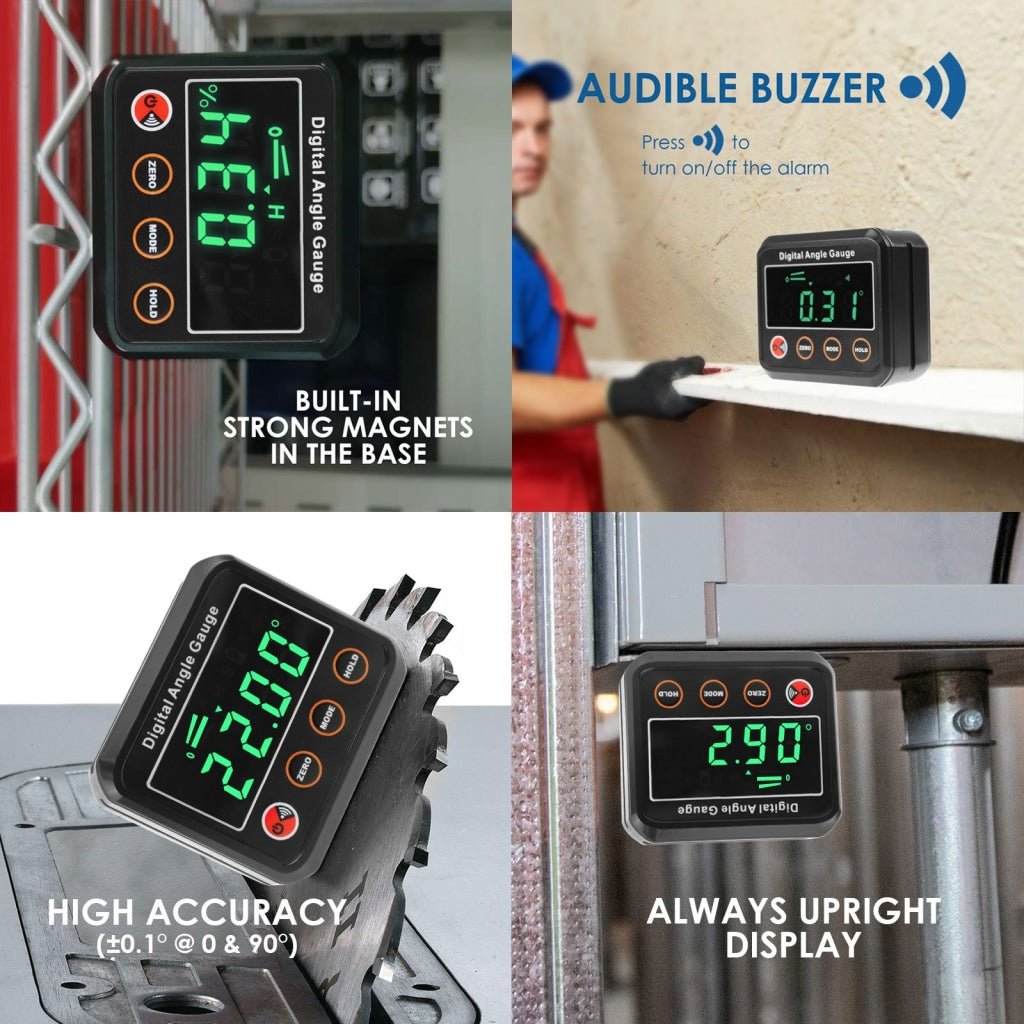

  • Powerful built-in magnets on the base to secure attachment
  • Manual and auto power-off function

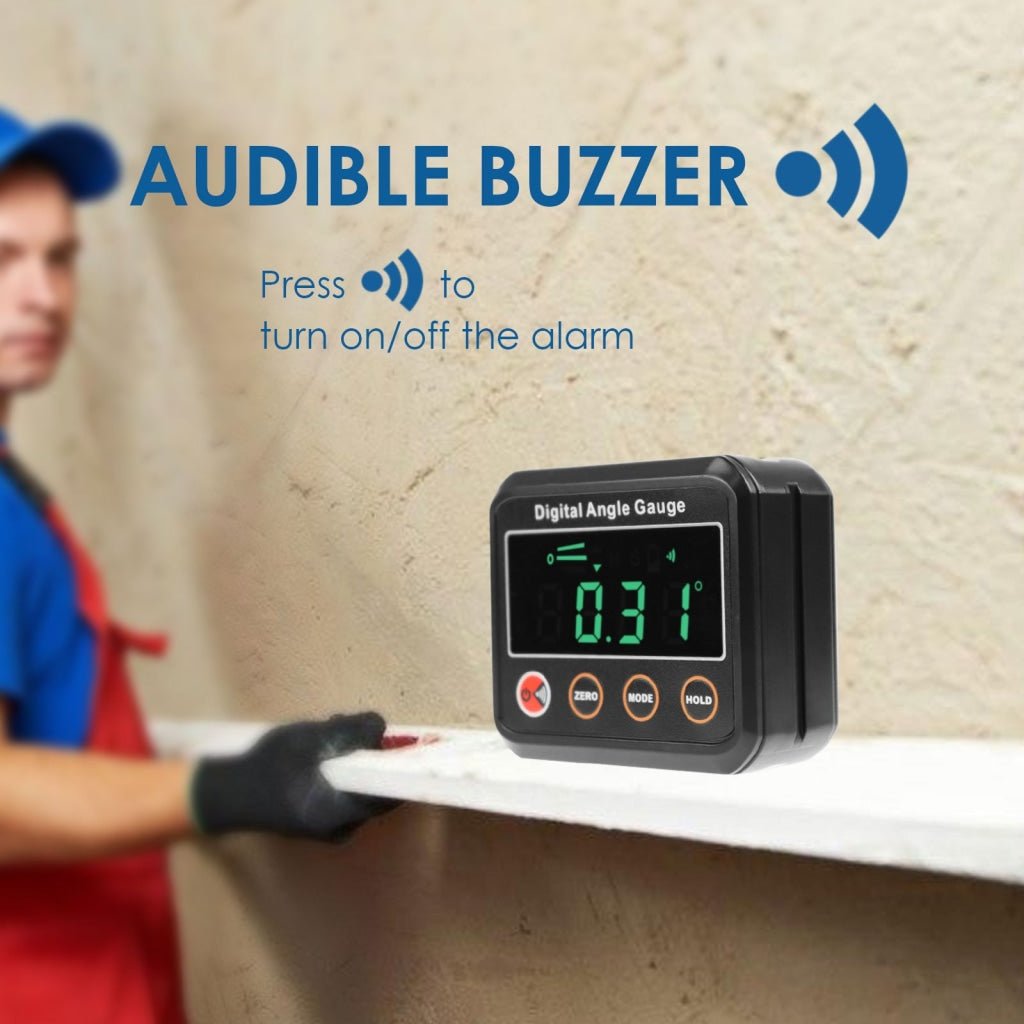

  • Audible buzzer
  • Low battery indicator

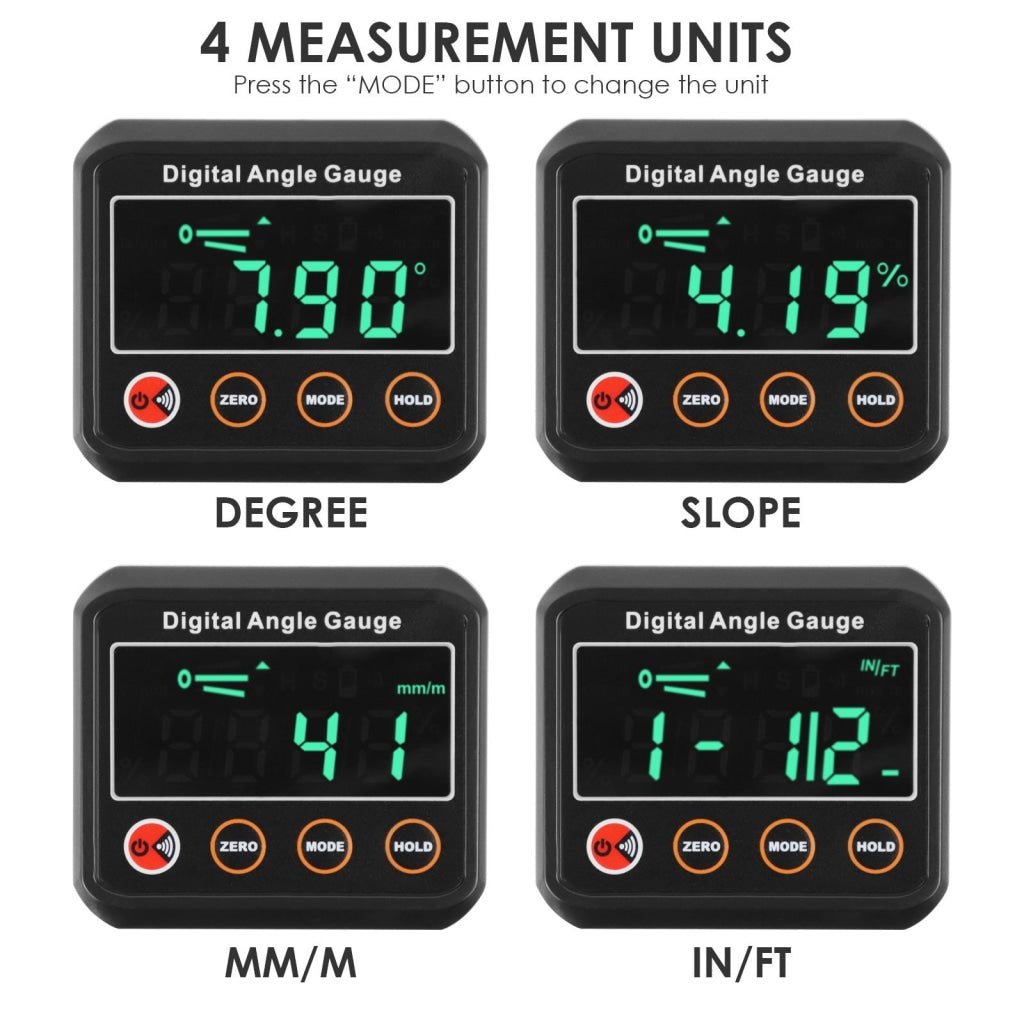

  • 4 Units of Measurement: degrees, %, mm/m, in/ft

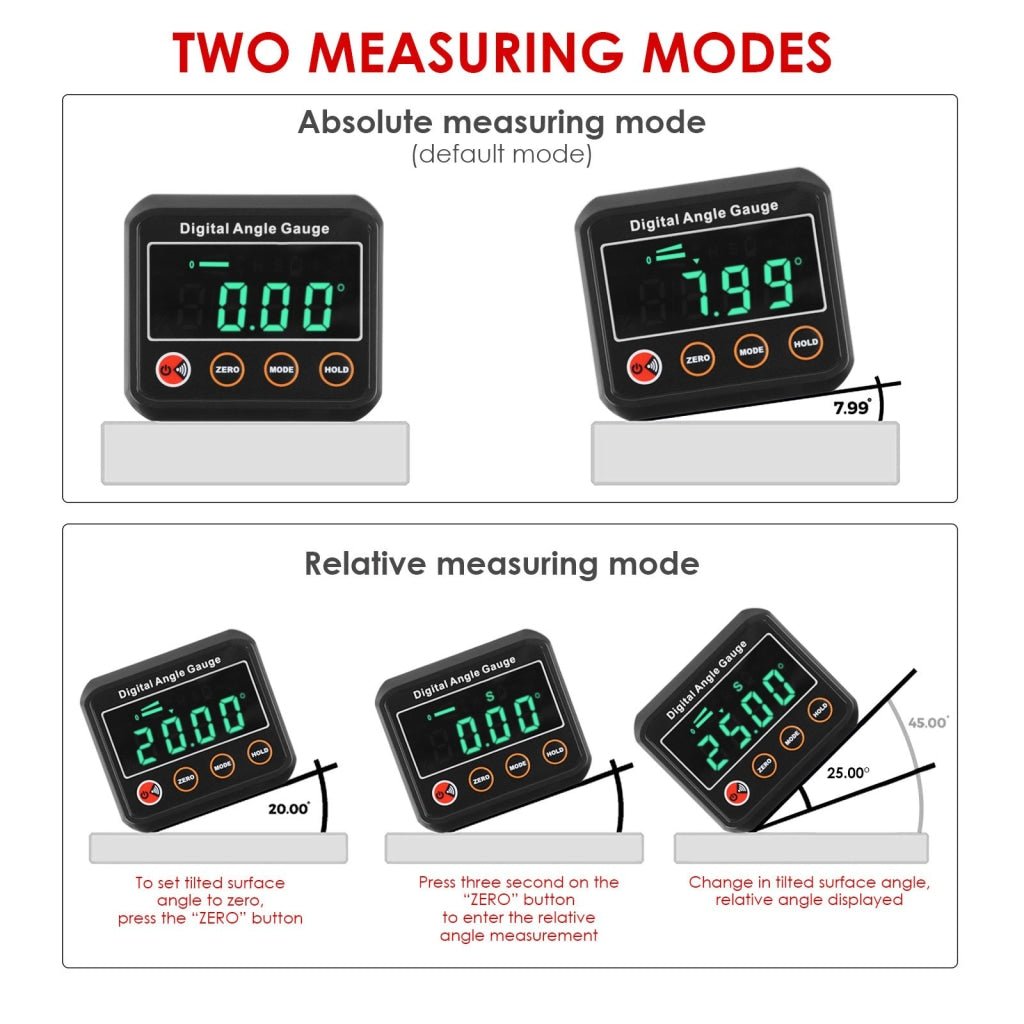

  • With absolute and relative angle measurement



  • Measuring range of digital display: 4 x 90°
  • Accuracy: ±0.1° @ 0° & 90° / ±0.2° @ other angles
  • Resolution: 0.05°

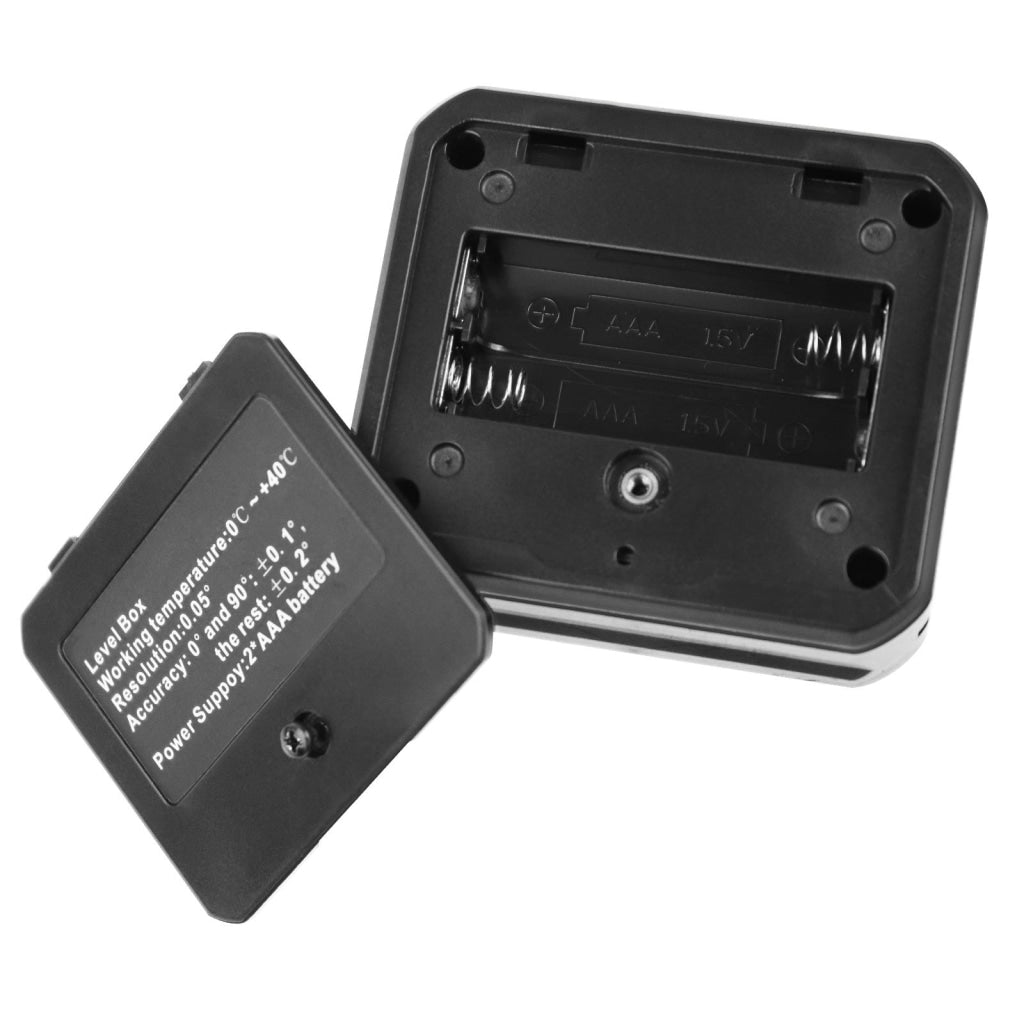

  • Battery type:  2 x 1.5V AAA Batteries
  • Working Temperature: 0~40°C
  • Storage Temperature: -10~50°C

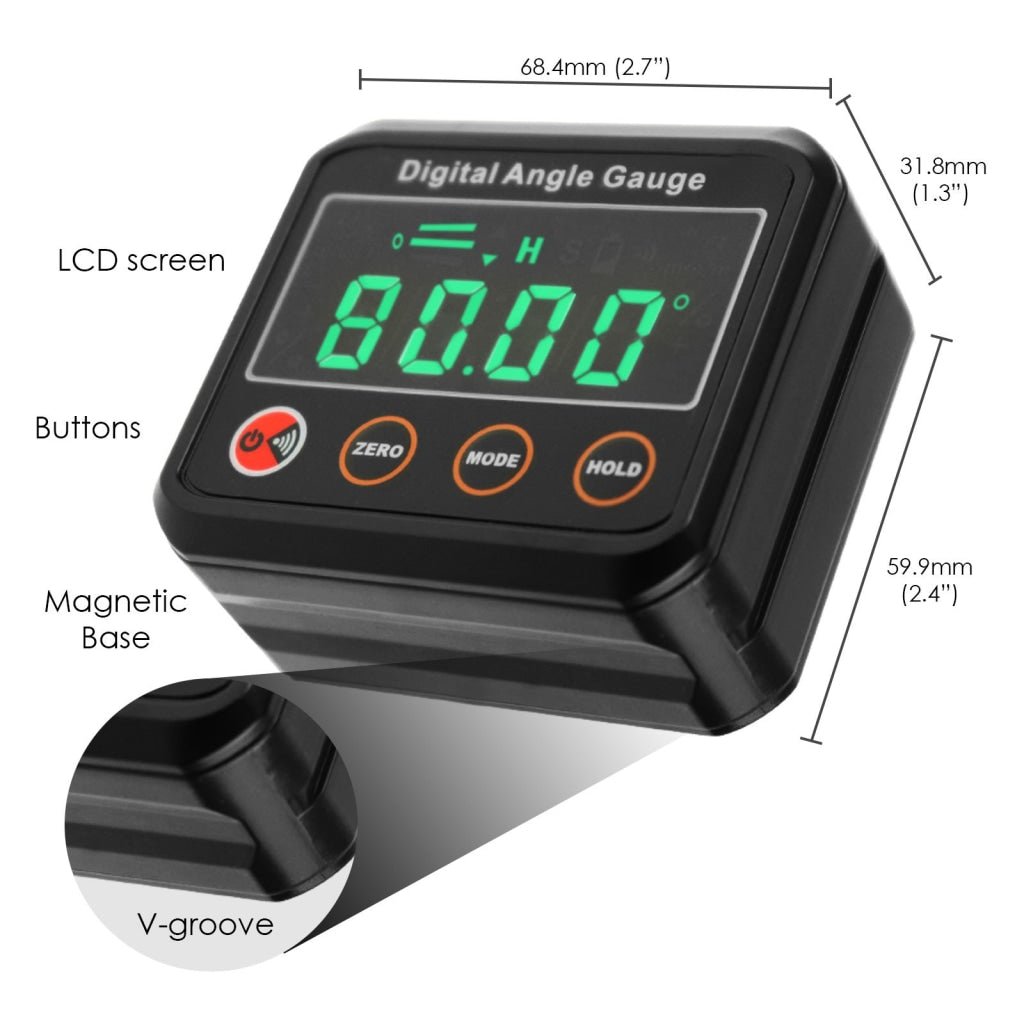

  • Dimension: approx. 68 x 32 x 60mm (L x W x H)
  • Weight: approx. 80gms (not including batteries)

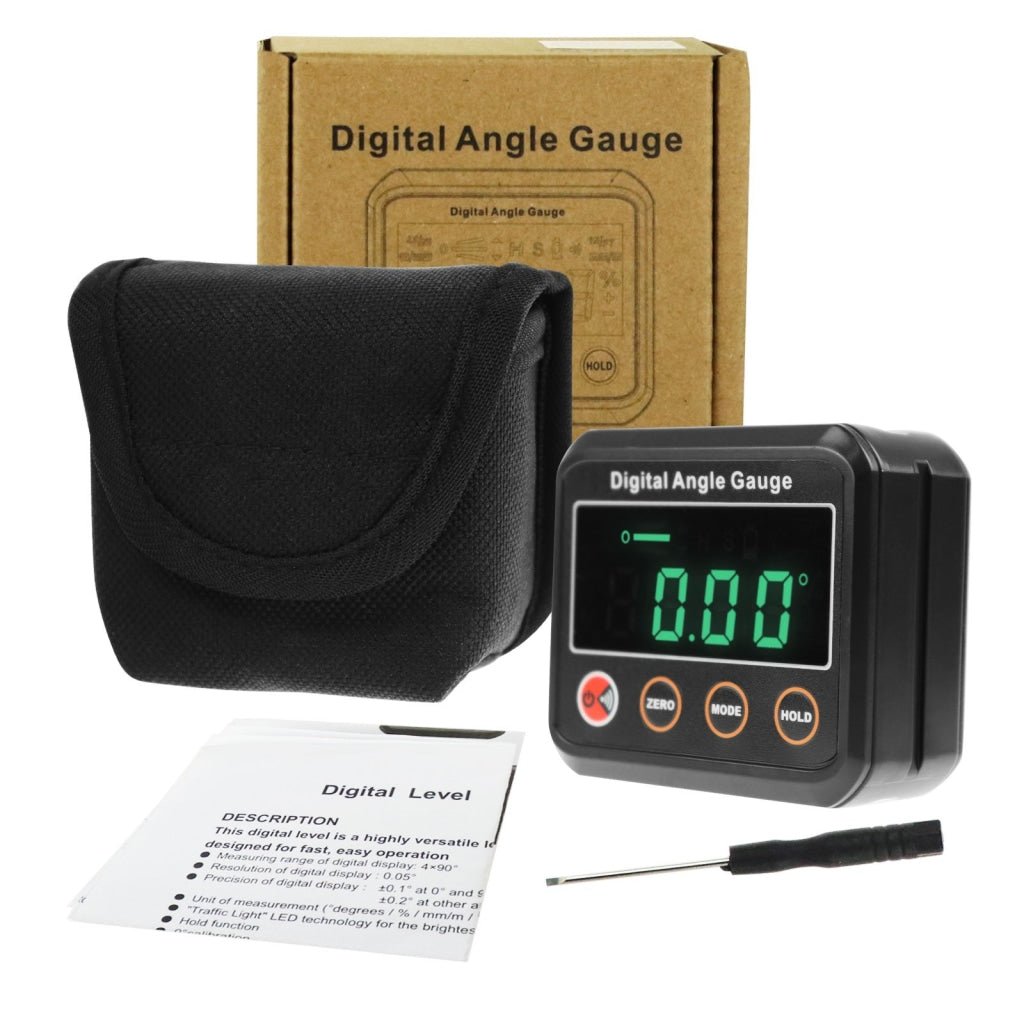

Set Includes:

  • 1 x Digital Level Box
  • 2 x 1.5V AAA Batteries
  • 1 x Screw driver
  • English User Manual

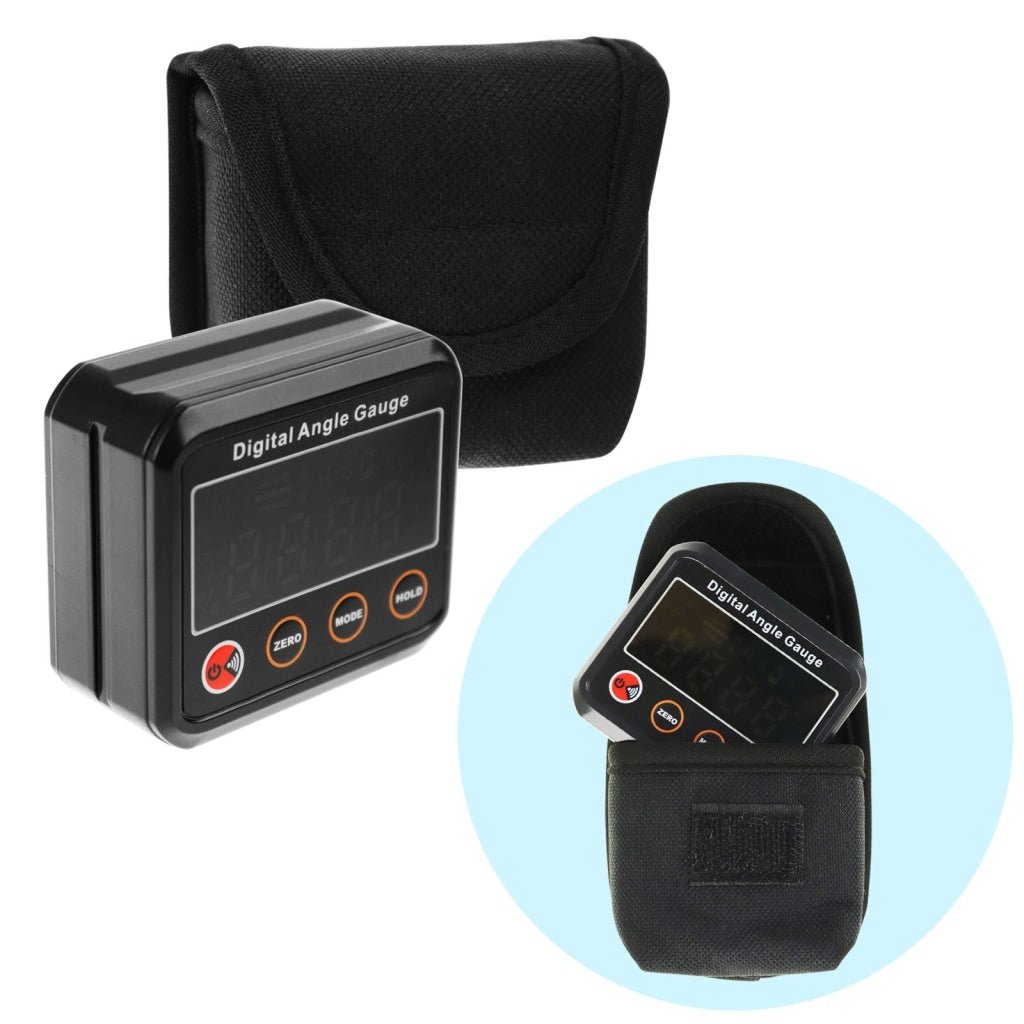

  • Carrying Pouch
  • Standard Factory Packaging
