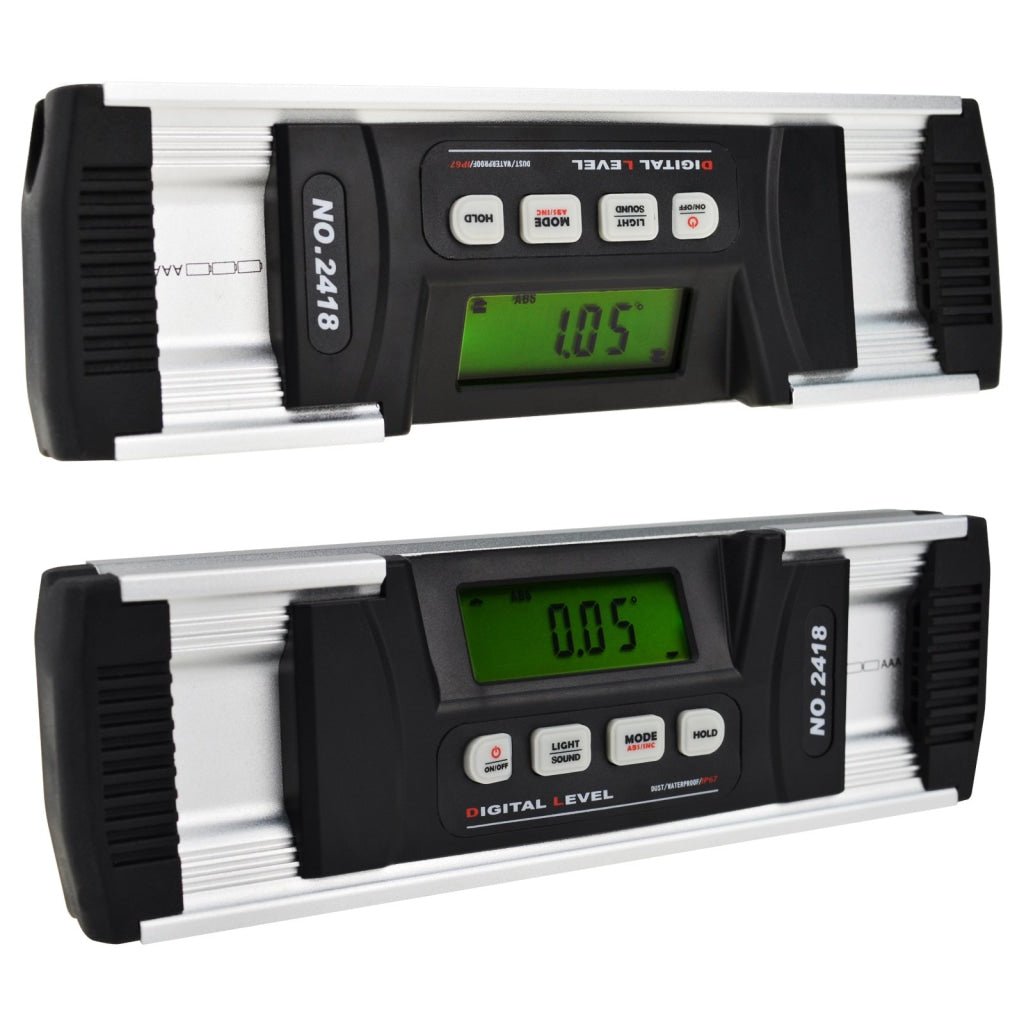

AGF-202 Digital Angle Finder Inclinometer IP67 with Magnetic V-Groove Base


Quantity
  OR


Model: AGF-202

This Digital Angle Finder can measure within 4 x 90° (0~360°) range with audio beeper sounds at 0° and 90°and has an IP level of IP67. This is a great tool for those who are in the field of  plumbing, construction, checking wheelchair ramps and for anyone inspecting those kind of projects.



FEATURES:

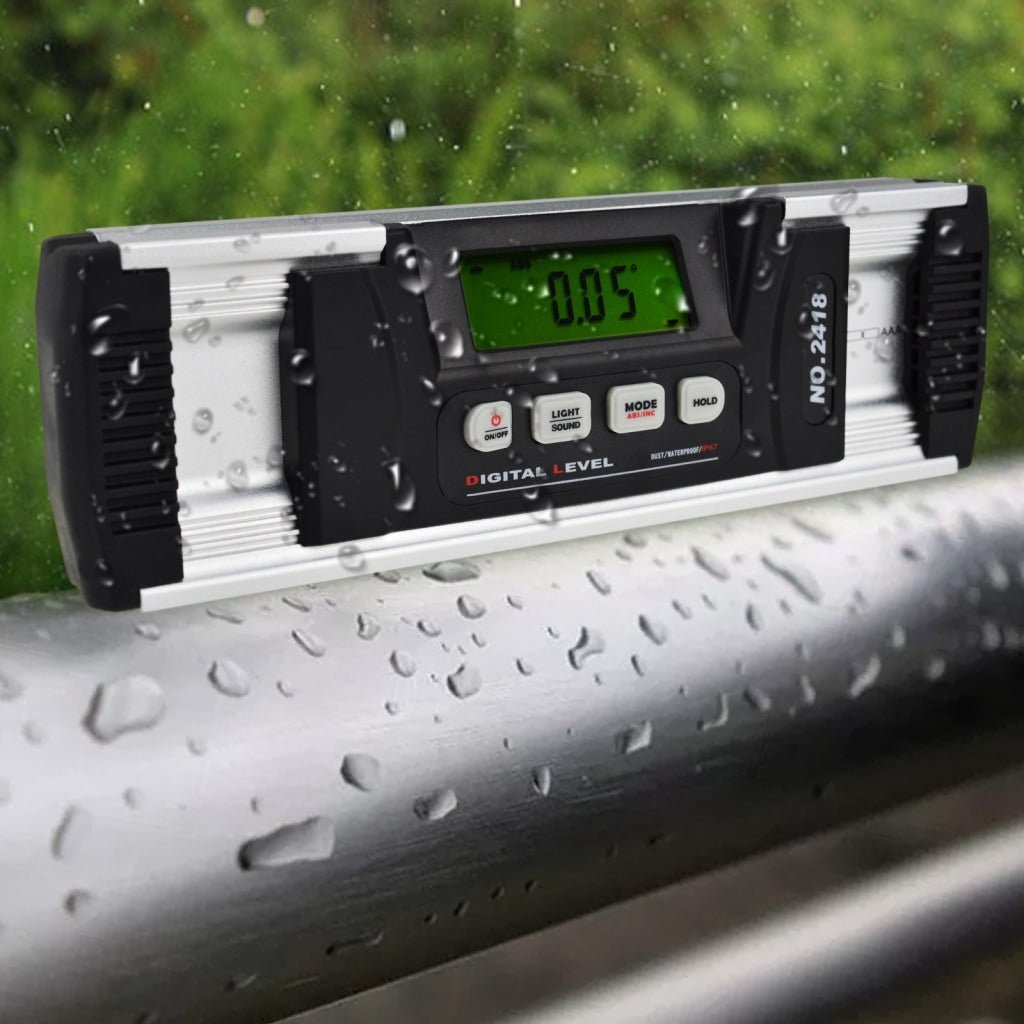

  • Waterproof 100%
  • Audio notification (beeps at 0° and 90°)
  • HOLD function
  • Relative and absolute measure
  • Auto shut down
  • Reminds ERROR when wrong direction over 30°
  • With backlight function
  • Invert reading result for overhead working

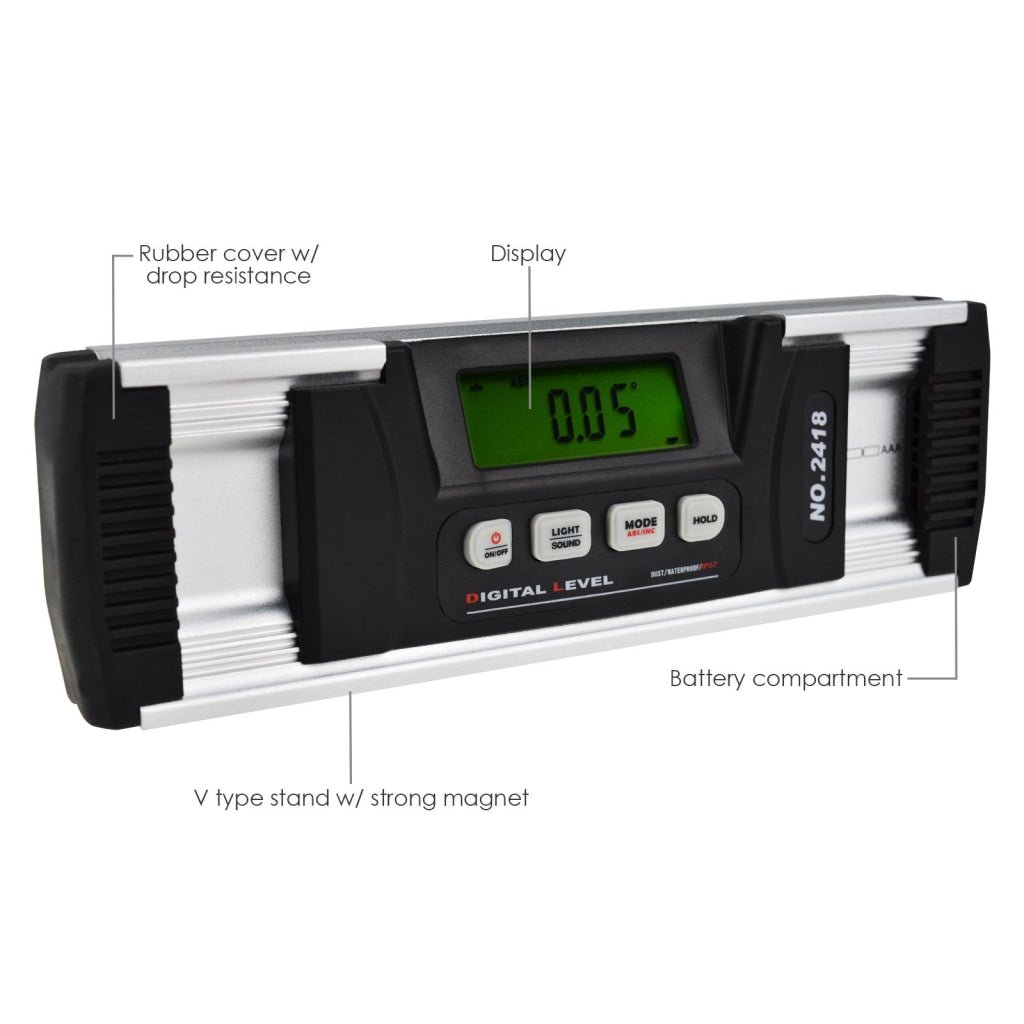

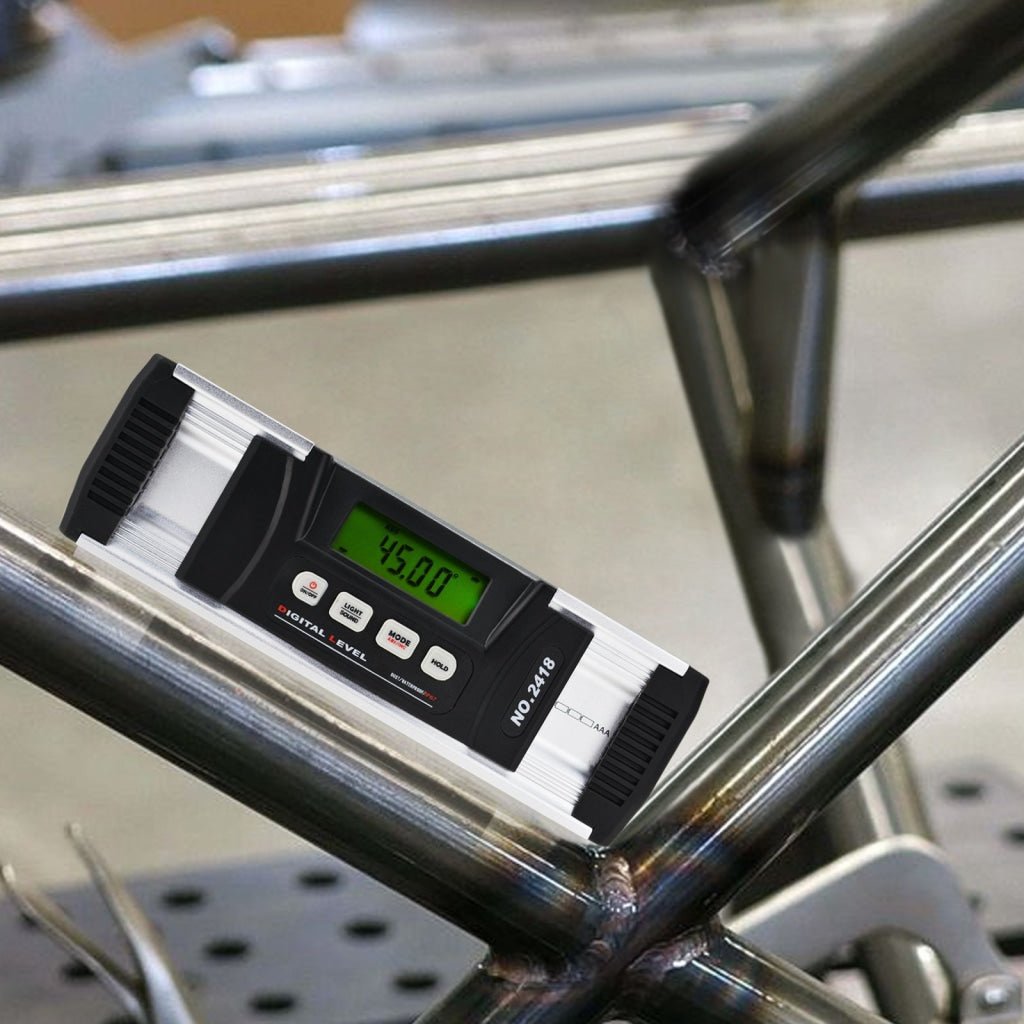

  • V-groove stand with strong magnet
  • Unit selection (°), (mm/m) and (%)
  • Drop resistance rubber cover on both side
  • Self-calibration
  • Handy and easy to carry



SPECIFICATIONS:

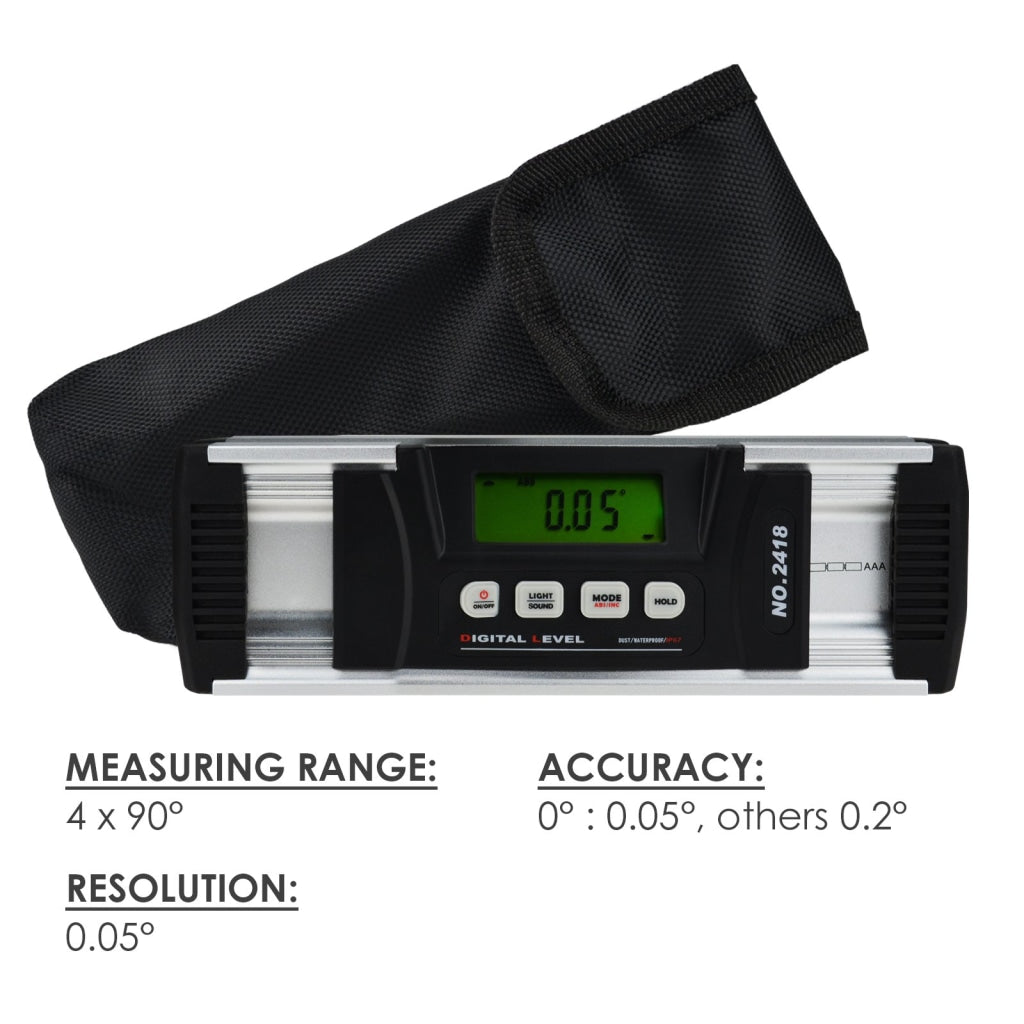

  • Measuring range: 4 x 90°
  • Resolution: 0.05°
  • Accuracy: 0°; 0.05°, others 0.1°

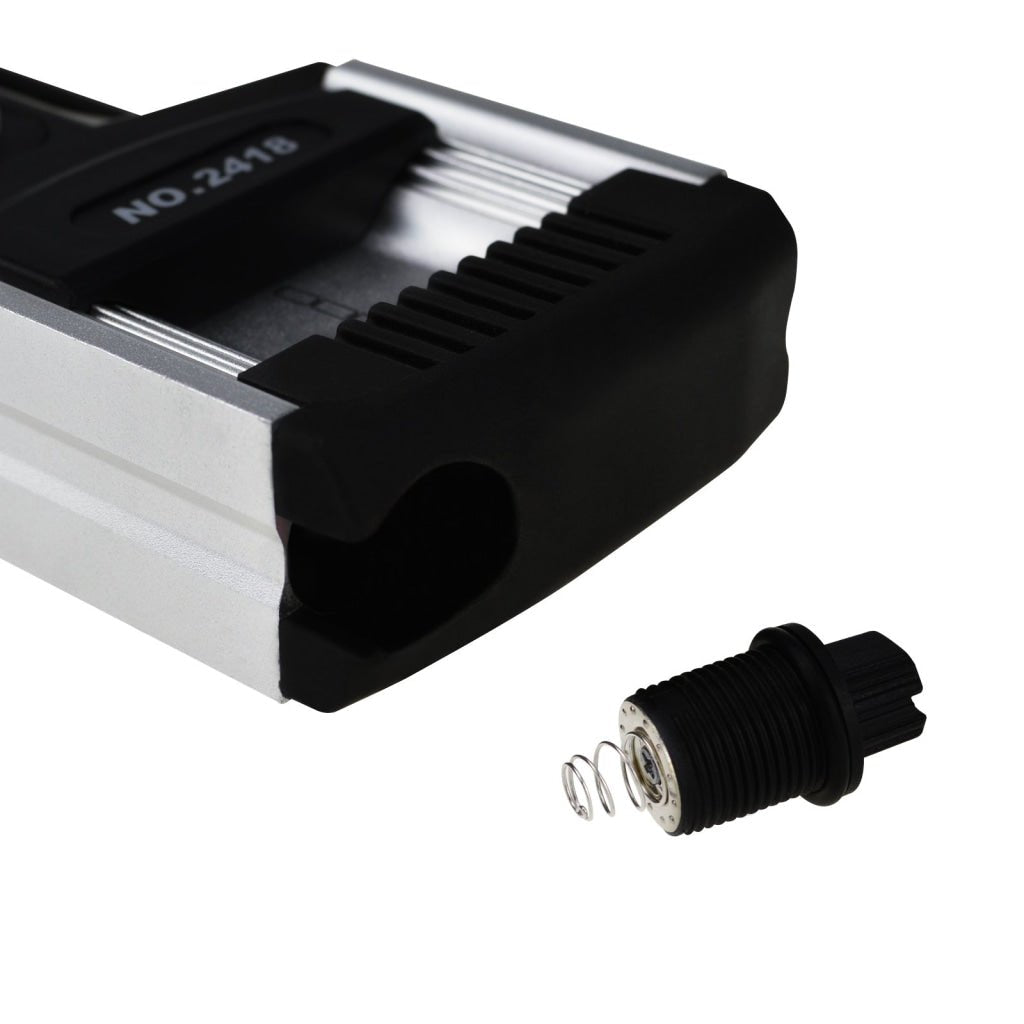

  • Battery: DC4.5V (3 x AAA battery)
  • Backlight: Green
  • Working environment
    • Temperature: -10 ~ 50°C ( 14~122°F)
    • Humidity: ≤85% RH
  • Storage Temperature: -20~ 70°C (-4~158°F)
  • EMC: Class II
  • IP Level: IP67
  • Item color: Silver
  • Battery life: more than 100 hours when no backlight and no sound
  • Weight: approx. 465 gms

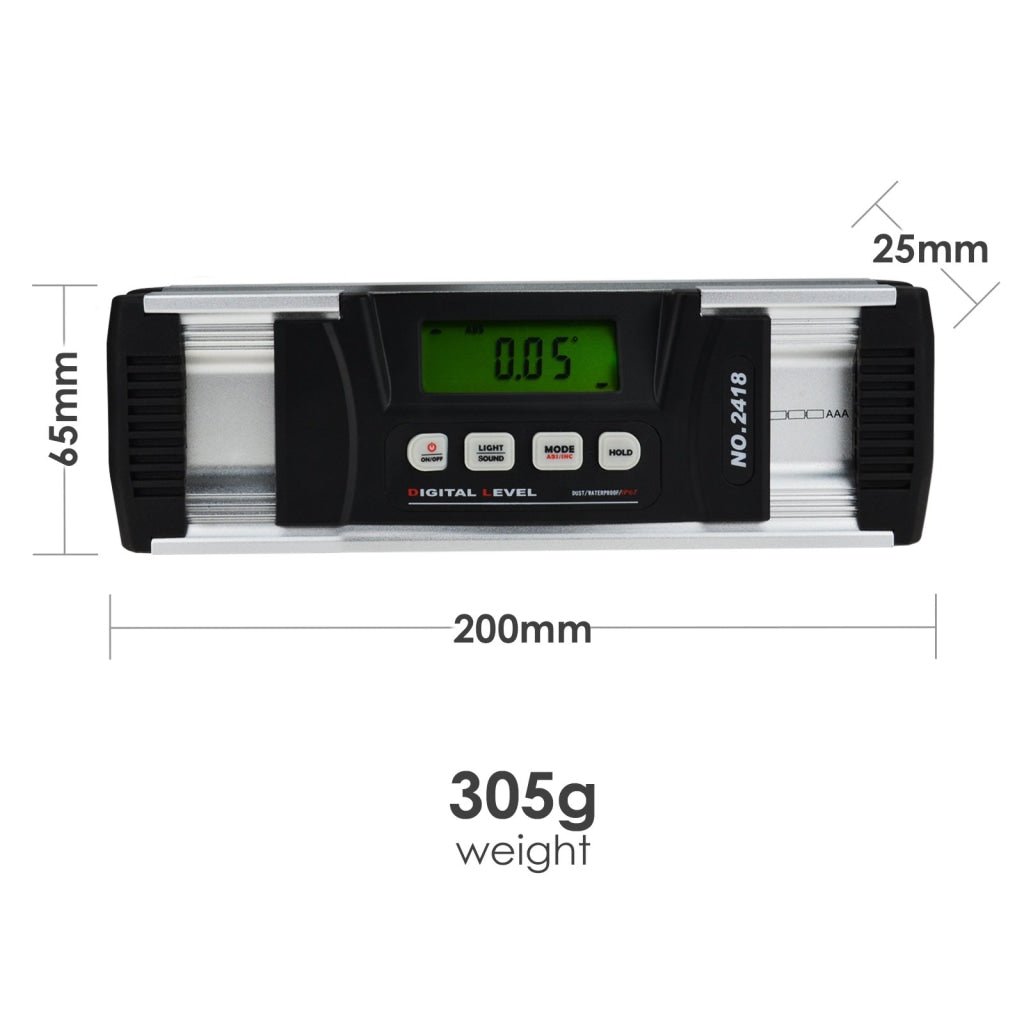

  • Dimension: approx. 26.5 x 8.2 x 4.7cm

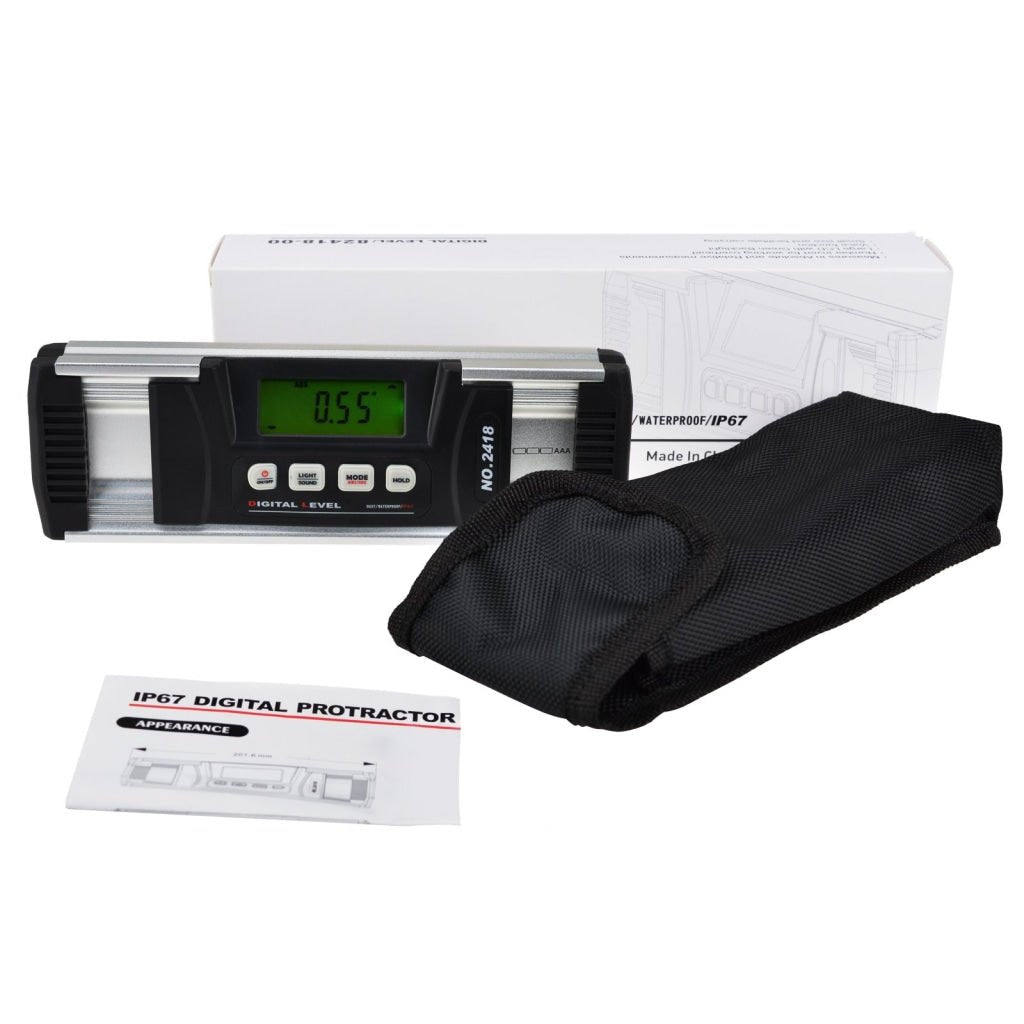

SET INCLUDES:

  • 1 x Digital Level Meter
  • 3 x AAA battery
  • 1 x Carrying pouch
  • English Instruction Manual
  • Standard Factory Package
