AG-300D Digital 2-in-1 Angle Finder Meter Protractor Ruler 360° 600mm CE marking Digital LCD Display


Quantity
  OR


Model : AG-300D

This Stainless Steel
 2-in-1 Angle Meter & Ruler with moving blade can calculate internal and external angles and measures length quickly and accurately. A convenient stablelocking function can lock the measurement at any angle or position to transfer angle measurements.

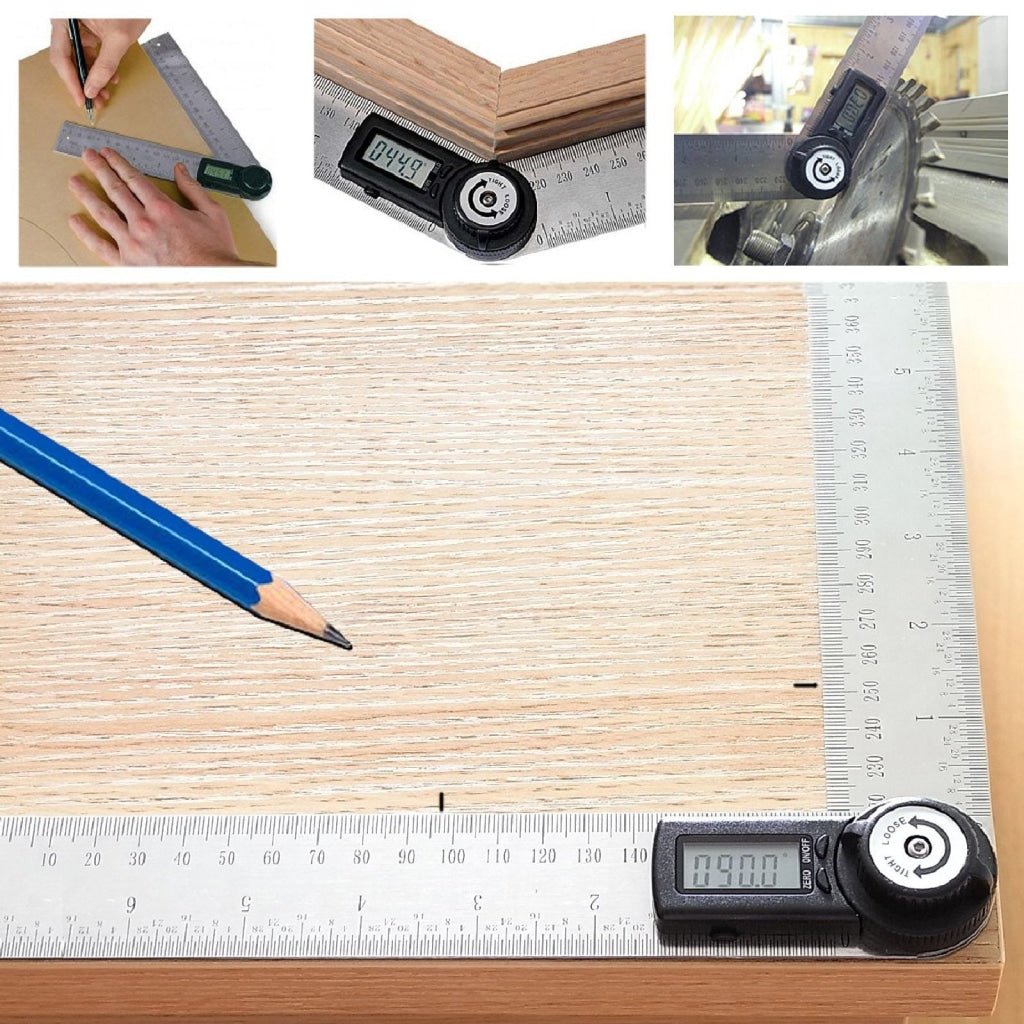

The ruler's length is up to 600mm (60cm) with scales etched into the faces of the ruler and painted, rather than just surface painted to ensure they don't rub or scratch off easily, ensuring longevity in scale reading. It can rotate a full 360° without restriction and instantly measure angles accurately to within ±0.3° accuracy , so even obtuse angles can be calculated if required, an ideal tool for layout work, table-saw blades, jointer fence, trim installation etc. The flat and straight edges of the ruler are perfect for marking accurate lines with a marker or pencil. Use it as an Angle ruler, Straight ruler or Square Ruler. Especially useful for marking out mortise and tenon joints, stopped dadoes or any other cuts involving dual measurement on two 90° edges.


Features

  • Measure angle and length (metric and imperial scale)
  • Quick 360° Digital Angle Gauge
  • Easy to measure all kinds of angle and draw lines
  • Well used into various fields Angle Ruler, Straight Ruler and Square Ruler
  • Ruler made of stainless steel for durability and rust protection for years of use
  • Up to 600mm ruler measurement range

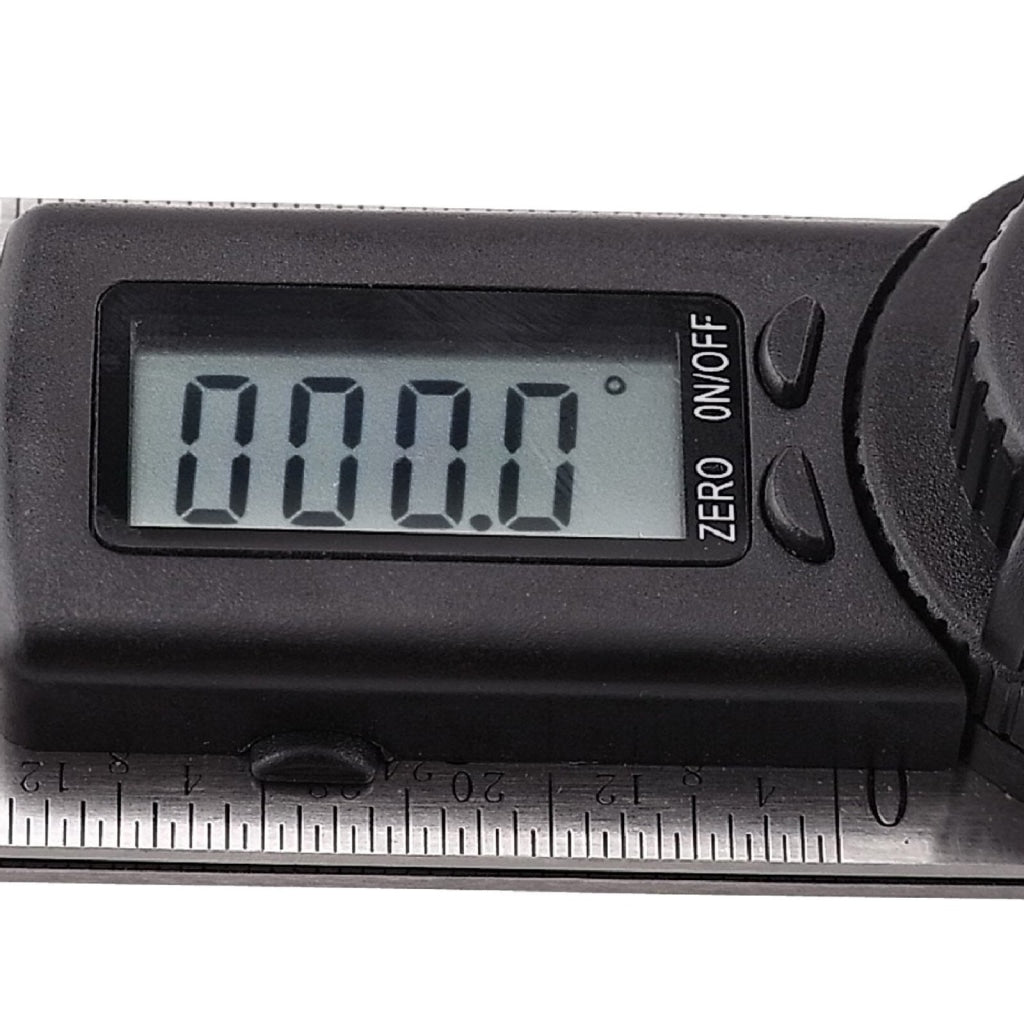

  • Digital display measures 1" wide by 1/2" high

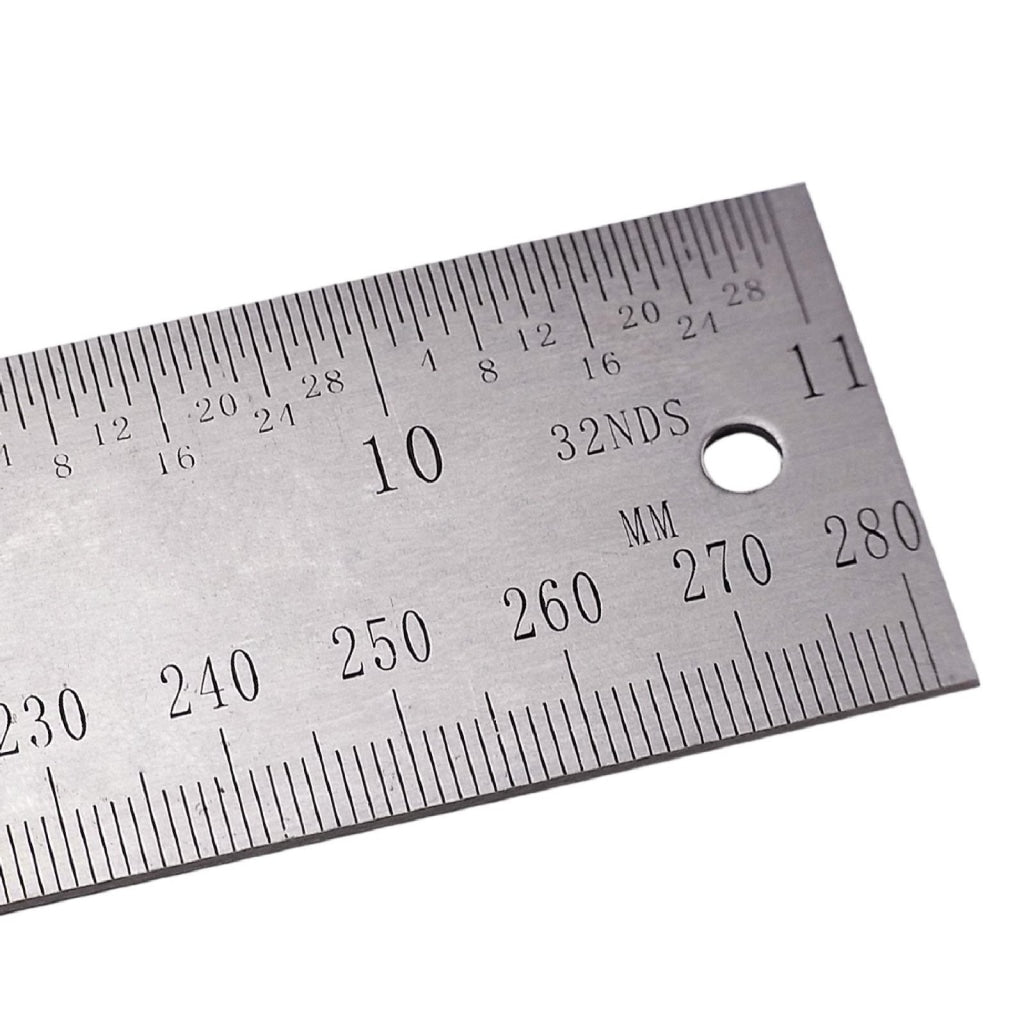

  • Scaled at 1/32" imperial intervals on one side and 1mm metric on the other
  • High resolution of 0.1° and easily transfer miter angles with no calculations
  • Zero Setting function
  • Automatically shut off function in 6 min
  • Long Battery Life (more than 5000 hours in continuous use)

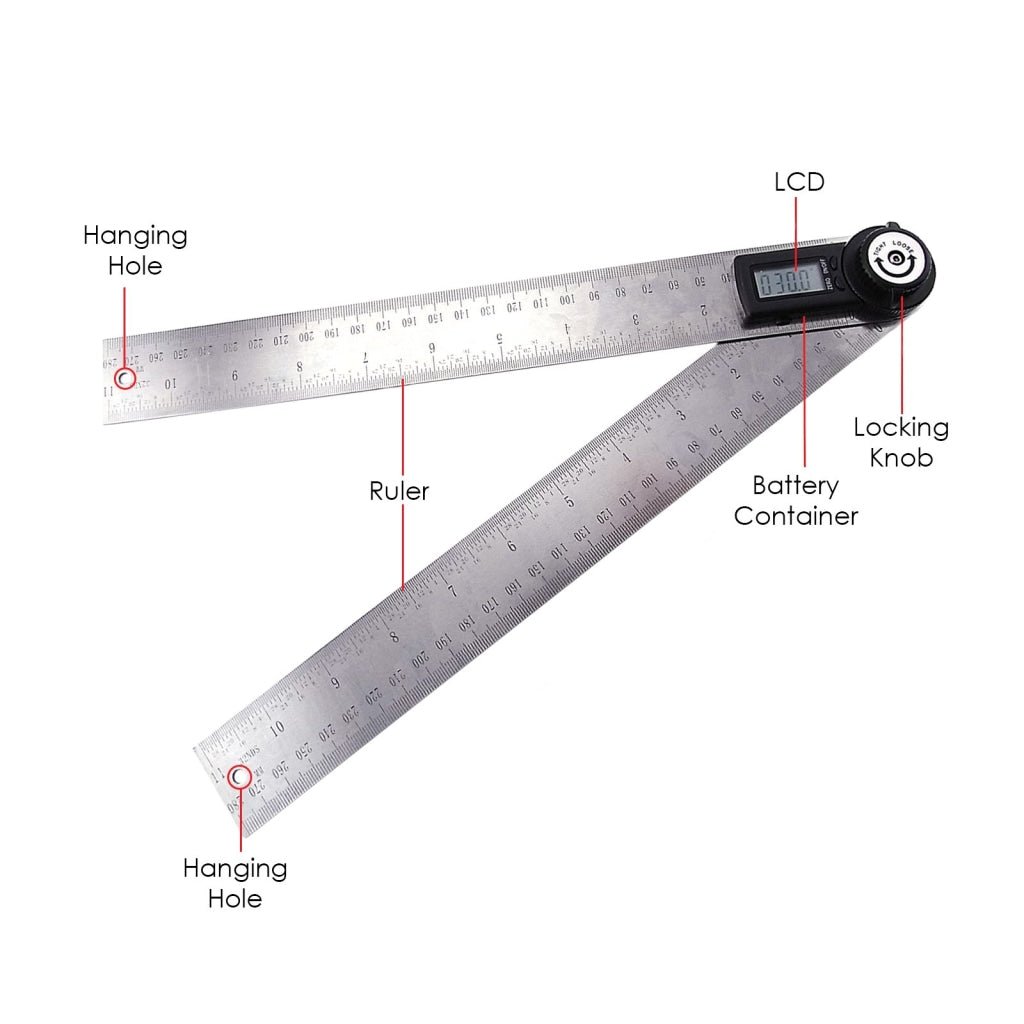

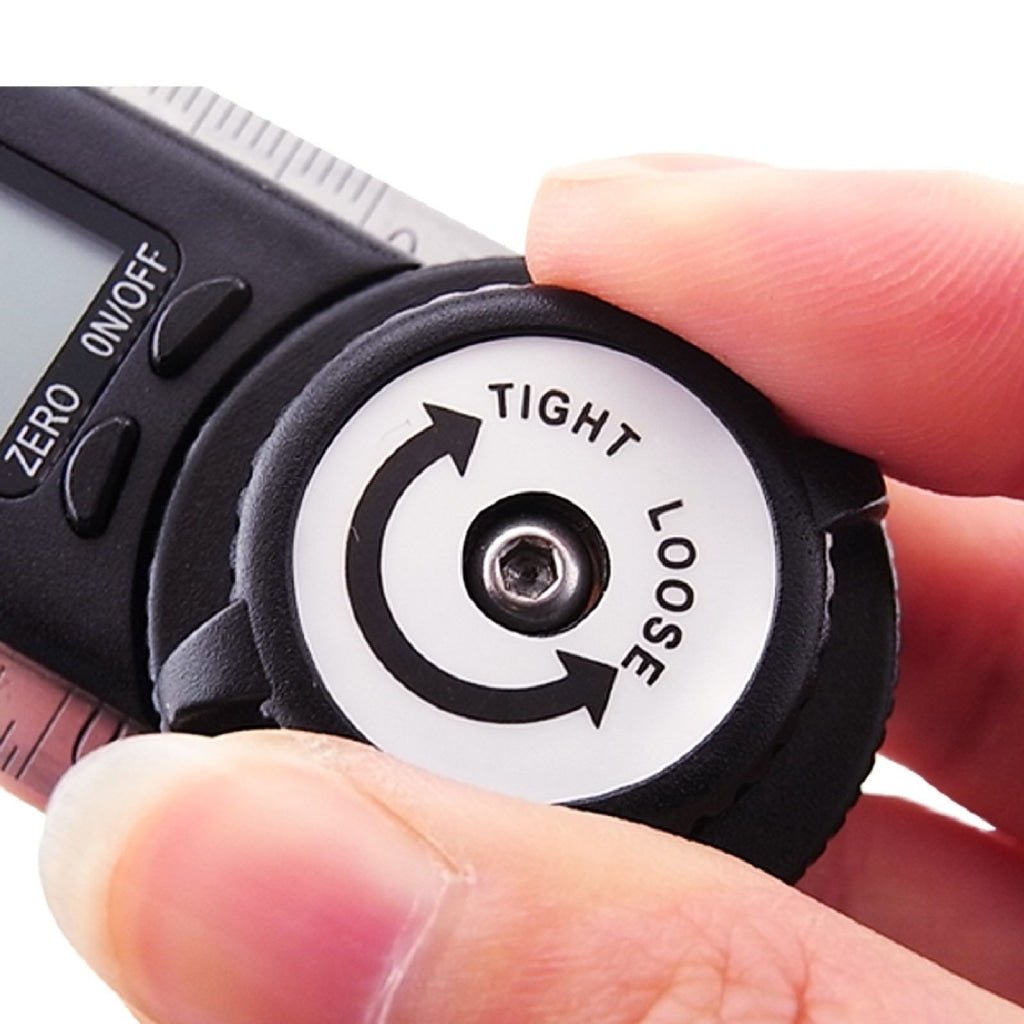

  • Stable locking function, lock measurement at any angle
  • Clear display with compact design
  • Useful to applications such as automobile, tools, constructions, boating, woodworking and machining


Specifications

  • Standard: CE, RoHS, PAHs

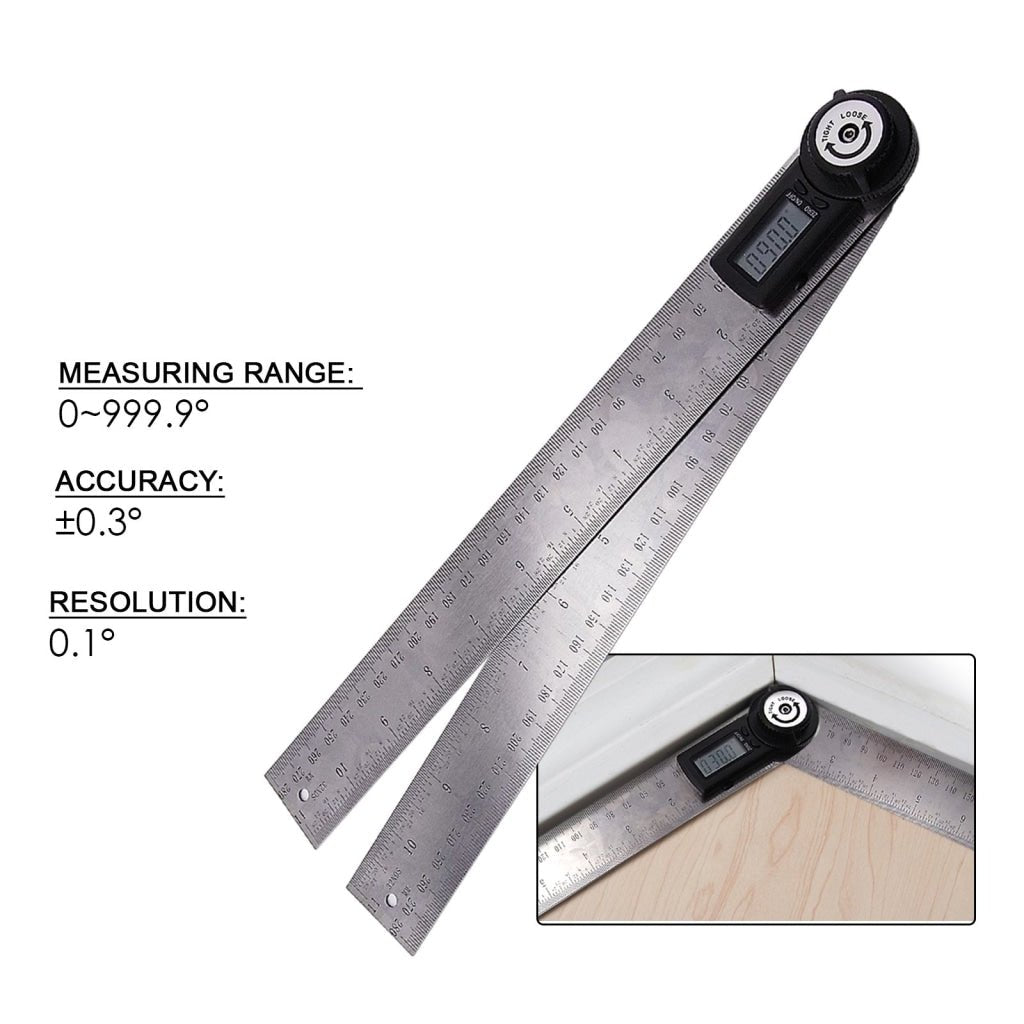

  • Measuring Range: 0~999.9° (More than 999.9° incorrect display)
  • Accuracy: ±0.3°
  • Resolution: 0.1°
  • Ruler measurement range: 300mm each arm/blade
  • Working Temperature: 0~50°C (32~122°F)
  • Working Humidity: 85% RH
  • Working Current: 50µA (More than 5000 hours in continuous use)

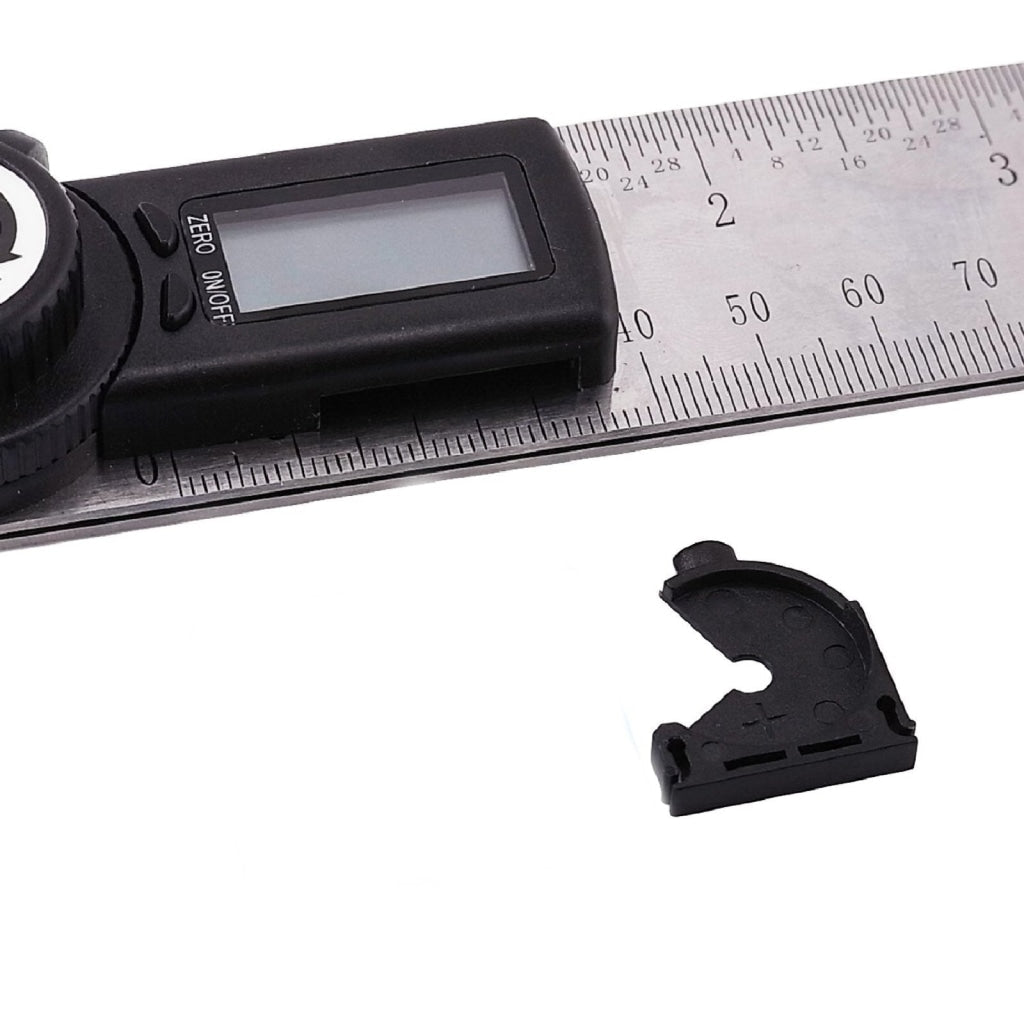

  • Power: 1 x CR2032 3V Lithium Battery (Included)

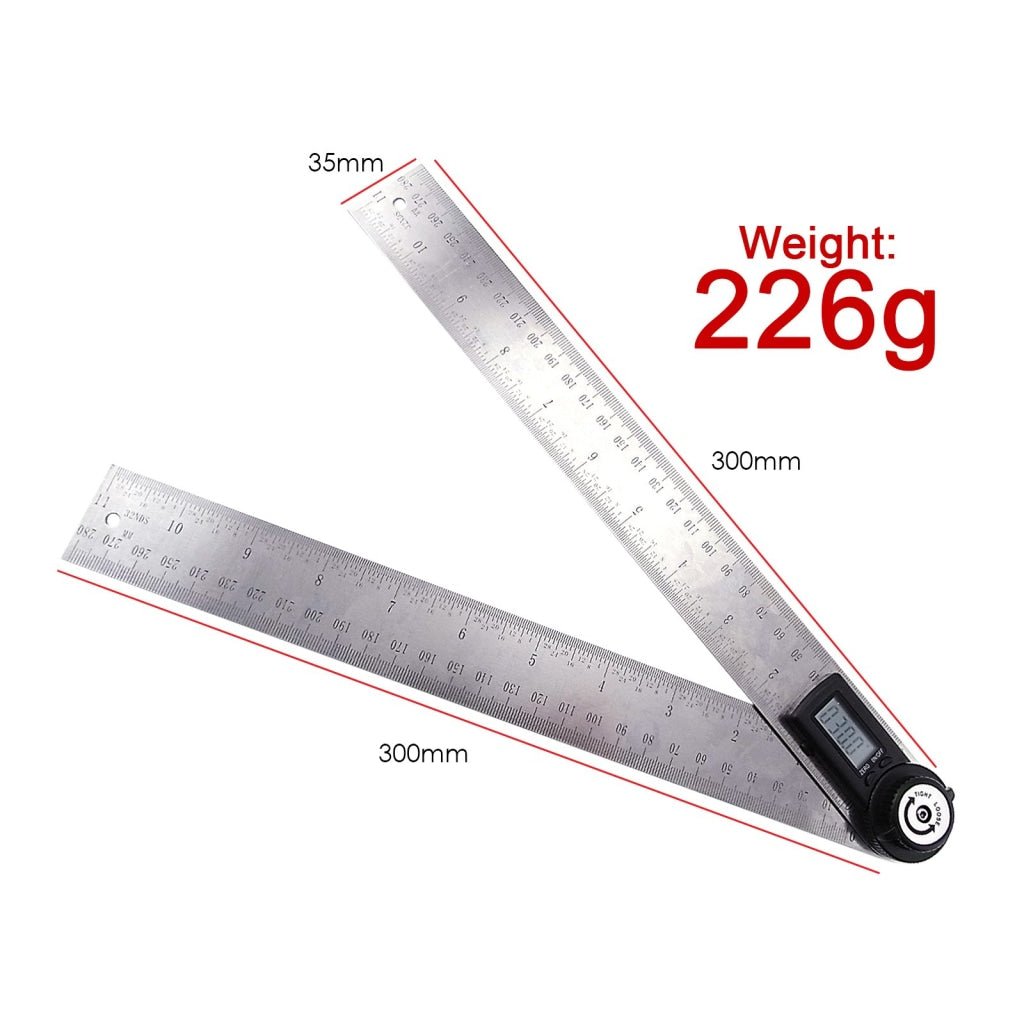

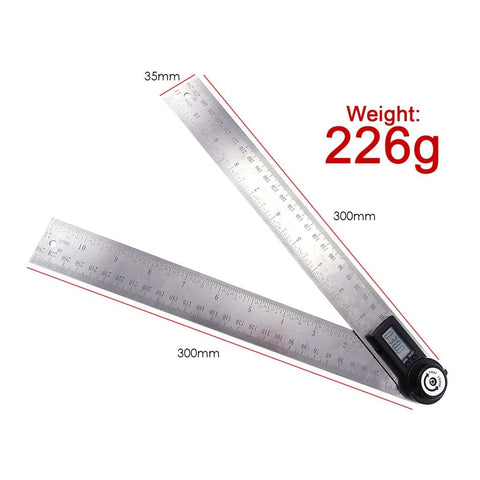

  • Dimension: 600 x 35 x 20mm
  • Weight: approx. 226g


Set Includes
  • 1 x 2-in-1 Digital Angle Finder
  • 1 x 3V CR2032 Lithium Battery (FREE)
  • English Instruction Guide (on Blister Packaging)

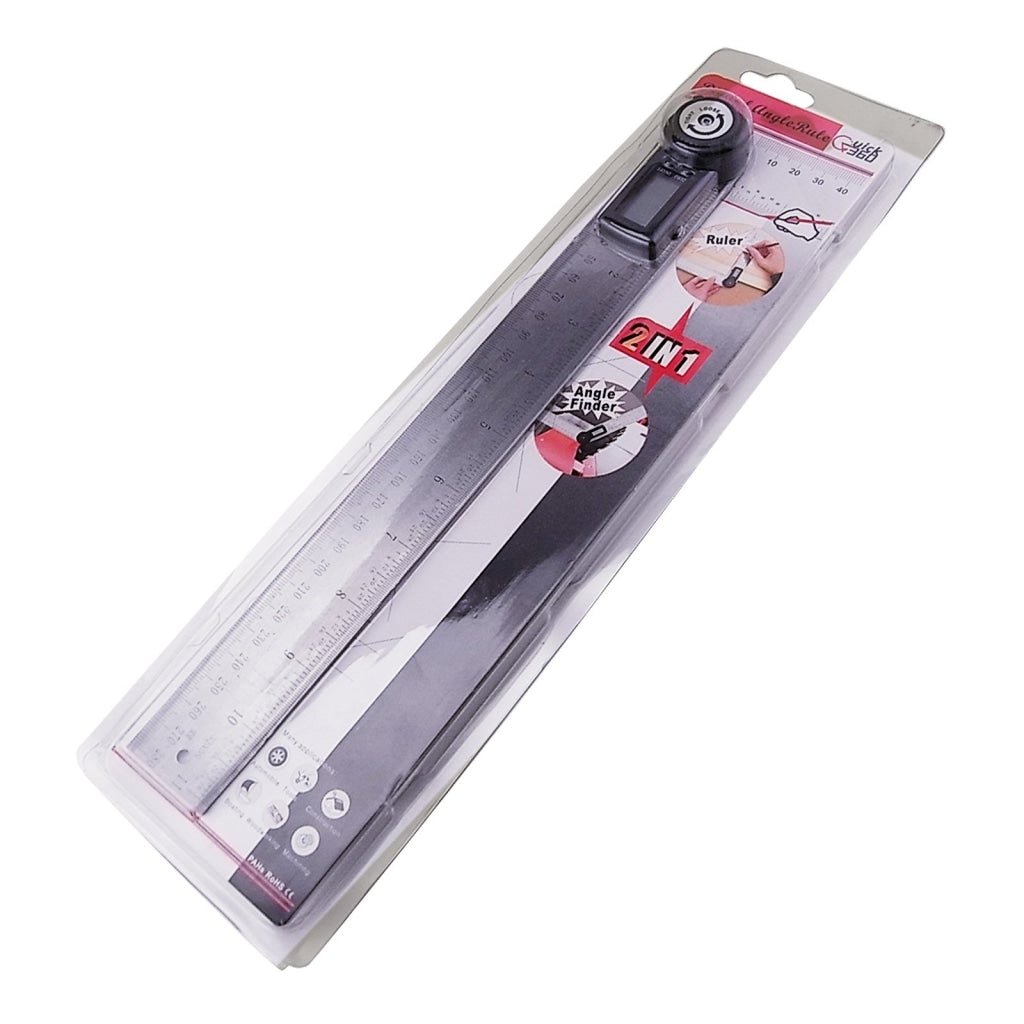

  • Blister Type Packaging
