AG-82201B Digital 360° Level Meter Angle Finder Protractor with Magnets / V-groove 0.1° Accuracy LCD Display
- Description
- Return, Refund, & Warranty Policy
- Reviews
Model : AG-82201B

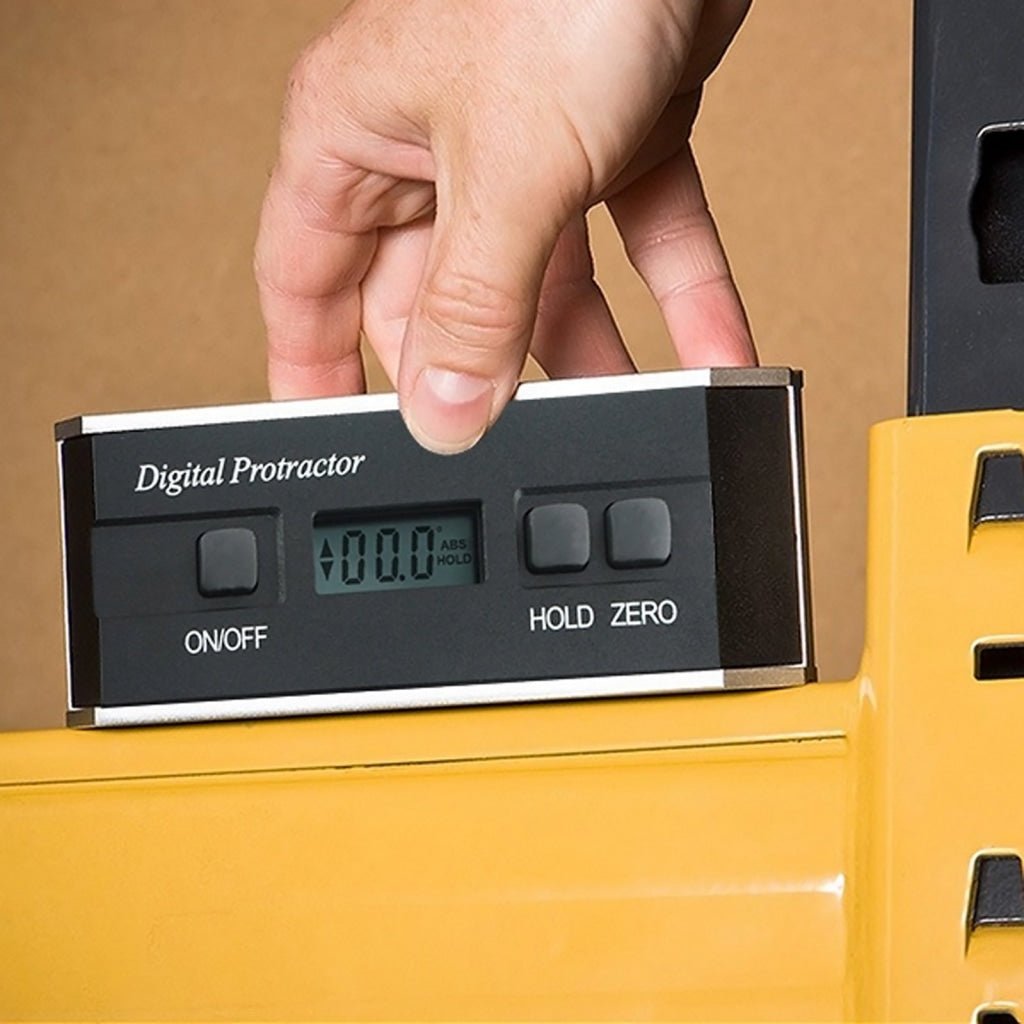

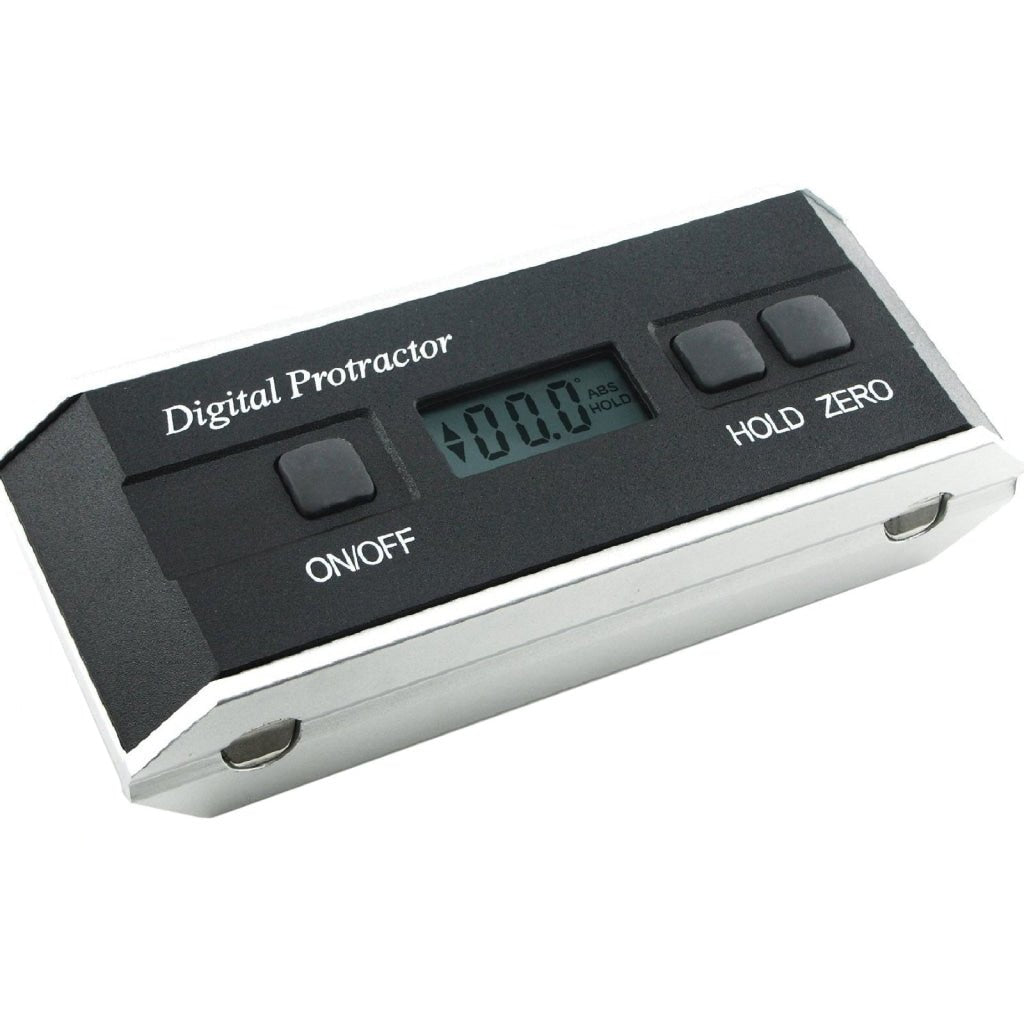

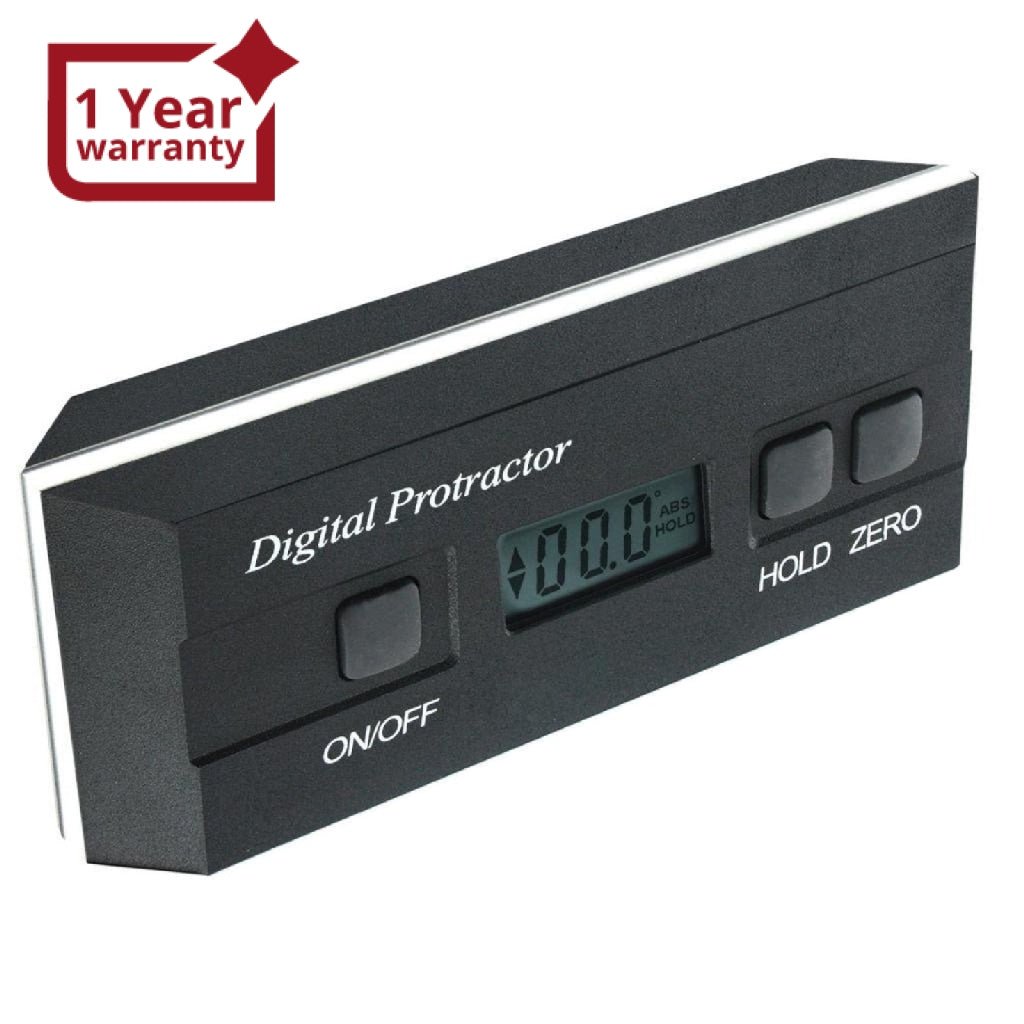

This 3-in-1 digital protractor uses angle sensor technology to calculate exact angles simply by tilting it to the desired angle. The LCD that provides reading that is always displayed in upright position in any angle. It measure angles within 4 x 90° (0~360°) range. Placing the meter on reference surface zero to measure relative angle gives measured angle result within 0.1° accuracy. It also has Absolute Angle Measurement to test whether the working surface is on the level to check roof slopes, wheel alignment, etc. With simple self calibration no other fixtures is needed.

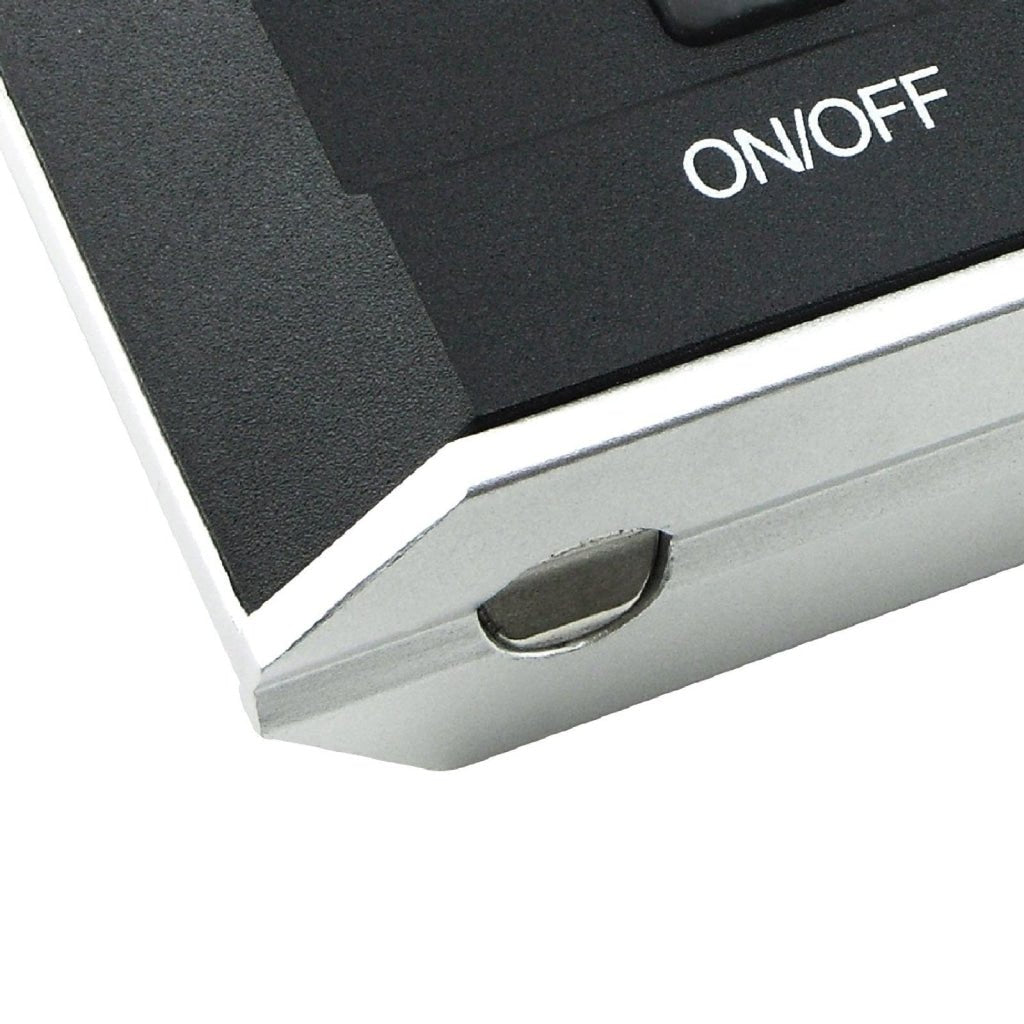

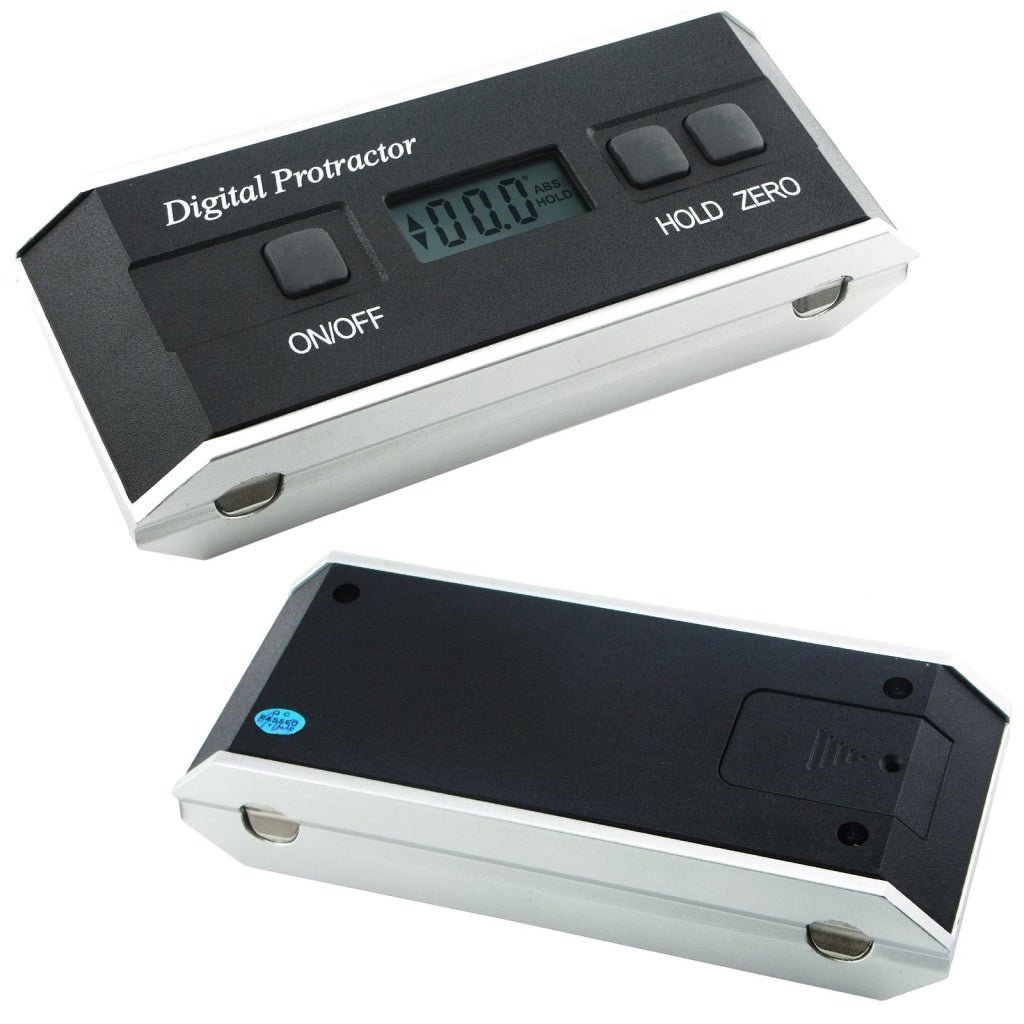

The V-Groove ensures it sits flat against any metal surface (such as miter, table saws, etc.), round objects, curved surfaces or cylinders such as pipes, shafts or rods while the 2 powerful magnets on bottom plate for secures the attachment. With care you can also use it on aluminum or wood.
Applications
-
Automotive
- Drive line Measurement
- Race car wing & chassis adjustment
- Wheel alignment
- Frame straightening
-
Industrial
- Machine tool set up
- Lathe and mill alignment
- Quality Assurance verification
-
Medical
- Range of motion measurement
- Drive shaft alignment
- Setup of precision machines
- Road or rail-track layout
- Satellite or aerial alignment
- Drainage angles and run-off slopes
- Tool setting on Lathes
- Setting blade angle of Circular Saws
- Setting blade angle of Miter Saws
- Setting work piece angle for milling
- Grader and tractor work alignment
- Platform monitoring
- Suitable for Built wood and metalwork projects
- Create straight edges when assembling furniture
- Ensure wallpaper and cornices are level for decoration
- Measuring and adjusting alignment of sliding carriages and extension tables to cast saw benches
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
- Favored by cabinetmakers & furniture workshops for setting up machinery such as saw benches, planer thicknesses, spindle molders and lathes to ensure that they are set true
Features

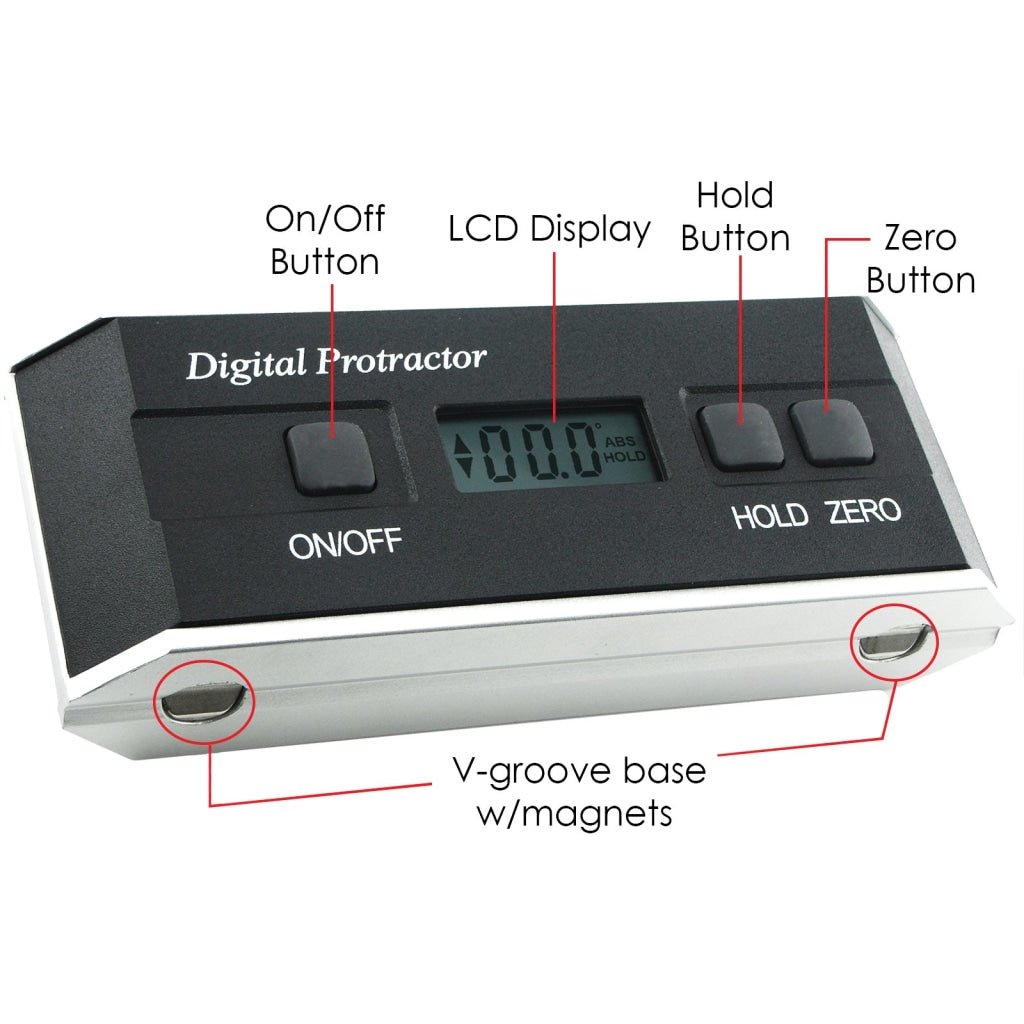

- V-groove base plate with strong built-in magnets
- Full range 360° measurement allows you to work both horizontal and vertical planes
- Dynamic measuring tool: Angle Finder, Protractor and Level
- Measuring range of 4 x 90° with ±0.1° repeatability

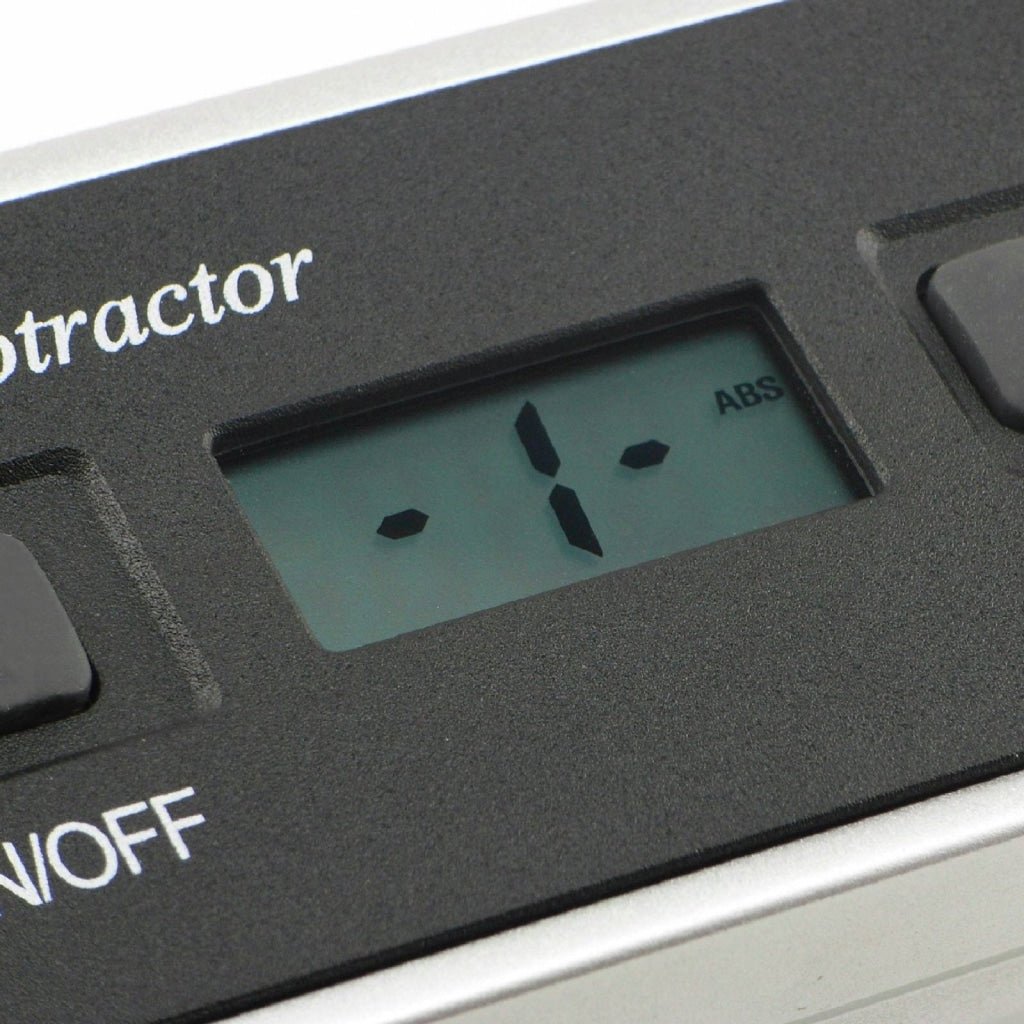

- Large and clear LCD display with 0.1° resolution
- Hold Data feature
- Simple self calibration, calibrates the meter to any reference surface
- Display remains upright enabling viewing at all angles
- High-impact, high-precision machined aluminum framework
- Angle sensor technology calculates exact angles in any position
- Fast and accurate measurement
- Zero reference can be set at any angle
- Compact & portable design
- Absolute and relative measurement conversion
-
3V Lithium battery lasts for 2000 hours in continuous use
Specifications

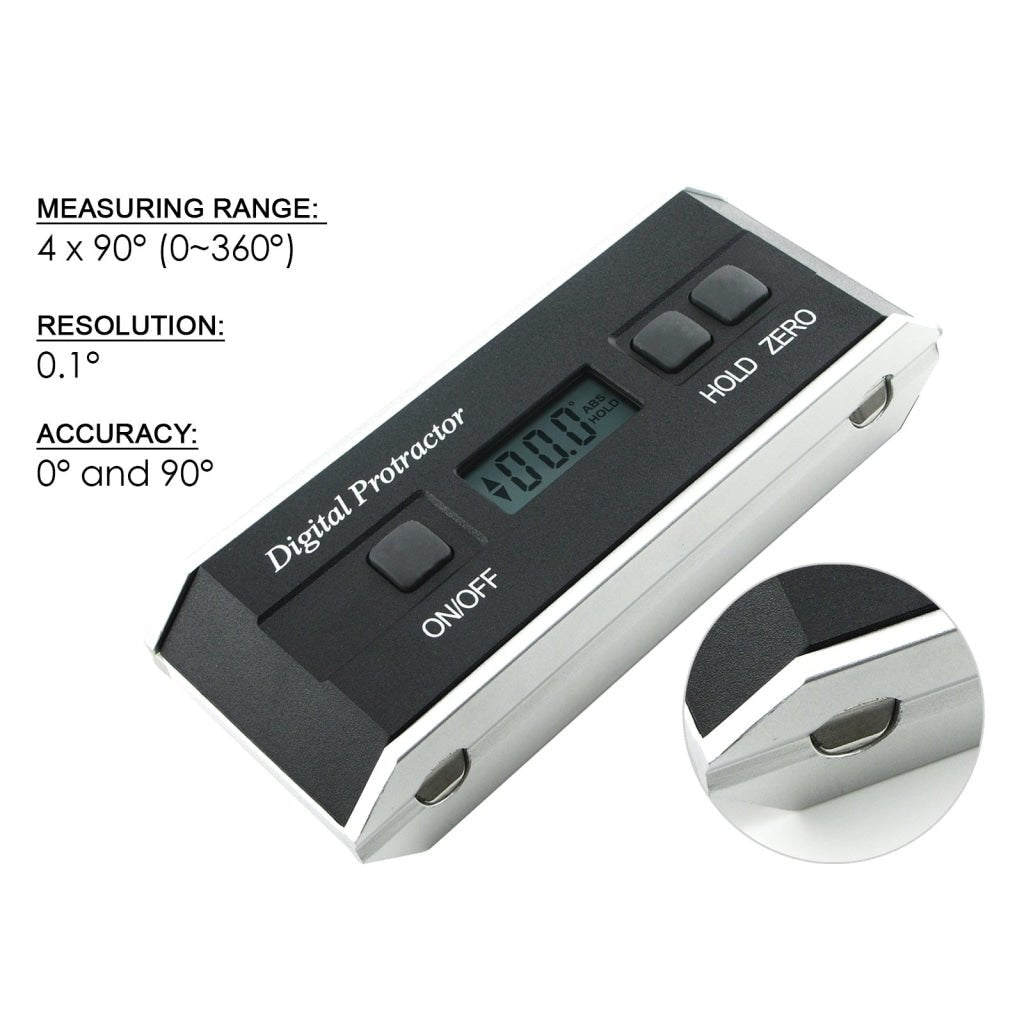

- Measuring Range: 4 x 90° (0~360°)
- Resolution: 0.1°
- Accuracy: 0° and 90° (= 0.1° based on horizontal position, relative to the ground level position), rest of angle = 0.2°
- Operating Temperature: 0~50°C (0~122°F)
- Operating Humidity: 0~85% R.H.
- Working Current: < 100 µA
- Power: 1 x 3V CR2032 Battery (included)
- Battery Life: 2000 hours in continuous use

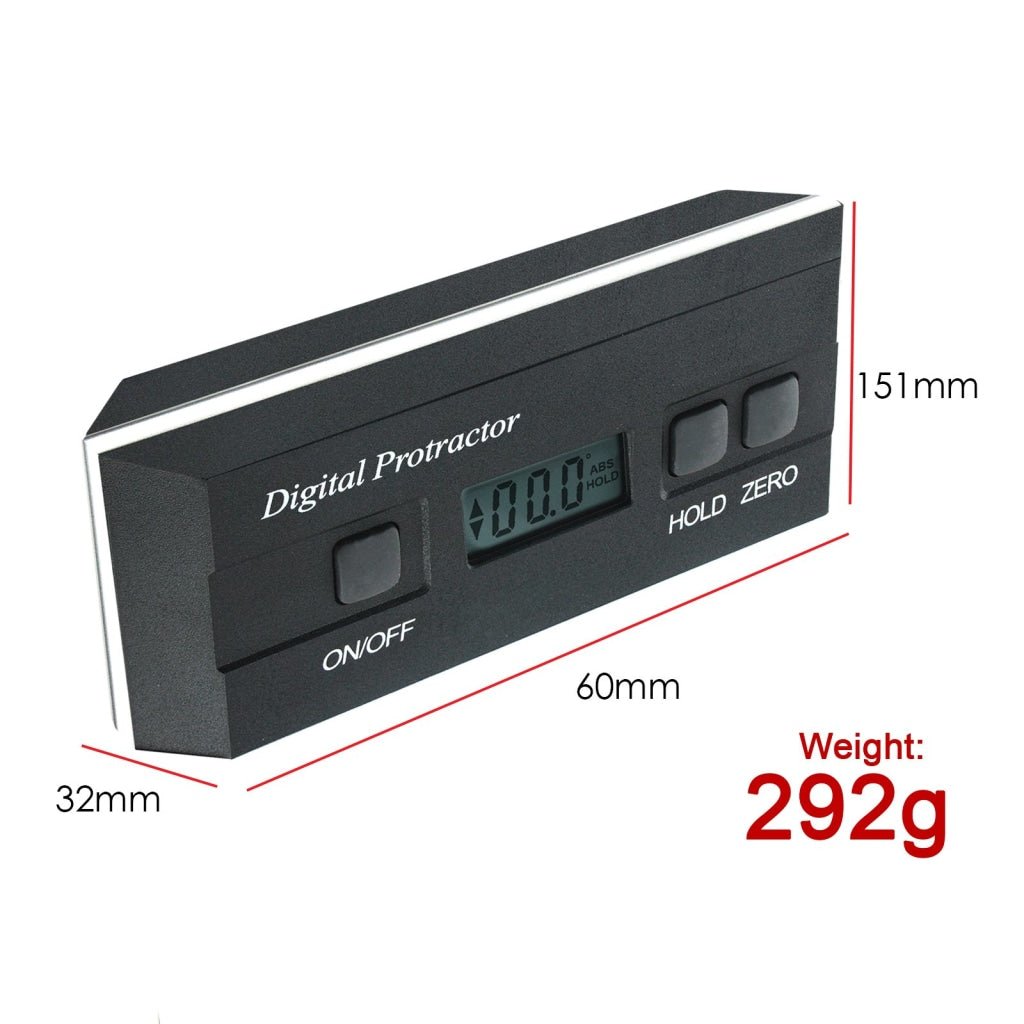

- Dimensions: approx. 151 x 60 x 32mm
- Weight: approx. 292g (including battery)
- 1 x Digital Protractor with V-Groove and Magnets
- 1 x 3V CR2032 Battery (FREE)

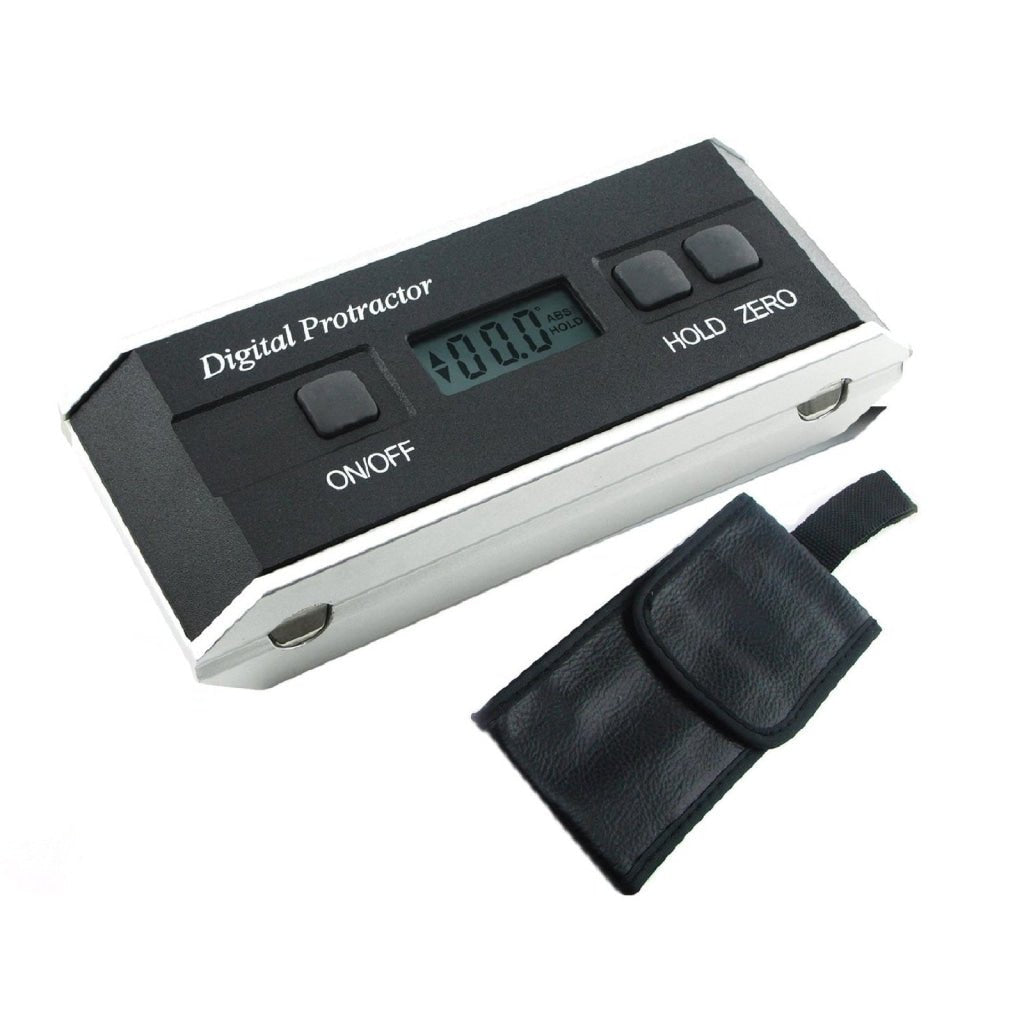

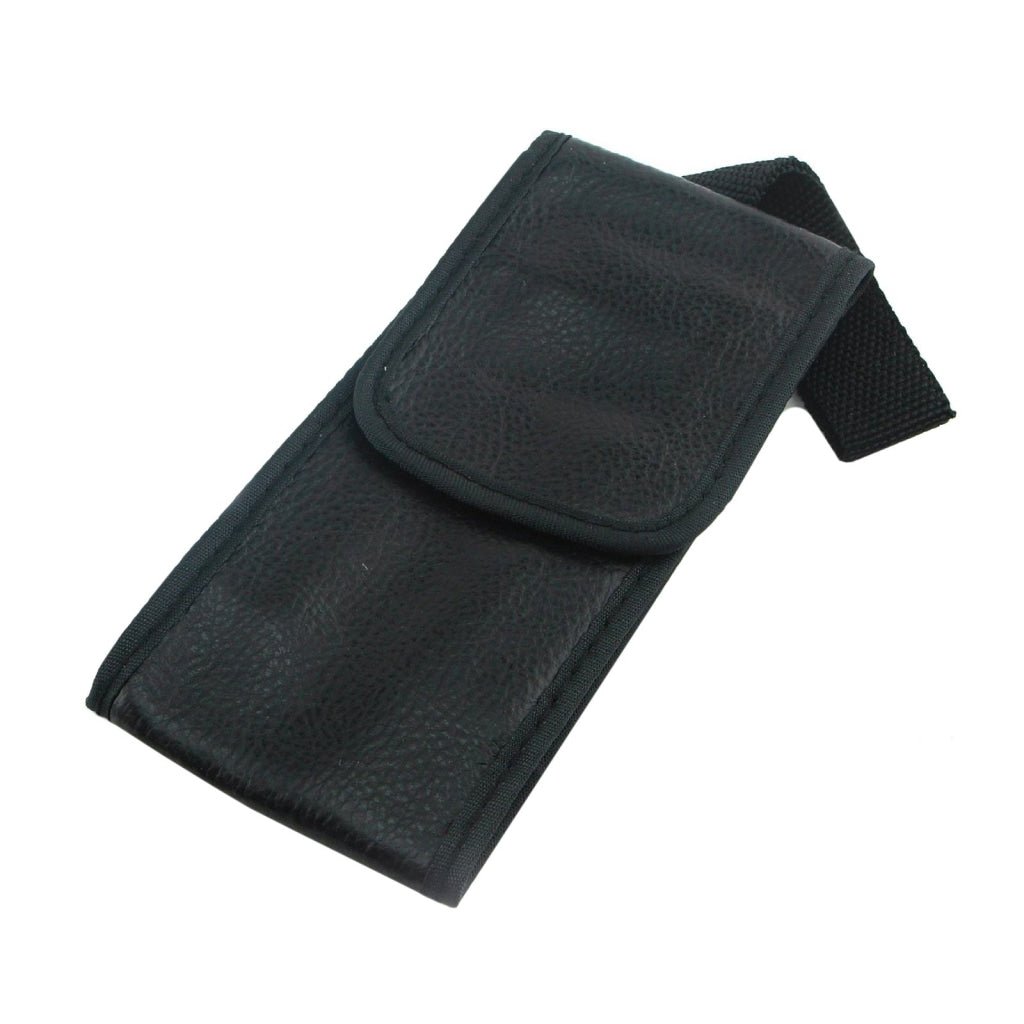

- 1 x Soft Protective Pouch with belt loop (FREE)
- Englsih Quick Start Guide
- Standard Factory Package
