AGF-260 Digital Level Box Protractor Angle Finder Bevel Gauge Magnetic Base with Tilt Direction Indicator, 360° (4 x 90°) Inclinometer Cube Meter Measurement Tool for Woodworking Installation

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

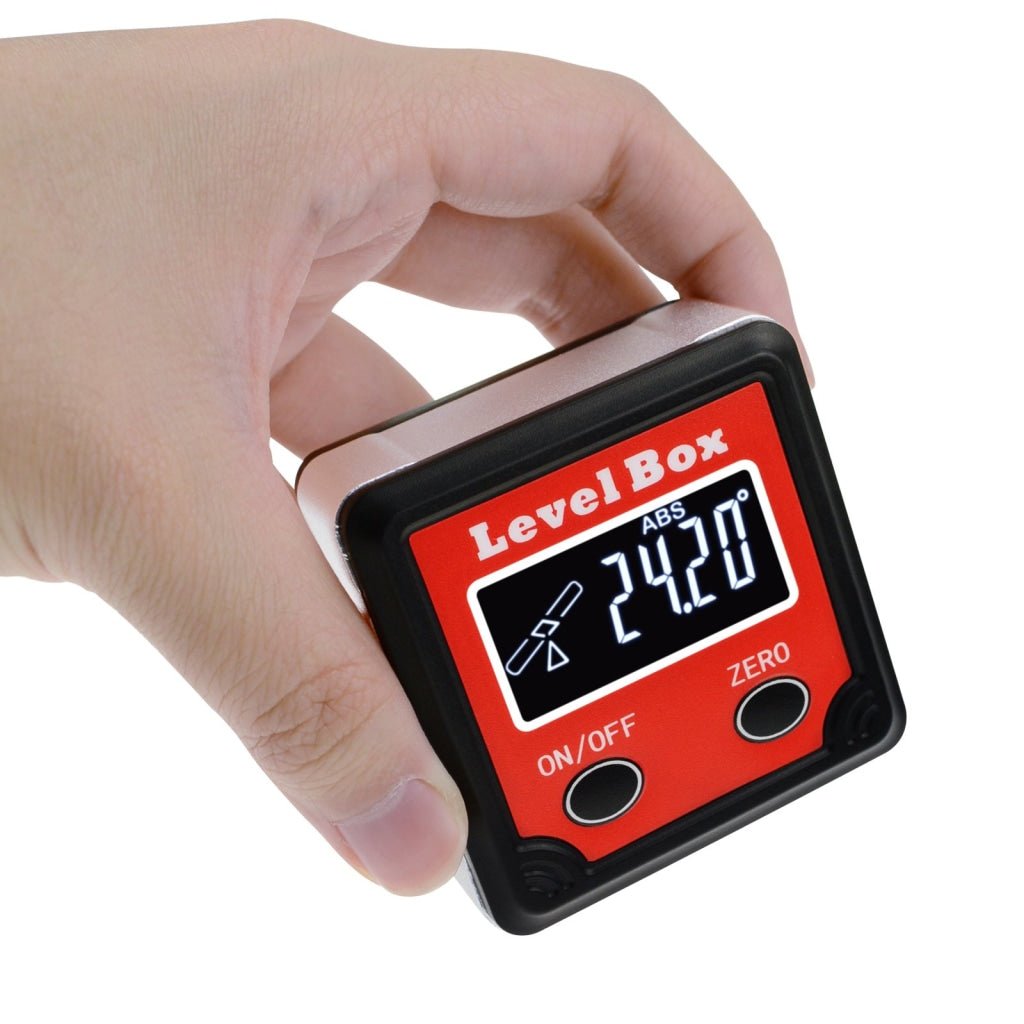

Highly accurate level box or "angle finder cubes" provides absolute and relative measurements, including the ability to zero set to any position. It has a magnetic base that can be attached to the work surface area that is going to be measured.

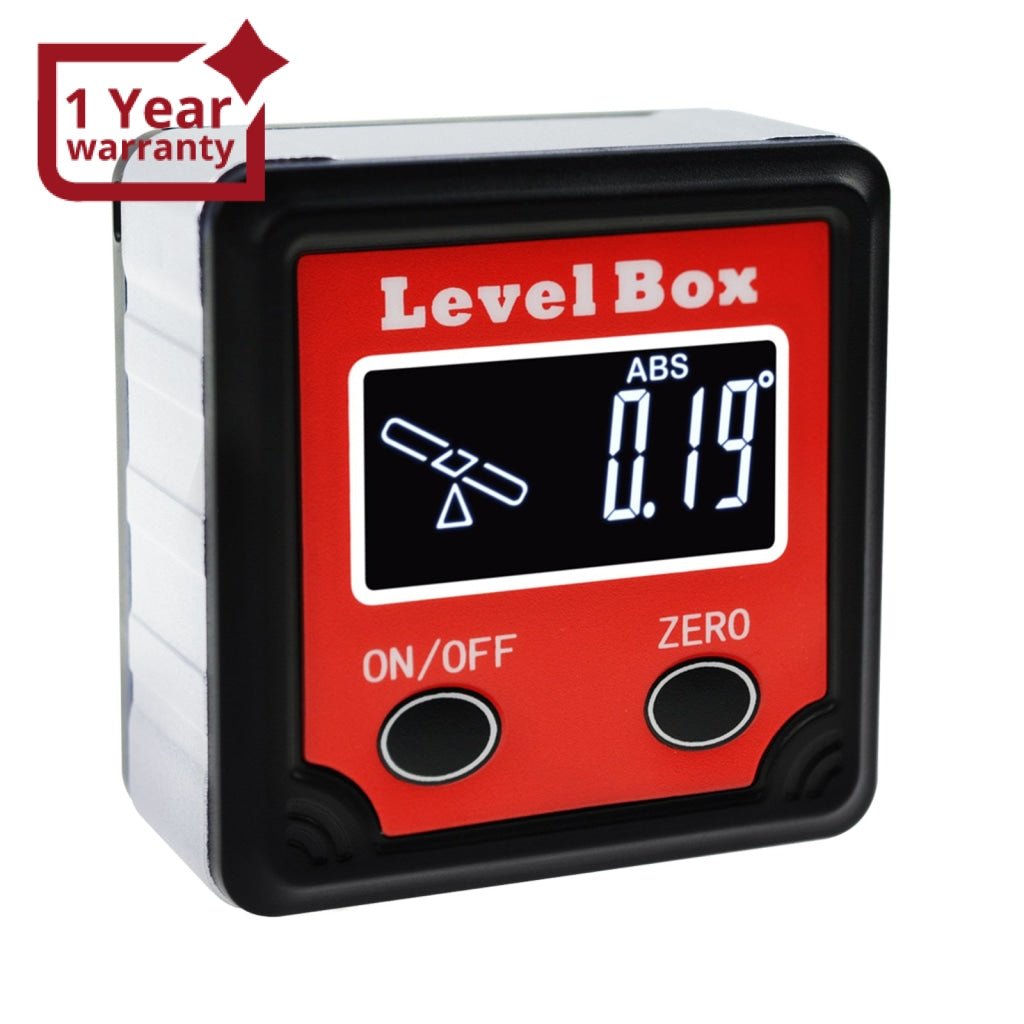

A see-saw figure is specially designed on the display to show the direction that the plate is tilting. This is especially useful when the tilted degree is small and difficult to be judged by naked eyes.

 setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors.


  • Clear illuminated glow in the dark reading

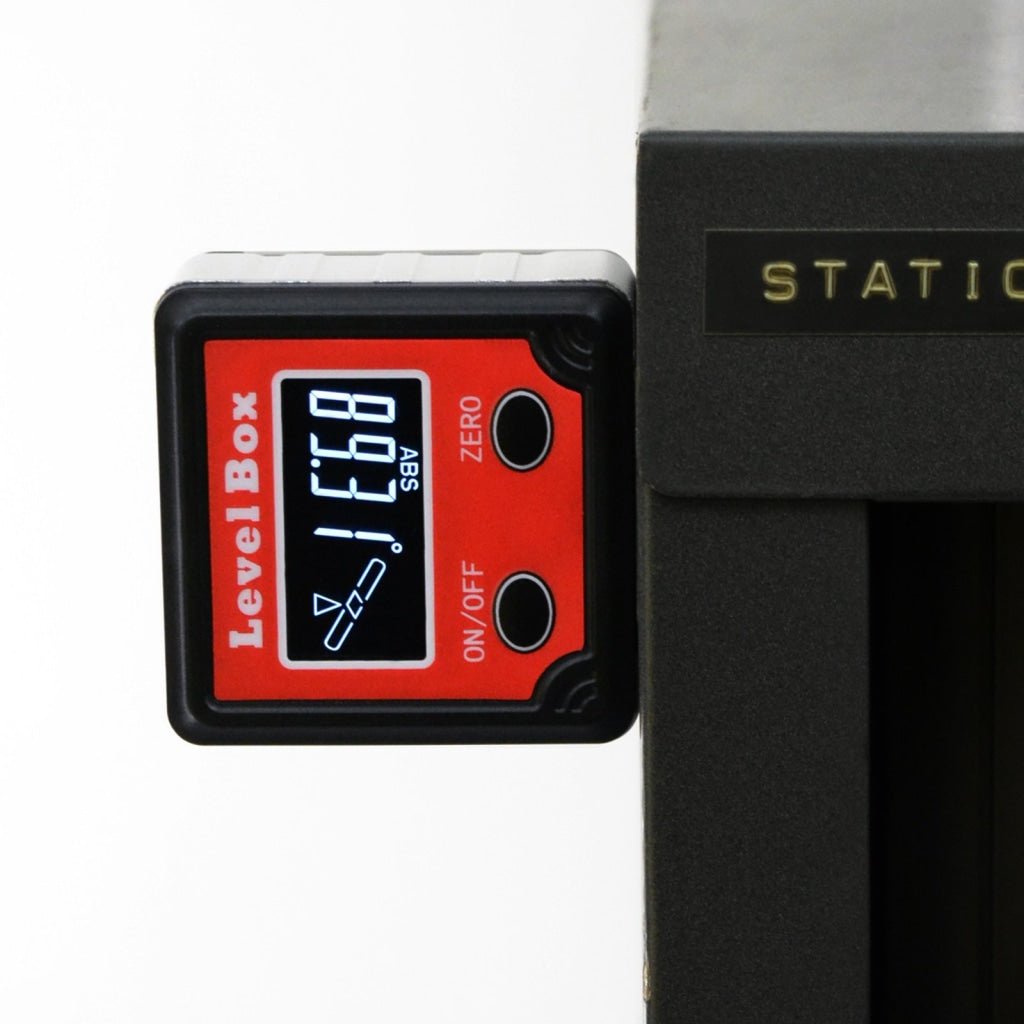

  • Magnetic base

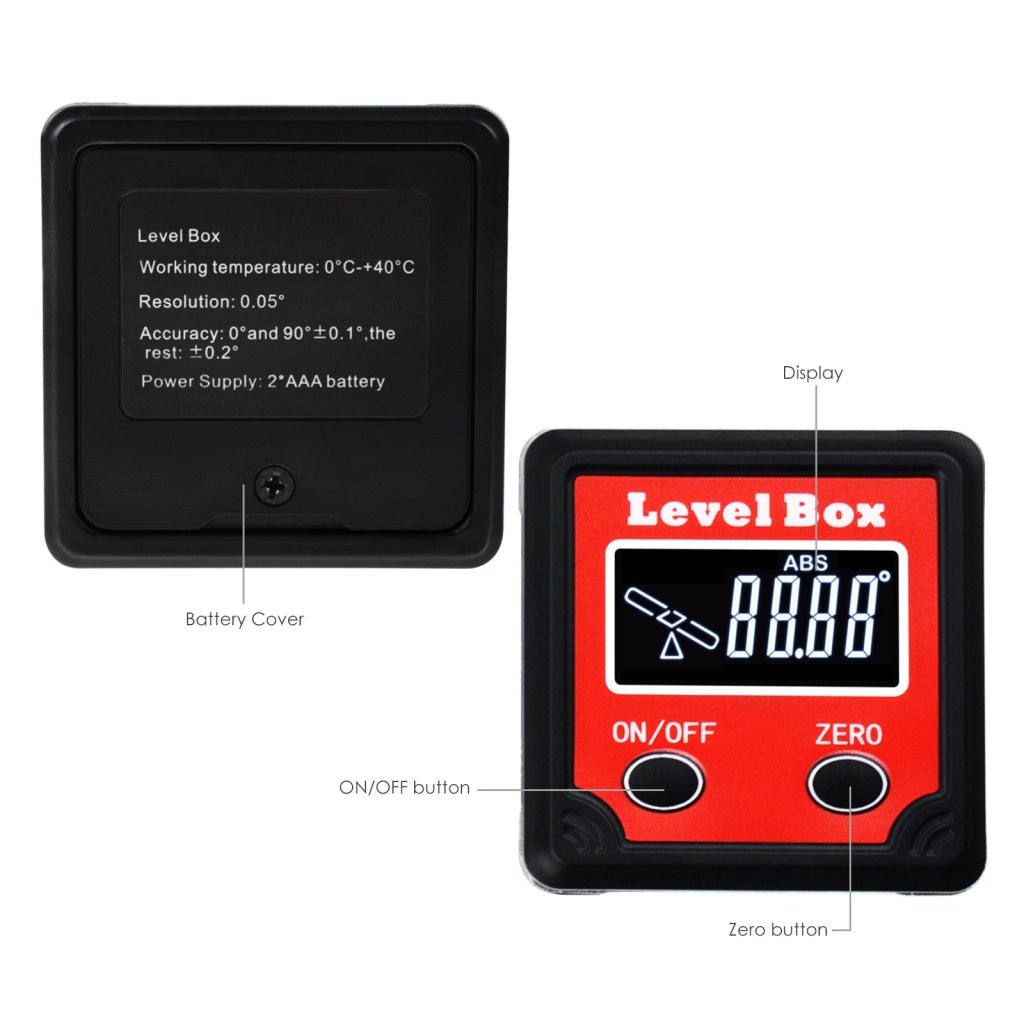

  • Simple operation by just 2 buttons

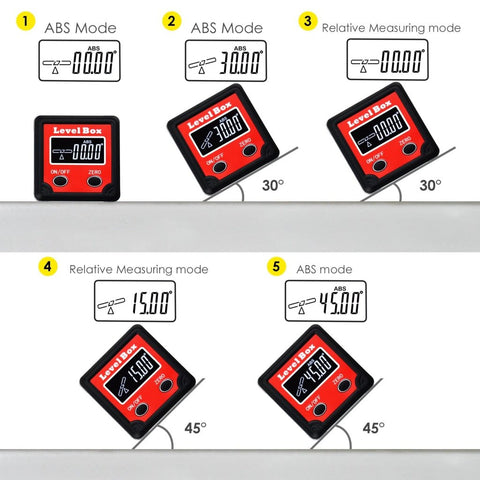

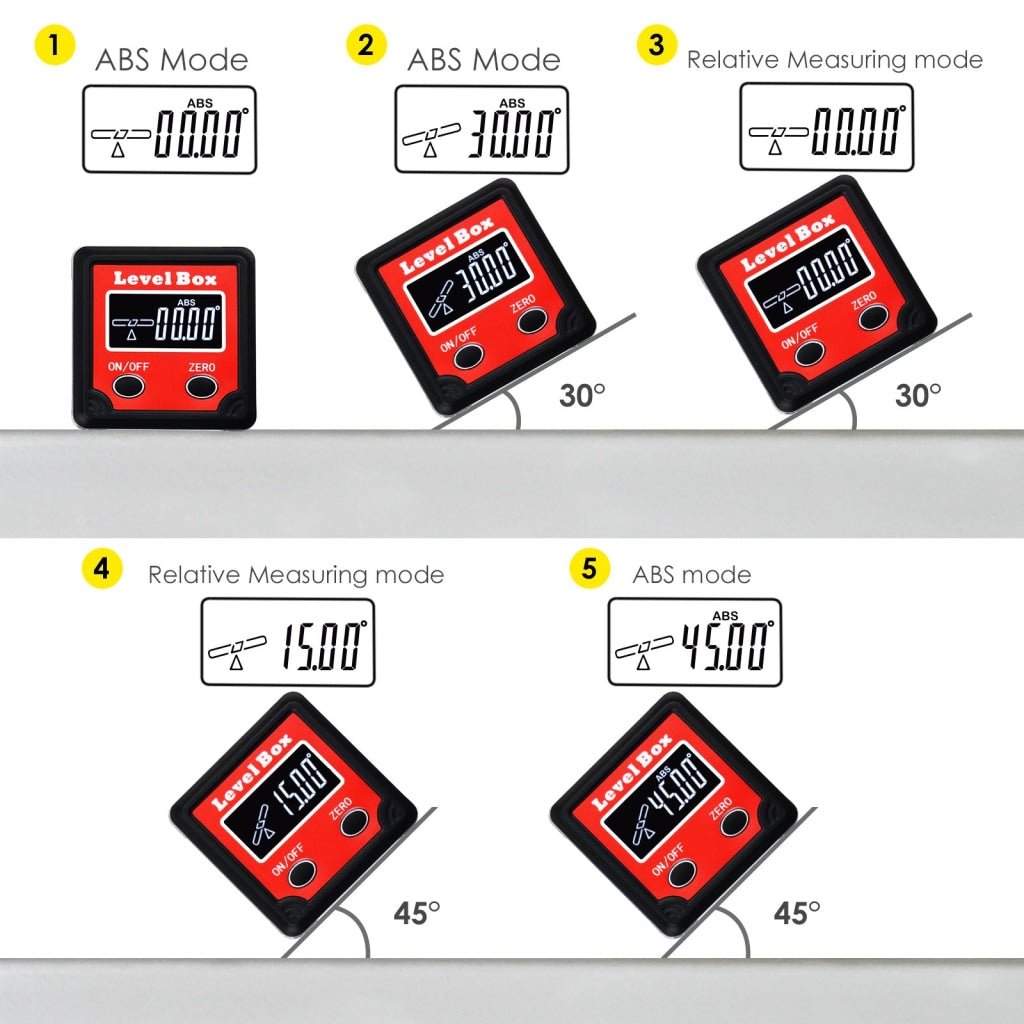

  • Absolute & relative measurement
  • Zero set to any position to find the relative angle between 2 planes
  • See-saw figure on the display to show the tilted direction
  • No Temperature drift
  • Auto power off function
  • Aluminum framework
  • Handy easy to carry anywhere
  • Pre-calibrated at the factory



  • Working range: 4 x 90°
  • Accuracy: 0 & 90°: ±0.1°, the rest: ±0.2°
  • Resolution: 0.05°
  • Relative Measurement: set any angle to zero
  • Working Temperature: 0~40°C ( 32~104°F)
  • Working Humidity: ≤85%

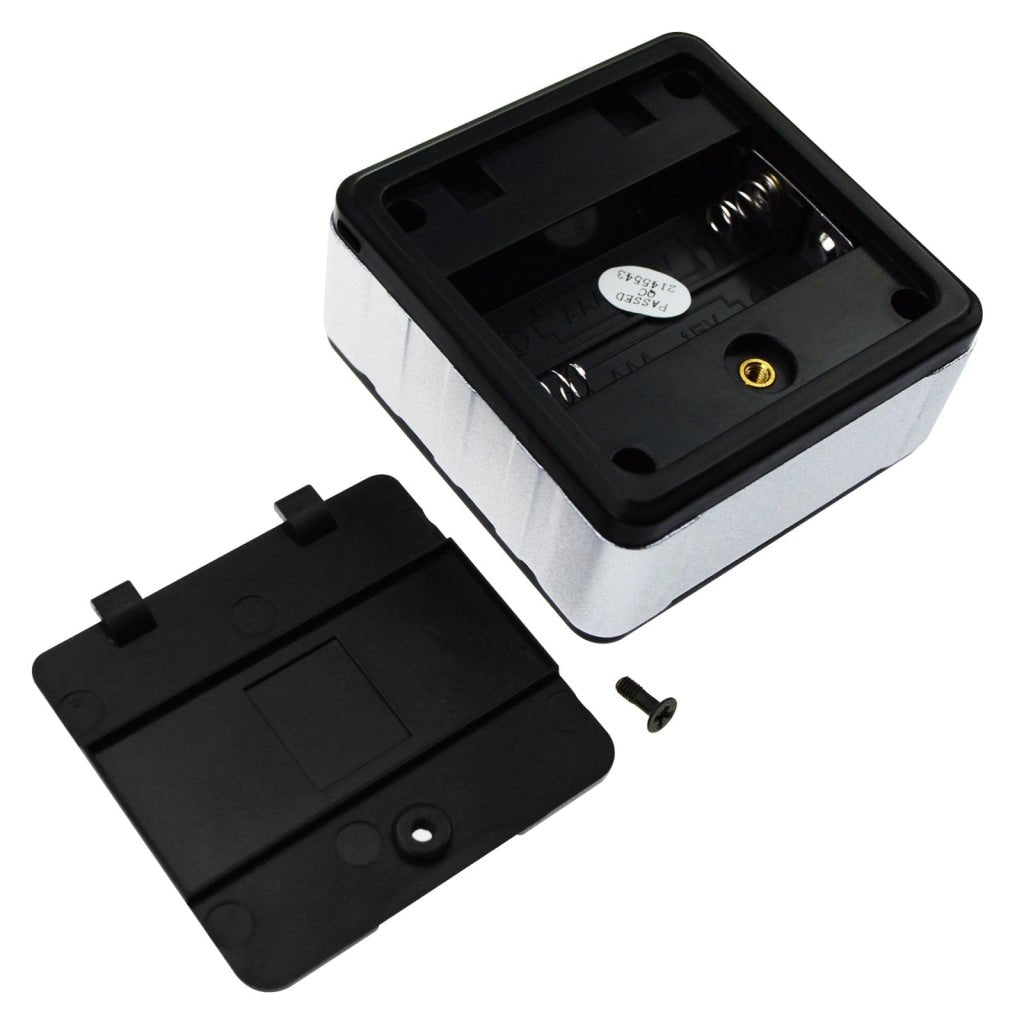

  • Power Supply: 2 x AAA Alkaline battery

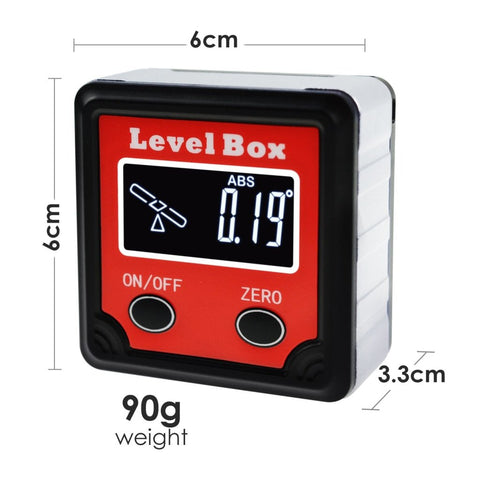

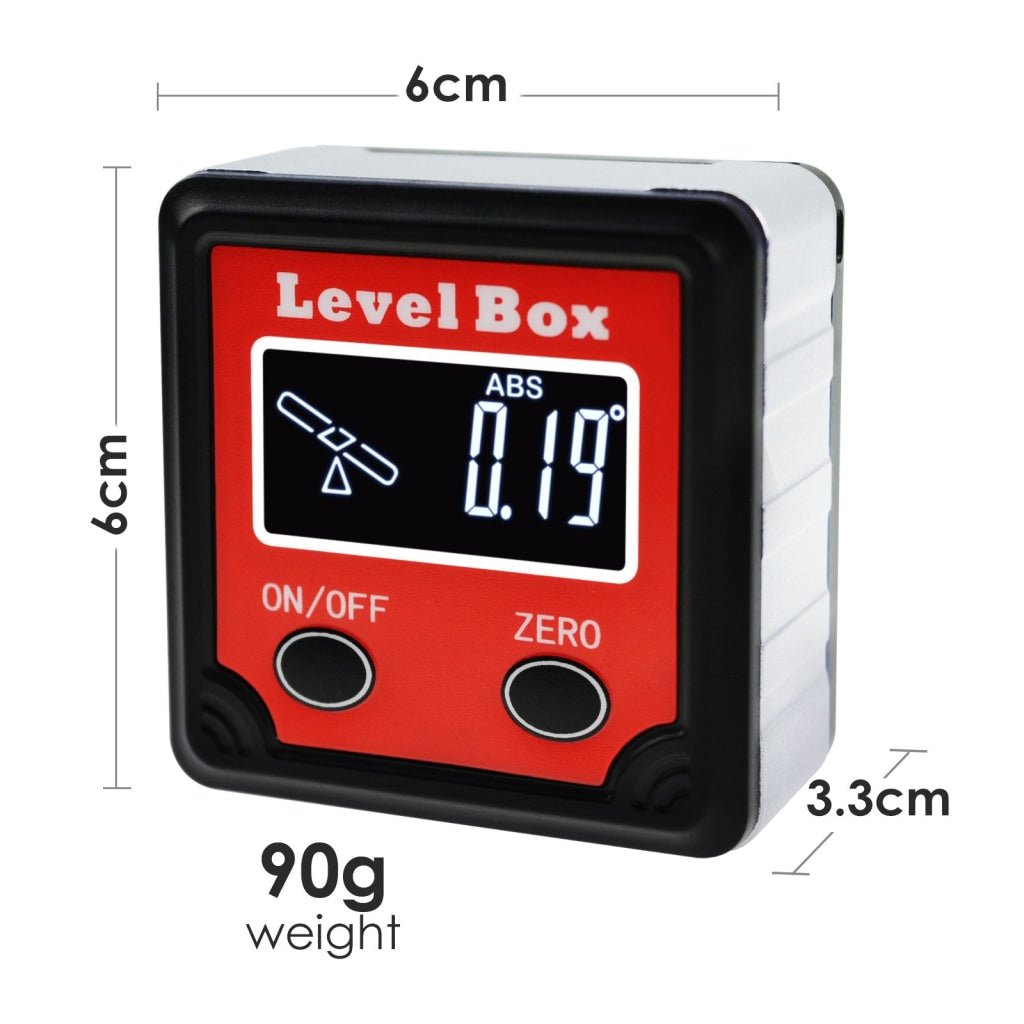

  • Dimension: approx. 59 x 59 x 28mm
  • Weight: approx. 70gms

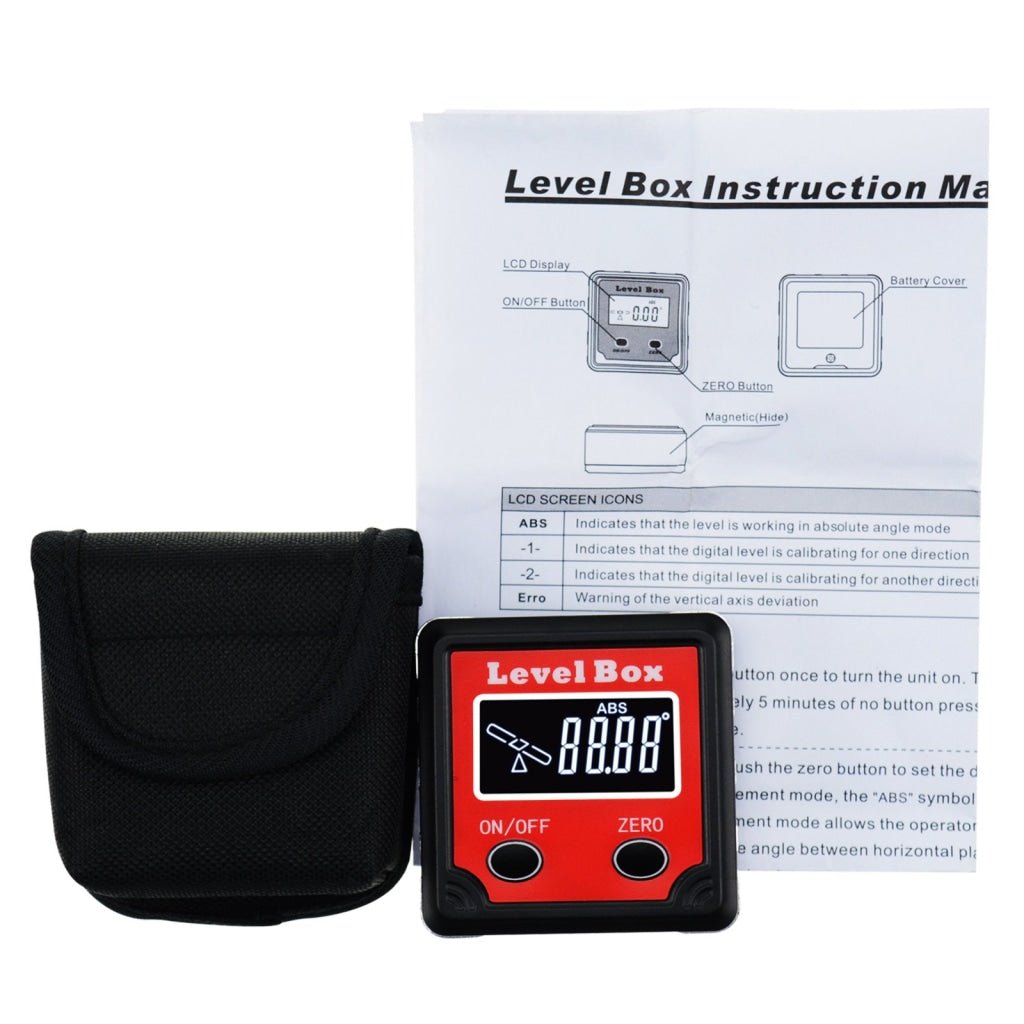

Set Includes:

    • 1 x Bevel Box
    • 2 x AAA Alkaline battery

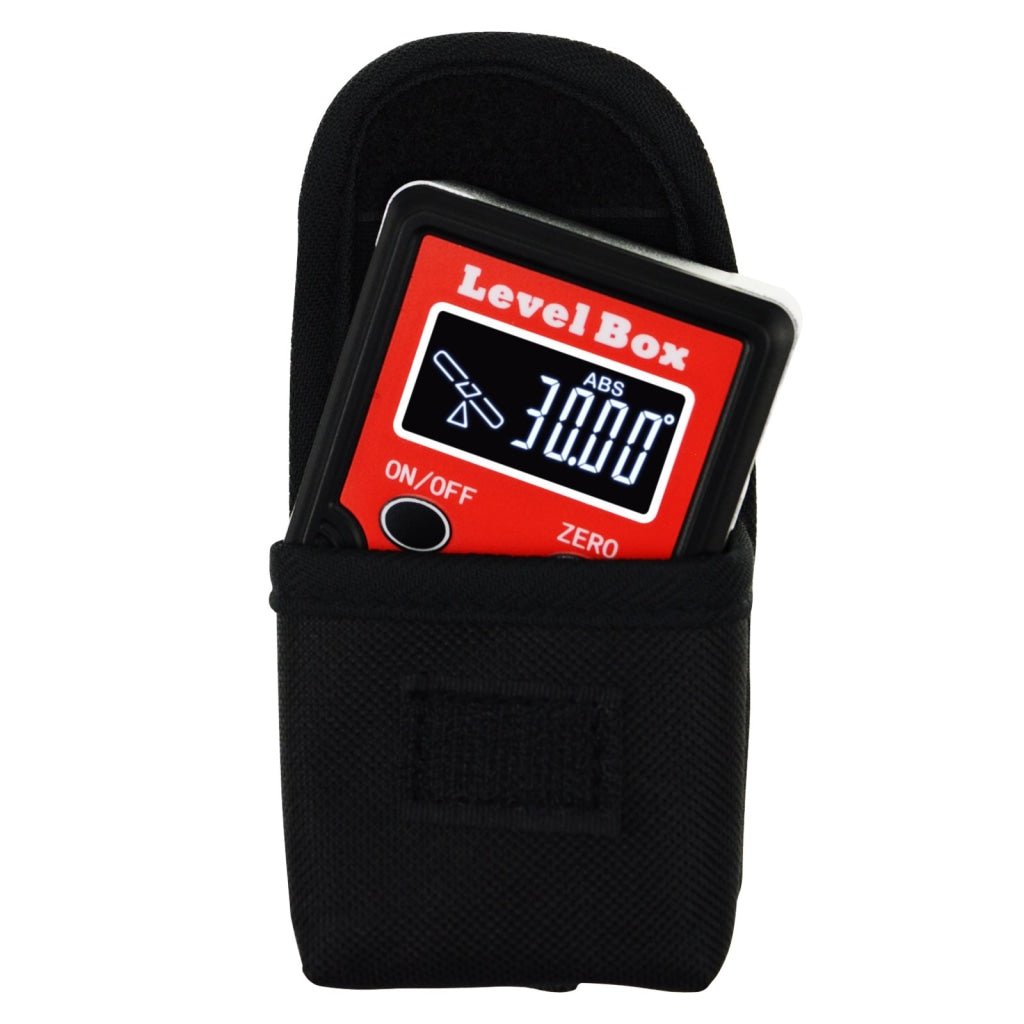

    • 1 x Carrying pouch
    • English Manual
    • Standard Factory Package
