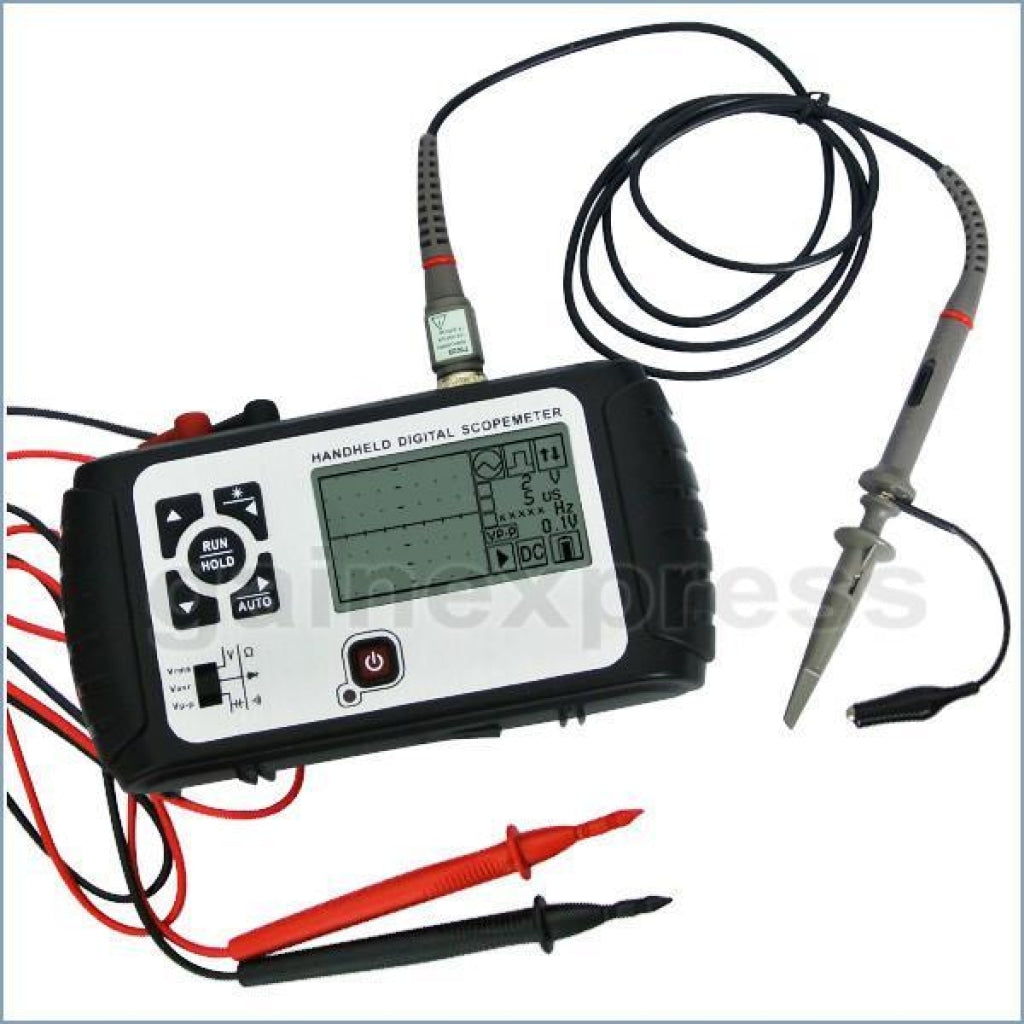

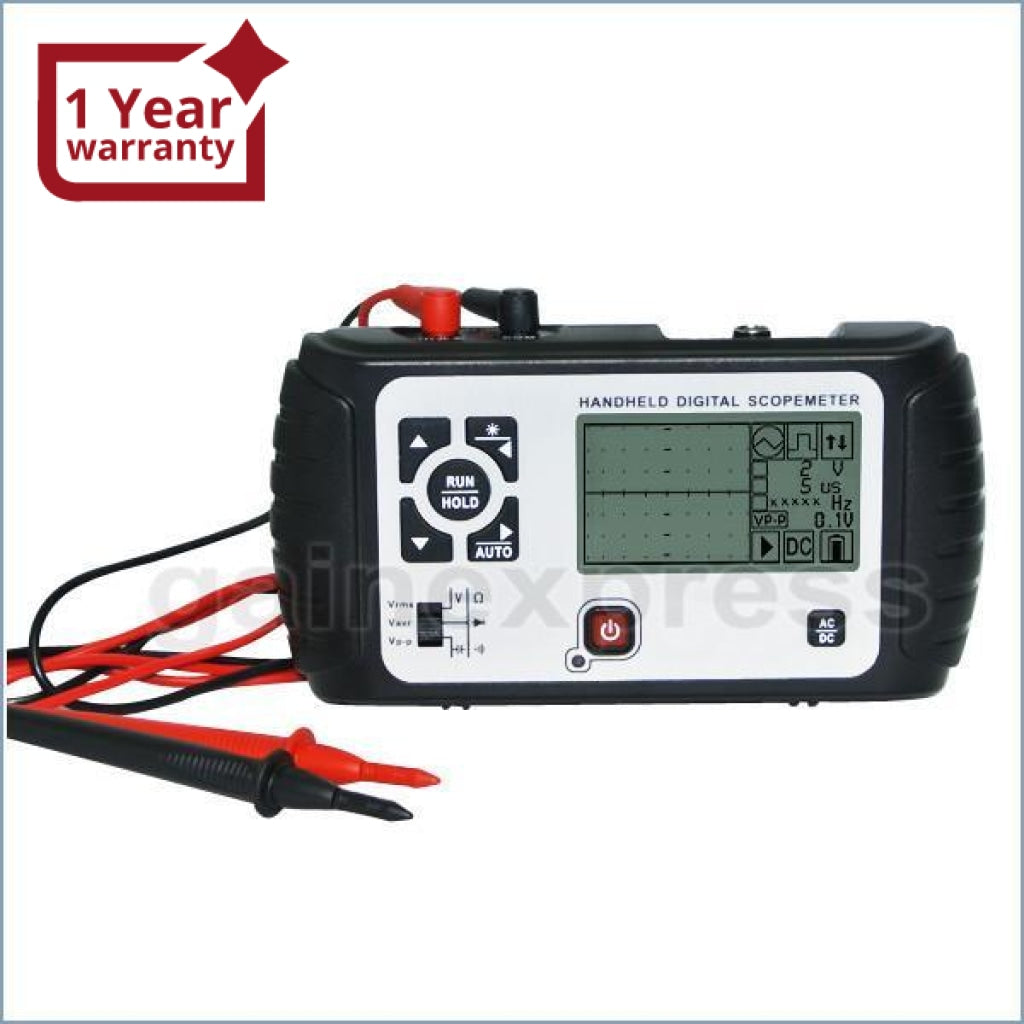

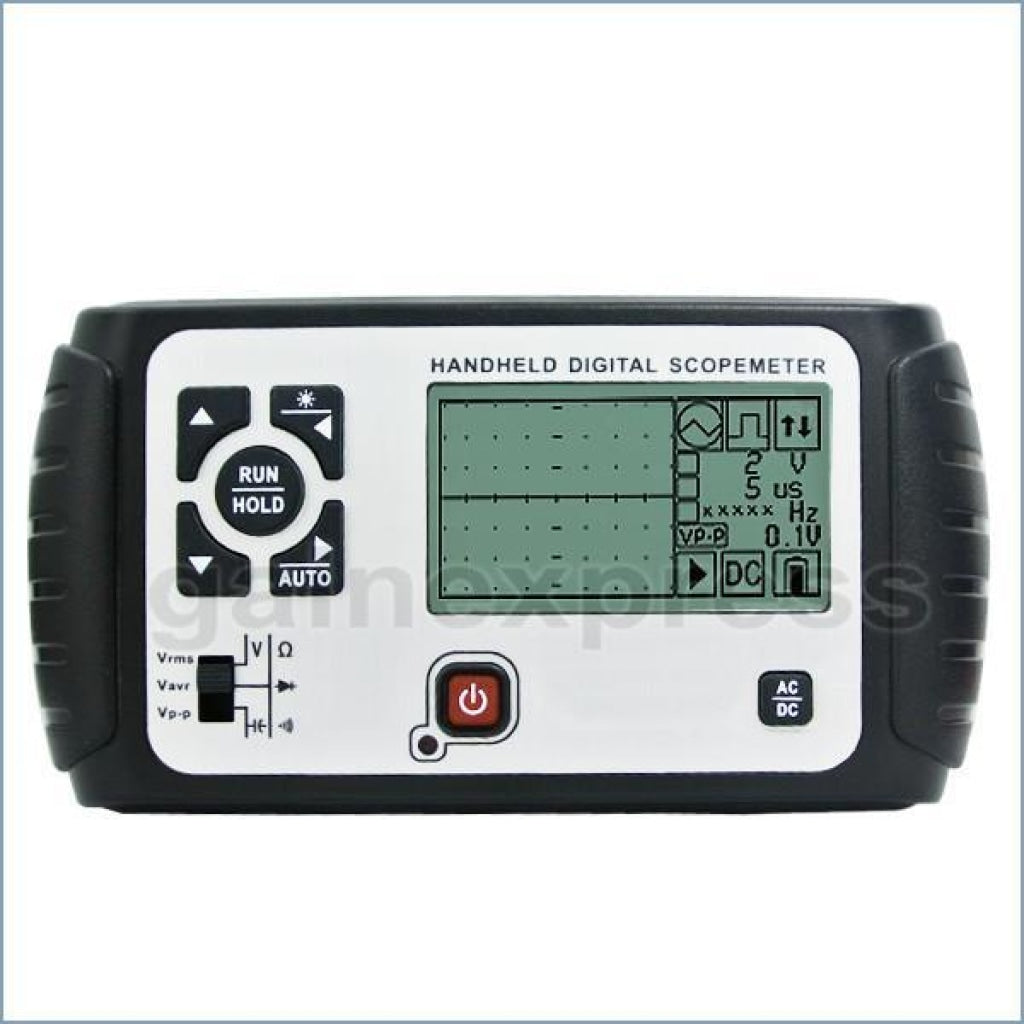

E04-001 Pocket-size Oscilloscope Rechargeable Digital Scopemeter

Product SKU: E04-001
$126.90 USD
$0.00 USD


This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
  • Description
  • Return, Refund, & Warranty Policy
  • Reviews

Model: E04-001



This portable tool for waveform measurement has a transverse-grip & compact design. The best tool for use in teaching or field compared to analog oscilloscope. It uses a high speed AD sampler to convert the input analog signal into digital signal and displays signal on a 128x64 LCD after processing the signal through a hig-speed CPU. It uses a high speed comparator to get a good edge trigger for a steady display, which is good observation.





Its multimeter part uses a dedicated,6000-count chip,which can provide a higher precision. The scopemeter is equipped with large capacity lithium batter, which can provide about 10 hours of use after it is fully charged.







Features:

  • Multimeter Function:
    • DC/AC voltage,Capacitor,RMS,Resistance,Diode,Continuity
  • Oscilloscope Function
    • Single channels,25MHz Bandwidth,Vrms,Vavr,Vp-p
  • Hand-held
    • Pocket size, easy to carry

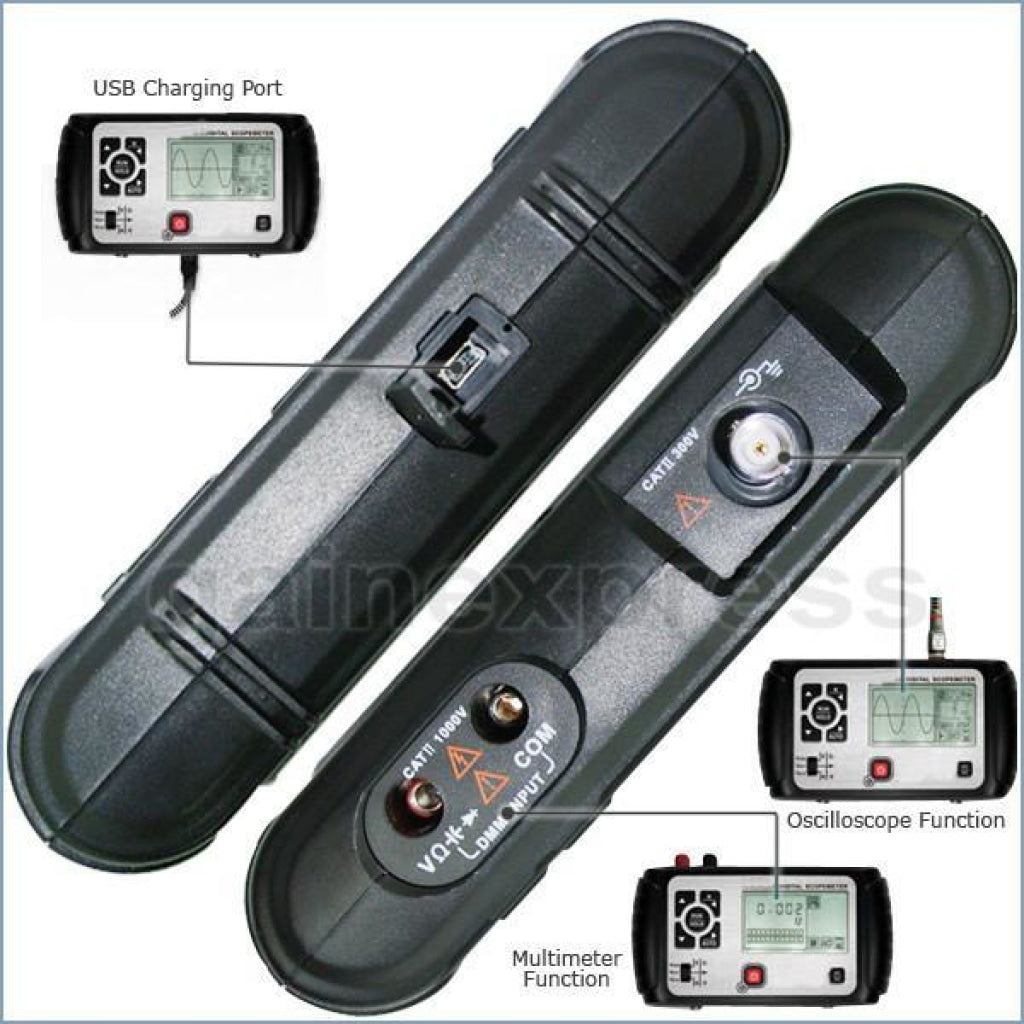

  • USB Charging Port
    • Charger with USB cable
  • 25MHz Bandwidth
    • Maximum real time sample rate: 100MSa/S
    • Maximum input voltage : 1 x CAT III 300 VAC,10x, 100x CAT III 600 VAC





Specifications:

E04-001_spec

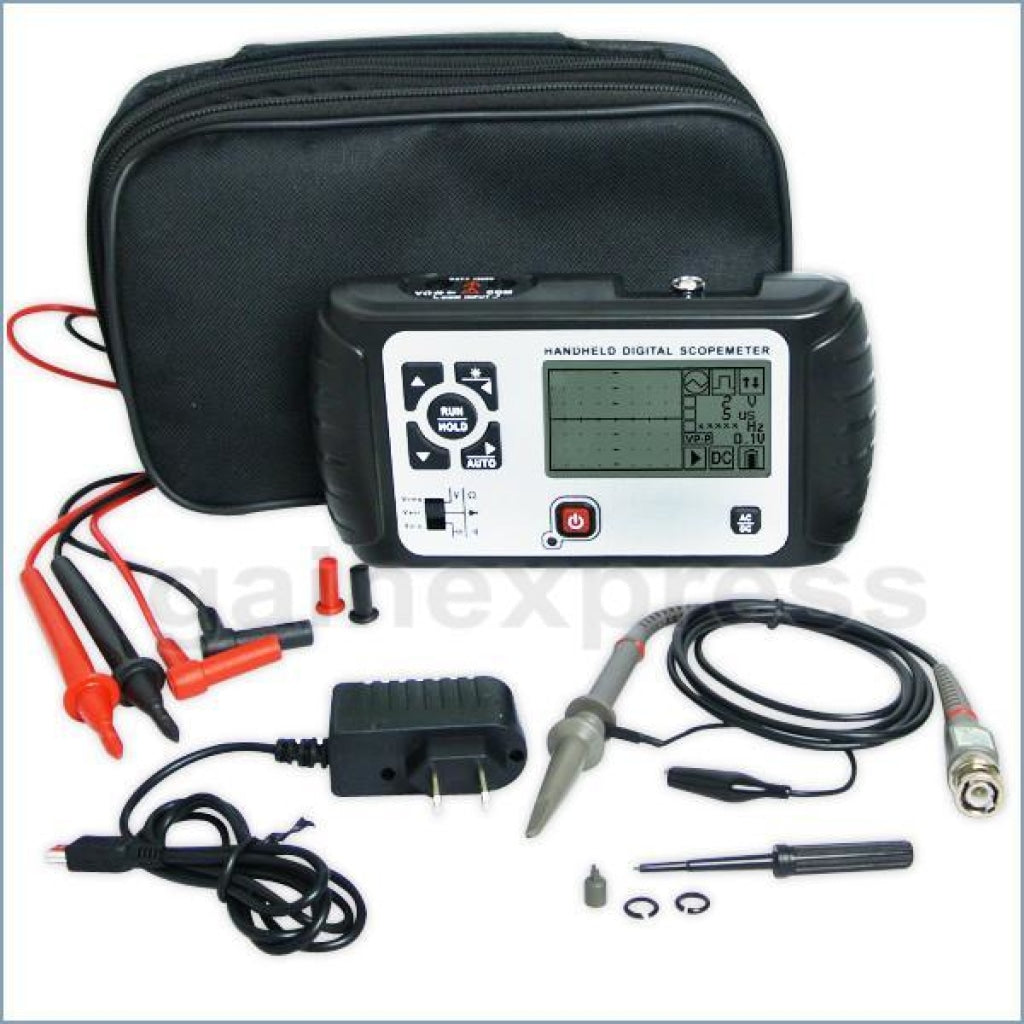

Set includes:

  • 1 x Scopemeter

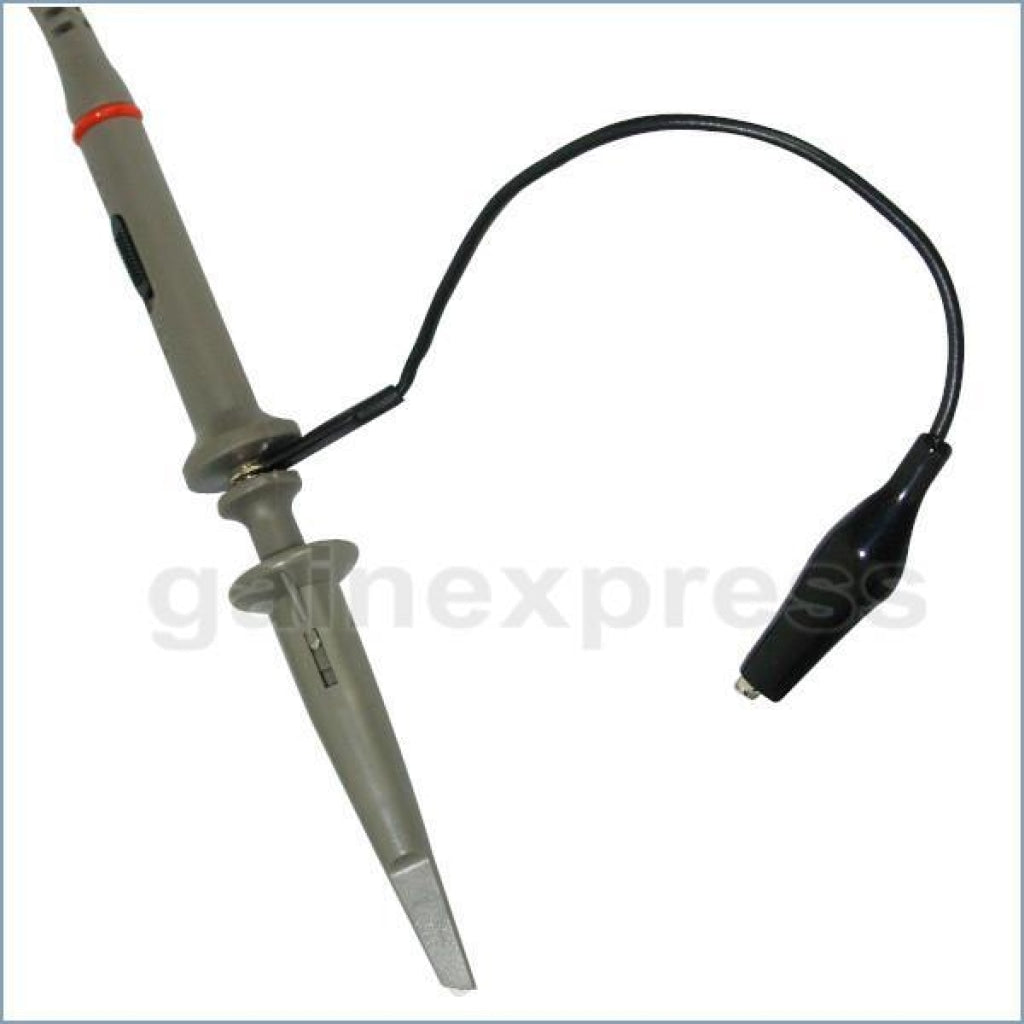

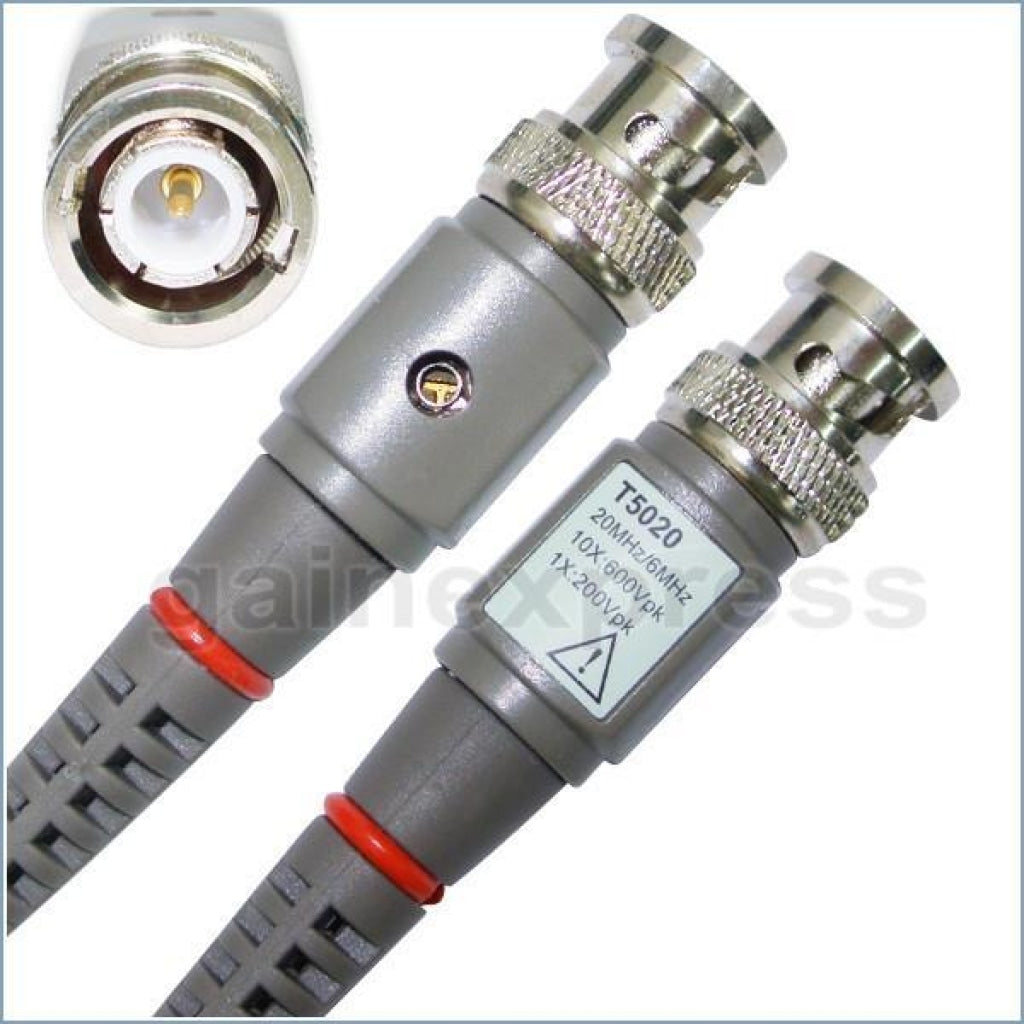

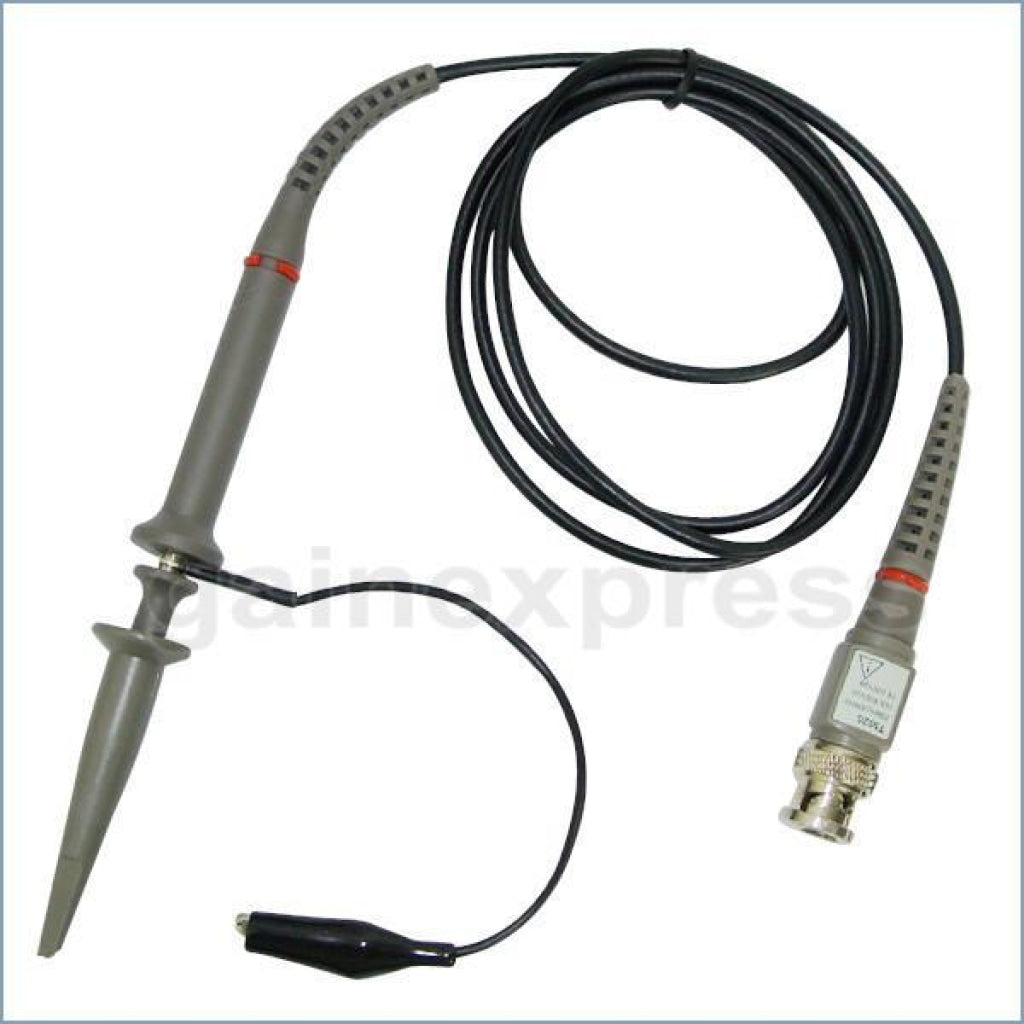

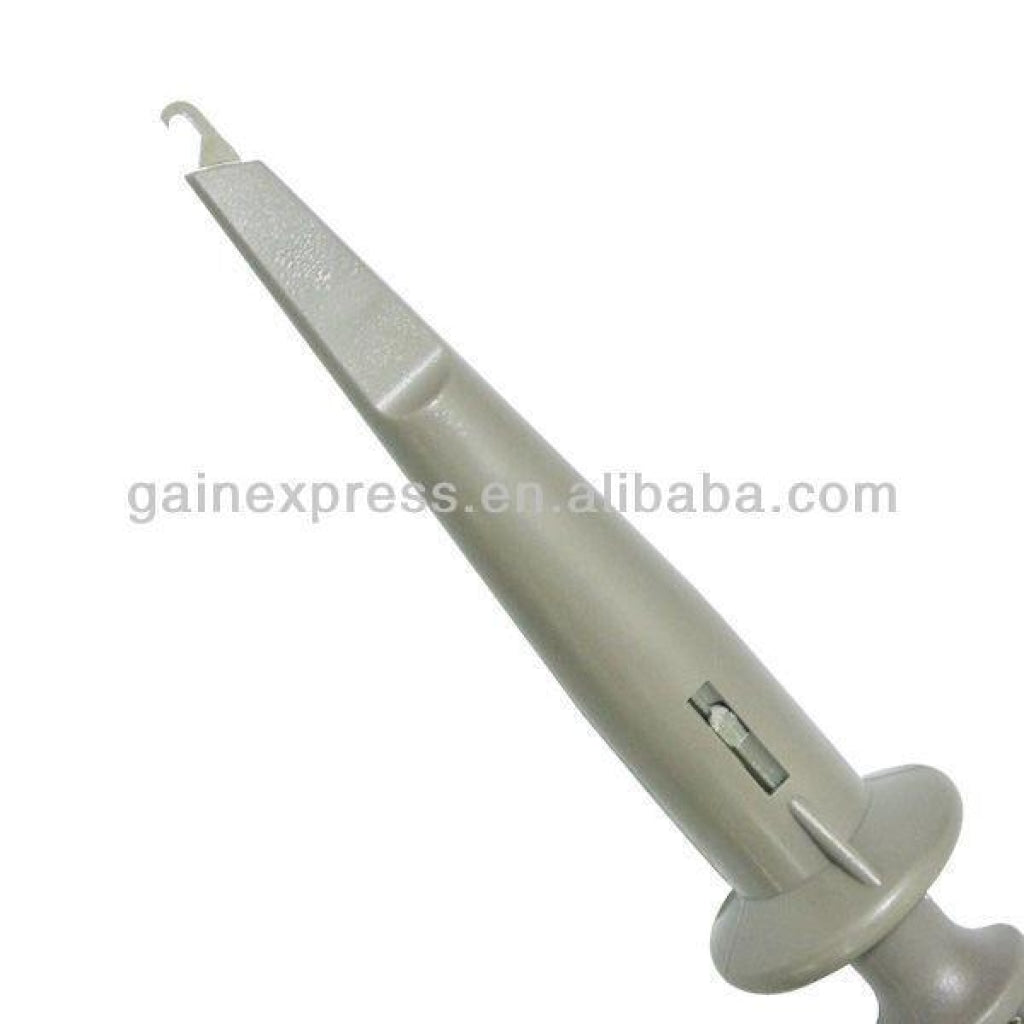

  • 1 x 20MH (10:1) Probe

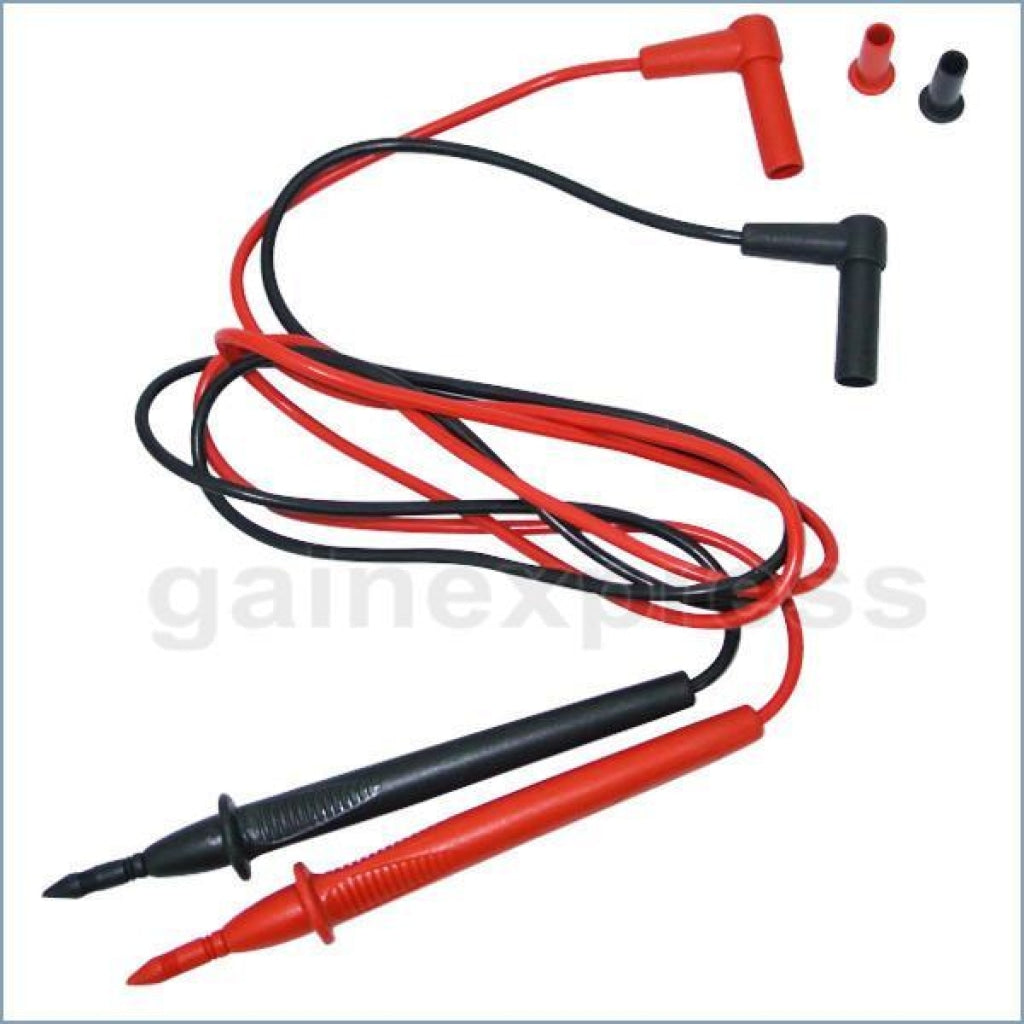

  • 1 x Test Lead Pair

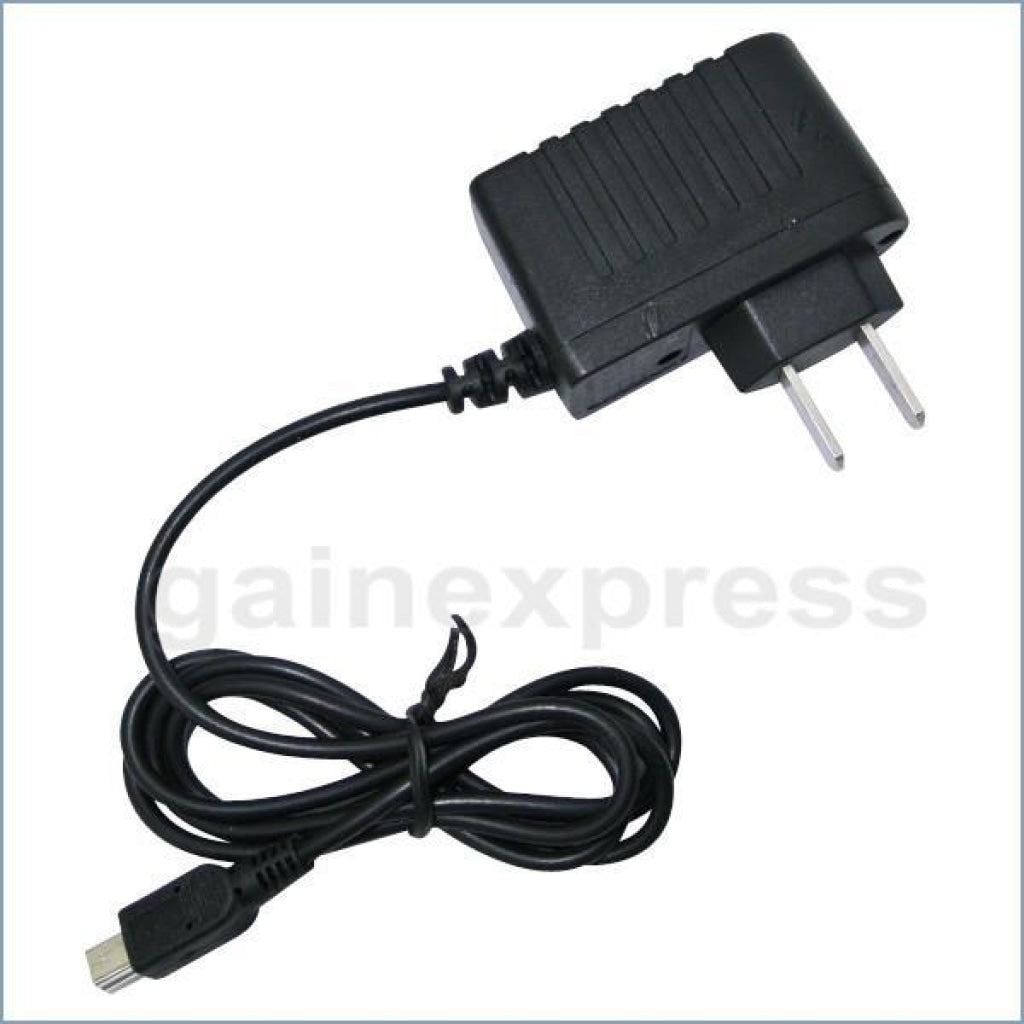

  • 1 x USB Charger Adaptor
  • 1 x Built-in Battery (about 1000mAh)
  • 1 x English User Manual

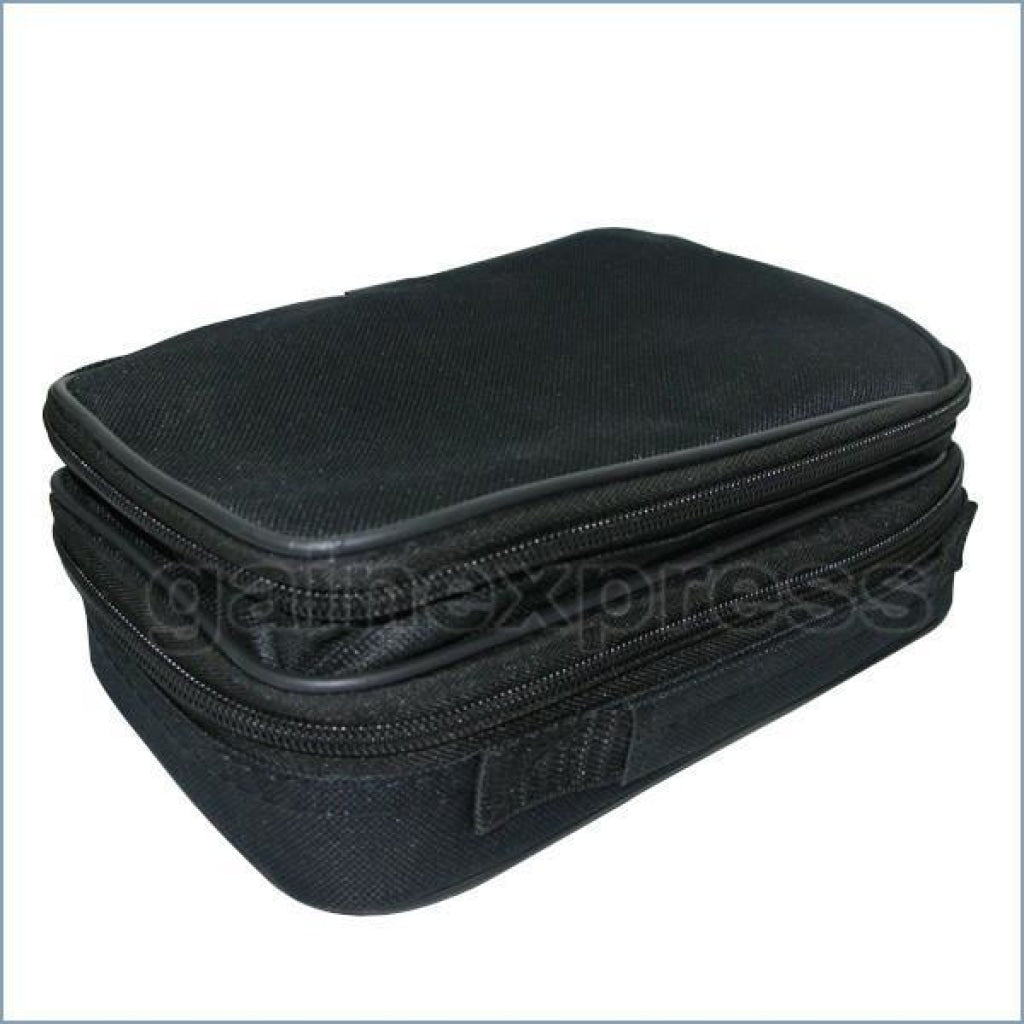

  • 1 x Carrying Bag
  • Standard Factory Packaging Box
