CLM-221 Smart Digital Clamp Meter Multimeter 6000 Counts Auto Scan Anti-burn Auto Range AC/DC Voltage ACA NCV Tester


Quantity
  OR


Model: CLM-221

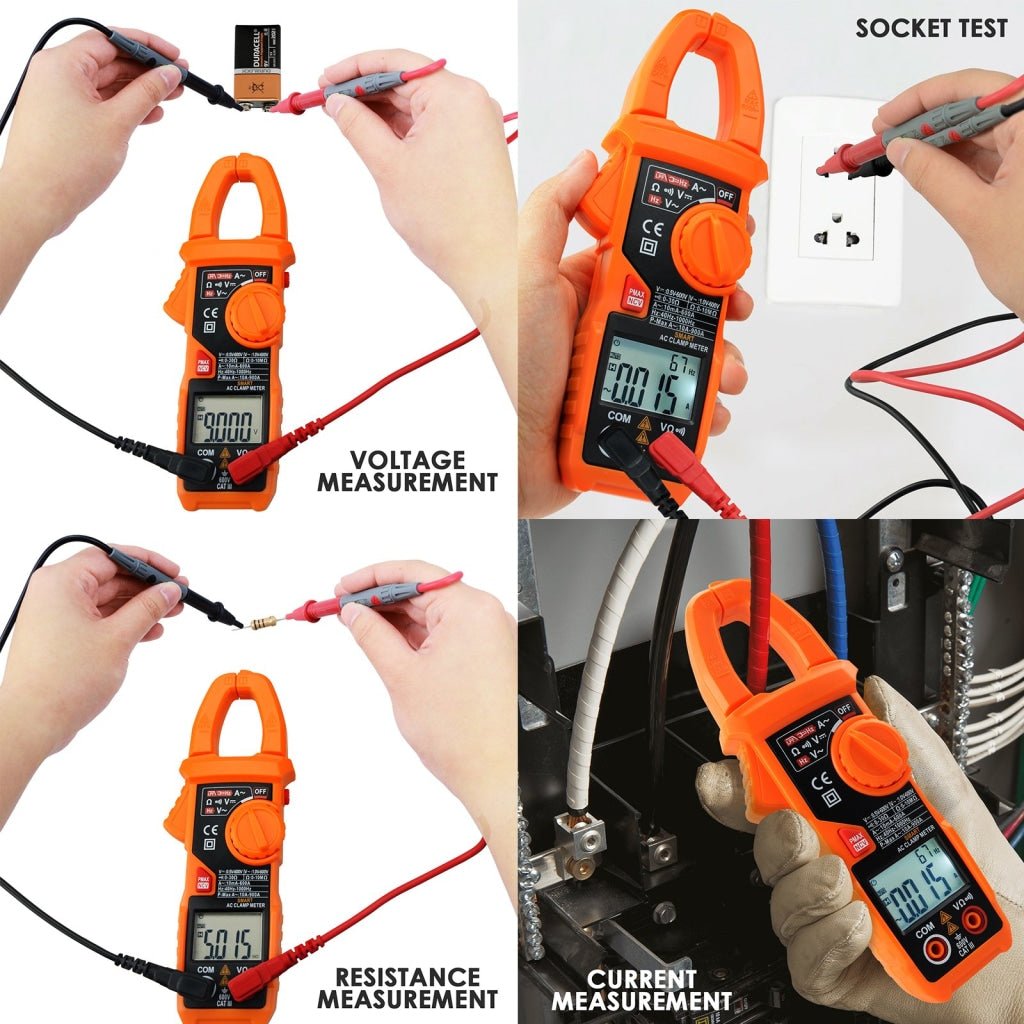

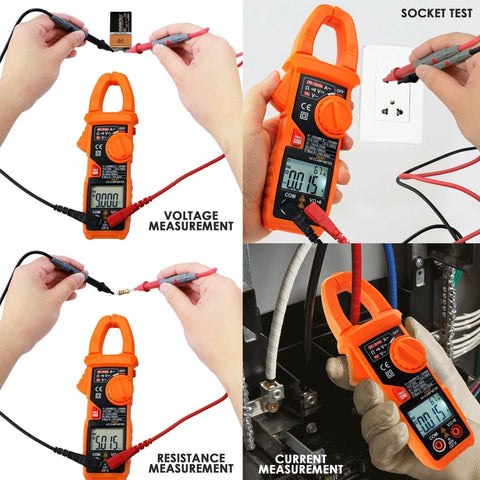

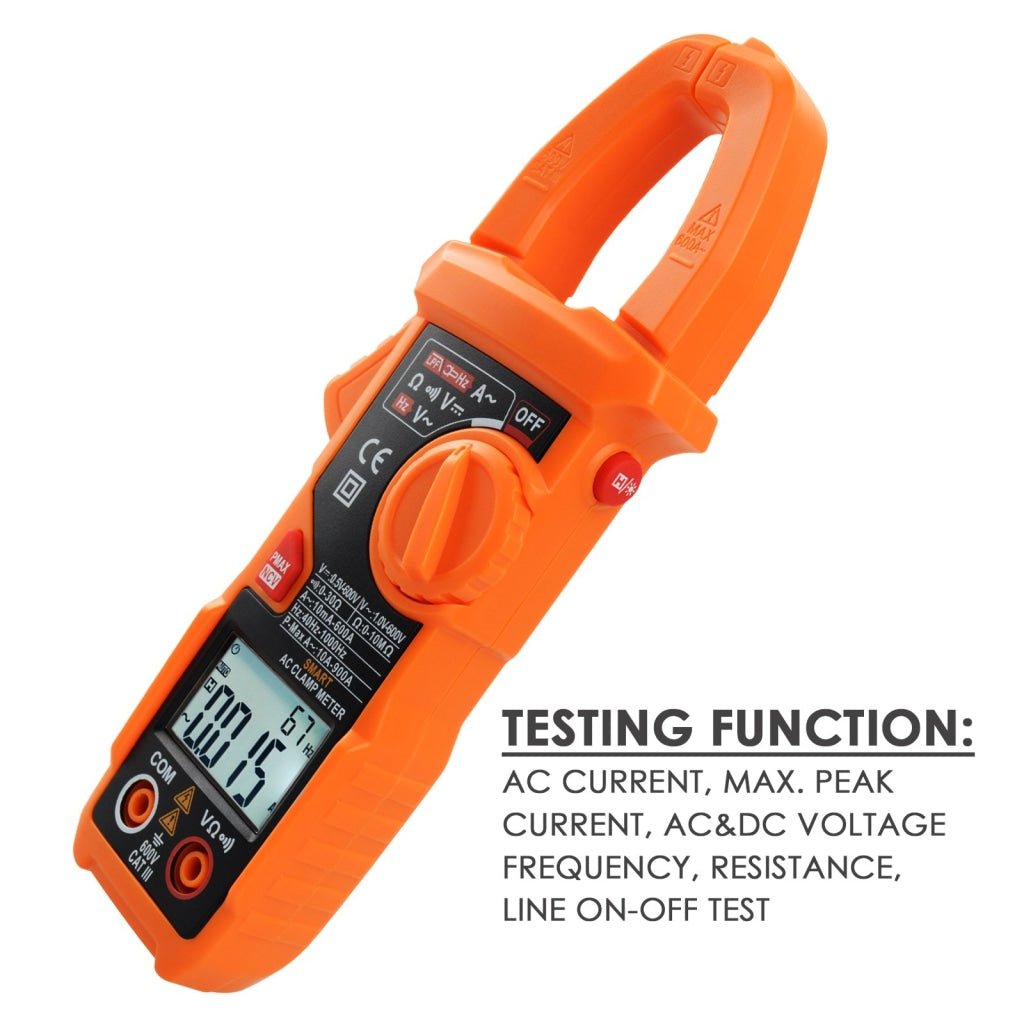

This multimeter offers a smart one key measurement, automatically identify and measure AC & DC voltage, resistance, AC current. It can also do simultaneous measurements of AC current and AC voltage, AC current and DC voltage, AC current and resistance.

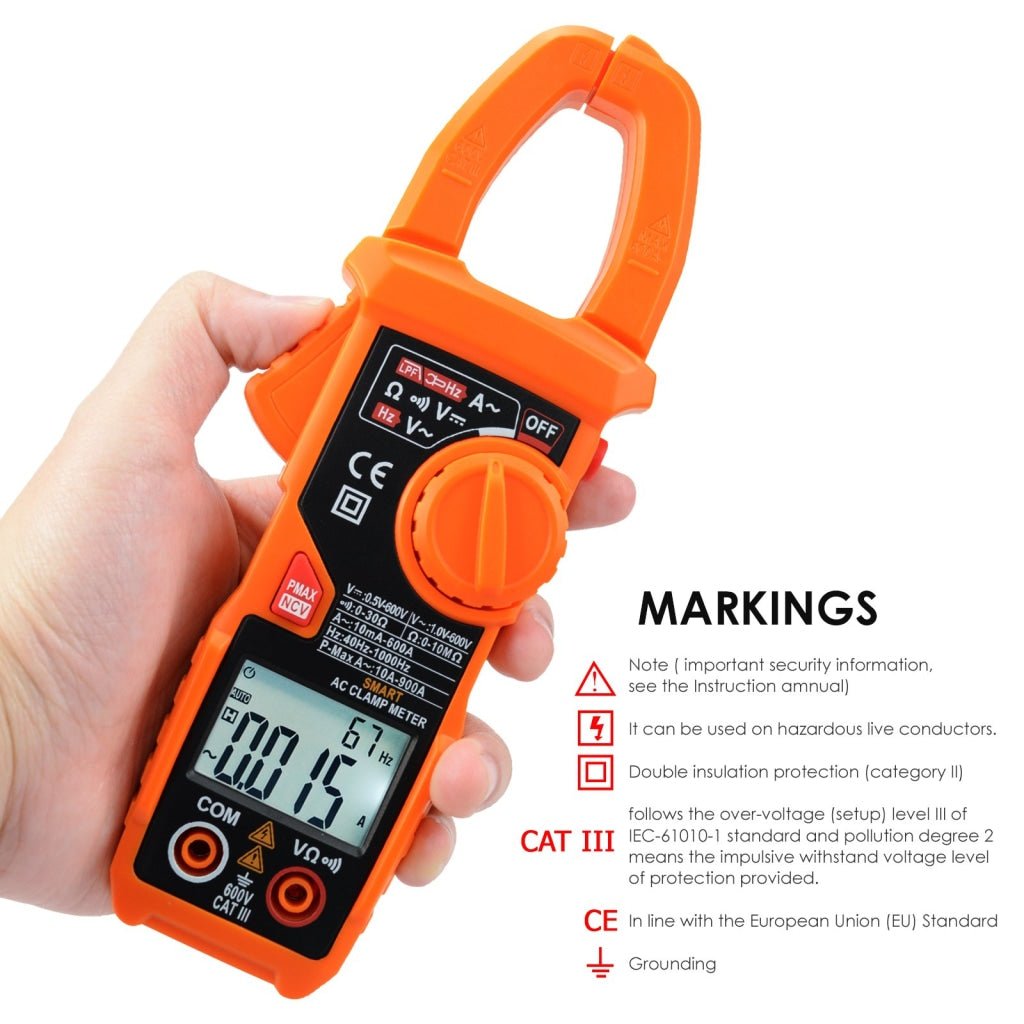

Safety is everything. This meter meets the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032 safety requirements for electronic measuring instruments of secondary pollution degree as well as it has CE marking, meaning this meter is compliant to the European Union (EU) Standard.



Additional Features:

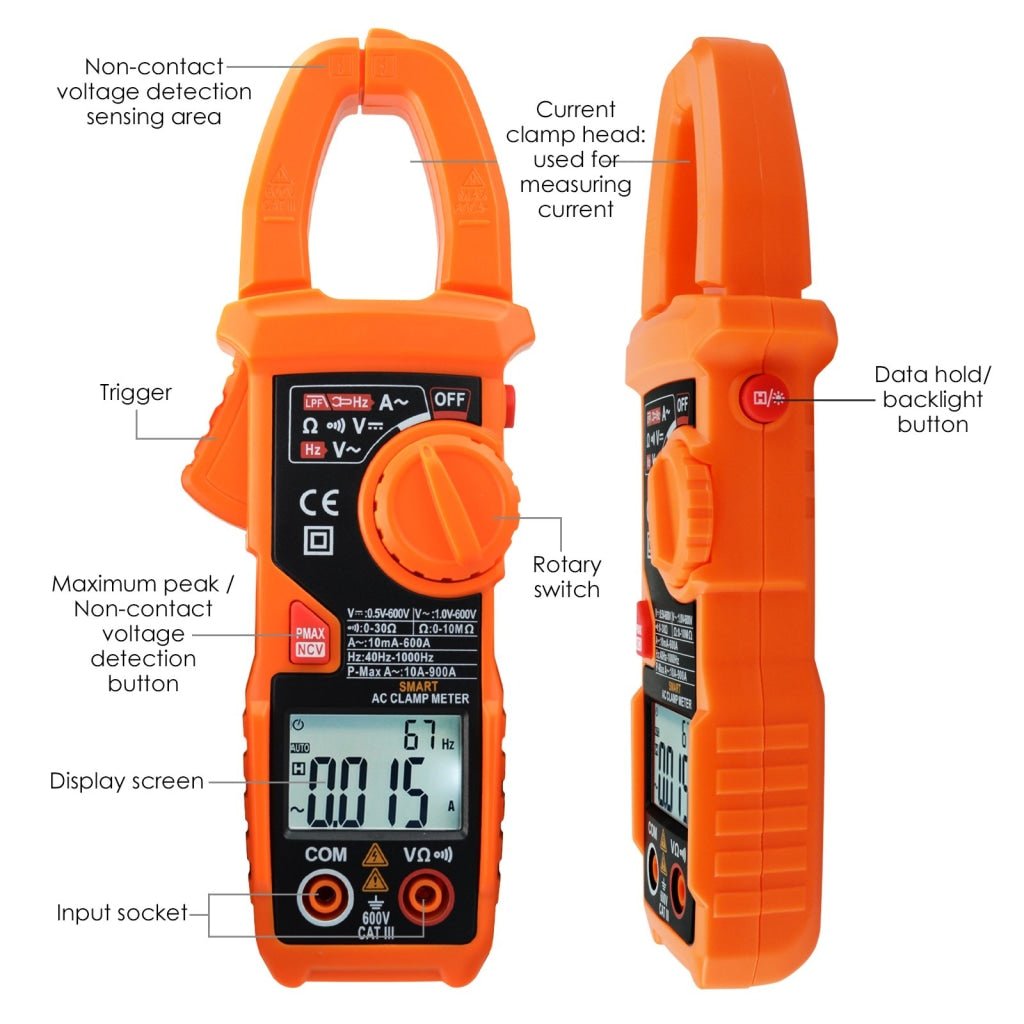

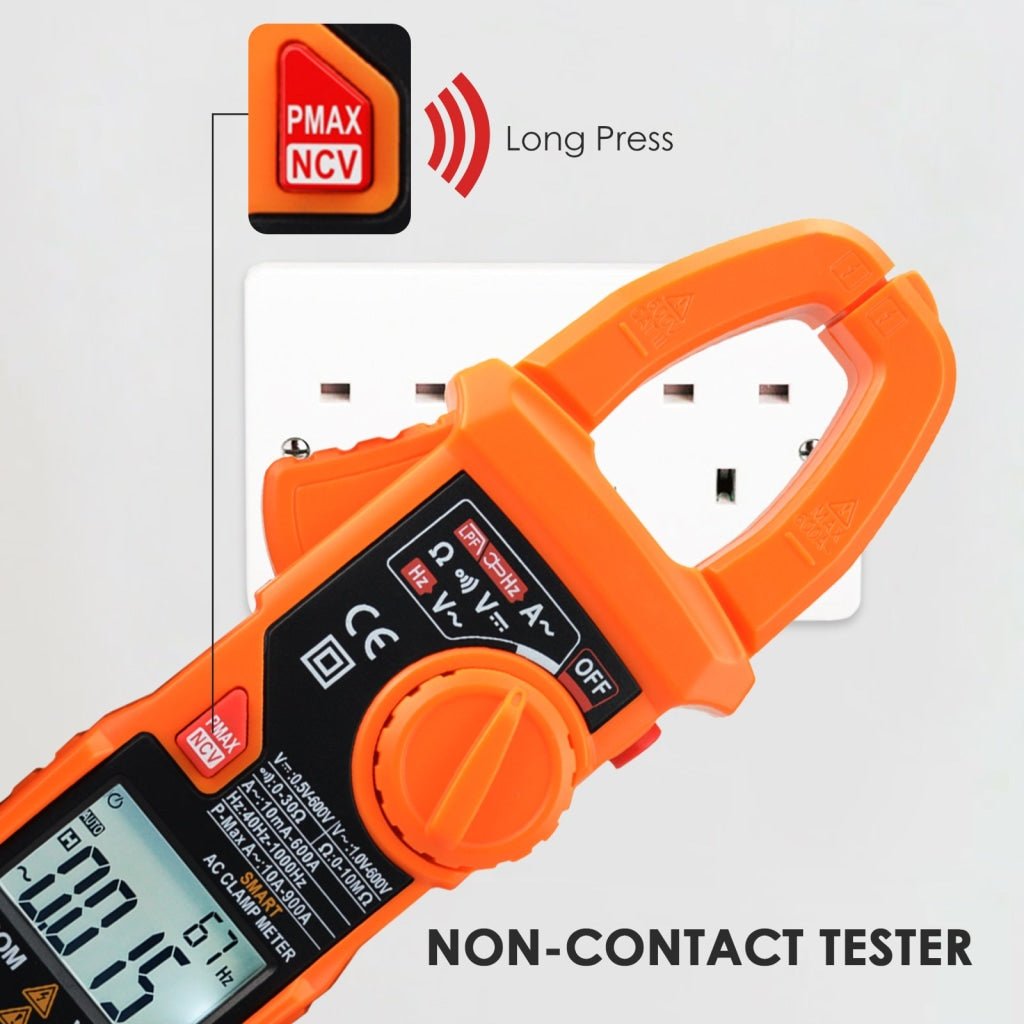

  • Non-contact voltage detection (NCV)
  • Automatically select measurement and range
  • Maximum peak current measurement (PMAX current)
  • Hold Reading
  • Overload protection for whole measurement range
  • Backlight
  • Auto power off
  • Low battery indication



Specifications:

  • Maximum allowable voltage between measuring terminal and Earth: 600V DC or 600V AC
  • CATIII 600V over-voltage standard
  • Double insulation protection, CAT II
  • Volt (voltage), Ampere (current)
  • Units: Ohm, Kilohm, Megohm (resistance), Hertz, Kilohertz
  • Work height: max 600 digits
  • Polarity indication: auto show "-" which means negative polarity
  • Over range indication: "OL" or "-OL"
  • Sampling Time: about 3 times per second
  • Temperature Coefficient: < 0.1 x accuracy degree/°C

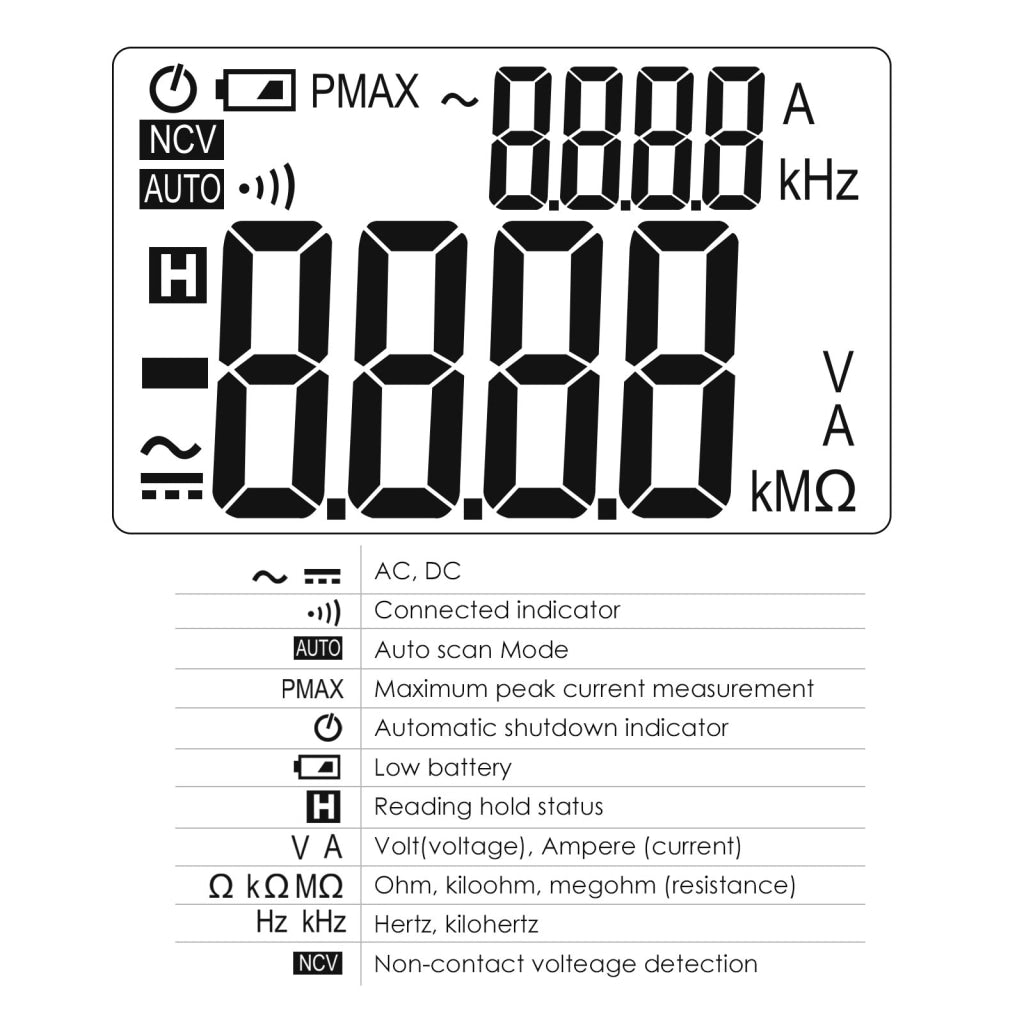

  • Unit display: with function and quantity of electricity unit display
  • Auto Power off time: 10 min
  • Power Supply: 2 x 1.5V AAA battery
  • Working Temperature: 18~ 28°C
  • Storage Temperature: -10~ 50°C

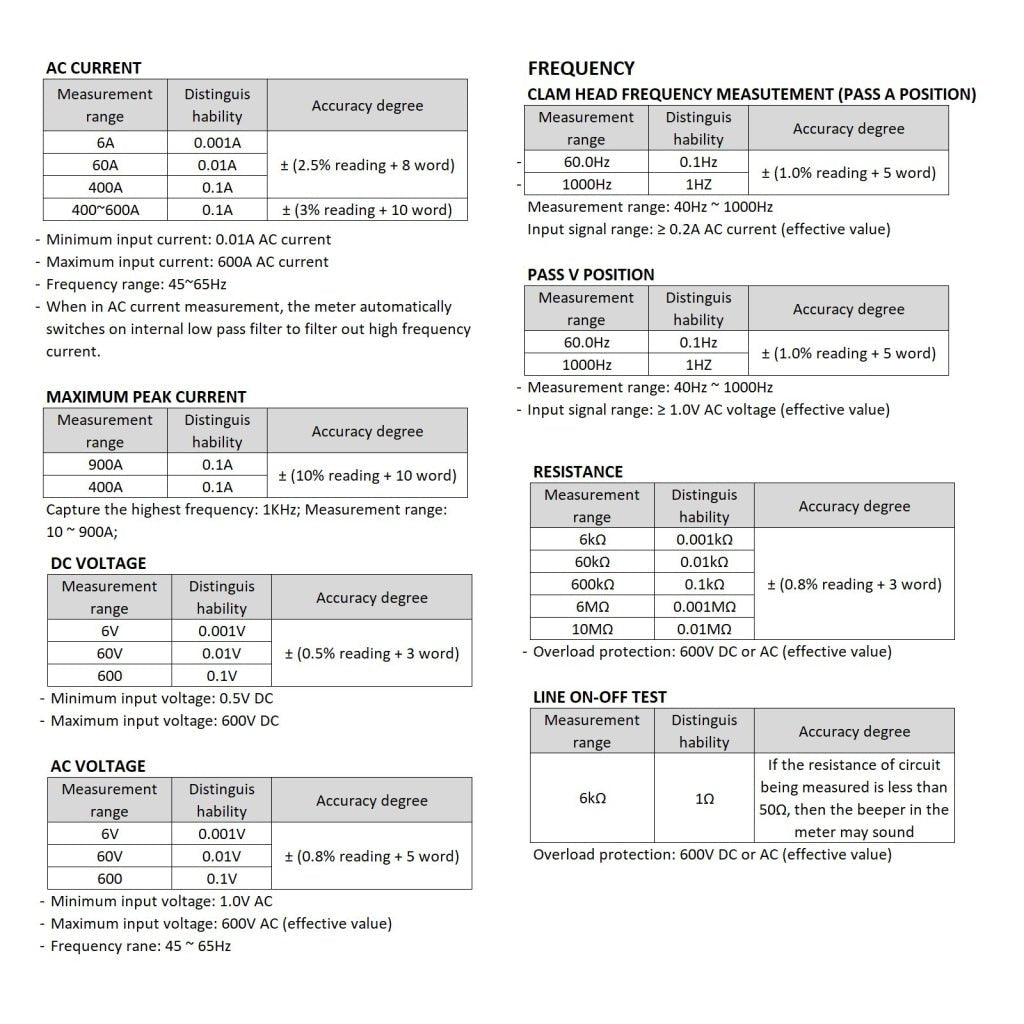

    (see pictures for Technical Index Specifications)

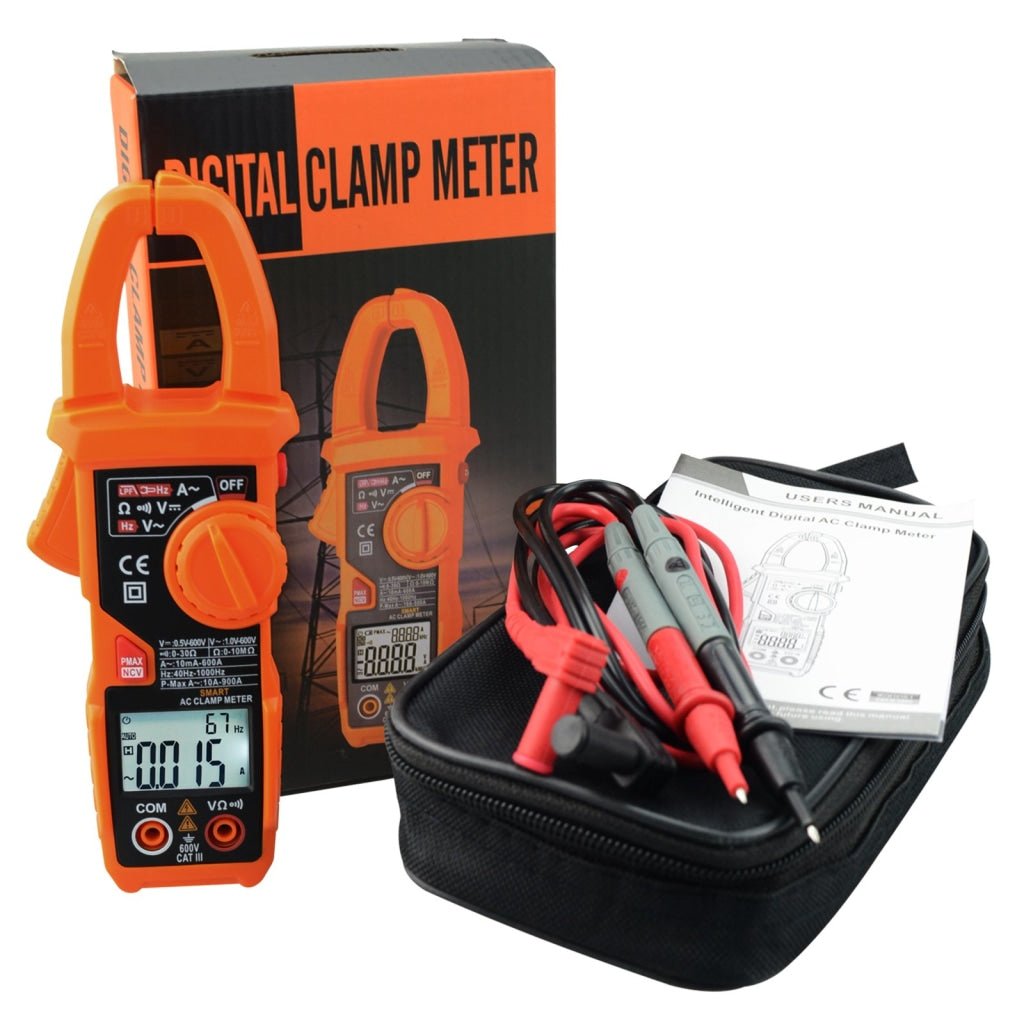

Set Includes:

  • 1 x Clamp Multimeter

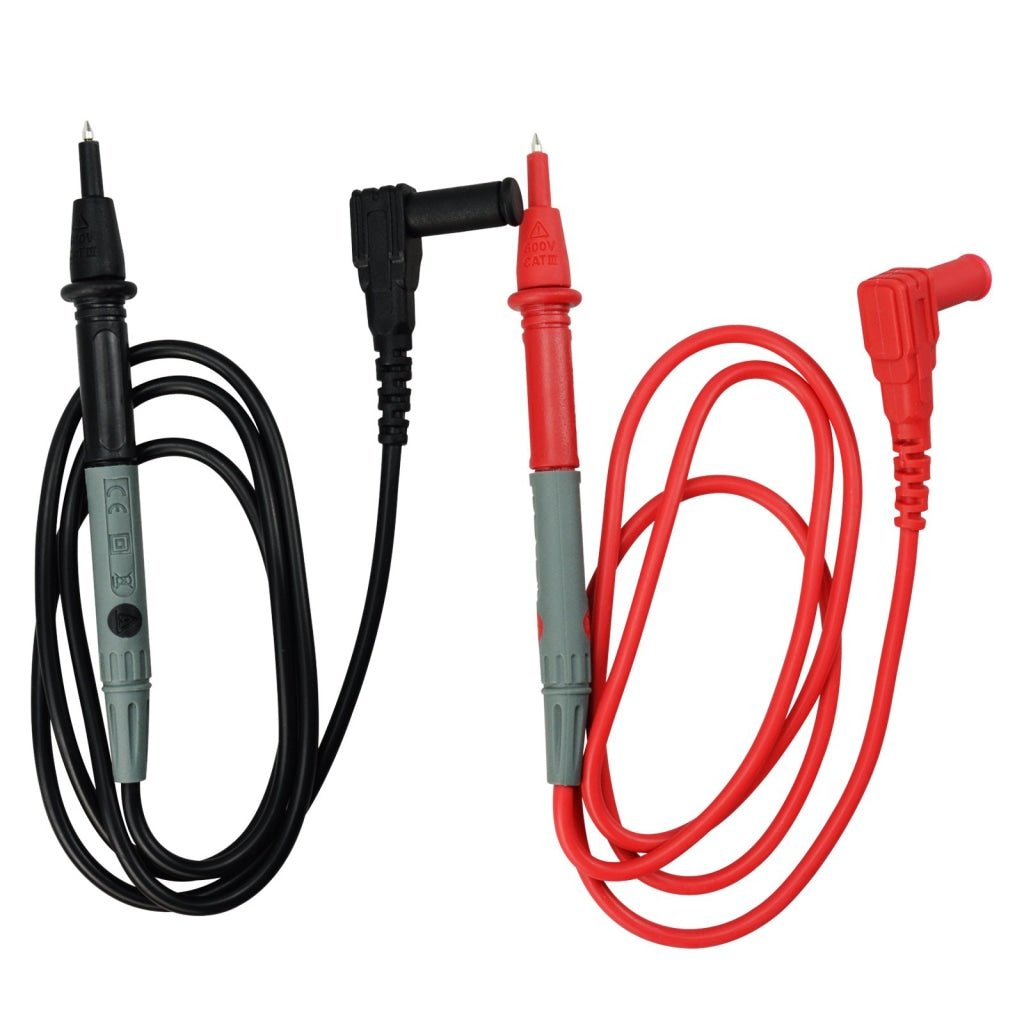

  • 2 x Test Leads
  • 2 x AAA Battery

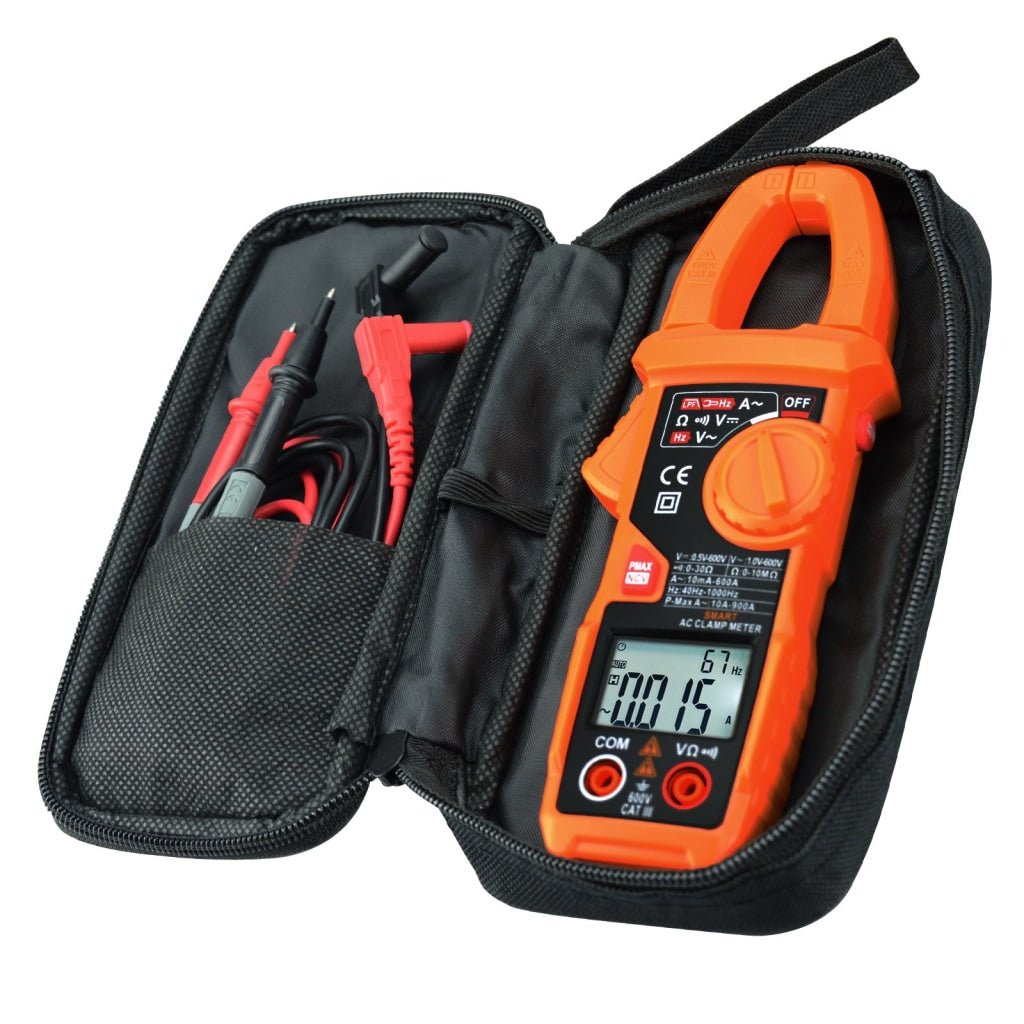

  • 1 x Cloth bag
  • English User Manual
