ENG-215 Digital Engine Analyzer Automotive Multimeter 6000 Counts - DC AC Voltage, DC AC Current, Resistance, Capacitance, Frequency, Duty cycle, Temperature, Diode & Continuity Test, Tachometer, Dwell Angle, Pulse Width, Analog Signal Output


Quantity
  OR

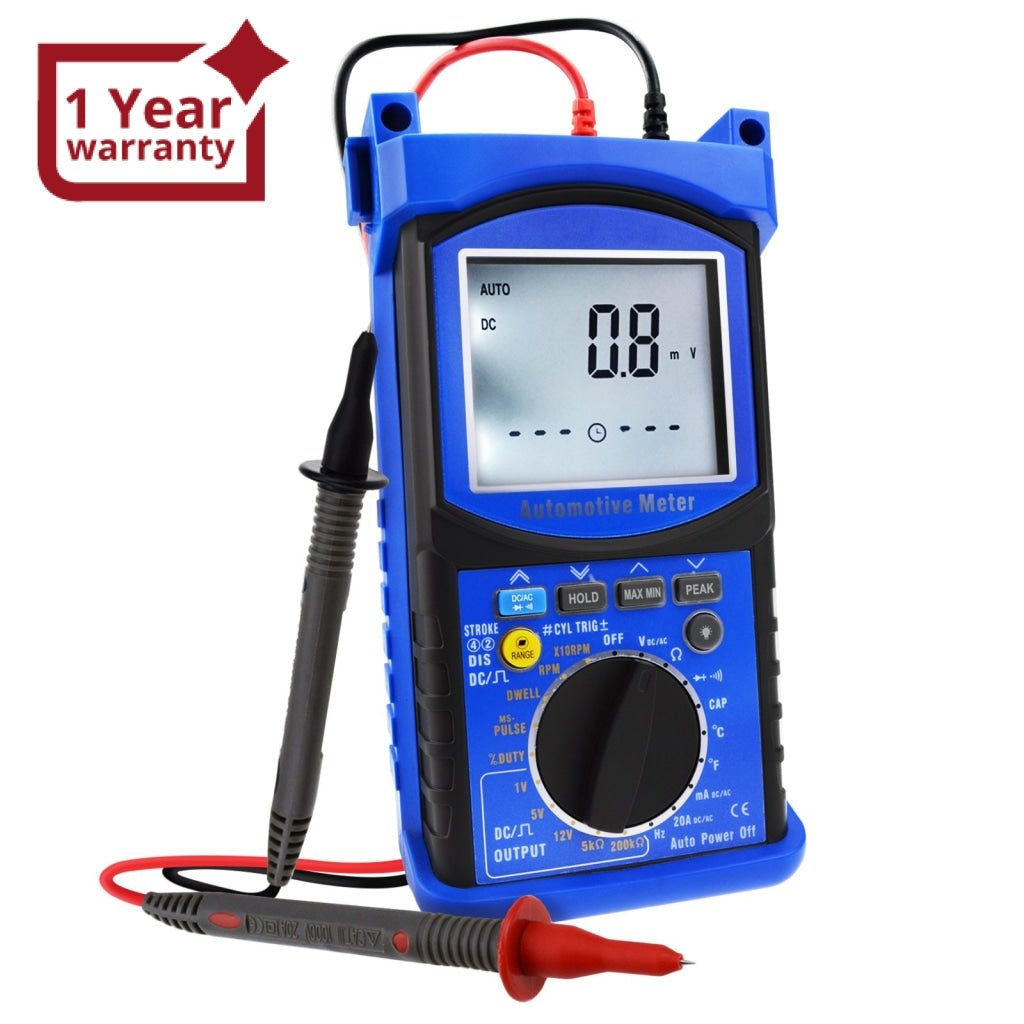

Model: ENG-215

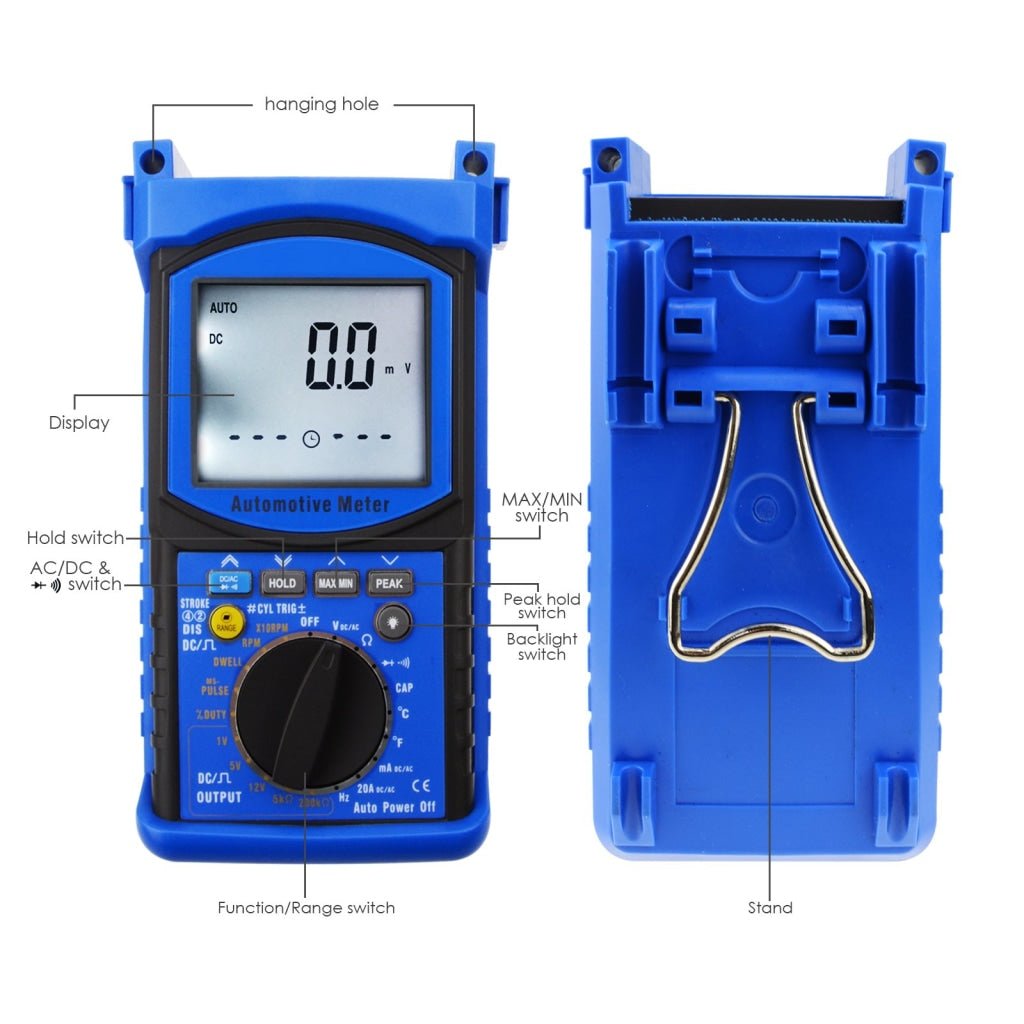

Compact battery operated digital Automotive Engine Analyzer and Multimeter. It measure DC/AC Voltage, DC/AC Current, resistance, capacitance, frequency, duty cycle, temperature, diode test, continuity test, Tachometer (RPM), dwell angle, Pulse Width (ms), analog frequency, duty, AC/DC voltage, resistance signal Output.

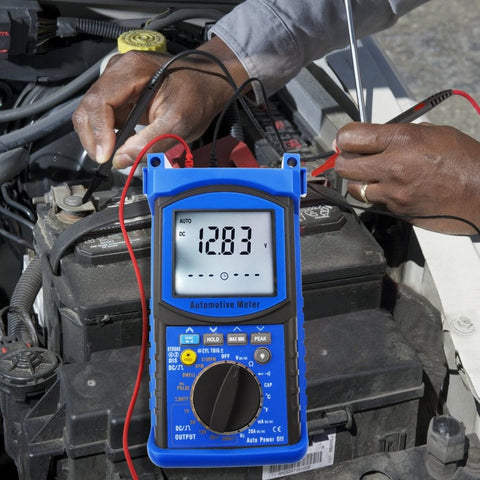

Ideal for drivers, Auto mechanics, hobbyists and other car Enthusiast. Featured with safety protector streamline.


Features:

  • Patented product design and functions
  • MAX/MIN/PEAK hold/DATA hold functions
  • ACV True RMS
  • Backlight Function

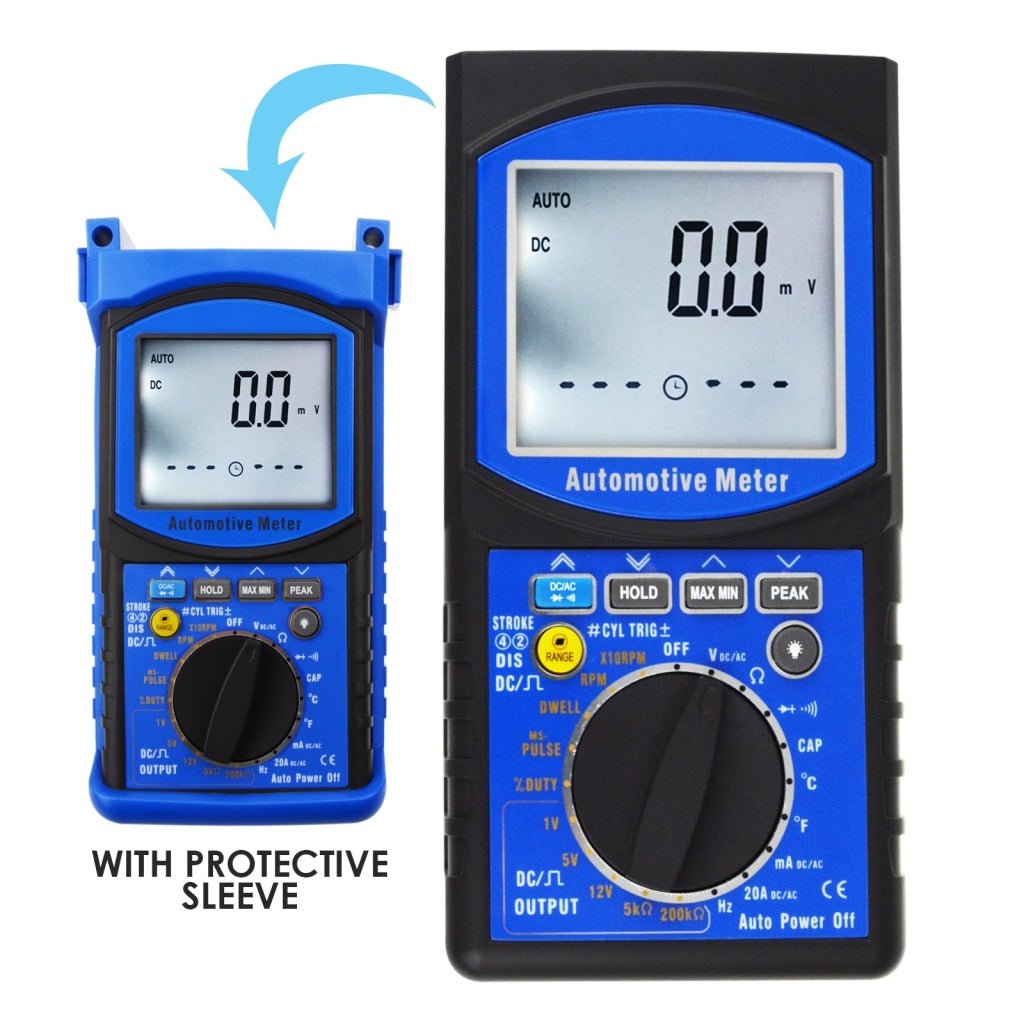

  • Safety protector
  • Range & Stroke Button
  • Auto / Manual Ranging
  • Auto / Manual Power Off
  • Low Battery indication
  • Overrange Indication "OL"
  • Selectable °C/°F temperature unit


Specifications:

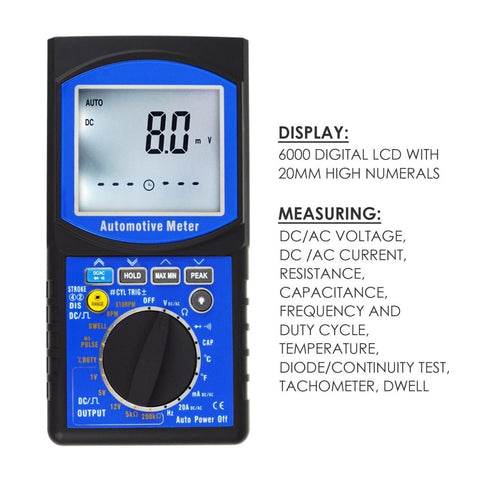

  • Display : 6000 digits LCD w/ 20mm high numerals
  • Auto Functions: Auto-zero, Auto-polarity, Auto Range
  • Auto power off: 15 minutes after stopping the switch
  • Power Supply: single 9V battery (NEDA, 1604 or IEC 6F22)
  • Reading Range Time: 3 reading per sec. (approx.)
  • Maximum Common Mode Voltage: 500Vdc or ac peak
  • Safety Standards: IEC1010
  • Double Insulation, Pollution degree 2 Over voltage Category: II
  • Operating environment: 0~50°C (32~122°F) at ≤70% relative humidity
  • Storage environment: -20~60°C (-4~140°F) at ≤80% relative humidiy
  • Temperature Coefficient: 0.1 x (specified accuracy)/°C (≤18°C or ≥28°C)

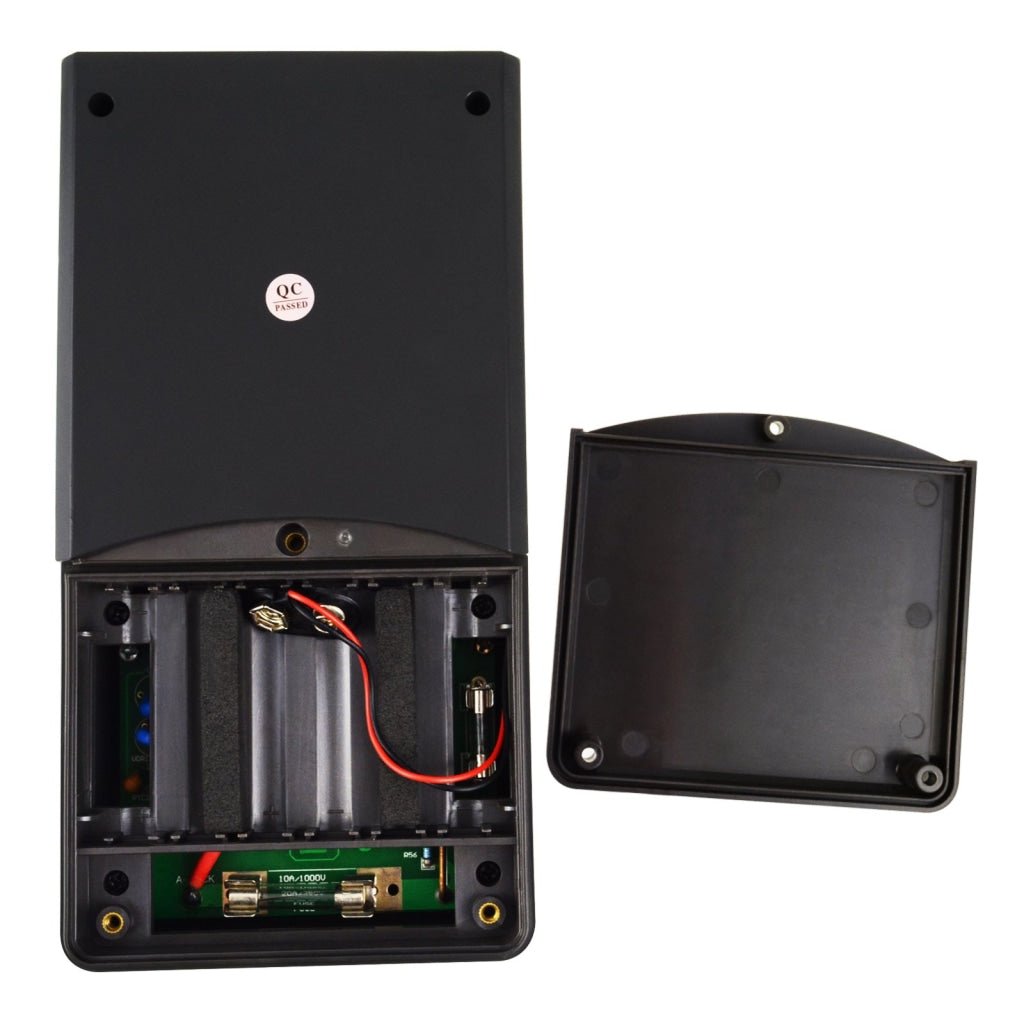

  • Fuse: 0.8A/250V, 5 x 20mm fast acting, 20A/250V, 6x30mm fast acting
  • Battery Type: 9V(6F22)

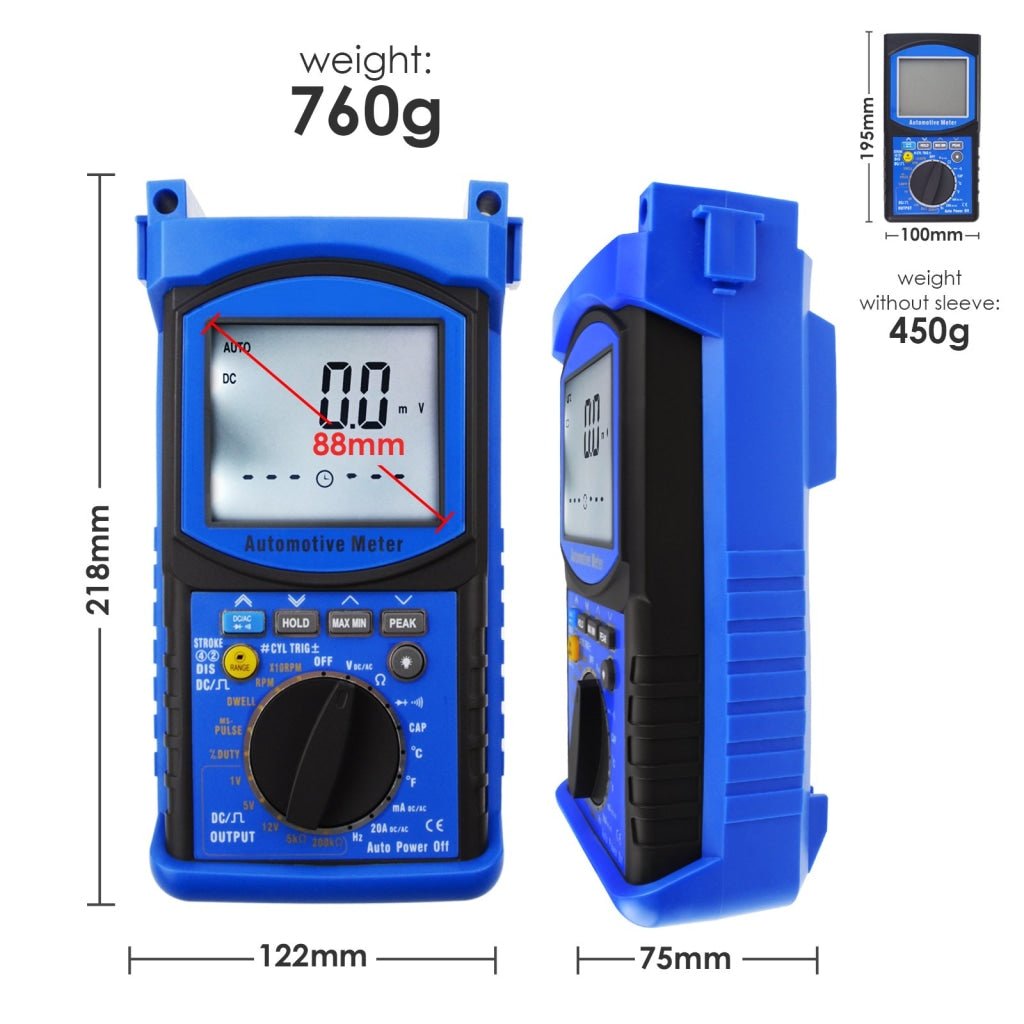

  • Dimension : 218 x 122 x 75mm
  • Weight: Approx. 760g (including battery and hoister)

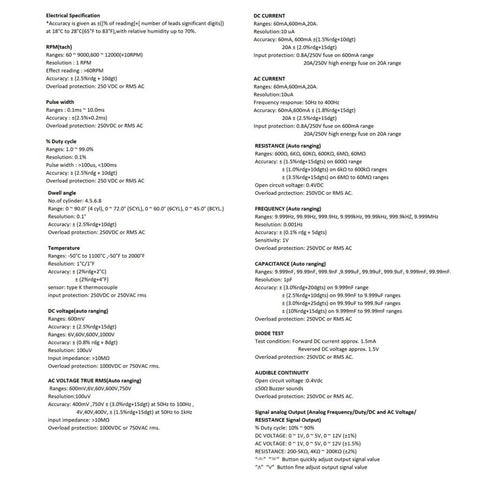

(see pictures for Technical Index Specifications)

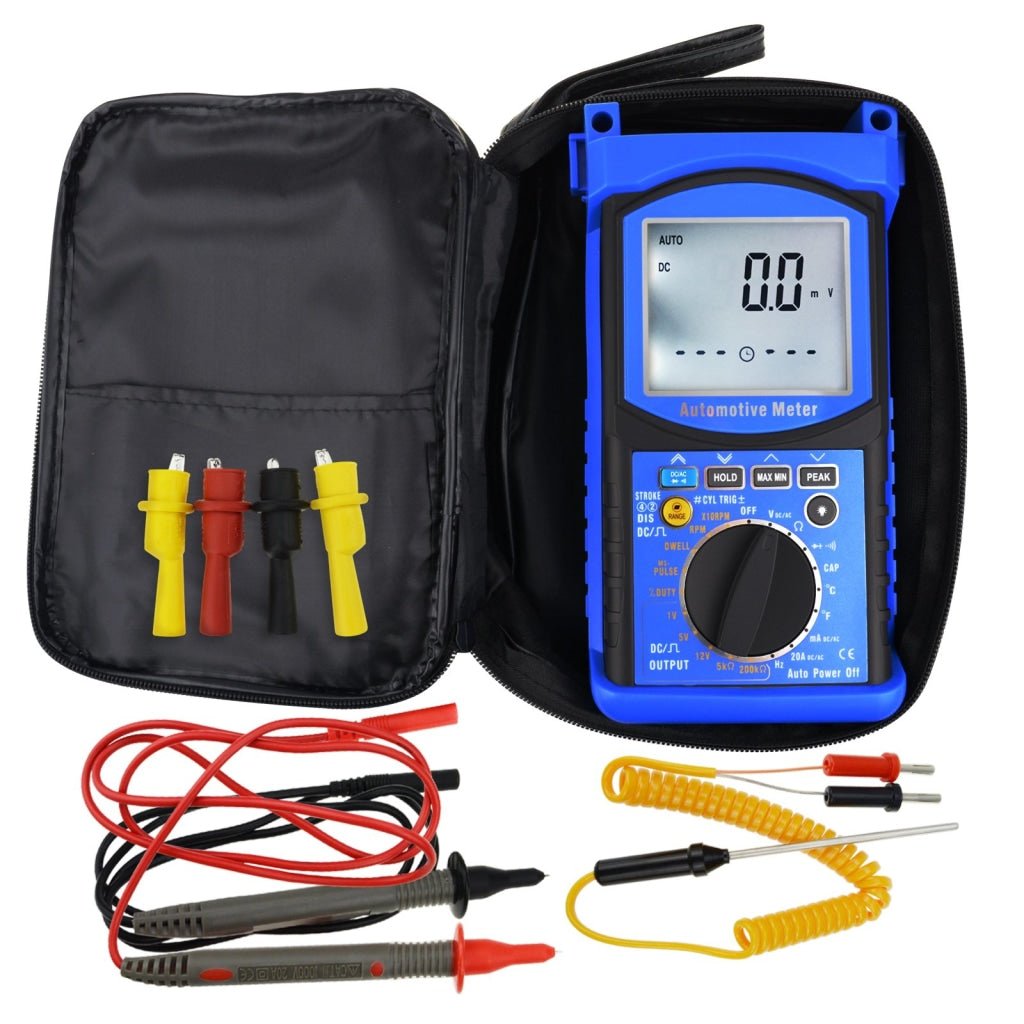

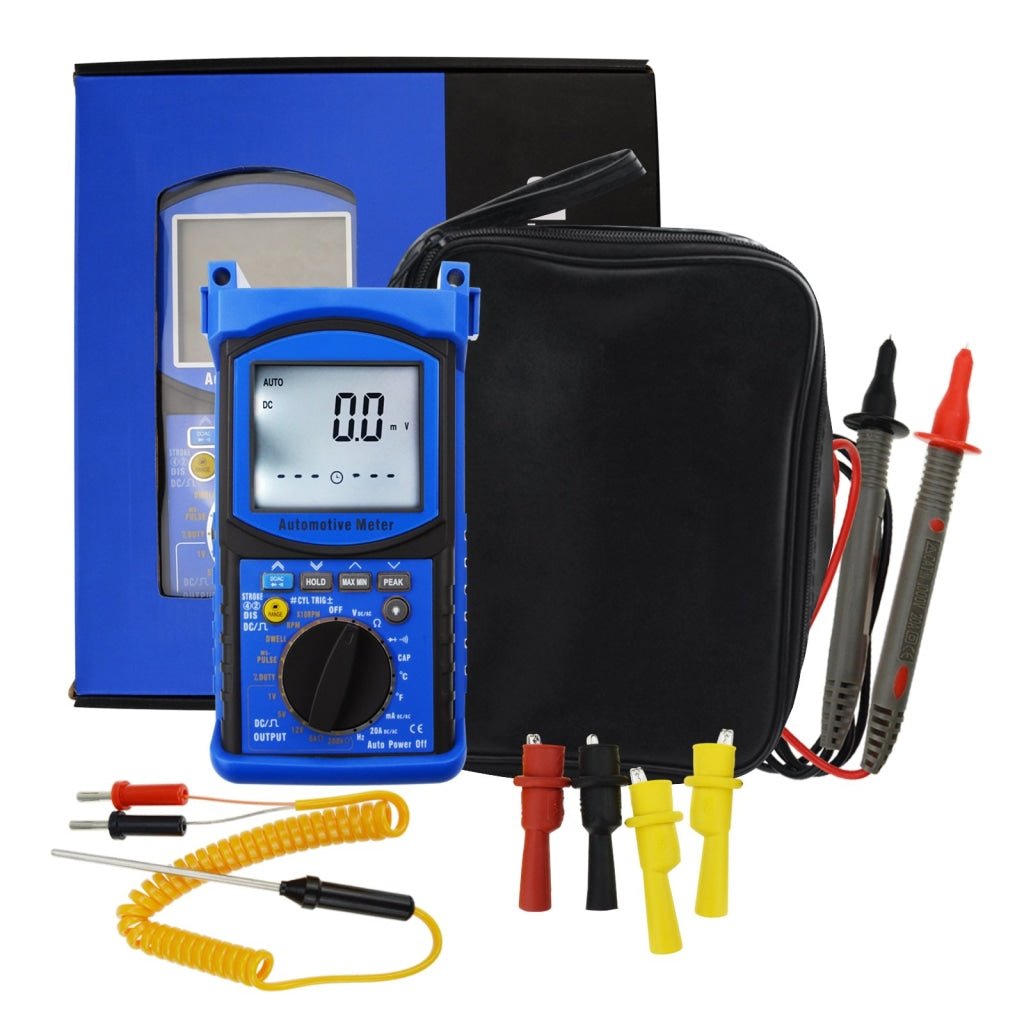

Set includes:

  • 1 x Main Unit Meter

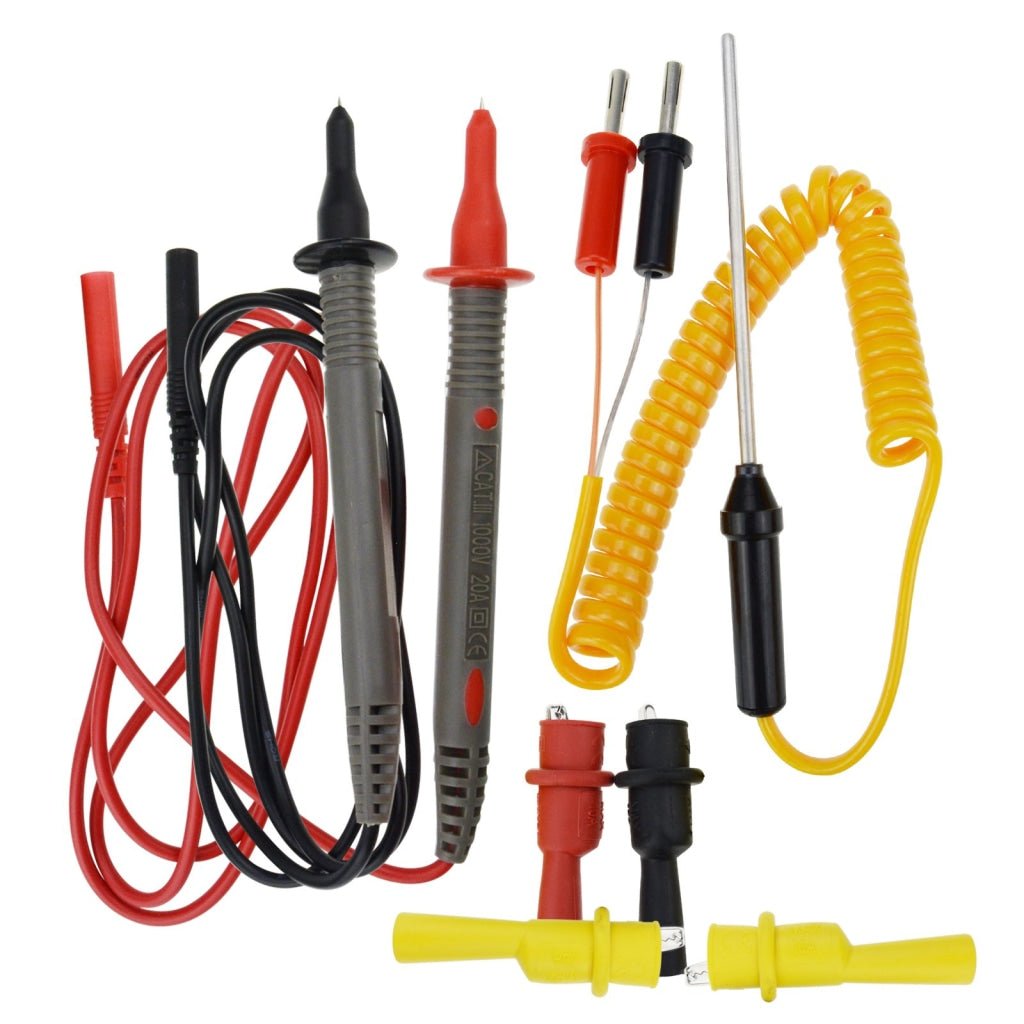

  • 1 x pair of Test lead
  • 1 x Temperature Probe
  • 2 x Pair of Alligator clip
  • 1 x English Operating Manal
  • 1 x Carrying pouch
  • 1 x 9V Battery
