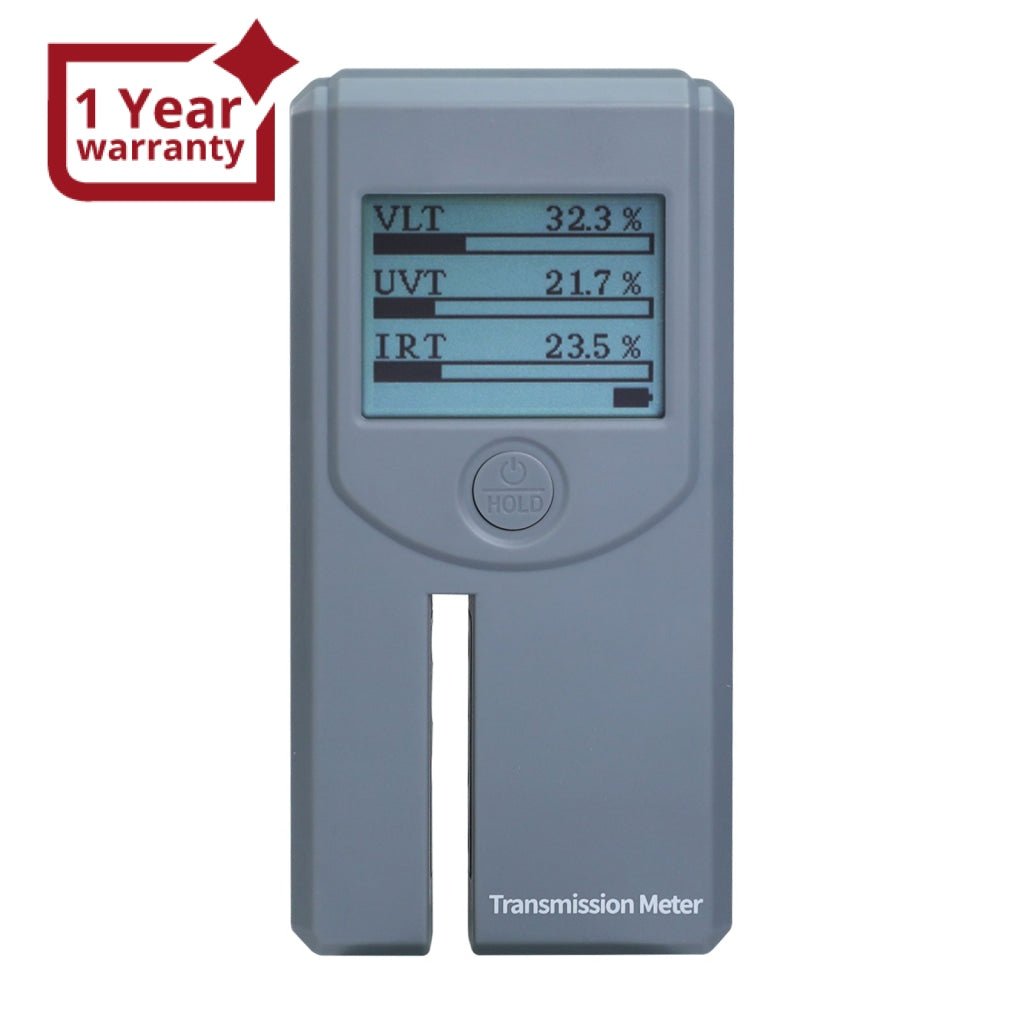

WTM-404 Portable Tint Meter Window Tint Tool with Automatic Calibration for measuring VL (Visible Light) UV IR Transmittance and Rejection of Solar Film, Stick-film Glass, Car Window Tint

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

This portable Transmission Meter is use for measuring light transmission in various materials. It can simultaneously assess the visible light transmittance (VLT), infrared (IR) rejection/transmission value, and ultraviolet (UV) rejection/transmission value of solar films, adhesive films, and glass surfaces. Whether you're working with solar film installations or other light-sensitive materials, this tool provides a comprehensive analysis, ensuring you have precise measurements at your fingertips.


  • Multi-function meter - UV rejection/transmission measure, IR rejection/transmission measure, light transmittance measure

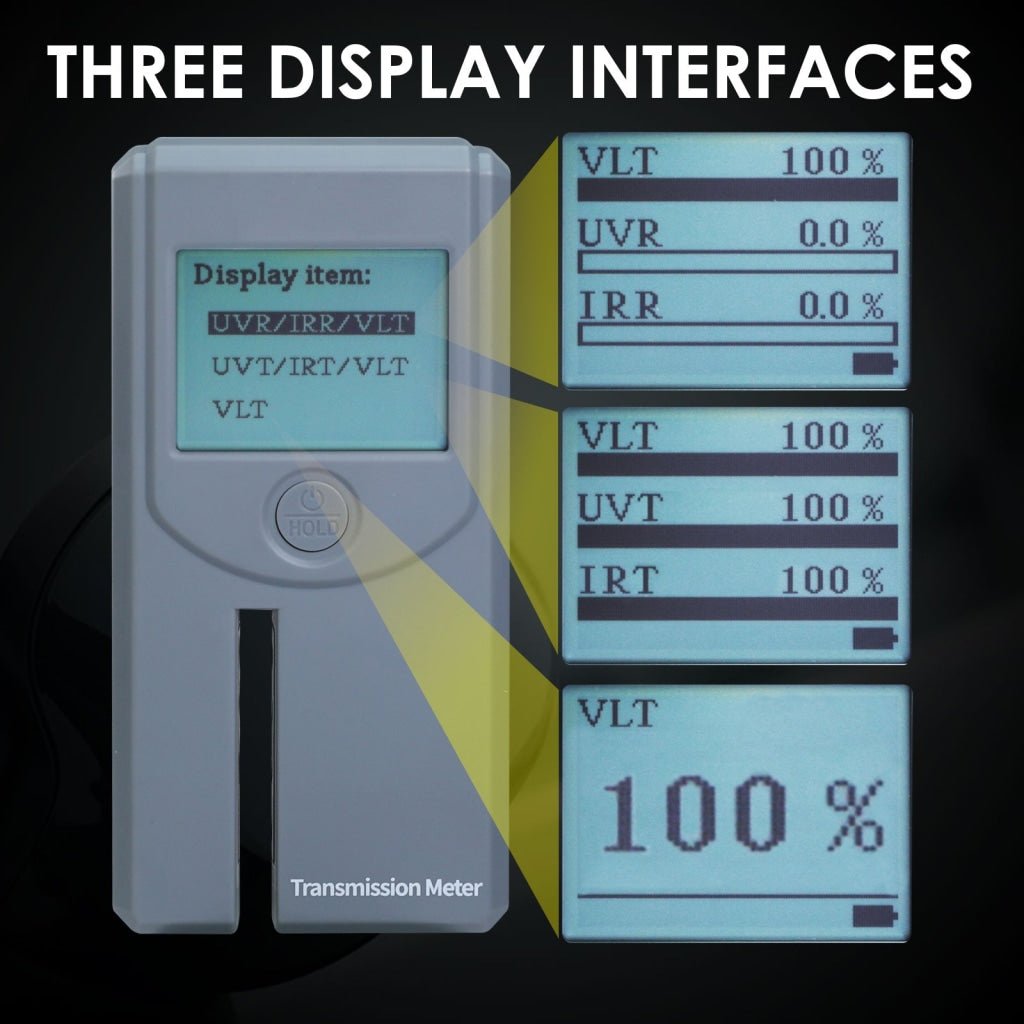

  • Three display interface options are available: UVR/IRR/VLT, UVT/IRT/VLT, and VLT

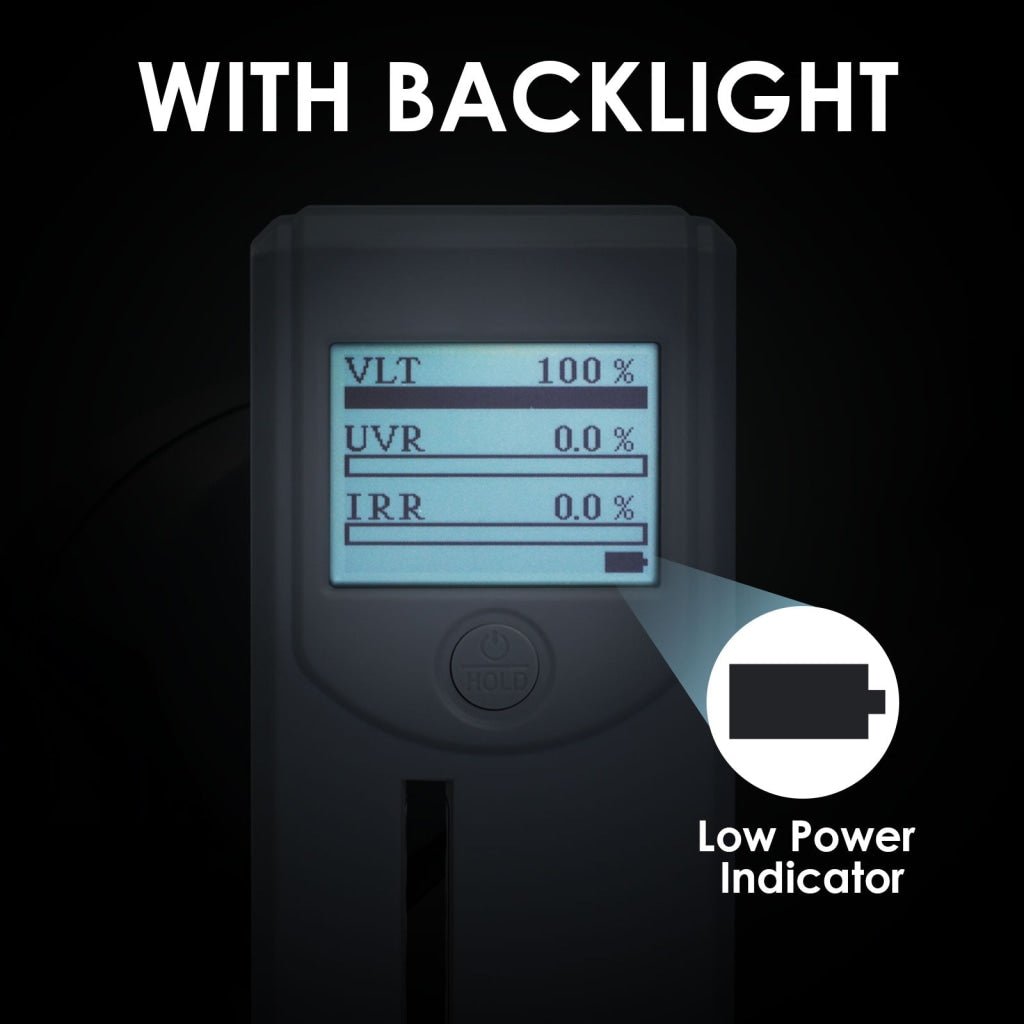

  • LCD Dot matrix display with backlight function

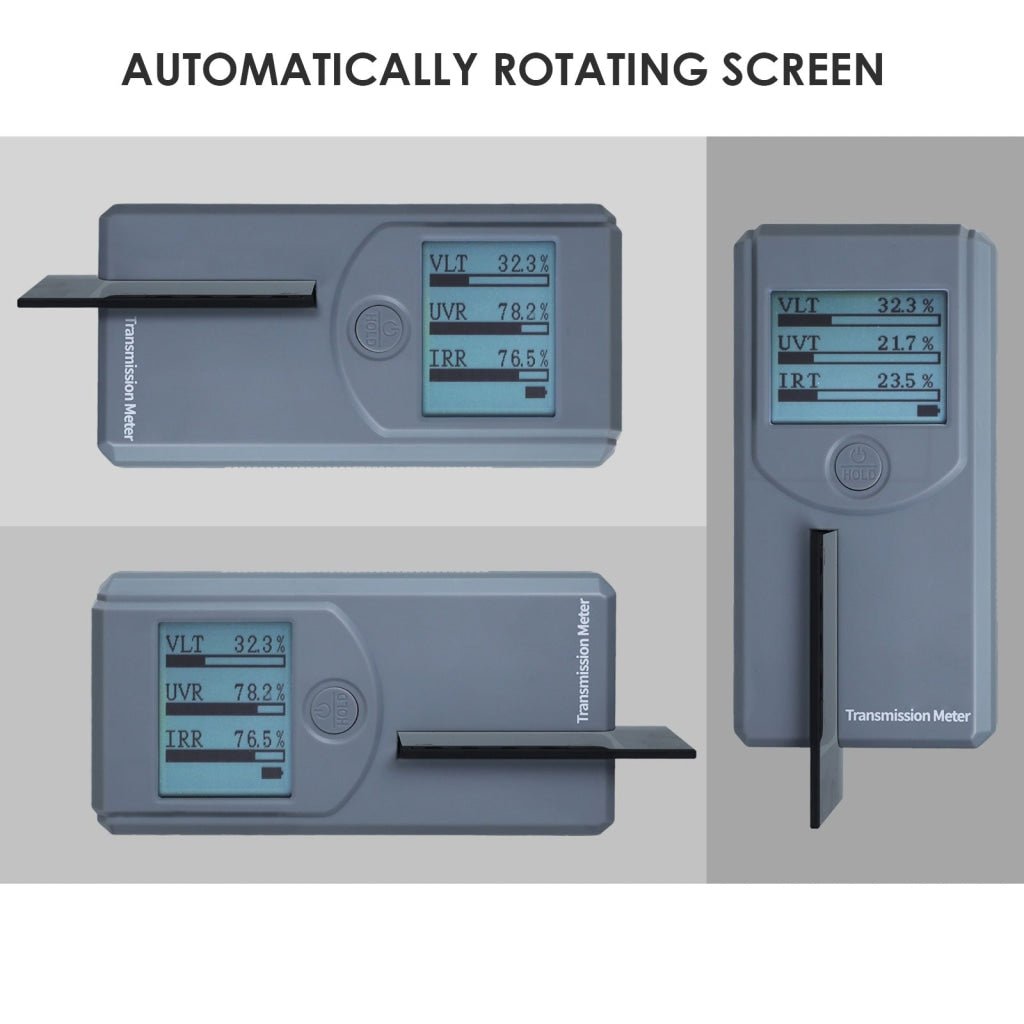

  • Always upright reading with a data hold function

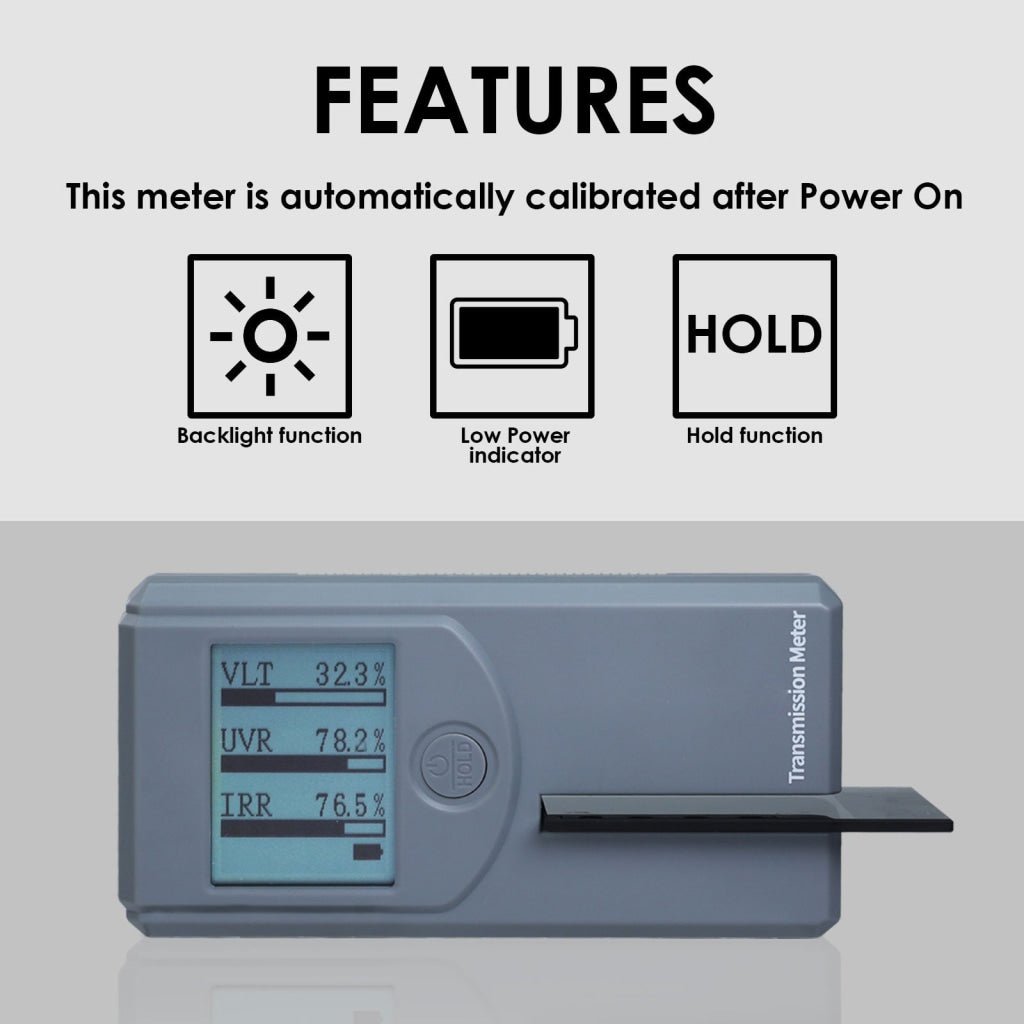

  • Real-time dynamic self-calibration function (automatic self-calibration after powering on)
  • Low power consumption with low battery indicator- can maintain continuous measurement for more than 100 hours
  • Auto and manual shutdown
  • User friendly easy operation procedure
  • Applicable to solar film, stick-film glass, and other materials performance exhibition, production, quality inspection, and other occasions


  • Display: 128 x 128 Dot matrix LCD
  • UV Peak wavelength: 365nm
  • IR Peak wavelength: 940nm/ 1400nm
  • Visible light wavelength: 380-760nm, conform to the CIE photopic vision function standard
  • Accuracy: ±2% (Colorless and transparent material)
  • Resolution: 0.1%

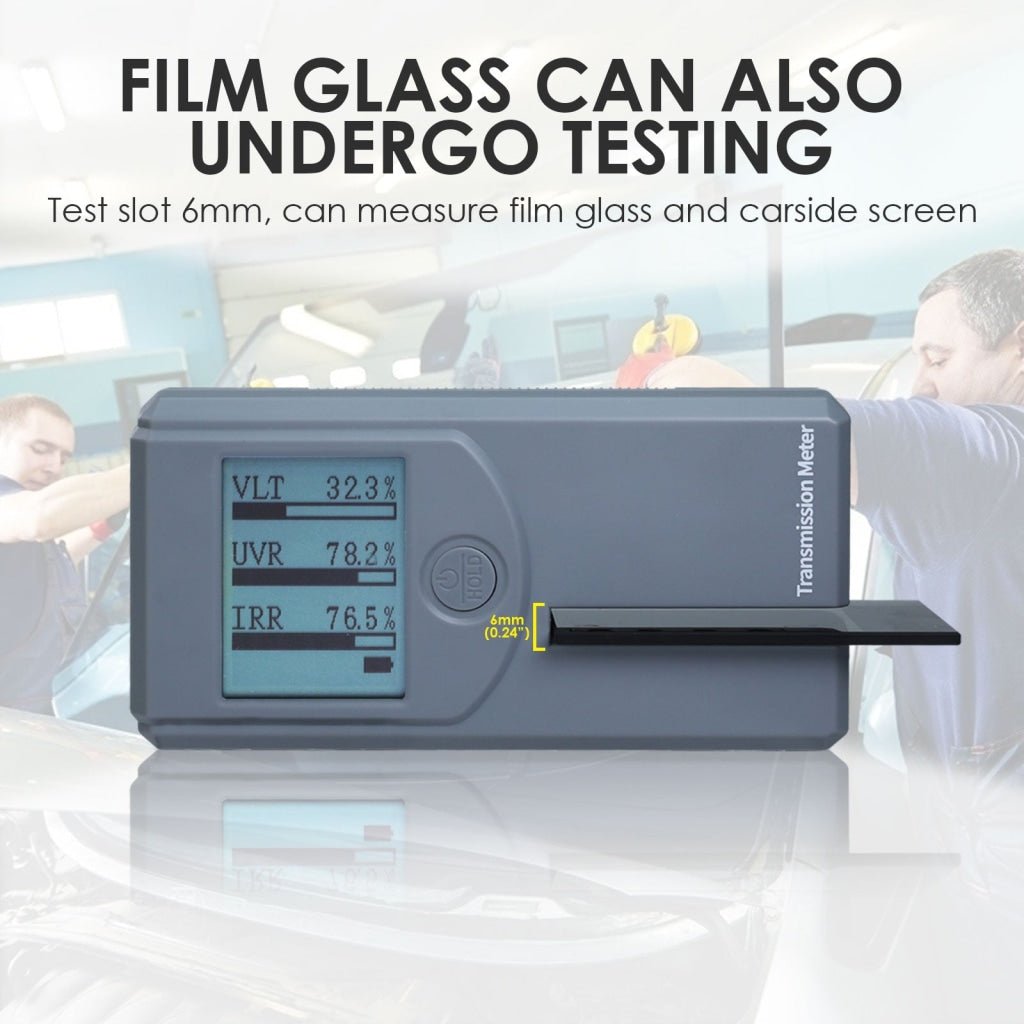

  • Test Slot: 6 x 58mm/0.23 x 2.28in(W*D)
  • Power supply: 4 x AAA alkaline battery

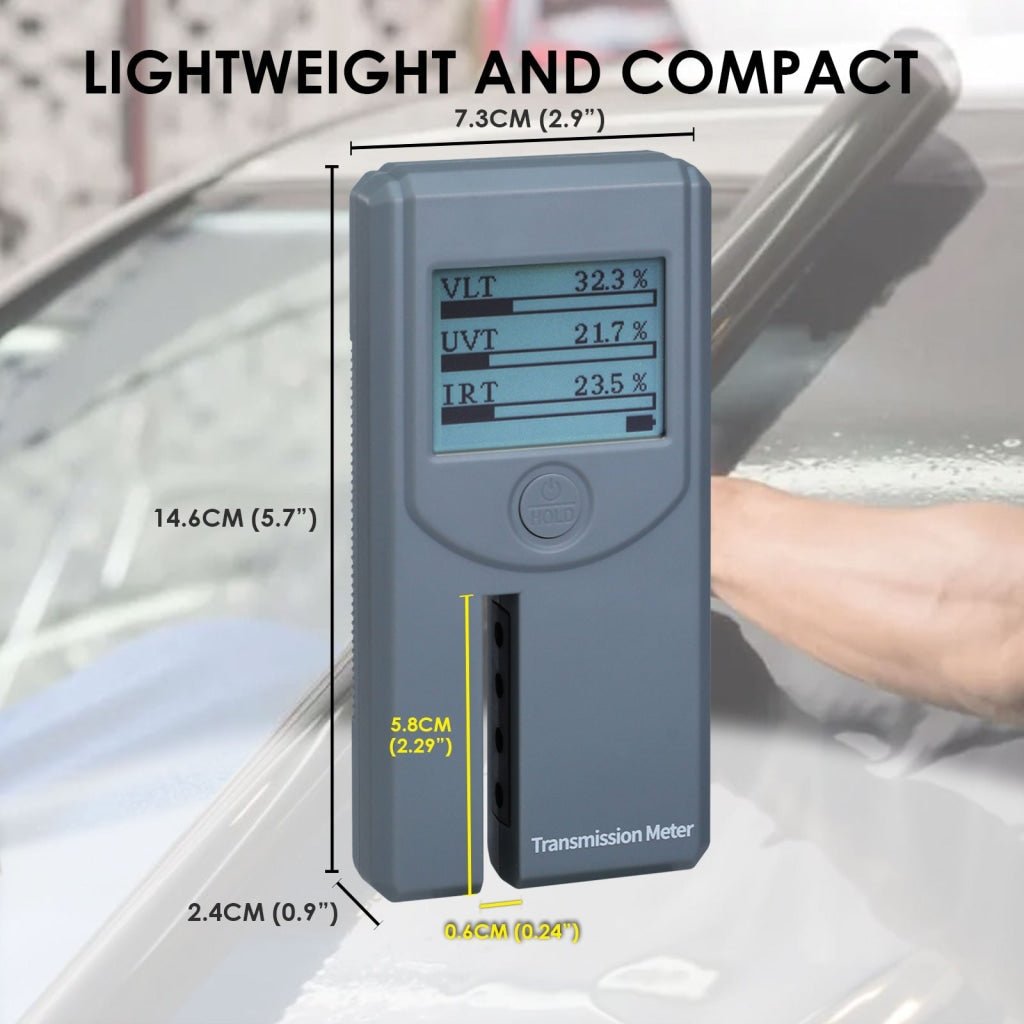

  • Dimesion: 146 x 73 x 24mm (5.75 x 2.87 x 0.94in)
  • Weight: approx. 187g (including batteries)

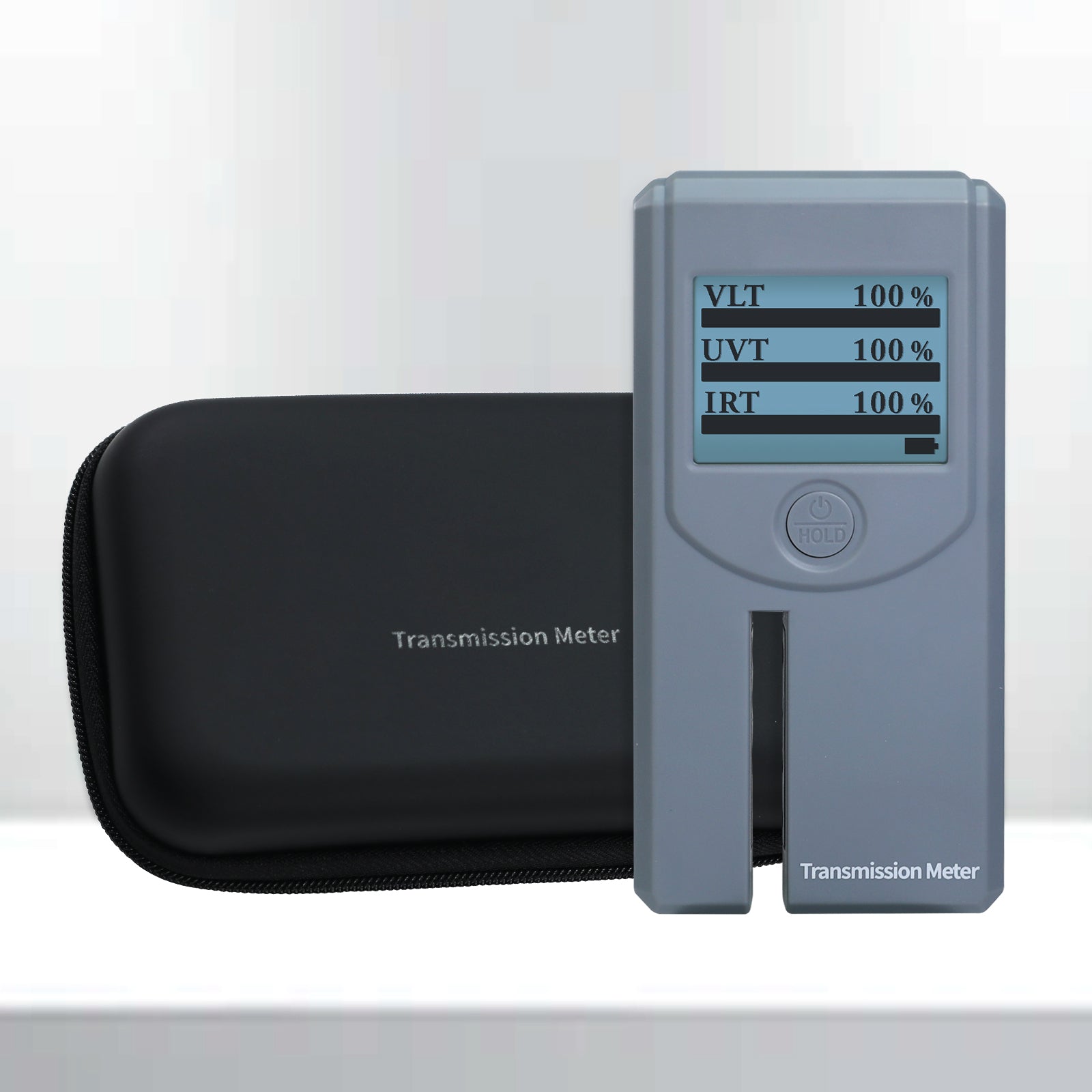

Set Includes:

  • 1 x Transmission Meter
  • 4 x AAA Alkaline Battery
  • Eglish Instruction Manual
  • Carrying Pouch
  • Standard factory packaging
