E04-035 Phase Sequence and Motor Rotation Conveyors Pump Tester Meter Tool 120~460VAC

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

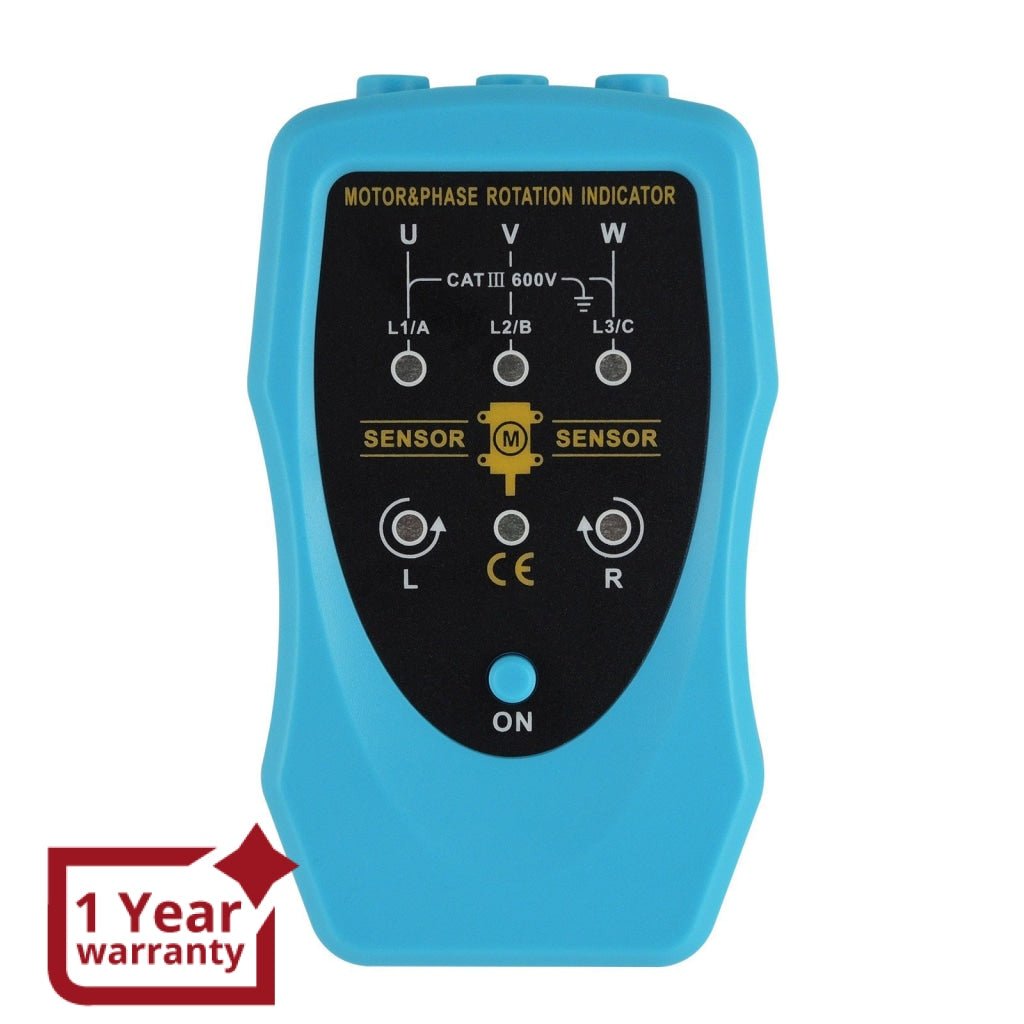

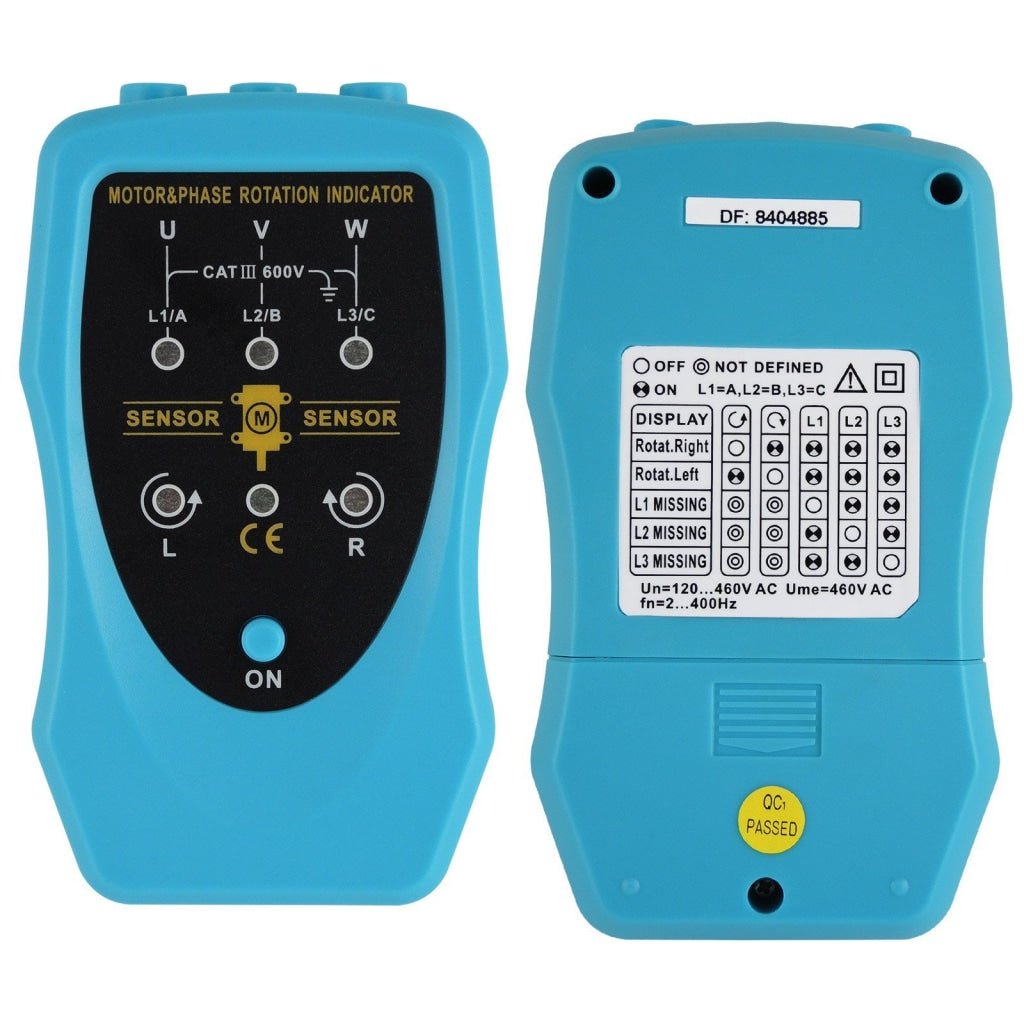

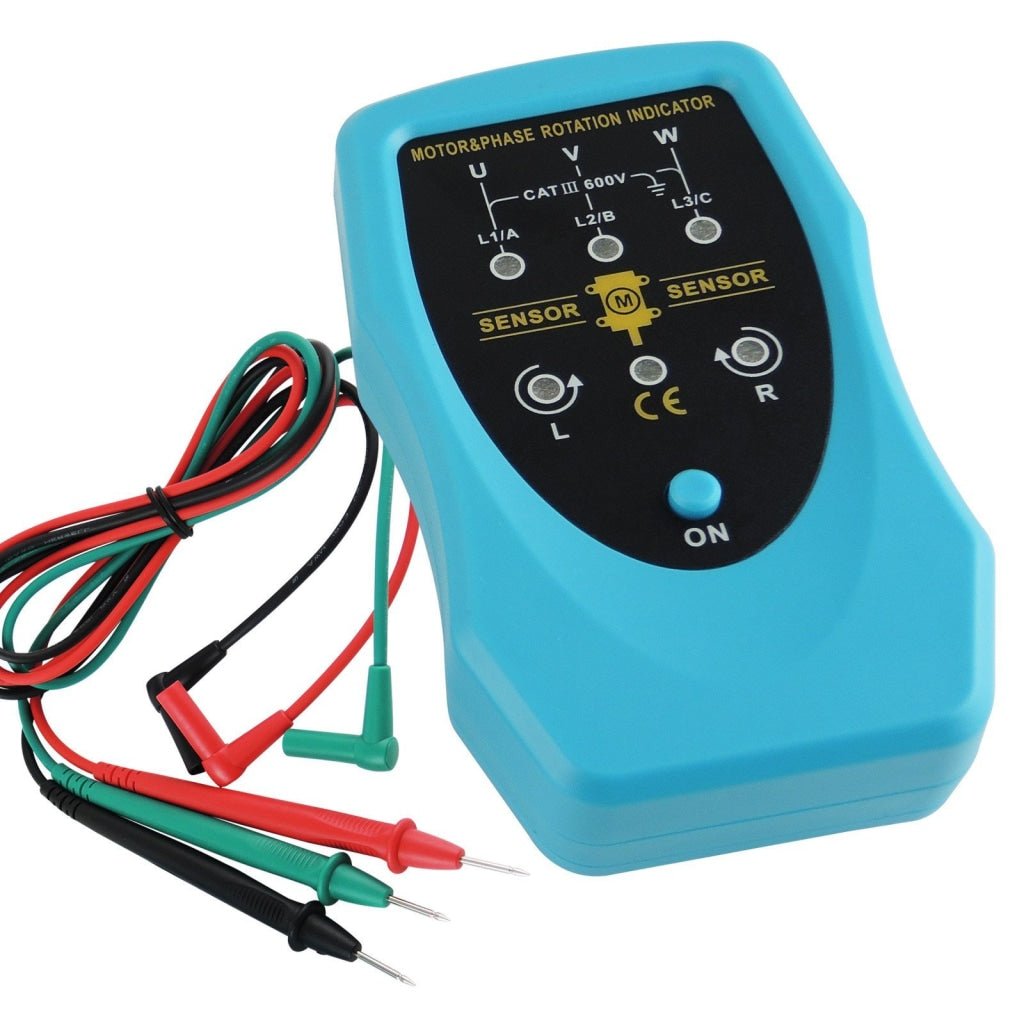

This Motor and Phase Rotation Indicator is a handheld, battery-operated instrument multi-functional instrument designed to detect the rotational field of three-phase systems and determine motor-rotation direction, which is a must for any plant maintenance staff. It quickly and clearly display the result by its LED indicators.

It quickly identifies the proper sequencing for three phase power. This is also an ideal tool for measuring proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation.

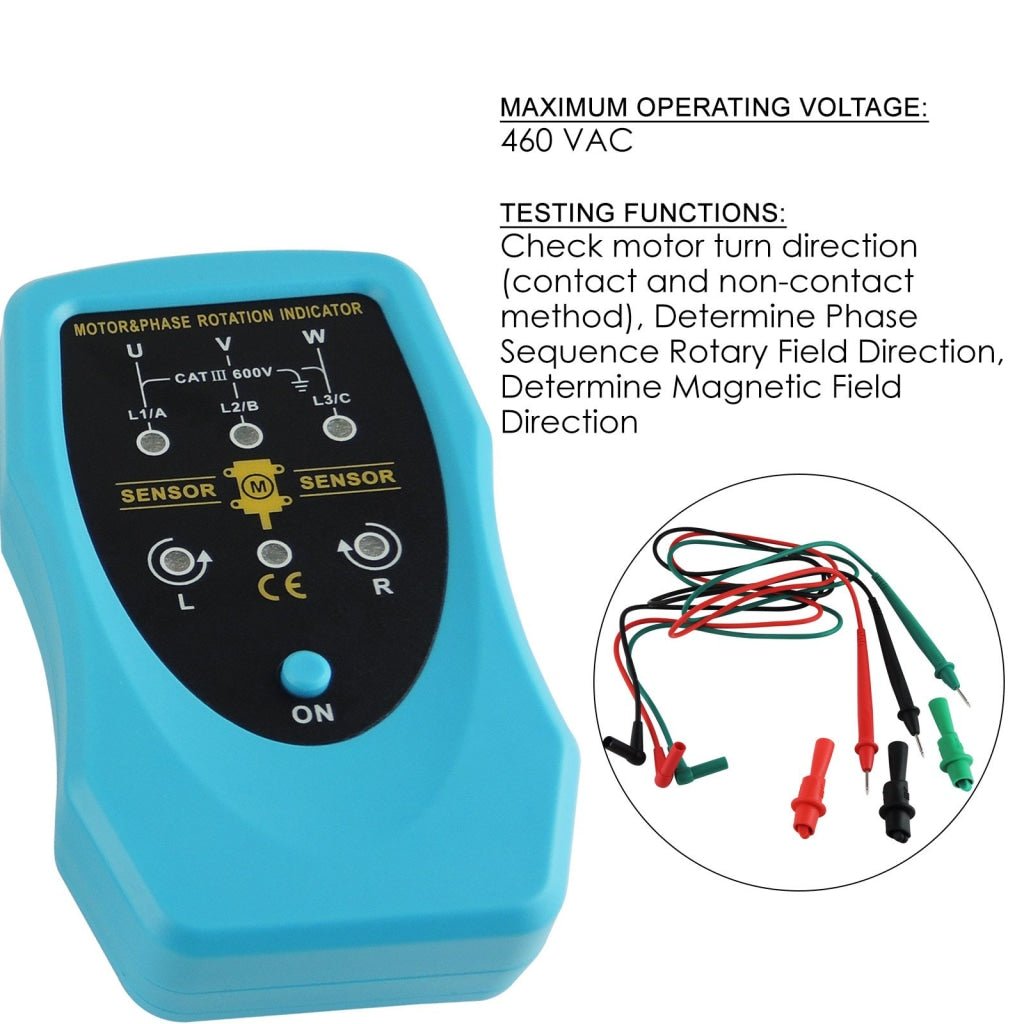

  • Check motor turn direction (contact and non-contact method)
  • Determine Phase Sequence Rotary Field Direction
  • Determine Magnetic Field Direction

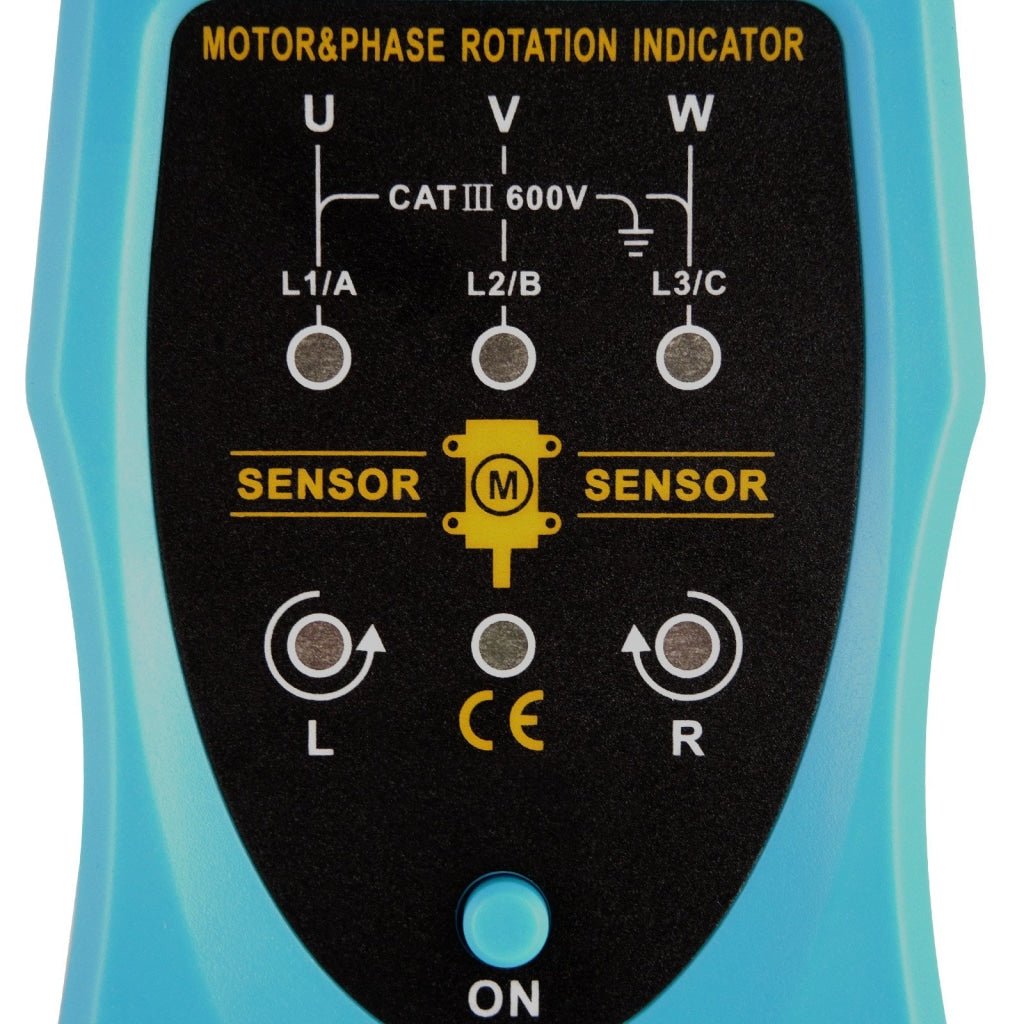

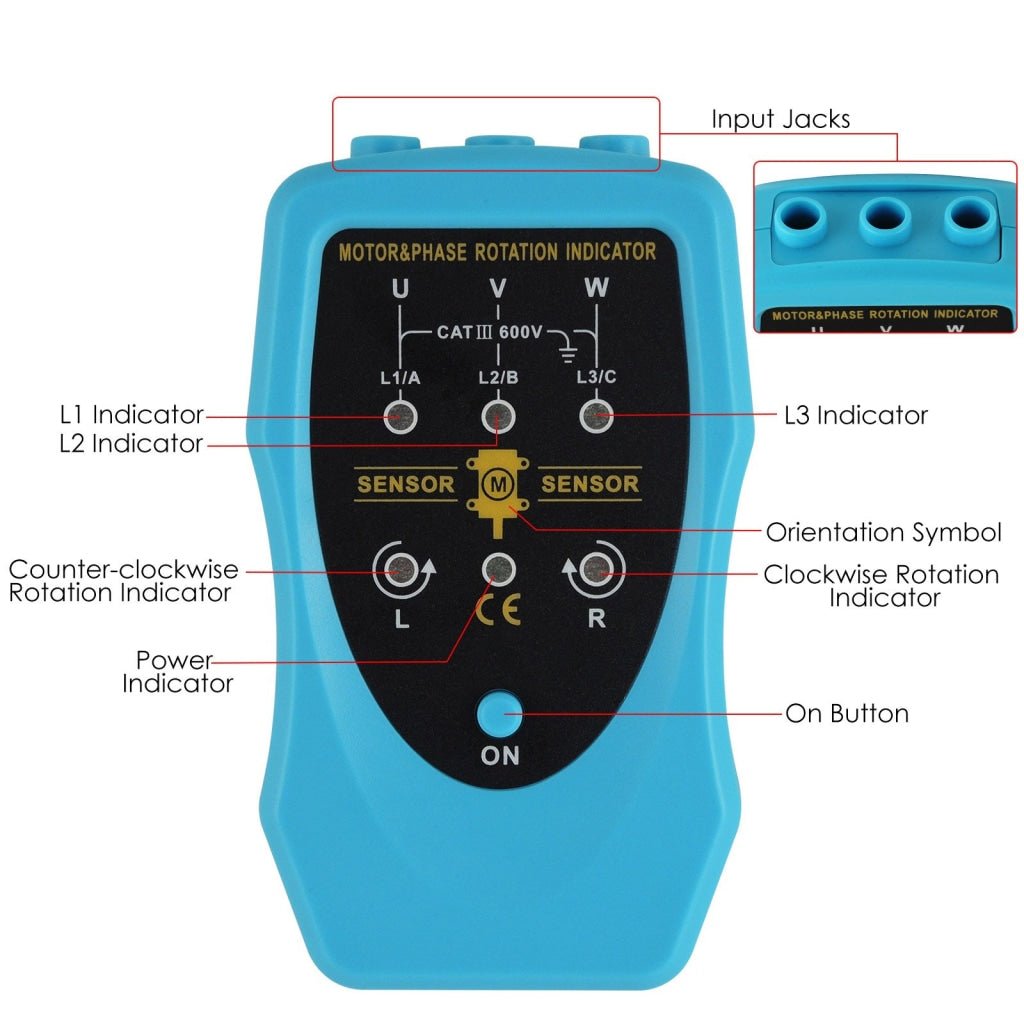

  • Clockwise and counterclockwise Rotation indicator
  • Accurate and fast measurement
  • Handheld and battery operated



  • Maximum Operating Voltage (Ume): 460 VAC

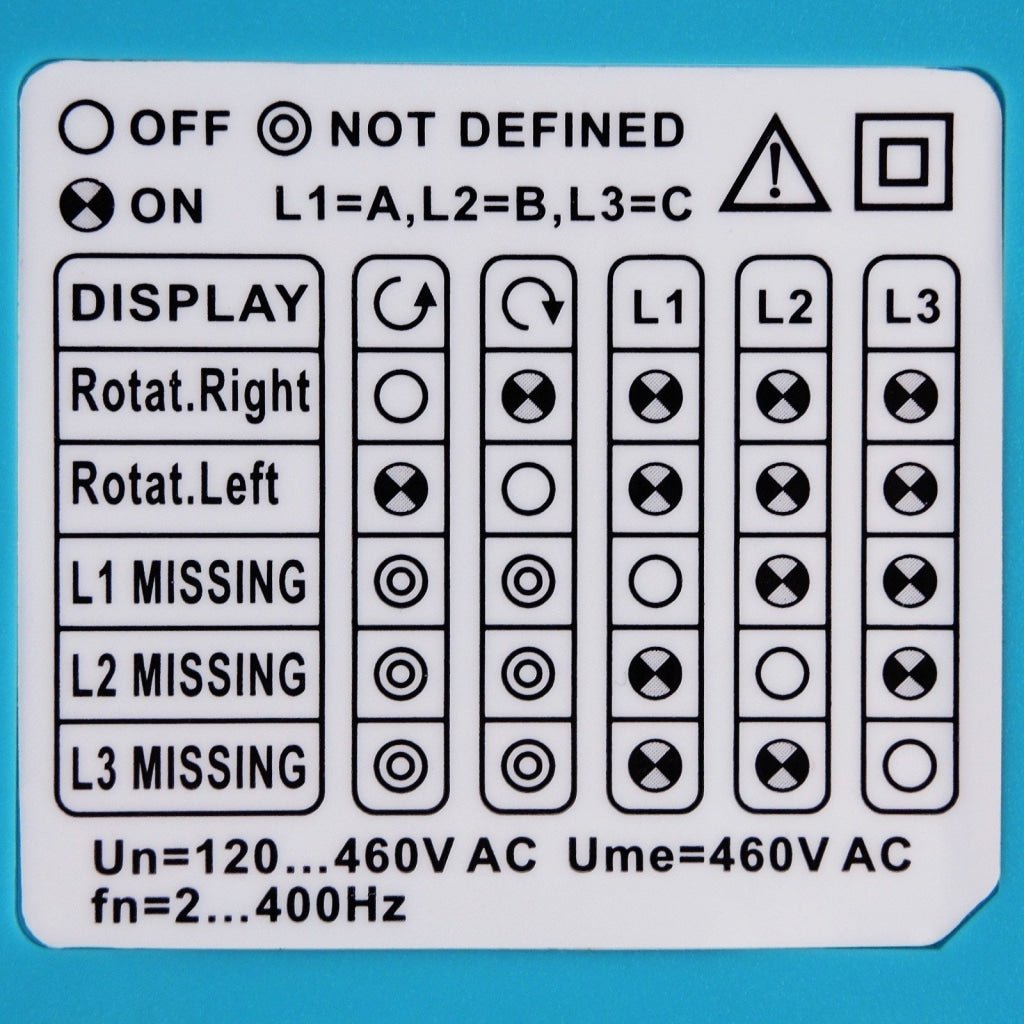

  • Determining Phase Sequence
    • Normal Voltage: 120~460VAC
    • Frequency range (fn): 2~400Hz
    • Test Current (per phase): <3.5mA
  • Checking Motor Turn Direction (non-contact method)
    • Voltage Range: 1~460VAC
    • Frequency range (fn): 2~400Hz

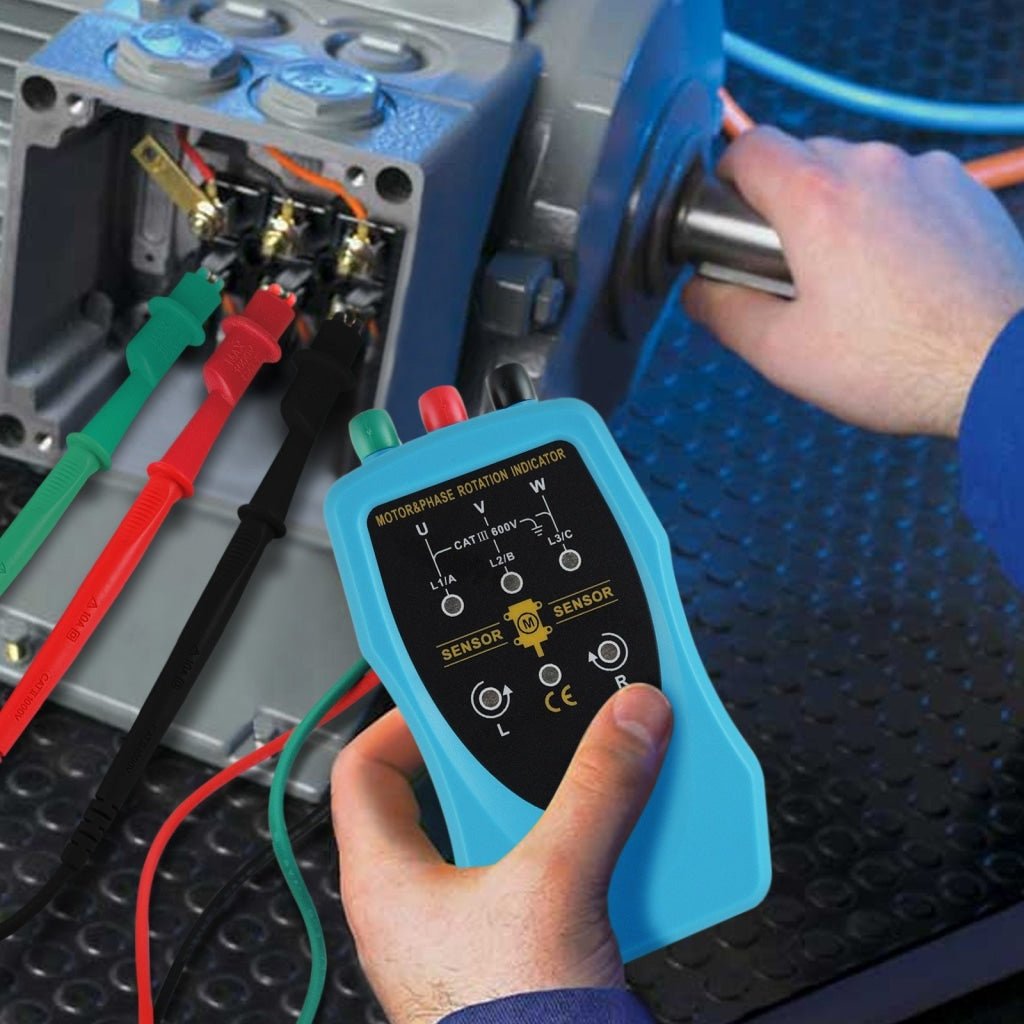

  • Checking Motor Turn Direction (contact method)
    • Nominal Voltage Range: 1~460VAC
    • Nominal Test Current (per phase): <3.5mA
    • Frequency Range (fn): 2~400Hz
  • Operating Environment:
    • Temperature: 0~40°C
    • Altitude: 2000m
    • Relative Humidity: 15~80%
  • Storage Environment:
    • Temperature: -10 ~50°C
    • Relative Humidity: <85%
  • Protection Level: CAT III 600V

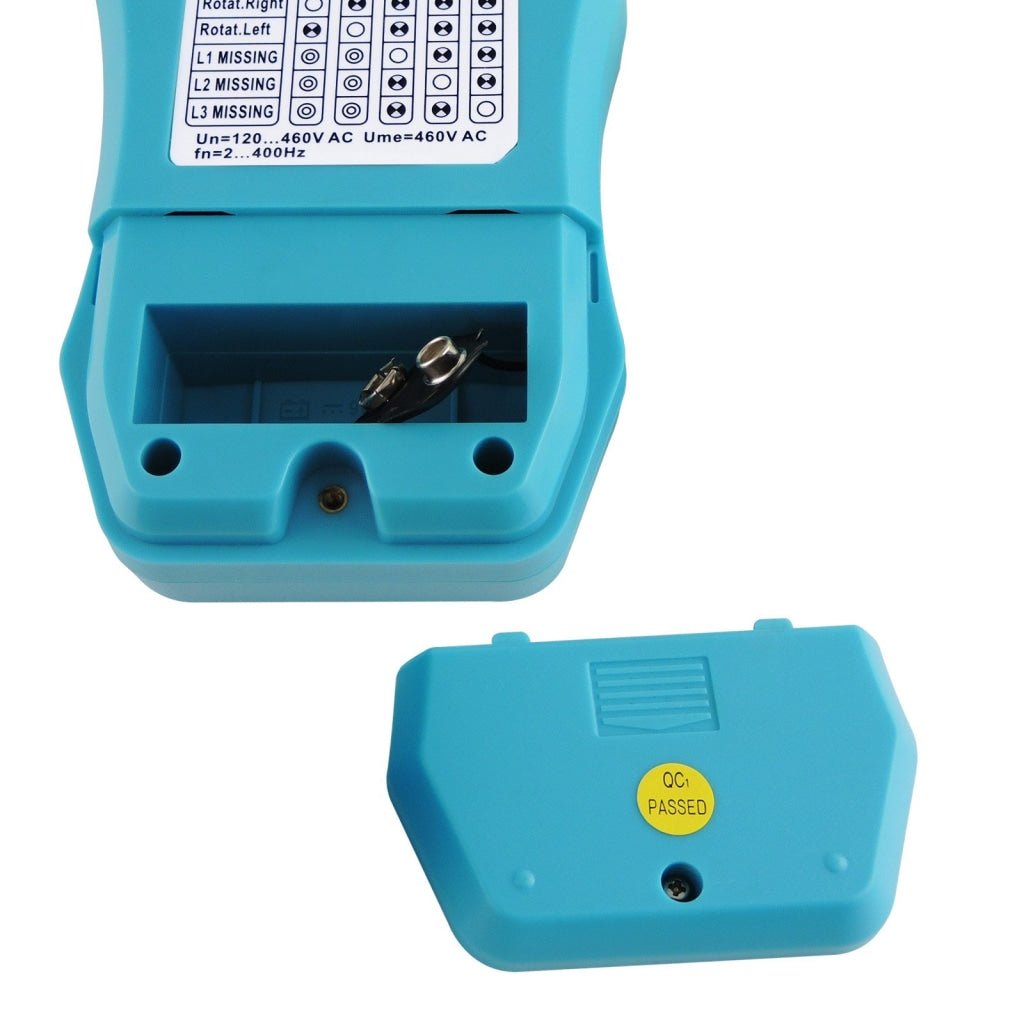

  • Battery: 1 x 9V battery, 6F22 or equivalent
  • Current Consumption: max 20mA

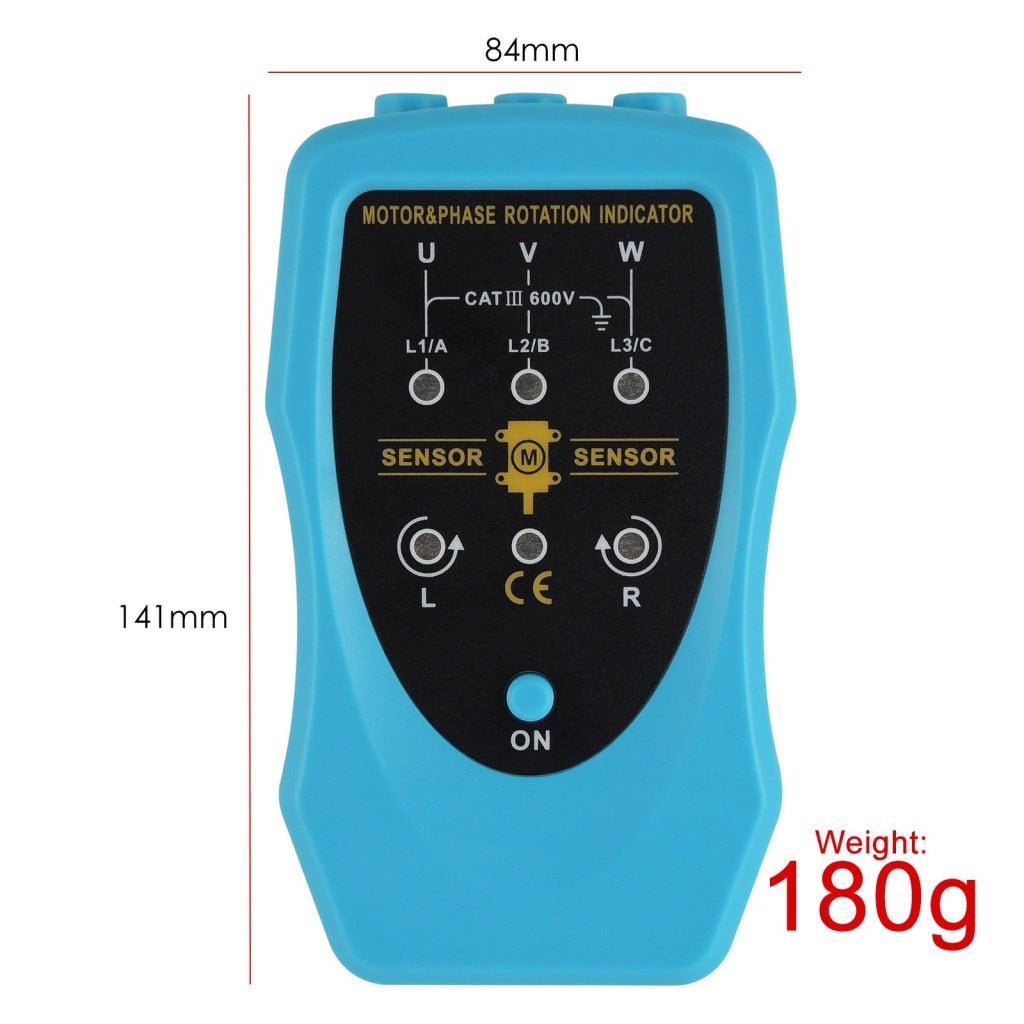

  • Size: 141 x 84 x 36mm
  • Weight: about 180g (including battery)

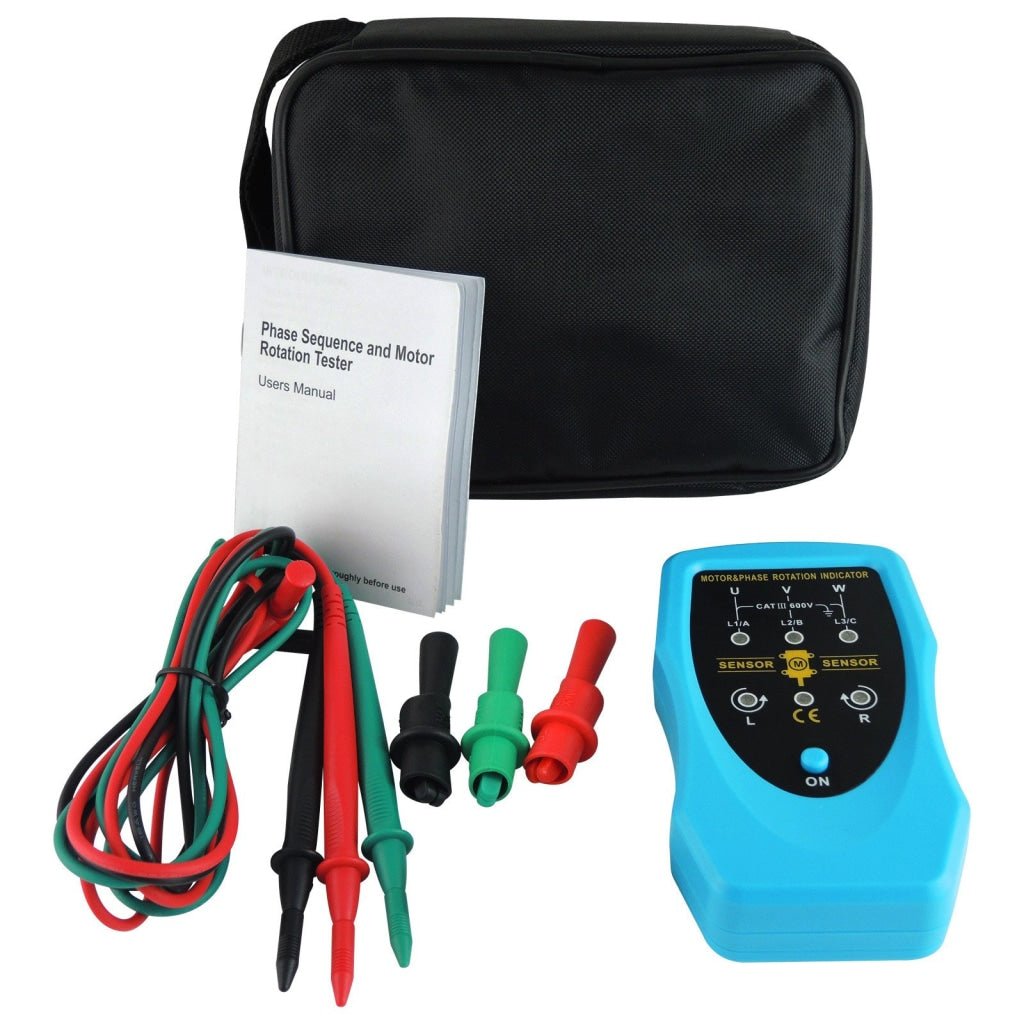

Set Includes:

  • 1 x Motor and Phase Rotation Indicator

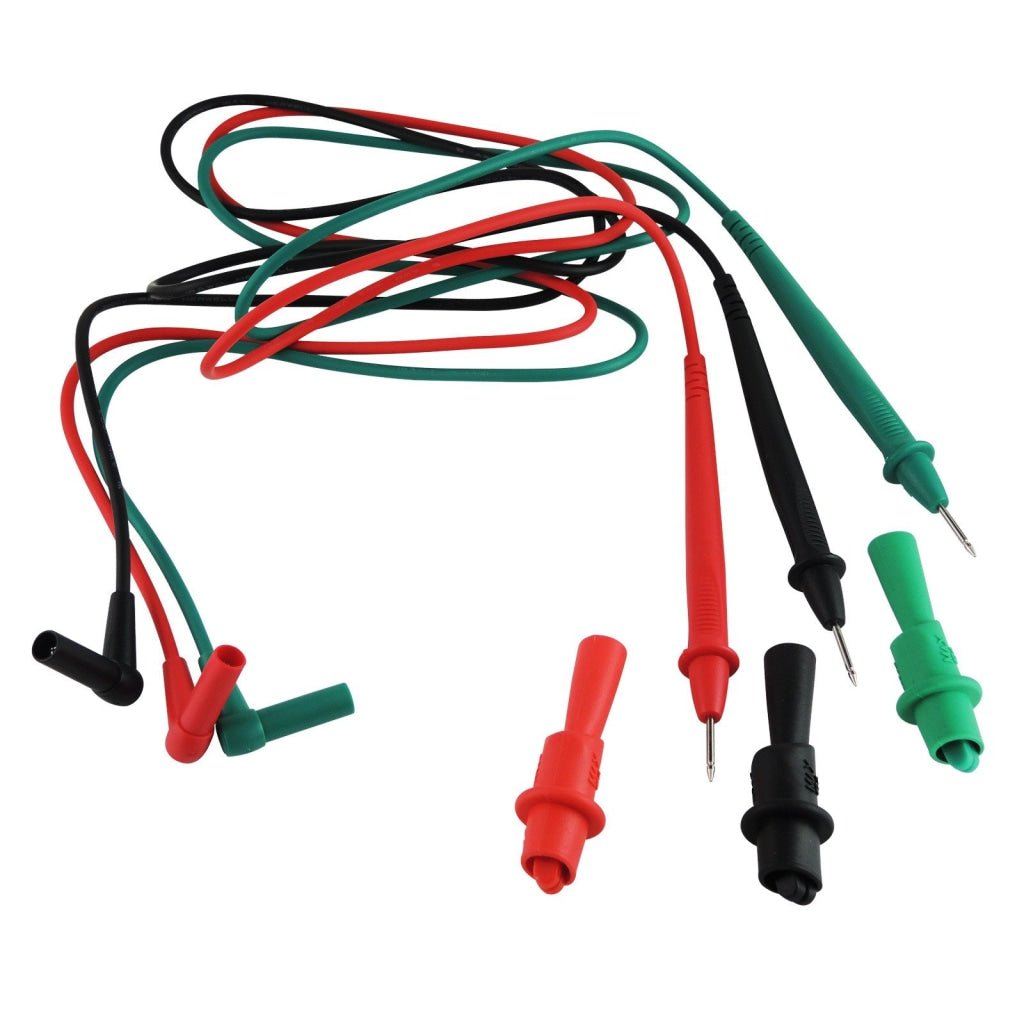

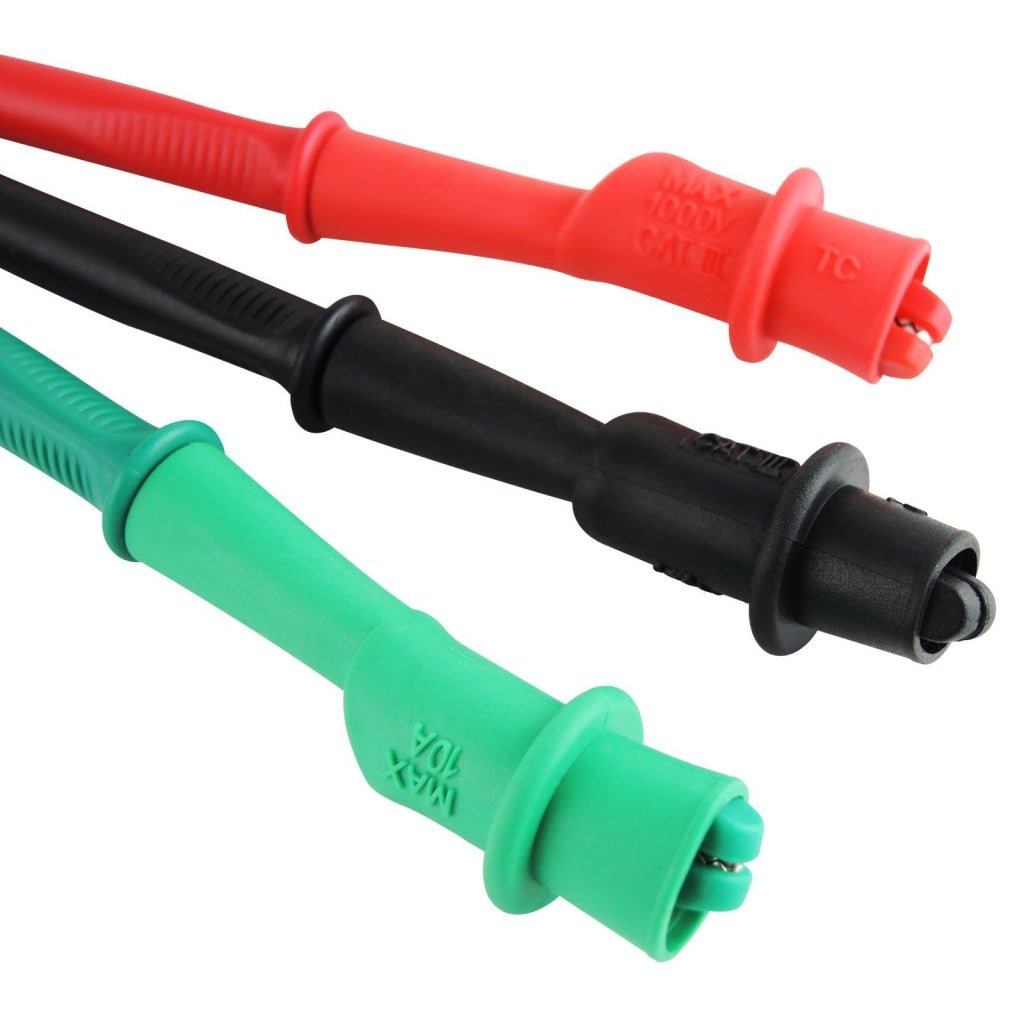

  • 3 x Test leads
  • 3 x Alligator clips
  • 1 x 9V Battery

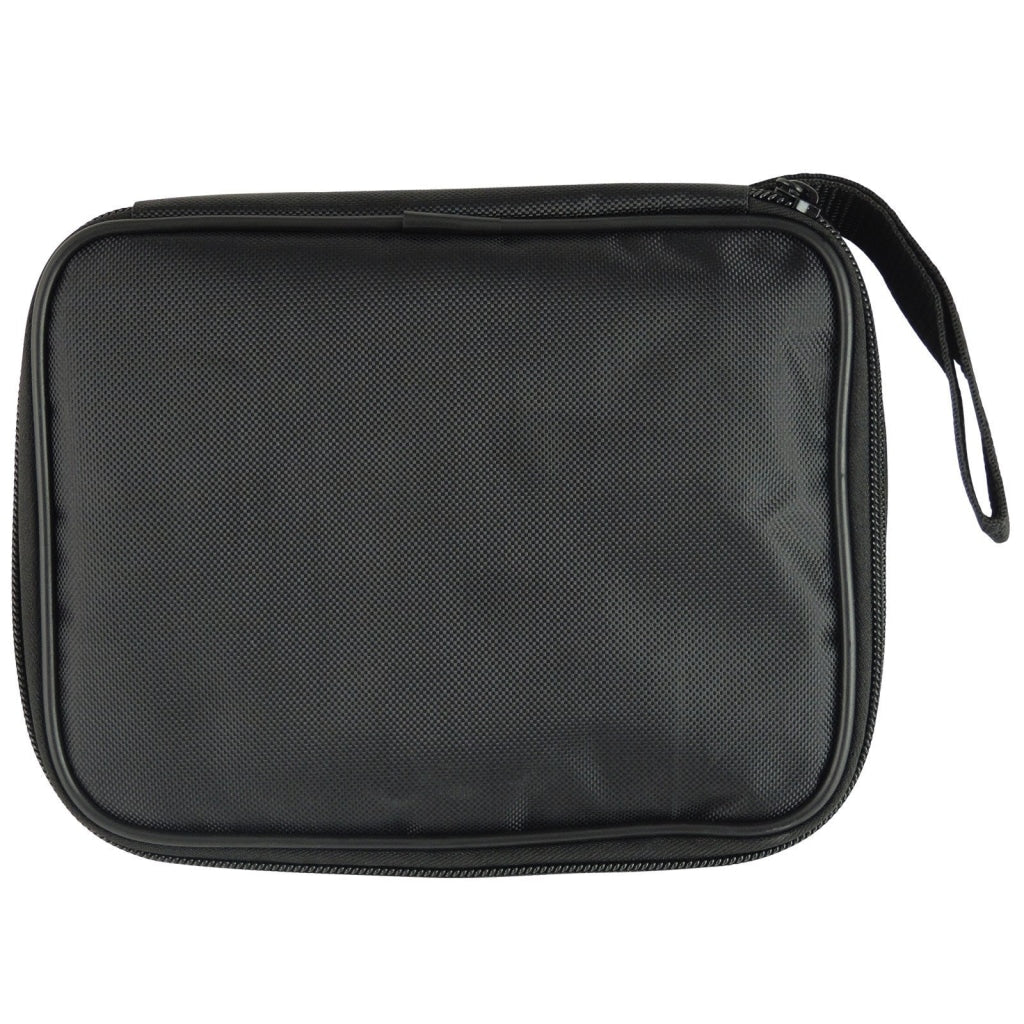

  • 1 x Black Carrying Bag
  • 1 x English Instruction Manual
  • Standard factory package
