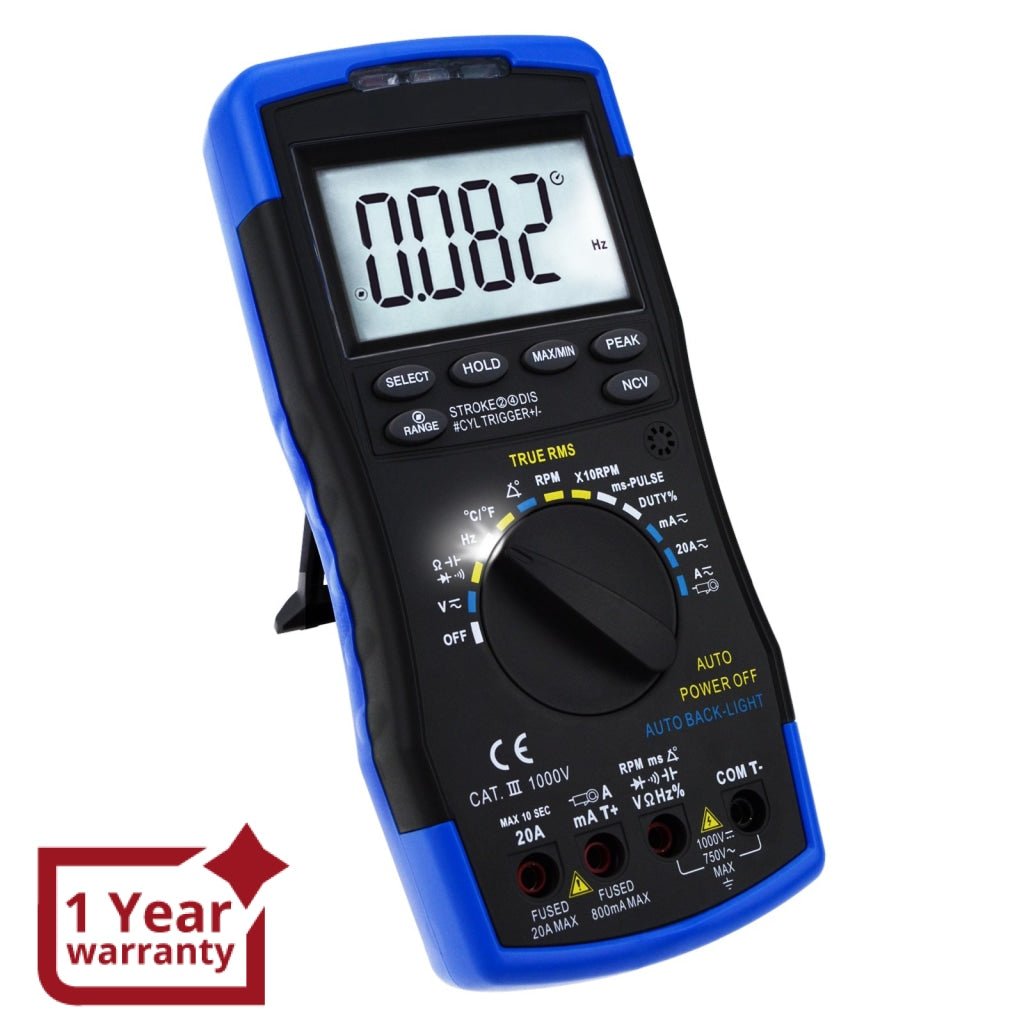

ENG-214 Auto-Ranging LCD Digital Multimeter Engine Analyzer Tester DCV/ACV, RPM Tachometer, Dwell Angle, Current, Temperature, Resistance, Diode Continuity Test, Pulse Width

This product is currently sold out. Please contact us if will order in bulk.


Model: ENG-214

Compact Battery Operated, with safety protector, Auto/ Manual Ranging, Automotive Diagnostic Multimeter, Digital Engine Analyzers suitable for a practical tool for electricians, hobbyists, and general household use.

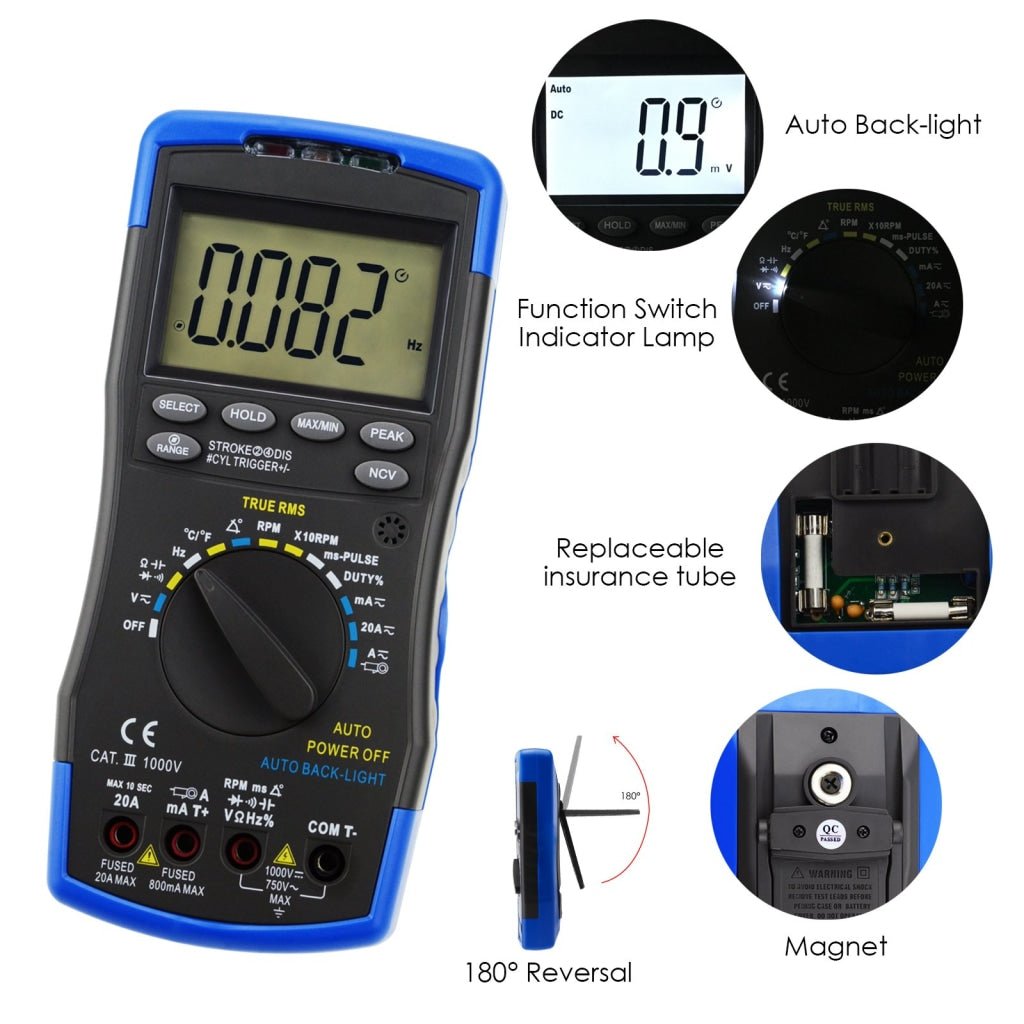

Features

  • Max.display: 6000, 3 1/2 digits

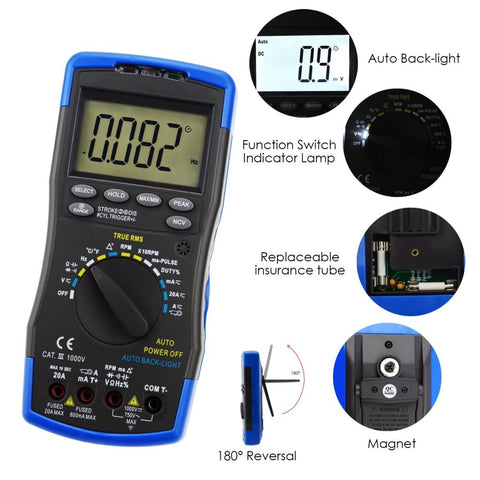

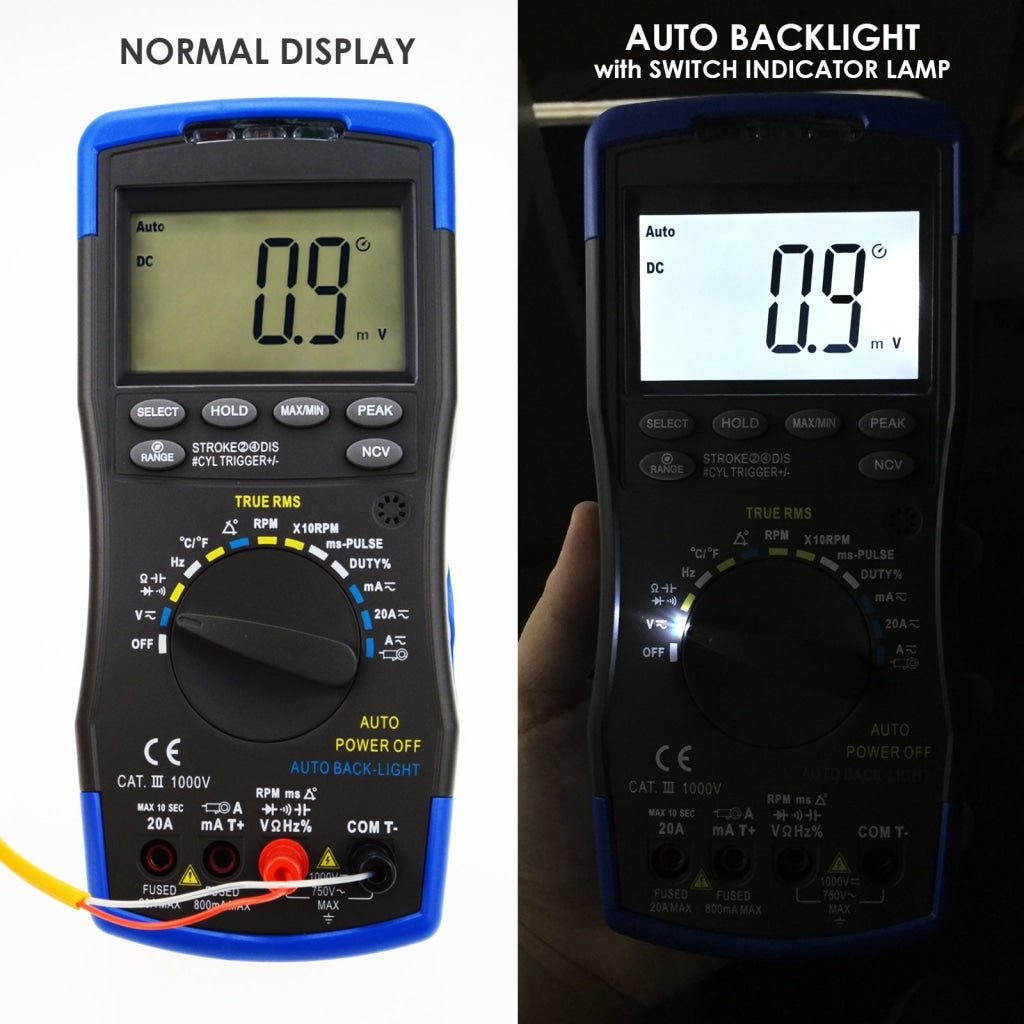

  • AUTO FUNCTIONS: Backlight, Power off
  • AC (True RMS) voltage and current
  • DC voltage and current
  • Capacitance and Resistance
  • Type k temperature
  • Frequency and Dwell angle
  • Low battery indication
  • Duty cycle and Pulse Width
  • Non-Contact AC Voltage (NCV) detection
  • Safety standards: CATIII 1000V CATIV 600V
  • ComplianceCa: IEC 1010-1 EN61010-1


Specifications

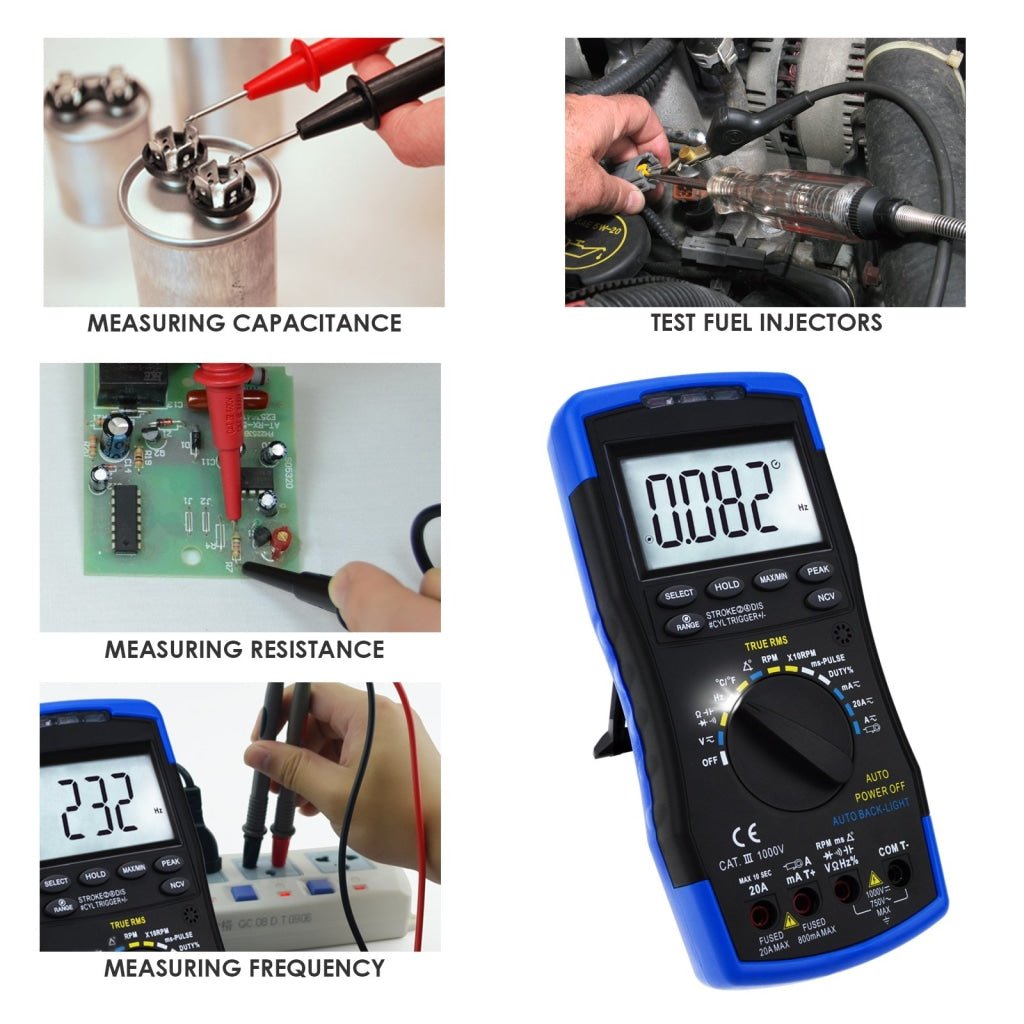

  • Measuring: DC/AC Voltage, DC/ AC Current, Resistance, Capacitance, Frequency and Duty cycle, Temperature, Diode/Continuity test, Tachometer, Dwell angle, pulse width, Non-Contact AC Voltage Detection
  • Insulation: Class 2, Double Insulation

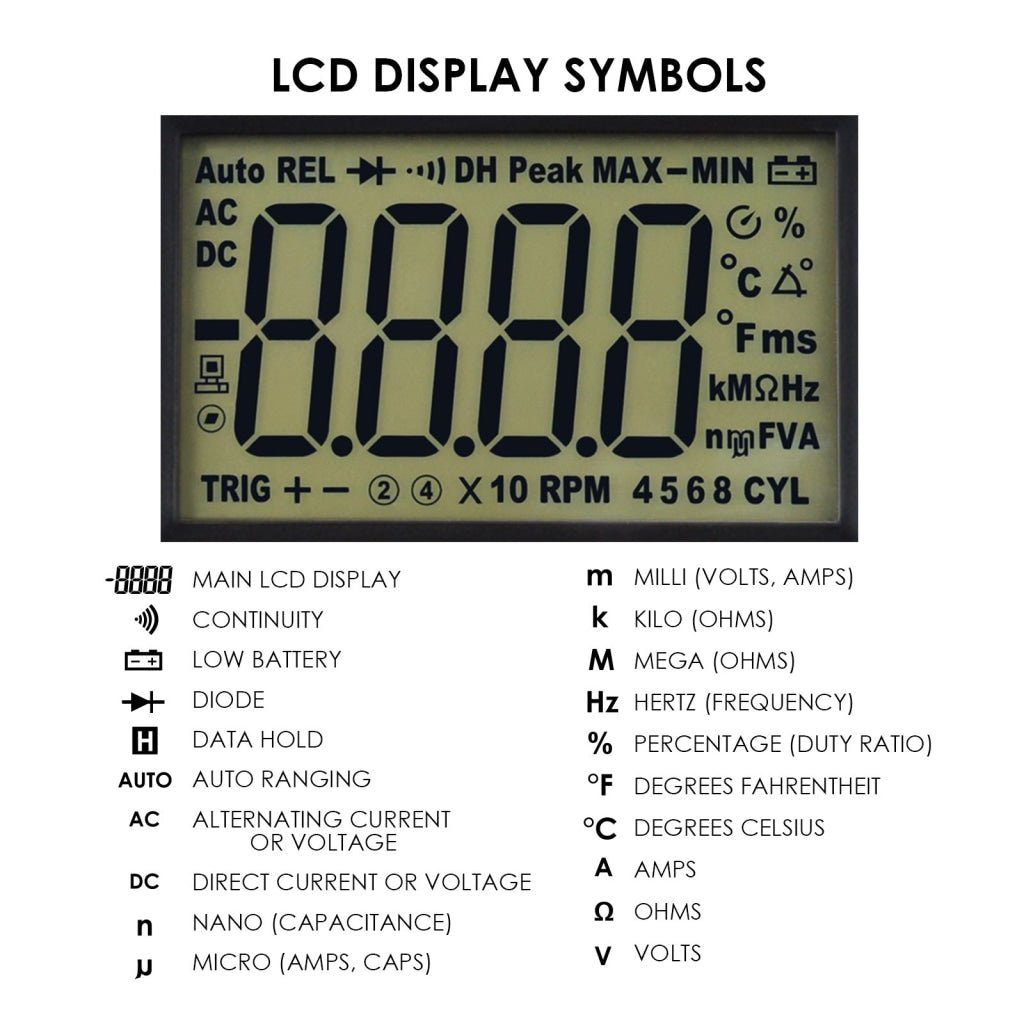

  • Display: 6000 counts LCD display with function indication
  • Polarity: Automatic, (-) negative
  • Polarity indication. Overrange: "OL" marks indication
  • Measurement rate: 3 times per second, nominal
  • Operating environment : 0℃ to 50℃ (32°F to 122°F) at < 70% relative humidity.
  • Storage temperature : -20℃ to 60℃ (-4°F to 140°F) at < 80% relative humidity.
  • Diode Test: Yes
  • Continuity Test: Yes
  • Square Wave Output: Yes
  • Power: 9V battery

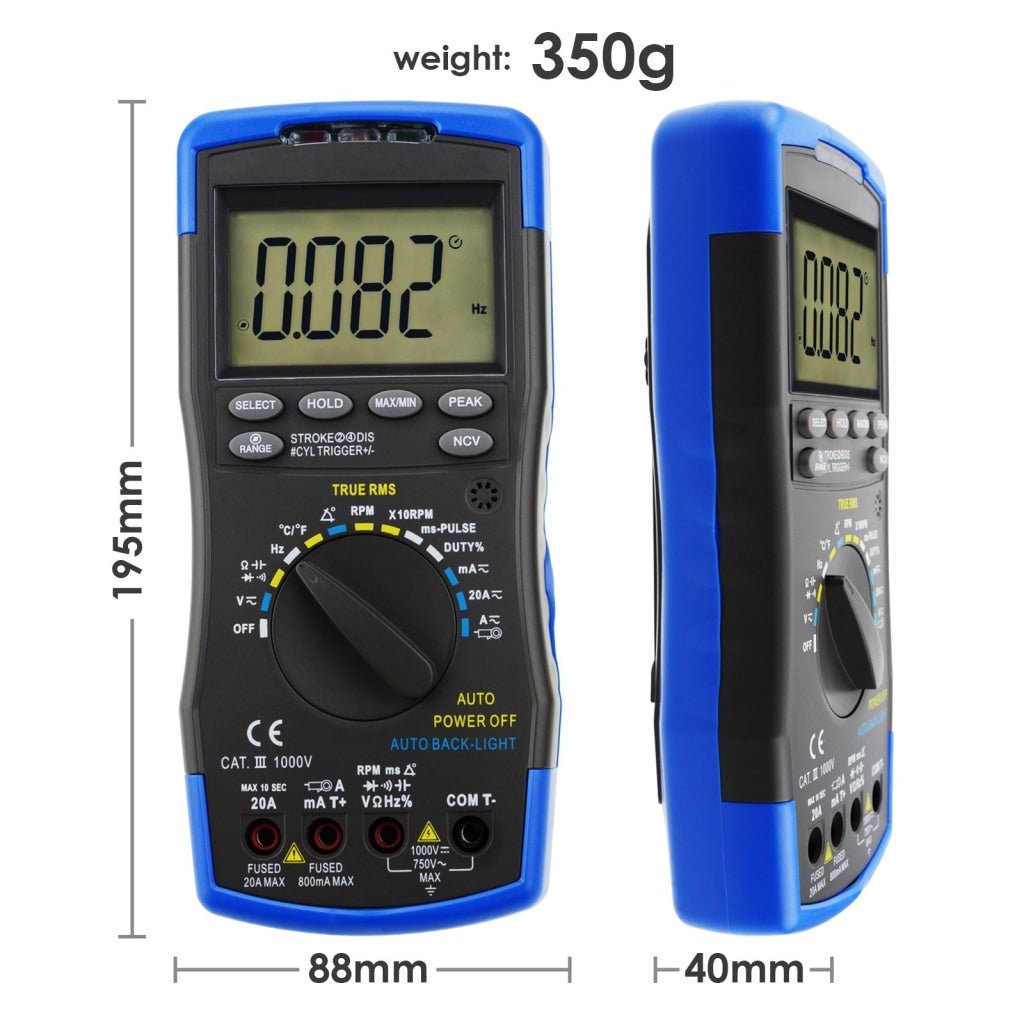

  • Dimensions 195 x 88 x 40 mm
  • Weight 350g (include battery)

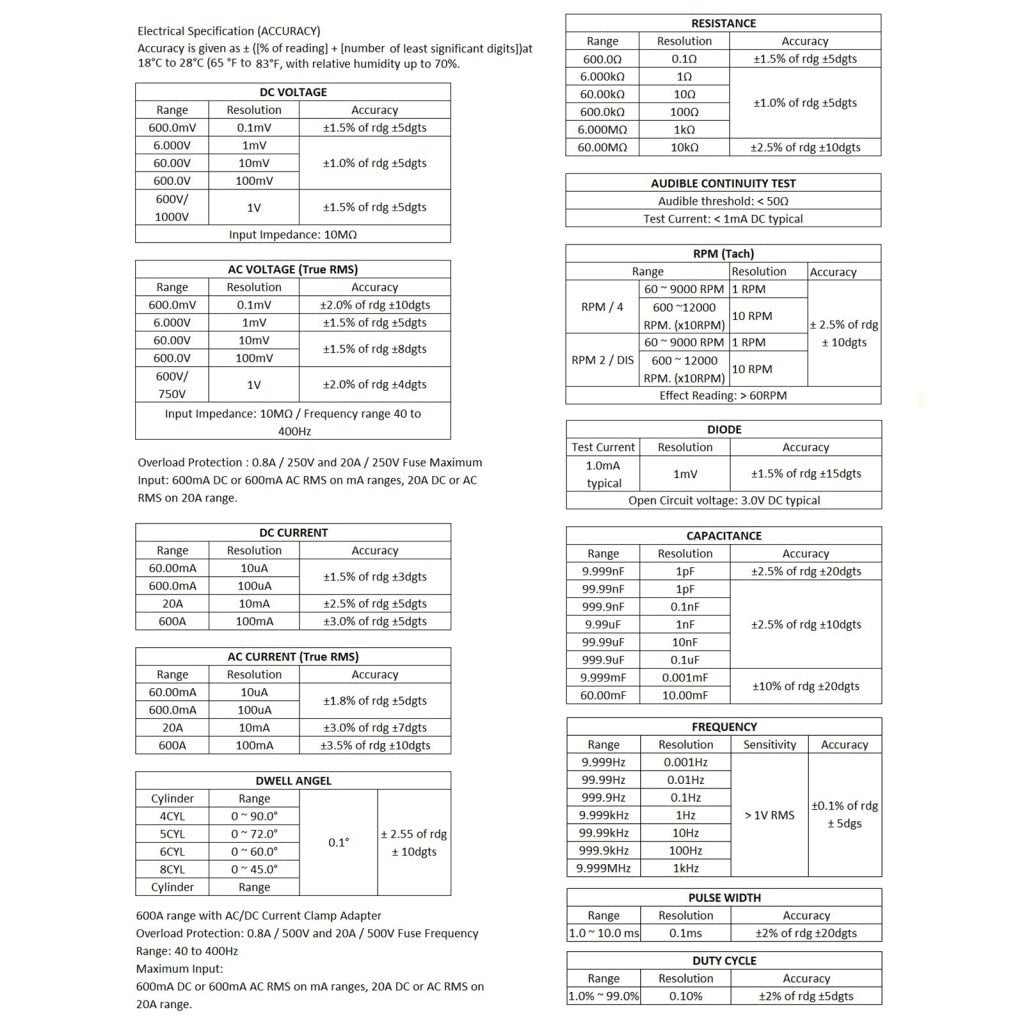

(see pictures for Technical Index Specifications)

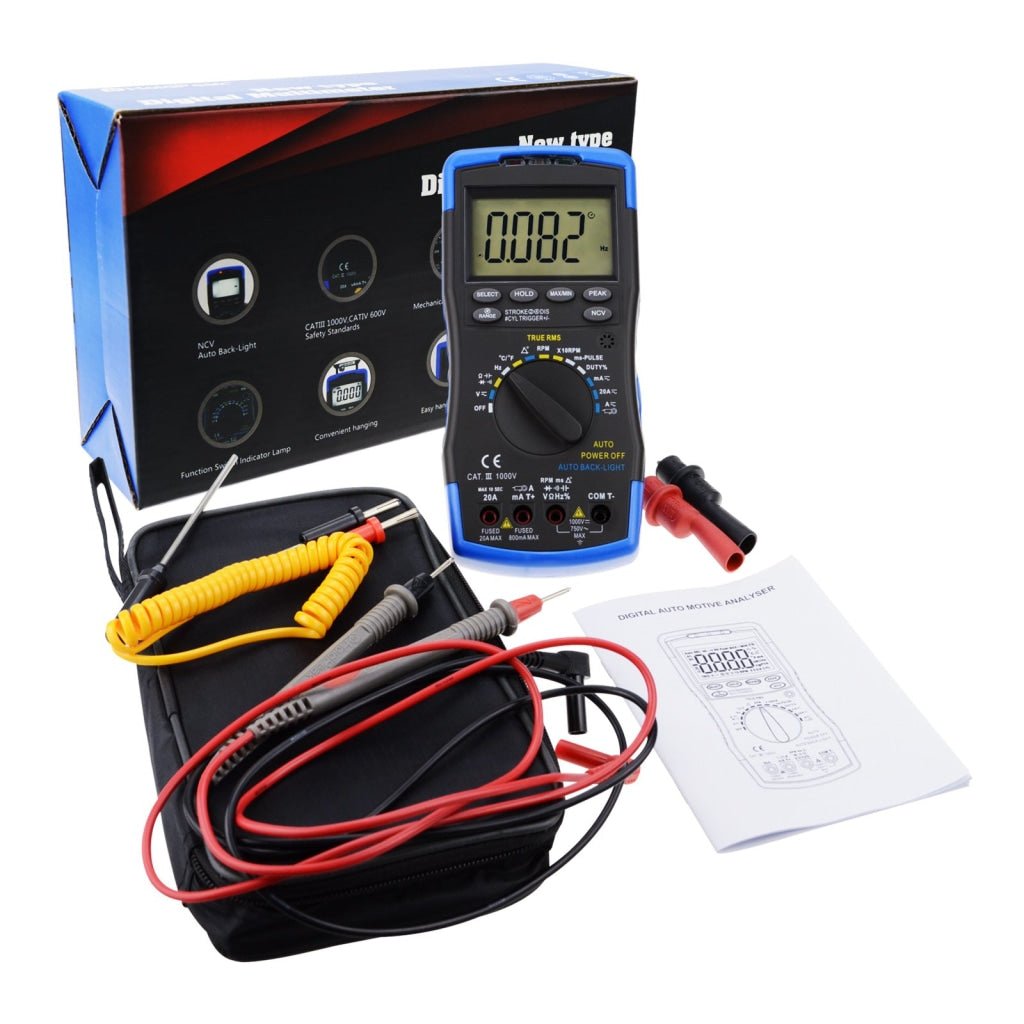

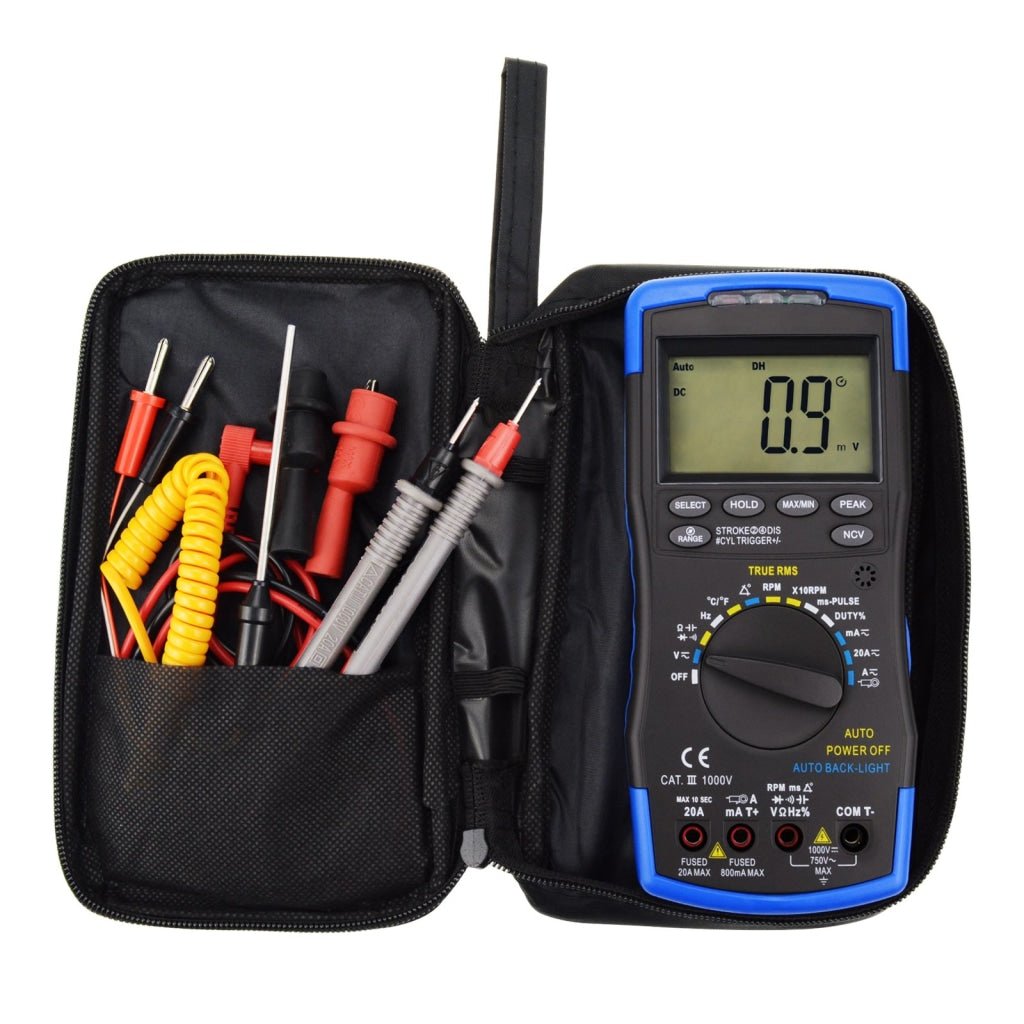

Set Includes

  • 1 x Multimeter Analyzers

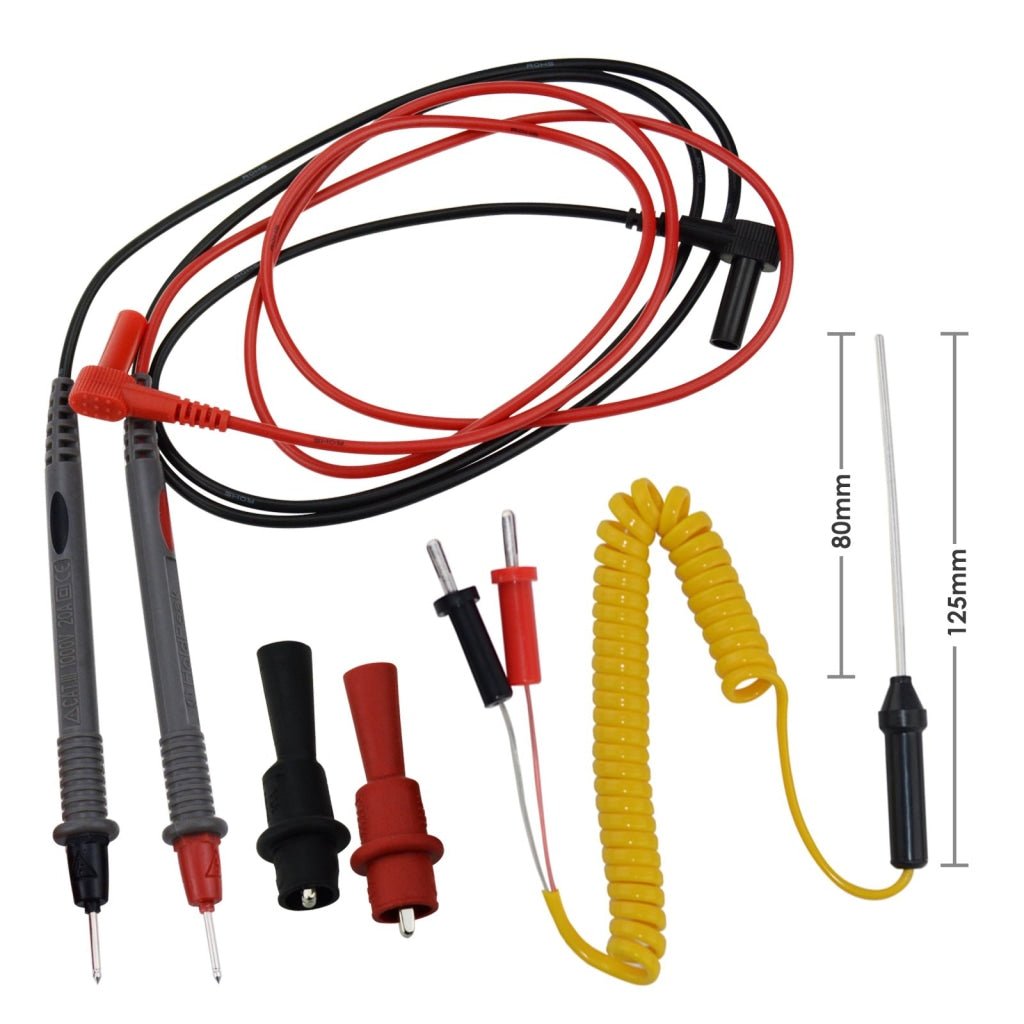

  • 2 x Test Led
  • 1 x Temperature Probe
  • 2 x Alligator Clip
  • 1 x Black Pouch
  • 1 x 9V battery
  • 1 x English Manual
  • Standard Packaging
