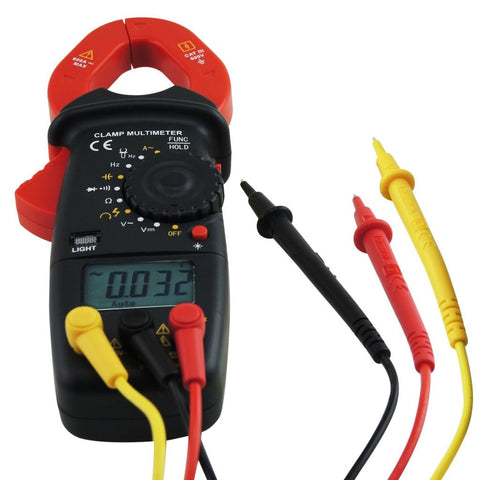

E04-033 Clamp Meter Autorange Phase Sequence Test DC AC Voltage AC Current Diode Digital LCD Display


Quantity
  OR


Model : E04-033

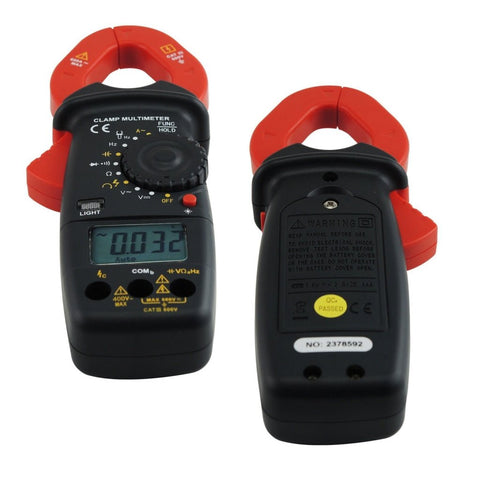

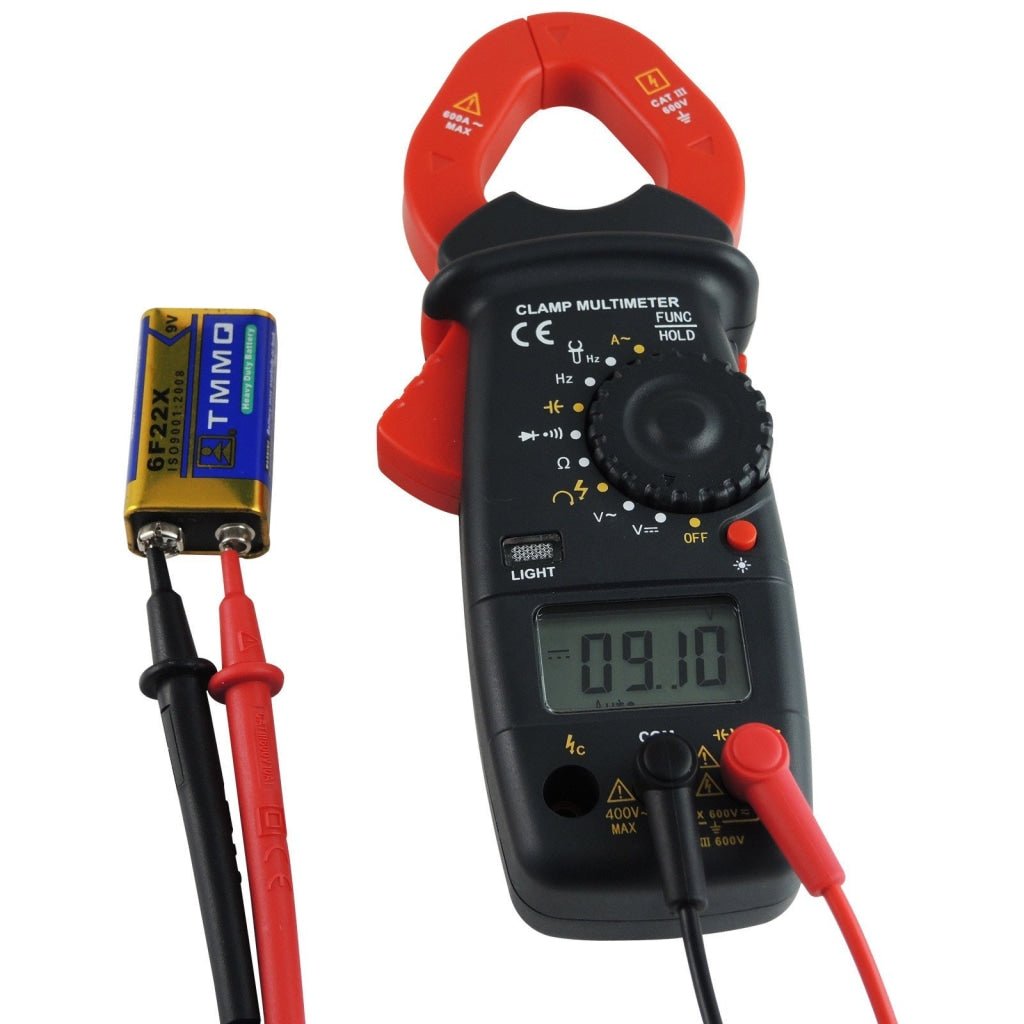

This meter is a 3 ¾ digit autorange Digital Clamp Meter for measuring DC and AC Voltage, AC current, resistant, diode, continuity, capacitance and frequency. In addition, phase sequence test function is also provided. It is easy to operate making an ideal measuring instrument.


This meter has been designed according to IEC 61010 concerning electronic measuring isntruments with measurement cateogry CAT III 600V and Pollution degree 2. It also conforms to European Union Directives on health and safety requirements.

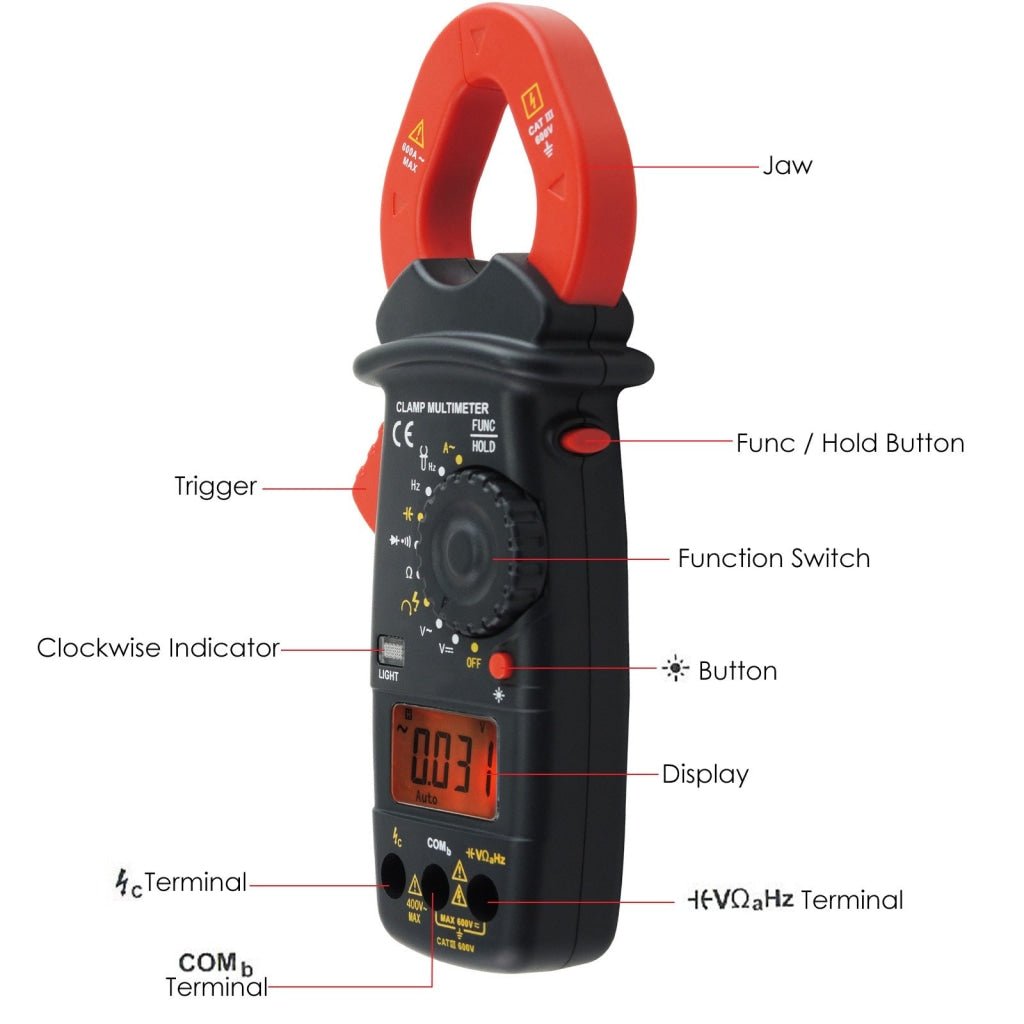

Features:

  • Phase sequence test function
  • Data hold function

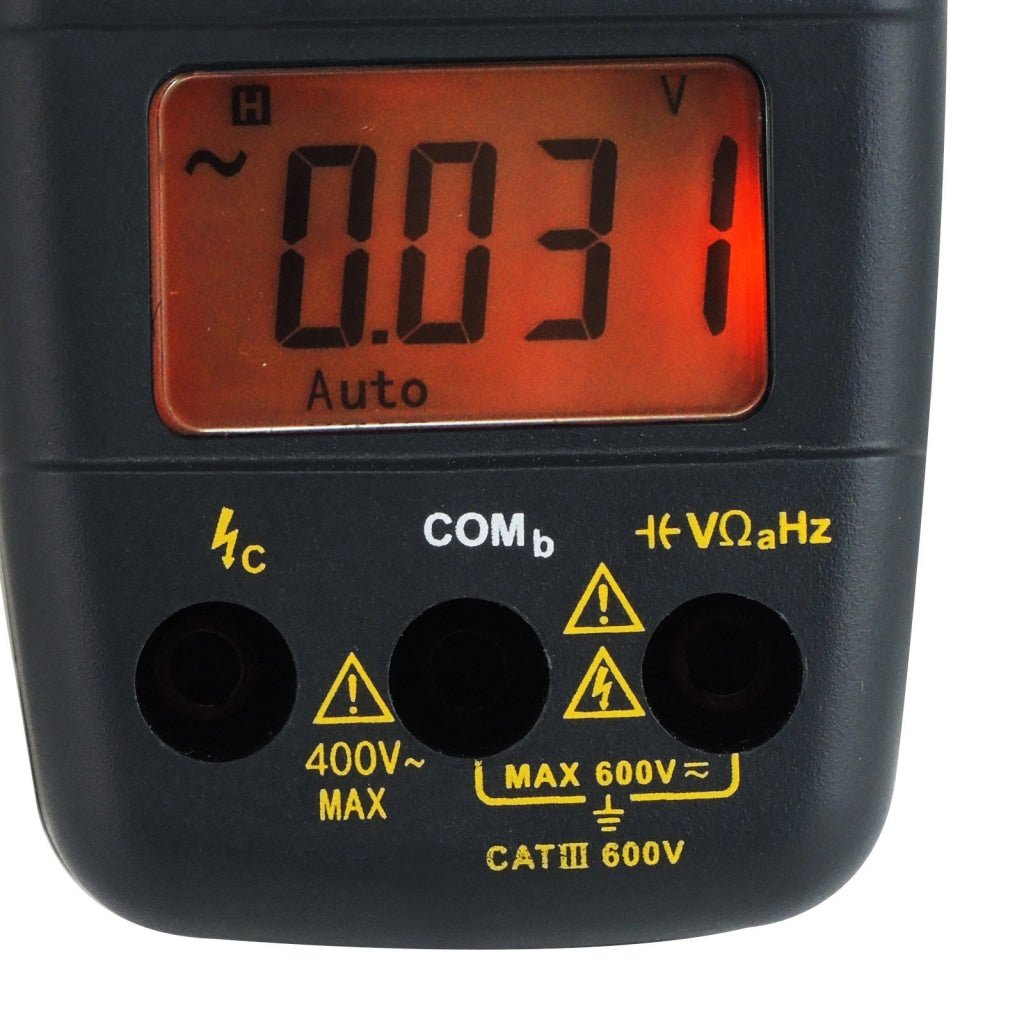

  • 3 ¾ LCD with backlight
  • Full-range overload protection
  • Buit-in buzzer
  • Auto power off function
  • IEC 61010 compliance with CAT III 600V and Polution degree 2
  • Protected throughout by double insulation or reinforced insullation

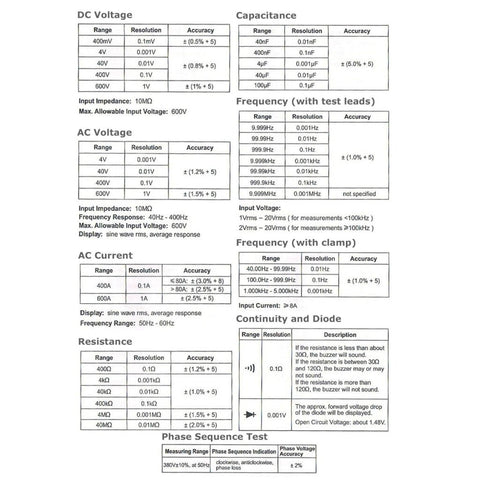

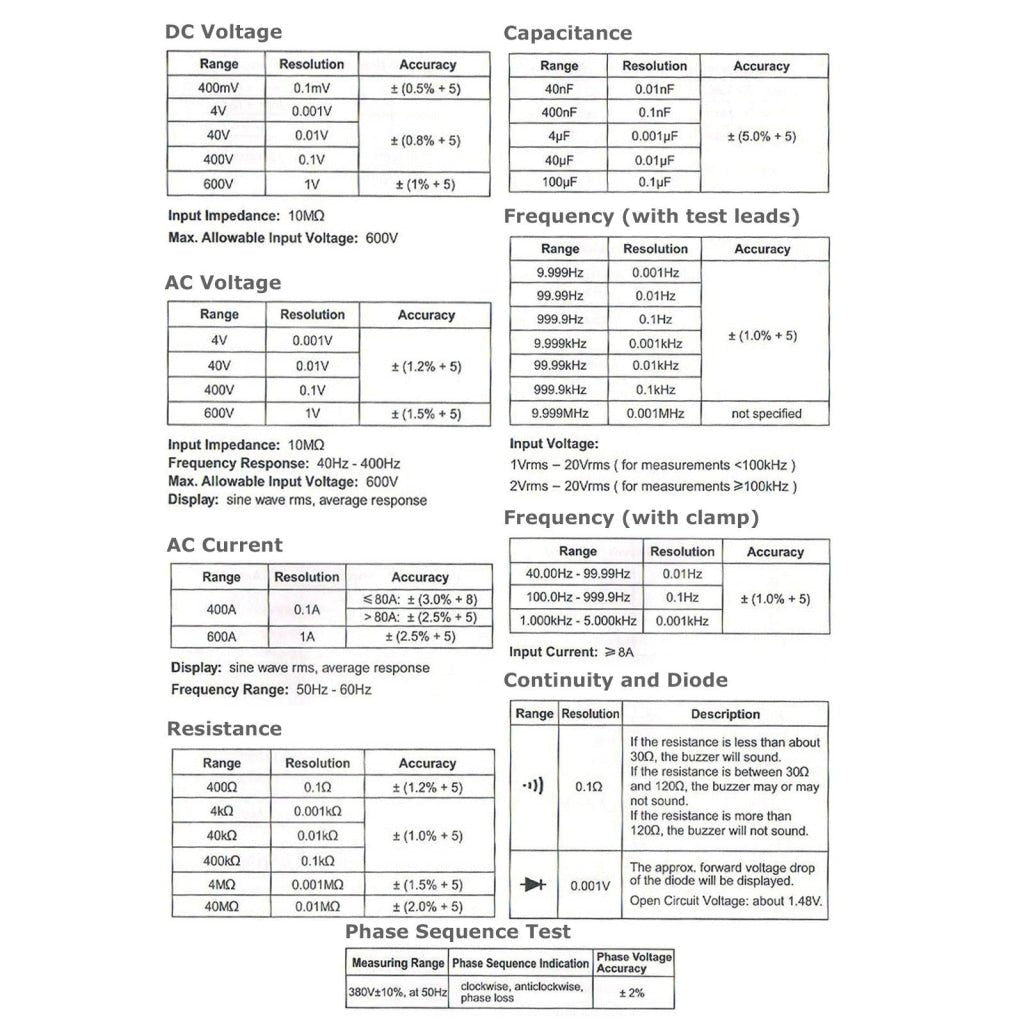

Specifications:

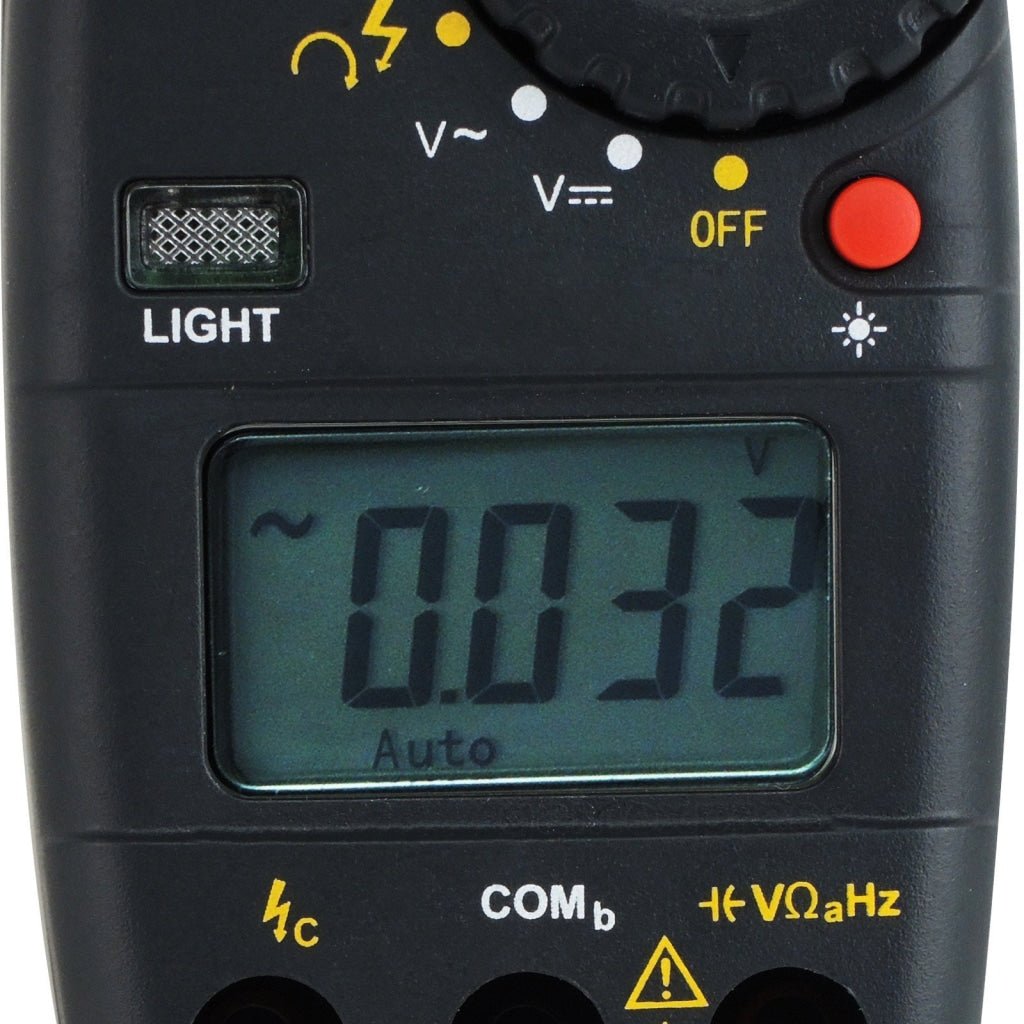

  • Display: 3 ¾ digits LCD, with a max. reading of 3999
  • Overrange Indication: "OL" shown on the display
  • Negative Polarity Indication: Negative sign "-" shown on the display automatically
  • Sampling Rate Approximate 3 times/sec
  • Error Caused by Improper Position: 1% of reading ( Note: The conductor should be placed in the center of the jaws to avoid this error)

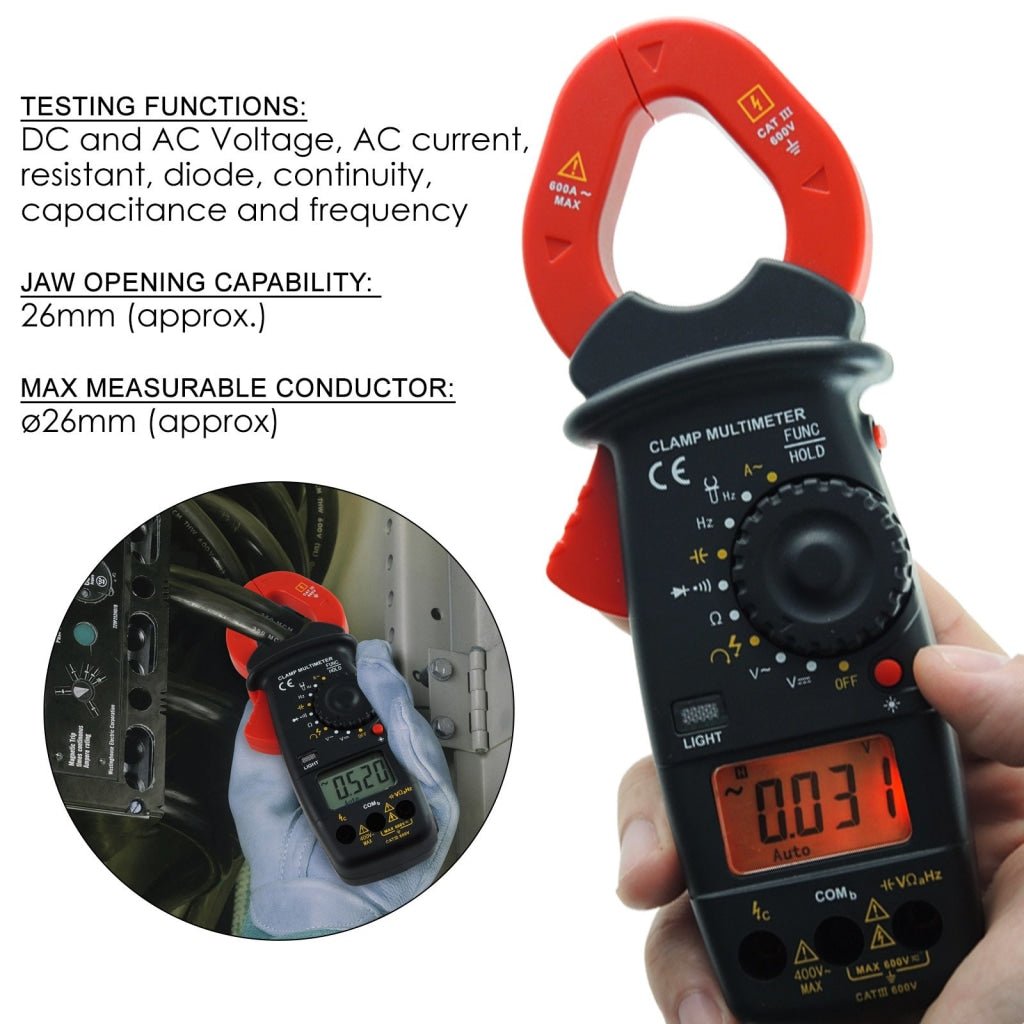

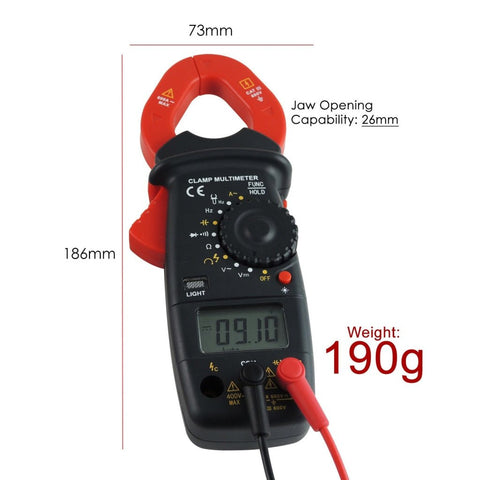

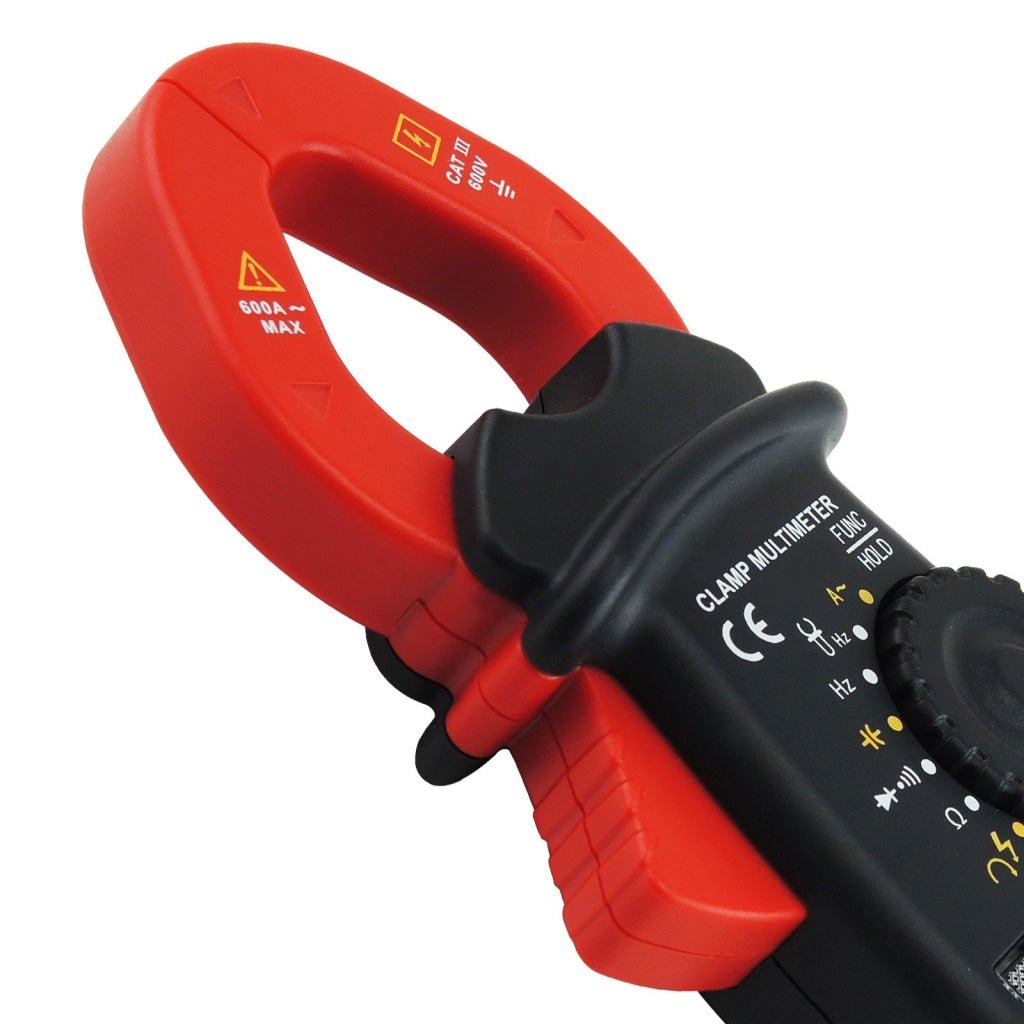

  • Jaw Opening Capability: 26mm (approx.)
  • Max Measurable Conductor: ø26mm (approx)

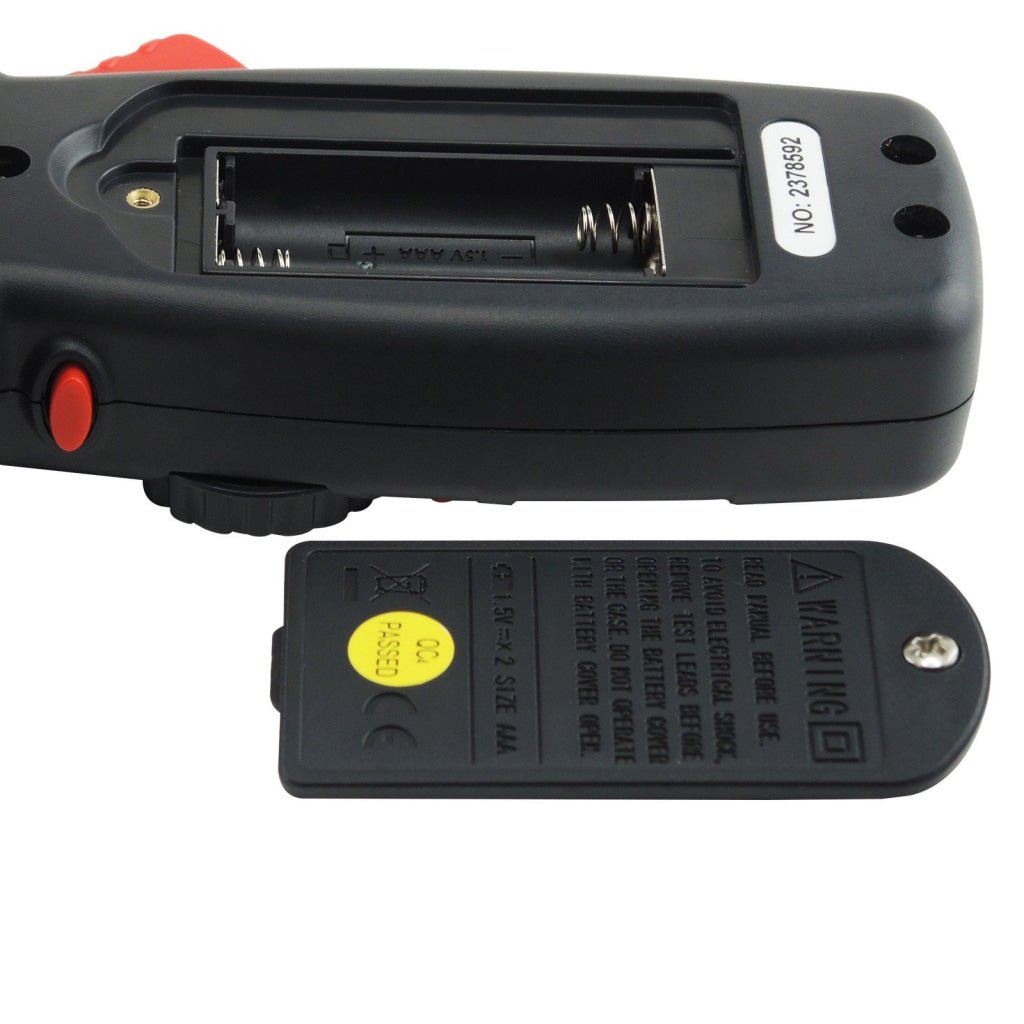

  • Battery: 2 x 1.5V AAA battery
  • Low battery indication shown on the display
  • Operating Environment:
    • Temperature: 0~40°C
    • Relative Humidity: <75%RH
  • Storage Environment:
    • Temperature: -20~50°C
    • Relative Humidity: <85%RH
  • Size: 186 x 73 x 40mm
  • Weight: about 190g (including battery)

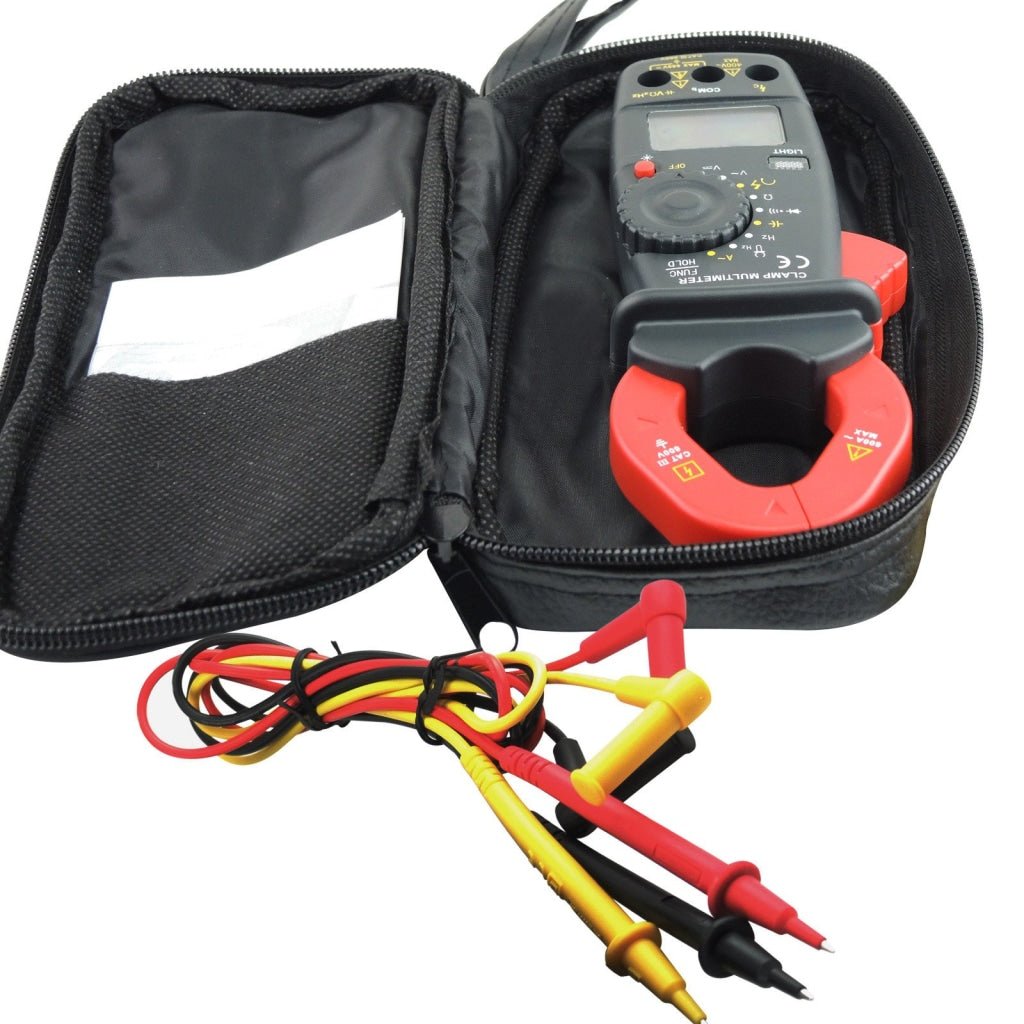

Set Includes:

  • 1 x Digital Clamp Meter

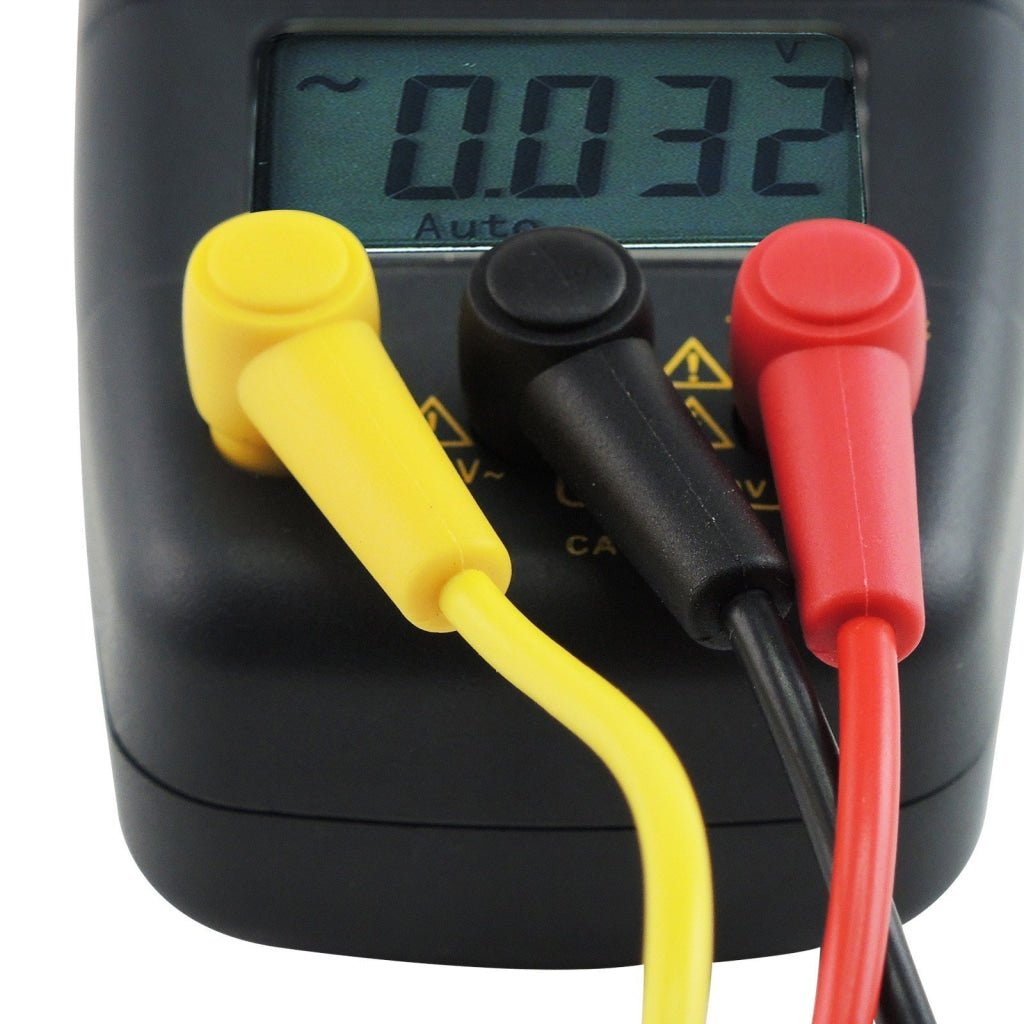

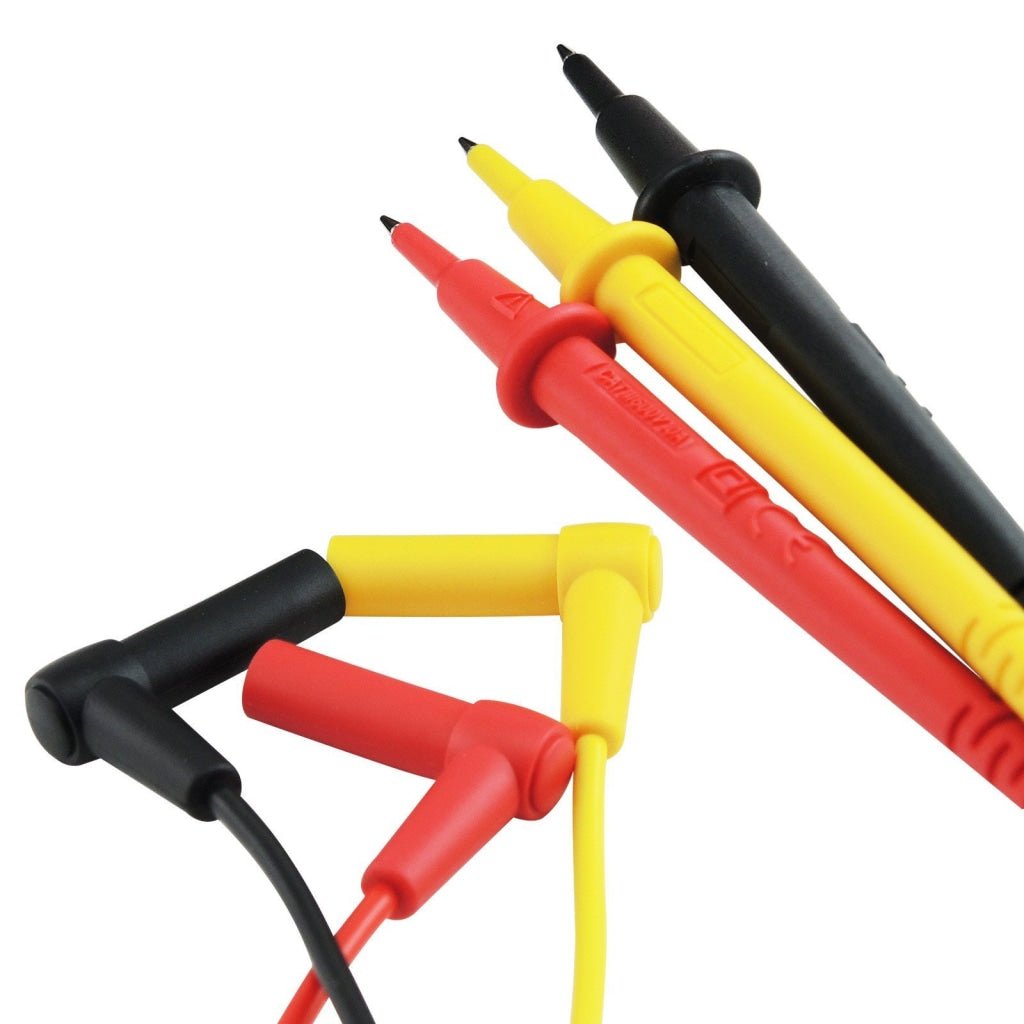

  • 1 x Test Leads
  • 2 x 1.5V AAA battery
  • 1 x English Instruction Manual
  • 1 x Carrying pouch
