MUL-213 Network Digital Multimeter Tester Multi Meter, Telephone Line RJ11, Cable RJ45, AC DC Voltage, AC DC Current, Resistance, Diode Continuity Test, Battery Meter Tester


Quantity
  OR


Model: MUL-213

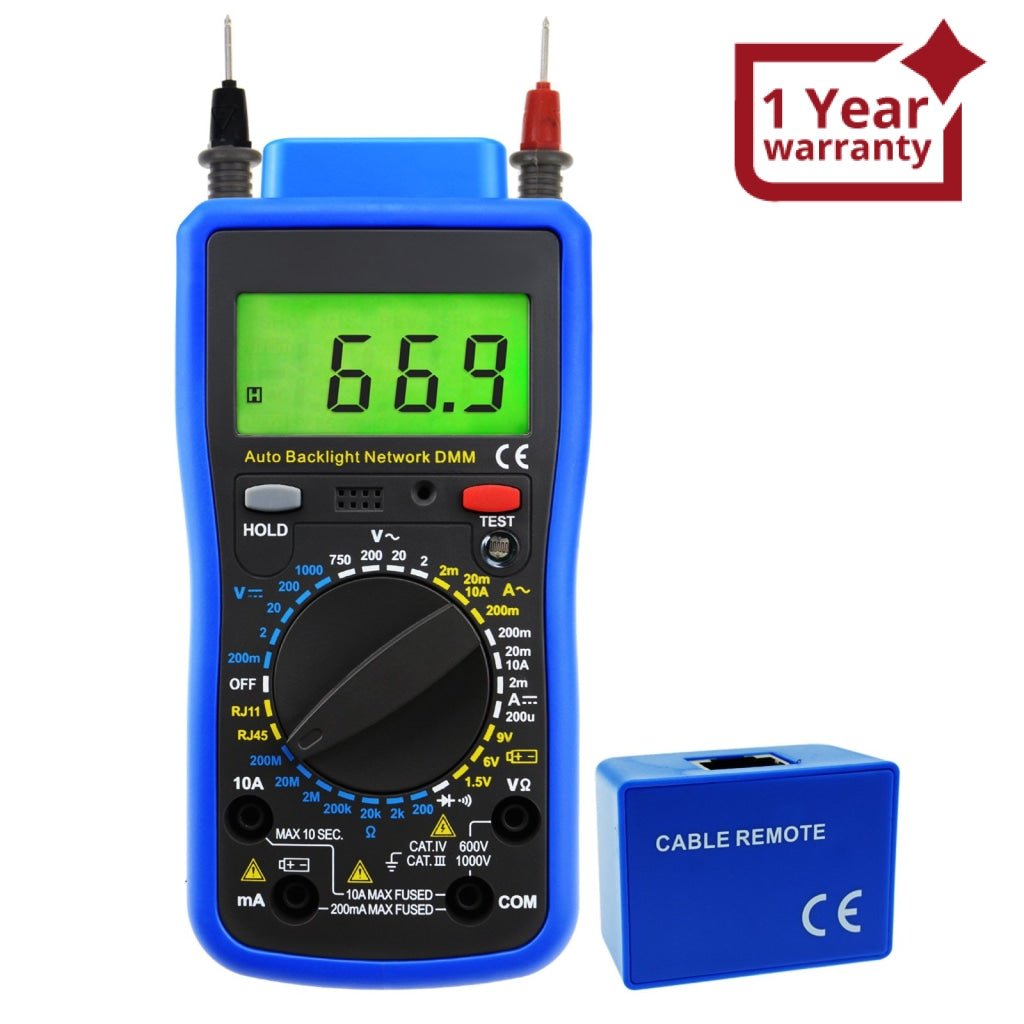

This slim and portable Network Digital Multimeter has stable performance and anti-dropping capacity. 1999 maximum and offer clear 16mm character readings. With circuitry design centering on large-scale IC A/D converters in conjunction and overload protection circuit, providing excellent performance making it a perfect handy utility instrument.

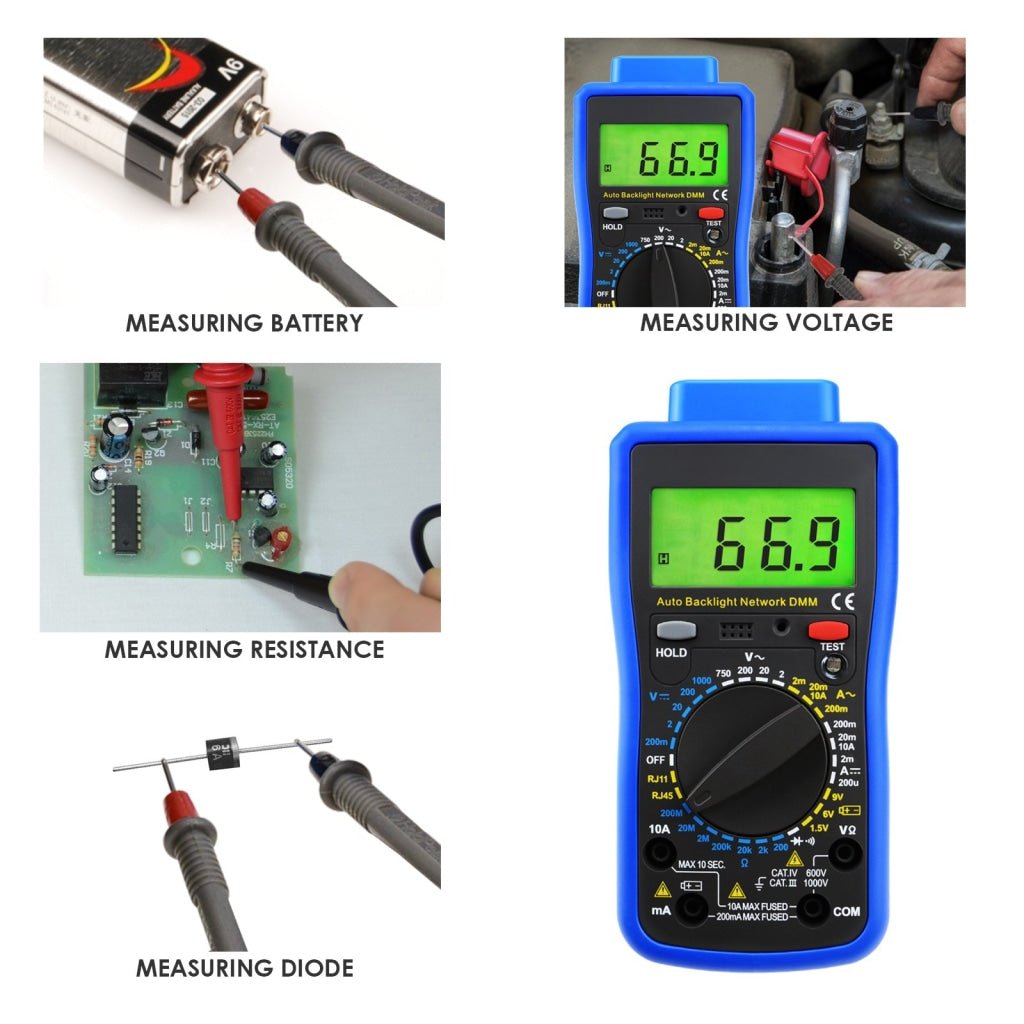

The meter is used to measure DC & AC voltage, DC & AC current, Resistance, Battery, Positive Diode voltage fall and audible continuity. It can be used to test Network Cable (RJ45) and telephone line (RJ11) too.

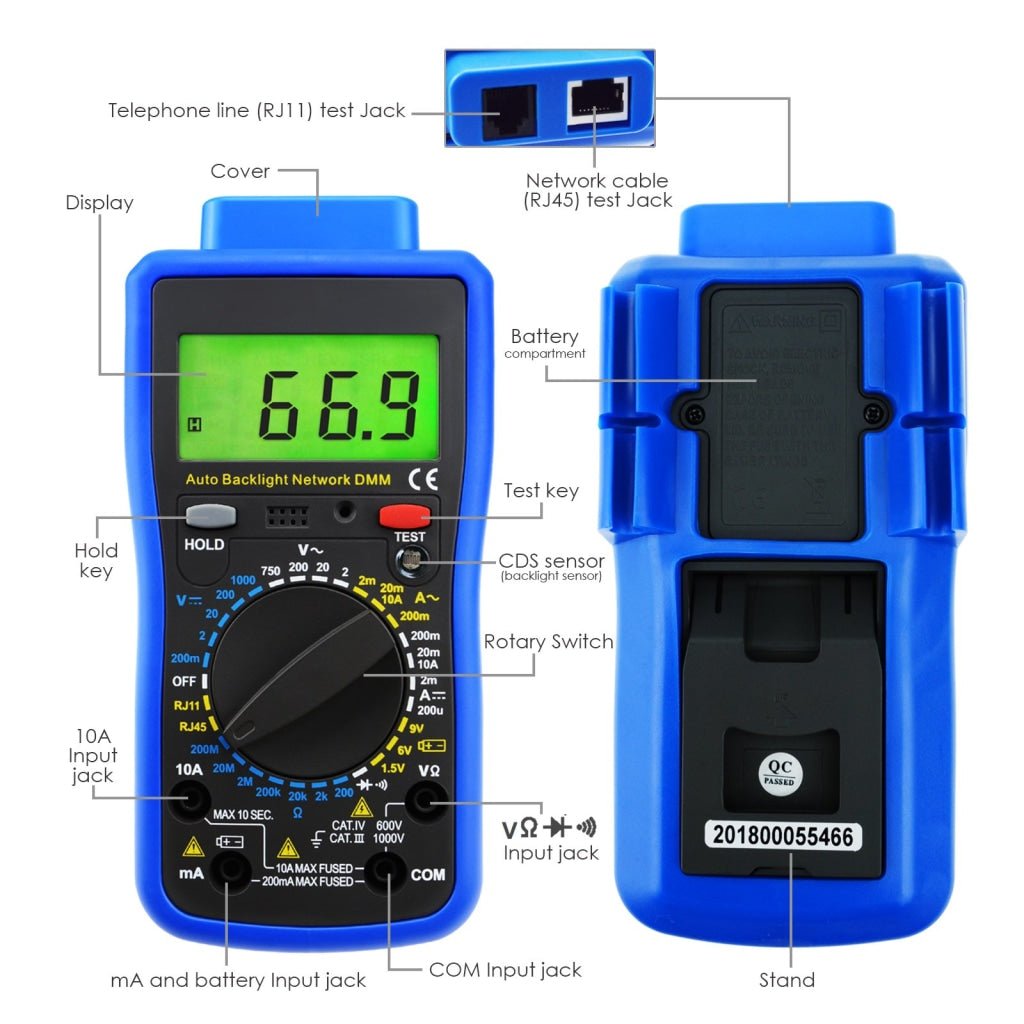

Features:

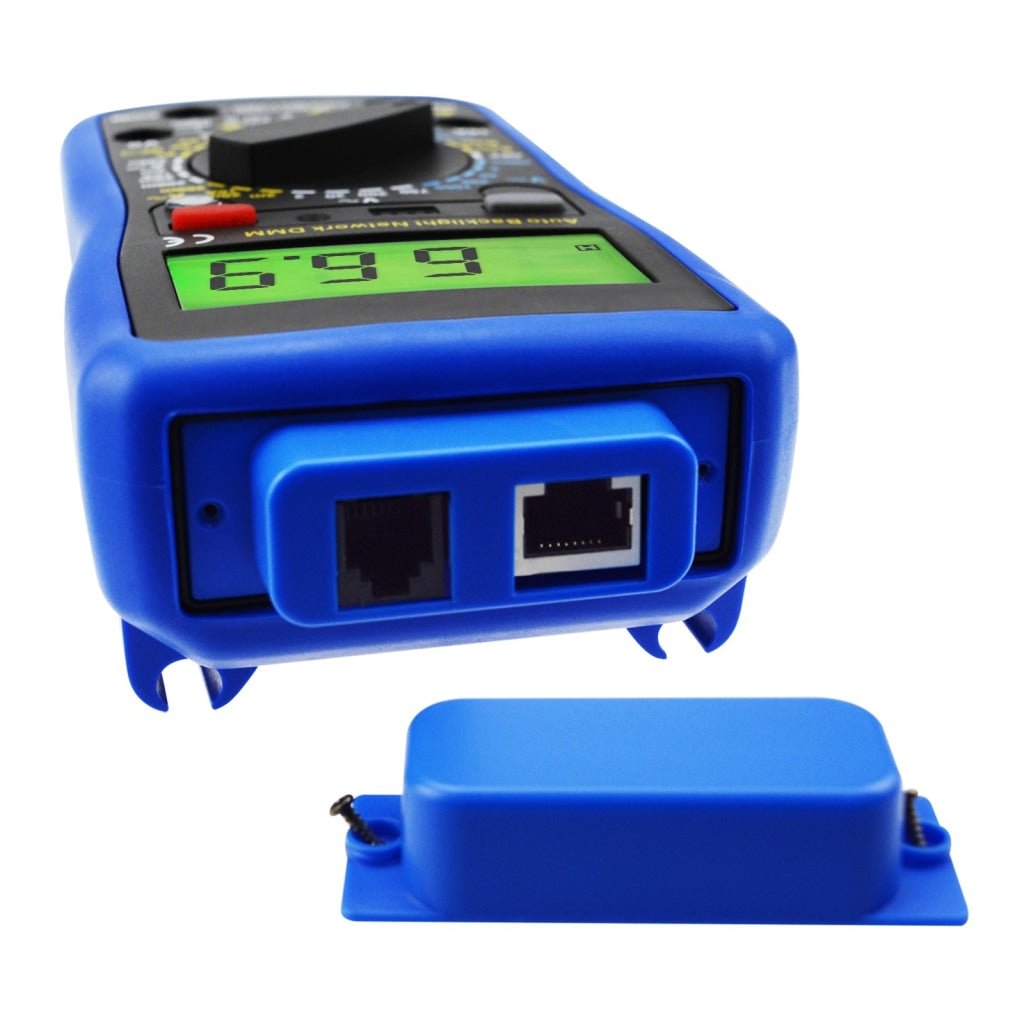

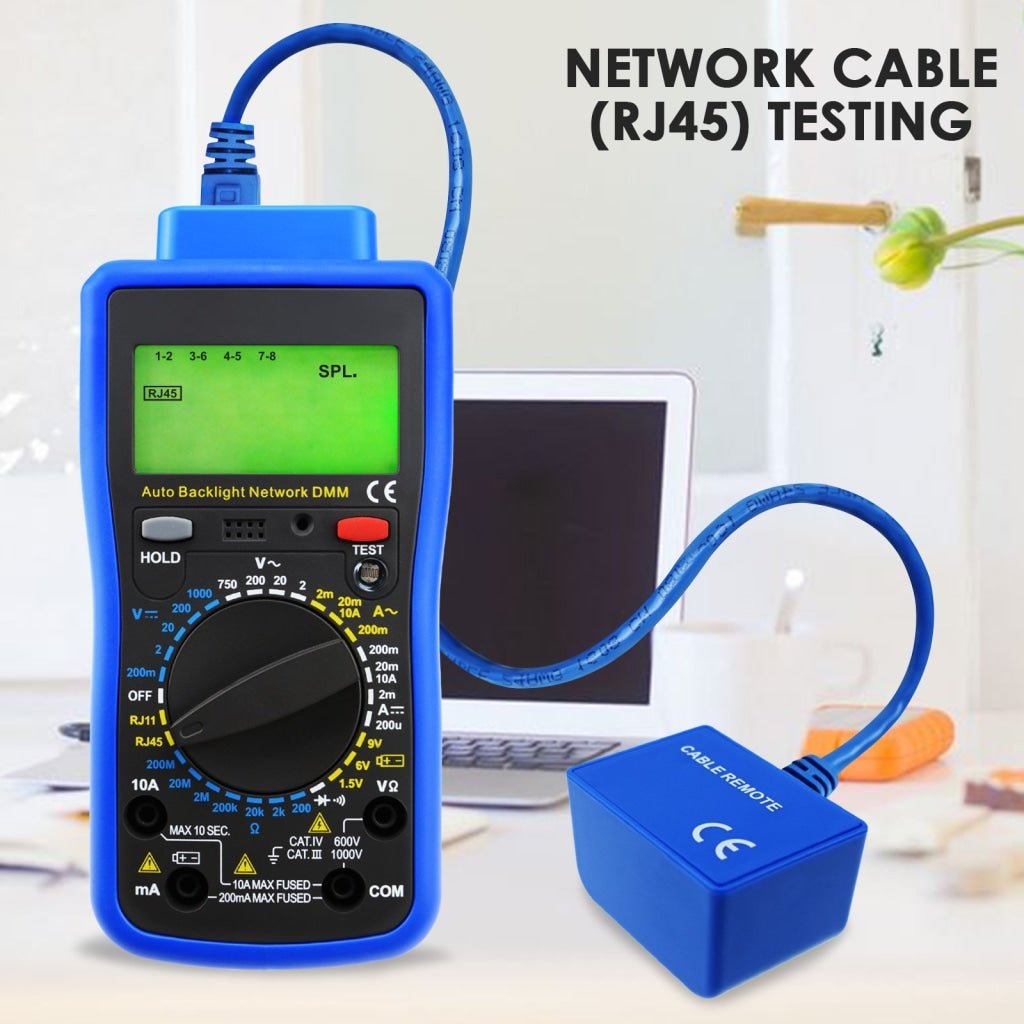

  • Network Cable (RJ45) test indication, display "RJ45"

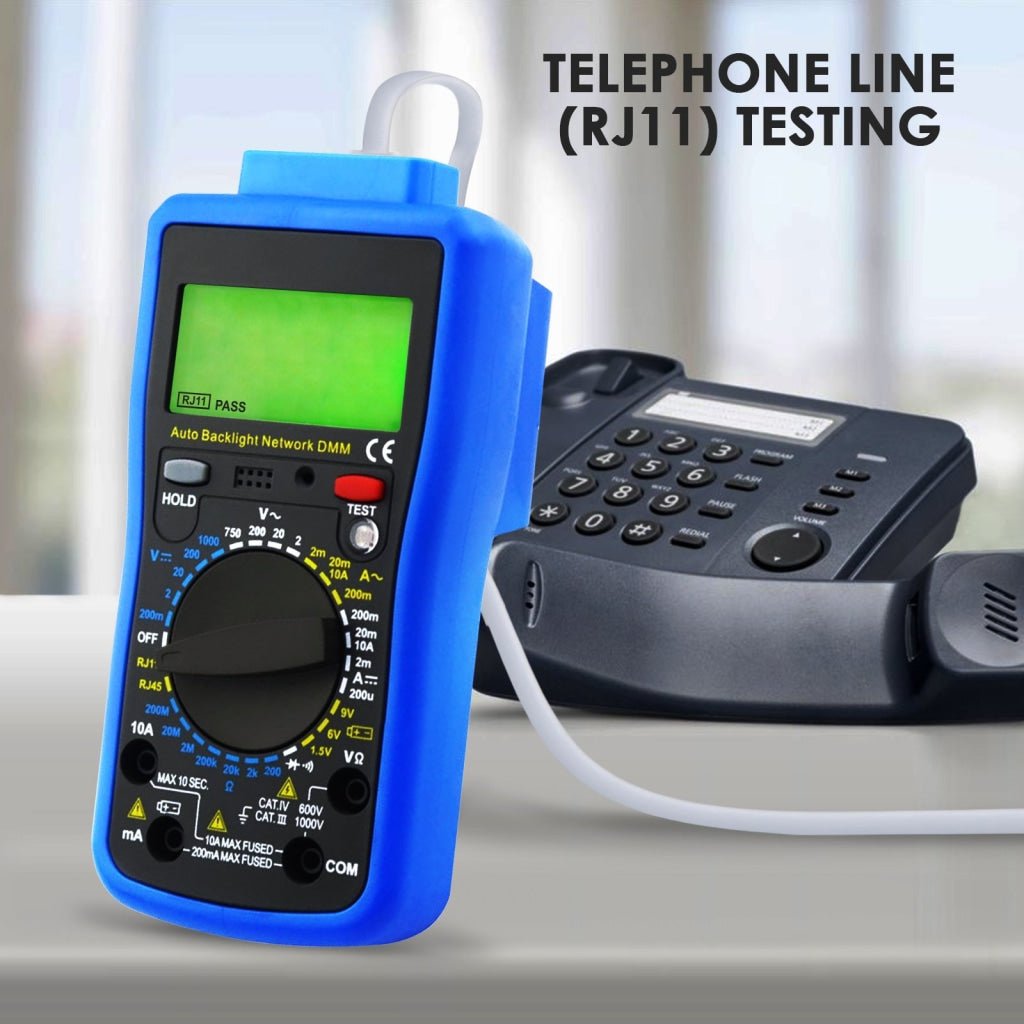

  • Telephone line (RJ11) test indication, display "RJ11"
  • Auto / Manual range
  • Data Hold Function
  • Backlight Function with CDS sensor
  • Auto Power off
  • Over-range indication display
  • Automatic display of negative polarity
  • Low battery indication
  • MAX/MIN value
  • Designed according to IEC-1010 with over-voltage category CAT III 1000V & CAT IV 600V and pollution 2
  • Double insulation (protection Class II)


Specifiction:

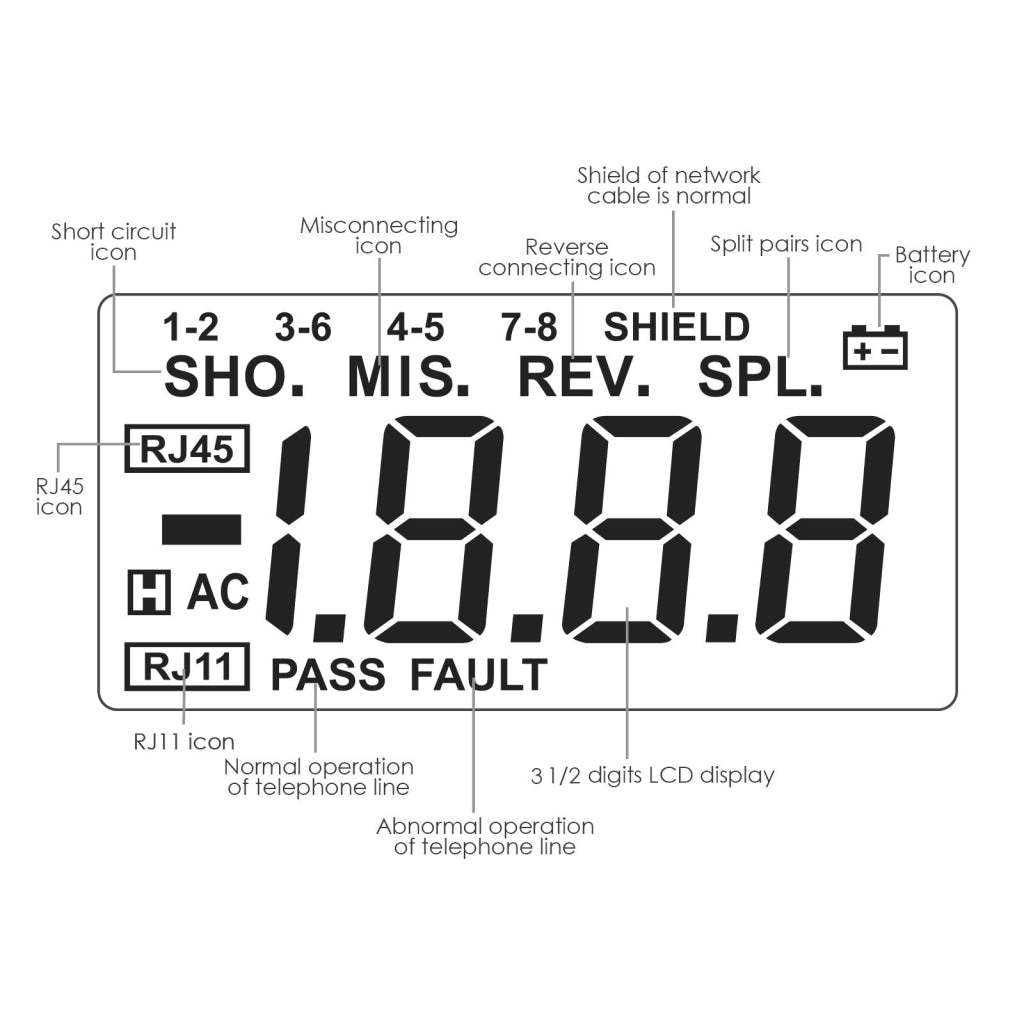

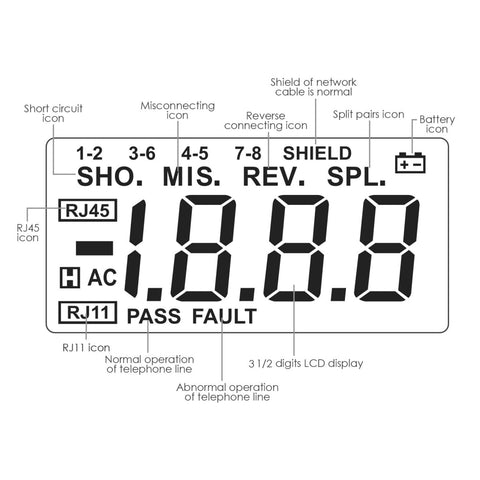

  • Display: 3 1/2 digit LCD with a max of 1999 reading
  • Fuse Protection: 200mA/500V & 10A/500V Fast Fuse

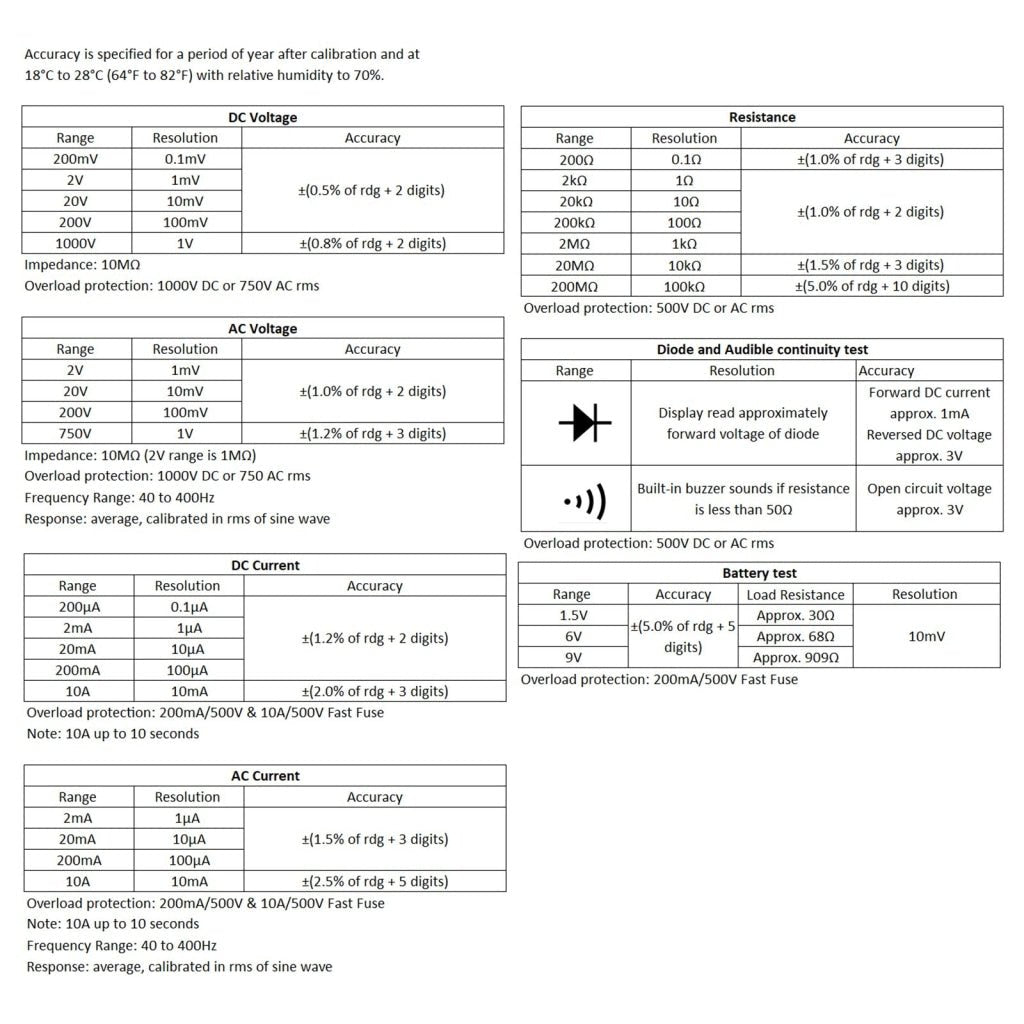

  • Testing Specifications:
    • DC Voltage: 200mV ~ 1000V
    • AC Voltage: 2V ~ 750V
    • DC Current: 200μA ~ 10A
    • AC Current: 2mA ~ 10A
    • Resistance: 200Ω ~ 200MΩ
    • Diode and Audible continuity test: Yes
    • Battery Test: Yes
    • Telephone line (RJ11) test: Yes
    • Network cable (RJ45) test: Yes
  • Power Supply: 9V battery (6F22 or NEDA 1604)
  • Operating Environment: 0~40°C (relative humidity <85%)
  • Storage Environment: -10~50°C (relative humidity <85%)
  • Guaranteed Precision Temperature: 25 5°C (relative humidity <70%)

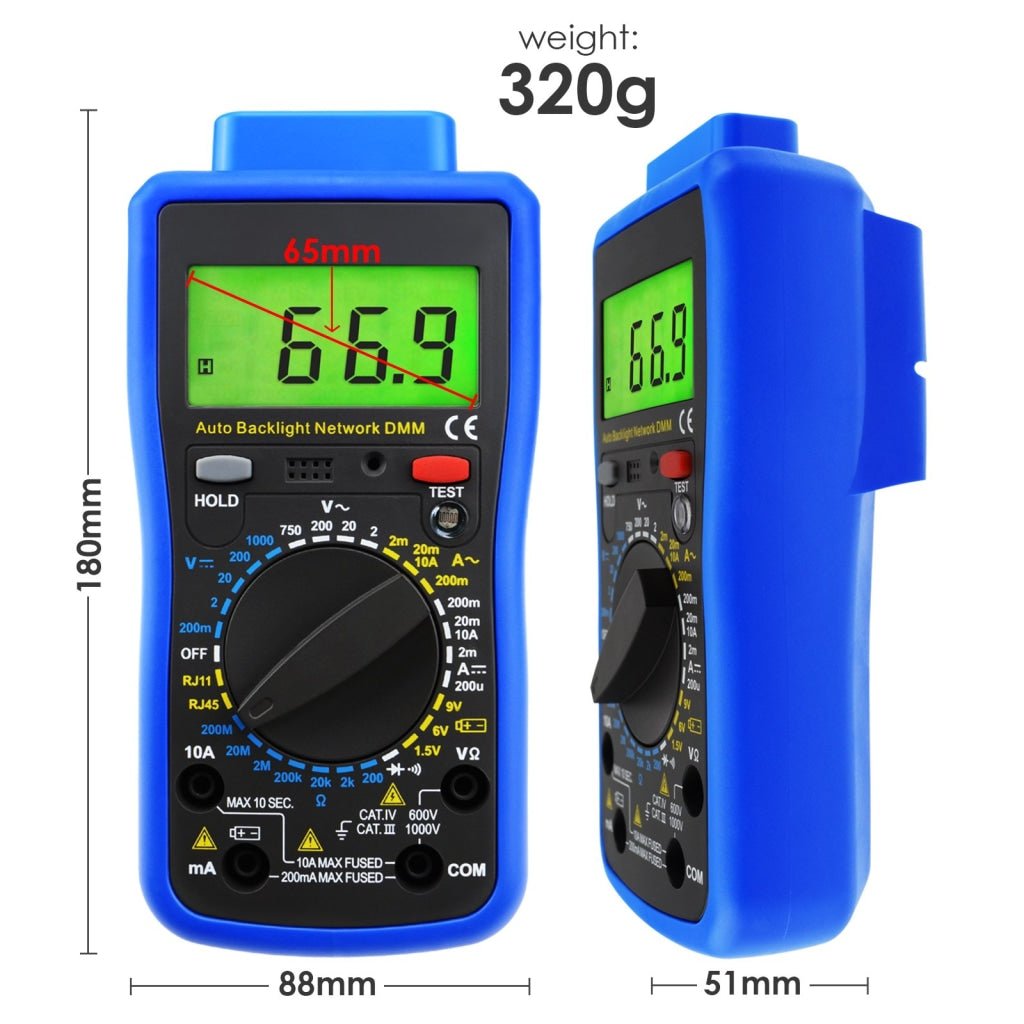

  • Dimension: 180 x 88 x 51mm
  • Weight: approx. 320g (including battery)

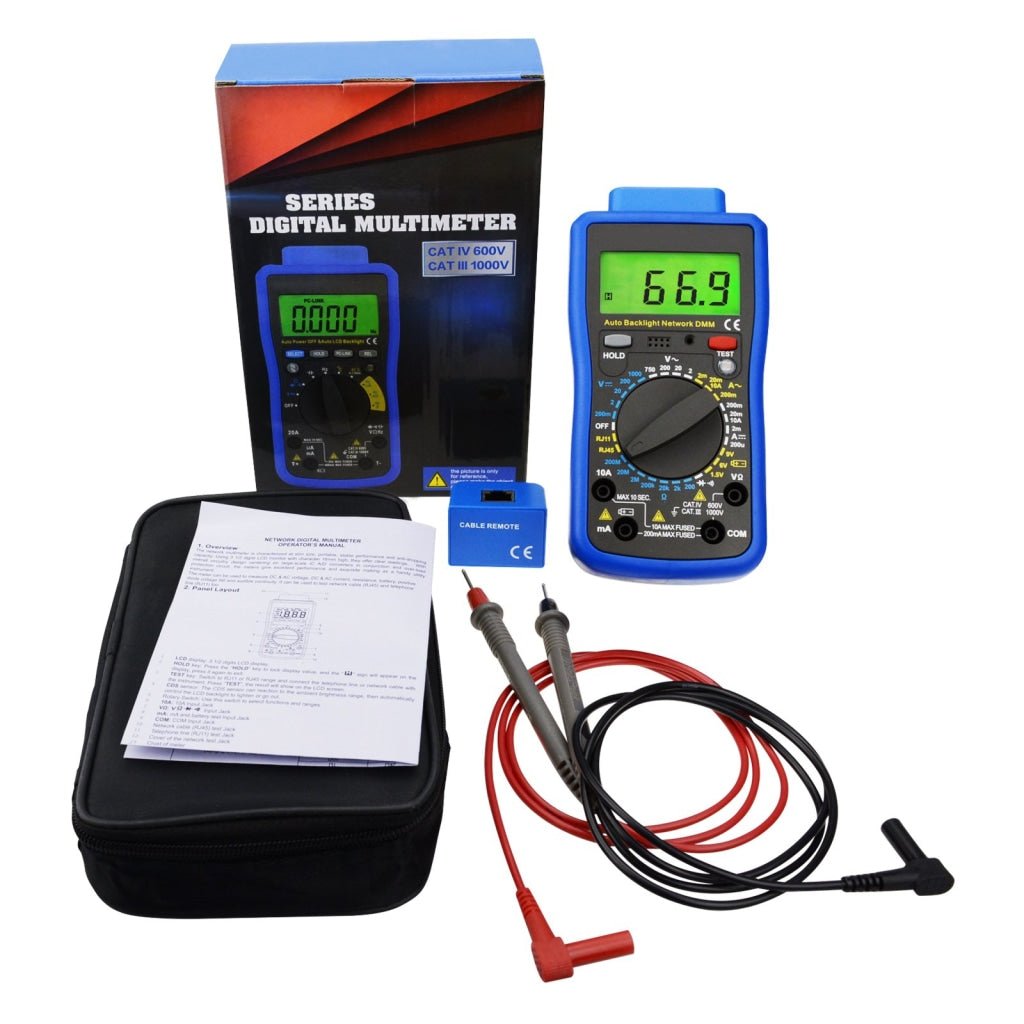

Set Includes:

  • 1 x Network Digital Multimeter
  • 1 x Pair of Test Leads (Electric Rating 1000V 10A)

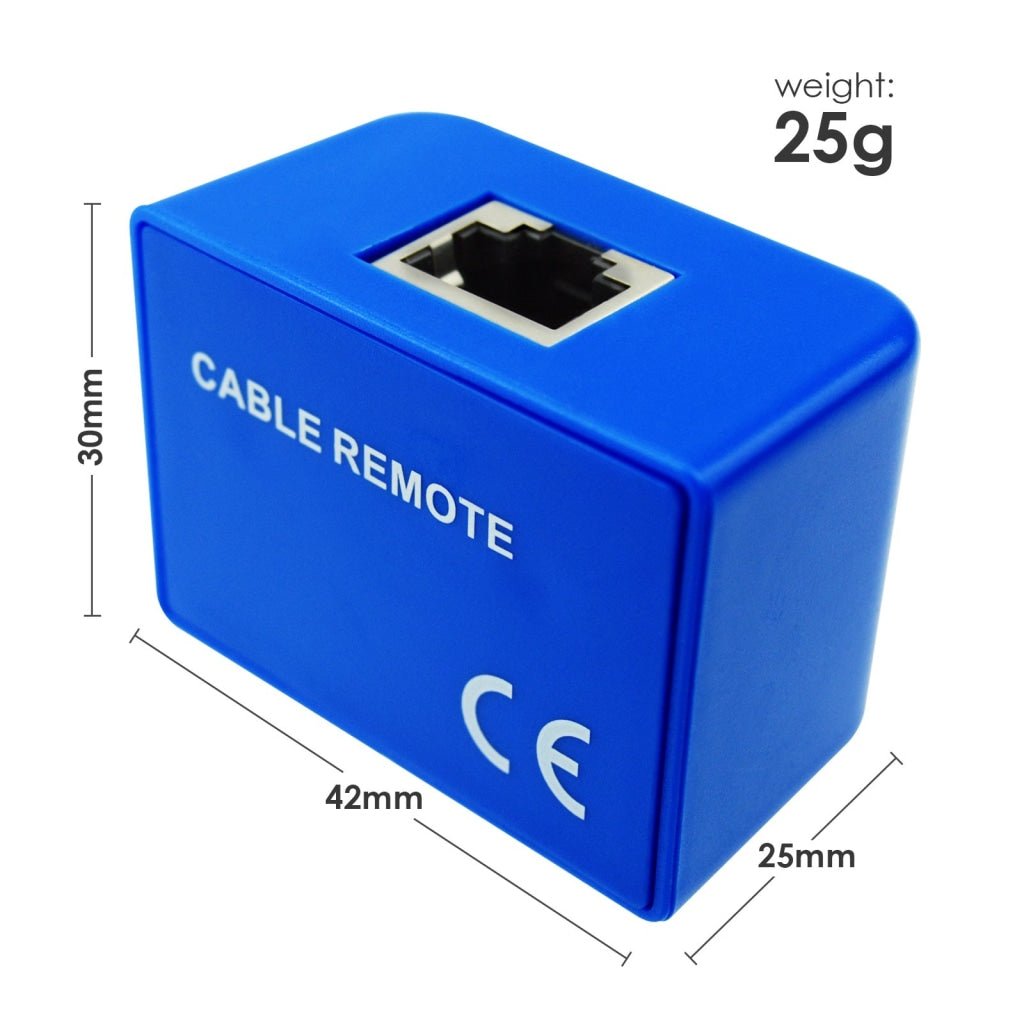

  • 1 x Network Cable Remote
  • 1 x English Instruction Manual
  • 1 x Nylon Carrying
  • 1 x 9V Battery
  • Standard factory packaging
