TM-197 AC / DC Gaussmeter Magnetic Field Strength Meter Teslameter Magnetometer 3000mT (30000 Gauss)

  • 0% OFF
  • Regular price

    $195.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Application:

  • Measure the magnetic field generated from Direct Current (DC, with display by N/S Magnetic polarity) or
    Alternating Current (AC in 40~500Hz)
  • Measurement of the residual magnetic after processing of mechanical parts
  • Measure the residual magnetic generated from the stress after processing of stainless material
  • Measurement of the magnetic force of magnetic materials
  • Measure various steel materials with natural magnetism
  • Measure the magnetic field strength of motors in various electrical appliances
  • Measure the magnetic field strength of permanent magnets
  • Detect the magnetic field leakage generated from superconductive magnets

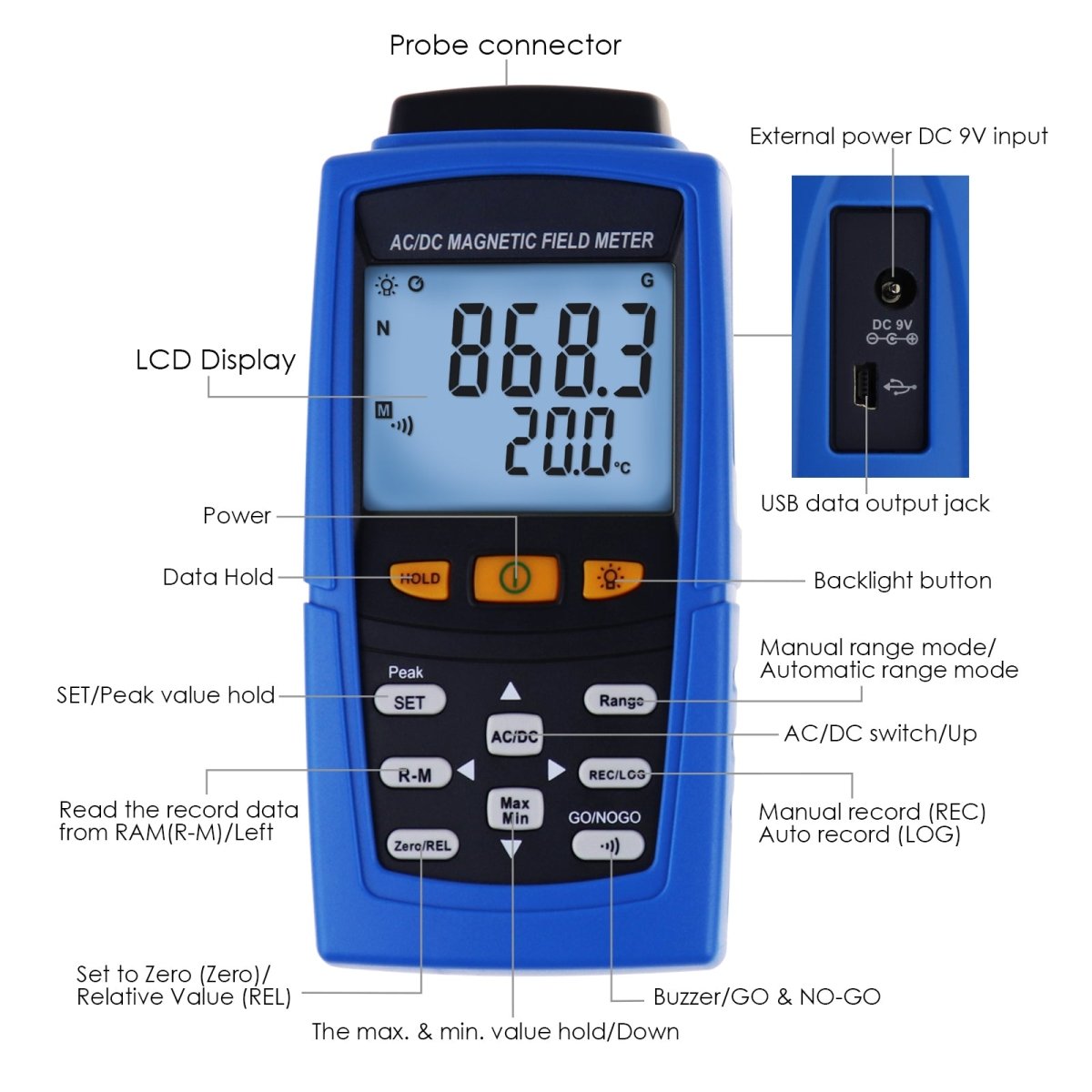

Features:

  • Data HOLD and backlight function
  • Automatic and manual range function
  • Relative / Peak Hold / Real-time Zeroing function
  • Manual / Auto Record
  • ON/OFF Buzzer
  • MAX/MIN value display
  • AC/DC Switching magnetic field measurement

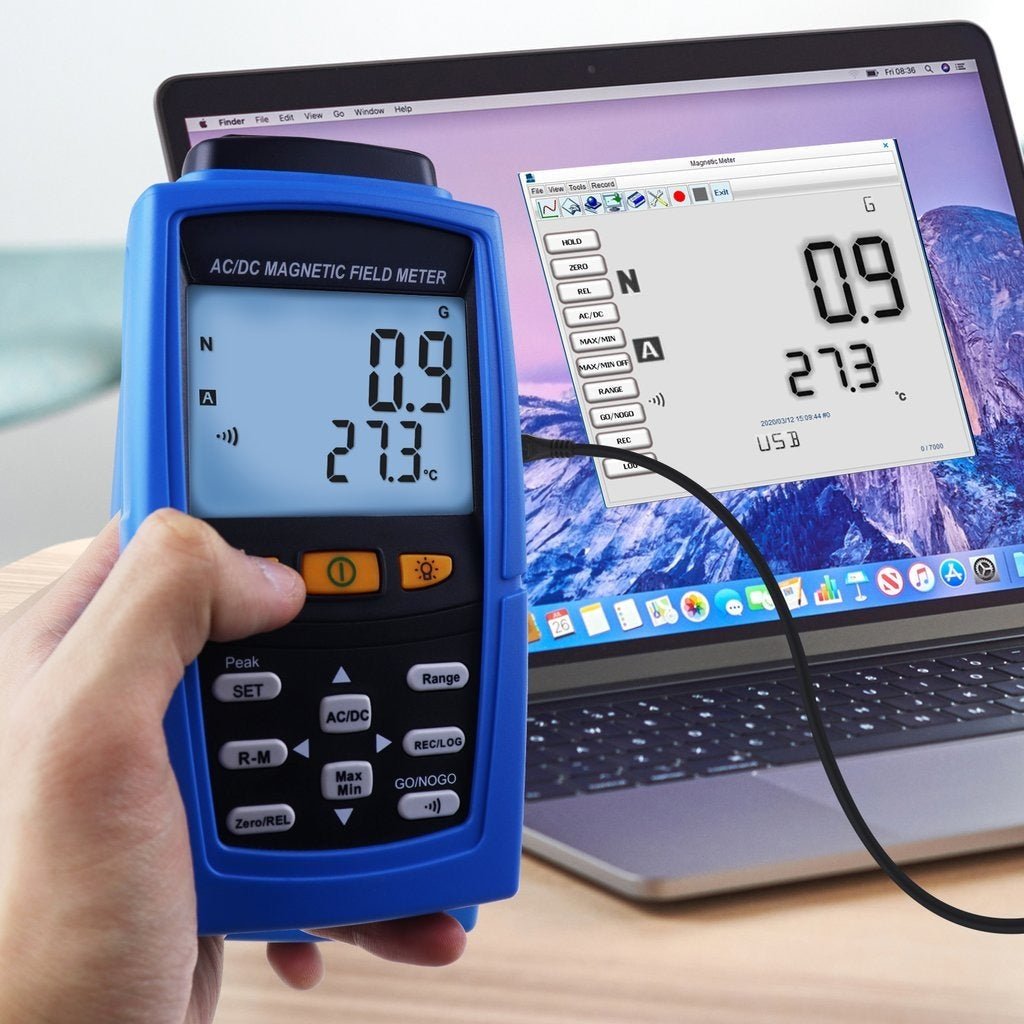

  • Data transfer via USB cable and CD software
  • Selectable Unit of measurement (G / mT, °C / °F)
  • Calendar (year/month/date) and time (hour/minute) setting
  • Auto / Manual power-off function
  • Battery low indicator
  • Compatible with Windows 7 / 10 operating system
  • Quality Product Made in Taiwan


Specifications:

  • Screen: 5 digit LCD screen displaying up to 30000 value

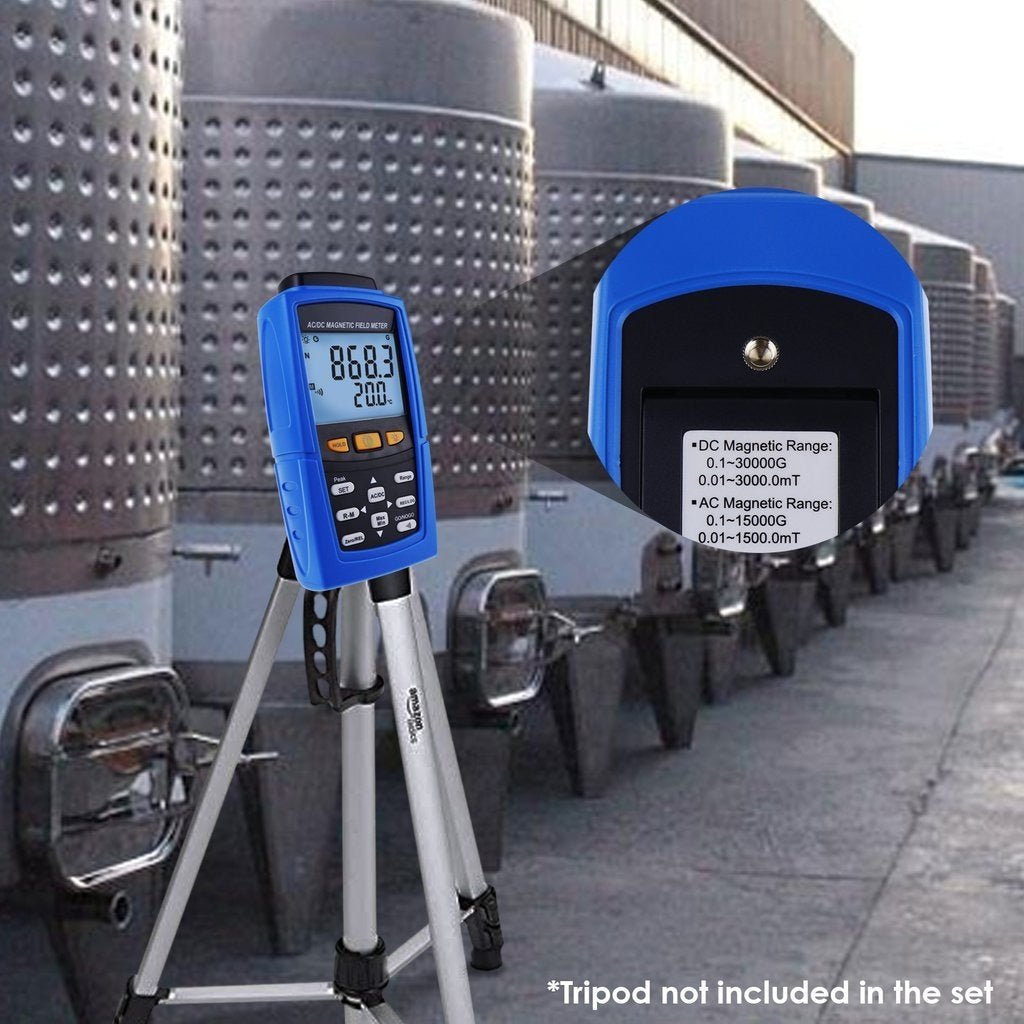

  • Measurement range: 0~3000mT(milli Tesla)/0~30000G(Gauss)
  • Conversion of units: 1mT(milli Tesla) = 10G (Gauss)
  • Recording:
    • Manual: up to 200 logs
    • Automatic: up to 7000 logs (record interval shall be setup in PC)
  • Electrical Specifications: Accuracy is indicated as [% rdg + dgt] at 23°C ± 5°C with RH < 80%.
    • DC milli Tesla
      • Range: 300.00 mT; Resolution: 0.01 mT; Accuracy: ±(4% + 10dgt)
      • Range: 2000.0 mT; Resolution: 0.1 mT; Accuracy: ±(4% + 10dgt)
      • Range: 2000.1~3000.0 mT; Resolution: 0.1 mT
    • DC Gauss
      • Range: 3000.0G; Resolution: 0.1G; Accuracy: ±(4% + 10dgt)
      • Range: 20,000G; Resolution: 1G; Accuracy: ±(4% + 10dgt)
      • Range: 20,001~30,000G; Resolution: 1G
    • AC milli Tesla
      • Range: 150.00mT; Resolution: 0.01 mTl Accuracy: ±(5% + 20dgt)
      • Range: 1500.0mT; Resolution: 0.1 mT; Accuracy: ±(5% + 20dgt)
    • AC Gauss
      • Range: 1500.0G; Resolution: 0.1G; Accuracy: ±(5% + 20dgt)
      • Range: 15,000G; Resolution: 0.1G / 1G; Accuracy: ±(5% + 20dgt)
    • Temperature
      • Range: -20~50°C (-4~122°F)
      • Resolution: ±0.1°C (±0.1°F)
      • Tolerance: ±1.0°C (±1.8°F)
  • Operating Environment: 5~40°C (41~104°F), <80% RH
  • Storage Environment: 0~50°C (32~122°F), <70% RH

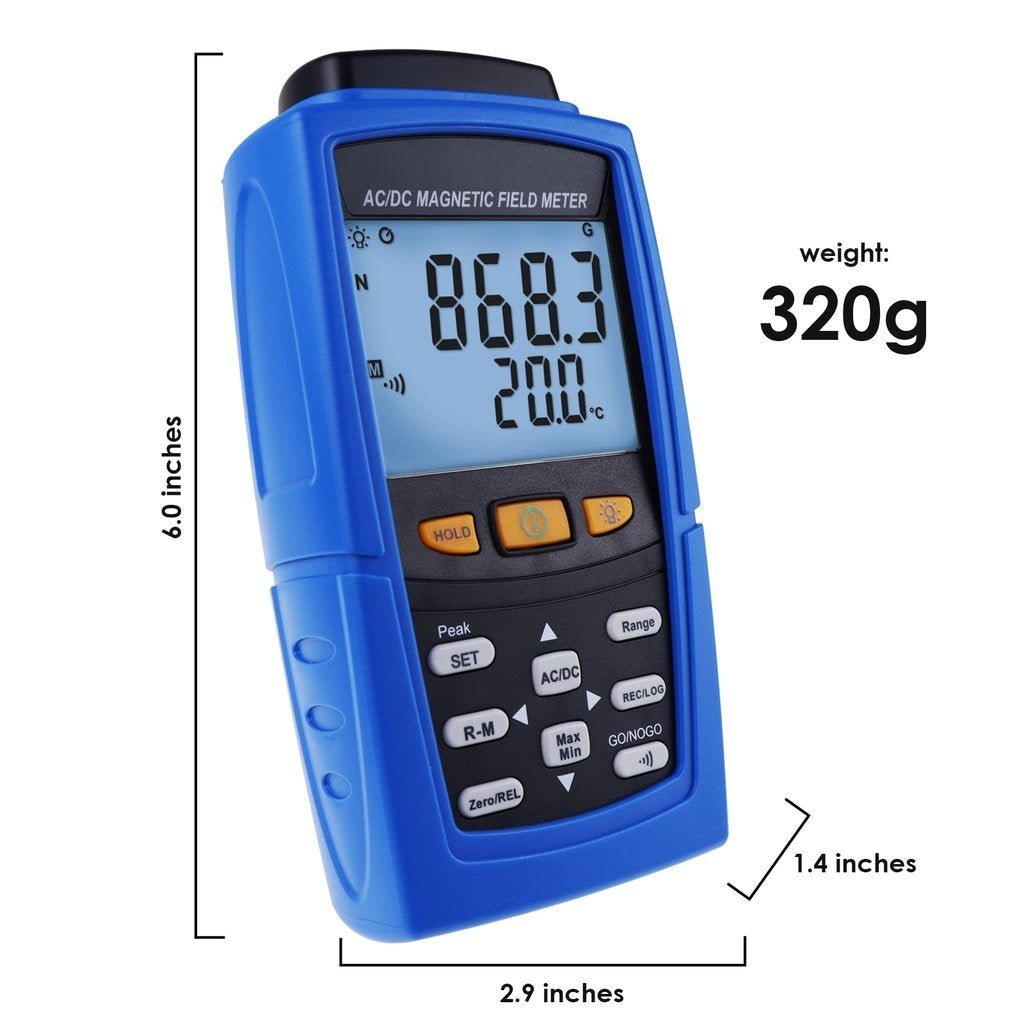

  • Weight: approx. 320gms (including battery)
  • Dimension: 156 x 73 x 35mm

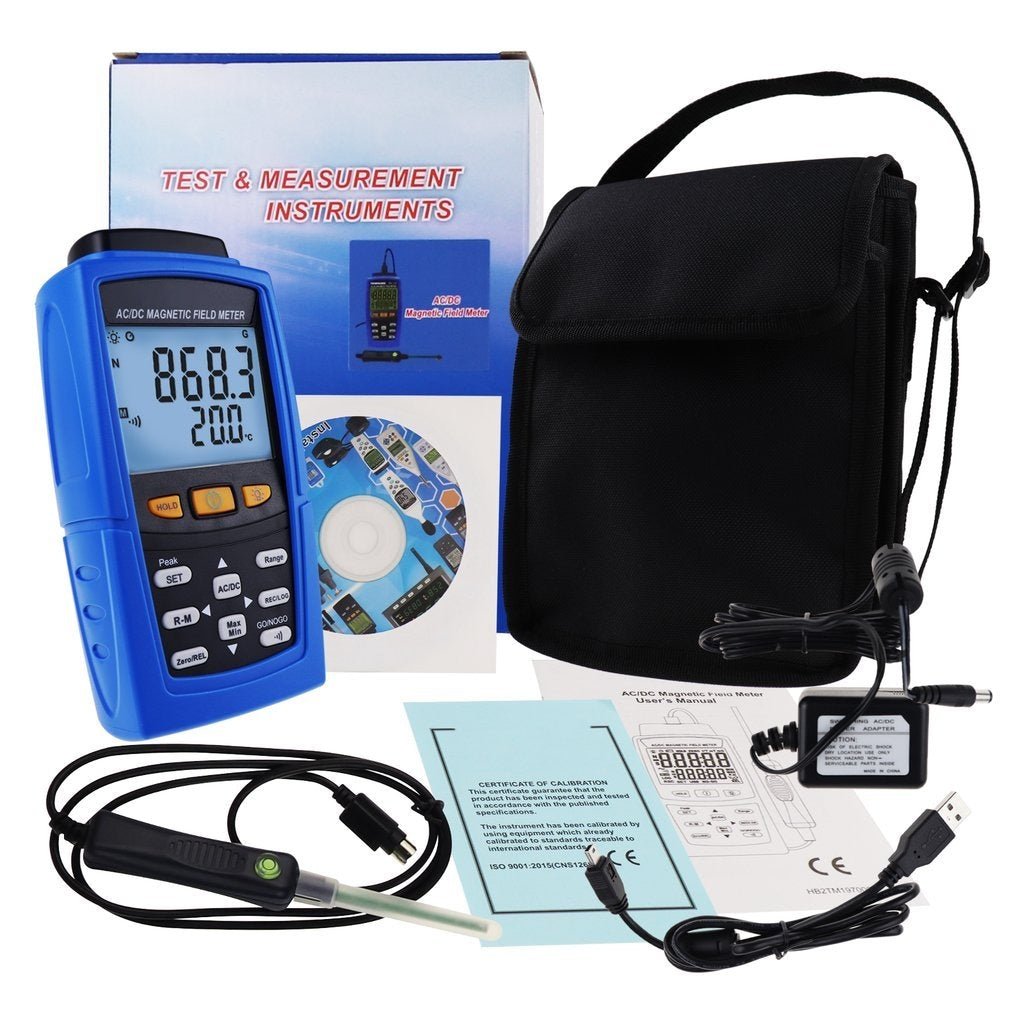

Set Includes:

  • 1 x Magnetic Field Meter

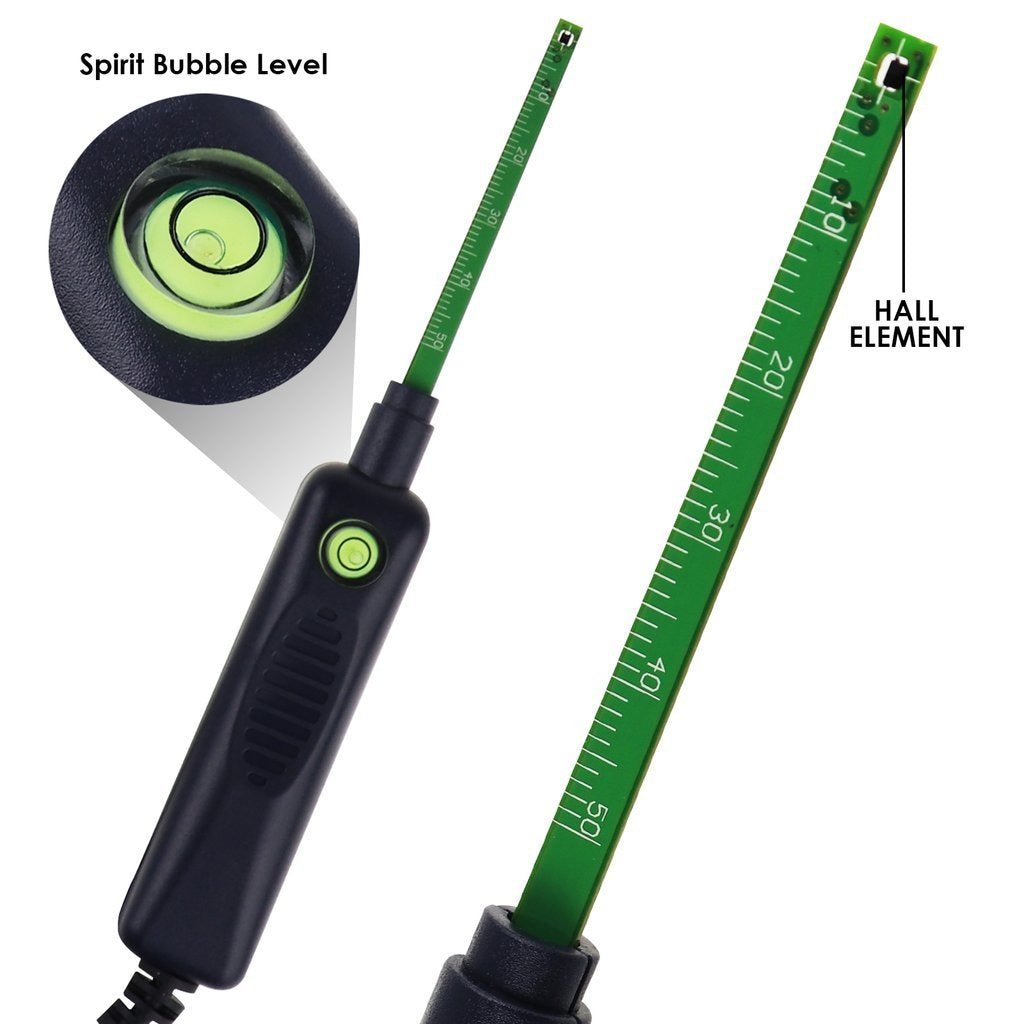

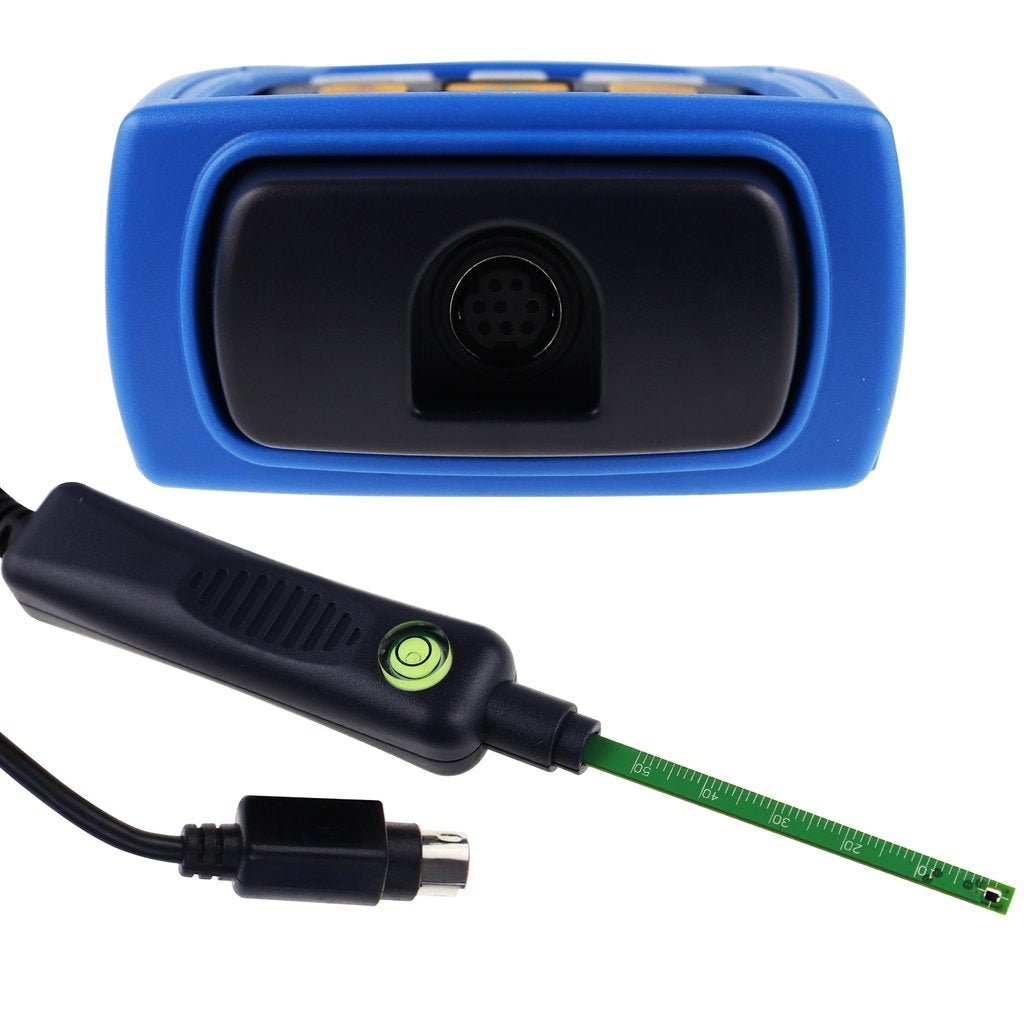

  • 1 x AC/DC Magnetic Probe

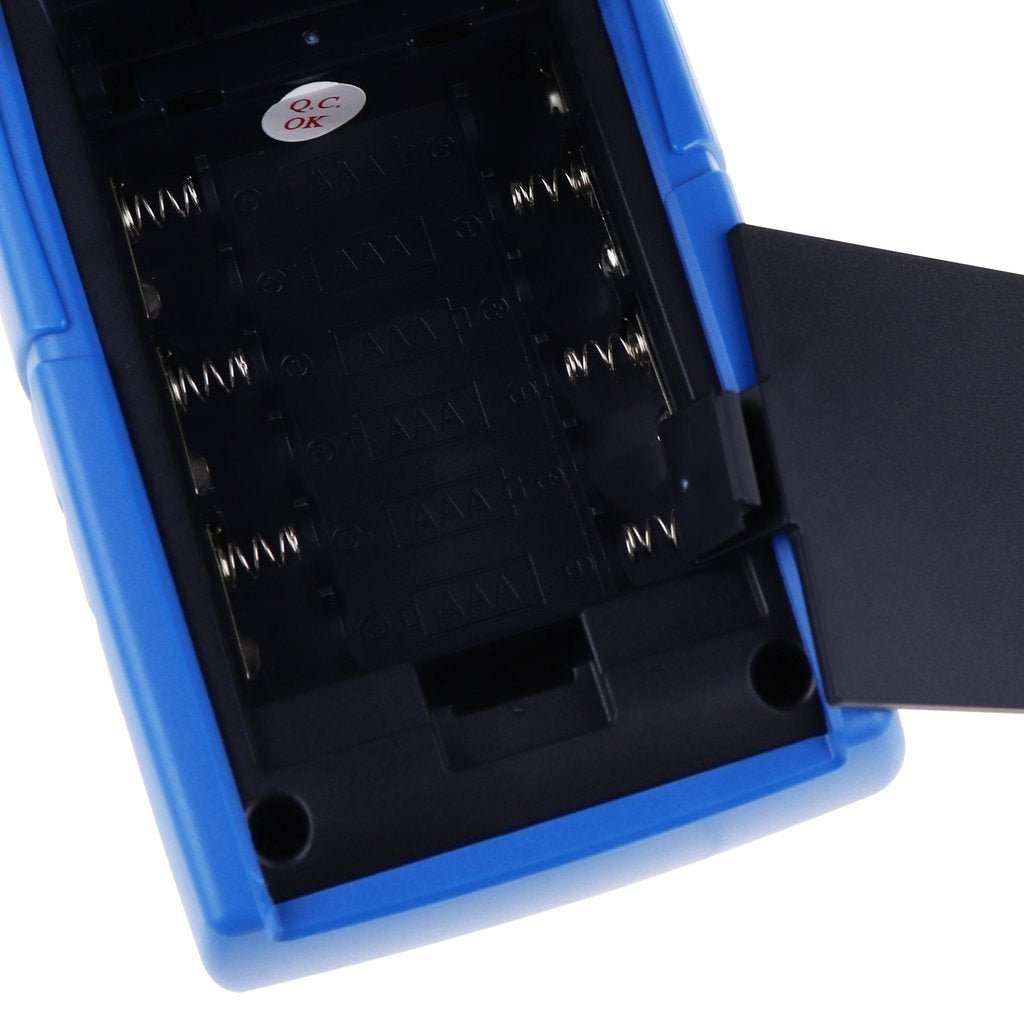

  • 6 x 1.5V (UM4/AAA) Battery

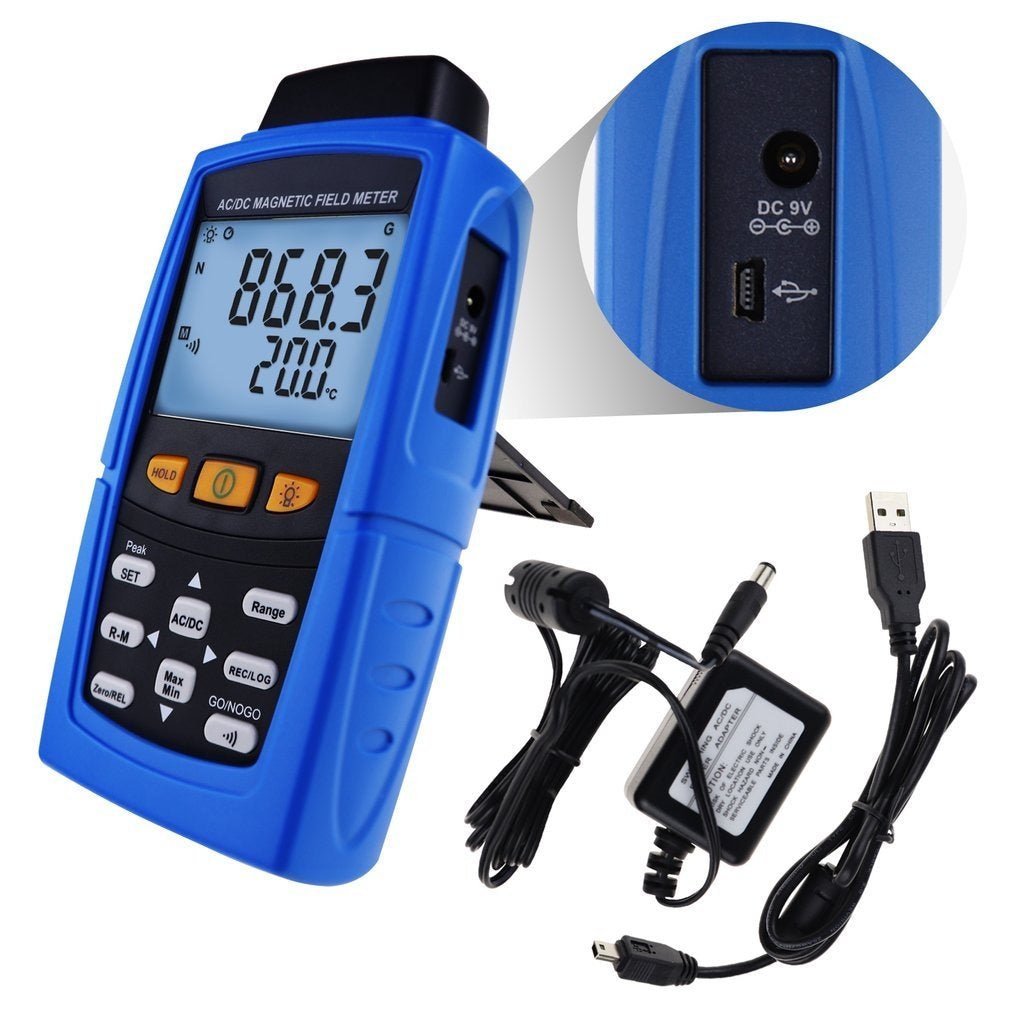

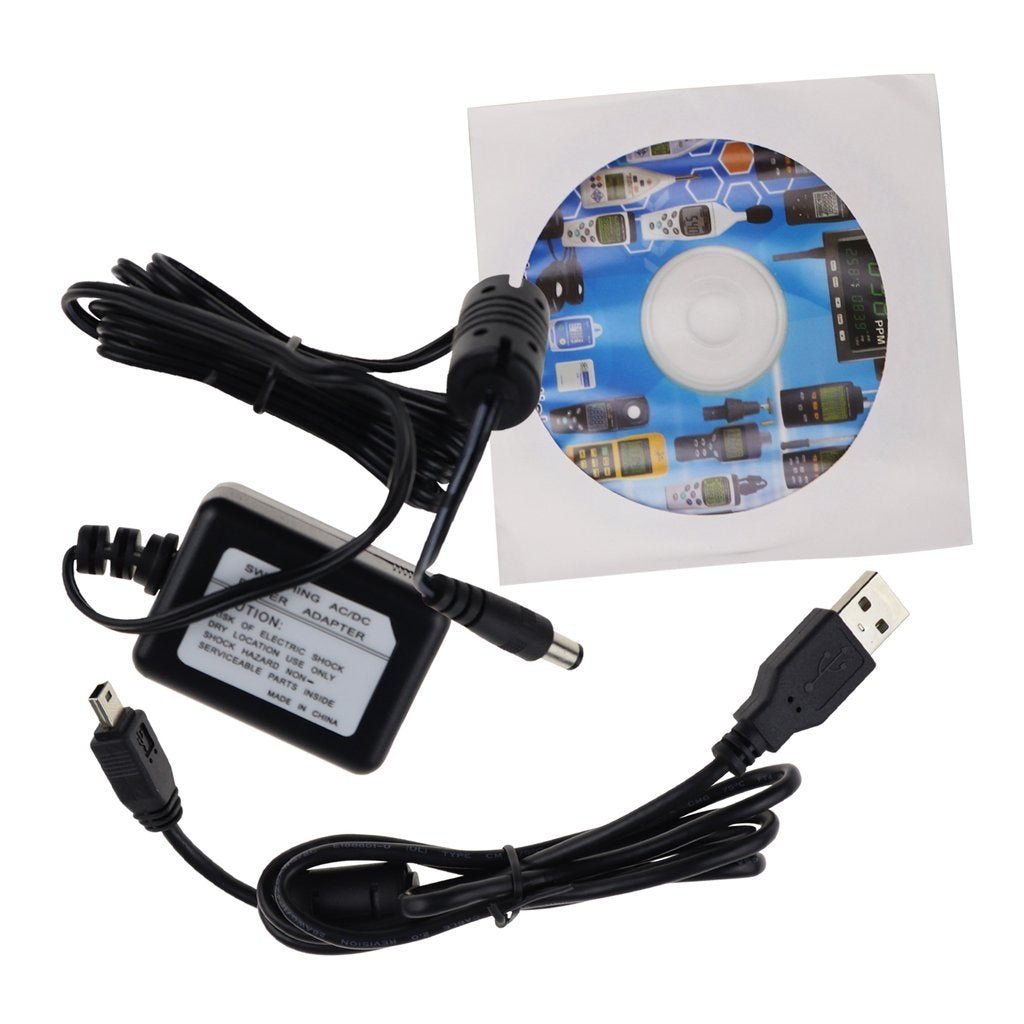

  • 1 x Power adapter DC 9V
  • 1 x USB Cable and installation disc
  • English Intruction Manual
  • Standard factory packaging
