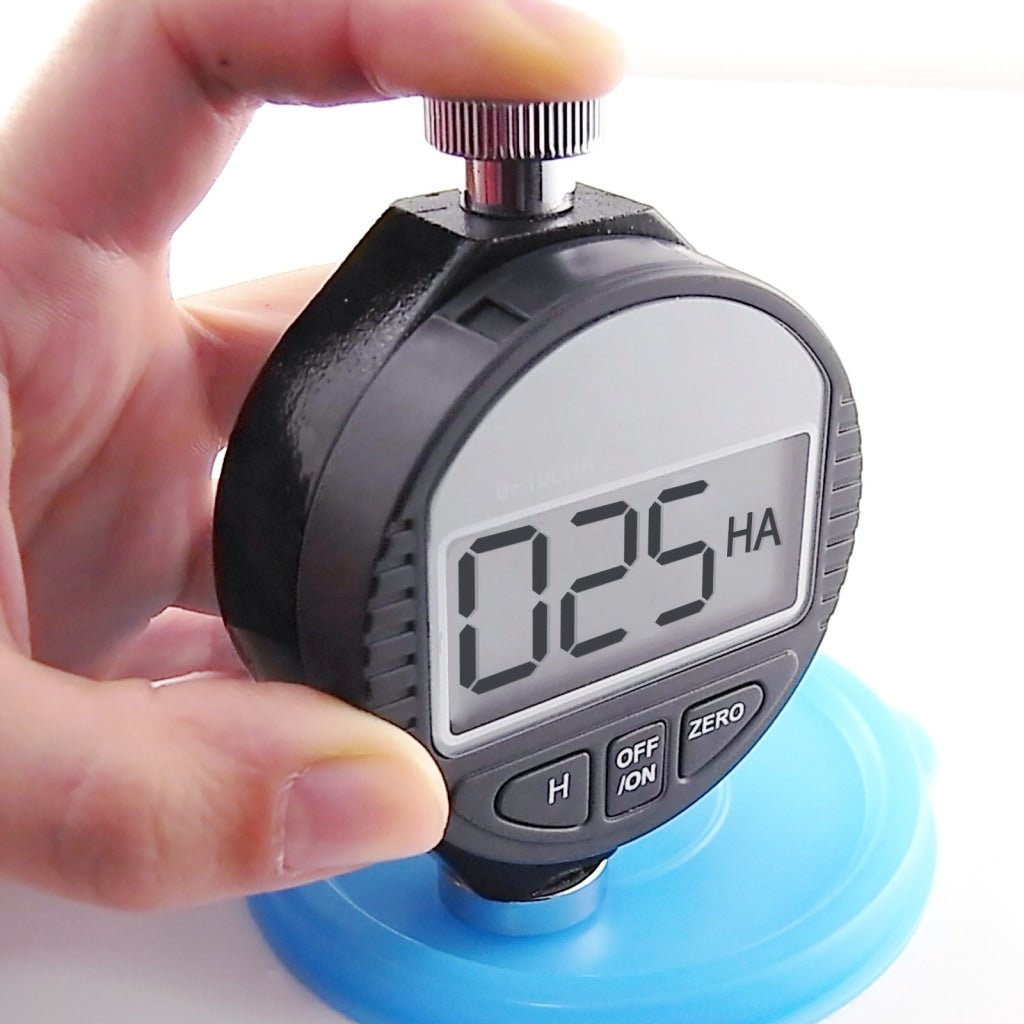

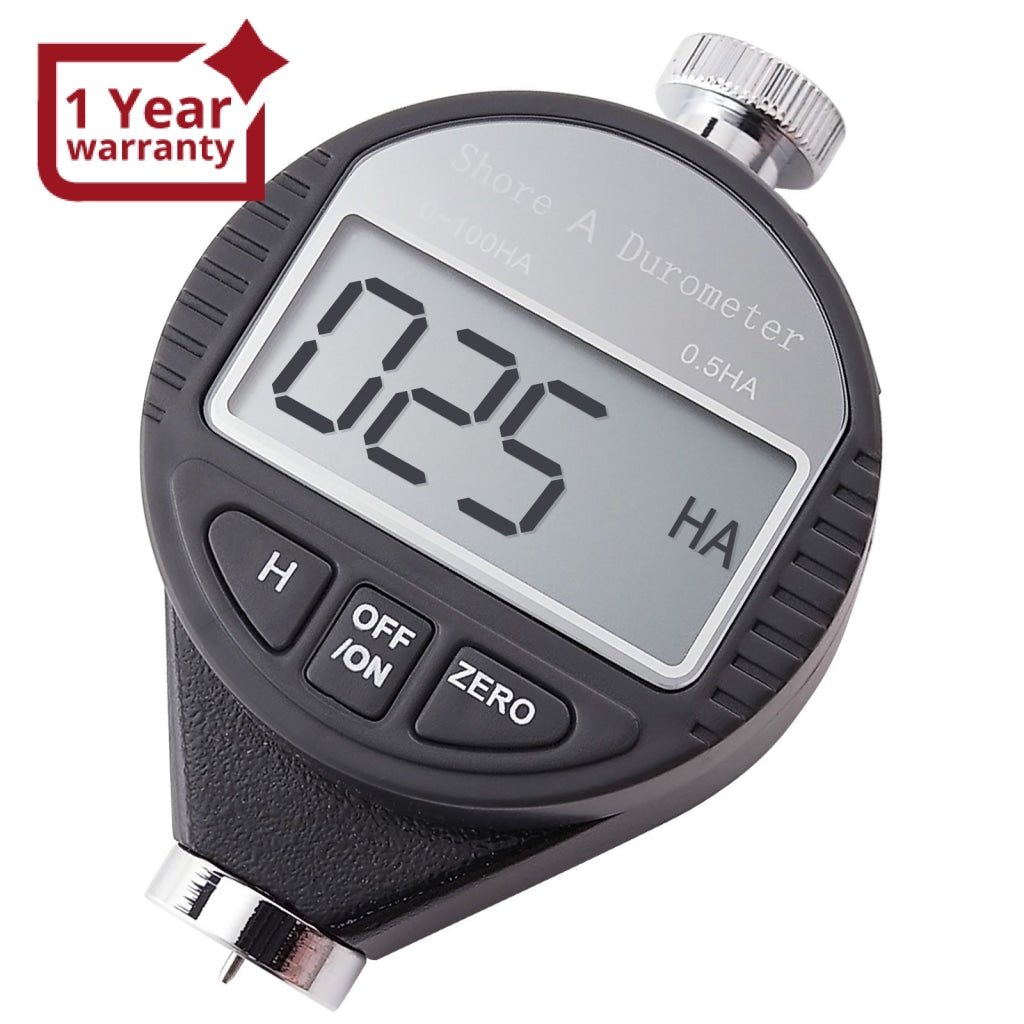

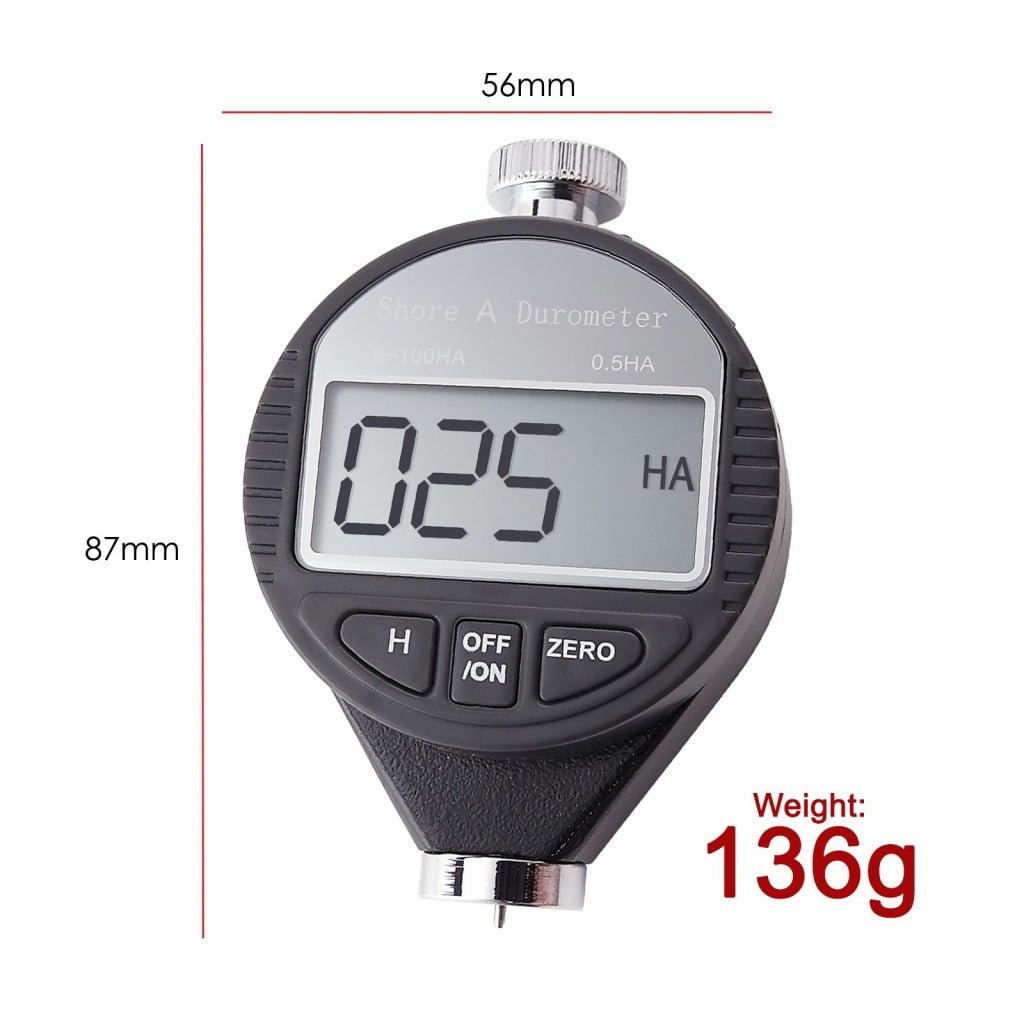

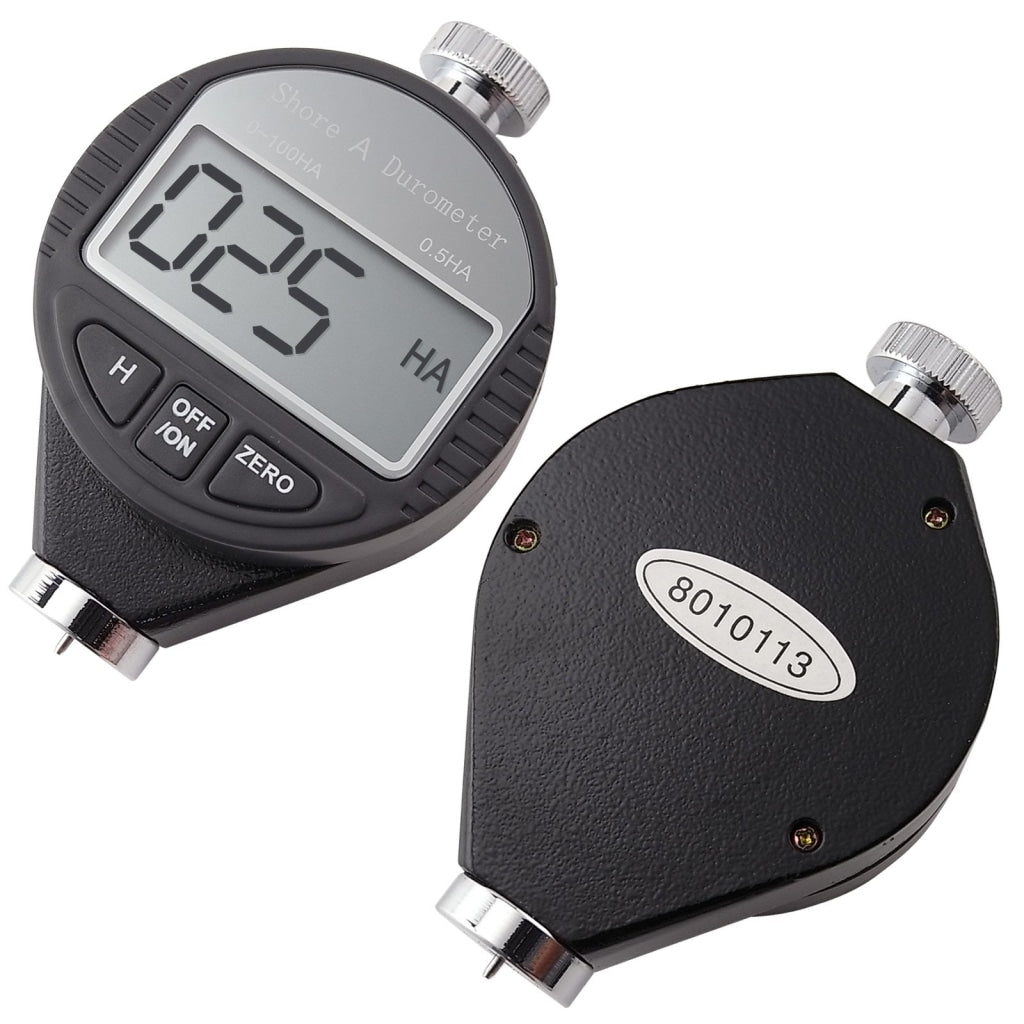

560-10A Shore A Digital Hardness Meter Durometer 0~100HA, Rubber Tire with LCD Display Pocket Size Tester

  • UP TO 0% OFF
  • Regular price

    $ 33.90 USD


Qty Price
1 - 5 $ 33.90 USD
6 - 20 $ 32.80 USD
21 - 49 $ 31.80 USD
50 - + $ 29.50 USD

Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Shore A Digital hardness testers are used to measure the hardness of rubber and plastics according to ISO 868-1986 and ISO 7619 and can be used as portable or desktop. It has 8.1N total measure force, 1kg outside pressure, pressure needle top cone angle of 35°, 2.5mm needle length, 0~100HA dial scale and features large LCD display for easy reading.

It corresponds and meets the rigorous standards of ISO 868-1986 for Plastics and Rigid rubber and ISO 7619 Rubber in measuring indentation's hardness as well as GB/T 531.1-2008 standard. Particularly in the materials technology hardness plays a huge role. The measured hardness of a body makes possible conclusions on its characteristics e.g. about how quickly it breaks or is being scratched.

Type A durometers are applicable to test the penetration medium hardness of rubber, plastic, leather, multi-grease, wax, etc.

NOTE:

  • A minimum thickness of 6mm as sample test probes is recommended for measurement's optimal results (if its less you may add more layer but should be not more than 3 layers) and measuring point of at least 18mm distance from the outside edges.
  • It is recommended that measurements be made with the type D durometer when the value is above 90 HA

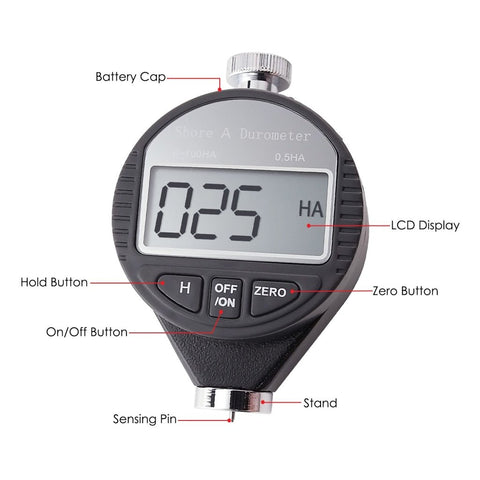

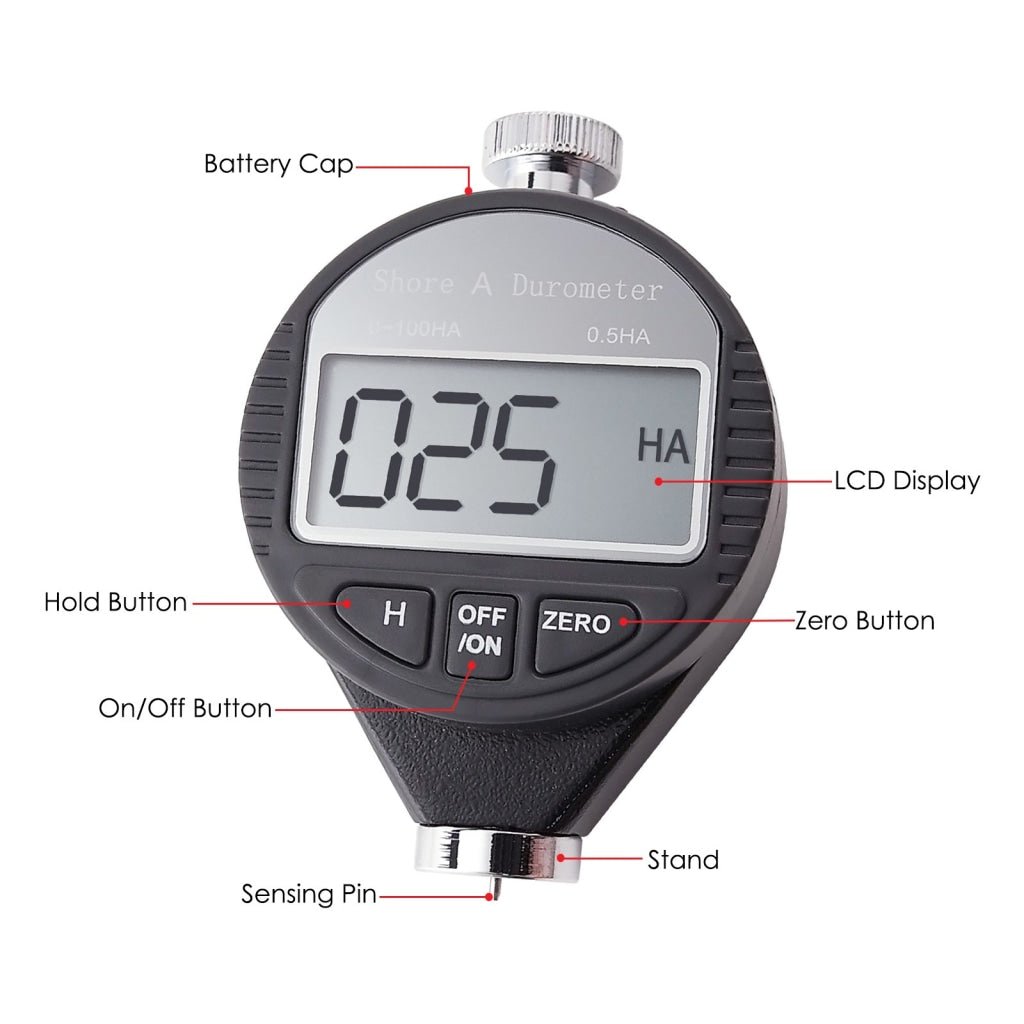

Features:

  • Wide measuring range with high resolution and ease of operation
  • Hold Function, holds measured value in test
  • With Zero setting
  • Clear test value
  • Dial Scale is 1-100HA

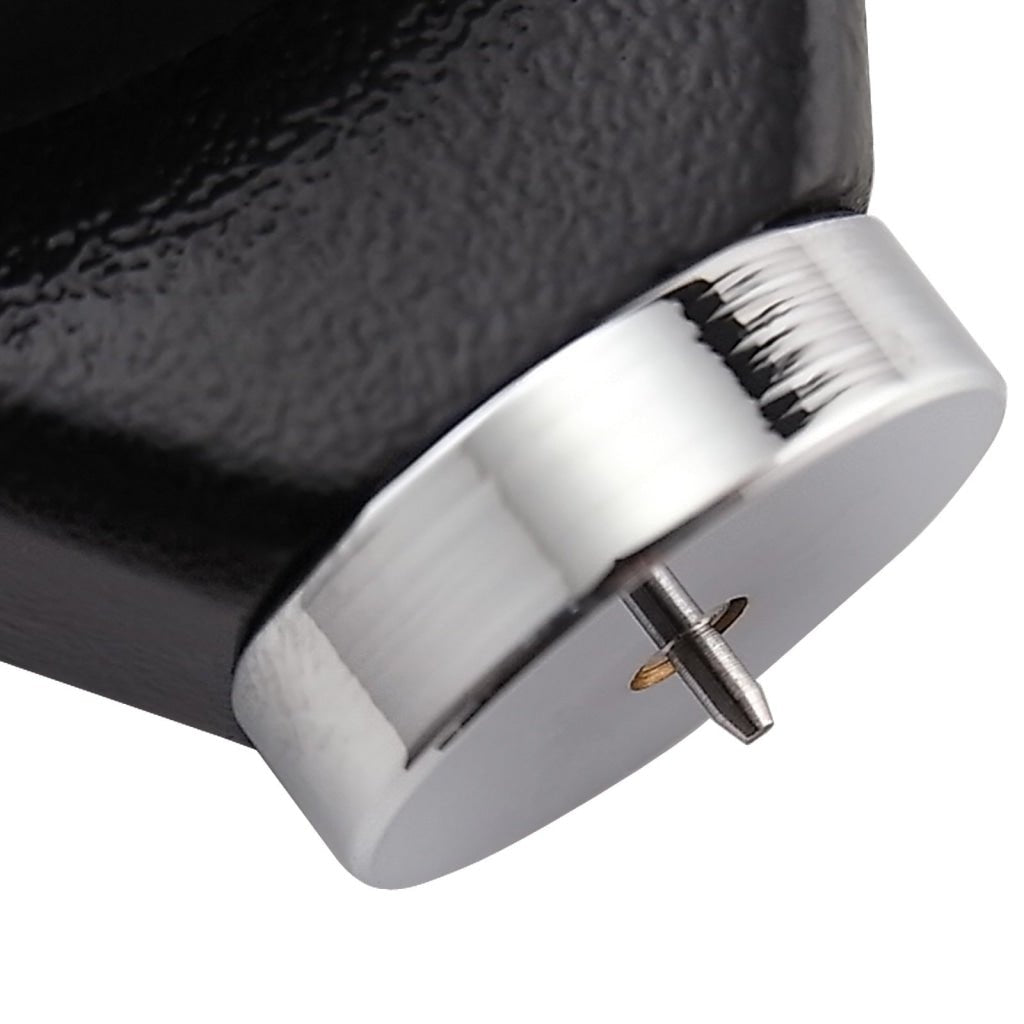

  • High-grade probe with 0-2.5mm Pointer journey
  • Stress at the end of pointer: 8.1N
  • Small in dimension, lightweight and can easily be transported
  • 35º included angle with 0.5HA resolution
  • Delivers ultra accurate reading with no guessing error

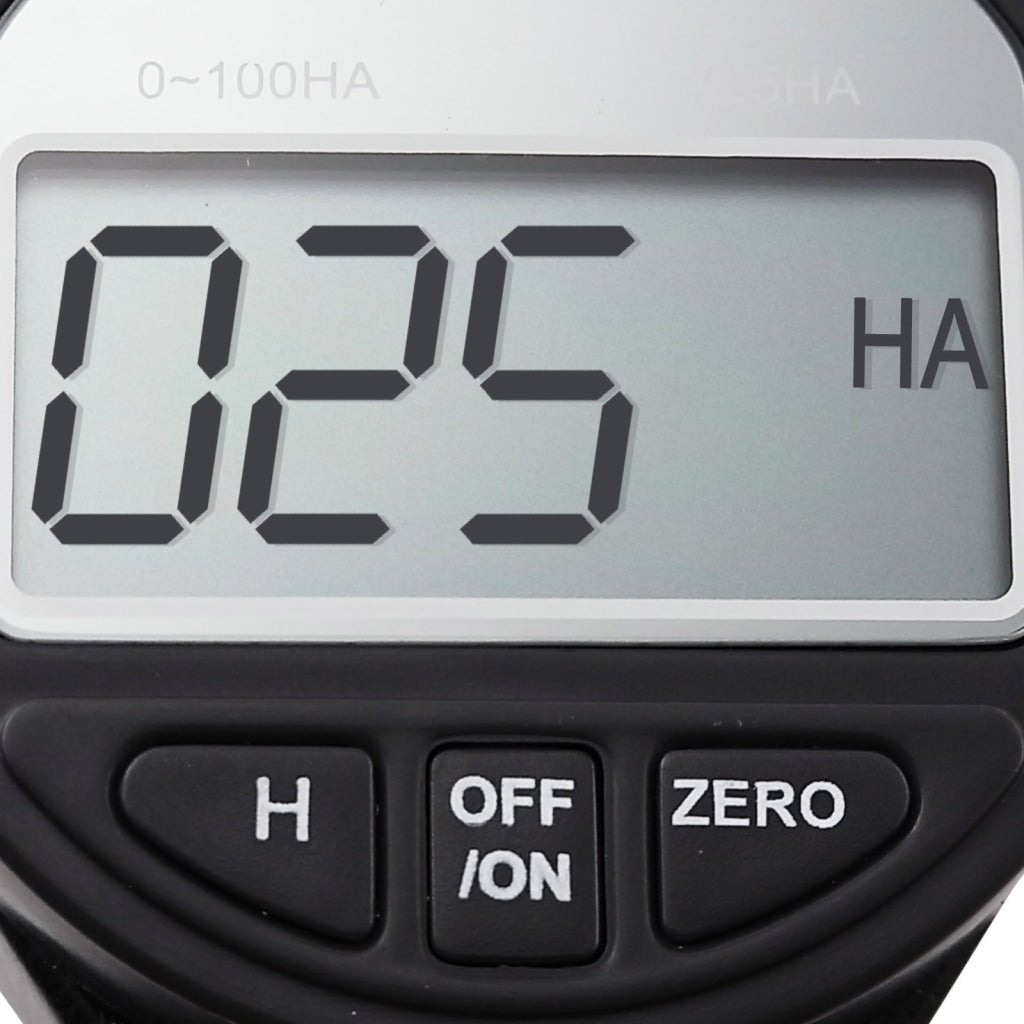

  • Easy to read large LCD display

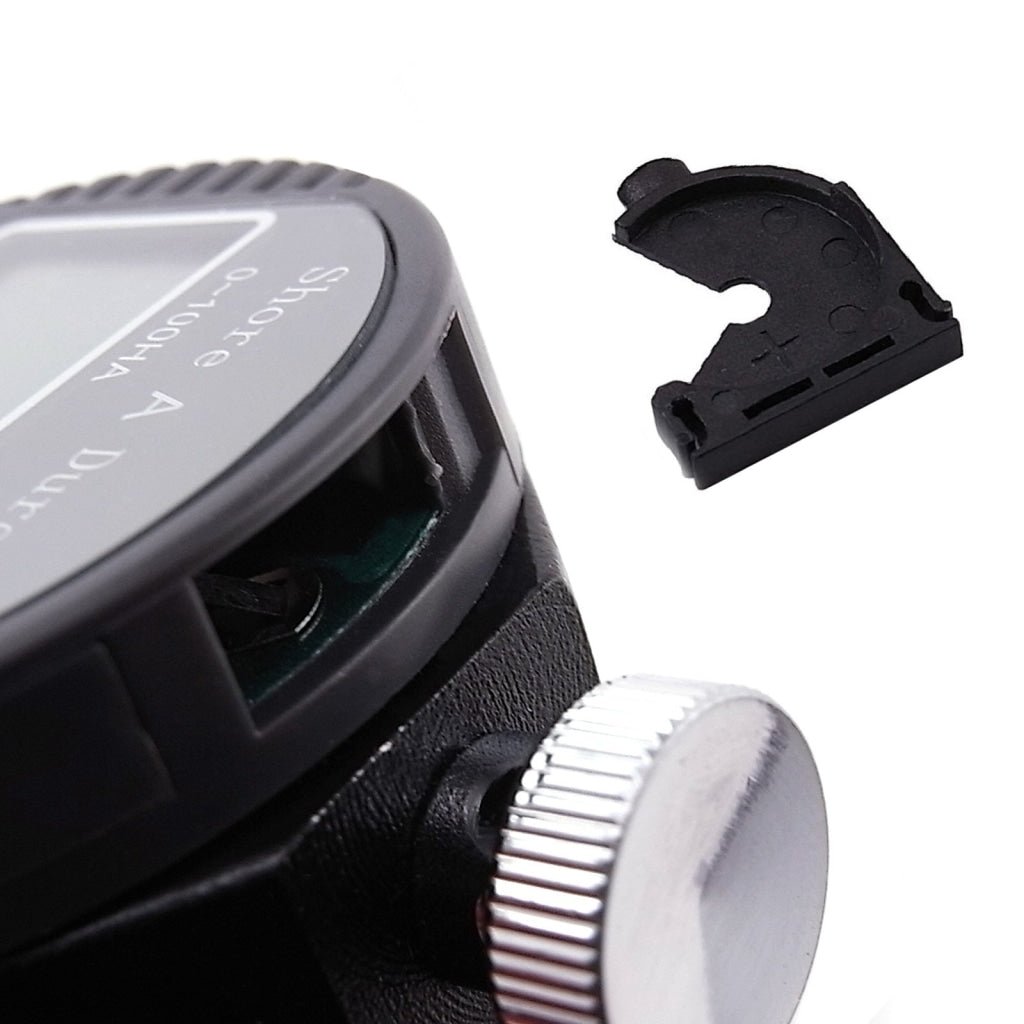

  • Battery operated
  • Passed and conforms with ISO 868-1986 & ISO 7619 international standards
  • Comply with GB/T 531.1-2008 standard
  • Maintenance-free digital display
  • With CE Marking, conforms with European health & safety requirement
  • Type A durometers are applicable to test the penetration medium hardness of rubber, plastic, leather, multi-grease, wax, etc.

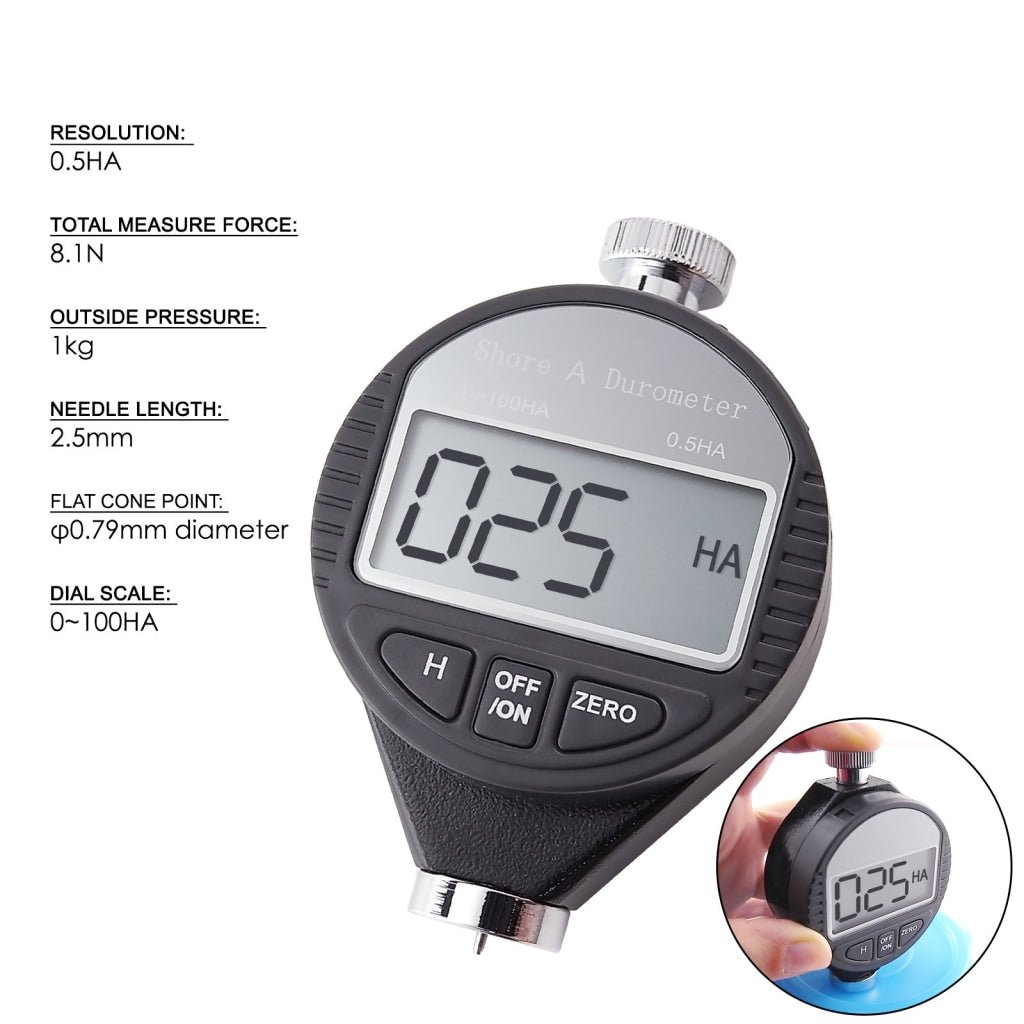

Specifications:

  • Resolution: 0.5HA
  • Total measure force: 8.1N
  • Outside pressure: 1kg
  • Pressure needle top cone angle of 35°
  • Needle length: 2.5mm
  • Flat cone point: φ0.79mm diameter
  • Dial Scale: 0~100HA
  • On/Off Switch

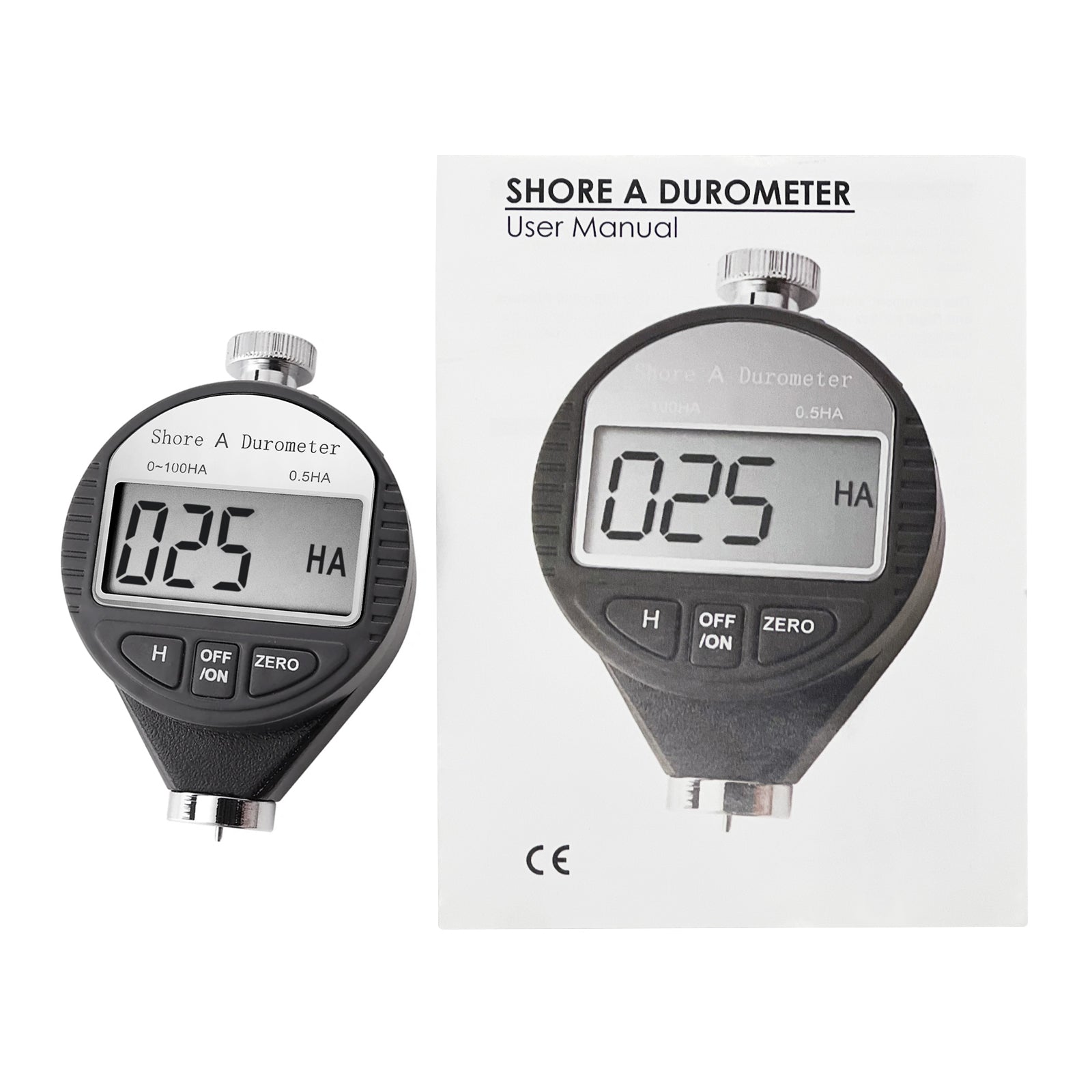

 Set includes:

  • 1 x Shore A Durometer
  • 1 x Instruction Manual
  • 1 x Hard carrying case with hardened foam for maximum shock absorption while in transport
