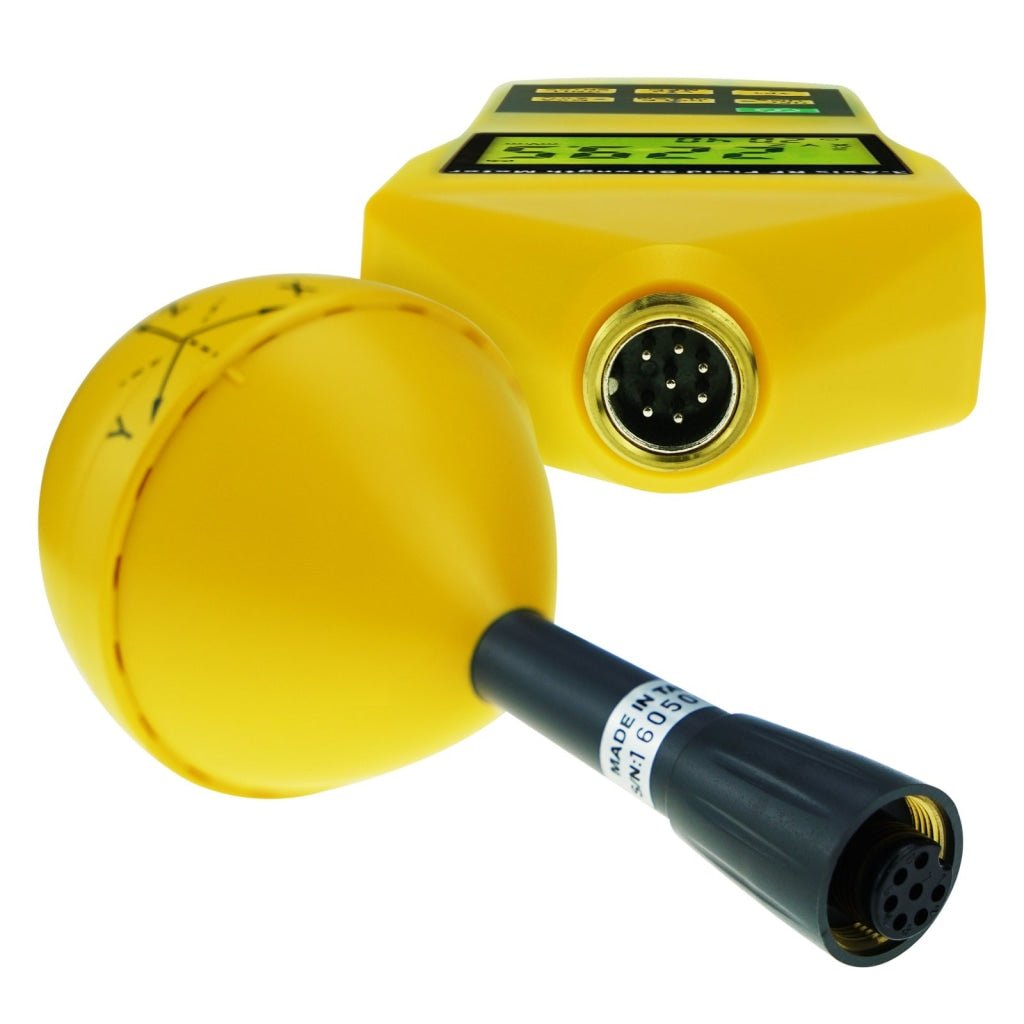

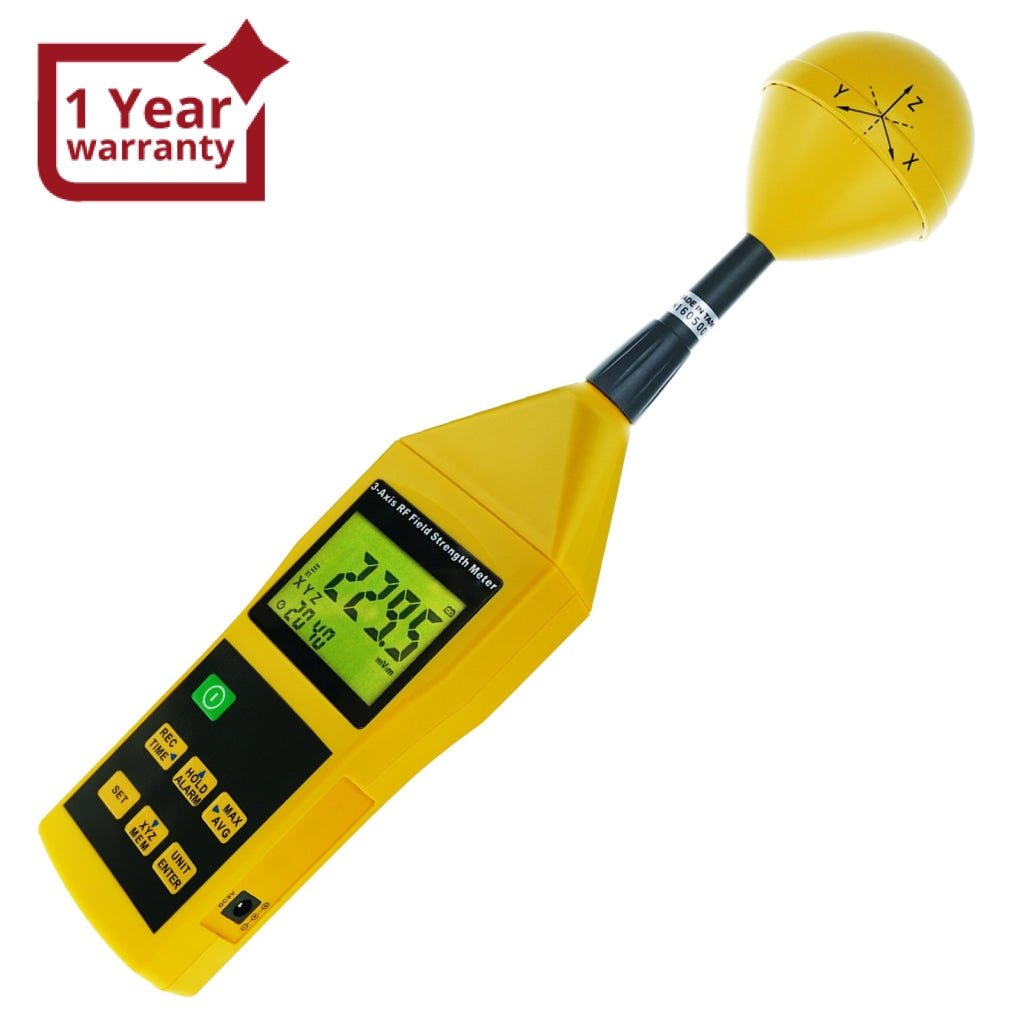

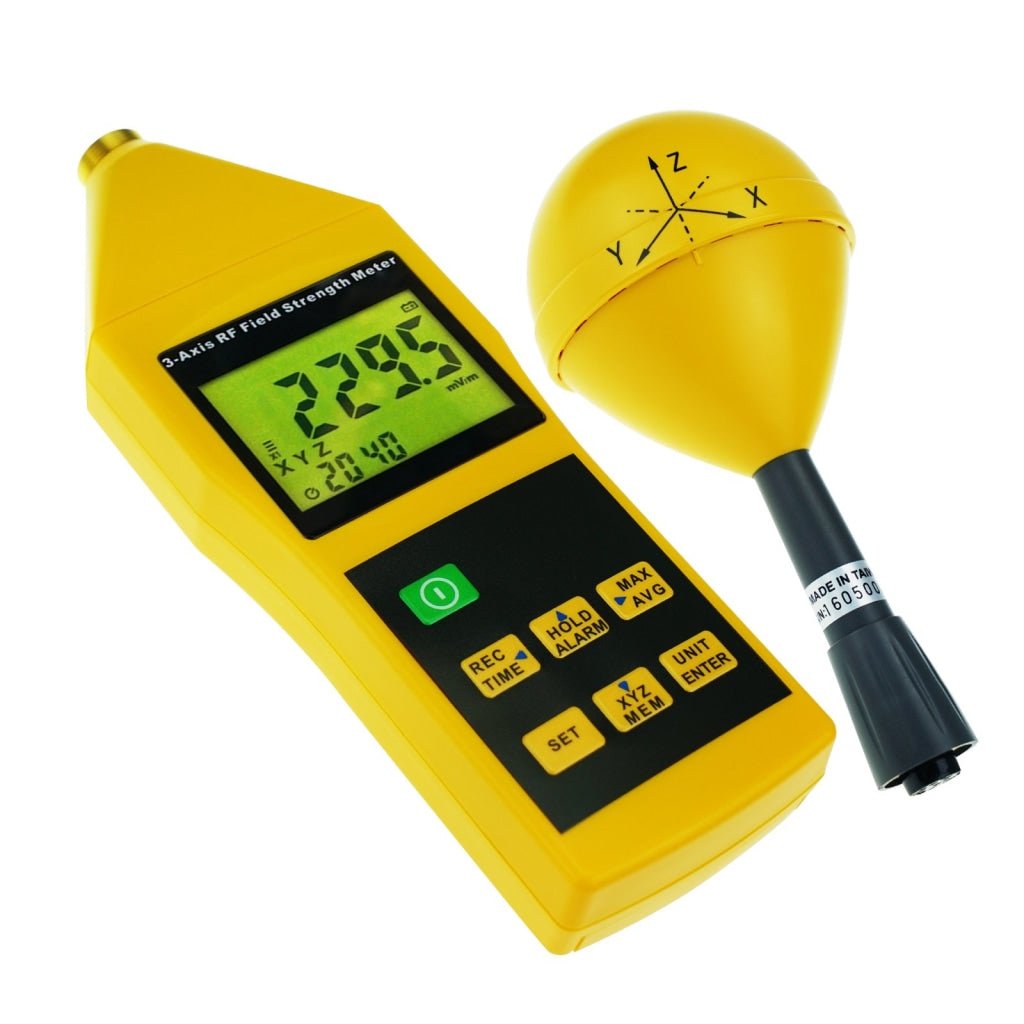

TM-196 Triaxial Tri-Axis RF Field Strength Meter Electromagnetic Radiation Tester Detector 10MHz to 8GHz with Alarm and Tripod Mounting, Compact, MIni

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

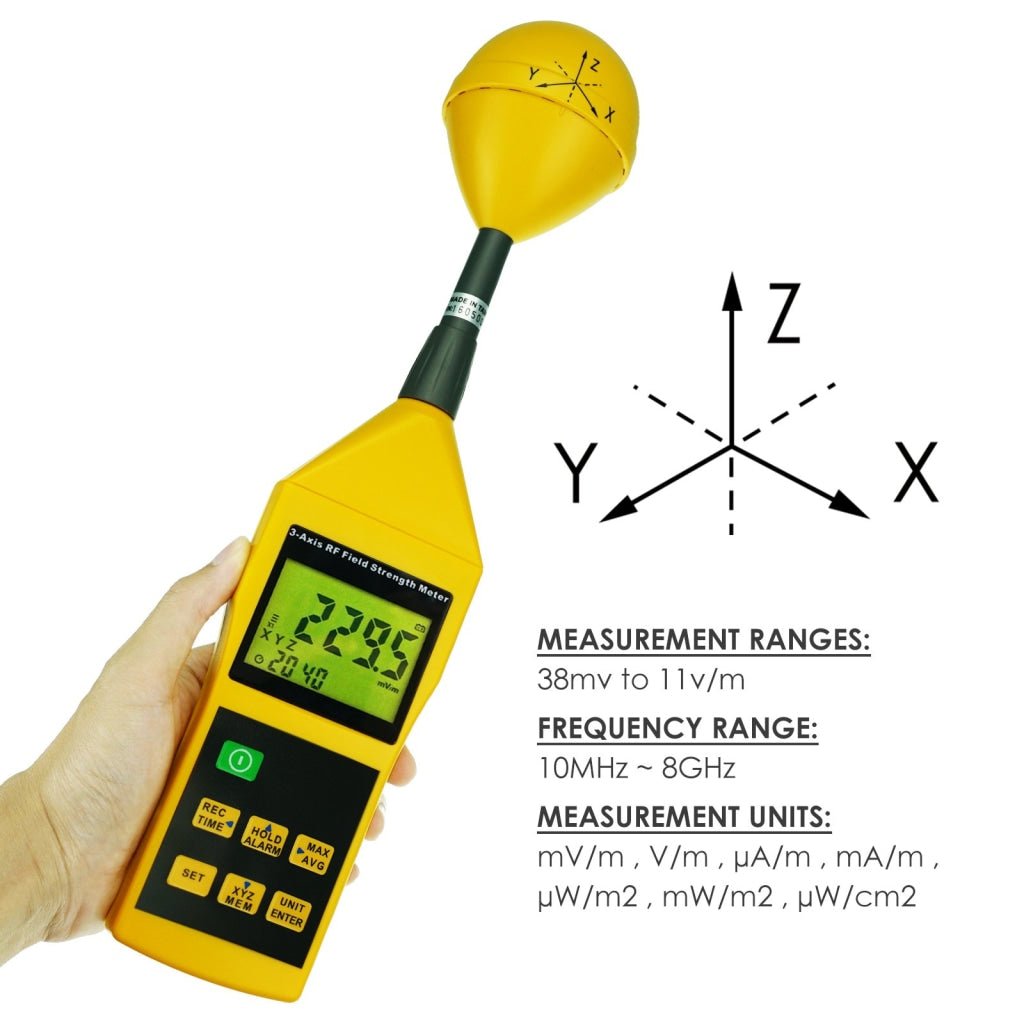

TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength of 38mV to 11V/m and capable of measuring the frequency range of 10Mz~8GHz.

Best for:

  • High frequency(RF) electromagnetic wave field strength measurement
  • RF power measurement for transmitters
  • Wireless communication(CW, TDMA, GSM, DECT) application

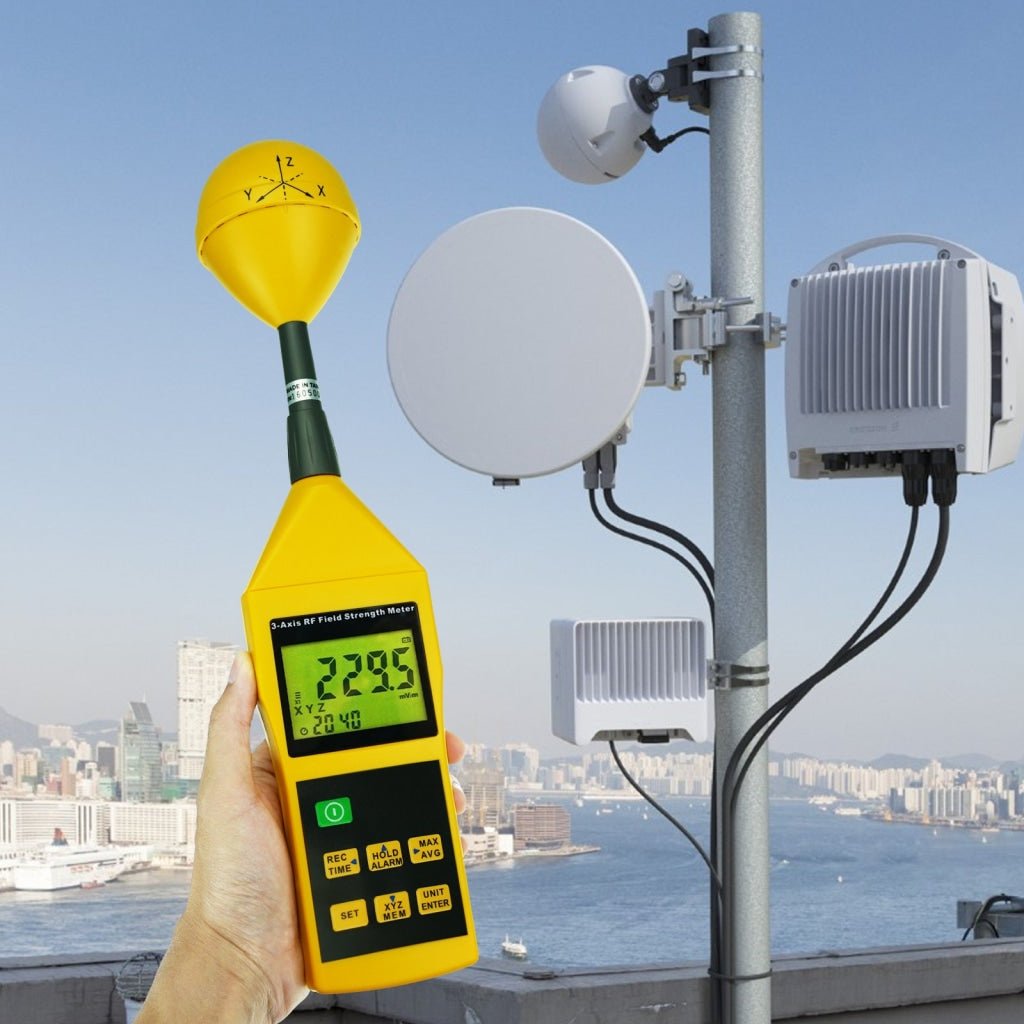

  • Mobile phone base station antenna radiation power density measurement
  • Wireless LAN(Wi-Fi) detection, installation
  • Spy camera, wireless bug finder
  • Cellular/Cordless phone radiation safety level
  • Microwave oven leakage detection
  • Personal living environment EMF safety



  • Measurement range: 50mV/m ~ 11V/m
  • Frequency range: 10MHz ~ 8GHz
  • Sensor axis display selection: All axis, X axis, Y axis, Z axis

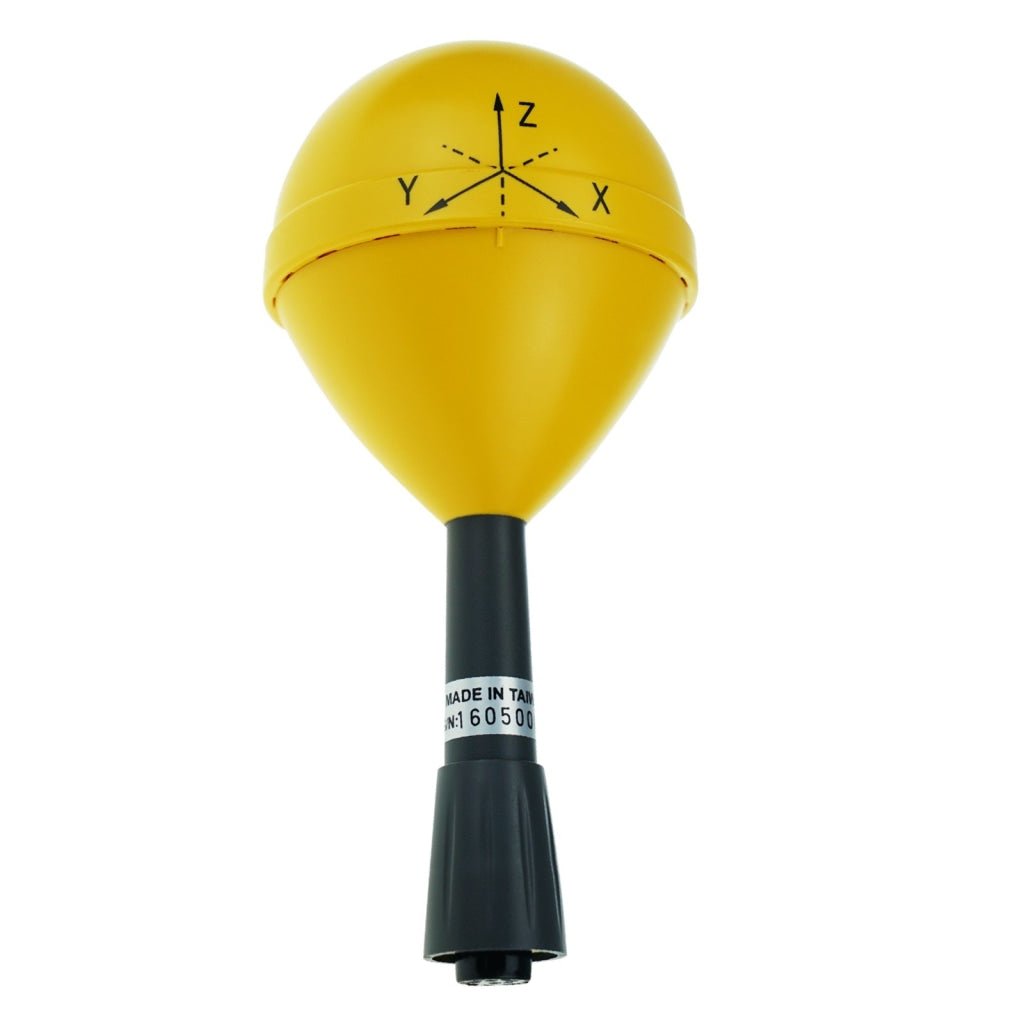

  • Directional characteristic: Isotropic, Tri axis
  • Low battery indication
  • Data Hold function
  • Over Load indication

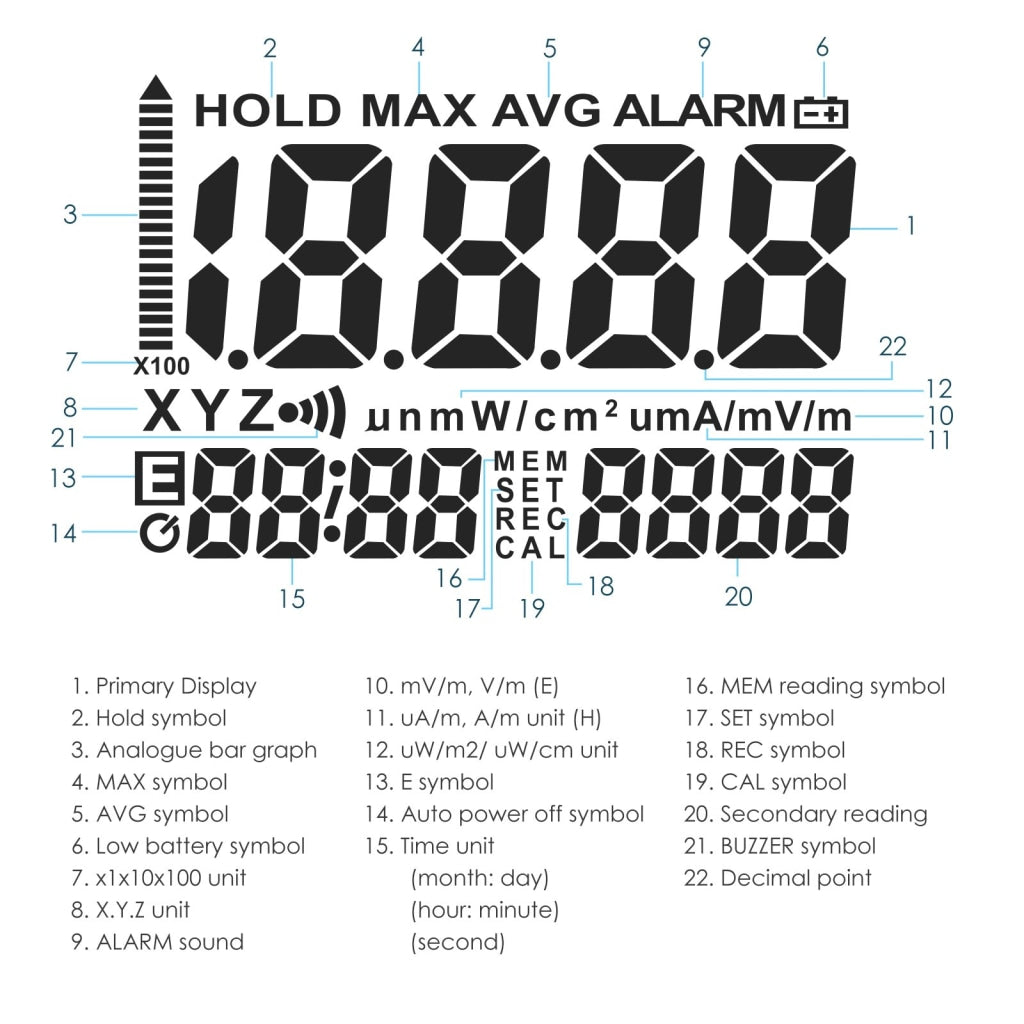

  • Analogue bar graph display
  • Clock LCD display
  • Units: mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
  • Display resolution: 0.1mV/m, 0.01V/m, 0.1µA/m, 0.1mA/m, 0.001µW/m2, 0.01mW/m2, 0.001µW/cm2
  • Alarm function: adjustable threshold with ON/ OFF
  • Sample rate: 1.5 times per second
  • Display value: instantaneous measured value, maximum value, average value, maximum average value
  • Calibration factor CAL setting range: 0.10 to 9.99
  • Manual data memory and read storage: 200 data sets
  • Auto power off: adjustable threshold 0-99 minutes

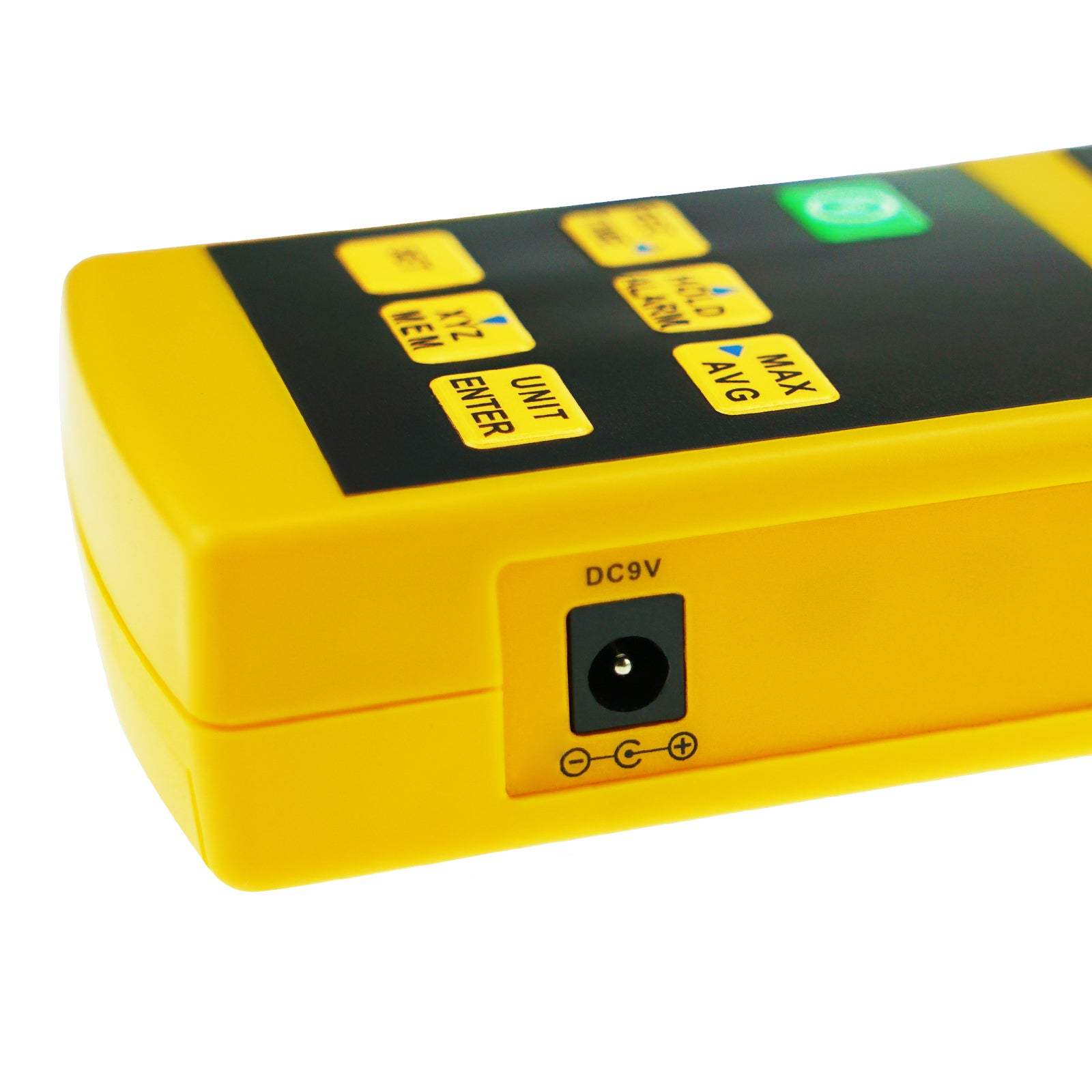

  • Power supply: 9V battery or external AC to DC adapter

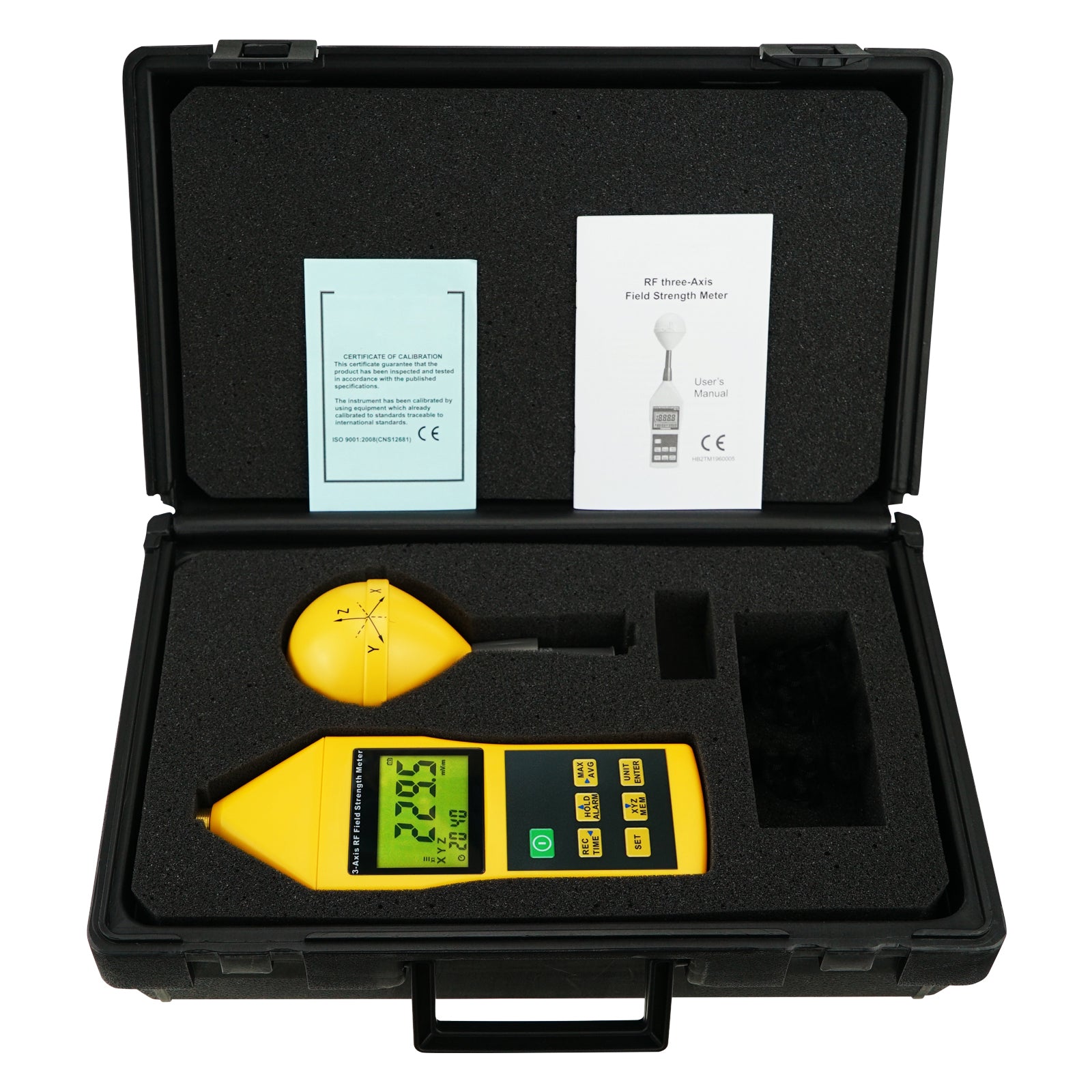

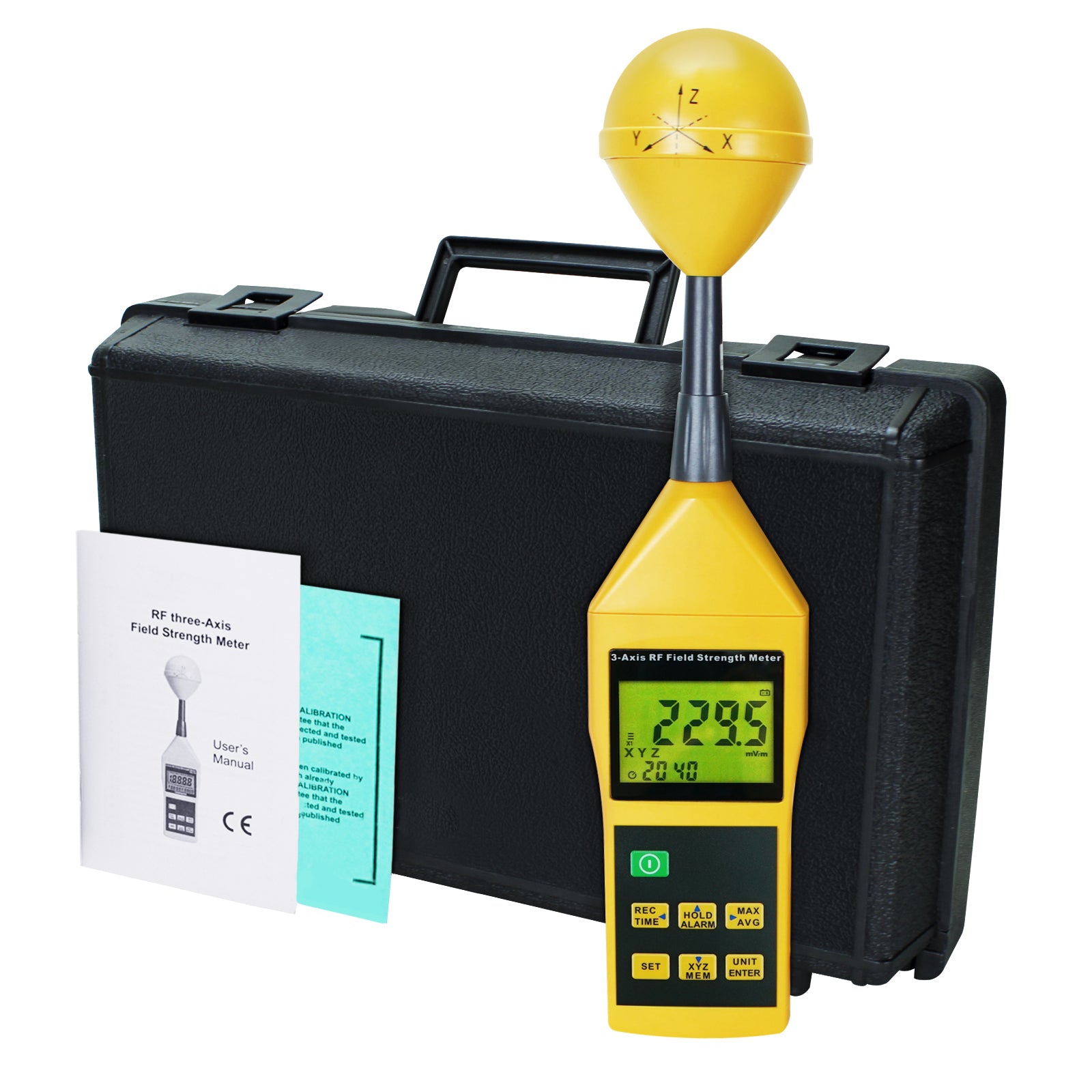

Set Includes:

  • 1 x 3-Axis RF Meter
  • 1 x English User Manual
  • 1 x 9V battery
  • 1 x AC adaptor
  • 1 x Calibration certificate
  • 1 x Protective hard case with foam
