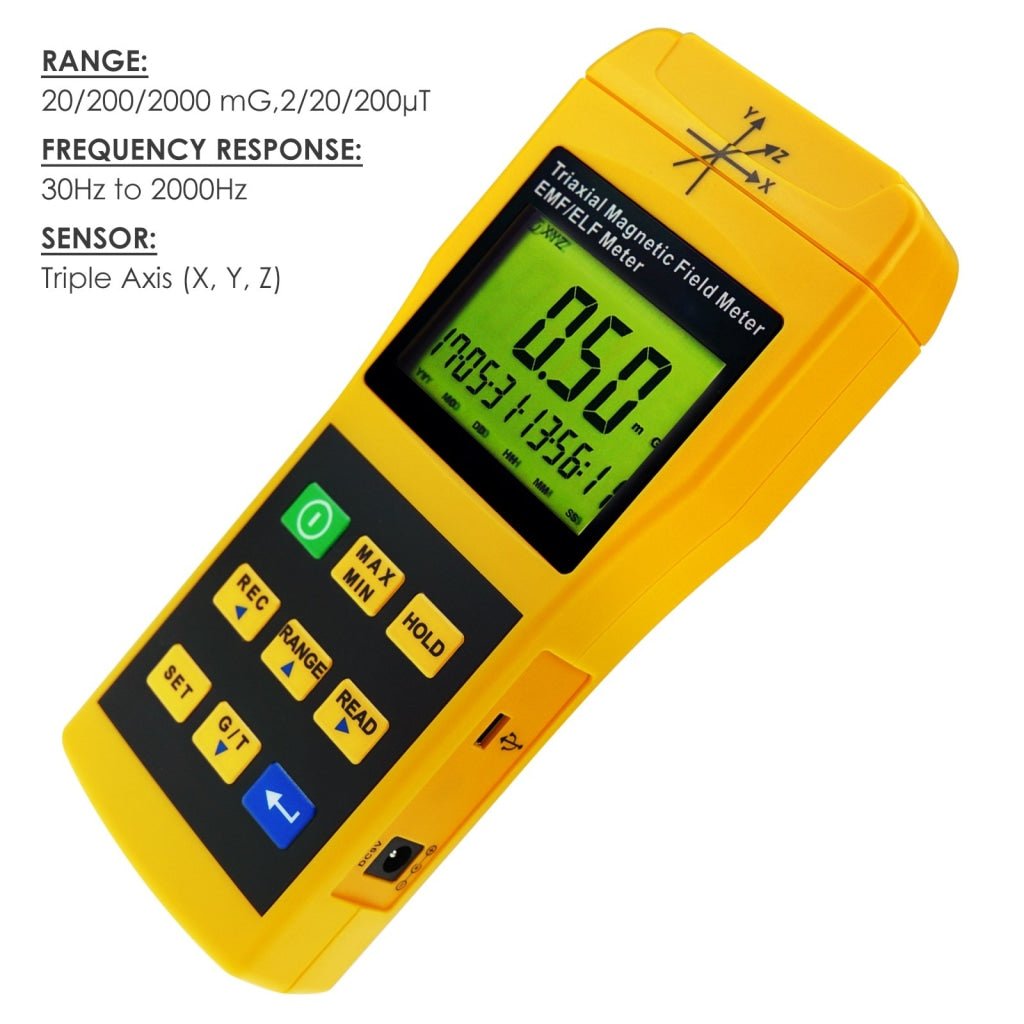

TM-192D Digital Mini Triple Axis 2000Hz EMF ELF Magnetic Field Meter Gauss Meter 2000mG Datalogger with USB PC Software, Electromagnetic Field Detector

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

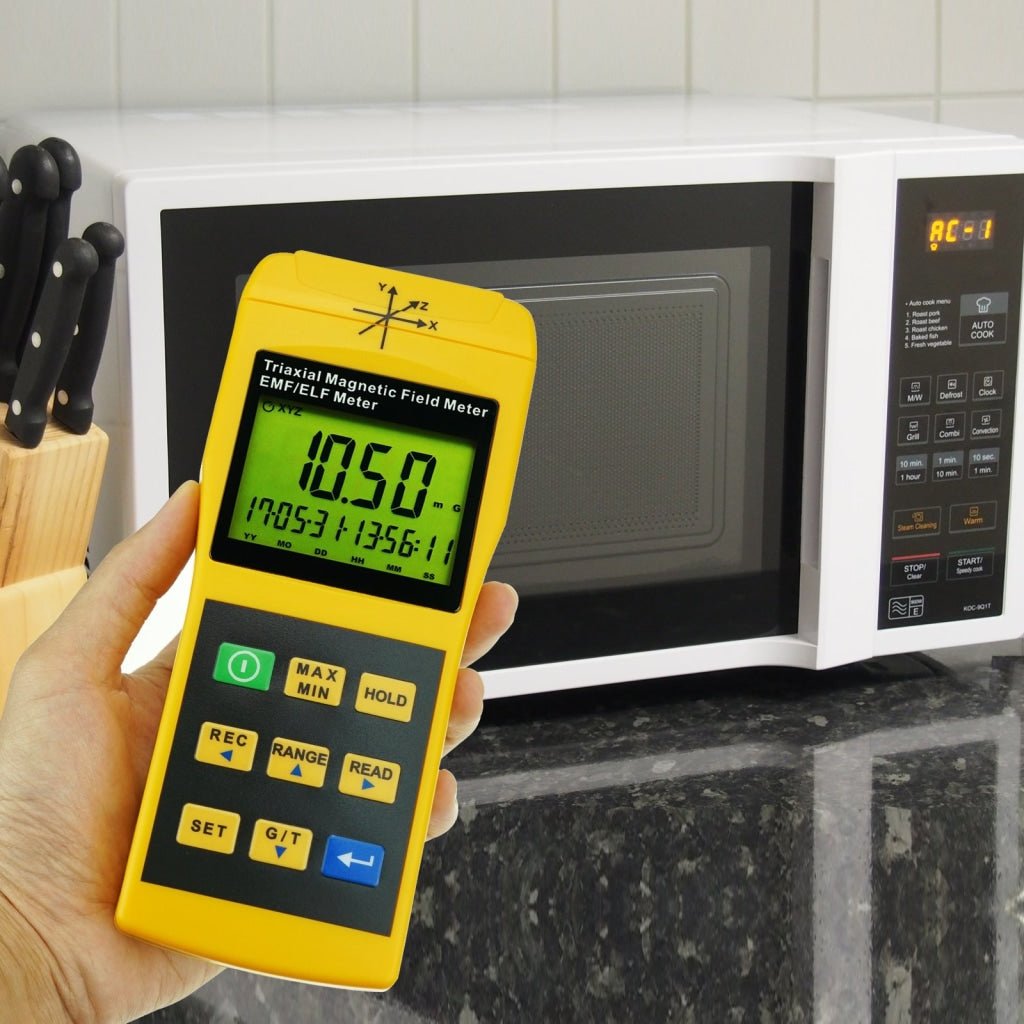

This ELF meter uses three internal orthogonal sensors to test a wide range of electromagnetic fields of extremely low frequency (ELF) of 30 to 2000Hz. It can provide a quick, reliable and easy way to measure the magnetic field radiation intensity that is produced from electric transmission equipment, power lines, microwave ovens, air conditioners, refrigerators, computer monitors, video/audio devices and so forth.

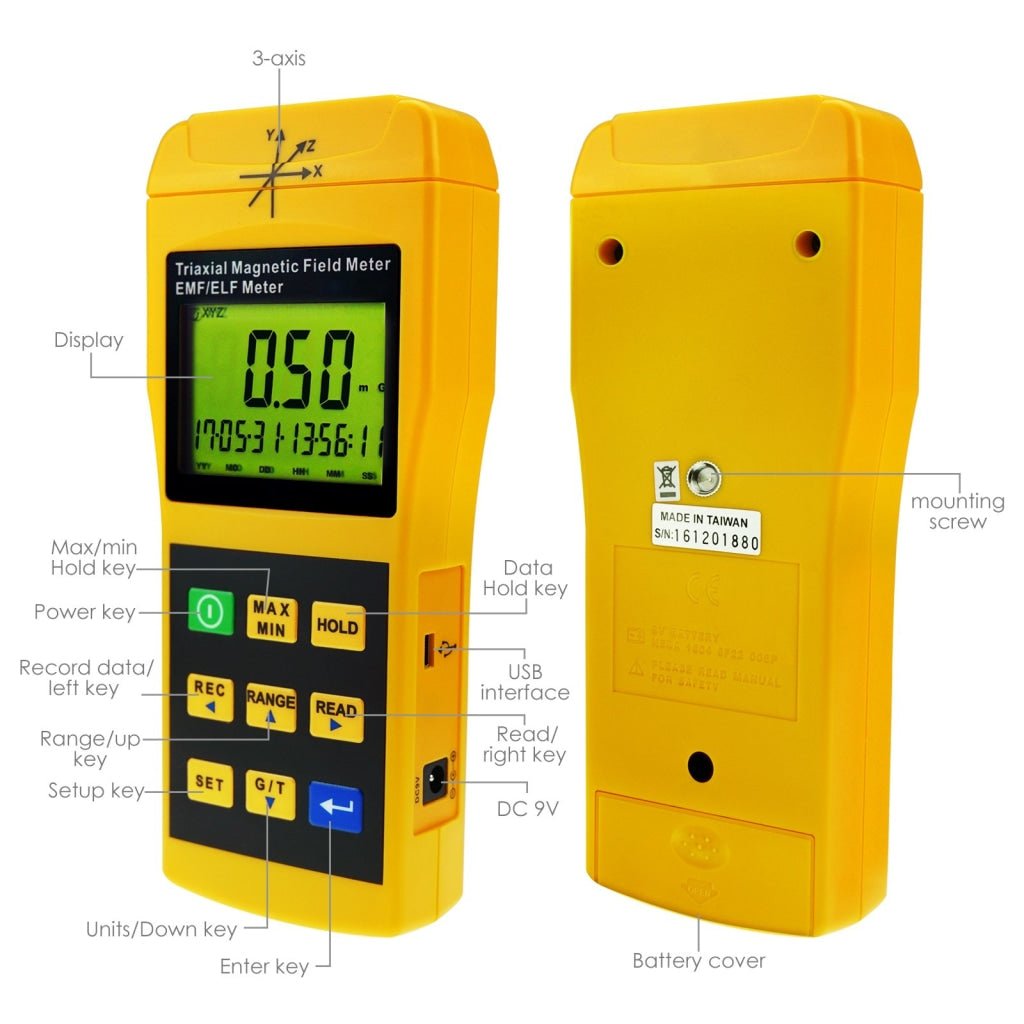

  • Can display independent three single-axis(X, Y, Z) magnetic field readings or tri-axial total magnetic field reading
  • With built-in data logging capacity of 9999 data sets
  • With Data Hold(HOLD), Maximum Hold(MAX) and Minimum Hold(MIN) function
  • High quality with CE&ROHS marking and Certificate of Calibration

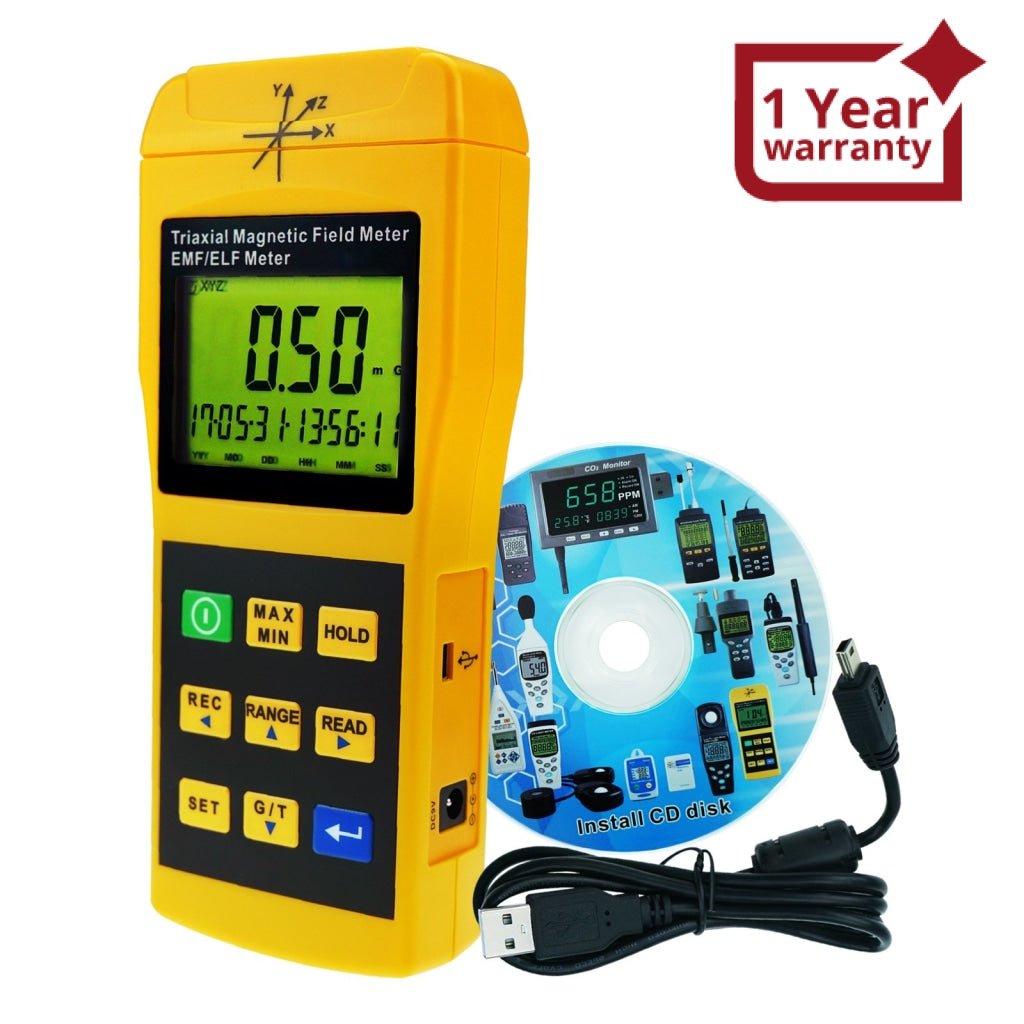

  • Comes with USB PC Interface software to:
    • Download EMF Record (from the meter’s memory)
    • Set Date and Time
    • Convert date to graph presentation
    • Review the stored data
    • Start Logger function which saves the data to file in your computer
    • Retrieve the records for the selected meter
    • Delete EMF stored data in the meter easily
    • Modify the COM Port and Sampling Time interval
  • Data Hold(HOLD), Maximum Hold(MAX) and Minimum Hold(MIN) function
  • Auto range or manual range
  • Time and calendar function
  • Low battery indication
  • Auto power-off function
  • Single data record function



  • Continuity data logging interval range: 0 seconds(no data logging) to 99 hours, 99 minutes and 99 seconds
  • Datalogging capacity with memory size: 9999 data sets
  • Display: 4 digits Triple LCD Display
  • Range: 20/200/2000 mG, 2/20/200µT
  • Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1µT
  • Frequency response: 30Hz ~ 2000Hz
  • Sensor: Triple Axis (X, Y, Z)
  • Accuracy: 20 mG ±(3.0% + 30dgt) at 50Hz/60Hz or 3µT ±(3.0% + 30dgt) at 50Hz/60Hz
  • Overload: LCD display ""OL""
  • Sample rate: 2.5 times per second

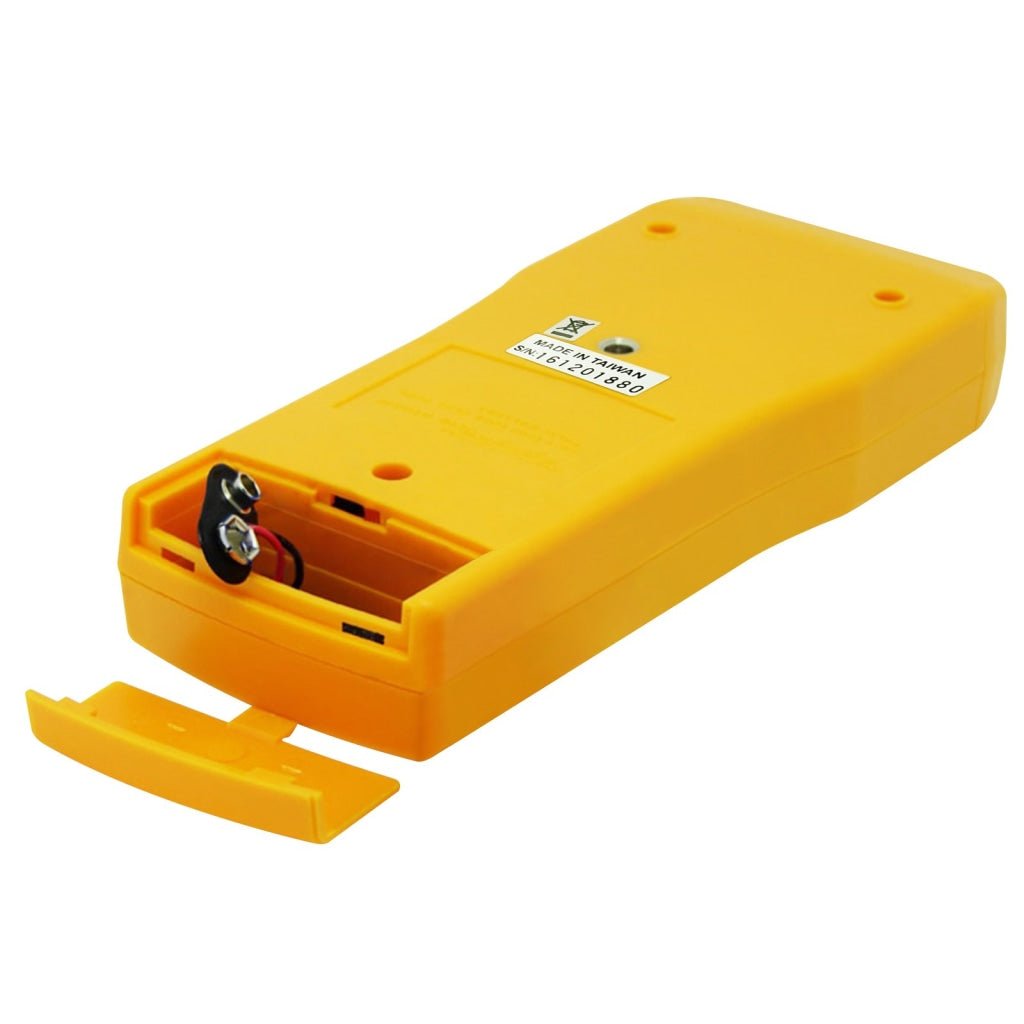

  • Power Supply: 1 x 9V Battery(included) or external AC to DC adapter(not included)

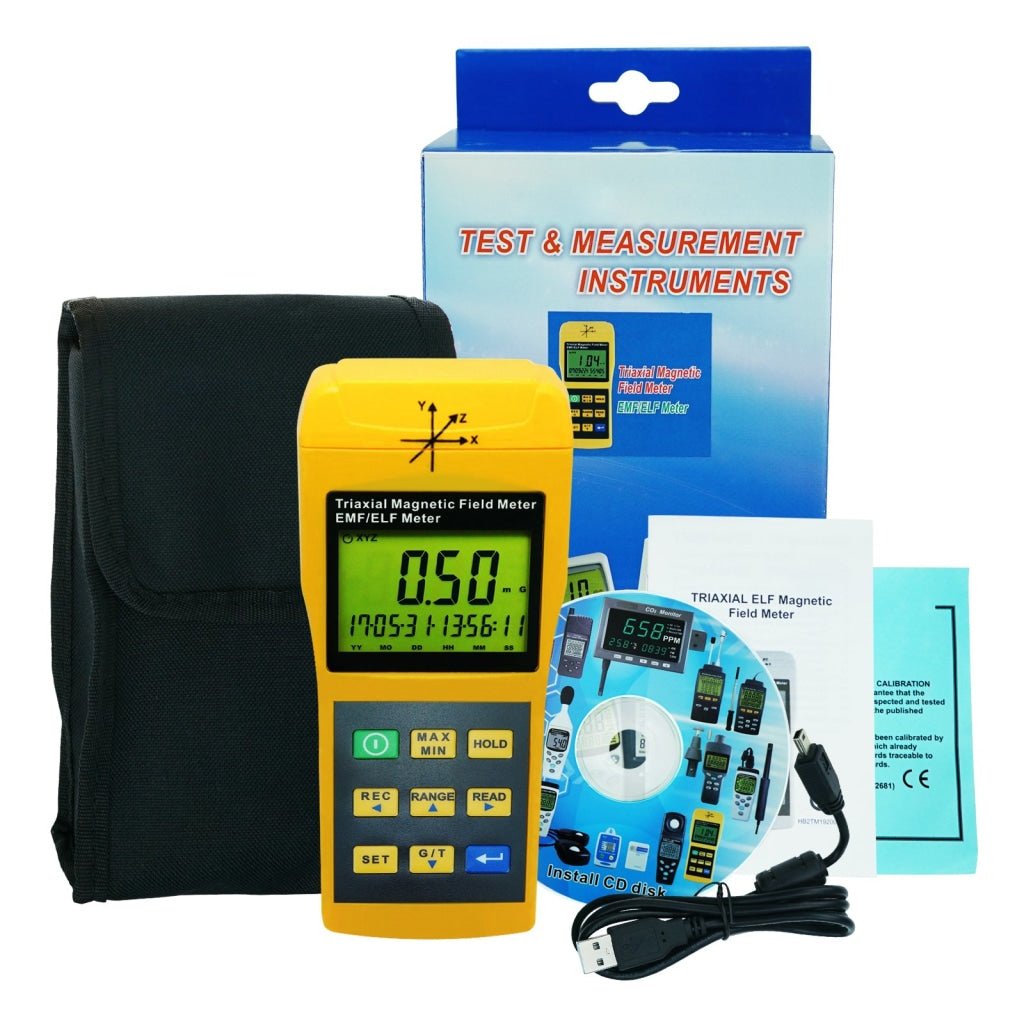

Set Includes:

  • 1x Tri-axial Magnetic Field Meter
  • 1x User Manual

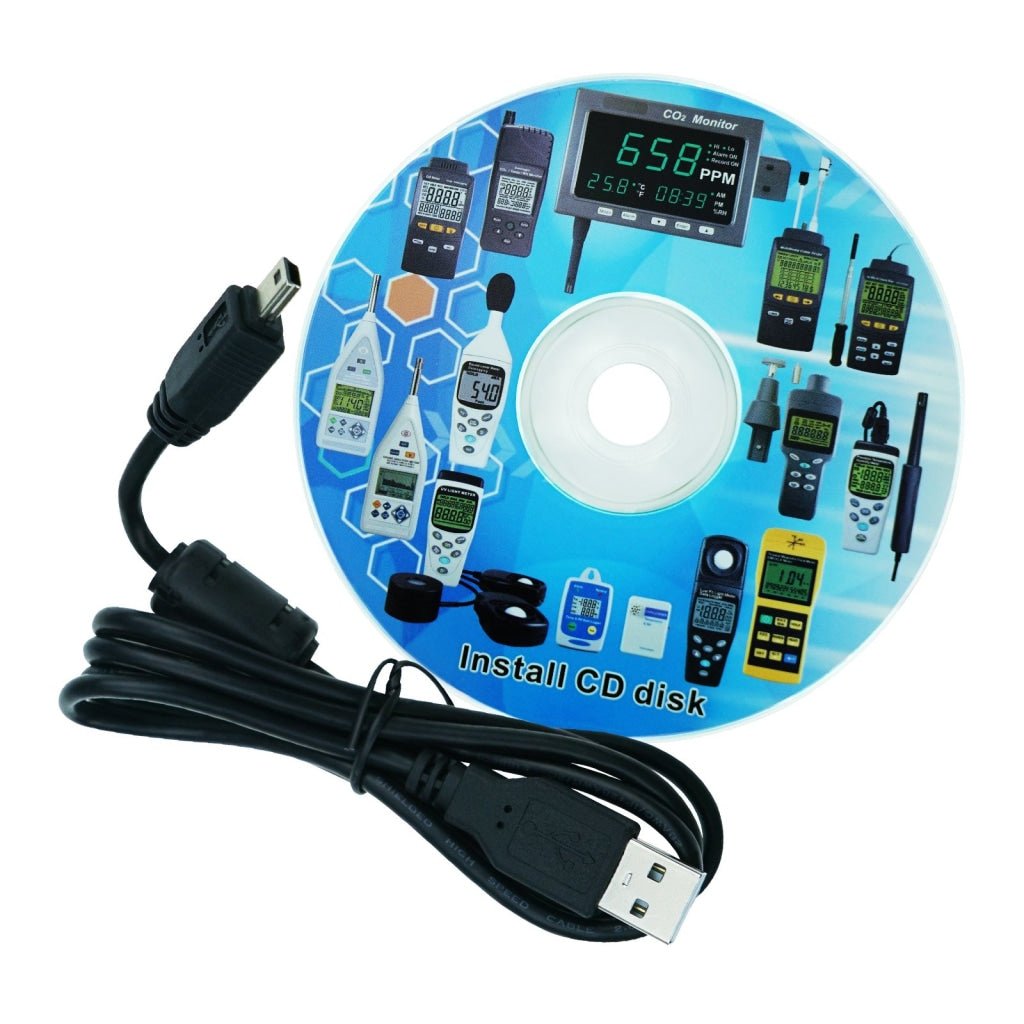

  • 1x CD software and USB Cable
  • 1x 9V Battery

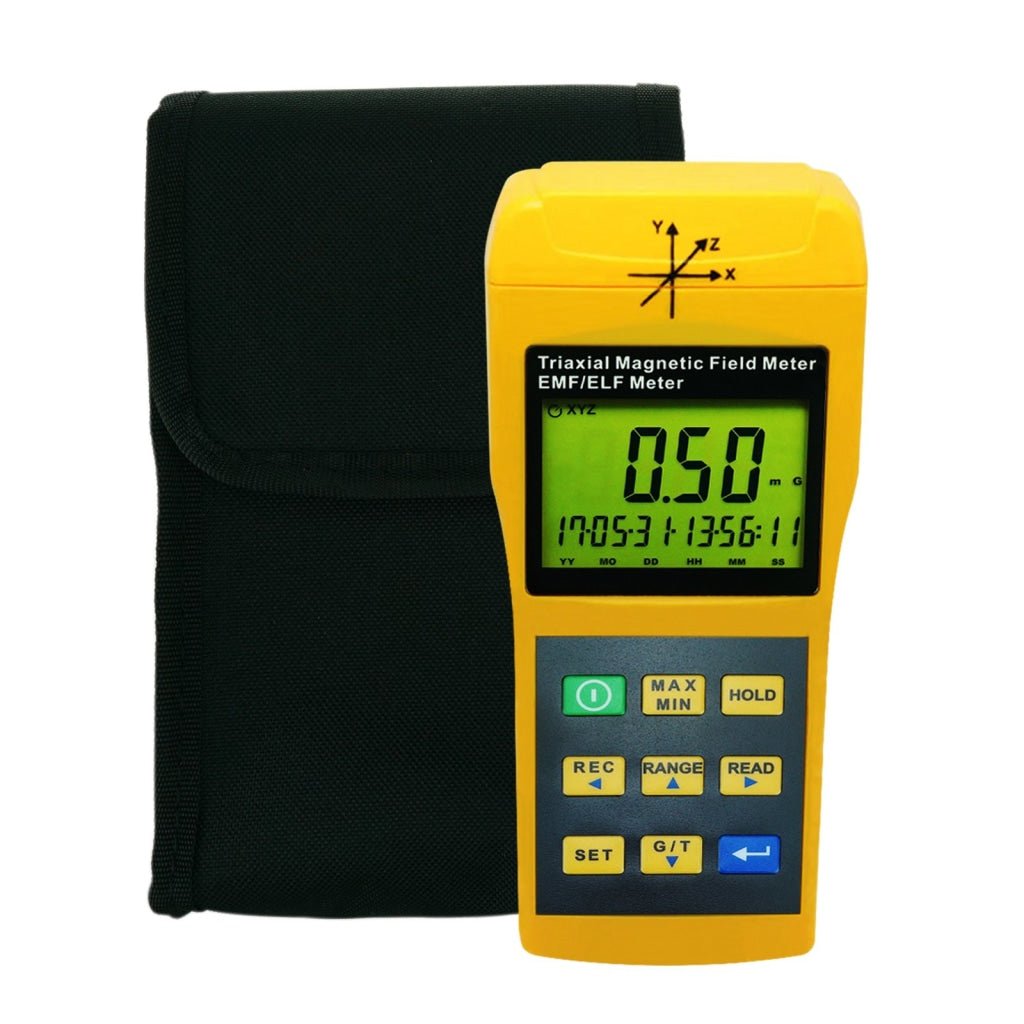

  • 1x Carrying Pouch
  • 1x Certificate of Calibration
  • 1x Factory Standard Paper Box
