WTM-1200 Wireless Window Tint Meter 0-100% Handheld Visible/ UV/ Infrared Light Transmittance Transmission Measuring Gauge Tester Transparency, for Car Automobile Glass Plastics Water Drinks

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

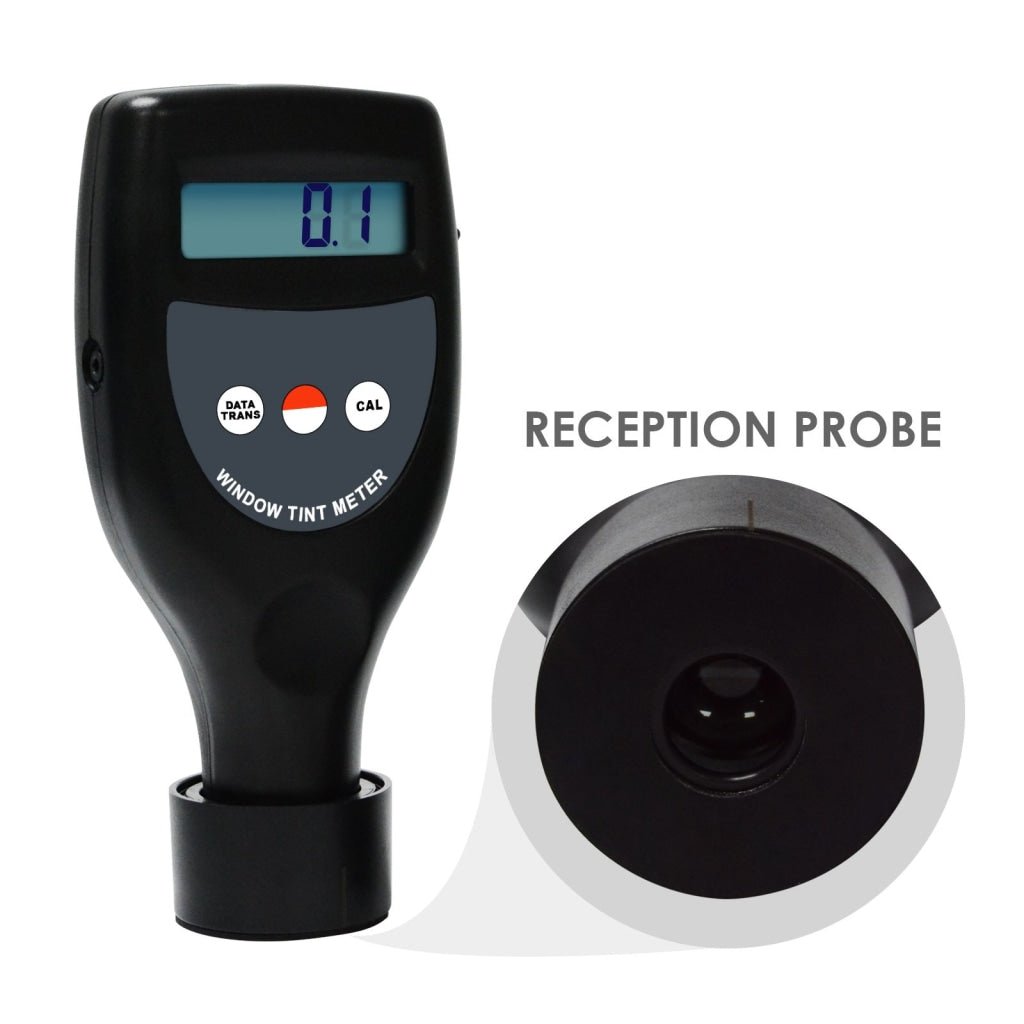

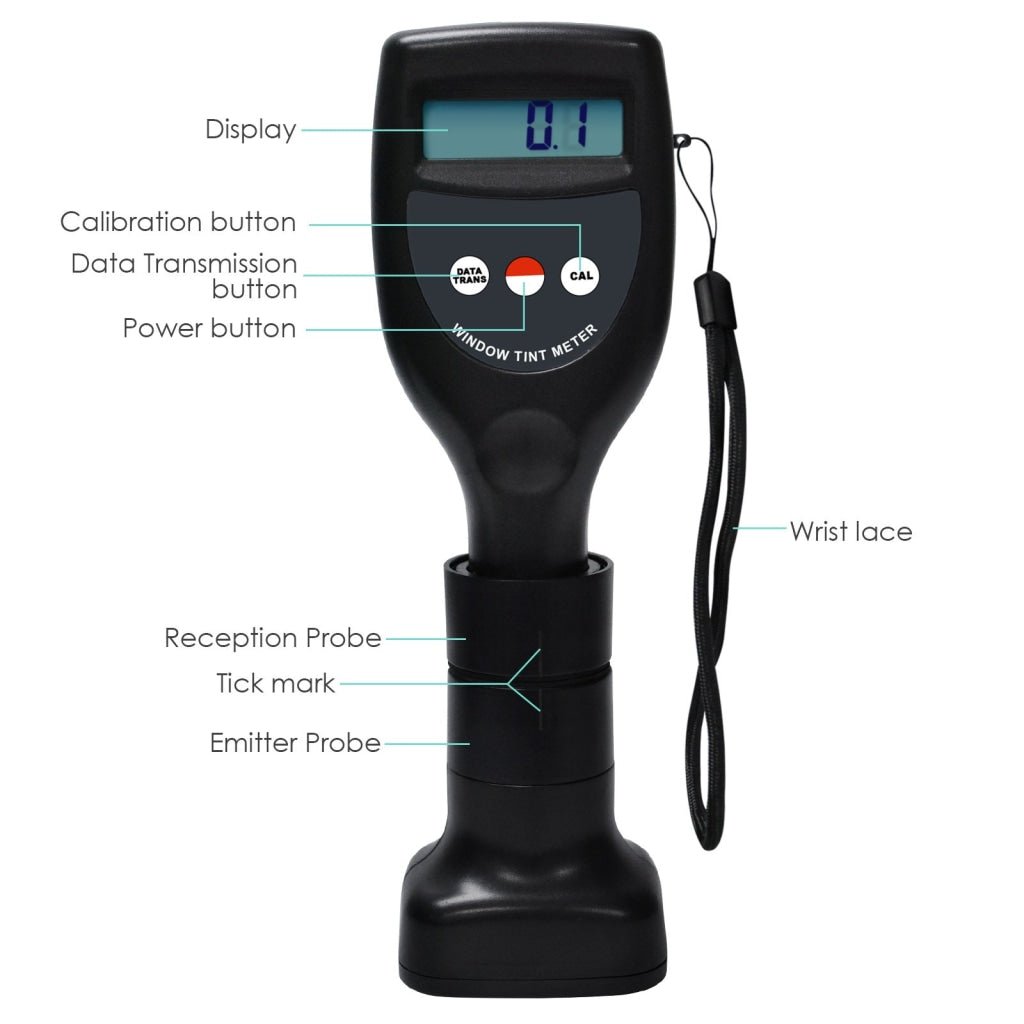

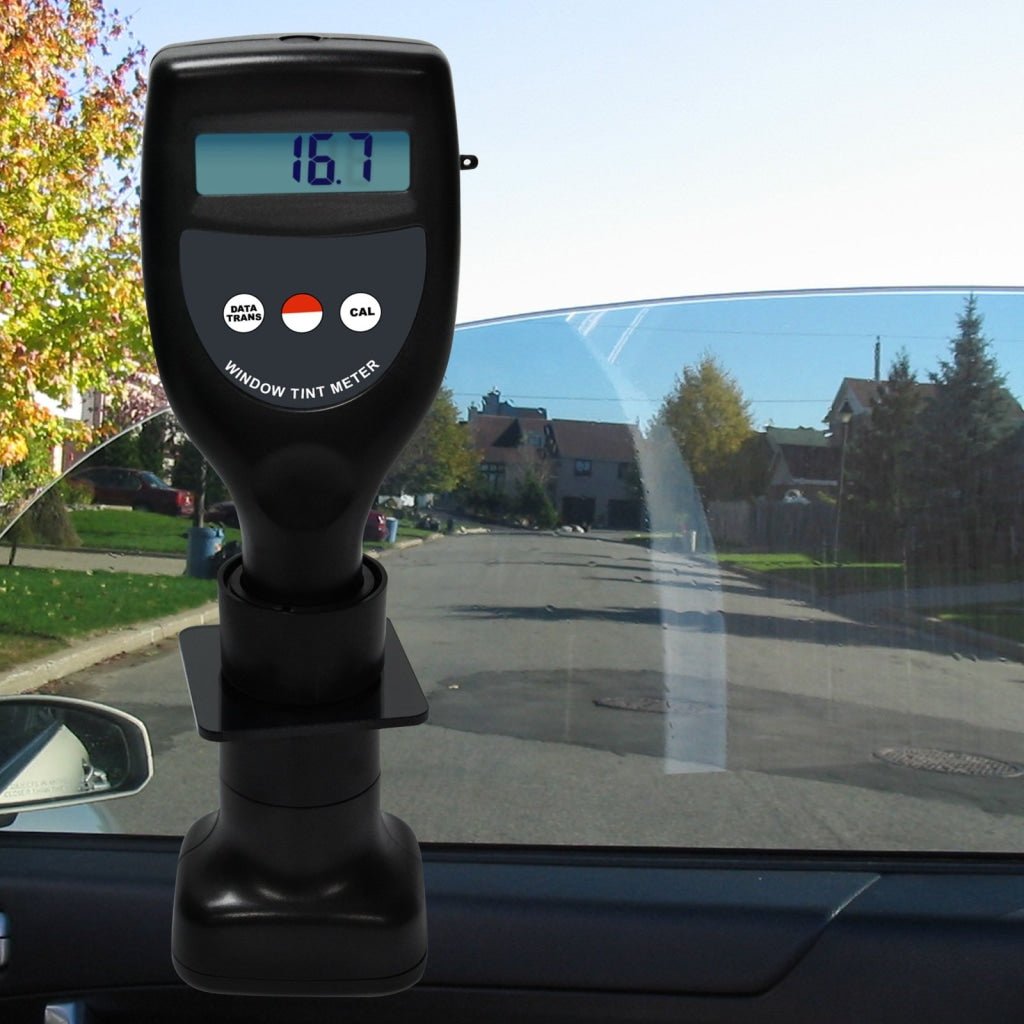

This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
Used to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).


  • Designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards
  • Wide measurement range
  • Digital display with high resolution
  • Solid structure, small volume, light weight, exquisite, easy to carry
  • Single / Continuous measuring mode
  • Can set a 10 minute auto power off function
  • Zero Calibration
  • Wireless design and User friendly
  • One key calibration
  • Measure the transmittance of ultraviolet light, visible light, and infrared light
  • Use USB data output to connect with PC (cable and software not included in the set)
  • Provide Bluetooth data output choice (adapter and software not included in the set)


  • Display: 10mm LCD
  • Resolution: 0.1
  • Accuracy: ≤ 2%
  • Range: 0~100% Light Transmission
  • Wavelength: 550 Nanometers
  • Interface: USB RS-232C
  • Sample Thickness: ≤ 18mm / 0.7inch
  • Light Source: LED
  • Operating Temperature: 0~50°C
  • Operating Humidity: < 90% RH
  • Time of Testing: 4 seconds max
  • Effects From Stray Light: Not Effected by Stray Light
  • Lamp Life: 10 Years
  • Power Supply

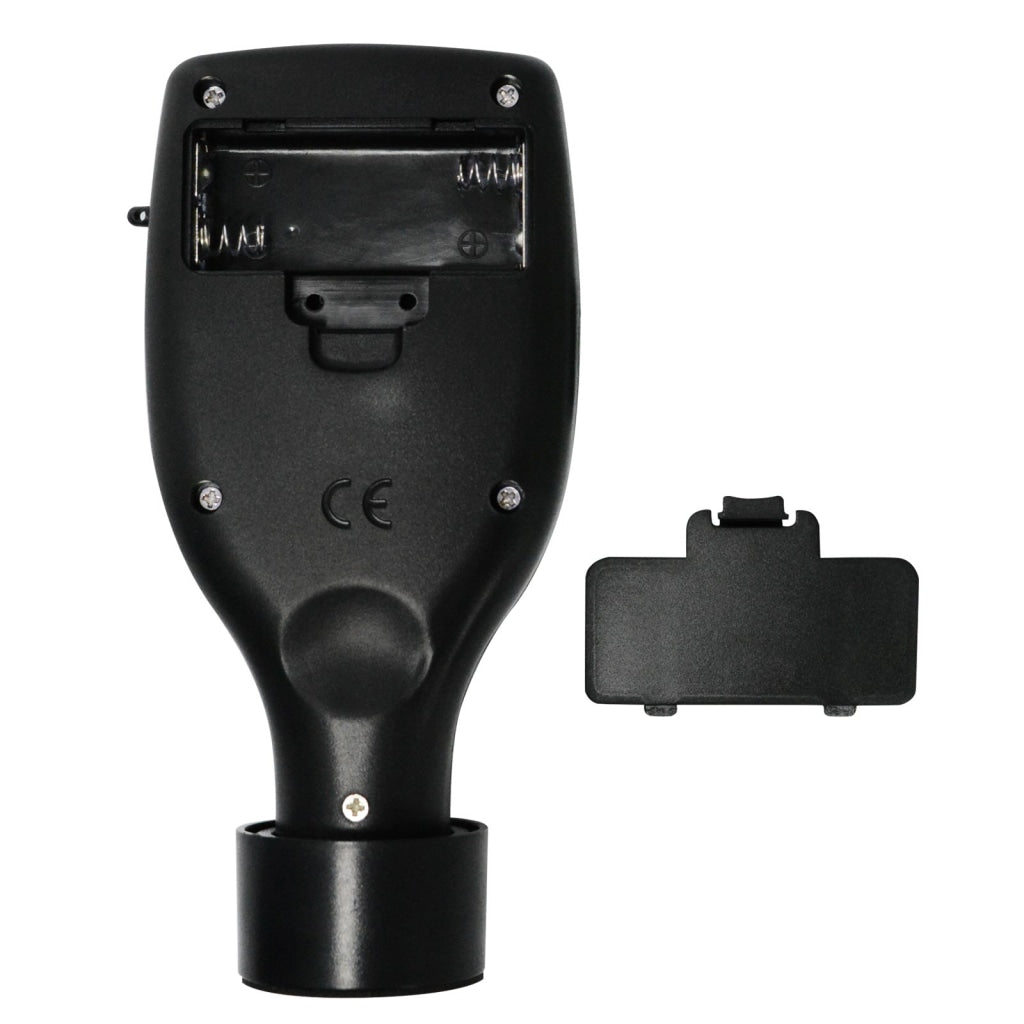

    • Main Unit: 4 x 1.5V AAA Batteries

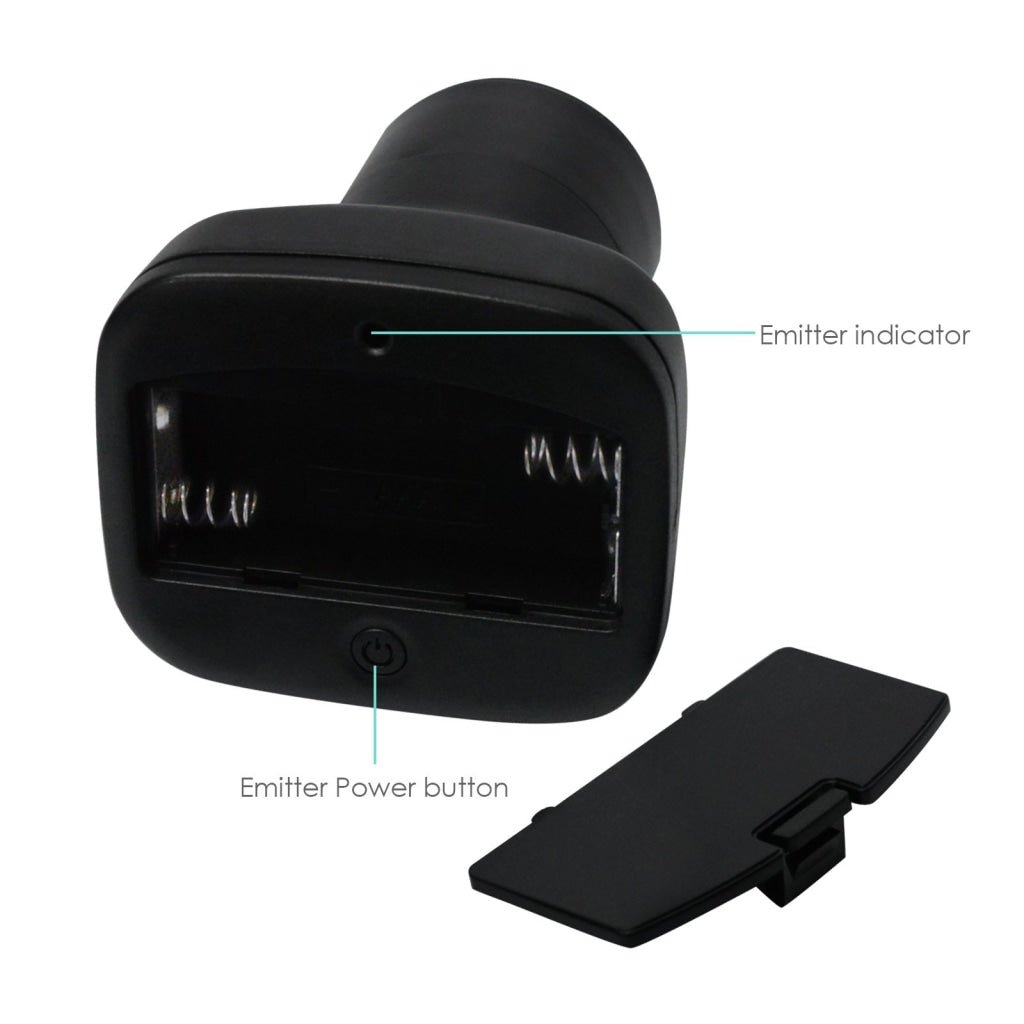

    • Light Emitter: 2 x 1.5V AAA Batteries

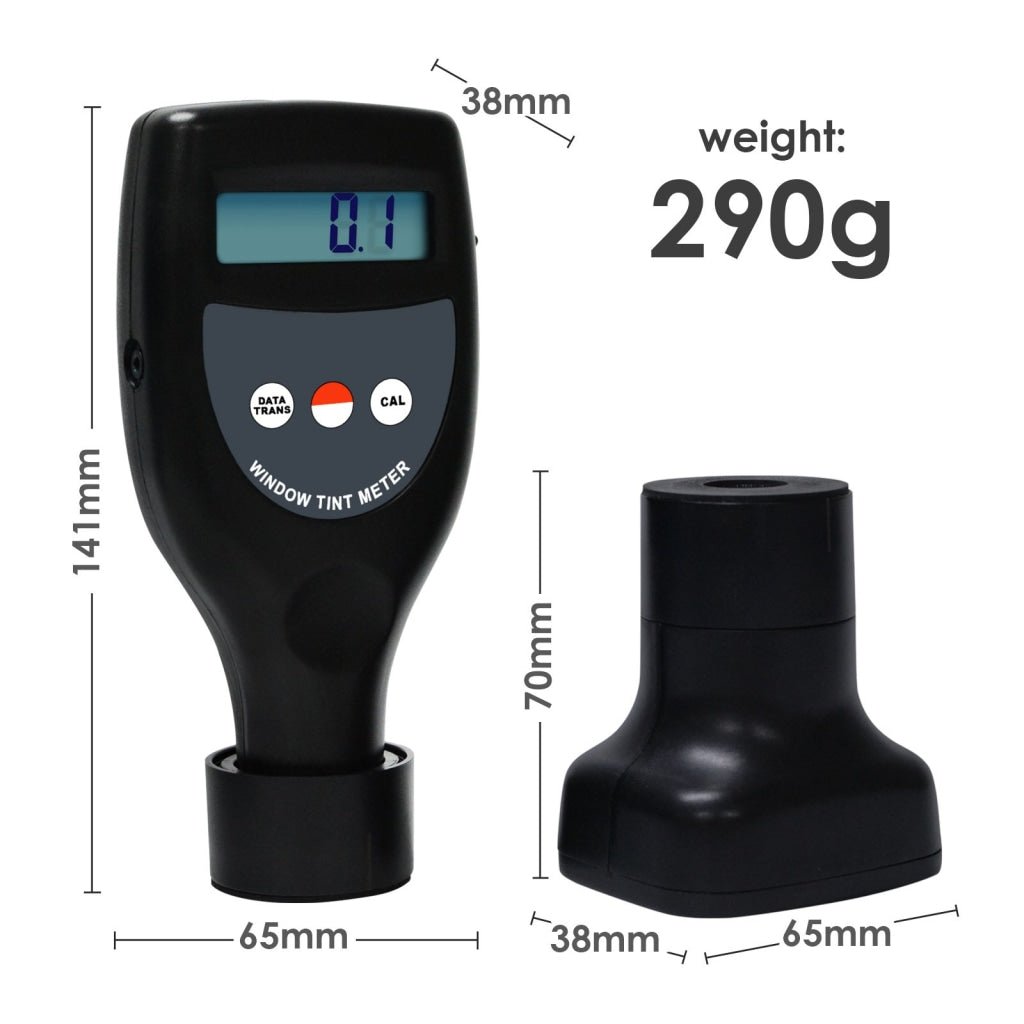

  • Size
    • Main Unit: 141 x 65 x 38 mm
    • Light Emitter: 70 x 62 x 52 mm
  • Weight: 290g (Including Batteries)

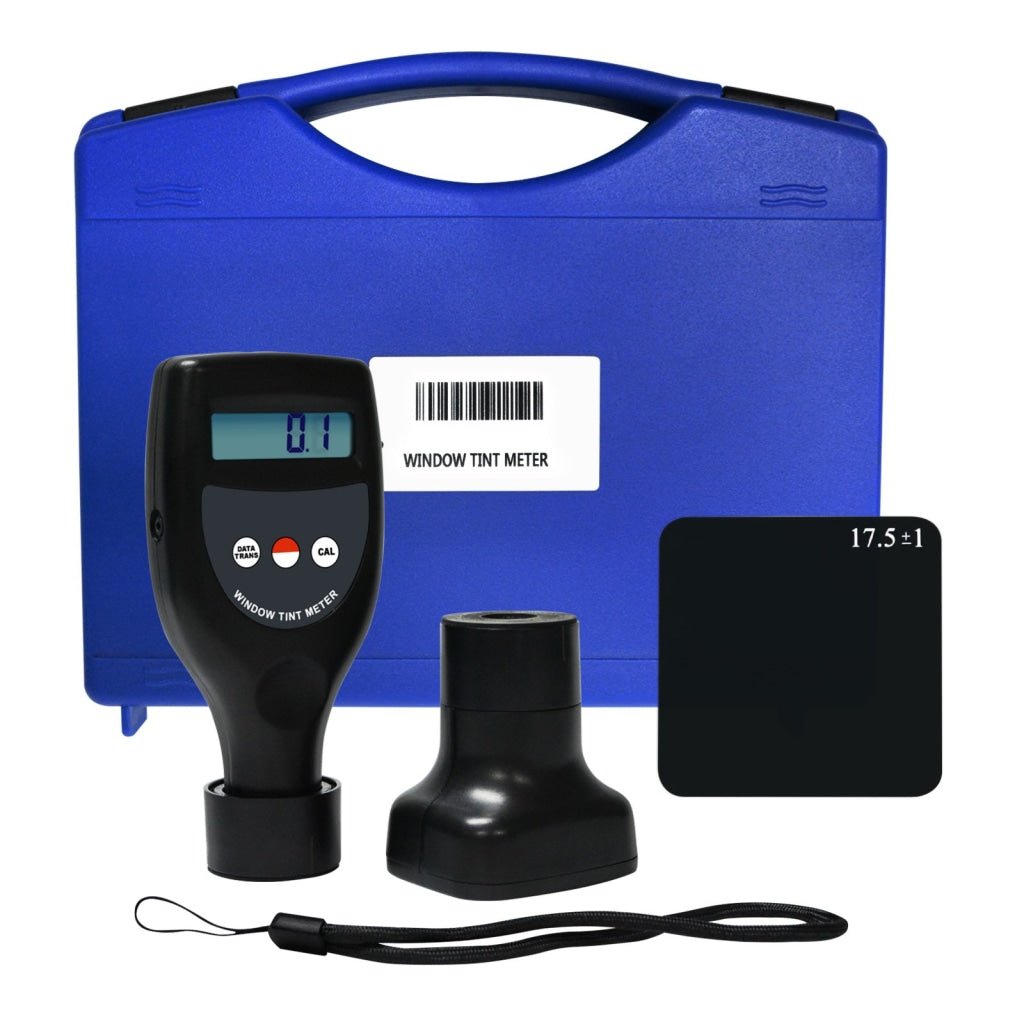

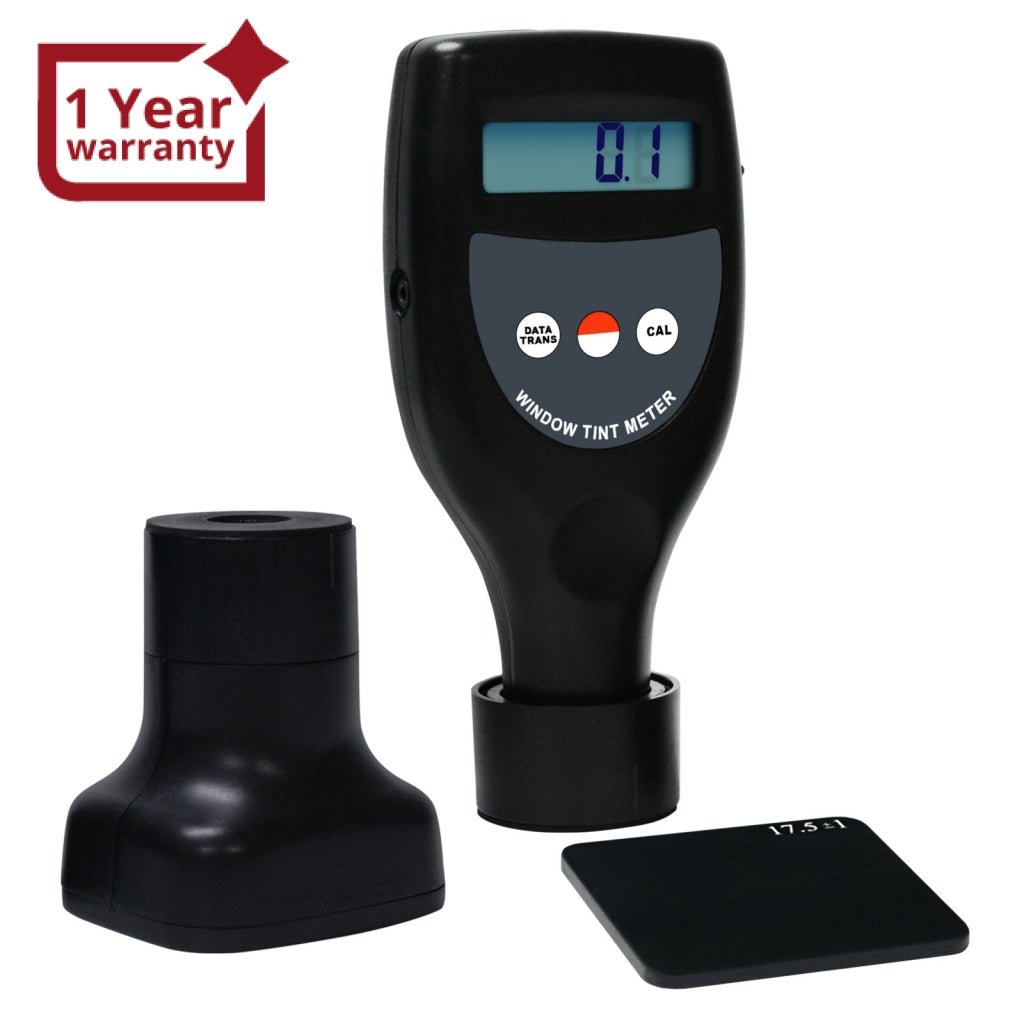

Set Includes:

  • 1 x Window Tint Meter (main unit)

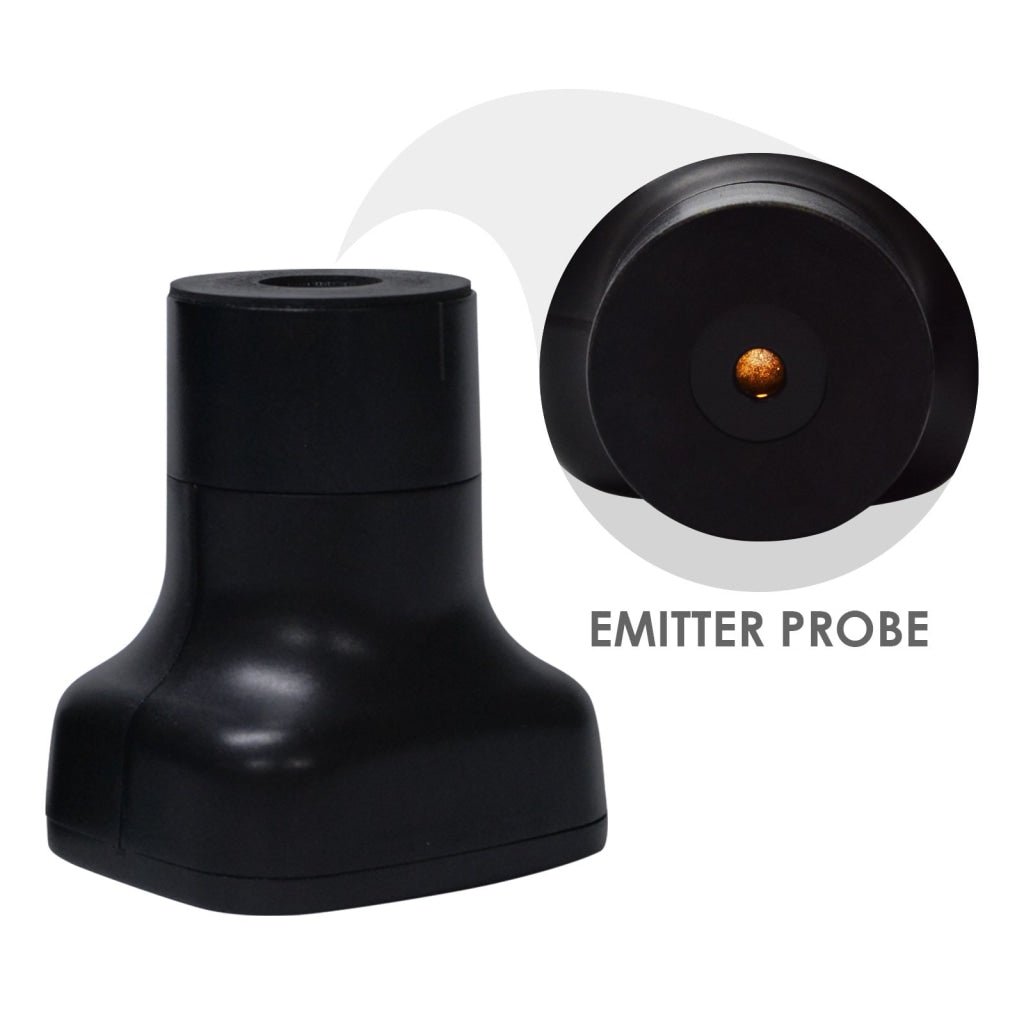

  • 1 x Light Emitter
  • 1 x Testing Block
  • 1 x English Instruction Manual
  • Carrying Case
