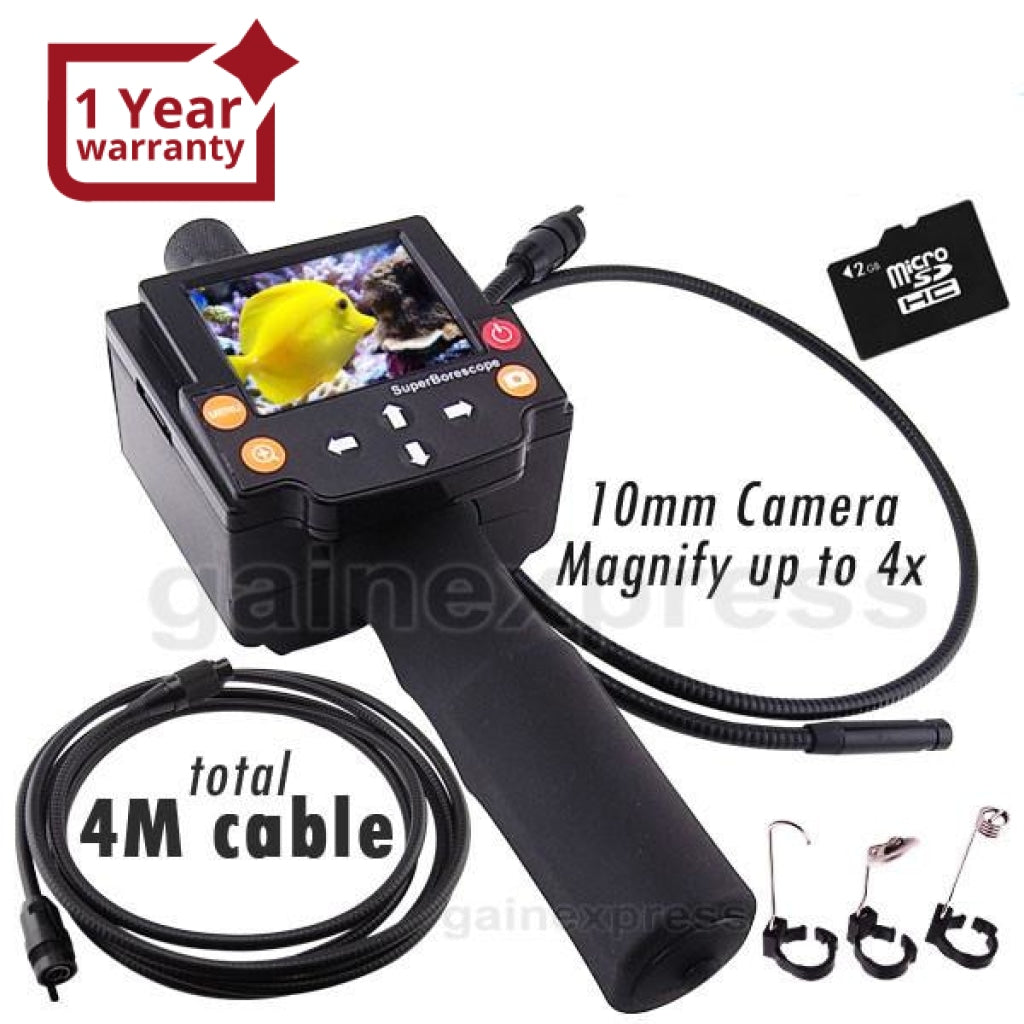

VID-8_4M Industrial 4M Cable Recordable Endoscope Inspection Video Camera

Model: VID-8_4M

This 2.4" Color LCD Video Inspection Camera DVR use optoelectronic technology to investigate hard-to-reach area area and able to capture and record video or photos with SD card.

It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity with 4x Zoom Function. You can also view the video/images on TV or PC through USB cable. The resolution of captured photos or videos can be up to 720 x 480.

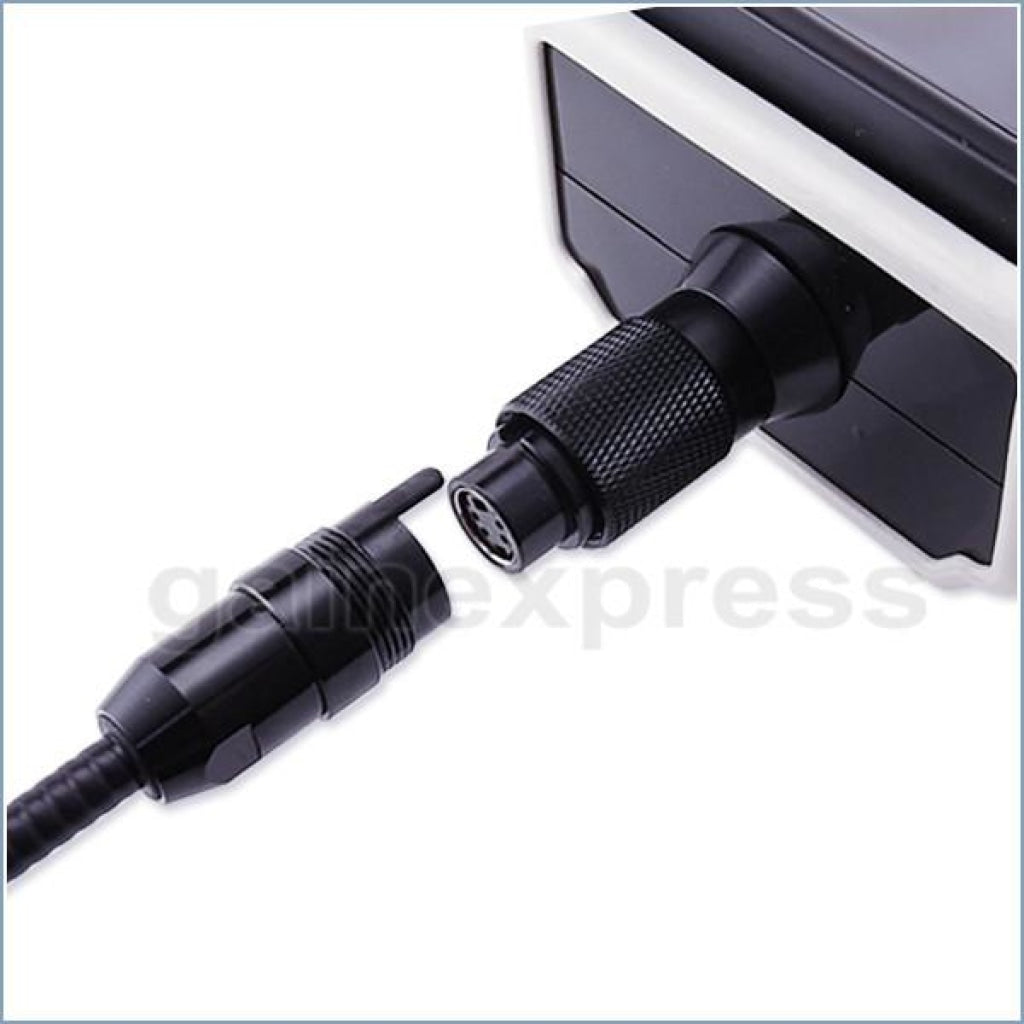

It has built-in LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m (3.3 feets) Flexible tube isWaterproof with 10 mm diameter so that you can inspect area under water, gaps and holes. The set also include 3 m (9.9 feet) Extension Cable, so totally you have 4 m (13.1 feet) for inspection. Optional Extension Cable (3 m / 9.9 feet) allows you to lengthen the vision of inspection point.

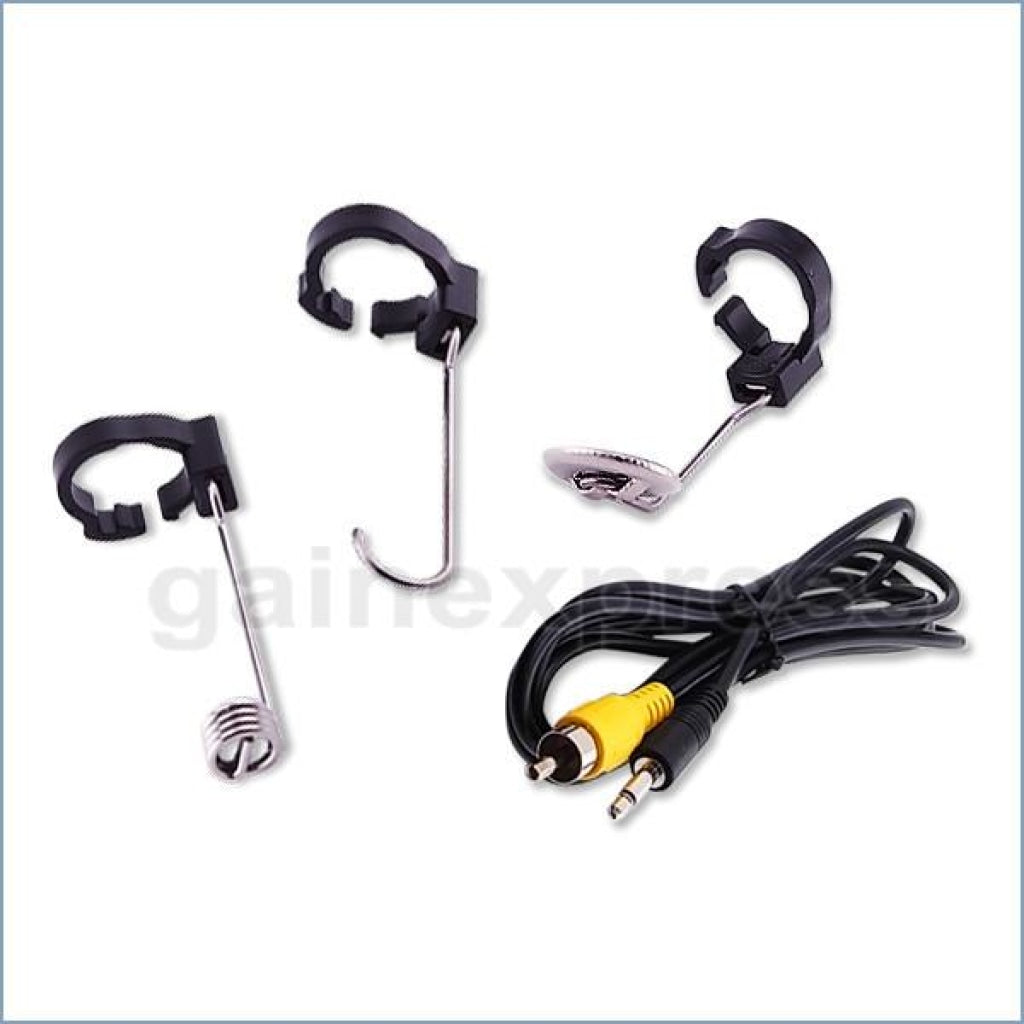

Accessories such as mirror tip is included for viewing within 54° angle. Strong magnetic tip allows you to pickup nuts, bolts and screws you may have dropped in inaccessible places. Easy clip on design for fast installation. Hook tip, J-shaped extension used to tug, pull or pick up small objects or wires.

This inspection camera has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.

Features

• 4 m (13.1 feet) Cable (1 m Camera Tube + 3 m Extension Cable)
• Suitable for hard-to-reach inspection

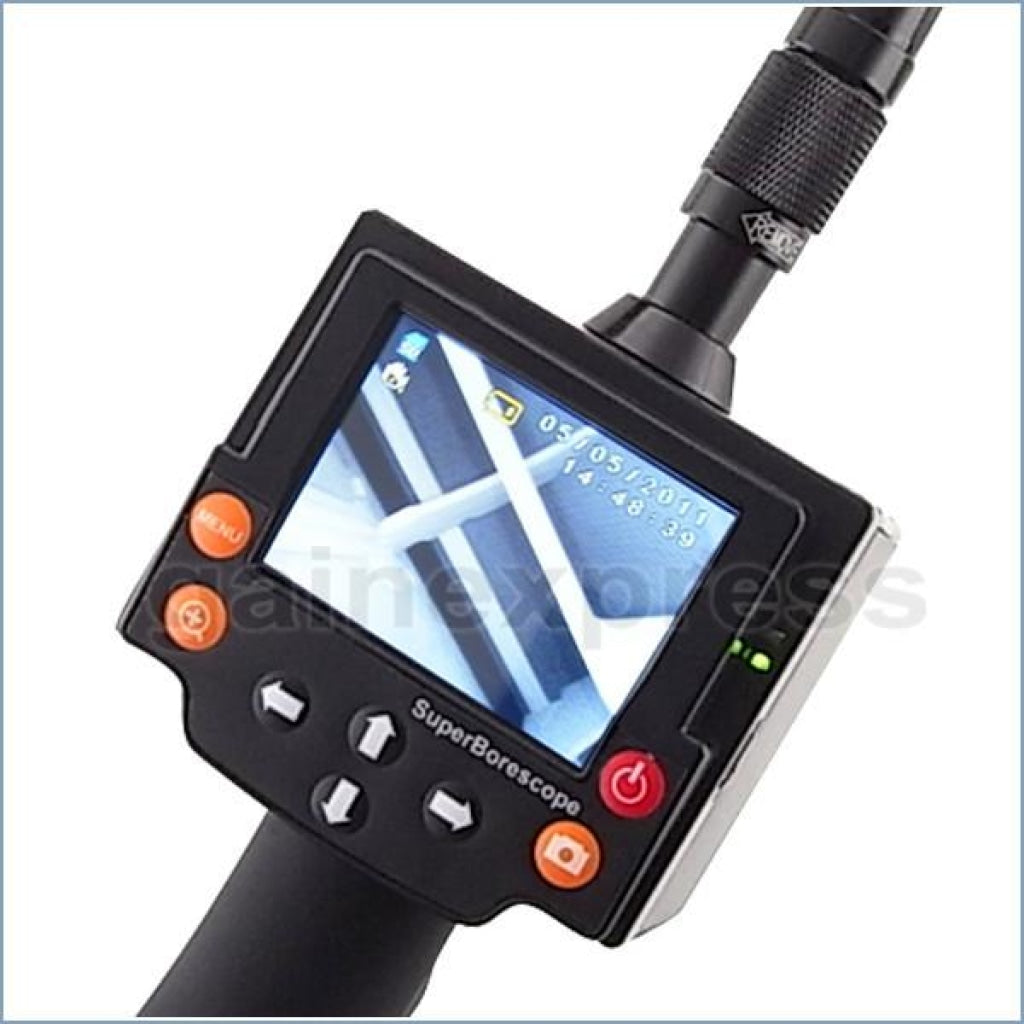

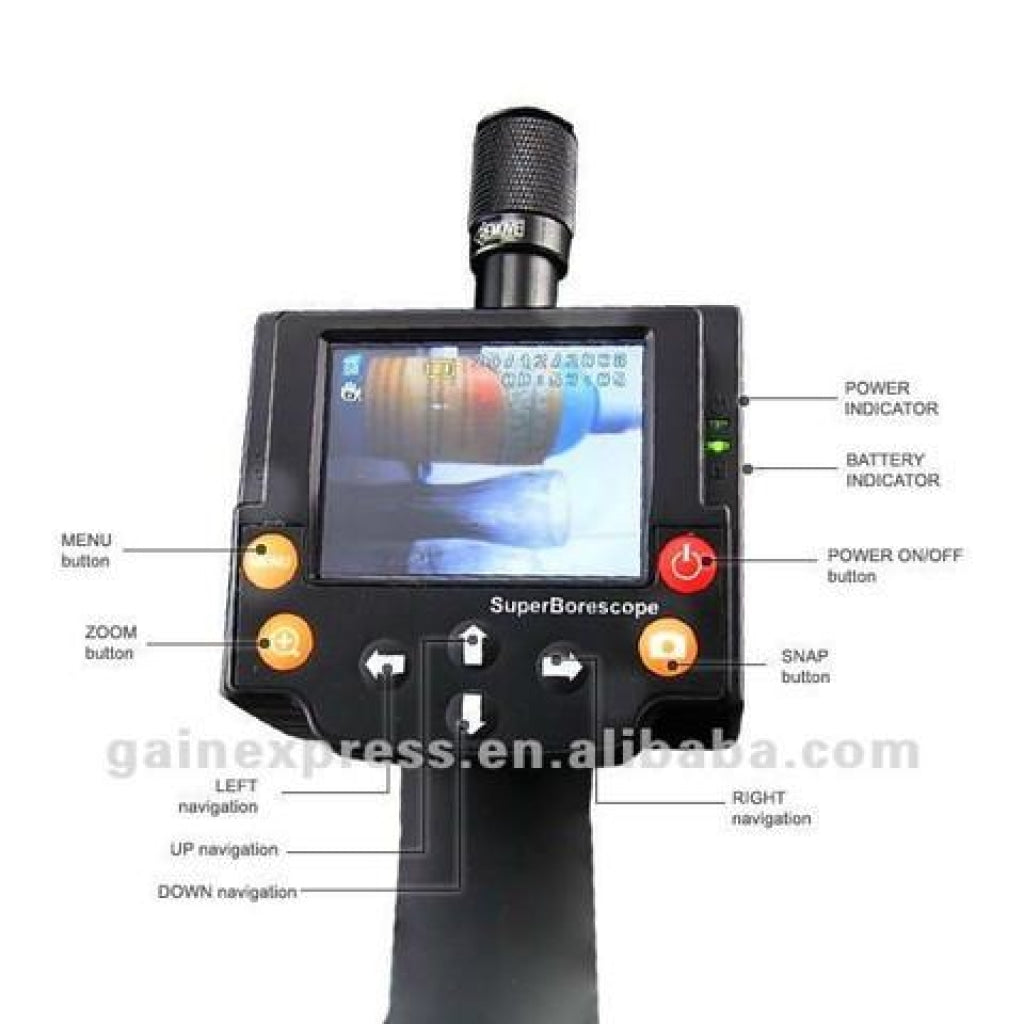

• Digital DVR with 2.4" TFT LCD Color Monitor
• Up to 4x magnification (zoom) power
• Record video and capture photo
• View photos and video playback functions

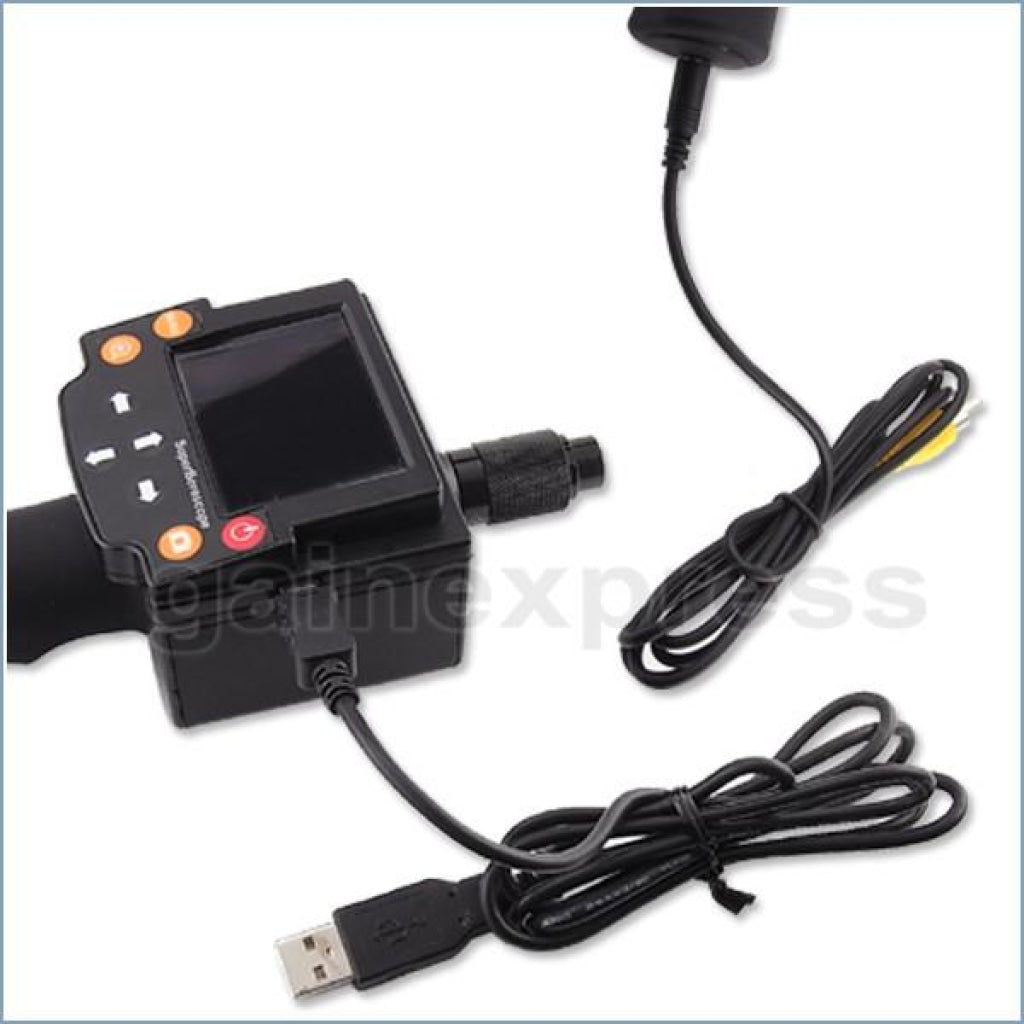

• With USB Cable for connecting to PC for storing data and reviewing
• Allow overwrite on data, single delete, all file delete and formatting of SD Card

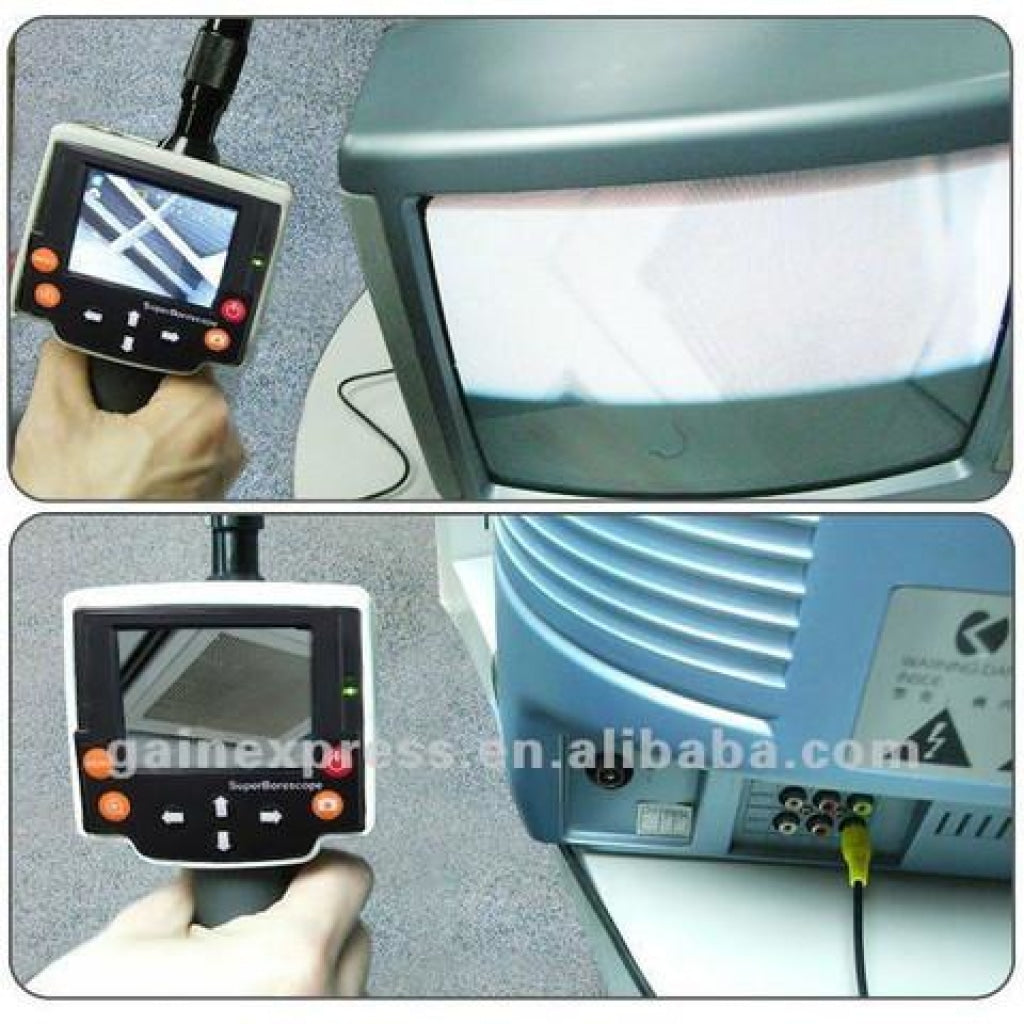

• With AV cable for TV connection for bigger view
• Glare-free close-ups and wide range field of view
• 6.8mm PE covered metal probe with ABS handle
• High resolution image, optical system, stable performance and easy to operate
• With Protective Rubber Housing, serves as shock absorber when accidentally dropped
• High visibility color LCD display
• Lightweight ergonomic design
• Fit for hard-to-reach distant inspection
• Waterproof sensor can be immersed to water, IP67 water level

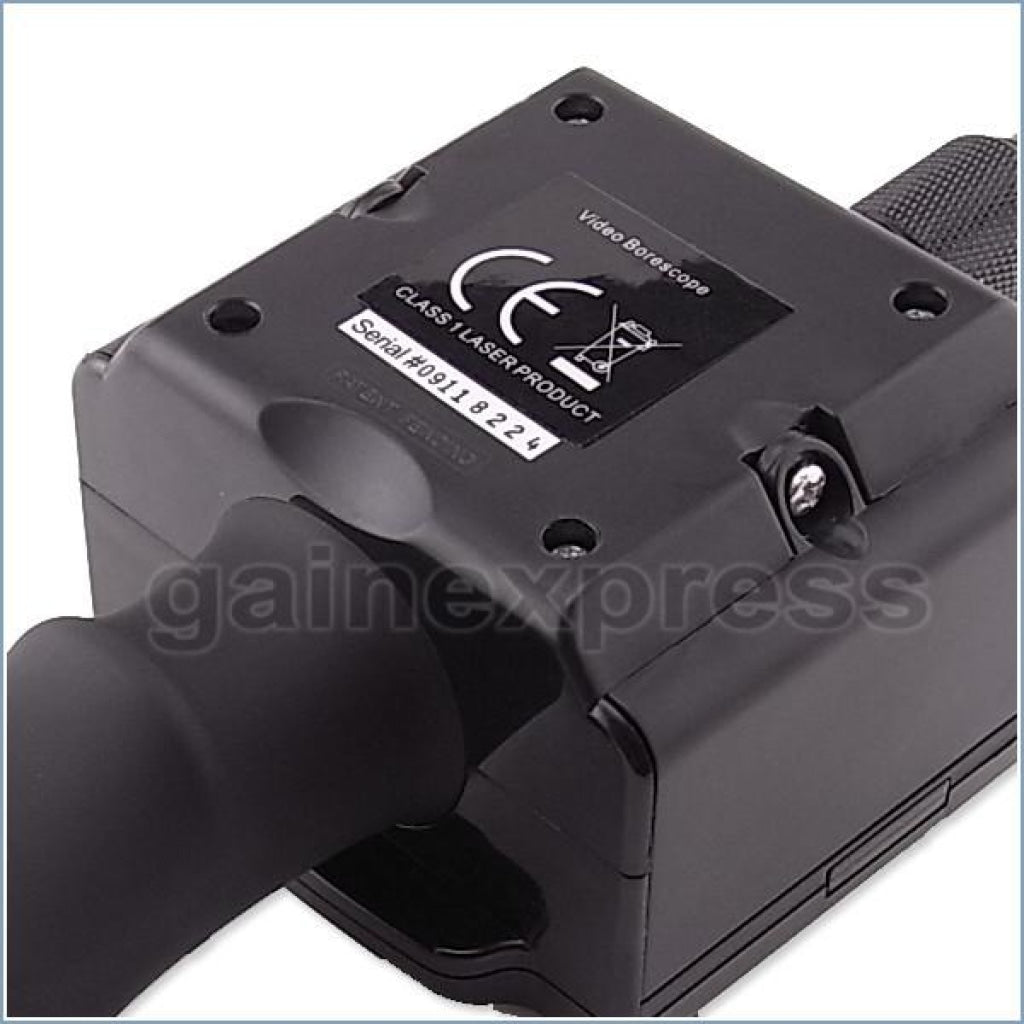

• With CE marking, meets EU safety, health and environmental requirements
• With optional 3M extension metal tube (not included in the set), allows the user to extend the exploration up to a maximum of 51 meters or 17pcs of Optional 3M extension cables
• Low battery warning & power on indicator
• NTSC video standards
• White LED lights with brightness control
• 54° Viewable Angle and 3~6cm focal distance

Specifications

• 2.4 inch (6.1cm) TFT resolution : 320x234 pixels
• Lens sensor resolution: 320x240 pixels
• Sensitivity: 0.7V (Lux.sec)
• Color Mosaic: RGB Bayer Pattern
• White comparison: Automatic
• Exposure to light: Automatic
• Video Format: NTSC composite video
• Camera illumination: 2 white LEDs
• Handle End AVI Port: NTSC Signal Out
• Photo capture: 720x480 (D1) resolution by JPEG format
• AVI Playback & Movie recording: 30fps@720x480 (D1) and 30fps@320x240 (CIF) MJPG format
• Camera:
  • Lens Coverage: 54°
  • Focus: 3~6cm (1.18 ~ 2.36 inch)
  • Diameter: 10mm (0.39 inch)
  • IP67 water resistant
• Probe :
  • Metal Tube Length: 88.0 ±2.0cm (34.6 ± 0.79 inch)
  • Minimum Bending Radius: 4.5cm (1.77 inch)

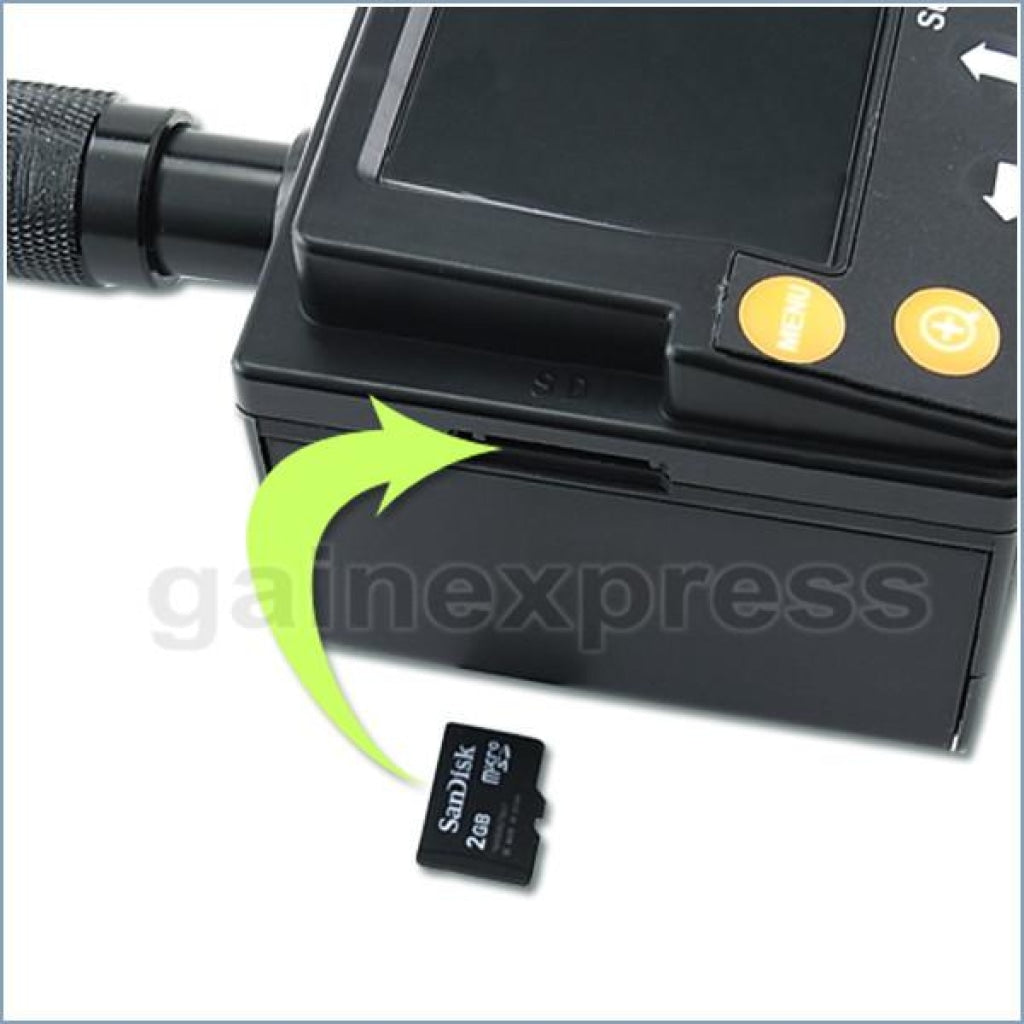

• SD Slot : Support Micro SD up to 32GB
• Zoom: 4x maximum
• USB port: USB 2.0
• Battery Life: 7 hours continuous usage
• Power Consumption: 350mA
• Ambient/Operation Temperature: 0~45°C (32 ~ 113 °F)
• TV Cable Length: Approx. 1.5M (4.92 feet)
• Total length of device: 116.6 ±2.0cm (4.59 ± 0.79 inch)

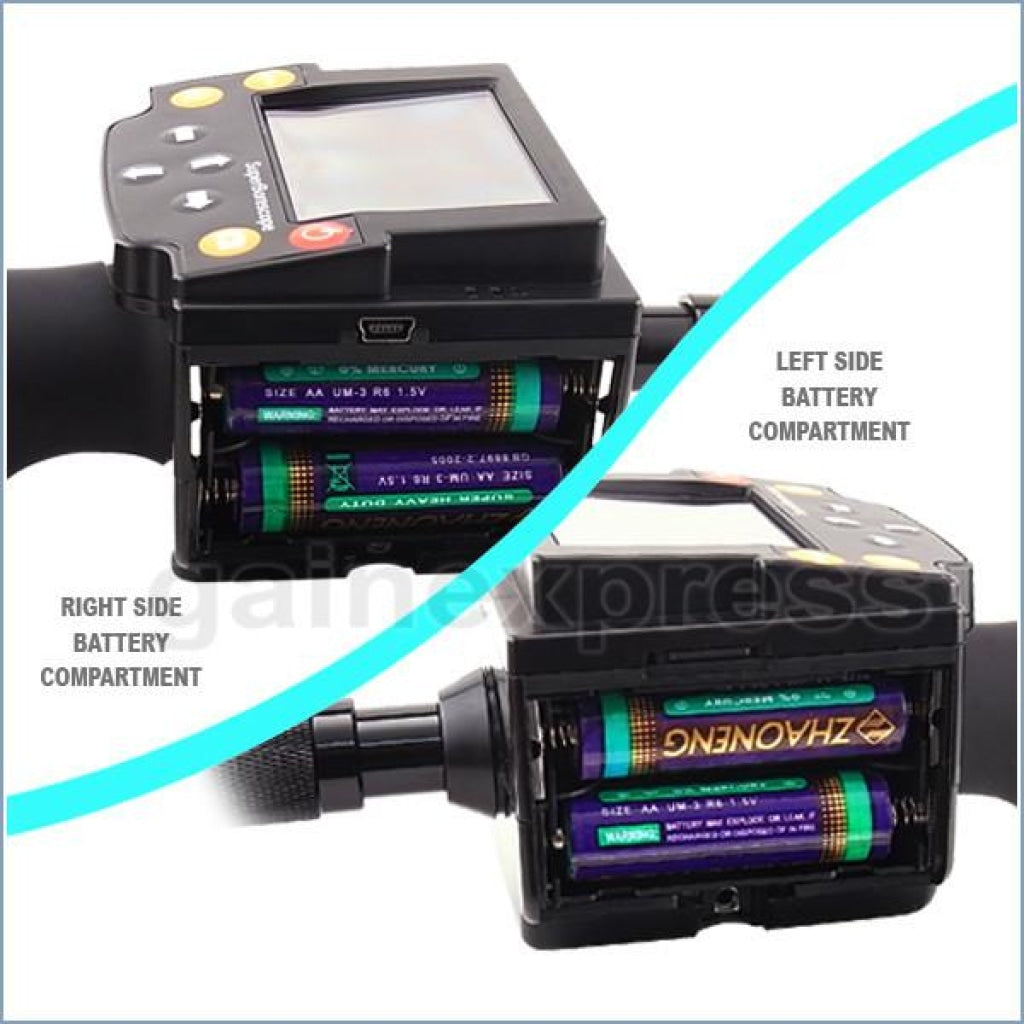

• Power: 4 x 1.5V AA batteries (included)
• Weight: approx. 370gm (excluding accessories)

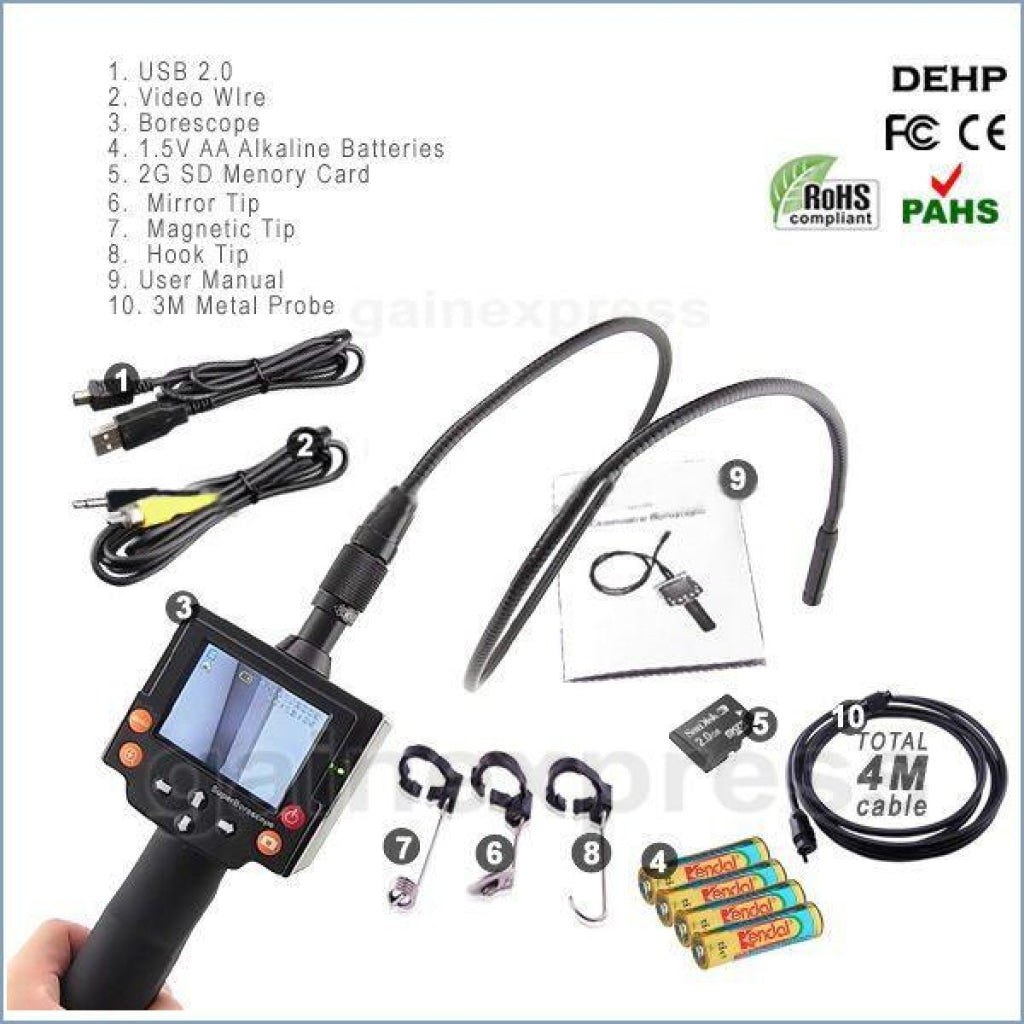

Set Includes

• Included
  • 1 x 2.4" LCD Inspection Camera Borescope Endoscope
  • 1 x Operation Manual
  • 1 x approx. 1m Metal Probe
  • 1 x 3 m (9.9 feet) Extension Cable (FREE)
  • 1 x Magnetic Tip
  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 1 x Video cable
  • 1 x 2G SD Memory Card (FREE)
  • 1 x USB 2.0 cable (FREE)
  • 1 x Protective Rubber Holster (FREE)
  • 4 x 1.5V AA Alkaline Batteries (FREE)

OPTIONAL (not included in the set)

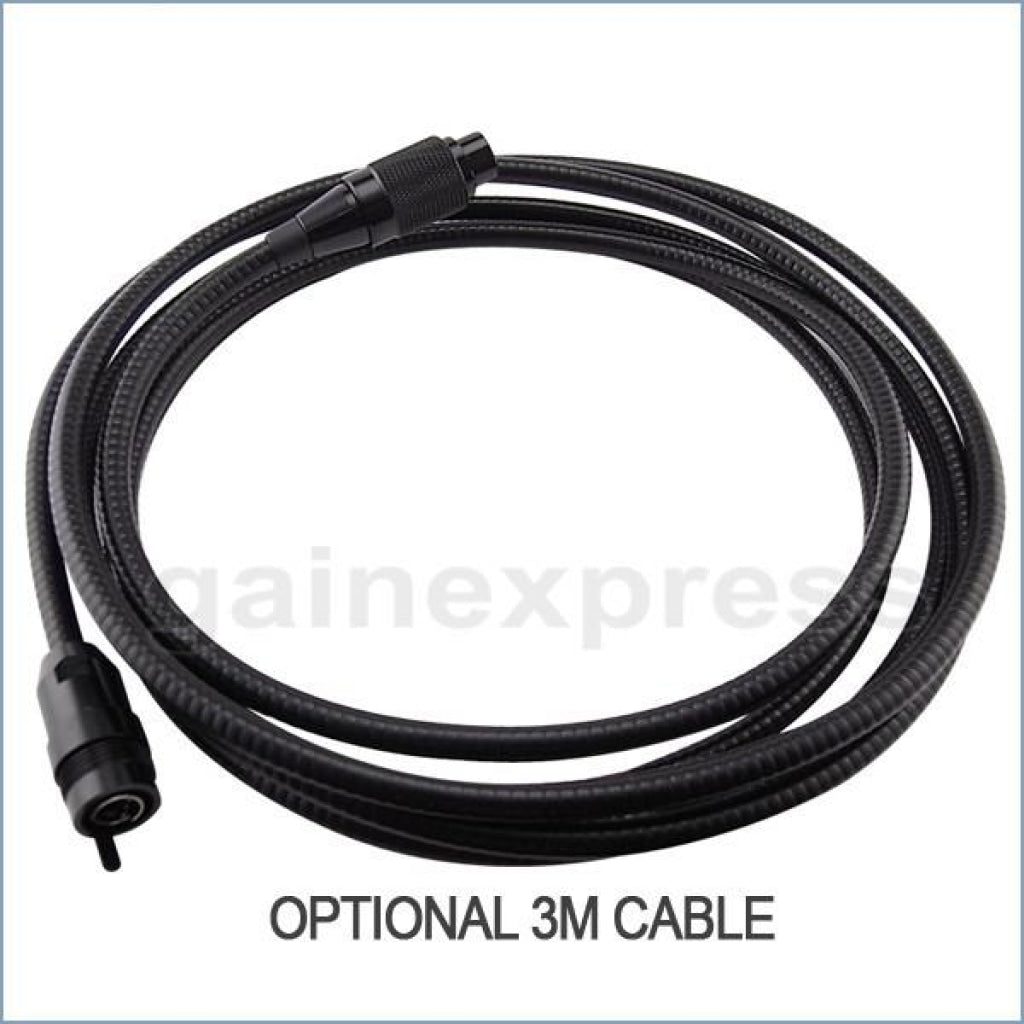

          Please click here to buy this optional item   3m (9.9ft) extension cable

(maximum length of extension cables that can be attached to this item is 51 meters or 17pcs of 3M extension cables)
