VID-71R_9_3M Recordable Video Inspection Industrial Borescope 4 LED Pipe Car 9mm Camera Scopes

This product is currently sold out. Please contact us if will order in bulk.


Model : VID-71R_9_3M

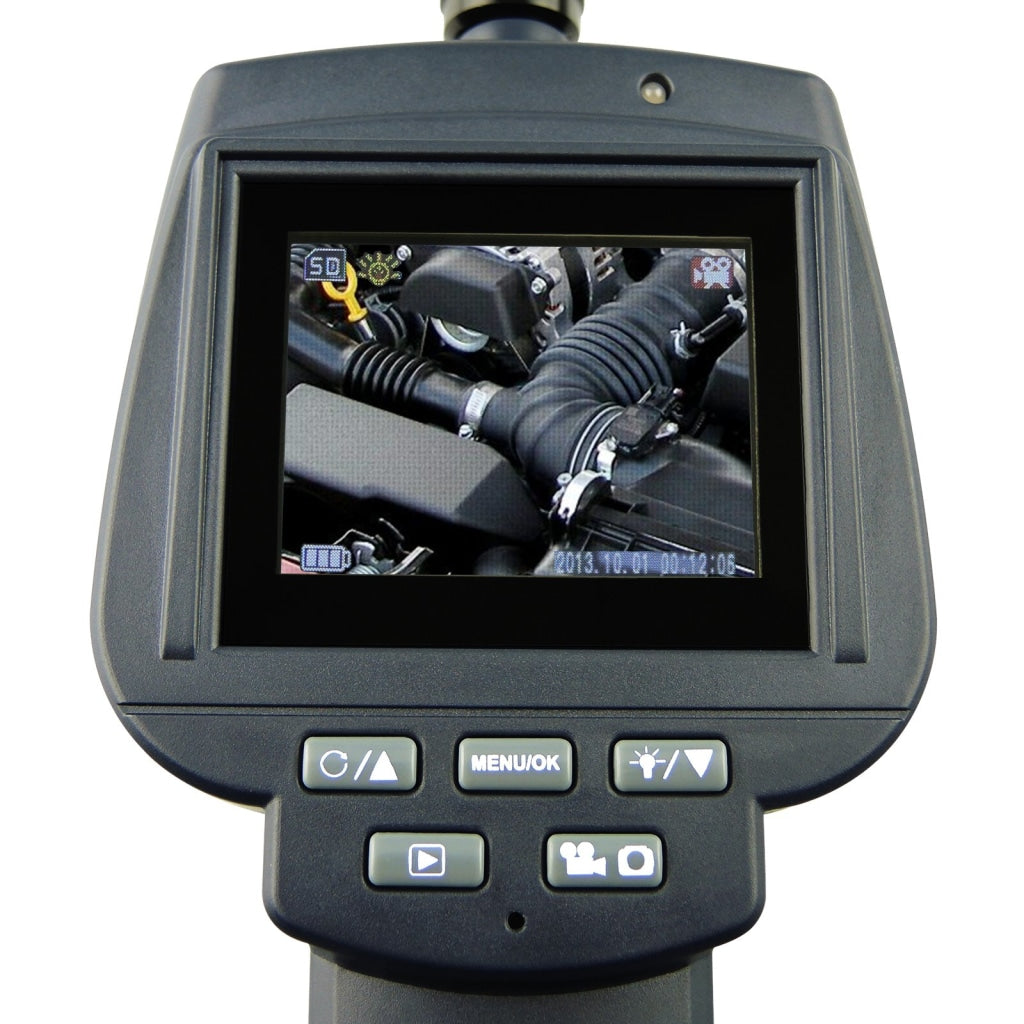

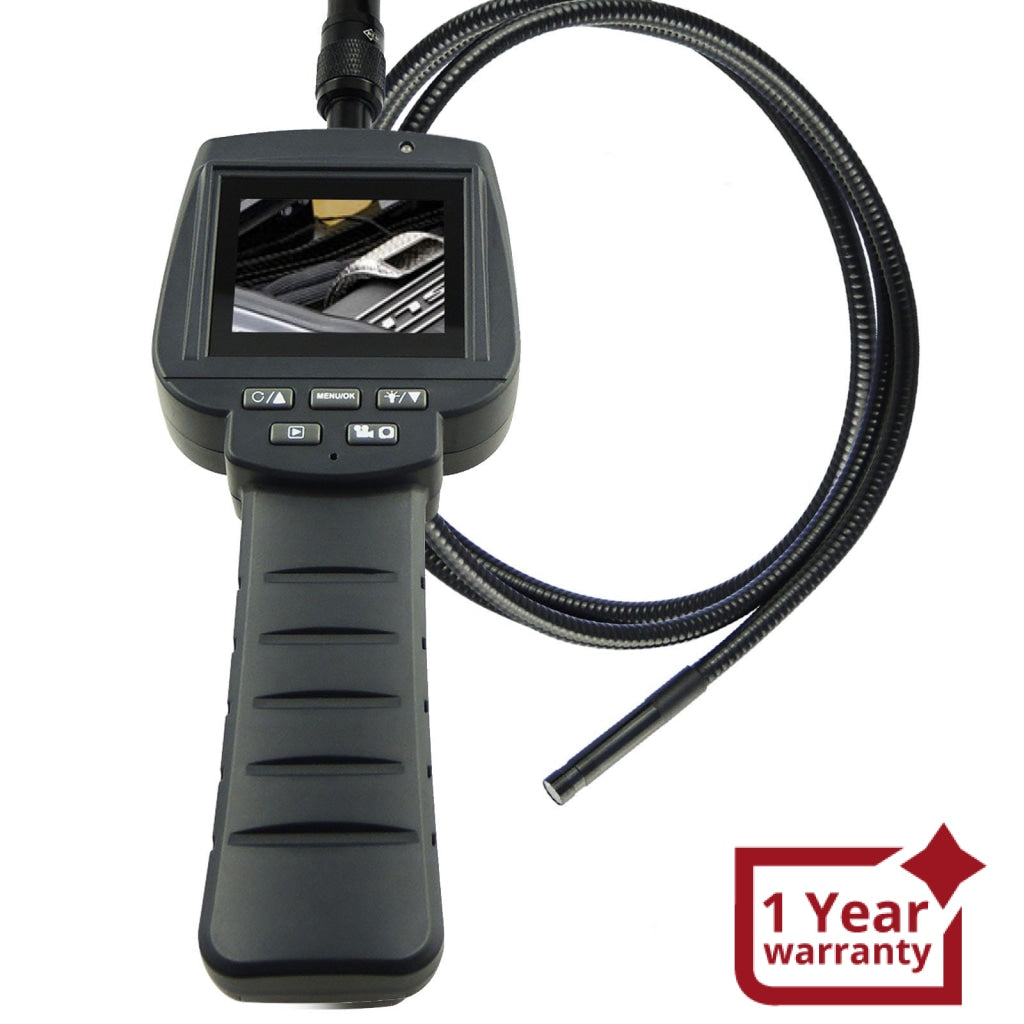

This 3M Cable Inspection Camera allows you to view and inspect hard to reach, small opening and tight area. It has 2.4" TFT HD colored screen for clear viewing and recording via micro SD/TF card (store up to 32G).

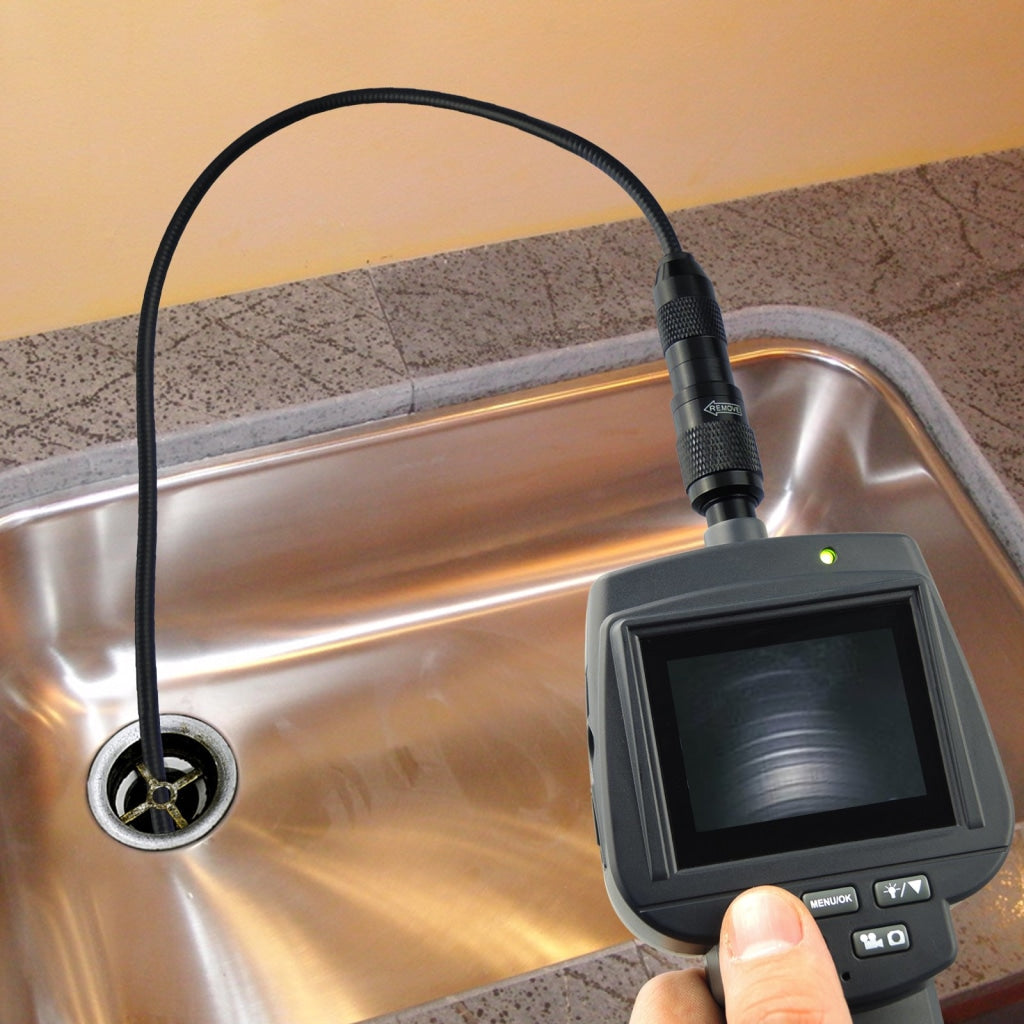

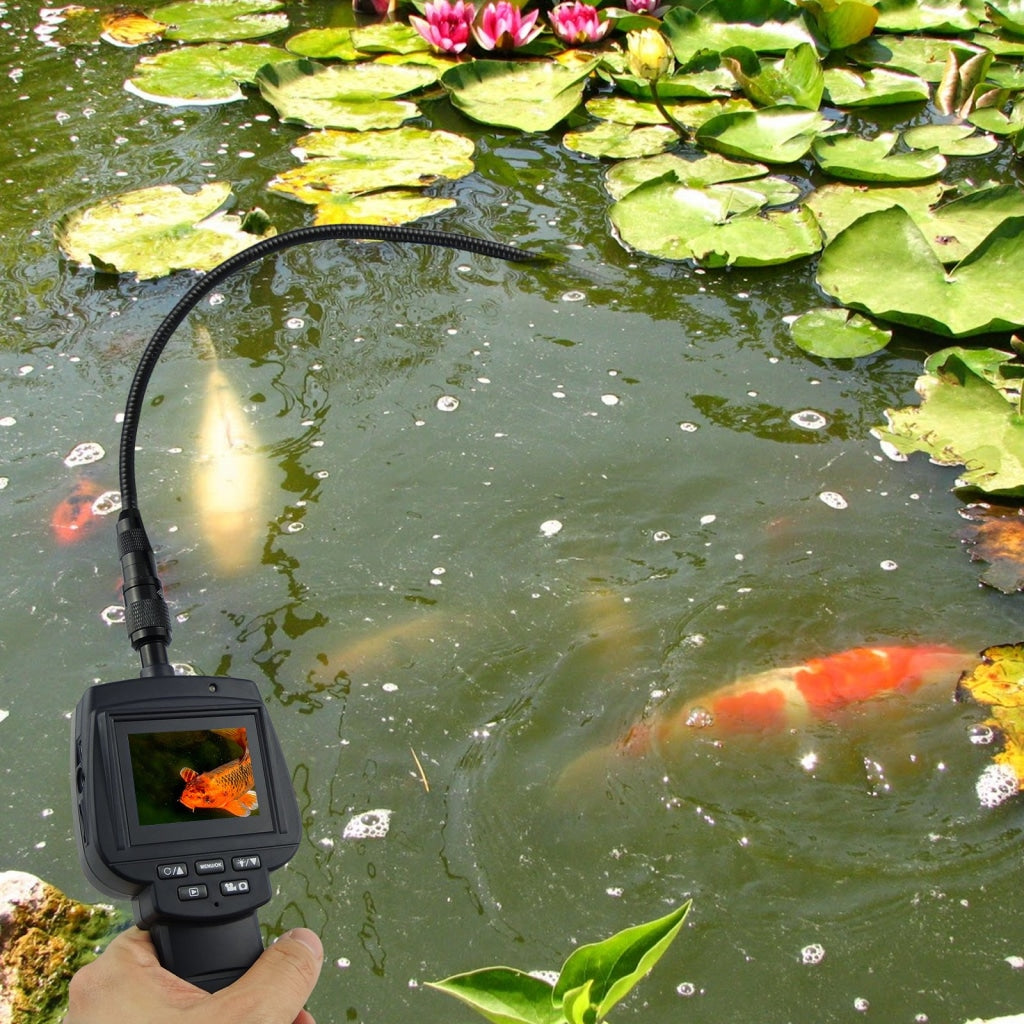

Can work on different fields such as in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands.

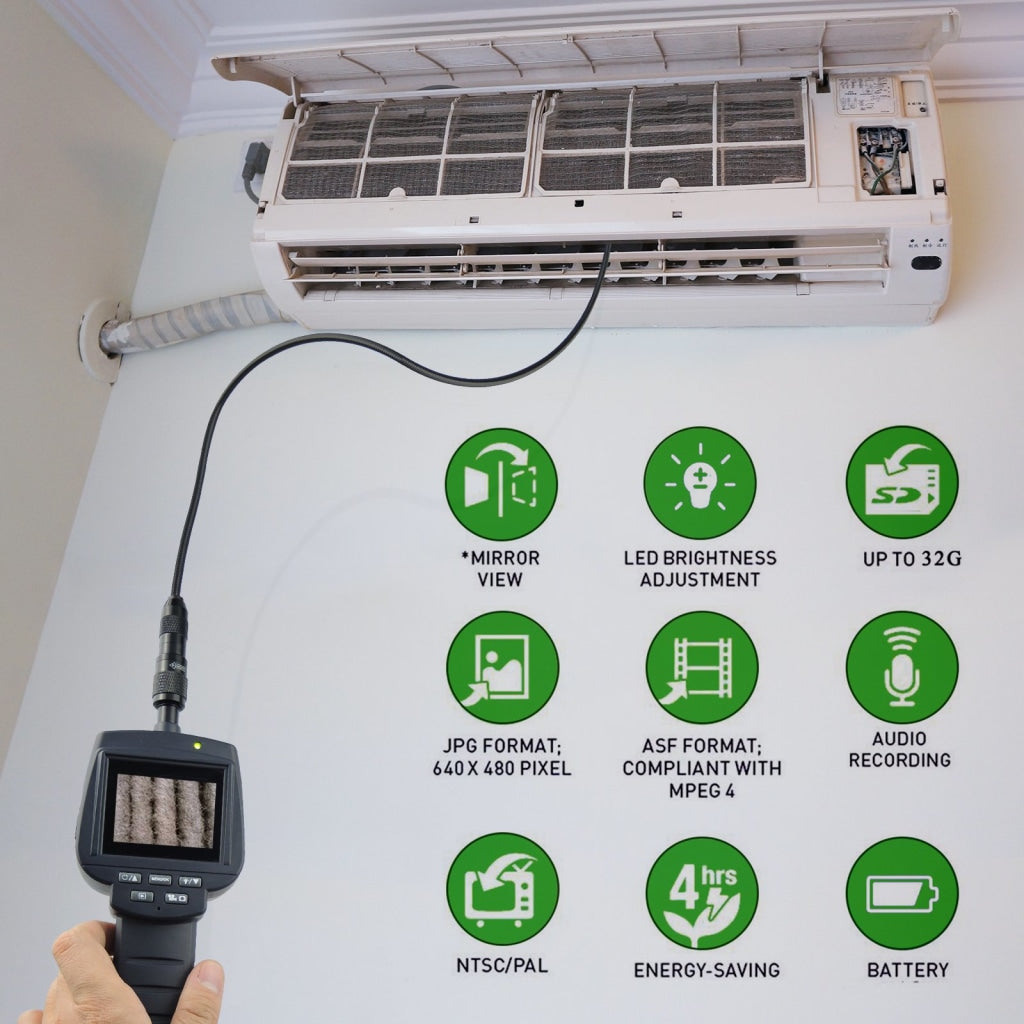

Features:

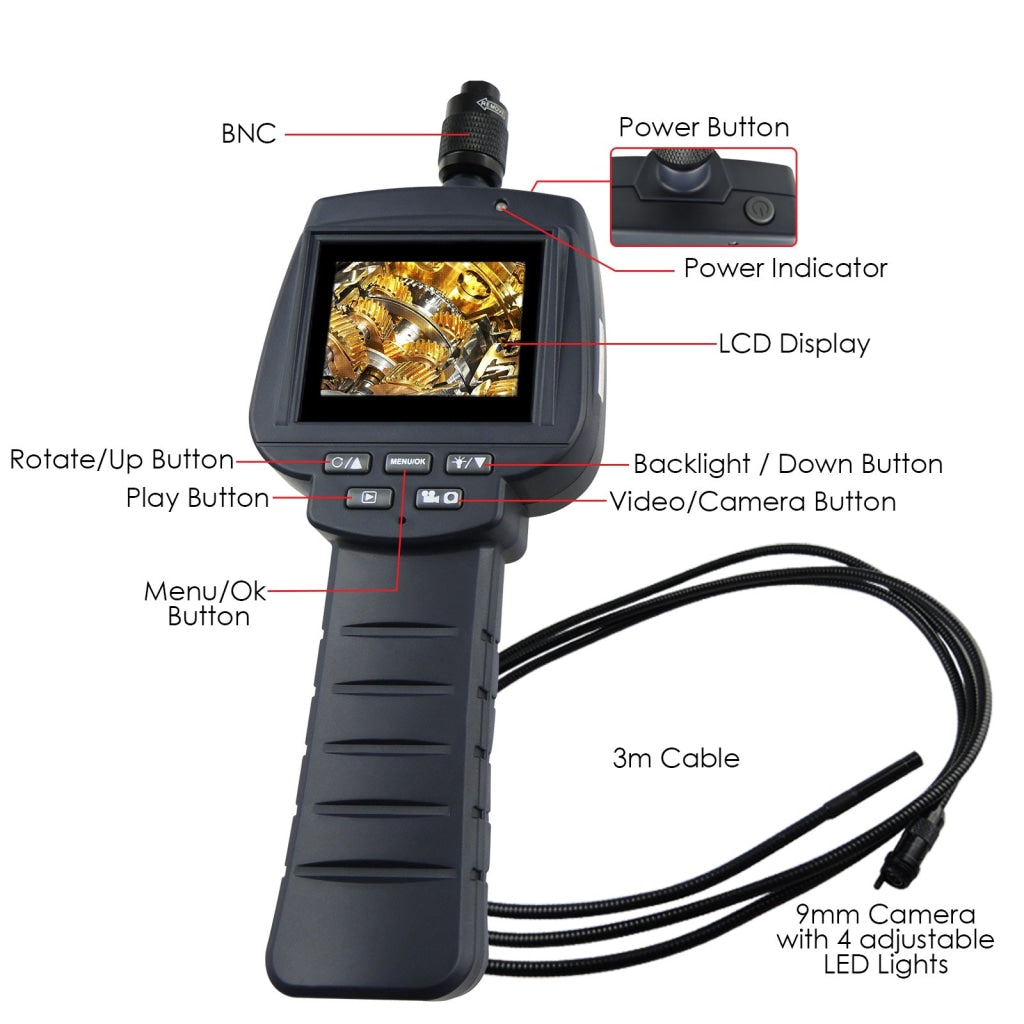

  • 3 meter Cable Mini 9mm Camera Diameter
  • Video record and capture picture
  • Video playback and view photos
  • Audio recording
  • Edit or delete photo or video, supports SD storage upto 32G
  • 4 adjustable LED camera lights, 6 brightness levels
  • Screen backlight, 6 brightness levels
  • Rotate Image, 180º rotation
  • With Mirror view and IP67 waterproof, oil, acid and alkali resistance
  • Low battery indication

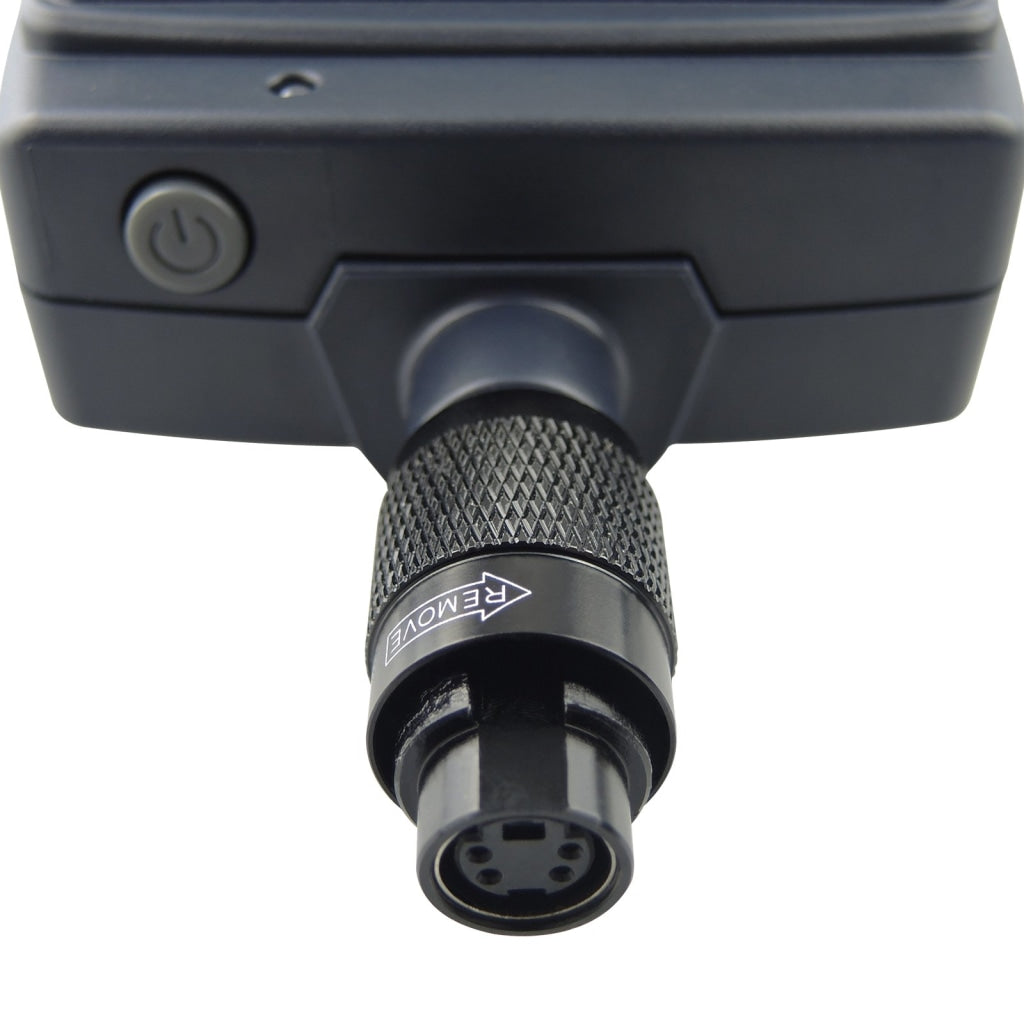

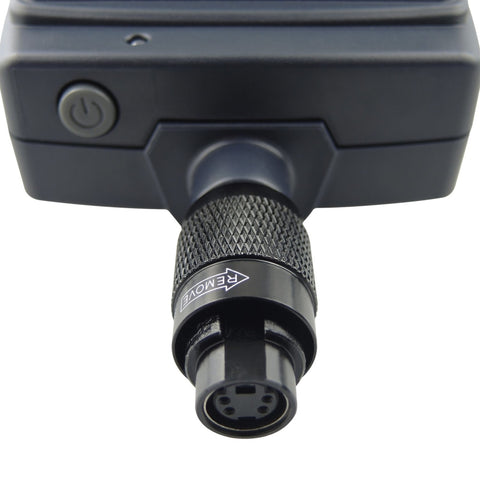

  • Removable cable tube (max extension up to 20m), 150° max bending radius
  • Particle-free for Mirror, Anti-reflection, Brighter Image, Rotatable Image
  • Menu in 10 Languages: English, French, German, Italian, Spanish, Russian, Portuguese, Simplified Chinese, Japanese and Korean

Specifications:

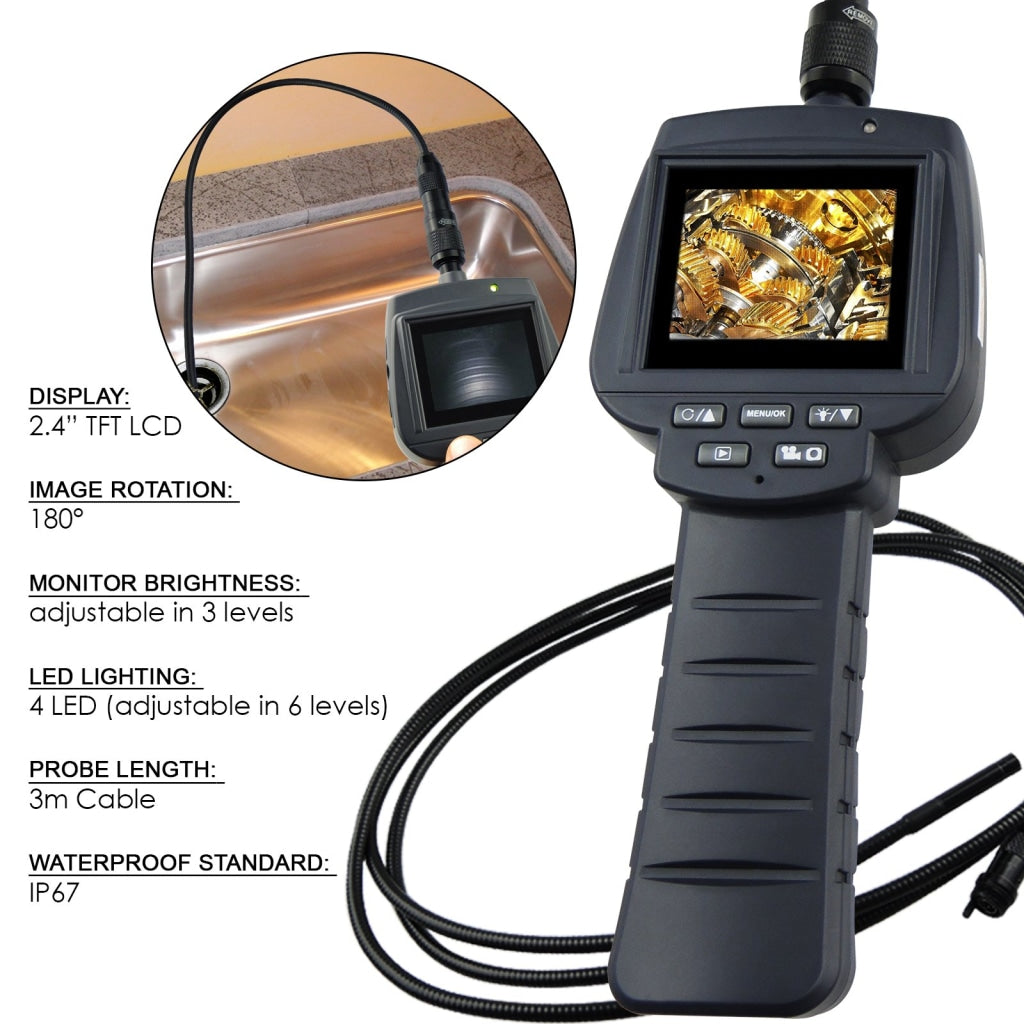

  • Main Unit:
    • Display: 2.4” TFT LCD VGA 234 x 480 Pixels 16M color

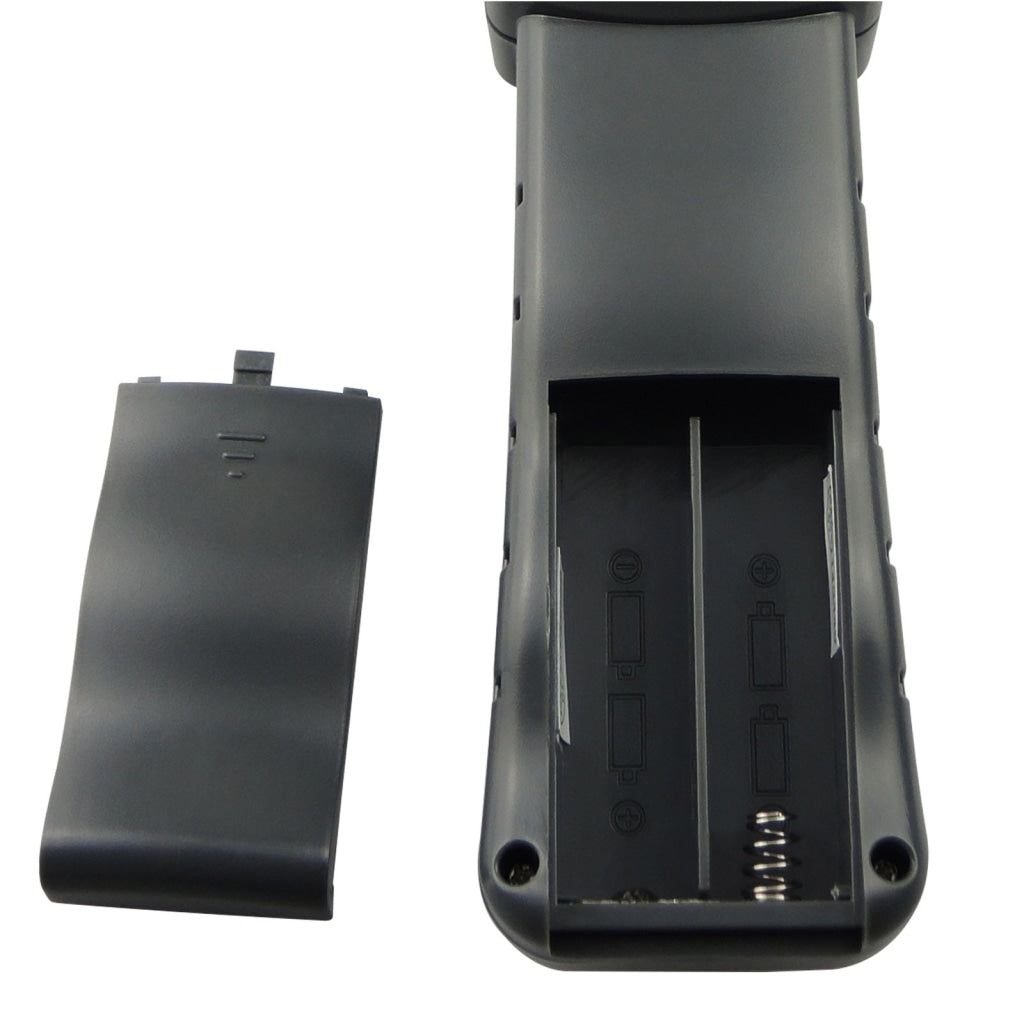

    • Power: 4 x 1.5V AA Battery (not included in the set)
    • Image Resolution: 320 x 240 (NTSC) / 720 x 625 (P)
    • Photo Format: JPG / BMP / JPEG
    • Video Format: AVI
    • Video System: PAL / NTSC
    • Resolution: 640*480
    • Data output: Video output connected to TV or PC
    • Output Voltage: 5V
    • Working Current: 2A
    • Item Color: Gray
    • Image Rotation: 180°
    • Monitor brightness: adjustable in 3 levels

  • Insertion Tube:
    • Image Sensor: CMOS Sensor
    • Actual Pixel: 0.45 Megapixels
    • Focus range: 30mm~80mm
    • Image angle: 60°
    • Lens diameter: 9mm
    • Energy Saving: switches off after 10 minutes
    • Probe Length: Standard 3M Cable
    • Material of Tube: Semi-rigid
    • Dimension: 215 x 85 x 35mm

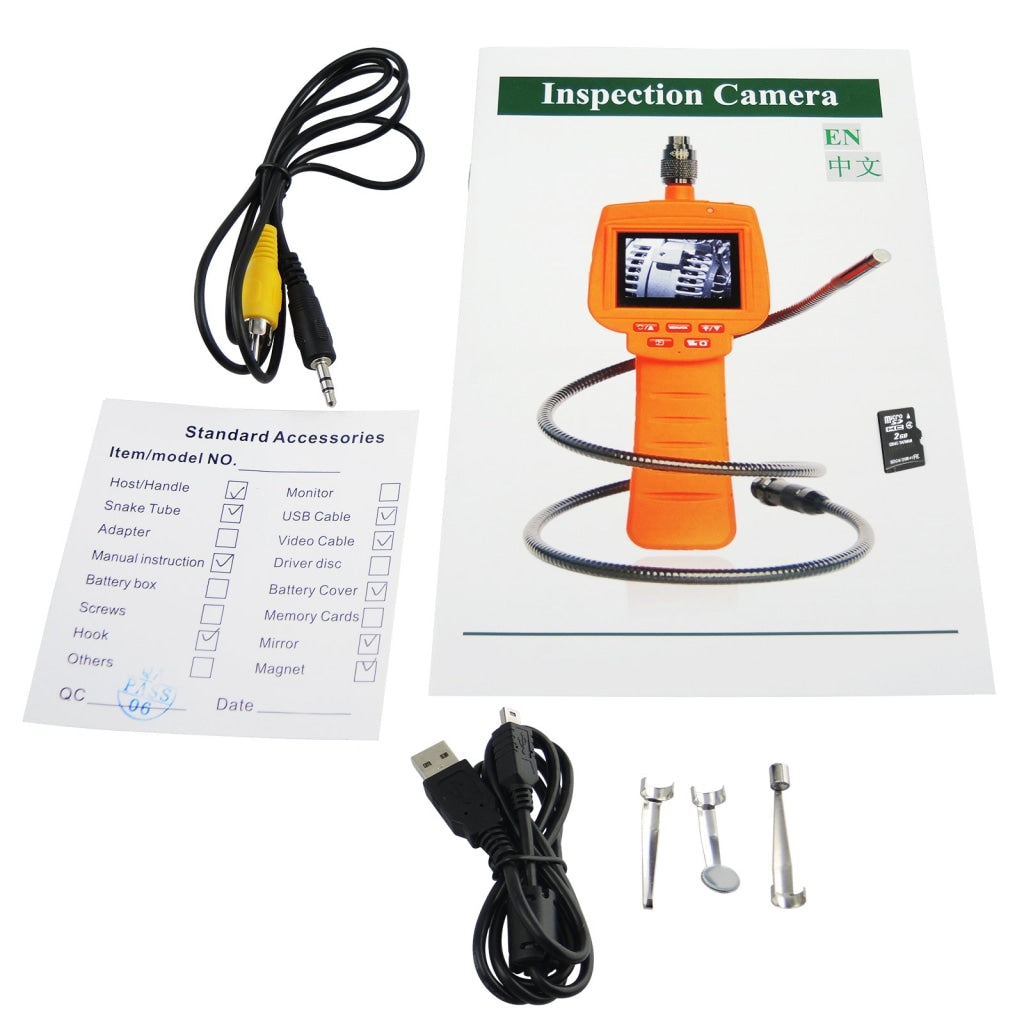

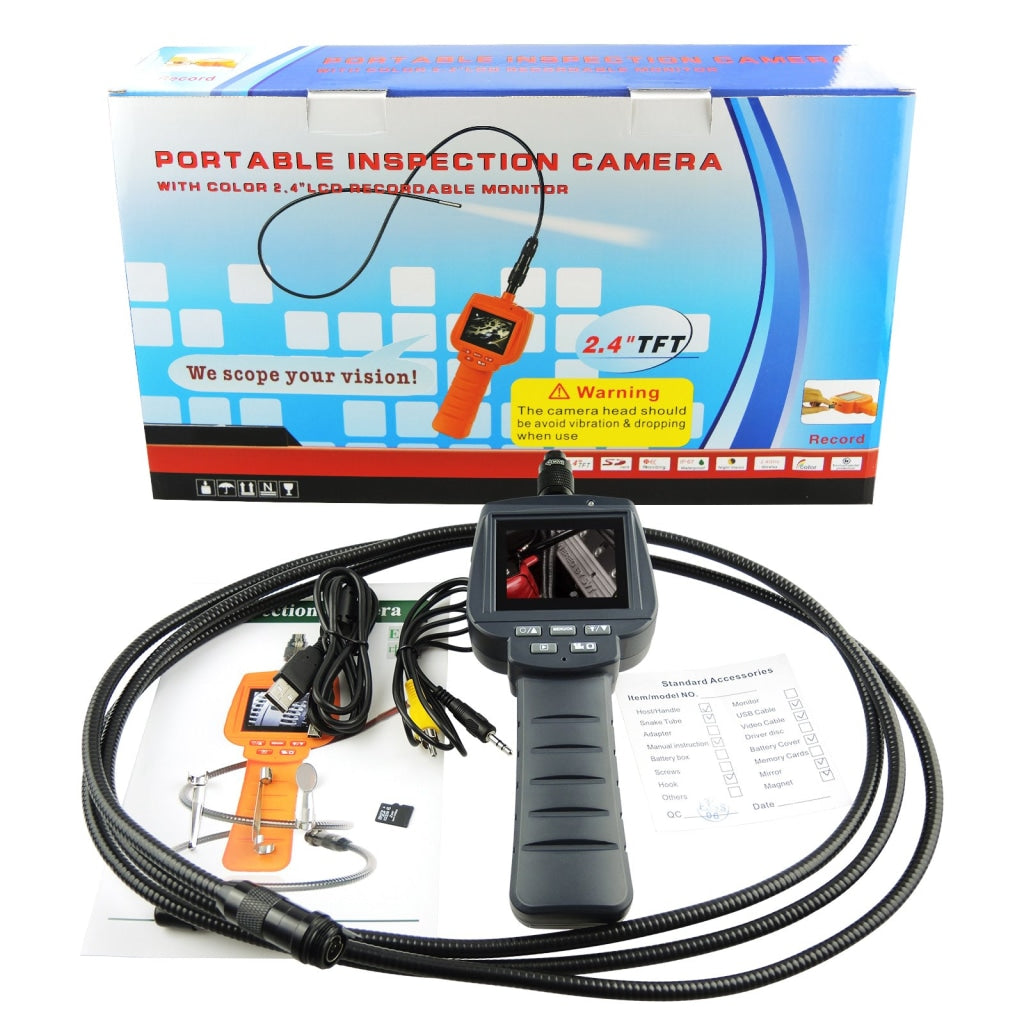

Set includes:

  • 1 x 2.4" Colored LCD Inspection Camera

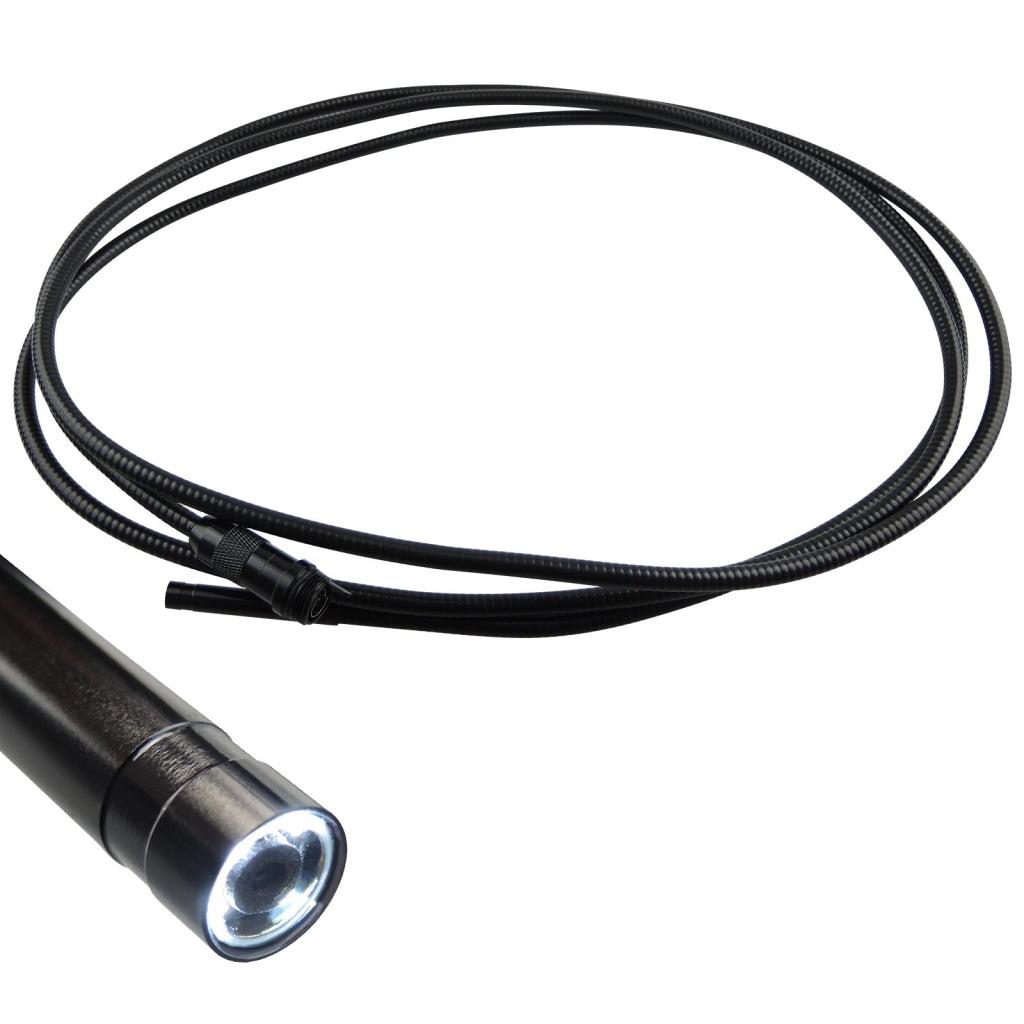

  • 1 x 3m Cable Tube with 9mm Waterproof Camera

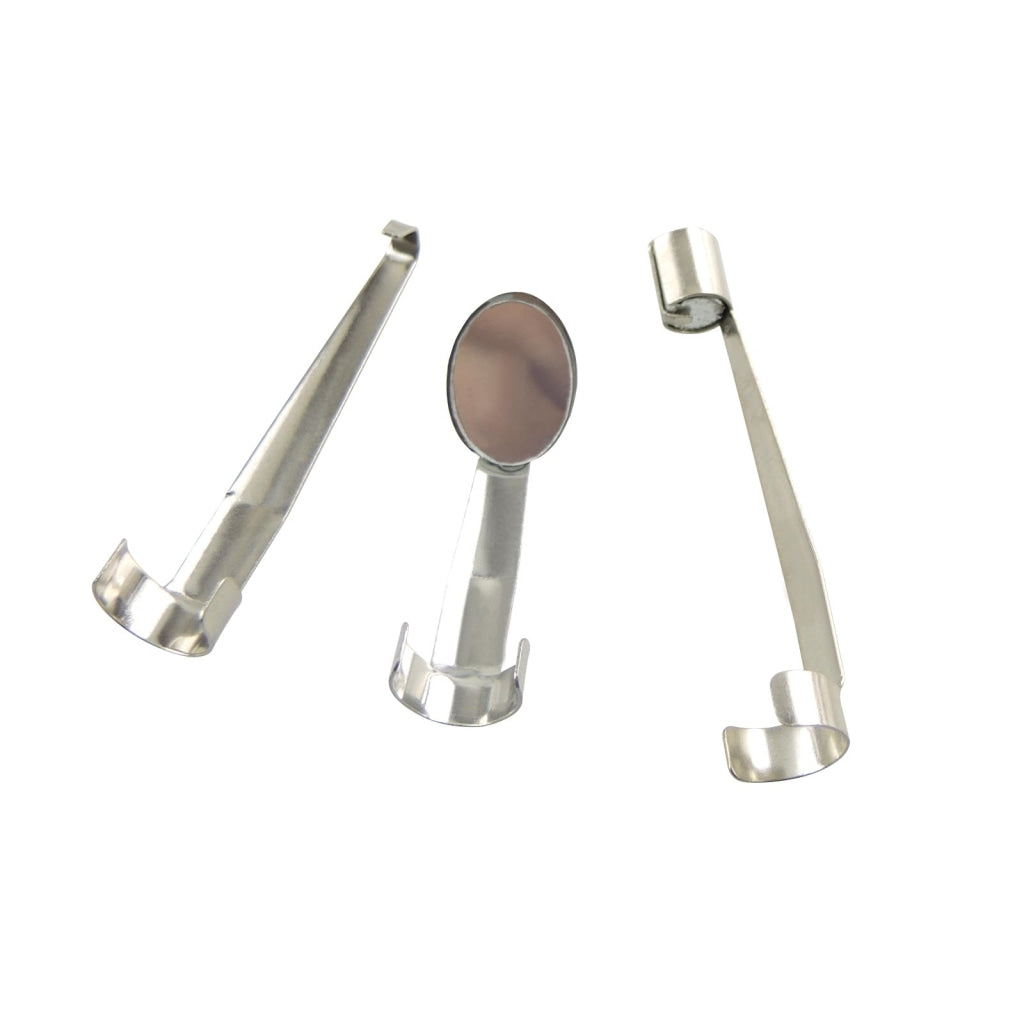

  • 1 x Mirror Tip
  • 1 x Hook Tip
  • 1 x Magnet Tip
  • 1 x 2G Micro SD card

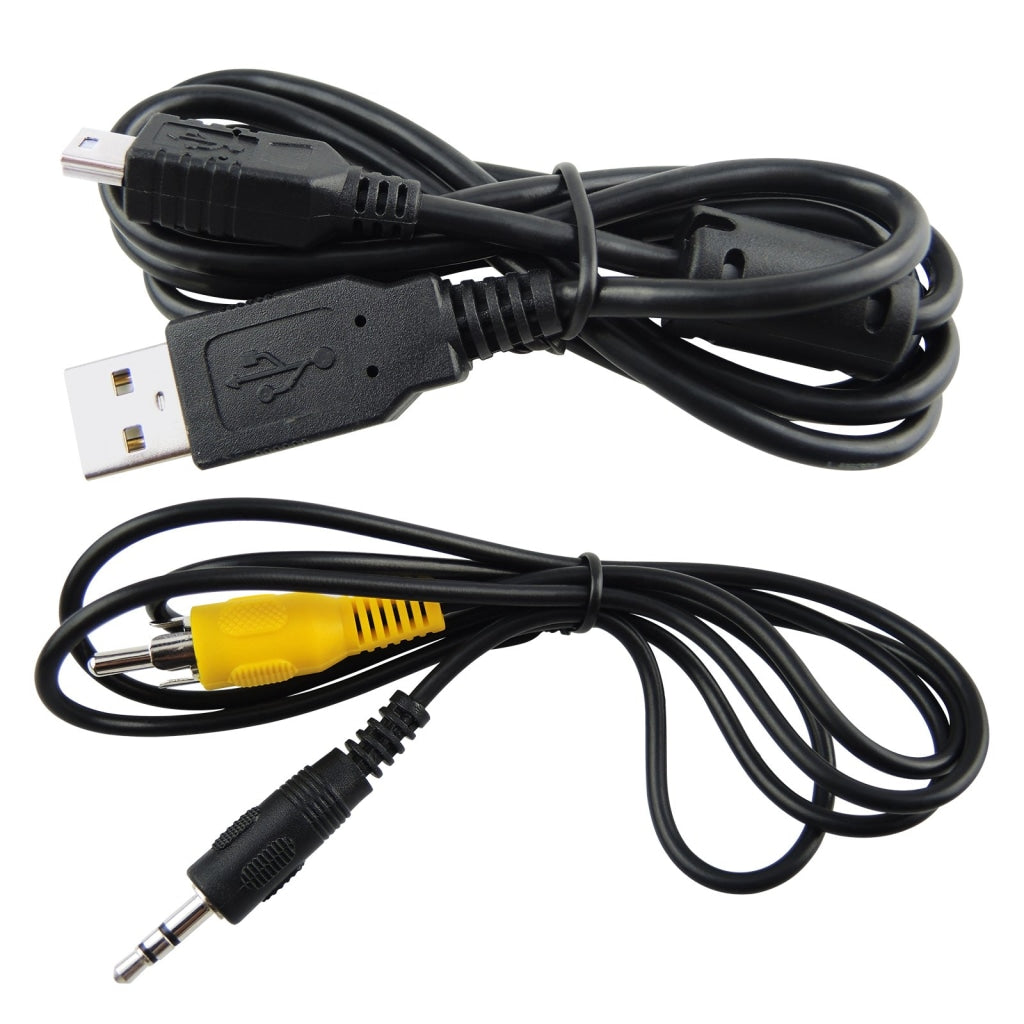

  • 1 x USB cable
  • 1 xVideo cable
  • English Instruction Manual
  • Standard Factory Package
