VID-71R-5.5-2M 5.5mm Camera 2M Cable Recordable Video Inspection 2.4" HD Endoscope Snakescope Industrial Borescope 4 LED Pipe Car Engine Scopes

Save 20%

Quantity
  OR


Model : VID-71R-5.5-2M

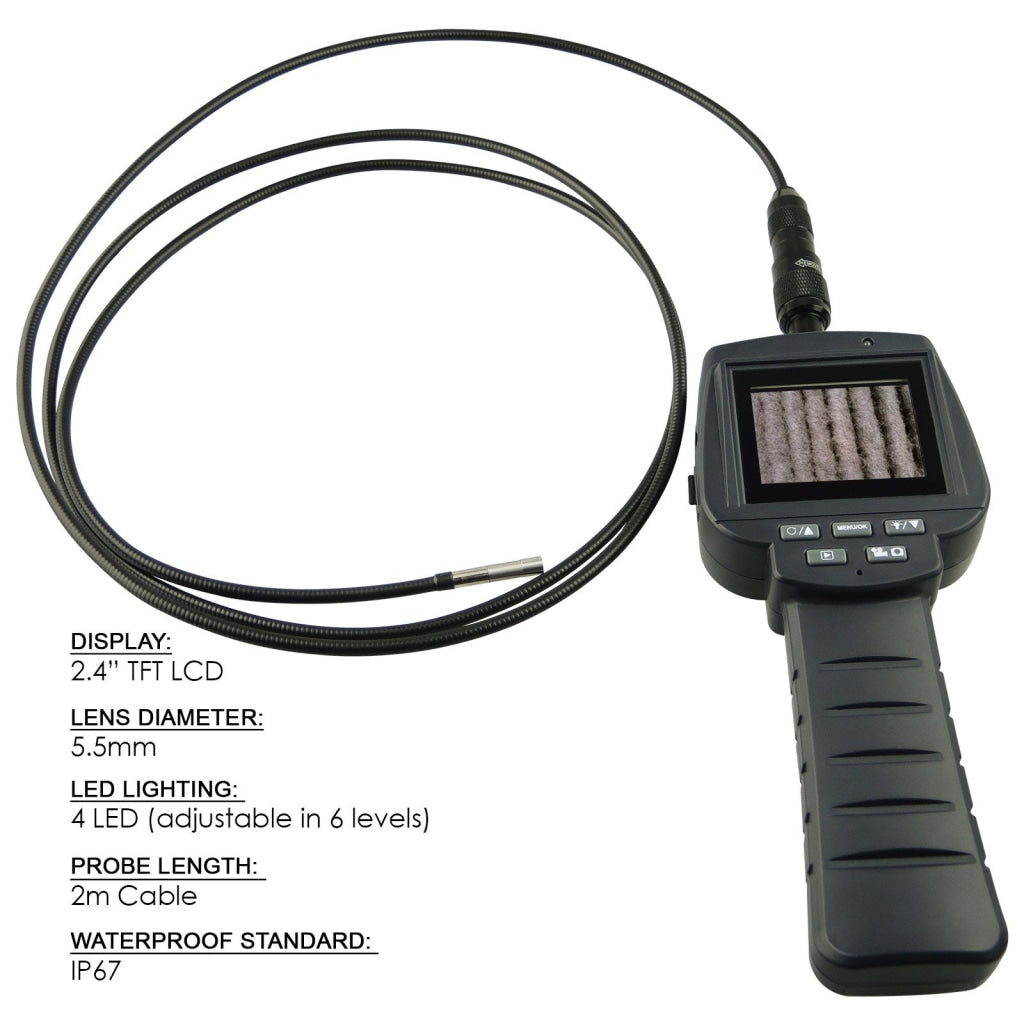

This Mini Camera Video Inspection Borescope allows you to view, record and inspect hard-to-reach, small opening and tight area. It has 2.4" TFT HD colored screen for clear viewing and recording via micro SD/TF card (store up to 32G). Equipped with IP67 dustproof / waterproof camera with 5.5mm lens diameter and 4 adjustable LED lights for dark area inspection.

The 2m long cable extends the area of inspection and can be attached with accessory (mirror tip - included in the set) to hasten problem identification.

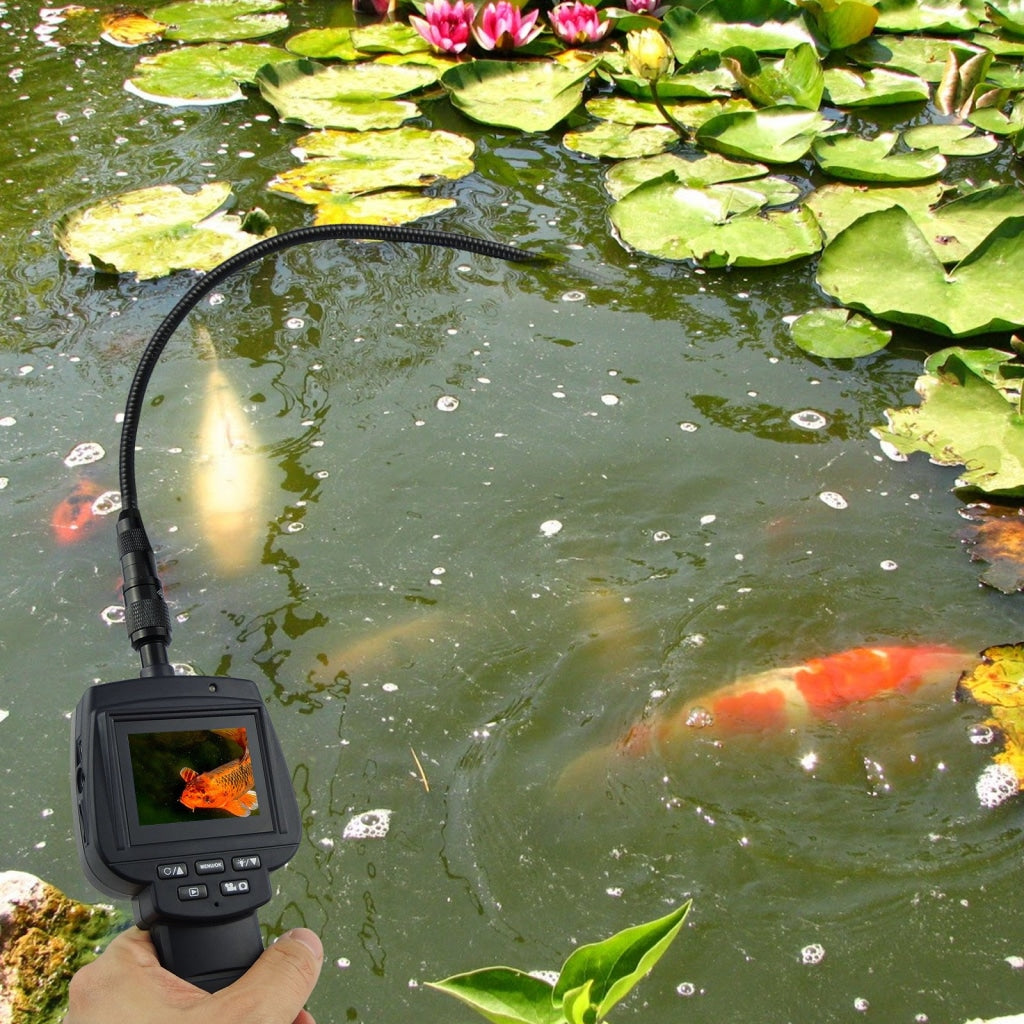

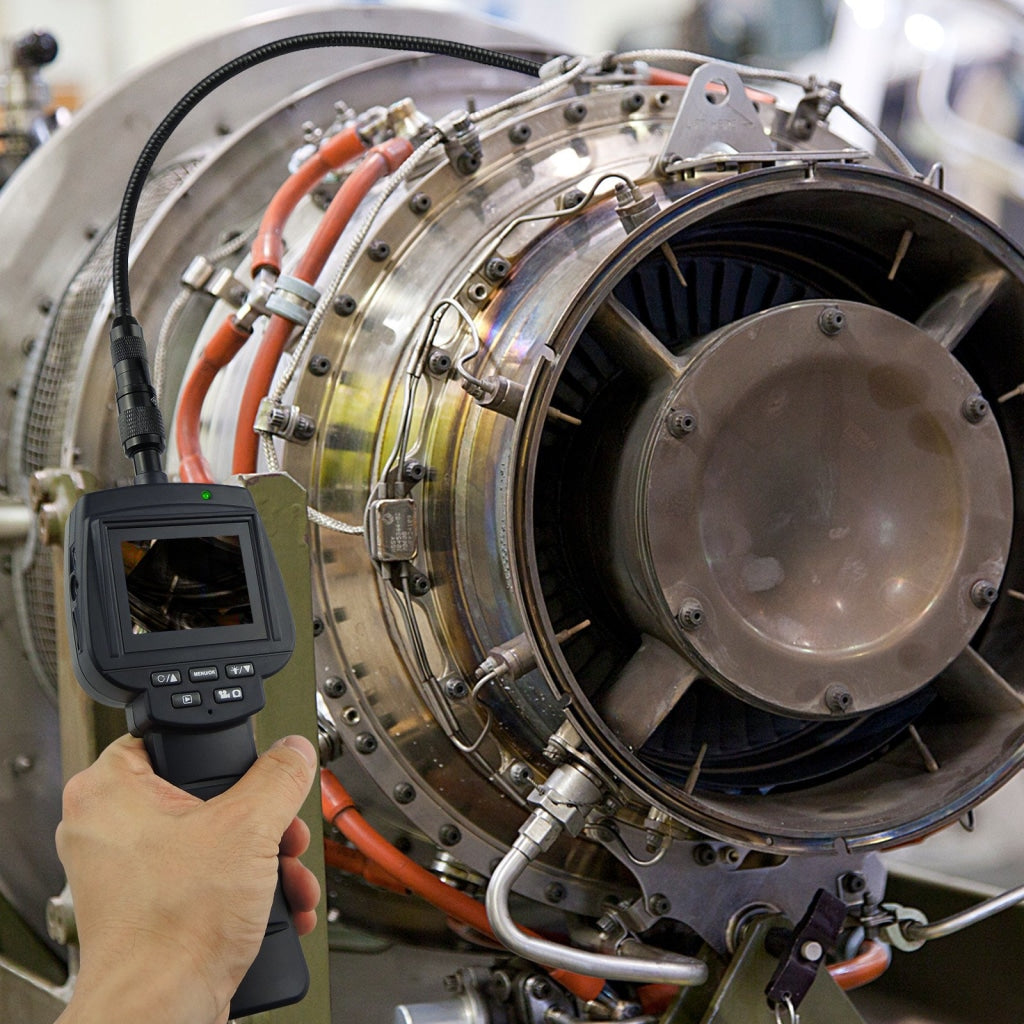

This Inspection Camera can work on different fields such as in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands.

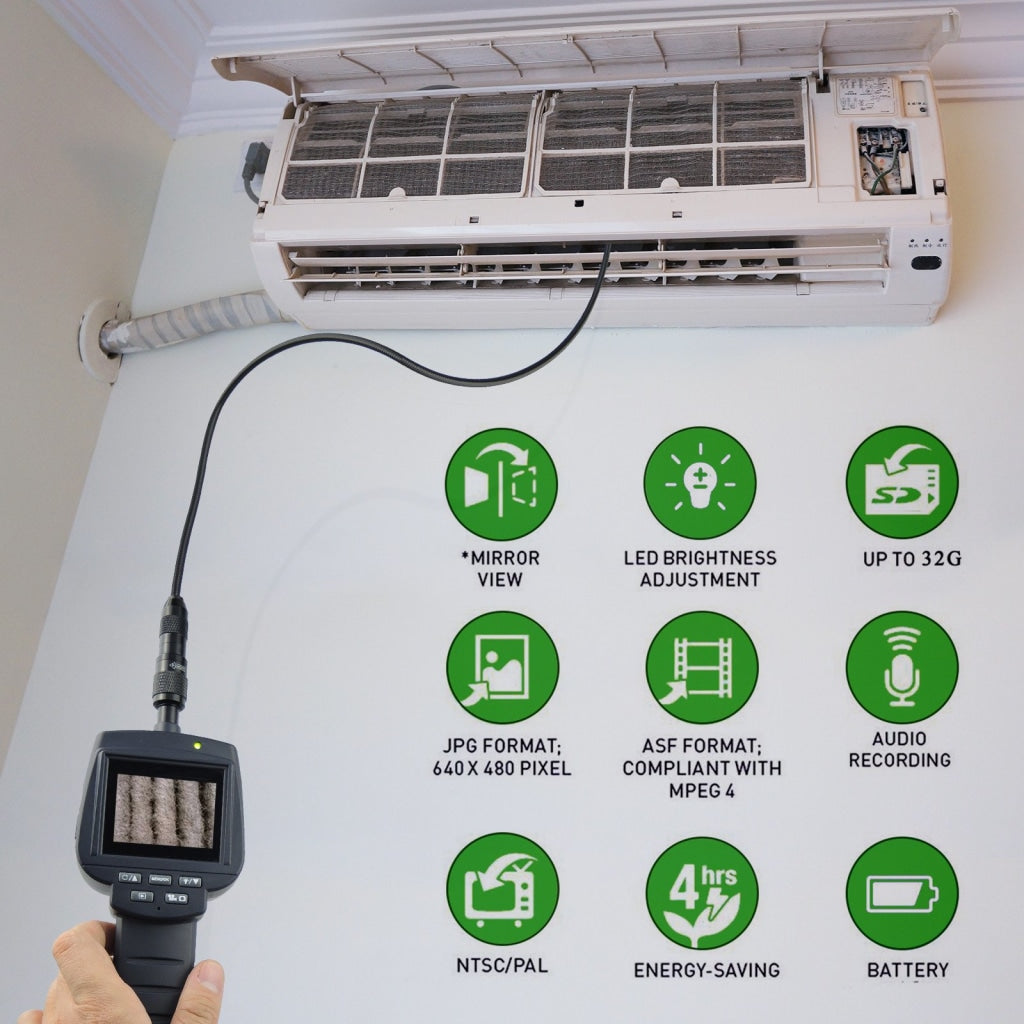

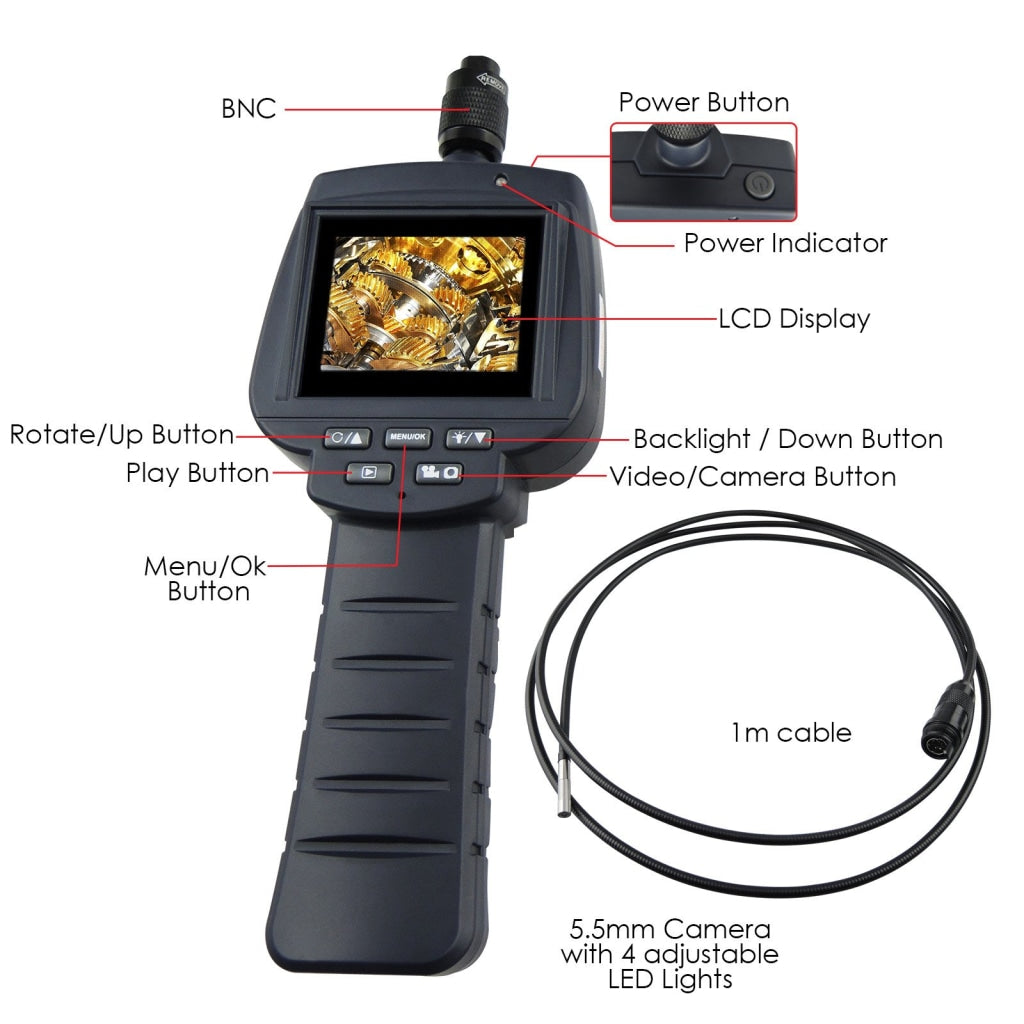

Features:

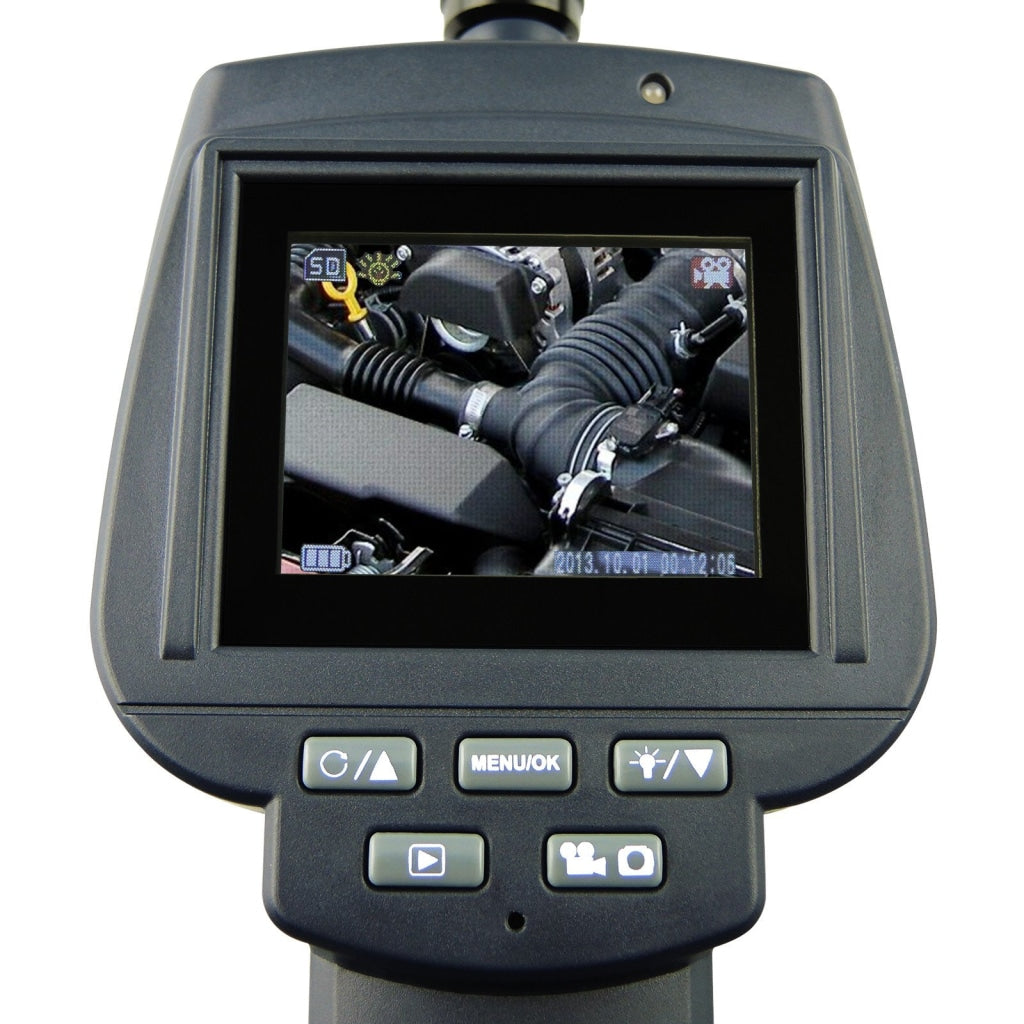

  • High Definition (HD) 2.4" LCD Monitor photo capture / video recording with Video play back function
  • Video and photo browsing
  • Mini 5.5mm Camera Diameter
  • 4 adjustable LED lights for dark area inspection
  • Monitor brightness is adjustable in 3 levels
  • 150° maximum bending radius
  • 180° image rotation (mirror view)
  • Automatic recognition of NTSC / PAL
  • Dust proof and Waterproof Camera (immersion between 15cm & 1m), IP67 Standard (water, oil, acid and alkali resistance)
  • Display date and time on photo and video
  • Menu in 10 Languages: English, French, German, Italian, Spanish,Russian  Portuguese,Simplified Chinese,Japanese and Korean
  • Comfort Grip Housing

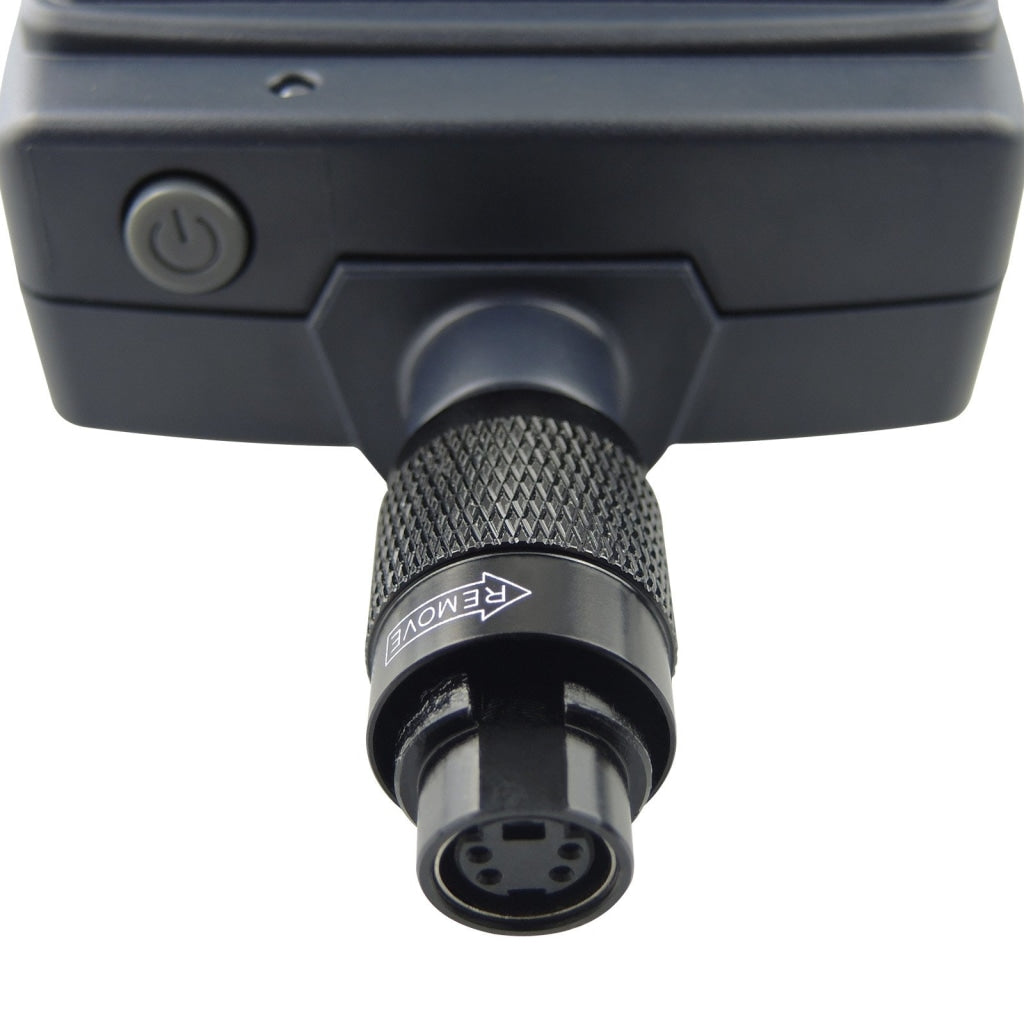

  • Cable tube is detachable and maximum length can be extended up to 20m via extension cable (includes 2M standard cable)
  • CE & FCC approved



Specifications:

  • Main Unit:
    • Display: 2.4” TFT LCD VGA 234 x 480 Pixels 16M color
    • Image Resolution: 320 x 240 (NTSC) / 720 x 625(P)
    • Photo Format: JPG / BMP / JPEG
    • Video Format: AVI
    • Video System: PAL / NTSC
    • Resolution: 640*480
    • Data output: Video output connected to TV or PC
    • Memory: store up to 32G mini SD/TF card

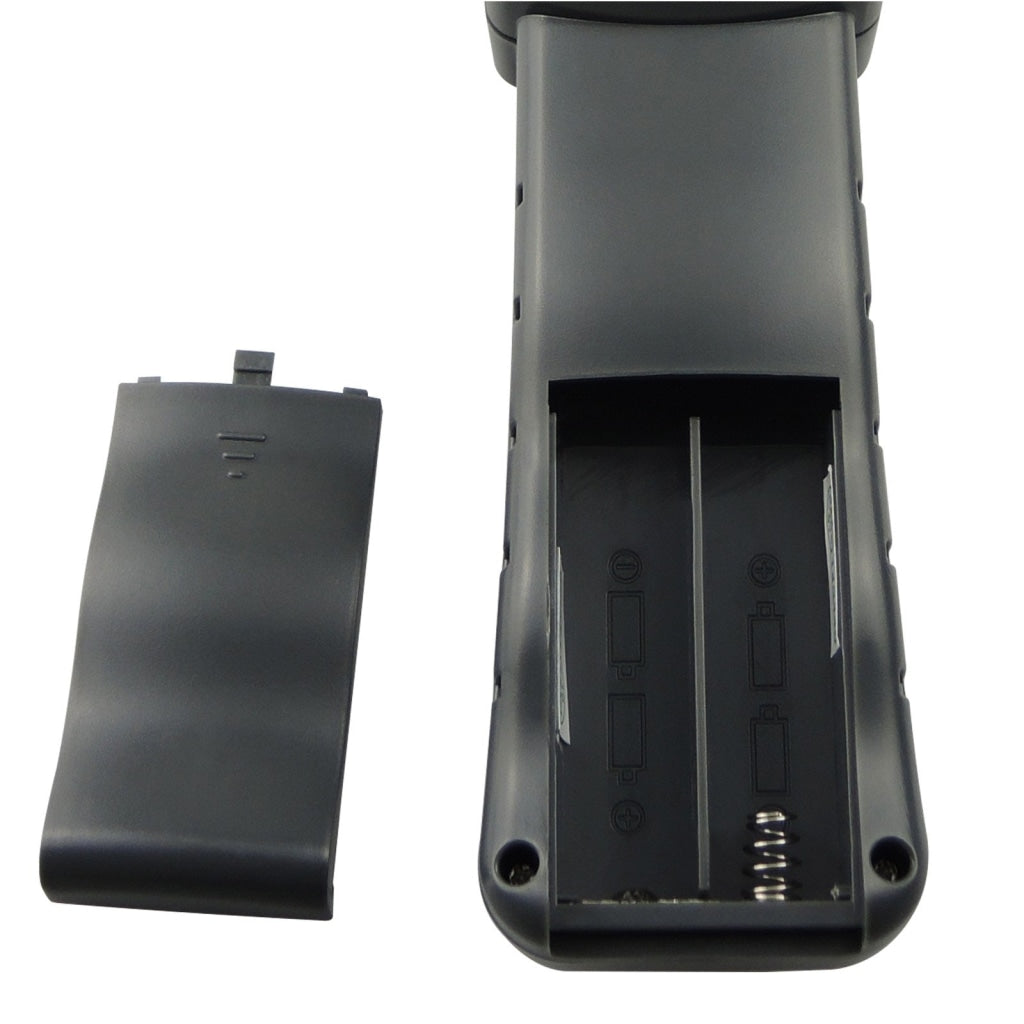

    • Power: 4 x 1.5V AA Battery (not included in the set)
    • Input Voltage: 110~220V
    • Output Voltage: 5V
    • Working Current: 2A
    • Item Color: Gray
    • Image Rotation: 180°
    • Monitor brightness: adjustable in 3 levels
    • Menu in 10 Languages: English, French, German, Italian, Spanish,Russian  Portuguese,Simplified Chinese,Japanese and Korean
  • Insertion Tube:
    • Image Sensor: CMOS Sensor
    • Actual Pixel: 0.45 Megapixels
    • Focus range: 30mm~80mm
    • Image angle: 60°
    • Lens diameter: 5.5mm
    • LED Lighting: 4 LED (adjustable in 6 levels)
    • Energy Saving: switches off after 10 minutes
    • Probe Length: 2m Long Cable
    • Material of Tube: Semi-rigid
    • Waterproof Standard: IP67
    • Dimension: 215 x 85 x 35mm

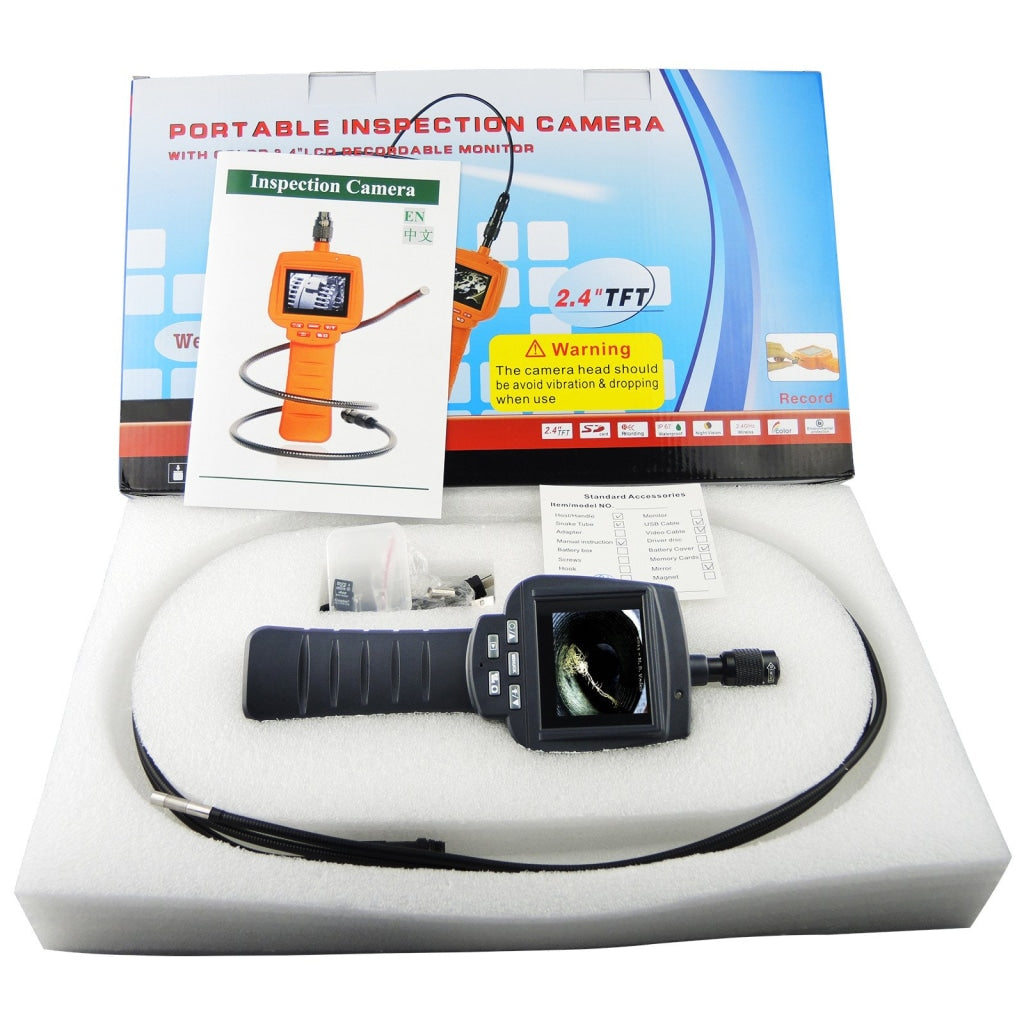

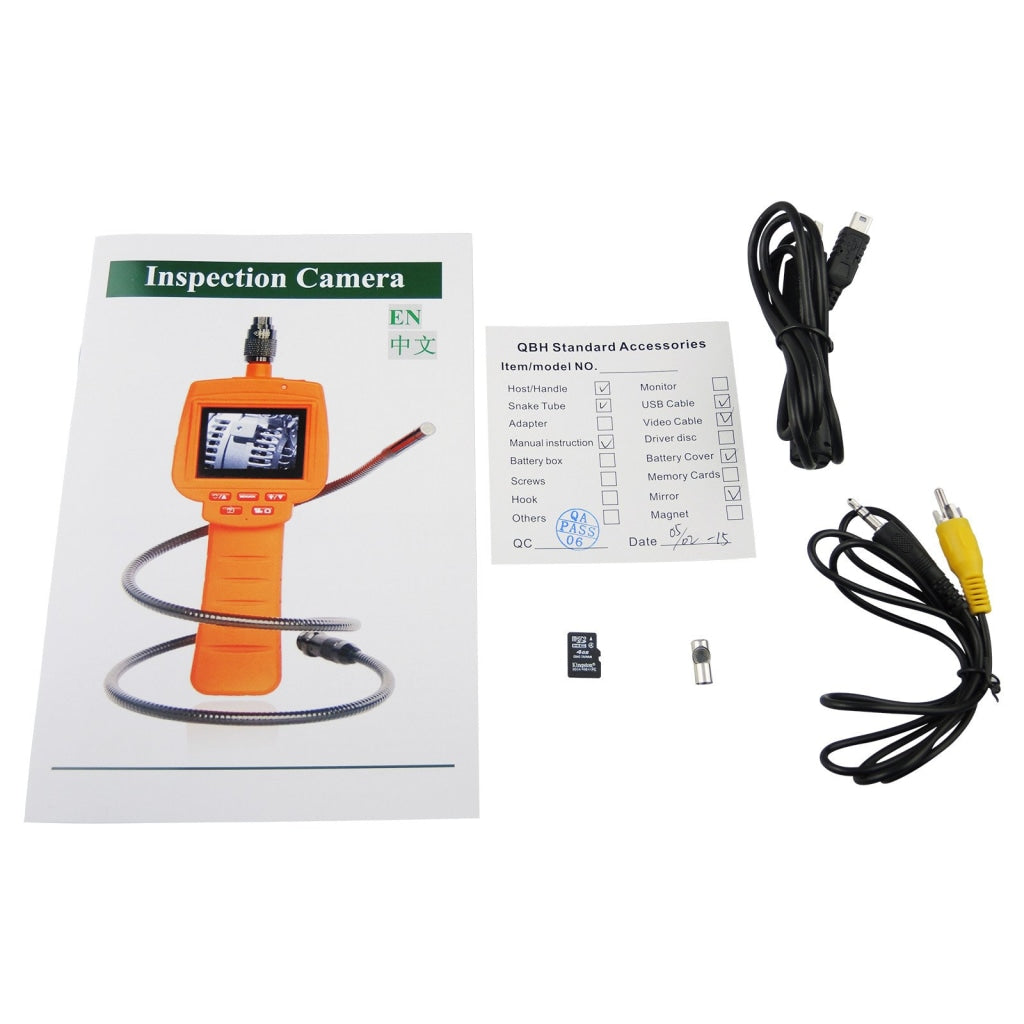

Set includes:

  • 1 x 2.4" Colored LCD Inspection Camera

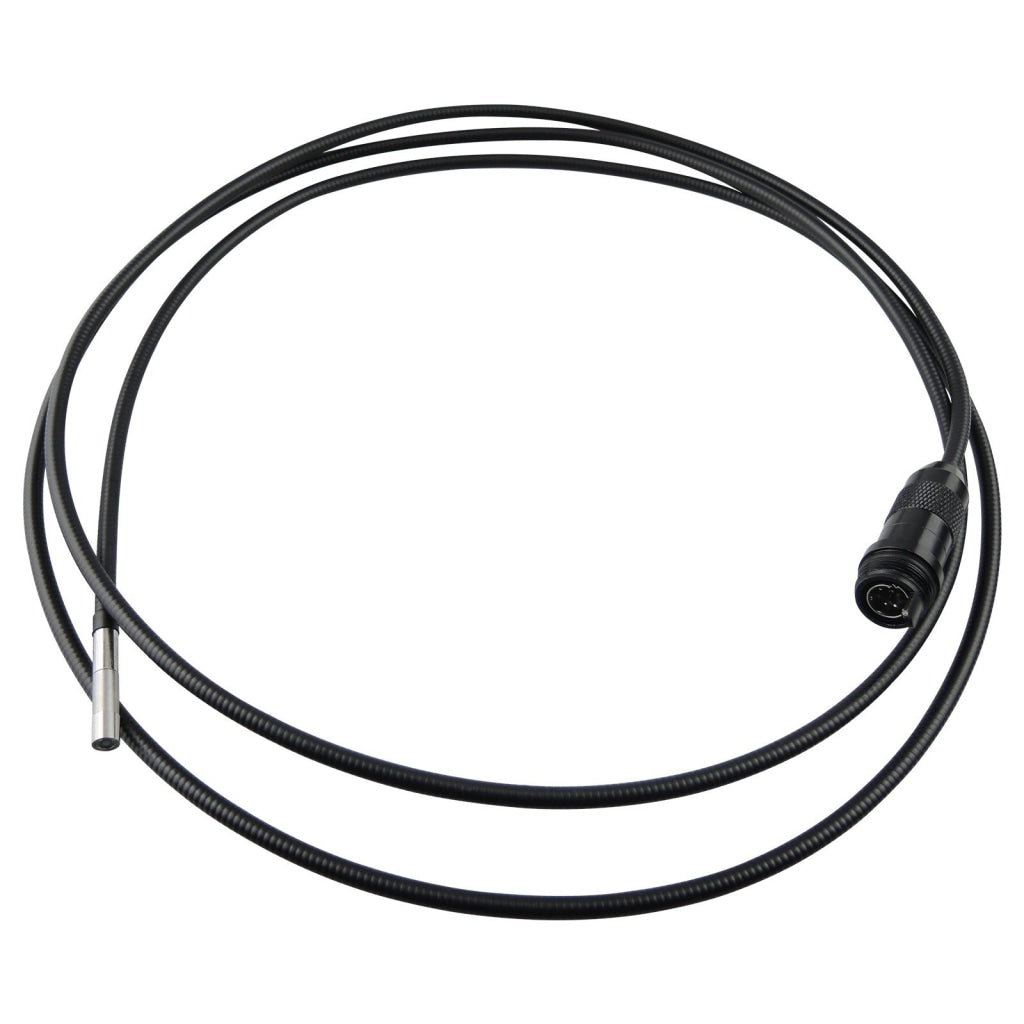

  • 1 x 2m Cable Tube with 5.5mm Waterproof Camera

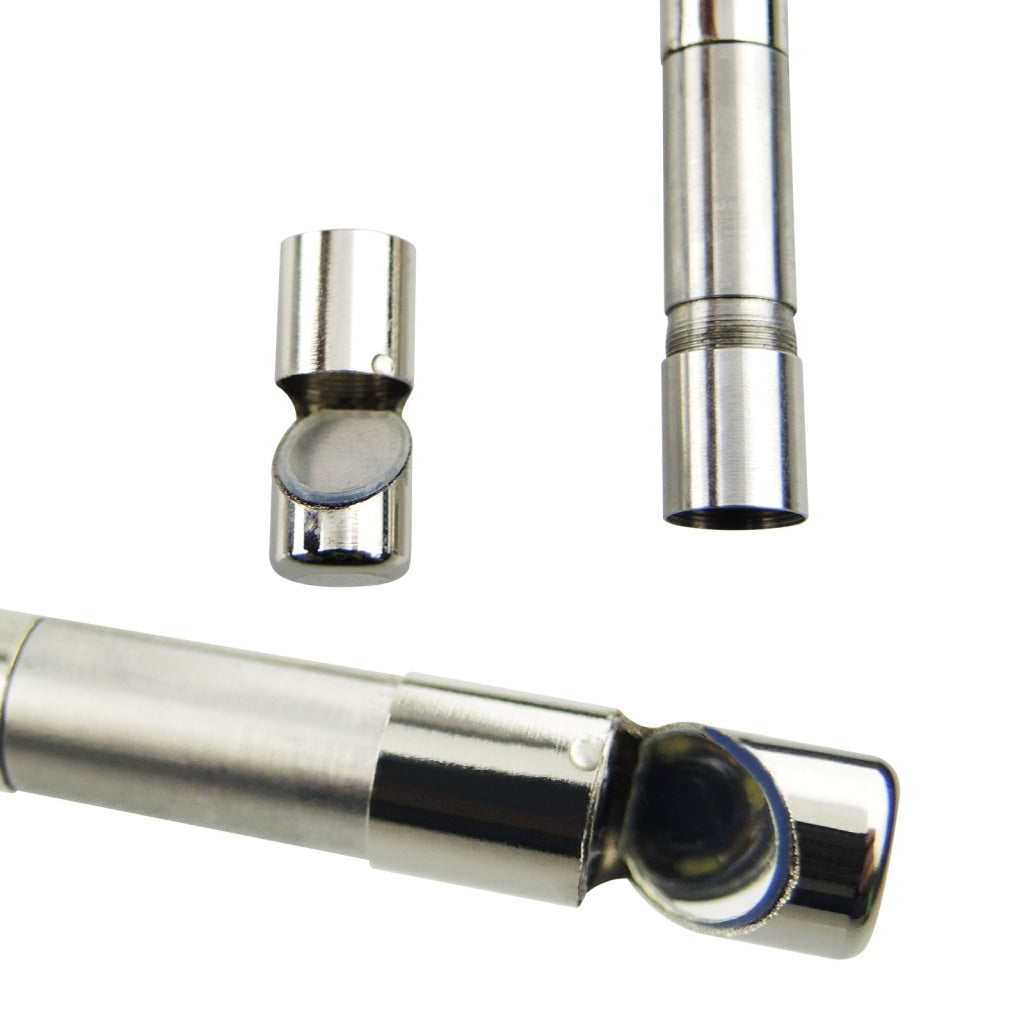

  • 1 x Mirror Tip
  • 1 x 2G Micro SD card

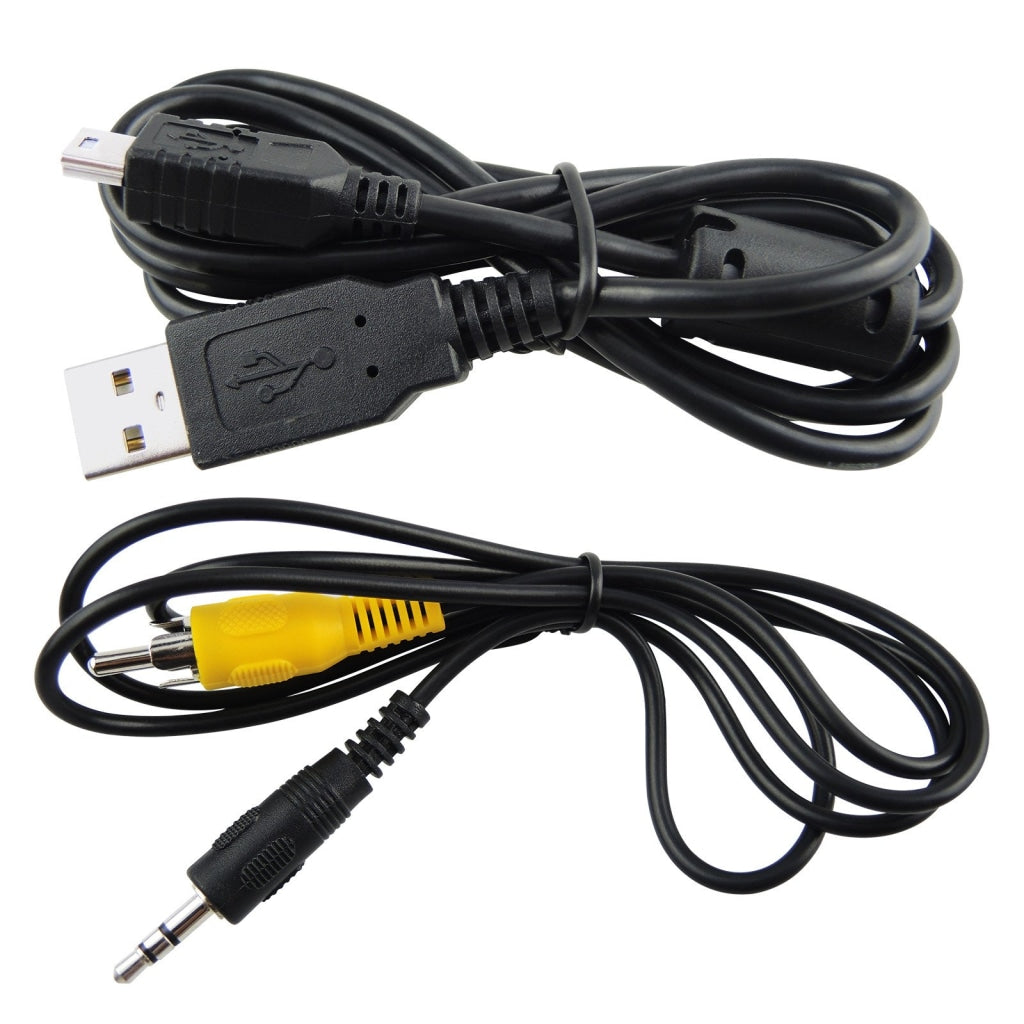

  • USB cable
  • Video cable
  • English Instruction Manual
  • Standard Factory Package
