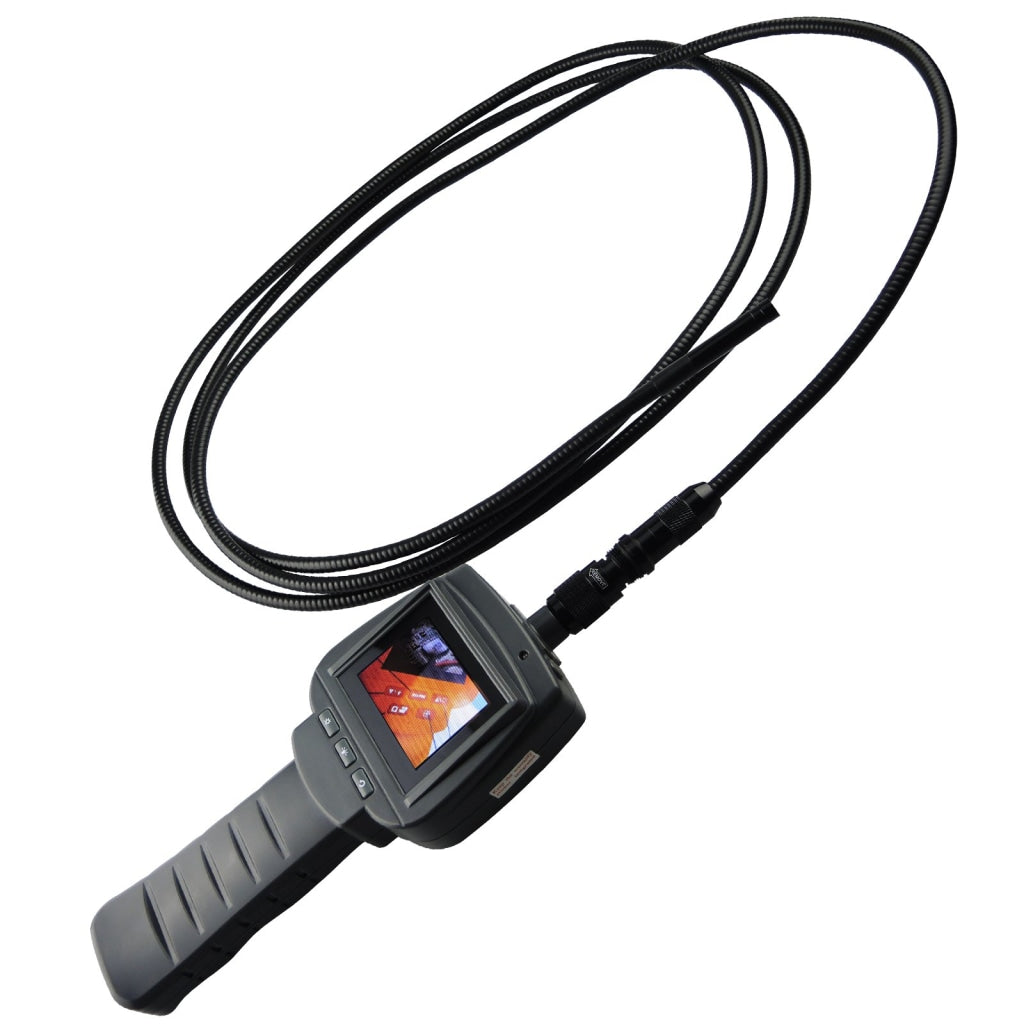

VID-71_9_3M Industrial Inspection Camera 9mm 3M Cable Borescope with 4 LED, 2.4" HD LCD, Endoscope Snake Scope IP67

This product is currently sold out. Please contact us if will order in bulk.


Model : VID-71_9_3M

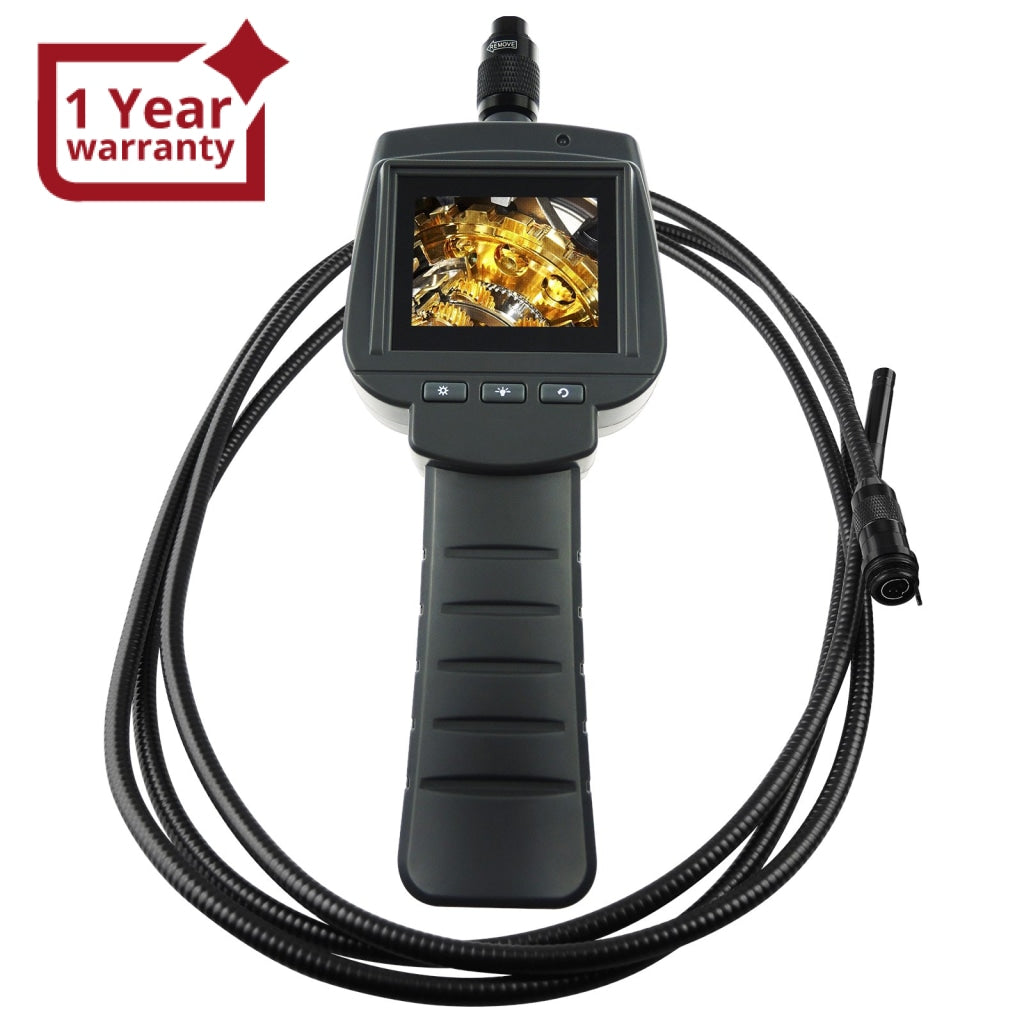

This 2.4" HD full color LCD Inspection Camera allows you to view and inspect hard to reach area with its standard 3M cable.

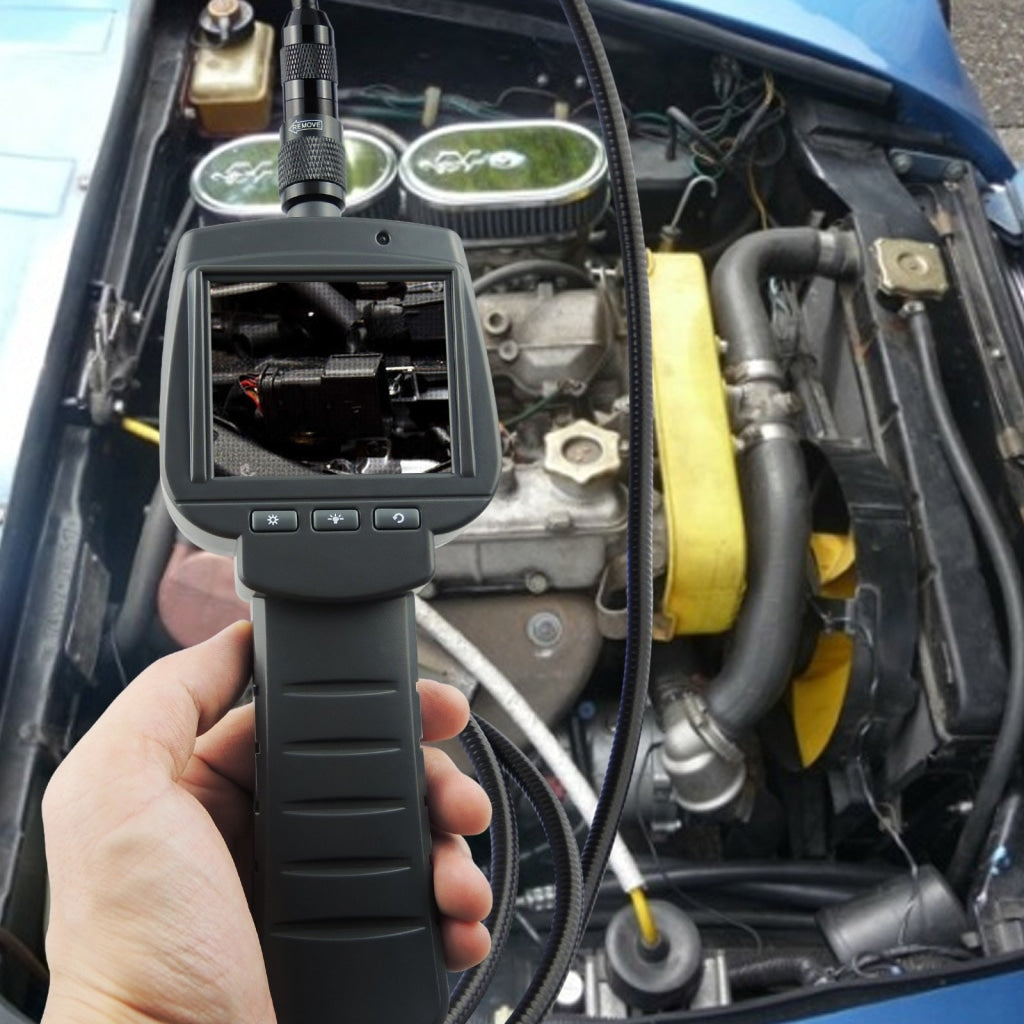

Applications : Widely used in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands.



Specifications:

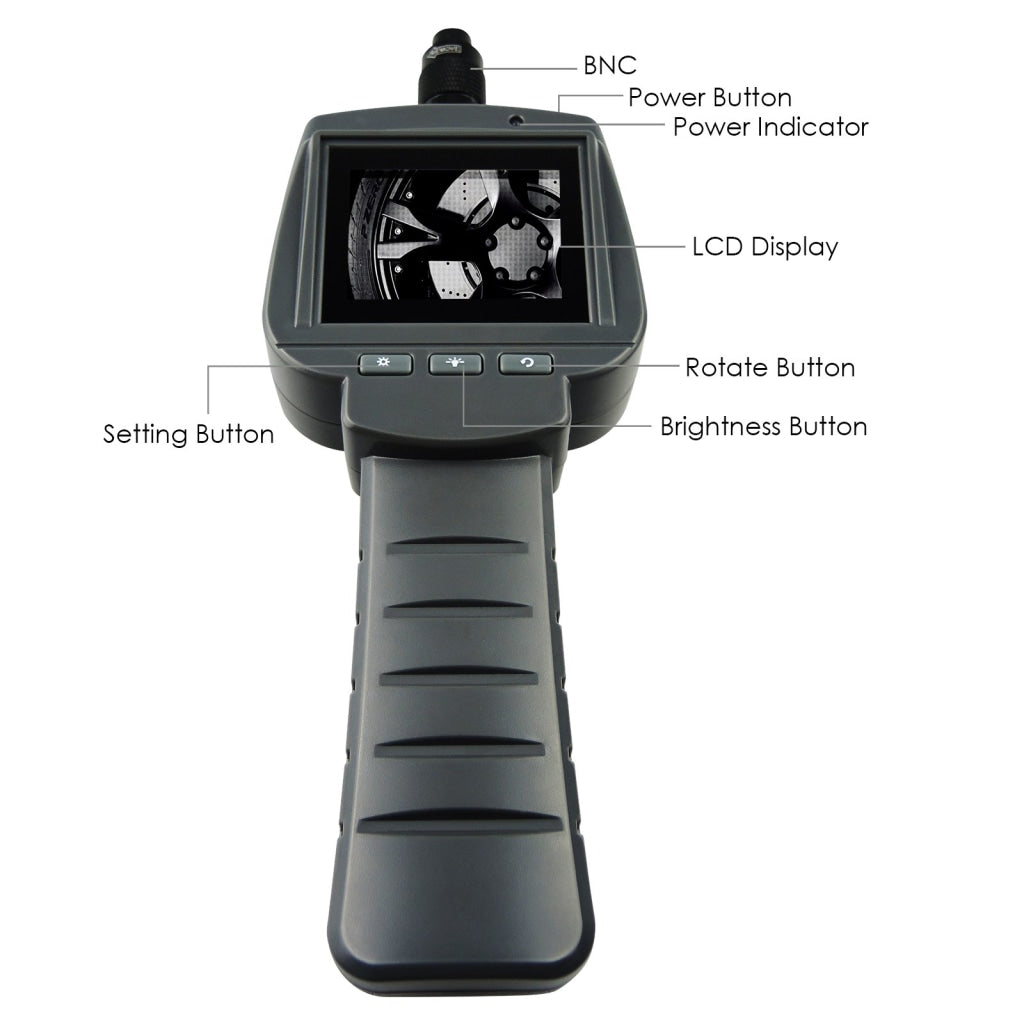

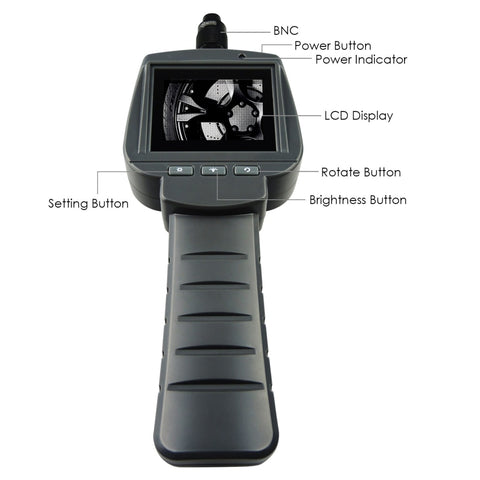

  • Main Unit:

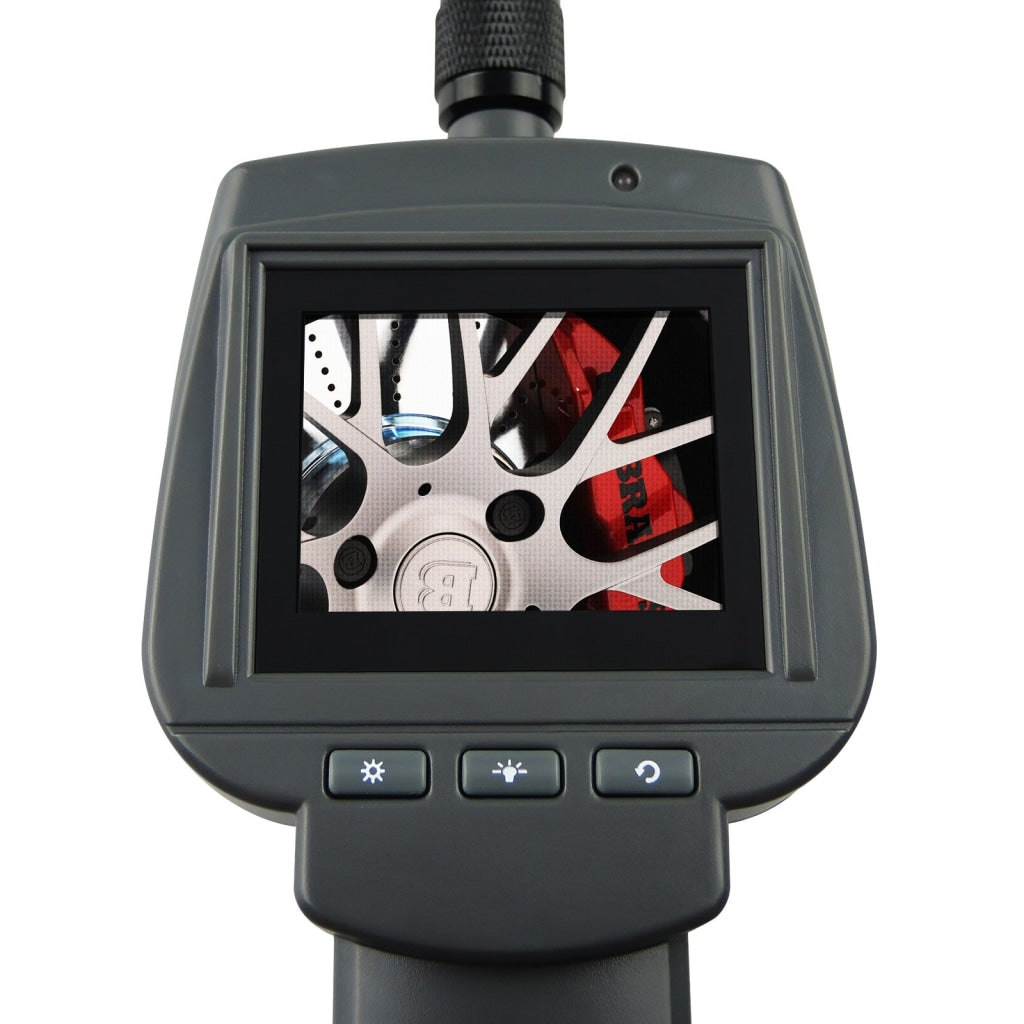

    • Display: 2.4” TFT LCD VGA 234 x 480 Pixels 16M color

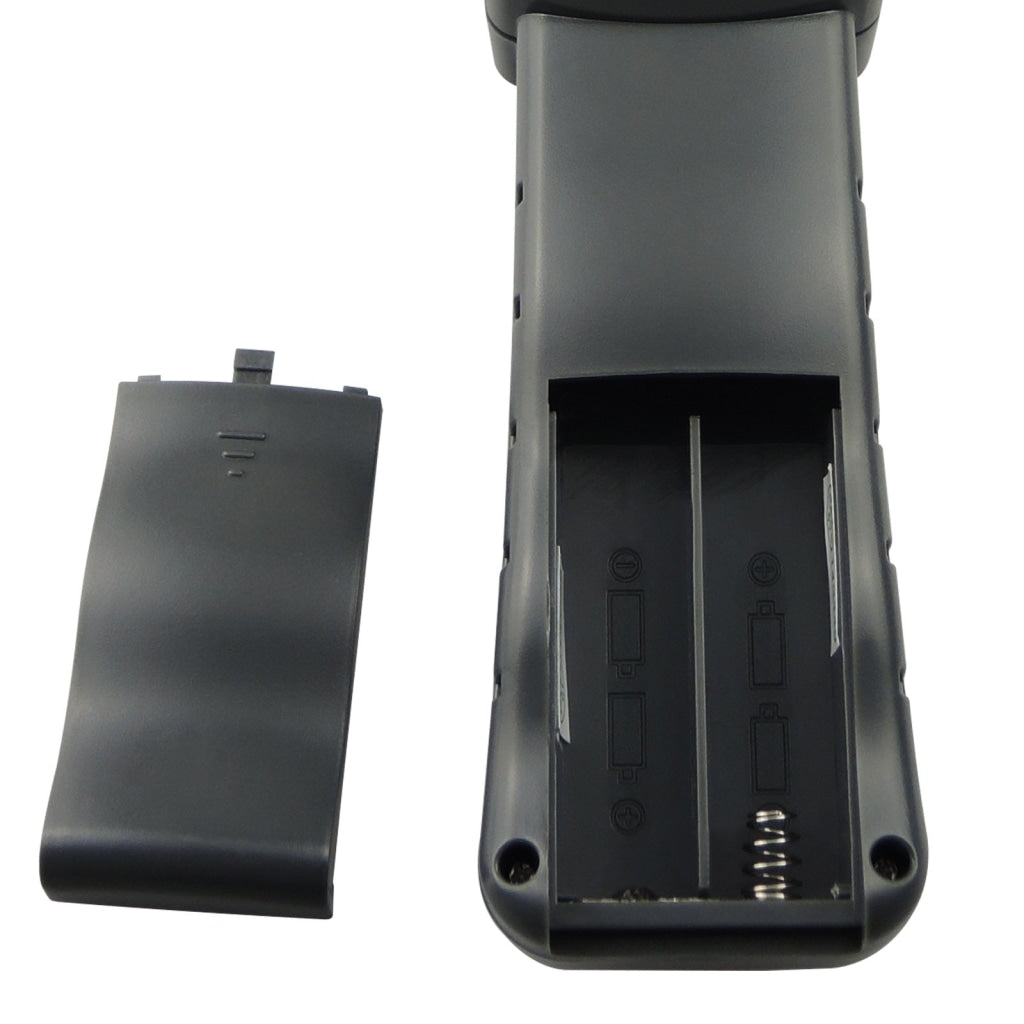

    • Power: 4 x 1.5V AA Battery (not included in the set)
    • Image Resolution: 320 x 240 (NTSC) / 720 x 625 (PAL)
    • Item Color: Gray
    • Image Rotation: 180°
    • Monitor brightness: adjustable in 3 levels
    • Comfort Grip Housing
    • CE & FCC RoHS approved

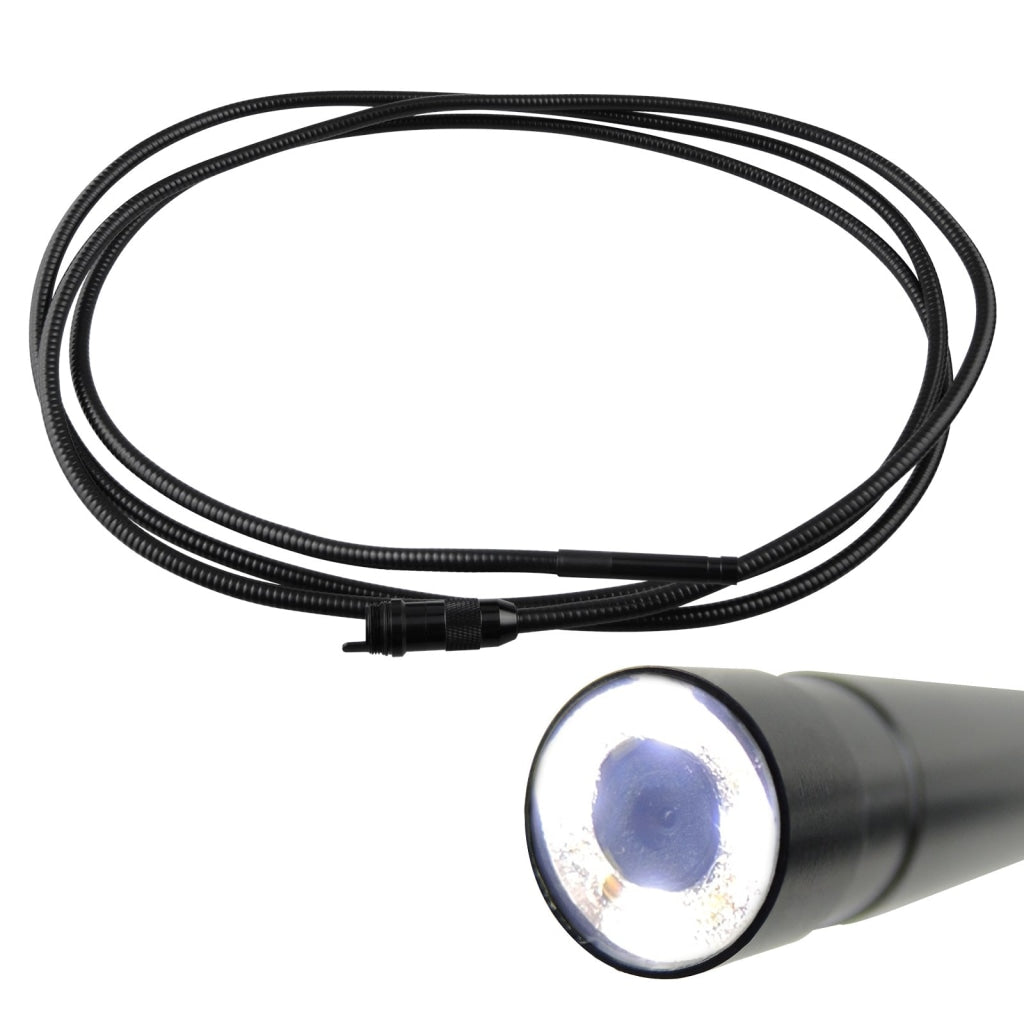

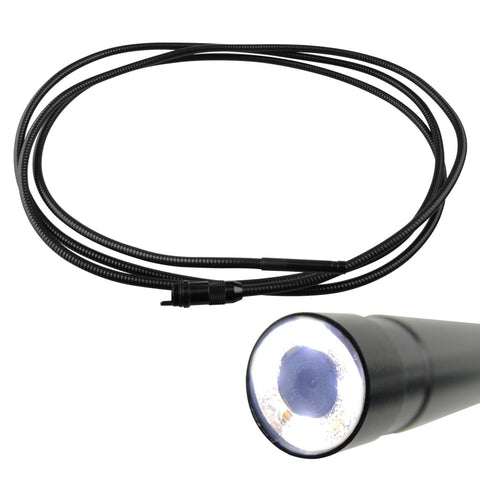

  • Insertion Tube:
    • Image Sensor: VGA CMOS Sensor
    • Actual Pixel: 0.45 Megapixels
    • Focus range: 30mm~80mm
    • Image angle: 60°
    • Lens diameter: 9.0mm
    • LED Lighting: 4 LED (adjustable in 6 levels)
    • Maximum bending radius: 150°
    • Energy Saving: switches off after 10 minutes

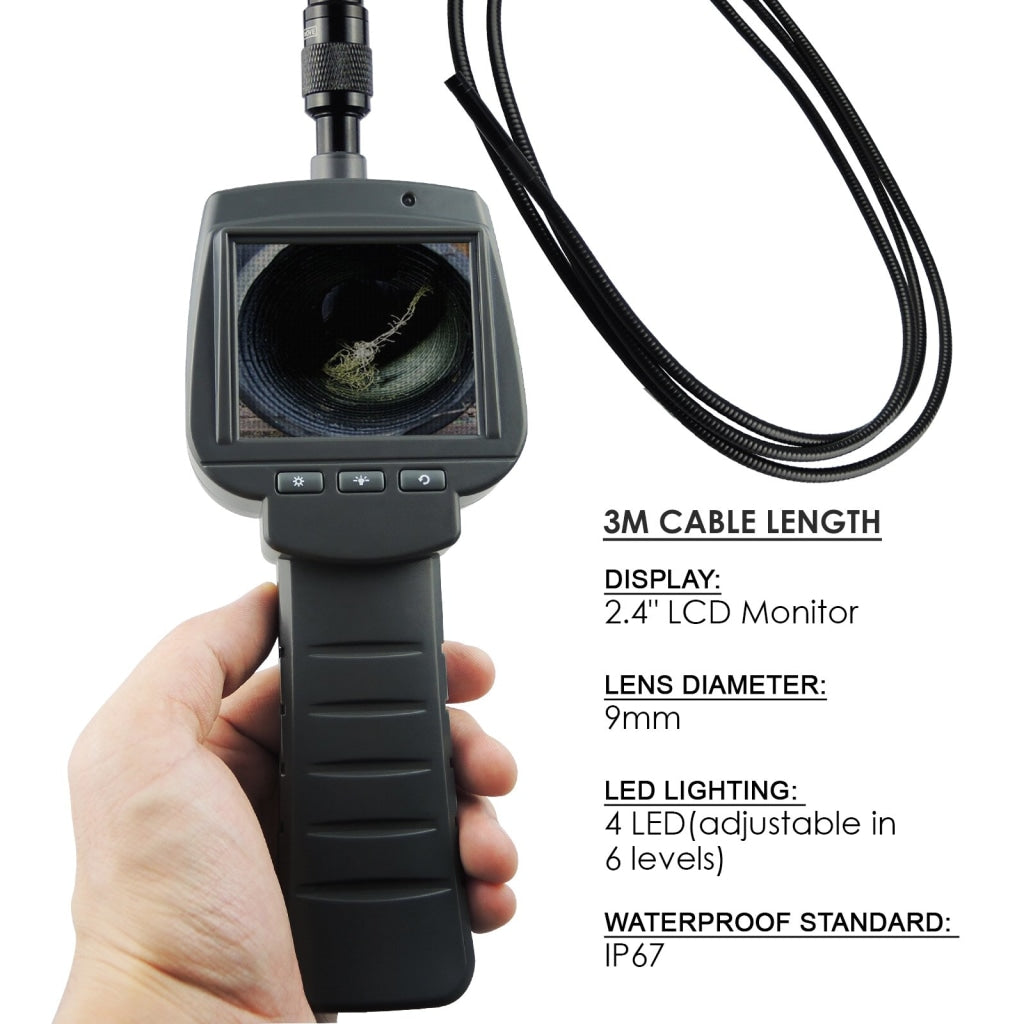

    • Probe Length: 3m Long Cable
    • Material of Tube: Semi-rigid
    • Waterproof Standard: IP67 Dustproof and Waterproof (immersion between 15cm & 1m)
    • Dimension: 215 x 85 x 35mm

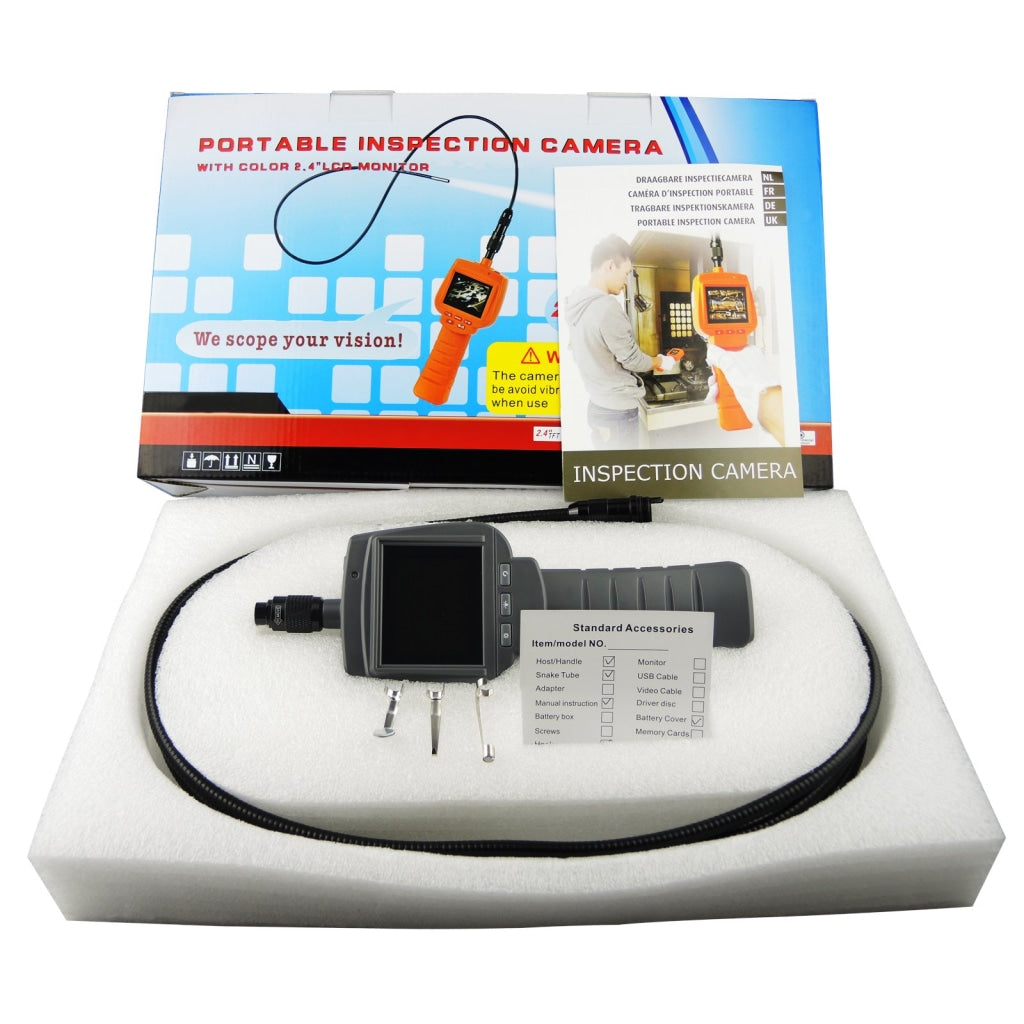

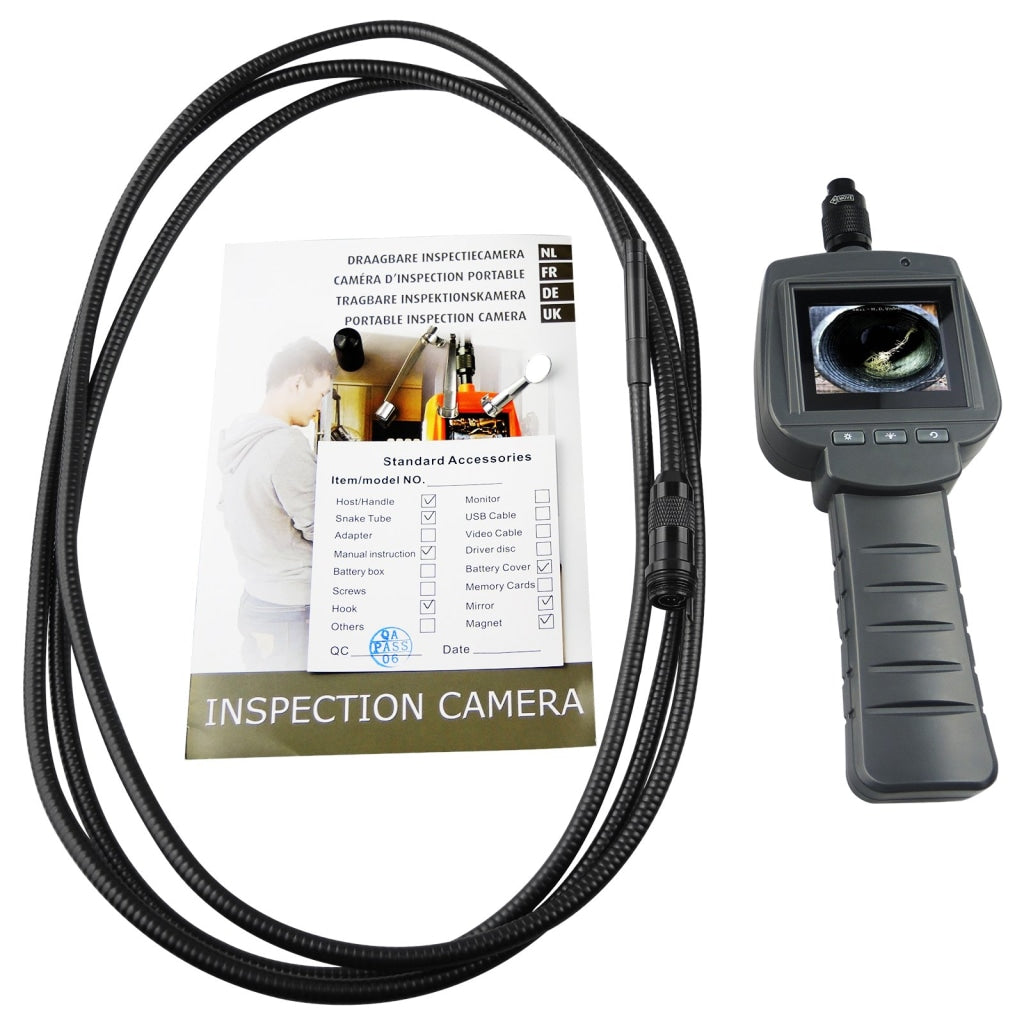

Set includes:

  • 1 x Inspection Camera
  • 1 x 3M Standard Cable

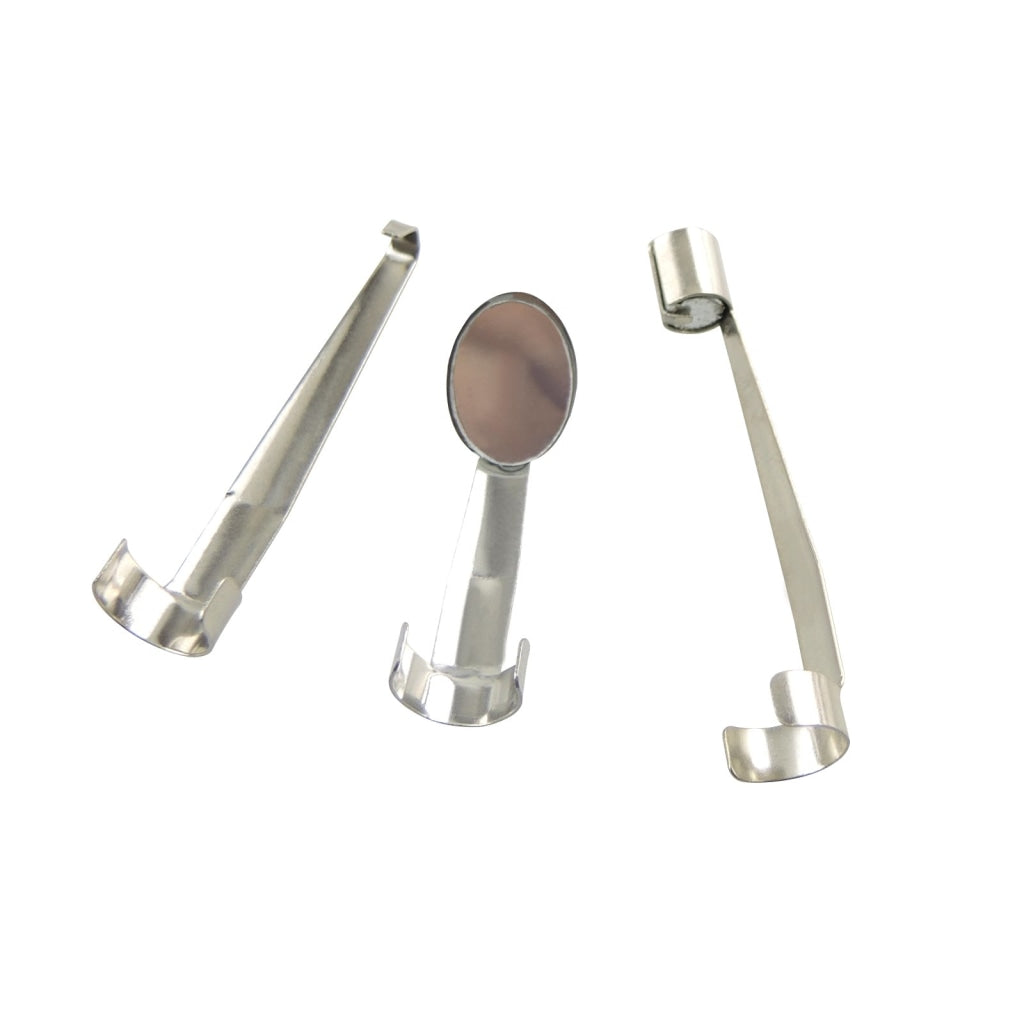

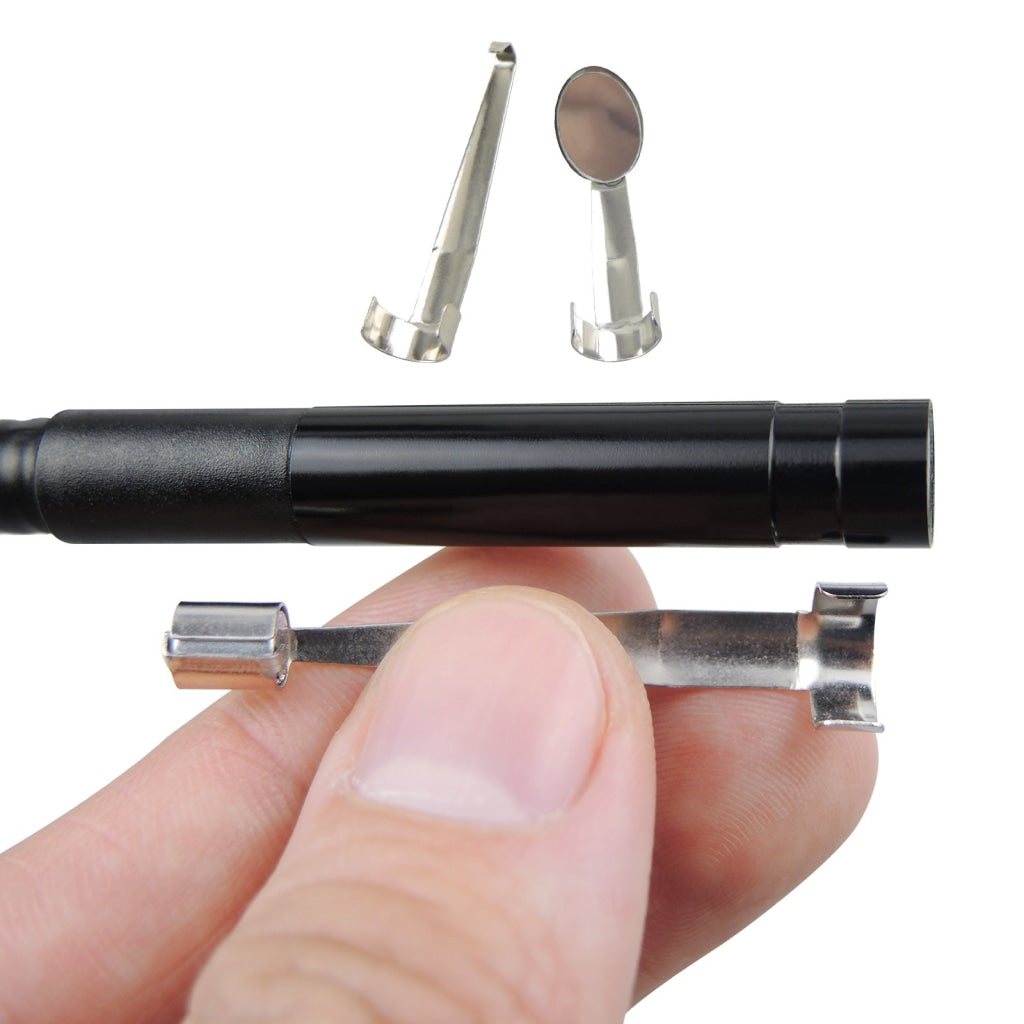

  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 1 x Magnet Tip
  • English Instruction Manual
  • Standard Factory Package
