VID-71_9_1M Industrial Inspection Camera 9mm & 1M Cable with 4 LED 2.4" HD LCD, Borescope IP67 Waterproof, Car Engine Pipe Repair

Save 25%

Quantity
  OR


Model : VID-71_9_1M

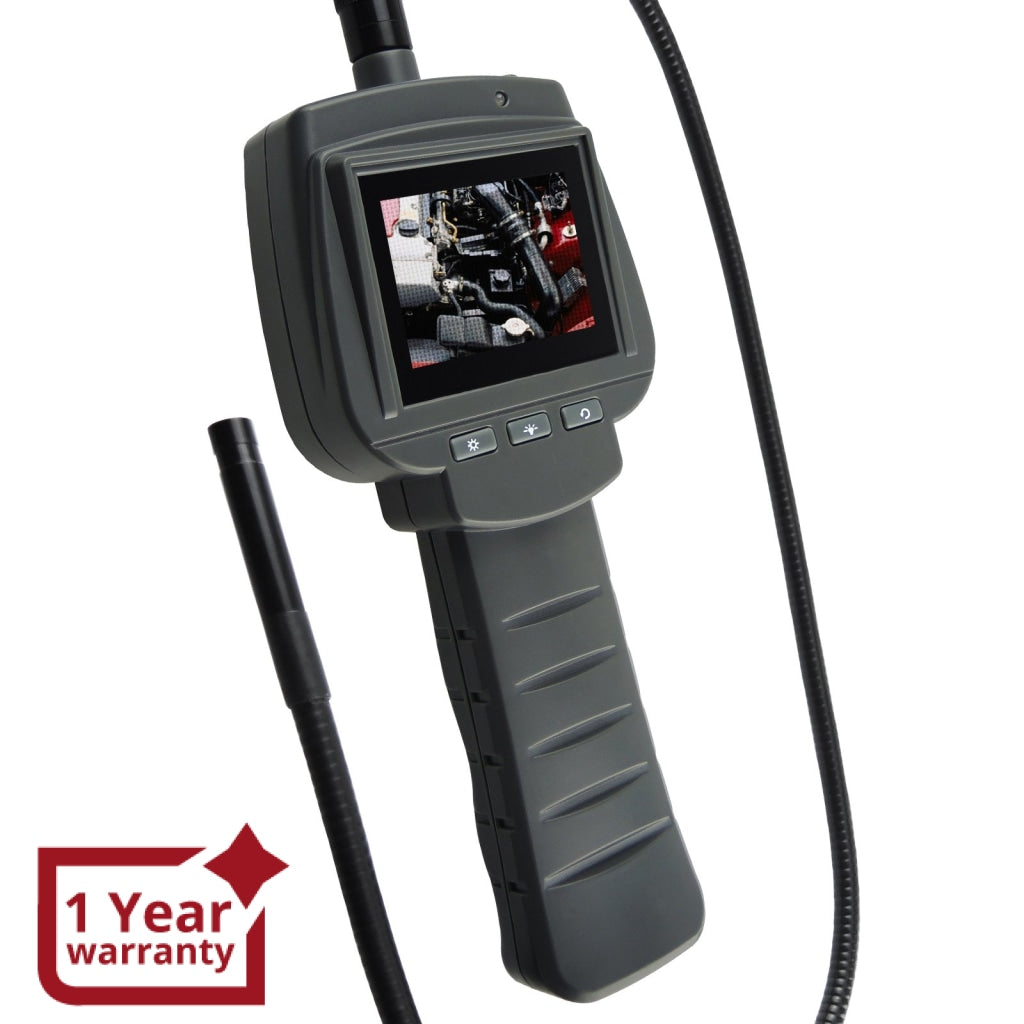

This 2.4" HD full color LCD Inspection Camera allows you to view and inspect hard to reach area and hasten problem identifcation.

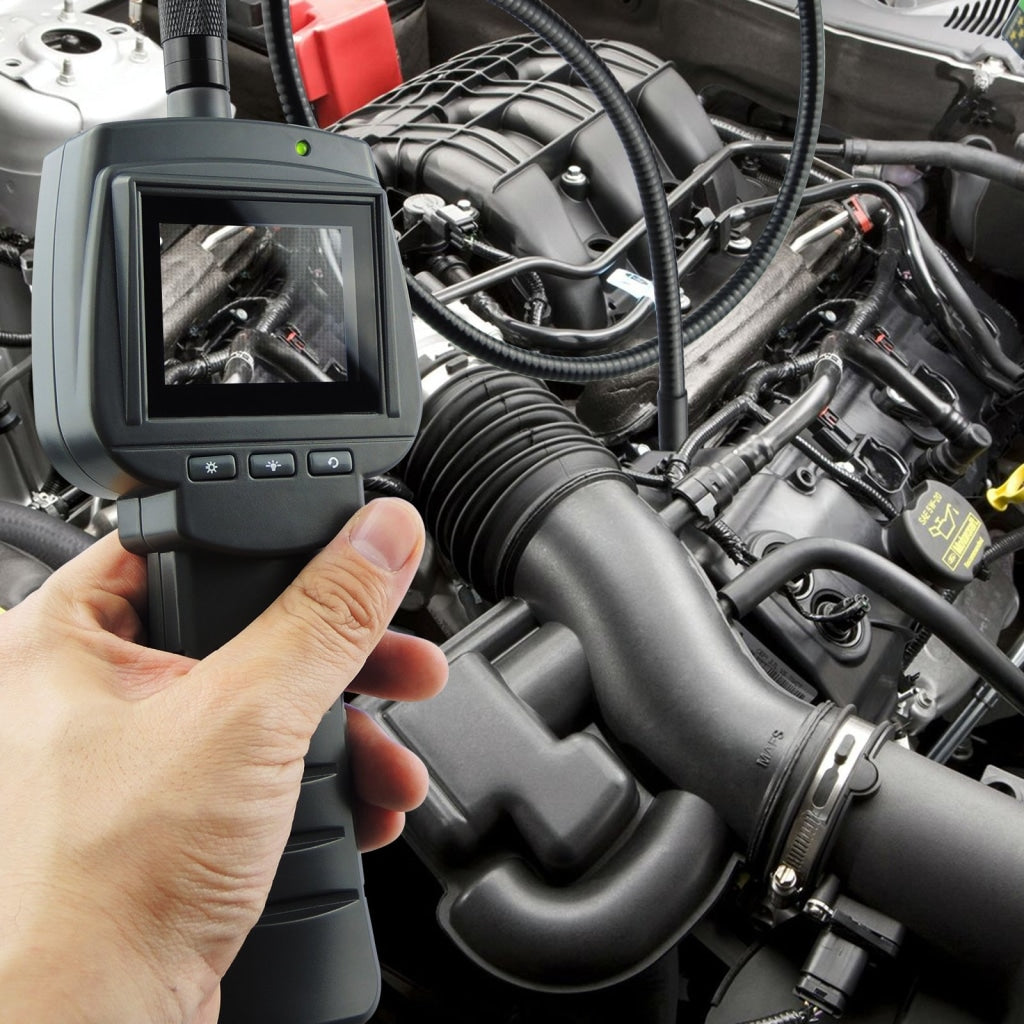

Applications : Widely used in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands.



Specifications:

  • Main Unit:

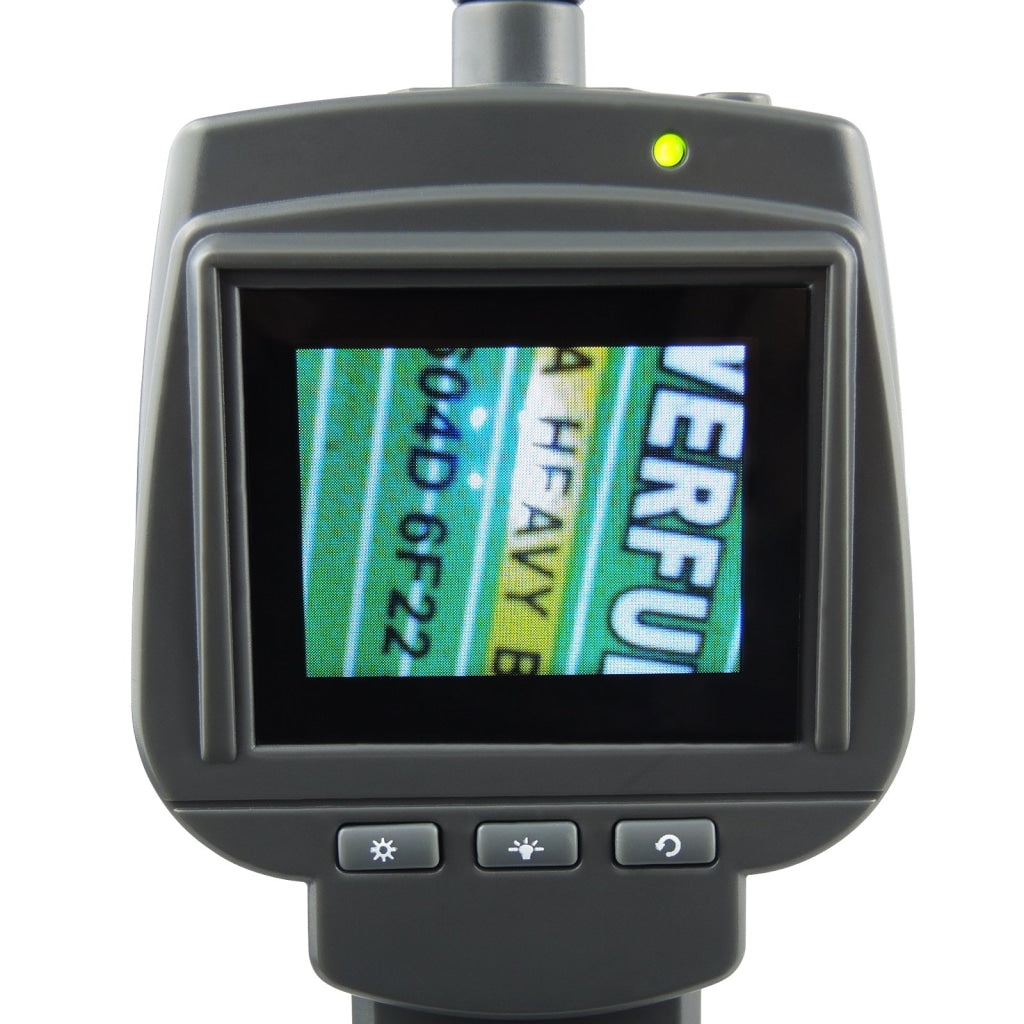

    • Display: 2.4” TFT LCD VGA 234 x 480 Pixels 16M color

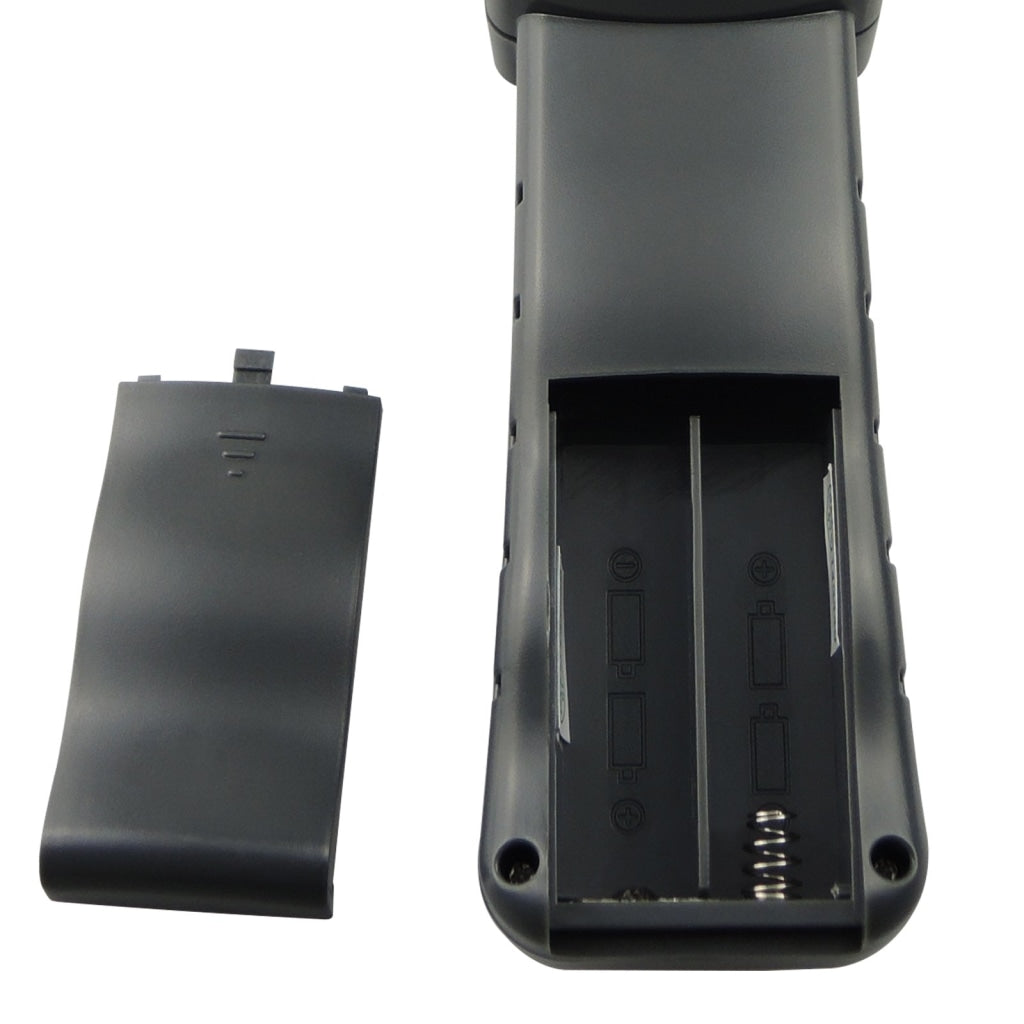

    • Power: 4 x 1.5V AA Battery (not included in the set)
    • Image Resolution: 320 x 240 (NTSC) / 720 x 625 (PAL)
    • Item Color: Gray
    • Image Rotation: 180°
    • Monitor brightness: adjustable in 3 levels
    • Comfort Grip Housing
    • CE & FCC RoHS approved
  • Insertion Tube:
    • Image Sensor: VGA CMOS Sensor
    • Actual Pixel: 0.45 Megapixels
    • Focus range: 30mm~80mm
    • Image angle: 60°

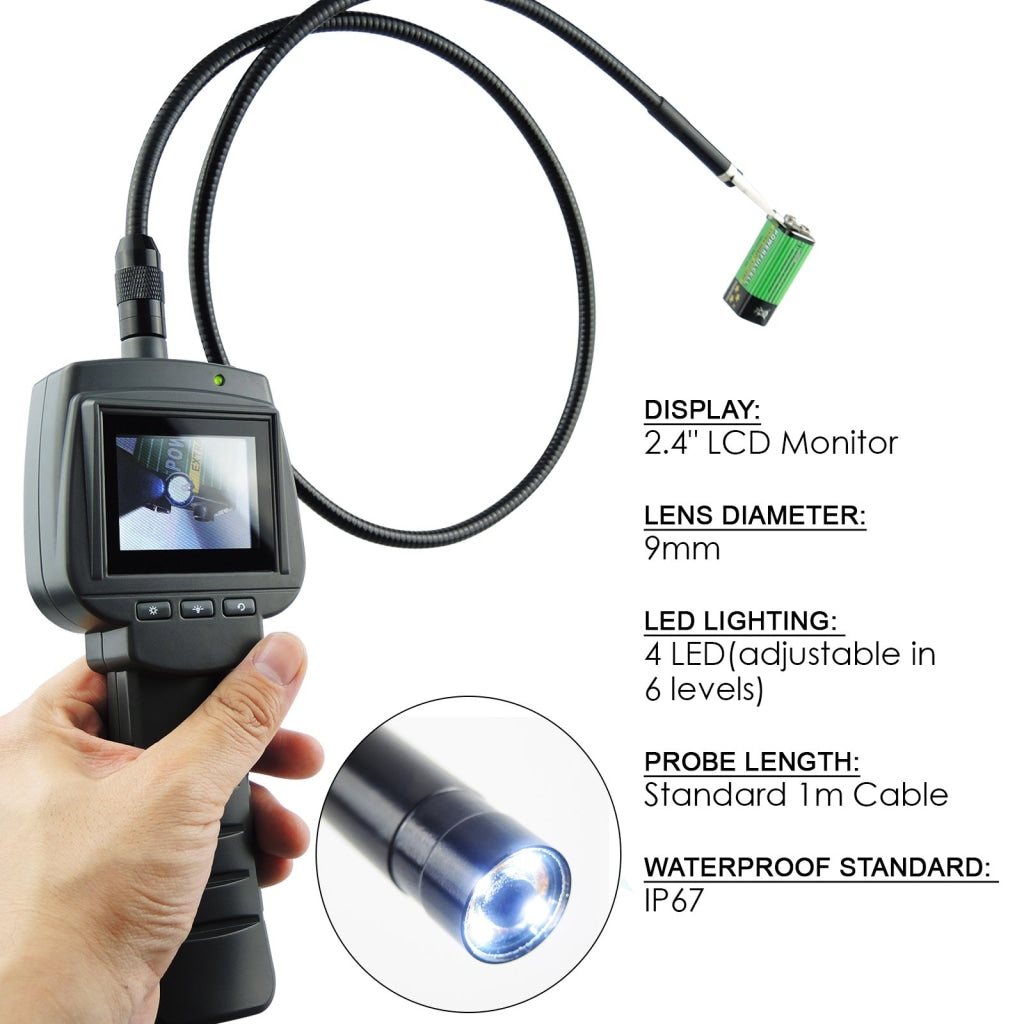

    • Lens diameter: 9.0mm

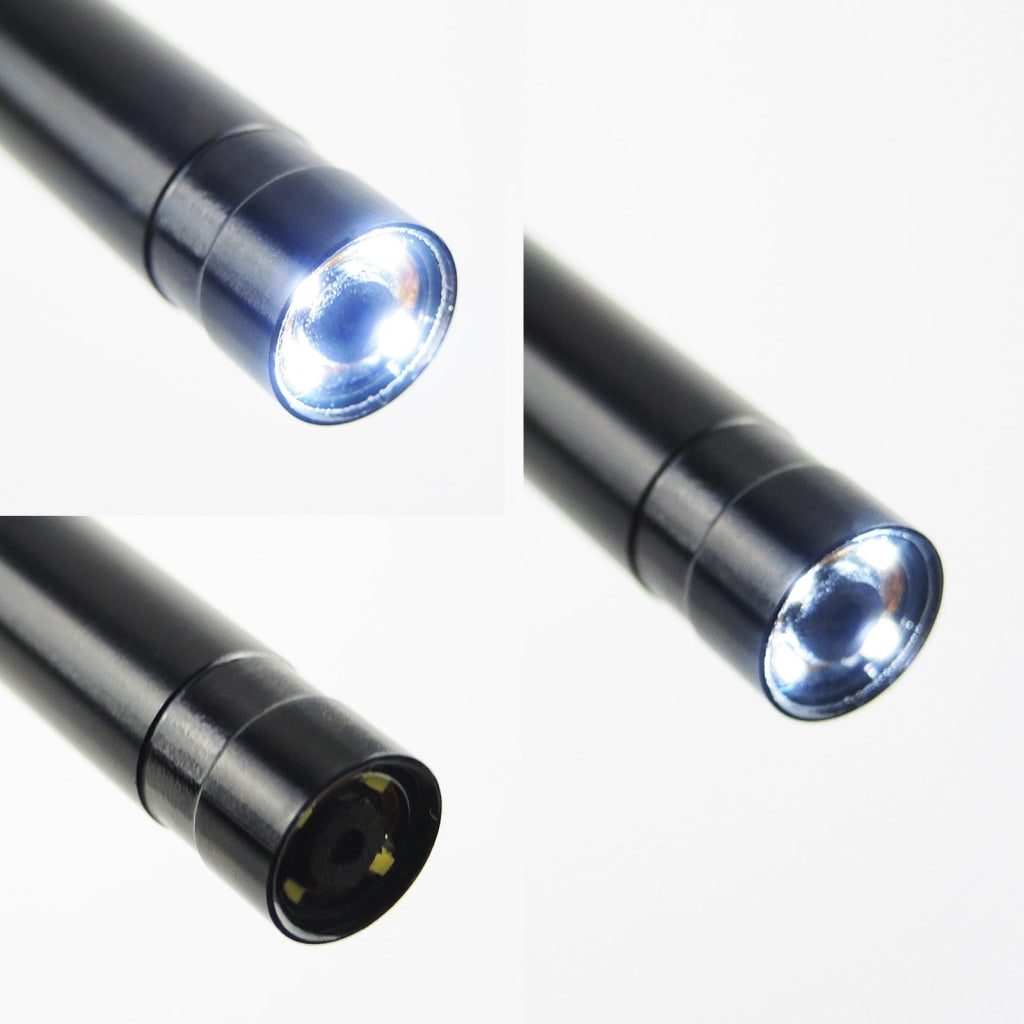

    • LED Lighting: 4 LED (adjustable in 6 levels)
    • Maximum bending radius: 150°
    • Energy Saving: switches off after 10 minutes
    • Probe Length: Standard 1m Cable
    • Material of Tube: Semi-rigid
    • Waterproof Standard: IP67 Dustproof and Waterproof (immersion between 15cm & 1m)
    • Dimension: 215 x 85 x 35mm

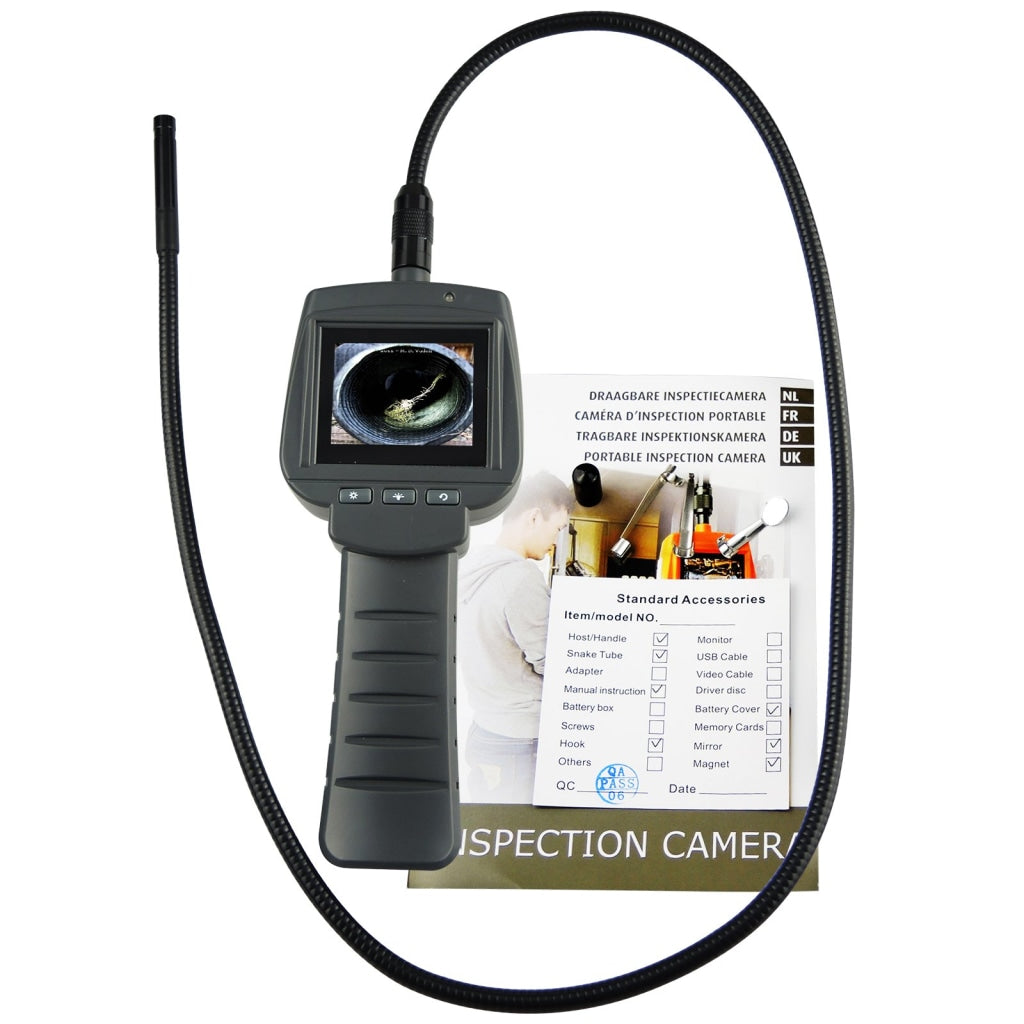

Set includes:

  • 1 x Inspection Camera
  • 1 x 1M Standard Cable

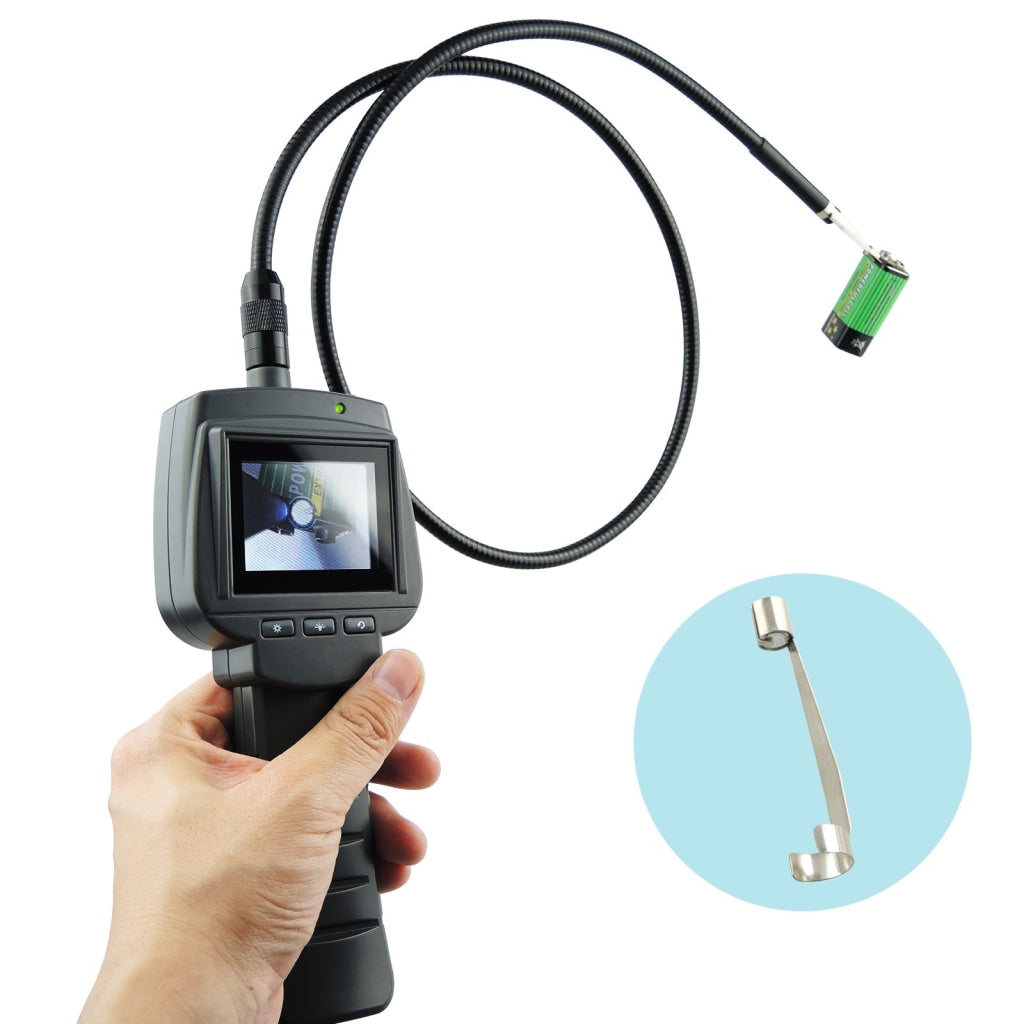

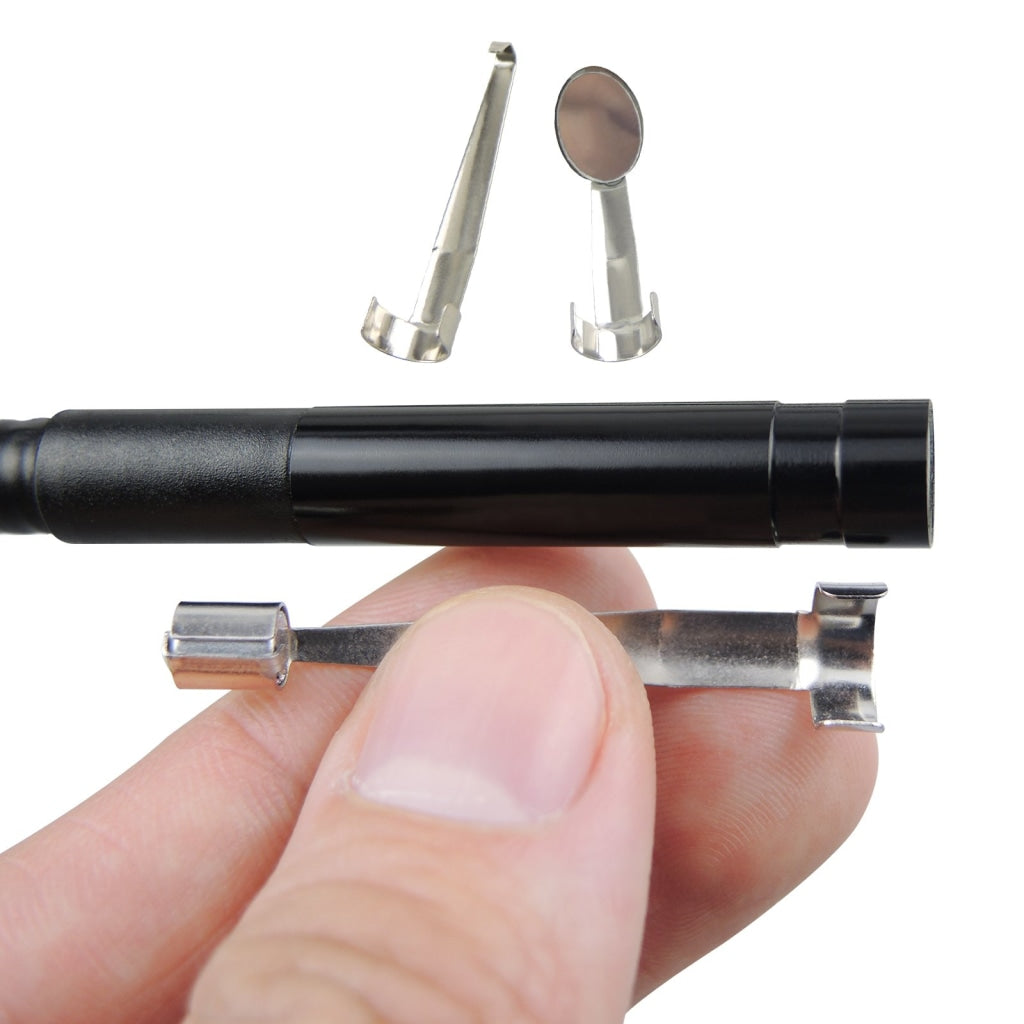

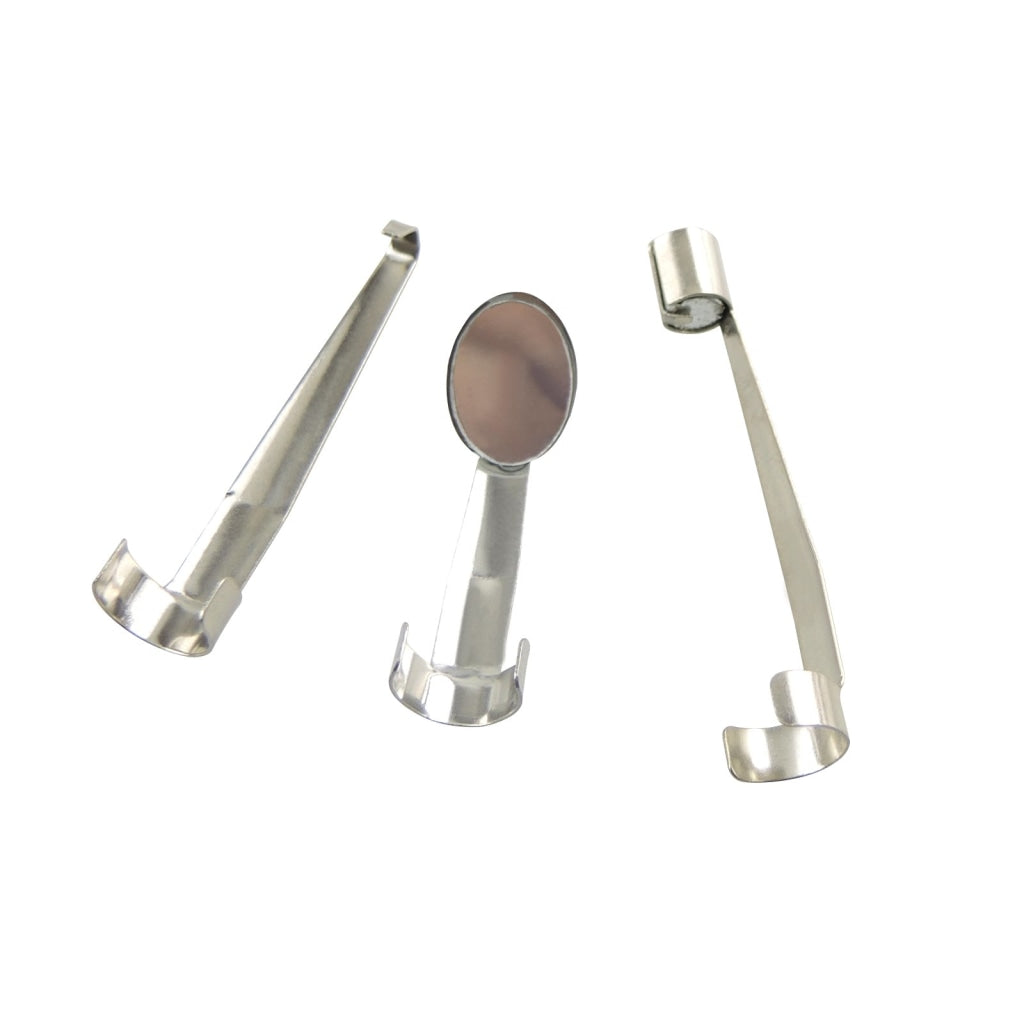

  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 1 x Magnet Tip
  • English Instruction Manual

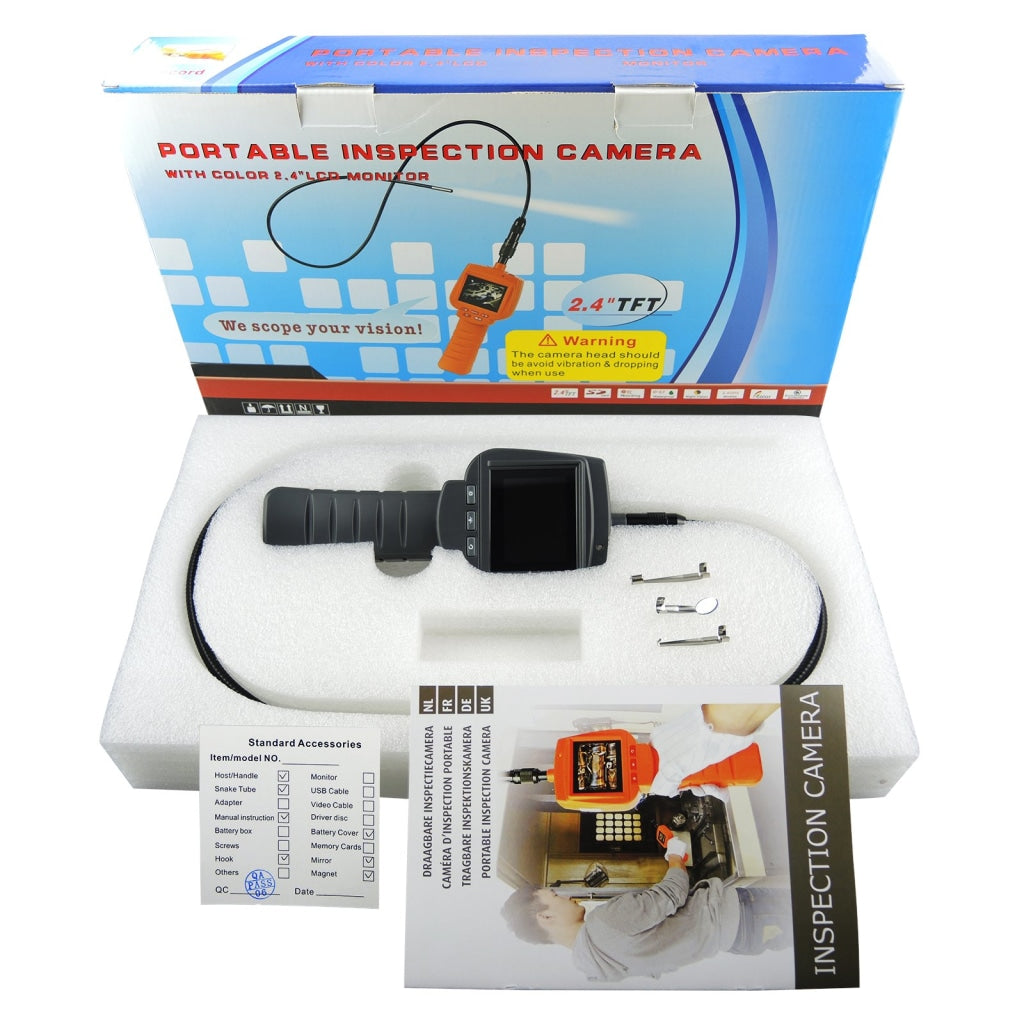

  • Standard Factory Package
