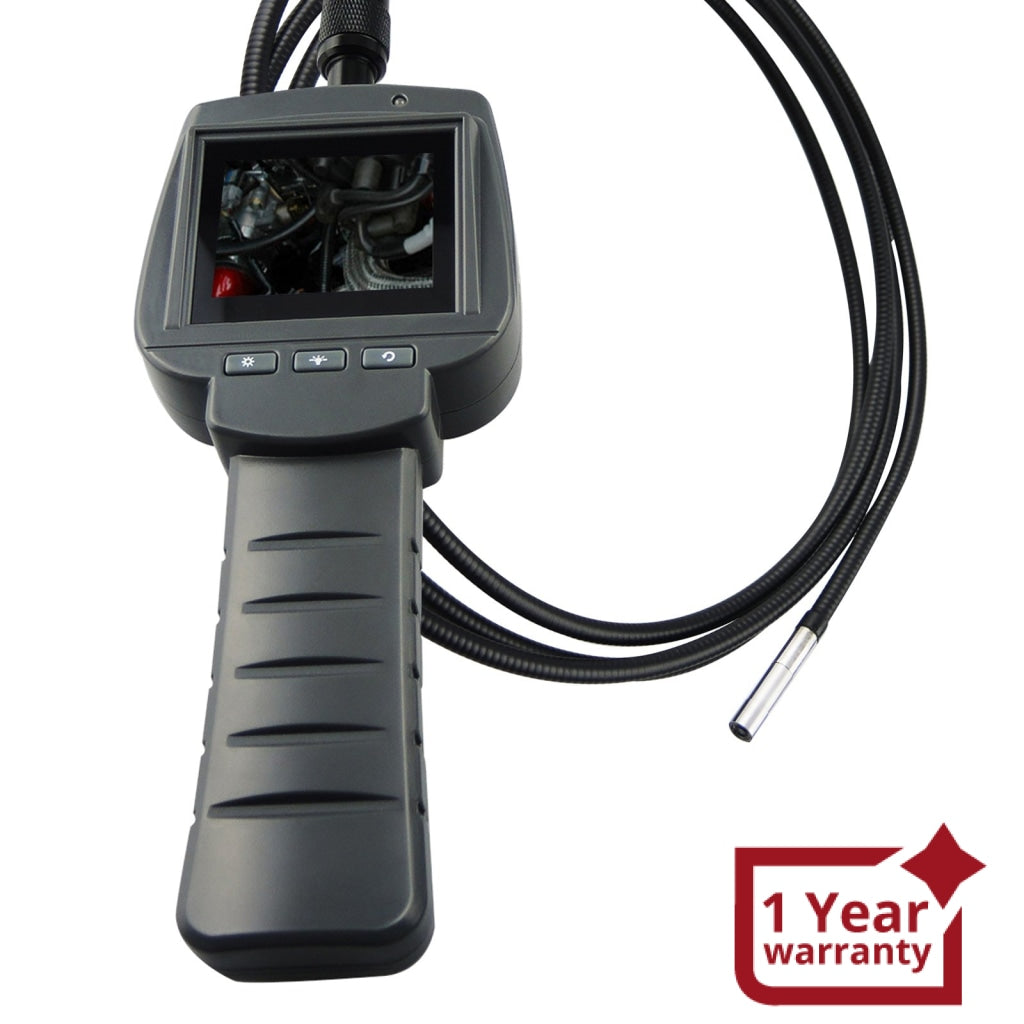

VID-71_5.5_2M 2M Cable Industrial Video Inspection Camera 5.5mm Diameter with 4 LED, 2.4" HD LCD Screen, Endoscope Borescope IP67 180° Rotation VGA CMOS Sensor, Flexible Snake Scope


Quantity
  OR


Model : VID-71_5.5_2M

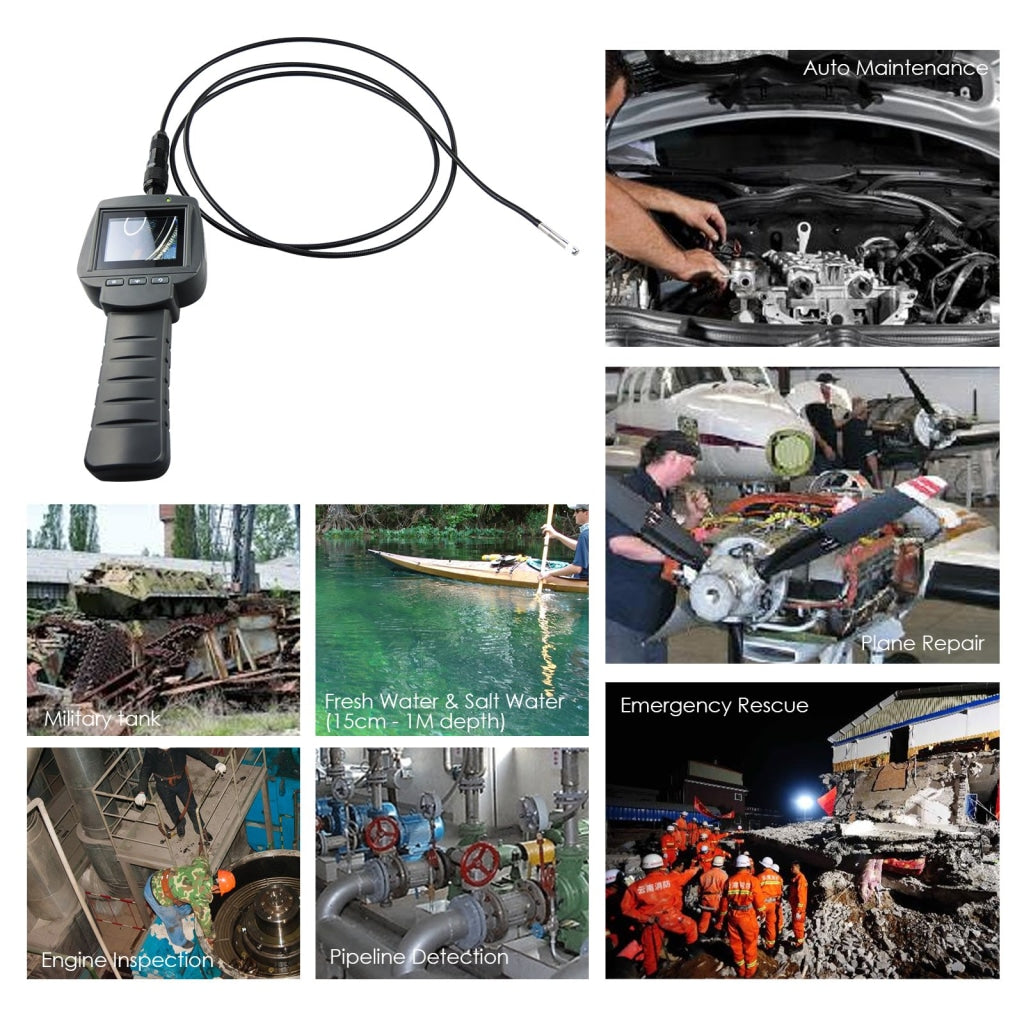

This Mini Camera Video Inspection Borescope allows you to view, record and inspect hard-to-reach, small opening and tight area.

The 2m long cable extends the area of inspection and can be attached with accessory (mirror tip - included in the set) to hasten problem identification.



Features:

  • High Defination (HD) 2.4" LCD Monitor
  • 150° maximum bending radius

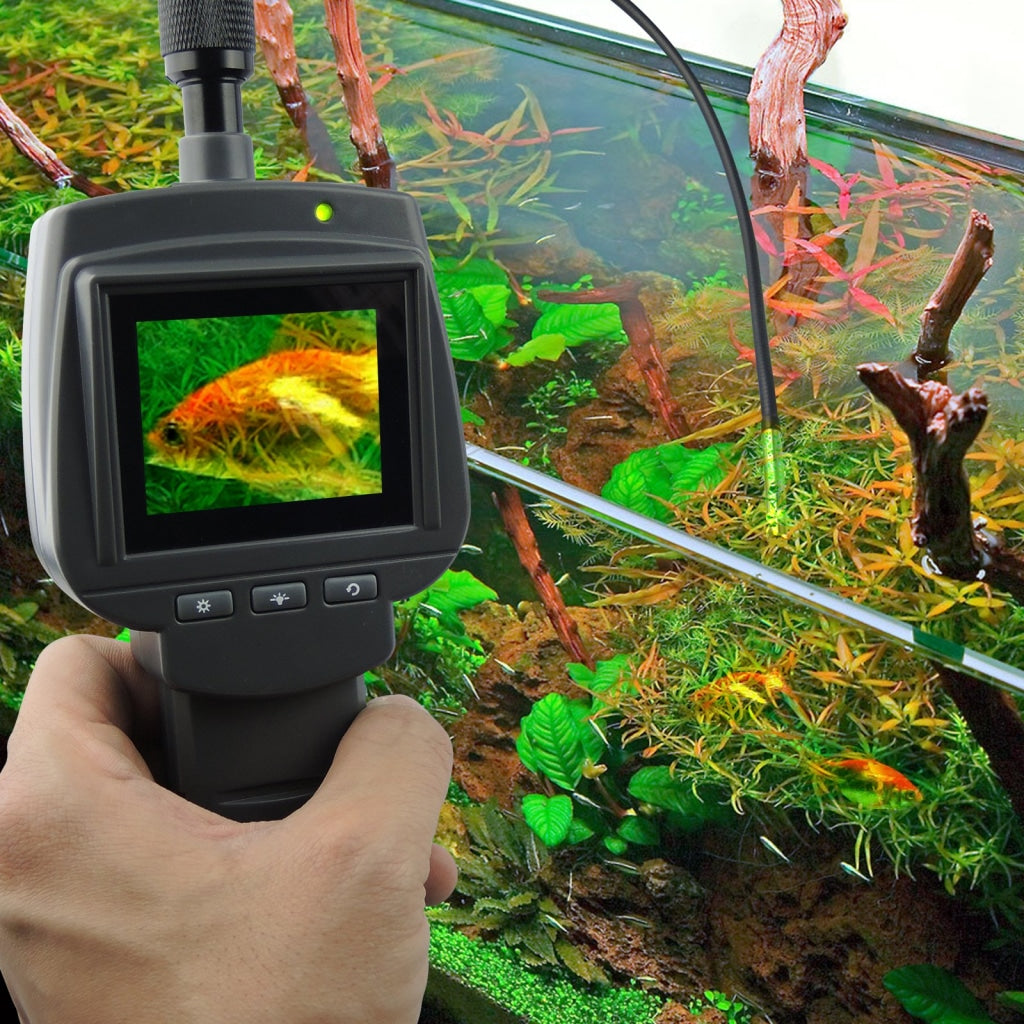

  • Dustproof and Waterproof (immersion between 15cm & 1m), IP67 Standard
  • Comfort Grip Housing
  • CE & FCC RoHS approved



Specifications:

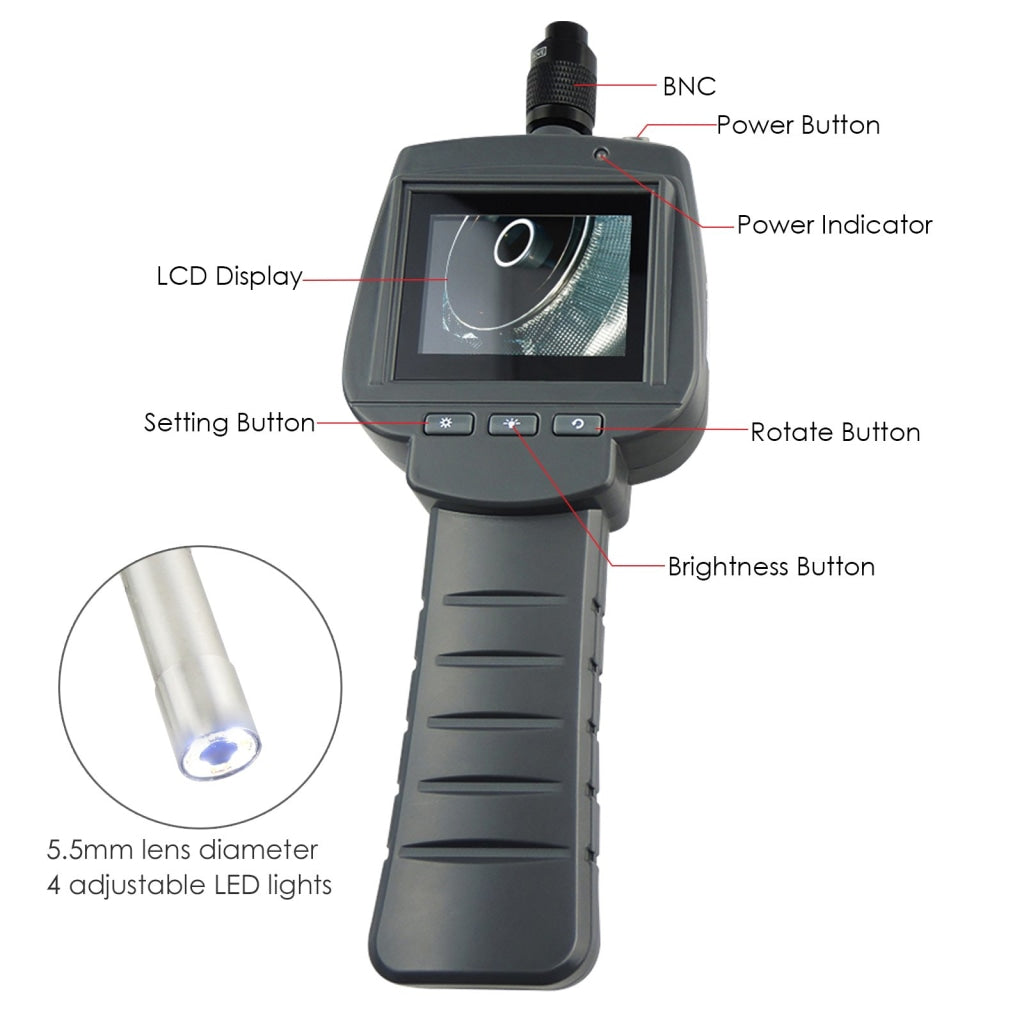

  • Main Unit:

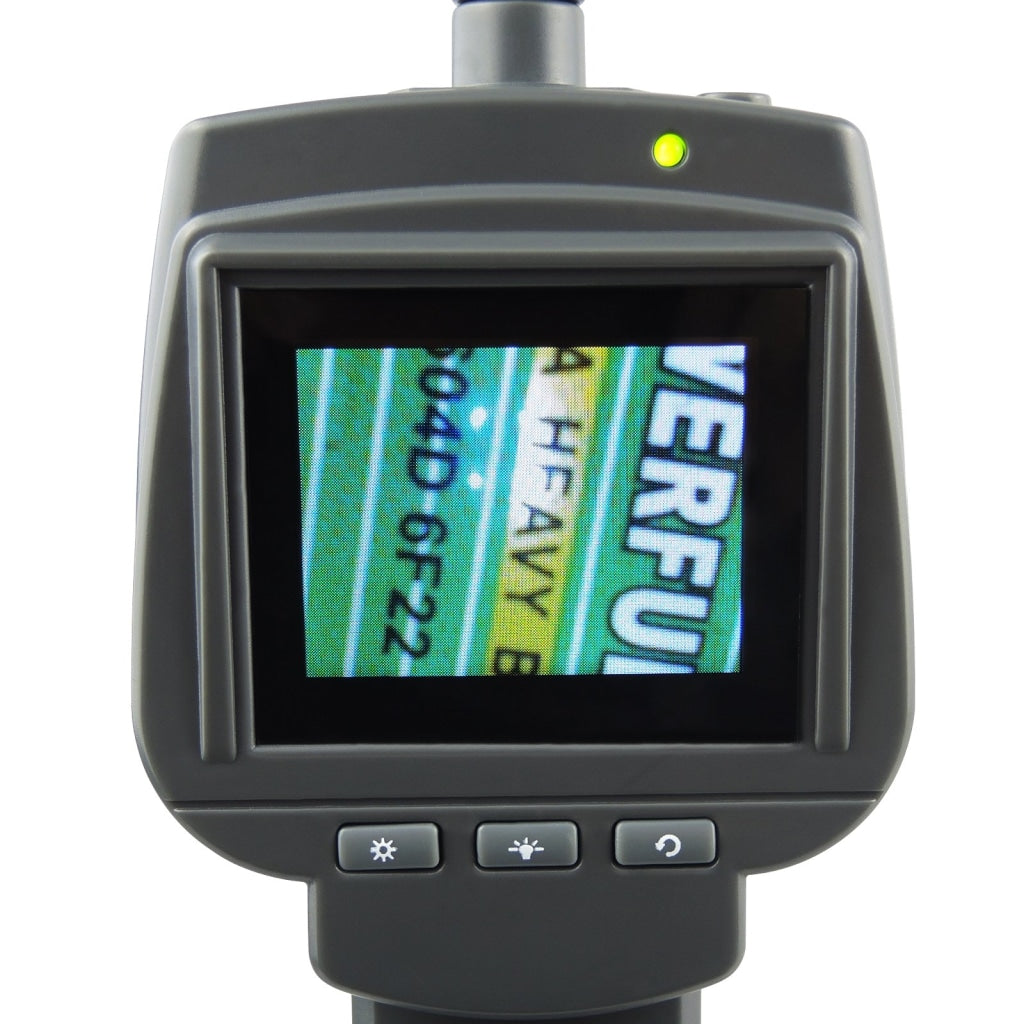

    • Display: 2.4” TFT LCD VGA 234 x 480 Pixels 16M color

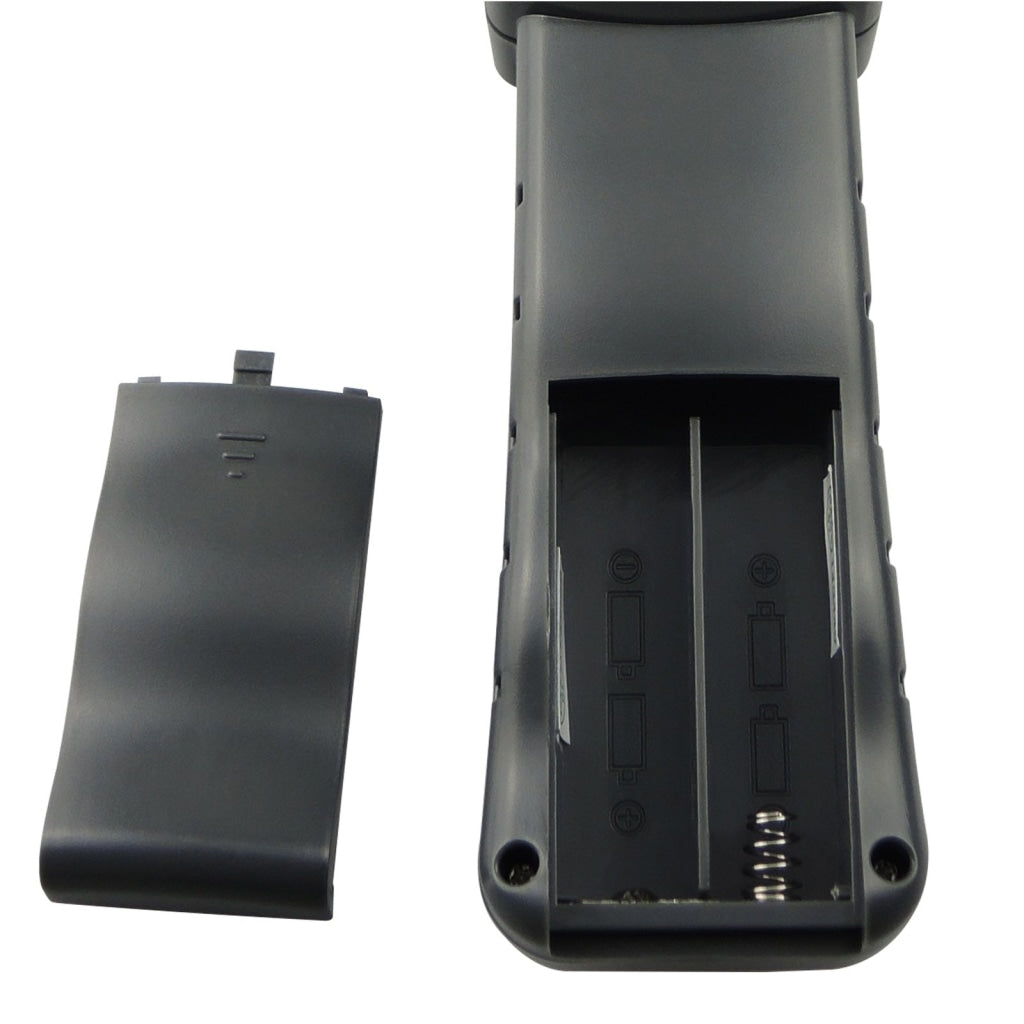

    • Power: 4 x 1.5V AA Battery (not included in the set)
    • Image Resolution: 320 x 240 (NTSC) / 720 x 625 (P)
    • Item Color: Gray
    • Image Rotation: 180°
    • Monitor brightness: adjustable in 3 levels
  • Insertion Tube:
    • Image Sensor: VGA CMOS Sensor
    • Actual Pixel: 0.45 Megapixels
    • Focus range: 30mm~80mm
    • Image angle: 60°

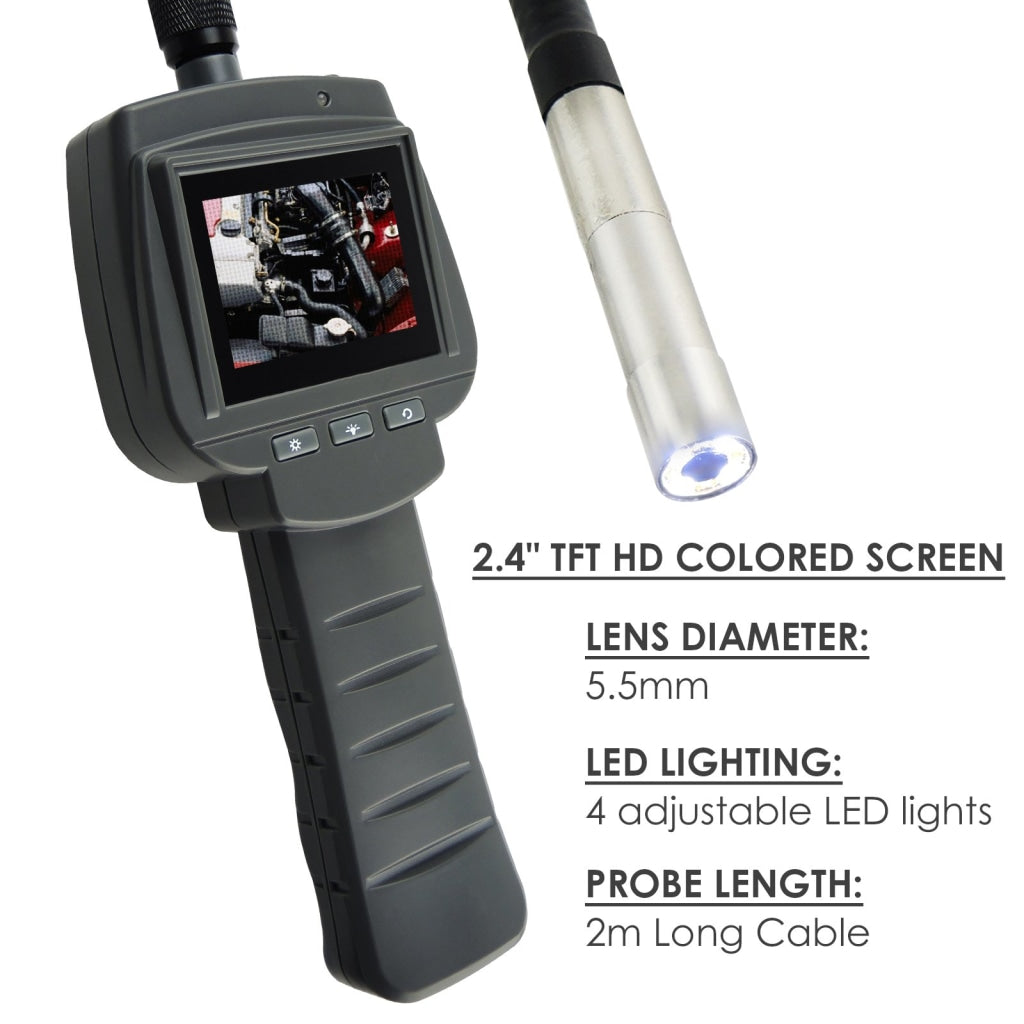

    • Camera head diameter: 5.5mm
    • LED Lighting: 4 LED (adjustable in 6 levels)
    • Energy Saving: switches off after 10 minutes
    • Probe Length: Standard 2m Cable
    • Material of Tube: Semi-rigid
    • Waterproof Standard: IP67
    • Dimension: 215 x 85 x 35mm

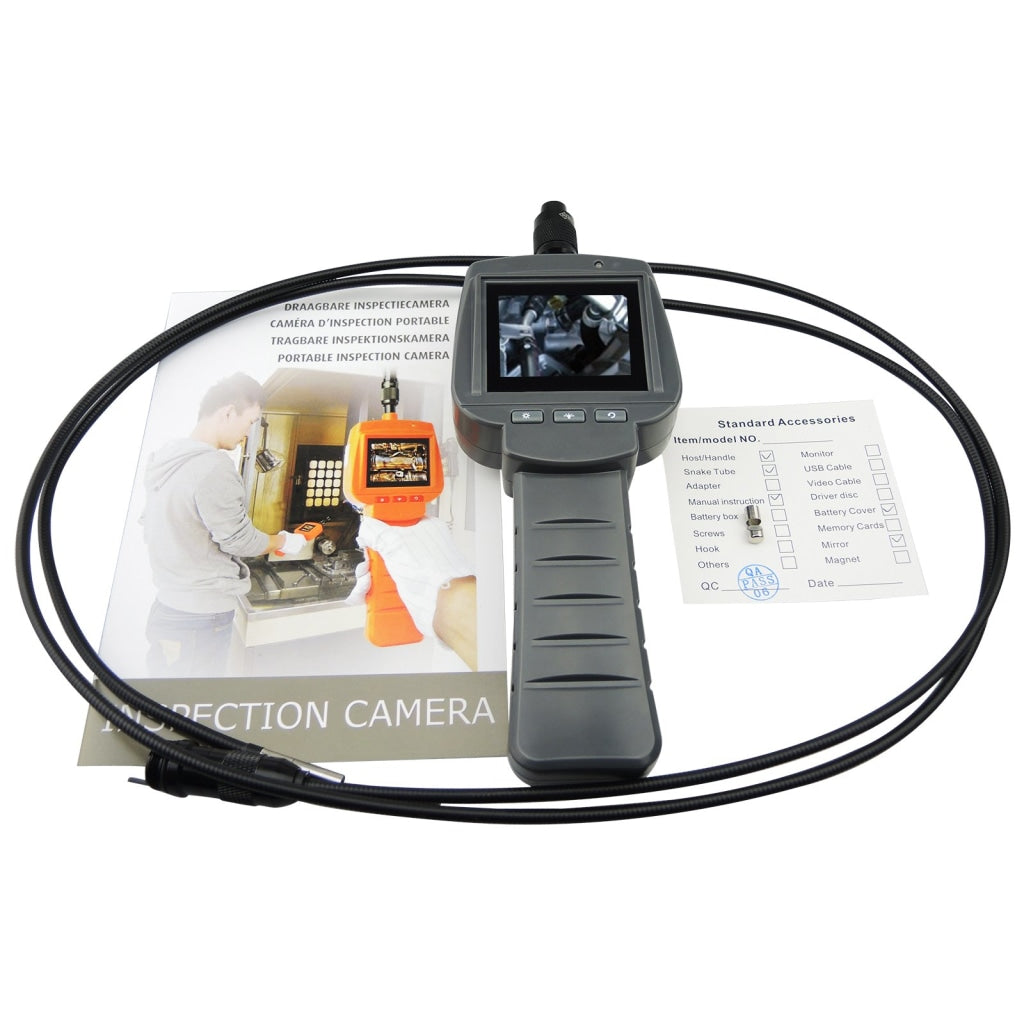

Set Includes:

  • 1 x 2.4" Colored LCD Inspection Camera

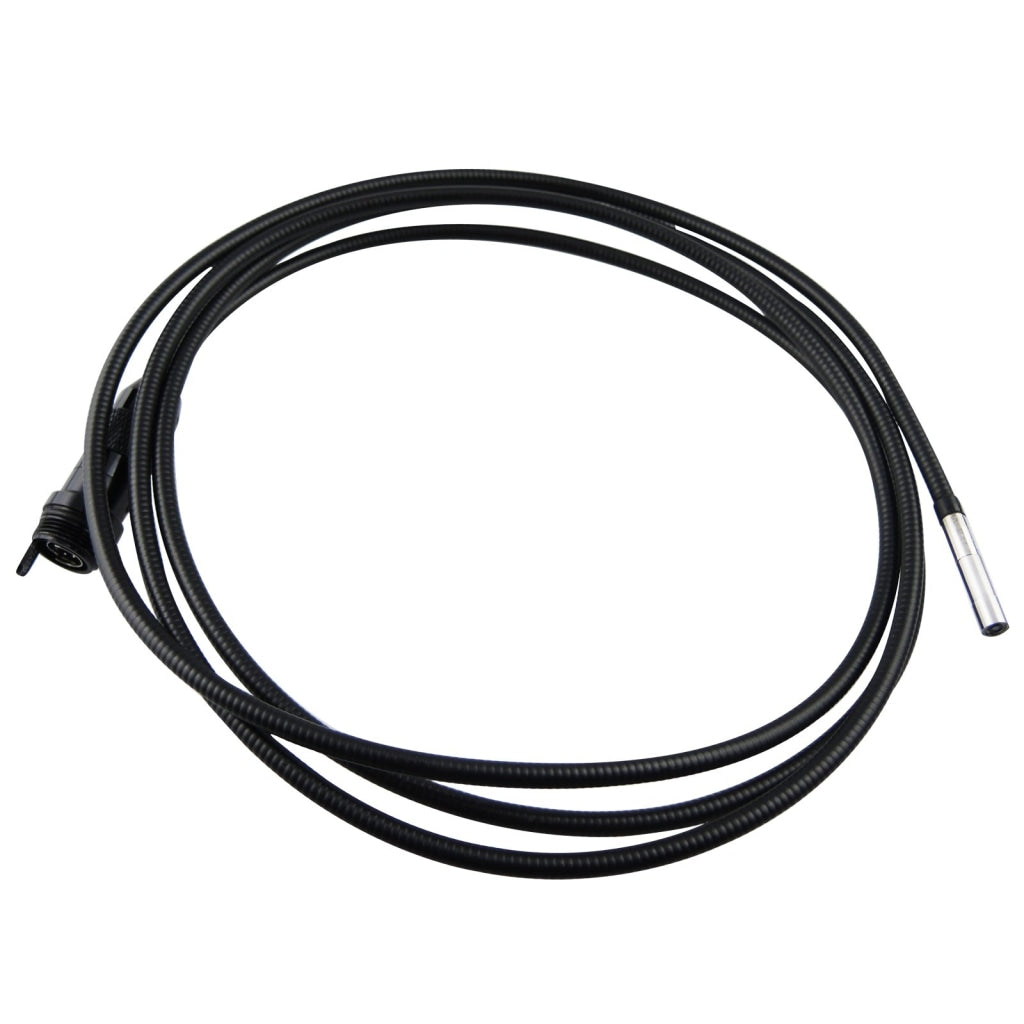

  • 1 x 2m Cable Tube with 5.5mm Waterproof Camera
  • 1 x Mirror Tip
  • English Instruction Manual
  • Standard Factory Package
