VID-700_2M Waterproof 3.5" Inspection Camera Endoscope Borescope + 2M Cable

  • 0% OFF
  • Regular Price

    $129.50



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model: VID-700_2M

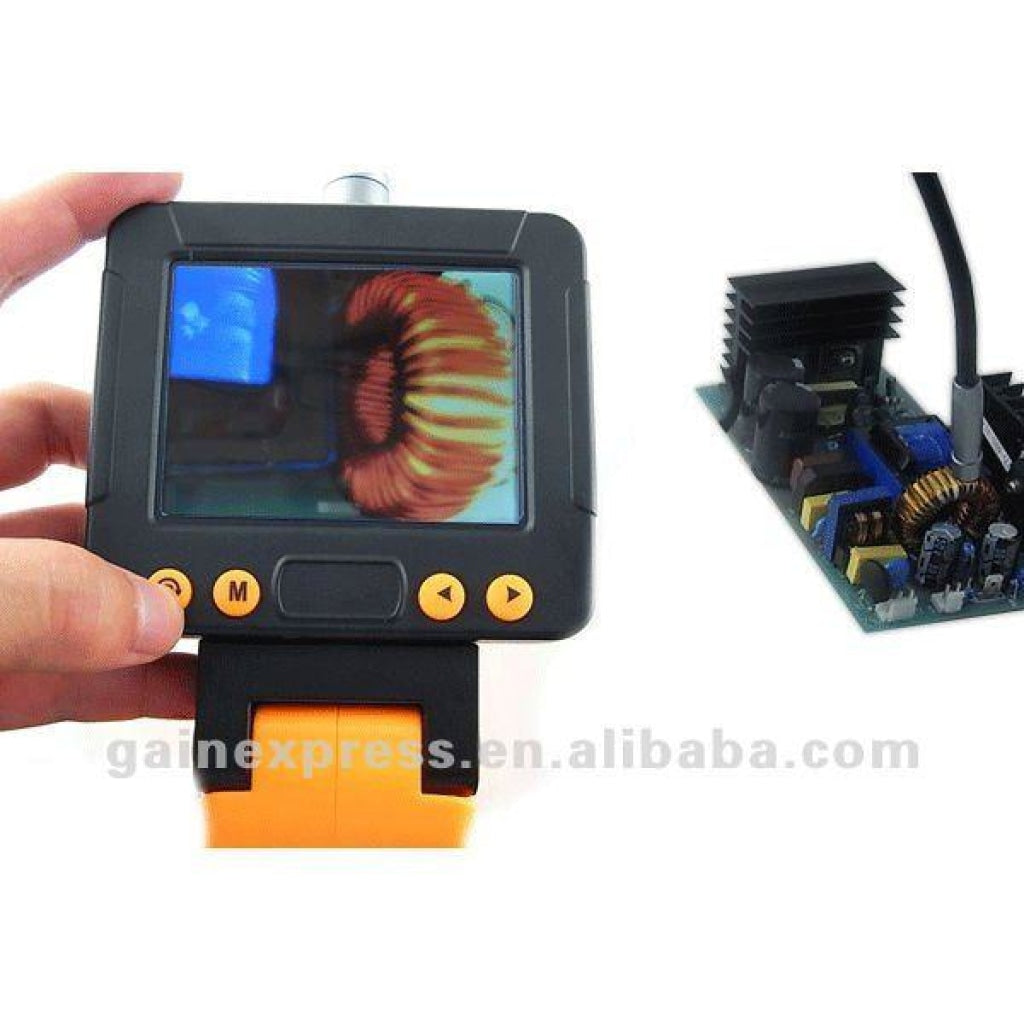

A versatile tool that comes with an ultra sharp LCD image and bright LED light with adjustable control so you always have a clear view in tight spots. With fully adjustable screen and handle angle means you always have a comfortable view no matter where you're using it.



The Standard Flexible 1 metre (3.3 feet) Cable allows you explore and discover conveniently.The set also include 1m (3.3 feet) Extension Cable, so totally you have 2m (6.56 feet) for inspection.



Helps you find lost small or tiny objects and view the internals of a combustion engine for cracks. Its is great for both professional and home use. Built with high impact plastic and a durable screen, making it a great addition to anyones tool box. Meet your curiosity and Have fun!

Great Idea for:
* Checking through walls
* Construction Site Tools
* Parts Assembly
* Science Education
* Workshop
* Laboratories
* Engine repair and Maintenance
* Checking under vehicles
* Pipe review and repair
* Down the drains
* Hard-to-reach areas
* Tight Area Surveillance
* Explore under water or under water surveillance
* Industrial inspection


Features

  • 3.5" TFT LCD Full Color Screen

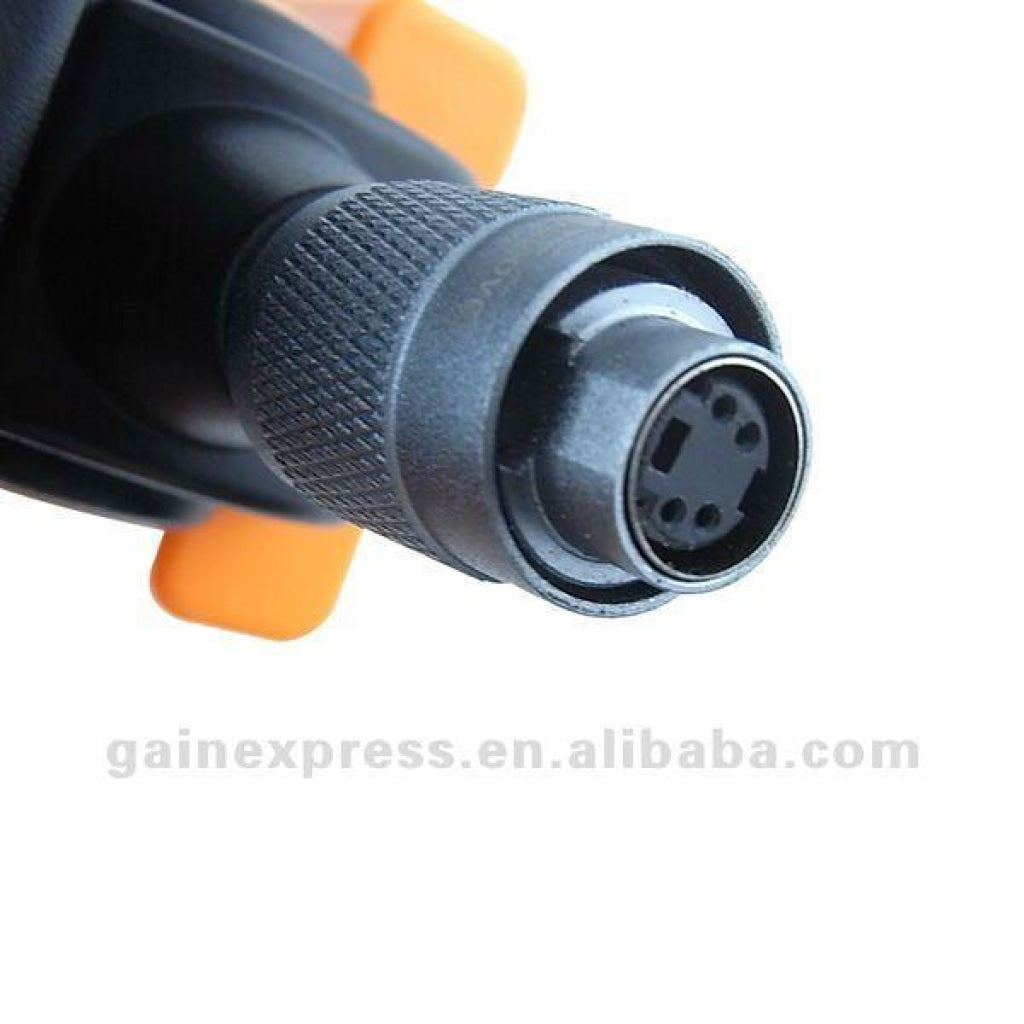

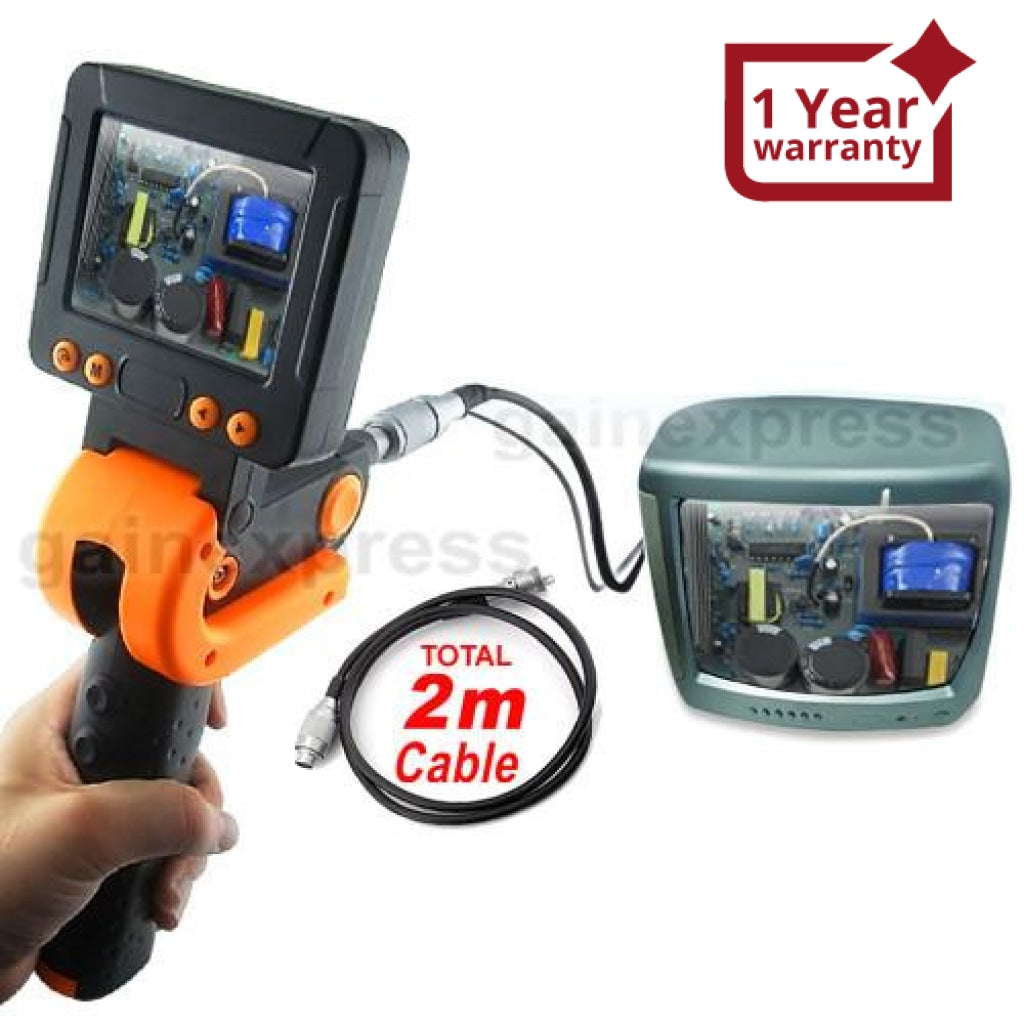

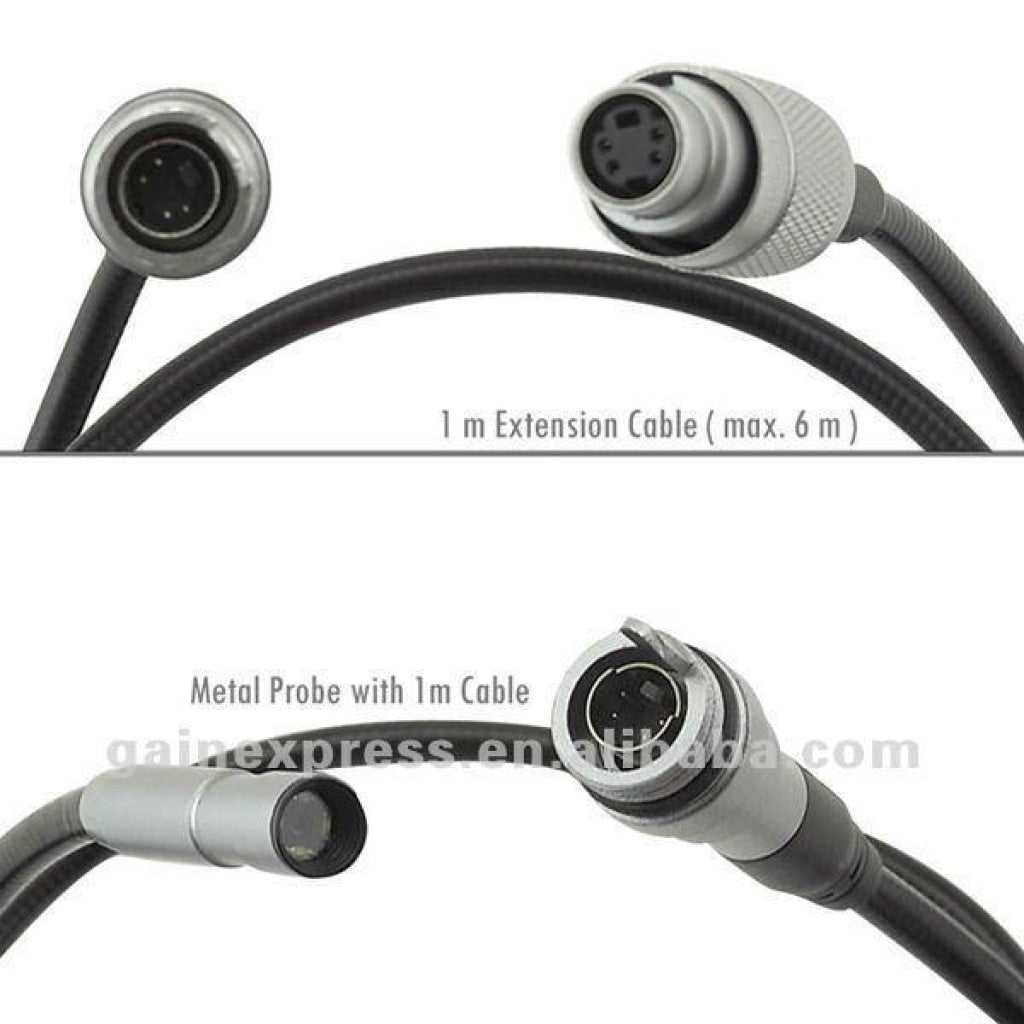

  • 2m (6.56 feet) Cable (1m Waterproof Metal Probe w/ camera + 1m Extension Cable)

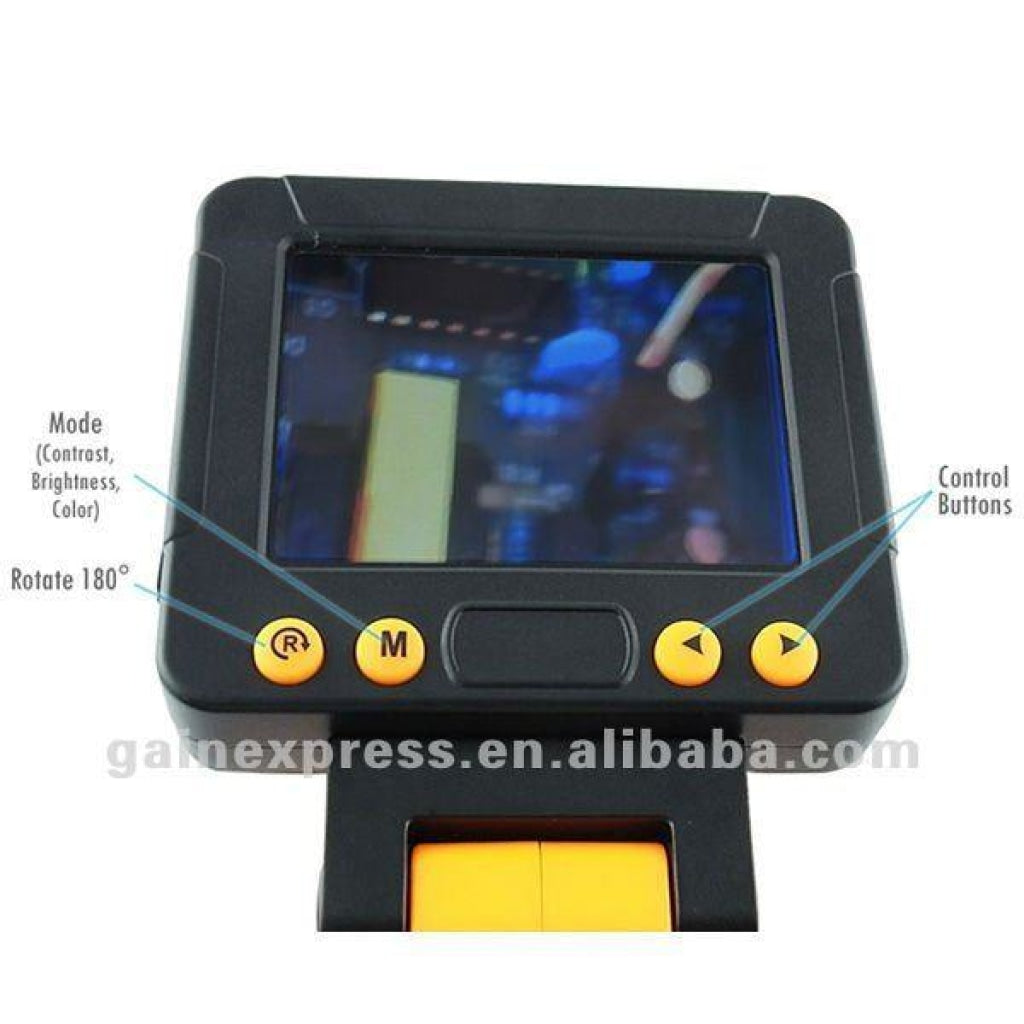

  • Adjustable Brightness value Contrast or Color in the LCD screen
  • Built in variable brightness LED camera lights

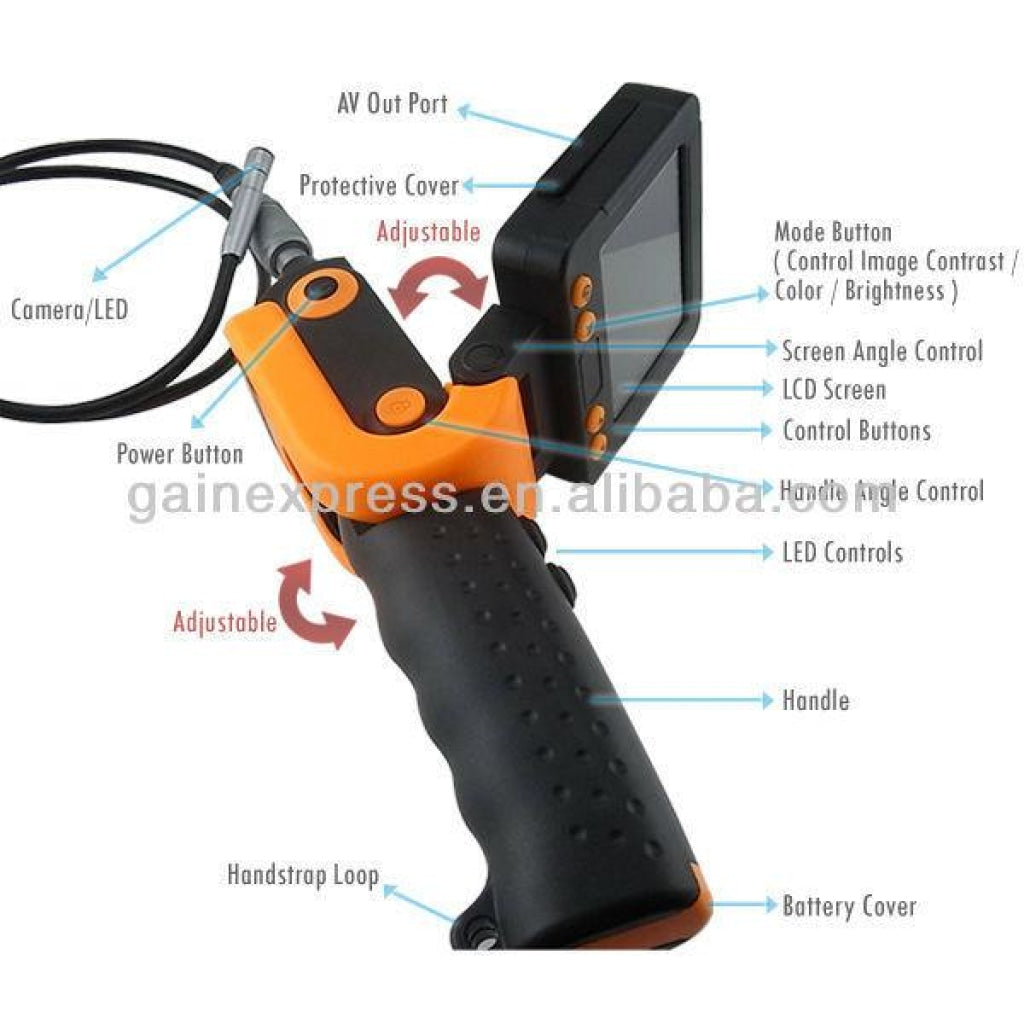

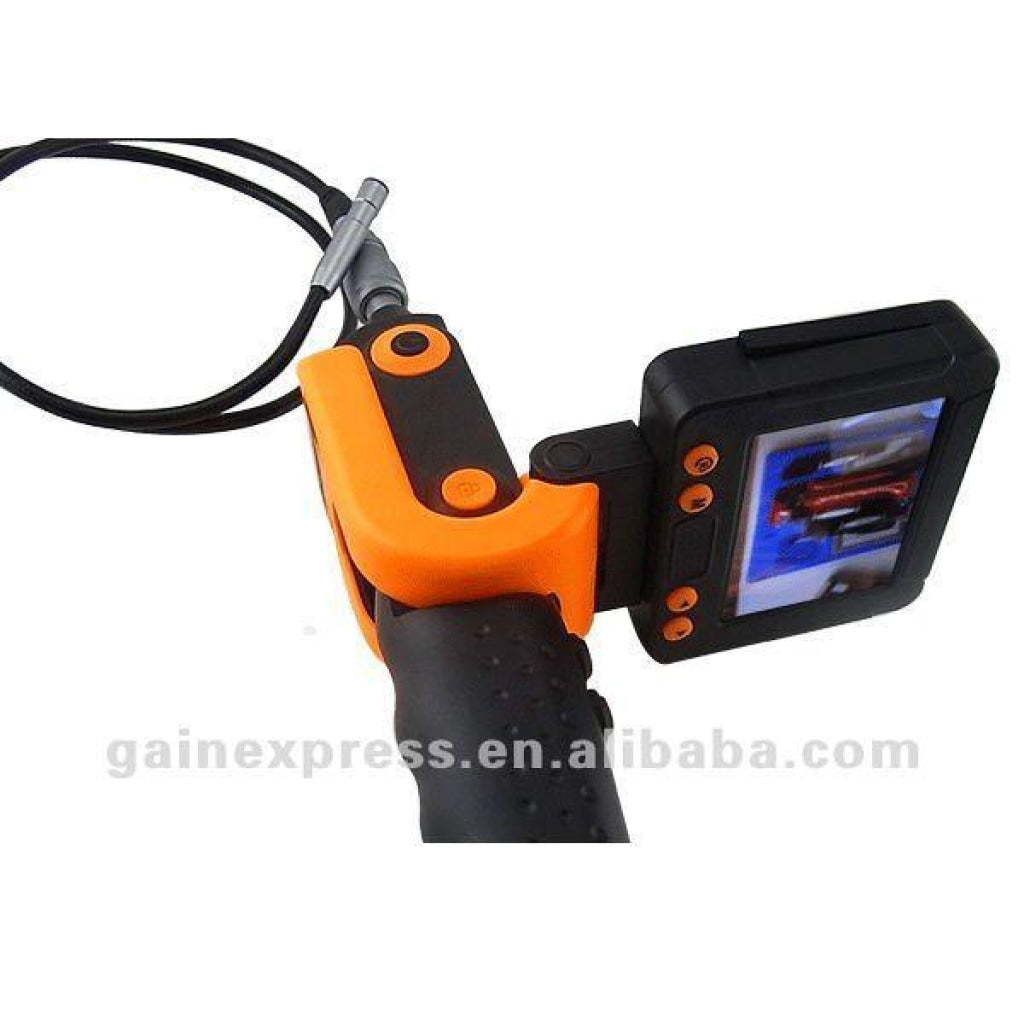

  • Fit your eye's and hand's angle with adjustable handle (0º, 45º, 80º) & changeable screen angle (0º to 90º)
  • 1M flexible probe with IPX67 waterproof camera head & sensor

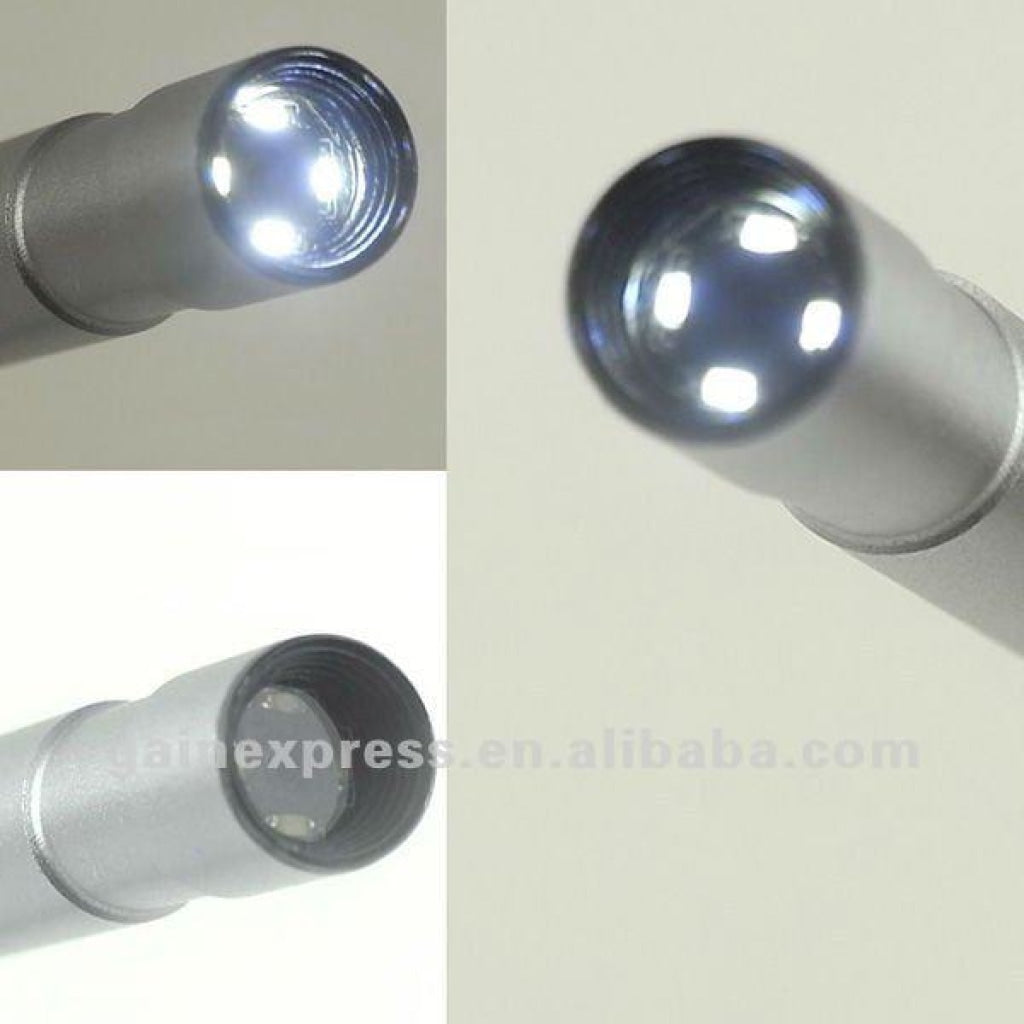

  • 4 LED Lights with adjustable light intensity & 9.5mm outer lens
  • User-friendly Graphic (icon) UI
  • Extendable cable length to upto 6 meters

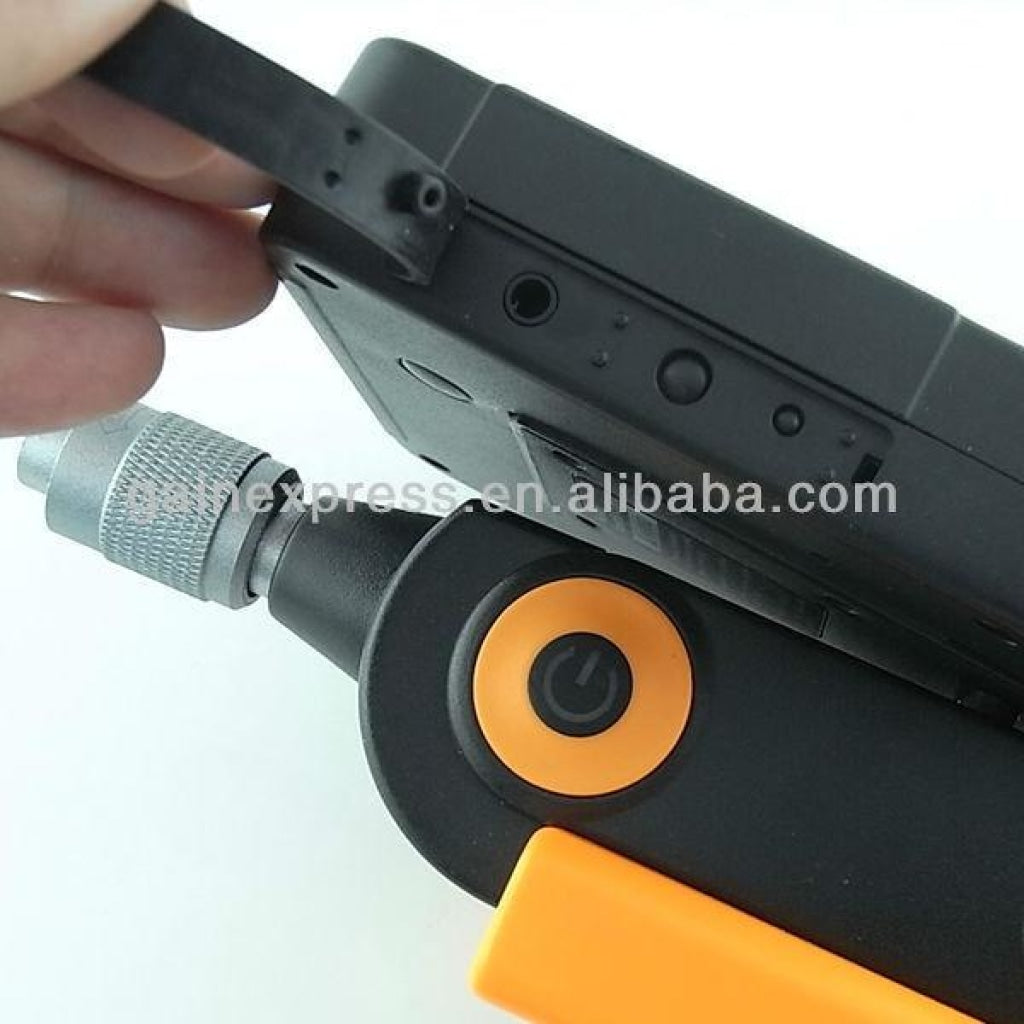

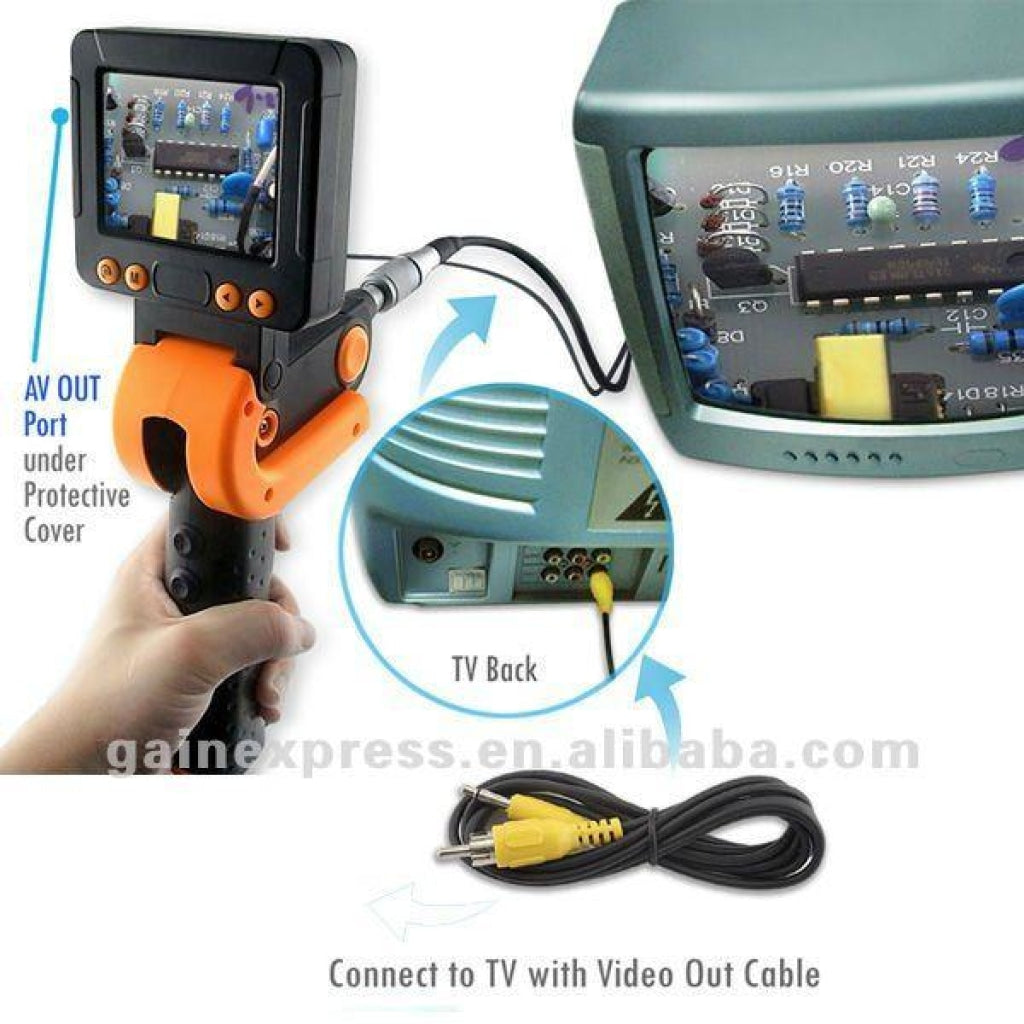

  • With TV Out function
  • Able to inspect under water, with waterproof camera head and tube
  • Tough, but still clear and soft enough
  • With FCC, CE & RoHS standards
  • Stable and high quality products
  • Maximum water depth of 1M for IPX67 waterproof camera head can be submerged
  • Image rotation function
  • Professional service



Specifications

  • W 3.5" TFT LCD Screen (QVGA 320 x 240, 16.7M colors)
  • TV Out Function
  • Video Format/Sytem: PAL (It works for PAL & multi-system TV)
  • Camera & Tube: water resistant (IPX67)
  • Camera & Flexible Cable:
    • Outer Lens Diameter: 9.5mm
    • CMOS Camera Image Sensor: 1/9" VGA CMOS
    • Array Size: 640 x 480
    • Resolution: 0.3M pixels
    • Max Image Transfer Rate: 30fps for VGA
    • Sensitivity: 1800mv/(Lux.sec)
    • Focal Range: 2 ~ 15cm
    • Optimal Focal Range: 4cm
    • Flexible Cable
      • Length: 1m
      • Outer Diameter: 5.8mm
      • Minimum Bending Radius: 60°
    • LED Light: 4 LED with adjustable brightness control
    • Water Splash Resistance (IPX67)
  • Lens: F2.8 2.2mm with 70-75° view angle lens
  • Visual Distance Range: 20 ~ 150mm (recommended at 40mm)
  • Display resolutions: Image  640*480 pixels

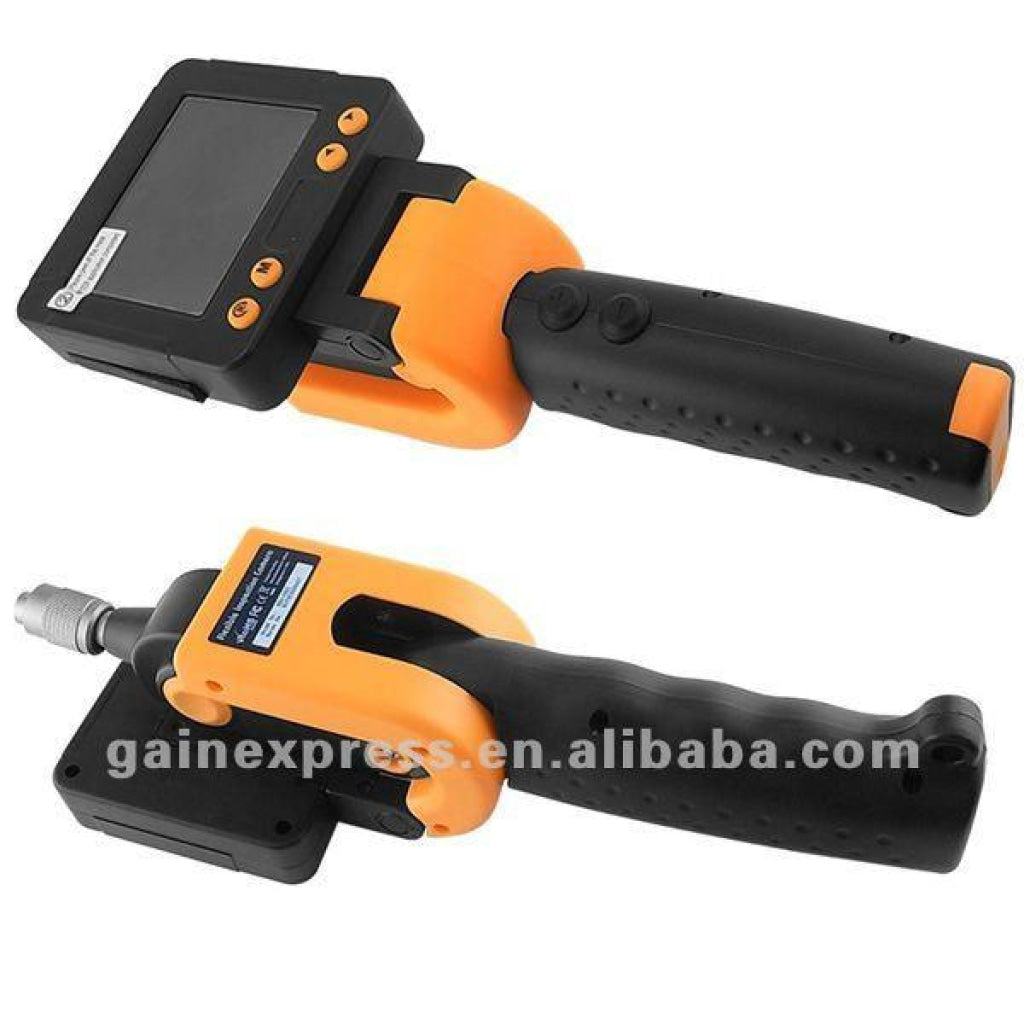

  • Adjustable Handle: 0° 45° & 80°
  • Changeable Screen Angle: 0 ~ 90°
  • Temperature & Humidity
    • Operating: 0~50°C T.B.D.
    • Storage: 20~65°C T.B.D.

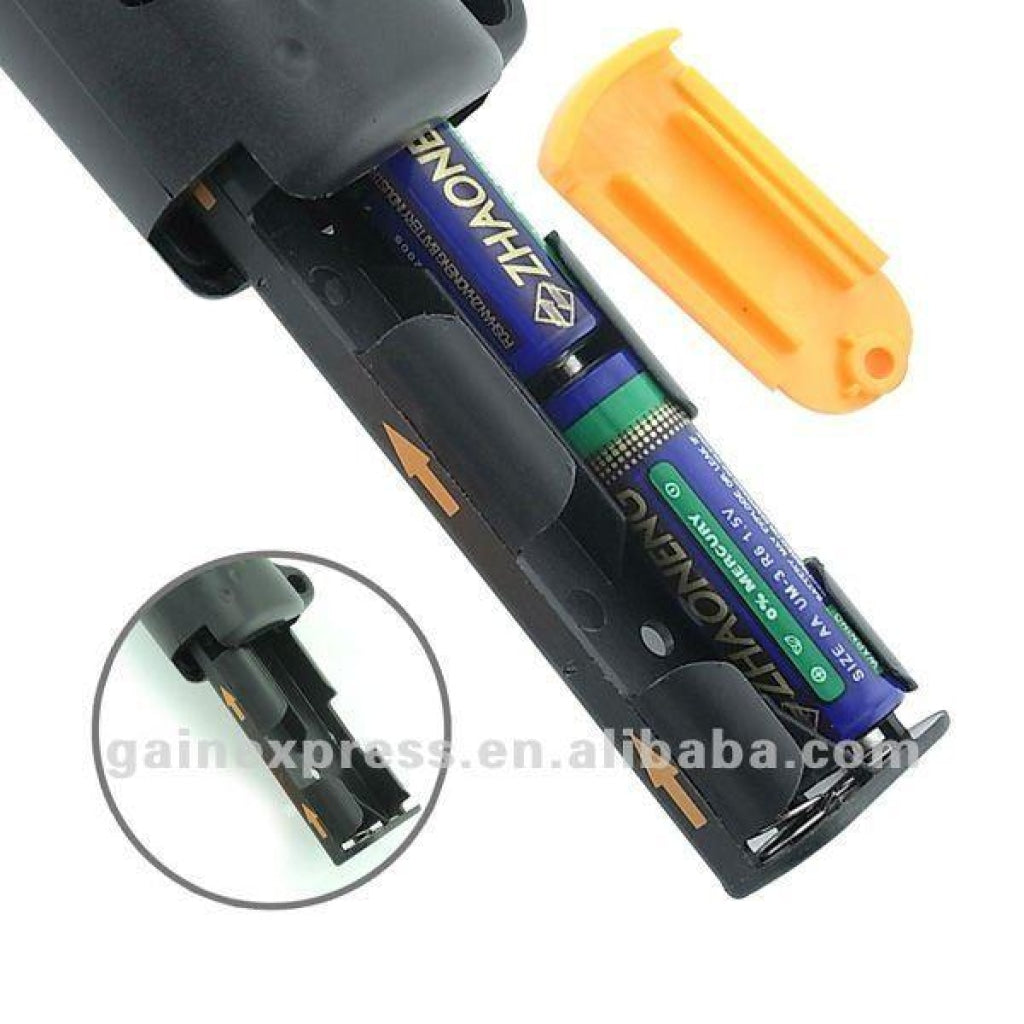

  • Battery: 4 x 1.5V AA type Alkaline Battery (working time: approx. 3-4 hours) (included)
  • Dimension
    • 3.5" Monitor (w/ Border only): 100 x 89 x 24mm (W x H x T)
    • Main Unit with Handle (straighten postition): 100 x 290 x 78mm ( W x H x T)
  • Weight
    • main unit: 370g (battery excluded)
    • whole package: 1110g (extension cable not included)

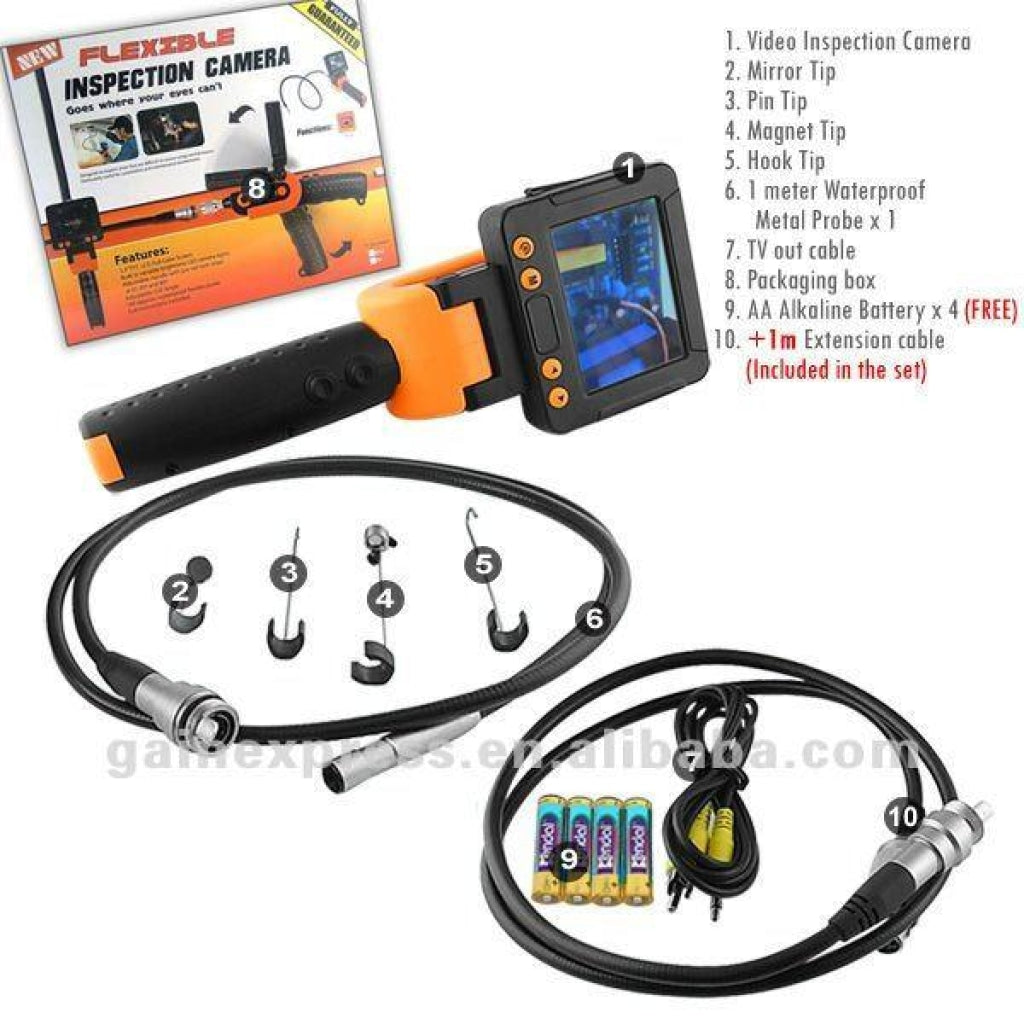

Set Includes

  • 1 x 3.5" TFT LCD Video Inspection Camera
  • 1 x Standard 1 meter Waterproof Metal Probe with 9.5mm Camera Head
  • 1 x 1 meter / 3.3 feet Extension Cable (FREE)

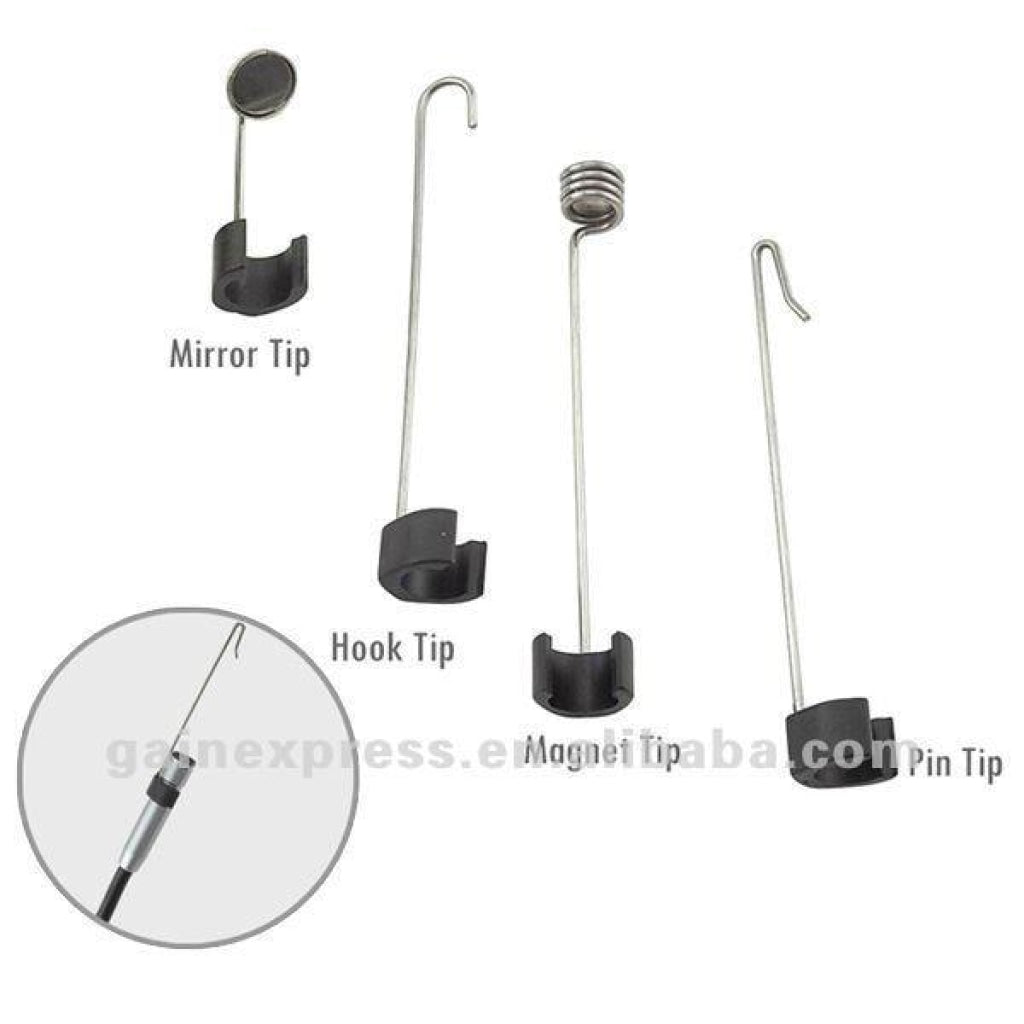

  • 1 x Pin Tip
  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 1 x Magnet Tip

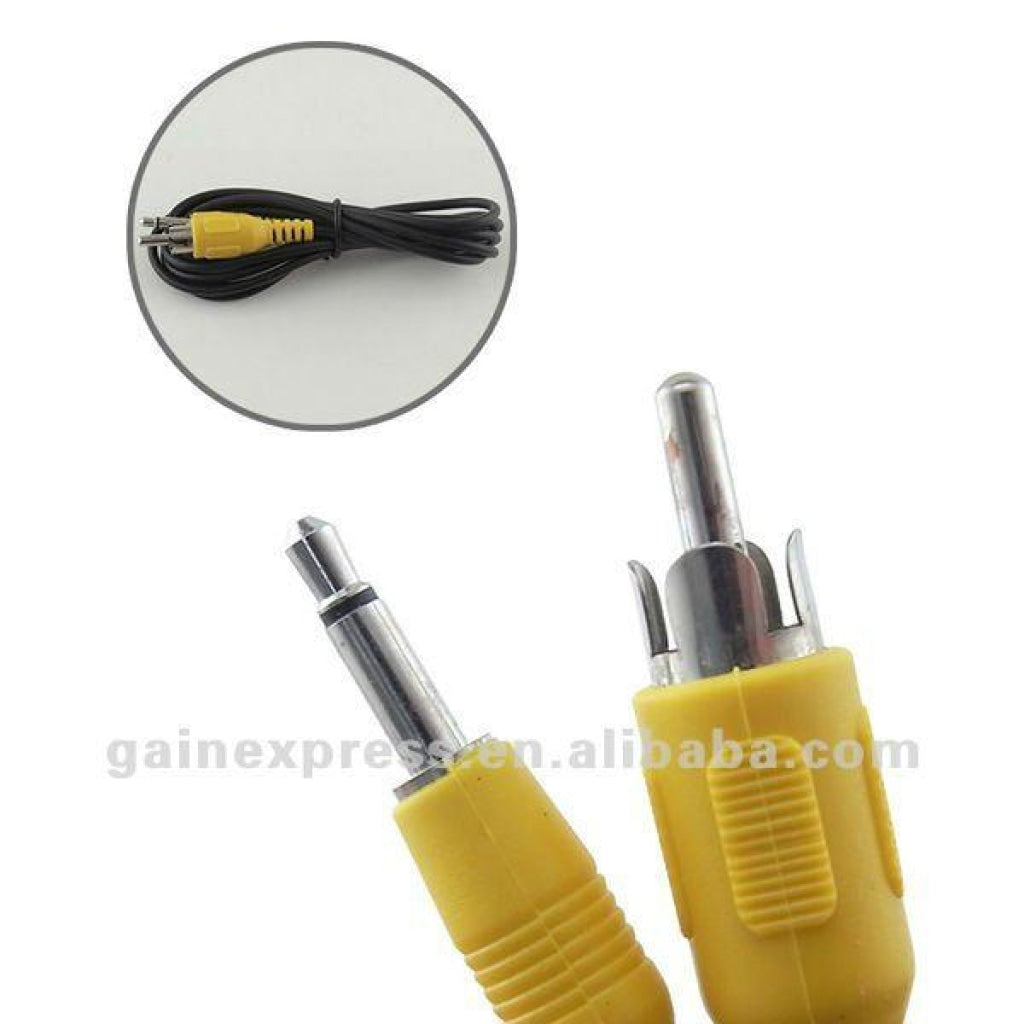

  • 1 x TV Out Cable
  • 4 x AA Alkaline Battery ( FREE )
  • 1 x Instruction Manual
  • Standard Factory Packaging

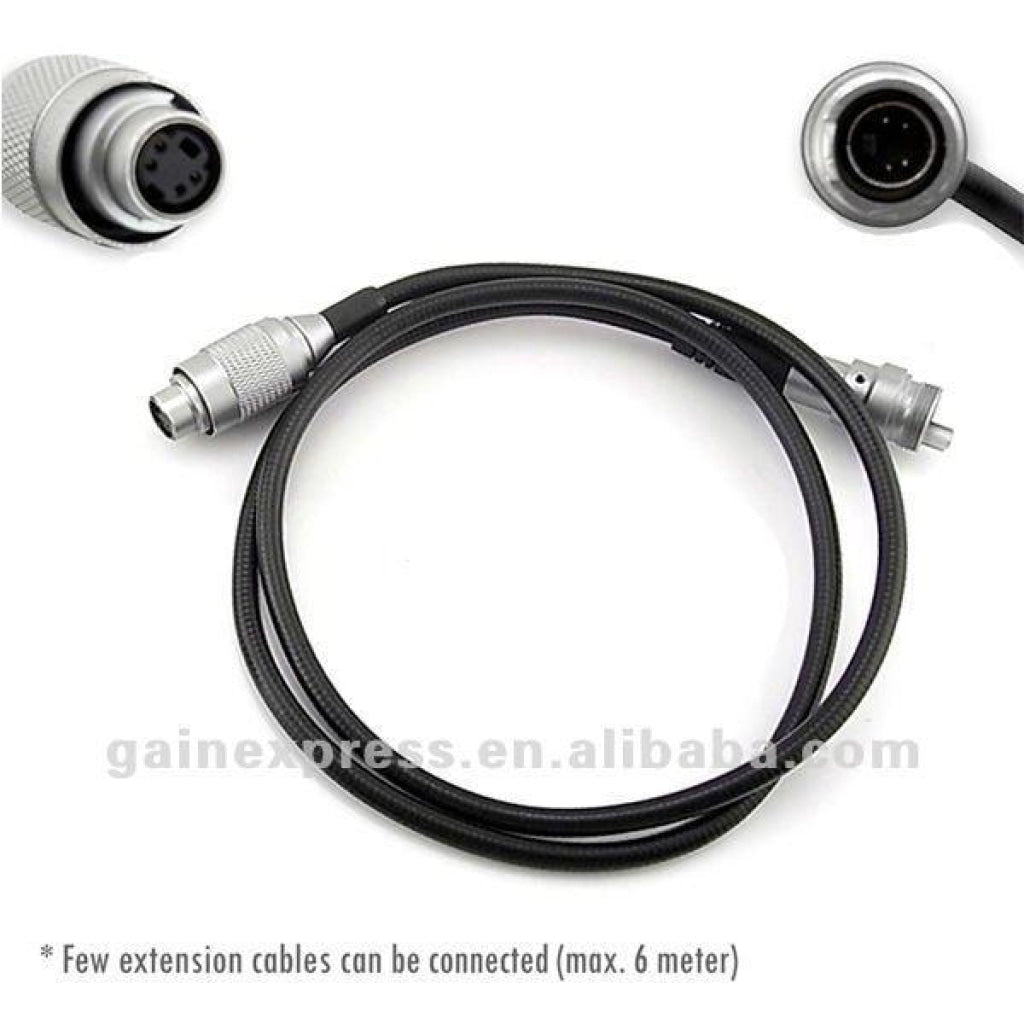

NOTEMaximum length of extension cables that can be attached to this item is 6 meters or 6pcs of 1M extension cable.



  We sell this product everywhere, except South Korea. We are no longer shipping to South Korea.





click here to watch the video for this product
