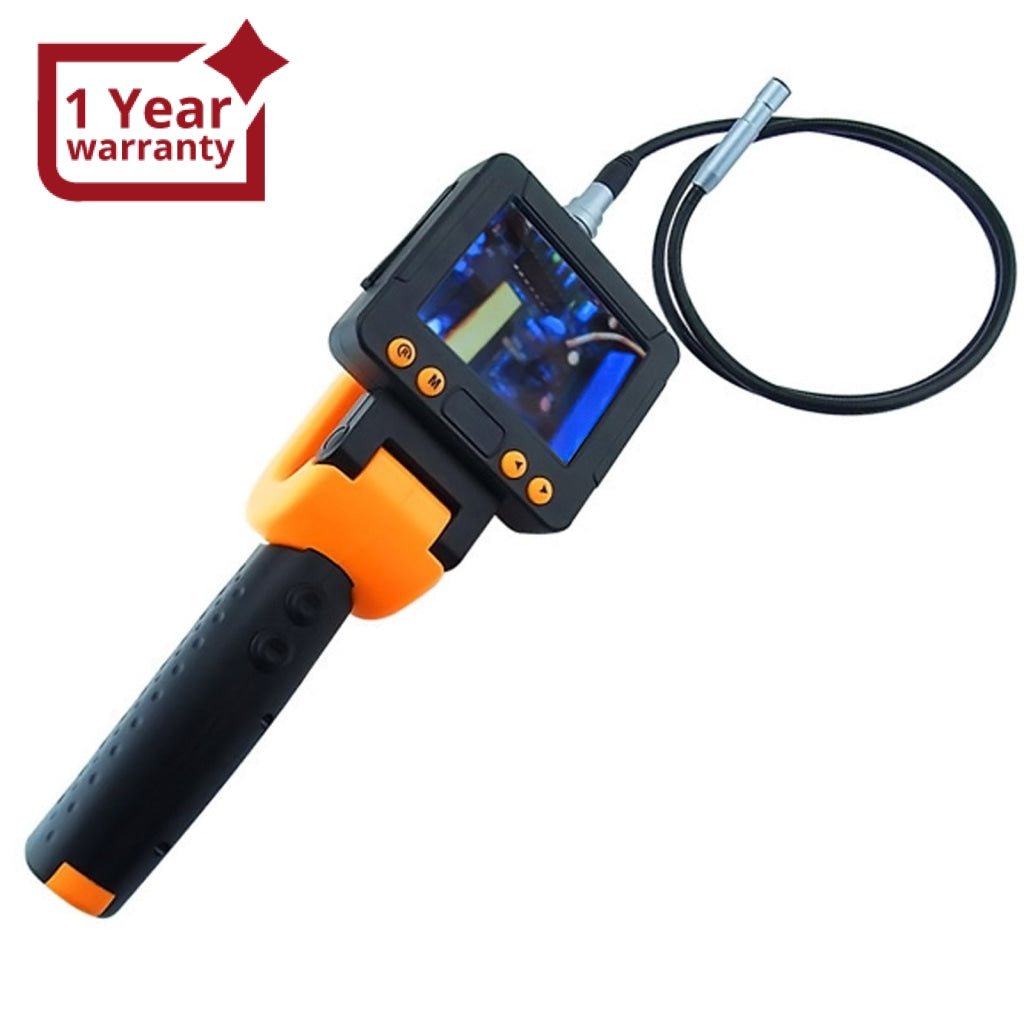

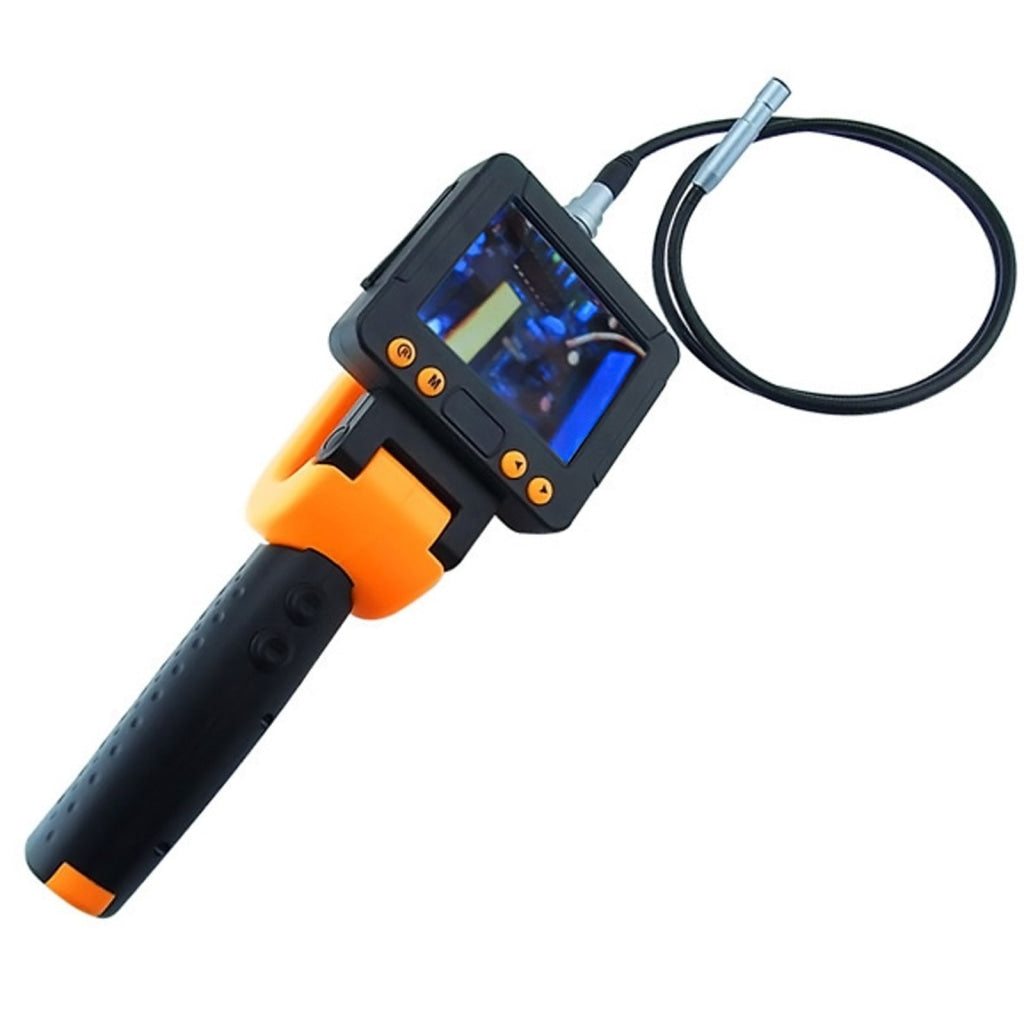

VID-700_1M Waterproof 3.5" Inspection Camera Endoscope Borescope 1M Cable
- Description
- Return, Refund, & Warranty Policy
- Reviews

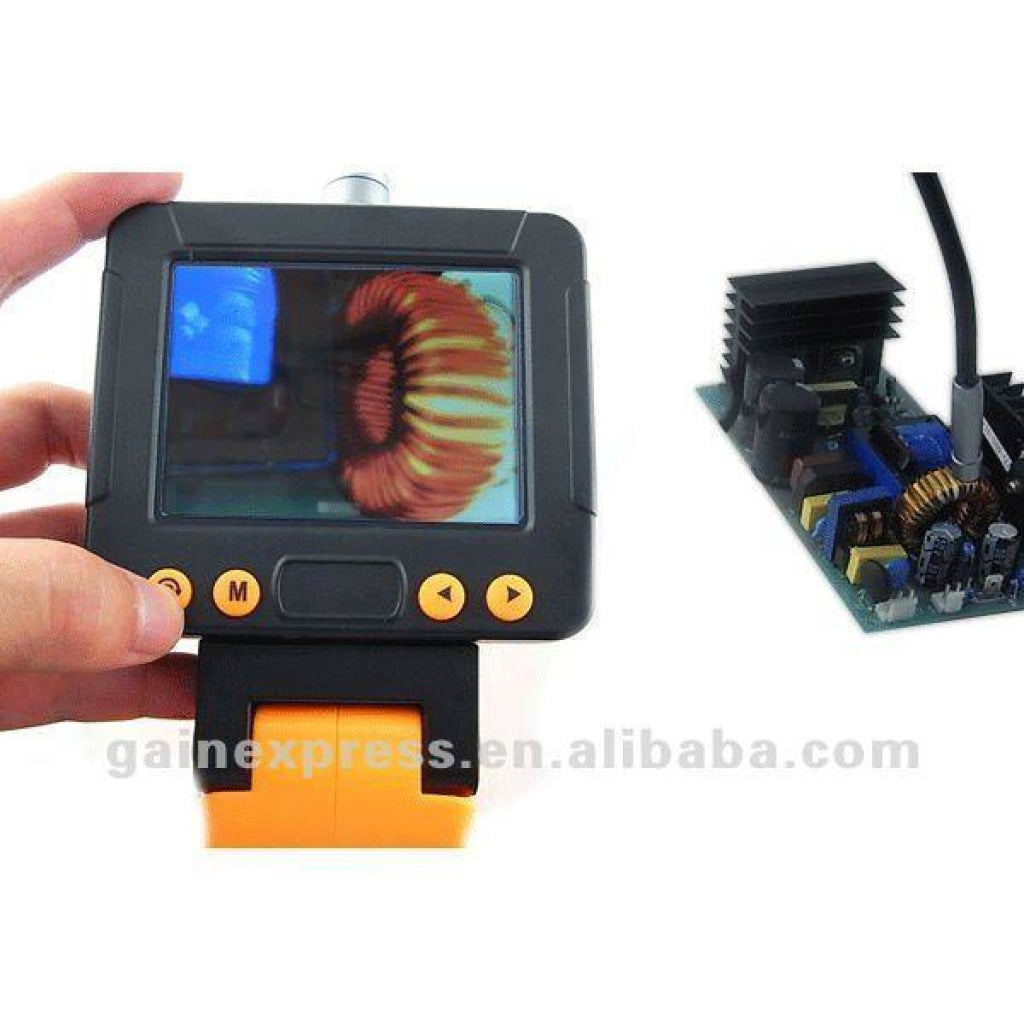

A versatile tool that comes with an ultra sharp LCD image and bright LED light with adjustable control so you always have a clear view in tight spots. With fully adjustable screen and handle angle means you always have a comfortable view no matter where you're using it.
Helps you find lost small or tiny objects and view the internals of a combustion engine for cracks. Its is great for both professional and home use. Built with high impact plastic and a durable screen, making it a great addition to anyone's tool box. Meet your curiosity and Have fun!
Great Idea for:
* Checking through walls
* Construction Site Tools
* Parts Assembly
* Science Education
* Workshop
* Laboratories
* Engine repair and Maintenance
* Checking under vehicles
* Pipe review and repair
* Down the drains
* Hard-to-reach areas
* Tight Area Surveillance
* Explore under water or under water surveillance
* Industrial inspection

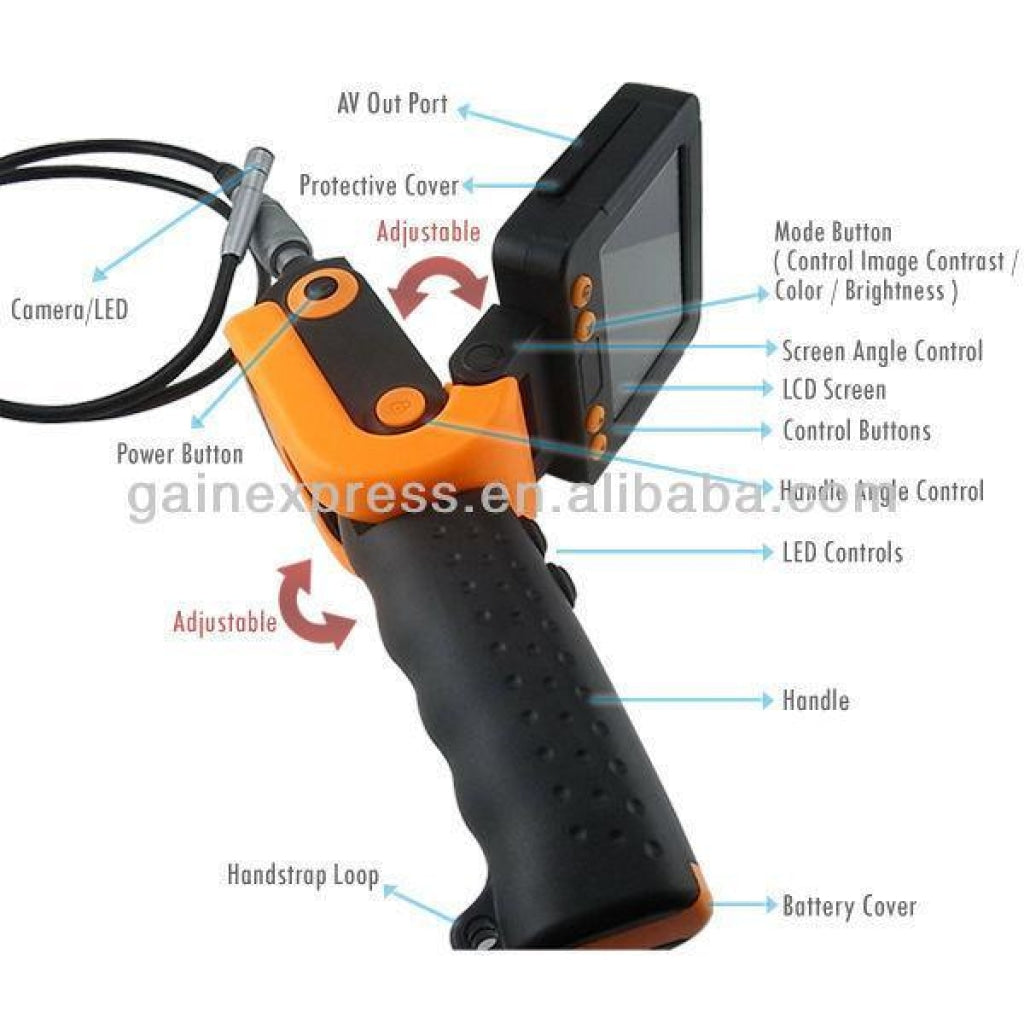

Features
- 3.5" TFT LCD Full Color Screen

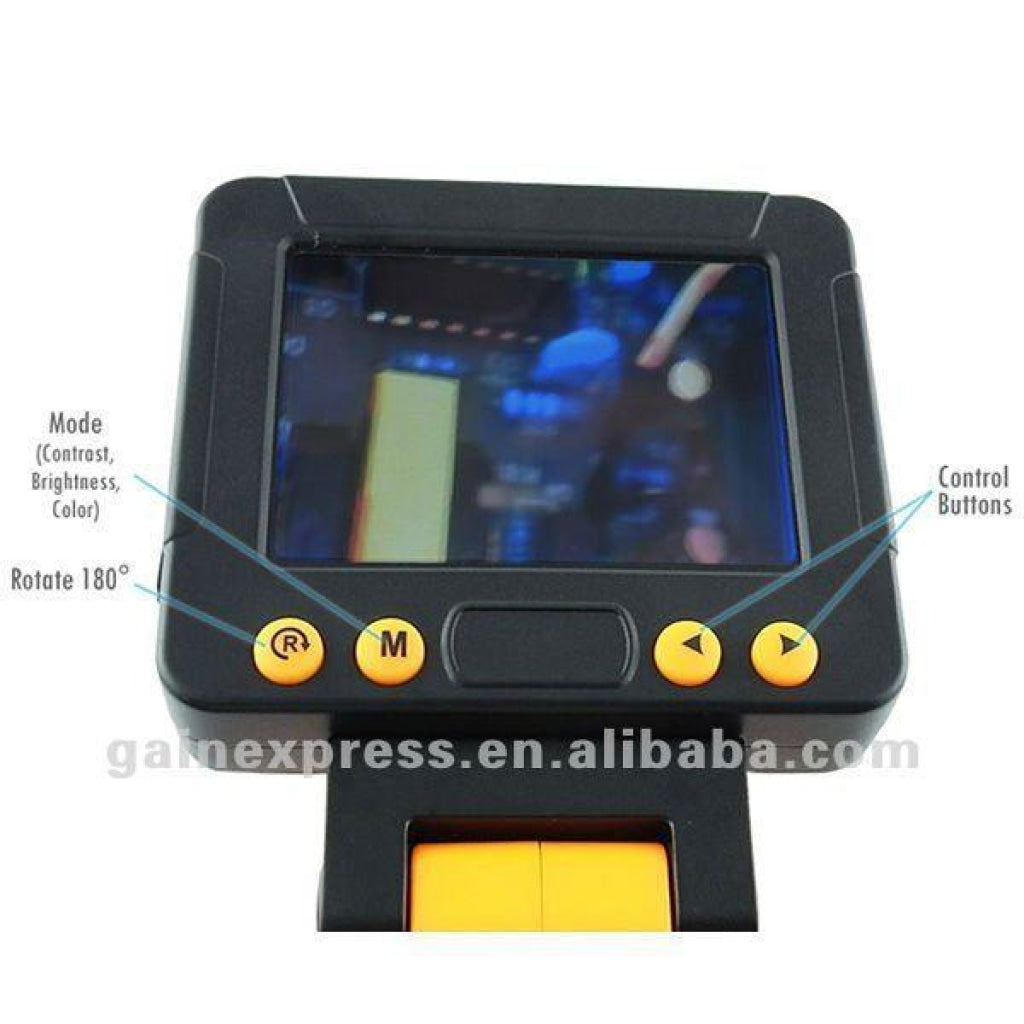

- Adjustable Brightness value Contrast or Color in the LCD screen
- Built in variable brightness LED camera lights

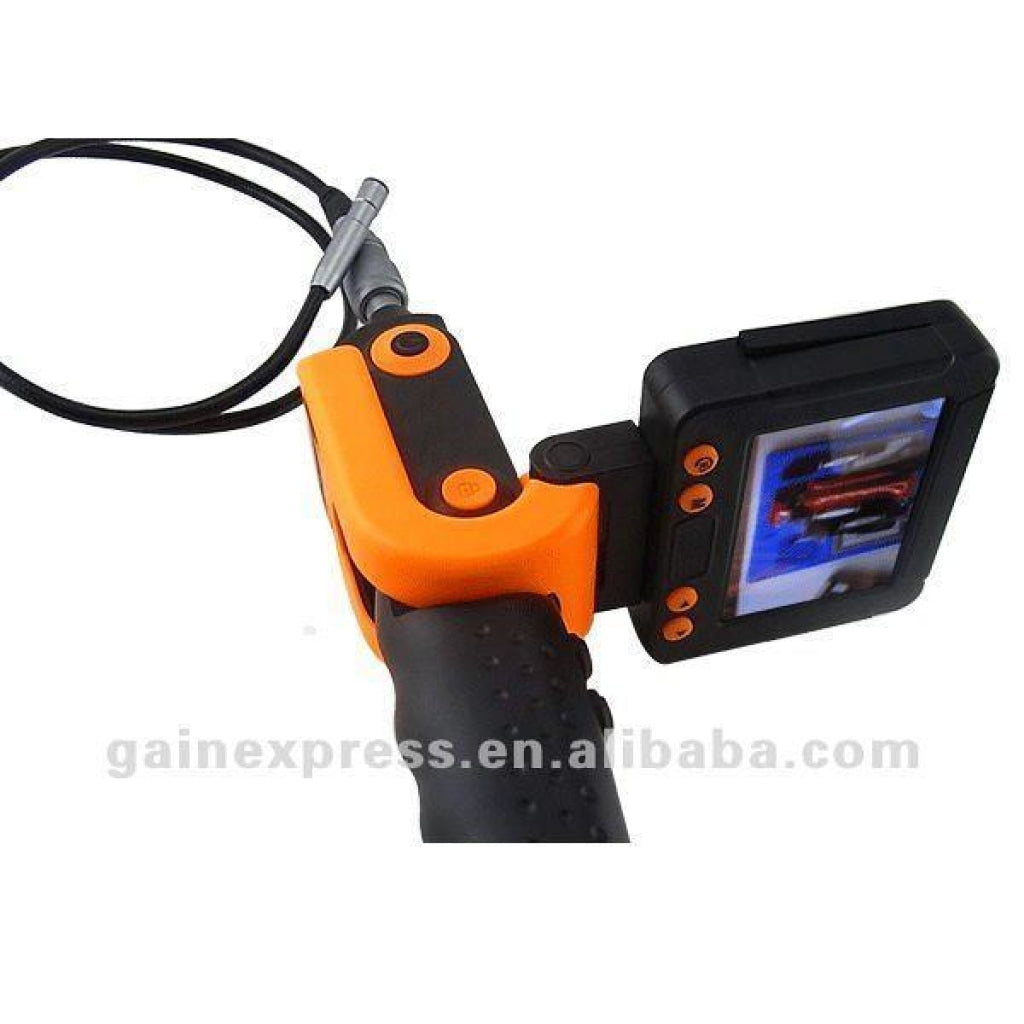

- Fit your eye's and hand's angle with adjustable handle (0º, 45º, 80º) & changeable screen angle (0º to 90º)
- 1M flexible probe with IPX67 waterproof camera head & sensor

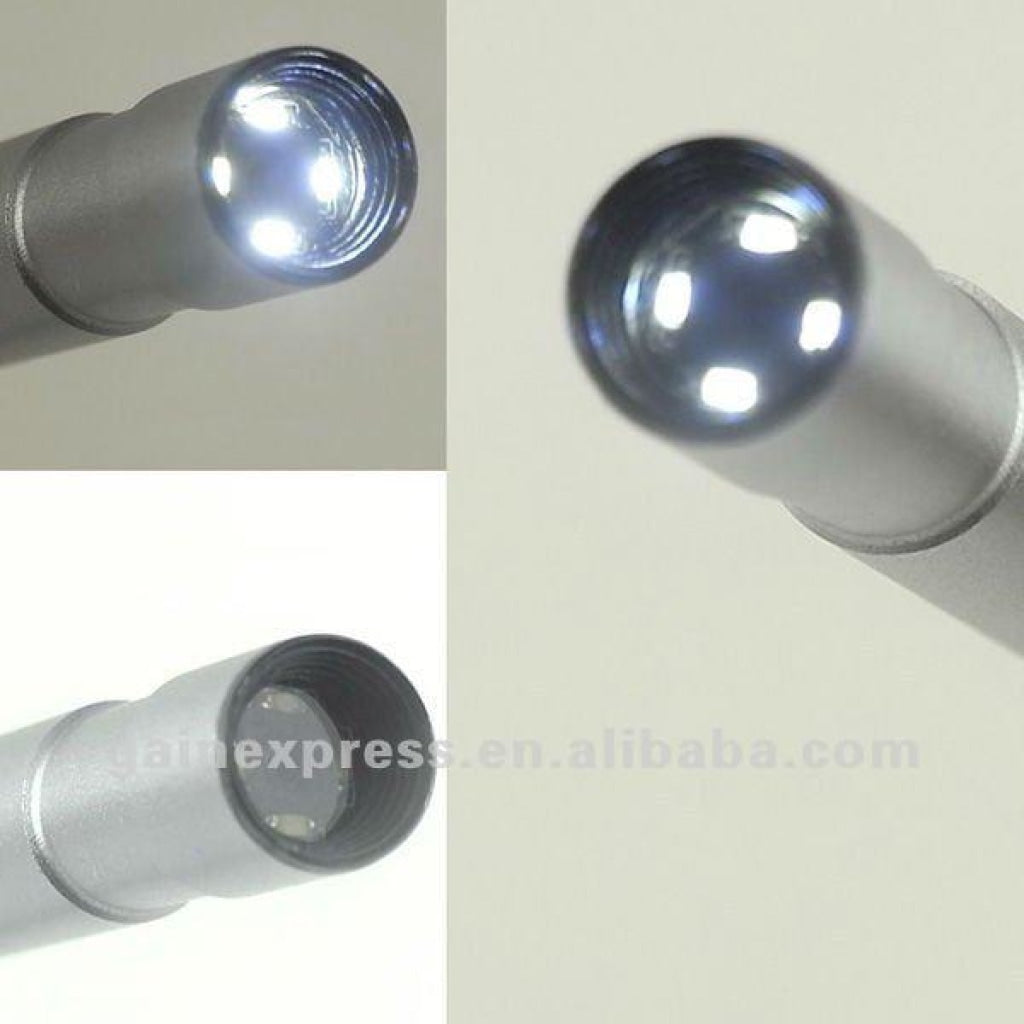

- 4 LED Lights with adjustable light intensity & 9.5mm outer lens
- User-friendly Graphic (icon) UI
- Extendable cable length to upto 6 meters

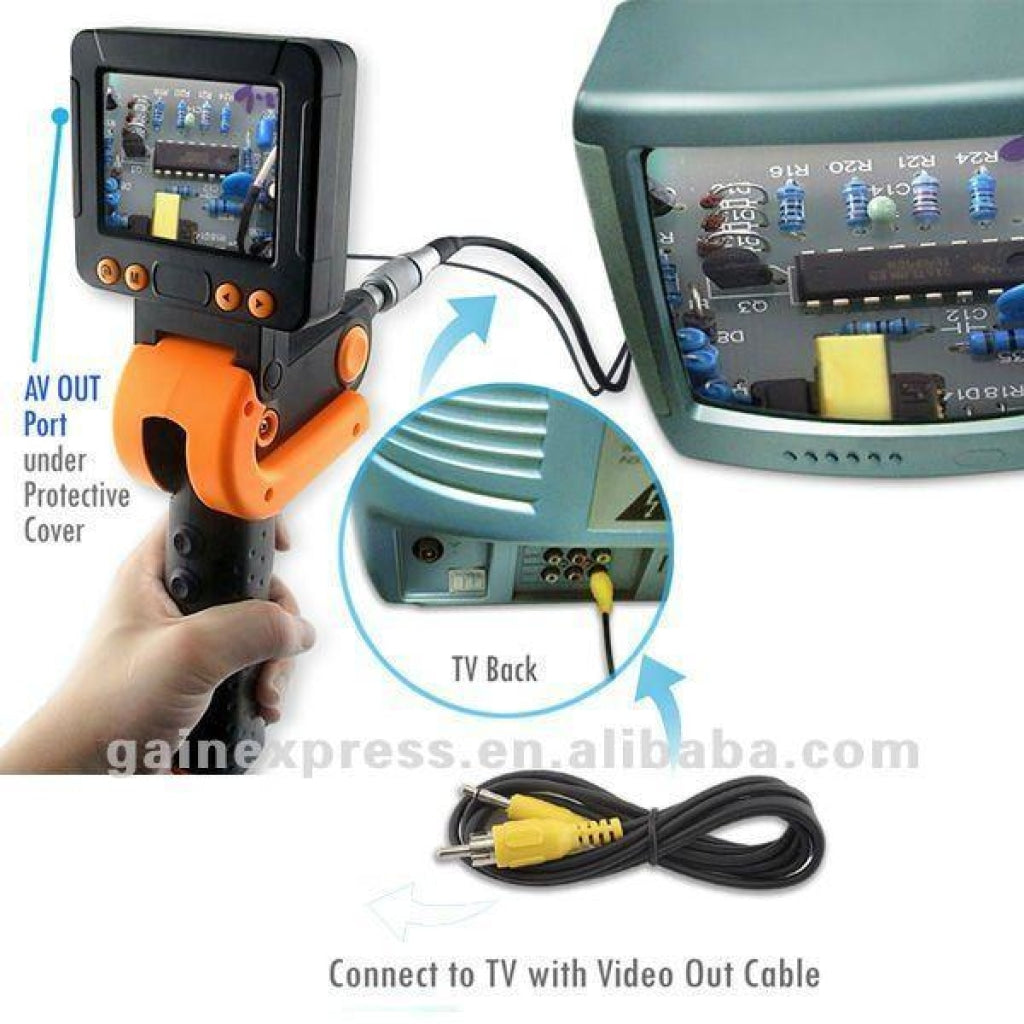

- With TV Out function
- Able to inspect under water, with waterproof camera head and tube
- Tough, but still clear and soft enough
- With FCC, CE & RoHS standards
- Stable and high quality products
- Maximum water depth of 1M for IPX67 waterproof camera head can be submerged
- Image rotation function
- Professional service
Specifications
- W 3.5" TFT LCD Screen (QVGA 320 x 240, 16.7M colors)
- TV Out Function
- Video Format/Sytem: PAL (It works for PAL & multi-system TV)
- Camera & Tube: water resistant (IPX67)
- Camera & Flexible Cable:
- Outer Lens Diameter: 9.5mm
- CMOS Camera Image Sensor: 1/9" VGA CMOS
- Array Size: 640 x 480
- Resolution: 0.3M pixels
- Max Image Transfer Rate: 30fps for VGA
- Sensitivity: 1800mv/(Lux.sec)
- Focal Range: 2 ~ 15cm
- Optimal Focal Range: 4cm
- Flexible Cable
- Length: 1m
- Outer Diameter: 5.8mm
- Minimum Bending Radius: 60°
- LED Light: 4 LED with adjustable brightness control
- Water Splash Resistance (IPX67)
- Lens: F2.8 2.2mm with 70-75° view angle lens
- Visual Distance Range: 20 ~ 150mm (recommended at 40mm)
- Display resolutions: Image: 640*480 pixels

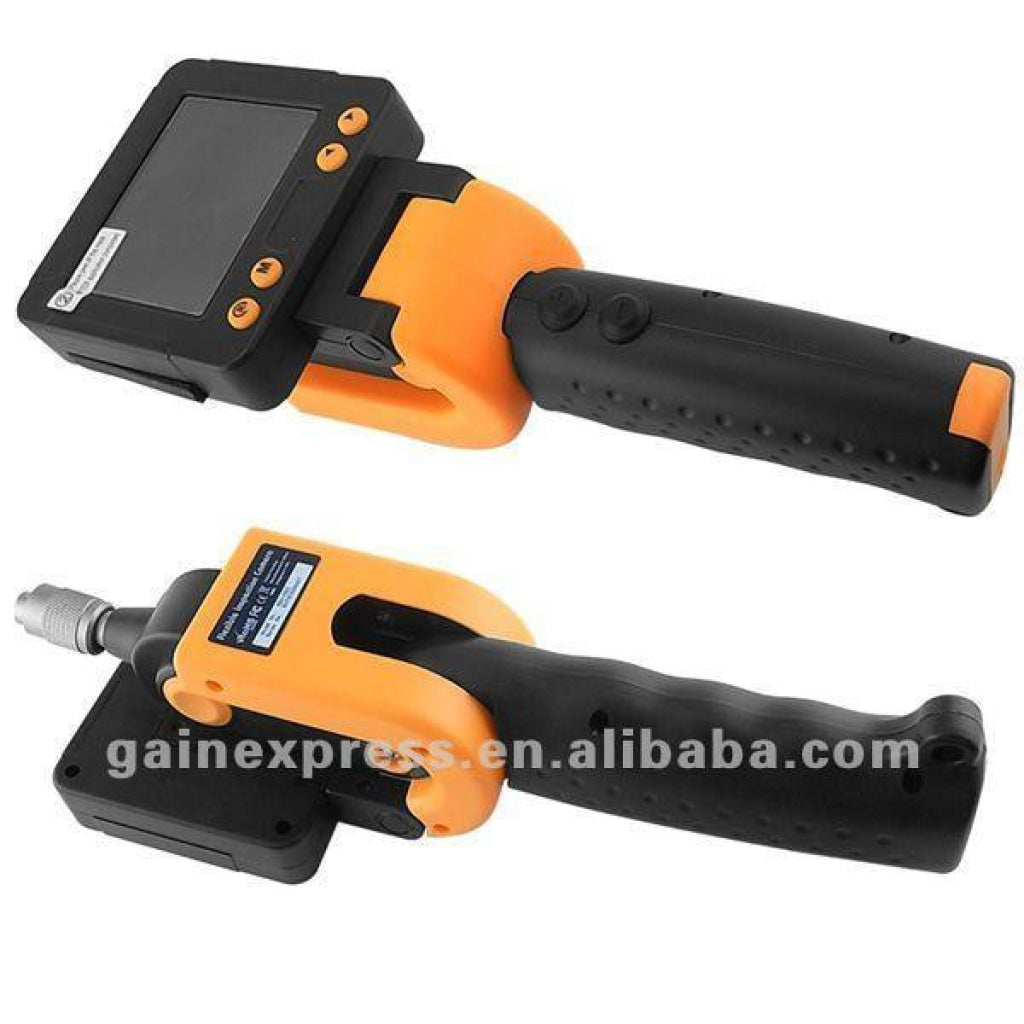

- Adjustable Handle: 0° 45° & 80°
- Changeable Screen Angle: 0 ~ 90°
- Temperature & Humidity
- Operating: 0~50°C T.B.D.
- Storage: 20~65°C T.B.D.

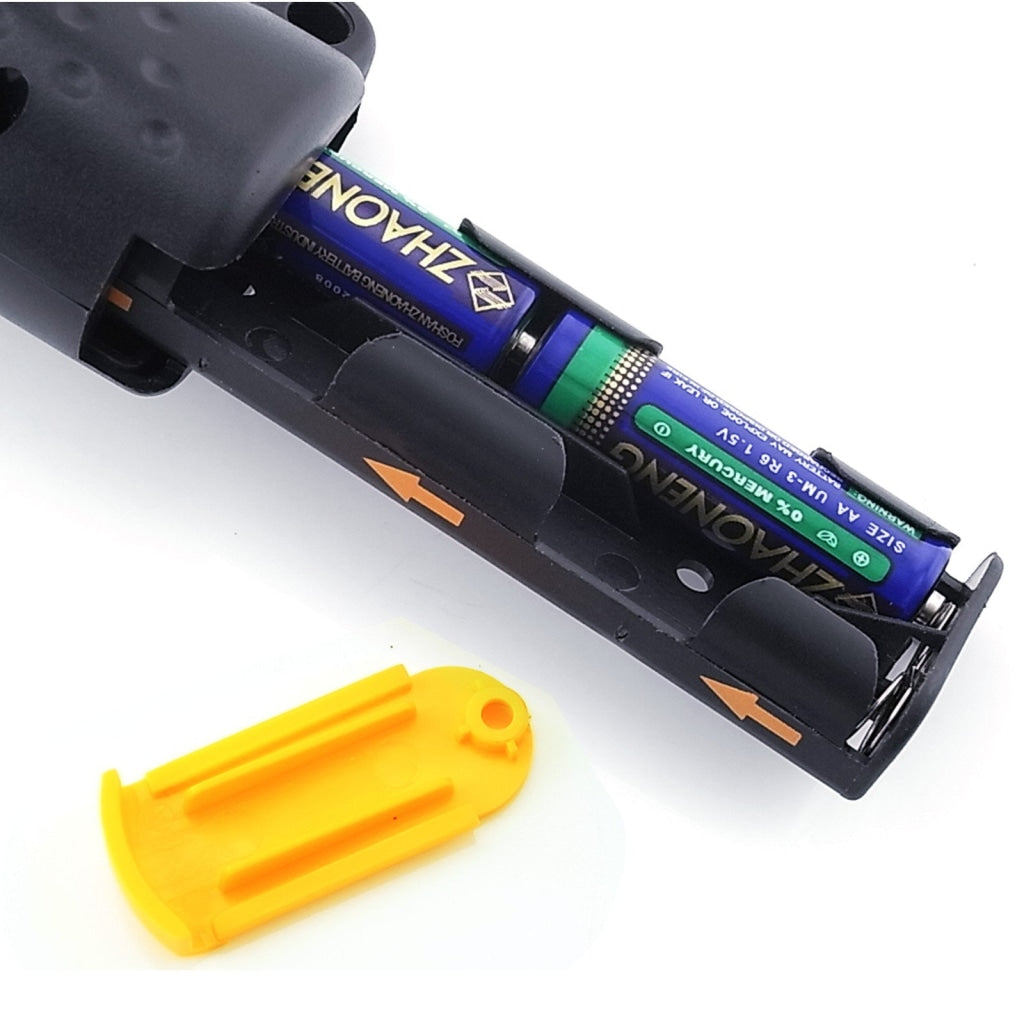

- Battery: 4 x 1.5V AA type Alkaline Battery (working time: approx. 3-4 hours) (included)
- Dimension
- 3.5" Monitor (w/ Border only): 100 x 89 x 24mm (W x H x T)
- Main Unit with Handle (straighten postition): 100 x 290 x 78mm ( W x H x T)
- Weight
- main unit: 370g (battery excluded)
- whole package: 1110g (extension cable not included)

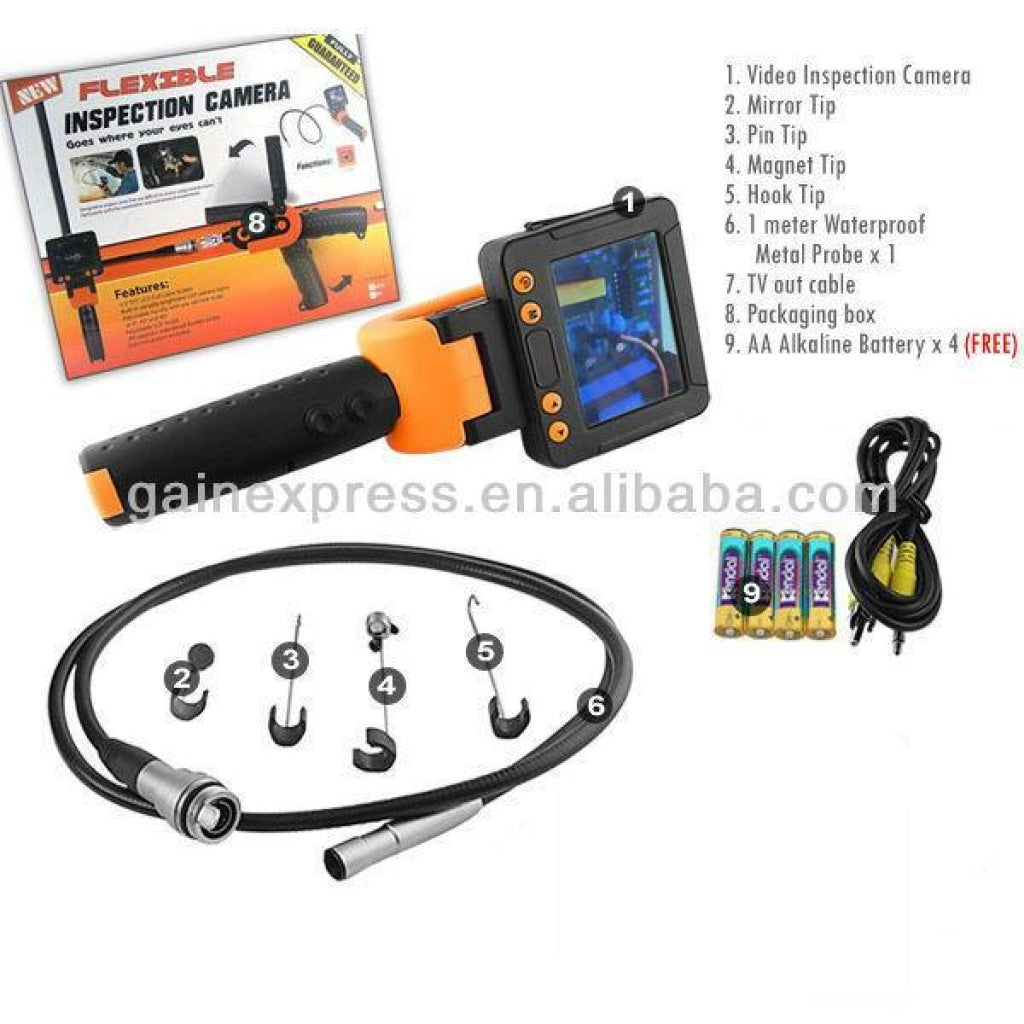

Set Includes
- 1 x 3.5" TFT LCD Video Inspection Camera
- 1 x Standard 1 meter Waterproof Metal Probe with 9.5mm Camera Head

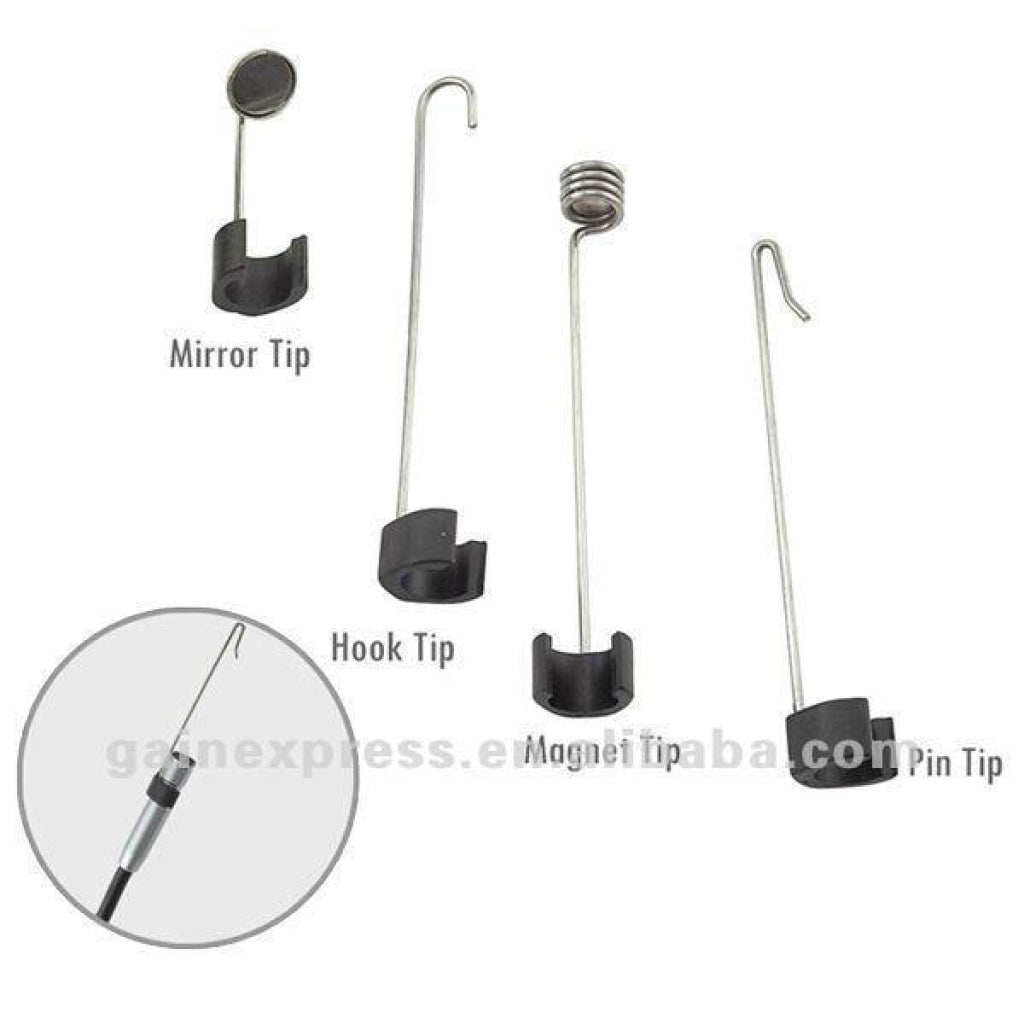

- 1 x Pin Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 1 x Magnet Tip

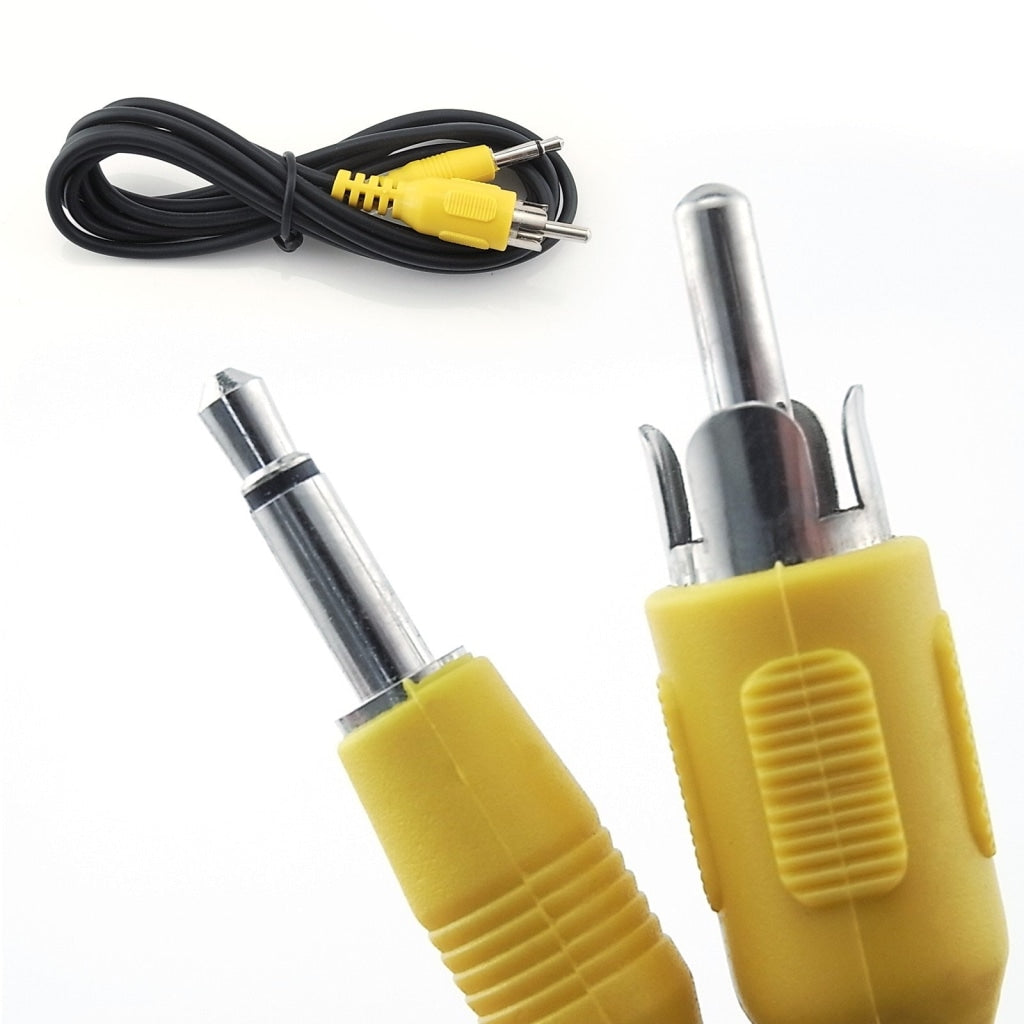

- 1 x TV Out Cable
- 4 x AA Alkaline Battery ( FREE )
- 1 x Instruction Manual
- Standard Factory Packaging

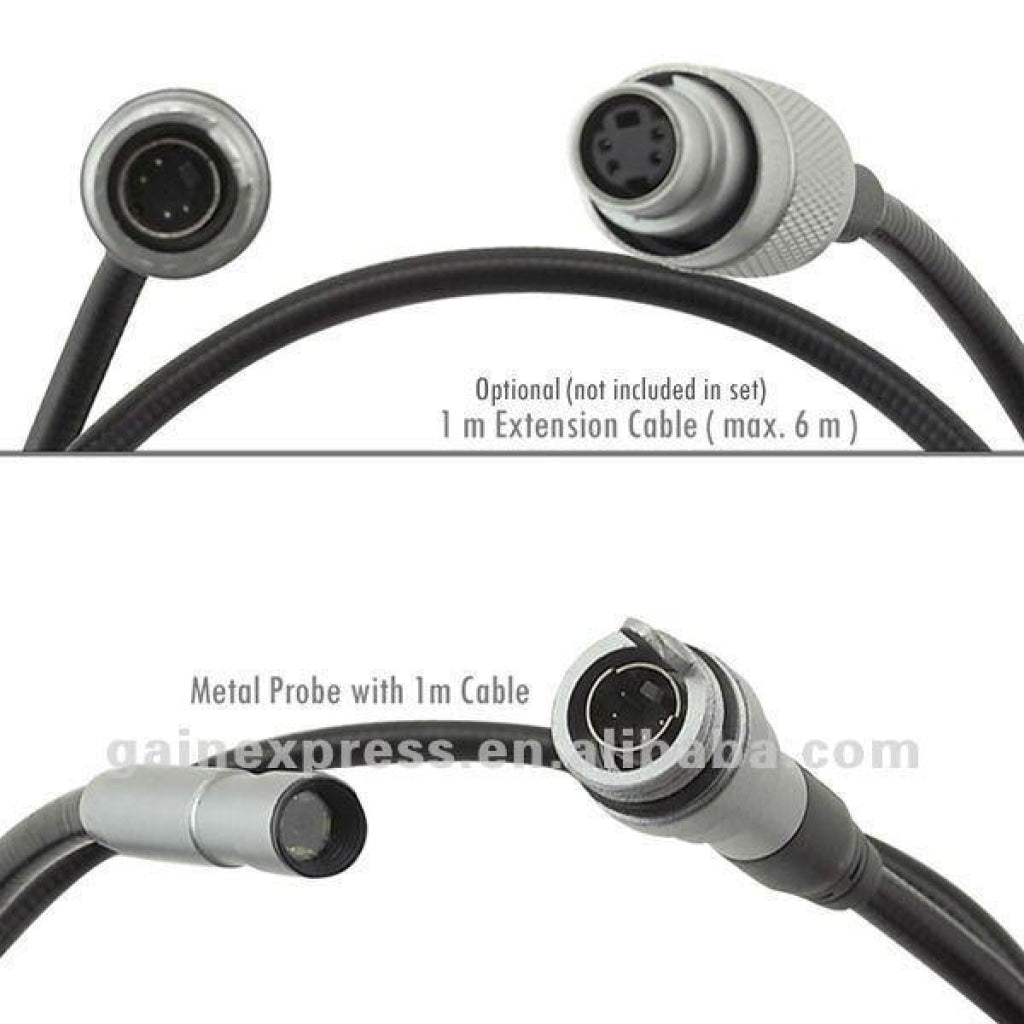

NOTE: Maximum length of extension cables that can be attached to this item is 6 meters or 6pcs of 1M extension cable.
We sell this product everywhere, except South Korea. We are no longer shipping to South Korea.
Unhappy with your item?
If you are dissatisfied with your purchase, you may return it to us within THIRTY (30) DAYS from the purchase date subject to conditions below. Report or contact us for claims on missing items or parts, items damaged in transit, and incorrect item delivery within 2 business days upon receipt of item.
Refund & Credit
Refunds for the returned item will be issued in the same payment form used at the time of purchase. Once we receive and inspect the product, we will credit the amount to your account. Please allow 5-7 days for the credit to appear on your account.
Exchange
If the item was sent back for an exchange, please allow 3-5 business days for the replacement to be processed. The buyer will shoulder the return cost when returning an item for an exchange.
Wrong Item Received
If you received the wrong item, you may exchange it for the correct item or return it for a full refund.
Conditions
Please read all conditions below. If conditions are not met, Gain Express Holdings Ltd. reserves the right to refuse the return or to charge a restocking fee not less than 15%.
All returned or exchanged items must be in new condition and in their original box.We may refuse your return or refund request if:
- The item(s) is returned without an RMA form
- The item(s) has no valid, readable serial number (if any), inluding but not limited to items with missing, damaged, altered, or unreadable serial numbers
- The item(s) was returned without all original packaging and accessories, including the retail box, manuals, cables and all other accessories originally included with the item(s)
- The item(s) exhibits physical damages or is dirty
Returns must be done within THIRTY (30) DAYS after the purchased item has been received (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Returning an Item
All returned items must be in good condition with complete original packaging and accessories. We reserve the right to charge a handling fee on all items returned to us for non-quality issues.
To Return Item(s):
-
Fill out the RMA (Return Merchandise Authorization) form and submit for our review. Once we have authorized your return request via e-mail, then proceed to step.
-
Pack your item(s) inside a shipping box. Please write Order ID # on a piece of paper and include it inside the box.
(Please do not place stickers or shipping labels on the original manufacturer's package.) -
Ship your item(s) to a warehouse near you.
(We recommend you ship via insured ground service with a tracking number. Return shipping charges is the buyer's responsibility. Gain Express Holdings Ltd. will bear the shipping cost of the replacement. We are not responsible for lost or damaged packages.)
We will take care of the rest for you!
Once our Returns Department has received and inspected your return, your refund or exchange will be processed right away.
Warranty
Replacement Warranty
Returns must be done within THIRTY (30) DAYS after receiving the purchased item (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Product Service Warranty
All our items come with ONE (1) YEAR warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
The warranty will not extend to consumables (i.e. electrodes, calibration solution, battery, index oil), accessories, cable, compact disk and/or any written document bundled with the item.
