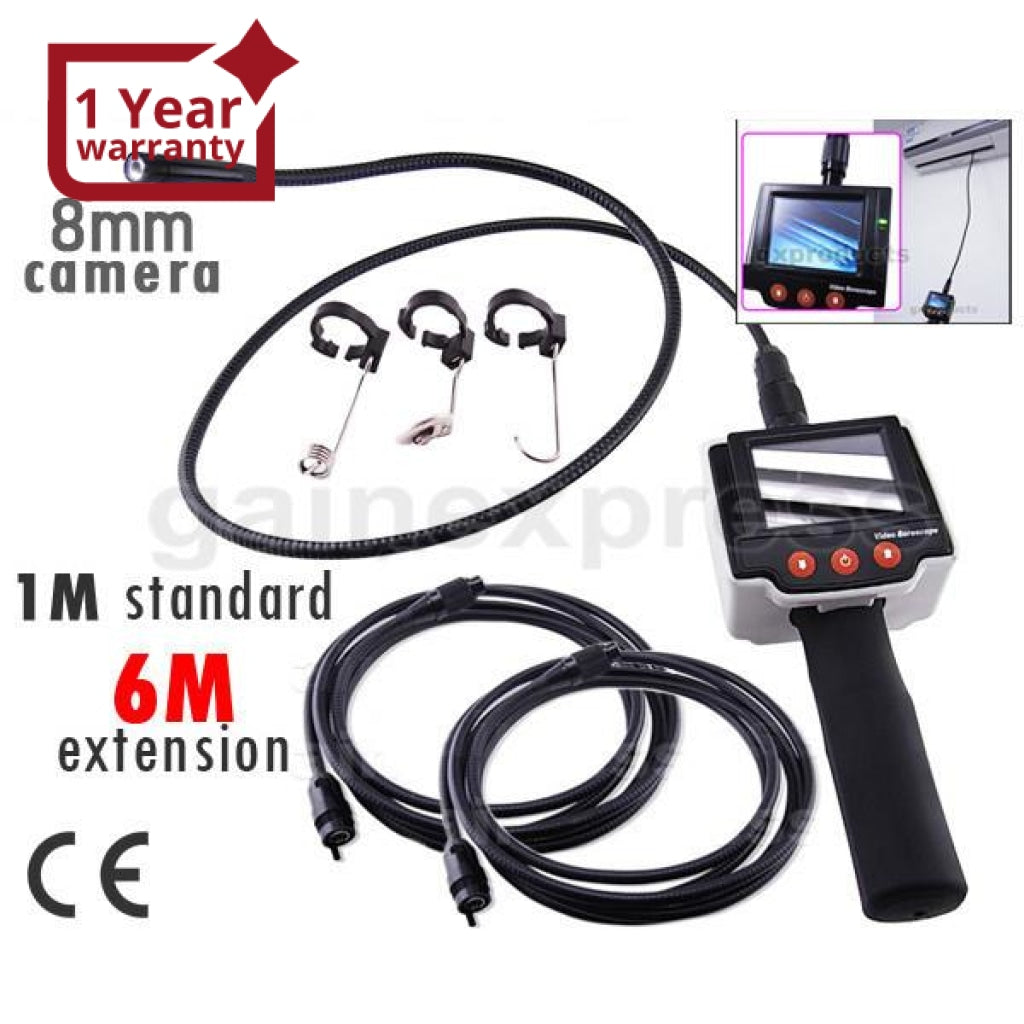

VID-4_7M 2.4" LCD Pipe Car Inspection BORESCOPE Video Camera + 7M Cable
- Description
- Return, Refund, & Warranty Policy
- Reviews
Model: VID-4_7M

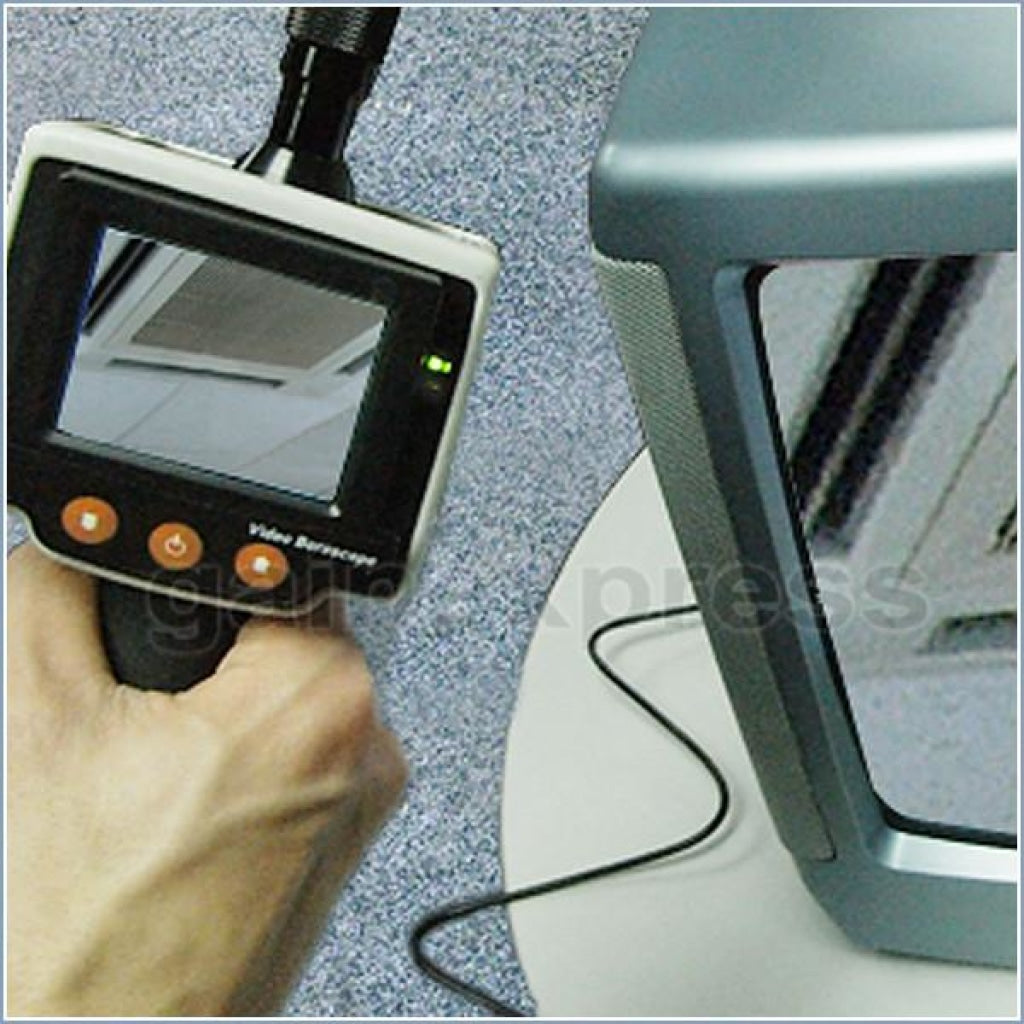

This 2.4" Color LCD TV Inspection Video Camera uses optoelectronic. It has 180° Image Rotation function on receiver allows you to adjust viewing orientation,connect to TV with provided Video Cable and 8mm head to get into smaller areas. Mechanics will love this tool because they can see inside the motor without the time-consuming disassemble. It can also be used to check wear on pinion gears. Building contractors and home inspectors will use this to look inside of walls.

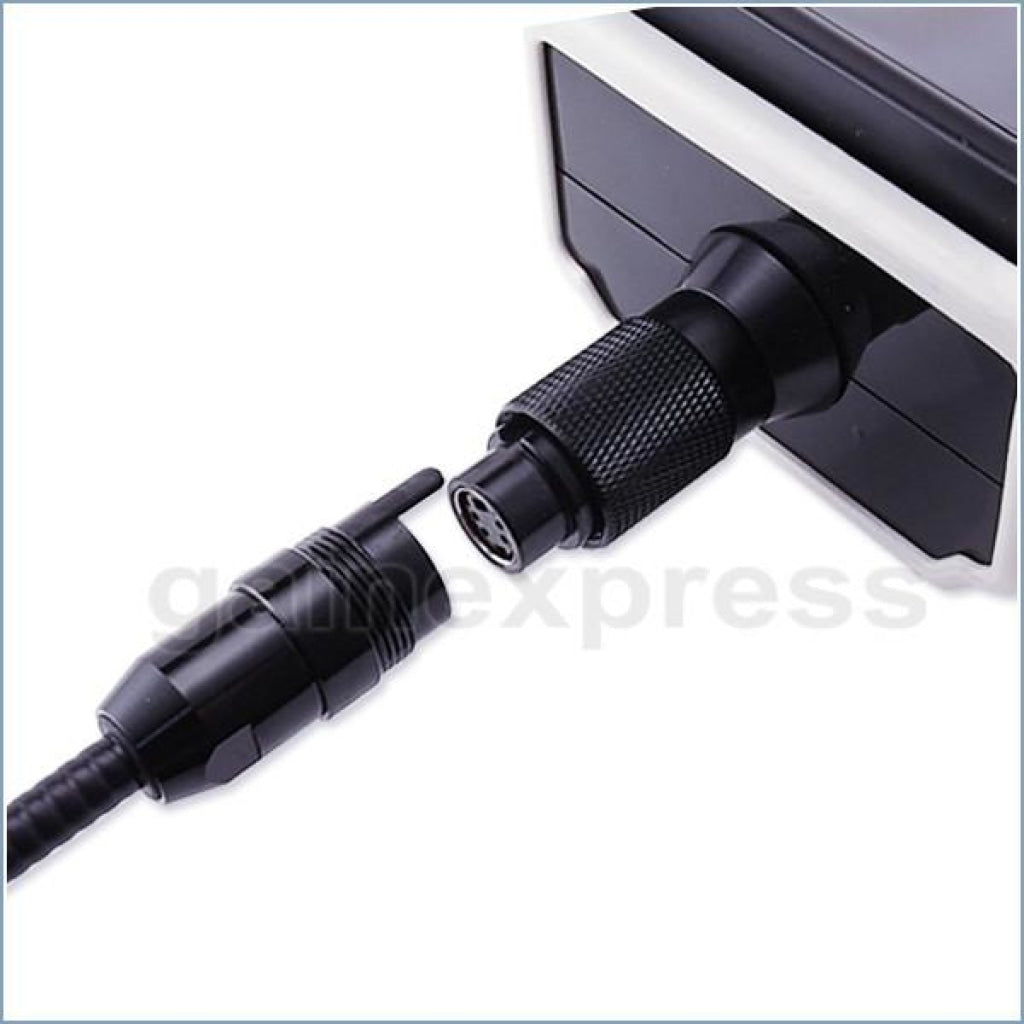

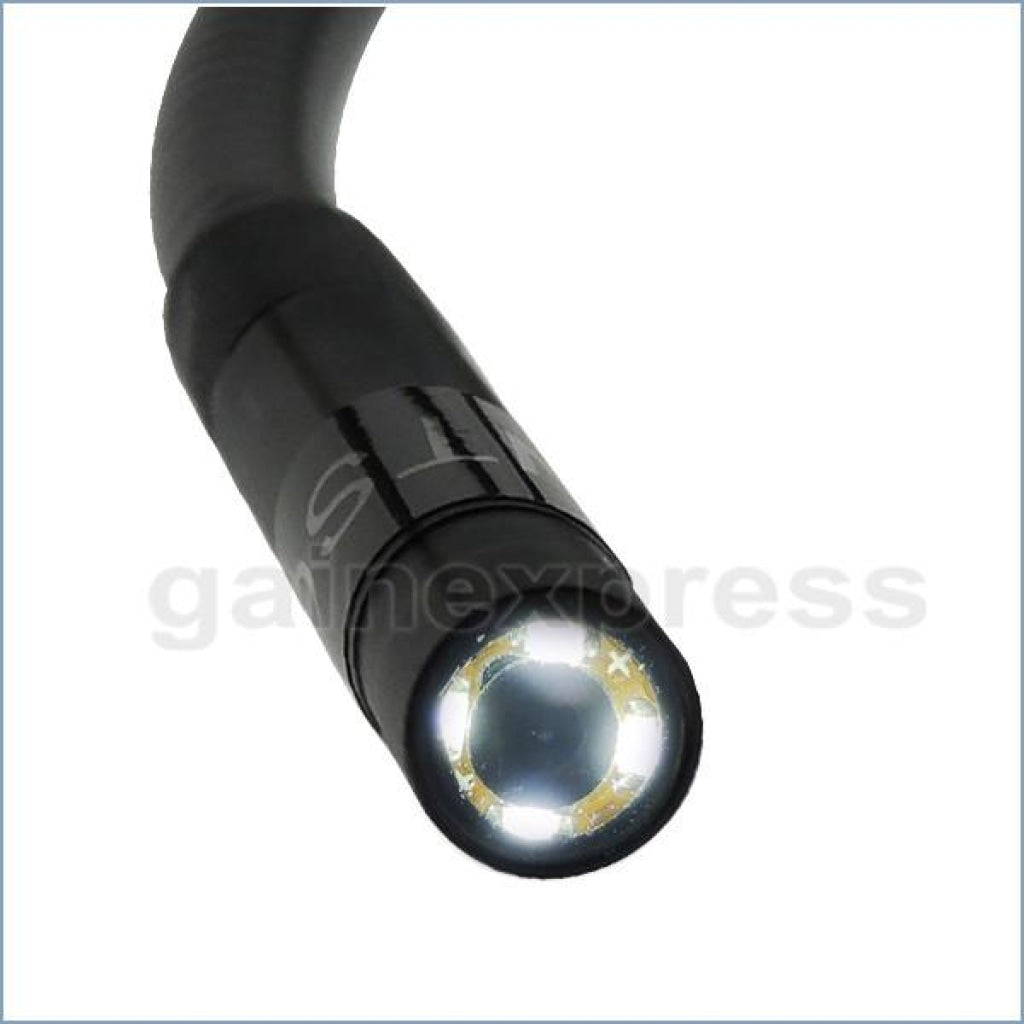

It has built-in 4 LED lights with Brightness control, glare-free close-up & wide range field of view. It has 1m (3.3ft) Flexible Waterproof standard cable plus 6M extension cable total of 7M metal cable, all included in the set. These cables can be used to inspect an area even under water, gaps and holes. If 7meters is not enough, you may buy our optional 3m (9.9ft) metal cable extension cable without comprising the quality of the images it can produced.

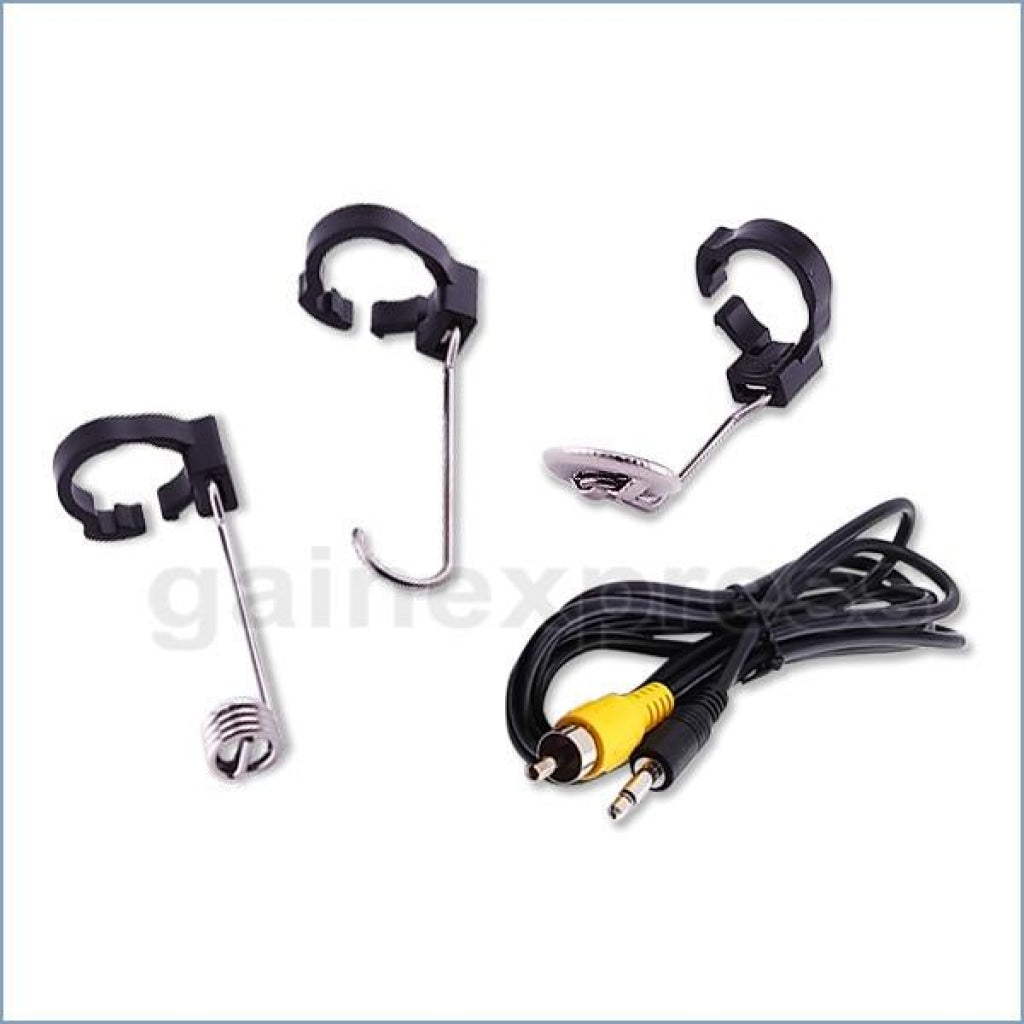

Accessories such as mirror tip is included for viewing within 54° angle. Strong magnetic tip allows you to pick-up nuts, bolts and screws you may have dropped in inaccessible places.Easy clip on design for fast installation. Hook tip,J-shaped extension used to tug, pull or pick up small objects or wires.
Applications:

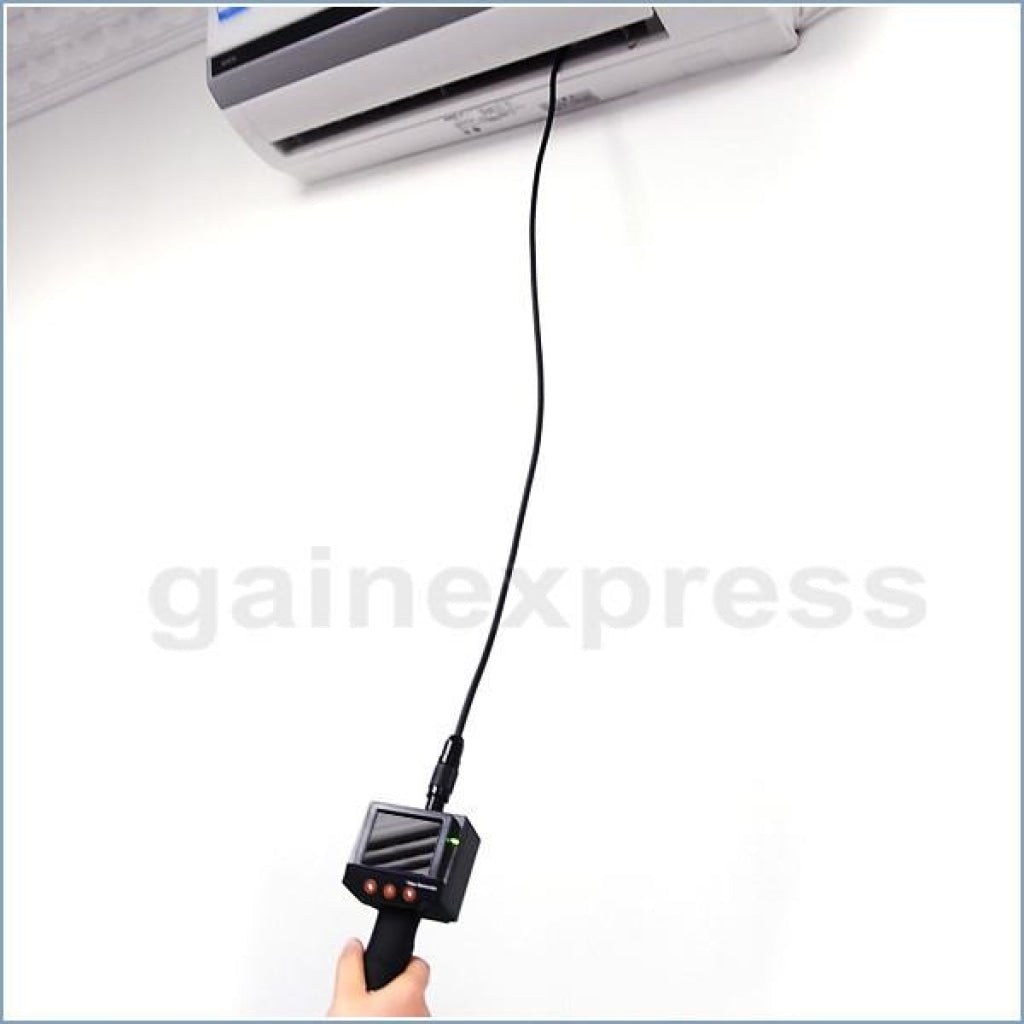

Industrial field, Petrochemical field,Electric field, Gas pipe, Building Construction & Home inspection, Pest Control, HVAC, Automotive, Safety and security inspections, Aerospace
Features
- NTSC TV video AVI output with video wire
- TV Video output
- 6.8mm PE covered metal probe with ABS handle
- Water resistant Camera Head
- F2.8 Lens with 54° Viewable Angle and 3~6cm focal distance
- High resolution image, optical system,stable performance and easy to operate
- Allows 180° image rotation

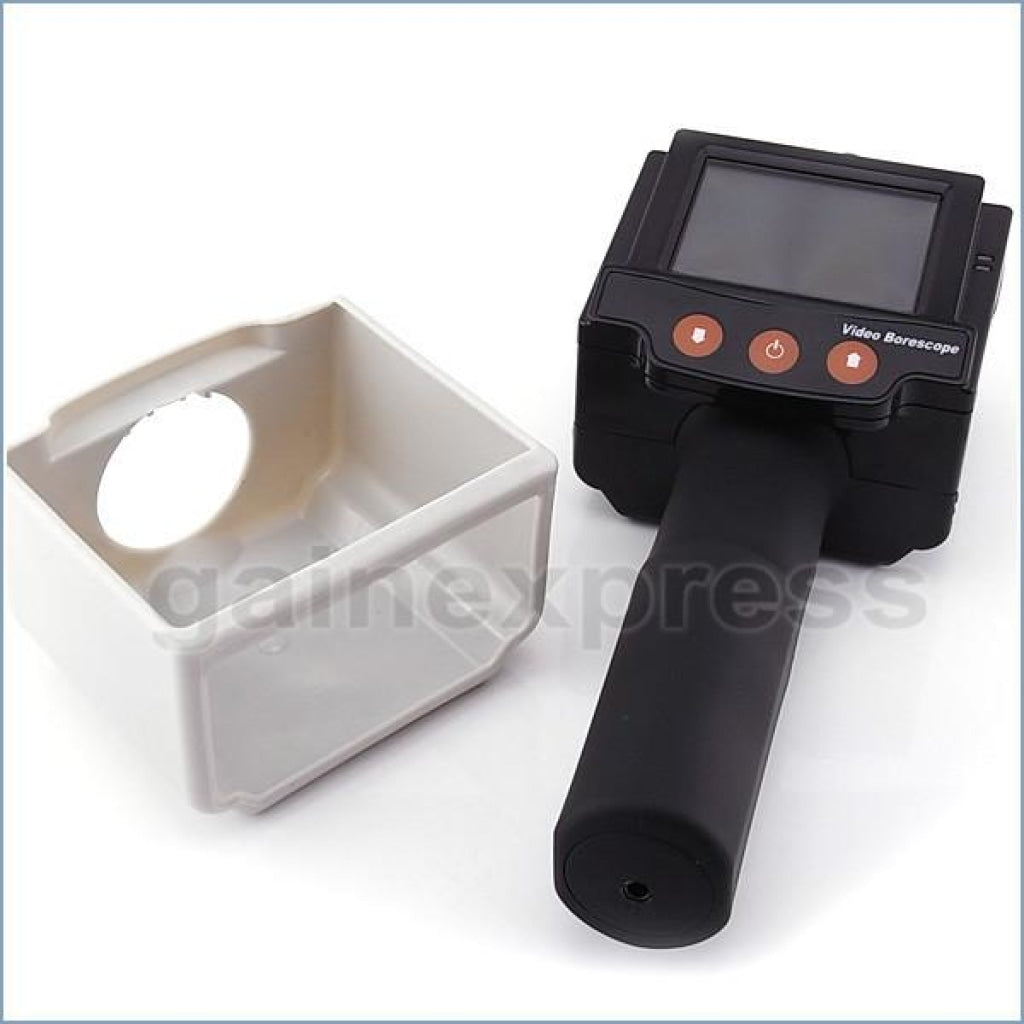

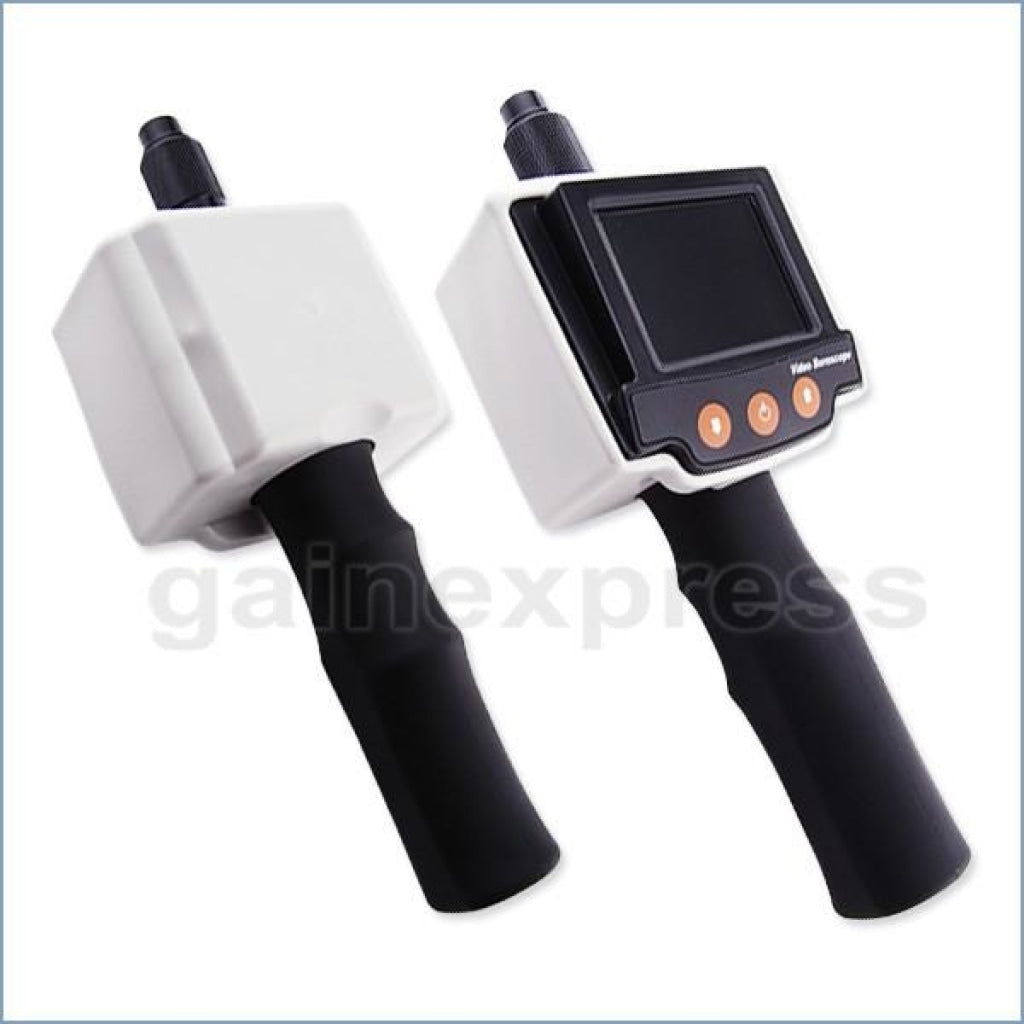

- With Protective Rubber Housing,serves as shock absorber when accidentally dropped
- High visibility color LCD display
- Built-in high power adjustable 4 LED's light
- Lightweight ergonomic design
- Fit for hard-to-reach distant inspection

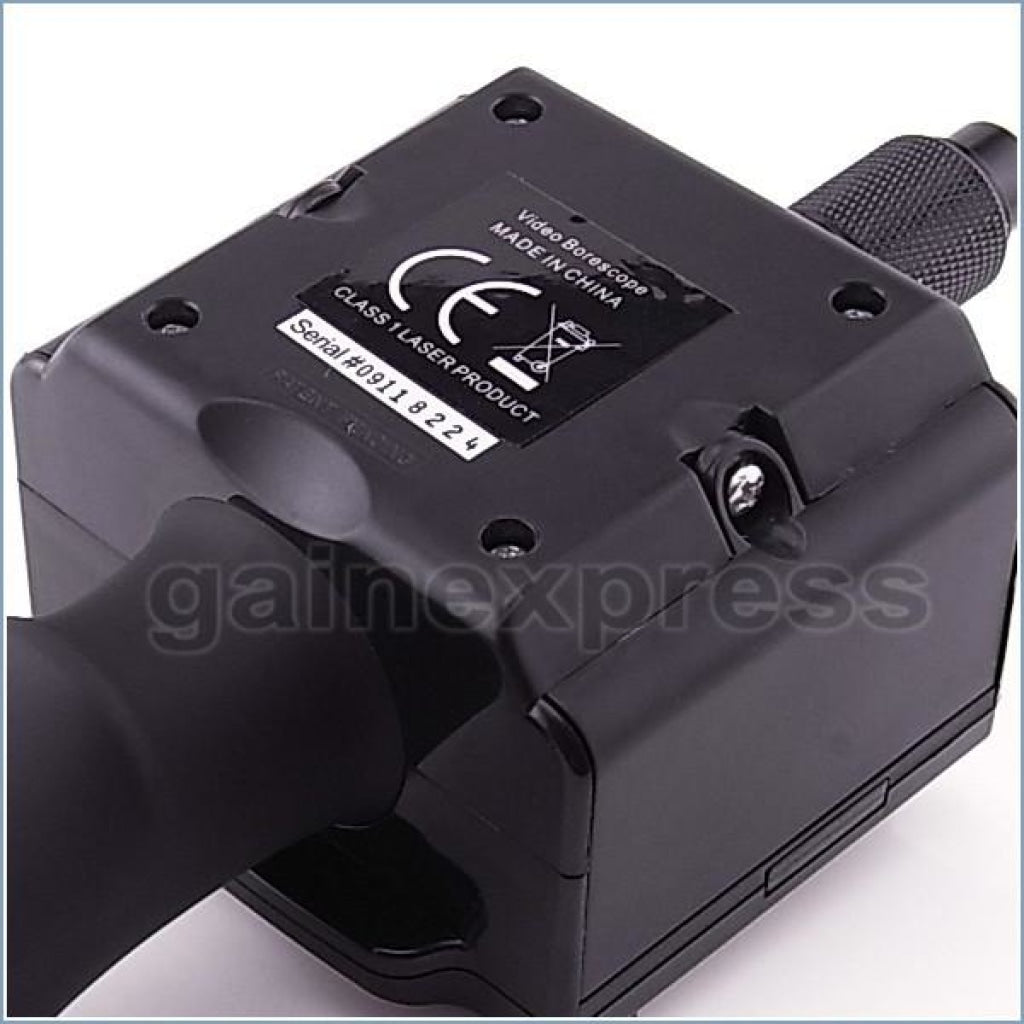

- With CE marking, meets EU safety,health and environmental requirements
- With Approval from EMC, RoHS, PAHS,DEHP, FCC
- Can attached up to 51 meters or 17pcs of Optional 3M extension cables
- Option to buy extra 3M Extension Cable (9.9 feet)
Specifications
- LCD : 2.4 inch TFT Color screen with 320x234 resolution
- Lens sens resolution : 320x234 pixels
- Sensitivity : 0.7V (Lux.sec)
- CMOS Sensor
- Color Mosaic : RGB Bayer Pattern
- Auto white comparison & exposure to light
- Video Format : NTSC composite video

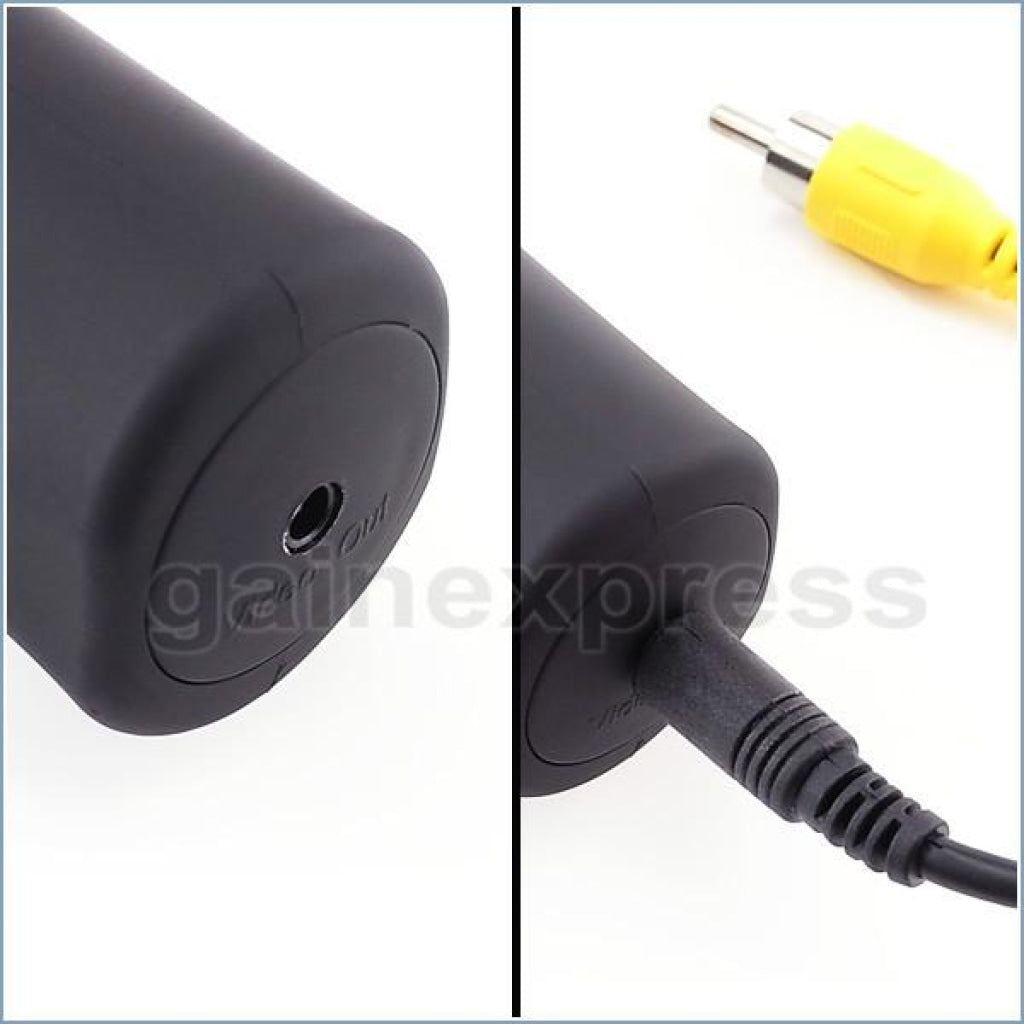

- Handle End AVI Port : NTSC Signal Out
- Level of Resistant: IP67
-
Camera:
- Lens: F# 2.8
- Lens Coverage : 54°
- Focus: 3-6cm
- Outer diameter: 8mm
- IP 67 water resistant
-
Probe:
- Metal Tube Length: 88.0±2.0cm
- Diameter of hard tube: 6.8mm
- Minimum Bending Radius: 4.5cm
- Operation Temperature : 0~45°C
- Body Size(LxWxH): 81 x 75 x 62mm
- Handle Length: 11.5cm

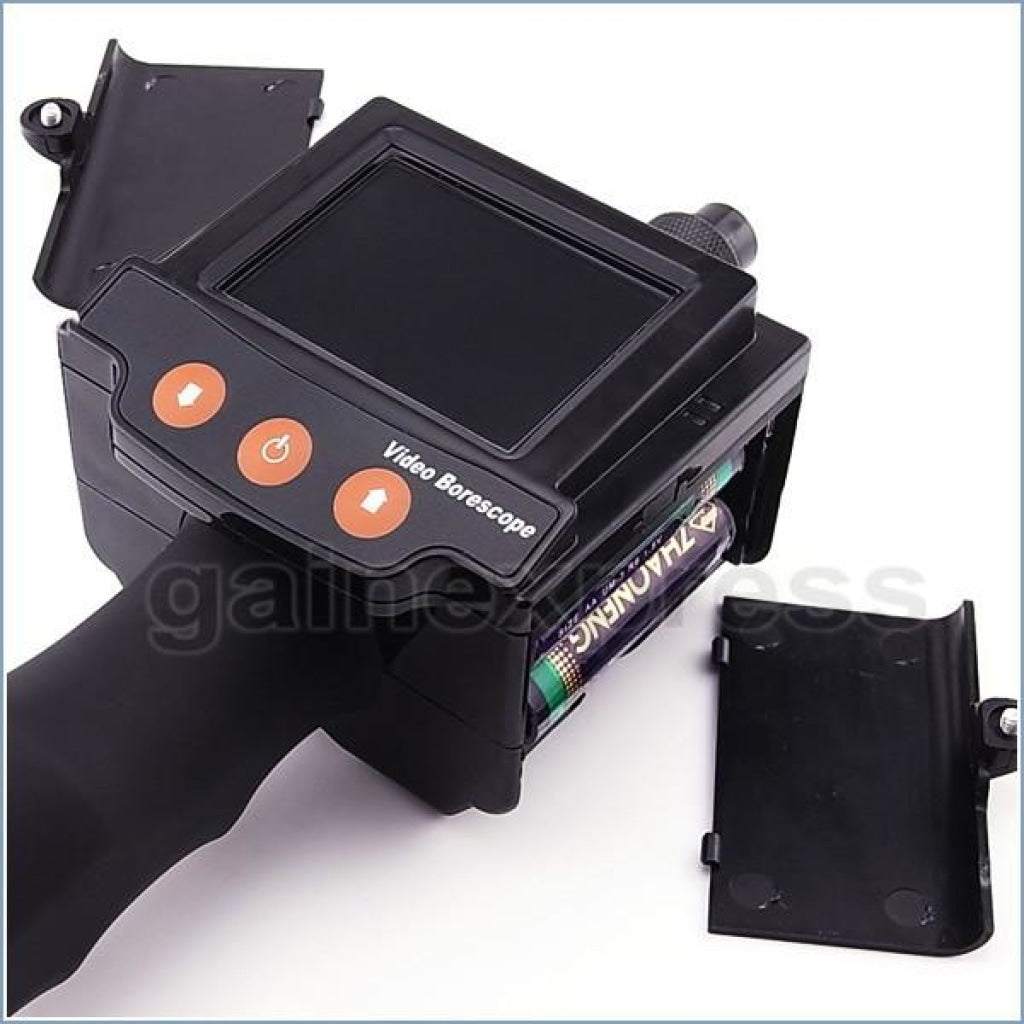

- Power: 4 x 1.5V AA batteries (not included in the set)
- Power Consumption : 200mA
- TV Cable Length : Approx. 1.5M
- Weight: approx. 370gm (excluding accessories)

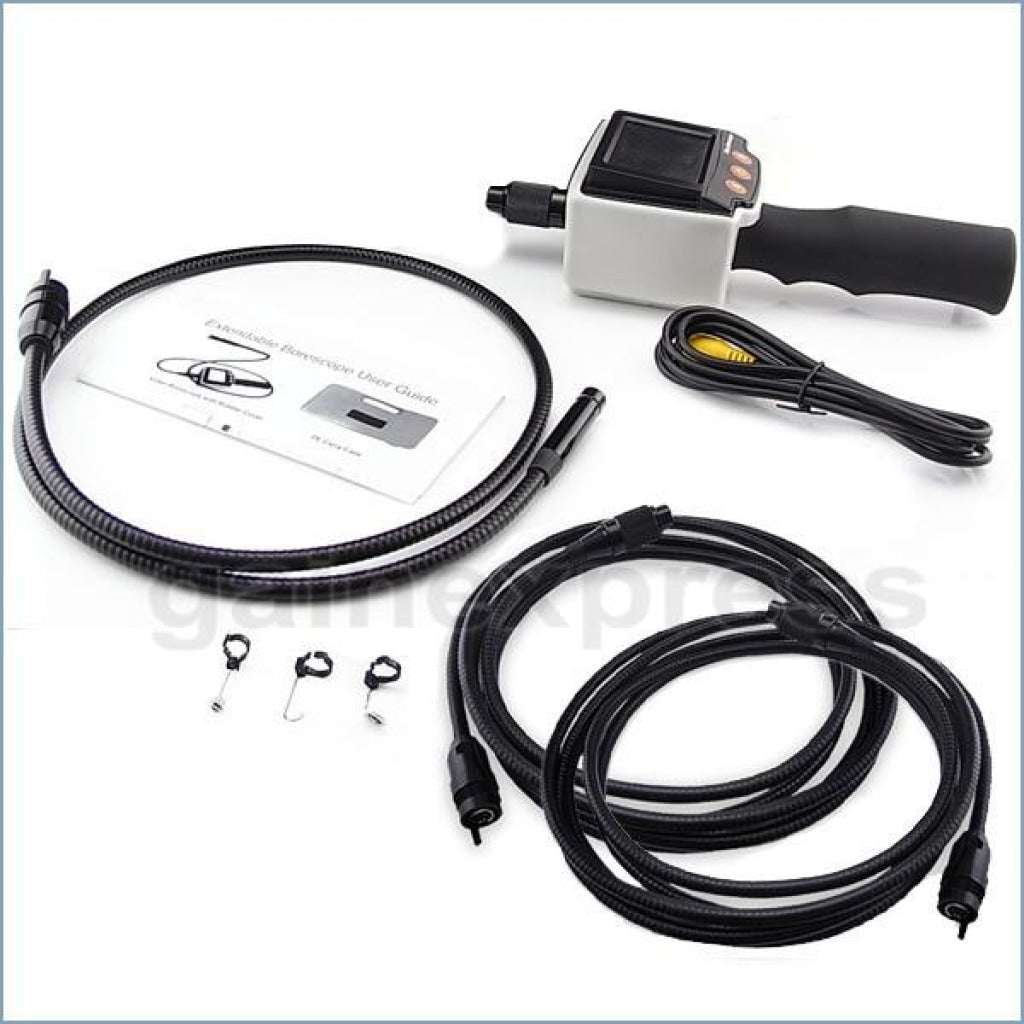

- 1 x Extendable Borescope / Endoscope with NTSC TV Video AVI Output
- 1 x Operation Manual
- 1 x Standard 1-meter Probe
- 2 x 3-meter Metal Probe Extension (FREE)
- 1 x Protective Rubber Housing (FREE)
- 1 x Magnetic Tip (FREE)
- 1 x Hook Tip (FREE)
- 1 x Mirror Tip (FREE)
- Standard Factory Package
- 1 x Video cable (FREE)
OPTIONAL (not included in the set)
Please click here to buy this optional item 3m (9.9ft) extension cable
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
