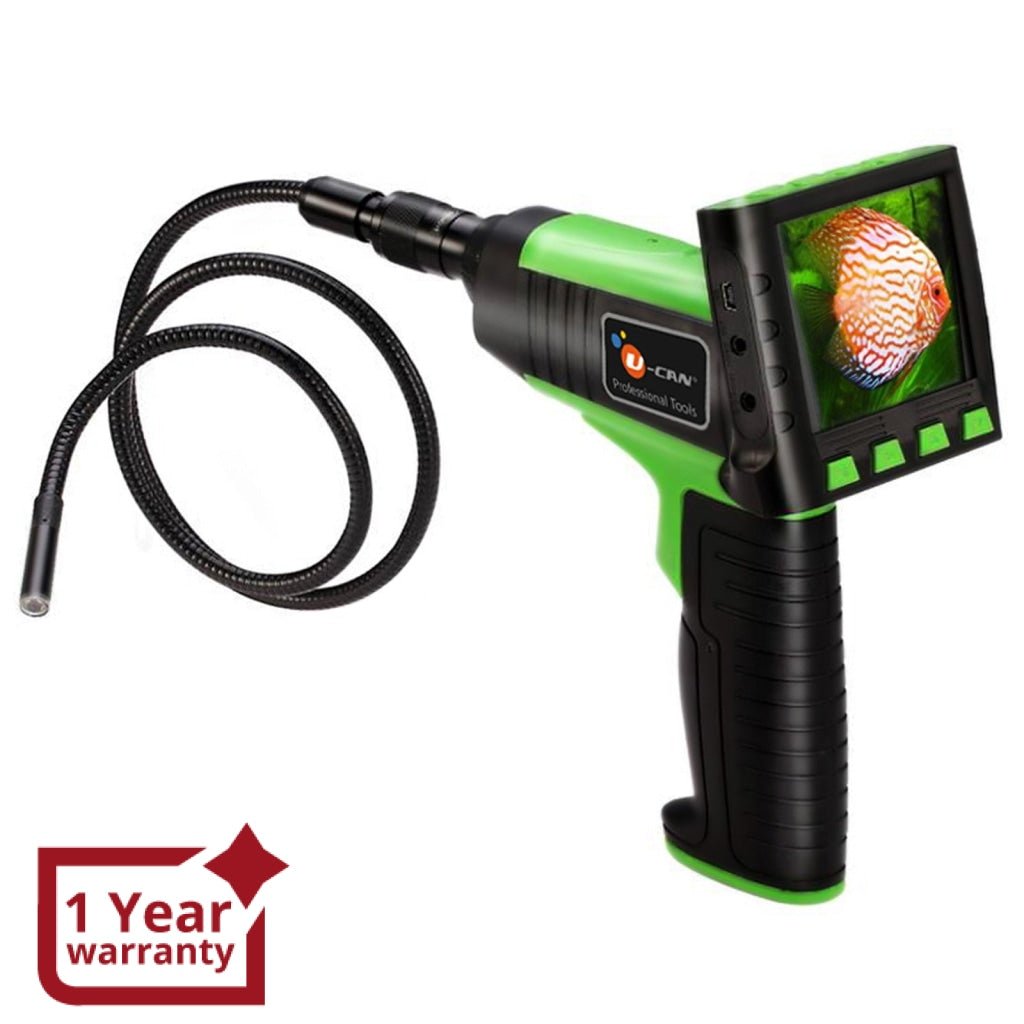

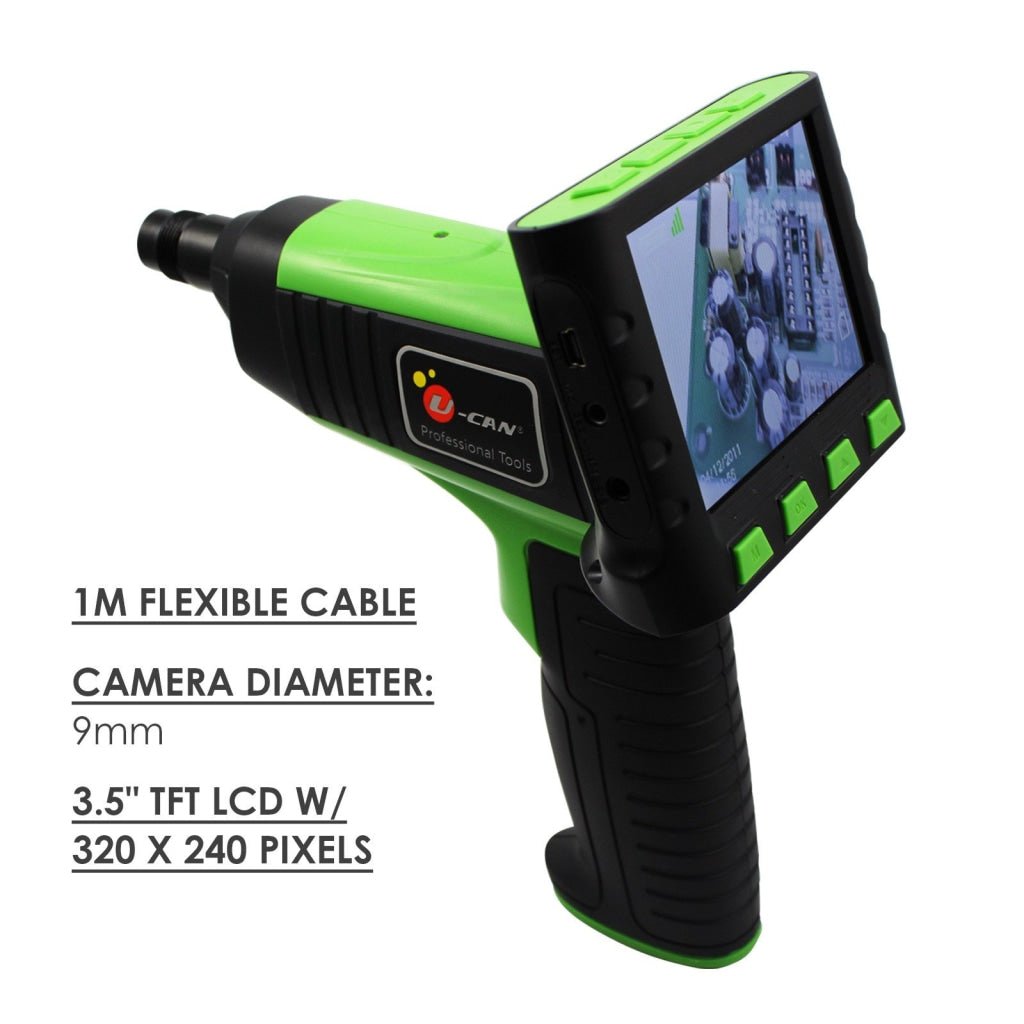

VID-12_1M 1M Inspection Camera Endoscope 3.5" Detachable Wireless LCD, 9mm Diameter 4 LED, 4X Zoom, 2GB Card, Recording Borescope Tool Set

  • 50% OFF
  • $59.00

  • Regular Price $119.00


Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

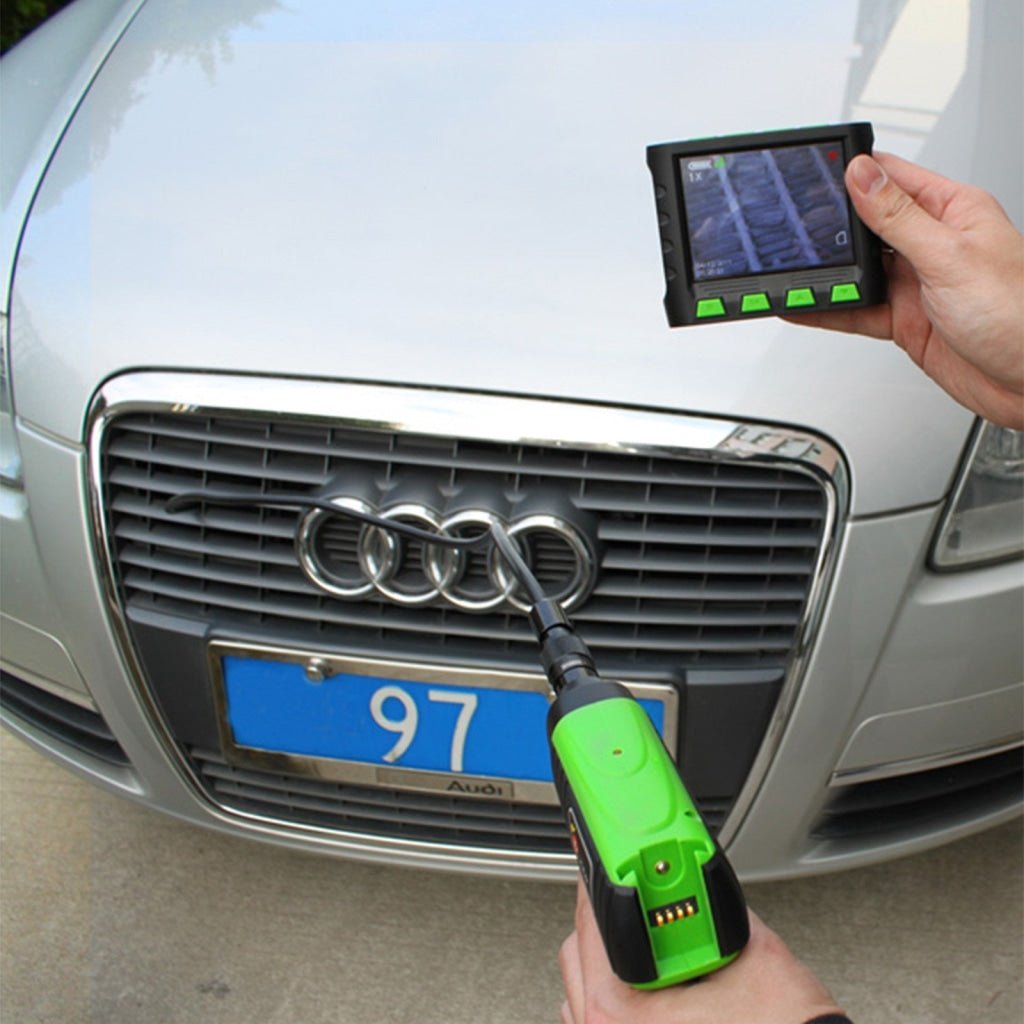

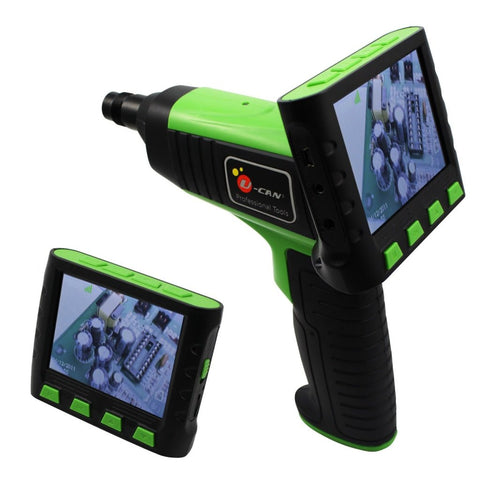

This Large 3.5" Color LCD Wireless Video Inspection Camera with USB uses opto-electronic technology to investigate hard-to-reach area. The LCD receiver is detachable  it can transmit the video signal between the camera grip and the receiver within 10m. The LCD Receiver has built-in Lithium battery which is rechargeable with AC adapter.

 Specifications:

  • Camera
    • Diameter: 9mm
    • Imaging Sensor: 1/13 inch CMOS
    • Pixel Pitch : 0.219 x 0.219mm
    • Transmission Frequency: 2468MHz (2.468Ghz)
    • Minimum illumination: 0 Lux
    • Modulation Mode: FM
    • Bandwidth: 18MHz
    • Unobstructed Effective Range: 10m

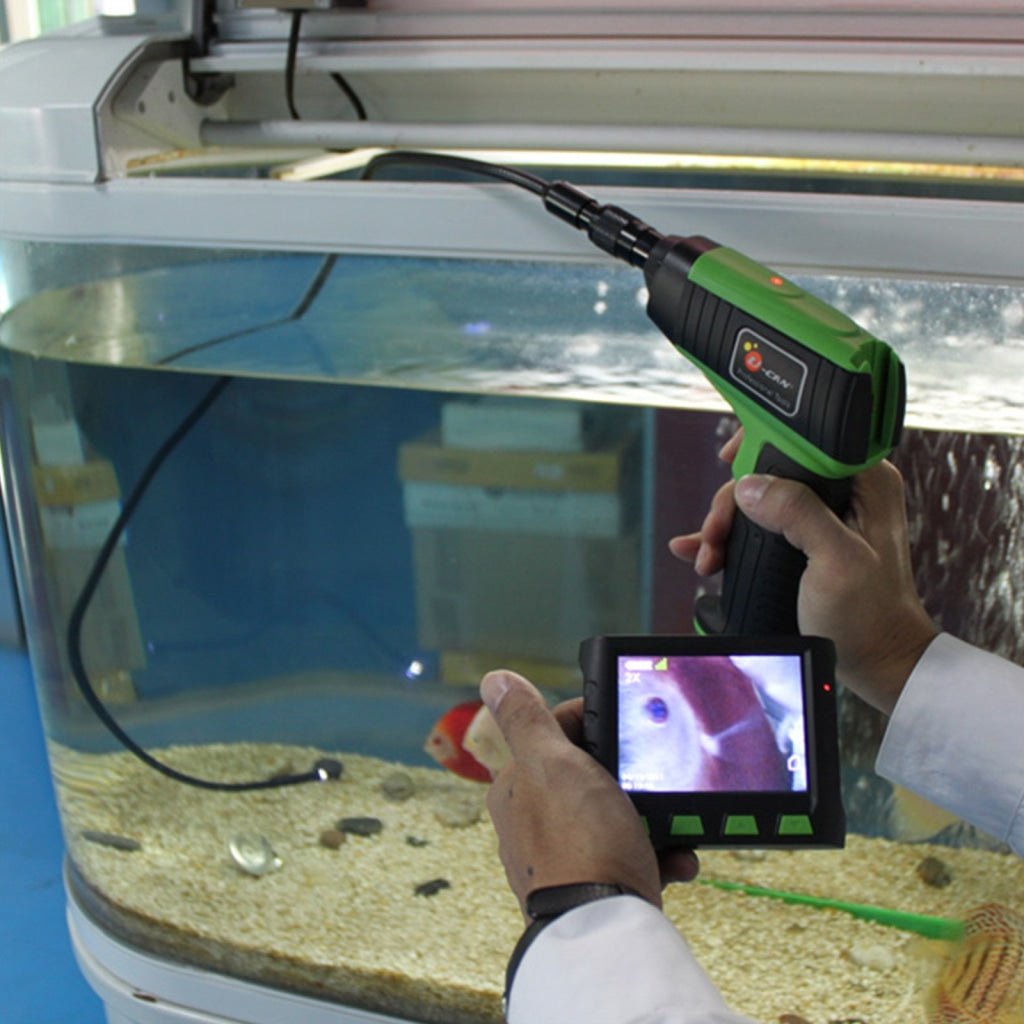

    • Waterproof Capacity: IP67 (Only for camera part)
  • Monitor

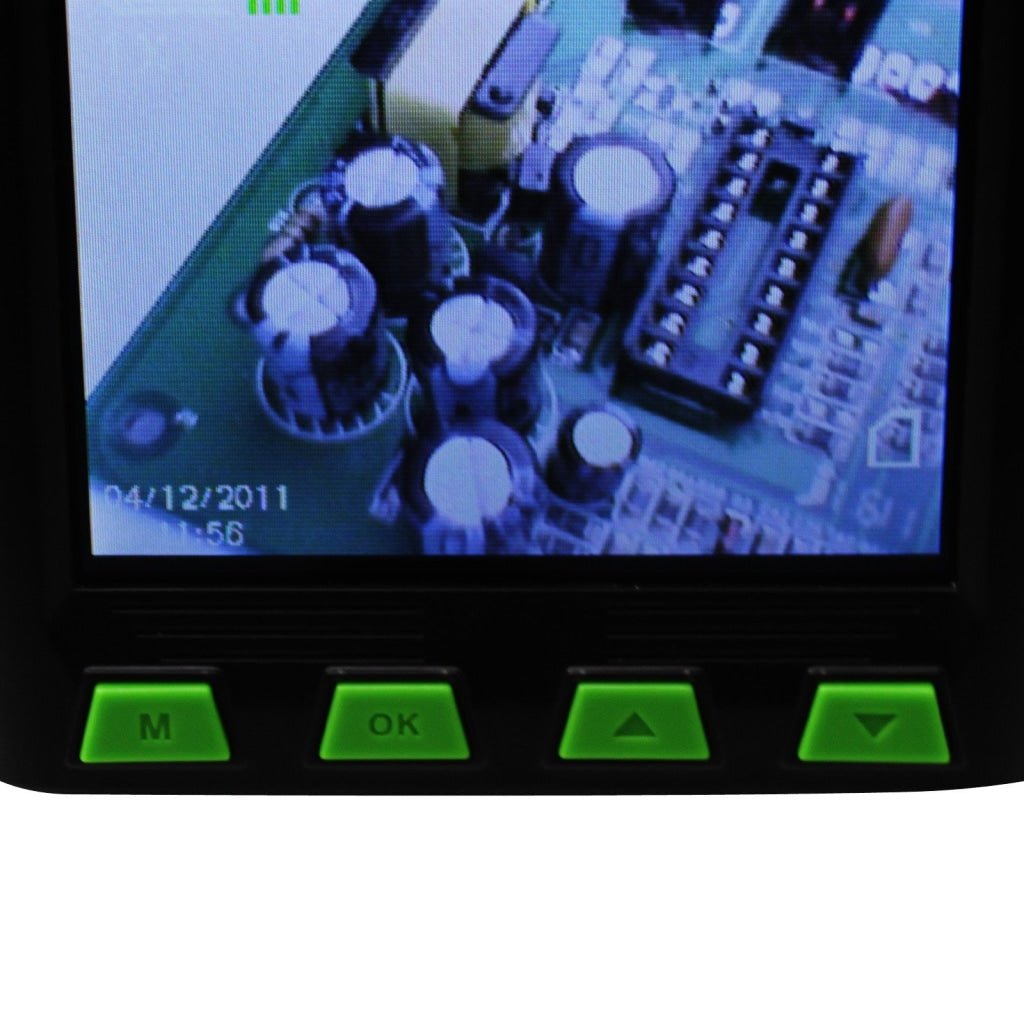

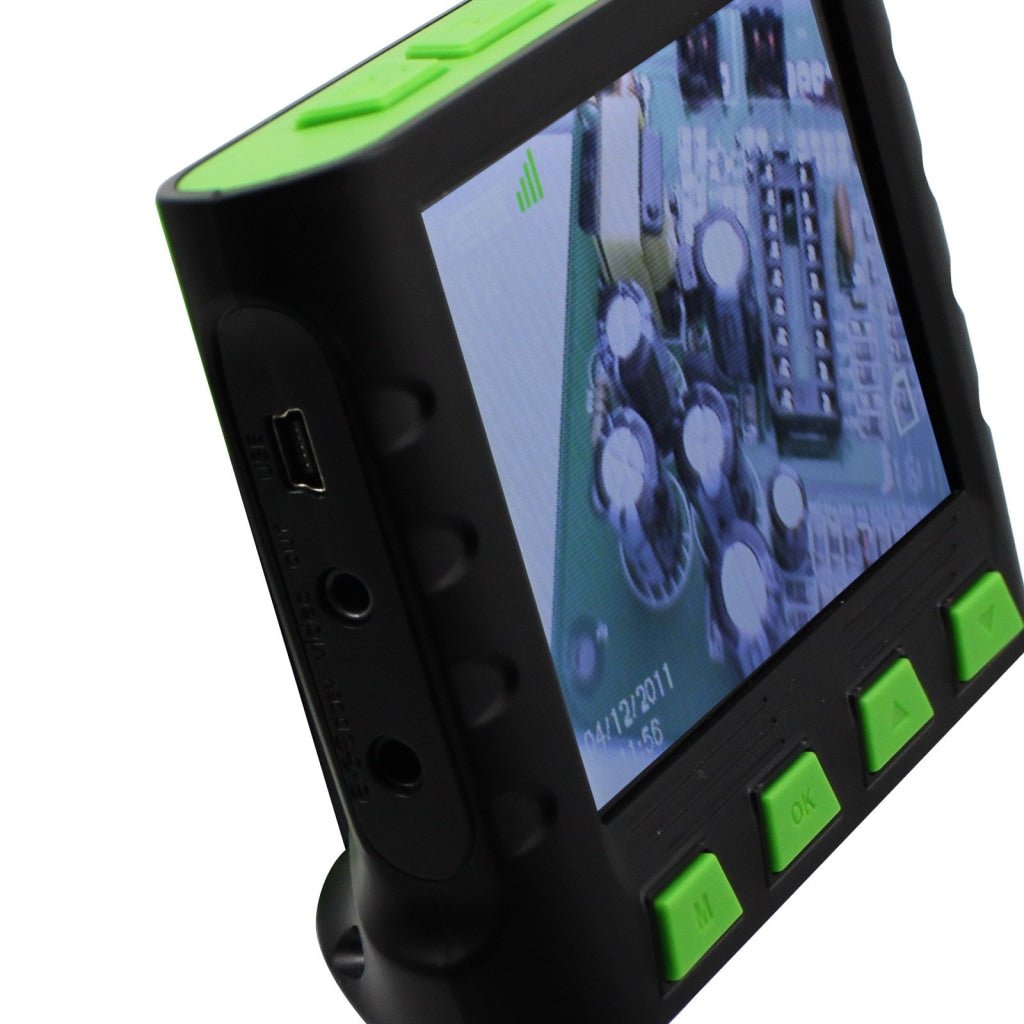

    • LCD Screen Type: 3.5" TFT LCD
    • Screen Resolution : 320 x 240
    • Video System: PAL/NTSC
    • Transmission Frequency: 2.468GHZ (2468MHz)
    • Exterior Supply Voltage: 6V(DC)
    • Consumption Current (Max): 490mA
    • Video Output Level: 0.9 ~ 1.3V at 75ω(ohm)
    • Capacity of Micro SD Card Slot: Support Micro SD Card up to 32GB
    • Picture/Video File Resolution: 640 x 480
  • Power Voltage: 100V-240V
  • Operating Temperature: -10~50°C / -14~122°F
  • Operating Humidity: 15~85%RH
  • Color: Green & Black
  • Power Supply (Main Unit): 4 x AA batteries (not included)
  • Weight:
    • Main Unit: 200g
    • Monitor: 153g

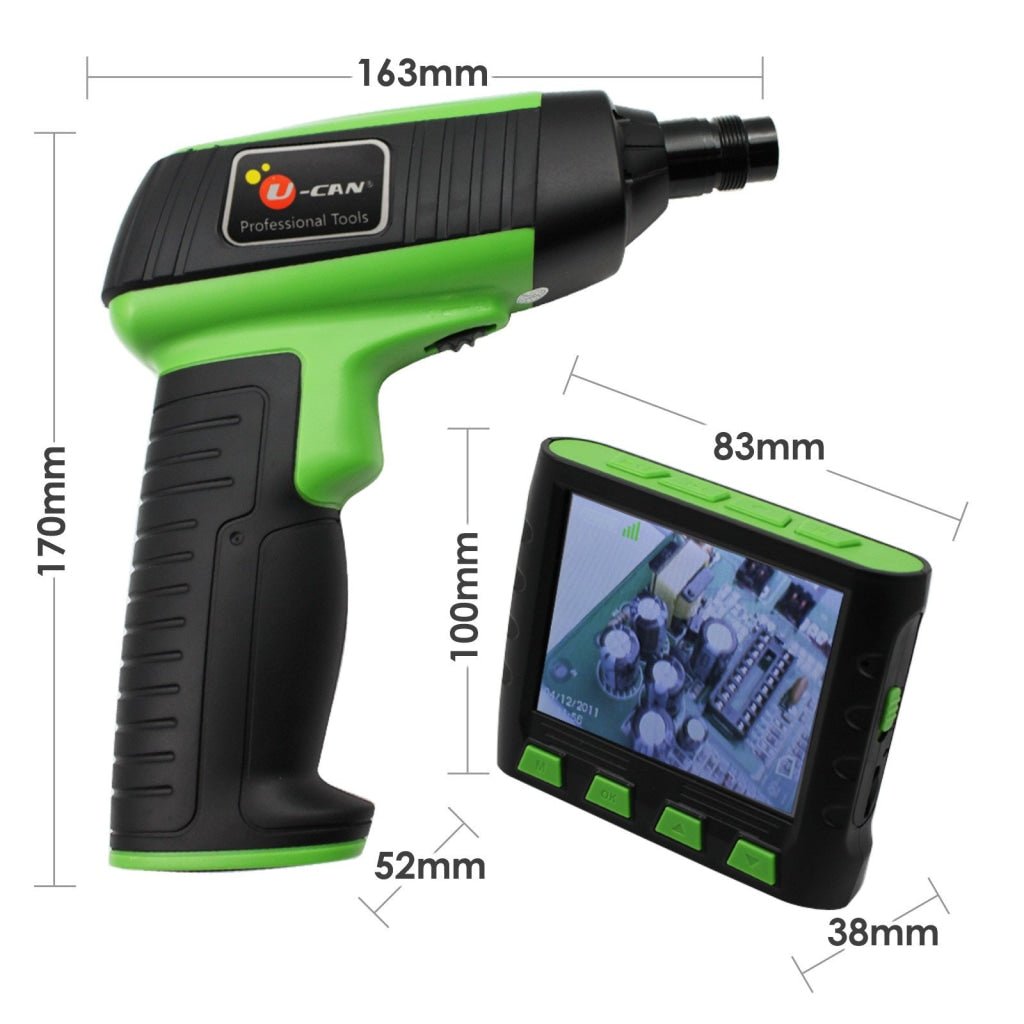

  • Dimension:
    • Main Unit: 170 x 52 x 163mm (excluding Flexible Tube)
    • Monitor: 100 x 38 x 83mm

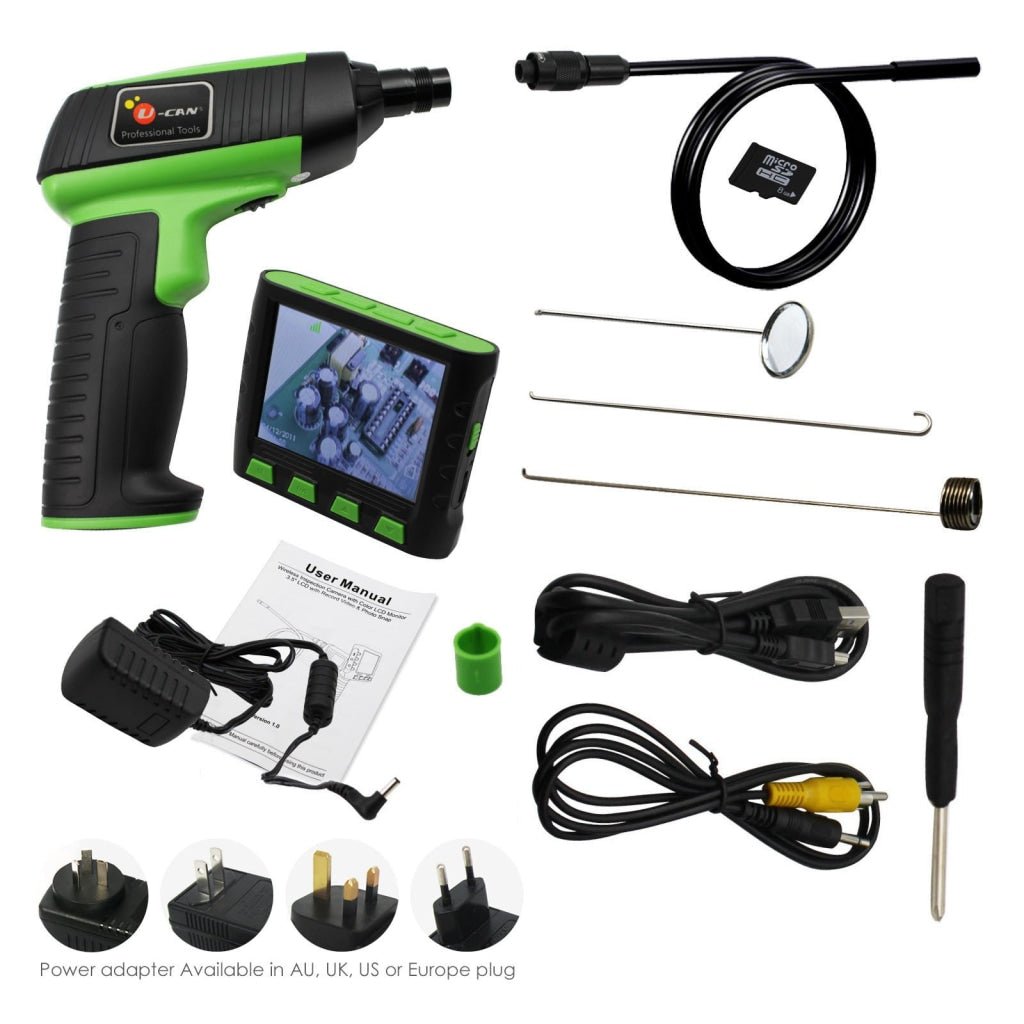

 Set includes:

  • 1 x 3.5" LCD Inspection Camera (main unit)

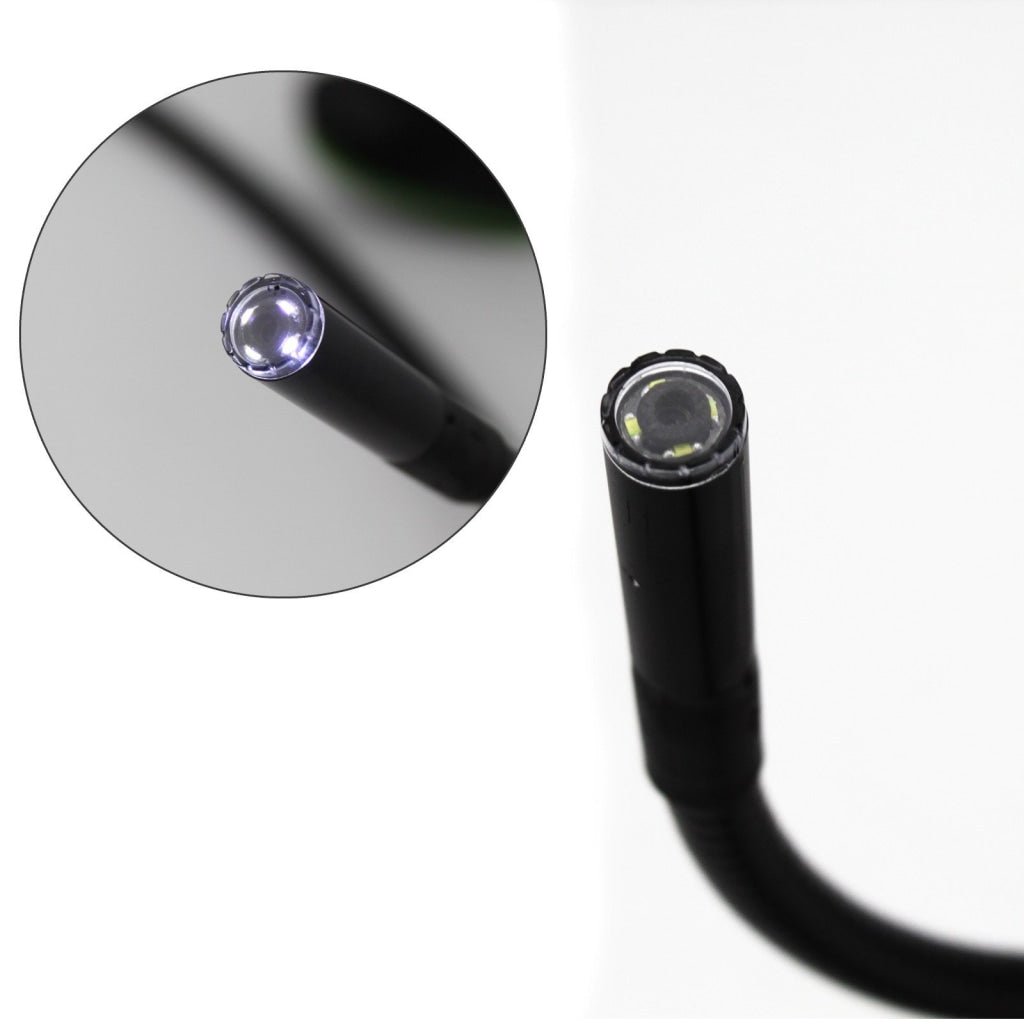

  • 1 x 1M Flexible Cable with 9mm Waterproof Camera Head
  • 1 x 3.5" Color LCD Monitor (Receiver)
  • 1 x 2GB micro SD Card/TF Card (FREE)
  • 1 x Video Cable
  • 1 x USB cable

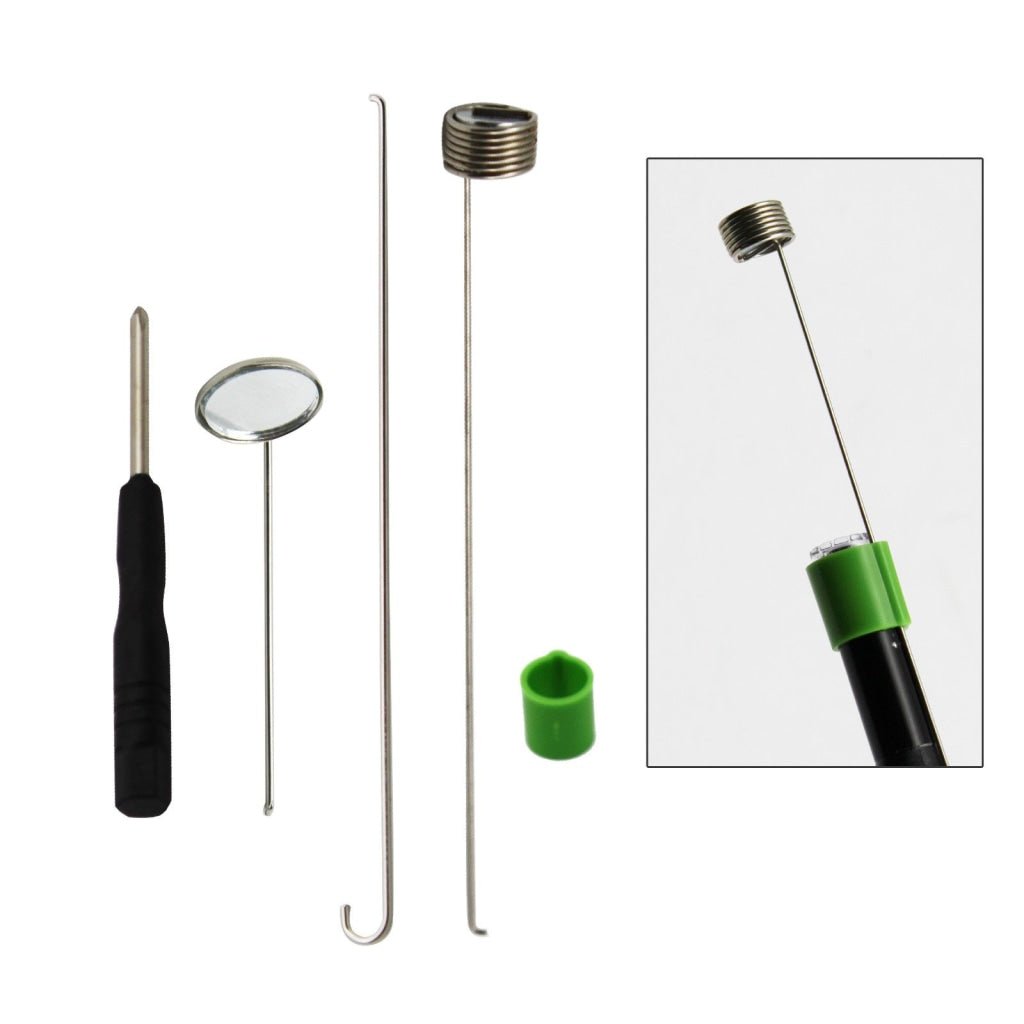

  • 1 x Magnet Tip
  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 2 x Screws
  • 1 x Screwdriver
  • 1 x Tip Holder
  • 1 x EU Power Adapter
  • 1 x English Instruction Manual
  • Standard Packaging Box
