- VID-10 Industrial 2.31" TFT LCD 8mm Camera Borescope Endoscope 4 LED Lights VID-10 Industrial 2.31" TFT LCD 8mm Camera Borescope Endoscope 4 LED Lights
VID-10 Industrial 2.31" TFT LCD 8mm Camera Borescope Endoscope 4 LED Lights
- Description
- Return, Refund, & Warranty Policy
- Reviews

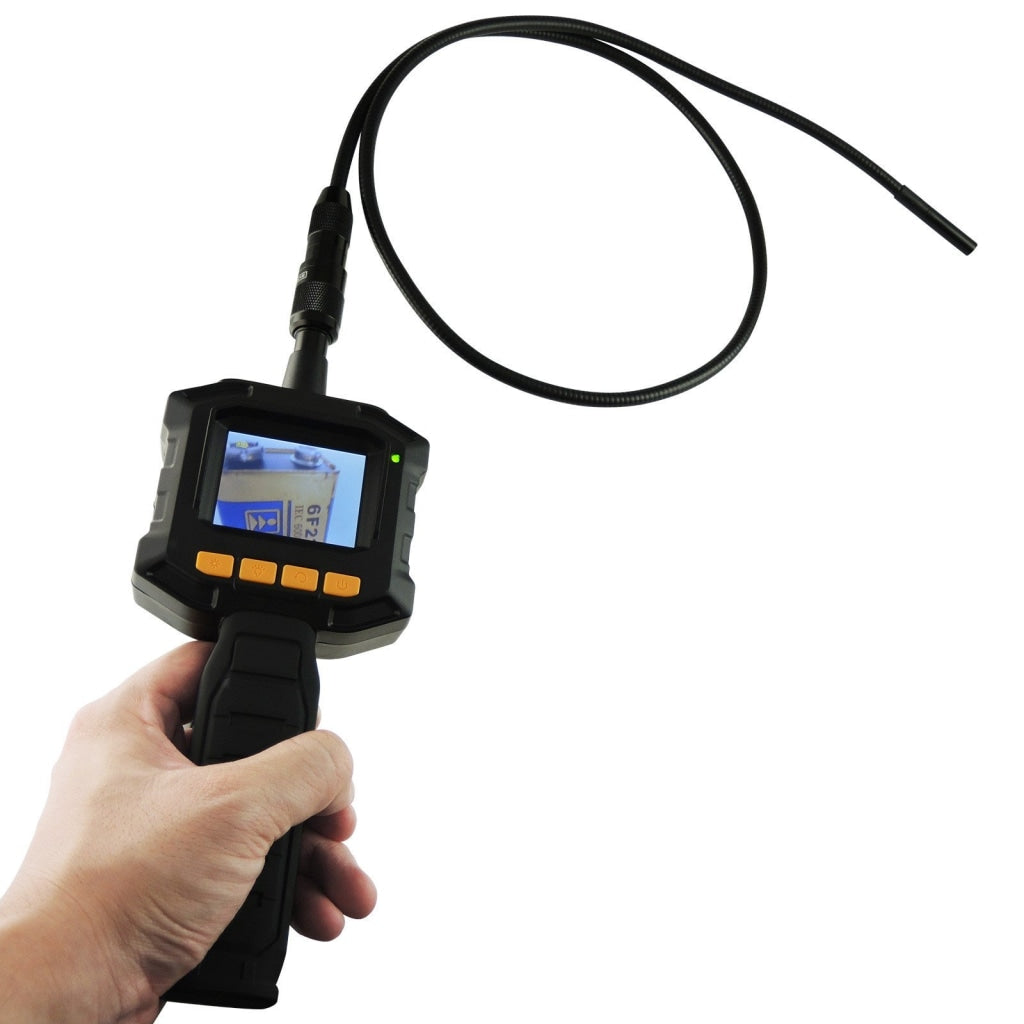

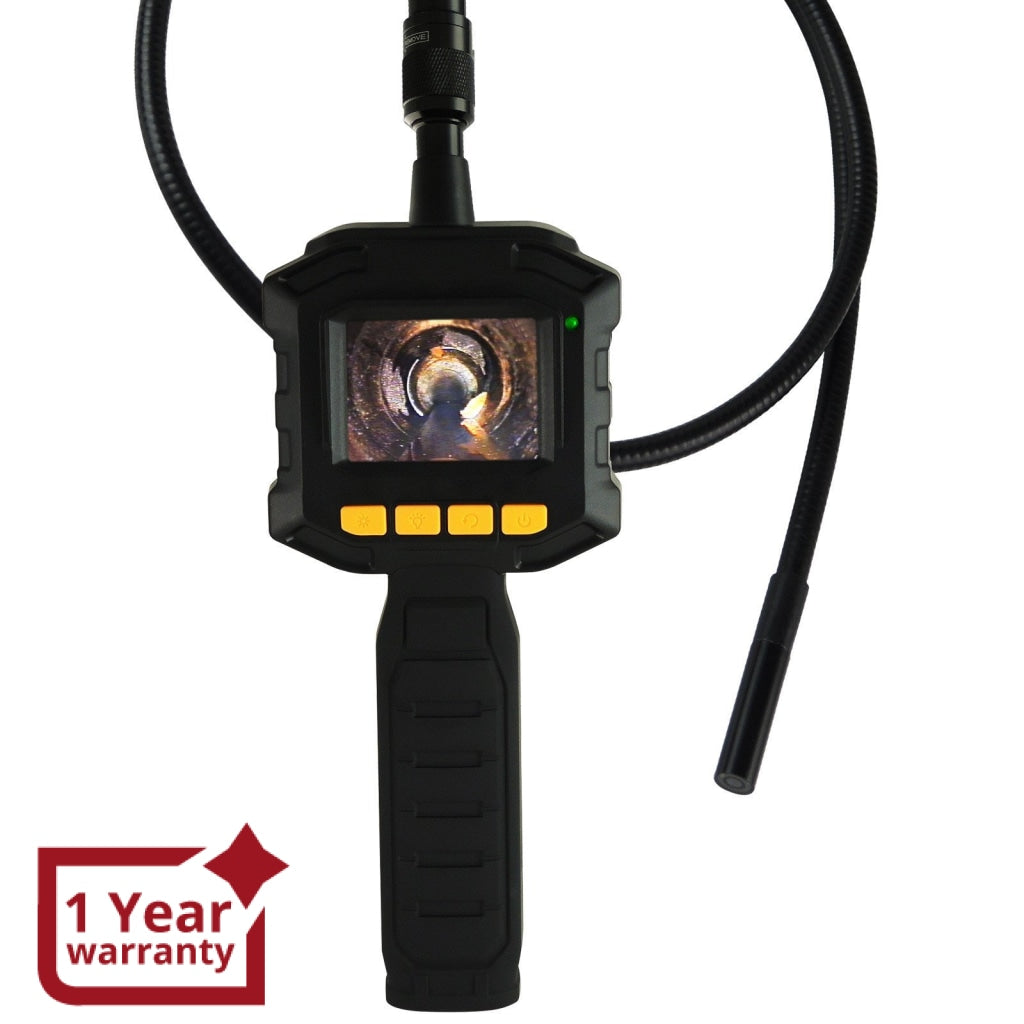

2.31" TFT LCD Industrial Borescope with 8mm camera tube diameter and adjustable 4 LED lights for viewing hard to reach area. It has water resistant camera head (IP67) and colored monitor with 640 x 480 pixel resolution. Image can be rotated by 180° and flip for a more detailed inspection.

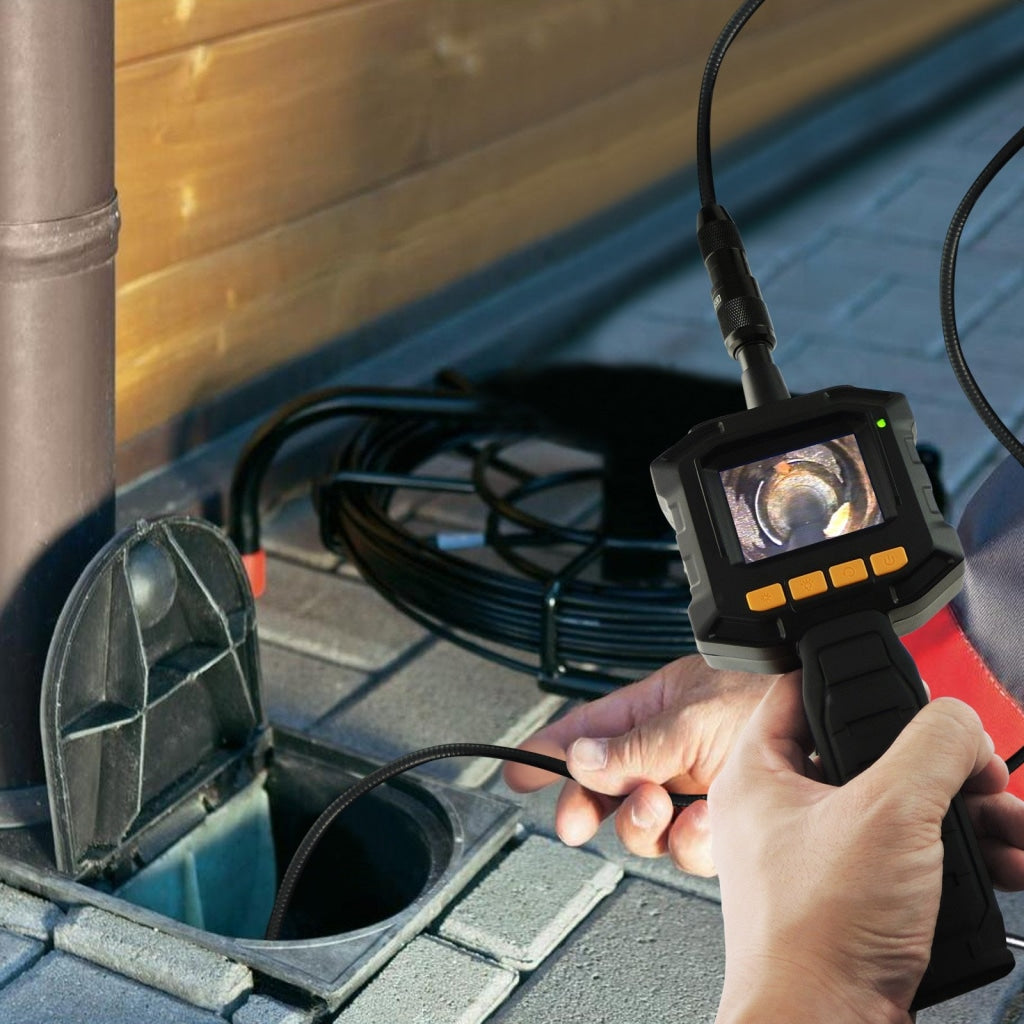

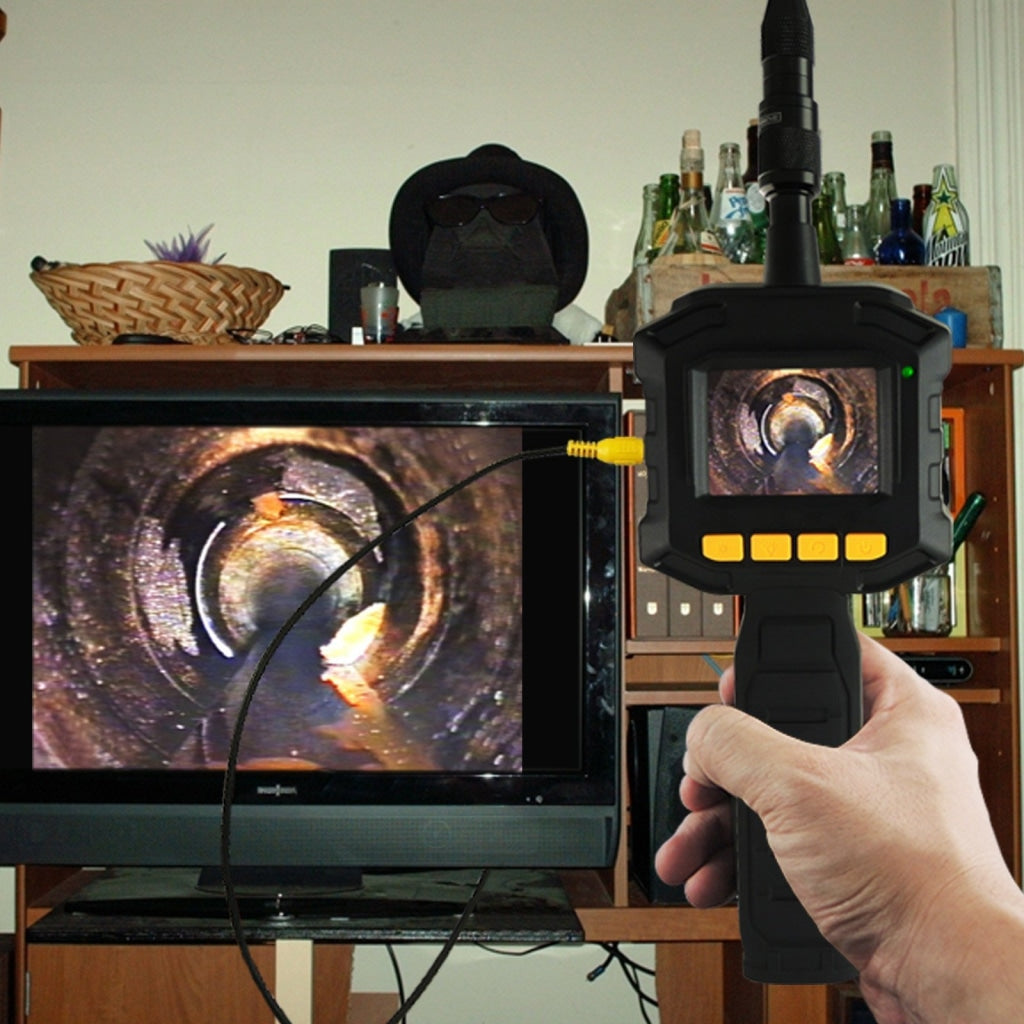

This product is designed as a remote inspection device, live time video streaming. Appropriated for use in surveying pipes or other hard to reach places, equipment or furnishing installation, car repair, etc.
Features:
- Allows for easy surveying of small, hard to reach places
- Mini waterproof camera with 980mm (3ft) flexible extended tube
- Manufactured and tested to IP67 waterproof standard
- 2.31" TFT LCD monitor

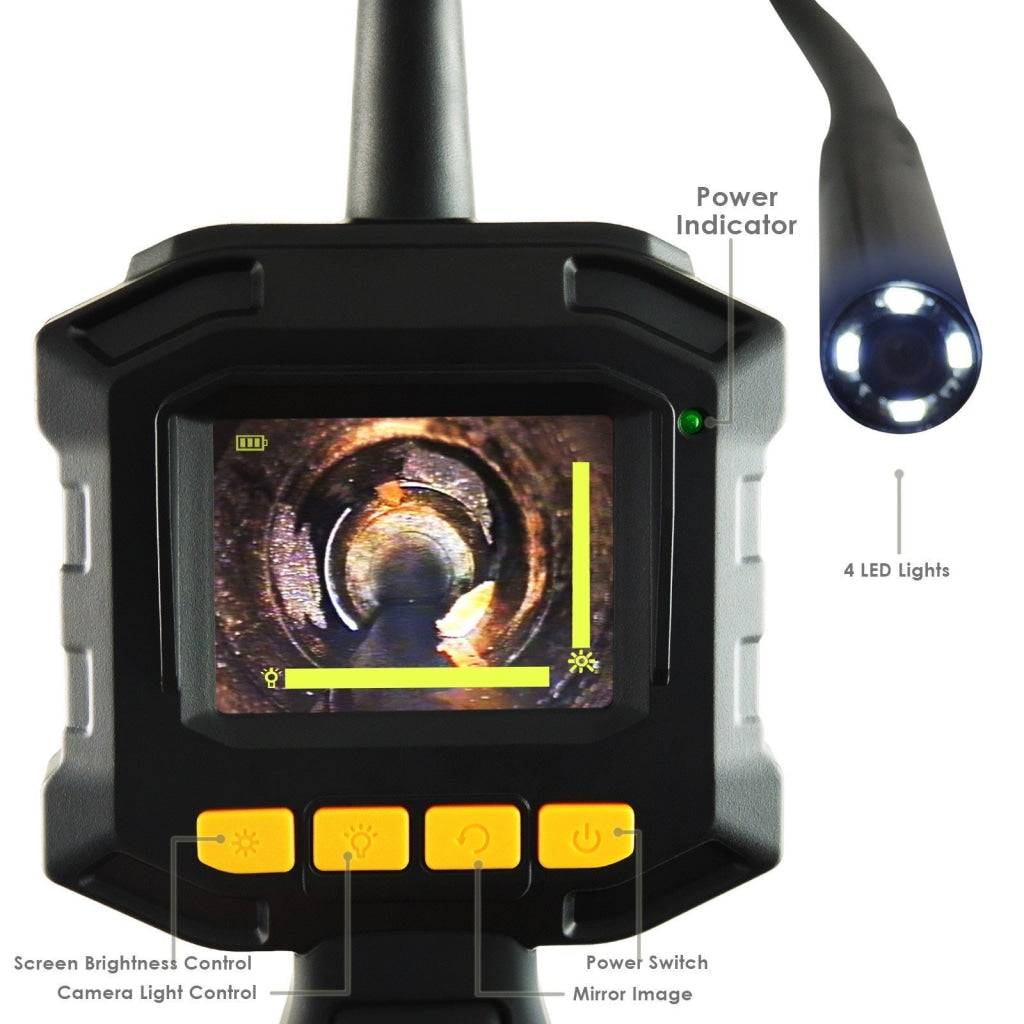

- Allows 180° image rotation and flip
- Adjustable brightness on lens-mounted LED light
- 4 useful accessories inluded: hook, mirror, and magnet
- Lightweight, hanheld design, flexible and convenient to use

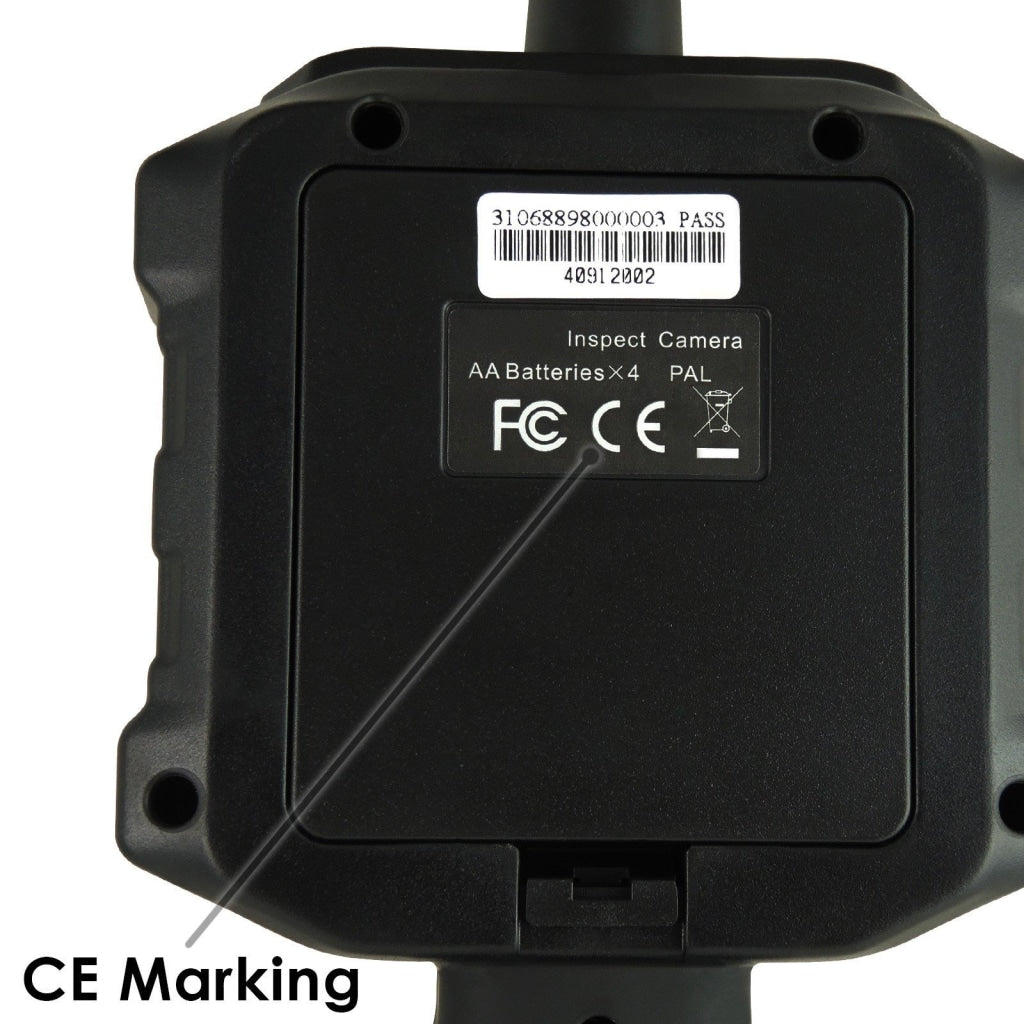

- With CE marking, meets EU safety, health and environmental requirements

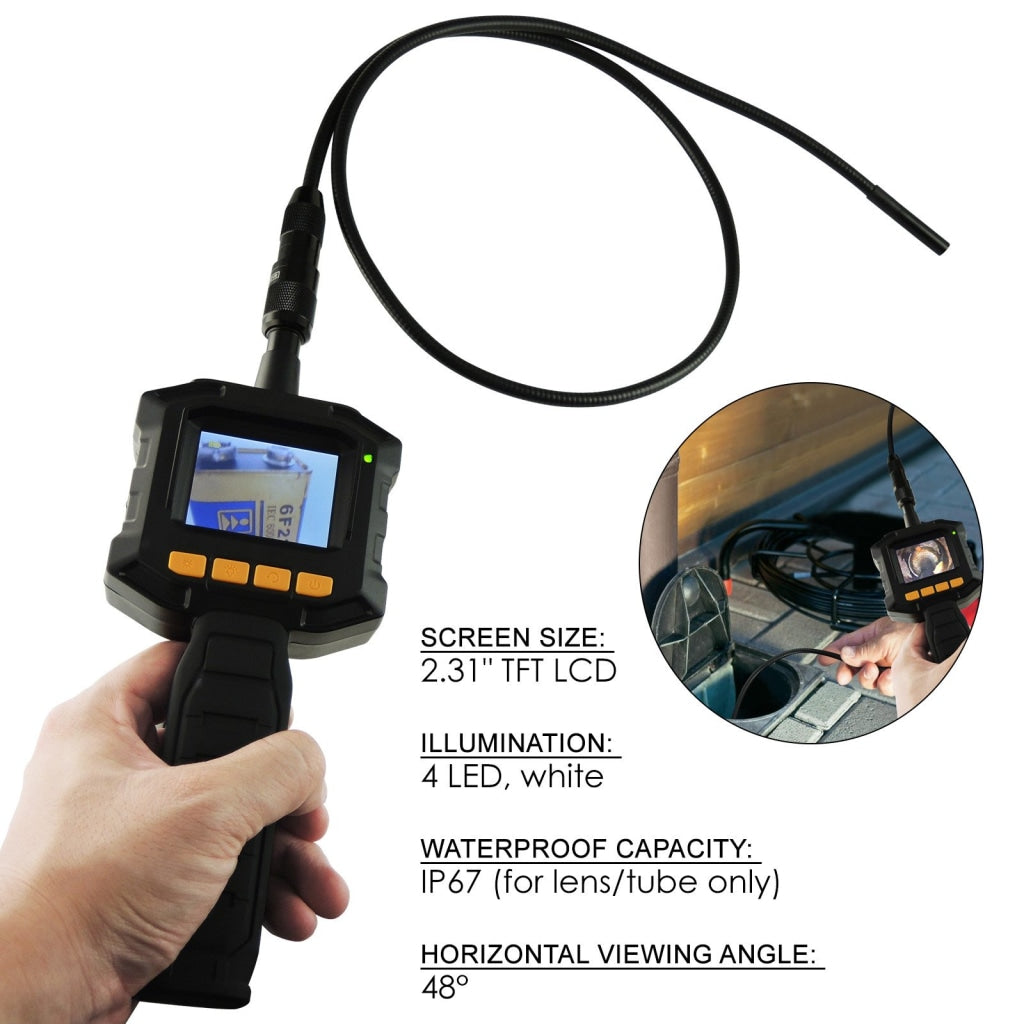

Specifications:
- Screen Size: 2.31" TFT LCD
- Contrast: 300
- Brightness: 220CO/M2 (TYP)
- Effective Pixels: 640 x 480
- Video System: PAL / NTSC
- Horizontal Viewing Angle: 48°
- Illumination: 4 LED, white
- Minimum Illumination: 0 Lux (LED on)
- Work Time: 6 Hour Max.
- Consumption Current: 238mA
- Output Signal Impedance: 75 ohm
- Output Signal Level: 0.9-- 1.3Vp-p
- Imaging Sensor: 1/9-inch CMOS
- Waterproof Capacity: IP67 (for lens/tube only)

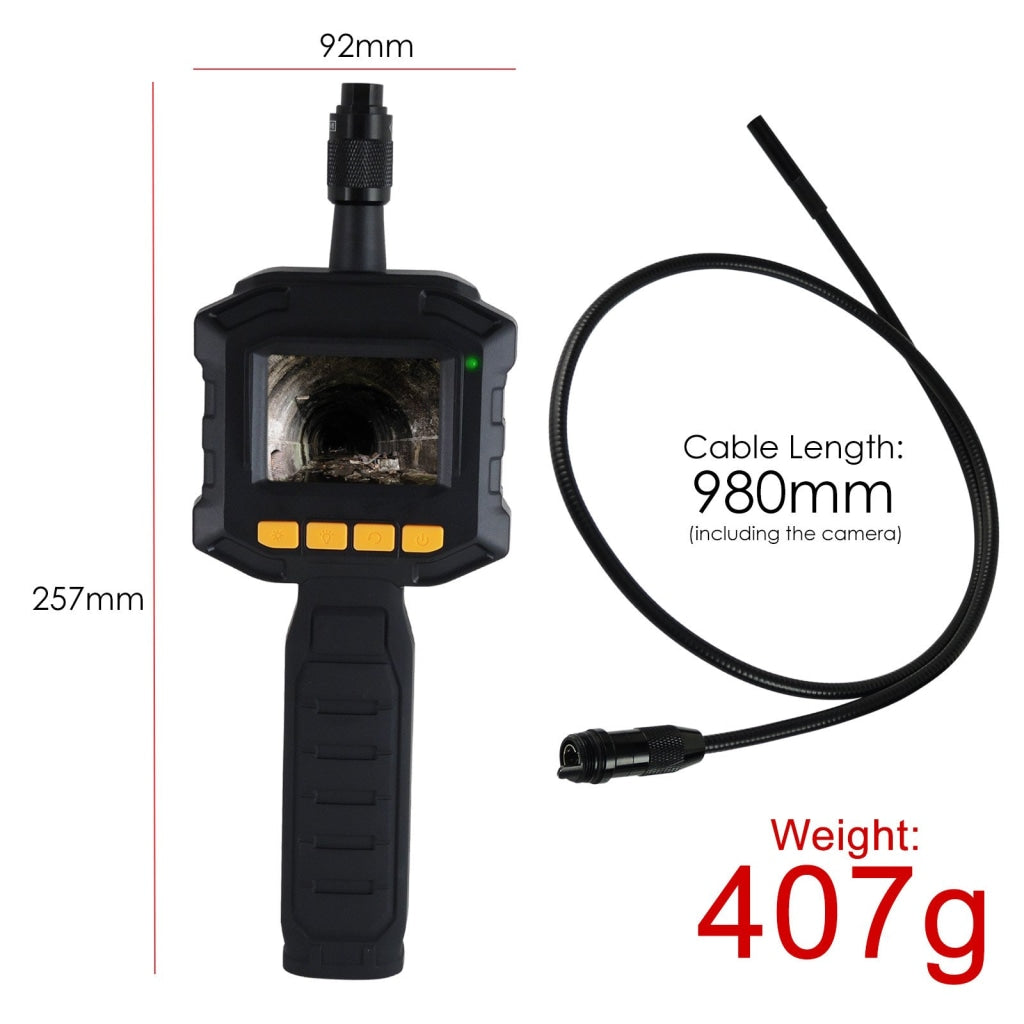

- Dimension

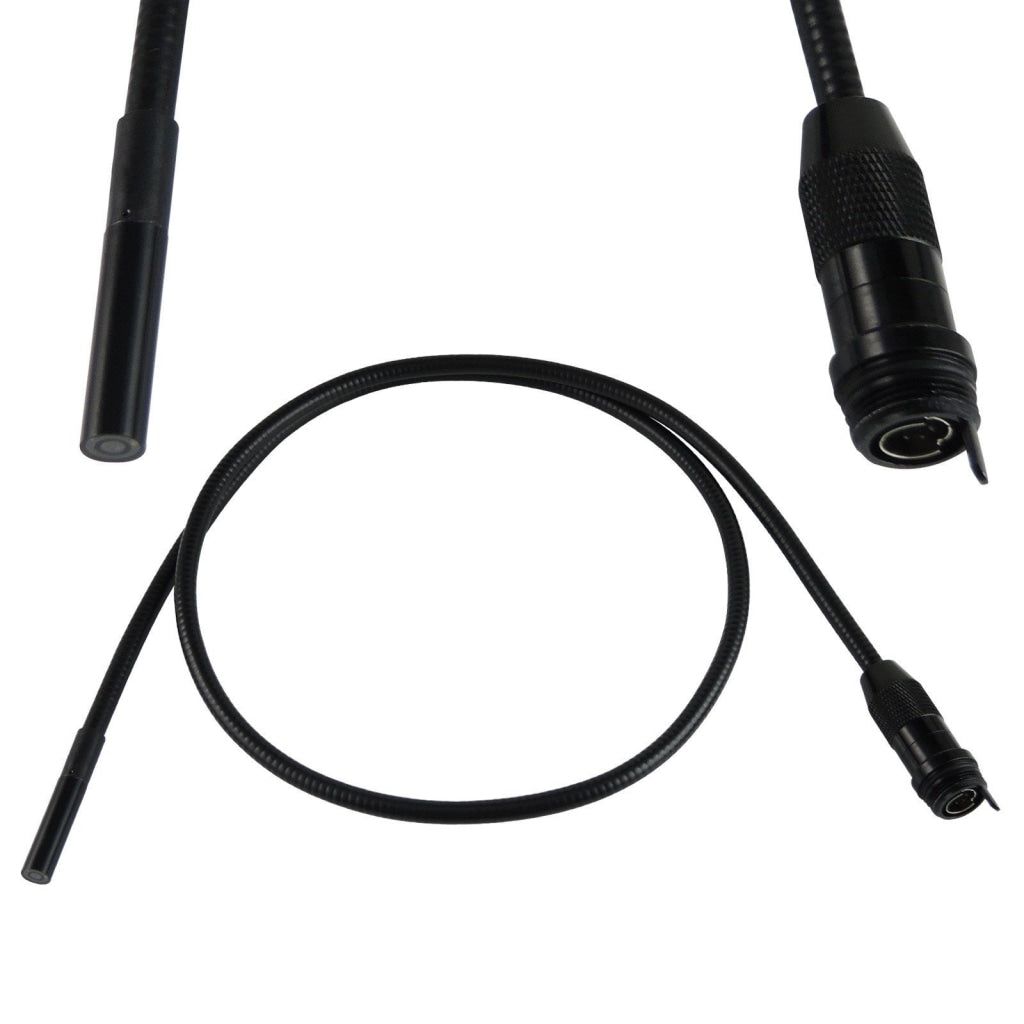

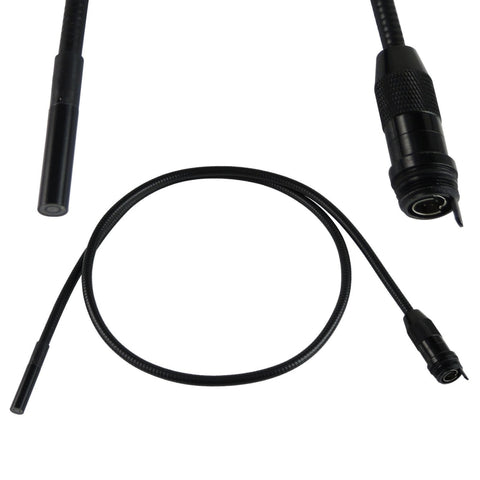

- Tube: Φ8mm x 980mm (Including camera)
- Handle: 257 x 92 x 44(mm)Excluding Flexible Tube)
- Operating Environment
- Temperature: -10°C~50°C / 14°F~122°F
- Humidity: 15~85%RH

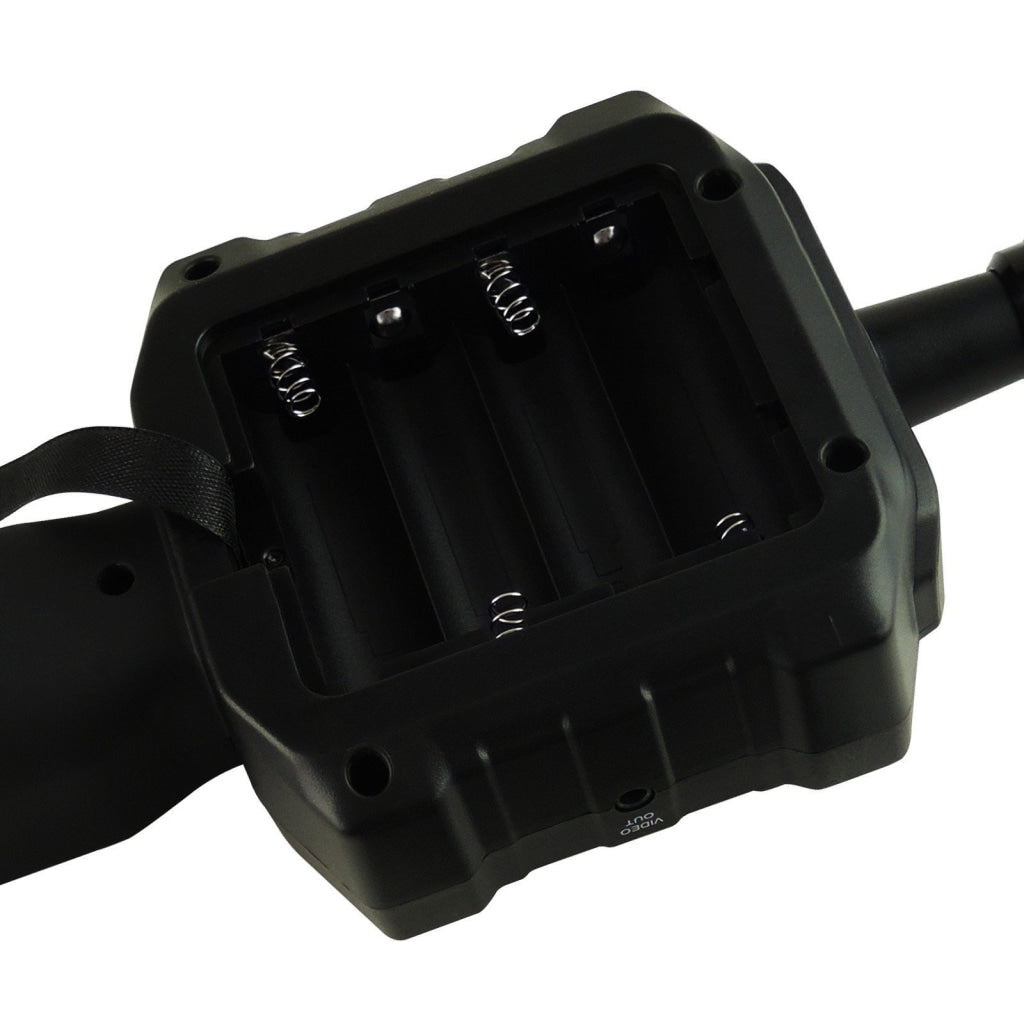

- Power Supply: 4 x AA batteries (1.5V x 4)
- Weight: approx. 407g (including batteries)

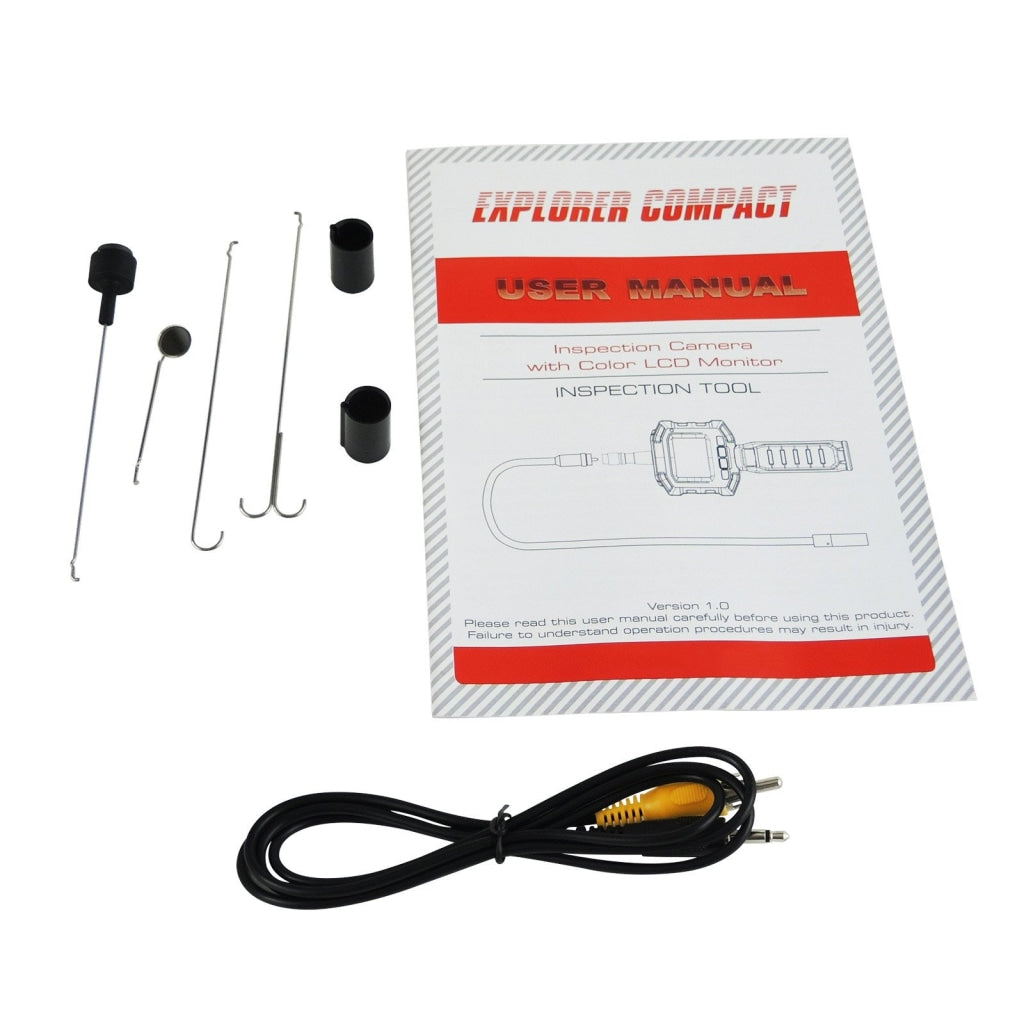

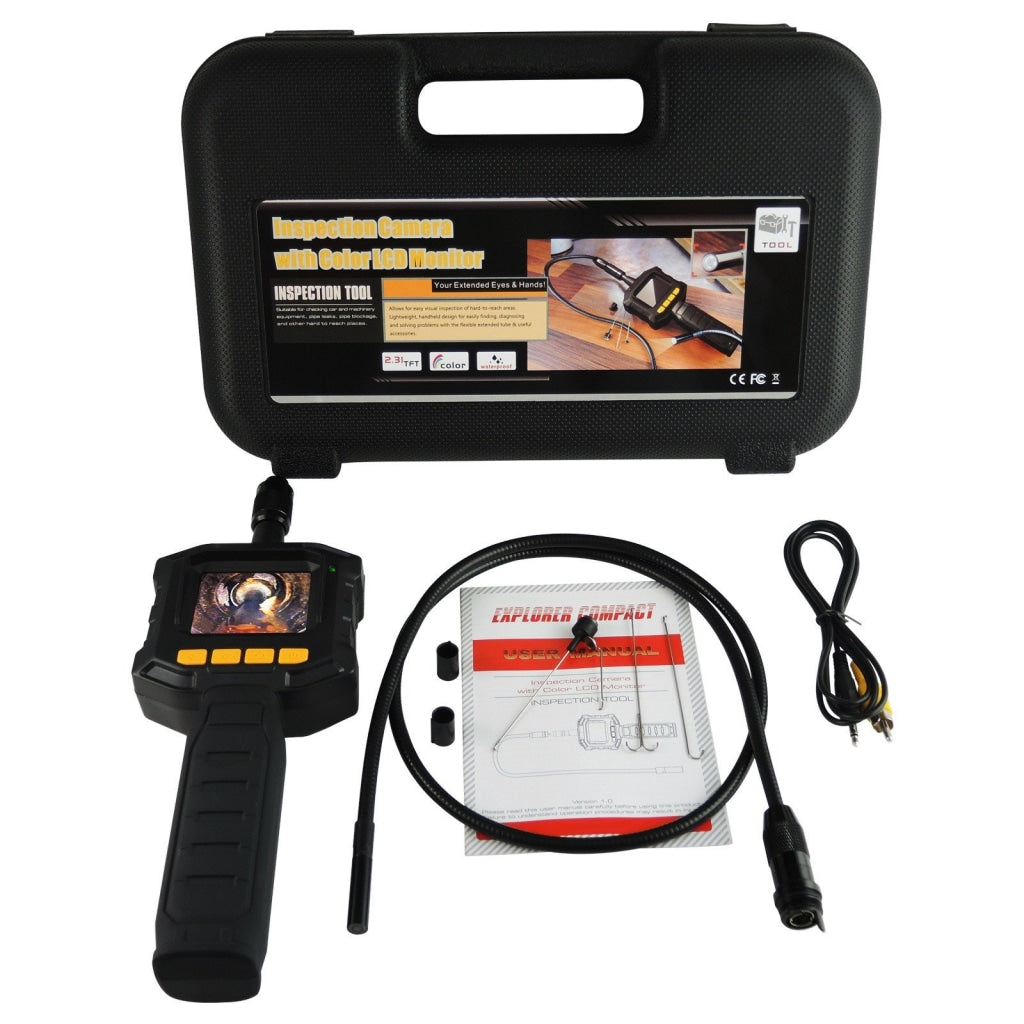

Set Includes:
- 1 x Inspection Camera w/ Color LCD Monitor
- 1 x 3ft Flexible Tube

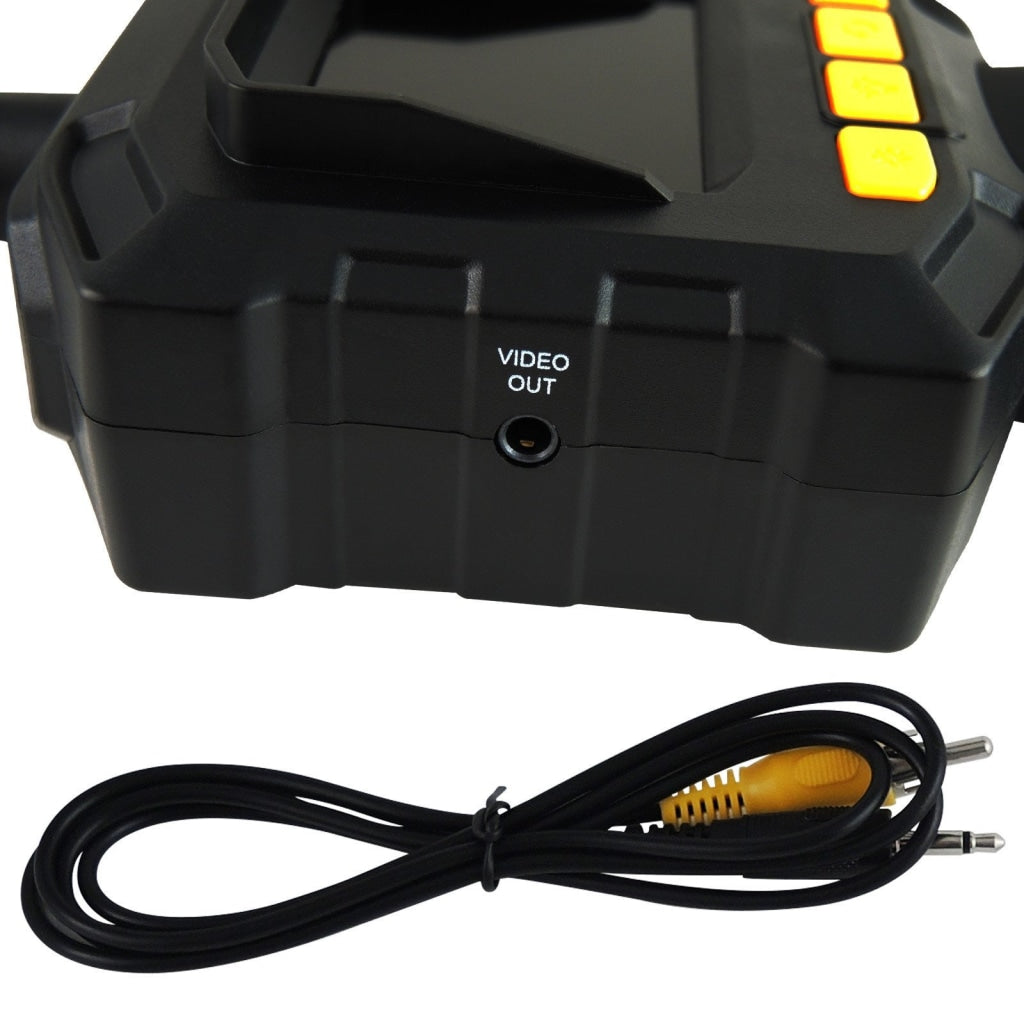

- 1 x Video cable

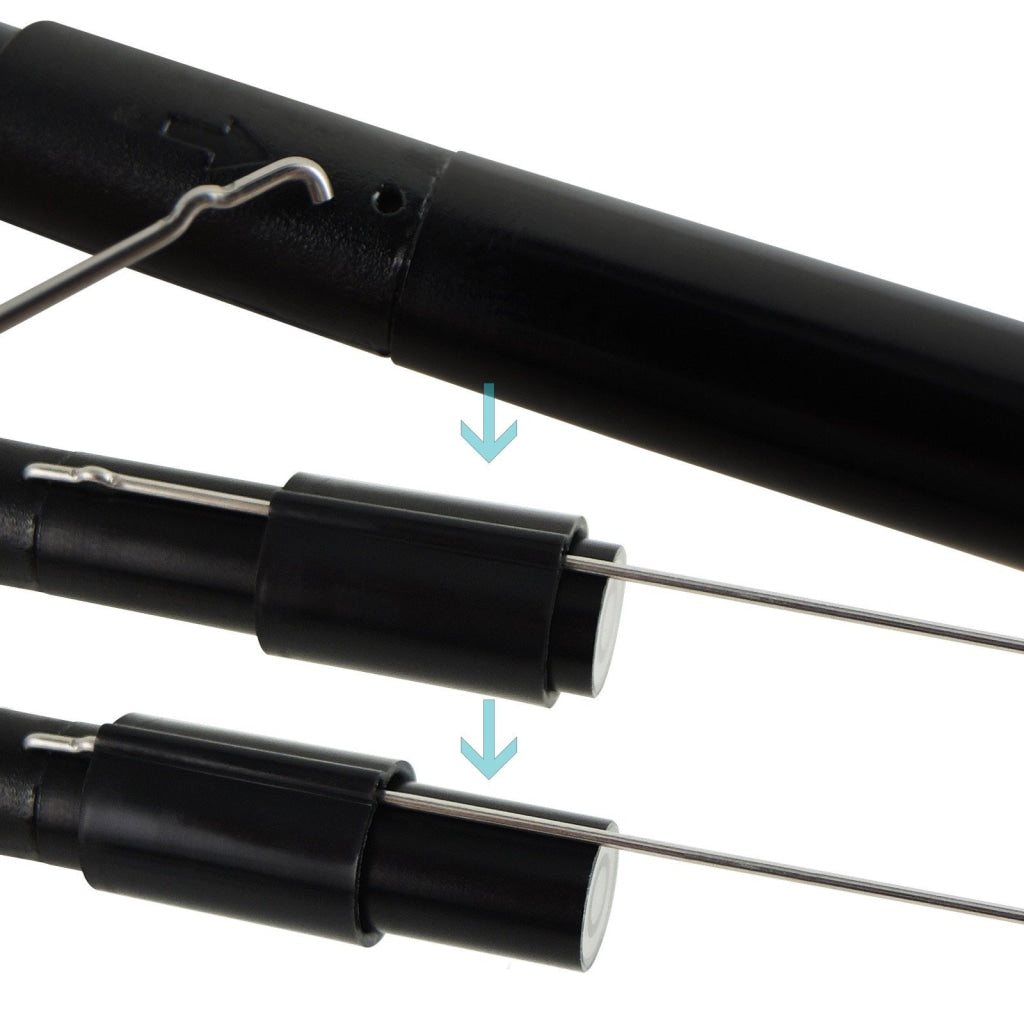

- 1 x Double Hook Tip
- 1 x Single Hook Tip
- 1 x Magnet Tip
- 1 x Mirror Tip
- 1 x Rubber Ring
- English Quick Start Guide

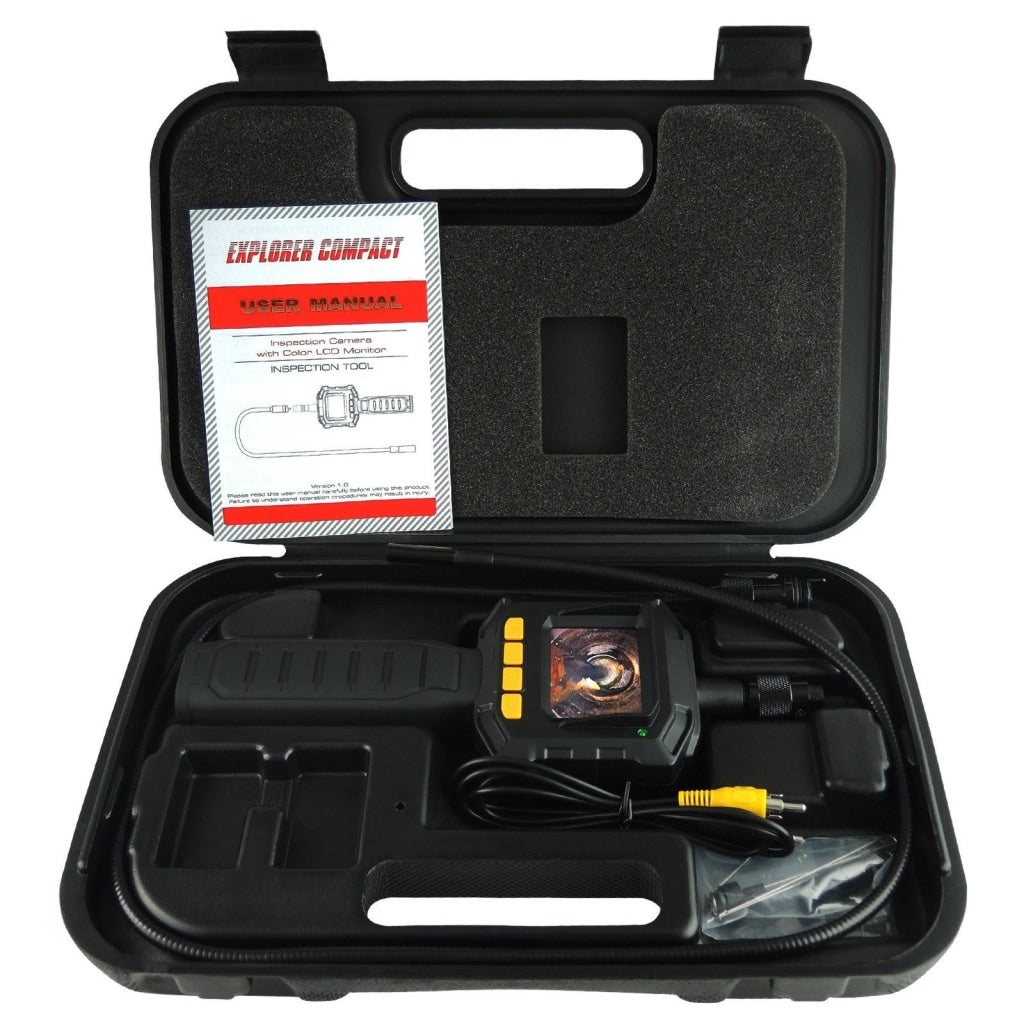

- Carrying Case
- Standard Factory Package
Unhappy with your item?
If you are dissatisfied with your purchase, you may return it to us within THIRTY (30) DAYS from the purchase date subject to conditions below. Report or contact us for claims on missing items or parts, items damaged in transit, and incorrect item delivery within 2 business days upon receipt of item.
Refund & Credit
Refunds for the returned item will be issued in the same payment form used at the time of purchase. Once we receive and inspect the product, we will credit the amount to your account. Please allow 5-7 days for the credit to appear on your account.
Exchange
If the item was sent back for an exchange, please allow 3-5 business days for the replacement to be processed. The buyer will shoulder the return cost when returning an item for an exchange.
Wrong Item Received
If you received the wrong item, you may exchange it for the correct item or return it for a full refund.
Conditions
Please read all conditions below. If conditions are not met, Gain Express Holdings Ltd. reserves the right to refuse the return or to charge a restocking fee not less than 15%.
All returned or exchanged items must be in new condition and in their original box.We may refuse your return or refund request if:
- The item(s) is returned without an RMA form
- The item(s) has no valid, readable serial number (if any), inluding but not limited to items with missing, damaged, altered, or unreadable serial numbers
- The item(s) was returned without all original packaging and accessories, including the retail box, manuals, cables and all other accessories originally included with the item(s)
- The item(s) exhibits physical damages or is dirty
Returns must be done within THIRTY (30) DAYS after the purchased item has been received (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Returning an Item
All returned items must be in good condition with complete original packaging and accessories. We reserve the right to charge a handling fee on all items returned to us for non-quality issues.
To Return Item(s):
-
Fill out the RMA (Return Merchandise Authorization) form and submit for our review. Once we have authorized your return request via e-mail, then proceed to step.
-
Pack your item(s) inside a shipping box. Please write Order ID # on a piece of paper and include it inside the box.
(Please do not place stickers or shipping labels on the original manufacturer's package.) -
Ship your item(s) to a warehouse near you.
(We recommend you ship via insured ground service with a tracking number. Return shipping charges is the buyer's responsibility. Gain Express Holdings Ltd. will bear the shipping cost of the replacement. We are not responsible for lost or damaged packages.)
We will take care of the rest for you!
Once our Returns Department has received and inspected your return, your refund or exchange will be processed right away.
Warranty
Replacement Warranty
Returns must be done within THIRTY (30) DAYS after receiving the purchased item (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Product Service Warranty
All our items come with ONE (1) YEAR warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
The warranty will not extend to consumables (i.e. electrodes, calibration solution, battery, index oil), accessories, cable, compact disk and/or any written document bundled with the item.
