VA-8020 Anemometer Thermometer, Air Speed Temperature °C / °F HVAC Dual Meter Tester, 80~4000fpm (0.4~20m/s), -10~50°C (14~122°F)


Quantity
  OR


Model : VA-8020

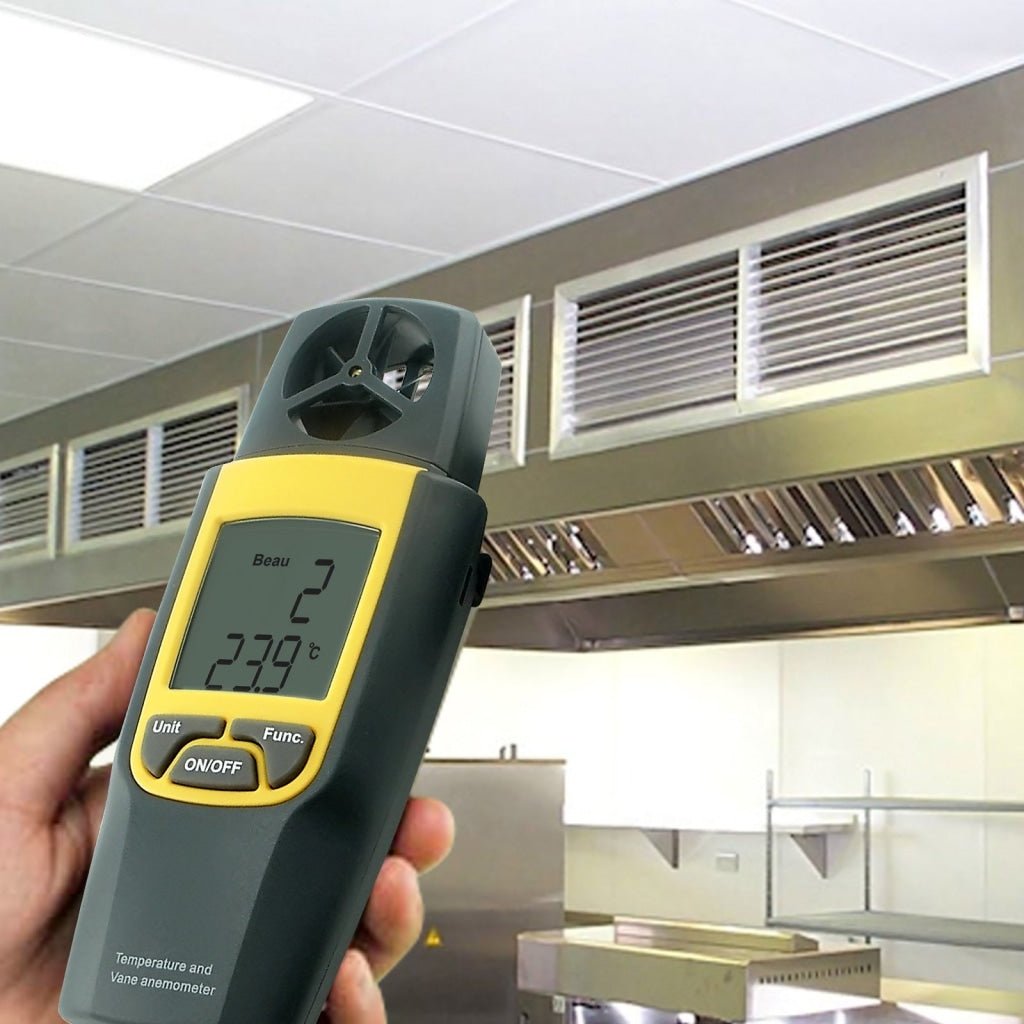

This is dual meter function as an Anemometer and Temperature meter. An accurate, general purpose vane air speed meter that simultaneously measures and displays both air flow measurement and temperature. This meter of high accuracy is ideal for quick measuring of air speed at ventilation outlets, HVAC, process control, laboratory safety, quality assurance, R & D engineers and indoor environment monitoring, ventilation surveys, air conditioning, heating and environmental monitoring. In addition, climatic conditions can also be analyzed.



Features

  • Tested according to European international guidelines and standards (CE Marking)
  • Wide velocity range with 80~4000fpm (0.4~20m/s)
  • Temperature range -10~50°C (14~122°F)
  • 8 parameters to measure velocity (m/s, km/h, fpm, mph, kts, Beaufort and temperature (°C, °F)
  • Guaranteed fast and accurate readings
  • Simultaneous measurement & display of air velocity and temperature
  • Dual level LCD with Backlight

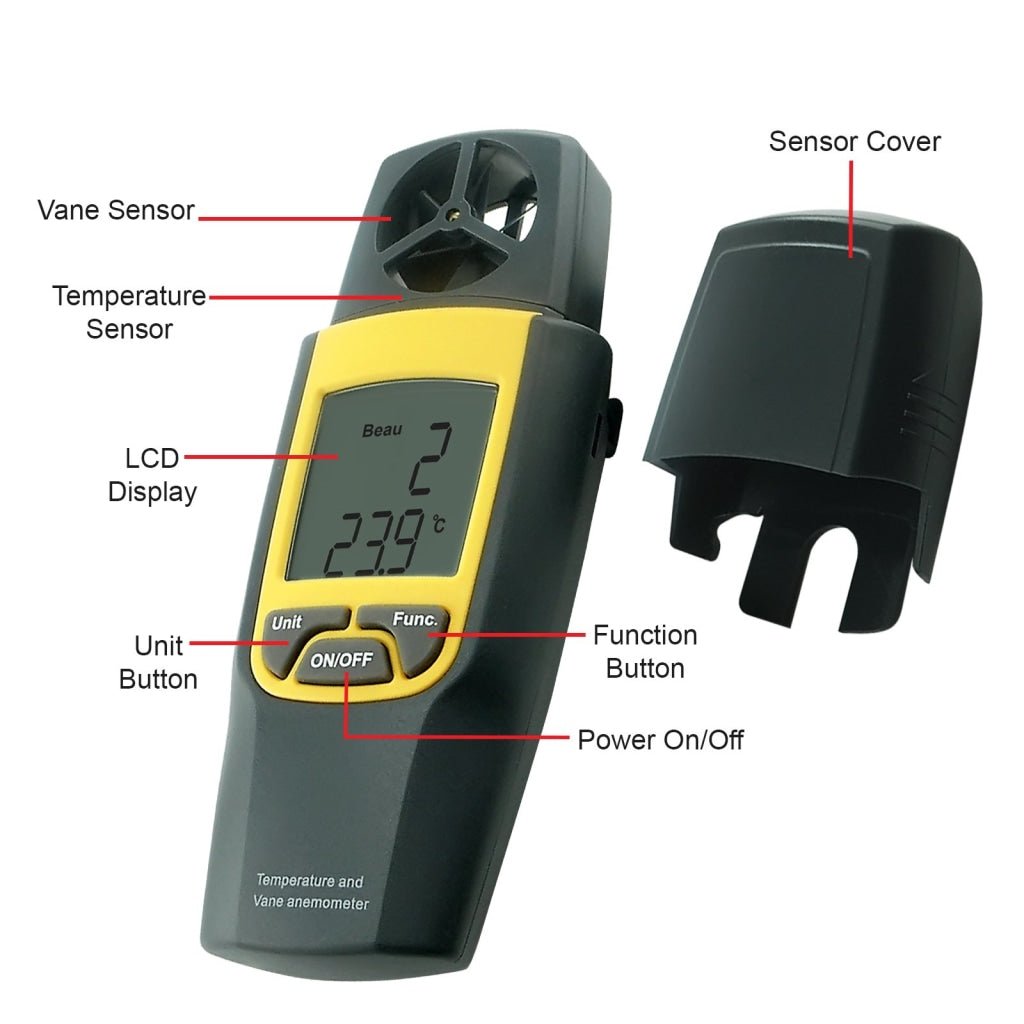

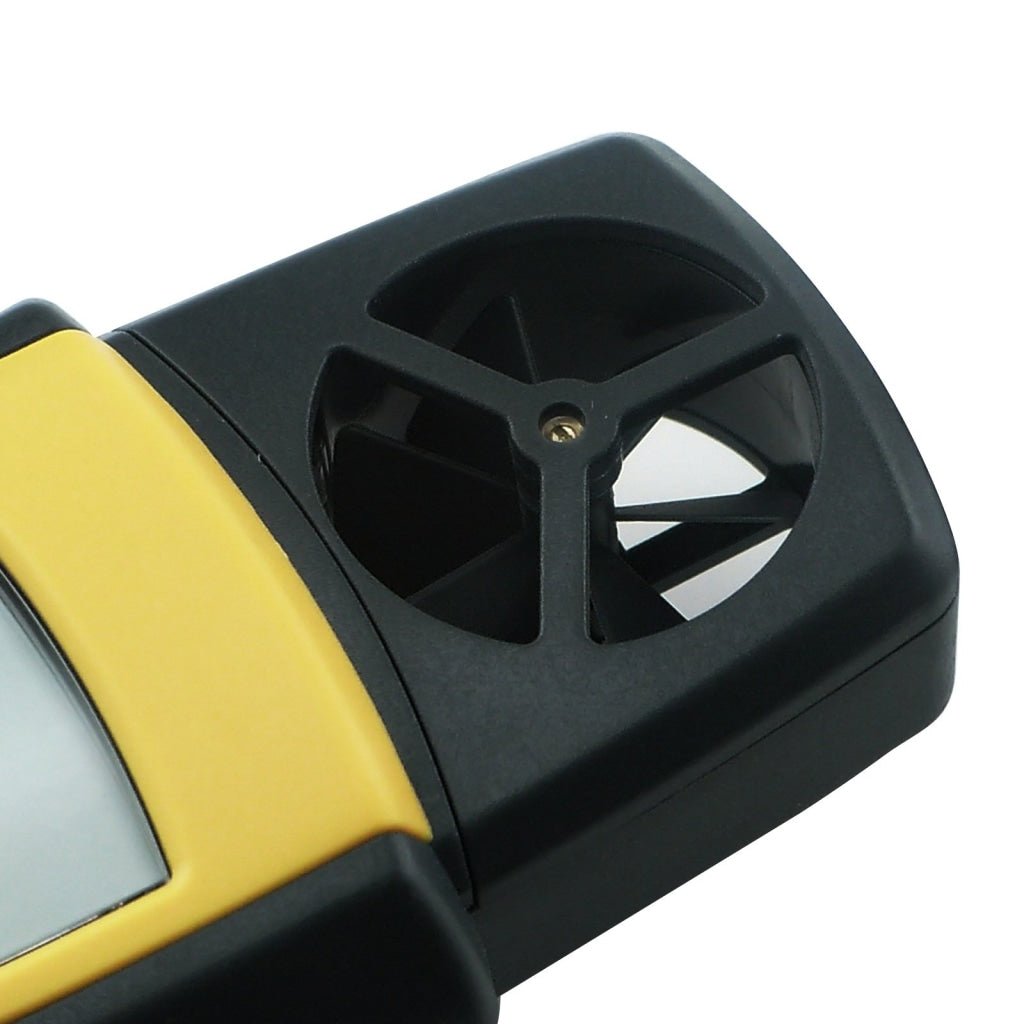

  • Built-in rotating vane sensor for one hand operation
  • Over range indication and low battery indicator
  • Automatic power-off with disable feature
  • Data Hold function
  • Switchable °C to °F
  • Maximum and Minimum velocity and temperature data can be collected
  • built-in vane integrated with air thermometer
  • Comes complete with wrist strap, belt holder and carrying case with contoured foam inside for maximum shock absorption







Specifications

Type
Range
Resolution
Accuracy
Air Velocity
0.4 ~ 20m/s
0.1m/s
±(2% of reading + 0.3m/s)
80 ~ 4000fpm
1fpm
±(2% of reading + 60fpm)
Temperature
-10 ~ 50°C
0.1°C
±1°C
14 ~ 122°F
0.1°F
±1.8°F

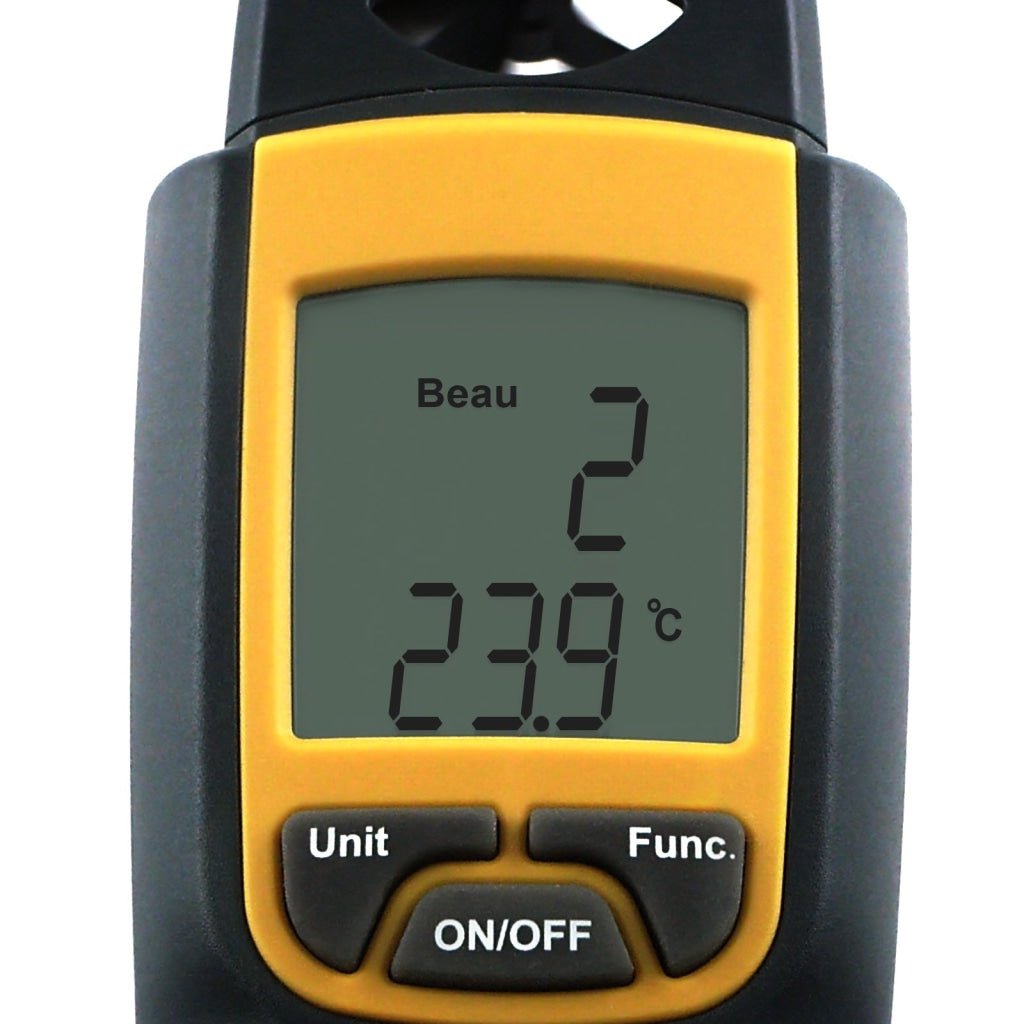

  • Dual Level Display: Velocity (Top Level), Temperature (Bottom Level)

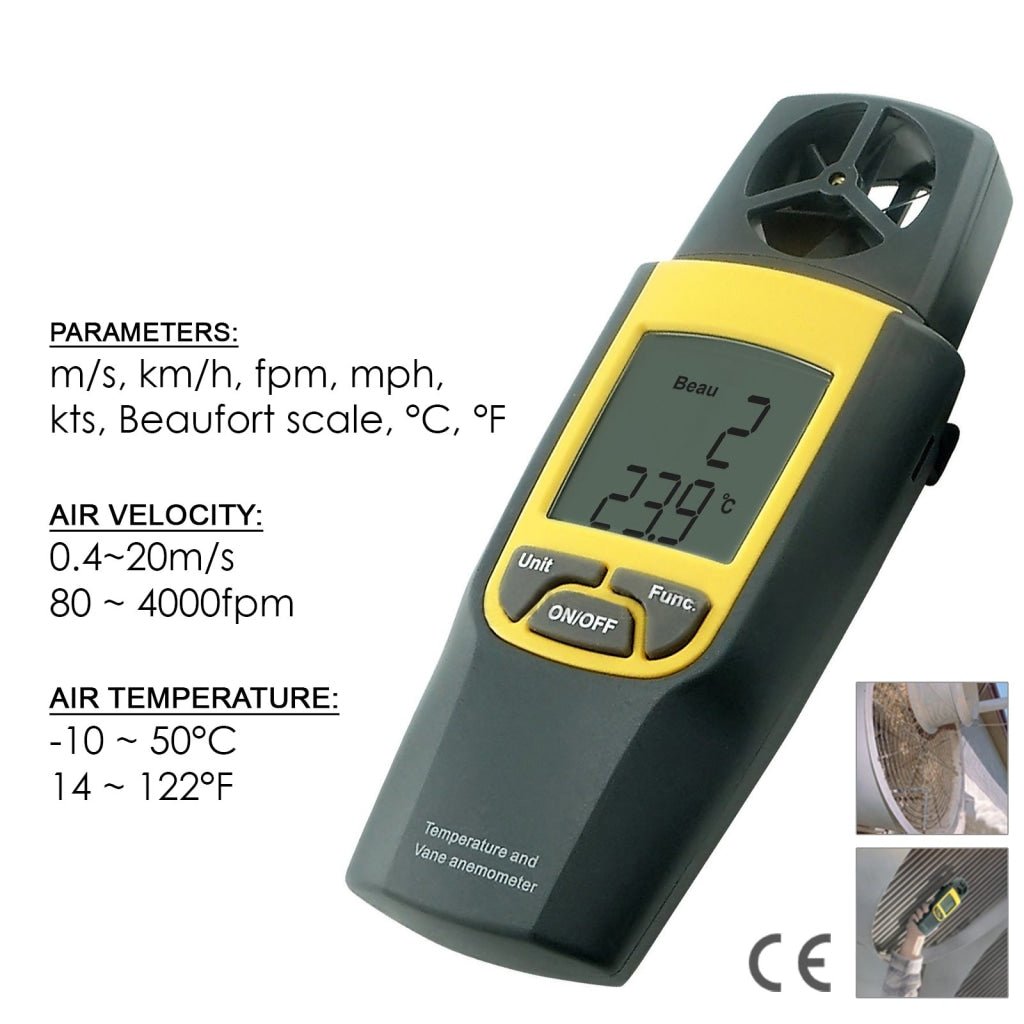

  • Parameters: m/s, km/h, fpm, mph, kts, Beaufort scale, °C, °F
  • Sample rate: 2 time / second
  • Auto power off about 20 minutes
  • Low battery indicator
  • Operating environment: -10~50°C (14~122°F), 0~80% R.H.
  • Storage environment: -20~60°C (-4~140°F), 0~80% R.H.

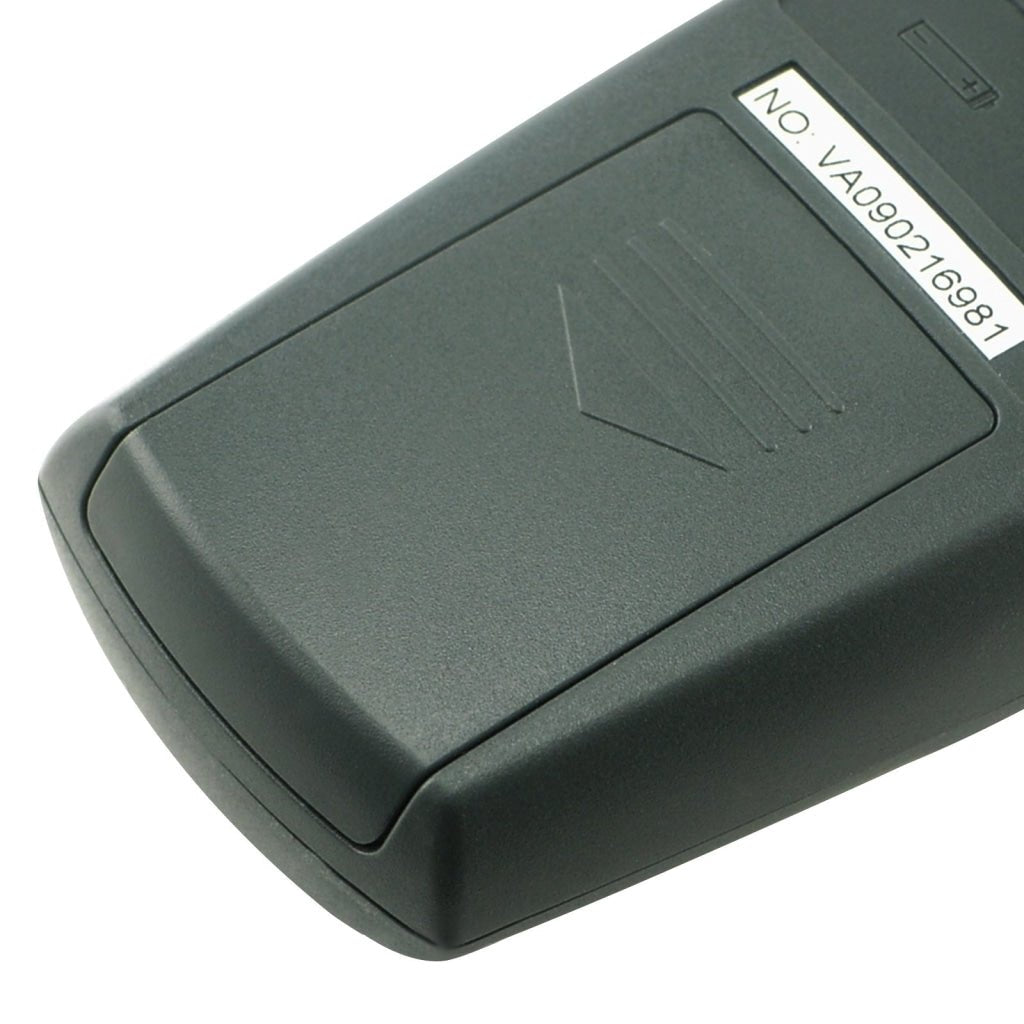

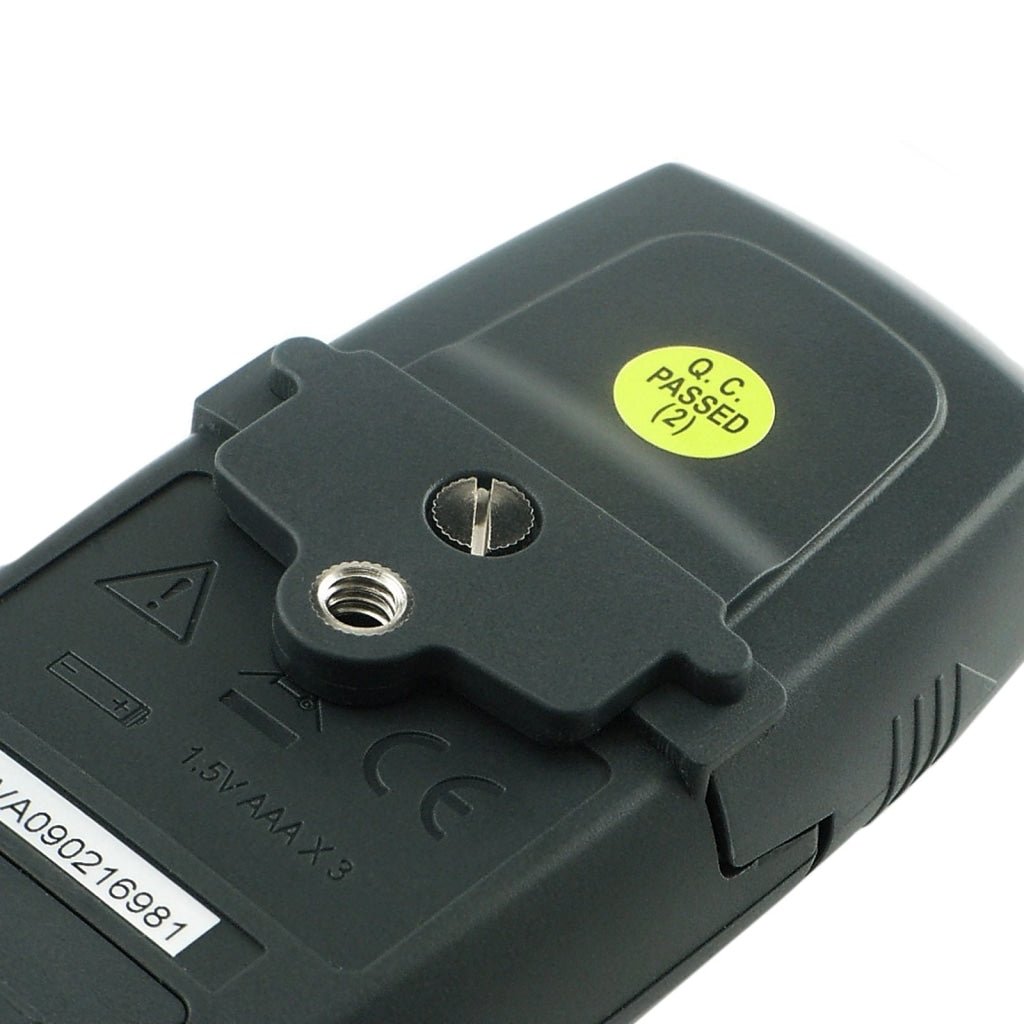

  • Power supply: 3 x 1.5V AAA Batteries (Included)

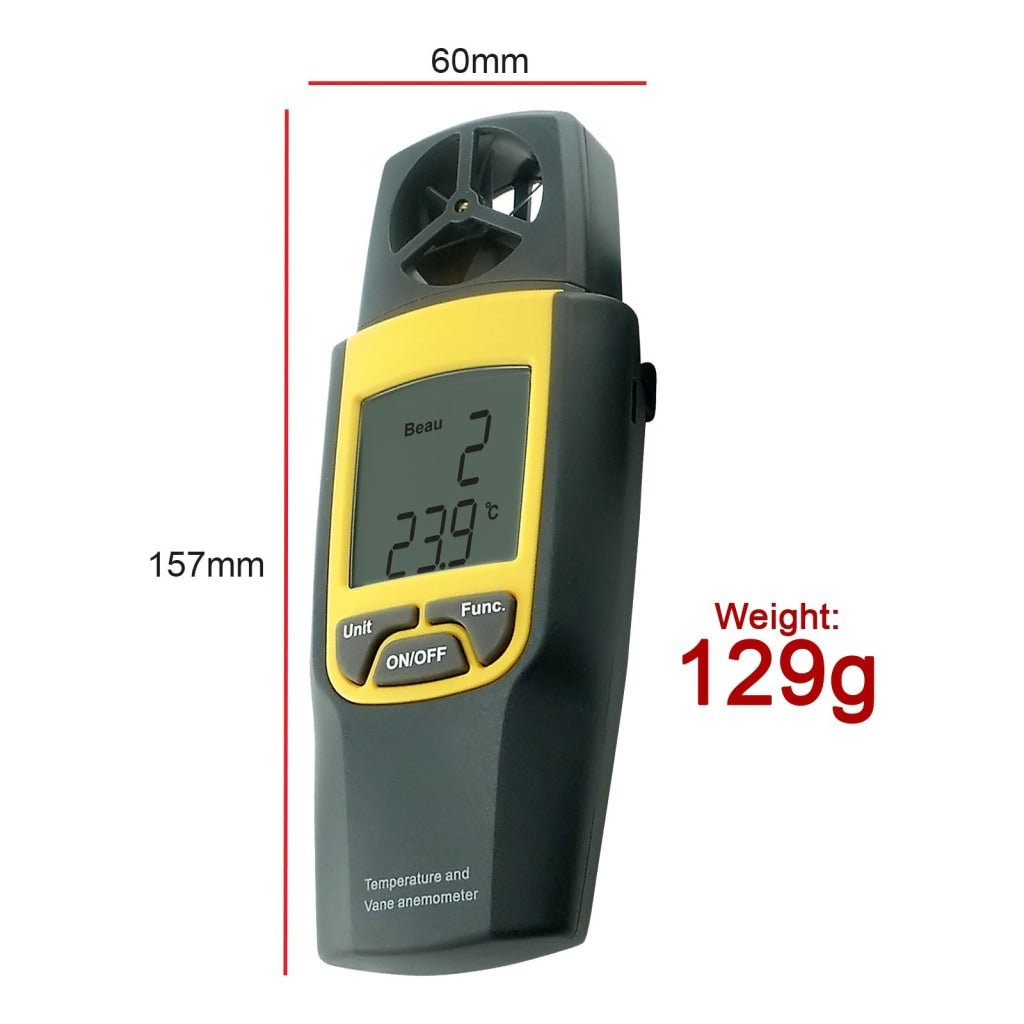

  • Size: approx. 157 x 60 x 30mm
  • Weight: approx. 129g (batteries not included)

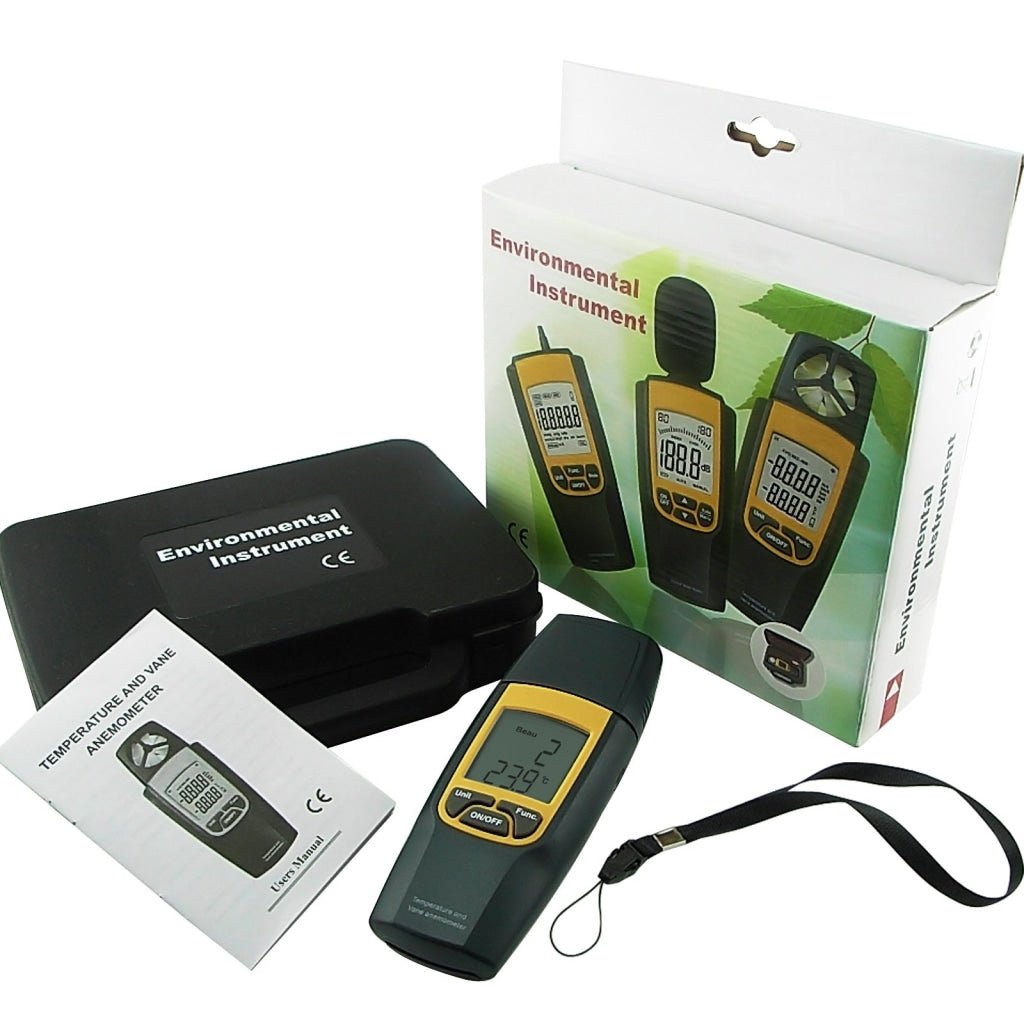

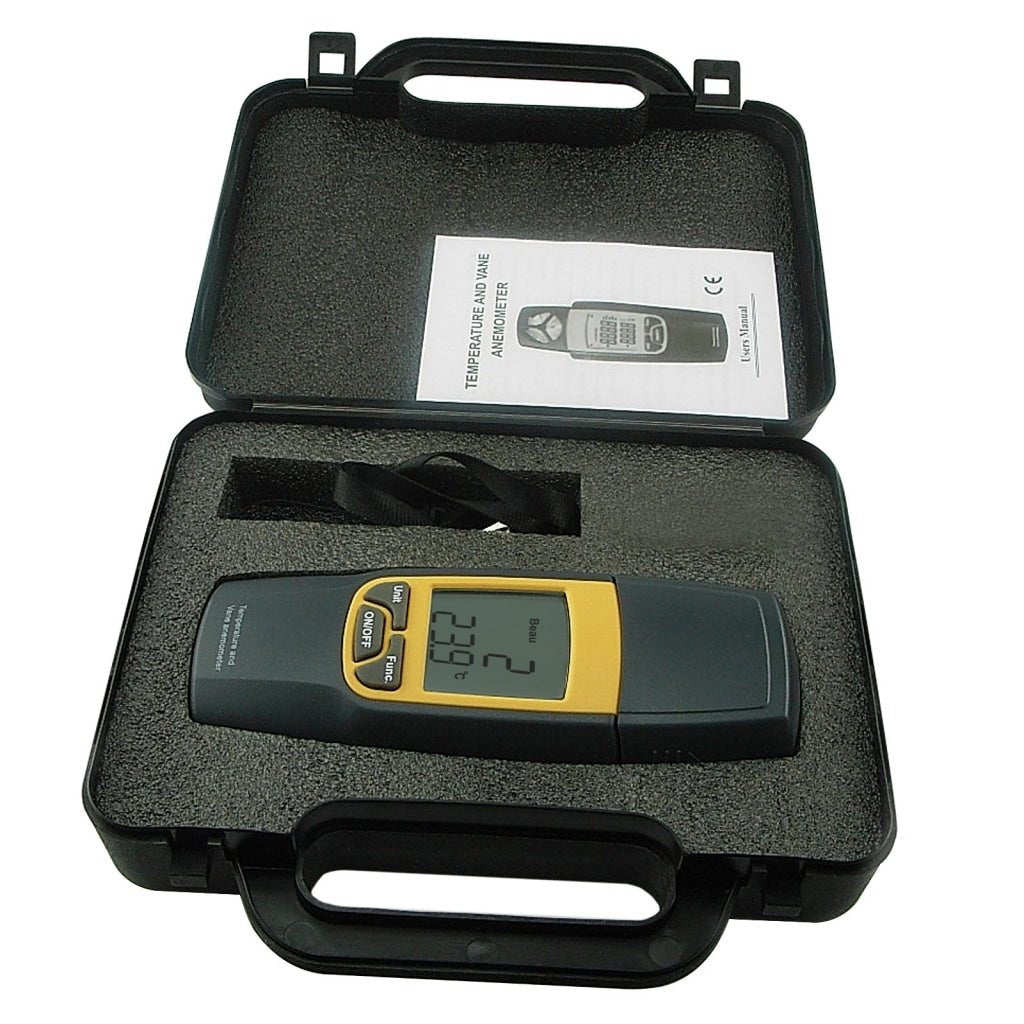

Set Includes

  • 1 x Thermo-Anemometer
  • 3 x 1.5V AAA Batteries

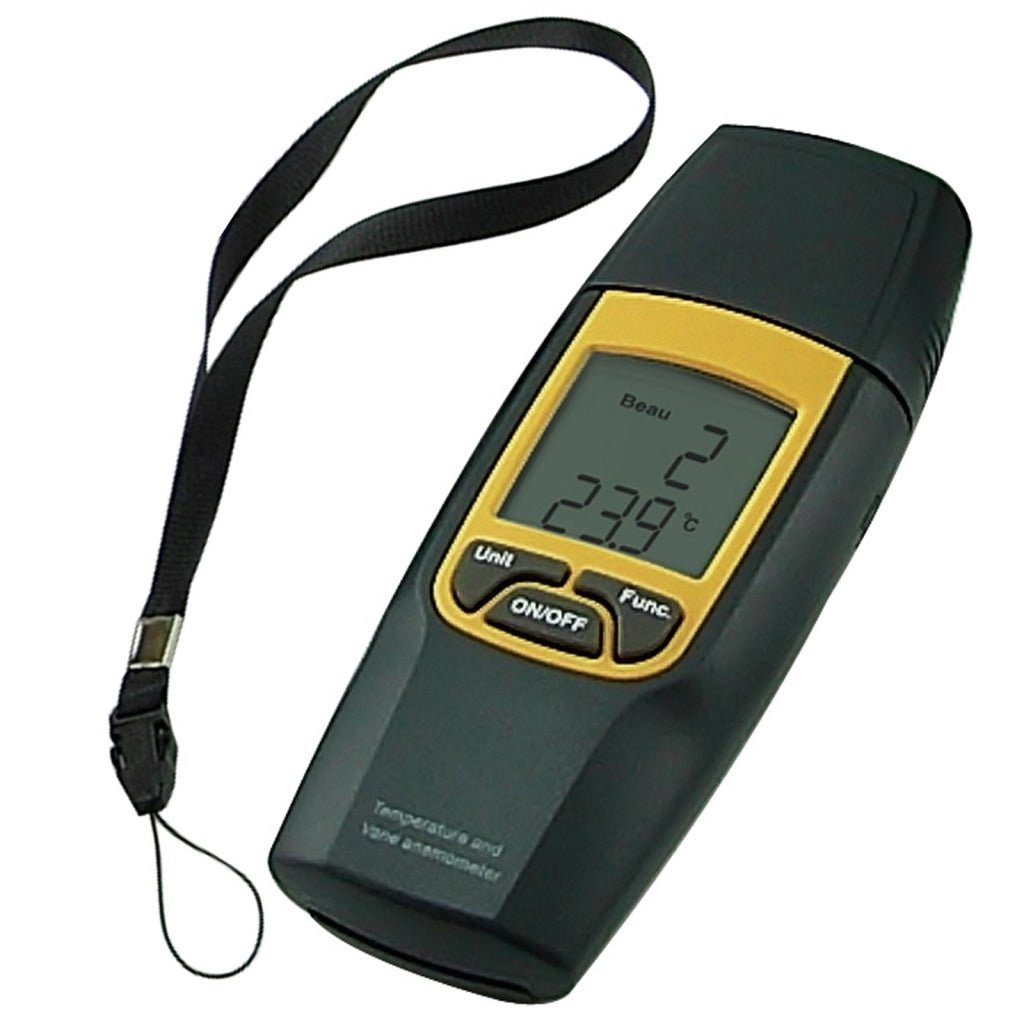

  • 1 x Wrist Strap
  • 1 x Instruction Manual
  • 1 x Protective Plastic Case
