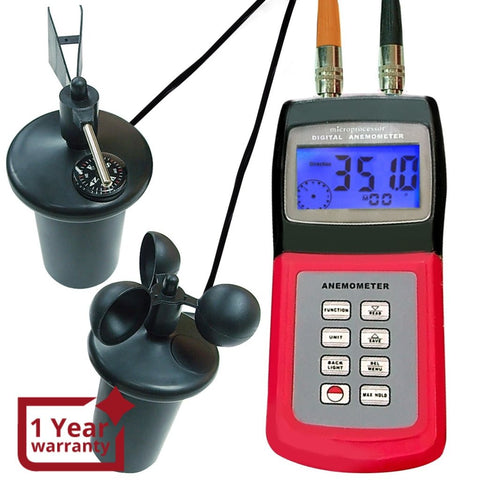

AM-4836C Digital Multi-function Thermo Anemometer 3-Cup Type Sensor Speed Air Weather Portable Tester CE marking


Model : AM-4836C

A Directional Speed thru the used of directional sensor probe had been added to the meter. This directional sensor probe can provide a wind direction measuring range of 16 direction with 22.5° resolution. Come's with 3-cup type sensor velocity probe that measures the velocity of wind. The two detachable probes that has been added are equipped with sensitive sensors that even the lightest breeze can be detected. Probes are equipped with hole for mounting for optimal stability and more accurate results.


  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
  • Uses sensitive directional and 3-cup type sensor probes
  • Equipped with Maximum Value Data Hold feature
  • It can memorize 24 groups of obtained data and capable to recall the data from the meter at anytime
  • With precised measurements of
    • Speed in selectable units such as meter/second, kilometers/hour, feet/minute & knots
    • Flow in selectable units such as cubic meters/minute & cubic feet/minute
    • Temperature in selectable units such as fahrenheit & celsius
    • Direction in 16 directions at 22.5° resolution
  • With easy to read LCD screen with vivid blue backlighting that can be switch On and OFF
  • With 0~9 minutes Auto-Switch Off set by users


  • Measurement units & parameters
    • Air Velocity: m/s, km/h, ft/min, knots
    • Air Flow:
      • CMM (m³/min)
      • CFM (ft³/min)
    • Beaufort Scale: Force
    • Wave Height: m
    • Wind Direction: ° from the North direction
    • Air Temperature: °C & °F
  • Range Specifications
  • Display: Easy to Read Dual Function 0.5" (13mm) 4-digit LCD with Excellent Blue Backlighting Function
  • Data hold Maximum Value
  • Data memorized 24 groups
  • Custom LSI Microprocessor Circuit
  • 1 reading per second approx. sampling rate
  • Sensors Air velocity/flow sensor: 3 cup probe with ultra-low friction ball bearing
  • Direction probe: low friction directional probe with compass
  • Temperature sensor: NTC-type precision thermistor
  • With optional Data Output RS232C serial interface
  • Operating Temperature is 32 ~122°F or 0 ~ 50°C
  • Maximum Operating Humidity 80% RH
  • Power Supply 4 x 1.5V AAA size
  • Weight 260g (0.57lb) including batteries & probes
  • Dimensions Main instrument: 156mm x 67mm x 28mm (6.1" x 2.6" x 1.1")
  • Velocity sensor: 65mm x 65mm x 115mm
  • Direction sensor: 86mm x 69mm x 115mm

Set Includes

  • 1 x Digital Anemometer
  • 1 x detachable Low friction probe (directional probe)
  • 1 x detachable 3-cup probe (velocity probe)
  • English Operating Manual
  • Protective Carrying Case

Optional Item (not included in set)

Please click here to buy this optional item   Extra CD Software and cables

or you may contact us at sales(at) if you want an optional items to be included in your order
