TMG-4001 Ultrasonic Metal Steel Aluminum Glass Fiber Thickness Velocity Gauge Meter Tester with Backlight Internal Memory 100000 LCD


Quantity
  OR


Ultrasonic Thickness Gauge can test the thickness of metal and other good conductors or materials of ultrasonic. The gauge can measure the concrete slab thickness mainly by using distribution characteristics of electromagnetic field. It is a kind of intelligent thickness measuring instrument that is portable, convenient and accurate.


FEATURES
  • Measure range : 0.75-500mm
  • Working principle is Ultrasonic (Pulse - Echo)
  • Measures thickness of metal covered with coating thickness of 2-25mm
  • Internal Memory up 100,000 sets of data
  • Advanced Auto Probe Zero Calibration
  • Can save data for later analysis
  • Easy to calibrate any time and any place
  • Threshold Limit alarm function
  • Accuracy of 0.1/0.01mm to 0.01/0.001 inch
  • Probe Connection / Coupling Indicator
  • Extra-long standby time: 200 hours.
  • Icon-style Menu
  • Showing different data modes
  • Scroll Bars Indicates Function
  • 1000 files and 1000 data/each file
  • Statistic Function
  • Online statistic : Max Min, Standard Deviation
  • Document Statistic : Max Min Average, mean square error



SPECIFICATIONS

  • Principle: Ultrasonic(Pulse-Echo/Echo-Echo)
  • Measuring Range: Normal: 0.75-40mm, Coating: 2-25mm
  • Resolution: 0.1mm(> 100mm)/0.01mm(<100mm)
  • Accuracy: ±(0.5%H+0.01)mm

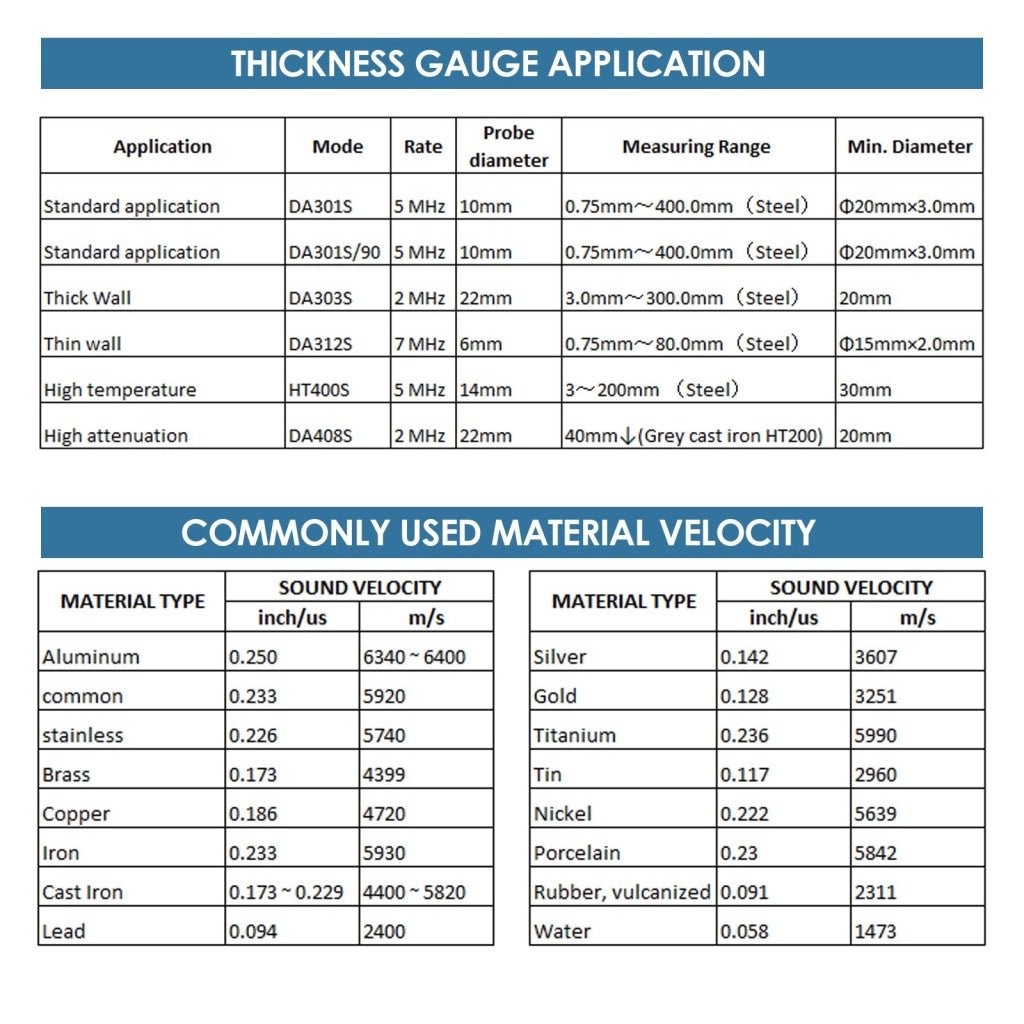

  • Velocity: 1000~9999m/s
  • Calibration: Auto Sound-Velocity-Calibration
  • Auto Probe Zeroing Calibration
  • Pulse: 150V Negative Pulse
  • Receiver: Gain: High/Low/Auto
  • Bandwidth: 0.5-15MHz

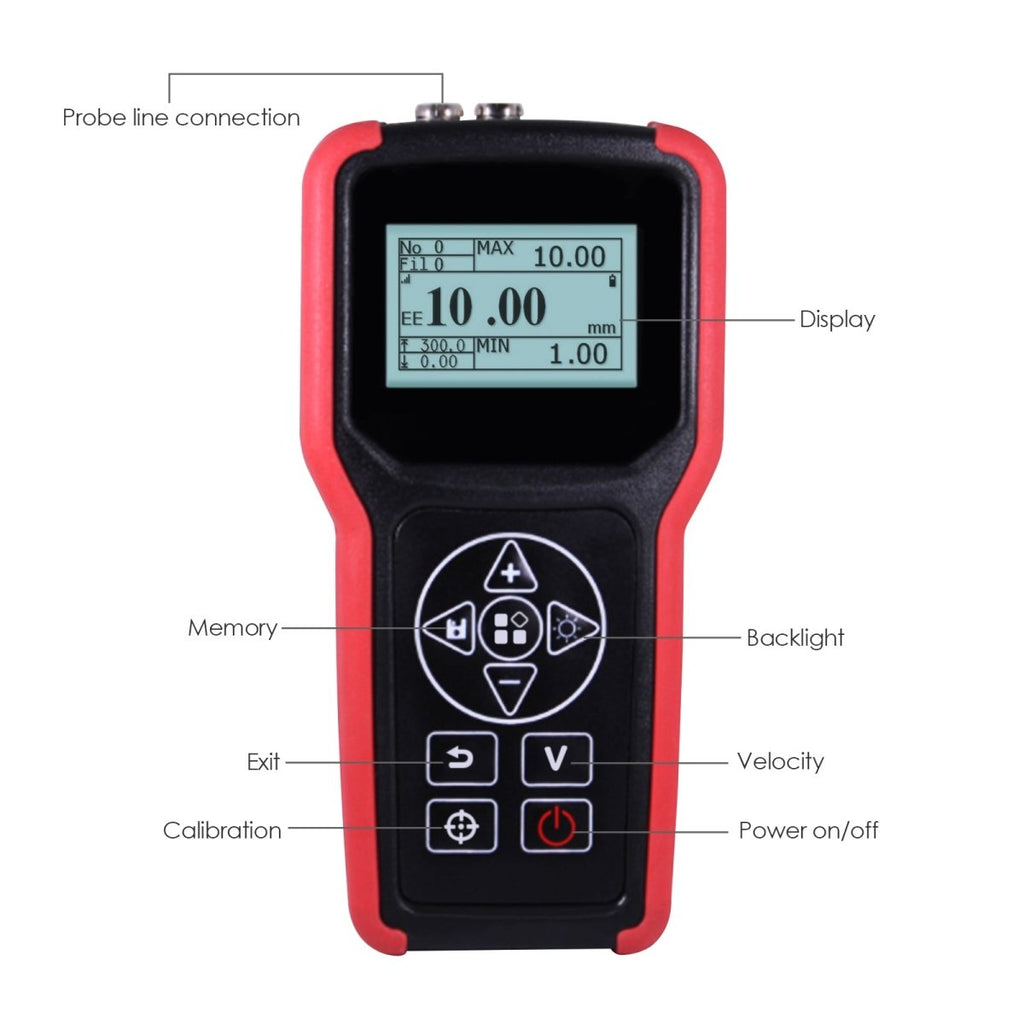

  • Indicator: Probe Connection Indicator
  • Coupling Indicator
  • DISPLAY LCD, High-Contract 128*64
  • Beautiful printed characters, Number,
  • Symbol, High Brightness EL Backlight
  • Thickness Logging: 1000 data sets/group, liner
  • Update Rate: Single Point: 5 times/s
  • Scan Mode: 25times/s
  • Input/Output: Probe Cable: LEMO 00 (C5) x2
  • Communication: USB
  • Language: Chinese /English
  • Unit: mm/inch
  • Measuring: Result Showing: Online Statistic/Velocity
  • Statistic: Online:Max Min ,Standard Devration
  • File: Max, Min AVG, mean square error
  • Alarm: Threshold Acoustooptical Alarm
  • Memory: Files: 1000 groups
  • USB Storage Connection USB is allowed, convenient to read thickness values
  • Environment Temperature:-20°C~70°C
  • Humidity:5%~90%
  • Power Source: 4 x 1.5V AAA battery
  • 200 hours Working Time

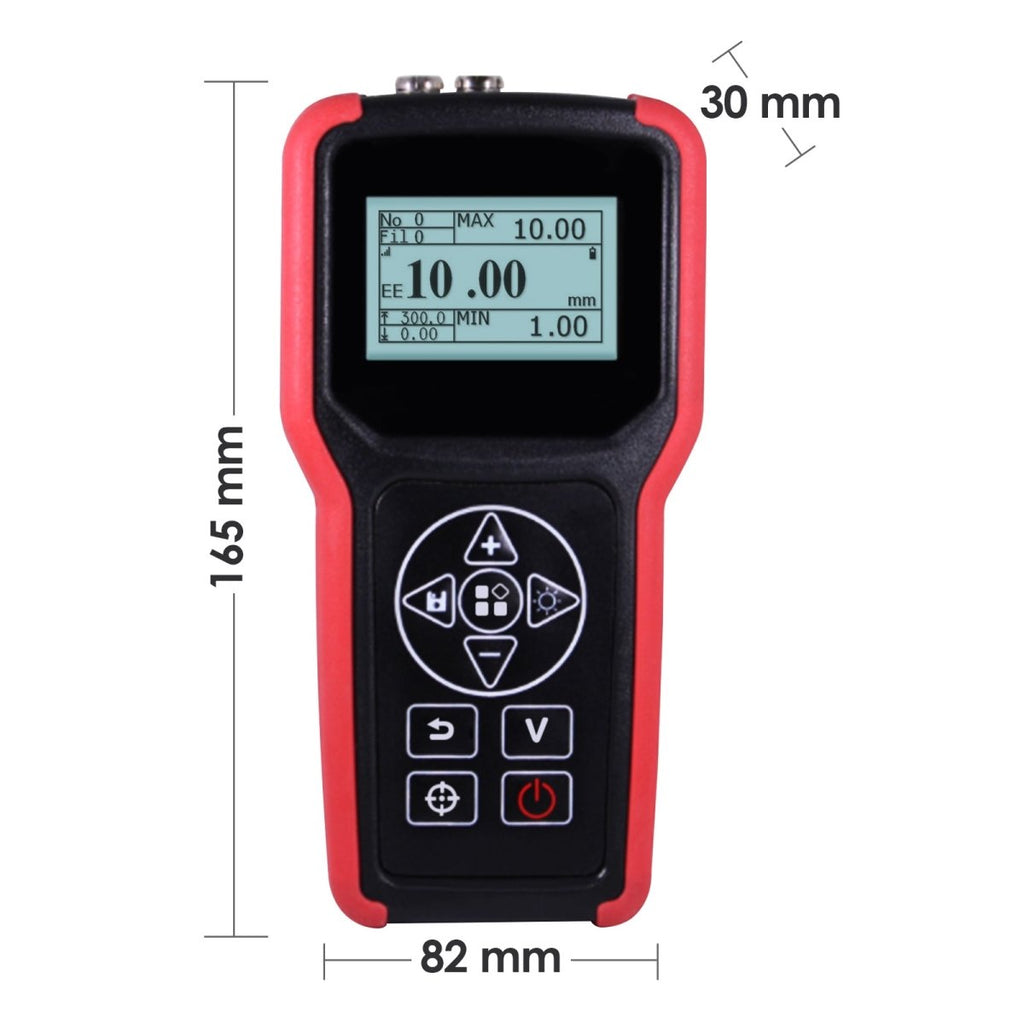

  • Dimension (mm): 165×82×30
  • Weight: 250g

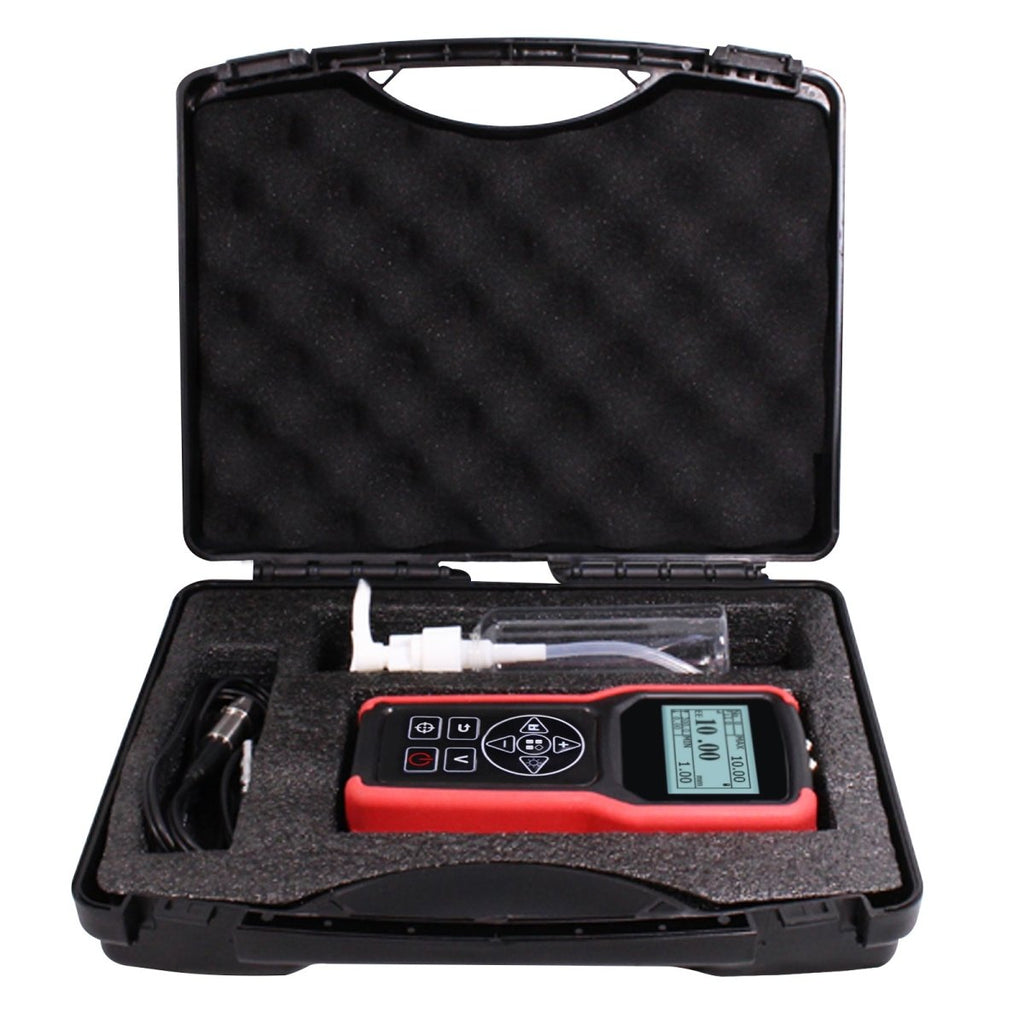

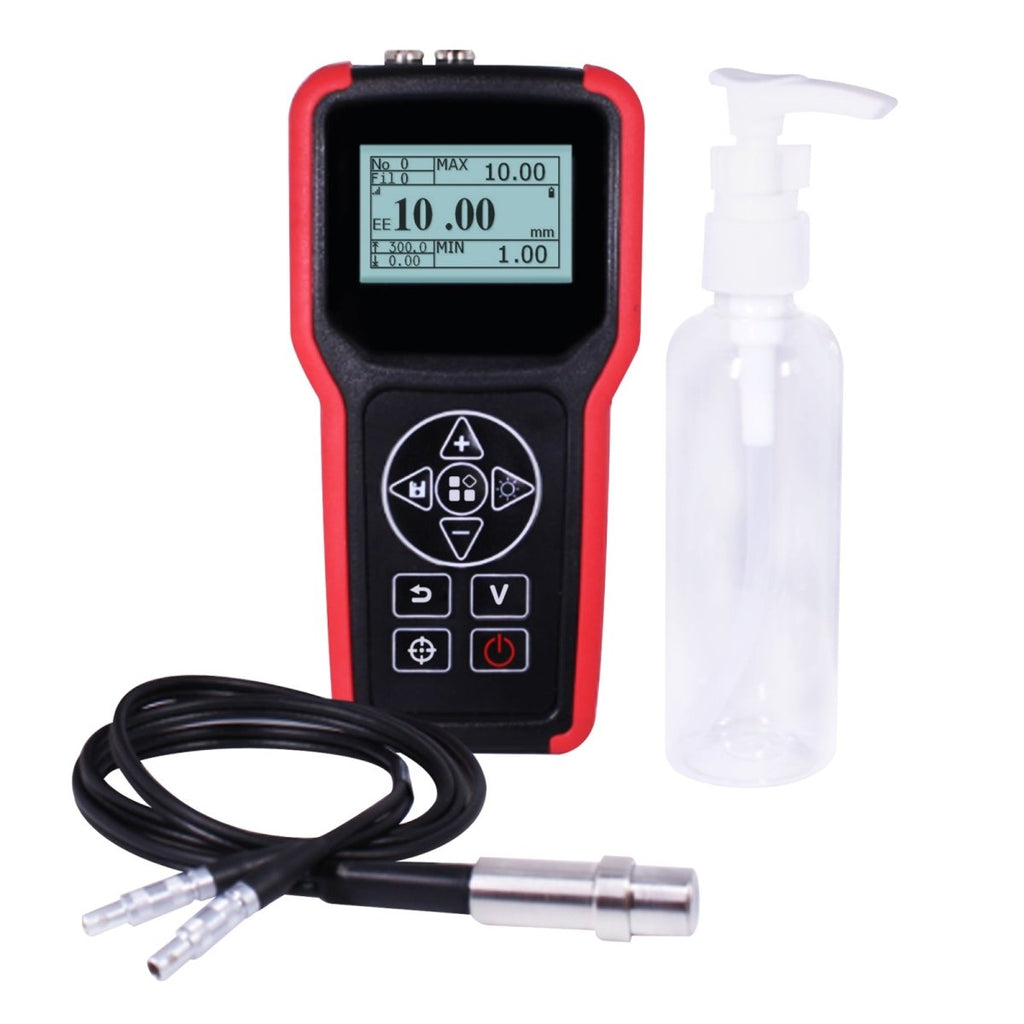

SET INCLUDES

1 x Main Unit
1 x Probe
1 x Probe Cable
1 x Operation Manual
1 x Carrying case
