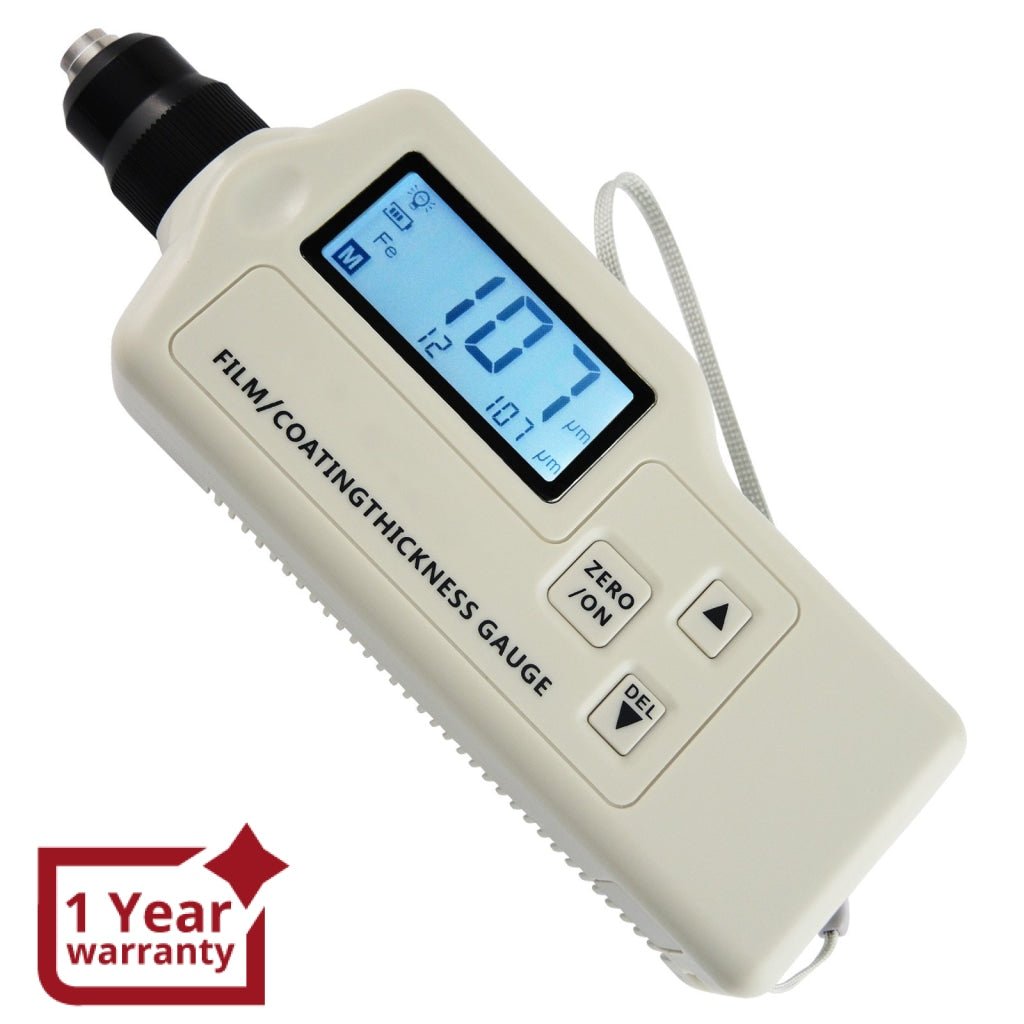

T05-001 Non-Destructive Digital Film / Coating Thickness Gauge Meter 1800um Magnetic Induction

  • 0% OFF
  • Regular Price

    $179.00



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

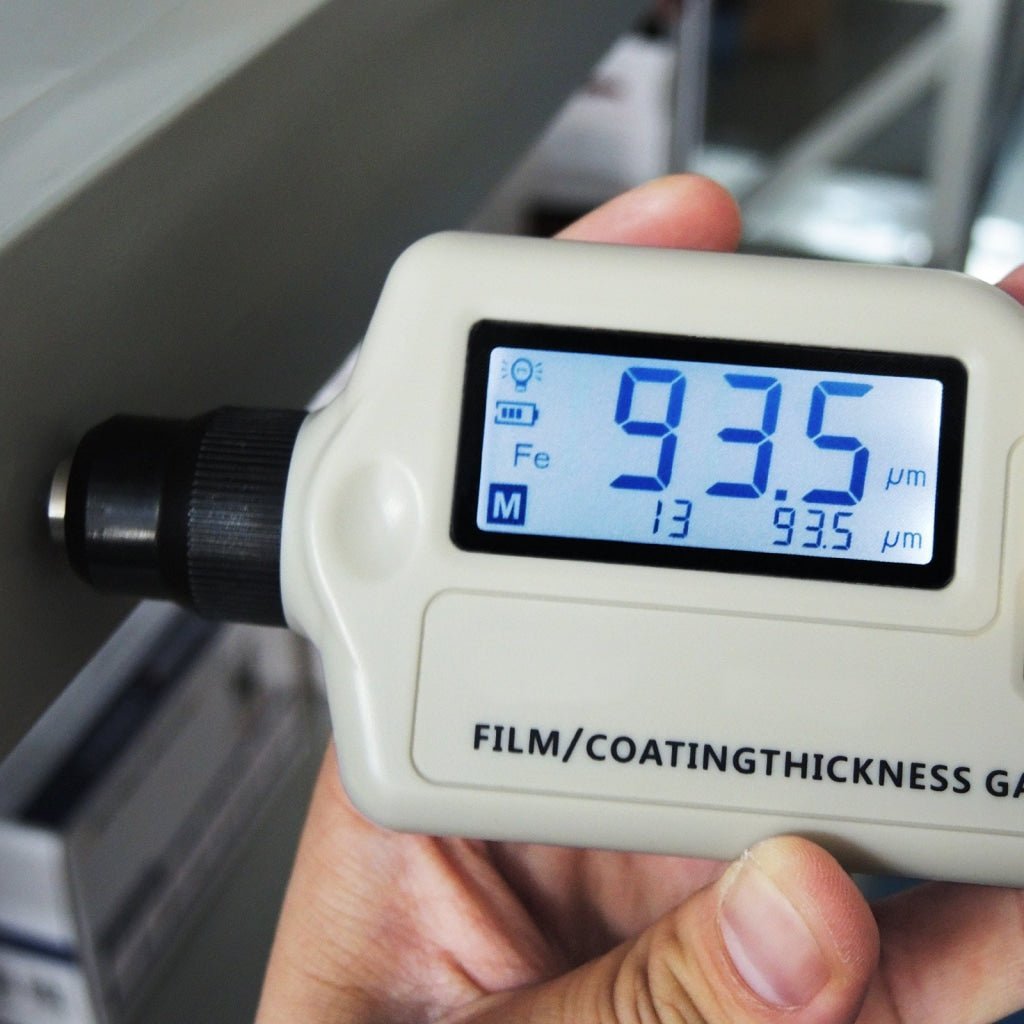

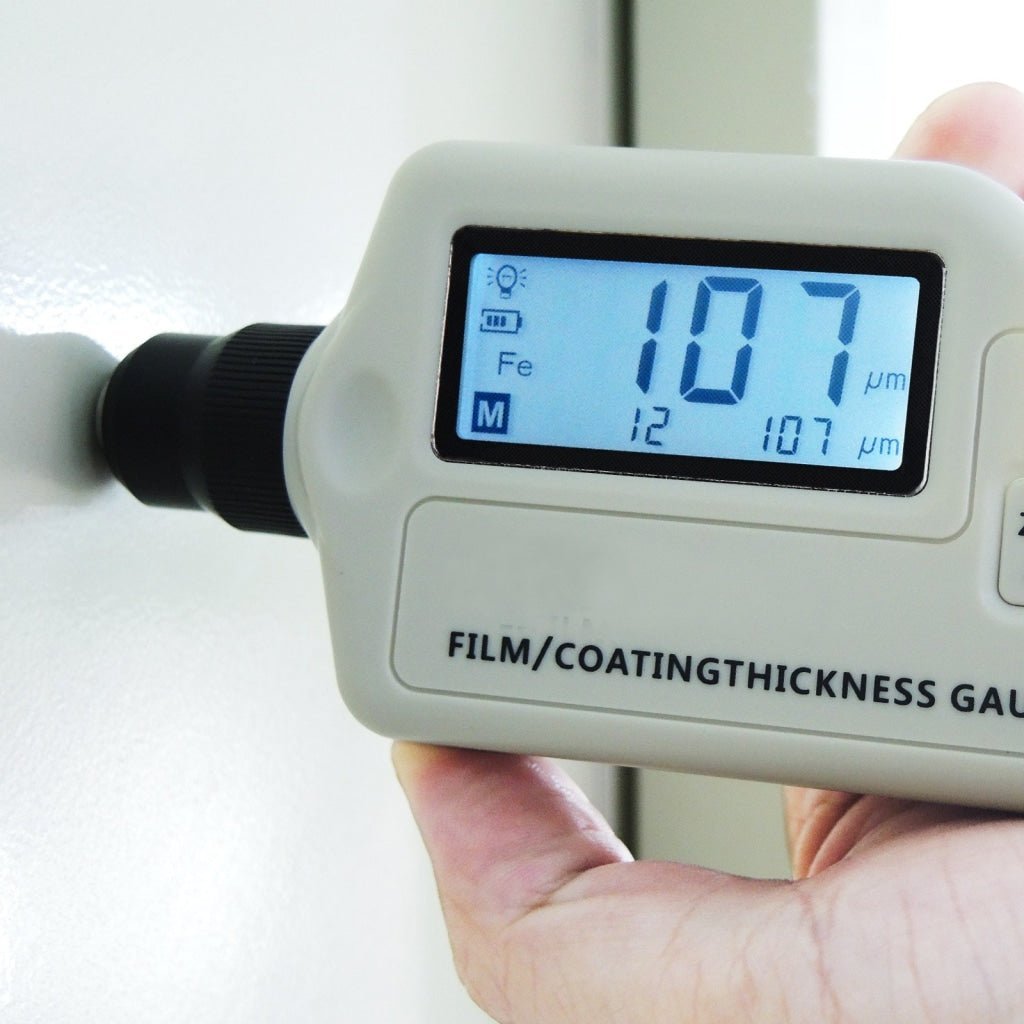

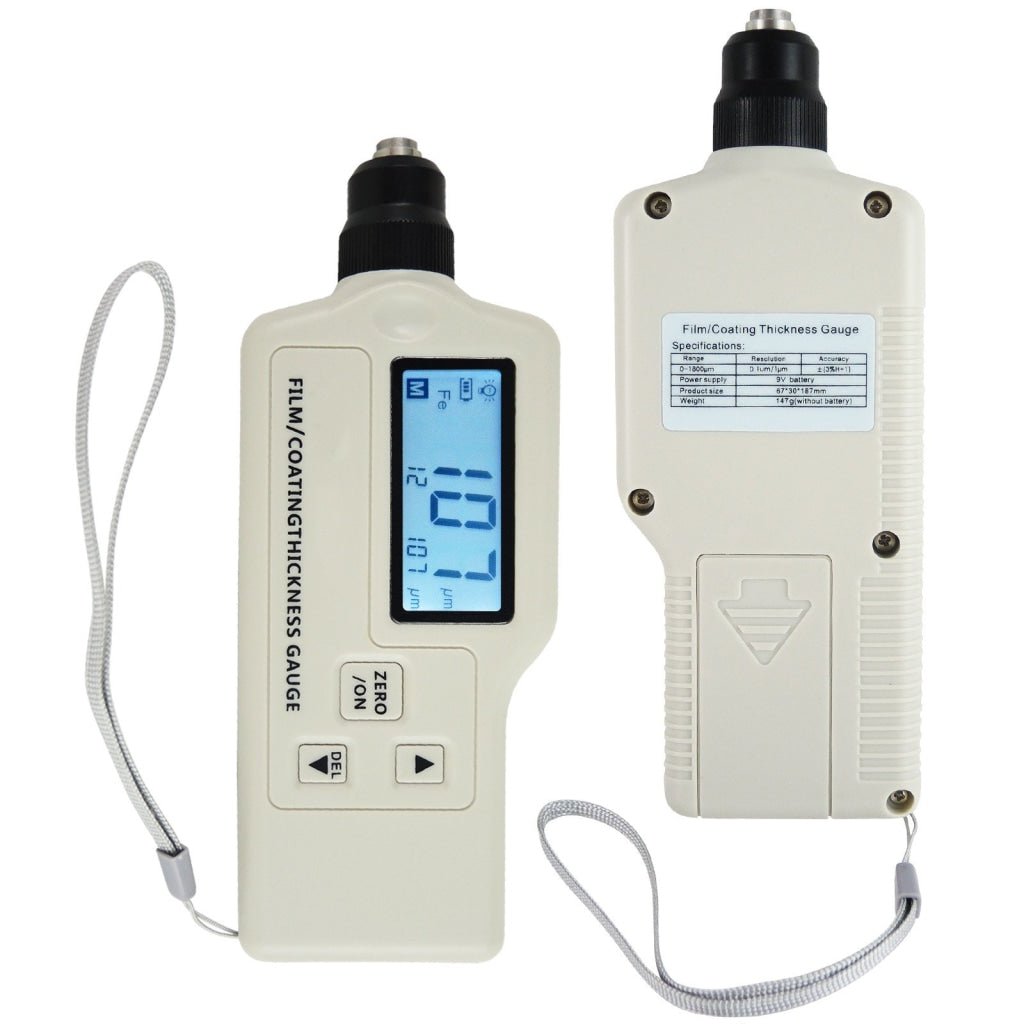

This portable Film/Coating Thickness Gauge Meter adopts magnetic induction technique for measurement. The compact design perform fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor.

It is widely used on manufacturing, workshop, chemistry or quality control fields.



Features:

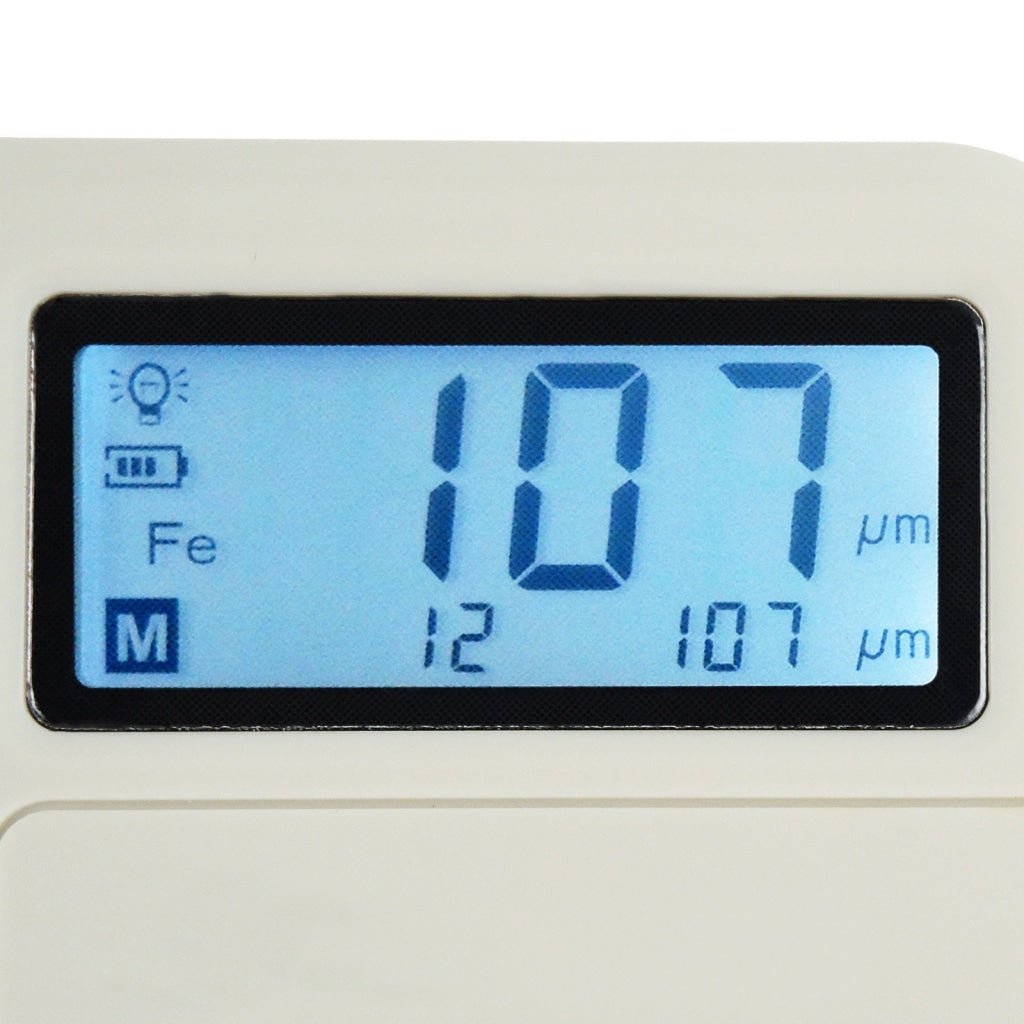

  • LCD display measurement value and status

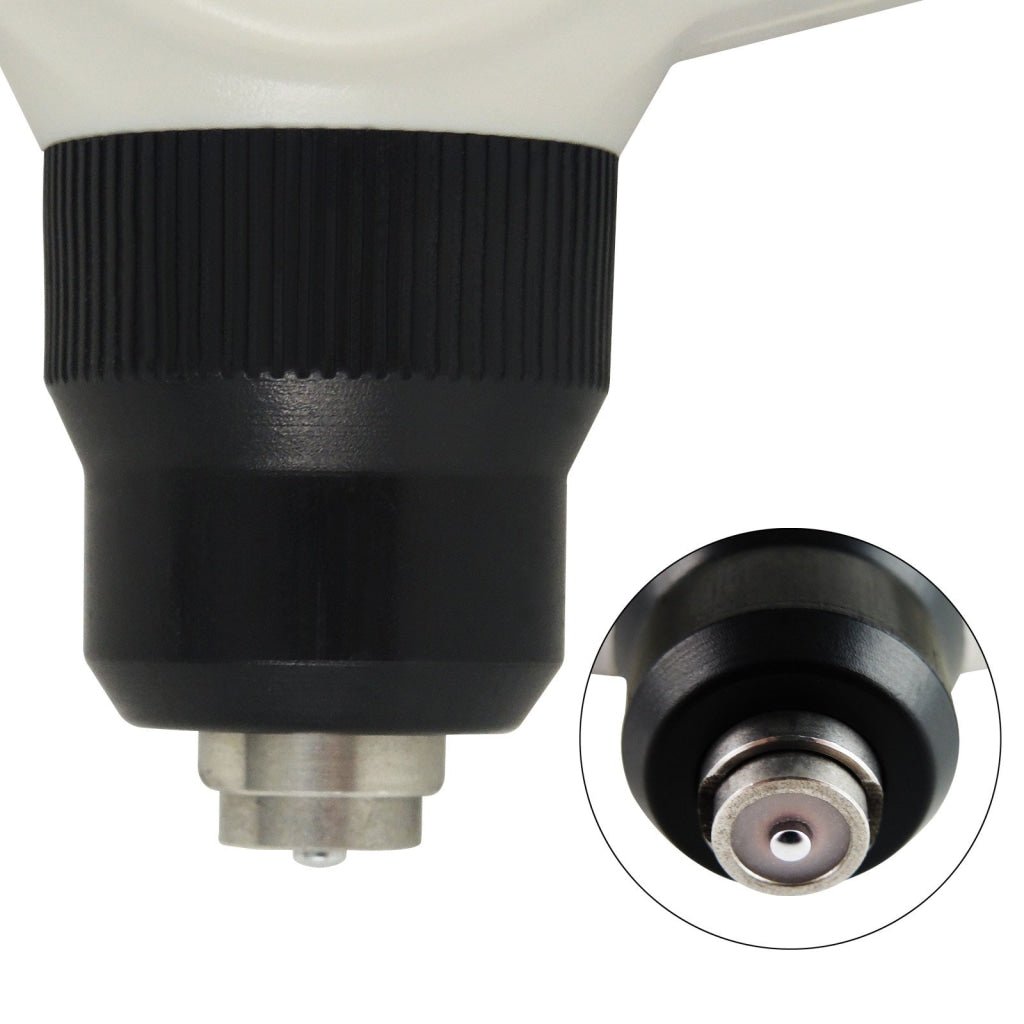

  • Use Hi-sensibility sensor for precise measurement
  • 0 point, 2 point and basic, three different  calibration modes easy to process the system quick calibration
  • Single, Continuous and Difference measuring mode
  • Data record, recall and delete function
  • Data analysis : Average, Maximum, Minimum, Standard, and measure times
  • Beep sounds indication
  • Metric/Imperial unit selection
  • Low Battery indication
  • Auto power off
  • Backlight LCD
  • Simple, compact structure and portable design

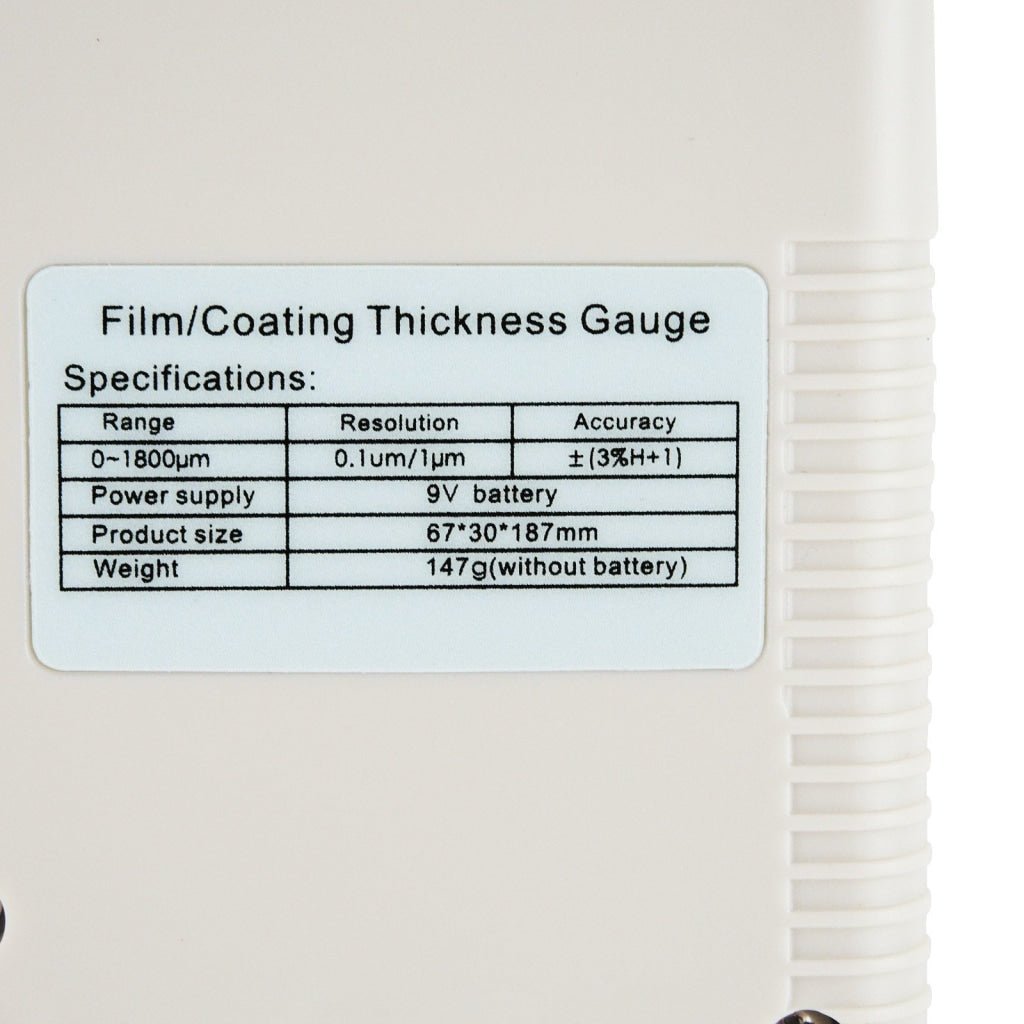

Specifications:

  • Measurement Range: 0~1800µm
    • Resolution : 0.1/1µm
    • Accuracy : ±(3%H+1)
      • ( H = Nominal Transformation ratio )
  • Conditional of Objective material:
    • Suitable for measure about non magnetic coating magnetic conductor base material
      • The minimum curvature radius
      • Convex : 2mm / Concave : 11mm
      • Minimum Sample diameter : 12mm
      • Minimum Substrate thickness : 0.5mm
  • Operation current : Around 14mA
  • Operation Temperature : 0~40°C
  • Operation Humidity : 10~95% RH

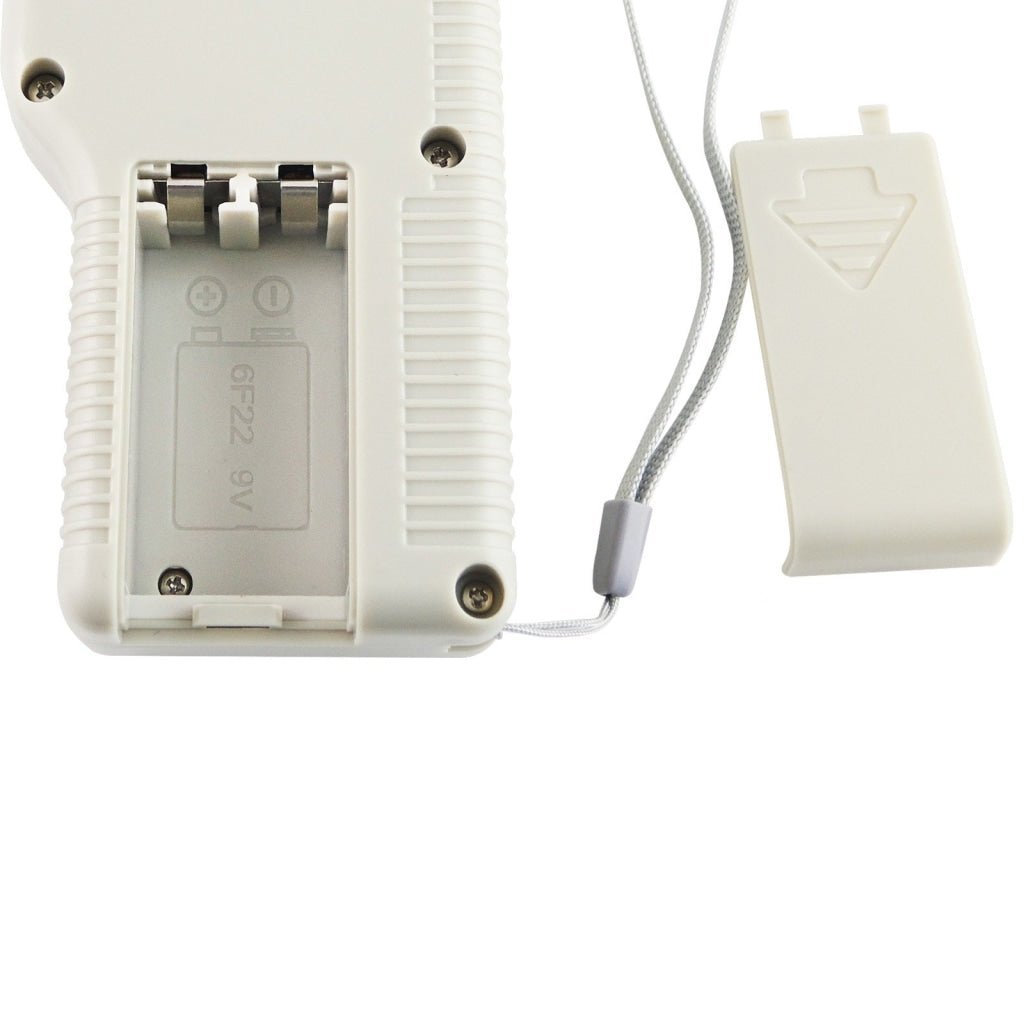

  • Power supply : 1 x 9V battery (included in the set)
  • Battery life : 20 hour of continuous operation
  • Auto power off : 1 min.
  • LCD backlight function : 7 secretary
  • Low battery indication : 7.0v / 2V
  • Product size : 67 x 30 x 187mm
  • Weight : 147g (w/o battery)

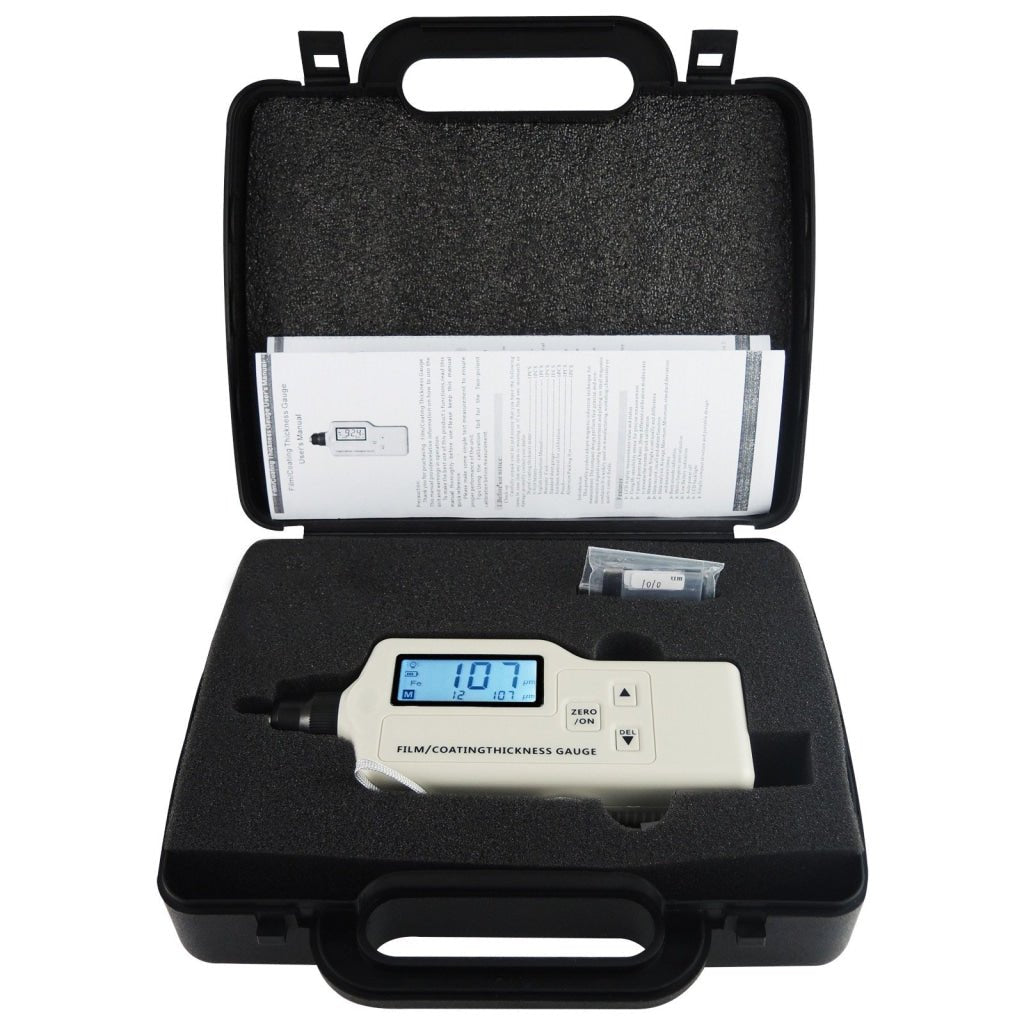

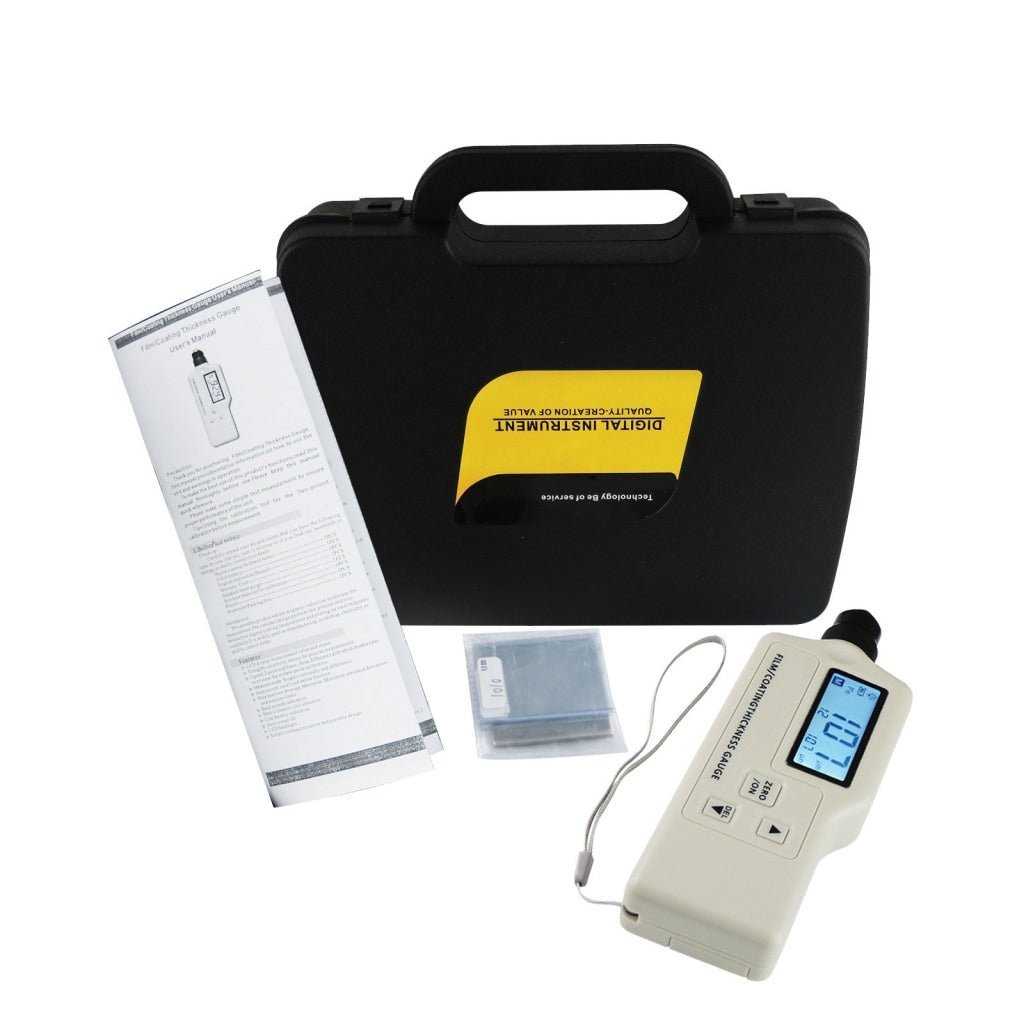

Set includes:

  • 1 x Digital Coating Thickness Tester

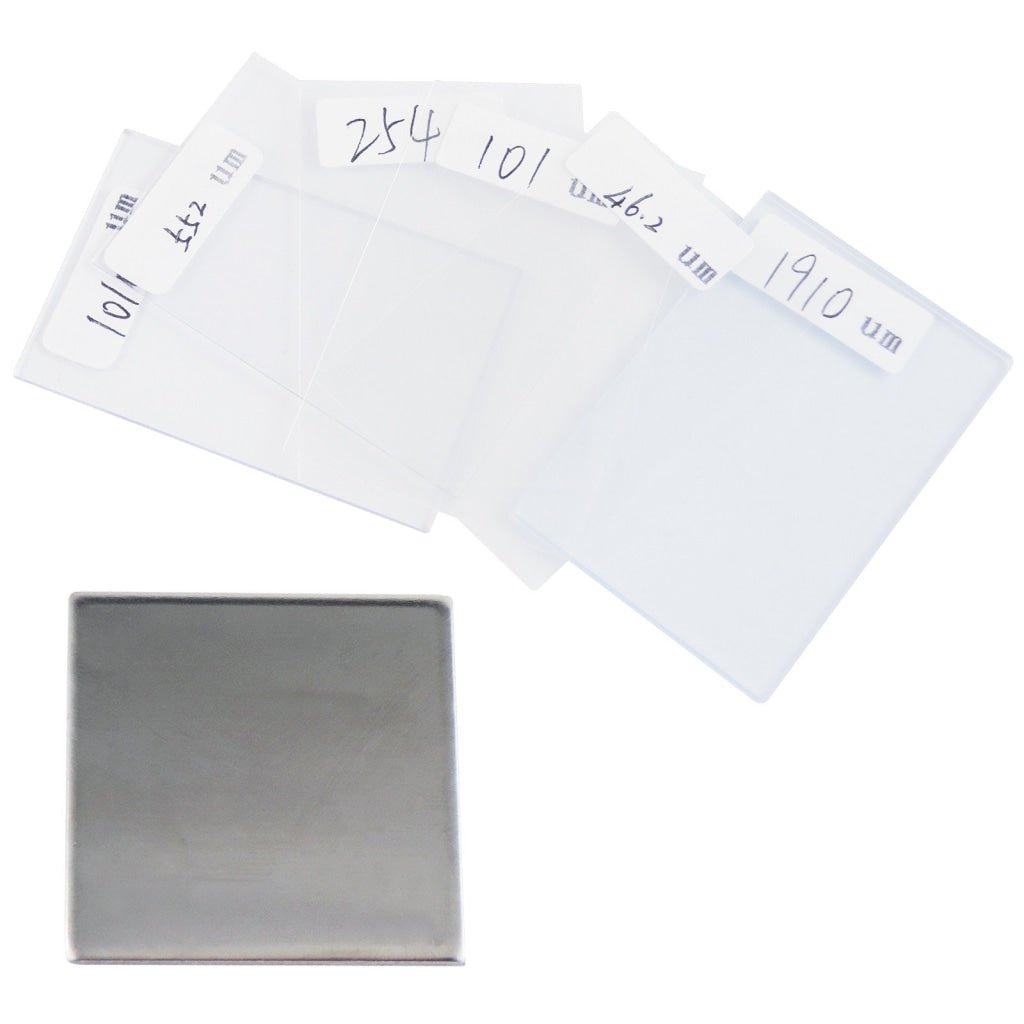

  • 6 x Iron base material for calibration
  • 1 x 9V Battery
  • 1 x English Instruction Manual
  • 1 x Carrying Case
  • Standard Packaging Box
