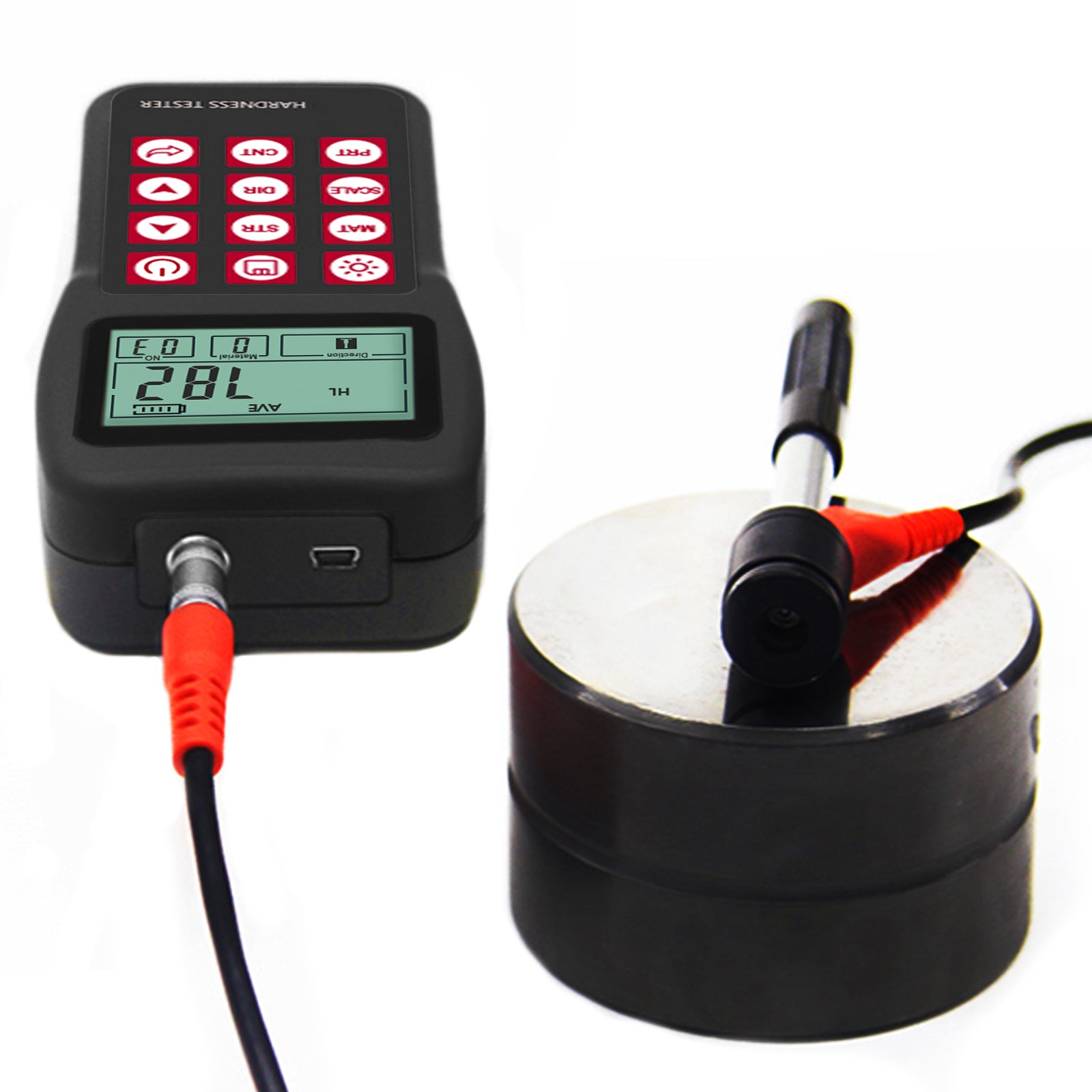

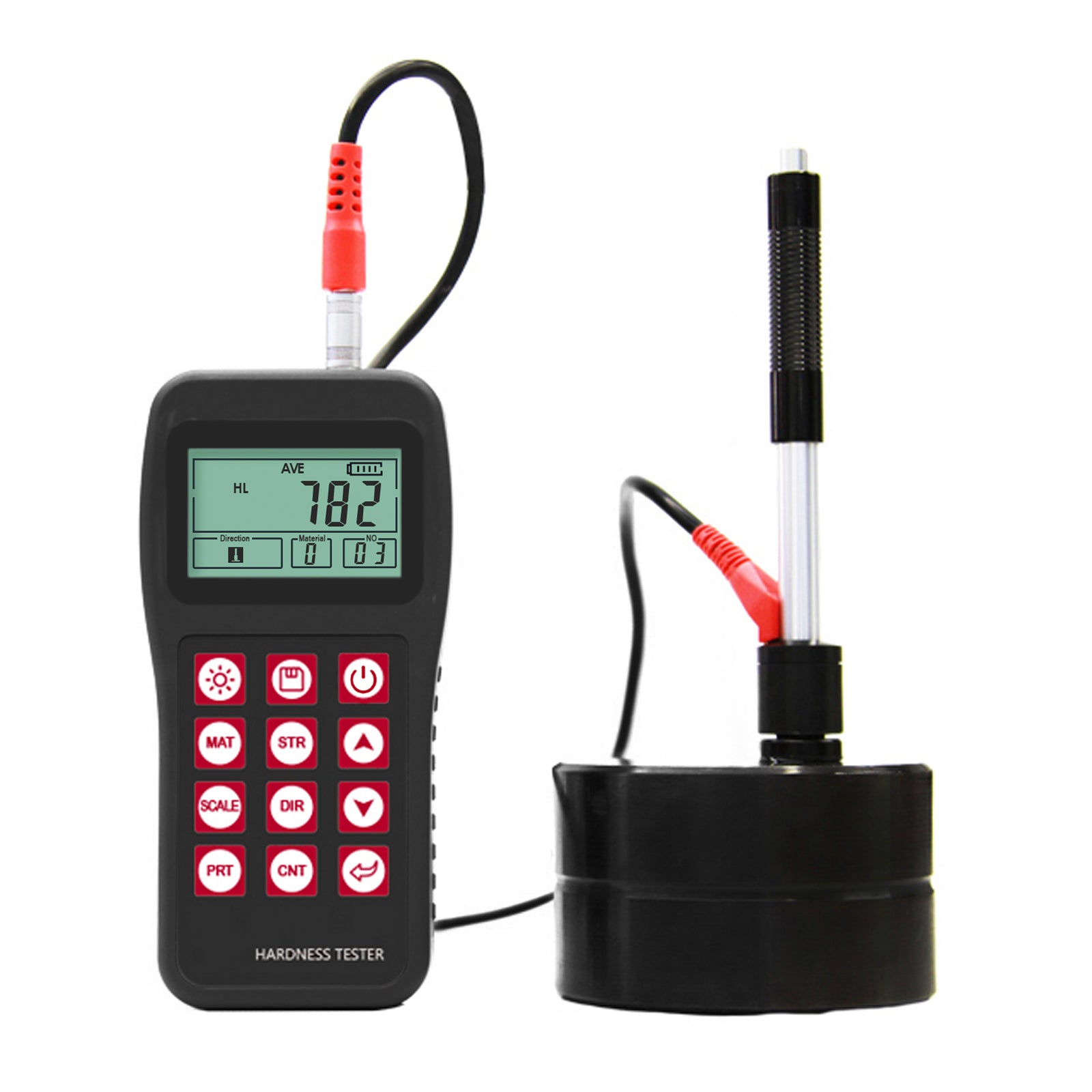

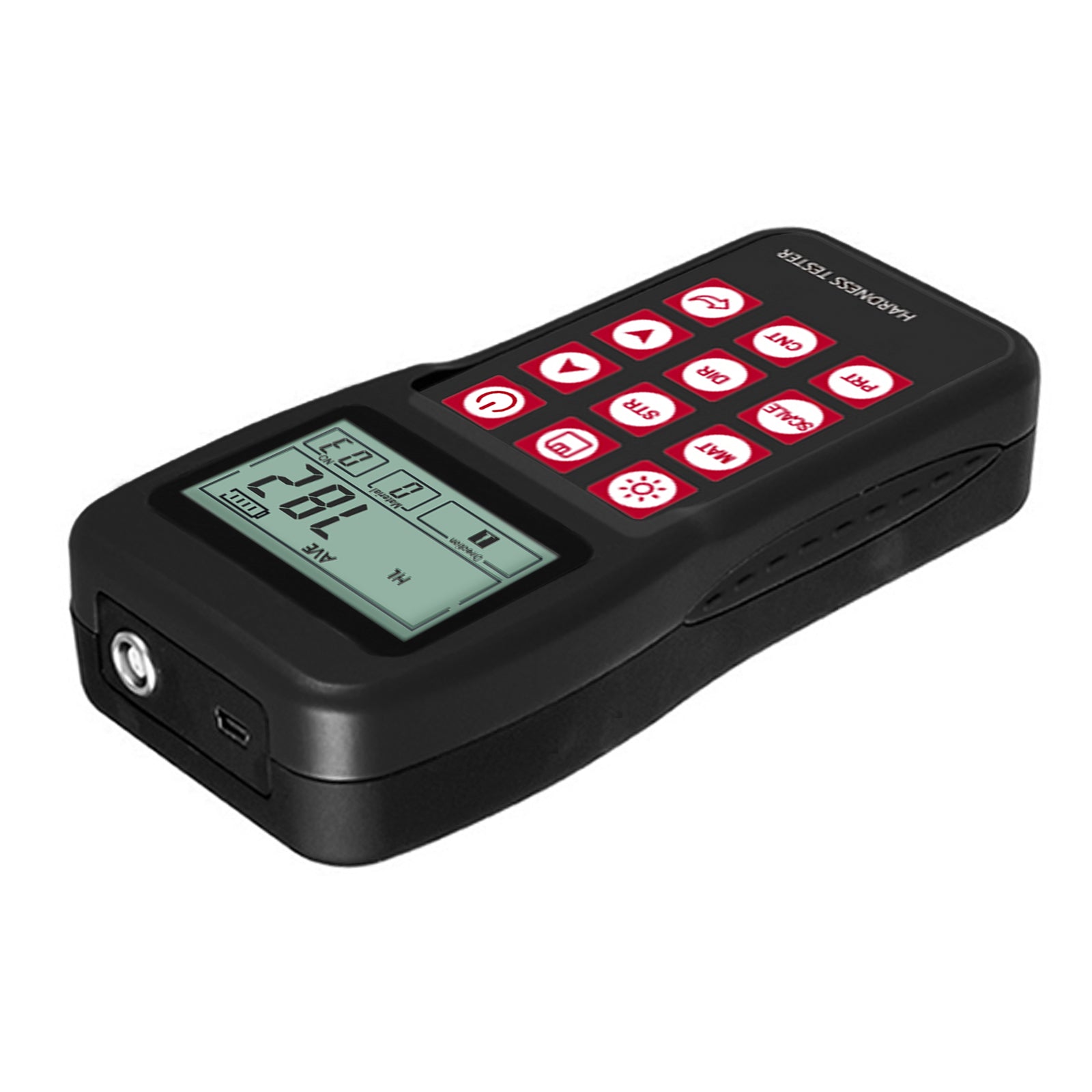

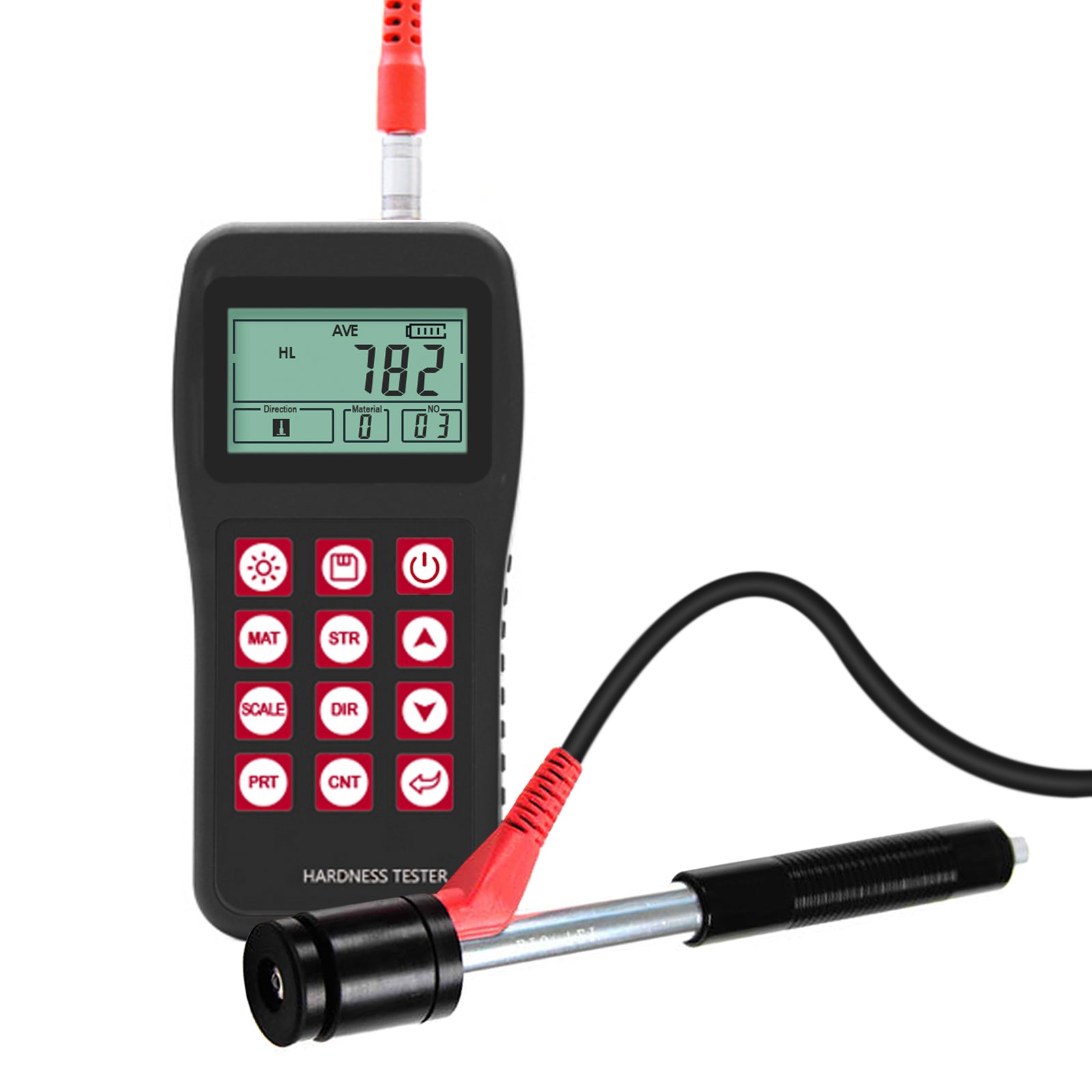

MH180 Mitech MH180 Portable Handheld Leeb Hardness Tester Meter Gauge 170~960 HLD with 100 Group Data Memory LCD EL background light Support Micro printer


Quantity
  OR


MH180 portable Leeb hardness tester, based on Leeb hardness measuring principle, quick and easy,on-site test the hardness of series metal materials, support free conversion between Leeb, Brinell, Rockwell hardness scale and others. It can meet the regular hardness testing of industrial production , quality and cheap, which is the first choice forpractical and economical models.

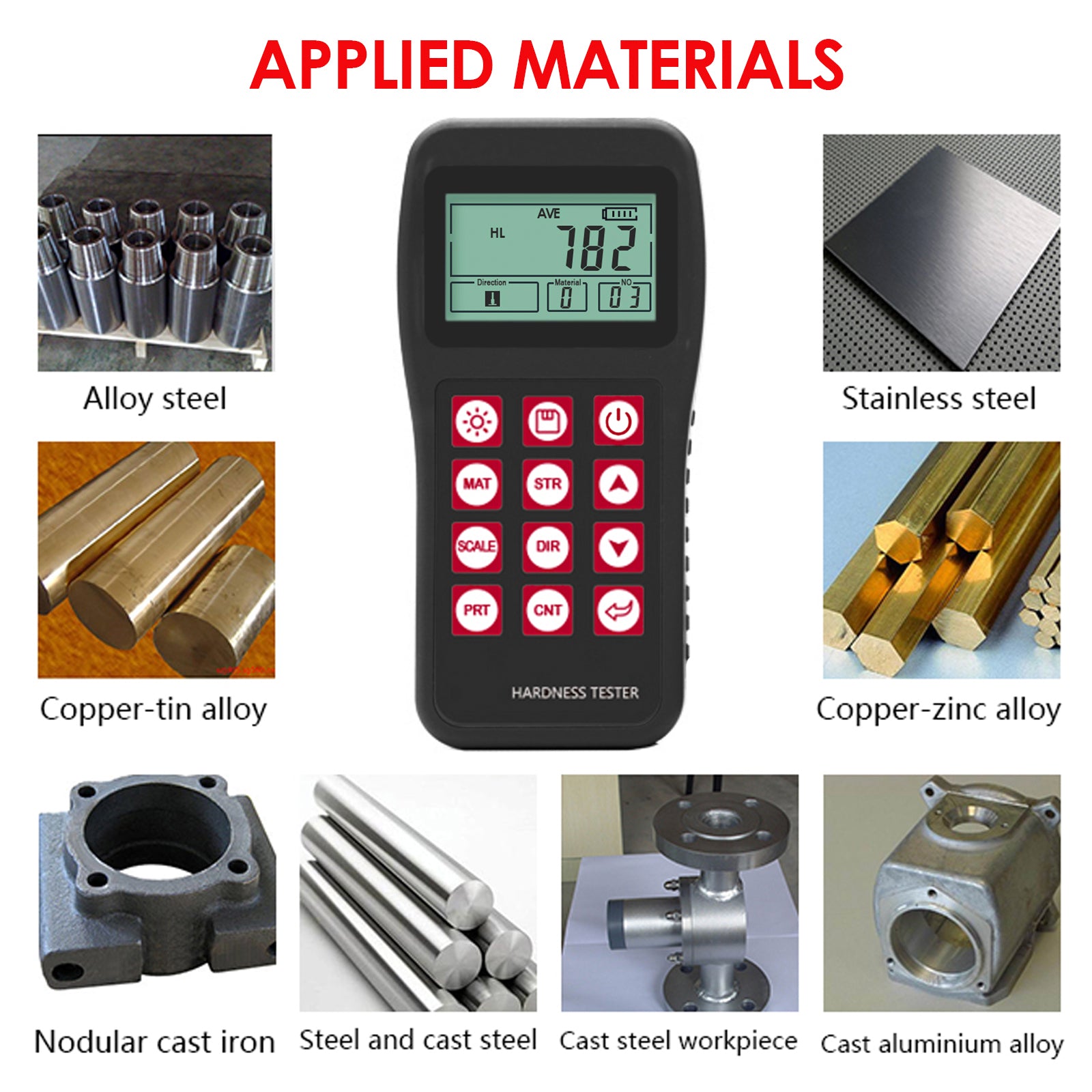

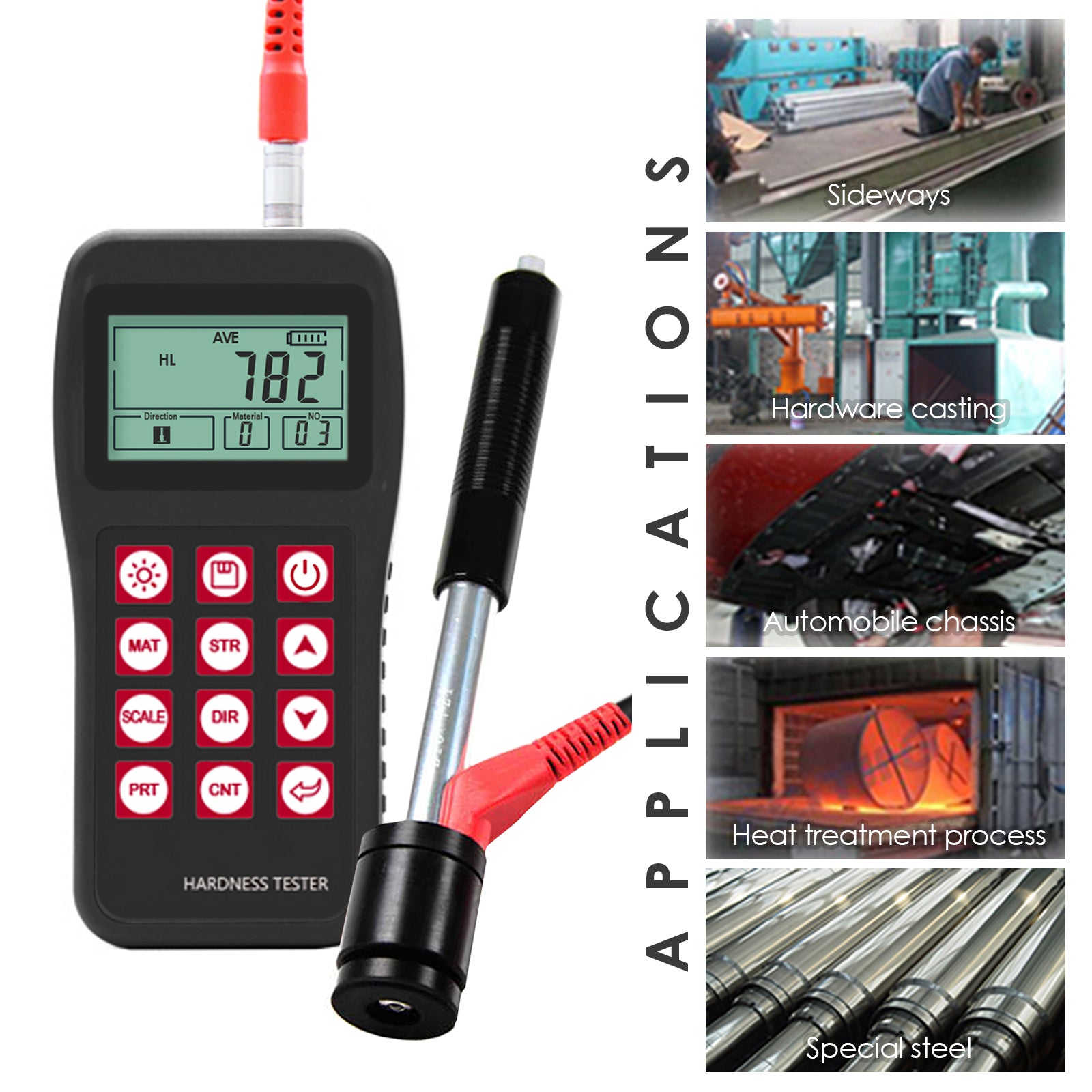

APPLICATIONS

  • Die cavity of molds
  • Bearings and other parts
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Heavy work piece
  • The installed machinery and permanently assembled parts.
  • Testing surface of a small hollow space
  • Requirements of formal original record for test results



FEATURES

  • Material identification in the warehouse of metallic materials. Rapid testing in large range and multi-measuring areas for large-scale work piece.

  • Measuring range of(170~960)HLD. Measuring direction: 360 degrees.
  • Large memory could store 100 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
  • Continuous working period of no less than 100 hours with two alkaline batteries(AA size); Auto power off to save energy with low power consumption
  • Can test various type of metals. Single-point calibration

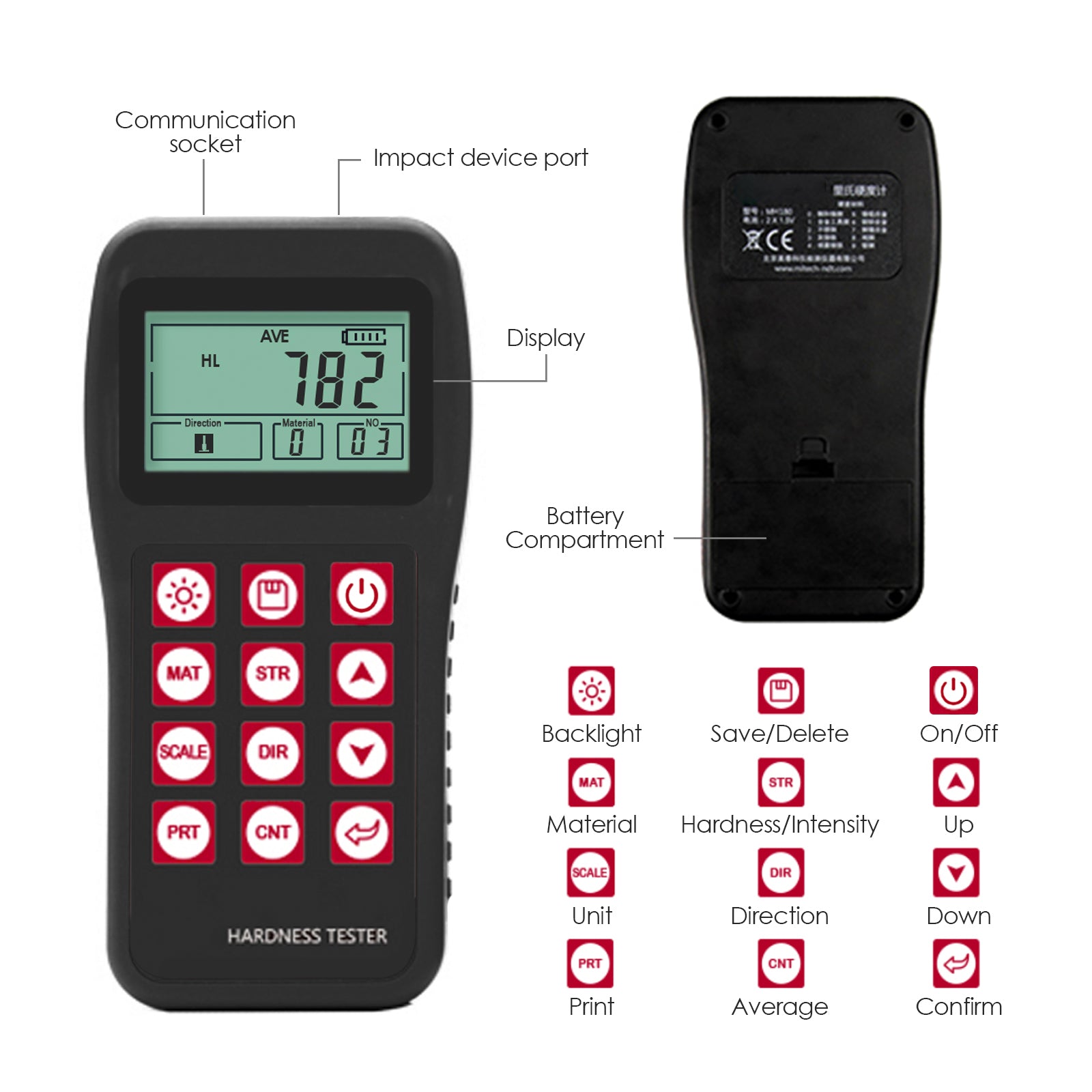

  • Large screen LCD, showing all functions and parameters. With EL background light
  • Display and convert among various hardness scales
  • It has a wide measuring range, will test at any angle, and can measure the hardness of all metallic materials which make works easier for the users.

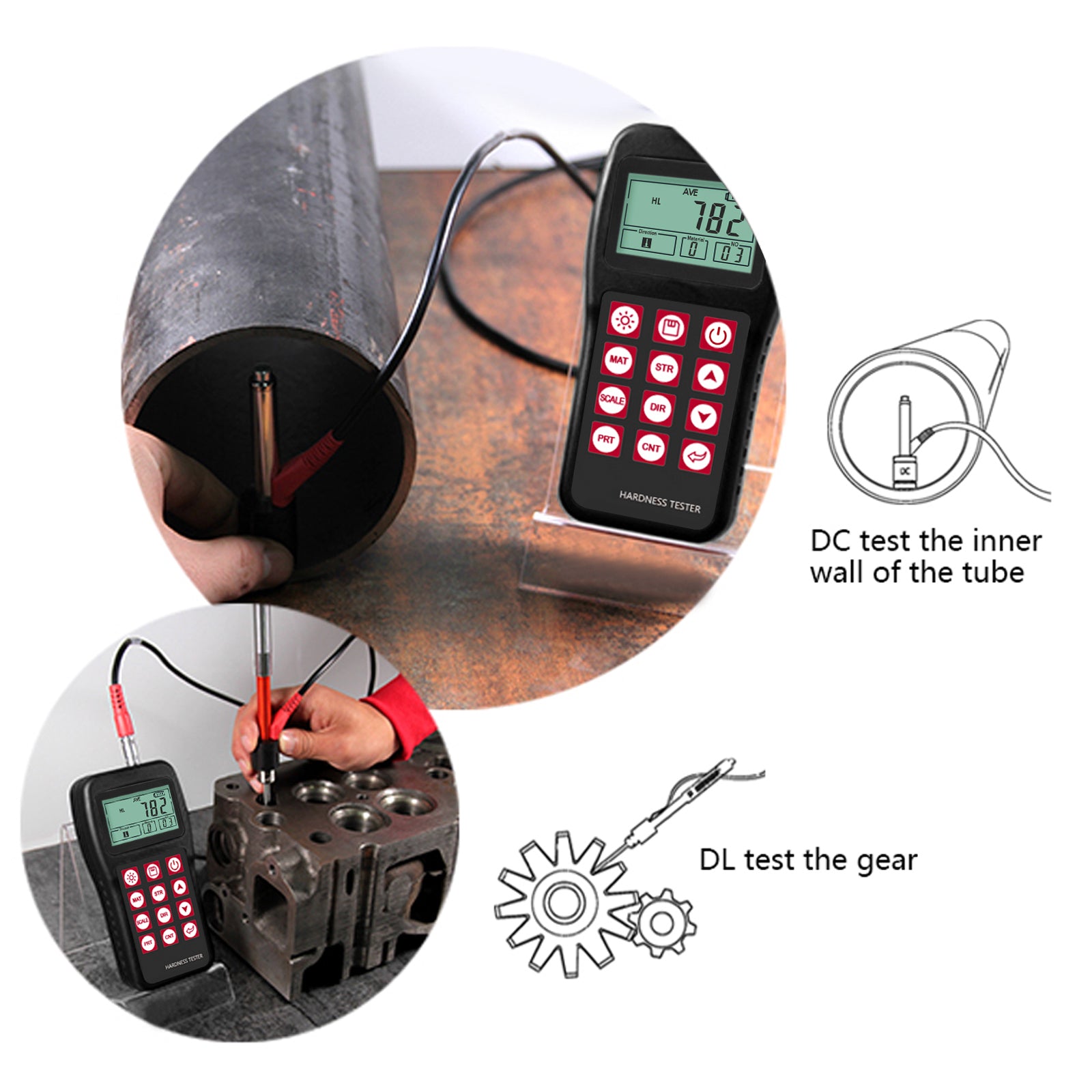

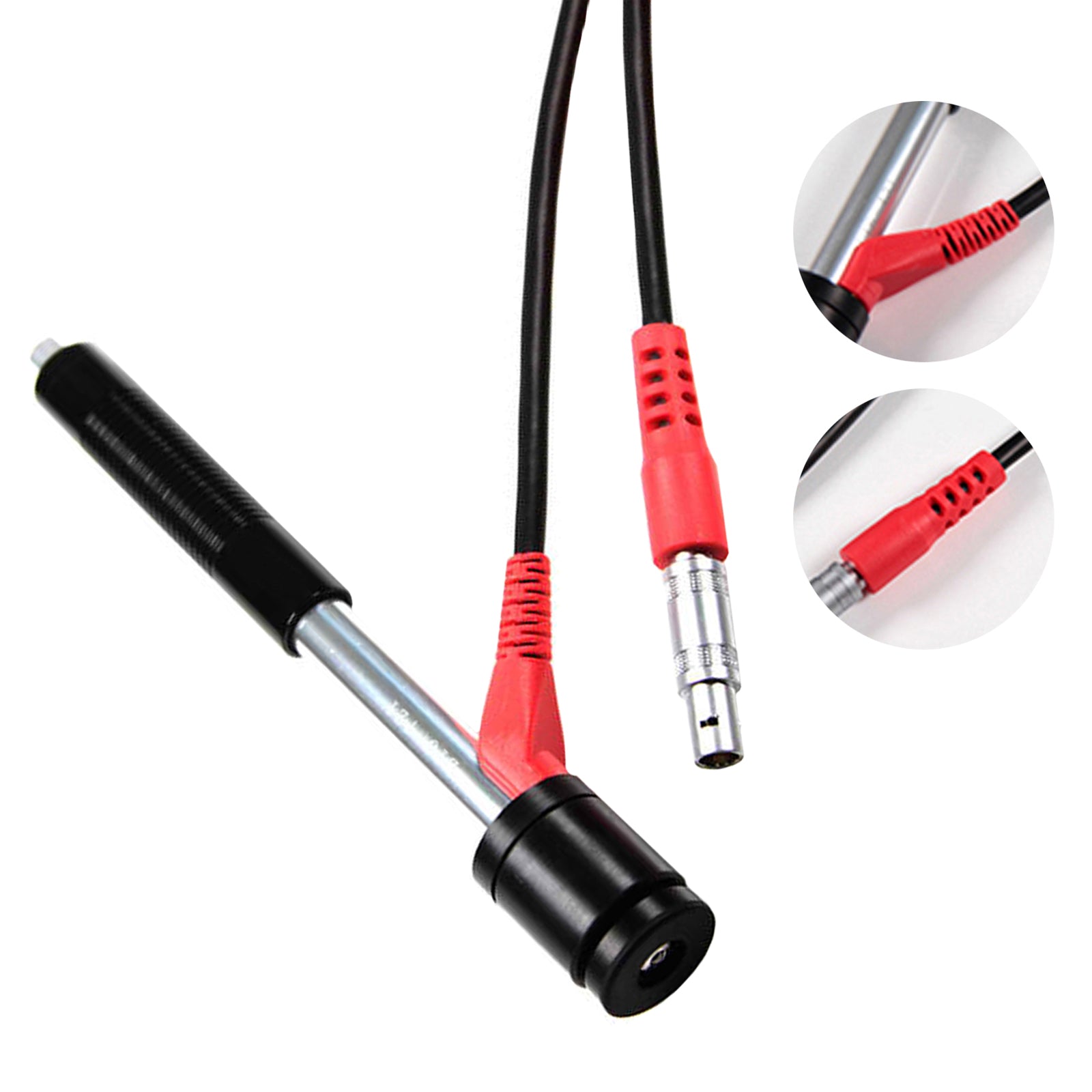

  • Seven impact devices are available for special application. Automatically identify the type of impact devices.
  • Test various metals according to leeb measurement principle.
  • Test at any angle, even upside down.
  • Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
  • Battery information showing the rest capacity of the battery.
  • It also has a software calibration function
  • Can be connected in a PC using RS232 Software and USB Cable (not included in the set). Micro printer support.
  • Compact plastic case,suitable for use under poor working conditions

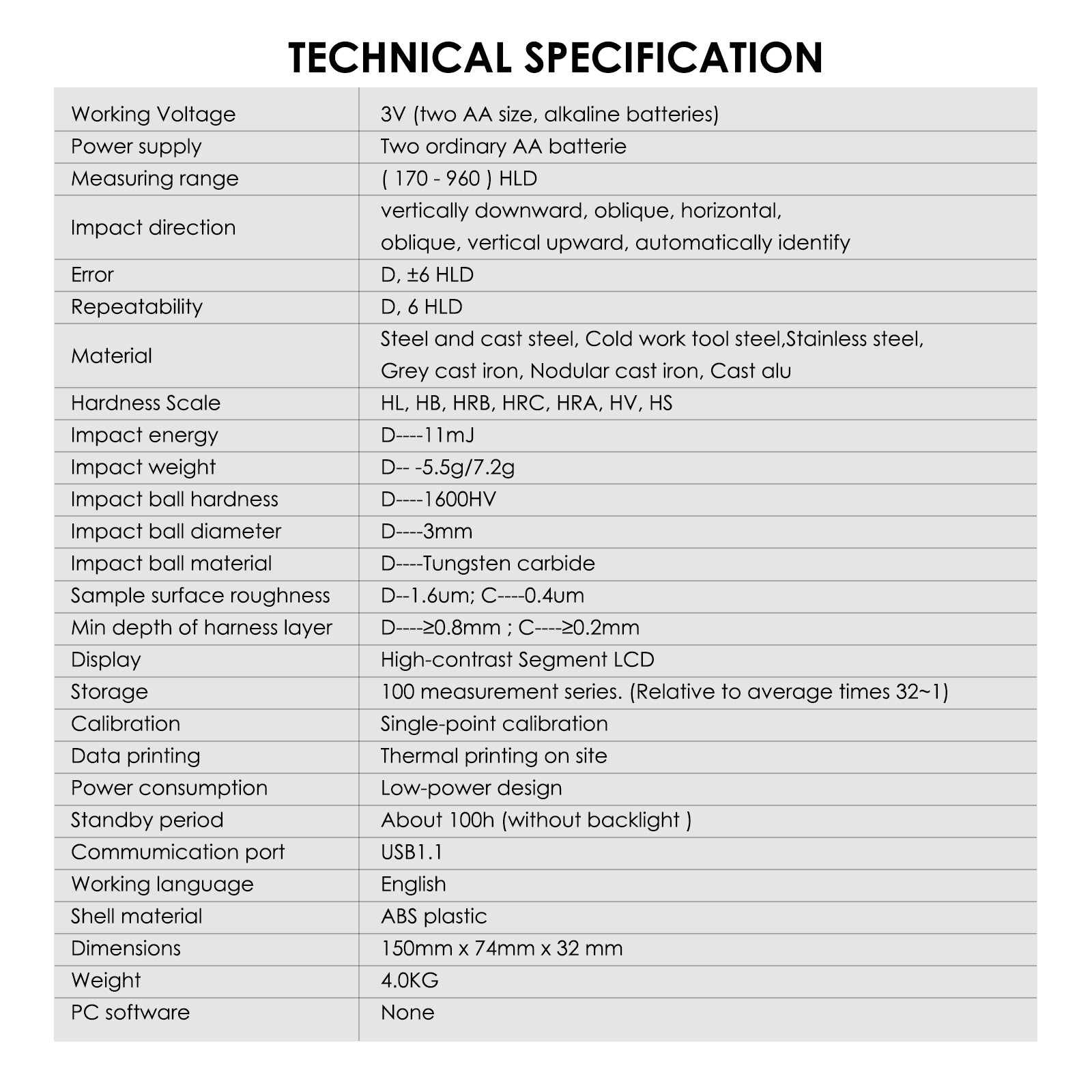

SPECIFICATIONS

 https://drive.google.com/drive/folders/0B7qYkLH9gXLcTk5lZlJGME14VW8

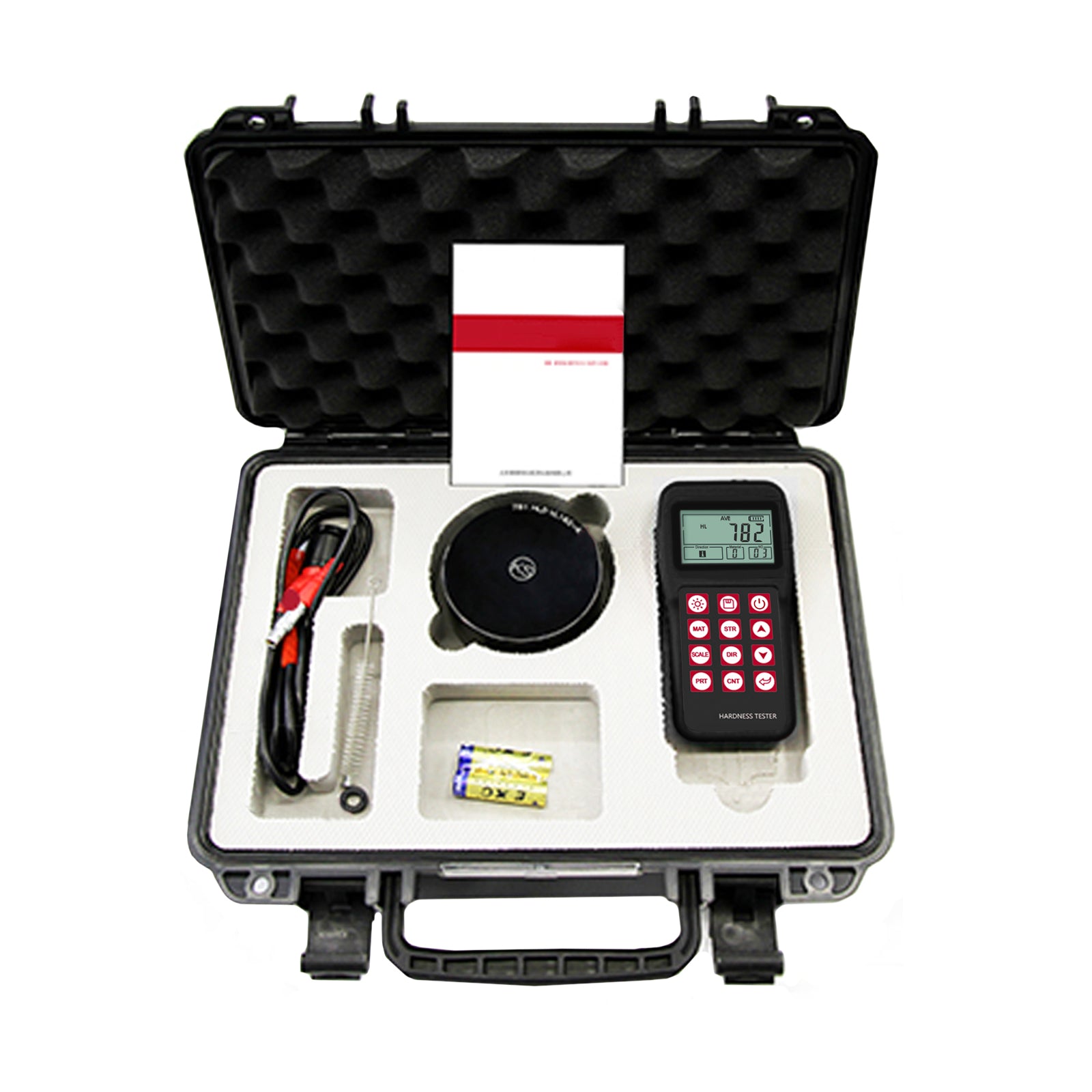

SET INCLUDES

1 x Main Unit
1 x Standard Leeb Hardness Test Block D
1 X Standard Hardness Block
1 x Nylon Brush A
1 x Small Support Ring
2 x AA Alkaline Batteries
1 x Operation Manual
1 x ABS Carrying Case


Optional Items

  • Data-pro Software (Buil-in)
  • USB Communication Cable
  • Nylon Brush B (for G Impact Device)
  • Other Type of Impact Devices
  • Other Type of Support Rings
  • Hardness Test Block G
