Model : M05-001

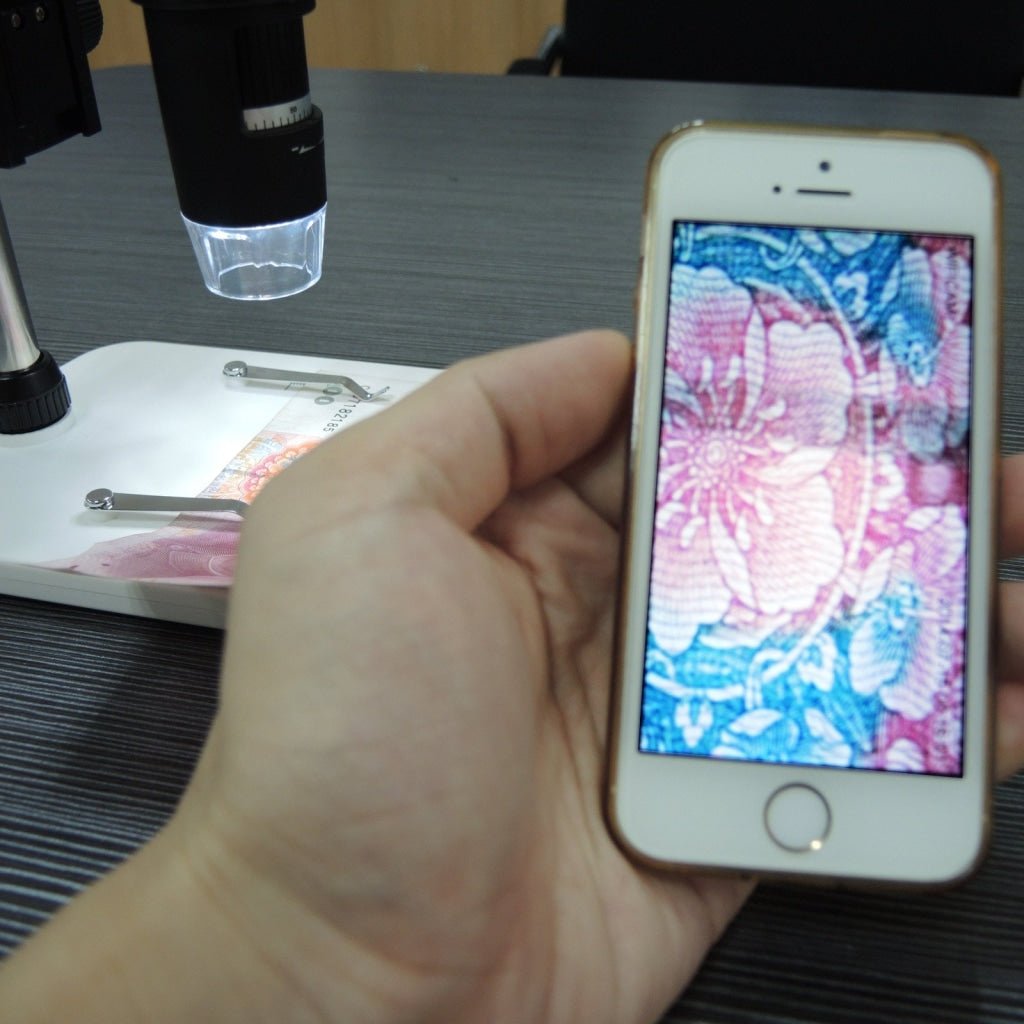

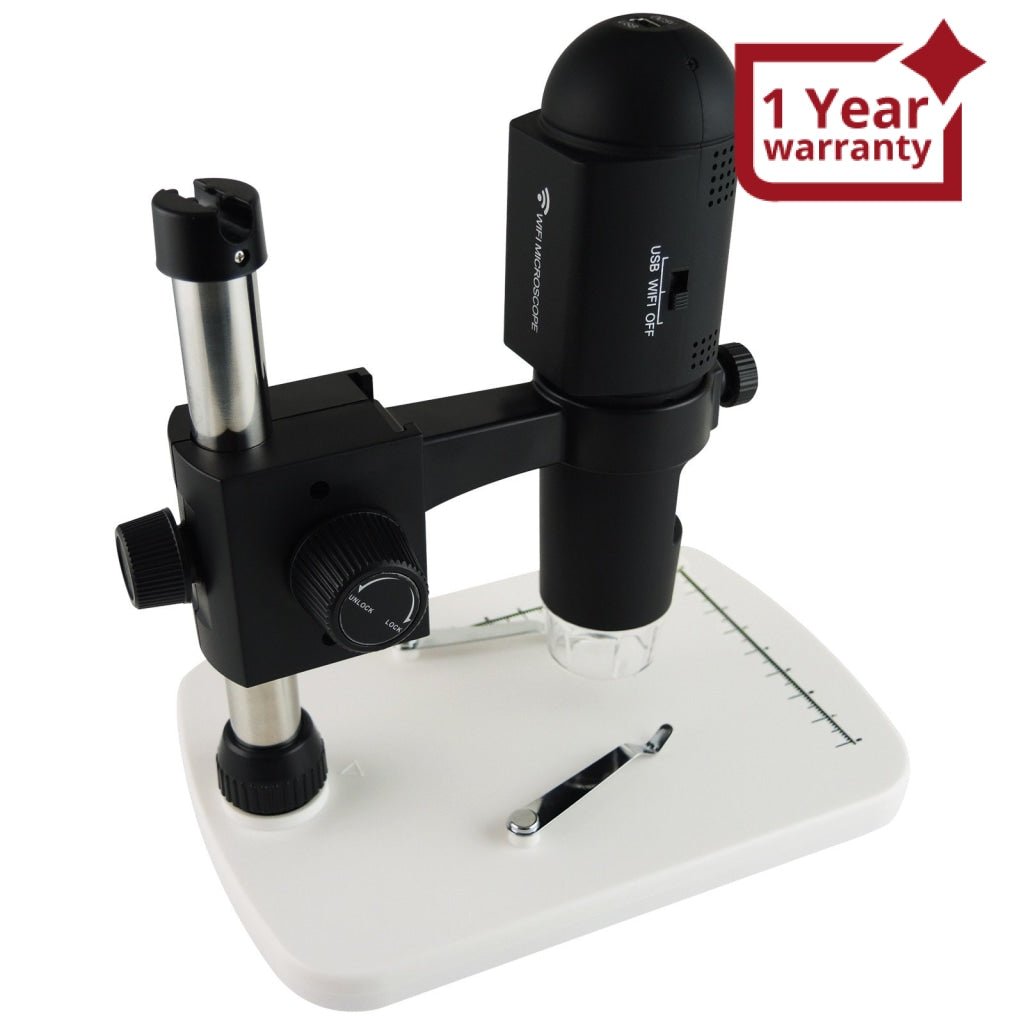

High-tech WiFi Digital Microscope. With this item you will see a unique and bigger world via iOS / Android devices including iPhone, iPad, Android Phone, Android Tablet. Magnification is adjustable up to 200x. It is easy to zoom in on stamps, coins, paper currency, plants, insects, skin, fabrics, rocks and minerals, and so much more.
It has 720P High Definition resolution, you can record stunning video clip. Snapshot is also available. 6 LEDs with brightness adjustable are good for any inspection environment, especially when mobile inspection involved.

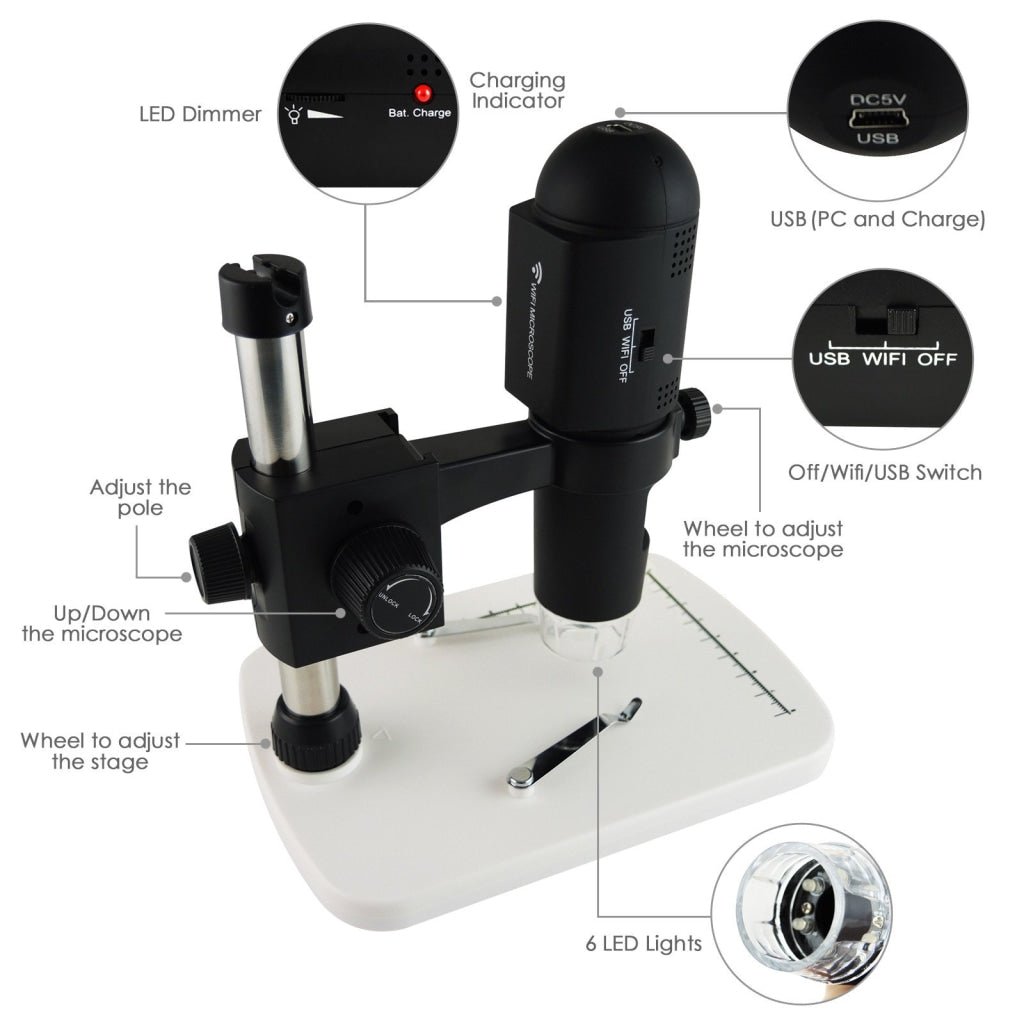

Features:
- WiFi transmission to iOS / Android device
- 10x to 200x adjustable magnification with 720P HD resolution
- Video and Photo capture
- Rechargeable Li-ion Battery

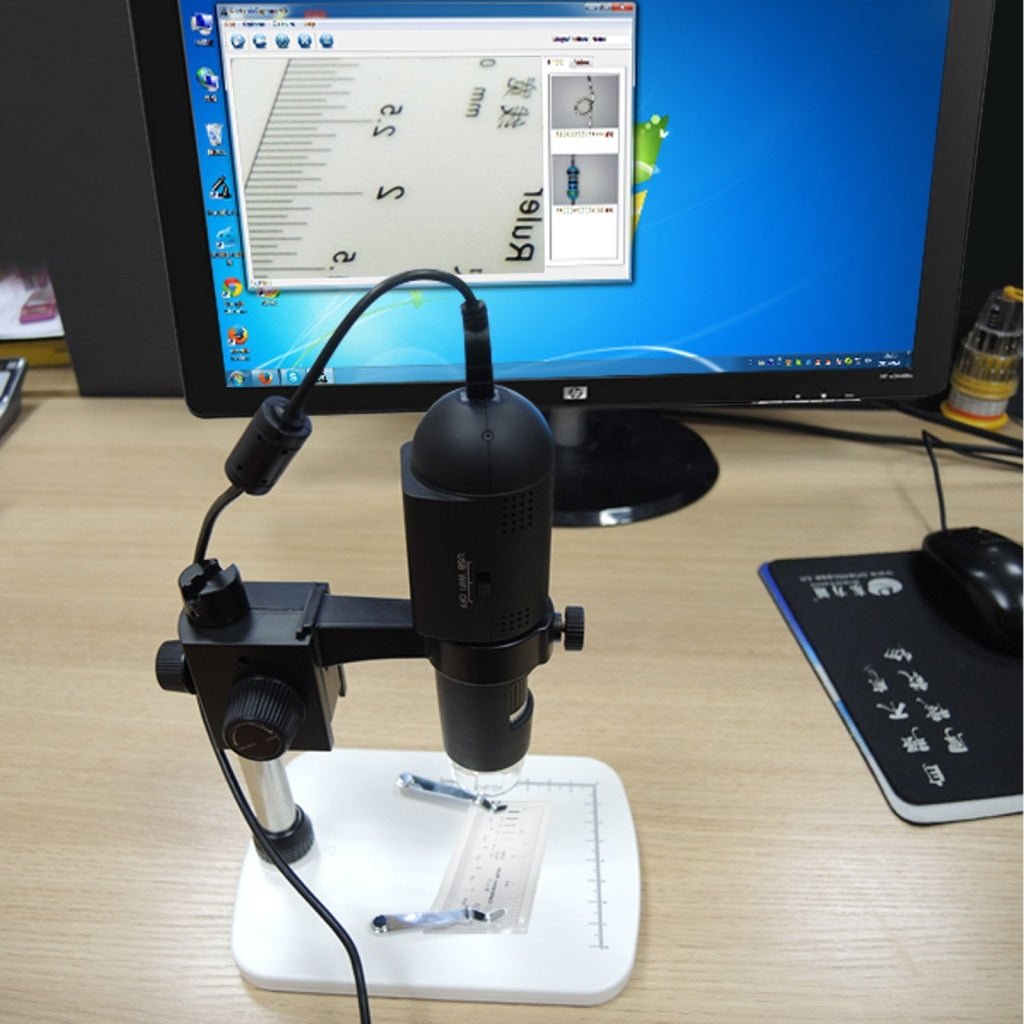

- USB Digital Microscope on PC
- Multi-Language PC software
- Measurement on PC (done in both photo and video capturing)
- Measurement:
- Any Angle Line Measurement
- Continuous Line Measurement
- Radius Circle Measurement
- Diameter Circle Measurement
- Three points Angle Measurements
- Can draw or add text on the import image then save for later analysis
- Timer function for video and photo capturing
Specifications:
- Image Sensor: 1 Mega Pixels (true resolution)
- Still Capture Resolution: 1280 x 720 (720P), 640 x 480 (VGA)
- Video Capture Resolution: 1280 x 720 (720P), 640 x 480 (VGA)

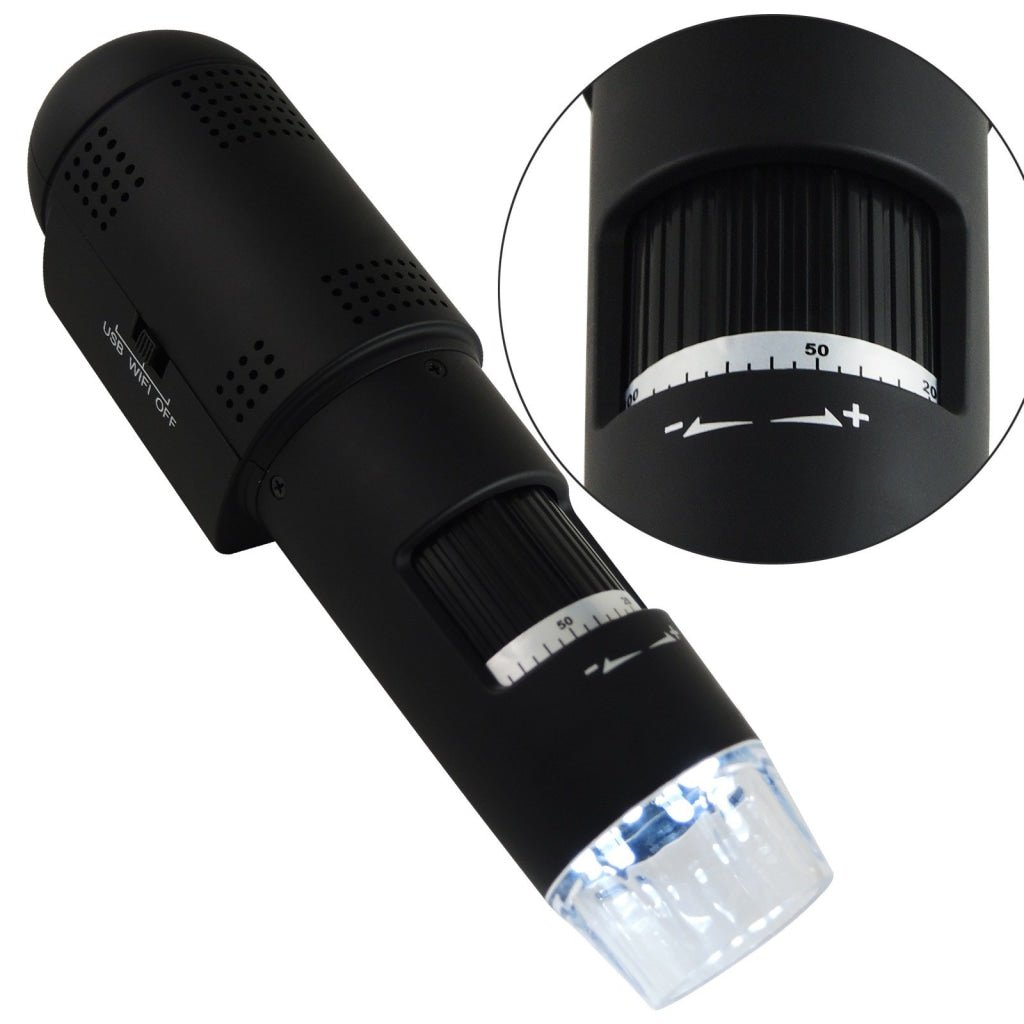

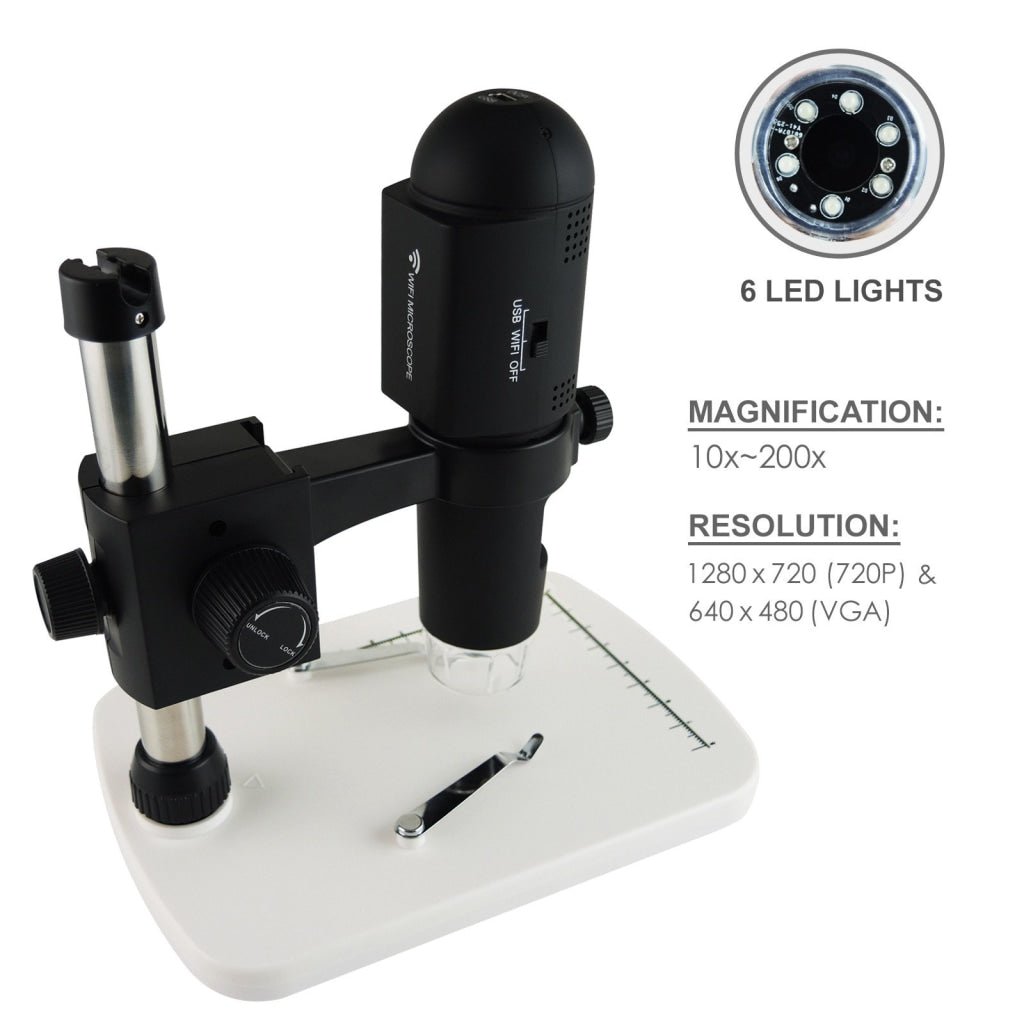

- Magnification Ratio: 10x~200x
- Focus range: Manual focus from 0mm to 150mm
- Video Format: H.264
- Photo Format: JPEG

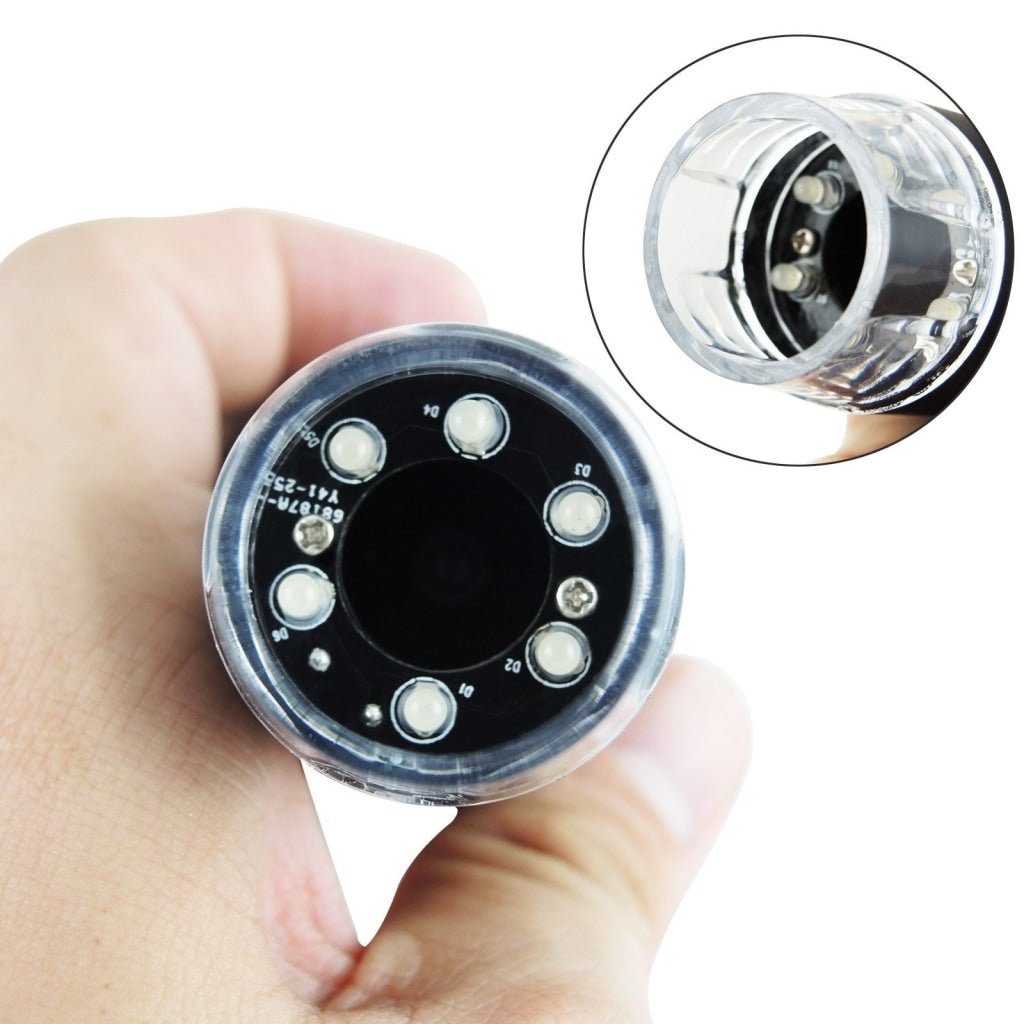

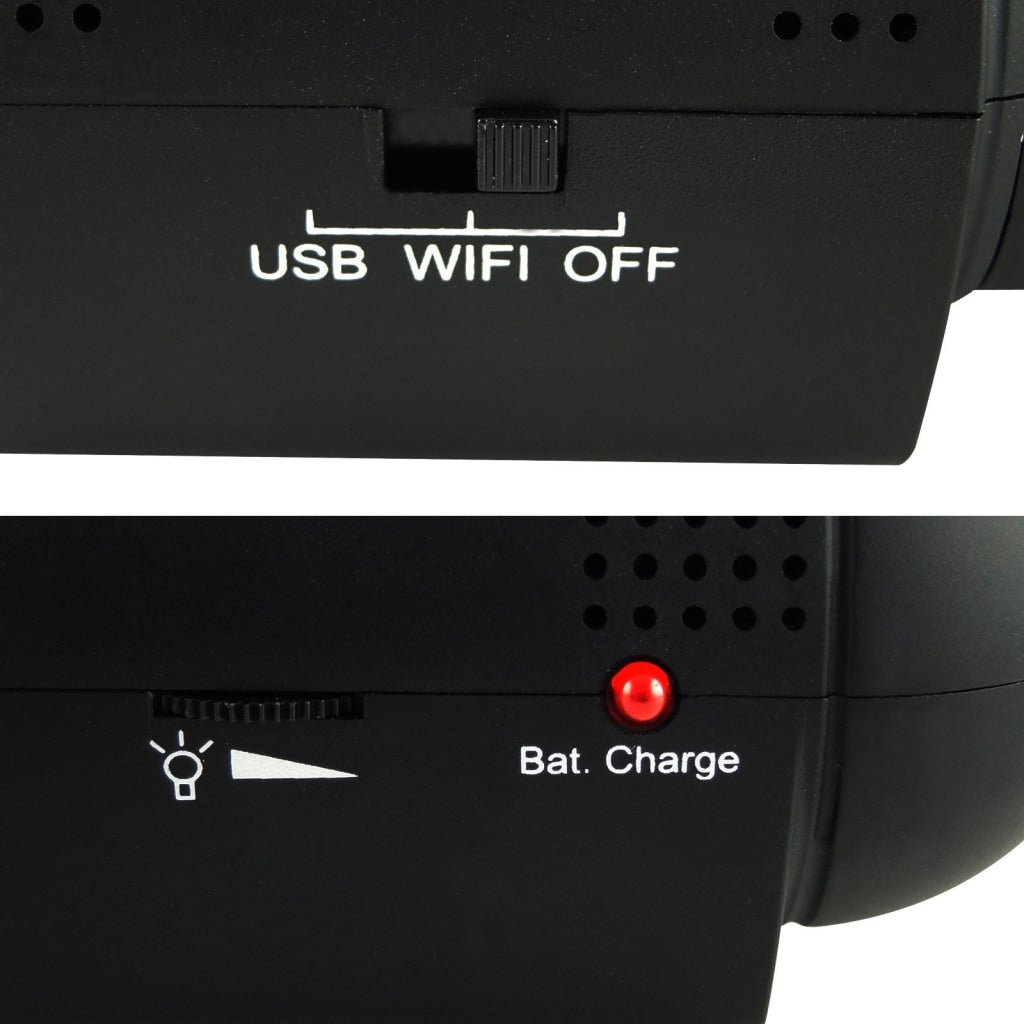

- Light Source: 6 LED (adjustable by control wheel)
- Power Source:
- Rechargeable Li-ion battery
- Working Time: 99mins.
- Charging Time: 100 mins

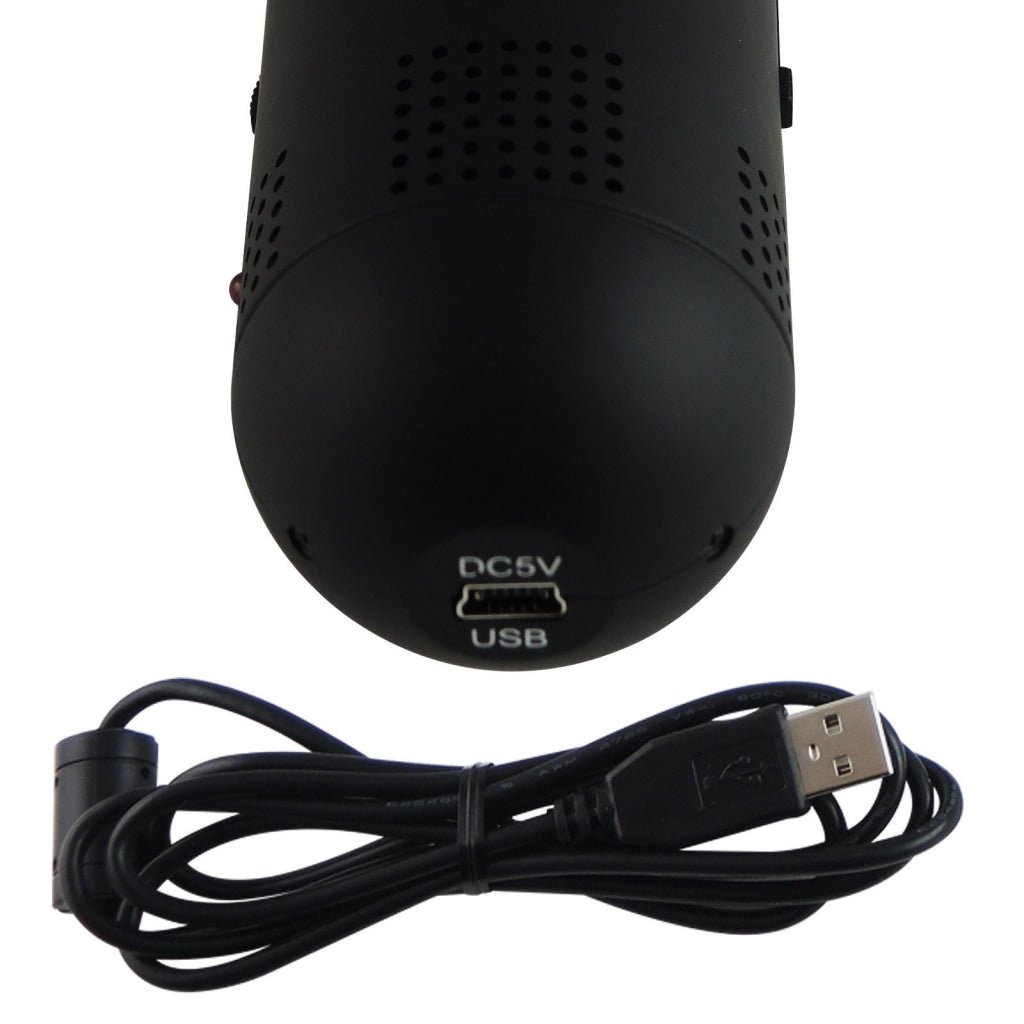

- Charging Power: 5V DC
- iOS / Android Interface: WiFi
- App:
- iOS (5.1 and later): WiFi Capture (Search and download from App Store)
- Android: WiFi Capture, Install from CD, or search and download from https://play.google.com/store
- PC Interface: USB 2.0
- PC Software: portable Capture HD (with measurement)
- PC Software Language: English, Deutsch, Spanish, Russian, Italian, French, Portuguese, Dutch, Polish, Japanese, Korean
- System Requirements:
- iOS / Android
- iOS 5.1 and later
- Android 4.3 and later
- PC
- Windows XP / VISTA / WIN 7 / WIN 8 / WIN 10
- P4 1.8 or above
- RAM: 512M
- Video Memory: 64M
- USB port: 2.0
- CD-ROM Drive
- Supports 32bit and 64bit

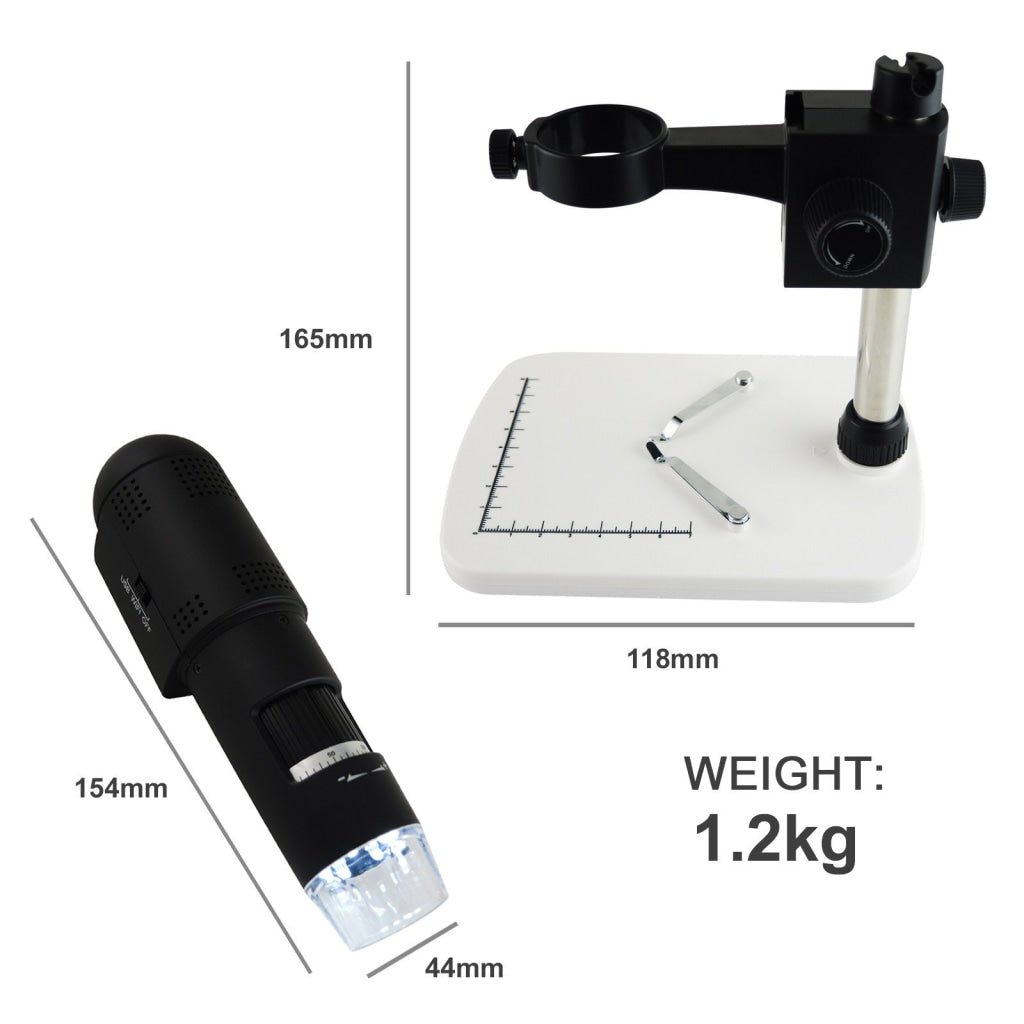

- Size:
- Microscope: 154mm (L) x 44mm (R)

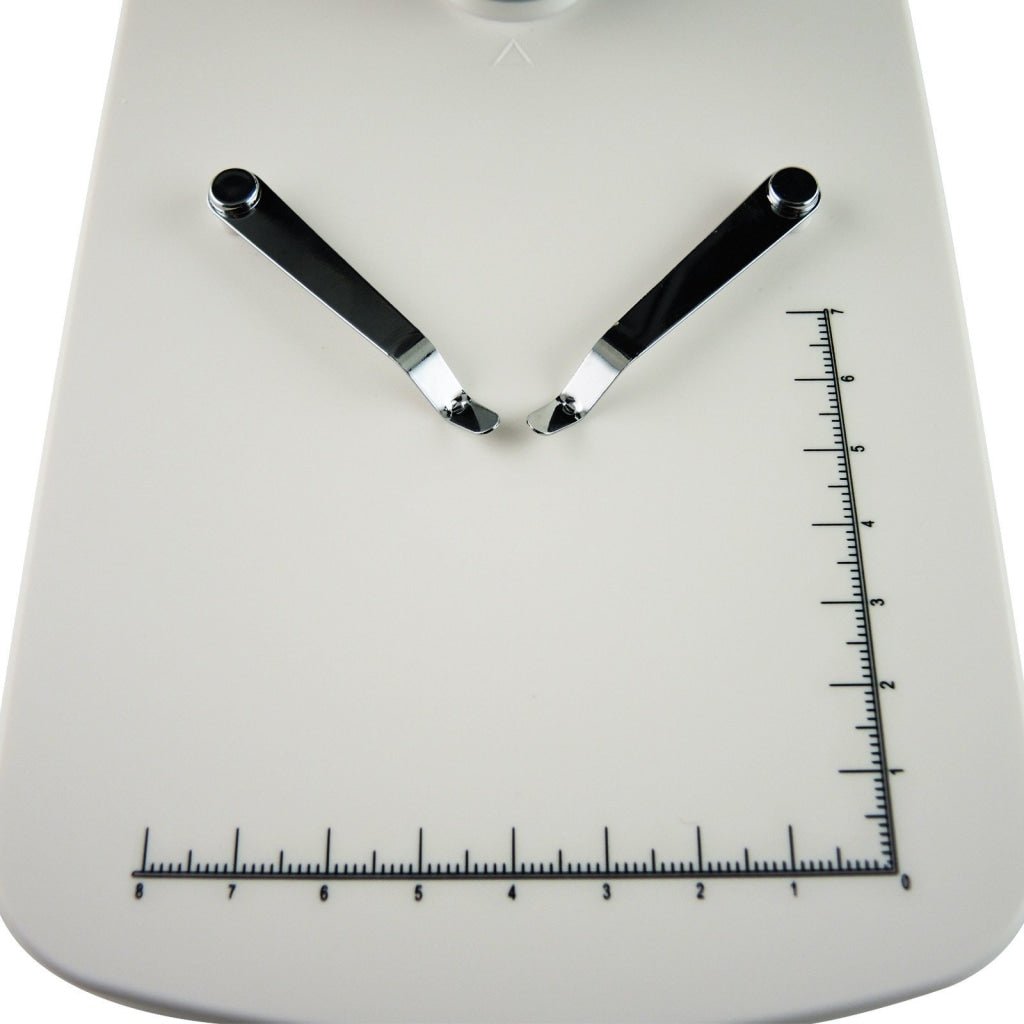

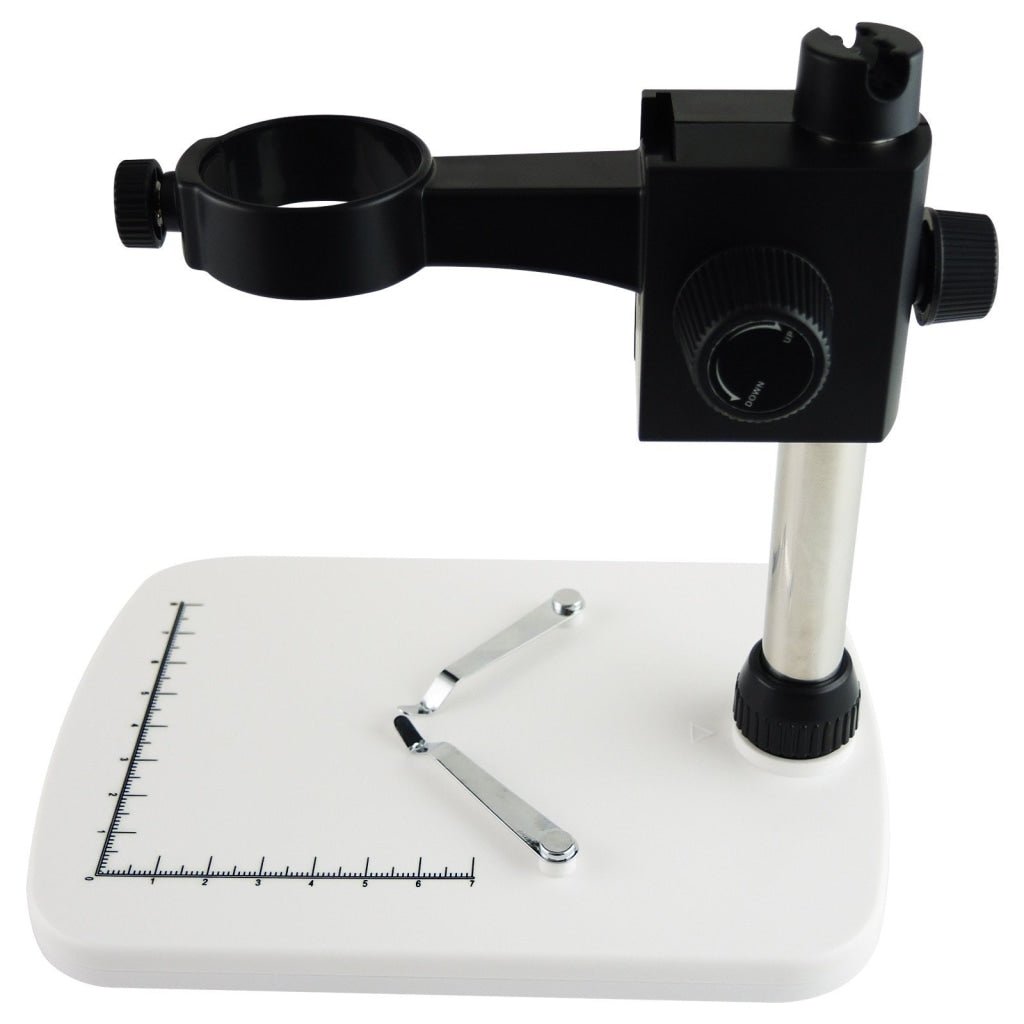

- Professional Stand: 165mm (L) x 118mm (W) x 12mm (H)
- Weight (whole item): approx. 1000g

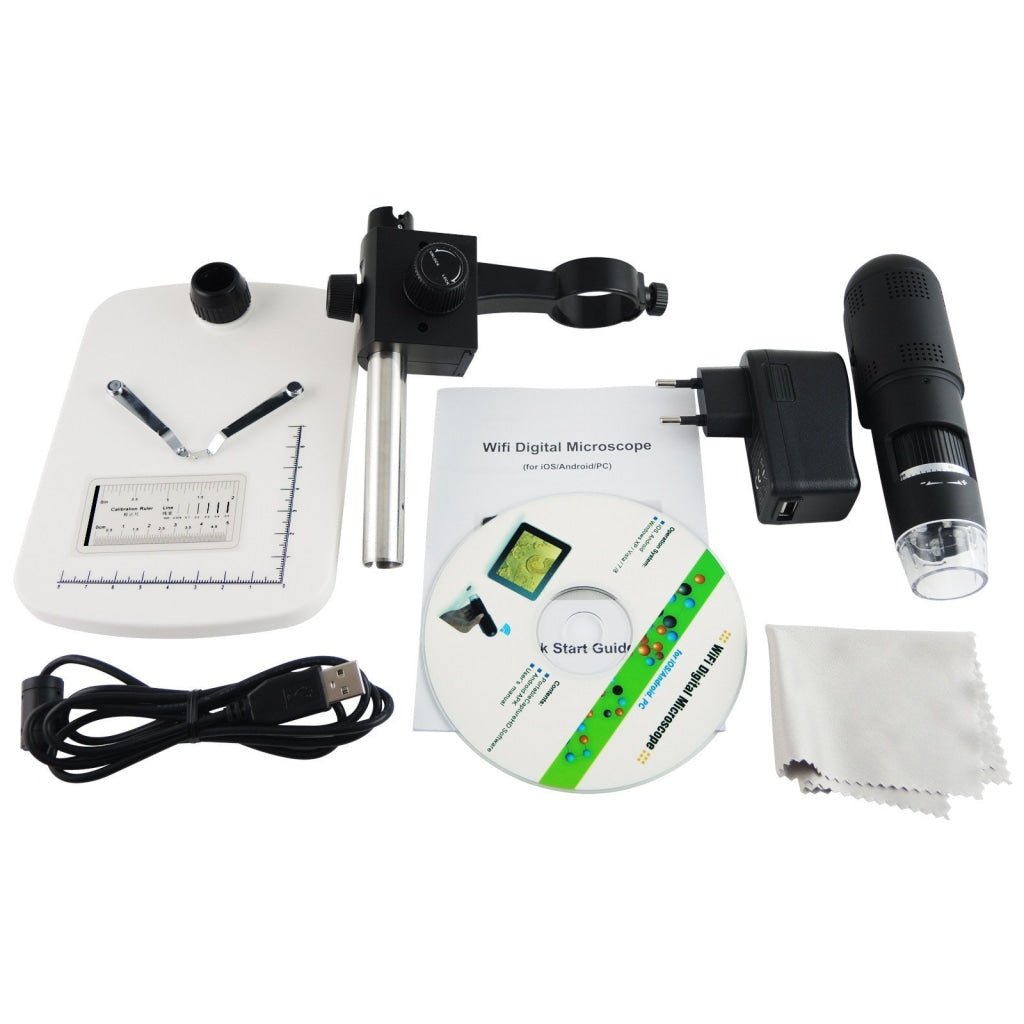

Set Includes:
- 1 x WiFi Digital Microscope
- 1 x Stand
- 1 x AC Adapter
- 1 x USB Cable
- 1 x CD Software
- 1 x Calibration Ruler
- 1 x Cleaning Fabric
- English Quick Start Guide
- Standard Factory Packaging
