GX-860 144 LED Microscope Camera Ring Light (4zone control 61mm MaxDia)


Quantity
  OR


Model : GX-860

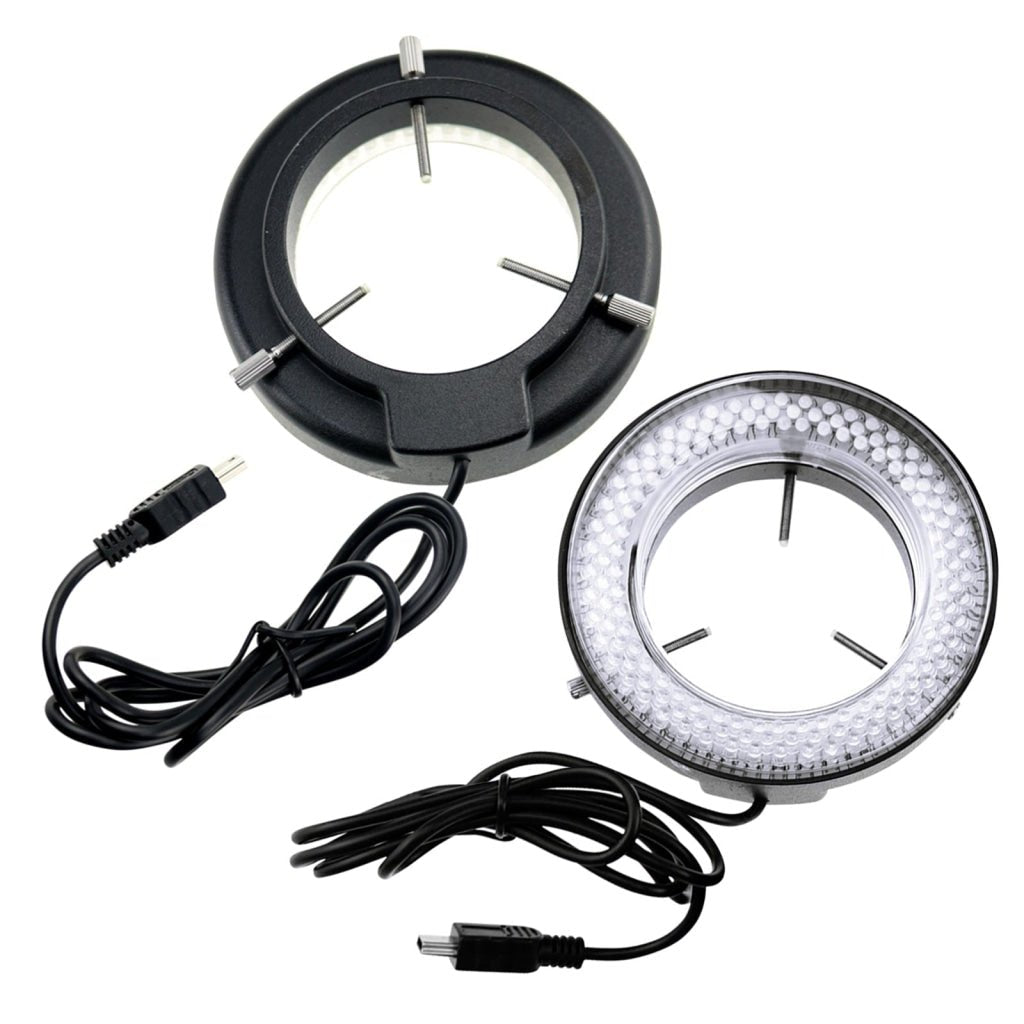

An energy-saving easy to install ring light that features low temperature to maximize the operation and user's comfort, even for a long period. it is equipped with 144 evenly distributed LED lights and provides soft illumination without any distortion. It has four functional buttons called MODE Control buttons that gives you the power to control the lighting zone separately and another 2 Brightness buttons that controls the light intensity or brightness of the LED light. Mode Control buttons gives you the freedom to choose and/or combine different lighting angle or lighting zone and adjust the light intensity according to your needs by pressing the positive or negative brightness buttons.

It DIMINISHES GLARE FROM REFLECTIVE OBJECTS to view surface defects and overcome the visibility problems associated with glare and shadowing even hard-to-see imperfections in plastic and metal surfaces, defects in solder joints and fine points on translucent surfaces all become visible when illuminated with this new LED ring light. With its controlled illumination, you can alter light intensity and zone or use it continuously to meet optical instrument and individual requirements which results to clear and vivid images.

Four light zones, lots of angle or zone combinations and undistorted soft light distribution combined with low temperature accumulation. You can never go wrong with all these features and advantages. BE IN CONTROL!


Features:

  • Inner diameter is adjustable to match various microscopes
  • Equipped with 144 LED bulbs for the brightest and most favorable lighting environment

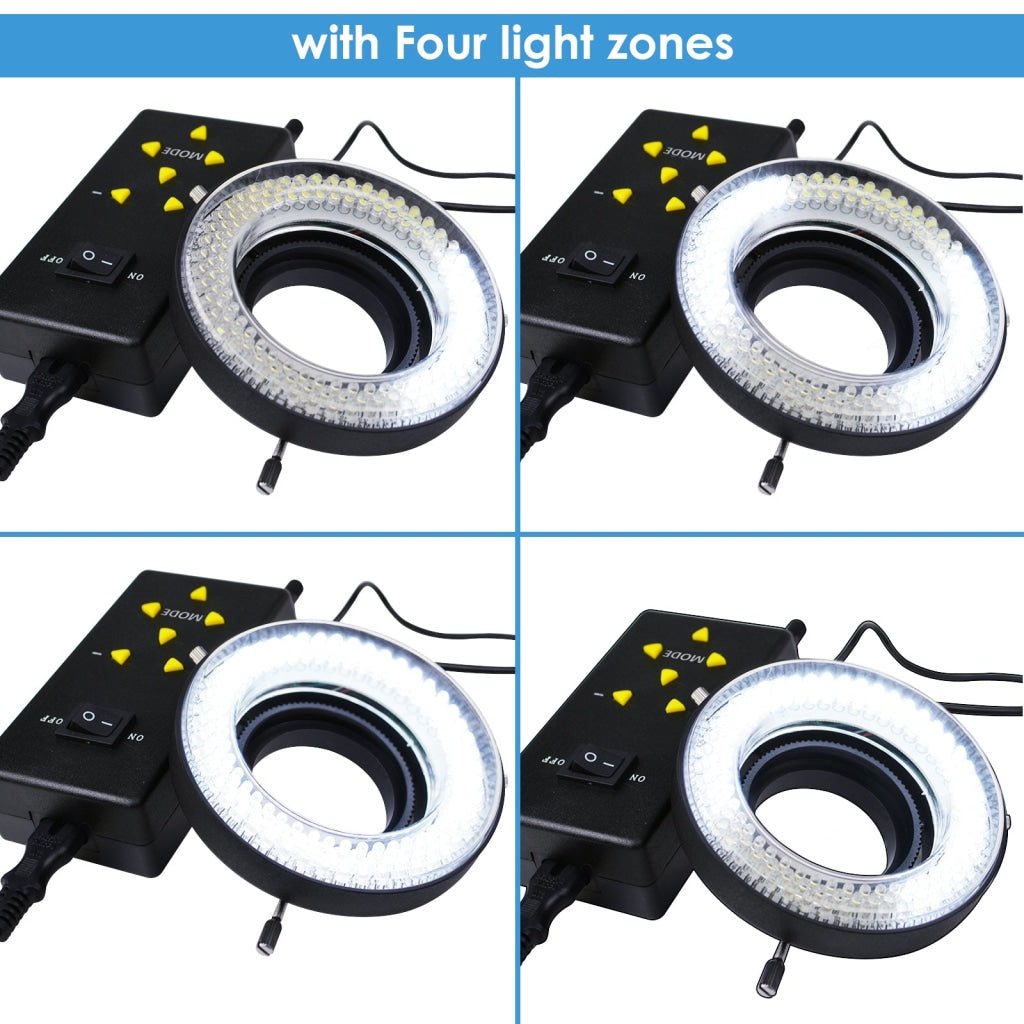

  • Features 4 Zone/Mode controlled separately and lots of angle/zone combinations
  • Provides adjustable brightness for flexibility to suit any job and consistent lighting for object illumination
  • Ring Light are covered to add extra protection to the LED bulbs

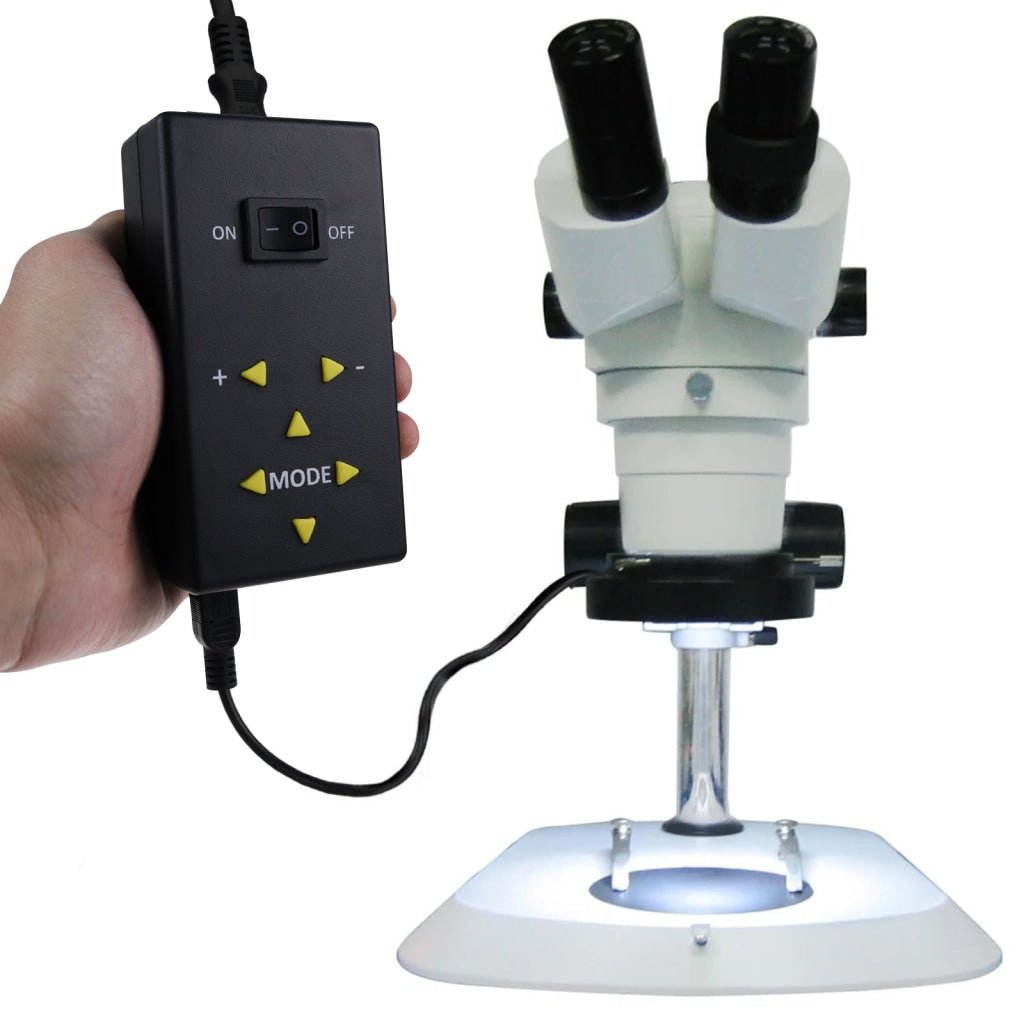

  • Installing to microscope and camera is very quick and easy to use
  • Adjustable screws to keep attachment in place
  • Provides cool, flare free and focused shadow-free illumination
  • Low temperature to maximize the operation & user's comfort, even for a long period
  • Adjustable diameter for the ultimate in attachment flexibility for various tools and equipment*
  • Approved by strict quality and safety standards for LONG and TROUBLE-FREE life
  • Power cord for US or UK or Australian or European region is provided


Specifications:

  • Light Control : 4 mode light control, each mode has an adjustable brightness

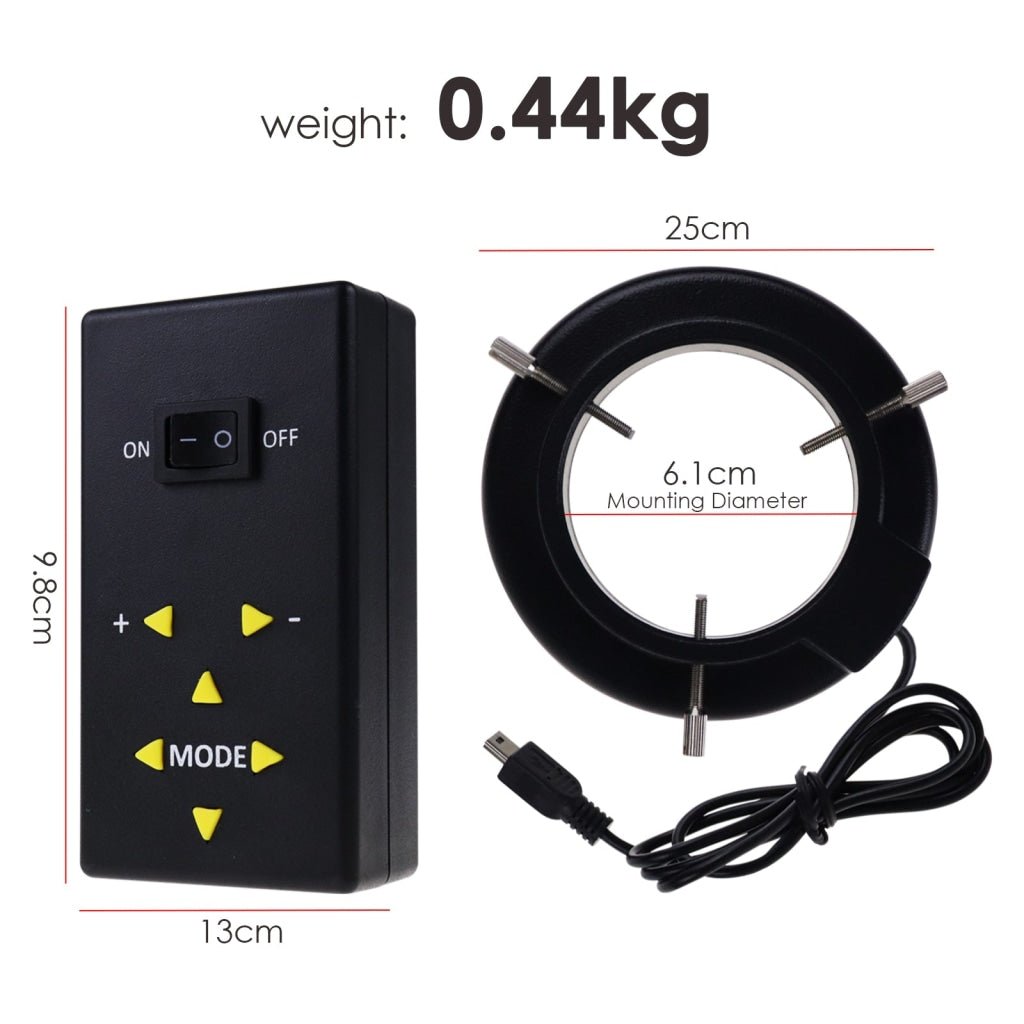

  • Outer diameter : 98mm
  • Inner diameter : 61mm
  • Wattage : 4.5W
  • Input Voltage : 90V-264V
  • Output Voltage : DC12V
  • Brightness Adjust : 0-100%
  • Working Distance : 40-250mm
  • Quantity of LED : 144 pieces
  • Brightness : 20000Lux at height of 100mm
  • Color of light : 6400K

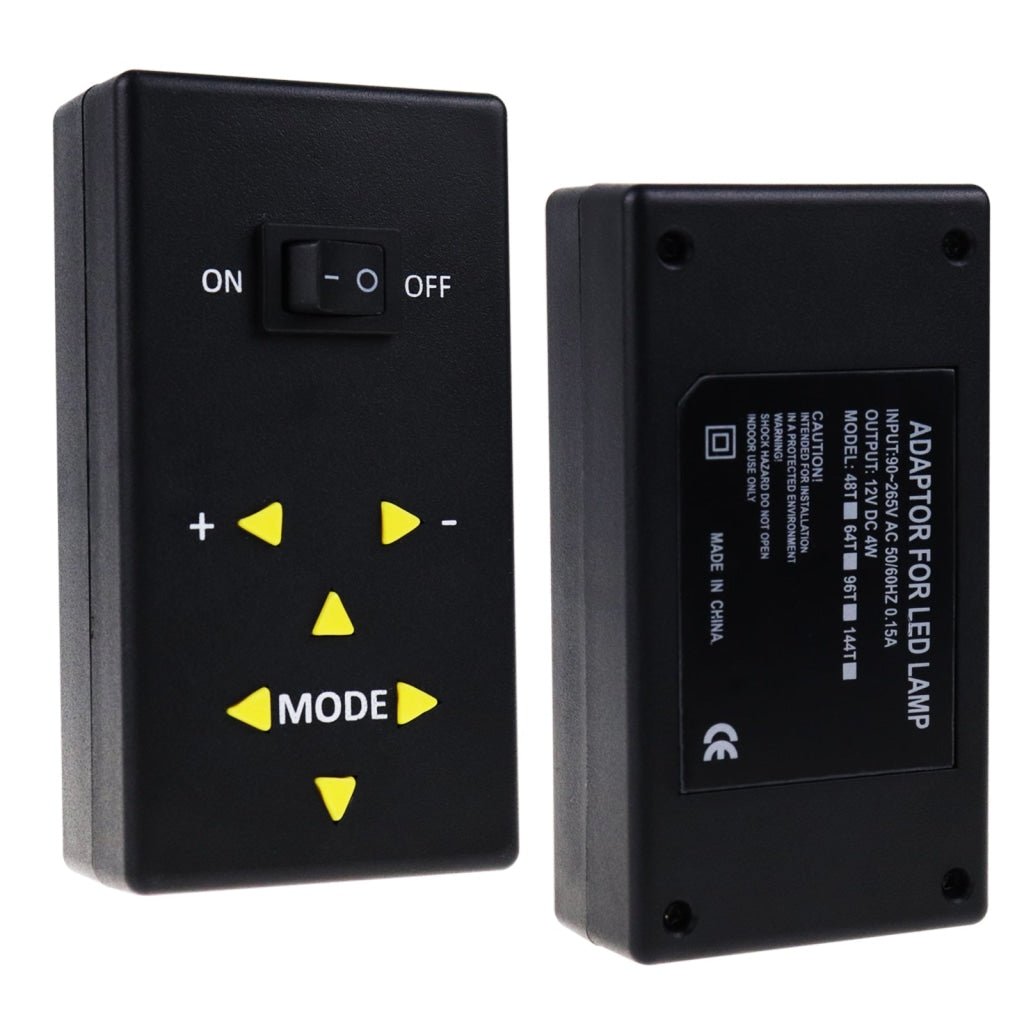

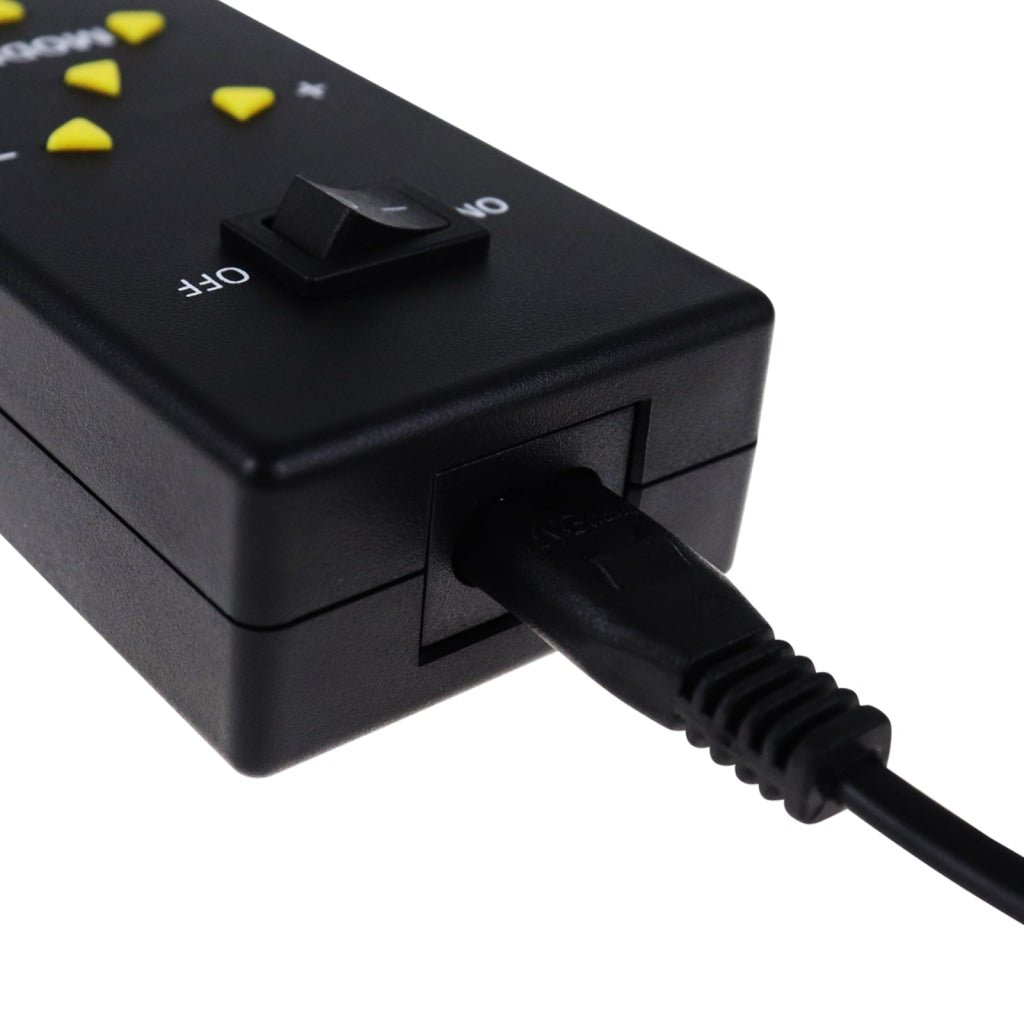

  • Controller's Dimension : 110mm x 60mm x 32mm
  • ADJUSTABLE BRIGHTNESS

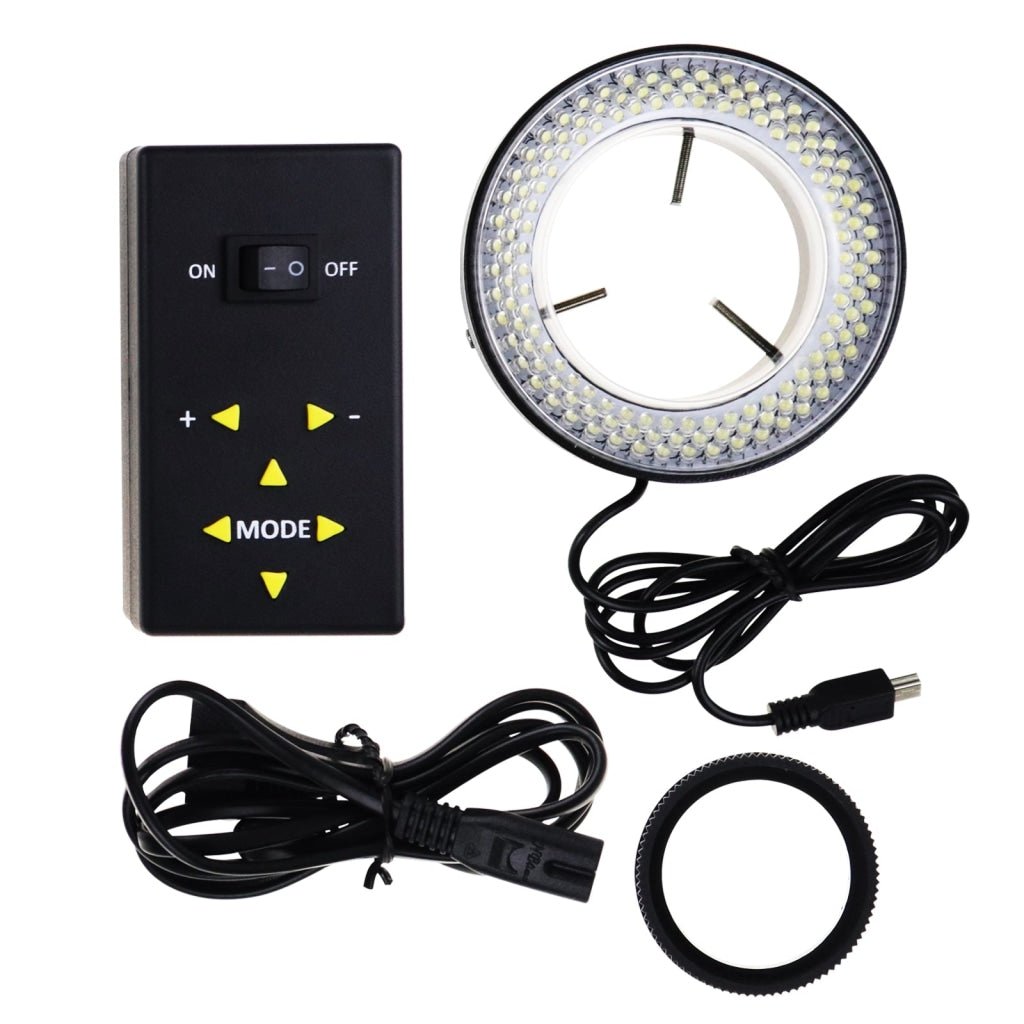

Set includes:

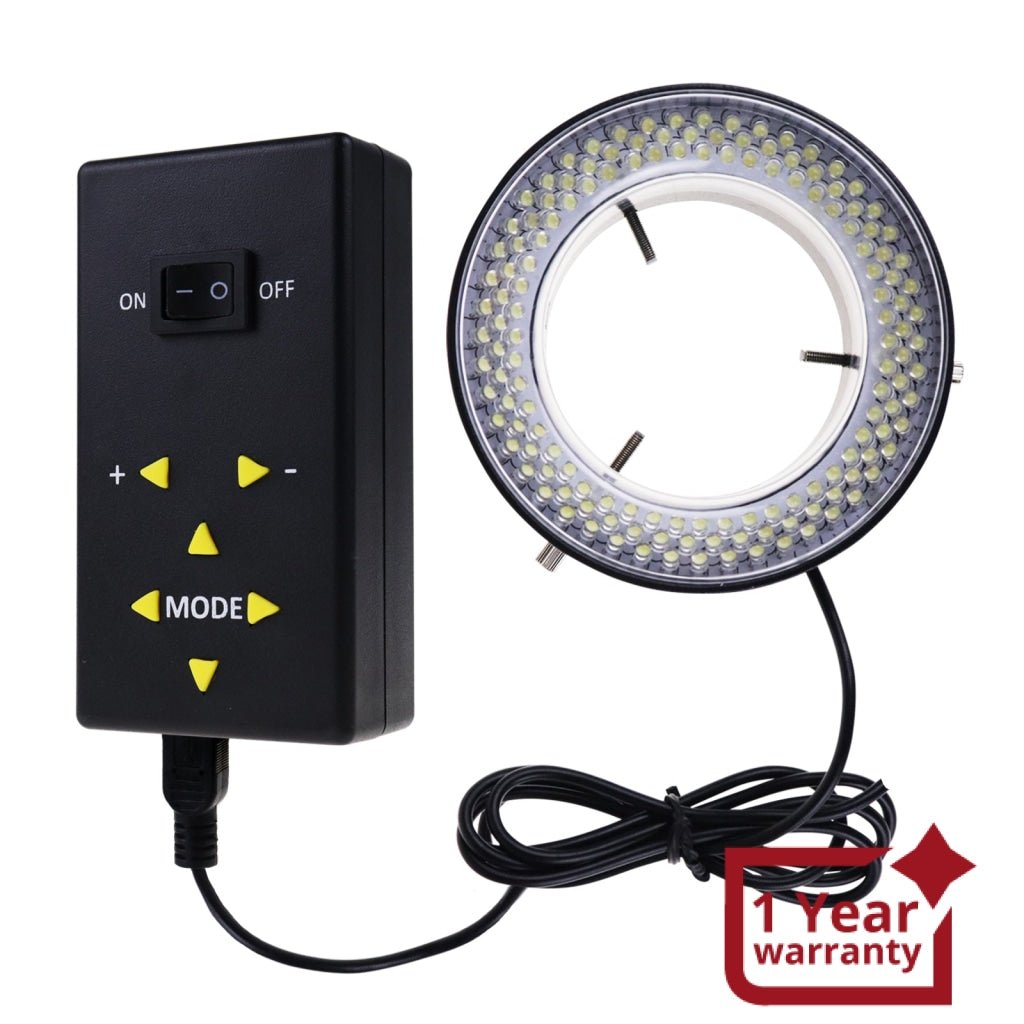

  • 1 x 144 LED Ring Light

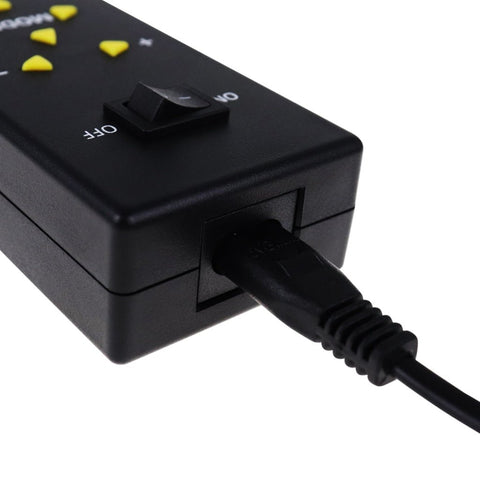

  • 1 x Main Controller
  • 1 x Power cord (available in US / UK / AU / EU plug)
  • Standard Packaging Box



click here to watch the video for this product
