LUX-29 Digital Light Lux Meter with Data Logging Measurement Range 0 to 200,000 Lux Auto Ranging Instrument


Quantity
  OR

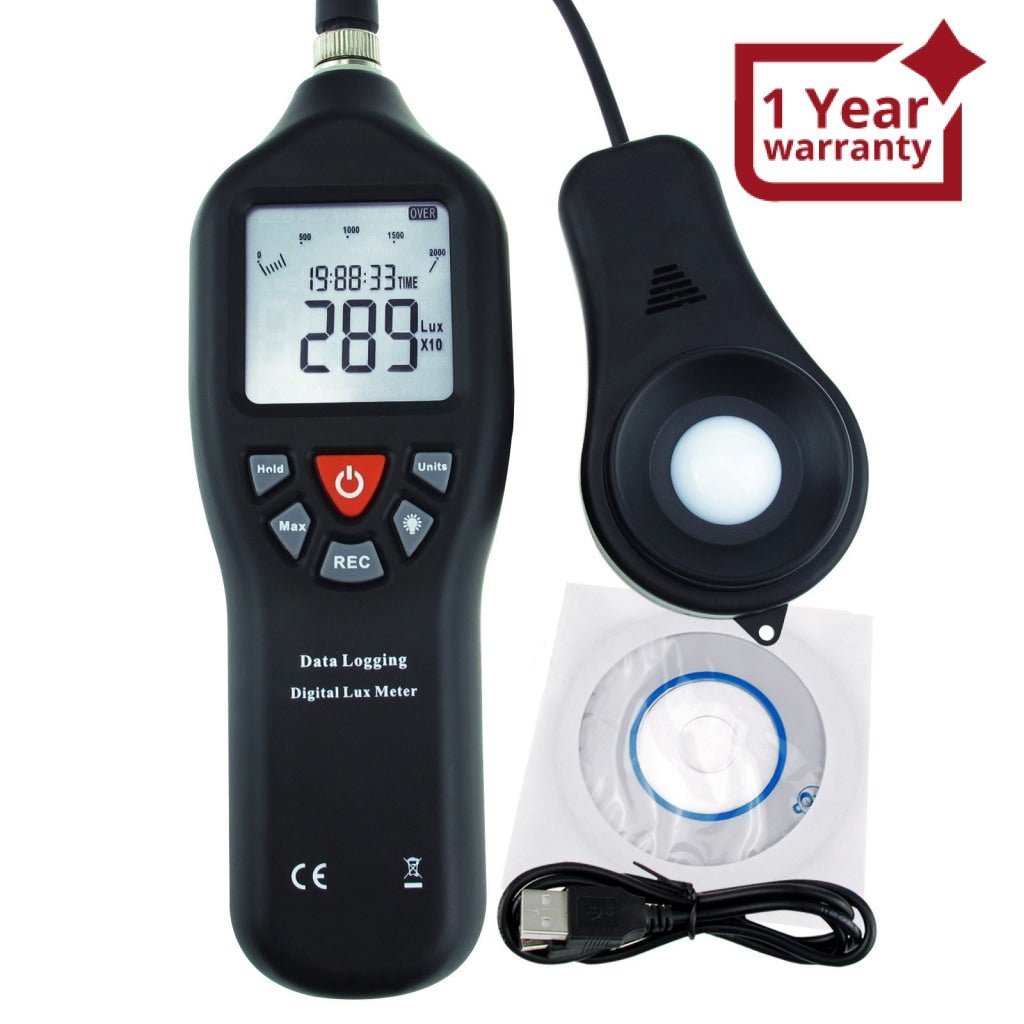

Model: LUX-29

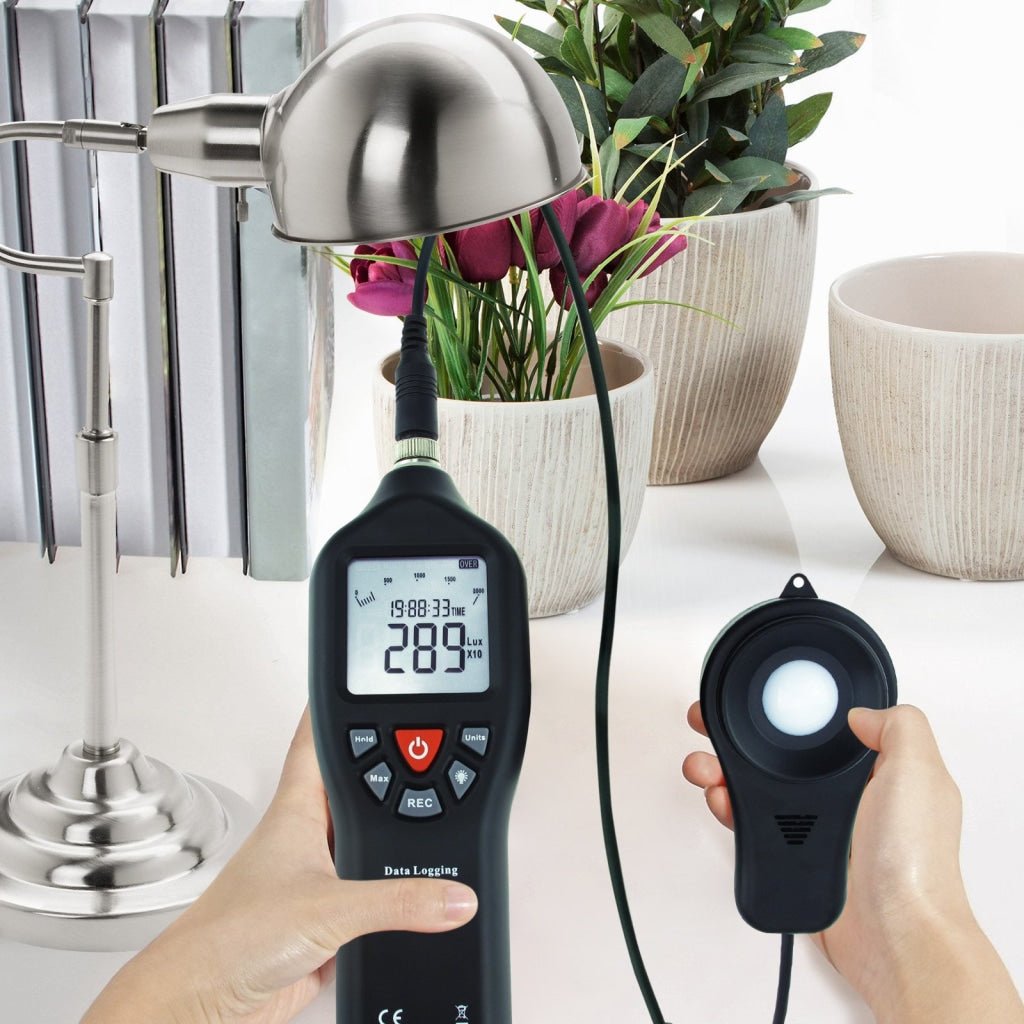

This Portable Digital Lux Meter with PC Interface can measure up to 200,000 lux. It is used for checking the level of luminance, the measure of the amount of light falling on a given surface. It applied in the fields of cinematography and scenic design, in order to determine the optimum light level for a scene, where they can help to reduce the amount of waste light used in the home, light pollution outdoors, and plant growing to ensure proper light levels.

Features

  • Auto Ranging

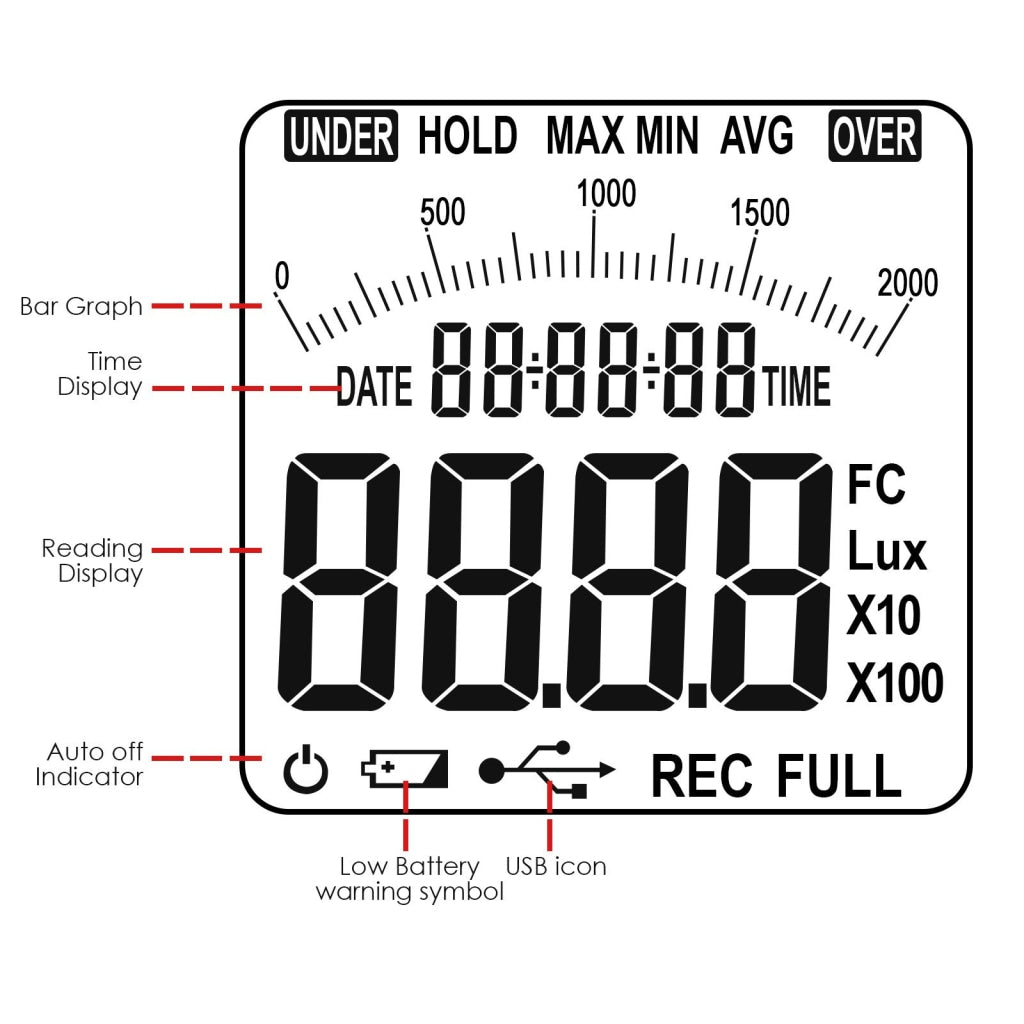

  • Large Display with backlight
  • 21000 Reading Internal Memory (Data record function)
  • Data logging Function
  • Lux and Fc switchable
  • Data hold function
  • High Accuracy
  • Min/Max/Avg function

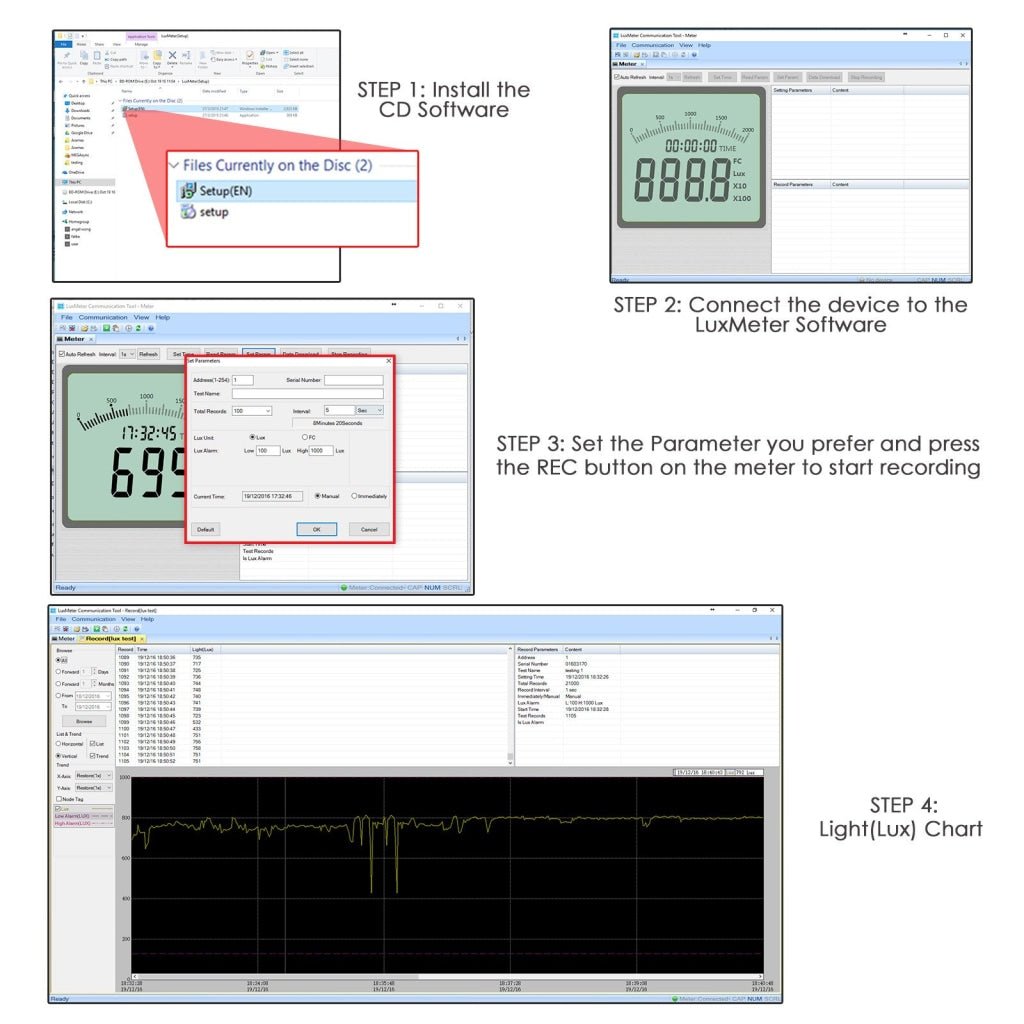

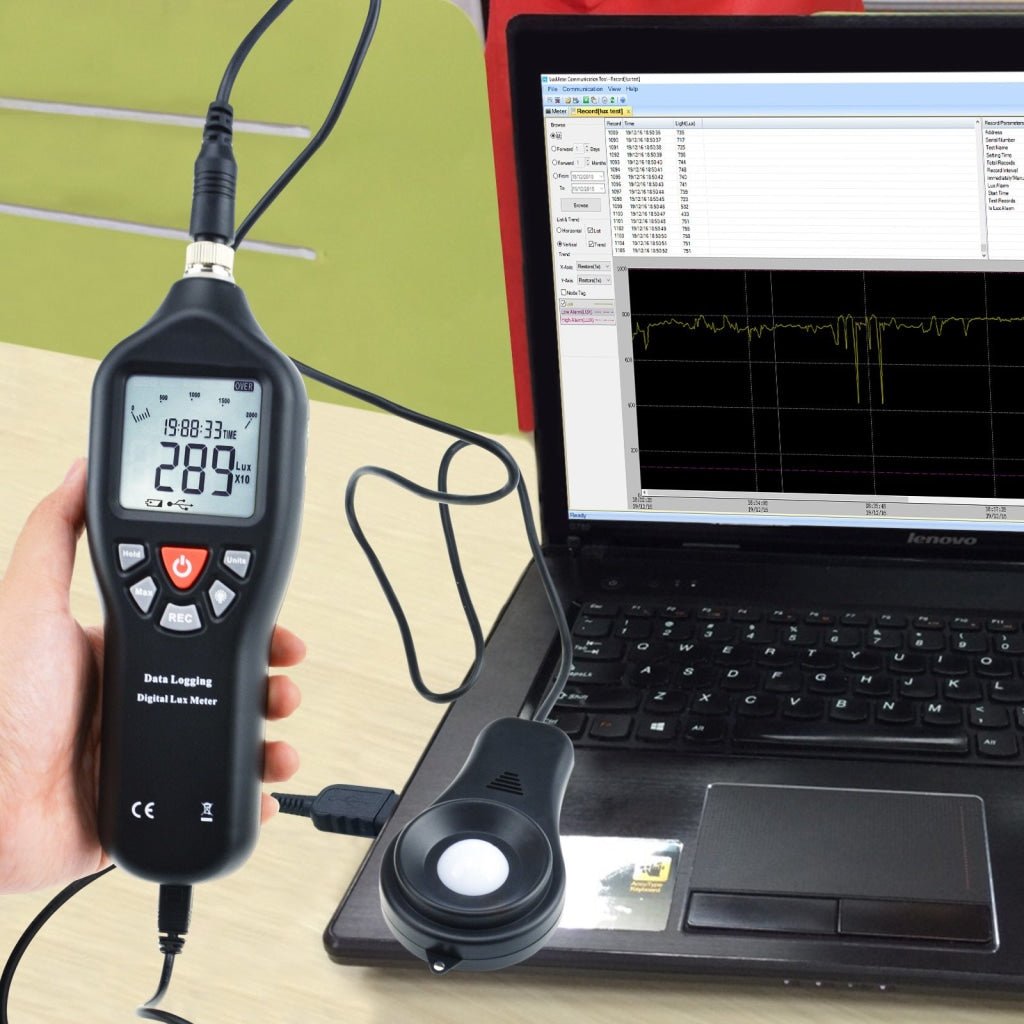

  • PC Interface

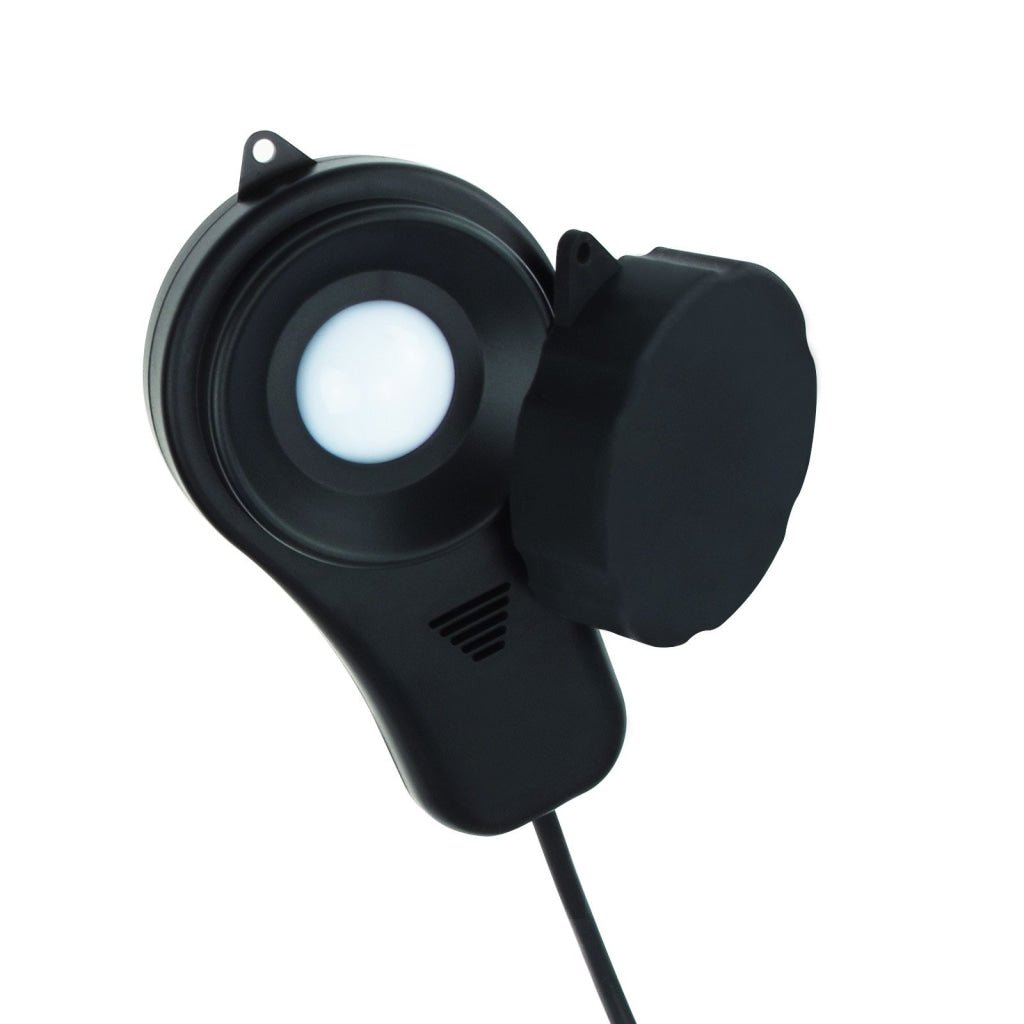

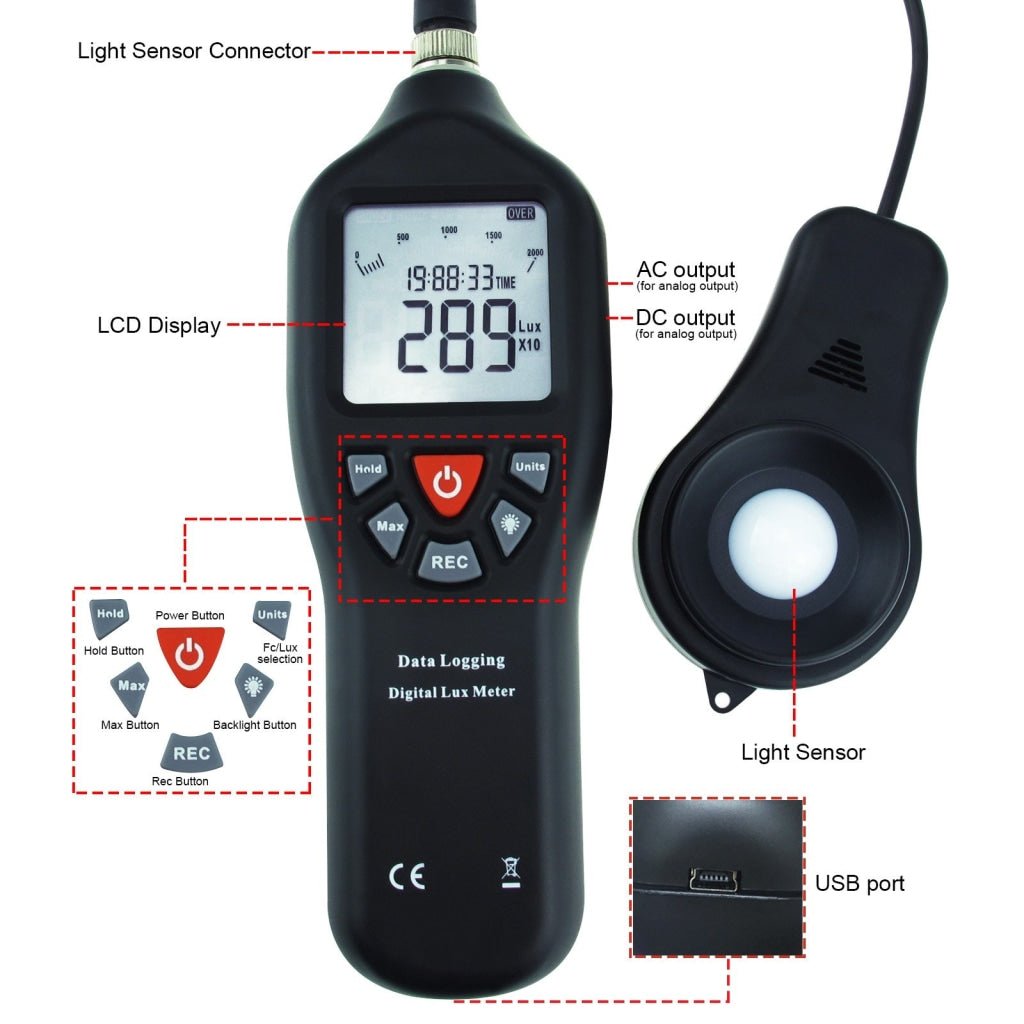

  • Detachable sensor
  • Time and date display
  • Low power consumption
  • Auto OFF function (disable during recording)
  • Hi/Low Alarm setting

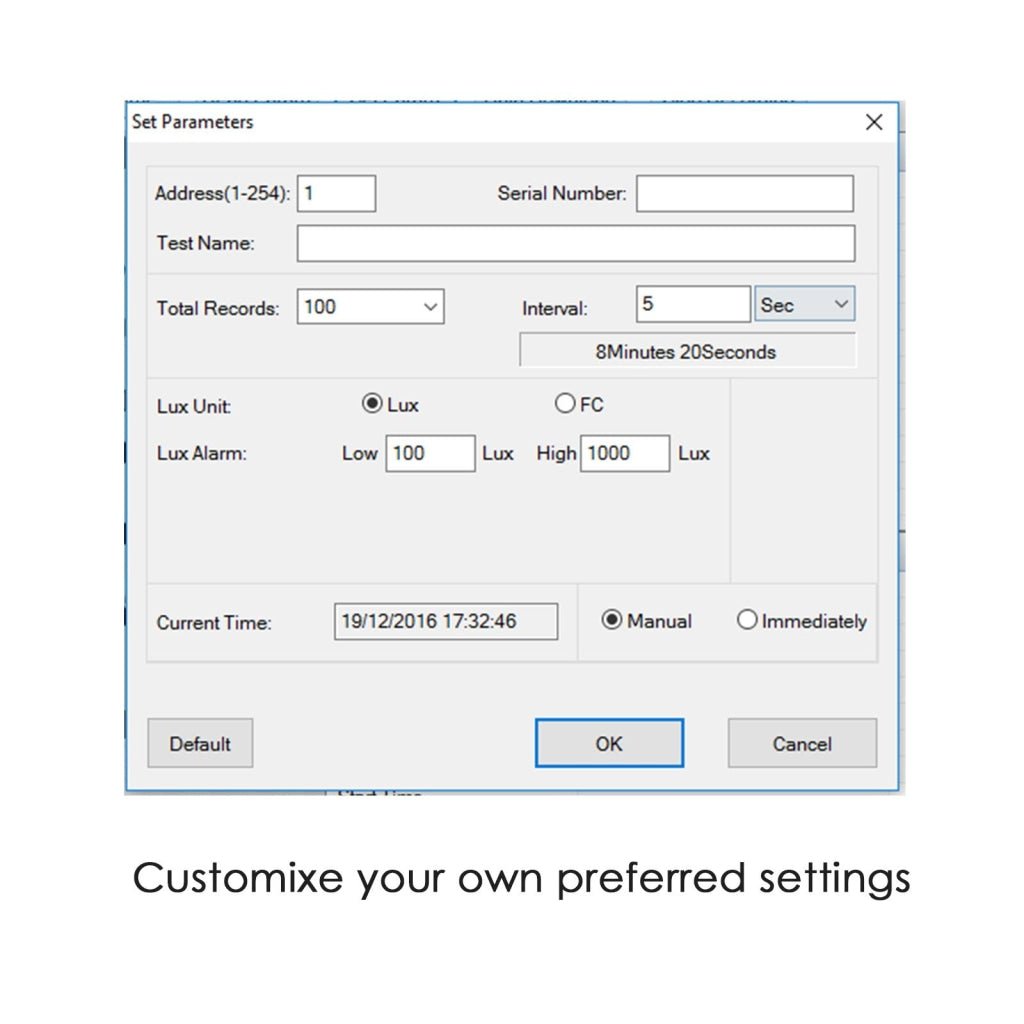

  • Adjustable Over / Under alert thresshold via computer interface
  • Bar graph display
  • Low battery Alert

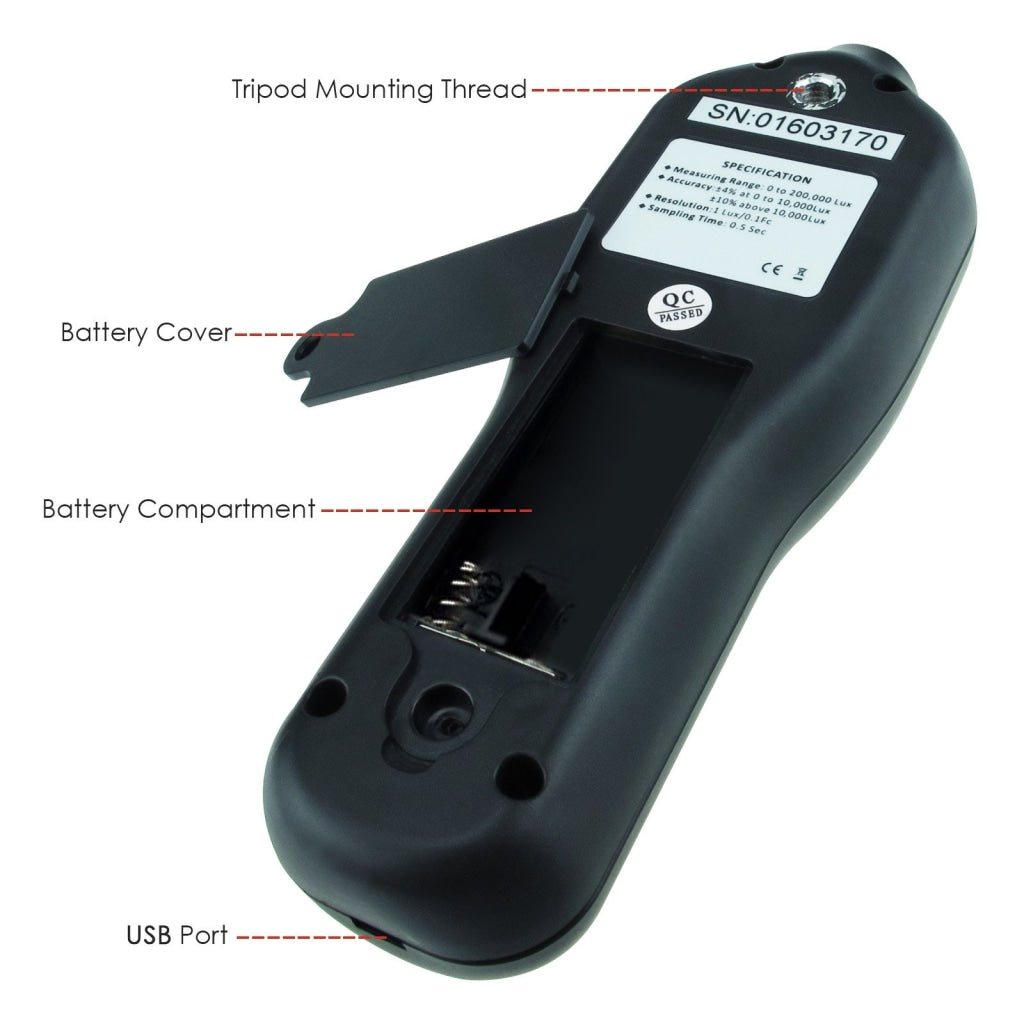

  • Tripod Mount thread (Tripod not included)
  • CE Certified & RoHS Compliant


Specifications

  • Standard Applied: CIE standard & CNS 5119-1988

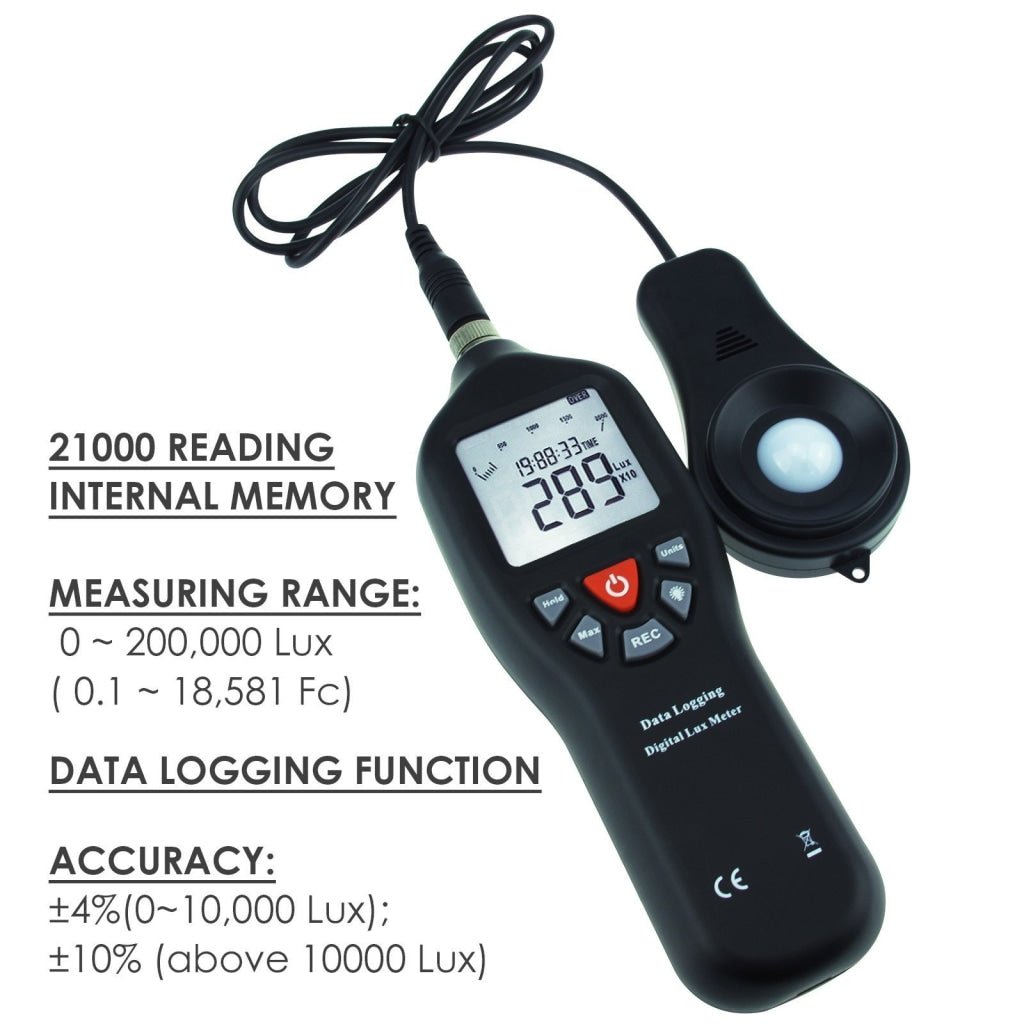

  • Measure Range: 0 ~ 200,000 Lux ( 0.1 ~ 18,581 Fc) switchable
  • Accuracy: ±4%(0~10,000 Lux); ±10% ±5% rdg (above 10,000 Lux)
  • Resolution: 1 Lux/0.1Fc
  • Sampling Time: 0.5 Second
  • Analogy Bar Graph: 0~2000 (x 10 or x 100)
  • AC signal output: 4Vrms / full barograph, output impedance is approx. 600 ohm
  • DC signal output: 33mV/dB
  • Record Interval: 1~60 sec / 1~60 min / 1~24 hrs
  • Windows Compatibilty: Windows 10, 8, 7,  Vista and XP (Do not run in Mac OS)
  • Operating Environment
    • Temperature: 0 ~ 50 °C (32 ~ 122 °F)
    • Humidity:10 ~ 90%RH
  • Storage Environment
    • Temperature: -10 ~ 60 °C(14 to 140 °F)
    • Humidity:10 ~ 75%RH

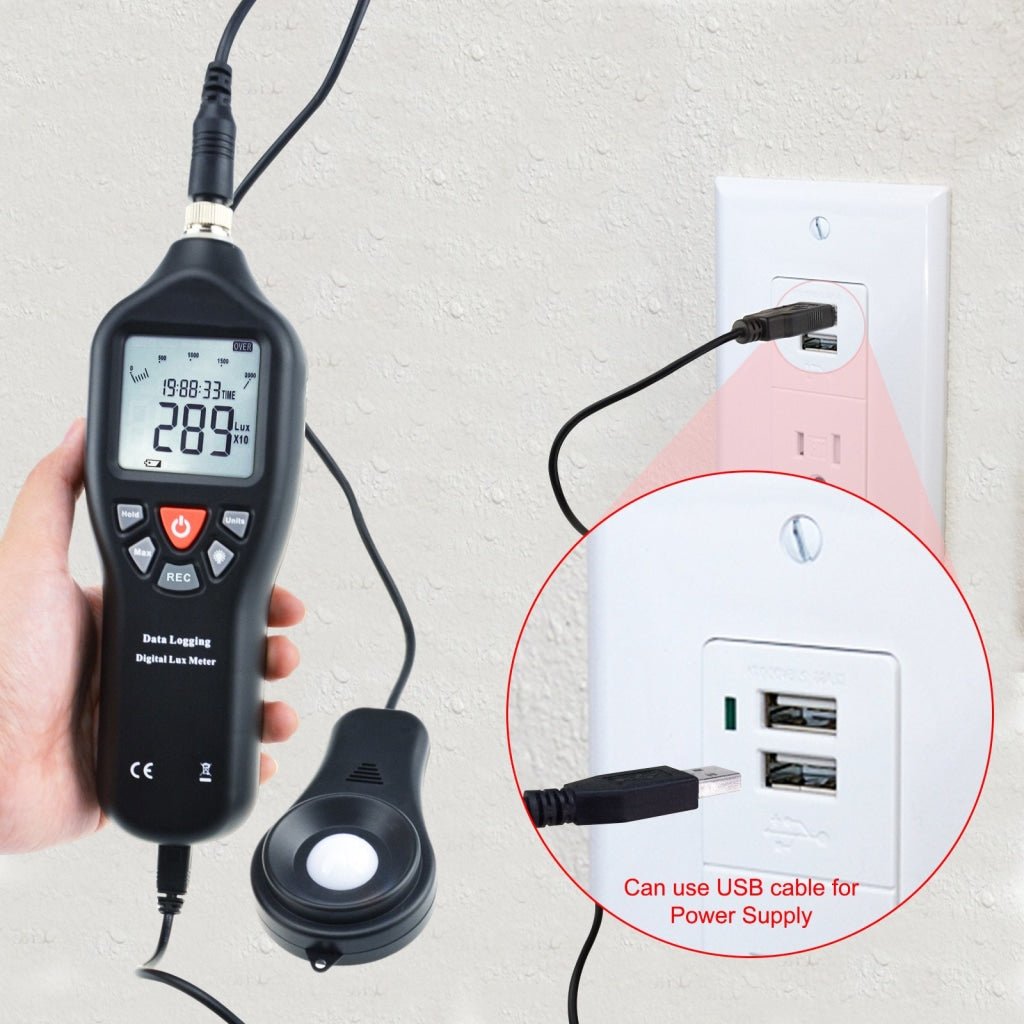

  • Power Supply: 4 x AA Size 1.5V Battery or USB Power cable
  • Item Weight: 290 gms (battery included)

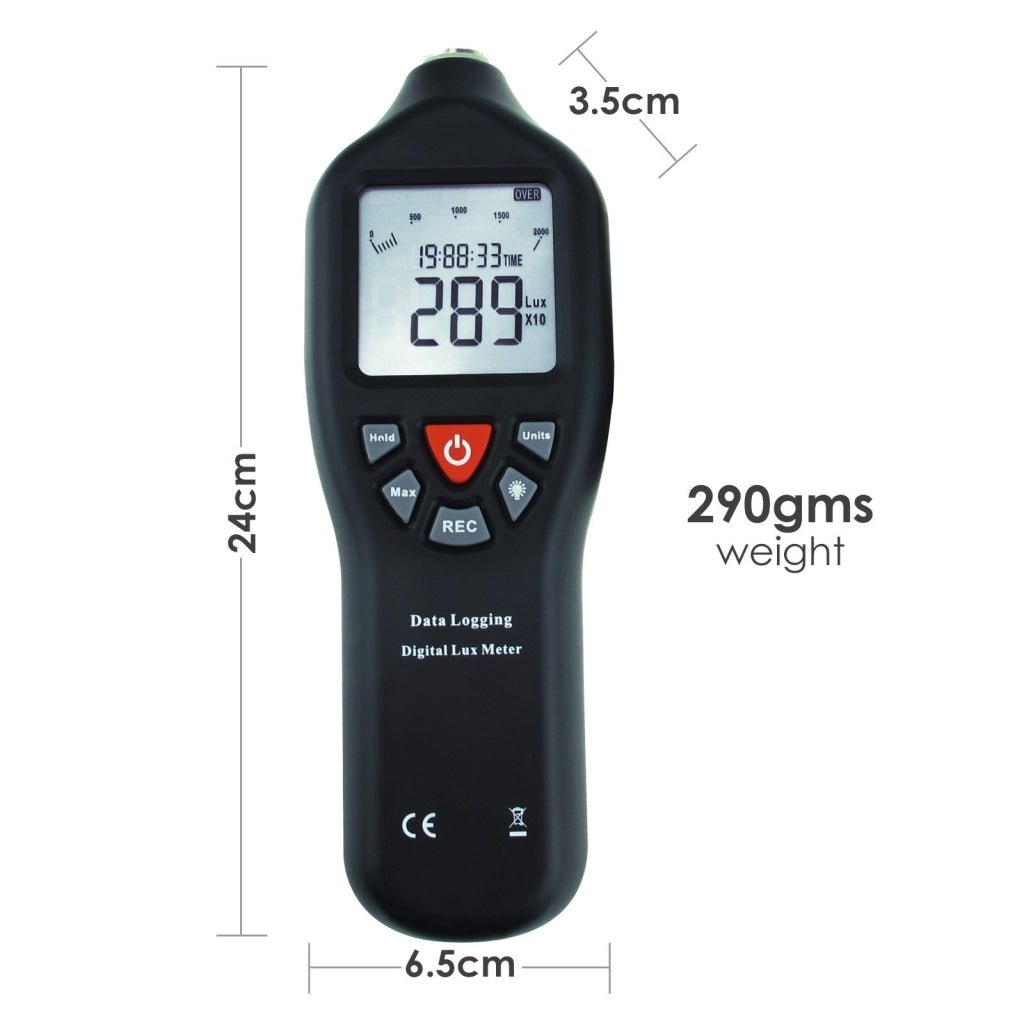

  • Product Dimensions: 24 x 6.5 x 3.5 cm (with 1 meter extended detachable sensor)

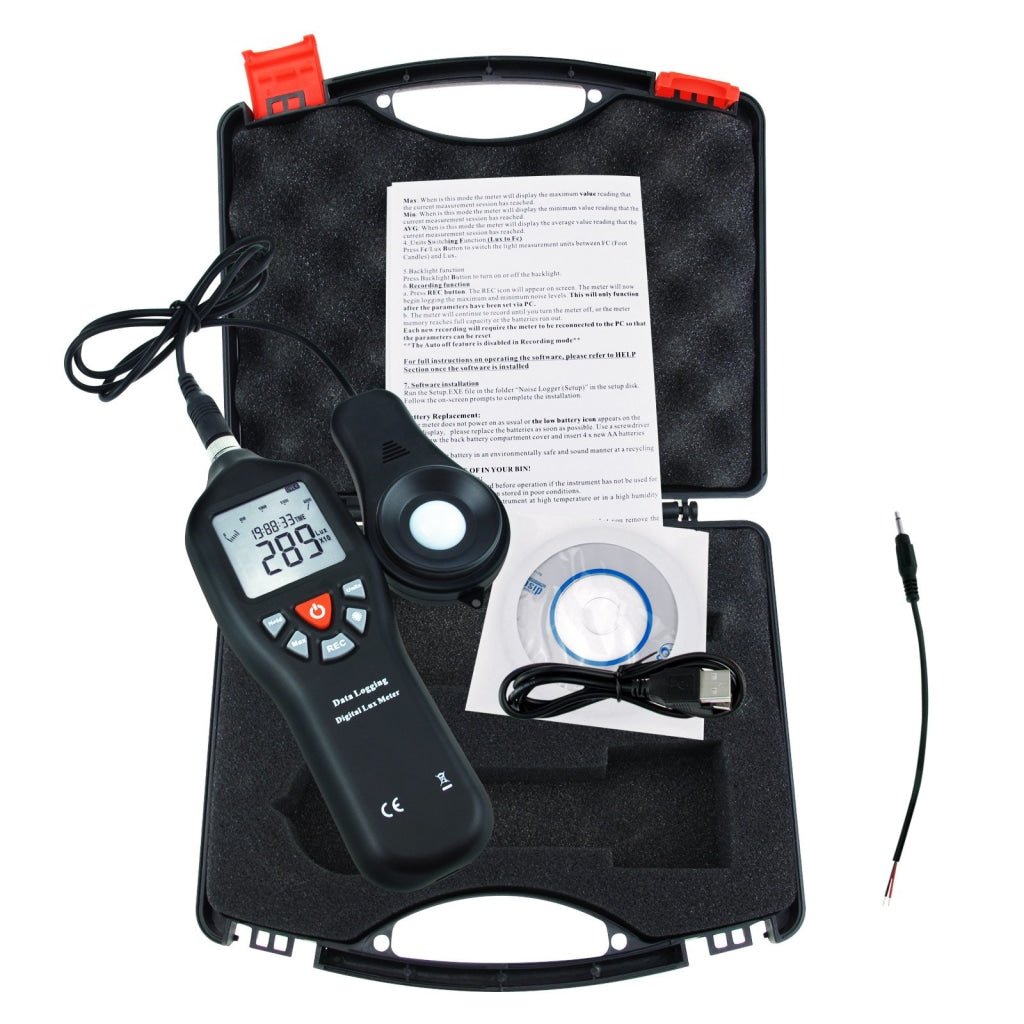

Set Includes

  • 1 x Digital Lux Meter
  • 1 x Light Sensor
  • 1 x Englsih User Manual

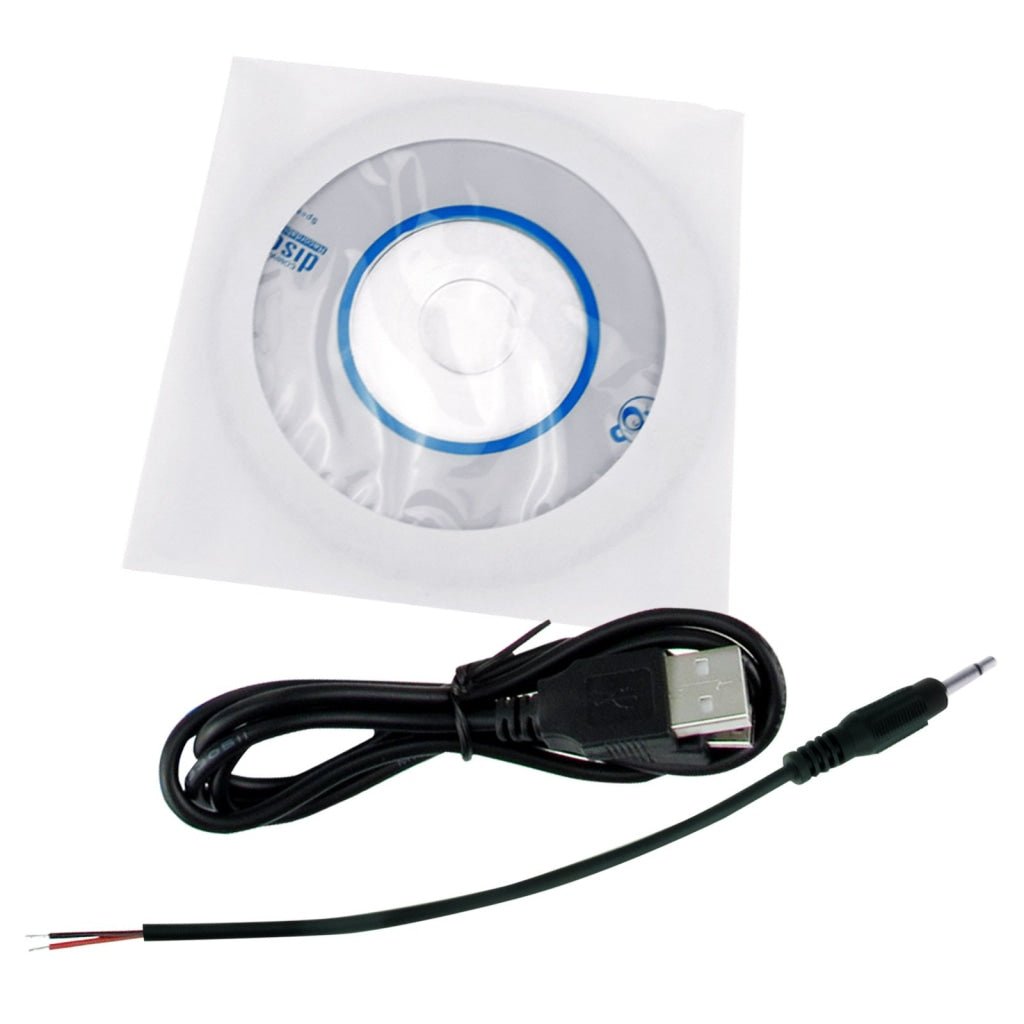

  • 1 x USB cable
  • 1 x AC/DC Cable
  • 1 x CD Software
  • 4 x AA Size Battery
  • Carrying Case
