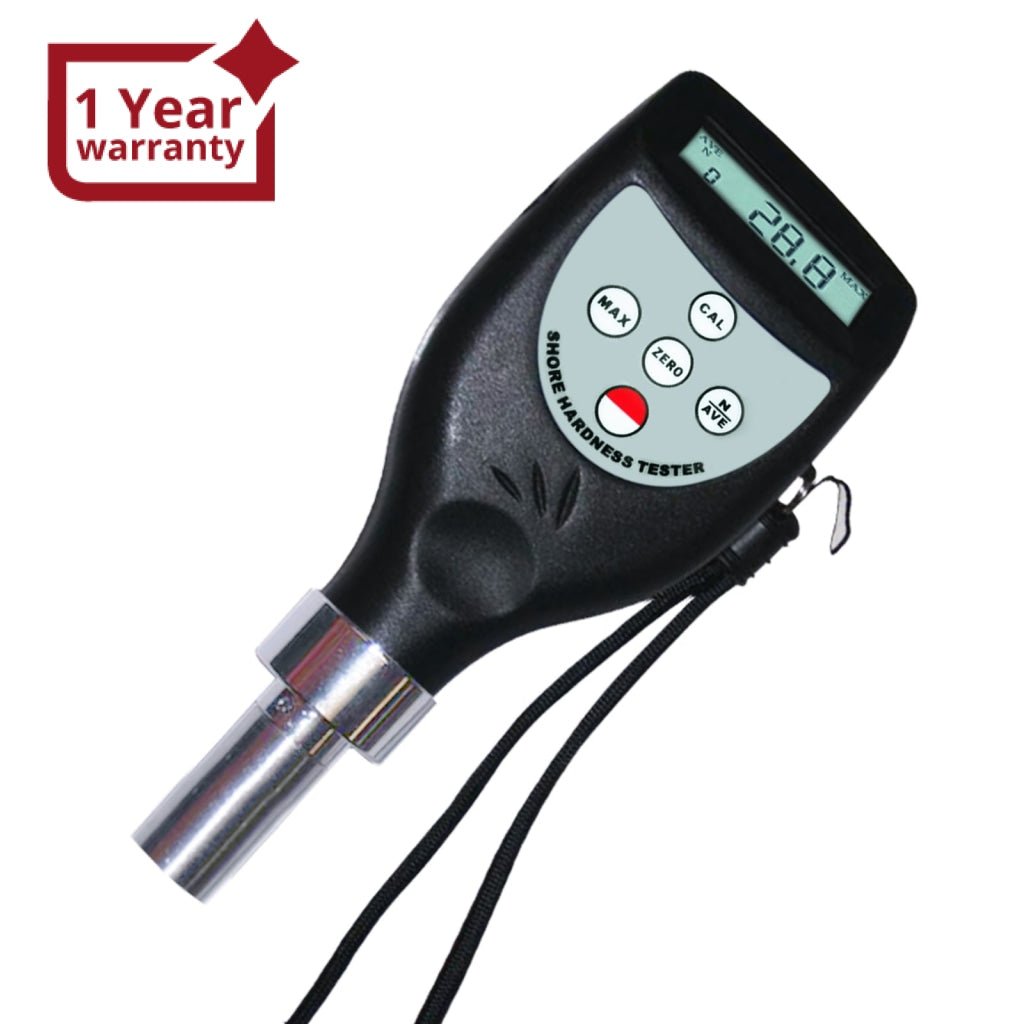

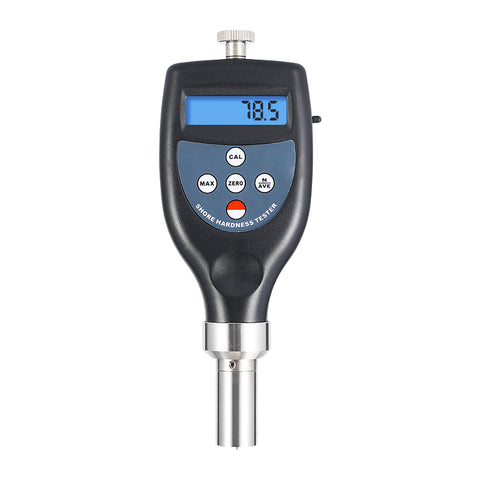

HT-6510D Digital Hardness Durometer Meter Tester Plastic Shore D


Quantity
  OR

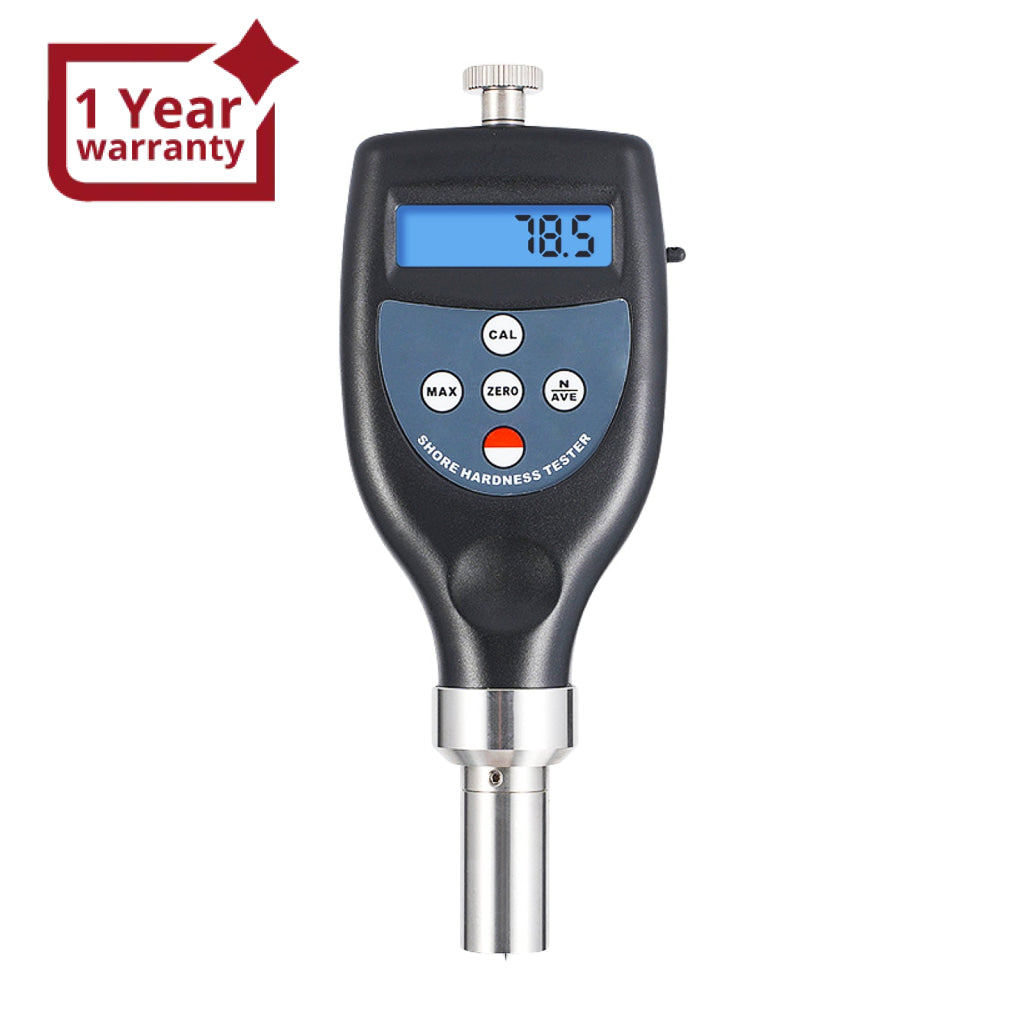

Model : HT-6510D

This

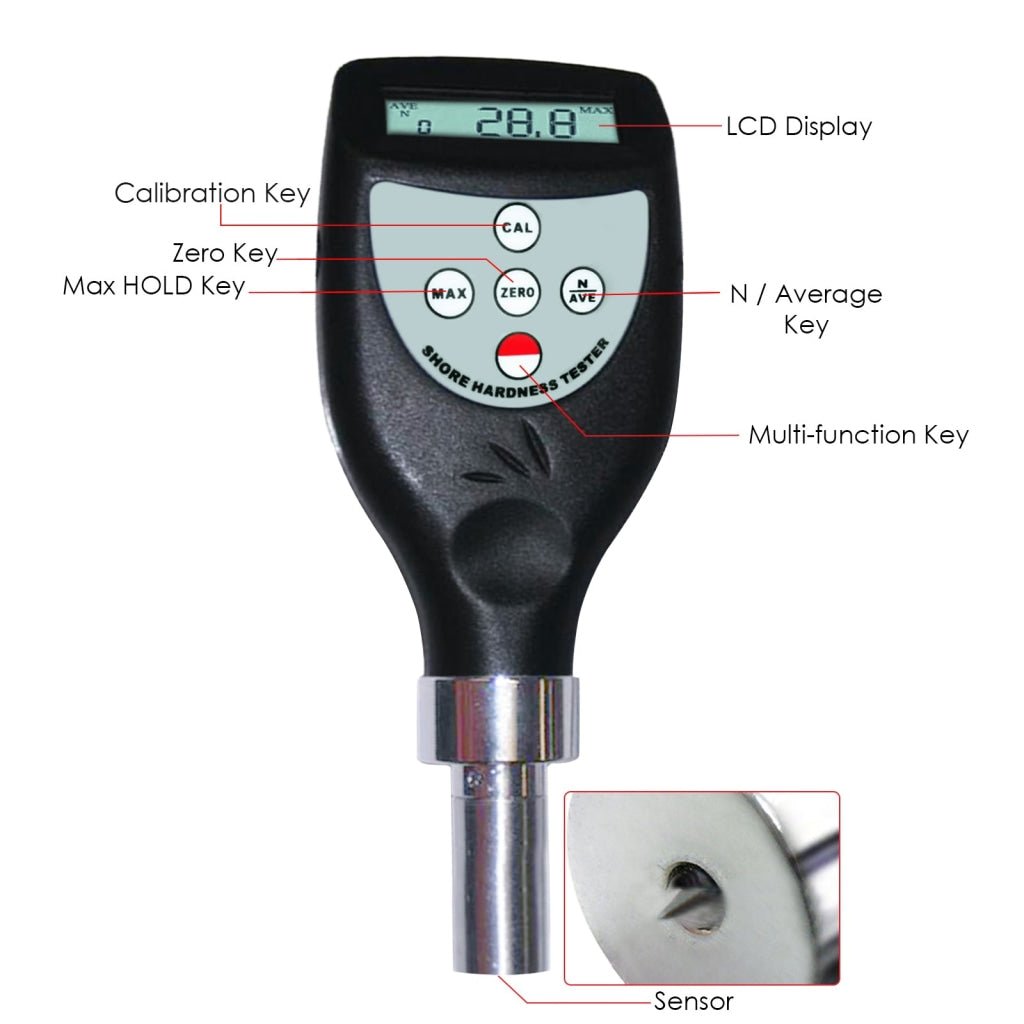

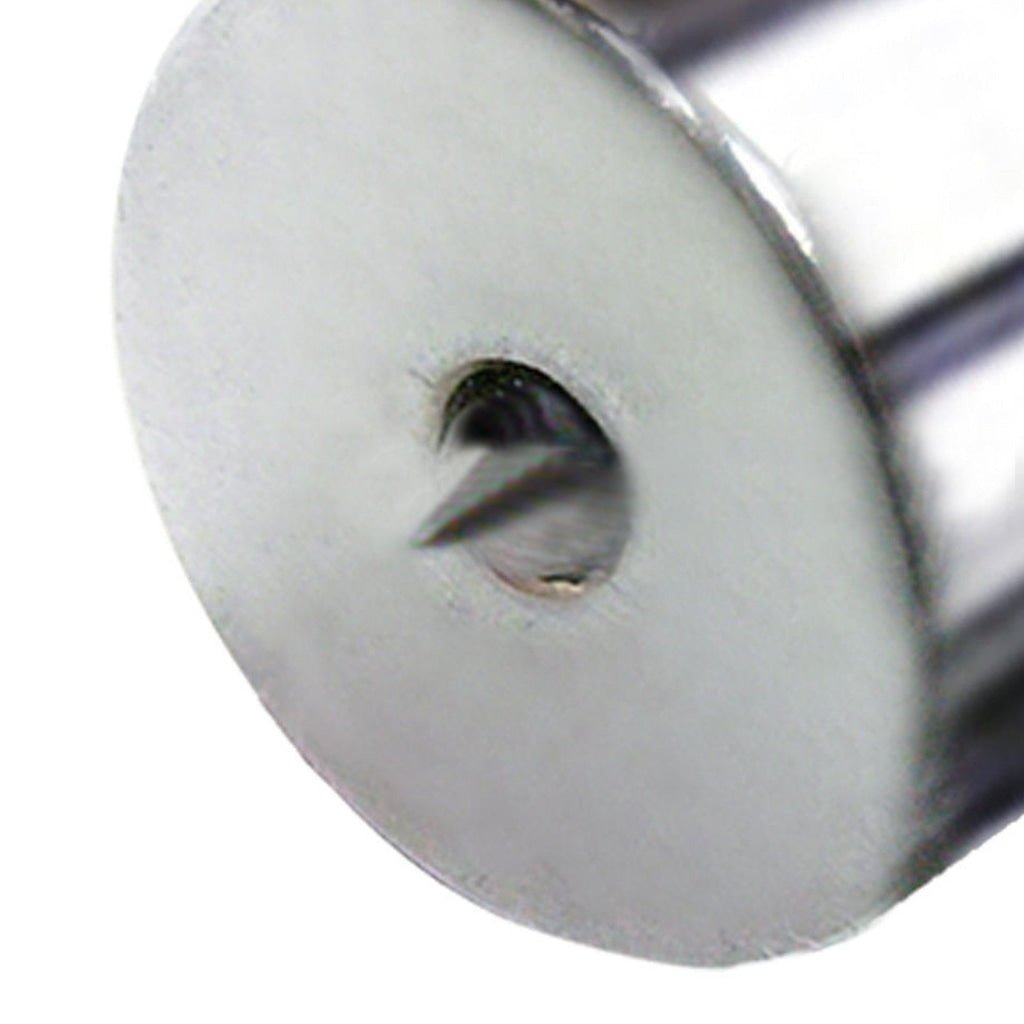

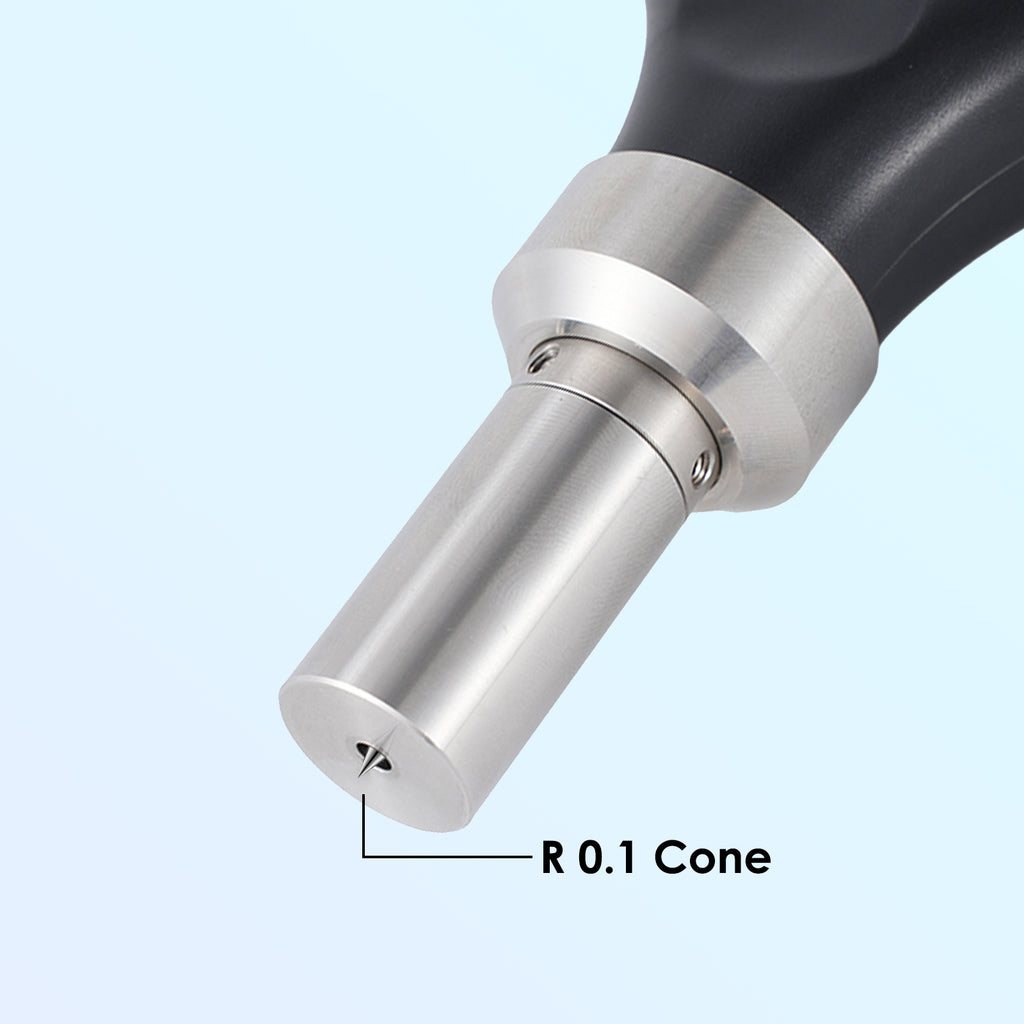

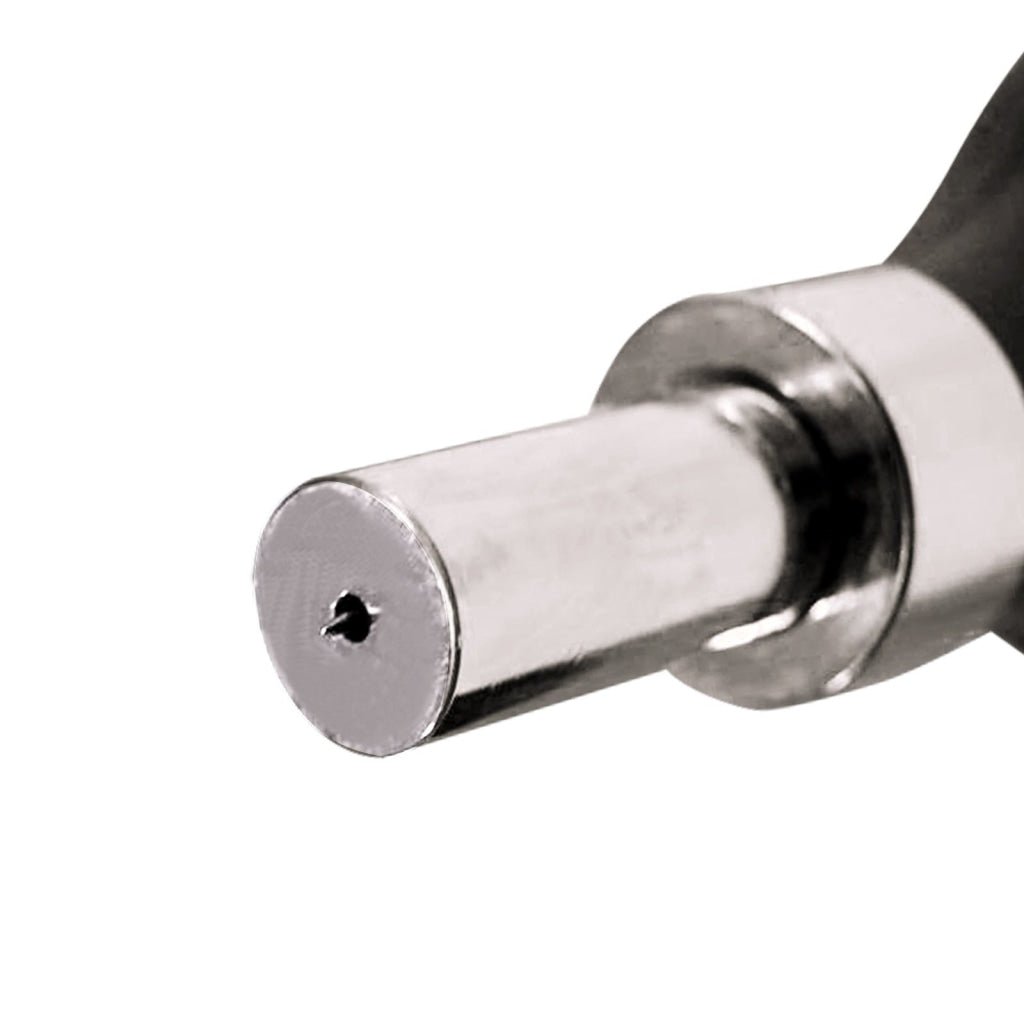

pocket size digital testing equipment is fully equipped with an indenting foot of hardened steel rod with a 30° conical point and 0.1 mm radius tip and is capable of producing a value from 0 to 100, with higher values indicating a harder material. The results obtained from this test are a useful measure of relative resistance to indentation of various grades of polymers, elastomers and rubbers.



Features:

  • With INTEGRATED (built-in) PROBE and designed to determine the hardness of Plastics, Formica, Expoxies and Plexiglass
  • Equipped with wide measuring range and high resolution
  • Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
  • Uses operation stand capable of applying the specimen to the indentor with sufficient recommended force that allows accurate and repeatable hardness tests to increased stability and maximum repeatability
  • Delivers ultra accurate reading with no guessing errors
  • Features instant, bold, easy to read, legibly written results indicating a specific value, with a 0.1 resolution

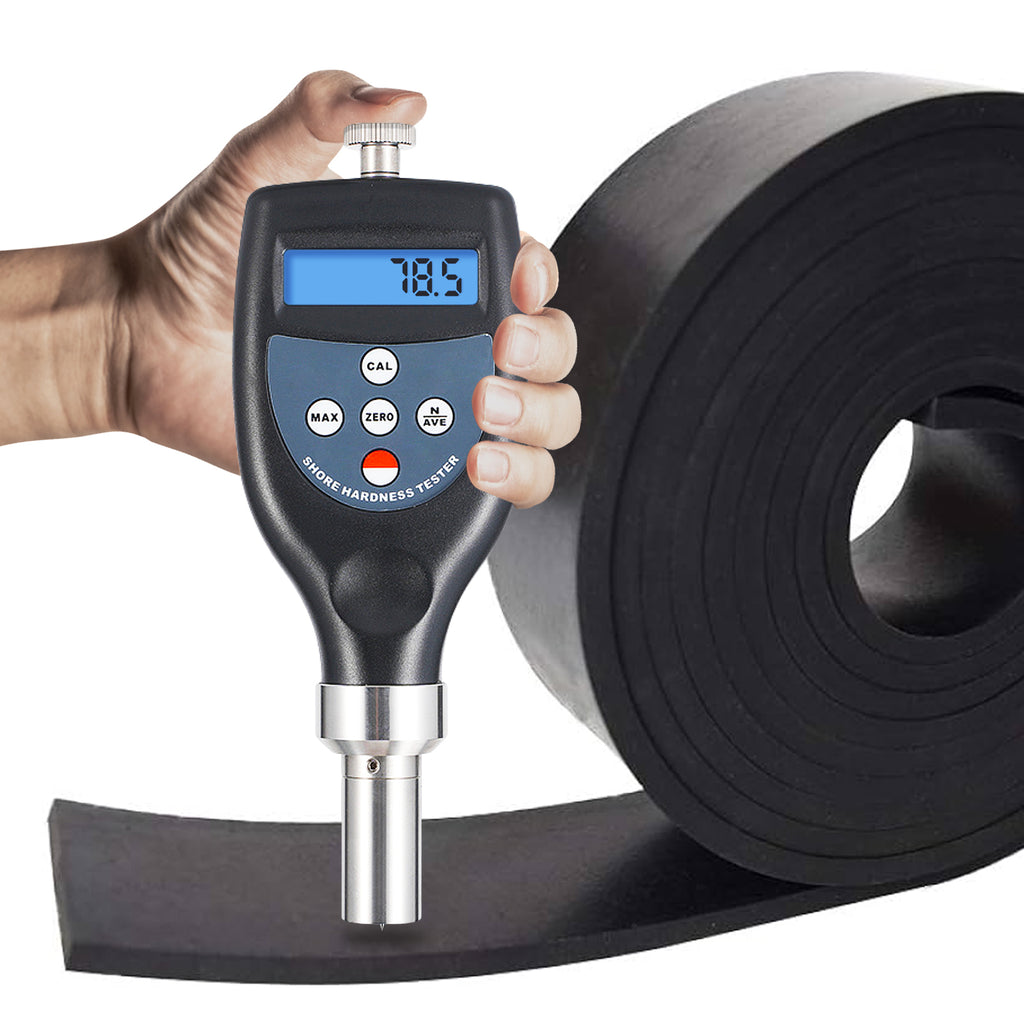

  • Use anywhere and suitable for use in the laboratory or in field conditions


Specifications:

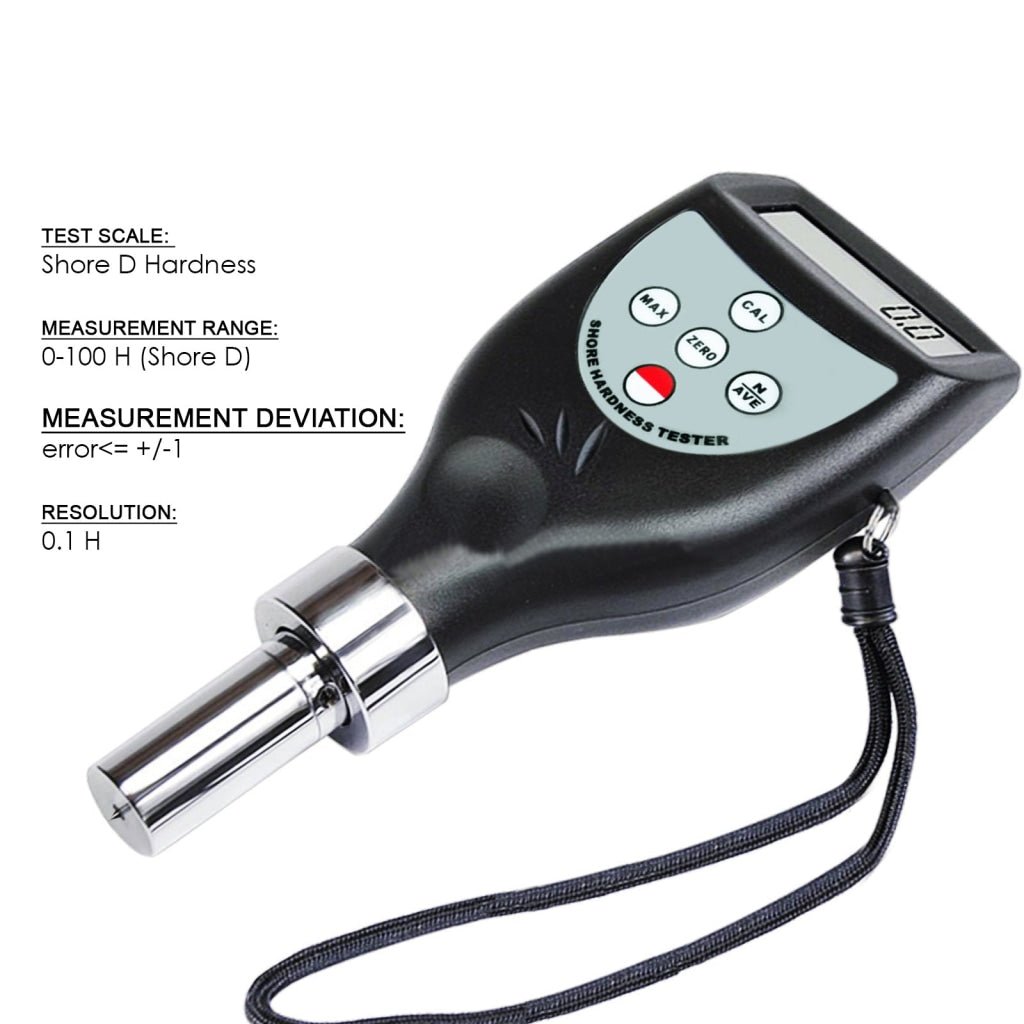

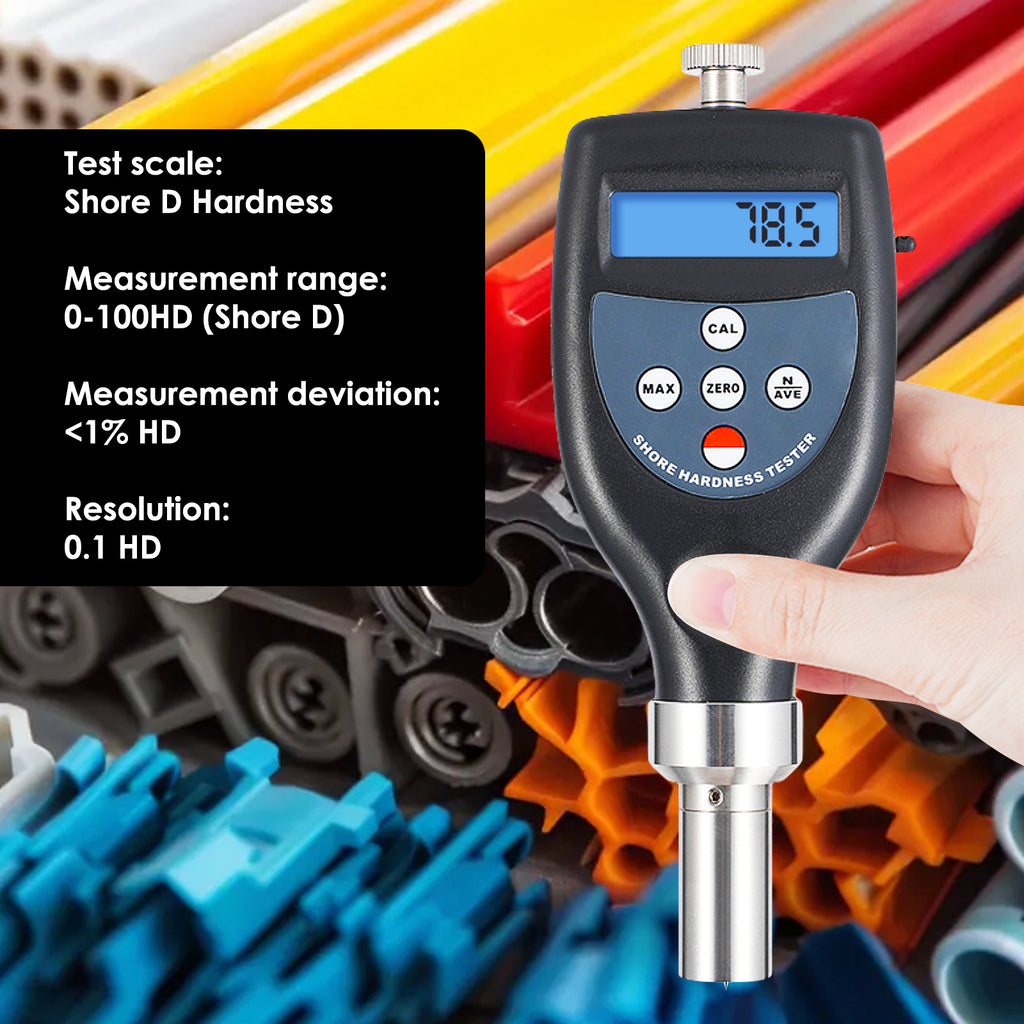

  • Test scale: Shore D Hardness
  • Standards: DIN53505, ASTM D2240, ISO 7619, JIS K7215

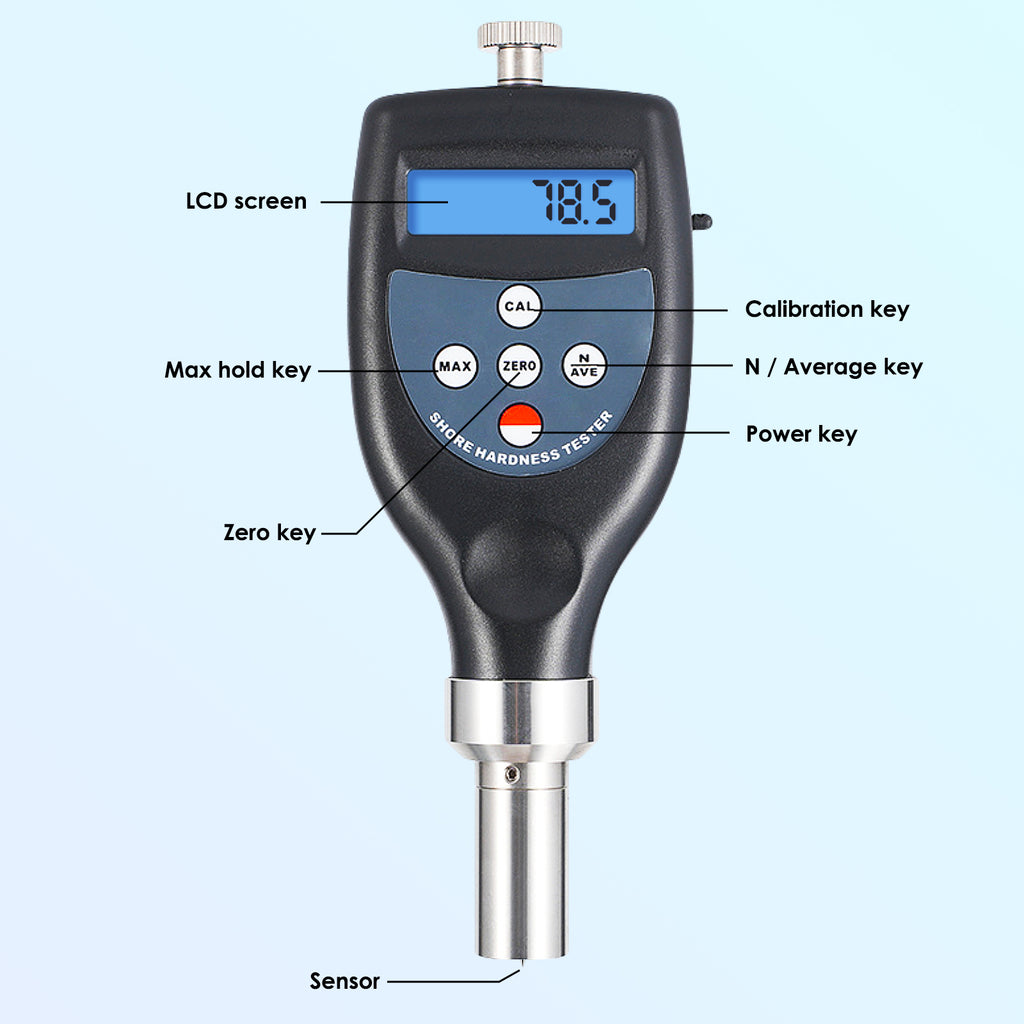

  • Parameters displayed: hardness result, average value, max. value
  • Measurement range: 0-100 H (Shore D)
  • Microcomputer: Newly developed microcomputer delivers maximum results
  • Measurement deviation:  error<= +/-1
  • Resolution: 0.1 H
  • Temperature Operating conditions: *0 - 50°C
  • Humidity Operating Conditions: <80%
  • Display: 4 digits, 10mm LCD

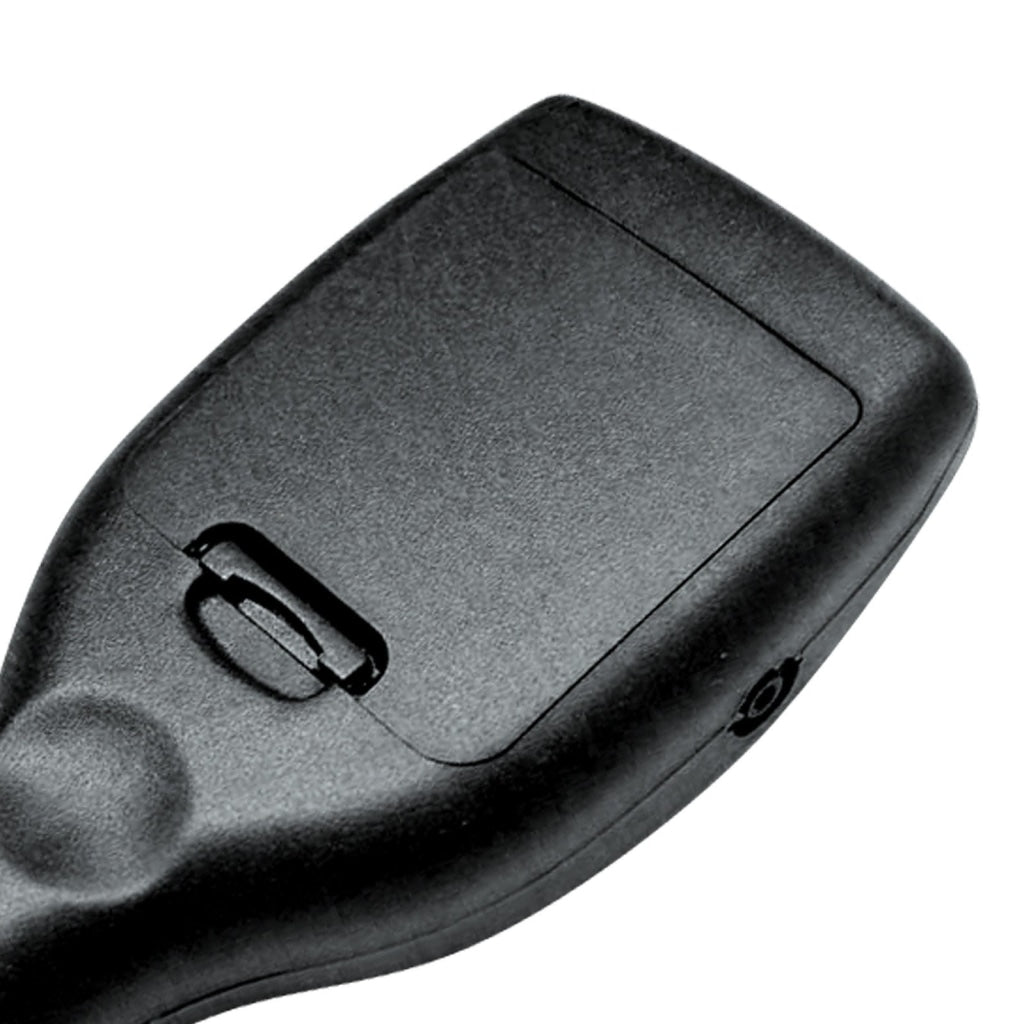

  • Power supply: 4 x 1.5V AAA (UM-4) battery
  • Battery indicator: low battery indicator
  • Power off: manual or auto after 10 minutes

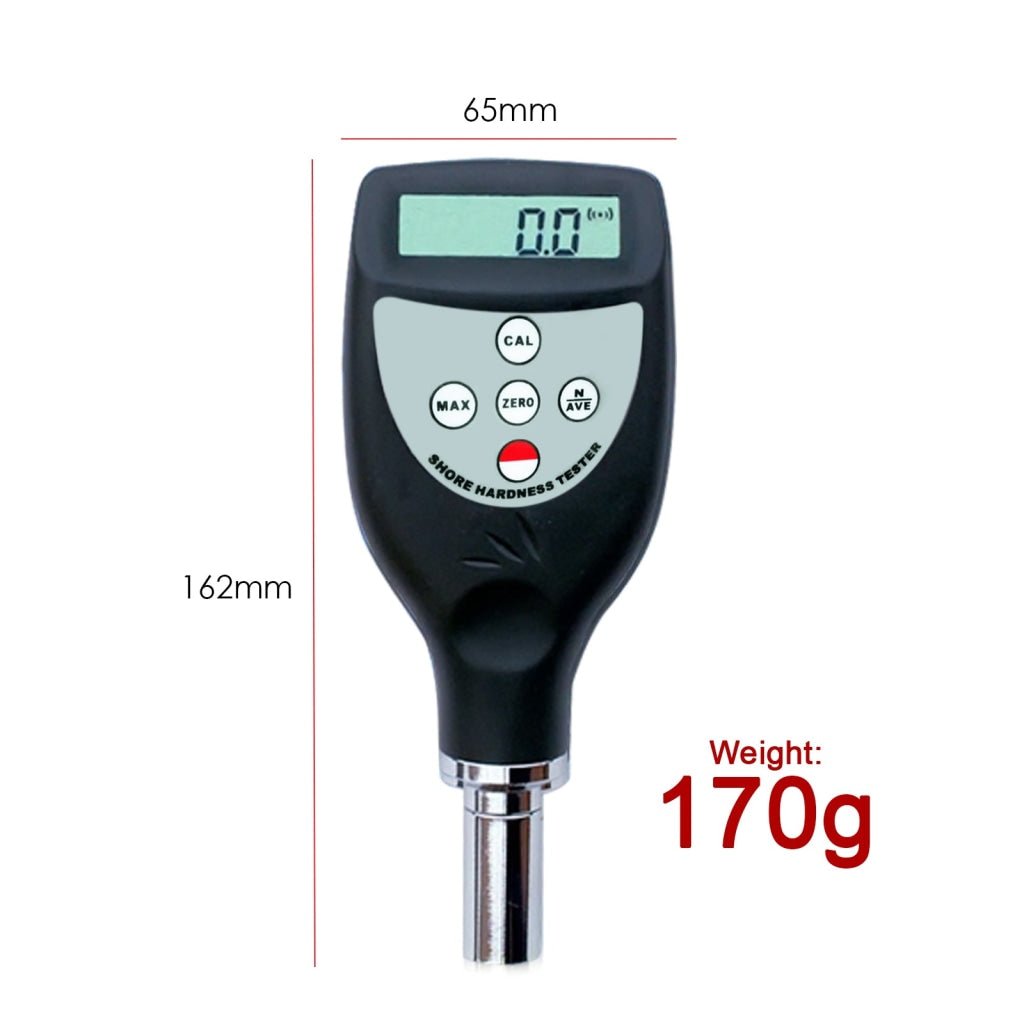

  • Dimensions: 162mm x 65mm x 38mm
  • Weight (without batteries): 170g
DUROMETER OF VARIOUS COMMON MATERIALS
Material
Durometer
Scale

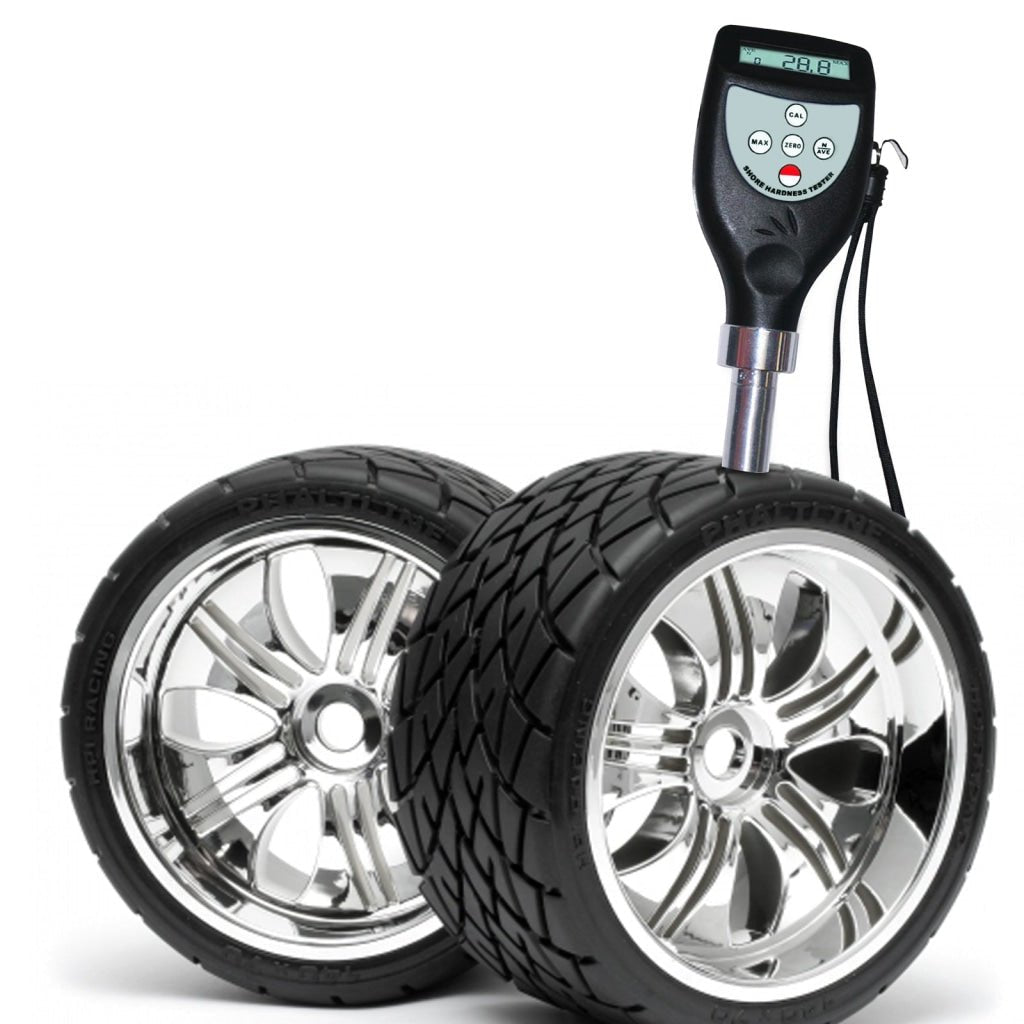

**Solid truck tires
50
D
**Hard Hat
75
D

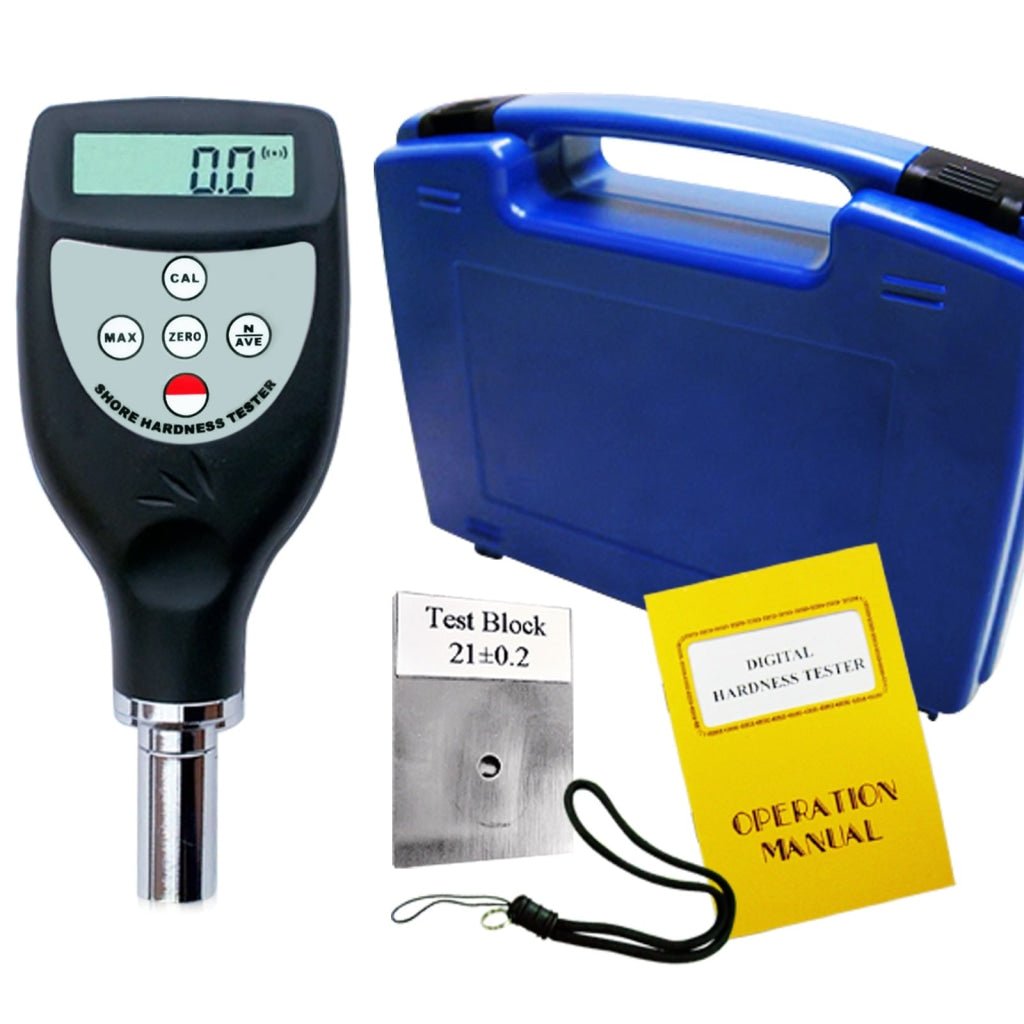

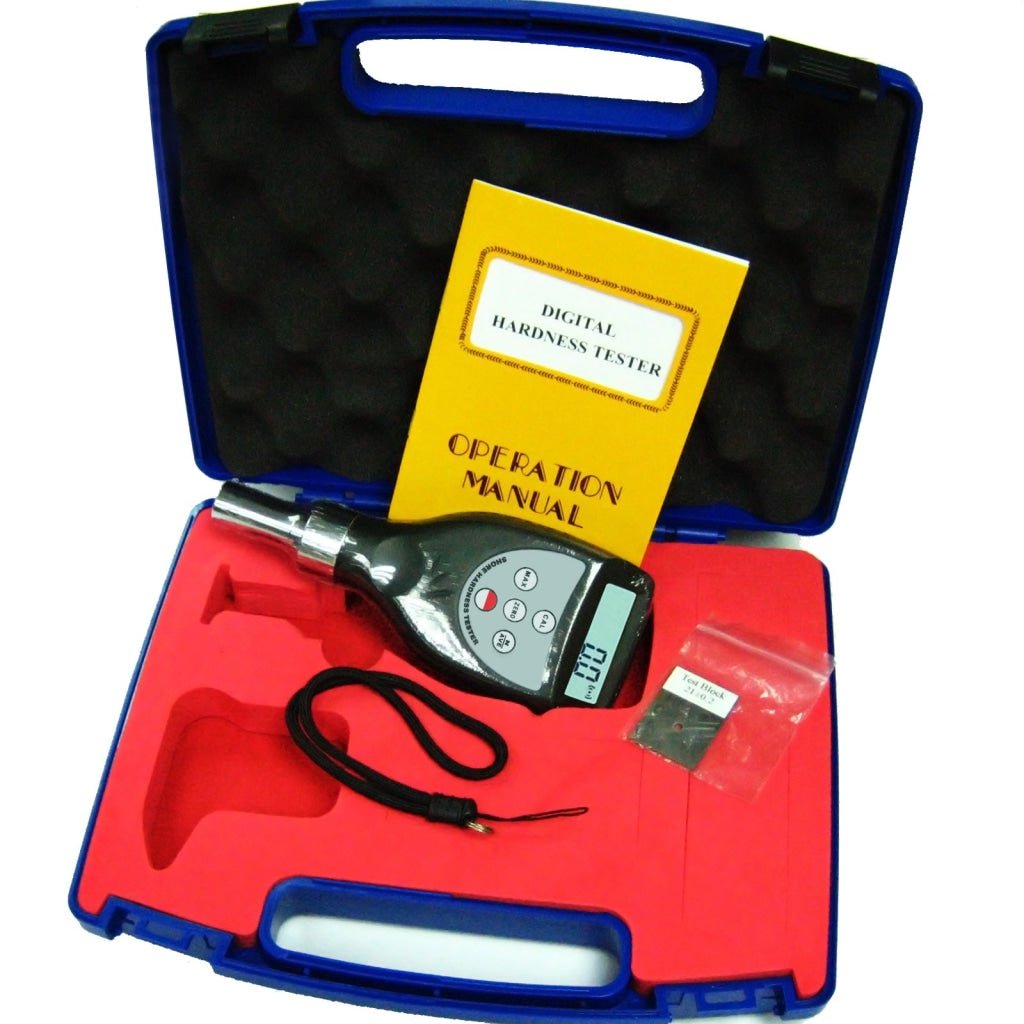

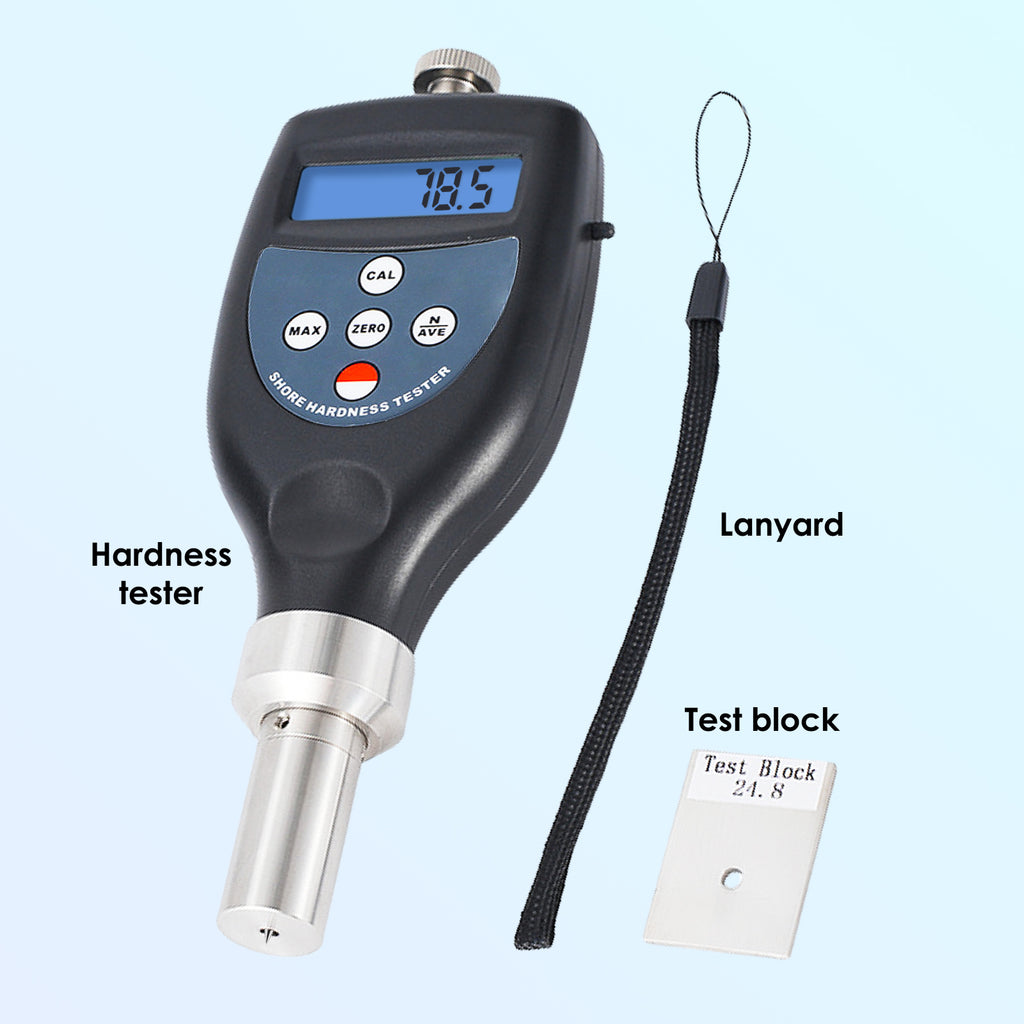

Set Includes:

  • 1 x Digital Durometer Meter

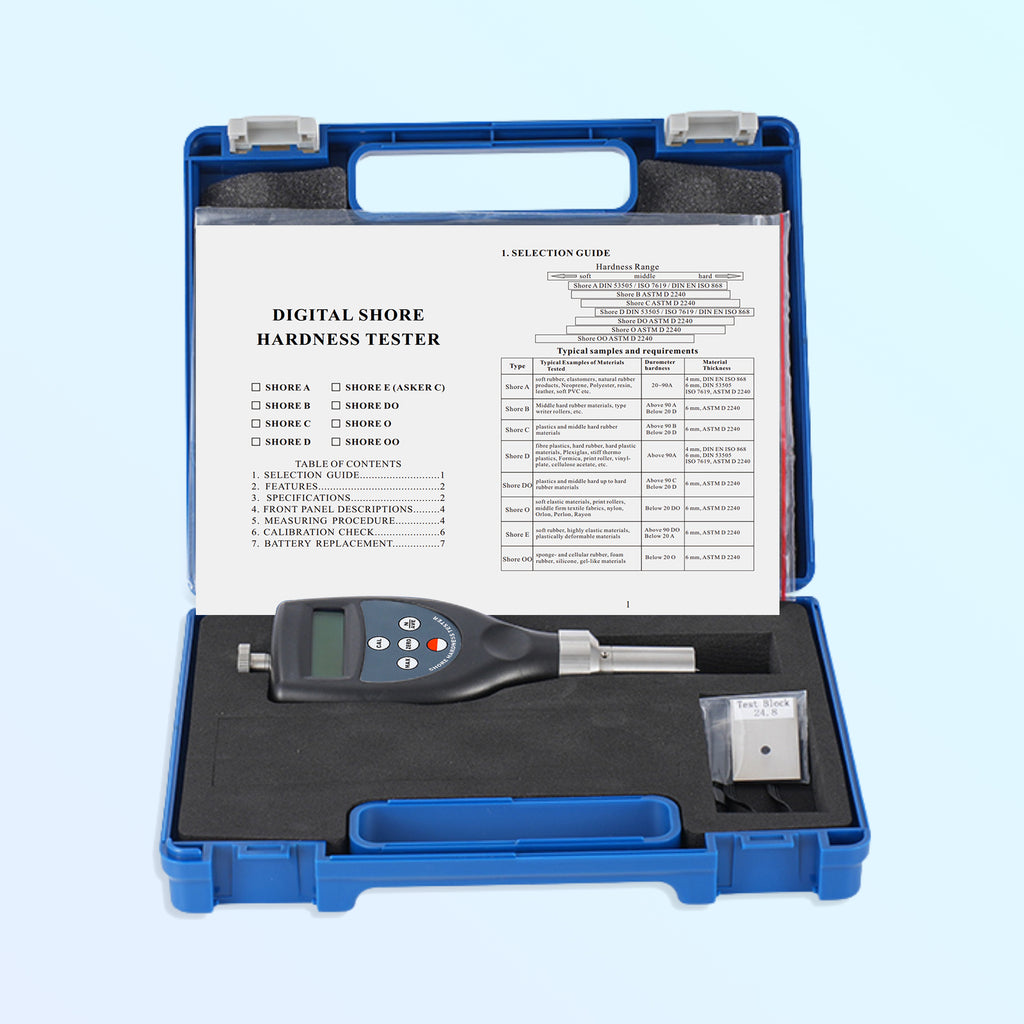

  • 1 x Hard plastic carry case with padded & contoured interior
  • 1 x instruction manual

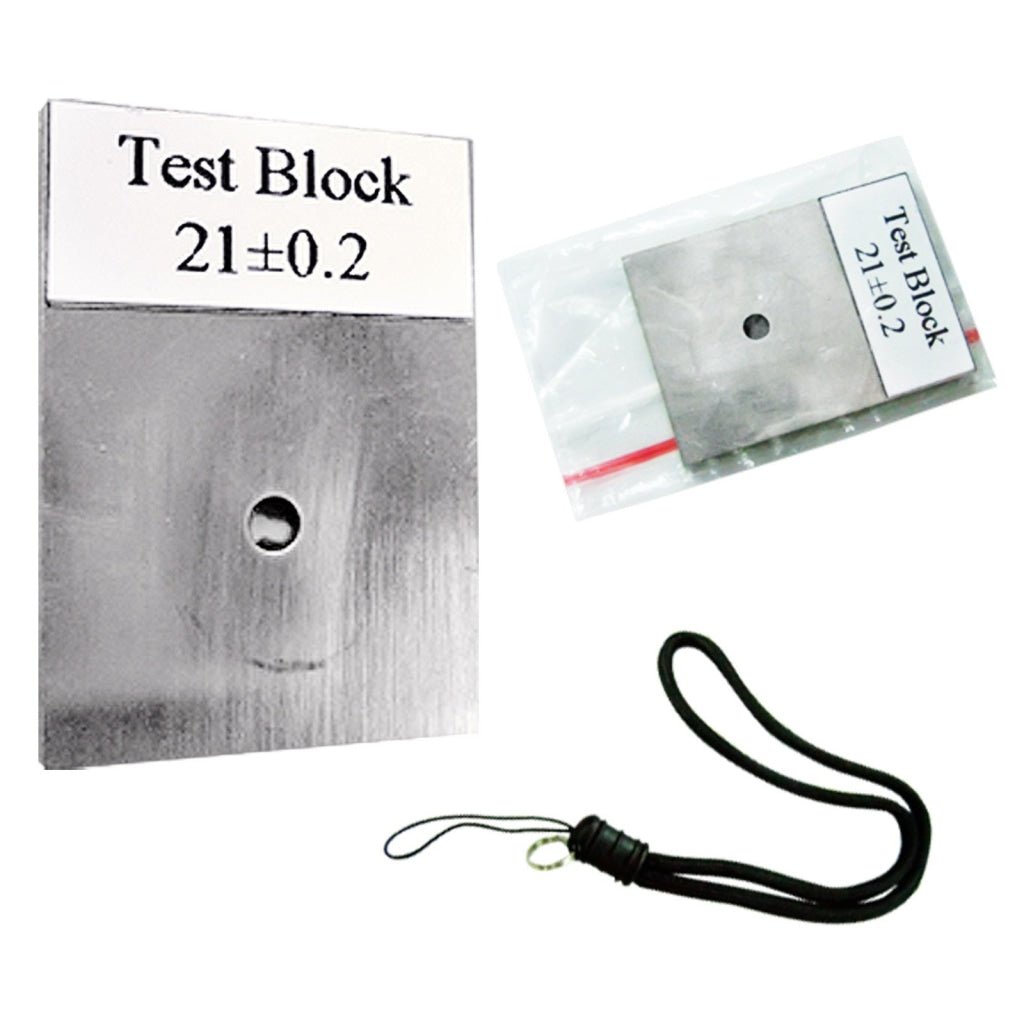

  • 1 x FREE Test Block

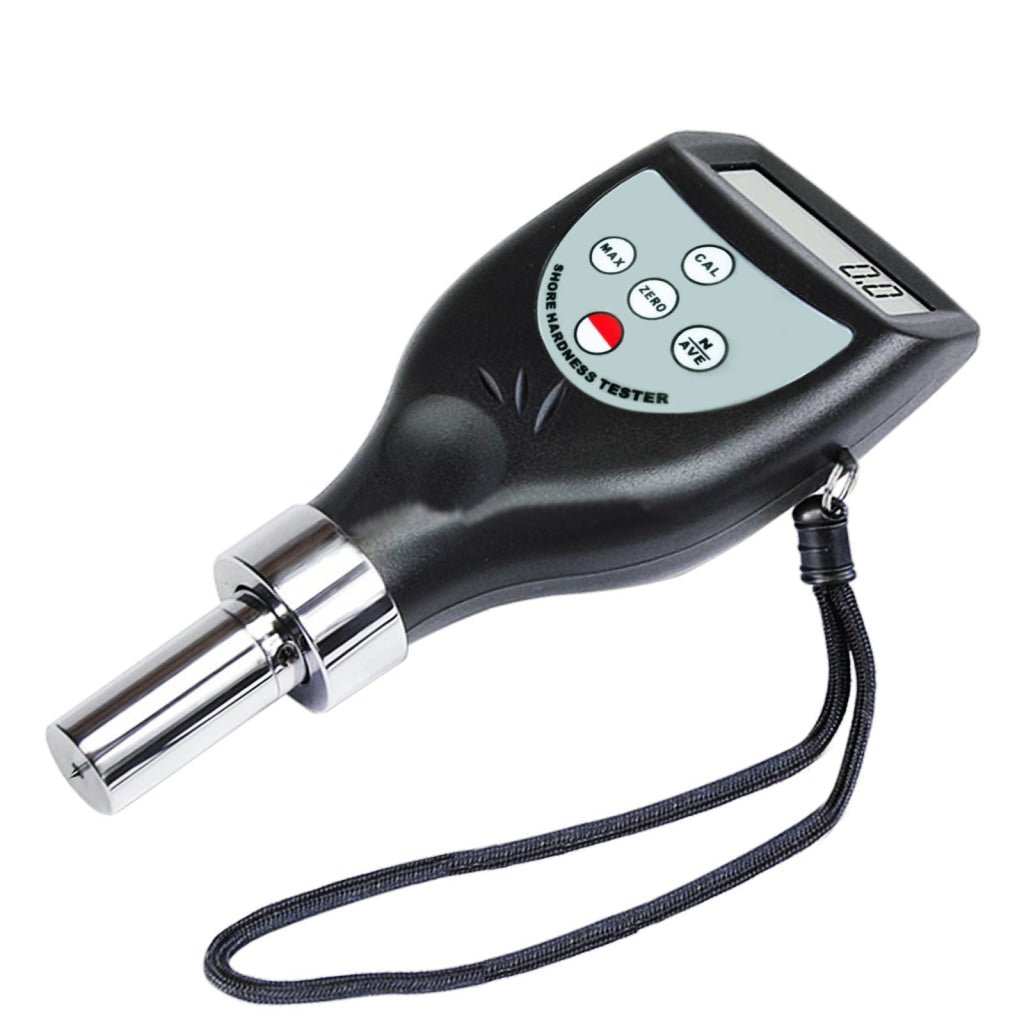

  • 1 x FREE Wrist Strap


Optional Item (not included in set)
          Please click here to buy this optional item CD Software and cables
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
