HM-6580 Leeb Hardness Meter Tester 170-960 HLD Metals Durometer D Type Impact Measurement Gauge Test Kit (HRB HRC HV HB HS HL) for Solid Aluminum Steel Iron Bronze 9 Materials


Quantity
  OR

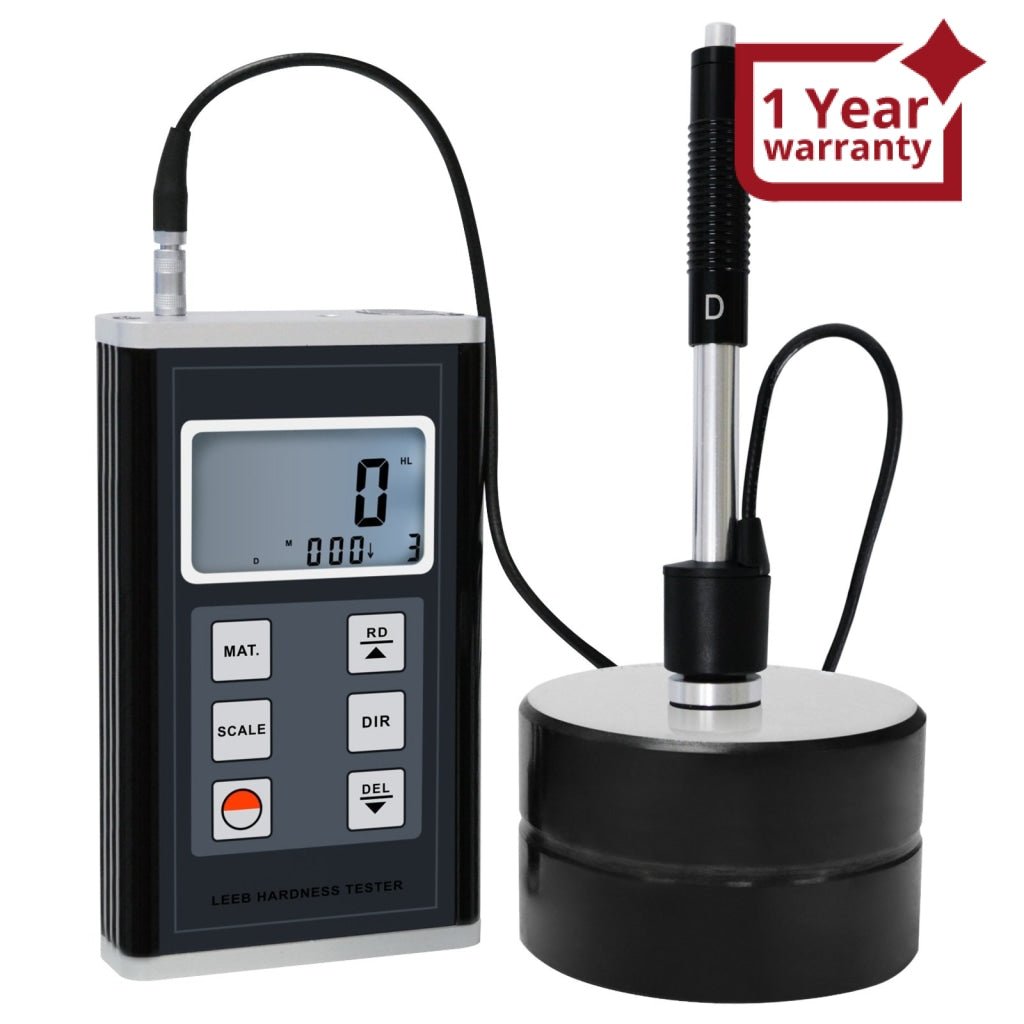

HM-6580 (Enhanced Type) Leeb’s Hardness Tester measures the hardness of sample material in terms of Hardness Leeb (HL), which can be converted into other Hardness units (Rockwell B and C, Vicker, Brinell and Shore D)

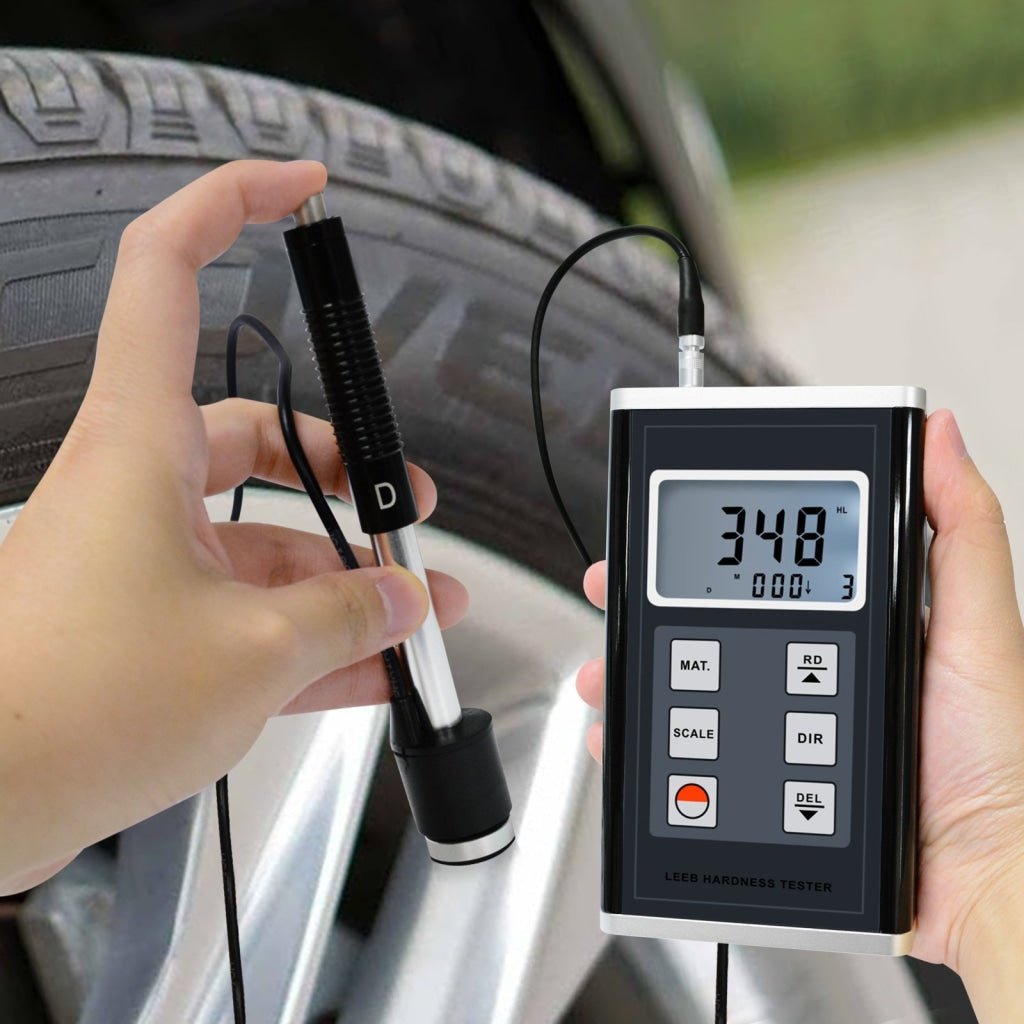

Typical Applications are:

  • Die cavity of molds
  • Inspection of bearing and other mass produced parts on a production line
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Inspection of installed machinery, permanent parts of assembled systems and heavy workpieces
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Instant testing in large range and multi-measuring areas for large-scale workpiece

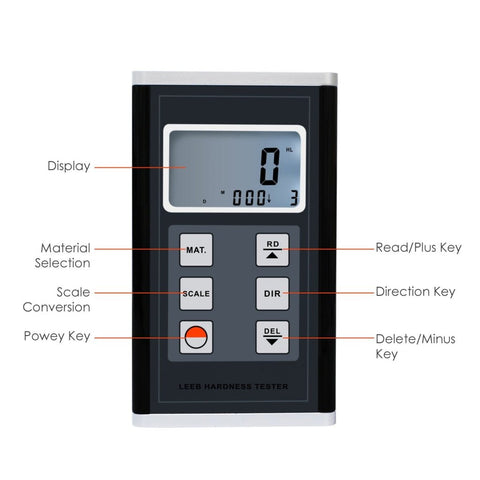

Features:

  • With solid aluminium alloy housing durable design and palm size for narrow space
  • Test at any angle, even when it is used upside down

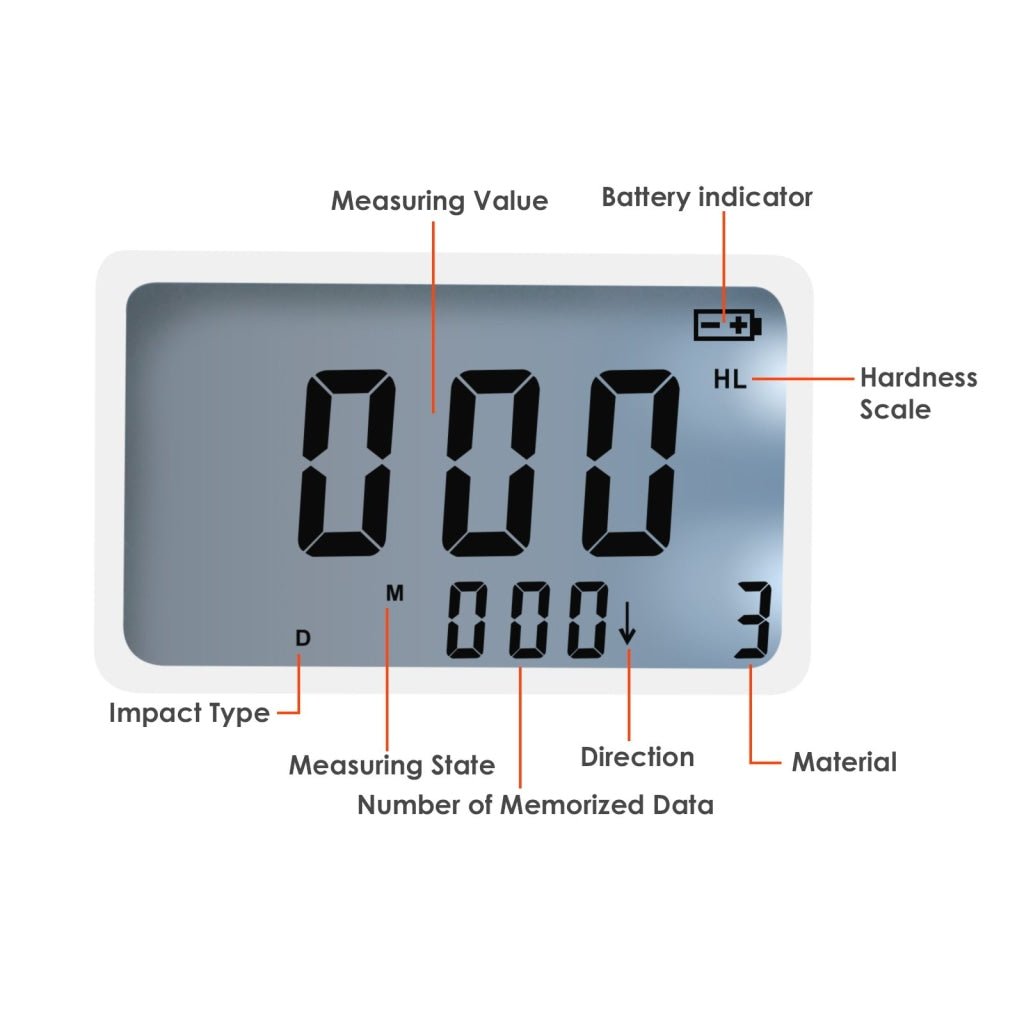

  • Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
  • Able to store 50 groups including single measured value, impact direction, material and hardness scale etc
  • User recalibration function allowed
  • Manual or automatic power off
  • Low battery indication
  • Average times setting

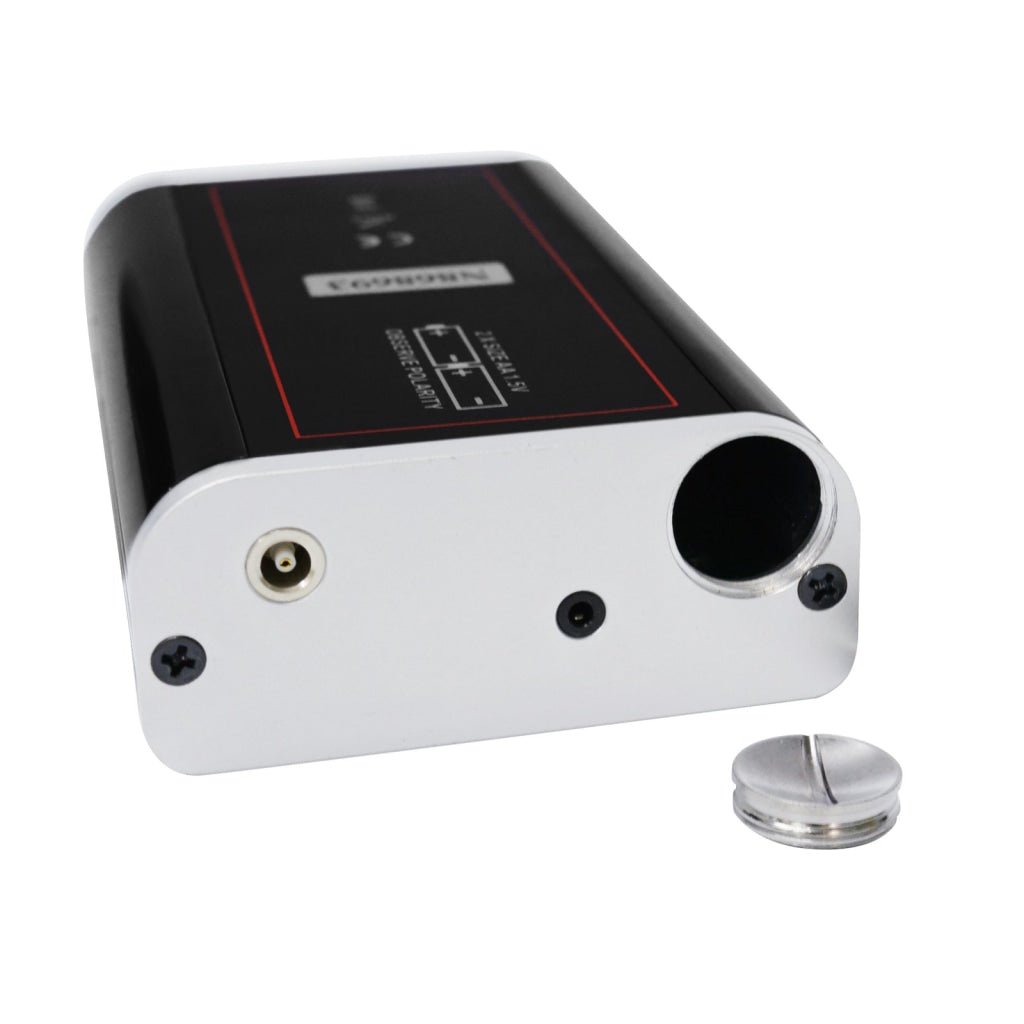

  • Use USB data output to connect with PC (cable and software not included in the set)
  • Provide Bluetooth data output choice (adapter and software not included in the set)


Specifications:

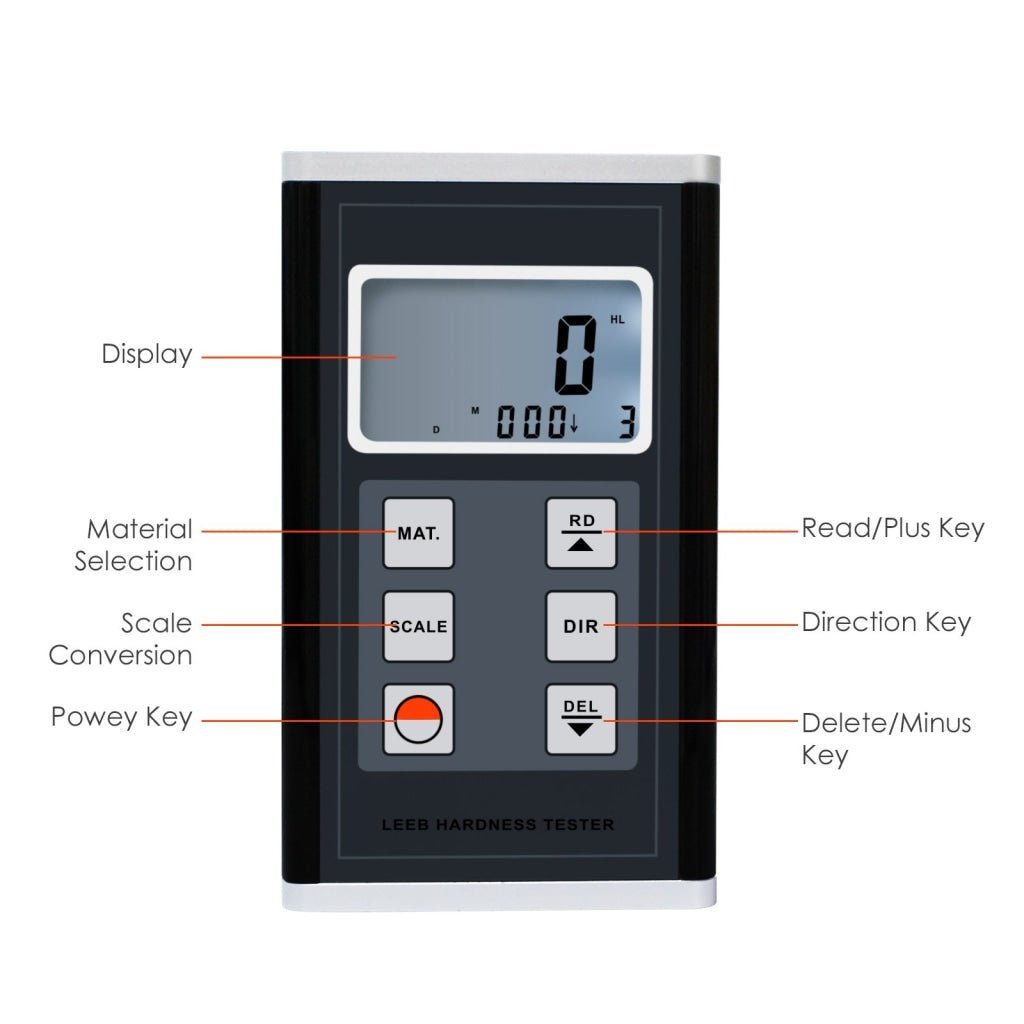

  • Display: LCD with backlight
  • Materials: 9 different common materials ( Steel & Cast Steel, C. W. Tool Steel, Stainless Steel,
    Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper )
  • Measuring Range: 170~960 (HLD)
  • Accuracy: Display Error ±0.8% at LD=900
  • Repeatability: ±0.6 %
  • Conversion: HL-HRC-HRB-HB-HV-HSD
  • Memory: 50 Data Can Be Stored And Re-readable

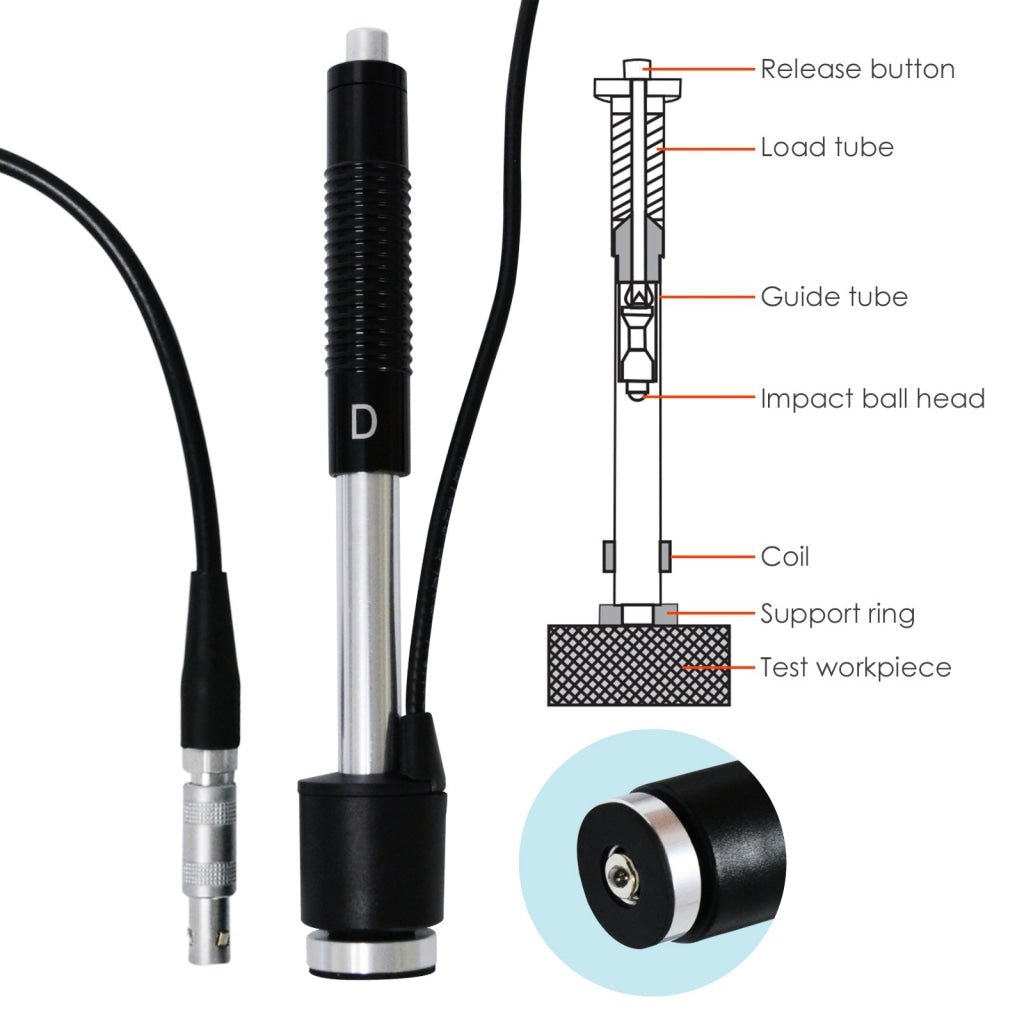

  • Impact device: Probe D Will handle the majority of hardness testing applications, Weight: 75 g
  • Storage Temperature: -30 ~ 60 °C
  • Operating Conditions
    • Temperature: -10 ~ 50 °C
    • Humidity: < ≤90% RH

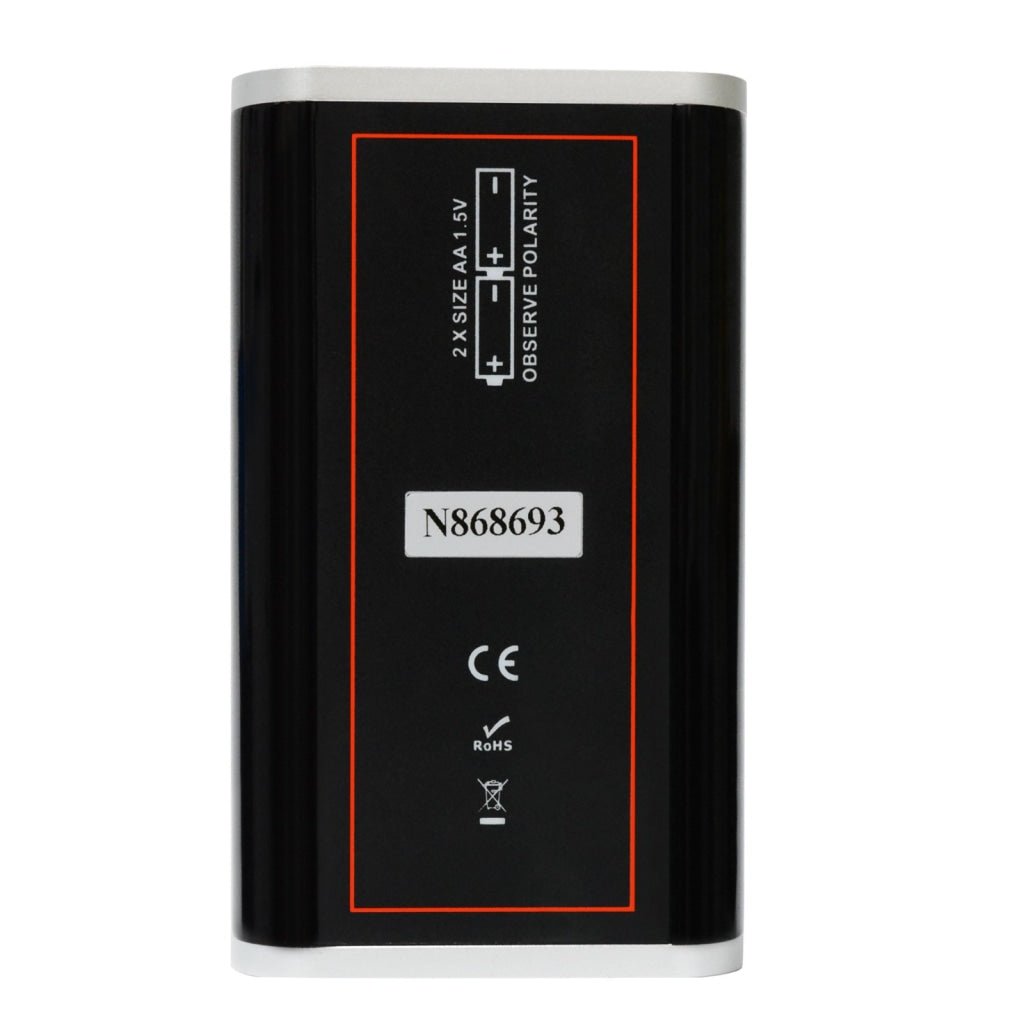

  • Power Supply: 2 x 1.5V AA (UM-3) Batteries

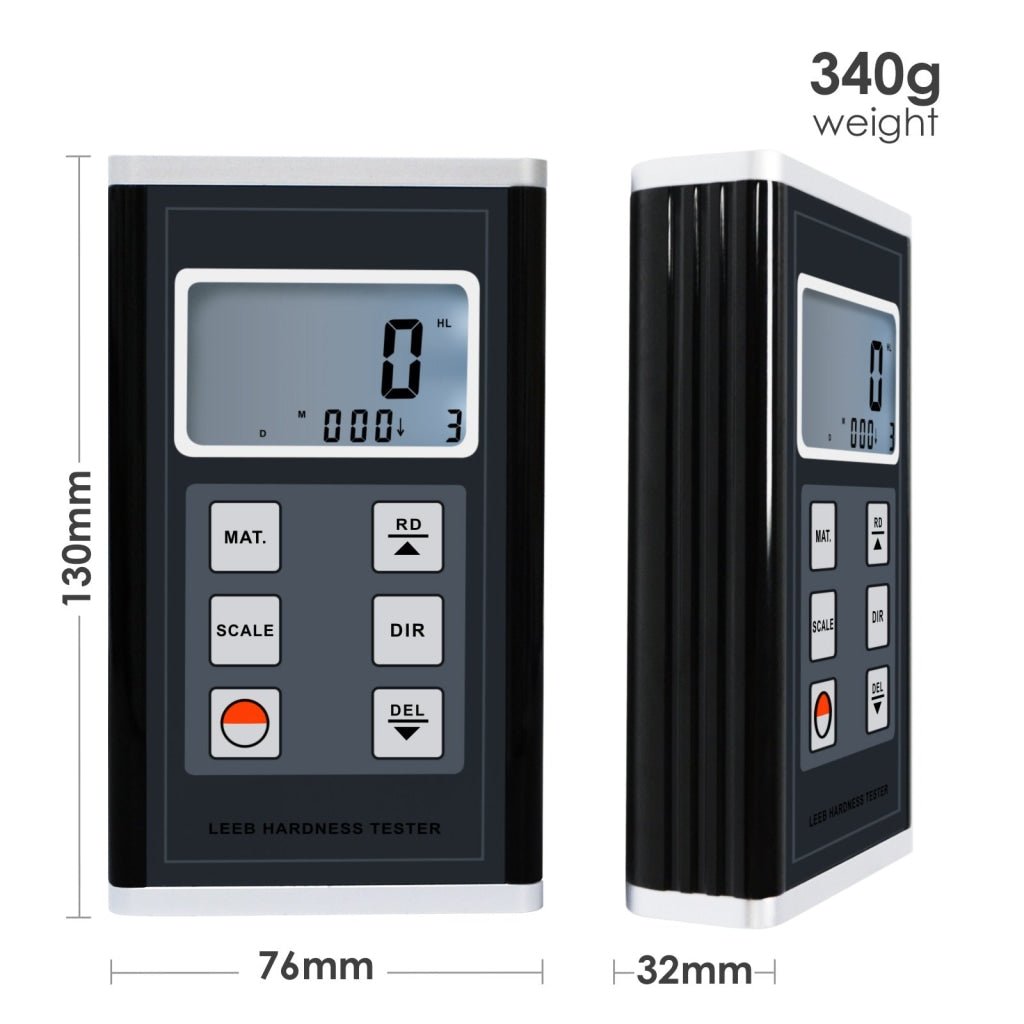

  • Dimensions: 130 x 76 x 32mm
  • Weight: 340 g (Not Including Batteries)

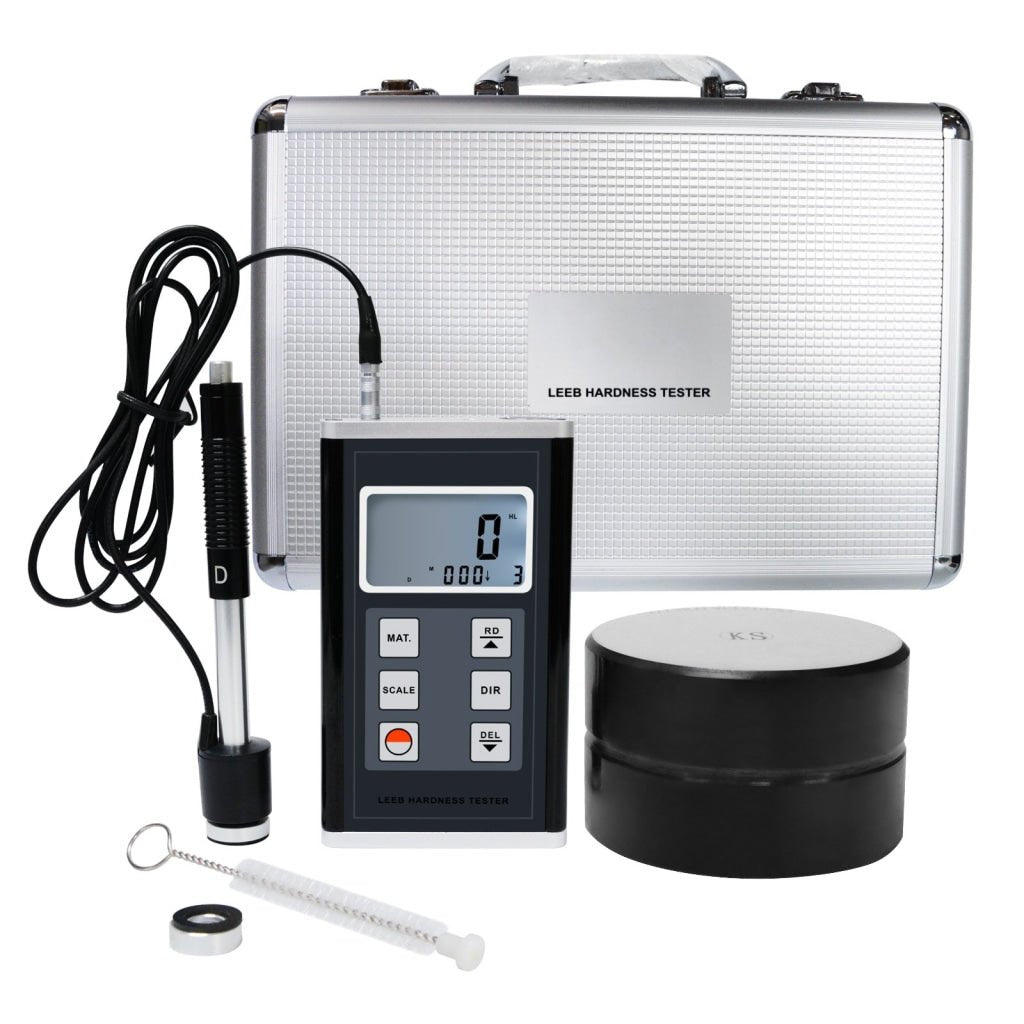

Set Includes:

  • 1 x Leeb Hardness Tester (main unit)

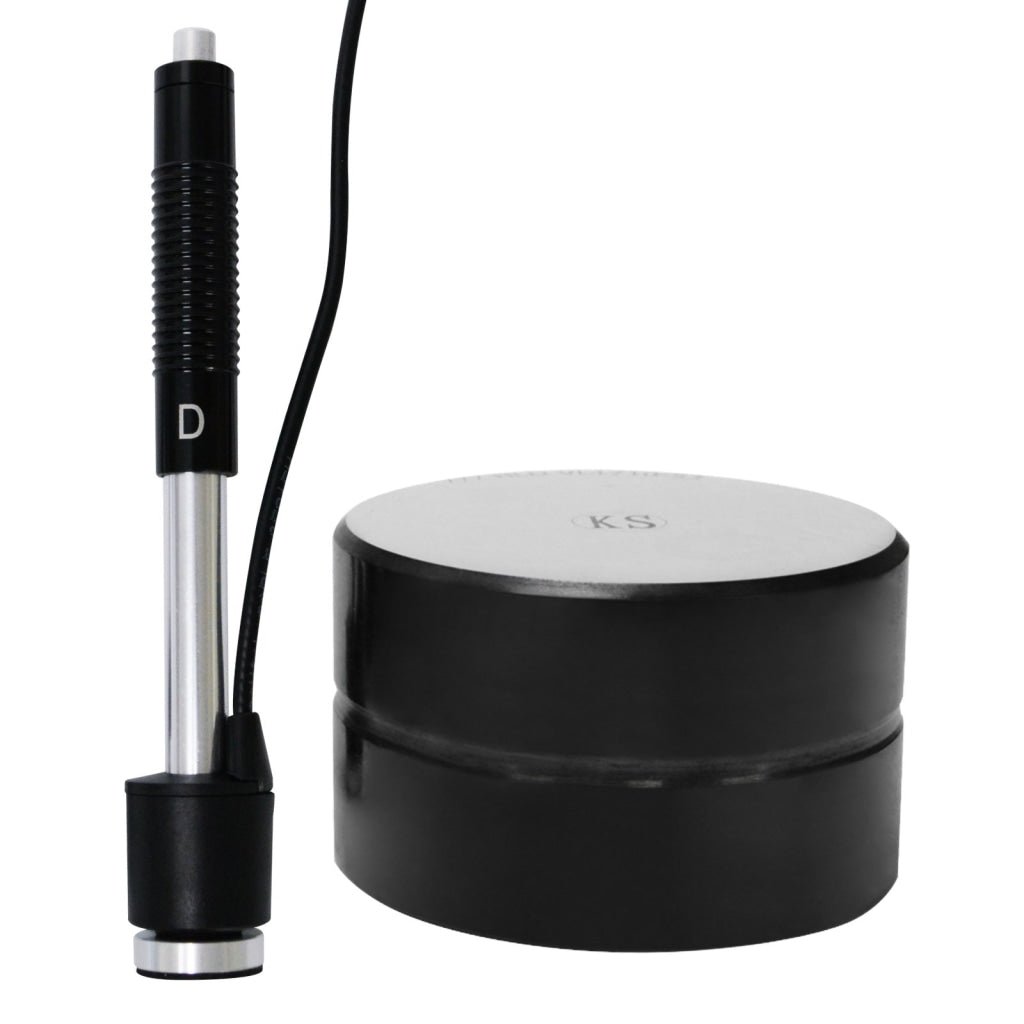

  • 1 x Probe With Cable
  • 1 x Standard Test Block
  • 1 x Small Support Ring
  • 1 x Cleaning Brush
  • 1 x English Instruction Manual

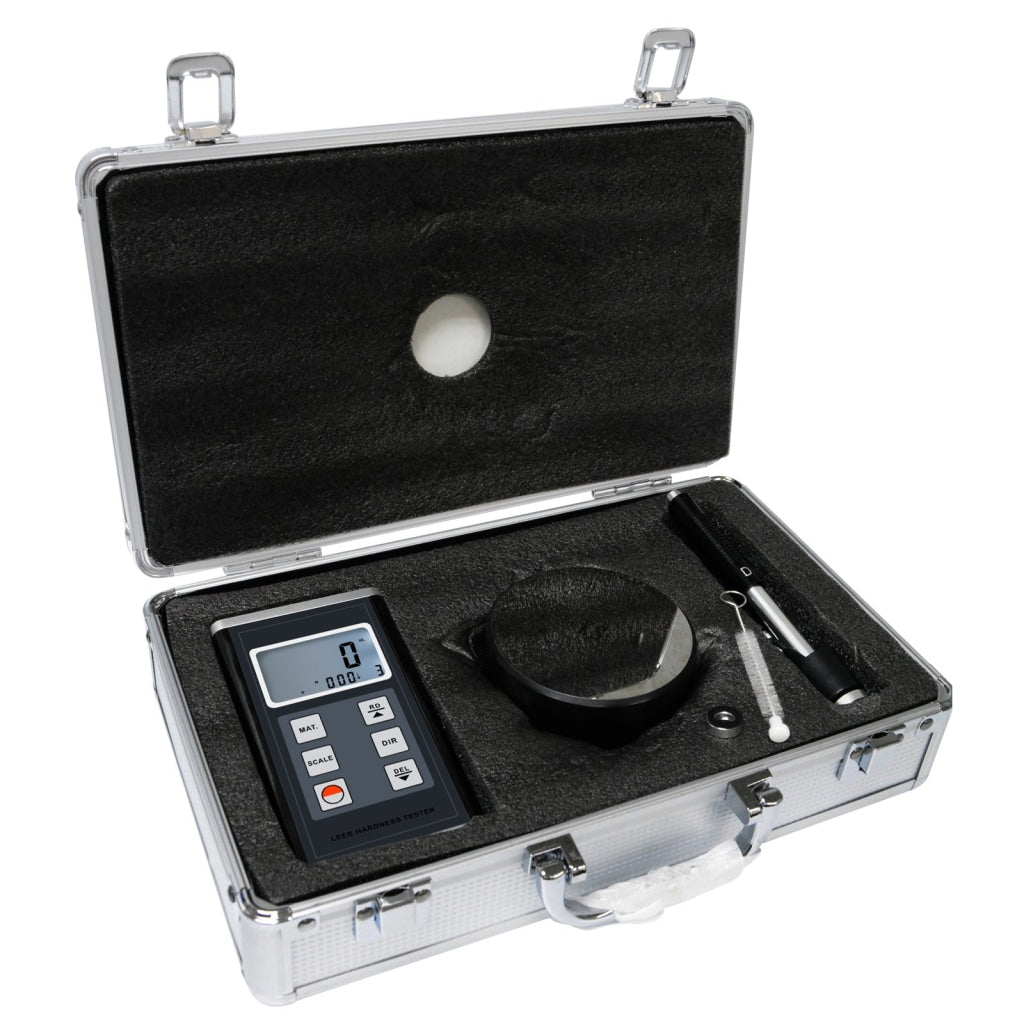

  • Carrying Case
