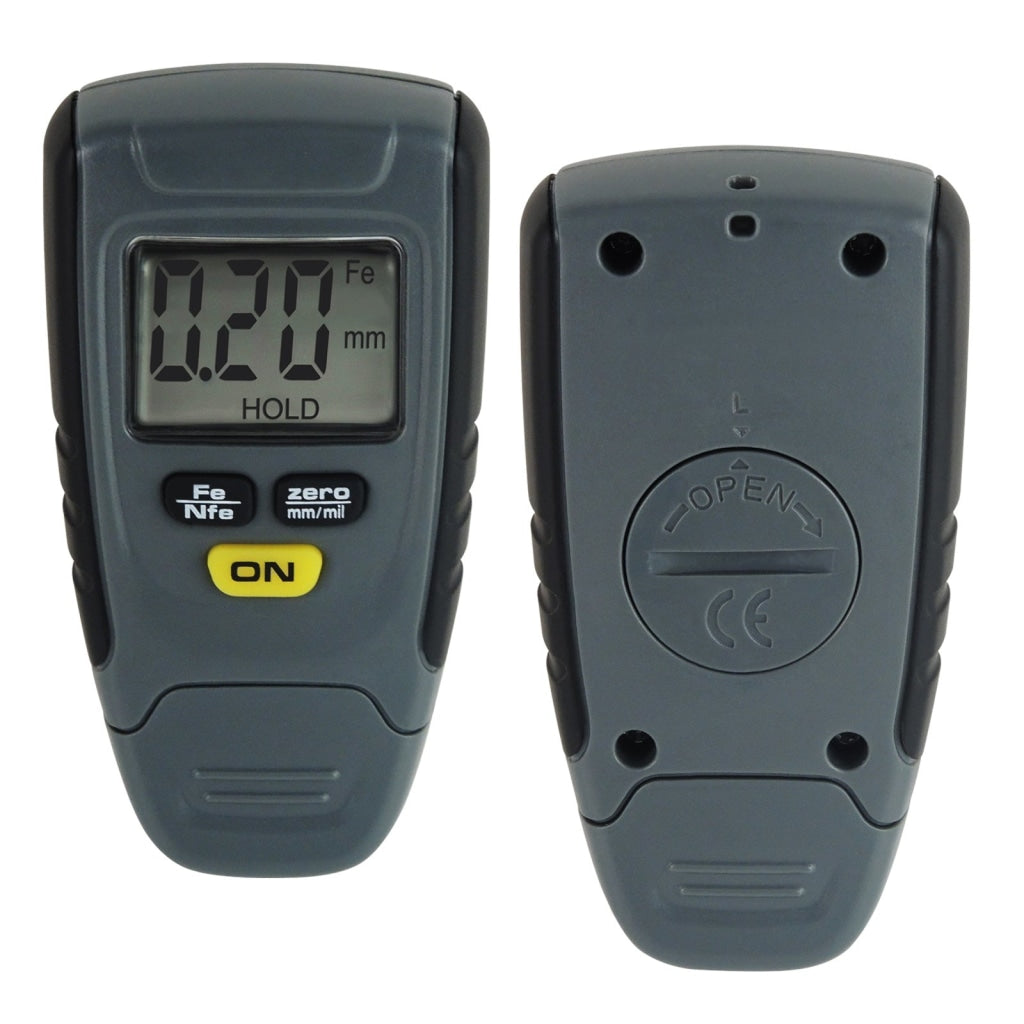

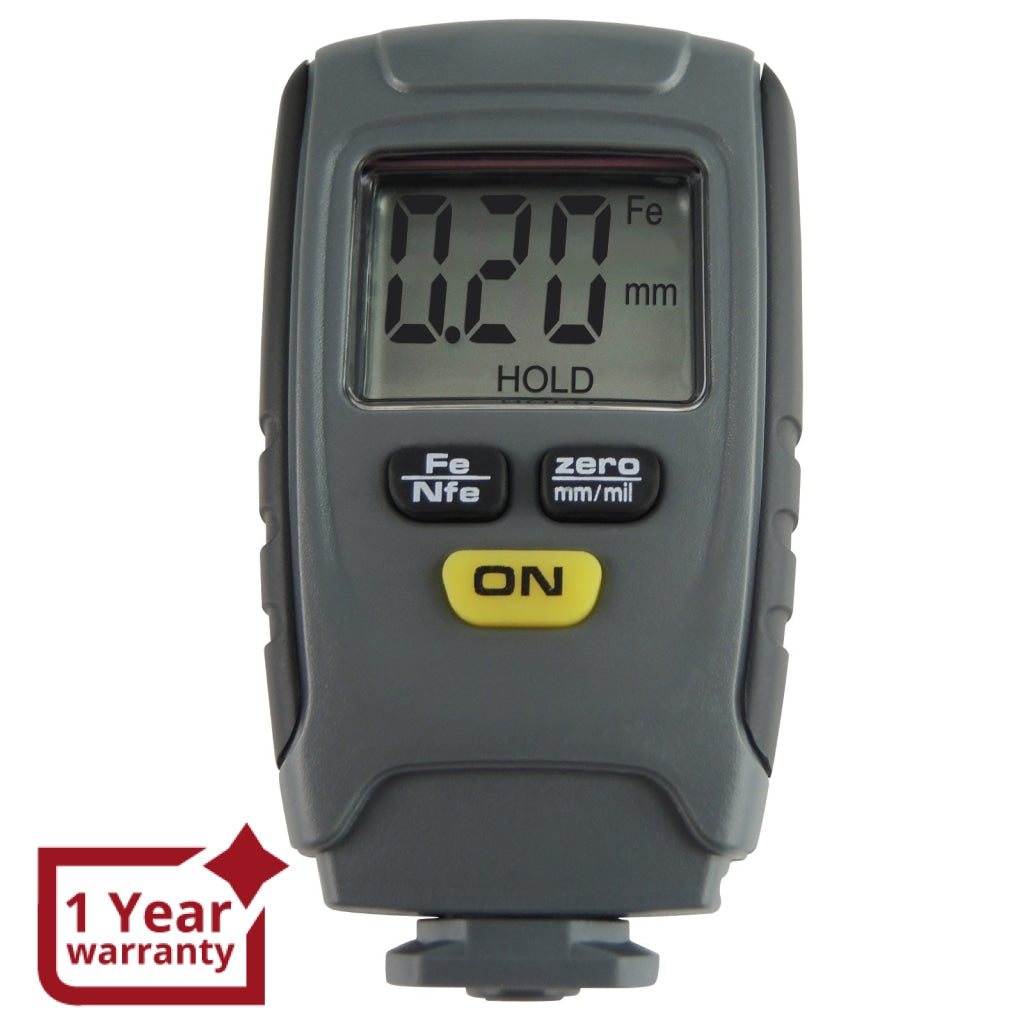

GX-CT01 Paint Coating Thickness Meter Tester Digital Gauge Car Automotive Tool

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

This Coating Thickness gauge adapts Electromagnetic Induction principle and magnetic Induced EDD current. It can measure the thickness of non-metal coatings on metal surface.

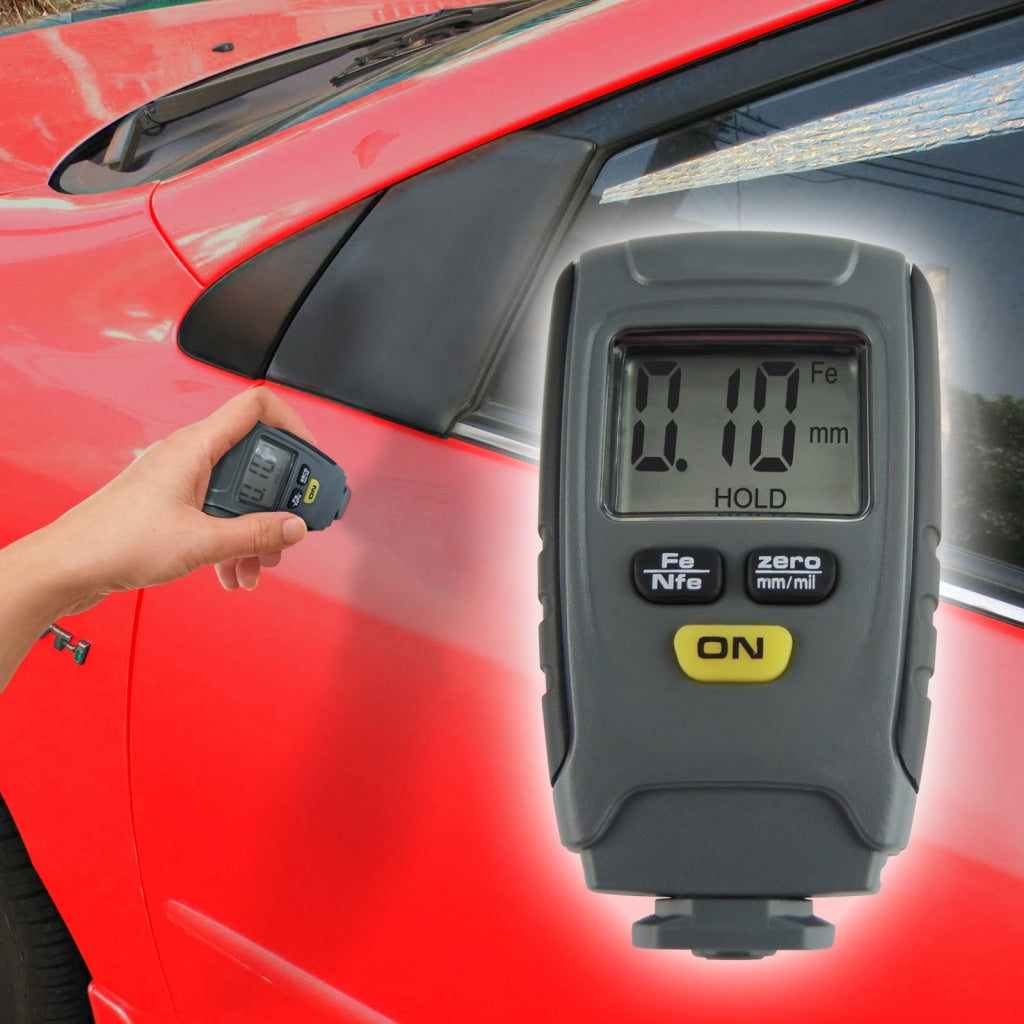

This unit is ideal for manufacturing company, metal machinery industry, chemical industry, and commodity inspection especially in automobile trading.

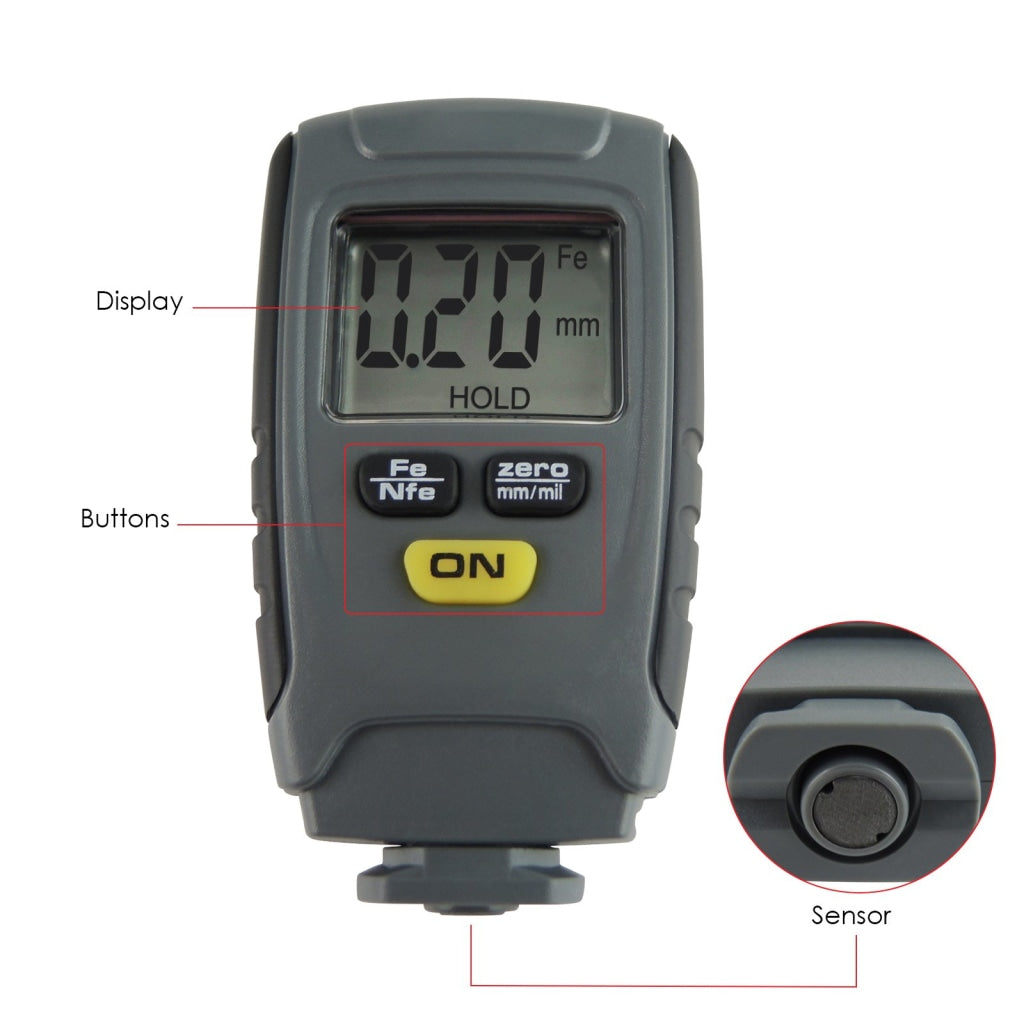

  • Digital LCD display
  • Data HOLD function

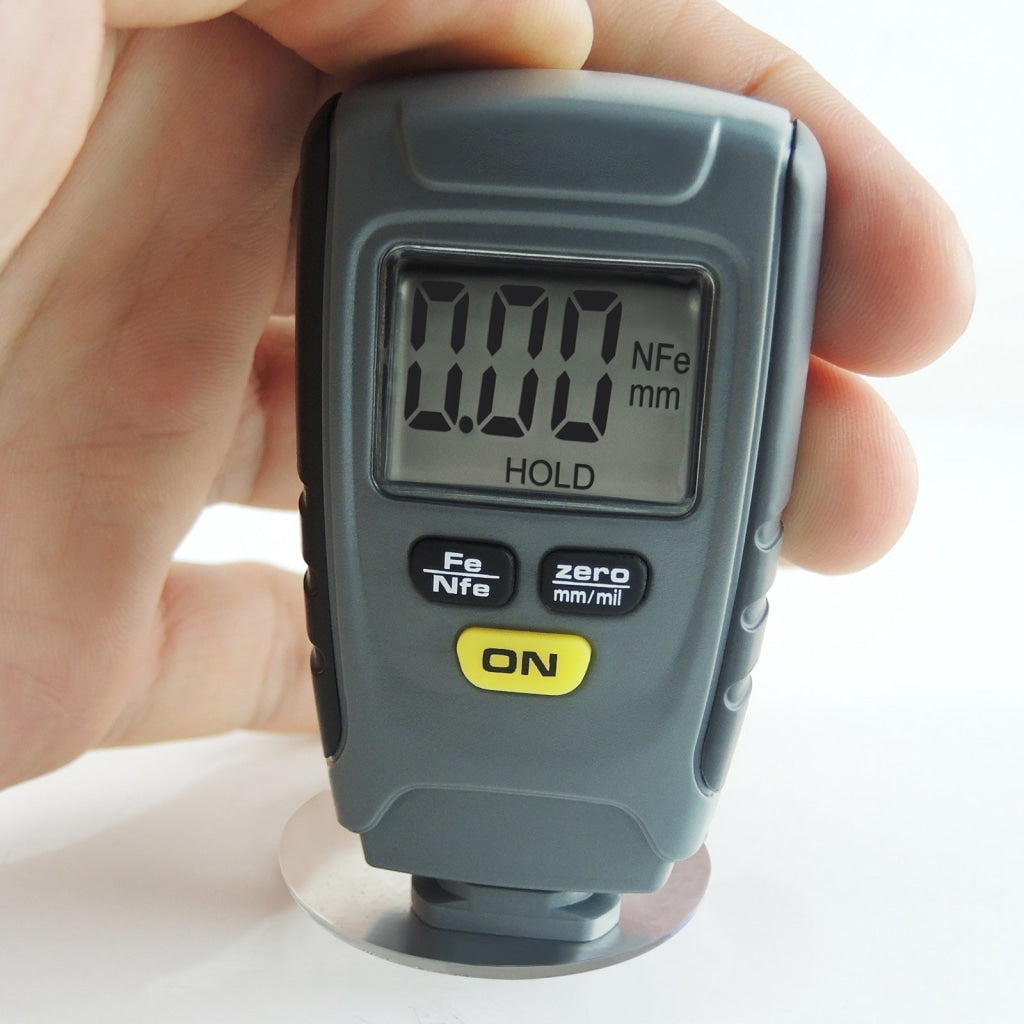

  • Zero calibration

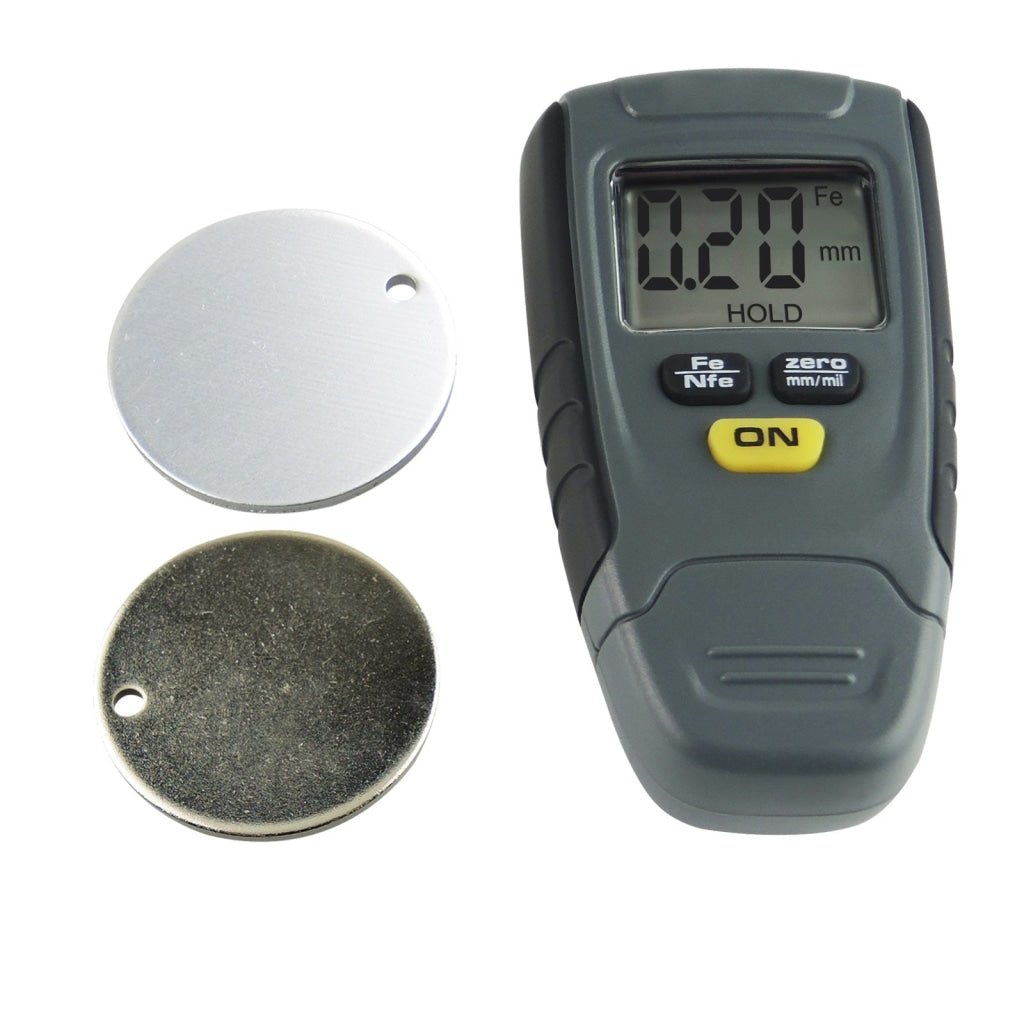

  • Comes with iron base and non-iron (aluminum) base
  • Portable, user friendly and easy to carry even in pocket
  • Low battery indication
  • Auto shut-off if no operation in 1 minute



  • Target Measure: Non-metal coating thickness on the metal surface

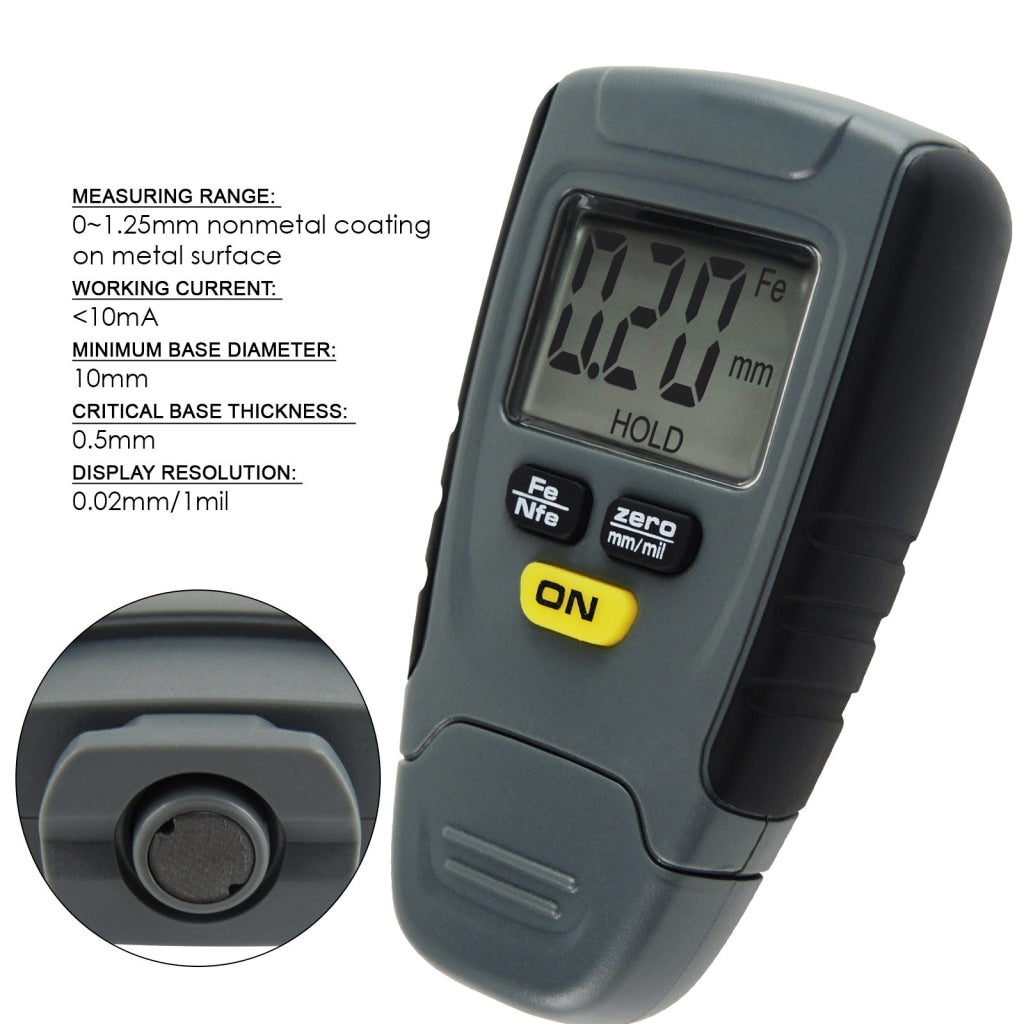

  • Measuring Range: 0~1.25mm nonmetal coating on metal surface
  • Precision Measurement: 2% RDG 0.02mm [2% RDG ±1mil (steel and aluminum only)]
  • Power Supply: 1 x 3V CR2032 button battery
  • Working Current: <10mA
  • Auto Power off time: No actions in 1 min if leave the measured object
  • Minimum base diameter: 10mm
  • Critical base thickness: 0.5mm
  • Display resolution: 0.02mm/1mil
  • Operating Environment
    • Temperature: -5~40°C
    • Humidity: 5~95%RH non condensing
  • Storage Environment
    • Temperature: -20~60°C
    • Humidity: <85%RH (without battery)

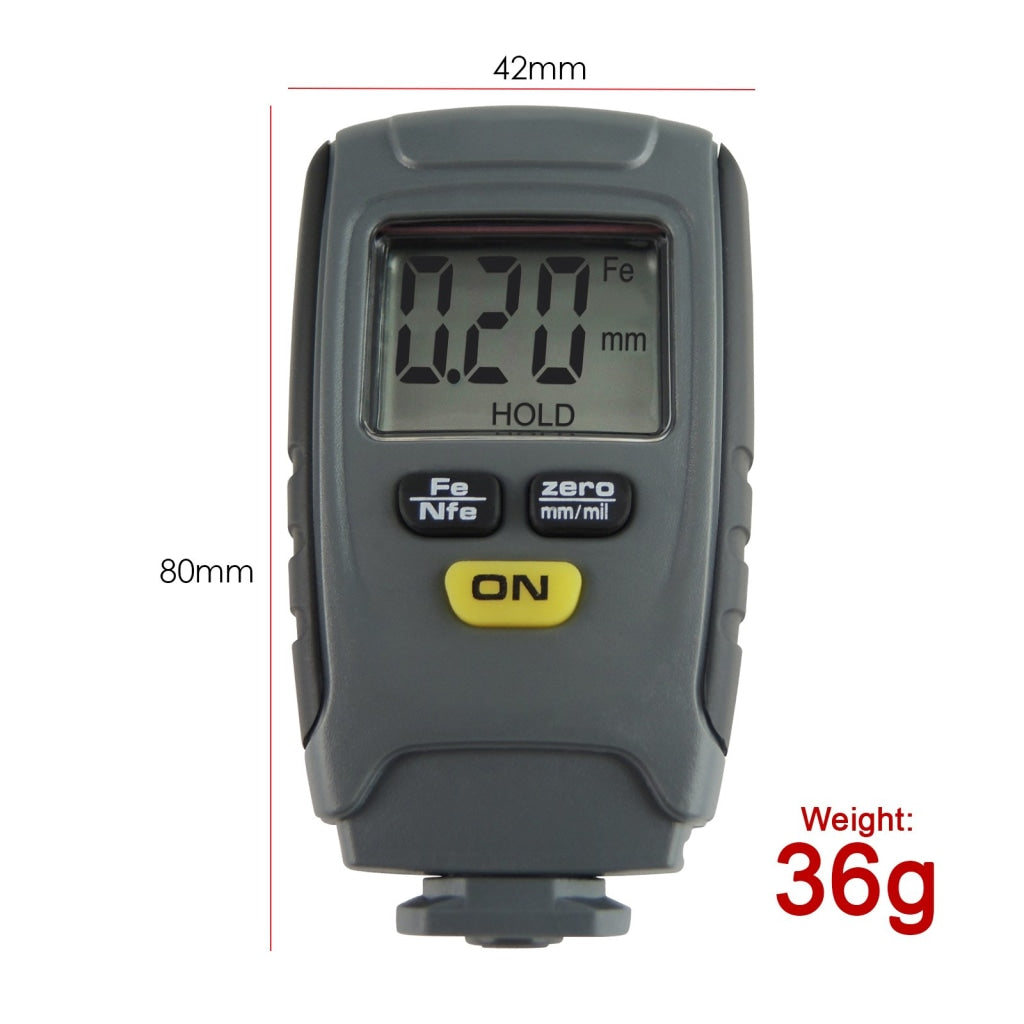

  • Dimensions: 80 x 42 x 24mm
  • Weight: approx. 36g (without battery)

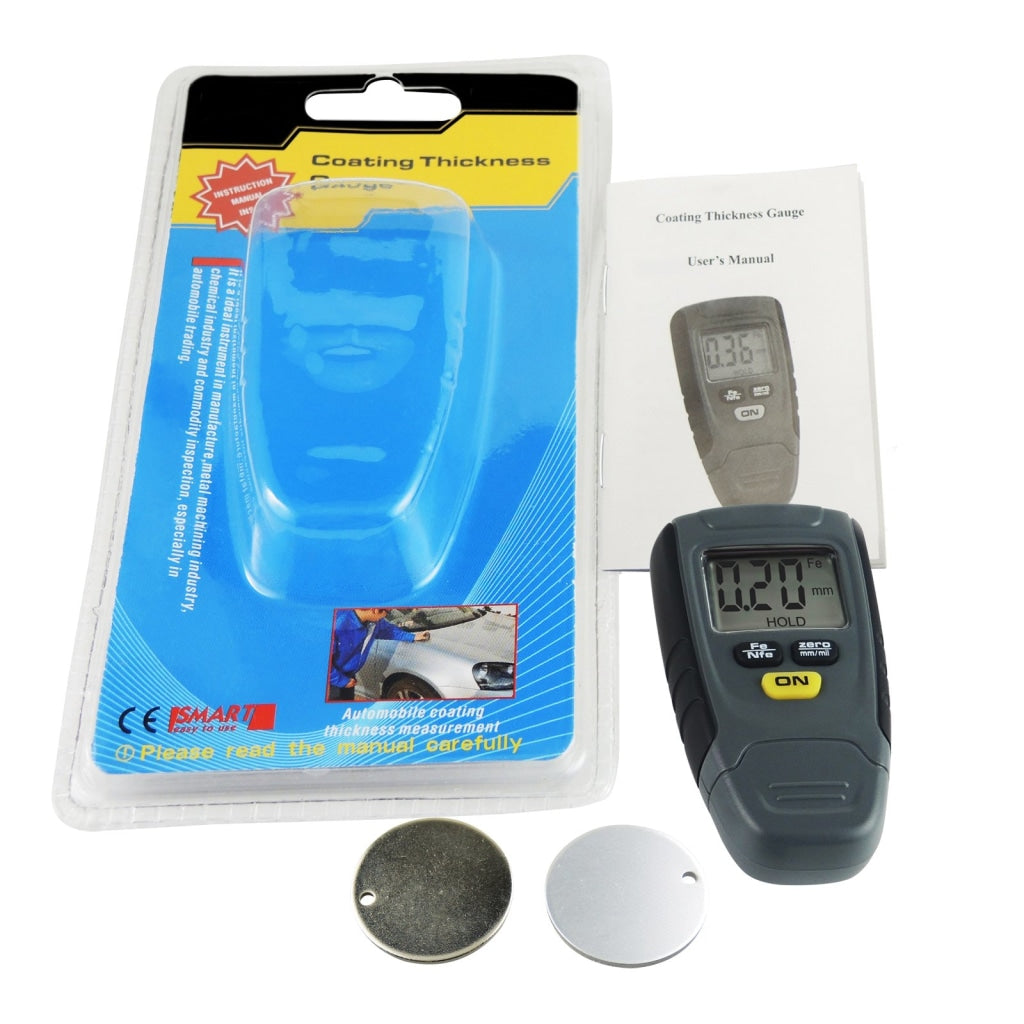

Set Includes:

  • 1 x Mini Thickness Meter
  • 1 x 3V CR2032 Battery (FREE)
  • 1 x Iron Base
  • 1 x Aluminum Base
  • English Quick Start Guide


We sell and ship this product everywhere, except USA, Canada and Australia.
