GM-268 Portable Multi Gloss Meter Tester With 4 Digits Backlight LCD


Quantity
  OR


Model : GM-268

Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating),Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Features:
  • In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
  • Accurate measurement, good repetitiveness.
  • Small in size, easy to carry.
  • Auto calibration.
  • Intelligent design, rapid measurement.
  • Able to store 254 groups of measurements.
  • Built-in lithium ion rechargeable battery.
  • Back-light display, suitable for low light environment

Specifications:
  • Display : 4 Digits Back-light LCD
  • Measuring Geometry : 20 / 60 / 85 Degrees (GM-6: 60 Degrees, GM-26: 20 Degrees and 60 Degrees)

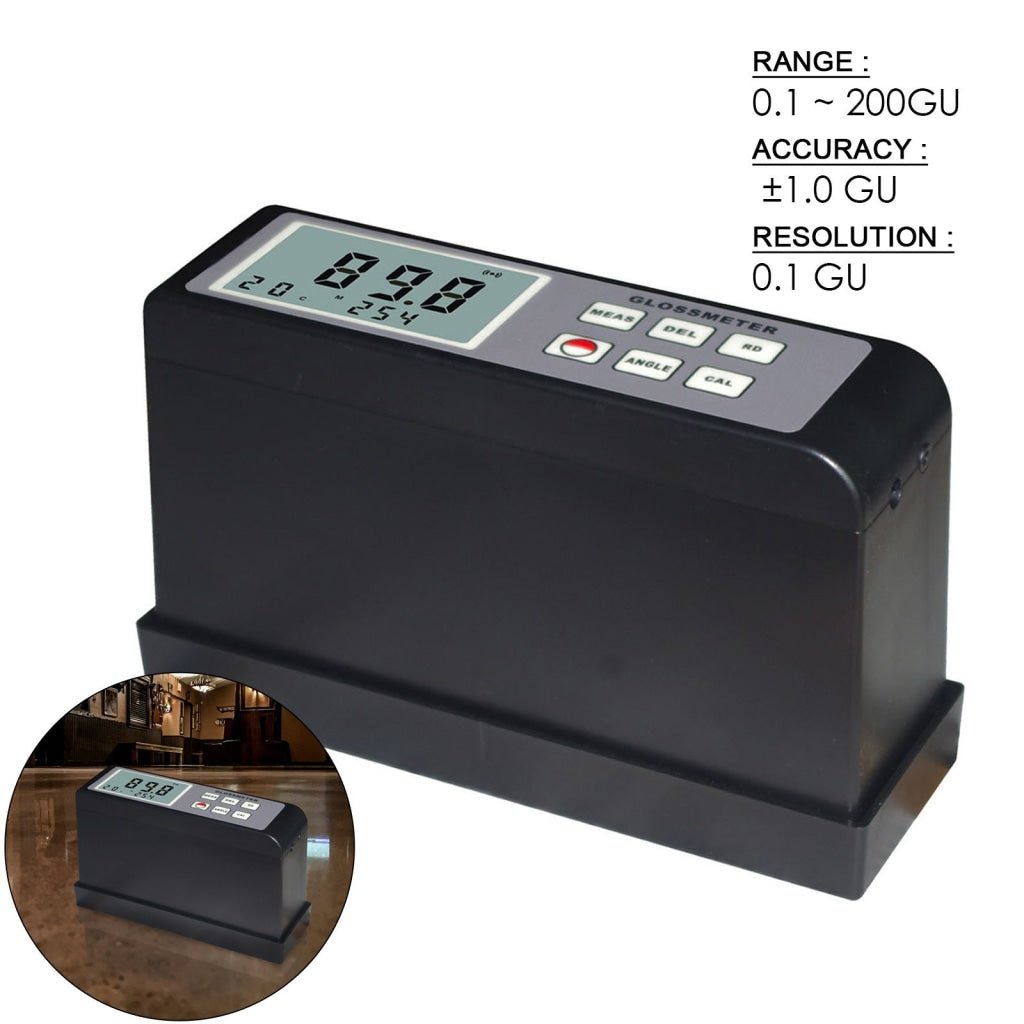

  • Range : 0.1 ~ 200 Gloss Units
  • Gloss Units : GU
  • Accuracy : ±1.0 GU
  • Resolution : 0.1 GU
  • Repeat ability : ±0.5 GU
  • Measuring Area : 7 x 14 mm (Ellipse)
  • Data Memorized : 254 Groups
  • Working Condition
    • Temperature : 0 ~ 40°C
    • Humidity : <85%
  • Power Supply : 3.7V Built-in Lithium Ion Rechargeable Battery

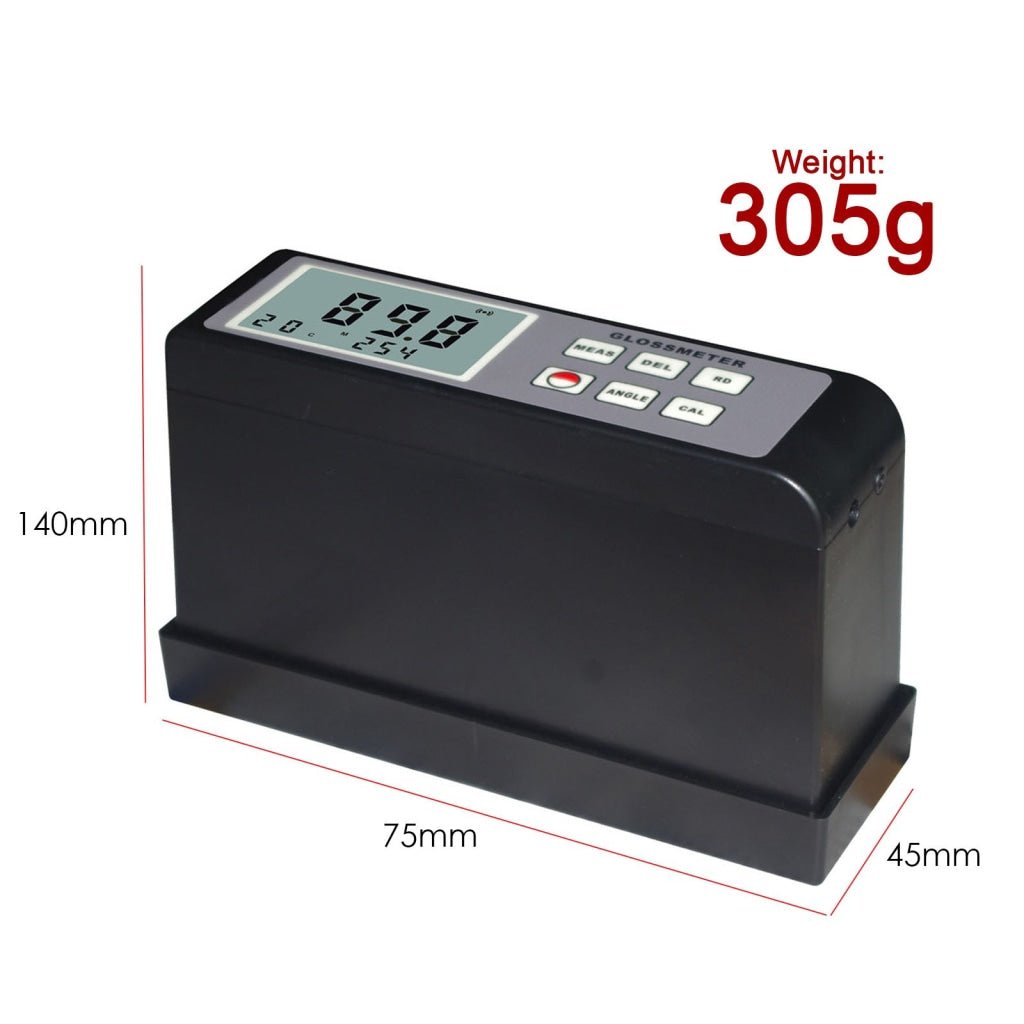

  • Dimensions : 140 x 45 x 75mm
  • Weight : 305 g (including fitted Batteries)



Set Includes:
  • Main Unit
  • Holder With Calibration Standard
  • AC Adapter
  • Optical Cleaning Cloth
  • Carrying Case(B07)
  • English Operation Manual

Optional Accessories: (not included on set)
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
  • USB, RS-232 Data Cable With Software
  • Bluetooth Data Out put With Software
